Feature Extraction from MEMS Accelerometer and Motion Tracking Measurements in Comparison with Smart Bands during Running ^†

Abstract

Athlete monitoring is a major field of interest for professional and recreational runners as well as for coaches to improve performance and reduce injury risk. The development of inertial sensors in recent years offers the opportunity to improve the number of monitored training sessions significantly. This research used a self-developed inertial sensor in conjunction with a motion tracking system and four smart bands to record the runner’s movement and extract parameters such as step numbers and frequencies. The data recorded were calibrated before it was high-pass filtered to remove gravity components from the signal. A peak detection algorithm was developed to find the number of steps, which have been further used to compare the different systems (IMU, motion capture, smart bands) and find their agreement. The results showed a very strong correlation between the IMU and the motion tracking system of r² = 0.998, and an r² = 0.996 between the IMU and one smart band.

1. Introduction

The investigation of the performance of runners is of great interest for athletes and coaches. Technology used usually includes mostly video camera systems [1], GPS devices [2], and contact force plates [3]. Video camera systems are usually very difficult to install, to operate and very expensive. Additionally to the long setup process a time consuming digitization process has to take place before data analysis can be undertaken. Due to this complexity in conjunction with the low availability of this expensive systems, athlete tracking cannot be conducted for every training session. GPS devices allow the tracking of the exact point in the Euclidian space but they need a direct line of sight to the satellites which limits the use of these devices to outdoor training sessions. These GPS devices are also very costly which reduces its usage to professional athletes only. While major improvements in an athlete’s running style can be seen by an experienced trainer without the help of technical equipment, the trainer will need the help of this kind of equipment to investigate minor improvements in the athlete’s technique.

In recent years smart bands have become more available majorly due to their reduction in weight, size, and price. These devices are capable of measuring the number of steps and use these values to estimate the calories burned and distance travelled during the run. The data is usually transferred to a smartphone which allows keeping a training record for the athlete. In contrast to these smart bands, accelerometers have been used by many researchers to find gait phases, lean angles, accelerations, and velocities of runners [1,2,4,5]. There is no validation study, to our knowledge, which compared steps derived from smart bands with other measurement systems like IMU’s and motion tracking systems.

This study aims to firstly compare the data collected from the IMU and the motion tracking system (considered gold standard in athlete monitoring) to find their agreement and secondly to compare data collected from four different smart bands with data collected from the other measurement systems to find the agreement.

2. Methods

2.1. Instrumentation

This study used a custom designed inertial measurement unit (IMU) which contains a tri-axial accelerometer with a range of ±16 g, tri-axial gyroscope (2000 degrees per second), a tri-axial magnetometer and radio capabilities as the first reference system [6]. The IMU was set to record at a sampling rate of 100 Hz. A treadmill U.N.O. LTX6 Professional (Beny Sports Germany GmbH, Nuernberg, Germany [7]) was used as a second reference system. The four different smart bands used were: Fitbit Alta (Fitbit Inc, San Francisco, USA [8]), Samsung Gear Fit SM-R350 (Samsung Electronics GmbH, Schwalbach/Taunus, Germany [9]), Vidonn X6 (Vidonn Information Technology Co. Ltd., Shenzhen, China [10]), and Xiaomi MiBand 2 (Xiaomi Singapore Pte. Ltd., Singapore, Singapore [11]). The motion tracking system used in this research is consisting of 8 NaturalPoint OptiTrack Prime 13 cameras (Natural Point Inc., Corvallis, OR, USA [12]) which were calibrated before the experiments were started and the motion tracking software Motive [13]. The motion tracking system was set to record at a sampling rate of 200 Hz. The IMU was attached at the center of an Optitrack Riged Body Base (Part number MCP1145) with three Optitrack M4 12.7 mm markers (Part number MKR127M4) attached to this base to form an trackable rigid body object.

2.2. Data Collection

Six participants (

Table 1. List of participants with their height, mass, experience, and gender.

Participant Number	Height (cm)	Mass (kg)	Experience	Gender
1	185	82	Novice	Male
2	161	67	Novice	Male
3	167	57	Novice	Female
4	176	89	Recreational	Male
5	171	62	Recreational	Male
6	166	65	Triathlete	Female

) with varying experience levels took part in this study which has been approved by a universities ethics committee. Data were collected in a laboratory. Each participant started with a low effort running trial which was basically used as a warm up run followed by another trial at low effort, two trials at medium effort and one trial at full effort each 5 min long. The speed of the running trial was set on the treadmill and was either 6 $\raisebox{1ex}{$m$}\!\left/ \!\raisebox{-1ex}{$s$}\right.$–8 $\raisebox{1ex}{$m$}\!\left/ \!\raisebox{-1ex}{$s$}\right.$–10 or 8 $\raisebox{1ex}{$m$}\!\left/ \!\raisebox{-1ex}{$s$}\right.$–10 $\raisebox{1ex}{$m$}\!\left/ \!\raisebox{-1ex}{$s$}\right.$–12 $\raisebox{1ex}{$m$}\!\left/ \!\raisebox{-1ex}{$s$}\right.$ for low–medium–full effort respectively. The efforts were chosen by the participants in agreement with their self-judged experience and capabilities. As this study investigated the different technologies rather than the different participants it can be assumed that the speed of the different trials could be neglected.

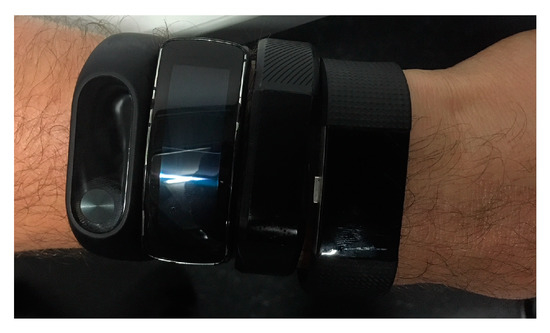

The IMU was attached to the sacrum of the participant by either using a belt or alternatively a velcro and special training pants. The vertical direction (aligned with the spine) was represented by a_x, the mediolateral direction by a_y, and the anterior-posterior (aligned with forward direction) by a_z. The smart bands were worn on the left lower arm in the order: FitBit, Vidonn, Samsung, and Xiaomi starting from the hand (Figure 1).

The measured distance and calories from the treadmill as well as the data recorded by the smart bands were manually recorded while the measured data from the IMU were downloaded wirelessly into MATLAB^® at the end of each running trial.

2.3. Data Analysis

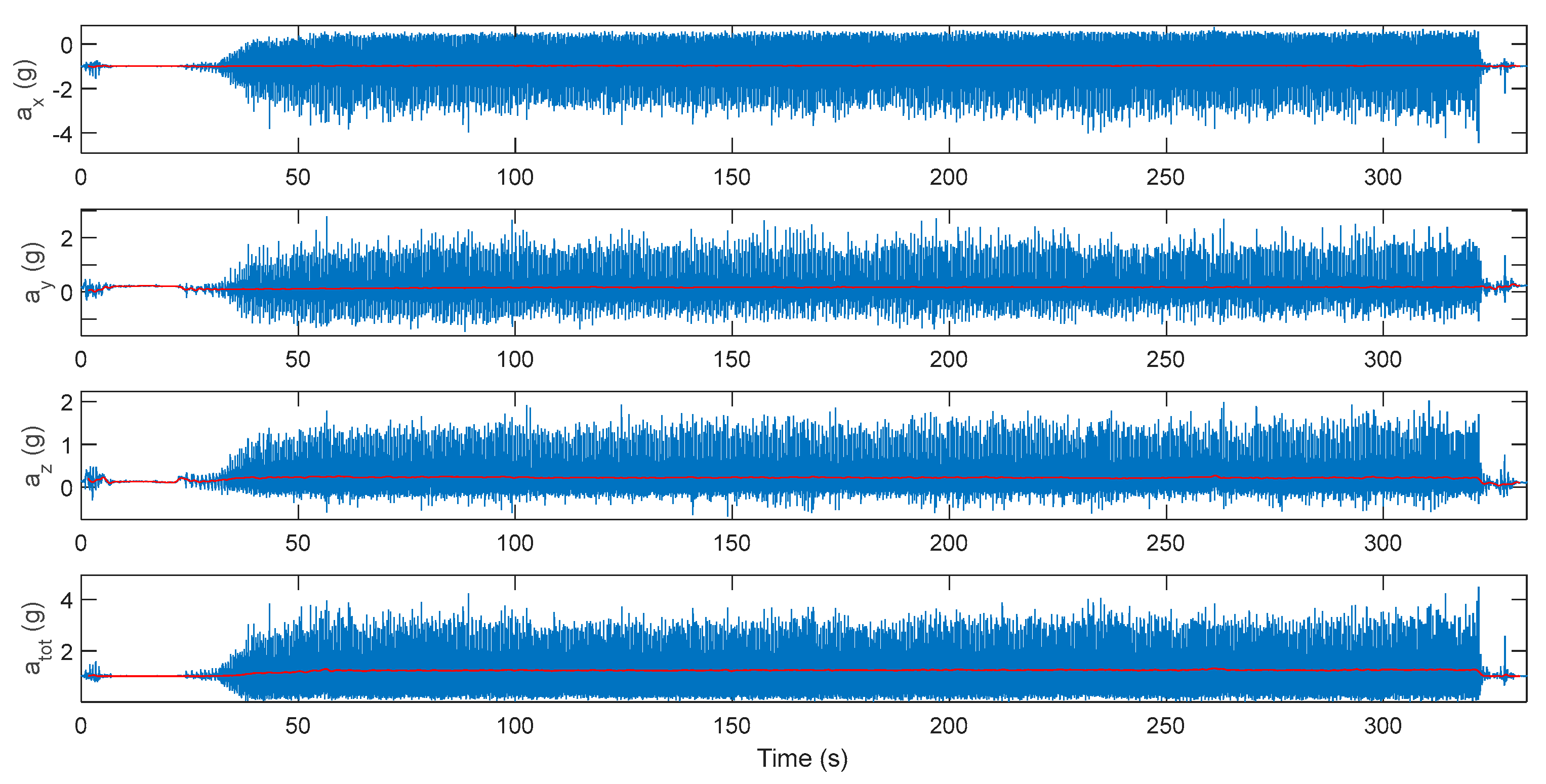

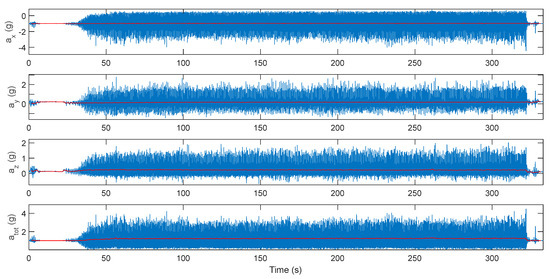

The downloaded acceleration data collected by the IMU was firstly calibrated using a calibration method similar to the method described by Lai et al. [14] before it was high-pass filtered using a Hamming windowed FIR filter with a 0.5 Hz cut-off frequency as described by Stamm et al. [15]. This was done to remove the sensor orientation from the acceleration signal (gravity removal). Figure 2 presents a data set recorded by the IMU of one running trial (participant 1, blue) with the overlapped filtered gravity component (red).

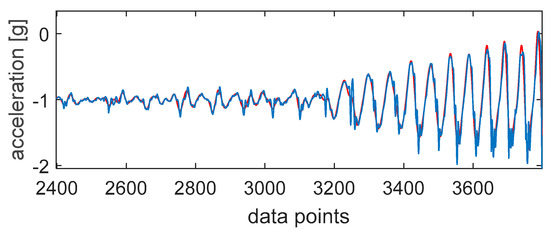

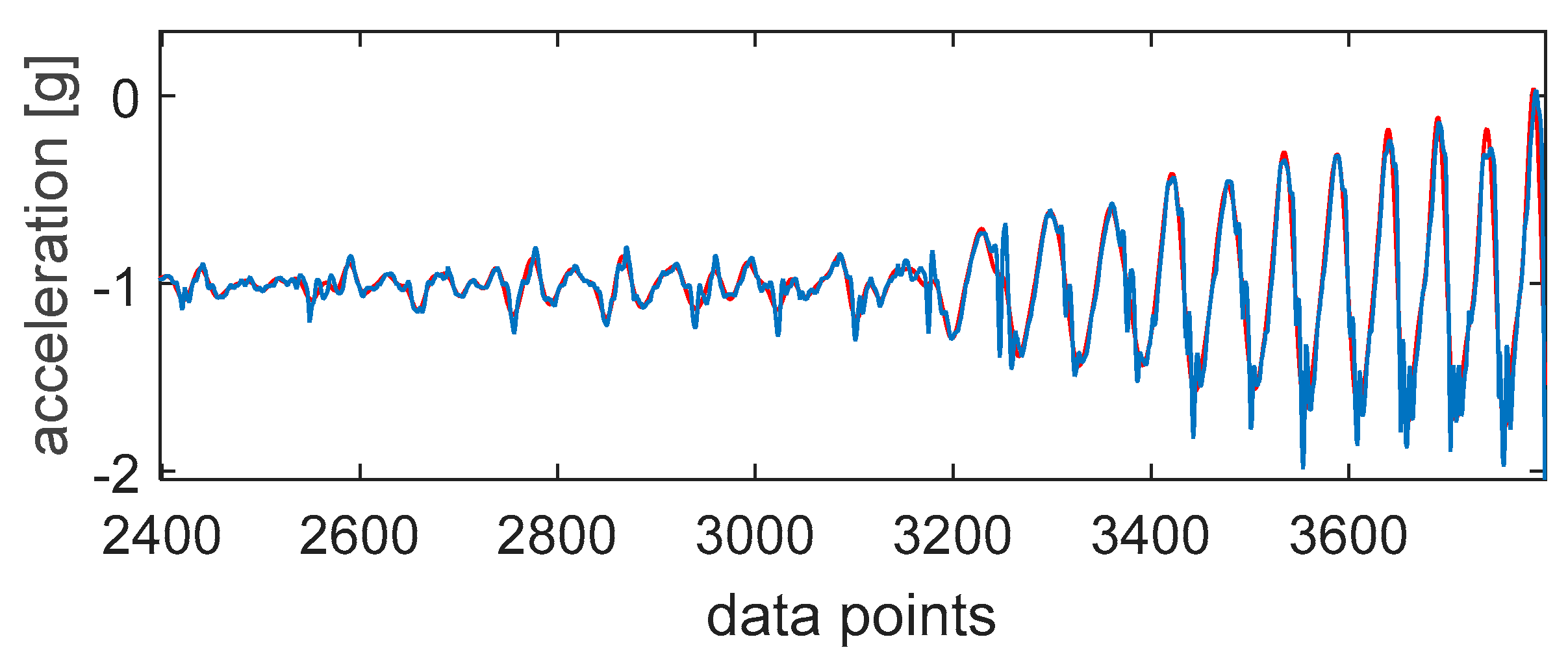

The vertical direction was further investigated to find the number of steps. This was achieved by applying a peak detection algorithm after the vertical direction data was filtered with a Hamming windowed FIR filter with a cut-off frequency of 5 Hz. This way, errors in the peak detection process were reduced. Figure 3 presents the vertical direction data (blue) at the start of one low effort trial with the filtered data overlaid (red) which was used for the peak detection algorithm.

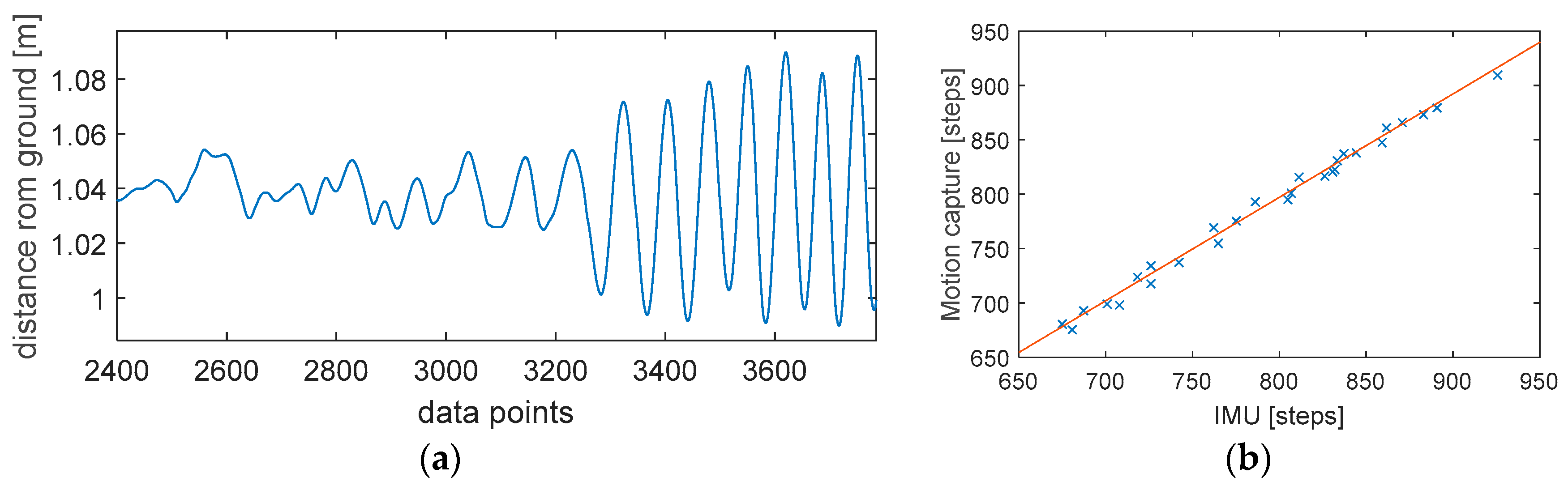

The data recorded by the motion tracking system were exported as a CSV file and imported into MATLAB^® with the built-in import tool. Figure 4a shows the a_y channel (which was aligned with the spine) of the imported data from the Motion Tracking system where the peak detection algorithm could be applied without any further pre-processing. The implemented peak detection algorithm was used to find the number of steps for both data sets before they were stored in an array for further analysis. A linear regression analysis (coefficient of determination) comparing the number of steps (all trials) extracted from the IMU and the motion tracking system was conducted to show the alignment of both methods (Figure 4b). Additionally a Bland-Altman analysis was carried out to compare the IMU and motion tracking measurements. Further on the steps of every smart band were compared with the steps derived from the IMU in a similar way to find the agreement between the two methods.

3. Results

One trial had to be excluded from the data analysis due to a problem with the IMU. Three further trials showed problems with the step counters of two smart bands. This left a total of 29 running trials for further analysis as the problems with the smart bands occurred only for one smart band at any time, so data analysis could be carried out for all other smart bands.

Table 2. Recorded steps of all different devices for participant 4.

Runner 4	Steps Recorded
Trial	IMU	Motion Tracking	FitBit	Samsung	Vidonn	Xiaomi
1	811	815	837	816	827	816
2	833	831	830	837	828	840
3	862	861	872	866	864	870
4	837	837	846	836	830	837
5	871	866	871	717	857	865

presents the steps recorded by all devices for participant 4 as one example.

Linear regression analysis of the comparison between the IMU and the motion tracking system (all conducted trials) showed that the two systems have a very strong agreement with a slope of 1.011 and an r² of 0.998 (Figure 4b). The intercept for all calculations was set to [0, 0] as all devices were measuring the same parameter (steps).

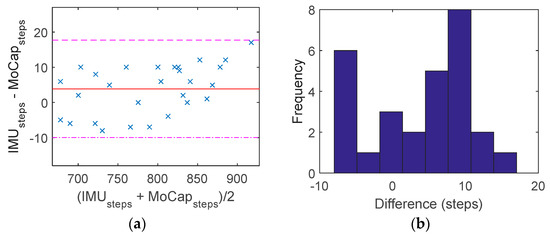

Bland-Altman analysis was additionally used to find the agreement between these two methods (Figure 5). The result showed a bias of 3.86 with an upper limit of agreement of 17.8 and a lower limit of agreement of −9.99 with all data points inside the 95% confidence bounds. The scattering around the bias is even and follows a normal distribution with a skewness of 0.65 and a kurtosis of 2.05 (normal distribution is 3). Because of this very strong agreement, further data analysis was only carried out with the number of steps derived from the IMU compared with the individual smart bands.

Table 3. Results of the linear regression analysis (steps) derived from the IMU vs. the other devices.

Device	IMU
	Slope	r2
Motion tracking	1.011	0.998
FitBit	1.003	0.963
Samsung	0.942	0.815
Vidonn	0.906	0.769
Xiaomi	1.006	0.996

presents the agreement of the different smart bands with the IMU.

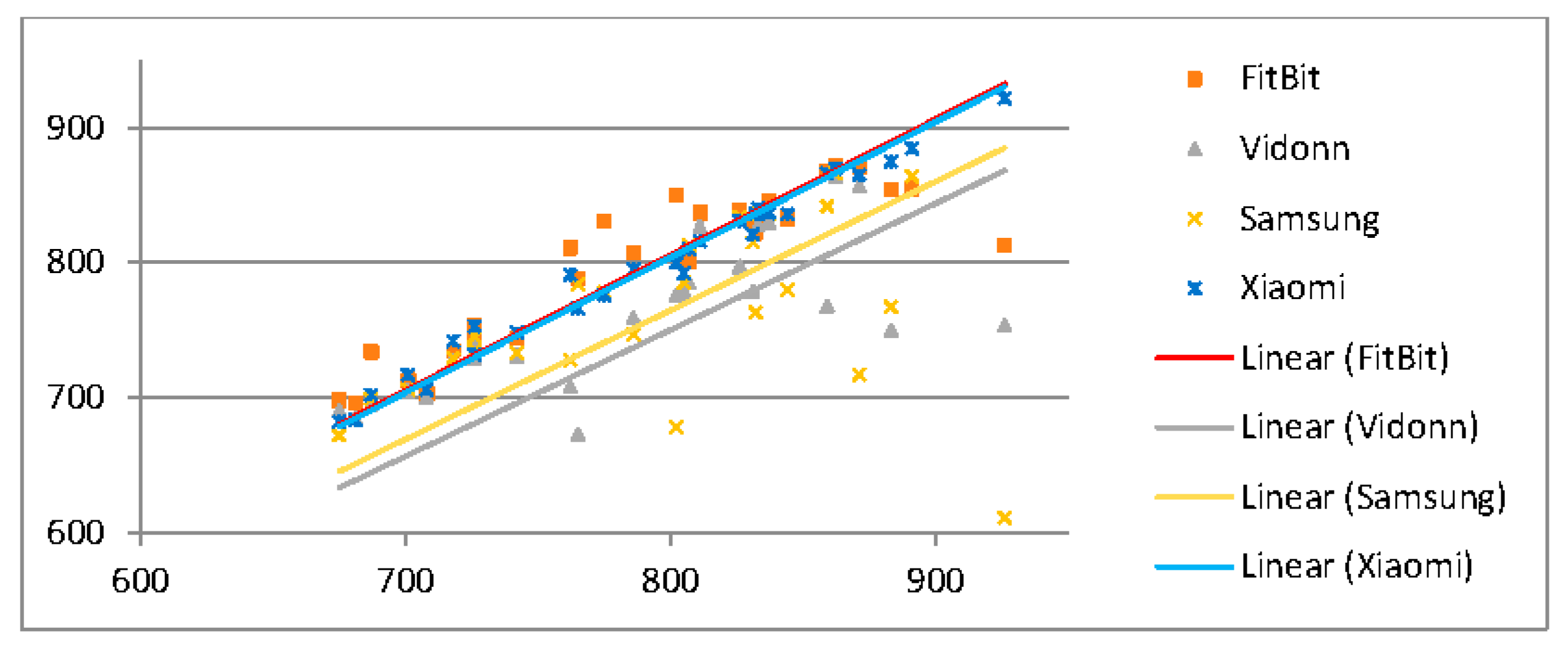

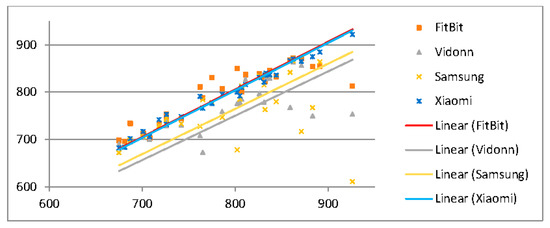

Table 3 presents the results of the four different smart bands with their individual correlation coefficient and slope in regards to a set intercept of [0, 0]. It can be seen that the MiBand 2 from Xiaomi has the strongest agreement with the IMU with a slope of 1.006 and a correlation coefficient r² of 0.996. Only the FitBit Alta smart band shows another good correlation with a slope of 1.003 and an r² of 0.963. Figure 6 presents the regression analysis of all four smart bands.

4. Discussion & Conclusions

This research investigated the number of steps during running of different participants on a treadmill utilizing a motion tracking system, a self-developed IMU attached to the sacrum of the participant and four smart bands from different brands.

The overall aim of this study was to validate the IMU sensor mounted at the lower back as being a replacement for a complex motion capture system. The comparison of the data sets derived from the IMU and the motion tracking system showed a very strong correlation (r² = 0.998) therefore it can be assumed that both systems can detect the number of steps with the same accuracy. Therefore the data recorded by the different smart bands was compared with the IMU derived data only. The results for the smart bands have been evaluated to be independent from the speed of the participant and trial. The validation of the four different smart bands showed that the Xiaomi MiBand 2 also had a very strong correlation of r² = 0.996, the FitBit Alta had a strong correlation of r² = 0.963, the Samsung Gear Fit had a good correlation of r² = 0.815, and the Vidonn X6 had a good correlation or r² = 0.769. Further individual analysis of the participants data was not undertaken as this study was focused on validating the accuracy of smart bands rather than the performance of an individual participant.

It can be concluded that the IMU used in this study is the most appropriate substitute for the motion tracking system which is considered gold standard in athlete motion tracking. The accuracy of the Xiaomi smart band can be considered as good as the accuracy of the IMU and therefore can also substitute the motion tracking system in terms to find the number of steps during running.

The grown availability of these small size and weight smart bands allow a wider use for each individual athlete. Nevertheless there are still large differences in accuracy of these devices, with some devices being capable of substituting more expensive laboratory equipment such as IMU’s or motion tracking systems. A good smart band therefore allows athletes or hobby sportsmen to relatively accurately track their training progress for every conducted training session.
