Empirical Characterization of Particle Size Distribution Spatial Dynamics for Detection of Helminth Eggs in Waste Stabilization Ponds (WSP) ^†

Abstract

This study assesses the seasonal particle size distribution (PSD) dynamics inside a WSP (Buguruni, Tanzania) to understand the settling dynamics of wastewater particles with a specific focus on helminth eggs. Results indicate that particles coming into the pond are mainly supracolloidal and settleables, at 52.9% and 45.6%, respectively, in the dry season and 48.9% and 49.9%, respectively, in the wet season. Inflow PSD is a unimodal distribution that splits into settling and suspended PSDs, with an indication of particle breakage as shown by the increased volume of smaller particles, and hence the appearance of a bimodal distribution for the suspended particles. Up to 61.5% and 45.2% of particles that fall within the size range of helminths eggs are suspended during the dry and wet seasons, respectively, and have the potential to be carried in the effluent, causing contamination.

1. Introduction

Wastewater contains a mixture of particles, with sizes ranging from 0.001 to more than 1000 microns. Among them are parasites and parasite eggs (cysts). Parasites in wastewater are a public health concern [1,2], since they cause diseases such as helminthiasis, a serious health condition affecting nearly a quarter of the world’s population [3]. Helminthiasis caused by ascaris, trichiura and taenia, for example, result in poor health and retarded growth in school children, epileptic seizures, maternal death, and lower efficacy of tuberculosis (TB) vaccination, leading to placental transfer of TB by pregnant women [3,4]. Major infection mechanisms of these parasites are via their eggs, which are found abundantly in wastewater in developing countries and food crops irrigated with contaminated water [5]. Development of efficient wastewater treatment systems that are able to remove these eggs completely are crucial to controlling their spread.

Helminths eggs’ sizes range between 20 and 80 μm, and their specific gravity ranges between 1.056 and 1.3 [5,6,7,8]. Complete removal of the eggs by sedimentation in waste stabilization ponds (WSP) [7,9,10,11] with a hydraulic retention time (HRT) of about 20 days has been achieved [9,12,13]. However, WSP are not designed for sedimentation, despite the universal acceptance that this is the main mechanism for helminth egg removal, as well as a large percent of other pollutants. Additionally, primary facultative ponds are designed to receive particle-free raw wastewater (suspended solids concentrations less than 300 mg/L); therefore, the processes that normally take place in anaerobic and facultative ponds occur simultaneously here. In this case, sedimentation of helminth eggs is also expected to occur in the primary facultative pond. These ponds are shallower than anaerobic ponds, and contain algae that introduces other particles into the wastewater. Furthermore, the literature shows that particles in wastewater can interact with parasite eggs and cysts, and affect their sedimentation [7,14,15,16,17]. How these other particles influence settling characteristics of eggs is still not clear, as both reduced and increased settling velocities in wastewater have been observed [7,15]. As a consequence of both lack of design for sedimentation and lack of fundamental understanding of the interactions between particles and helminth eggs in WSP, helminth eggs have been found in WSP effluents, even in those with a HRT higher than 20 days, causing contamination and disease outbreaks. Since sedimentation leads to modification of particle size distribution (PSD), studies on how particles sizes vary inside the pond may be used to study the sedimentation process in the ponds. This study explores particle size variations inside a facultative pond of an operating WSP to study how sedimentation occurs. The Buguruni WSP receives a daily influent of around 691 m³. After treatment, the effluent is discharged into the Msimbazi River, which is being highly encroached upon by people building houses and gardening very close to it. The river water is used for the irrigation of vegetables along its course, and therefore removal of helminth eggs and cysts is important to prevent their spread.

2. Materials and Methods

This study was conducted in Buguruni pond, Dar es Salaam, Tanzania (Figure 1a). The pond receives domestic waste water from the nearby areas of Buguruni and Tazara. The treatment system consists of one (1) facultative pond and two (2) maturation ponds, and sedimentation of helminth eggs is expected to occur mainly in the facultative ponds.

Water samples were collected from the facultative pond between December 2016 and January 2017, and again between May and June 2017, i.e., in the dry and in the wet seasons, respectively. Using a 6.2 L van Dorn water sampler, water samples were collected at nodes (the circled numbers in Figure 1c) from the top, at depths of about 25 cm below the water surface and from near the pond bottom. Immediately after collection, samples were taken to the Chemical and Processing Engineering Laboratory of the University of Dar es Salaam for particle size distribution analysis using a Malvern 2000 Mastersizer. A hydrodynamic model was run in DELFT3D software using characteristic data from the pond to obtain its hydrodynamic characteristics. The pond was divided into five layers of 22 cm each, and the initial bathymetry was obtained by subtracting water depth from total depth. No slip boundary conditions were assumed, while the friction coefficient was set to 65 for both x and y directions. The resulting travel times were taken to be the time particles had taken to be advected to that location in the pond (not included).

3. Results and Discussion

3.1. Inflow Volume Fraction Particle Size Distribution

The Particle Size Distribution (henceforth referred to as PSD) in terms of diameter of volume-equivalent spherical particles at the WSP inlet for both seasons is a unimodal distribution skewed towards larger particles of 100 microns or more (Figure 2a). In the rainy season, the mode shifts to the right, likely due to defect pipes, which can introduce sand particles into the inflow to the WSP, resulting into higher average particle sizes. Samples collected on different days within the same season did not show significant differences, indicating no in-season PSD variations.

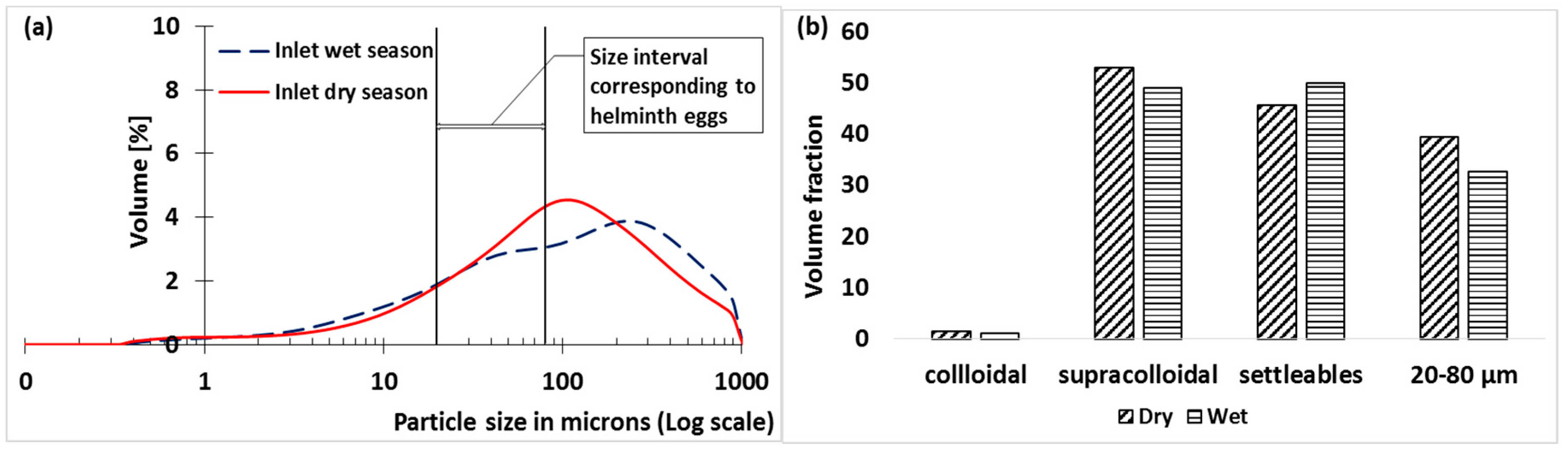

The volume of particles corresponding to a prescribed size interval was obtained by calculating the area under the curve between the size intervals. Categorizing particles into their size fractions, i.e., dissolved (<0.001 microns), colloidal (0.001–1 microns), supracolloidal (1–100 microns) and settleable (>100 microns), showed no significant variation for dry and wet weather (Figure 2b). Surprisingly, particles with sizes <1 micron (i.e., dissolved and colloidal) are almost non-existent (1.5% and 1.1% in dry and wet weather, respectively), in contrast to the existing literature, where they contribute the largest percentage of particles [19]. The values for dissolved, colloidal, supracolloidal and settleable fractions are 0, 1.5, 52.9, 45.6% and 0, 1.1, 48.9, 49.9% in dry and in wet weather, respectively. Therefore, wastewater flow into Buguruni WSP is composed largely of supracolloidal (possibly containing Helminth’s eggs) and settleable particles. This is in contrast with the reported fractions in the literature, in which dissolved and colloidal particles form the largest fraction of particles. However, it was observed that most of the toilets in the area are unlined pit latrines, which have a tendency to erode and introduce sand particles into the sewage. Additionally, more than one-third (30 percent) of inflow particles in the Buguruni ponds fall within the size class of helminth eggs (20–80 microns) (Figure 2b). Therefore, efficient sedimentation of these particles would guarantee an efficient removal of helminth eggs.

3.2. In-Pond PSD

Two types/groups of PSDs exist inside the pond for both the wet and dry seasons, as well as top and bottom (Figure 3). These PSDs are either represented by a unimodal distribution (mainly samples collected at the bottom; hence, sedimenting particles) or a bimodal distribution (mainly for samples collected at the top; hence, suspended particles). Dry weather bimodal distributions at the top and bottom have modes concentrated around a similar size, with the first peak at around 10 microns, and the second peak at around 67 microns (Figure 3a,c). The similar modes at both the top and the bottom could be a result of well-mixed conditions inside the pond. In wet weather, the bimodal distribution shifts to the right, with peaks at around 15 microns and 100 microns (Figure 3b,d), with the separation of the two peaks not being as clear as the separation for dry weather. The shift towards coarser particle sizes in wet weather could be a result of change in inflow PSD due to defective pipes, as well as the possible erosion of deposited materials due to increased flow caused by broken sewage system.

The bimodal distributions are characterized by more supracolloidal particles than settleable particles. This is especially the case during dry weather, where the bimodal distribution is found throughout the top layers of the pond, except for nodes 8 and 25. Node 8 is located close to the inlet, while node 25 is close to the outlet of the WSP. Typically, these are areas with vorticity created by change in cross sectional area, and therefore settled particles may be resuspended, with a unimodal distribution thus being obtained.

A bimodal distribution is also found in some nodes of the bottom layer, for both dry and wet weather, which could indicate that these are areas in which no sedimentation is taking place, and that there is the same bimodal PSD from the top to the bottom of these nodes (Figure 4e,f). The increase in smaller particles inside the pond, which leads to the appearance of bimodal distributions, as opposed to the unimodal distribution at the inlet, may be due to the breakage of larger weaker particles caused by shear stress [20].

The unimodal distribution is skewed right, and is richer in settleable particles than supracolloidal. The distributions have modes at various diameters, and long tails towards the smaller particle sizes (less than 10 microns) that disappear during wet weather, probably due to the shift in inflow particles during this season. This distribution is found mostly in samples collected at the bottom, and at nodes 8 and 25 at the top (Figure 3c,d), indicating that these are depositing particles. The explanation for the existence of the unimodal distribution at the top for nodes 8 and 25 is given in the previous paragraphs. This distribution is found from the inlet to about half the pond’s length (from inlet to nodes 12 and 13).

3.3. Comparison of Top and Bottom PSD

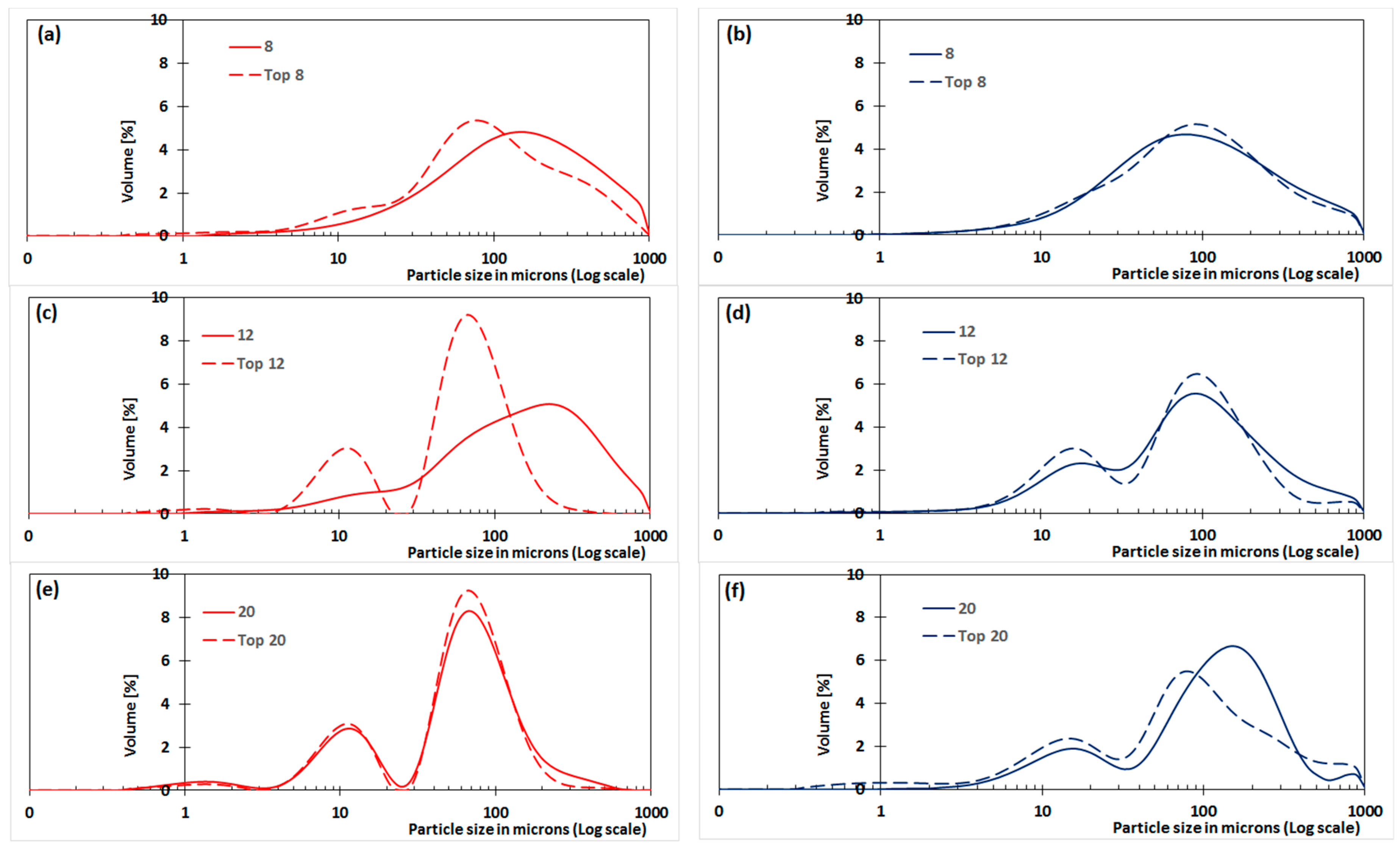

This analysis revealed areas in the pond where sedimentation is taking place, as well as those where resuspension of settled particles occurs. Locations with resuspension of settled particles were identified as those that had a unimodal PSD that represented settling particles at the top and bottom (Figure 4a,b). As pointed out before, these are locations with turbulence originating from change in the cross-section area and convective acceleration of the flow at the outlet, hence resulting in the resuspension of settled particles. Locations where sedimentation is taking place have different PSDs at the top and bottom (Figure 4c,d). The top has a bimodal distribution (non-settling particles), while the bottom has a unimodal distribution (settling particles). Lastly, there are locations where no sedimentation takes place, and these consist of similar bimodal distributions at the top and bottom (Figure 4e,f). These locations are found from about mid-pond to the end of the pond, except for areas close to the outlet. The similarity of the PSD at the top and bottom indicates that a mixing process—perhaps driven by molecular diffusion—is taking place along the vertical direction. The above-described trends and their locations are almost constant in both the wet and dry seasons, as shown in Figure 4.

3.4. Particles with Sizes between 20 and 80 Microns

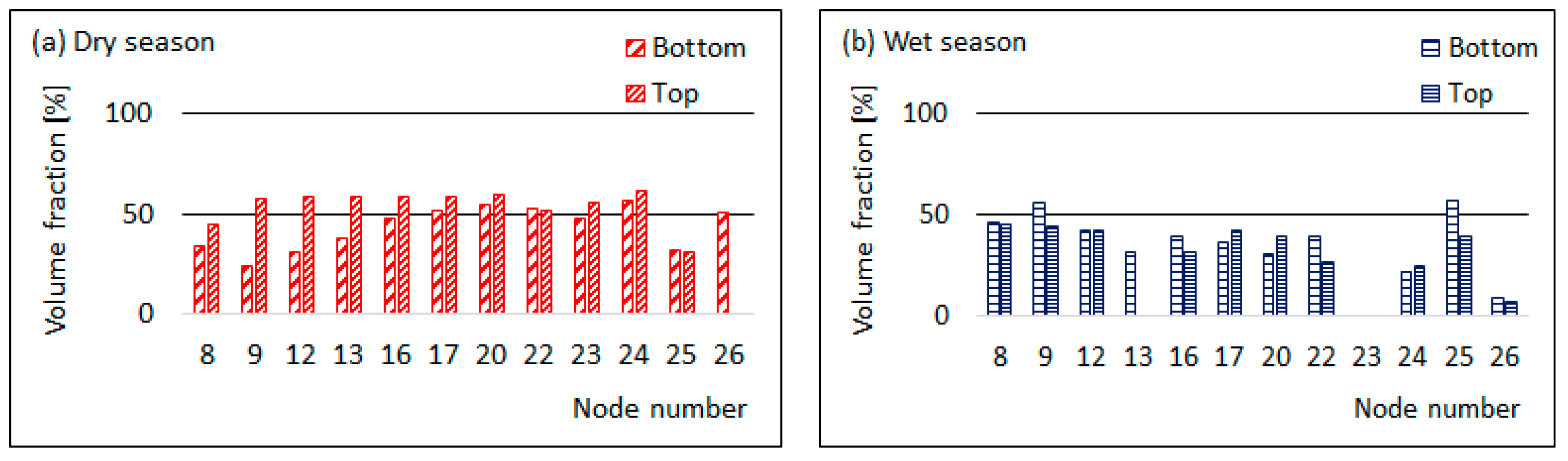

Among the objectives of this research was the study of the sedimentation of particles with sizes between 20 and 80 microns, as these have the highest chance of containing parasite eggs and cysts that are detrimental to human health. Results show that these particles appear throughout the pond, both at the top and the bottom, with an increased volume compared to that of the incoming particles, indicating that they are generated by particle breakage inside the pond (Figure 5a,b). The particles do not exhibit any particular trend at the different locations, but their volumes are consistently higher at the top, especially during dry weather. Their total volume fraction is slightly lower during the wet season, perhaps due to the shift of inflow particles towards the large particle sizes (>100 microns). Analysis for helminth eggs for water samples collected at the bottom was done using the formol-ether concentration method, but very few eggs (only two eggs in 12 samples) were recovered.

4. Conclusions

This research looked at how incoming wastewater particle sizes change inside a primary facultative pond of a WSP, and is of key importance for all those water treatment plants where a primary sedimentation pond is lacking. It was observed that particles coming into the pond are mainly supracolloids and settleables, although information about their densities was missing. Once inside the pond, the incoming PSD split into settling and non-settling PSDs, with indication of particle breakage, as shown by the increased volume of smaller particles and hence appearance of a bimodal distribution. Sedimentation takes place mostly in the first half part of the pond, while the remaining part has suspended particles only. Particles with sizes between 20 and 80 microns (size of helminth eggs), as well as settleable particles (>100 microns), are in abundance in suspension. Although these may not necessarily contain helminth eggs, they indicate a large potential for the eggs to remain in suspension and be carried out of the system. Further research on particle density variations inside the pond may enable tracing of the eggs based on their characteristics. However, measuring particle density is an extremely demanding effort. This asks for developing an inverse modelling technique for reconstructing the particle density distribution, starting from the PSD difference at the top and the bottom, and the travel times where sedimentation can occur. The PSD data presented here will be used together with a hydrodynamic model developed in Delft3D to derive the range of densities of wastewater particles at different nodes in the Buguruni WSP, and thereby to trace where helminth eggs are most likely to be found.
