Modeling Planar Fluxgate Structures †

Carinthian Tech Research AG, 9500 Villach, Austria
Carinthia University of Applied Sciences, 9500 Villach, Austria
Author to whom correspondence should be addressed.
Presented at the Eurosensors 2018 Conference, Graz, Austria, 9–12 September 2018.
Proceedings 2018, 2(13), 830;
Published: 10 December 2018
(This article belongs to the Proceedings of EUROSENSORS 2018)


Planar fluxgate structures have been the focus of multiple experimental studies. However, theoretical treatises are still limited to the classical models that describe 3D structures. In this paper we derive an effective fluxgate equation for planar systems, dealing with strong stray fields and direct coupling, and show the stability and applicability of the Vacquier implementation. To support the theoretical model, FEM simulations are performed that also provide means of layouting planar fluxgates by pure magnetostatic simulation.

1. Introduction

Fluxgate sensors are a type of vector magnetometer that originate in the first half of the 20th century. They feature a wide range of resolutions spanning from pT to mT [1] and are the most sensitive type of magnetic field sensor available that does not require cryogenic cooling or similar extensive experimental setups. However, despite their advantages fluxgates have one major flaw: They are bulky with typical sensor head dimensions in the cm range as their sensitivity is directly proportional to the sensor size through the area A of the core cross section and number of coil windings N, [2]. While miniature fluxgate sensors were realized by micro fabrication [3] and using integrated circuit technology [4] they cannot compete with state of the art Hall- or XMR technology. In addition to 3D structures, planar fluxgate layouts were proposed in the 1990s, [5]. They have two advantages over their 3D counterparts: Fabrication is easy using cheap and available PCB technology [6] and, despite their size, the planar form factor makes them potentially suitable for system integration. Furthermore, recent advances with asymmetric double core structures massively reduce the supply current while improving on sensitivity [7].
While a lot of experimental work was done on planar fluxgates, theoretical descriptions are still limited to the original works on 3D structures [2,8]. An extension to planar layouts was never attempted, possibly because an analytical solution seems difficult for such geometries. Some specific structures were studied numerically using the finite element method (FEM) [6]. In this work we study an extension of the fluxgate equation to planar systems and discuss additional effects that must be considered. The theoretical model is then supported by FEM simulation, aiming to advocate on planar fluxgate layout by magnetostatic simulation.

2. Effective Model in Planar Geometries

The fundamental idea behind the fluxgate mechanism is to use the non-linearity of the material magnetization characteristics μ(H) = ∂H B(H) of a known (soft) ferromagnetic core as an absolute marker to determine the value of a static external magnetic field H0. This is realized by driving the core periodically into saturation and to determine the position of the characteristic non-linearity (bend in magnetization curve when reaching saturation) from the voltage output signal V(t) of a coupled inductive element, see Figure 1a. When H0 is in superposition with a periodic excitation field Hex (t), the position of the bend is shifted that can be observed in the voltage output,
Proceedings 02 00830 i001
Here B(Hex + H0) in Faraday’s law was expanded for small H0 as proposed in [2]. The first term in this equation describes the classical induction which causes interference in the fluxgate, and the second term describes the fluxgate effect. A similar equation is given in [1].
The elegant Vacquier setup comprises two parallel, symmetric cores that carry opposing excitation fields of similar amplitude but aligned external fields. In this case two different voltages are obtained from (1) for the the two cores with H = Hex ± H0. The voltages V1 and V2 are summed up so that the inductive terms cancel and the classical, basic fluxgate equation remains,
Proceedings 02 00830 i002
There are several ways to determine H1 from the voltage output V12. The most common and stable method is to detect the peak of the second harmonic in the Fourier transform of the output signal [1]. It follows from (2) that V12 is non-zero only if µ is driven into the non-linear regime as µ˙ = µ′B˙. The fluxgate mechanism thus requires max(Hex (t)) > HS, where HS is a measure of the material saturation. In other words, the fluxgate works only if the core is driven into (deep) saturation each cycle. Sharp material magnetization bends and high frequencies increase µ˙ and subsequently the devise sensitivity.
Derivation of Equations (1) and (2) are based on the idea that excitation and pickup coils fully enclose the core. The total magnetic flux in the magnetic circuit passes through the core and all coils and is homogeneously distributed, Φ(t) = A · B(t). The magnetic induction is therefore directly related to the magnetic field through the material permeability, B(t) = µ(H(t))H(t).
Such assumptions can be realistic when dealing with 3D setups and toroidal cores with homogeneously wound coils [8]. In true planar setups, however, this is not the case. Typically, such fluxgates are made up of adjacent (multilayer) spiral coils while the core is a thin stripe on top [5,6]. An example is shown in Figure 1b where a PCB based planar structure, similar to the one studied in [7], is depicted. When modeling such planar geometries the coupling between excitation and pickup coils becomes more complicated. The idea is that the total flux Φtot generated by the excitation coil and the magnetized core splits up into three parts Φfg, Φs and Φdc that must all be treated separately:
  • The active flux Φfg which is responsible for the fluxgate effect. This is the part of the total flux that passes through the core and subsequently through the pickup coil. The inhomogeneous excitation field results in gradual saturation of the core and a smeared out saturation behavior.
  • Stray flux Φs that does not contribute to the magnetic circuit. Stray flux is a result of the unnatural geometry of the system that is not easily followed by the magnetic field. It has no influence on the signal in the pickup coil, but results in a reduced efficiency of the system as more excitation current is required to generate the same amount of active flux.
  • Direct coupling between the coils through Φdc. This is another result of the planar geometry, specifically between coil regions that are not located directly below the core. This effect results in a further loss of efficiency but also generates an additional, unwanted voltage output signal in the pickup coil.
For improved understanding these effects are outlined in Figure 1c. The voltage induced by the i’th winding of surface Ai in the pickup coil is then given by
Proceedings 02 00830 i003
Rather than modeling of the complete system, treating excitation coil and core as magnetic sources to determine the flux through the pickup coils, we propose to model the flux Φfg(t) as being gated by an effective permeability µ˜(t). Unlike in the derivation of (1), the magnetic flux density is inhomogeneously distributed in the planar core. For each path it will therefore see a different effective permeability which becomes a smeared out and position dependent version of the original one. Using a similar expansion as in (1) results in a total voltage of
Proceedings 02 00830 i004
The additional term that appears is a result of the direct coupling between the coils. In a symmetric Vacquier setup the inductive parts cancel to give an effective fluxgate equation for a planar assembly,
Proceedings 02 00830 i005
This equation describes a fluxgate effect that is highly geometry dependent, expressed through the effective permeability µ˜(x). As a result of gradual core saturation, the effective permeability is a smeared out version of the original one (µ˜′ (x) ≤ µ′) which results in a loss of sensitivity. In addition, more supply current is required to satisfy condition Hex » HS as a large part of the excitation energy is lost to stray fields and direct coupling. On the other hand, the planar core structure is advantageous as it requires less total excitation flux to saturate and the small core cross section allows for operation at higher frequencies when considering eddy influences. It is interesting to notice how the Vacquier setup is stable against interfering effects such as stray fields and direct couplings that must in principle also appear in 3D setups but are usually not modeled. This stability, however, requires a precisely fabricated symmetrical setup that is sensitive to mechanical tolerances.

3. Simulation of the Effective Model

Equation (5) demonstrates that the fluxgate effect in a Vacquier-setup is, in principle, very stable. However, the sensitivity strongly depends on the system geometry through how efficiently active flux is generated and the core is saturated. The actual quantity of interest, and the only remainder in Equation (5), is the part of the active flux that is generated by the magnetic core. For any specific setup it can be modeled by a magnetostatic FEM simulation. In Figure 2 we show FEM simulation results (ANSYS Maxwell) for a realistic setup similar to the one depicted in Figure 1b with core dimensions of 10 × 1 × 0.1 mm3. The excitation coil is homogenized with dimensions of 5.2 × 4.2 × 0.1 mm3 directly and symmetrically placed below the core. The core material parameters are µr = 1000 and BS = 0.5 T using a simple atan-model for the magnetization. The magnetic flux density generated by core is obtained by subtracting simulation results with and without core from each other. For positions within the pickup region (adjacent coil in Figure 1b), Figure 2a demonstrates how the (local) active flux density behaves as a function of the excitation current. The saturation point at 50 AT is clearly visible. The sensitivity of the devise is proportional to the sharpness of this bend which is given by the maximum of the curvature. The latter is shown in the pickup region in Figure 2b. Regions in the direct vicinity of the core and close to the excitation coil (small values of y) contribute most to the fluxgate effect. The effective, active flux for three winding layouts is shown in c).
The simulations show that the planar geometry and the resulting gradual core saturation modifies the original atan gating function. The active flux and the curvature (sharpness of bend) depend strongly on the system geometry, specifically on the layout of the pickup coil. The simulations suggest that adjacent coil structures are inferior to overlapping excitation and pickup coils as are used in [6].

4. Conclusions

The derivation of the fluxgate equation was reviewed for planar geometries. The proposed extension shows that Vacquier-setups enable a highly stable fluxgate mechanism where stray fields and direct couplings between excitation and pickup coils reduce only energy efficiency while retaining potential detectivity. The spatial dependence of the active flux, predicted by the theoretical formalism and the observed gradual core saturation, was simulated by FEM. The results can be used to test and improve planar layouts using only pure magnetostatic simulations.

Author Contributions

Simulation and theoretical model: M.O., Discussion and project setup M.O., M.L. and N.N., Paper written by M.O.


This project has been supported by the COMET K1 centre ASSIC Austrian Smart Systems Integration Research Center. The COMET—Competence Centers for Excellent Technologies- Program is supported by BMVIT, BMWFW and the federal provinces of Carinthia and Styria.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ripka, P. Advances in fluxgate sensors. Sens. Actuators A Phys. 2003, 106, 8–14. [Google Scholar] [CrossRef]
  2. Burger, J. The theoretical output of a ring core fluxgate sensor. IEEE Trans. Mag. 1972, 8, 791–796. [Google Scholar] [CrossRef]
  3. Park, H.S.; Hwang, J.S.; Choi, W.Y.; Shim, D.S.; Na, K.W.; Choi, S.O. Development of micro-fluxgate sensors with electroplated magnetic cores for electronic compass. Sens. Actuators A Phys. 2004, 114, 224–229. [Google Scholar] [CrossRef]
  4. Huang, W.S.; Lu, C.C.; Jeng, J.T. A novel 3D CMOS micro-fluxgate magnetic sensor for low magnetic field detection. Sensors 2010, 2010, 1791–1794. [Google Scholar]
  5. Vincueria, I.; Tudanca, M.; Aroca, C.; Lopez, E.; Sanchez, M.C.; Sanchez, P. Flux-gate sensor based on planar technology. IEEE Trans. Mag. 1994, 30, 5042–5045. [Google Scholar] [CrossRef]
  6. Baschirotto, A.; Dallago, E.; Malcovati, P.; Marchesi, M.; Venchi, G. Development and comparative analysis of fluxgate magnetic sensor structures in PCB technolozgy. IEEE Trans. Mag. 2006, 42, 1670–1680. [Google Scholar] [CrossRef]
  7. Lenzhofer, M.; Ortner, M.; Schulz, G.; Stahr, J. A New Approach For a Planar Miniaturized PCB Based High Sensitivity Fluxgate Sensor Design. Sensor 2017, 41–45. [Google Scholar] [CrossRef]
  8. Primdahl, F. The fluxgate magnetometer. J. Phys. E Sci. Instrum. 1979, 12, 241. [Google Scholar] [CrossRef]

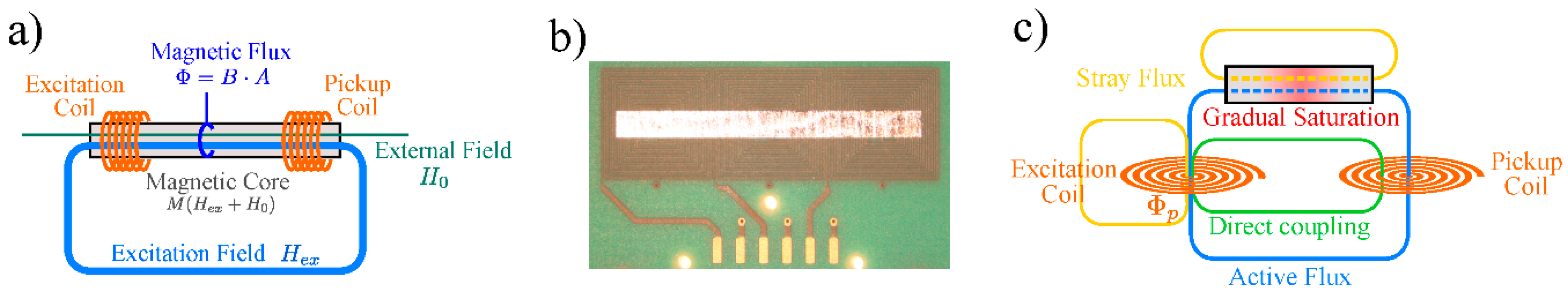

Figure 1. (a) Sketch of fluxgate mechanism, (b) PCB based sensor, (c) Additional effects in planar layouts.
Figure 1. (a) Sketch of fluxgate mechanism, (b) PCB based sensor, (c) Additional effects in planar layouts.
Proceedings 02 00830 g001

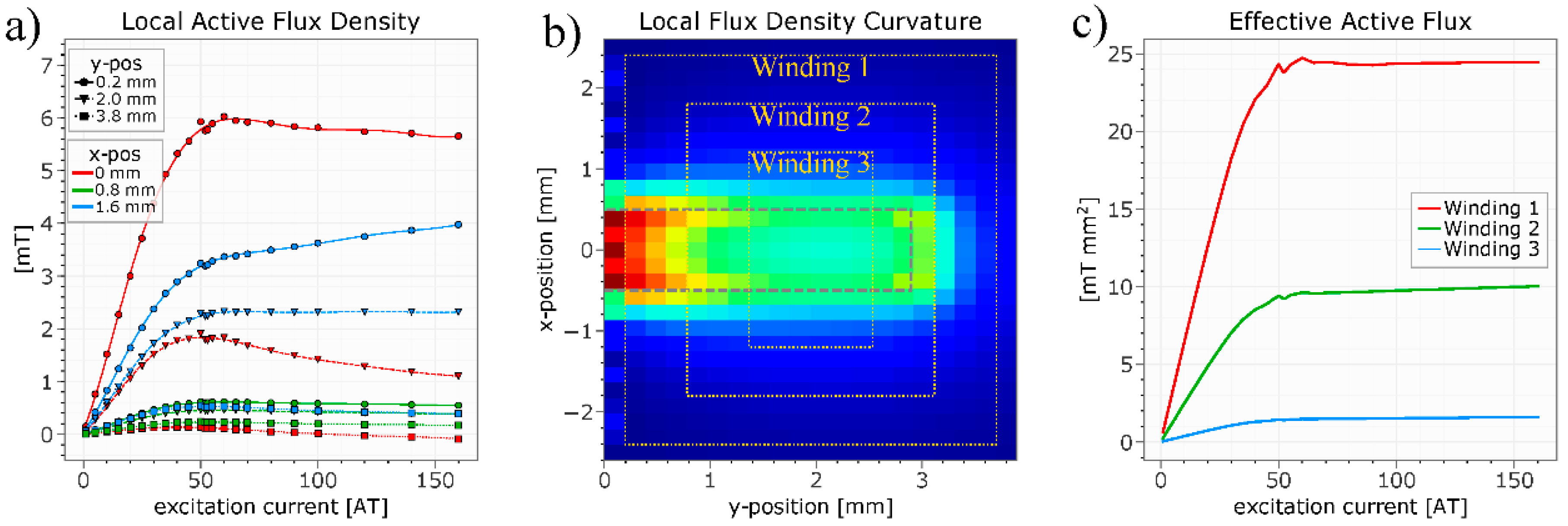

Figure 2. FEM simulation results.
