Development of a Point-of-Care Platform for Plant Health Assessment: A Microfluidic Approach ^†

Abstract

Azelaic Acid (AzA) is a signaling molecule that plays a role in plant immune response when these are infected with pathogens, such as Botryitis cinerea, making its early detection in the field critical in the monitoring and prevention of large spread infection in crops. In this work, a microfluidic platform for the rapid detection of AzA in grapes is presented. AzA detection is achieved via an enzyme-enabled colorimetric reaction performed in a microfluidic chip coupled to a thin-film silicon photodiode. The detection of nM concentrations of AzA in buffer was achieved and initial results for AzA measurements in artificially spiked grape juice show potential for detection in realistic sample conditions.

1. Introduction

In a world of increasing antibiotic and antifungal resistance, there is a growing need for rapid and portable infection detection systems. In the wine industry, a serious problem is crop infection by Botrytis cinerea, a common pathogen associated with grapes and vine trees. This necrotrophic pathogen also affects other fruits such as strawberry, orange, tomato and mango. When this fungus infects the plant, an immune response is activated, which is known as SAR—Systemic Acquired Resistance. Within the SAR pathway, a small organic acid, Azelaic Acid (AzA), is produced which acts as a signaling molecule to trigger the immune response, making it a prime candidate for early detection of disease [1]. In order to detect this small acid, we will take advantage of its inhibitory effect over Tyrosinase, which is an oxidase present in several species, including humans, where it participates in the synthesis of melanin [2]. Tyrosinase catalizes oxidation of phenols such as Tyrosine and Catechol to quinones. However, AzA has been reported to be able to competitively inhibit its activity by lodging itself in its active center [2].

In this work, we propose a microfluidic system coupled to an a-Si:H photodiode capable of detecting the presence of AzA colorimetrically in buffer solutions and also in artificially spiked samples of grape juice through the use of Tyrosinase immobilized on microbeads.

2. Materials and Methods

2.1. Materials and Reagents

All stock solutions were prepared in potassium phosphate buffer at pH 6.5, prepared using Mili-Q water. Tyrosinase (from mushroom) stock solution was prepared as 2 g/L of enzyme as indicated by the supplier, while Tyrosine and MBTH stock solutions were prepared at concentrations of 2 mM and 100 mM, respectively. AzA stock solutions were prepared at a concentration of 1 mM. All the aforementioned reagents were acquired from Sigma-Aldrich (Sintra, Portugal). For the spiked samples, ripe Red Globe grapes were purchased at the local market and washed with Mili-Q water.

2.2. Microfabrication of a-Si:H Photodiodes

The a-Si:H photodiodes correspond to a vertical p-i-n junction, deposited through radio frequency plasma enhanced chemical vapor deposition (rf-PECVD). All layers were patterned using a DirectWrite Lithography equipment (DWL ii Heidelberg Instruments). For a more detailed description of this process, previous work from our group can be consulted [3].

2.3. Microfluidic Device Fabrication

The microfluidic devices are similar to the ones used by Pinto et al. [4] and were fabricated through similar soft lithography techniques. This device consists of two layers, the first being 100 µm high, where the microbeads will be packed, and a second region, 20 µm high in order to trap the aforementioned beads. The microbeads are packed into the channel by inserting a pipette tip containing a suspension of beads in buffer, into the inlet, and applying negative pressure using a syringe pump at a flow rate of 15 µL/min.

3. Results and Discussion

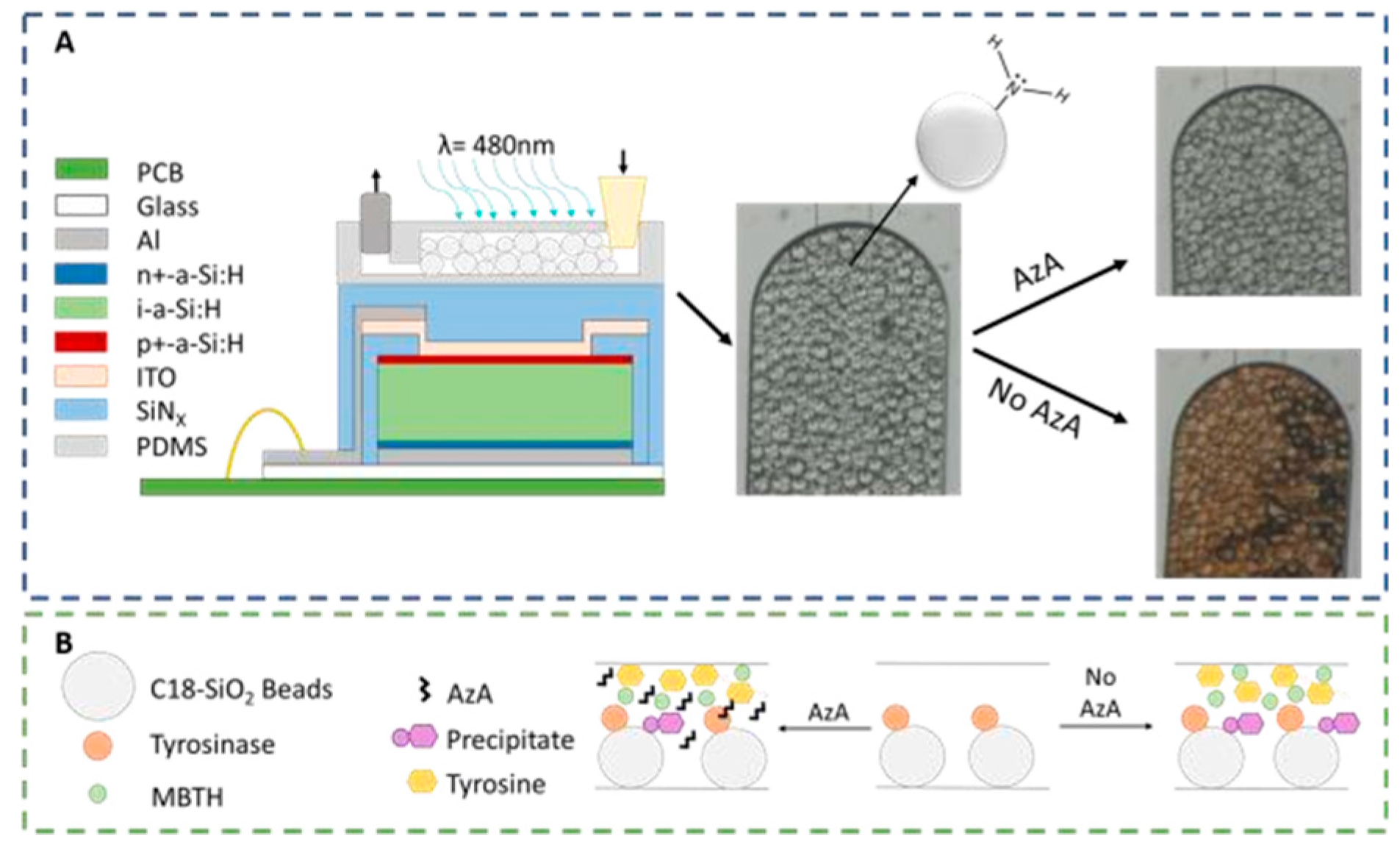

The microfluidic system designed to detect AzA consists of a 100 μm high PDMS (Polydimethylsiloxane) microfluidic column coupled to a thin-film silicon a-Si:H photodiode. The 200 × 200 μm photodiodes used for the absorbance measurements (λ = 480 nm) are aligned with the column as seen in Figure 1A. These columns were then packed with 50 μm diameter SiO₂ beads functionalized with APTES ((3-Aminopropyl) triethoxysilane), resulting in a positively charged bead surface with a primary amine. These beads served the double purpose of being used to immobilize the enzyme Tyrosinase and also to capture the colored reaction product. As seen in Figure 1B, a mixture of the sample and a known amount of both Tyrosine and MBTH (3-Methyl-2-benzothiazolinone hydrazine) are injected into the channel, and in the case of a non-contaminated sample, the enzyme will oxidize the tyrosine and produce a colored pigment that will deposit on the beads; in a contaminated sample, the AzA will inhibit the enzymatic reaction thus resulting in a reduced color intensity.

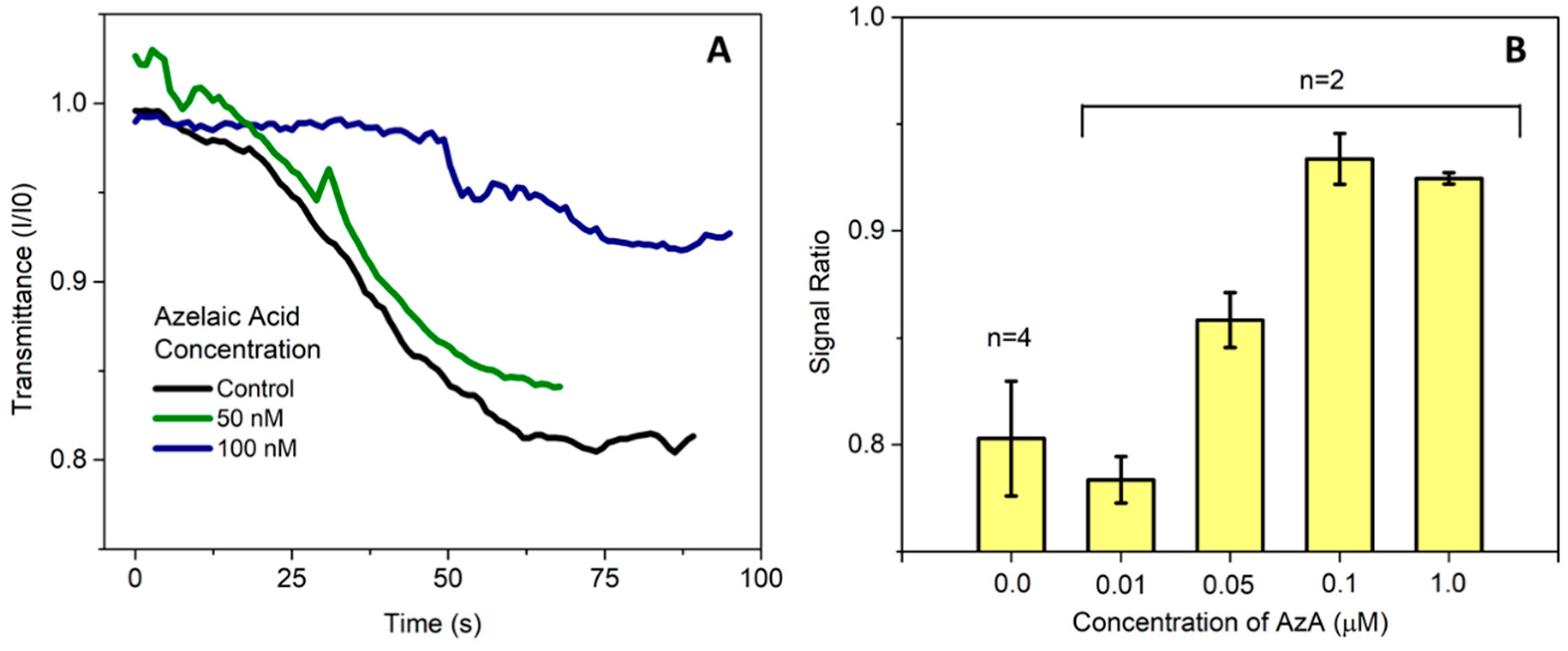

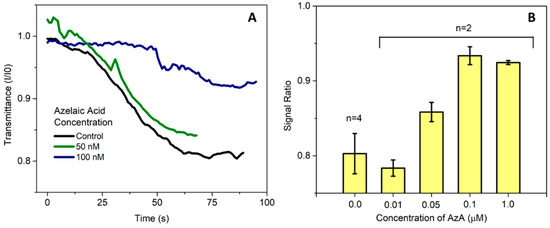

Previous work in the literature have reported a spike in AzA after pathogen infection [5], and Jung et al. [1] reported concentrations in the μM range. In this work, we aimed to detect concentrations lower than this in order to take into account any sample pre-treatment steps that could be necessary, so far achieving detection levels in the 50–100 nM range in buffer as seen in Figure 2.

Once the microfluidic AzA detection operating conditions have been established, the next step was to try to detect the presence of AzA in a more realistic situation. Due to the fact that grapes have high quantities of phenols in both their pulp and their skin, some degree of sample pre-treatment was necessary, otherwise the free phenols in the grape juice will also react in a similar fashion to the tyrosine used as a substrate. After grinding the grapes using a mortar and pestle, the pulp was centrifuged at 2000 G for 15 min. The resulting supernatant was then retrieved, spiked with 1 µM of AzA and then diluted according to the desired experimental conditions.

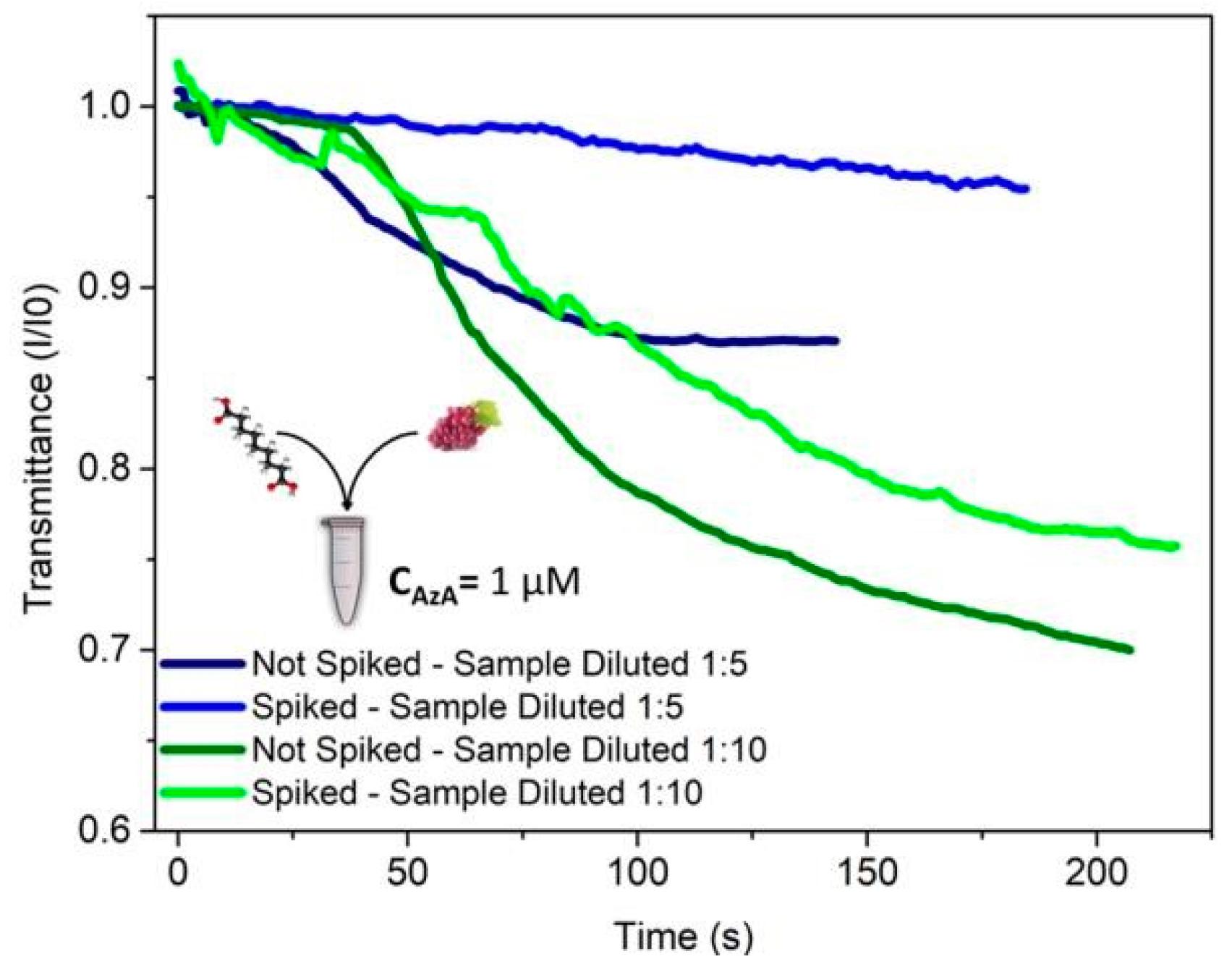

The results presented in Figure 3 demonstrate that the presence of AzA in spiked samples can be clearly distinguished from the negative control samples. This proof of the system performance motivates further improvements towards detection in real case scenarios.

4. Conclusions

In this work, a microfluidic method for the detection of AzA in liquid samples is presented. The results obtained for buffer experiments allowed us to detect the organic acid at biologically relevant concentrations. To test the viability of the assay in a real scenario, AzA-spiked samples were prepared using fresh grape juice, where the detection of the molecule of interest was achieved. However, further development is necessary in order to improve sample pre-treatment and to integrate it on chip, with the goal of obtaining a true point-of-care device capable of being used in the field.
