Microfluidic Construction of Hierarchically Composite Superballs for Sensing Applications ^†

Abstract

Colloidal photonic crystals have attracted much attention of the scientific world due to their unique optical properties and potential applications in sensing, displays, optoelectronics, controlled superwetting and other fields. Here we report the fabrication of spherical colloidal photonic crystals featured with well-ordered nanopatterns from silica nanoparticles (SiO₂NPs) and gold nanoparticles (AuNPs) through a droplet-based microfluidic approach. The colloidal crystals show both the photonic band gaps (PBG) and surface plasmonic resonance (SPR) properties. These proposed hierarchically composite ‘superballs’ will have an excellent performance in sensing applications, due to the fast response (the scattering color change) to the dielectric properties of the surrounding medium. A robust and efficient strategy is proposed and demonstrated to fabricate the composite superballs with multifunctional properties, broadening the perspective of their applications by the advantages of precise control over the size of the particles and flexible change of the fluid composition.

1. Introduction

Hierarchical architectures have been assembled from a variety of building blocks with different materials and functionalities. Particularly, photonic crystals are of great significance as particulate systems due to diverse applications including displays, biosensors, optoelectronic devices, catalysts, and controlled superwetting [1,2]. Light incident on the nanoparticles (of a size smaller than the wavelength) induces the conduction electrons in them to oscillate collectively with a resonant frequency that depends on the nanoparticles’ size, shape, composition and the local dielectric environment [3]. These noble metal nanoparticles can serve as extremely intensive and stable labels for bio-/chemical-sensors, surface-enhanced spectroscopy and immunoassays [4]. Researchers have been investigating the fabrication of composite particles by incorporation of these metal nanoparticles with non-metallic nanoparticles (SiO2NPs), polystyrene nanoparticles etc.), combining each particle’s own specific optical properties in order to broaden the applications. Tadashi Nakamura and their colleagues [5] have prepared AuNPs-embedded nanoporous spheres and the corresponding close-packed colloidal crystal array. This 2D array exhibited both the optical stop band from the Bragg diffraction and the surface plasmon resonance (SPR) from the gold. Frank Caruso and his colleagues [6] have prepared core-shell and hollow colloid spheres derived from Au@SiO2 nanoparticles by using the layer-by-layer self-assembly technique. AuNPs of ~5 nm decorating the surface of silica submicrospheres were fabricated by ultrasound with the advantage of simple and efficient production [7]. Most of the previous work has focused on the fabrication of satellite-like composite particles, or particles which served as new building blocks to construct 2D photonic crystals with SPR properties.

However, hierarchically composite superballs with both photonic band gap (PBG) and SPR properties have not been proposed before, and we verify for the first time through their production by droplet microfluidic techniques, incorporating the AuNPs and SiO2NPs as building blocks. The particles can be used as a sensing unit resulting from the scattering color response to a change of the dielectric properties of the surroundings.

2. Materials and Methods

2.1. Materials

N-isopropylacrylamide (NIPAM, purity ≥ 99%) and N, N-methylene bisacrylamide (MBA, purity ≥ 99%) were purchased from Sigma Aldrich (Zwijndrecht, The Netherlands). 2, 2-Diethoxyacetophenone (DEAP, purity ≥ 98%) was purchased from Sigma Aldrich (Zwijndrecht, The Netherlands). Hexadecane and Sorbitane monooleate (Span80) were purchased from Sigma Aldrich (Zwijndrecht, The Netherlands). AuNPs were purchased from Cytodiagnostics Inc. company (Burlington, ON, Canada). SiO2NPs were all purchased from Nanjing Nanorainbow Biotechnology Co. Ltd. company (Nanjing, China). Absolute ethanol solution (analysis level) was purchased from Merck KGaA (Zwijndrecht, The Netherlands).

2.2. Preparation of 3D Spherical Colloidal Photonic Crystals

A flow-focusing droplet microfluidic chip made by PDMS was used to generate the hybrid nanoparticles laden droplets with a good uniformity and high stability. The oil phase was hexadecane with 18 wt% Span80 as the surfactant to stabilize the generated droplets and 5 wt% DEAP served as the photoinitiator. The aqueous suspension was composed of SiO2NPs and AuNPs and also contained water-soluble monomer and cross-linker. Monodispersed droplets were sheared off by the oil phase at the flow-focus junction. The nanoparticles confined in these produced droplets were self-assembled due to the electrostatic repulsion. Solid 3D spherical photonic crystals were yielded upon UV irradiation (IntelliRay-600, 365 nm, 600 W, 120 mW/cm2, Uvitron International, Inc., West Springfield, MA, USA). In this method, the size and ratio of the building blocks (SiO2NPs and AuNPs) can be precisely and flexibly tuned to produce the 3D photonic crystals with SPR properties, which was attributed to the advantages of the microfluidic approach.

3. Results and Discussion

3D composite superballs with both PBG and SPR properties, dependent on the size and shape of the building blocks and surrounding media, respectively, have been produced based by a robust and efficient strategy.

3.1. Fabrication of 3D Composite Superballs

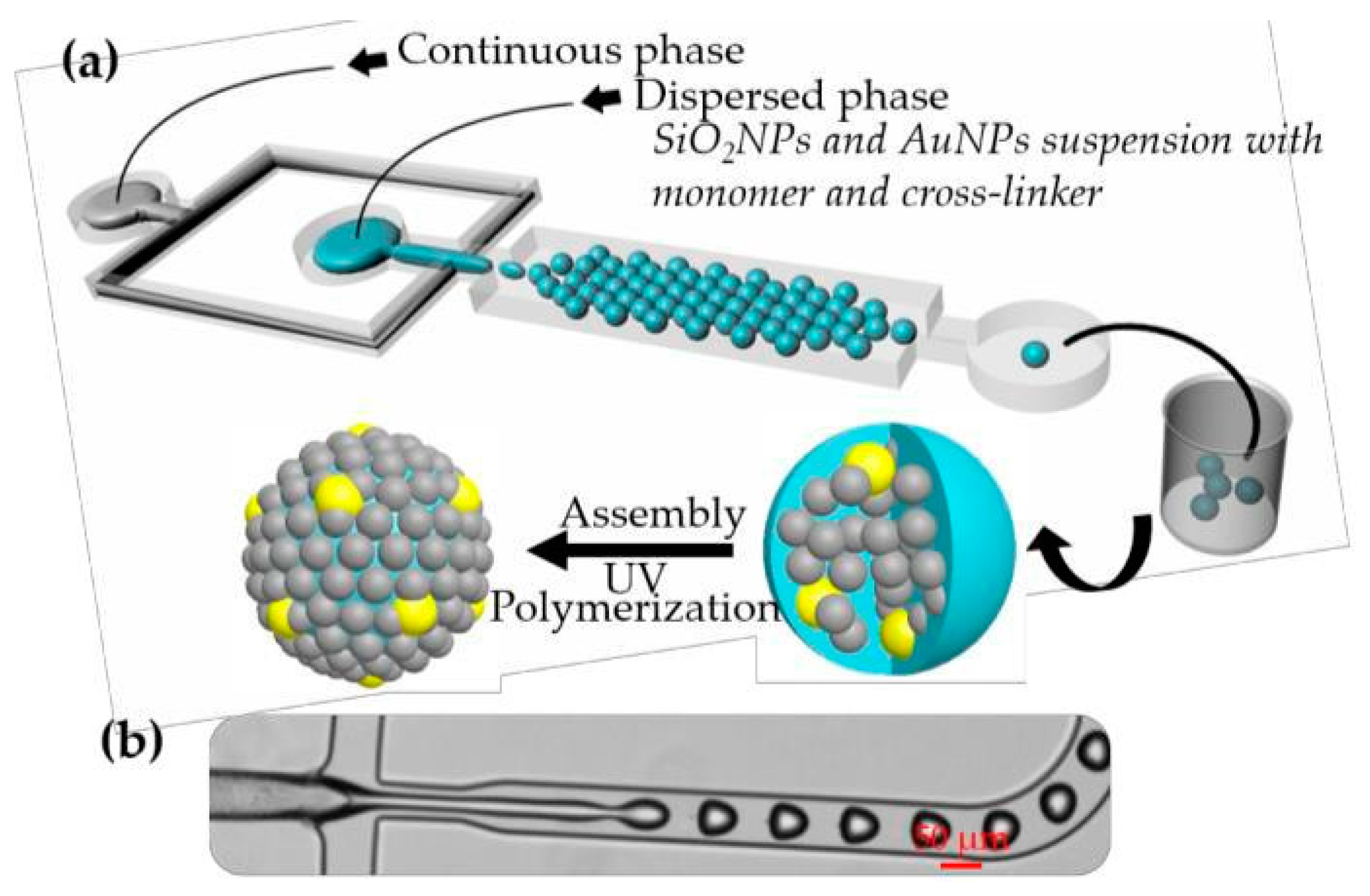

Monodispersed droplets encapsulating SiO2NPs and AuNPs are generated by the droplet microfluidic platform. The schematic Figure 1a, shows the generation procedure. Water-soluble fluids containing monomer of 5.5% NIPAM, cross-linker of 2% MBA as well as SiO2NPs in 100 nm and AuNPs with a varying diameter, were used as the dispersed phase, which was sheared off by the continous phase to form droplets. Figure 1b shows the optical microscopy image of the droplet generation at the flow-focus junction. Furthermore, the size and the ratio of the composite building blocks were precisely tuned to produce hierarchically composed superballs, showing a variety of PBG and SPR properties (Figure 2).

3.2. Controllable PBG and SPR Properties

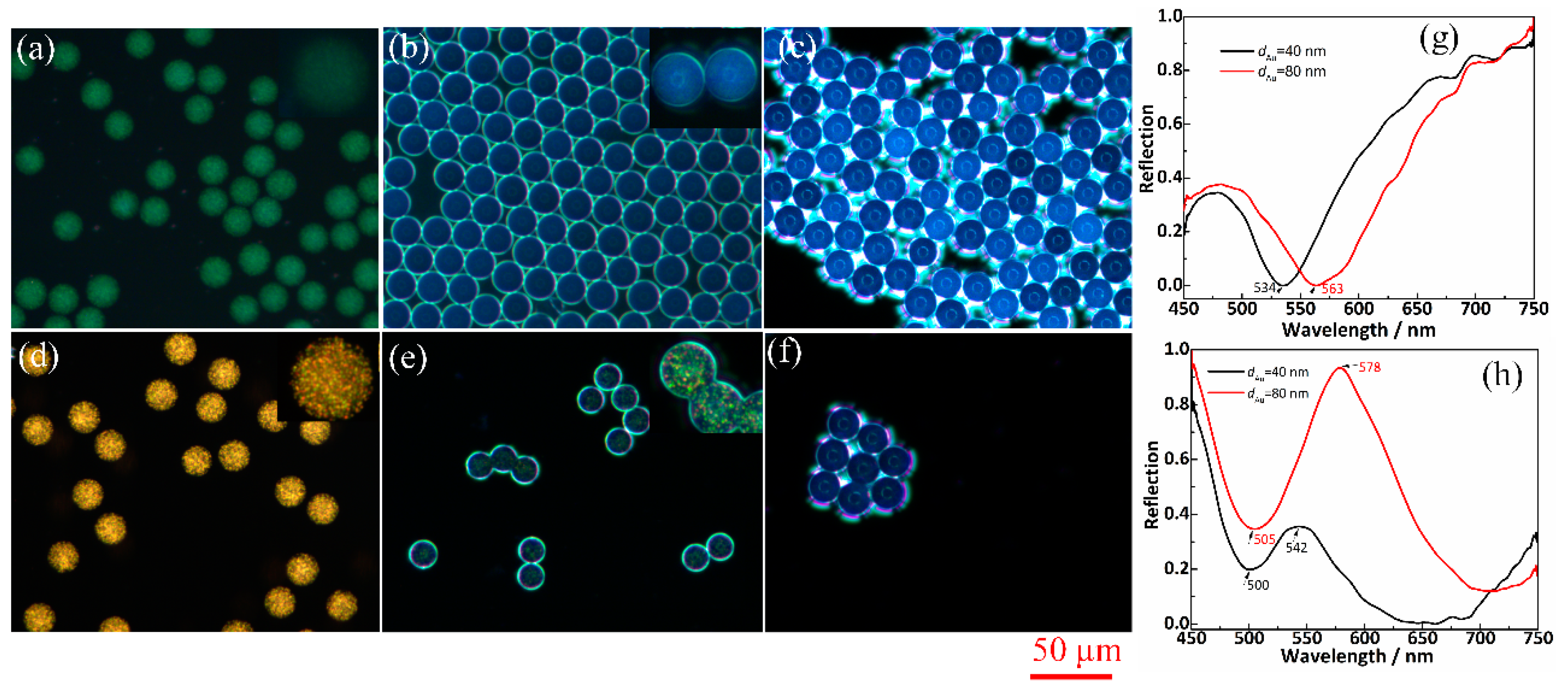

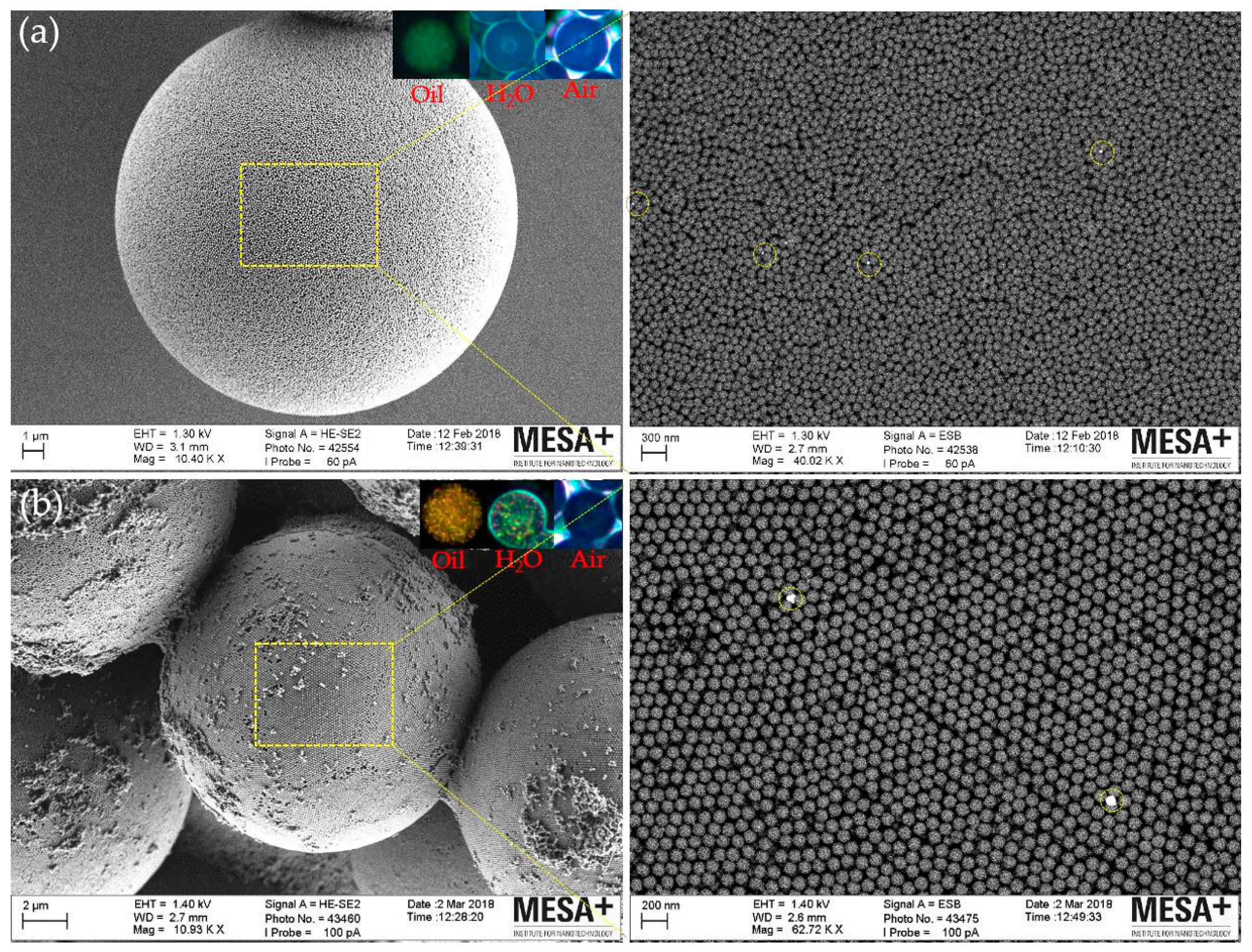

It has been demonstrated that the scattering color of these superballs can be tuned by the size of SiO2NPs and AuNPs, the ratio of SiO2NPs and AuNPs, as well as the surrounding medium. Figure 2 illustrates the scattering color change in response to the AuNP diameter and medium refractive index. The scattering color resulted from the SPR property of the AuNPs integrated into the superballs when they were suspended in solution. However, in the dry state exposed to air, the observed scattering color was caused by the photonic crystal properties (PBG) of the periodic nanostructure from the close-packed SiO2NPs. Figure 3 showed the scanning electronic microscope (SEM) images of the superball morphologies corresponding to Figure 2.

4. Conclusions

3D hierarchically composed superballs self-assembled from SiO2NPs and AuNPs have been proposed and their production was verified via a microfluidic technique, showing both PBG and SPR properties. This proposed strategy shows advantages of facile and fast fabrication, and offers opportunities of integration of PBG and SPR properties into one micro-unit. The combination would have high potential for biosensor applications, as the sensitivity to the refractive index of the environment can for example be exploited to probe antigen-antibody reactions or nucleic acid hybridization.
