Commercially Fabricated Printed Circuit Board Sensing Electrodes for Biomarker Electrochemical Detection: The Importance of Electrode Surface Characteristics in Sensor Performance ^†

Abstract

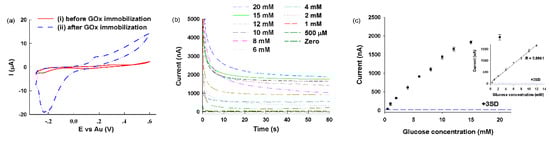

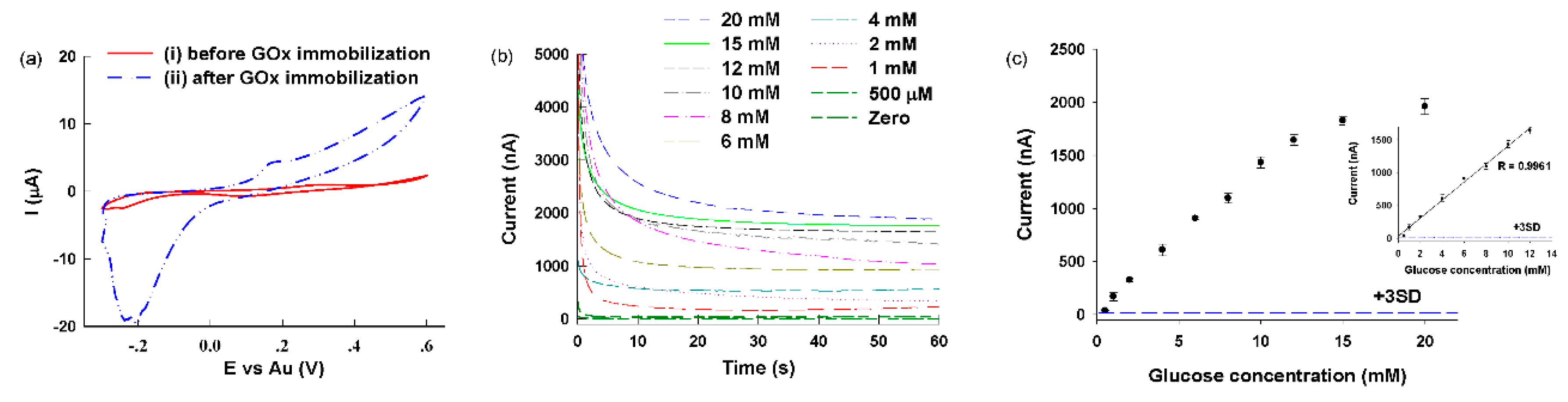

Here we report the first PCB-implemented electrochemical glucose biosensor using covalently immobilized glucose oxidase (GOx) on the commercially fabricated PCB electrode surface, taking particular care on the electrode surface characteristics and their effect on sensor performance. Based on the results, this assay exhibits a highly linear response from 500 µM to 20 mM (R = 0.9961) and a lower limit of detection of 500 µM.

1. Introduction

Diabetes mellitus is an important chronic disease affecting increasing population numbers [1]. The World Health Organization (WHO) has placed diabetes among the top 10 world diseases with highest mortality rates. Until now, diabetes has been considered a disease of predominantly rich nations; this is not the case any more. Diabetes prevalence has been rising more rapidly in low and middle income countries; for example in Turkey prevalence stands at 12.8% [2] (almost double the global average). While blood glucose diagnostic systems at the Point of Care are a world-wide success story, all the painless solutions (i.e., not requiring finger pricking to extract blood) available are too expensive (ca. £60 per sensor) to be considered as disposable diagnostics suitable for a mass population preventative screening in low and middle income countries. Hence the motivation of our work has been to develop a cost-effective glucose quantification microsystem, integrating sample delivery microfluidics and sensitive electrochemical biosensors on a seamlessly and commercially fabricated Lab-on-PCB platform [3]. In this work we focused on the development of a sensitive and reliable glucose biosensor, exploiting for the first time covalent immobilization of commercially fabricated PCB electrodes.

While several PCB-implemented electrochemical biosensors are being increasingly demonstrated over the past few years for several applications [4,5,6,7,8,9], little care is being given to the sensing electrode characteristics and their significance in sensor characteristics. Nonetheless, in the case of sensors exploiting SAM-assisted capture molecule immobilization, the physical and chemical properties of the electrodes can severely affect the sensing characteristics. Hence, in this paper we present the electrochemical and surface characteristics of the sensing electrodes as received by the manufacturer and also after our surface treatment process. Glucose oxidase is subsequently covalently immobilized on the chemically pre-treated, Au plated working electrodes, as opposed to previously presented PCB-implemented glucose sensors [10,11,12,13], resulting in a lower limit of detection of 500 μM.

2. Materials and Methods

Ammonium hydroxide, hydrogen peroxide, 3-Mercaptopropoinic acid, glucose oxidase, glucose and other reagents for buffer solutions were purchased from Sigma-Aldrich (Gillingham, UK). The sensing electrodes were designed in PCB CAD software (Altium®, version 17.1.9) and commercially fabricated in a standard PCB manufacturing facility. The copper electrodes were electroplated with a hard-gold finish in order to exploit the pore-free deposition and low contact resistance achieved by this technique. The gold-plated electrodes were exploited as working, counter and reference electrodes and connected to a potentiostat to obtain the cyclic voltammograms and chronoamperometric signals. Glucose solution was serially diluted in PBS and used for electrochemical measurements. 50 µL of PBS sample was dispensed onto the sensor and cyclic voltammetric and chronoamperometric measurements were performed using an electrochemical workstation (Autolab, Utrecht, The Netherlands). Chronoamperometric signals were obtained at a bias potential of 0.2 V.

3. Results and Discussion

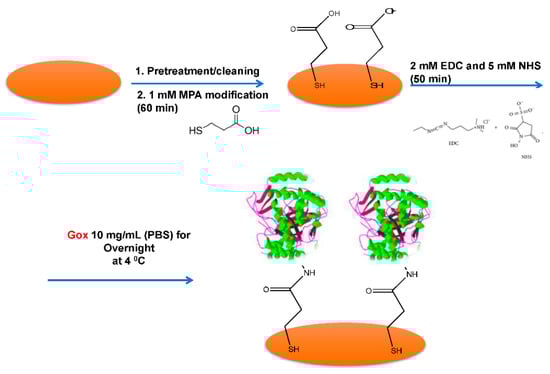

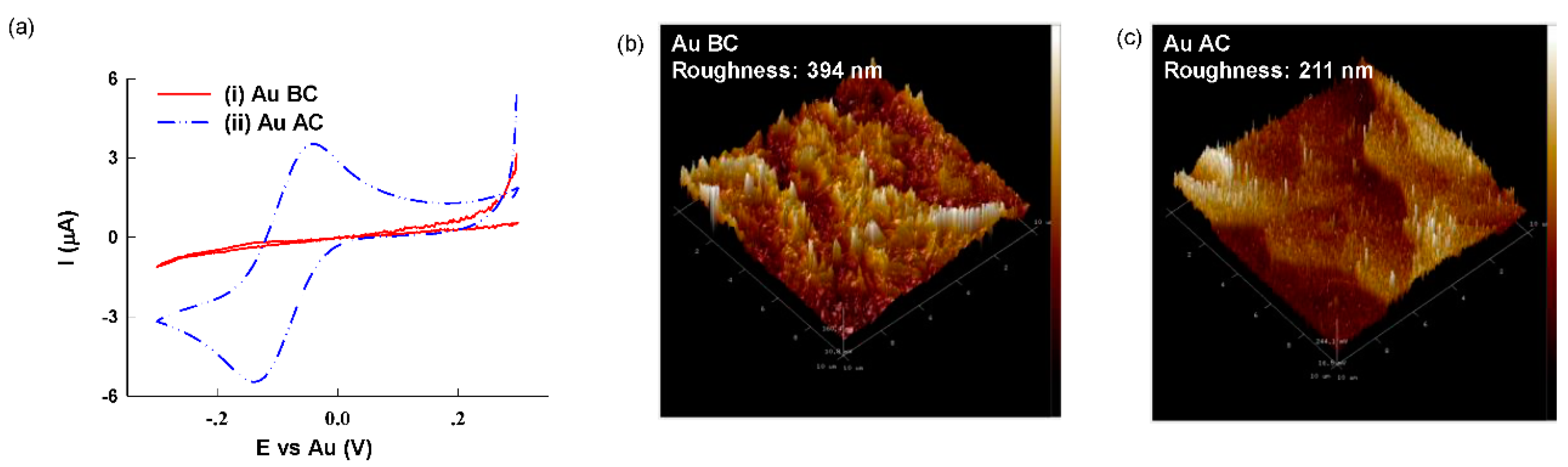

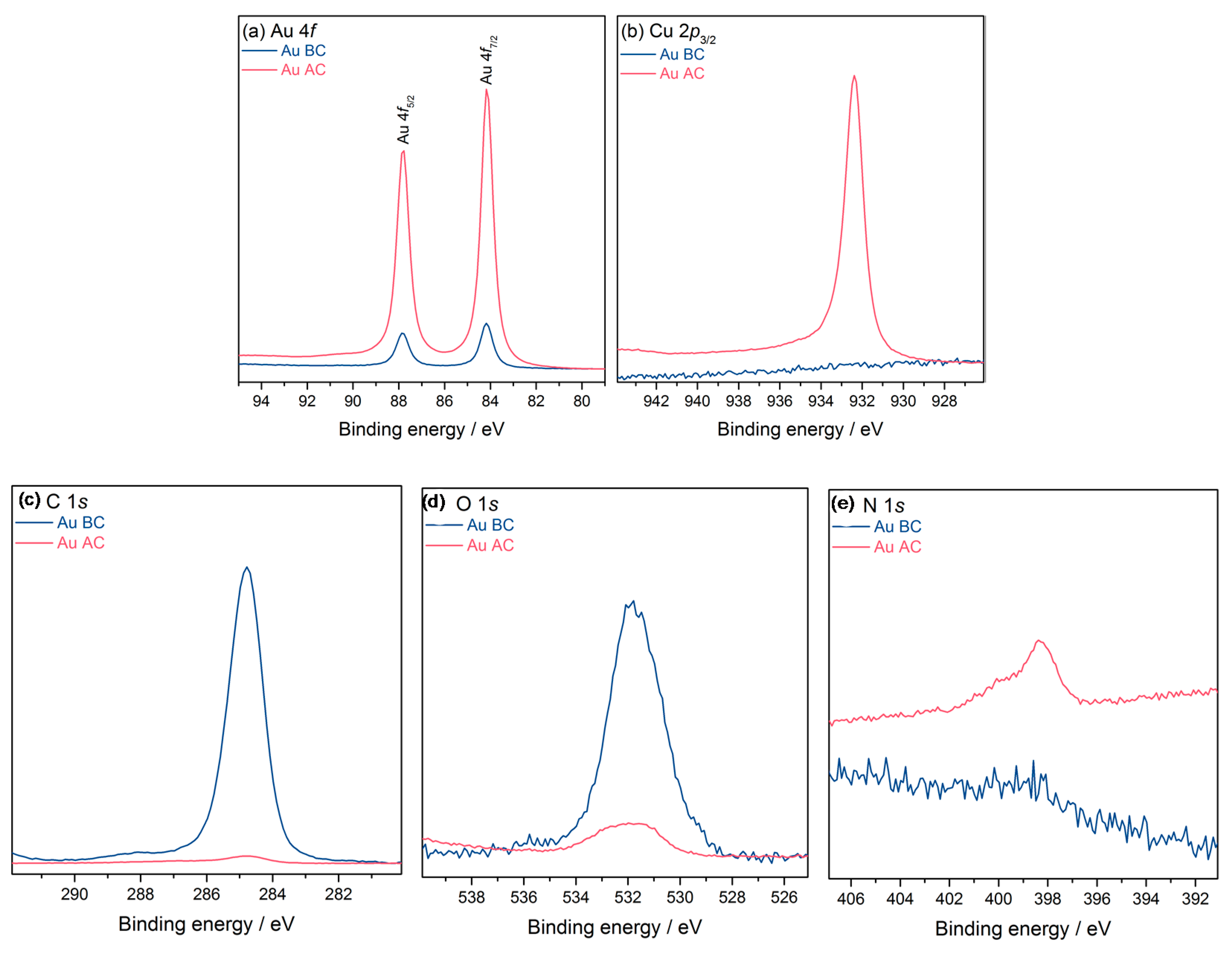

The gold-plated electrodes were cleaned prior to GOx immobilization by 15 min ultrasonication in acetone, ethanol, and water, respectively and followed by 30 min ultrasonication in a solution containing 5:1:1 water, ammonium hydroxide (20%) and hydrogen peroxide (30%). Actually, the gold-plated electrodes are fully electrochemically inactive before cleaning (BC) as showed no redox peak in the cyclic voltammogram of K₃Fe(CN)₆ solution. Interestingly, after cleaning (AC) process the electrodes were highly electrochemically active and showed a clear redox peak in the cyclic voltammogram of K₃Fe(CN)₆ solution. (Figure 1a). Atomic force micrographs (AFM) of Au plate electrodes were obtained before and after the cleaning (Figure 1b,c). The root-mean-square (RMS) roughness was decreased after the cleaning, probably due to the removal of organic layer from the Au surface. X-ray photoelectron spectroscopy (XPS) of all major core levels confirmed that the Au surface was initially covered under an organic layer of predominantly C and O, which was removed almost completely after after the cleaning process (Figure 2). In addition, a strong Cu peak is found, giving a ratio of Au:Cu = 4:1. A self-assembled monolayer (SAM) of MPA (3-Mercaptopropoinic acid) was formed on the precleaned PCB gold electrode surface by immersing in an ethanol solution containing 1 mM MPA for 1 h at RT followed by thoroughly rinsing with ethanol and DI water respectively and drying with N₂ gas (Scheme 1). 2 mM EDC and 5 mM NHS solution mixture was incubated for 50 min on the electrode surface at RT to activate the carboxylic acid group of SAM. The electrodes were then washed twice with PBS. 20 μL of PBS containing 5 mg/mL GOx was dispensed onto the electrode, incubated for overnight at 4 °C. The electrodes were then washed twice with PBS and stored at 4 °C. Figure 3a shows the successful immobilization of GOx on the gold-plated PCB electrode surface. Samples were prepared by serially diluting glucose in PBS. 70 µL of sample was injected followed by the application of a 0.05 V bias potential. Chronoamperometric response profiles from 500 µM to 20 mM are shown in Figure 3b. A calibration plot of the chronoamperometric current at 60 s is shown in Figure 3c where each data point represents three separate measurements using new electrodes. Based on these results, this assay exhibits a highly linear response from 500 µM to 20 mM (R = 0.9961) and a lower limit of detection of 500 µM.

4. Conclusions

Our work focused on the development of a sensitive and reliable glucose biosensor, exploiting for the first time covalent immobilization of commercially fabricated PCB electrodes. Our PCB-implemented electrochemical glucose biosensor using covalently immobilized glucose oxidase (GOx) shows very good sensitivity towards glucose oxidation and could be used for point-of-care testing.
