Proceeding Paper

Adsorption of Rare Earth Elements from Aqueous Solutions Using Geopolymers †

Division for Marine and Environmental Research, Ruđer Bošković Institute, Bijenička 54, 10000 Zagreb, Croatia
Department of Biology, Faculty of Science, University of Zagreb, Rooseveltov trg 6, 10000 Zagreb, Croatia
Department of Geology, Faculty of Science, University of Zagreb, Horvatovac 95, 10000 Zagreb, Croatia
Department of Geology, Faculty of Natural Sciences and Engineering, University of Ljubljana, Aškerčeva c. 12, 1000 Ljubljana, Slovenia
Author to whom correspondence should be addressed.
Presented at the 1st International Electronic Conference on Geosciences (IECG 2018), 15–30 June 2018; Available online:
Proceedings 2018, 2(10), 567;
Published: 14 June 2018
(This article belongs to the Proceedings of IECG 2018)


Rare earth elements, i.e., lanthanides, are important components of many recently developed technology applications. However, their increasing use in the industrial sector, medicine, and agriculture over the last few decades has provided them with the title of “new pollutants”. Different methods are now applied for the removal of various pollutants from wastewaters, whereby the emphasis is placed on adsorption due to its simplicity, high efficiency, and low cost. In the present study, geopolymers prepared from coal ash were examined regarding their capacity for the adsorption of lanthanides from model solutions. The obtained results indicate the efficient removal of lanthanides by prepared geopolymers, depicting them as effective adsorbents for this group of elements.

1. Introduction

Rare earth elements (REEs), also known as lanthanides, are important components of many recently developed technology applications and are widely used in the industrial sector, medicine, and agriculture. Although lanthanides are ubiquitous in the environment, their increasing use in the aforementioned sectors over the last few decades has provided them with the title of “new pollutants”.
Consequently, an increase in the concentration of lanthanides, especially gadolinium (Gd), in natural water systems was observed over the last two decades [1,2,3,4]. The elevated concentrations of gadolinium, up to two orders of magnitude higher than their natural levels, are primarily attributed to the discharge of wastewater, i.e., the application of Gd in the form of very stable organic complexes for magnetic resonance [2,3,4].
Nowadays, various processes are used to remove heavy metals from wastewater, e.g., chemical coagulation, ion exchange, extraction, and adsorption. Recently, the emphasis has been placed on adsorption due to the simplicity of the procedure, as well as its high efficiency and low price [5], while zeolites and geopolymers are extensively studied as the most common adsorbents [6,7,8,9,10].
Geopolymers can be synthesized from any material with high silicon and aluminum content, regardless of its origin, e.g., natural raw materials such as clay or byproducts of various industrial plants such as ash [6,7,8,9]. The activation of fly ash with alkaline solution produces porous alumosilicates, i.e., geopolymers, characterized by an increased specific surface, high pore volume, and the possibility of the adsorption of chemical species that even zeolites cannot remove [6].
The previous studies on the adsorption and stabilization of metals using geopolymers were mainly oriented to heavy metals (Cd, Cr, Cu, Ni, Pb, Zn) [6,7,8,9,11,12], while the group of lanthanides was not significantly investigated. Sporadic studies mainly dealt with the adsorption of lanthanide on biological materials [13], zeolites [14], and clay [15], but less on geopolymers [16], focusing only on certain lanthanides and rarely on the whole group.
Given the fact that lanthanides are not significantly studied in this regard, our aim was to investigate the ability of geopolymer matrices, prepared from coal ash, to remove lanthanides from model aqueous solutions.

2. Materials and Methods

2.1. Geopolymer Preparation

The geopolymers were prepared using the Raša coal ash (Istria, Croatia) as the starting material. The characteristics of Raša coal, summarized by Medunić et al. [17], are as follows: total moisture 5.80–19.1 wt%, ash content 10.3–23.9 wt%, carbon 58.3–67.5 wt%, hydrogen 4.10–5.00 wt%, sulfur (organic) 7.90–10.6 wt%, oxygen 5.90–12.9 wt%, nitrogen 1.00–1.80 wt%, and average content of rare earth elements 81.1 mg kg−1 [18].
The Raša coal ash, previously sieved through a 2-mm sieve, was activated with a sodium silicate and 10 M sodium hydroxide solutions to prepare paste specimens (Table 1). A technical-grade sodium silicate solution (BDH Prolabo) with SiO2/Na2O = 3.2–3.4 (Na2O = 7.5–8.5%, SiO2 = 25.6–27.6%, and H2O = 67.75%, with a density of 1.45 g cm–3) was used as the alkaline activator. Sodium hydroxide solution (10 M NaOH) was prepared by the dissolution of NaOH pellets (Fluka, Steinheim, Switzerland) in deionized water. The addition of 10 mL prepared NaOH solution modified the molar ratio SiO2/Na2O to 0.7–0.8 and 1.1–1.3 in geopolymers A and B, respectively.
The fresh pastes were exposed to heat curing in a laboratory oven at 75 °C for 24 h. After two weeks of aging at room temperature, subsamples of prepared geopolymers A and B were used for adsorption experiments.

2.2. Adsorption Experiment

Aqueous solutions containing 1 mg L−1 rare earth elements were prepared from a multi-element reference standard (Analytika, Prague, Czech Republic) containing Ce, La, Nd, and Pm (100 ± 0.2 mg L−1) and Dy, Er, Eu, Gd, Ho, Lu, Sc, Sm, Tb, Tm, Y, and Yb (20 ± 0.4 mg L−1). The aliquots (50 mL) of prepared REEs solution were placed into two plastic bottles (A and B) containing accurately weighed amounts of the sorbents, i.e., geopolymer A (m = 0.5003 g) and geopolymer B (m = 0.5200 g). The prepared suspensions were shaken using a mechanical shaker at 320 rpm. After a certain contact time (5, 15, 30, 60, and 120 min), 5 mL of the suspension was taken by a syringe from each bottle and filtered through a 0.45-µm filter. Prior to analysis, obtained solutions were diluted 10 times and acidified with 2% (v/v) HNO3 (65%, supra pur, Fluka, Steinheim, Switzerland). Lastly, In (1 µg L−1) was added as an internal standard.

2.3. Rare Earth Elements Analysis

Multi-elemental analysis of prepared solutions was performed by High Resolution Inductively Coupled Plasma Mass Spectrometry (HR-ICP-MS) using an Element 2 instrument (Thermo, Bremen, Germany). External calibration was used for the quantification. Standards for multi-element analysis were prepared by the appropriate dilution of a multi-element reference standard (Analytika, Prague, Czech Republic) containing Ce, La, Nd, and Pr (100 ± 0.2 mg L−1), and Dy, Er, Eu, Gd, Ho, Lu, Sc, Sm, Tb, Tm, and Yb (20 ± 0.4 mg L−1). All samples were analyzed to determine the total concentration of the rare earth elements.

3. Result and Discussion

The efficiency of the tested geopolymers as adsorbents for lanthanides was evaluated by determining the concentration of REEs in solution after the specific contact time with a geopolymer (0, 5, 15, 30, 60 and 120 min). The results presented in Figure 1 demonstrate the decrease of REEs concentration in both solutions (A and B). The adsorption onto geopolymers occurred rather fast in the initial phase of the experiment, and already in the first five minutes the REEs concentration decreased to 7–13% and 23–35% of the initial concentration in solutions A and B, respectively. Later, the concentrations decreased continuously with time and, at the end of the experiment (120 min), up to 99% and 96% of the total REEs were adsorbed onto geopolymers A and B, respectively. The presented data therefore strongly suggest that both geopolymers are efficient sorbents for REEs and could be efficiently used for their removal from the solution, whereas geopolymer A, which has lower SiO2/Na2O ratios (SiO2/Na2O = 0.7–0.8), has better performance compared to geopolymer B (SiO2/Na2O = 1.1–1.3). At the end of the experiment, the lowest concentrations in both solutions were measured for Gd, La, and Tm (<3% of the initial concentration), while Yb and Ho were somewhat less adsorbed compared to the other elements (up to 7% of the initial concentration remained in the solution).

3.1. Adsorption Rate Constants

The adsorption kinetics could be described by first-order kinetic model given in Equation (1):
ct = ciekt
where ci and ct represent the initial (t = 0) concentration and concentration of REEs after the specific time t, whereas k and t represent the adsorption rate constant and time, respectively. The obtained kinetic curves are presented in Figure 2. As can be noticed, they are not equal for both geopolymers; while the sorption of REEs on geopolymer A has two phases, an initial rapid phase followed by a slower adsorption phase that occurred after 60 min, the rates of adsorption on geopolymer B did not vary significantly through the whole experiment. Although the slower adsorption rate that was observed in the second phase (60–120 min) could be attributed to the different properties and microstructure of geopolymer A, the most probable explanation for this is the lower concentrations of elements that remained in the solution.
The adsorption rate constants (k) were calculated using Equation (1) and are summarized in Table 2. The values range from 0.007 min−1 to 0.050 min−1 for geopolymer A, and from 0.010 min−1 to 0.023 min−1 for geopolymer B. Comparing these two geopolymers, it could be observed that the adsorption of REEs on geopolymer A is faster (up to 2 times) at the beginning of the experiments. After the first 60 min, the rate of adsorption decreased for both geopolymers, although much less for geopolymer B (up to 2 times for geopolymer B, and 3–9 times for geopolymer A).
Both geopolymers showed a similar pattern with a higher adsorption affinity for REEs initially present in higher concentrations (La, Pr, and Nd).

3.2. Adsorption Isotherms

Adsorption isotherms describe the partitioning of REEs between the aqueous solution and the sorbent, i.e., the geopolymer. In the present study, the REEs concentrations in geopolymers were determined as the differences between initial concentrations in the solution and concentrations measured in the specific time t. It was considered that all quantities of REEs that are removed from the solution are adsorbed onto the geopolymers. The evaluation of the data revealed that the adsorption of REEs fit the Langmuir adsorption isotherm described by Equation (2):
  c   c a   =   1 b   c m + c c m
where c represents the REEs concentration in the solution in time t, ca is the amount of adsorbed REEs per unit weight of geopolymer, b is the constant of the Langmuir isotherm related to the equilibrium constant or binding energy, and cm is the maximum amount of REEs adsorbed. The adsorption isotherms shown in Figure 3 demonstrate the linearity in the investigated concentration range for all REEs.
The slopes of the isotherms for La, Ce, Pr, and Nd are very similar and are around 5 times lower than those for other REEs, considering both geopolymers. This implies the higher adsorption capacity of both geopolymers for La, Ce, Pr, and Nd compared to the other REEs.

4. Conclusions

The obtained results indicate an efficient removal of lanthanides from solution by prepared geopolymers. Although both geopolymers were efficient sorbents for REEs, geopolymer A displayed a slightly better performance compared to geopolymer B. The observed differences between the prepared geopolymers indicate the importance of the preparation procedure, i.e., the composition of the geopolymer and the activators used, in ensuring the optimal adsorption conditions.
In general, the adsorption of REEs on tested geopolymers can be described by the Langmuir adsorption isotherm, whereas REEs initially present in higher concentration (La, Pr, and Nd), as well as those with lower atomic number (Y, La, Gd, Pr, Nd, Y, Sm), displayed higher adsorption rates.


  1. Bau, M.; Dulski, P. Anthropogenic origin of positive gadolinium anomalies in river waters. Earth Planet. Sci. Lett. 1996, 143, 245–255. [Google Scholar] [CrossRef]
  2. Lawrence, M.G. Detection of anthropogenic gadolinium in the Brisbane River plume in Moreton Bay, Queensland, Australia. Mar. Pollut. Bull. 2010, 60, 1113–1116. [Google Scholar] [CrossRef] [PubMed]
  3. Kulaksız, S.; Bau, M. Rare earth elements in the Rhine River, Germany: First case of anthropogenic lanthanum as a dissolved microcontaminant in the hydrosphere. Environ. Int. 2011, 37, 973–979. [Google Scholar] [CrossRef] [PubMed]
  4. Klaver, G.; Verheul, M.; Bakker, I.; Petelet-Giraud, E.; Négrel, P. Anthropogenic rare earth element in rivers: Gadolinium and lanthanum. Partitioning between the dissolved and particulate phases in the Rhine River and spatial propagation through the Rhine-Meuse Delta (The Netherlands). Appl. Geochem. 2014, 47, 186–197. [Google Scholar] [CrossRef]
  5. Bhattacharyya, K.G.; Gupta, S.S. Adsorption of a few heavy metals on natural and modified kaolinite and montmorillonite: A review. Adv. Colloid Interface Sci. 2008, 140, 114–131. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, S.; Li, L.; Zhu, Z.H. Solid-state conversion of fly ash to effective adsorbents for Cu removal from wastewater. J. Hazard. Mater. 2007, 139, 254–259. [Google Scholar] [CrossRef] [PubMed]
  7. El-Eswed, B.; Alshaaer, M.; Yousef, R.I.; Hamadneh, I.; Khalili, F. Adsorption of Cu(II), Ni(II), Zn(II), Cd(II) and Pb(II) onto Kaolin/Zeolite Based- Geopolymers. Adv. Mater. Phys. Chem. 2012, 2, 119–125. [Google Scholar] [CrossRef]
  8. Al-Zboon, K.; Al-Harahsheh, M.S.; Hani, F.B. Fly ash-based geopolymer for Pb removal from aqueous solution. J. Hazard. Mater. 2011, 188, 414–421. [Google Scholar] [CrossRef] [PubMed]
  9. Muzek, M.N.; Svilovic, S.; Zelic, J. Fly ash-based geopolymeric adsorbent for copper ion removal from wastewater. Desalin. Water Treat. 2014, 52, 2519–2526. [Google Scholar] [CrossRef]
  10. López, F.J.; Sugita, S.; Tagaya, M.; Kobayashi, T. Metakaolin-based geopolymers for targeted adsorbents to heavy metal ion separation. J. Mater. Sci. Chem. Eng. 2014, 2, 16–27. [Google Scholar] [CrossRef]
  11. Davidovits, D. Geopolymer, Green Chemistry and Sustainable Development. The Poly(sialate) Terminology: A very Usefull and Simple Model for the Promotion and Understanding of Green Chemistry: Proceedings of the World Congress Geopolymer 2005; Davidovits, J., Ed.; Institut Geopolymer: Saint-Quentin, France, 2005; pp. 9–17. [Google Scholar]
  12. Van Jaarsveld, J.G.S.; Van Deventer, J.S.J.; Lorenzeni, L. The Potential Use of Geopolymeric Materials to Immobilise Toxic Metals: Part I. Theoty and Application. Miner. Eng. 1997, 10, 659–669. [Google Scholar] [CrossRef]
  13. Thomas, P.J.; Carpenter, D.; Boutin, C.; Allison, J.E. Rare earth elements (REEs): Effects on germination and growth of selected crop and native plant species. Chemosphere 2014, 96, 57–66. [Google Scholar] [CrossRef] [PubMed]
  14. Hui, K.S.; Chao, C.Y.H.; Kot, S.C. Removal of mixed heavy metal ions in wastewater by zeolite 4A and residual products from recycled coal fly ash. J. Hazard. Mater. 2005, B127, 89–101. [Google Scholar] [CrossRef] [PubMed]
  15. Coppin, F.; Berger, G.; Bauer, A.; Castet, S.; Loubet, M. Sorption of lanthanides on smectite and kaolinite. Chem. Geol. 2002, 182, 57–68. [Google Scholar] [CrossRef]
  16. Izquierdo, M.; Querol, X.; Davidovits, J.; Antenucci, D.; Nugteren, H.; Fernández-Pereira, C. Coal fly ash-slag-based geopolymers: Microstructure and metal leaching. J. Hazard. Mater. 2009, 166, 561–566. [Google Scholar] [CrossRef] [PubMed]
  17. Medunić, G.; Rađenović, A.; Bajramović, M.; Švec, M.; Tomac, M. Once grand, now forgotten: What do we know about the superhigh-organic-sulfur Raša coal? Min. Geol. Petrol. Eng. Bull. 2016, 27–45. [Google Scholar] [CrossRef]
  18. Fiket, Ž.; Medunić, G.; Kniewald, G. Rare earth element distribution in soil nearby thermal power plant. Environ. Earth Sci. 2016, 75, 598. [Google Scholar] [CrossRef]

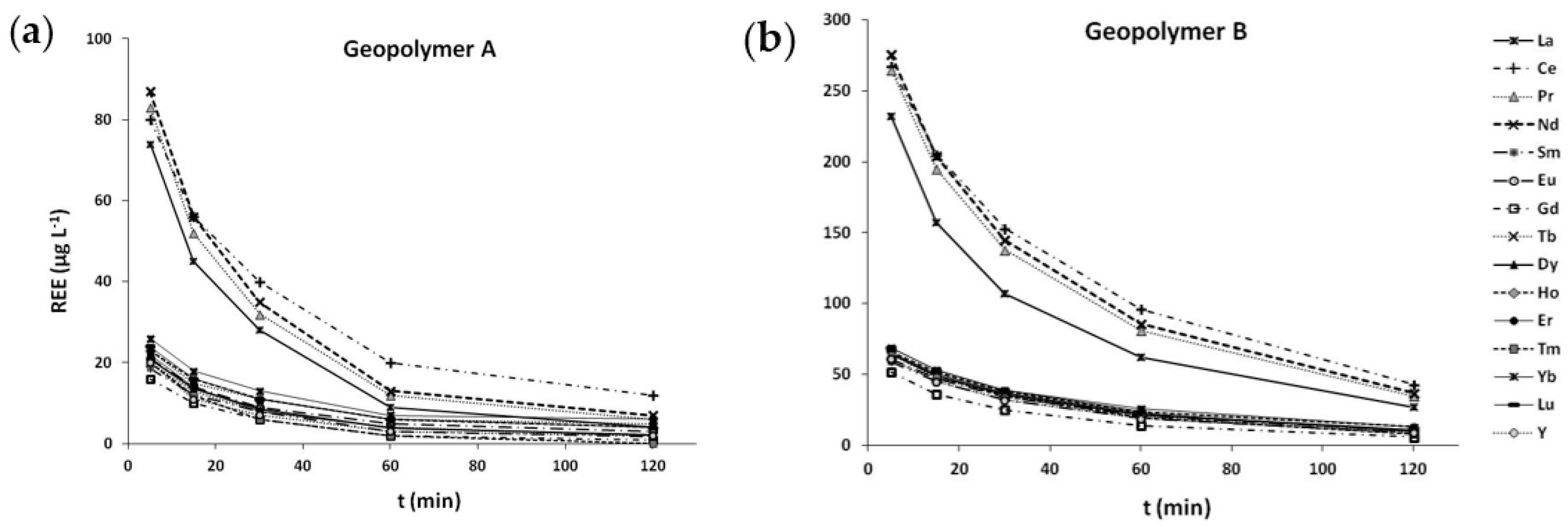

Figure 1. The concentration of rare earth elements (REEs) in solutions (µg L−1) after a certain contact time (t) with geopolymers A (a) and B (b).
Figure 1. The concentration of rare earth elements (REEs) in solutions (µg L−1) after a certain contact time (t) with geopolymers A (a) and B (b).
Proceedings 02 00567 g001

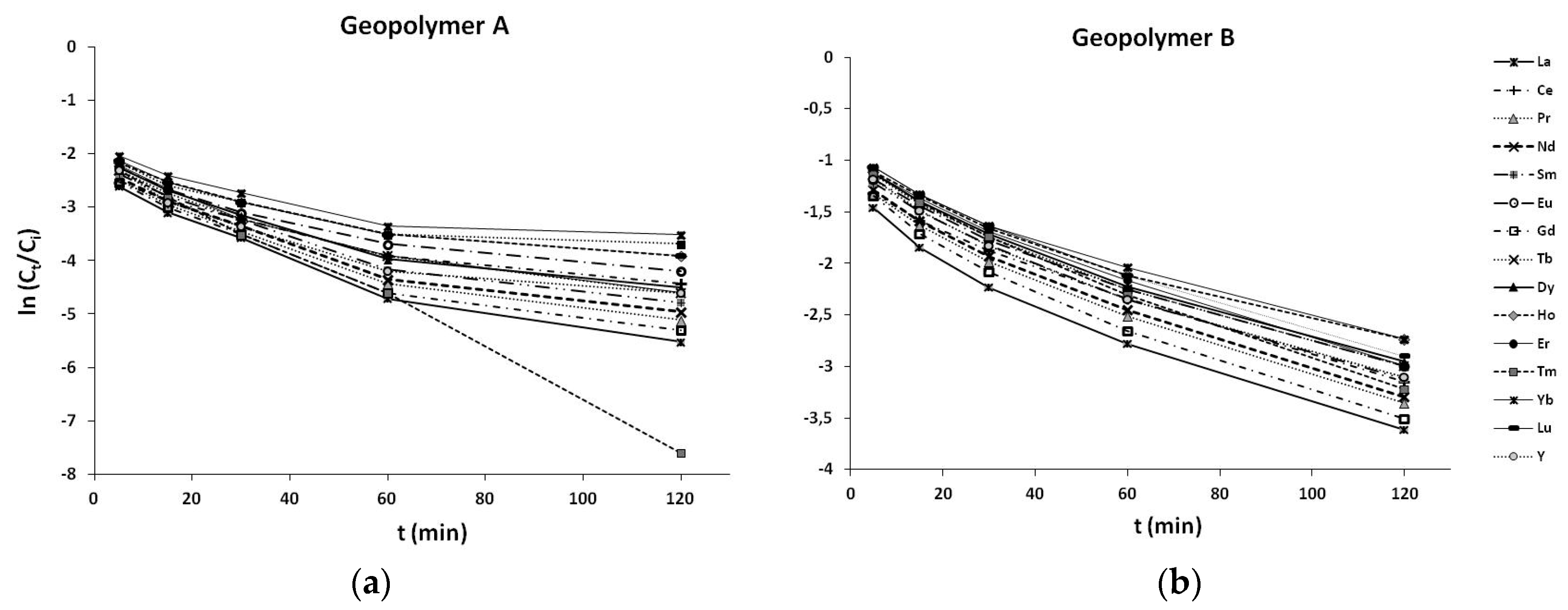

Figure 2. First-order kinetic fit of REEs adsorption data on geopolymer A (a) and geopolymer B (b).
Figure 2. First-order kinetic fit of REEs adsorption data on geopolymer A (a) and geopolymer B (b).
Proceedings 02 00567 g002

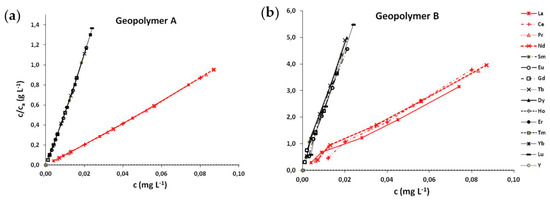

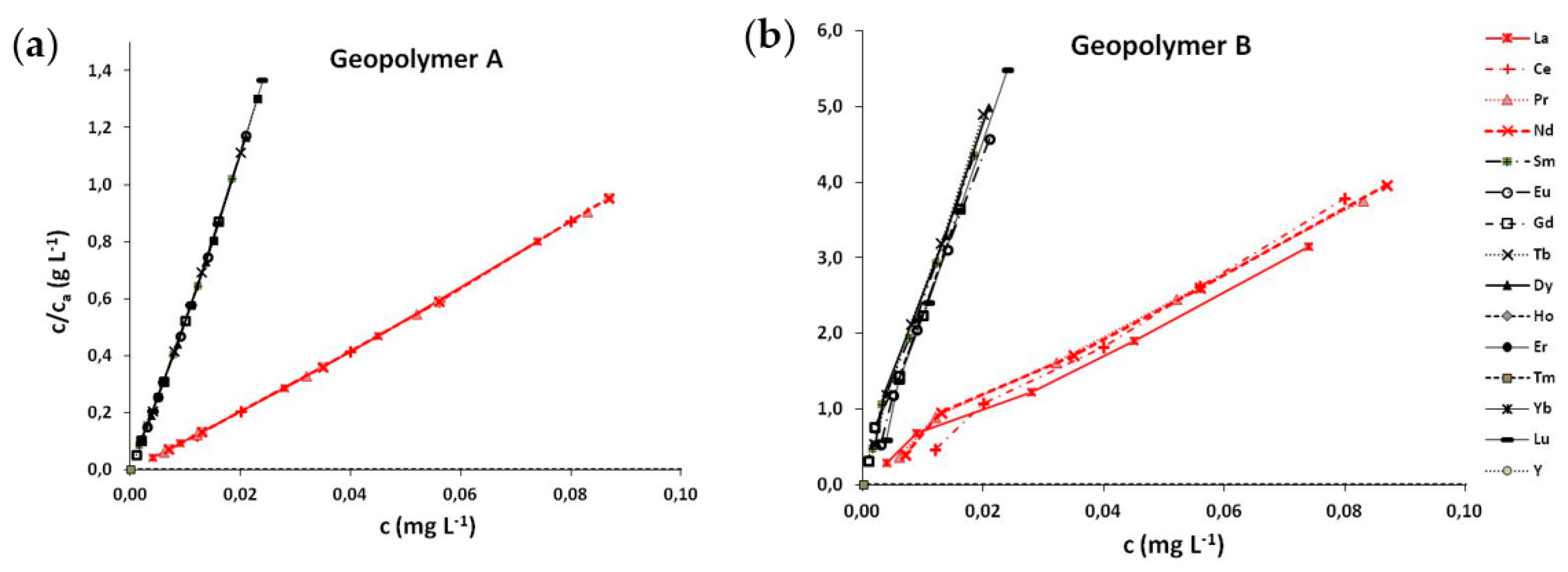

Figure 3. Adsorption isotherms of REEs for geopolymers A (a) and B (b).
Figure 3. Adsorption isotherms of REEs for geopolymers A (a) and B (b).
Proceedings 02 00567 g003
Table 1. Mixture composition for geopolymer preparation.
Table 1. Mixture composition for geopolymer preparation.
Geopolymer AGeopolymer B
mash (g)5050
mNa-silicate (mL)7.515
Table 2. The adsorption rate constants (k) for the studied geopolymers (A and B).
Table 2. The adsorption rate constants (k) for the studied geopolymers (A and B).
k (min−1)
Geopolymer AGeopolymer B
0–60 min60–120 min0–60 min60–120 min
The affinity of REEs for the adsorption on the tested geopolymers follows the order of Tm > La, Gd > Pr, Nd > Y > Sm > Dy, Er > Tb > Eu, Ce > Lu, Ho > Yb for Geopolymer A, and the order of La, Gd > Tm, Pr, Nd, Y > Sm, Tb, Dy > Eu, Lu, Er > Ce, Ho > Yb for Geopolymer B.
