Manipulating Quantum Many-Body Systems in the Presence of Controllable Dissipation

Abstract

We discuss two quantum simulation schemes in which the coupling to an external bath may give rise to novel and interesting many-body physics. Namely, we first address the effect of local Markovian baths on the quantum annealing dynamics of an Ising-like chain: deviations from adiabaticity may display a nonmonotonic trend as a function of the annealing time, as a result of the competition between nonadiabatic effects and dissipative processes. Secondly, we provide a framework to induce persistent currents through the coupling with a structured reservoir which generates nonreciprocity, without the need of any applied gauge field.

1. Introduction

The recent spectacular advances in the field of quantum simulation have drastically enhanced our capability to control and monitor the dynamics of quantum many-body systems in a variety of physical implementation, including atomic and molecular optics, trapped ions, and cavity/circuit quantum electrodynamics [1]. In fact, it has been also possible to manipulate states of matter even in the presence of an external environment, e.g., by means of Rydberg atoms [2] or superconducting QED circuits [3]. The presence of a bath inevitably leads to a non-equilibrium process, where the coherent Hamiltonian dynamics may compete with the incoherent processes lead by the system-bath coupling.

Here, following the model proposed in Section 2, we address two peculiar situations that can be faced in up-to-date quantum simulation devices. We first concentrate, in Section 3, on the quantum annealing (QA) dynamics of a many-body system slowly driven across a phase transition, a typical situation of adiabatic quantum computation schemes, whose purpose is to identify the global minimum (ground state) of a given function over a set of many local minima [4,5]. The adiabatic unitary dynamics suggests that a slower annealing leads to a smaller density of defects generated when passing through the critical point [6], while the presence of an unstructured environment is likely to have an opposite effect [7]. The two competing effects might thus lead to interesting nonmonotonicities in the QA performance as a function of the annealing time [8,9,10].

Dissipation however is not necessarily detrimental: a constantly growing theoretical activity is now scrutinizing the possibility of engineering and probing system-bath couplings, in order to prepare and manipulate exotic many-body quantum states [11,12,13]. In Section 4 we focus on the generation of steady-state currents, using a general method to realize non-reciprocity by matching coherent and dissipative parts of the dynamics [14]. Persistent currents are one of the most attractive phenomena in mesoscopics; the versatility of cold-atom quantum simulators recently enabled to trap and control atomic currents in dissipation-free optical circuits through suitable gauge fields, with an unprecedented accuracy [15,16]. Nonetheless such currents profoundly differ from those obtained by reservoir engineering, since in the limit of large systems the former vanish, while the latter survive [17].

2. Model: A Driven-Dissipative Coupled-Cavity Array

To fix the ideas, we consider L coupled QED cavities in a one-dimensional (1D) ring geometry. This is the ideal platform where one can manipulate the various internal degrees of freedom and the coupling with ancillary systems. A unitary quadratic interaction between neighboring cavities can be implemented via standard quantum optical techniques. The resulting lattice Hamiltonian is

$$H\equiv \sum _j{H}_{j,j+1}=-\sum _j(J{b}_j^{†}{b}_{j+1}+\lambda b_j^{†}{b}_{j+1}^{†}+h.c.)-\mu \sum _j{b}_j^{†}{b}_j,$$

(1)

where $b_j^{(†)}$ describe the bosonic modes of each cavity ($j=1,\dots ,L$). The coupling to an external environment, typically Markovian, can be captured by a Lindblad master equation [18]:

$${\partial }_t\rho \left(t\right)=-i[H,\rho ]+\kappa \sum _j\mathcal{D}\left[L_j\right]\rho +\sum _j\mathcal{D}\left[L_{j,j+1}\right]\rho ,$$

(2)

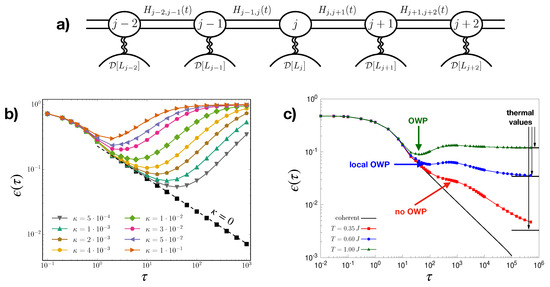

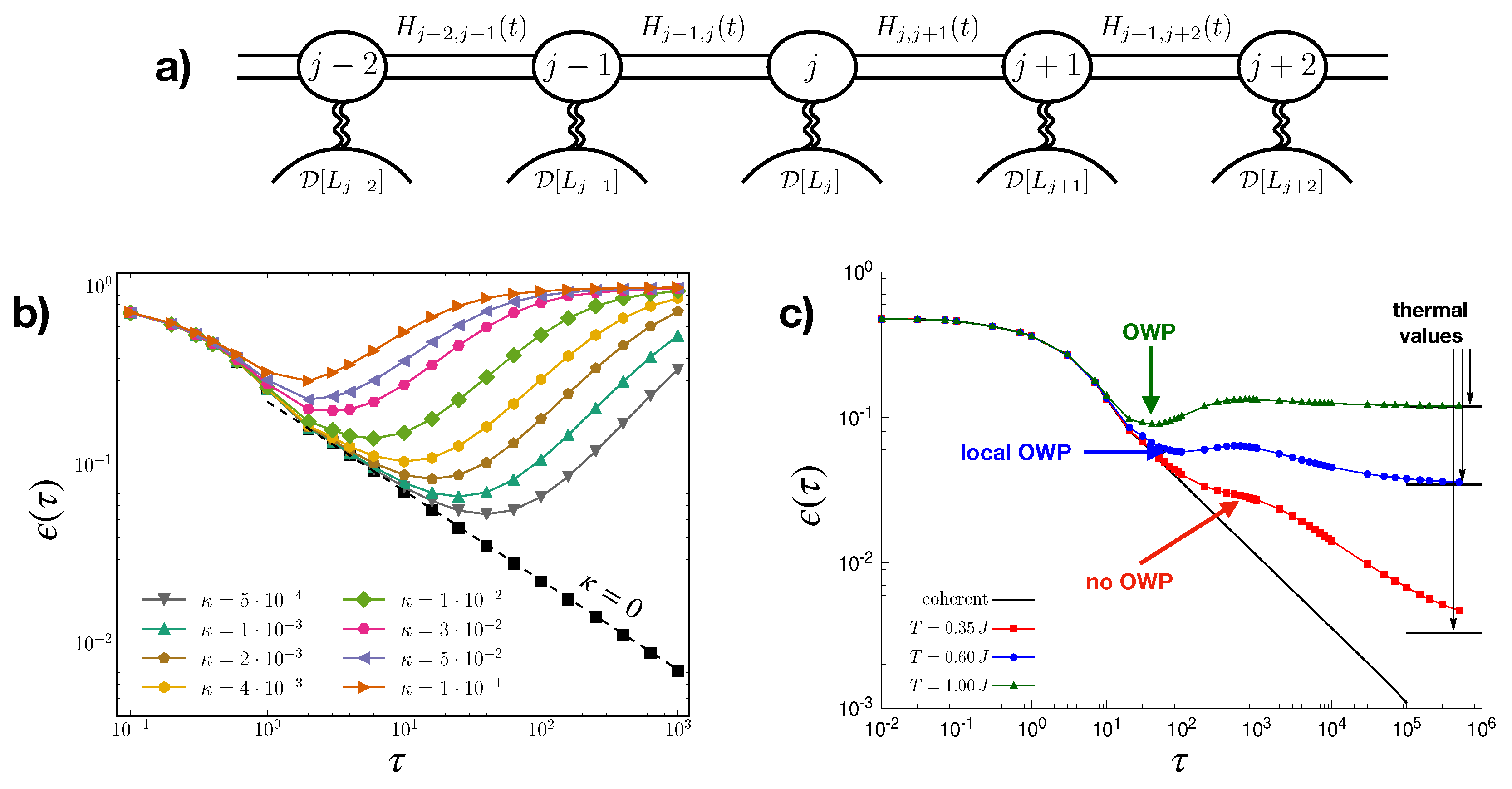

where $\mathcal{D}\left[O\right]\rho \equiv O\rho O^{†}-\frac{1}{2}\{O^{†}O,\rho \}$. Hereafter we adopt units of $ħ=k_B=1$. The first term in the r.h.s. of Equation (2) describes the coherent evolution driven by Hamiltonian (1). The second term corresponds to the unavoidable coupling of each cavity to an independent bath (with strength $\kappa >0$). We model this as a Lindblad jump operator $L_j=b_j$, whose effect is to incoherently deplete the jth cavity [see the sketch in Figure 1a]. The third term accounts for an engineered two-site dissipation:

$$L_{j,j+1}=\alpha b_j+\beta b_j^{†}+\gamma b_{j+1}+\delta b_{j+1}^{†},$$

(3)

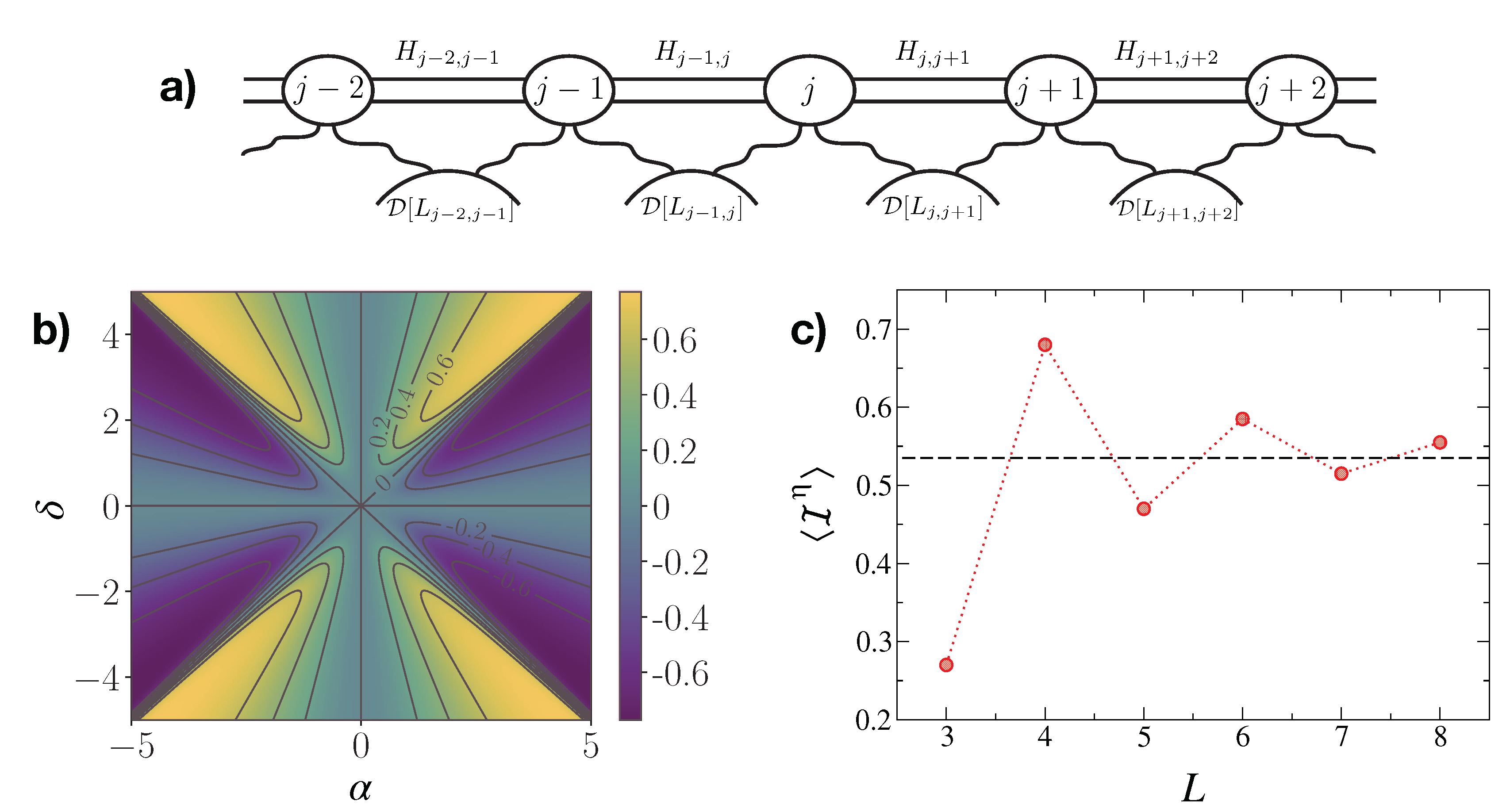

which can be obtained by coupling the two principal modes (j, $j+1$) with an auxiliary cavity mode (the bath) via a quadratic Hamiltonian [sketch in Figure 2a]. The two forms of dissipation may coexist, originating an interesting non-equilibrium behavior. For the sake of simplicity, we work in the photon blockade regime, where at most one excitation per cavity is admitted. Thus each bosonic mode $b_j^{(†)}$ is supposed to satisfy an hard-core constraint, and a cavity can be effectively regarded as a qubit.

3. Quantum Annealing in the Presence of Dissipation

Setting the Hamiltonian couplings $J=\lambda =1$, in the hard-core limit one realizes the quantum Ising chain in a transverse field of strength $\mathsf{\Gamma }=2\mu$, exhibiting a second-order phase transition at ${\mathsf{\Gamma }}_c=1$. We analyze the QA dynamics by tuning the field $\mathsf{\Gamma }$ in time, according to a linear ramping:

$$H\left(t\right)=-J\sum _j{\sigma }_j^x{\sigma }_{j+1}^x-\mathsf{\Gamma }\left(t\right)\sum _j{\sigma }_j^z,\mathsf{\Gamma }\left(t\right)=-t/\tau ,t\in (-\infty ,0],$$

(4)

where ${\sigma }_j^{\alpha }$ are spin-$1/2$ Pauli matrices for the jth qubit. We keep into account the unavoidable leakage of each cavity in terms of a decaying mechanism $L_j={\sigma }_j^{-},\forall j$ [Figure 1a]. The protocol (4) ensures that the system will cross the critical point and defects start to appear, irrespective of the time duration $\tau$ of the QA. We quantify adiabaticity loss through the excess energy $\epsilon \left(t\right)$, expressing the difference between the instantaneous energy and the ground-state energy of the instantaneous Hamiltonian.

In the absence of dissipation ($\kappa =0$), one finds a Kibble–Zurek (KZ) scaling of the excess energy with the QA speed $\tau$, i.e., $\epsilon \left(t\right)\sim 1/\sqrt{\tau }$, which is obtained via knowledge of the Ising critical exponents associated with the corresponding transition at ${\mathsf{\Gamma }}_c$ [6]. Such relation can be generalized to the case of initial thermal states, renormalizing the power-law scaling exponent [19,20]. On the other hand, a finite dissipation ($\kappa >0$) may induce a competition between the generation of defects by means of KZ and incoherent driving. This typically manifests in a nonmonotonic behavior of the curves in Figure 1b, thus producing an optimal working point (OWP) that maximizes the QA performance [21]. The behavior of the OWP position with $\kappa$ can be predicted by assuming independence between the two mechanisms: this is due to the choice of the bath, which is insensitive to the Hamiltonian details [9]. A more thorough modelization of dissipation, in terms of an independent Caldeira-Leggett Ohmic bath per cavity, gives rise to situations where the OWP may disappear [10,22], for low bath temperatures [see Figure 1c]. At intermediate temperatures, the curve for the excess energy in function of $\tau$ displays a local minimum at finite $\tau$, but the actual global minimum is attained as a $\tau \to \infty$ thermal plateau [10]. The additivity of the two above mentioned mechanisms breaks down as soon as the bath thermalization time is effectively shorter than the characteristic timescale for the system dynamics.

4. Persistent Currents Induced via Dissipation Engineering

A peculiar quantum state of matter can be stabilized through an engineered system-bath coupling, such as the two-site dissipation of Equation (3). This scheme is capable to exhibit directionality after suitably tuning the various system-bath couplings. Namely, considering two neighboring cavities, one can play with $\alpha ,\beta ,\gamma ,\delta$ such that the equation of motion for the mode $b_j$ does not depend on $b_{j+1}$, while that for $b_{j+1}$ depends on $b_j$ [14]. Scaling this mechanism all over the chain, a macroscopic current flow can be generated in the system [17]. For the sake of simplicity, let us take a minimal model where the Hamiltonian contains just a chemical potential $\mu$, fixing the energy scale. As for the bath coupling, we only consider the non-local dissipation $L_{j,j+1}$, dropping the local terms $L_j$, and set $\alpha =\gamma$, $\beta =\delta$. The following Heisenberg equation of motion for the spin magnetization sets in:

$${\partial }_t{\sigma }_j^z=-({\mathcal{I}}_j^{\eta }+{\mathcal{I}}_{j+1}^{\eta })-{2\left|\delta \right|}^2({\sigma }_j^z+1)-2{\left|\alpha \right|}^2({\sigma }_j^z-1),where{\mathcal{I}}_j^{\eta }=(-\eta {\sigma }_j^{+}{\sigma }_{j-1}^{-}+h.c.).$$

(5)

The term ${\mathcal{I}}_j^{\eta }$, with $\eta ={\alpha }^2-{\delta }^2$, denotes a circulating non-conserved current. For $\delta =0$ ($\alpha =0$), the system is driven into a steady state which is completely aligned (anti-aligned) along the z axis. For $\alpha =\delta$ the steady state is completely mixed, since the Lindblad operators create as many excitations as they annihilate. In all other cases, the imbalance between creation and annihilation of excitations generates a current. We scrutinized it through a self consistent cluster mean-field treatment [23,24], with clusters being made of two neighboring spins. Figure 2b shows that, when $\alpha$ and $\delta$ are almost equal, the current takes large values, but it is also very sensitive to changes in the parameters: a small variation in them makes the current sharply change from positive ($\alpha >\delta$) to negative ($\alpha <\delta$) values. Using numerical techniques (exact diagonalization and matrix-product-operator simulations [25,26]), we scaled the chain length, observing indications of convergence of ${\mathcal{I}}^{\eta }\left(L\right)$ with L toward finite values [Figure 2c]. Reservoir-based currents are thus sensibly different from ordinary currents induced by gauge fields, the latter representing a boundary effect which vanishes in the thermodynamic limit. We also checked that these currents are robust against local unitary and dissipative imperfections, such as nearest-neighbor interaction terms in the Hamiltonian, of the form ${\sigma }_j^z{\sigma }_{j+1}^z$ [17].
