Impedimetric Biosensor to Enable Fast Evaluation of Gaseous Sterilization Processes ^†

Abstract

Sterilization of packages prior to product filling is a key step in aseptic filling machines. Chemical sterilization is one of the main conventional techniques in many packaging industries. To monitor the effect of sterilization on test microorganisms (Bacillus atrophaeus spores), an impedimetric sensor approach was developed based on a planar interdigitated electrode (IDE) design. In this work, sensor measurements were conducted to prove sensor functionality at different hydrogen peroxide concentrations.

1. Introduction

Aseptic filling of sensitive food products, such as milk or low-acid juices, has become the technology of choice to ensure extended product shelf-life and consumer-safe products. In this process the package material and goods are separately sterilized. Heat-treatment technologies are applied to sterilize the goods, whereas a chemical sterilization is applied for the package material. High-temperature diluted hydrogen peroxide (H₂O₂) gas is one of the common sterilizing agents in food packaging industries due to its strong oxidizing effects, which possess germicidal and sporicidal properties [1,2]. The efficiency of the sterilization process is evaluated by laborious microbiological challenge tests (count-reduction or end-point-test), which require transferring and processing of samples in a lab. Due to statistical fluctuations of the microbiological methods high numbers of samples are necessary. The microbiological samples are transferred aseptically into nutrition medium, after incubation at predefined temperature; the outgrown colonies can be counted. The efficiency of a sterilization process is defined as ratio between the initial number of organisms and number of surviving organisms after sterilization. The time delay between the sterilization process and lab results lead to possible product damages; thereby, storage of filled products is necessary to prevent product recalls. In order to reduce the laboratory workload a sensor-based method is preferable, to shorten the time delay after the process. In recent works, a sensor consisting of interdigitated electrodes has been developed to electrically characterize the impact of the sterilization process on immobilized, resilient test microorganism, such as spores of Bacillus atrophaeus [3,4]. The spore of this microorganism is applied to microbiologically evaluate sterilization processes in industry [5].

2. Materials and Methods

2.1. Sensor Fabrication

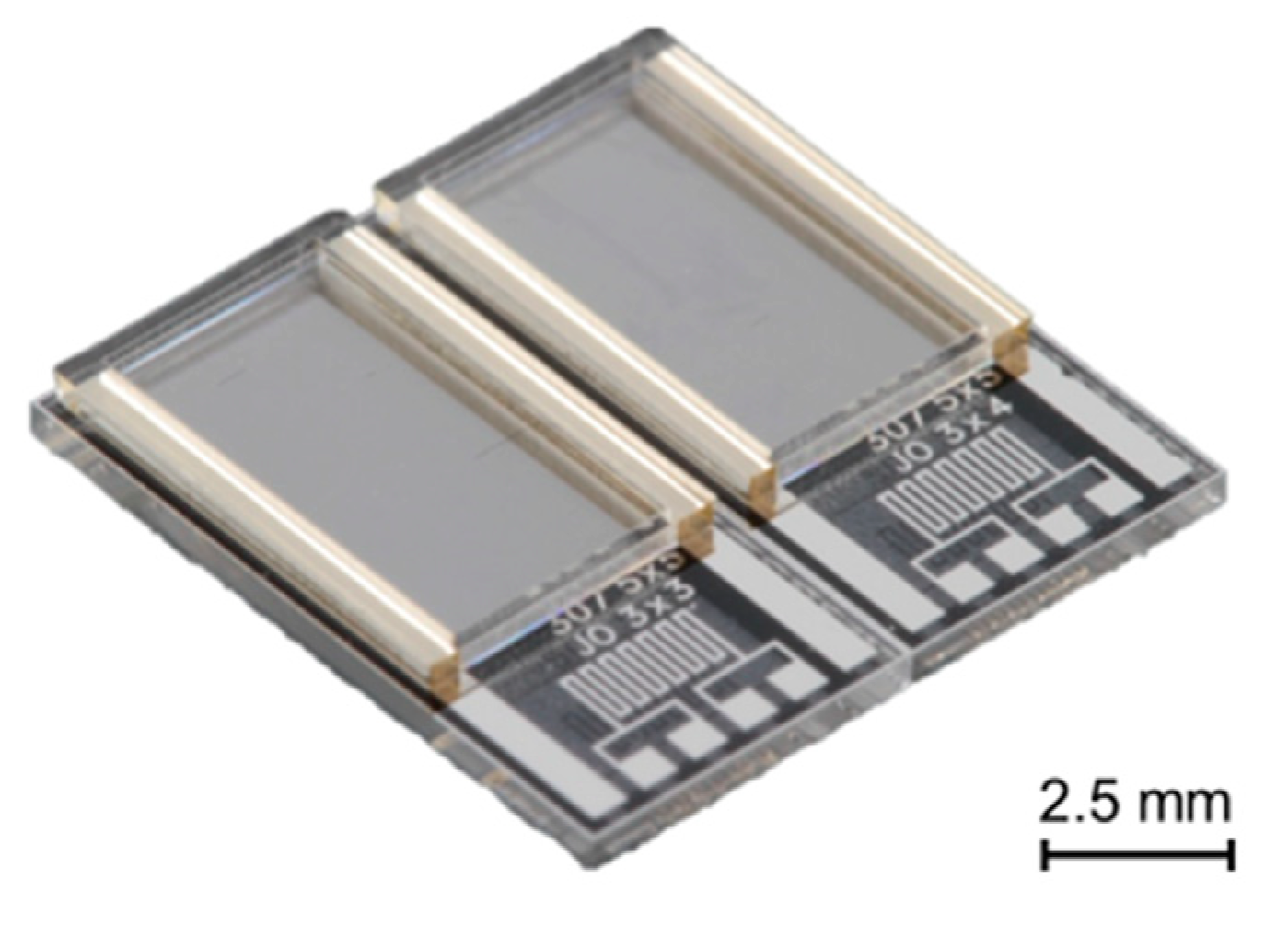

The sensor, presented in Figure 1, is based on a differential set-up of two IDEs. One IDE-sensor structure serves as a reference element, while on the second IDE-sensor structure, microbiological spores of B. atrophaeus are immobilized. The sensor has been designed and fabricated in-house. As sensor-base a glass substrate Borofloat 33 (Schott GmbH) has been chosen to reduce parasitic capacitances as known for semiconducting materials combined with insulation layers. To fabricate the interdigitated electrodes conventional photolithography process was applied. The interdigitated electrodes are designed on a glass mask with dimensions of finger width and interspacing of 5 µm, respectively. The finger length is designed to 3.25 mm; by a number of 614 fingers a sensing area of about 20 mm² is achieved. As electrode materials either a combination of 10 nm chromium and 100 nm gold or 10 nm titanium and 100 nm platinum has been used, whereby the 10 nm layer serves as adhesion promoter between the glass substrate and the respective second metal layer.

2.2. Impedimetric Characterization

The electrical characterizations of the IDE arrays are performed with an Agilent E4980A impedance analyzer. A customized measurement set-up has been built up to enable a fast connection of the sensors in vacuo to exclude environmental influences such as humidity variations. An alternating voltage of 20 mV, around a 0 V bias voltage, was applied between the electrode terminals. The resulting current is used to determine the impedance and phase of each sensor. A set of two IDEs is utilized to evaluate the sterilization process. On one of the IDEs microbiological spores of B. atrophaeus are immobilized. The second IDE is left blank to serve as a reference.

2.3. Sterilization Process

The sensors are sterilized on a previously designed test-rig, which is a representative of the sterilization module used on industrial aseptic filling machines [6]. The H₂O₂ vapor is generated from an aqueous H₂O₂ solution (35% w/w) and is fed into an air stream as carrier gas. The air-H₂O₂ mixture is vaporized at high temperature and is then guided into the sterilization chamber. The sensors are exposed via a pneumatic slide into the vapor stream. In the following experiments the gas temperature was set to 240 °C and the air-flow was adjusted to 10 m³/h.

2.4. Surface Characterisation

Scanning electron microscopy (SEM) on a Jeol JSM-7800F was applied to study the effect of the sterilization process on the applied test microorganisms.

3. Results and Discussion

3.1. Impedimetric Results

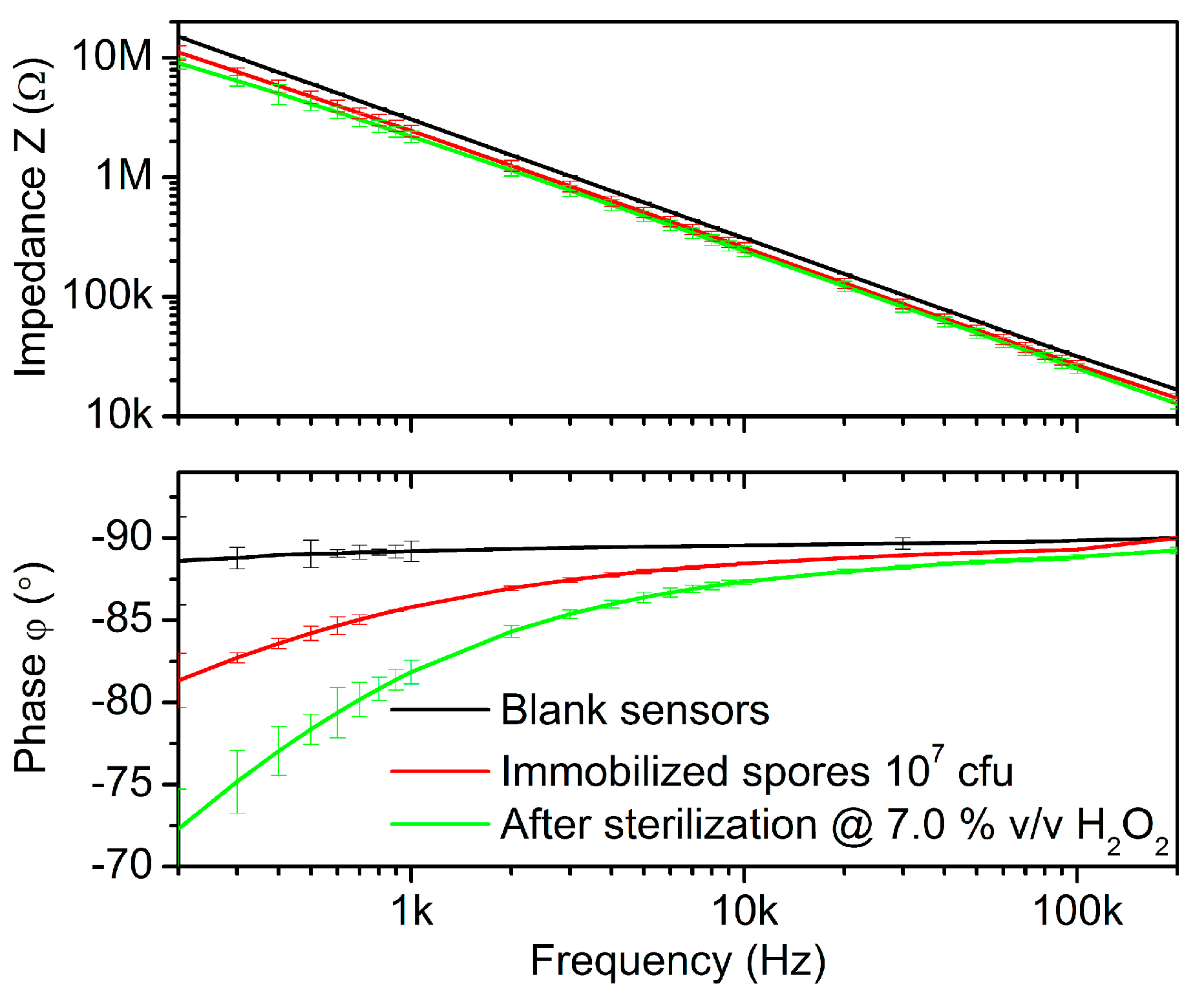

In Figure 2, the Bode plot of the impedance characterization of the biosensor chip is shown. The black lines represent the blank sensor structure, which depicts a pure capacitance characteristic, with a phase of about −90°. After immobilization of B. atrophaeus-spores (10⁷ colony-forming units (cfu)) the impedance decreases (red lines). This can be attributed as a conductivity enhancement and change of permittivity between the electrode fingers. After the sterilization process a further impedance decrease can be monitored (green lines). This fact can be related to structural modifications of the spores due to the sterilization process, i.e., rupture of the spores and release of ionic substances. These effects lead to further enhancement of the conductivity between the electrode fingers.

3.2. Morphological Characterizations

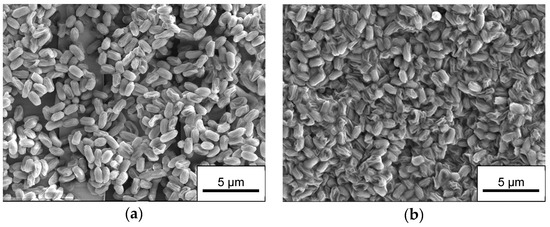

In order to reveal the impact of the sterilization process on the test microorganism, SEM surface characterizations of the spores were performed. As reference non-treated spores were characterized (Figure 3a) and compared with spores after the sterilization process (Figure 3b).

The picture of the non-treated spores shows mostly intact spores with an ellipsoidal shape. After the sterilization process the majority of the spores is deformed and collapsed. Moreover, a layer can be observed in which the spores are merged. This layer might be attributed to the disruption of spores and release of spore inner ionic substances. Similar spore disruption has also been observed of plasma-treated spores in [7]. This formed layer after the sterilization process could be related to the impedance decrease observed in the presented impedance measurements.

4. Conclusions

In the present work, impedimetric characterizations depicted electrically measurable effects of the sterilization processes on the immobilized spores by means of interdigitated electrodes. In addition, surface characterizations by SEM were applied, which reveal morphological changes caused by the sterilization process. The observed alterations of the spores have been assigned to the detected impedance decrease.
