Cricket Inspired High Efficiency MEMS Speakers ^†

Abstract

We report on the realization of a biomimetic MEMS speaker inspired by field crickets. This speaker is at least five times thinner and four times more efficient than the current dynamic speakers used in portable electronics. We present results of the acoustic characterization of a single MEMS speaker. Computational extrapolation of the results suggests that an array of such thin speakers will be highly efficient compared to the existing speakers of equal area.

1. Introduction

Microspeakers with high acoustic output and power efficiency are an important requirement for the rapidly growing mobile applications. The current microspeakers (based on the voice coil) are power inefficient [1] and also larger in size (

Table 1. Comparison of size and efficiency between various dynamic speakers from Knowles, USA and our biomimetic MEMS speaker array.

Model	Size (mm3)	Input Power (mW)	Pressure Output at 10 cm (dB SPL)	Efficiency (%)
Donau	11 × 15 × 3.5	350	89 dB	0.014
Mean	10 × 14 × 2.9	250	84 dB	0.006
Dumbo	13 × 18 × 4.5	700	92 dB	0.012
Sambo	13 × 18 × 4.5	700	96 dB	0.031
Fox	09 × 16 × 3.0	500	86 dB	0.006
Nautilus	11 × 15 × 4.0	350	89 dB	0.014
MEMS Speaker Array (25)	15 × 15 × 0.5	120	94 dB	0.126

). Evidently, a successful realization of efficient and thin MEMS microspeakers with good acoustic output could address the drawbacks of the current microspeakers. It is also evident that realization of thin speakers will require a radical change in the actuation mechanism from the current bulky electromagnetic actuation. For inspiration, we looked at the clever design used by field crickets to produce their characteristic mating calls that are extremely loud for their size, and decided to implement the idea behind their design using electrostatic actuation in MEMS speakers.

2. Biomimetic MEMS Speaker

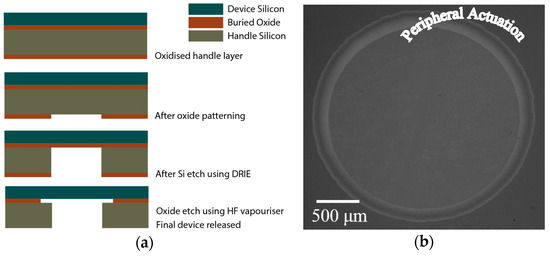

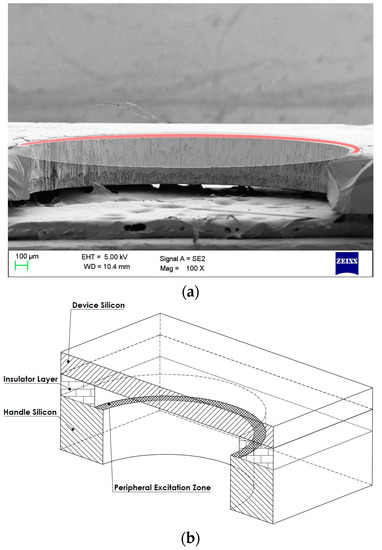

The main concern in designing MEMS speakers with electrostatic actuation is the need for small separation between the top and bottom electrodes for efficient driving. Field crickets actuate the sound producing structure in their forewings by applying impulse loading on the file teeth present at the boundary of the structure [2]. This is different as compared to the actuation used at the center in all the man-made speakers. So, we design the MEMS speaker to have electrostatic actuation only at the periphery of the radiating structure. Since the entire device is not suspended over a bottom substrate, the issues of pull-in [3] and squeeze film [4] do not affect its performance. We use a SOI wafer (buried oxide—500 nm; device layer—2 μm) and simple steps (Figure 1a) using inexpensive (photo printed) masks to fabricate the MEMS speakers. An optical image of the fabricated device is shown in Figure 1b. The electrostatic actuation takes place over the ring shaped peripheral region, where the top and bottom electrodes (Figure 2).

3. Experimental Results

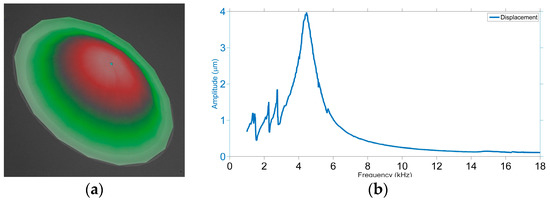

We measure the dynamic response of the structure using a Laser Doppler Vibrometer (MSA500, Polytec). The experimentally measured mode shape, shown in Figure 3a, clearly indicates that the device vibrates in its first mode. We observe that the vibration amplitudes are considerable even though the actuation is only at the outer periphery of the device (Figure 3b).

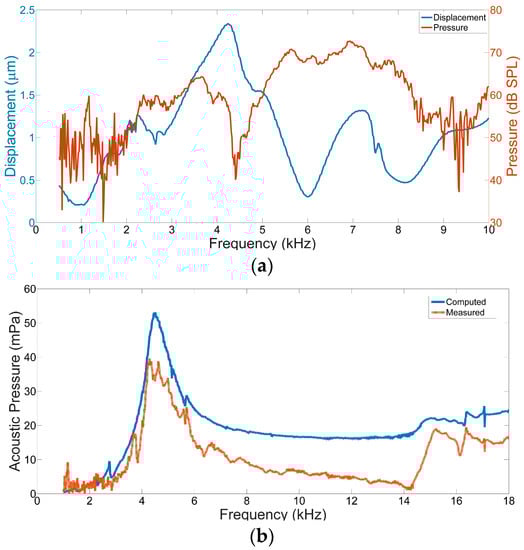

The radiated sound output (at 10 cm) is captured using a ½” microphone (Type 4190-L-001, B&K) as shown in Figure 4a. The theoretically computed acoustic pressure based on the amplitude of vibration also agrees well with the experimentally measured acoustic output as shown in Figure 4b. The marginal deviation from theoretically expected acoustic pressure output can be attributed to the assumption of the device to behave as a plane circular piston. In reality, the circular diaphragm is vibrating in its first, breathing mode (Figure 3a). We also see (Figure 4a) that a single MEMS speaker of 2.9 mm diameter and 0.5 mm overall thickness is able to radiate a maximum pressure of about 66 dB SPL at 10 cm while consuming an input power of just 4.8 mW.

4. Discussion and Conclusions

Learning from the above results we design an array of MEMS speakers to increase the output sound pressure level. An array of 25 of such MEMS speakers, which will have a size of 15 × 15 × 0.5 mm³, will produce a sound pressure of approximately 94 dB SPL at 10 cm while consuming an input power of about 120 mW. This puts the efficiency of the MEMS speaker array at 0.126% which is one order of magnitude higher than the dynamic speakers (from Knowles, IL, USA) shown in Table 1. We believe that there is a huge potential in developing these high efficiency MEMS speakers for various specific applications in consumer electronics and the music industry.
