ABAQUS Subroutine-Based Implementation of a Fractional Consolidation Model for Saturated Soft Soils

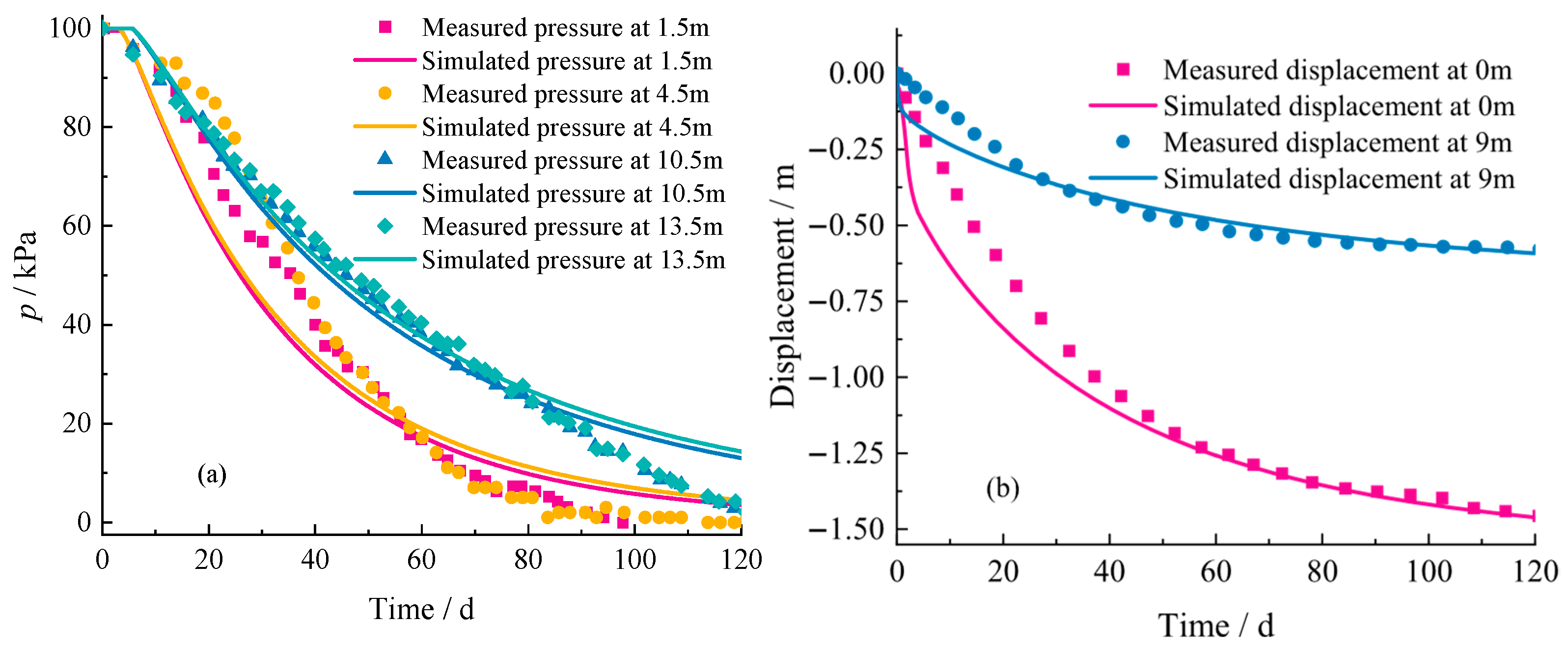

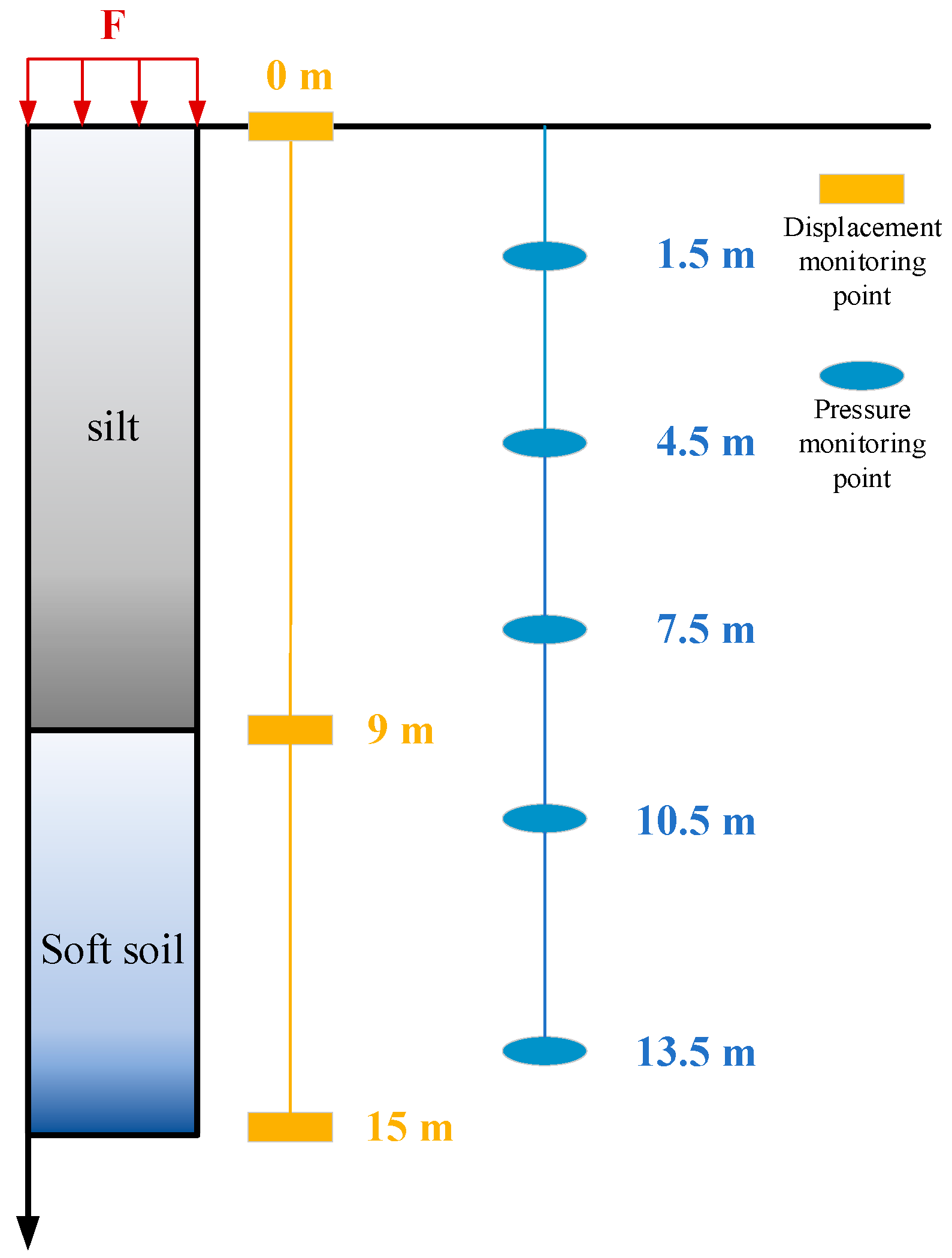

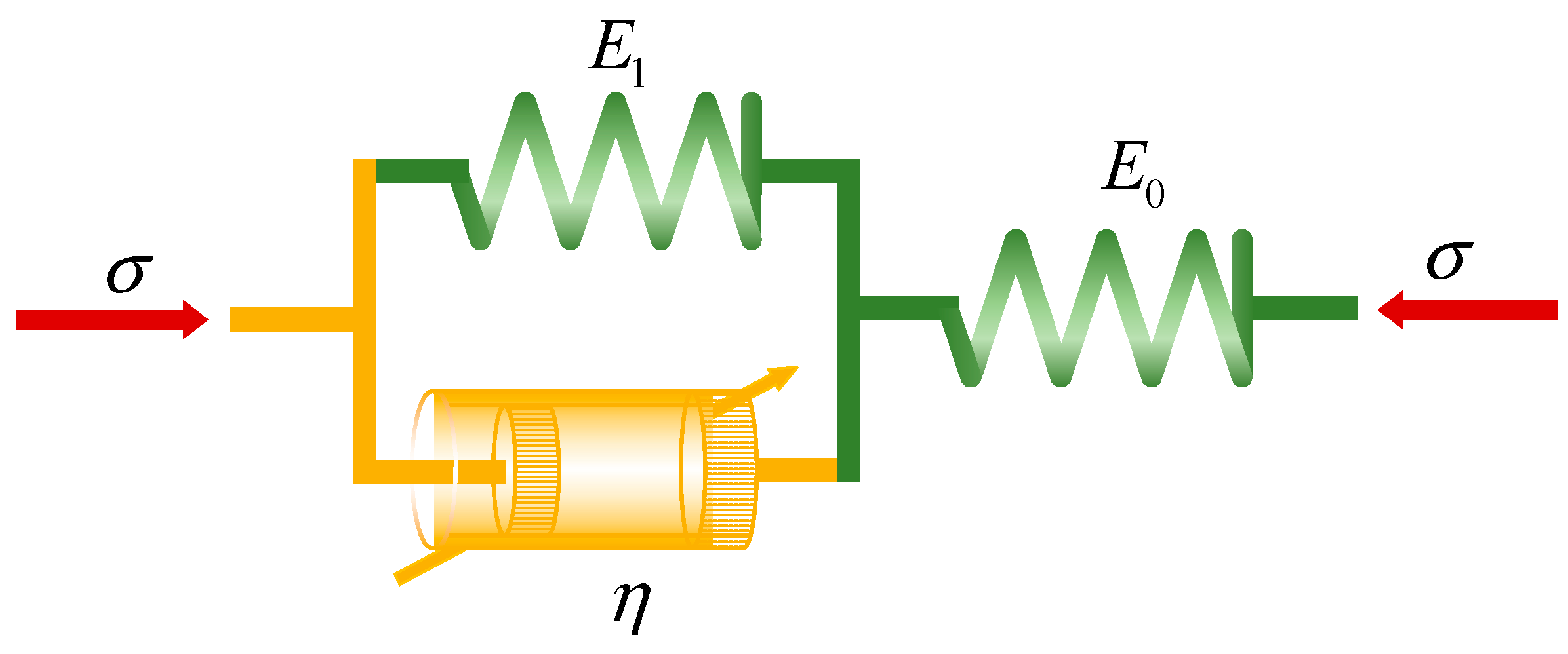

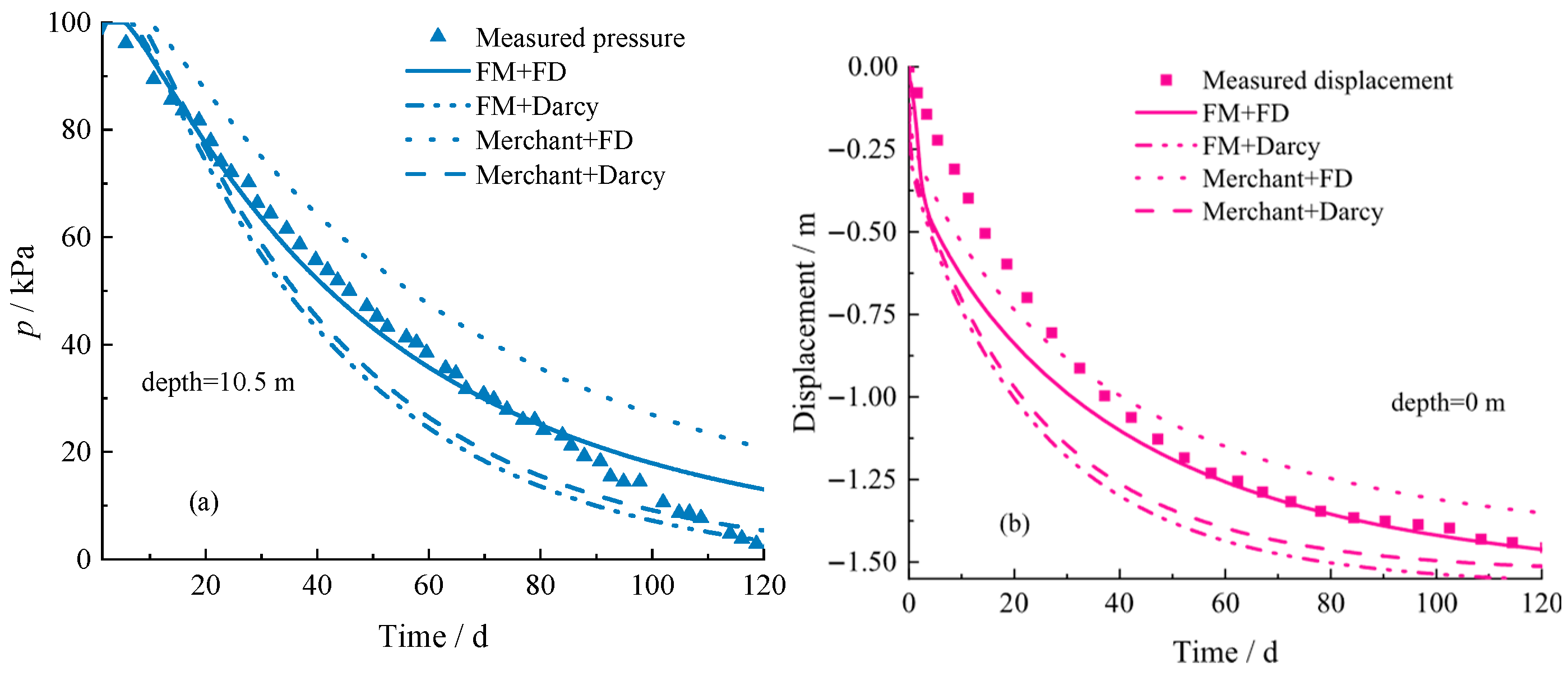

This paper presents a finite element implementation of a fractional rheological consolidation model in ABQUS, in which the fractional Merchant model governs the mechanical behavior of the soil skeleton, and the water flow is controlled by the fractional Darcy’s law. The implementation generally involves two main parts: subroutine-based fractional constitutive models’ development and their coupling. Considering the formal similarity between the energy equation and the mass equation, the fractional Darcy’s law was implemented using the UMATHT subroutine. The fractional Merchant model was then realized through the UMAT subroutine. Both subroutines were individually verified and then successfully coupled. The coupling was achieved by modifying the stress update scheme based on Biot’s poroelastic theory and the effective stress principle in UMAT, enabling a finite element analysis of the fractional consolidation model. Finally, the model was applied to simulate the consolidation behavior of a multi-layered foundation. The proposed approach may serve as a reference for the finite element implementation of consolidation models incorporating a fractional seepage model in ABAQUS.
