1. Introduction
Fractional calculus, the extension of traditional calculus to non-integer orders, has found application across various fields due to its ability to model systems with memory and hereditary properties [
1,
2,
3]. In control systems, fractional-order controllers like the fractional PID provide enhanced performance and robustness, especially in complex dynamic systems [
4]. Signal processing benefits from fractional Fourier transforms for time-frequency analysis, while biomedical engineering utilizes fractional calculus to model blood flow dynamics, tissue viscoelasticity, and drug delivery systems [
5,
6,
7]. Material science and physics leverage fractional calculus to study viscoelastic materials, anomalous diffusion, and wave propagation in complex media, offering more accurate representations of these phenomena [
8,
9,
10].
In economics, fractional calculus plays a crucial role in modeling and analyzing financial systems that exhibit memory and long-term dependencies [
10,
11]. It is used to model stock market dynamics and option pricing, accounting for the persistent and irregular behavior observed in financial time series [
12,
13,
14]. Fractional Brownian motion provides a more accurate description of asset price movements, enhancing risk assessment and derivative pricing models [
15,
16]. Additionally, fractional calculus helps in understanding economic cycles, consumer behavior, and the diffusion of innovation over time, offering a comprehensive framework for the analysis of complex economic phenomena [
17,
18]. Its application extends to the modeling of interest rates, market volatility, and portfolio optimization, providing valuable insights for economists and financial analysts [
19,
20].
In recent years, the field of fractional calculus has seen significant development, particularly in its application to complex systems with memory effects and non-local boundaries. Notable studies include Al Fahel et al.’s [
21] exploration of quadratic and cubic logistic models involving the Caputo–Fabrizio operator and Hegade and Bhalekar’s stability analysis of Hilfer fractional-order differential equations [
22], both of which underscore the relevance of fractional calculus in dynamic systems modeling. Additionally, Rahman et al. provided valuable insights into the modeling and analysis of implicit fractional-order differential equations with multiple first-order fractional derivatives [
23]. Fractal theory further facilitates contemporary research, illustrating both theoretical advancements and practical applications across various scientific and engineering disciplines [
24,
25,
26]. These recent contributions highlight the transformative potential of fractional calculus in providing sophisticated mathematical tools for the accurate description of complex phenomena.
In recent years, the study of supply chain dynamics has increasingly recognized the importance of incorporating chaos theory to understand and manage the inherent complexities and unpredictability within supply chain systems [
27,
28,
29]. Traditional models often fall short in capturing the non-linear and dynamic nature of real-world supply chains, leading to inefficiencies and vulnerabilities [
30]. In the context of supply chains, fractional calculus can capture the long-term dependencies and interactions between different components of the supply chain, which are often overlooked by integer-order models [
31,
32]. He et al. [
33] developed a fractional-order digital manufacturing supply chain system using the Adomian decomposition method and explored its chaotic behavior through dynamical and complexity analyses. Yan et al. [
34] created a mathematical model for a 4D supply chain incorporating a computer-aided digital manufacturing process and designed a stabilizing linear feedback controller for two dynamic scenarios within the supply chain. Xu et al. [
35] introduced an adaptive fractional-order sliding mode controller to achieve chaos synchronization in supply chain systems facing market disruptions, significantly enhancing the understanding of chaotic supply chain networks and optimizing the management strategies. Cuong et al. [
36] investigated the dynamical analysis and efficient management strategies of supply chain systems using a four-stage hyperchaotic Lorenz–Stenflo equation under disruptive conditions, demonstrating that their novel decision-making strategy provides valuable insights for the effective management of digital supply chain networks amid market volatility. However, four-dimensional supply chain models introduce another layer of complexity as they must account for the dynamic interactions between various interconnected elements within the system. This often demands more intensive computation and detailed data for model validation, posing significant challenges in both research and practical implementation. Therefore, despite its substantial potential for better understanding and management, these challenges have made research in this area relatively scarce.
Based on this issue above, this paper builds on the foundation laid by Xu et al. [
35], who introduced a four-dimensional (4D) integrated chaotic supply chain model. The Xu model provided significant insights into the chaotic behavior of supply chains, demonstrating the potential for improved management strategies through chaos theory. However, there remains a need to further enhance the model to better reflect the complexities of supply chain interactions and to develop robust control mechanisms.
The main contributions and novelties of this paper are as follows.
This work integrates a novel quadratic interaction term involving the actual customer demand and distributor inventory levels into the NFDFSCS. This addition significantly enhances the chaotic behavior and complexity of the SCM, as evidenced by the increased MLE compared to existing models.
This study rigorously verifies the existence, uniqueness, and Ulam–Hyers stability of the proposed NFDFSCS. This theoretical validation ensures that the model is robust and reliable in capturing the complex dynamics of the NFDFSCS.
This work establishes the MLAS and MLPIS for the NFDFSCS. These sets provide a comprehensive framework for understanding the long-term behavior and stability of the system.
This work employs sophisticated dynamical analysis tools such as Lyapunov exponents, bifurcation diagrams, 0–1 tests, and complexity analysis. These methods demonstrate the chaotic nature of the system and provide deeper insights into the dynamic interactions within the supply chain model.

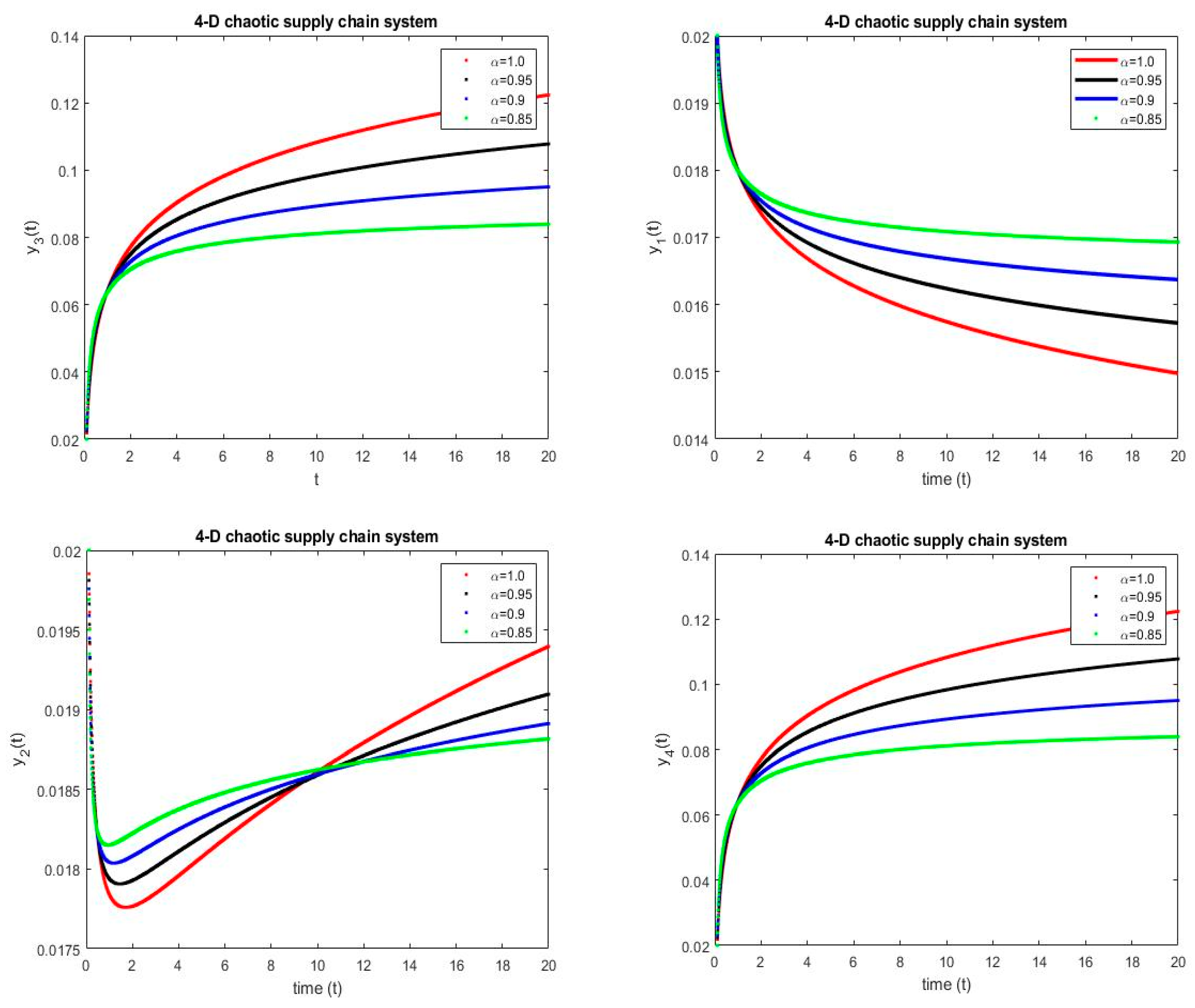

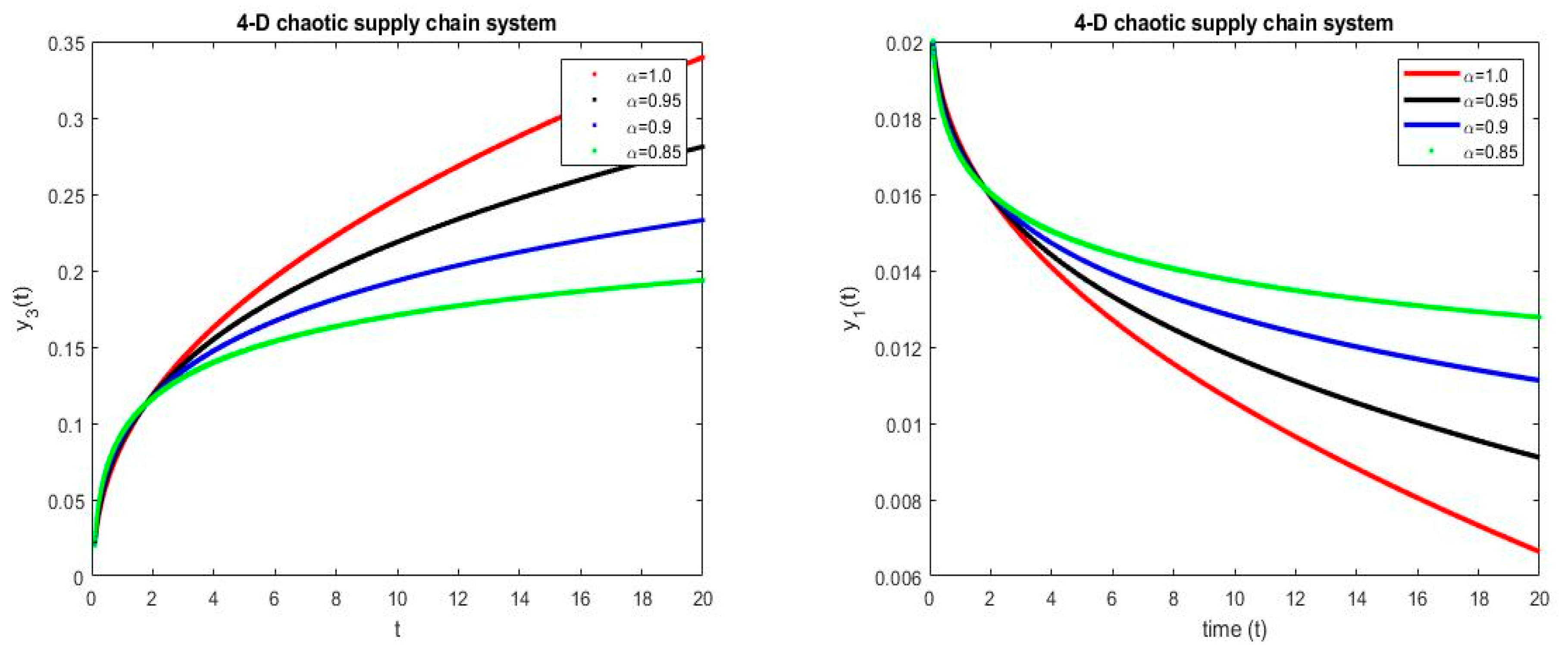

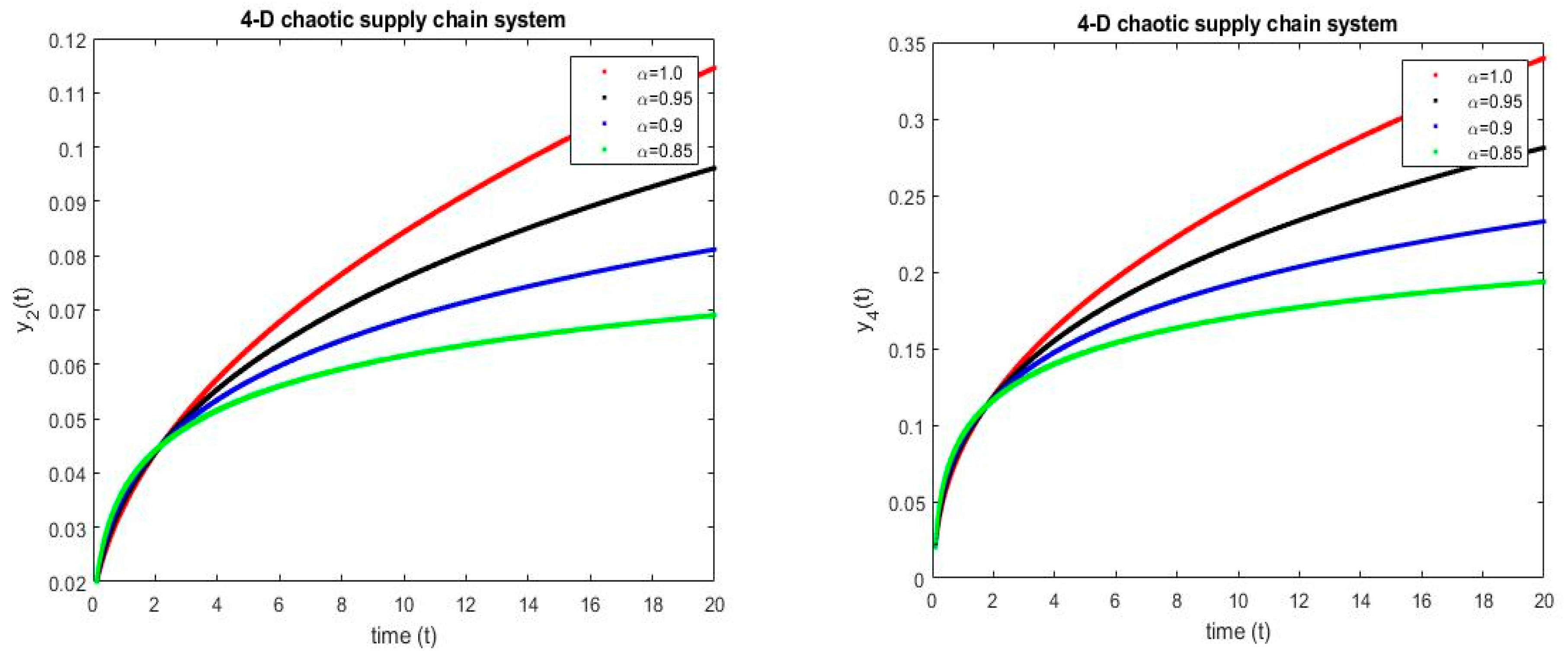

A new numerical approximation method is proposed to solve non-linear fractional differential equations using fractional differentiation with a non-singular and non-local kernel. Additionally, a robust control scheme is designed to stabilize the NFDFSCS in finite time, effectively suppressing chaotic behaviors. The theoretical findings, supported by the numerical results, highlight the practical applicability of this control strategy in the NFDFSCS.
3. Modeling and Dynamics of the NFDFSCS
Xu et al. [
35] described a 4D Chaotic Supply Chain Model (4DCSCM) via the following differential equations:
where the state variables
are the actual demand of the customers, the retailer’s demand order, the inventory level of the distributor, and the quantity produced by the manufacturer, respectively. With
, and
Xu et al. [
35] observed a chaotic attractor for the 4DCSCM (1) for the initial state
For this case, the Lyapunov exponents of the Xu 4DCSCM (1) are obtained as
In this research work, we propose a new 4DCSCM by introducing a quadratic interaction term involving the actual demand of the customers
and the inventory level of the distributor
in the second differential equation describing the rate of change in the retailer’s demand order. Thus, we propose the new 4DCSCM given by
We consider the values of the new 4DCSCM parameters as
, and
. We take the initial state as
For this case, the Lyapunov exponents of the new 4DCSCM (3) are obtained as
These results show that the new 4DCSCM (3) is chaotic and dissipative.
It is easy to see that the maximal Lyapunov exponent (MLE) of the new 4DCSCM (3) is significantly larger than the MLE of the Xu chaotic supply chain model (1). Hence, the proposed 4DCSCM (3) has greater complexity than the Xu 4DCSCM (1).
In

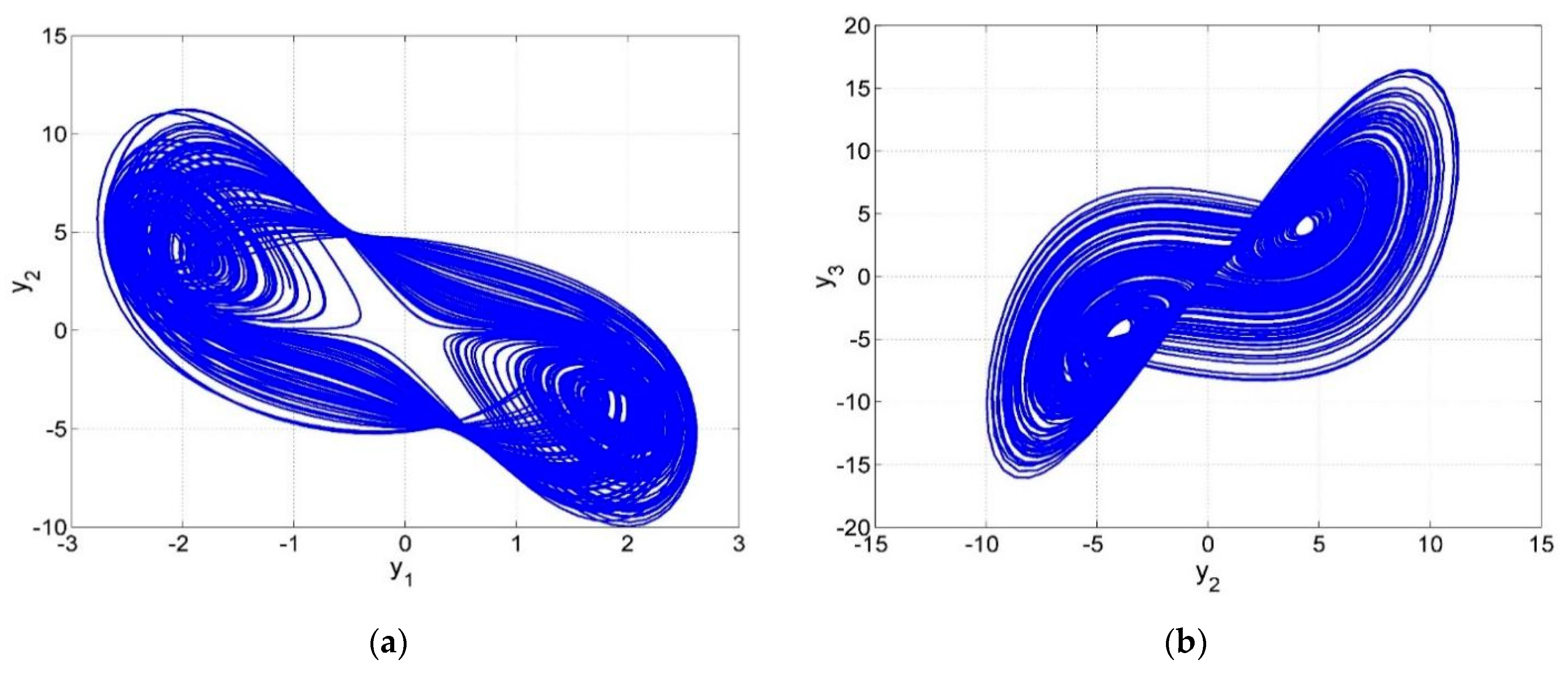

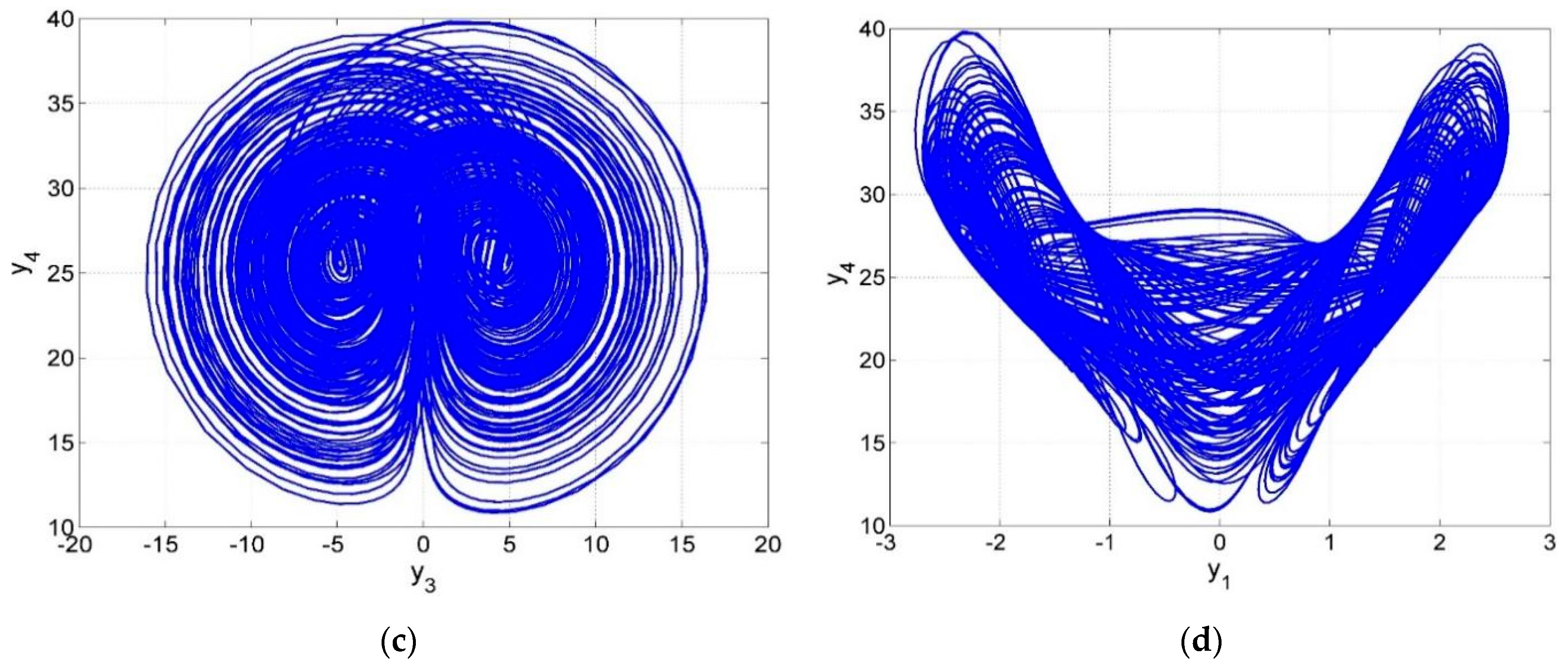

Figure 1, the phase portraits of the proposed new 4DCSCM are shown. The inclusion of the novel quadratic interaction term involving the actual customer demand
and the inventory level of the distributor
significantly enhances the chaotic behavior of the system. This is evident from the phase portraits, where the complex dynamic interactions are vividly illustrated. Comparing these results to the model proposed by Xu et al. [
35], there are notable differences in the complexity and chaotic nature of the systems. Xu et al. [
35] introduced a 4D integrated chaotic supply chain model and observed chaotic attractors, which were used to improve the management strategies through chaos theory. However, the maximal Lyapunov exponents (MLE) of the new 4DCSCM (3) in our study are significantly larger than those of the Xu model. This indicates the higher degree of complexity and chaos in our system.
The enhanced chaotic behavior in our model can be attributed to the introduction of the quadratic interaction term, which was not present in the Xu et al. [
35] model. This term intensifies the non-linear interactions between the state variables, leading to more complex dynamical behavior. The phase portraits in
Figure 1 demonstrate this increased complexity, showing more intricate and dense trajectories compared to the simpler chaotic attractors observed by Xu et al. [
35]. In summary, while both models exhibit chaotic behavior, the proposed 4DCSCM with the quadratic interaction term presents a higher degree of complexity and more pronounced chaotic dynamics than the model of Xu et al. [
35]. This enhancement can potentially lead to better insights and more effective strategies for the management and optimization of supply chain systems.
This complexity serves to enhance our understanding of the chaotic dynamics within the supply chain rather than directly improving the predictive accuracy. The increased complexity highlights the need for robust and adaptive management strategies to effectively navigate the inherent unpredictability of the supply chain system.
By introducing the Caputo differential definition, the fractional order form of the dimensionless equation for the above circuit can be written as

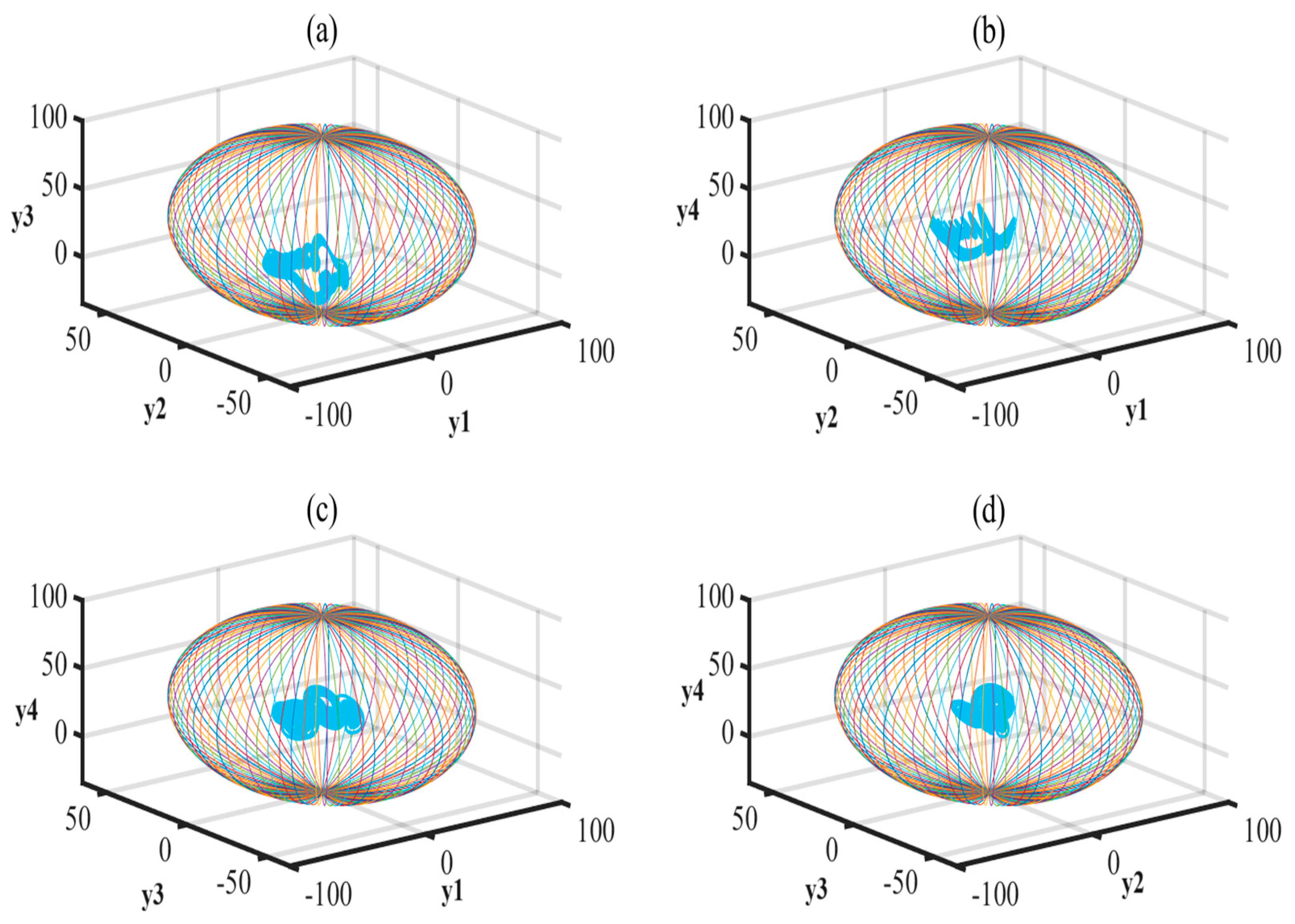

This study rigorously verifies the existence, uniqueness, and Ulam–Hyers stability of the proposed system. These theoretical validations ensure that the model is robust and reliable in capturing the complex dynamics of supply chains. The global MLAS and MLPIS established for the system provide a comprehensive framework for understanding the long-term behavior and stability of the model.
3.1. Existence of the NFDFSCS (5)
We start by demonstrating that our problem has a solution. We apply fixed point theory for this. Let us define the Banach space
for our qualitative analysis, where
with
given that
. The right side of the fractal fractional new 4DCSCM system is rewritten as
In this instance, the following system replaces the fractal fractional new 4DCSCM system
and
for all compartments. We rebuild our tree state system as the compact IVP in light of system
where
and
.
Based on Equation (10), and by definition, we have
The fractal fractional Caputo integral is applied to Equation (11), yielding
The expanded form of Equation (12) is Equation (5) provided by
We now define the self-map
as follows to deduce a fixed-point problem
We apply the following Leray–Schauder theorem to demonstrate the existence of a solution to our fractal fractional new 4DCSCM (4).
Theorem 1 (Finite point theorem of Leray–Schauder [
39]).
Let be an open set with a closed convex and bounded set, and Y
a Banach space. Next, with respect to the continuous and compact mapping either- A.
exists such that otherwise,
- B.
exists for any and
The NFDFSCS (5) is limited in its existence since it simulates a real-world issue. These limitations, which are represented as (C) and (D) in Theorem 2, are essential in determining the dynamics and properties of the system. To define and control the behavior of the NFDFSCS (5) within the bounds of pragmatism and realism, (C) and (D) are in fact essential. Acknowledging these limitations is crucial to ensuring the thorough comprehension of the system and creating successful tactics.
Theorem 2. Suppose that If so,
- A.
There exists and then there exists where it is non-decreasing such that, for all and - B.
Then, there exists , , such that
Given , the NFDFSCS (5) may be solved.
Proof. Let us first take
, as defined by Equation (14), and make the following assumptions,
for a certain
. It is obvious that, since
is continuous, so is
. Given
, we obtain
for
. Hence,
As a result, on
has uniform bounds. Now, let
such that
and
By indicating
As
, we can observe that the right-hand (RH) side of Equation (18) approaches 0 independently of
. Thus,
as
. The Arzela–Ascoli theorem uses this to determine the equicontinuity of M and, in turn, the compactness of
on
. Given the fulfillment of Theorem 1 on
, we have
or
. We set from (
B)
for some
, such that
From (
C) and Equation (16), we have
Assume that
for all
and all
. Next, we write, using Equation (19),
which is untrue. Therefore, by Theorem 1,
admits a fixed point in
and (
B) is not satisfied. This demonstrates that the NFDFSCS (5) has an answer. □
3.2. Uniqueness of the NFDFSCS (5)
In order to demonstrate the originality of our approach to our issue, the NFDFSCS (5), we first investigate the Lipschitz property of the NFDFSCS (5).
Theorem 3. Now, consider , and consider
- A.
, , , for some constant .
Then, using constants with regard to the pertinent components, W1, W3, W2, and W4, specified in the NFDFSCS (5), satisfy the Lipschitz property.
Proof. Taking randomly
;
, for
W1, we have
We determine that, with the constant , W1 is Lipschitz with regard to based on the NFDFSCS (5).
Similarly, from the NFDFSCS (5), we find that all W2, W3, and W4 are Lipschitz with regard to , and under the constants , respectively.
Therefore, the kernel functions W1, W2, W3, and W4 are Lipschitz, respectively, with constants .
We now use Theorem 3 to show that the solution to the NFDFSCS (5) is unique. □
3.3. Stability of Ulam–Hyers
Ulam–Hyers stability originates from a problem posed by Stanisław Ulam in 1940, concerning the stability of functional equations [
40]. Ulam’s problem asked whether a function approximately satisfying a functional equation could be approximated by an exact solution. In 1941, Hyers provided a solution for Banach spaces, demonstrating that if a function
(where
and
are Banach spaces) approximately satisfies the Cauchy functional equation
then there exists an exact additive function close to
f. Specifically, for any
, if
for all
x,
y, then there exists a unique additive function
a such that
for all
x [
41].
The concept of Ulam–Hyers stability has been extended to various types of functional equations and different stability conditions, such as generalized Ulam–Hyers stability and Ulam–Hyers–Rassias stability. These extensions deal with different control functions and provide robustness against perturbations in equations. The applications of Ulam–Hyers stability are broad, including ensuring the stability of solutions in differential equations and control systems, providing a tool to analyze the robustness of mathematical models under small changes in system parameters. This stability concept is essential in ensuring that approximate solutions of functional equations can reliably be approximated by exact solutions, maintaining the integrity of mathematical and practical models.
The stability of the NFDFSCS (5) model solutions for four groups is examined in this section. We take into consideration four distinct concepts of stability in light of the need to provide solid mathematical underpinnings for the model. More specifically, we demonstrate stability regarding the Ulam–Hyers and Ulam–Hyers–Rassias concepts [
41] and their corresponding generalizations for our NFDFSCS (5). Stability analysis plays a crucial role in guaranteeing the predictability and trustworthiness of mathematical models, particularly in practical applications like the system of chaotic SCM.
Theorem 4. Assume that is a solution of the NFDFSCS (5), for each ,
where .
Then, the functions satisfy the inequalities listed below:
Proof.
Let us say that
. Given that
fulfils
and
. Clearly,
This indicates that Equation (19) is met. Similarly, we prove the NFDFSCS (5). □
6. Dynamical Analysis
Case 1: Let
and varies.
Let
be held constant at
, respectively, while
is systematically varied within the range of 6 to 12. The bifurcation diagram of the system and the maximum Lyapunov exponent under these conditions are depicted in

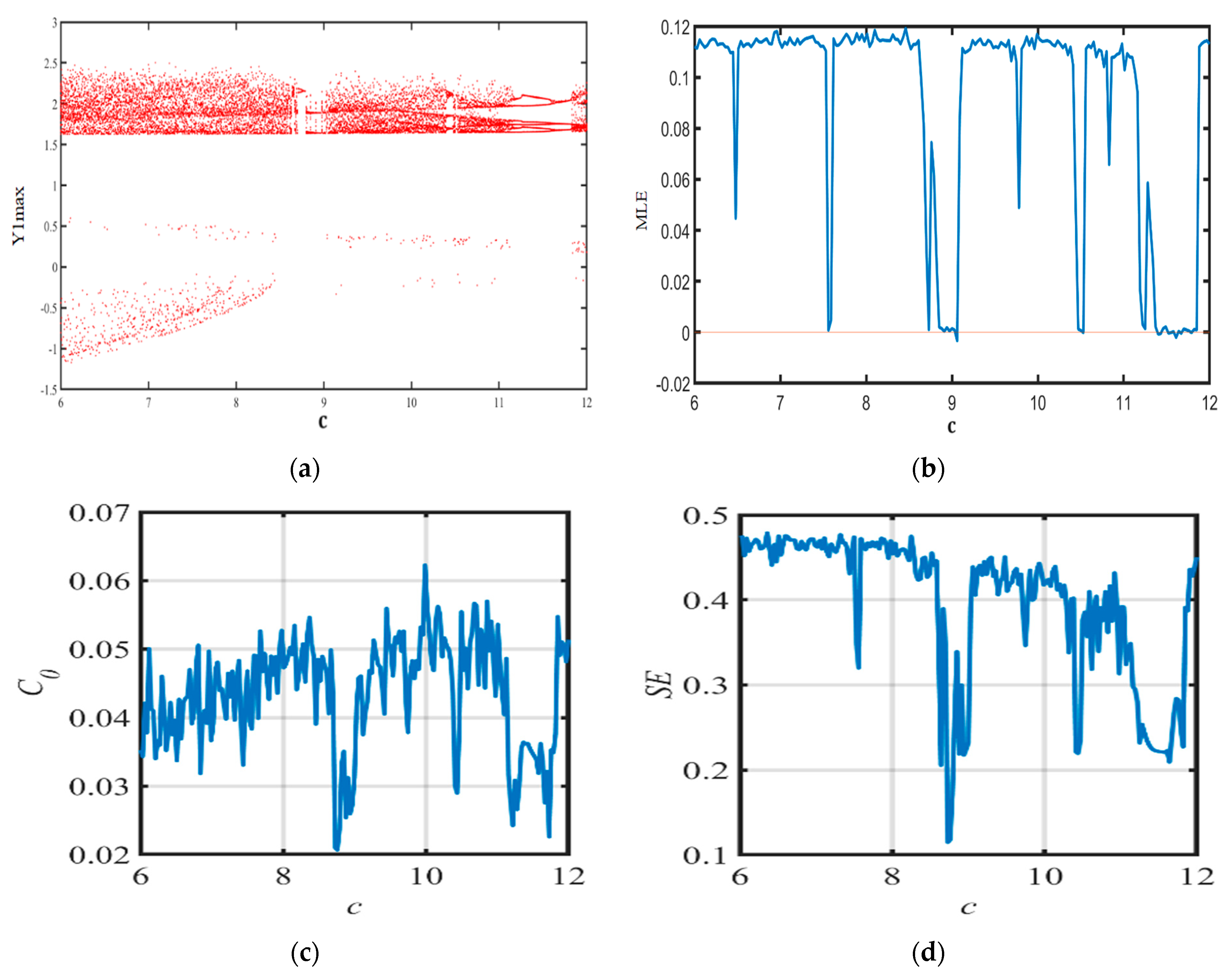

Figure 5a and
Figure 5b, respectively.
When
, the system is periodic and it is chaotic with the MLE increasing when
. The complexity diagrams depicted in
Figure 5c are consistent with these results.
For some values of

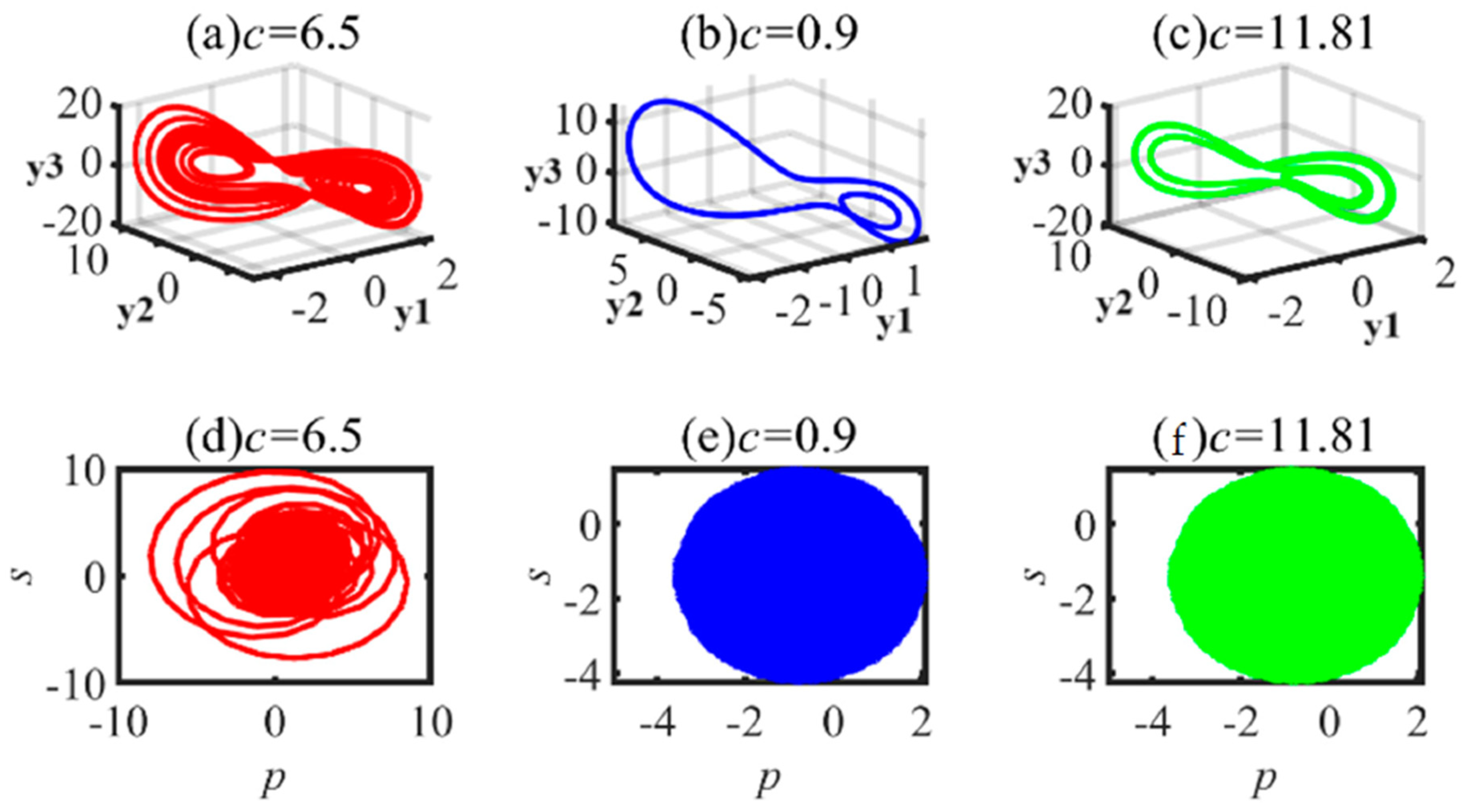

, the phase portraits and the
dynamics of the
testing are given in
Figure 6. System (3) is said to be periodic when
and
, whereas it is chaotic when
.
When c is set within certain ranges, the model exhibits chaotic dynamics. This chaotic behavior indicates a high degree of unpredictability and variability in the system’s response to changes in the demand and supply conditions. In practical terms, when c induces chaos, the supply chain system becomes highly sensitive to fluctuations in the market conditions or disruptions, leading to significant variability in the inventory levels and order quantities. Moreover, in a supply chain context, periodic behavior induced by the contingency reserve coefficient suggests a more predictable and regular pattern of inventory levels and order quantities, corresponding to stable market conditions where the demand and supply follow a cyclical pattern.
Case 2: Let
and varies.
To explore the behavior of the proposed model versus
, we maintain
and
is held constant at
, respectively, while
m is systematically varied within the range of 16 to 22. The bifurcation diagram of the system and the maximum Lyapunov exponent under these conditions are depicted in

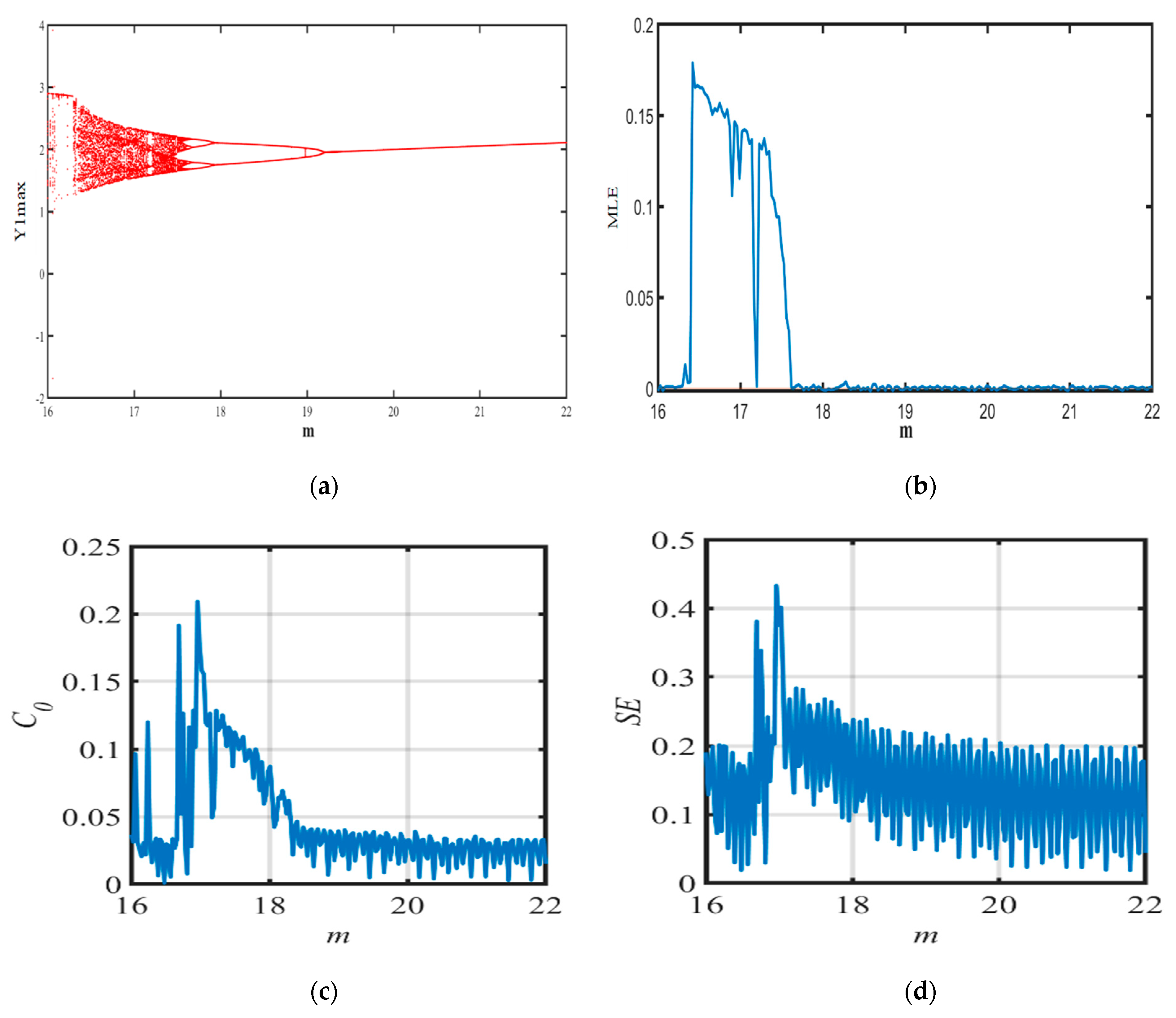

Figure 7a and
Figure 7b, respectively. The results indicate that the system shows inverse period-doubling bifurcation, and, as the parameter
m decreases, the system moves from a periodic state, after the period-doubling bifurcation, to a chaotic state.
When the value
lies in the range of
, period one appears, and period-doubling bifurcation occurs for
. When the value
lies in the range of
, period two appears. Then, period four appears within the range of
. Meanwhile, when the value of
lies in the range of
, the behavior of the system becomes chaotic. These results are also consistent with the complexity diagrams depicted in
Figure 7c.
For some values of
m,

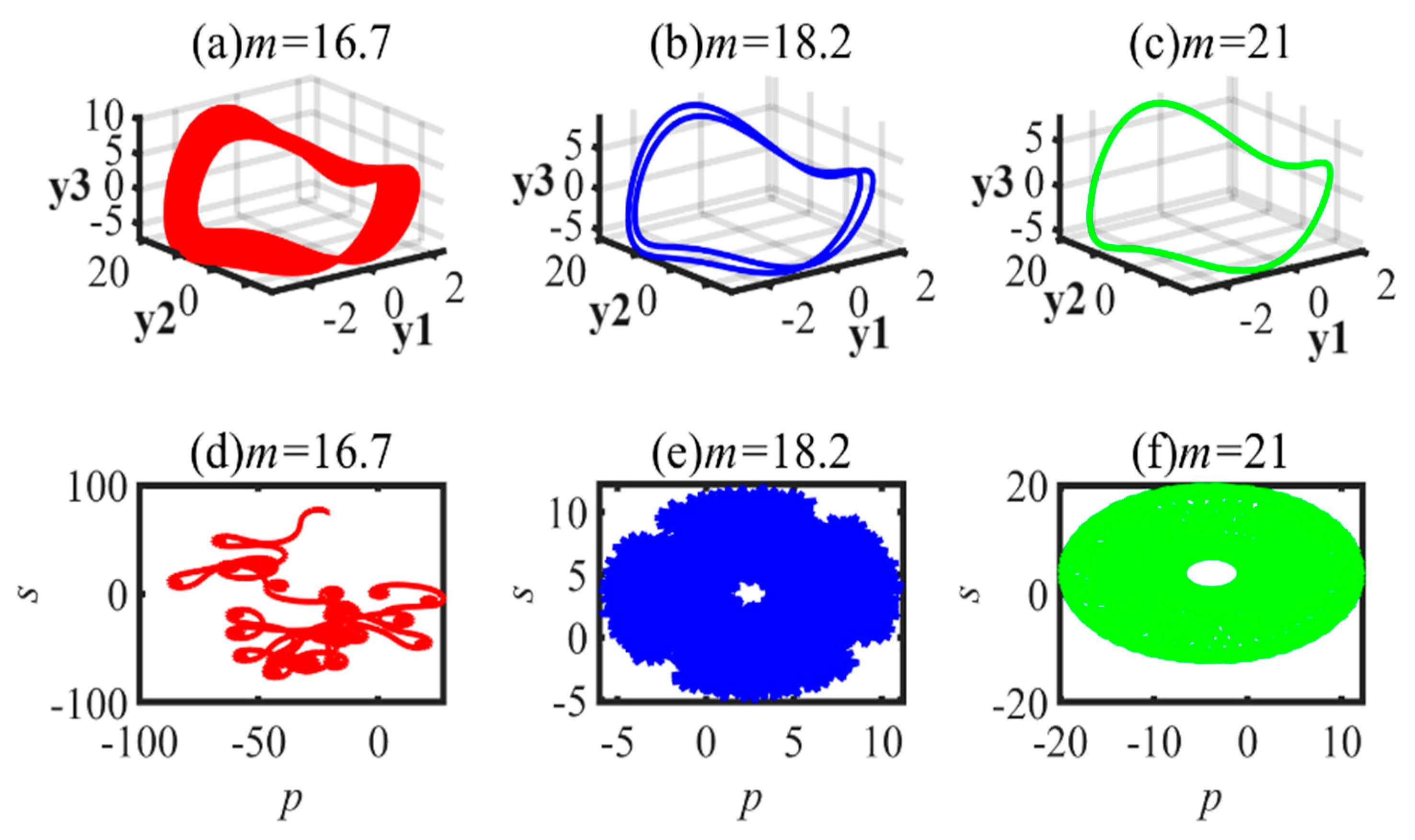

Figure 8 shows the phase portraits as well as the
dynamics of the 0–1 testing. It appears that system is periodic when
and
and chaotic when
.
Chaotic behavior in the delivery efficiency of the distributor indicates a high degree of unpredictability and variability in the system’s response to changes in delivery efficiency. This suggests that when m induces chaos, the supply chain system becomes highly sensitive to variations in the delivery performance, leading to significant fluctuations in the inventory levels and order quantities. In addition, the periodic behavior induced by the delivery efficiency of the distributor suggests a more predictable and regular pattern of inventory levels and order quantities, corresponding to consistent delivery performance by the distributor. Such periodicity can be advantageous for planning and forecasting, as it allows for more accurate predictions and efficient resource allocation.
Case 3: Let and q varies.
In the NFDFSCS (5), let
and the parameter
q is chosen as the critical variable to show the effect of the fractional order to the behavior of the chaotic system results.

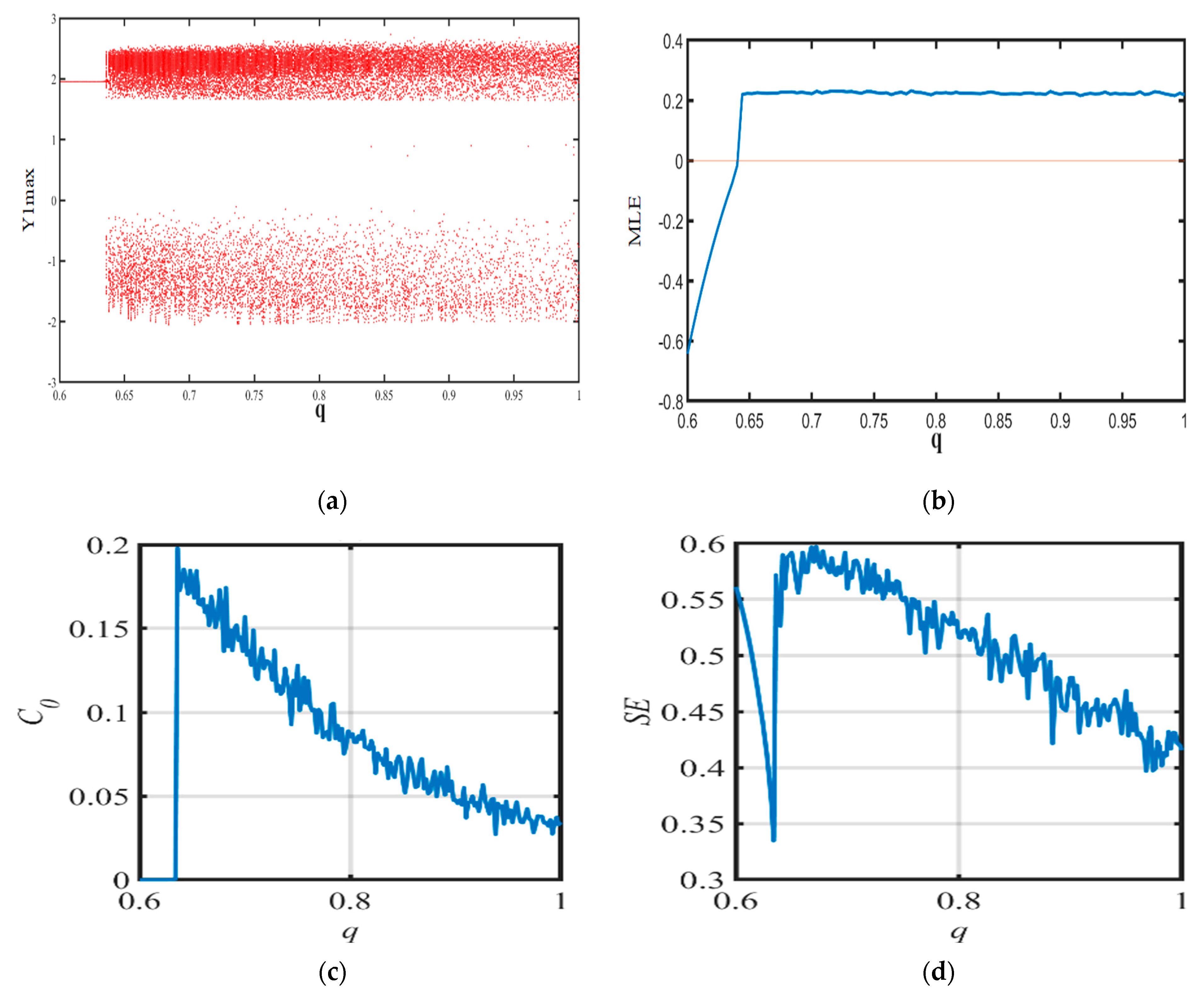

Figure 9a,b, respectively, depict the bifurcation diagram and maximum Lyapunov exponent. When
, the system is mostly in a stable state. When
, chaos appears and the system appears in a chaotic state.
As shown in
Figure 9c,d, the C
0 complexity and SE complexity of the system are lower when
, and the values of the complexity both oscillate at higher values when
. We find that the complexity results are consistent with the bifurcation diagrams, indicating that the complexity can reflect the dynamic characteristics of the proposed system.
For some values of
q, the phase portraits and the

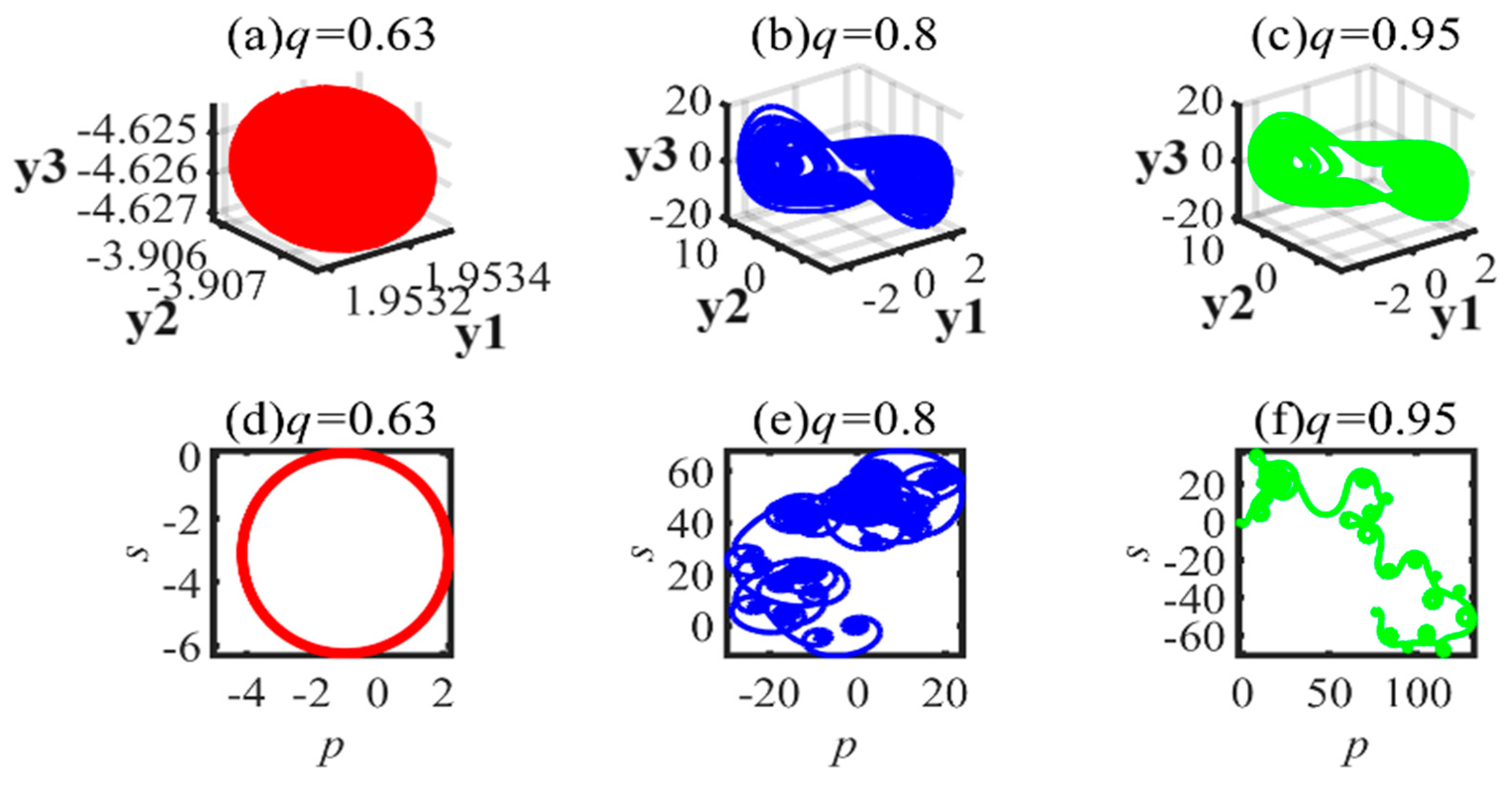

p–s dynamics of the 0–1 testing are given in
Figure 10. The system is stable for
q = 0.63, while being chaotic when
and
. This means that the system becomes chaotic with fractional order
q rising.
In the proposed 4D Chaotic Supply Chain Model (4DCSCM), the fractional-order parameter q significantly influences the system’s dynamic behavior. This parameter is associated with the memory effect and hereditary properties of the system, reflecting the long-term dependencies between various supply chain components. A fractional order q leading to chaos indicates that the supply chain system’s current state is heavily influenced by its past states, resulting in a highly unpredictable and variable response to changes in demand, supply, and other factors. Moreover, a fractional order q leading to periodic behavior indicates that the memory effect and hereditary properties, as captured by the fractional order q, lead to more predictable and stable dynamics within the supply chain. Periodicity in this context means that past states have a consistent and regular influence on future states, resulting in a stable cycle of inventory levels and order quantities. This predictability allows supply chain managers to optimize their operations by relying on regular patterns for planning and forecasting, thus enhancing the efficiency of inventory management, reducing the costs, and improving the service levels.
7. Finite-Time Stabilization of System
Finite-time stabilization refers to the control process whereby the system’s state is driven to an equilibrium point in a finite period of time. Unlike asymptotic stabilization, which ensures that the system’s state approaches equilibrium as time progresses to infinity, FTS guarantees that the state will reach equilibrium within a specified finite time. This concept is particularly useful in applications requiring quick system responses and precise control actions. The advantage of FTS lies in its ability to ensure rapid convergence and improved robustness against disturbances and uncertainties in the system [
42].
The methodology of finite-time stabilization often employs Lyapunov functions and control laws specifically designed to achieve the desired stabilization within a finite duration. The theoretical underpinnings of FTS are rooted in the mathematical analysis of dynamical systems and control theory, offering a framework for the design of controllers that can achieve rapid stabilization. This approach has been widely applied in various fields, including robotics, aerospace, and networked systems, where the speed of response and reliability are critical.
In this section, we design an effective control scheme to stabilize the model in a finite time. The controlled fractional order system is given as
where
are the control parameters of the system. Now, the control goal is to design a suitable robust controller to stabilize the system around zero in a finite time.
Lemma 3 ([
43]).
Assume that is a domain containing the origin and is a continuously differentiable function and locally Lipschitz, so thatwhere ;
then, the system is called Mittag-Leffler stable. Theorem 6. The controlled chaotic system can be finite-time stabilized by the controller,where and the finite time is estimated by Proof.
To prove the stability of the system, let us use the classic Lyapunov direct method and define the following Lyapunov function:
Calculating the fractional derivative of the Lyapunov function and using Lemma 3, one can obtain
It is obvious that the Lyapunov function satisfies the conditions in Theorem 6. Thus, the system is Mittag-Leffler stable. □
Therefore,
and one may take the integral of both sides from 0 to T as follows:
The states of the system under the controller are depicted in

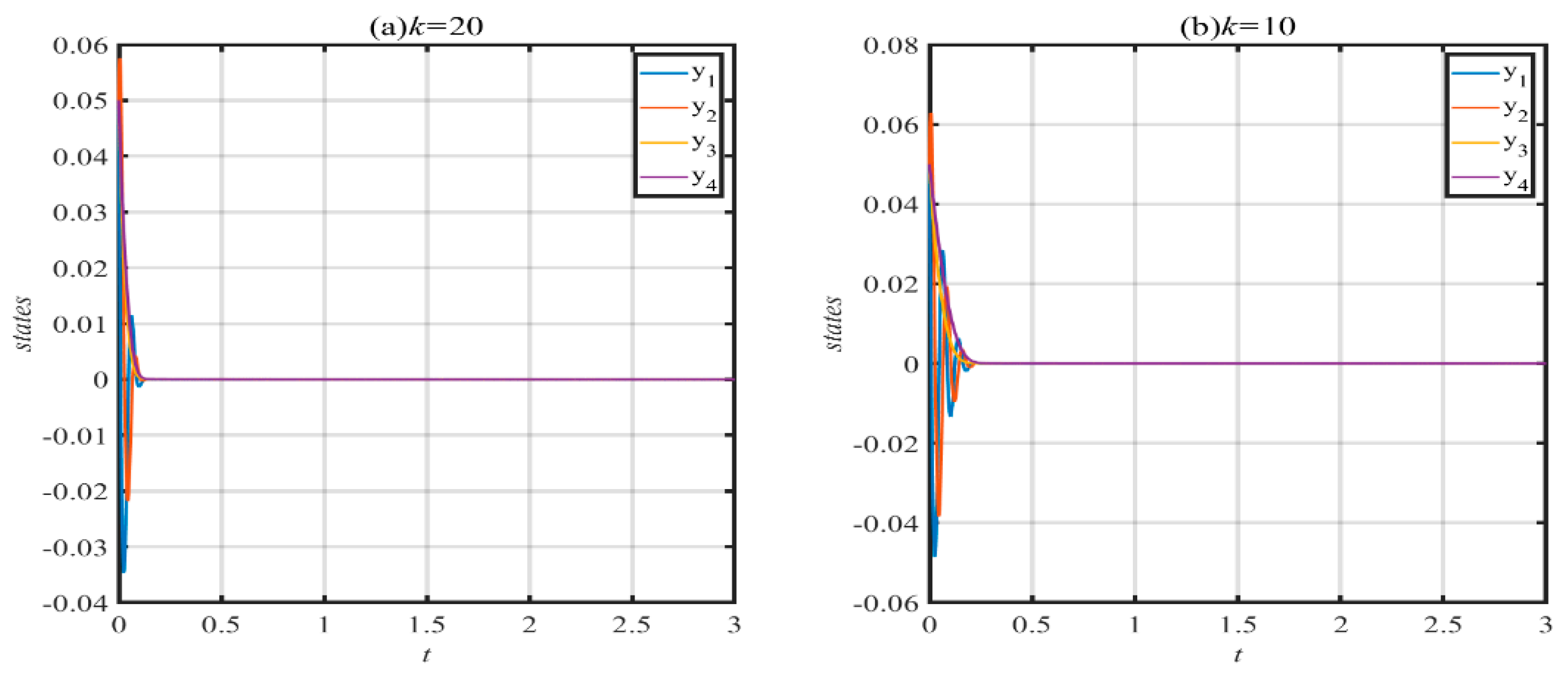

Figure 11, which indicates that the trajectories of the system can be stabilized to the origin in a finite time. In addition, the chaotic behavior is suppressed. The numerical results show that changing α and
k causes the system to converge to zero slowly.
A robust control scheme is designed to stabilize the system in a finite time, effectively suppressing chaotic behaviors. The numerical results demonstrate that the control strategy is effective in driving the system’s state to an equilibrium point within a specified finite duration. This rapid stabilization is crucial for practical applications in supply chain management, where quick response times are essential.
