A New Method for Controlling Fractional Linear Systems

Abstract

The study of fractional linear time-invariant (LTI) systems has been an area of active research over the past thirty years. Results indicate that such systems are becoming important in the representation of certain types of dynamical behavior in biology and engineering. Several methods have been developed for the representation, identification, and control of fractional LTI systems. The primary purpose of this paper is to introduce a new approach to their control. Its principal contribution is the transformation of a fractional LTI system into one without fractional terms (standard LTI system) using feedback and feedforward compensation. While the former may be quite difficult to control, tools widely available in linear systems theory may be used to control the latter. Transformation of a fractional system into a standard one requires compensators with fractional transfer functions. It is shown, using research results from the past two decades, that such functions can be realized using hardware and software subsystems. The authors demonstrate, using an example, that better control performance is possible with the new method when compared to current ones that are most common in the research literature. Robustness in the presence of noise and model uncertainties is also studied for the new method and currently available ones. Simulation results presented illustrate improvements achievable in control robustness with the new method.

1. Introduction

The concept of General Systems Theory is attributed to Ludwig von Bertalanffy (von Assche et al. [1]), who lived in the first part of the twentieth century. Today, a general system is considered to be a collection of components or subsystems connected together to achieve an overall objective. Examples are ubiquitous and include biological, psychological, engineering, economic, political, and social systems. For over a century, systems have been represented by ordinary differential equations (ODEs) of finite integer orders (referred to as standard systems). A subset of these, described by ODEs with constant coefficients, are called standard linear time-invariant (LTI) systems. The application of the Laplace transforms to represent such a system in the complex domain, understanding its stability and transient behavior using the poles and zeros of its transfer function, and the modification of its responses to inputs using compensation are all well known.

This paper deals with fractional LTI systems, which may be composed by adding terms that involve fractional order derivatives to standard LTI systems. A very brief introduction to fractional order derivatives and fractional LTI systems is provided in Appendix A. It is seen that while the Laplace transform can be applied to such systems as well, the determination of the poles and zeros of their transfer functions, analysis of their stability and transient behavior, and the design of closed-loop behaviors are poorly understood.

It is the authors’ opinion that fractional LTI systems are gaining importance in the representation of certain types of dynamical behavior in many practical applications [2]. This is particularly the case in systems that include the viscoelasticity of soft (biological and synthetic) materials, the electrical impedance of polymers and biological tissue, and the models that involve spatial heterogeneity (e.g., macro-economics, population dynamics, and the spread of an epidemic/pandemic) or temporal heterogeneity (e.g., systems with memory). Consequently, advances in the study of fractional LTI systems can pave the way towards a new generation of algorithms and devices (adaptive dampers, mechanical ventilators, pacemakers, and prosthetic devices), enable the development of better economic and population models for forecasting, and can assist in gaining a better insight into how to contain the spread of epidemics and pandemics.

1.1. Focus of the Paper

In systems theory, the identification of a system, its interpretation, and its control are all of interest. The authors assume that fractional LTI models of physical systems of interest are available and focus their attention in this paper on the selection of compensators that enable the outputs of such systems to track input signals specified by a designer. Four common techniques used for the control of fractional LTI systems are surveyed, and a new method called “Transform and Control” is introduced. The latter uses feedback and feedforward compensation to transform a fractional LTI system into a standard one and then controls the transformed system using well-established tools in linear systems theory. As seen in the following sections, the first step requires the use of compensators that contain terms involving fractional powers of the complex variable $\mathit{s}$. It is shown that such terms exist, are causal, and can be realized in practice using special-purpose hardware or software subsystems.

1.2. Primary Contributions of the Paper

In contrast with standard LTI systems, which are represented in the complex domain using rational transfer functions, fractional ones require expressions that contain terms with fractional powers of $\mathit{s}$. Approximate representations of such systems can be considered using rational transfer functions of much higher order. The interpretation, analysis, and control of such systems, in general, can be extremely challenging. The primary contributions of this paper can be summarized as shown below:

i.

While a fractional system may be complex to control, it is straightforward to perform with the new method once it has been transformed into a standard system.

ii.

The closed-loop response of a fractional system controlled using the new method can always be represented by a standard one. This significantly simplifies the design of closed-loop behaviors desired from a fractional system.

iii.

The denominator of the transfer function that represents the closed-loop behavior of a fractional system controlled using the new method will always be of order $k$, where $k=\underset{ }{\max }\left(n, \lceil {\alpha }_m\rceil \right)$ and $n$ and ${\alpha }_m$ are the largest values of integer and fractional powers of $s,$ respectively, in the denominator of the plant model.

1.3. Organization of the Paper

The paper is organized as follows. Section 2 briefly presents the practical importance of fractional LTI systems, and it can be seen that such models are quite prevalent across engineering and biology. Section 3 contains the description of a practical example considered for analysis in the paper. Section 4 summarizes four techniques currently available and most commonly used for controlling fractional LTI systems. Section 5 introduces the Transform and Control method (Appendix B applies it to simple systems of orders between one and two). Section 6 uses all methods to control the system described in Section 3 and compares their closed-loop responses to a unit step and a periodic input. Responses to a randomized input and robustness to control noise and model uncertainties are studied in Section 7. Section 8 addresses the realization of fractional terms in the compensators that transform a fractional LTI system into a standard one. Section 9 discusses the generation of control signals necessary to account for arbitrary initial conditions, and the paper concludes with a short discussion of how the new method can advance the theory and practice of the control of fractional LTI systems.

2. Importance of Fractional LTI Systems

In the last century, systems theory has made important contributions related to the representation, identification, interpretation, analysis, and control of complex dynamical systems using applied mathematics. Such advances have generally arisen from a need to solve practical problems in engineering, biology, economics, and other areas.

The first practical application of a fractional model was given by Abel in 1881 [3] in his description of the tautochrone problem. Today, they can be seen in fields as diverse as engineering, economics, the life sciences, epidemiology, and food sciences. Six specific applications that have benefitted from the use of fractional LTI models were discussed in detail in [2] by the authors (and listed below), along with other use cases. The application of standard models had been typical for the representation of dynamical behaviors in such applications. However, it was seen in each of the six cases that a fractional one more accurately represented the corresponding behavior. Table 1 below presents both the traditional model and the fractional LTI model used in these six applications.

i.

Convective cooling of liquids (Das in [4]),

ii.

Synthetic polymer viscoelasticity (Bagley, Torvik in [5]),

iii.

Lung viscoelasticity (Dai et al. in [6]),

iv.

Seismic isolation of buildings (Makris, Constantinou in [7]),

v.

Supercapacitance (Boskovic et al. in [8]), and

vi.

Biological tissue impedance (Magin in [9]).

Table 1. Fractional Transfer Functions in Practical Applications.

No.	Application	$\mathbf{Standard} \mathbf{Model} \tilde{\mathit{G}}\left(\mathit{s}\right)$	$\mathbf{More} \mathbf{Accurate} \mathbf{Fractional} \mathbf{Model} \mathit{G}\left(\mathit{s}\right)$
1	Convective Cooling	$1/\left(s+a_0\right)$	$1/\left(s^{\alpha }+a_0\right)$
2	Polymer Viscoelasticity	$b_0/\left(s+a_0\right)$	$1/\left(a_{\alpha }{s}^{\alpha }+a_0\right)$
3	Lung Viscoelasticity	$\left(b_{1}s+b_0\right)/\left(s+a_0\right)$	$\left(b_{\alpha }{s}^{\alpha }+b_0\right)/\left(s^{\alpha }+a_0\right)$
4	Seismic Isolation	$b_0/\left(s+a_0\right)$	$\left(b_{\alpha }{s}^{\alpha }+1\right)/s$
5	Supercapacitance	$b_0/\left(s+a_0\right)$	${\left(b_{1}s+1\right)}^{\alpha }/s$
6	Biological Tissue Impedance	$\left(b_{1}s+b_0\right)/\left(s+a_0\right)$	$\frac{1}{\left(a_{\alpha 1} s^{\alpha 1}+a_{\alpha 2} s^{\alpha 2}+a_0\right)}$

Table 1. Fractional Transfer Functions in Practical Applications.

No.	Application	$\mathbf{Standard} \mathbf{Model} \tilde{\mathit{G}}\left(\mathit{s}\right)$	$\mathbf{More} \mathbf{Accurate} \mathbf{Fractional} \mathbf{Model} \mathit{G}\left(\mathit{s}\right)$
1	Convective Cooling	$1/\left(s+a_0\right)$	$1/\left(s^{\alpha }+a_0\right)$
2	Polymer Viscoelasticity	$b_0/\left(s+a_0\right)$	$1/\left(a_{\alpha }{s}^{\alpha }+a_0\right)$
3	Lung Viscoelasticity	$\left(b_{1}s+b_0\right)/\left(s+a_0\right)$	$\left(b_{\alpha }{s}^{\alpha }+b_0\right)/\left(s^{\alpha }+a_0\right)$
4	Seismic Isolation	$b_0/\left(s+a_0\right)$	$\left(b_{\alpha }{s}^{\alpha }+1\right)/s$
5	Supercapacitance	$b_0/\left(s+a_0\right)$	${\left(b_{1}s+1\right)}^{\alpha }/s$
6	Biological Tissue Impedance	$\left(b_{1}s+b_0\right)/\left(s+a_0\right)$	$\frac{1}{\left(a_{\alpha 1} s^{\alpha 1}+a_{\alpha 2} s^{\alpha 2}+a_0\right)}$

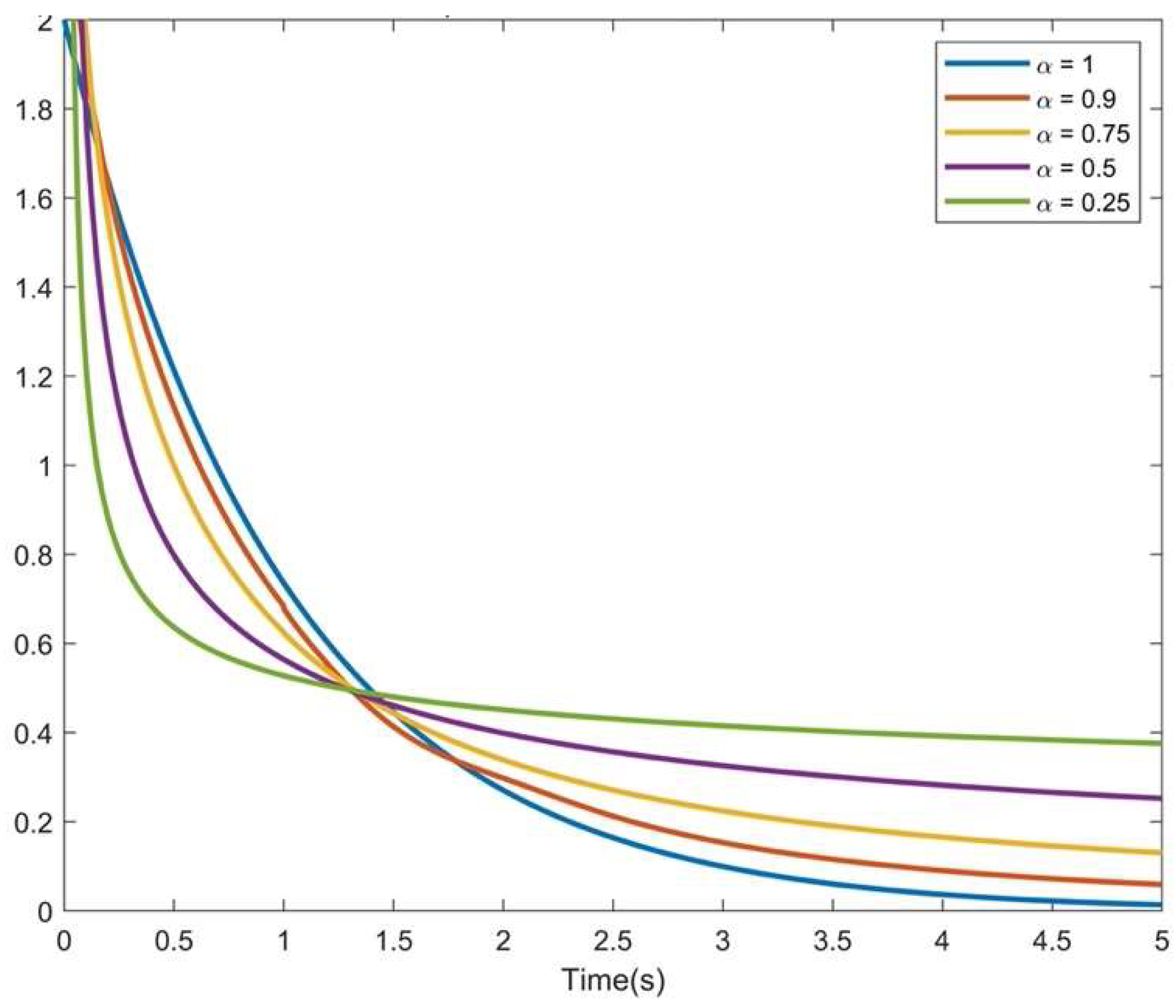

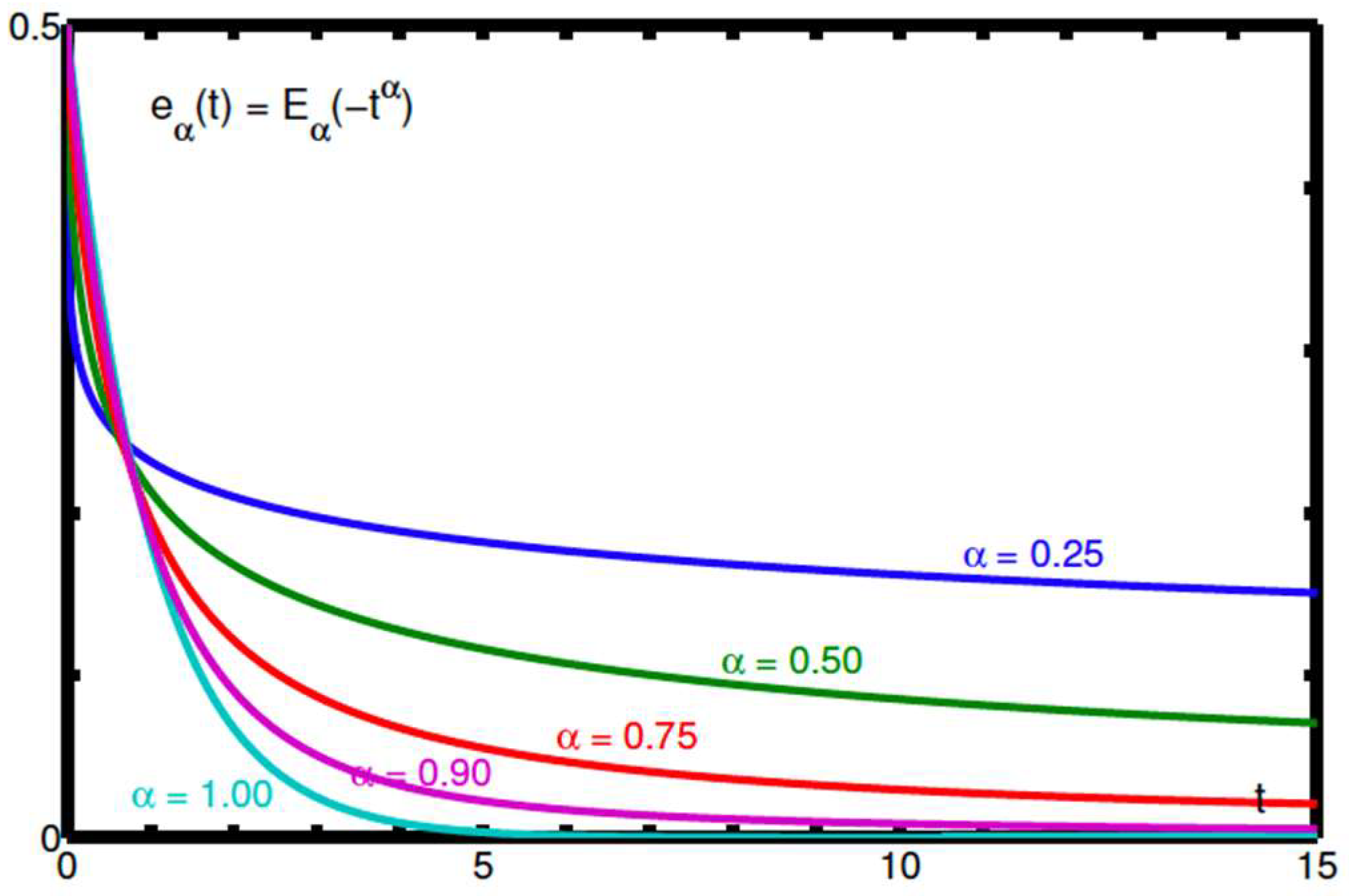

The inverse transform of the fractional transfer functions used for applications 1–3 and its differences from the standard exponential function are discussed in Appendix A. The inverse transform of the fourth application can be derived from first principles and is a linear combination of $t$ and $t^{\alpha }$. Inverse transforms for applications 5 and 6 are more complex and involve the use of special functions.

Fractional systems theory is concerned with the identification, interpretation, analysis, and control of dynamical behavior whose representation involves the use of fractional order derivatives. While significant advances have been made in the last thirty years, it is the authors’ opinion that the mainstreaming of their study in systems theory will need formal methods that enable a more general treatment of such systems.

Importance of Fractional Control

The study of fractional systems can lead to new control applications. For example, as discussed in [7], seismic isolation of buildings requires the design of damping devices that are capable of dissipating significant amounts of energy in a relatively short time period. This has led to the use of heavy oils and gels in such devices and, in turn, a need for viscoelastic models containing fractional order derivatives that predict their dynamical behavior. As noted by Rabiee and Chae [10] (and other similar works), high damping is more effective for the ground motions seen during long-period earthquakes, while low damping is better suited for short-period ones. Given the variety of ground motions during seismic events (e.g., Shahi and Baker [11] describe the 1979 Imperial Valley earthquake as a pulse ground motion that lasted less than 10 s and contrast it with the sustained non-pulse motions of the 1971 San Fernando earthquake that lasted 30 s), it can be argued that seismic isolation devices whose viscoelasticity can be matched to ground motions will be more effective in protecting buildings than ones that are fixed.

3. The Control Problem

• System:

It is assumed that the system considered for analysis is known (shown as a transfer function in Equation (1) below). Uncertainties may be present in its coefficients and exponents.

$$\frac{X\left(s\right)}{U\left(s\right)}=\frac{b_{1}s+b_{\gamma }{s}^{\gamma }+b_0}{s^2+a_{\beta }{s}^{\left(1+\beta \right)}+a_{1}s+a_{\alpha }{s}^{\alpha }+a_0}$$

(1)

Equation (1) contains one fractional term between zero and one and one between one and two and is one of the most general among the examples considered in the research literature. Additionally, the dynamical behavior represented by the system in Equation (1) includes those seen in seismic isolation of buildings [12] and discharge characteristics of electrochemical storage devices or batteries (e.g., [13]).

• Assumptions:

i.

Poles (fractional or simple) of the system in Equation (1) can be stable or unstable. However, its zeros are stable. This assumption will be relaxed in future work.

ii.

The system is fully observable and controllable. Those that are only partially observable and controllable will be considered in future work.

• Control Problem:

iii.

The design of feedback and feedforward compensators required for tracking (a) a unit step and (b) a periodic input is considered (inputs denoted by $v\left(t\right)$). The closed-loop transfer function in each case has the form shown in the equation below (where, $p_i ϵ \mathbb{Z}, i=1,2$):

$$\frac{X\left(s\right)}{V\left(s\right)}=\frac{1}{\left(s+p_1\right)\left(s+p_2\right)}$$

iv.

The response of a fractional LTI system to $e^{st}$ is $w\left(s\right) e^{st}$ (this is discussed in some detail in Appendix A). However, contrary to integer order systems, $w\left(s\right)$ is not a polynomial but an expression containing fractional powers of $s$. Fractional systems, therefore, cannot be studied in general using frequency responses. Consequently, closed-loop responses to a randomized periodic input are investigated to assess the generalizability of the compensators designed for iii (b).

v.

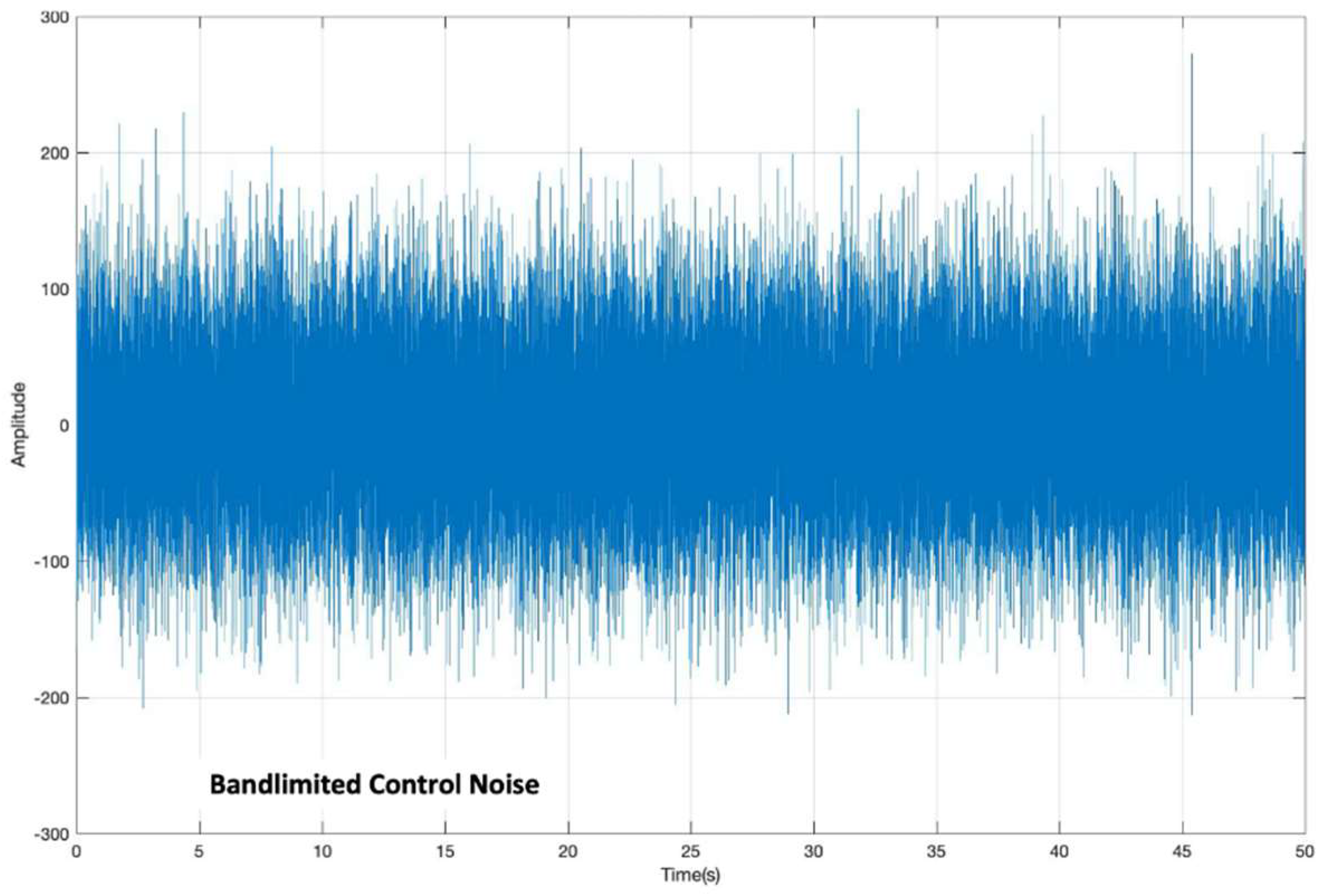

And finally, the robustness of control designs to input noise and uncertainties in the coefficients and exponents of the system in Equation (1) is presented.

Simulation Tools Used

A summary of the tools currently available in MATLAB^® and used to generate the results presented in the paper is provided for completeness. Simulations were conducted using the FOMCON and FOTF toolboxes available in MATLAB^®. The companion SW available with the purchase of books on fractional systems (e.g., [14]) may also be viewed as a source of support for such simulations. The design of compensators for currently available methods was an iterative process that used the Monte-Carlo toolkit in MATLAB^® for selecting control gains. The authors also note that the CRONE^® toolbox may be used for the identification of fractional LTI systems. The system thus identified will be represented as a lead-lag filter (ref. [15]).

4. Currently Available Methods for Controlling Fractional LTI Systems

The study of fractional LTI systems over the past thirty years has yielded numerous methods for their identification, interpretation, analysis, and control. In contrast with standard linear systems, however, insights into their behavior are not evident in general.

In this section, the authors focus only on the last topic, namely, the control of fractional LTI systems. Four of the most commonly used methods are discussed here, along with the advantages and disadvantages inherent in their application to controlling fractional systems. Simulation results that describe the control of the system described in Section 3 using methods currently available are presented in Section 6.

The four techniques currently in use for the control of fractional LTI systems are summarized below. Readers are referred to the papers by Petras [16], Li et al. [17], and Podlubny [18]; the books by Xue [14] and Vinagre et al. [19]; and a recent technical report by the authors [20] for more detailed discussions on the topic. The extension of such methods to time-delay fractional systems may be found in the paper by Birs [21]. Stability analysis using linear matrix inequality (LMI) techniques was studied in a paper by Sabatier et al. [22], and advances in the robust control of fractional systems are described in the monograph by Padula et al. [23]. New results related to non-commensurate systems may be found in the paper by Ortigueira and Bengochea [24]. The article by Aguila-Camacho et al. [25] discusses the use of the Lyapunov theory to analyze the stability of fractional systems.

Description of Methods Currently Available

A.

Technique 1: Approximate terms involving fractional powers of$s$using rational functions. In this method, a standard LTI system approximates the dynamical behavior of a fractional one, which in turn permits the use of methods available for standard systems.

○

Approximations commonly used are based on the algorithms proposed by Carlson and Halijak [26], Oustaloup [15], and Matsuda and Fujii [27]. For example, Krishna shows that $1/\sqrt{s}$ can be approximated using a rational function of 4th or 5th degree [28] using such methods.

○

Advantages: The technique can be applied to transfer functions that contain terms with real powers (rational or irrational) of $s$. Both open and closed-loop behaviors of the system can be represented using rational transfer functions.

○

Disadvantages: There are two primary disadvantages to this approach. The first is that approximations using rational transfer functions will, in general, be of a much higher order than the original fractional system. The second is that series connections of rational approximations may lead to incorrect models. For example, $\mathrm{RationalApproximation}\left(1/\sqrt{s}\right)\ast \mathrm{RationalApproximation}\left(1/\sqrt{s}\right)\ne \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$s$}\right.$. Such limitations could narrow the general applicability of rational approximations.

B.

Technique 2: Convert transfer functions that have a common fractional power of $s$($s^{\alpha }$) into a polynomial expressed in terms of a new variable$p=s^{\alpha }$. Methods available for standard systems can then be applied to control these systems in the new coordinates ($p$-plane), and results can be transferred back to the $s$-plane.

○

This technique was developed for commensurate systems ($G\left(p=s^{\alpha }\right)=q\left(p\right)/r\left(p\right)$) and can be used for any $\alpha ϵ ℝ,0<\alpha \le 1$. The transfer of control design from the $p$-plane to the $s$-plane is based on the stability result originally derived by Matignon [29] and generalized to fractional LTI systems (e.g., [22]).

○

Advantages: Once the system is converted to the $p$-plane, techniques available for standard systems can be used to study the stability properties of the original fractional ones and to modify their closed-loop behaviors.

○

Disadvantages: This approach suffers from four distinct disadvantages.

▪

First, it cannot be applied to non-commensurate systems (where the fractional power cannot be factored out).

▪

Second, the control design for desired closed-loop behavior is not straightforward. While stability results carry over from $p$-plane to the $s$-plane, control performances may not. In fact, it is shown in Section 6 that good control performance in the $p$-plane does not lead to a similar one in the $s$-plane.

▪

Third, the stability result derived in [29] is a sufficient condition based on the primary solution $s=r{e}^{i\theta }\Rightarrow$ $s^{\alpha }=r^{\alpha }{e}^{i\alpha \theta }$, and an extension of the De Moivre formula to non-integer exponents (${\left(\cos \theta +i\sin \theta \right)}^{\alpha }=\left(\cos \alpha \theta +i \sin \alpha \theta \right), \alpha ϵ ℝ$). Together, these were used to argue that the system is unstable only in the cone $\pm \alpha \left(\pi /2\right)$, and suggest that a fractional system might enjoy an increased stability margin over its standard counterpart $\forall 0<\alpha <1$.

-

The more general formula for complex numbers, however, is $s=r{e}^{i\left(\theta +2\pi k\right)}\Rightarrow$ $s^{\alpha }=r^{\alpha }{e}^{i\alpha \left(\theta +2\pi k\right)}$, and can lead to roots with physical meaning in higher-order Riemannian sheets. For example, $1/\left(\sqrt{s}+1\right)$ does not have a pole in the first sheet but does so in the second [30].

-

Further, ${\left(\cos \theta +i\sin \theta \right)}^{\alpha }=\left(\cos \alpha \theta +i\sin \alpha \theta \right)$ is a unique solution only for $\alpha ϵ \mathbb{N}$ or $\alpha =p/q, p, q ϵ \mathbb{N}$. Otherwise, there are multiple ones.

▪

And finally, it is noted that the closed loop transfer function of the system will continue to retain fractional powers of $s$.

C.

Technique 3: Extend Technique 2 to transfer functions with rational powers of $s$ by expressing them as fractions. They can then be controlled in the same manner as commensurate ones.

○

This method was proposed by Petras [16]. It was shown there that the common term with rational powers is $s^{1/\left(\mathrm{LCM} \mathrm{of} \mathrm{all} \mathrm{denominators} \mathrm{of} \mathrm{fractions}\right)}$. Since this transfer function always has an order $\le 1$, ref. [16] Matignon’s results were once again applied to assert the carryover of stability properties from the $p$- to the $s$-plane.

○

Advantages: This method allows any fractional system with rational exponents to be converted to the $p$-plane. Since the technique is restricted to rational exponents, it allows the full use of the extended De Moivre formula.

○

Disadvantages: This approach suffers from the same disadvantages as Technique 2 in terms of stability margins, control performances, and fractional terms in closed-loop transfer functions. In addition, depending on the value of the LCM, conversion from the $s$-plane could lead to high-order functions in the $p$-plane.

D.

Technique 4: Apply the $P{I}^{\beta }{D}^{\alpha }$control method, which uses a fractional derivative (instead of an ordinary one) and a fractional integral (instead of an ordinary one) in the control law.

○

This method was proposed in 1999 by Podlubny for general fractional LTI systems [18]. It is noted that examples considered have generally been standard second-order systems with additional fractional terms.

○

Advantages: This method extends the well-known PID control technique and can be used for the control of any fractional system represented by a transfer function with terms that have either rational or irrational powers of $s$.

○

Disadvantages: A simple method for the design of the fractional exponents $\beta$ and $\alpha$ as well as the gains used in $P{I}^{\beta }{D}^{\alpha }$ control is not available at present. In addition, the closed loop transfer function of the system will continue to contain fractional powers of $s$.

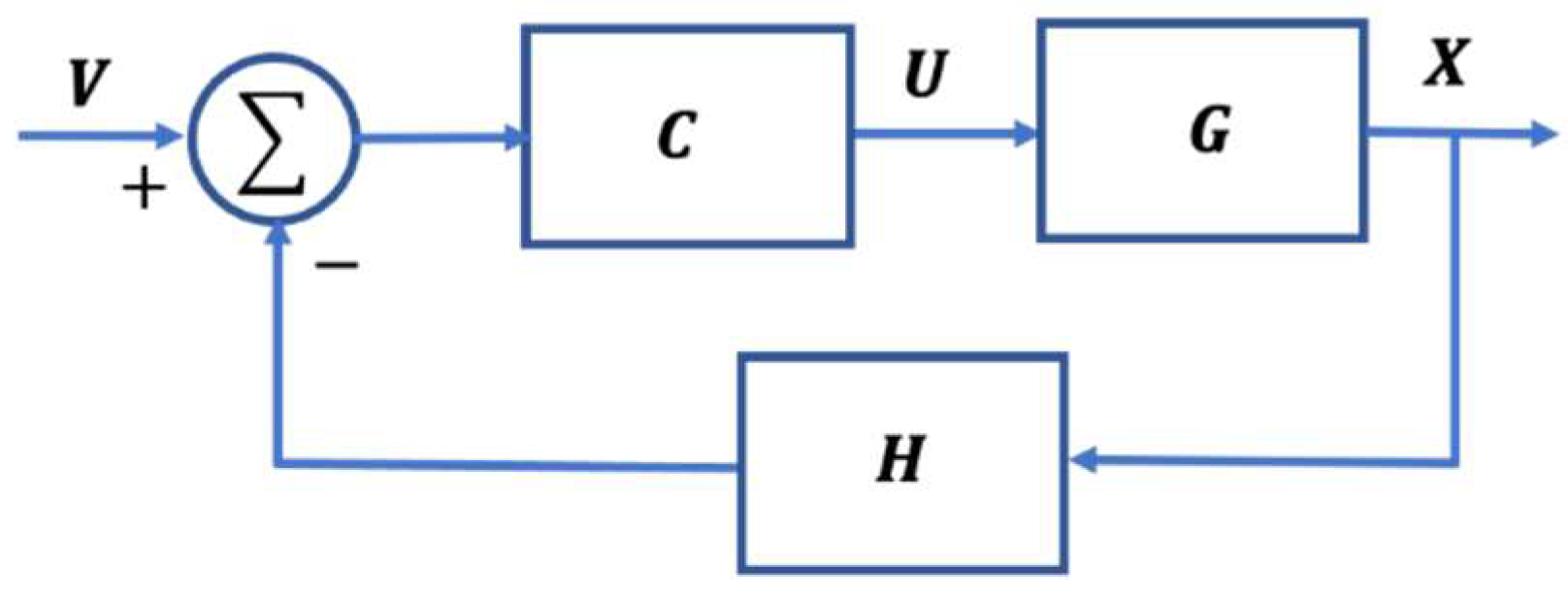

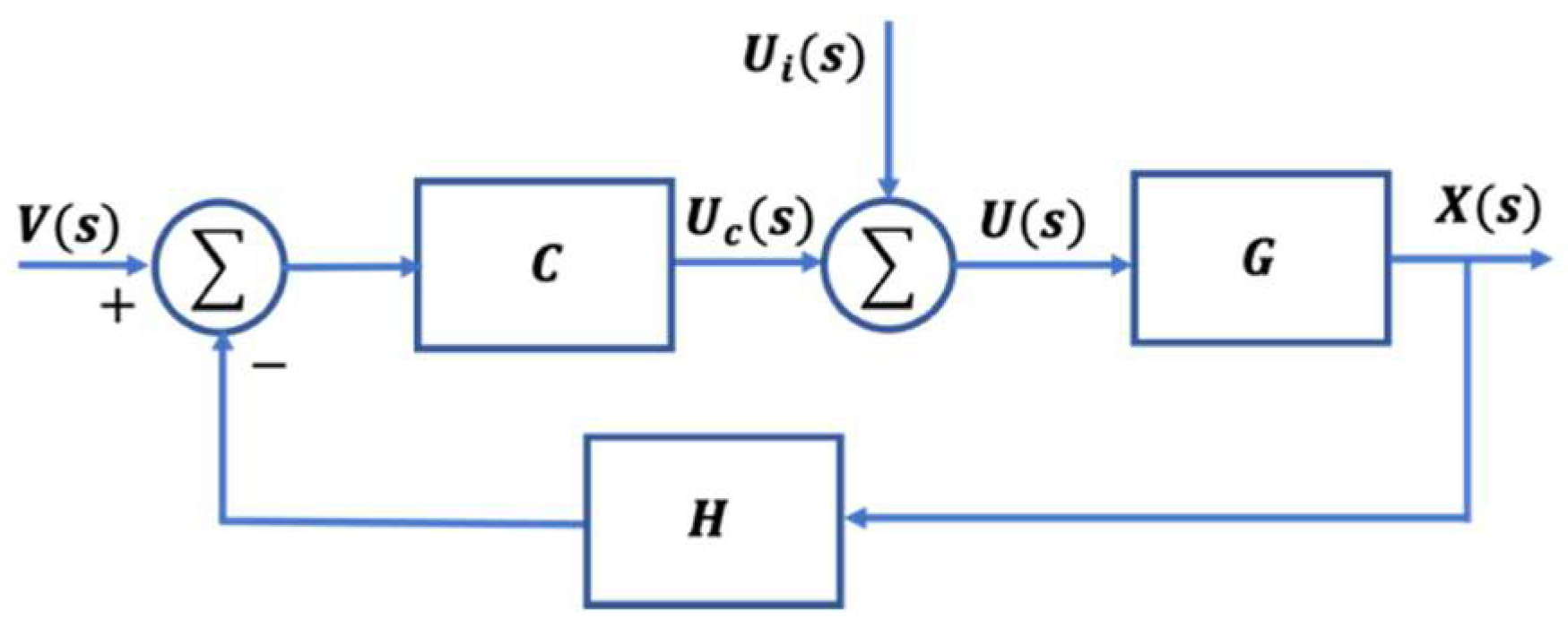

The standard control architecture shown in Figure 1 below with feedback ($H\left(.\right)$) and feedforward ($C\left(.\right)$) compensation will be used for all four methods. Techniques 1 and 4 will have compensators designed directly in the $s$-plane. In the other two cases, control designs will be performed in $p\left(s^{\alpha }\right)$-plane first and then transferred to the $s$-plane.

5. Transform and Control: A New Method

In this section, a new method, called Transform and Control, is introduced. The basic ideas behind it are described below. Given a fractional system, $G\left(s\right)=z\left(s\right)/q\left(s\right)$ where both $z\left(s\right)$ and $q\left(s\right)$ are represented using expressions with fractional powers of $s$:

i.

Transform the fractional system into a standard one using feedback and feedforward compensation ($z\left(s\right)/q\left(s\right)\to n\left(s\right)/d\left(s\right)$, a rational transfer function. It is shown that this process involves the following two steps:

a.

Cancelation of the zeros of a fractional plant in the feedforward path. Since the paper only deals with systems that have stable zeros (a condition that will be relaxed in future work), this pole-zero cancelation step does not involve unstable poles in the feedforward controller. The realization of the transfer functions needed for the cancelation is discussed in Section 8.

b.

Transformation of the fractional poles of the system into simple poles using feedback. This step is quite different from pole-zero cancelation and may be thought of as being similar to pole placement in LTI systems theory.

ii.

With this step complete, control the transformed system ($n\left(s\right)/d\left(s\right)$) using widely available tools in linear systems theory to achieve desired closed-loop behavior.

The control architecture used for implementing both steps is shown in Figure 2 below. Feedback $H_1\left(s\right)$ and feedforward compensation $C_1\left(s\right)$ in the inner loop is used to initiate the transformation of $G\left(s\right)$. The compensation term $C_2\left(s\right)$ in the outer loop is used to complete this step, after which $H_2\left(s\right)$ is designed to achieve desired closed-loop behavior. The transformed system ($G_1\left(s\right)$) is described by the expression below:

$$G_1\left(s\right)=\frac{X\left(s\right)}{U_1\left(s\right)}=\frac{C_1\left(s\right)G\left(s\right)}{1+C_1\left(s\right)G\left(s\right)H_1\left(s\right)}$$

(2)

In the inner loop, fractional zeros in $G\left(s\right)$ can be canceled with $C_1\left(s\right)=1/z\left(s\right)$. $H_1\left(s\right)$ is chosen so that $G_1\left(s\right)$ contains only simple poles. This transformation step from $G\left(s\right)\to G_1\left(s\right)$ could introduce new fractional zeros in $G_1\left(s\right)$. With the outer compensation terms, the closed loop transfer function is as shown below:

$$\frac{X\left(s\right)}{V\left(s\right)}=\frac{C_2\left(s\right)G_1\left(s\right)}{1+C_2\left(s\right)G_1\left(s\right)H_2\left(s\right)}$$

(3)

The fractional zeros in $G_1\left(s\right)$ is canceled using $C_2\left(s\right)$. As the last step, $H_2\left(s\right)$ is used for pole placement to achieve the desired closed-loop behavior.

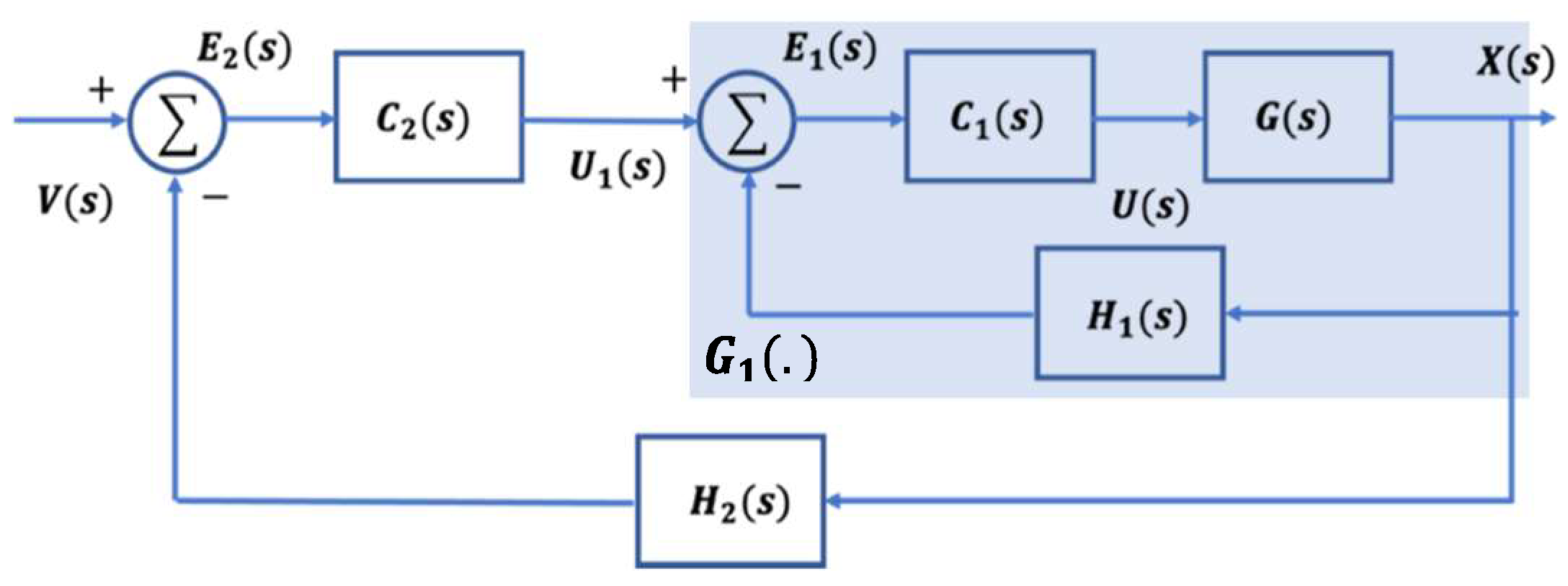

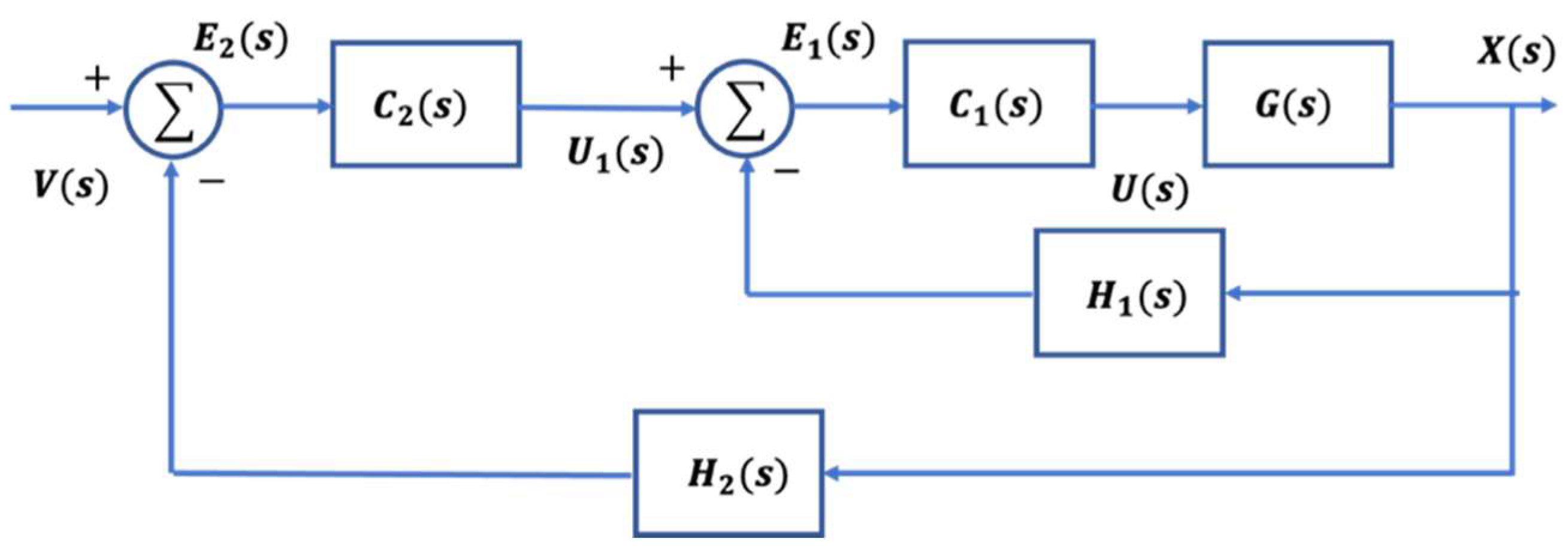

Figure 2. Transform and Control Architecture.

Figure 2. Transform and Control Architecture.

The new method introduced here is applied to the following increasingly complex examples in Appendix B to illustrate how the transformation step is achieved:

-

System 1: $G\left(s\right)=1/s^{\alpha }$, where $0<\alpha <1 ϵ {ℝ}^{+}$. The system has a fractional pole at the origin.

-

System 2: $G\left(s\right)=1/\left(s^{\alpha }+a_0\right)$, where $a_0 ϵ ℝ$. This moves the fractional pole to -$a_0$.

-

System 3: $G\left(s\right)=s^{\beta }/\left(s^{\alpha }+a_0\right)$, where $0<\beta \le \alpha <1 ϵ {ℝ}^{+}$. This adds a fractional zero at the origin.

-

System 4: $G\left(s\right)=\left(s^{\beta }+b_0\right)/\left(s^{\alpha }+a_0\right)$, where $a_0, b_0 ϵ ℝ$. This moves the fractional zero to -$b_0$.

-

System 5: $G\left(s\right)=\left(b_{1}s+b_{\gamma }{\mathrm{s}}^{\gamma }+b_0\right)/(s^2+a_{\beta }{s}^{\left(1+\beta \right)}+a_1\mathrm{s}+a_{\alpha }{s}^{\alpha }+{\mathrm{a}}_0)$, where $0<\alpha ,\beta ,\gamma <1 ϵ {ℝ}^{+}$ and $a_{\beta }, a_1, a_{\alpha }, b_1, b_{\gamma } ϵ ℝ$. This is a standard second-order system with additional fractional terms.

It is shown that the closed-loop behavior of Systems 1–4 (System 5) is represented using $X\left(s\right)/V\left(s\right)=1/\left(s+p\right)$ ($X\left(s\right)/V\left(s\right)=1/\left(s+p_2\right)\left(s+p_2\right)$), where $p ϵ ℝ$ ($p_{1,2} ϵ \mathbb{Z}$). Placement of the poles of the closed loop system is based on the response desired when it is subjected to either a unit step or the periodic input $\sin t+\sin 3t$.

Note on the New Method: The step involved in the cancelation of the zeros of the plant model is consistent with the assumption stated before that $1/z\left(s\right)$ has stable poles. The use of $C_2\left(s\right)=c_n\left(s\right)/c_d\left(s\right)$ to cancel the fractional zeros in $G_1\left(s\right)$ needs further study. From the results described in Appendix B, it appears that in each example, $1/c_d\left(s\right)$ has stable poles. This notwithstanding, more formal treatment of the classes of fractional LTI systems that lend themselves to the new method is a topic of future research. This is also the case with the extension of the new method to deal with systems whose $1/z\left(s\right)$ have unstable poles and systems that are not fully observable or controllable.

Multi-loop Control Considerations: The new method requires the use of an inner and an outer feedback loop. Design considerations for multi-loop control systems have been considered in linear systems theory over the past forty years (e.g., Grosdidier and Morari [31] and Lee and Edgar [32]). The new method proposed here may be considered a sequential loop closing method, in which the design objective of the inner loop is the transformation of the original fractional system into a standard one, and the objective of the outer is to achieve desired closed-loop behavior. The inter-dependencies between these loops, as well as the study of such interactions in more general multi-input multi-output fractional LTI systems, will be considered by the authors in future work.

Steps Involved in the Application of the New Method

A stepwise procedure for the design of $H_1\left(s\right), C_1\left(s\right)$ and $C_2\left(s\right)$ is presented below.

• Choose $H_1\left(s\right)$ to change the fractional poles in $G\left(s\right)$ to simple ones.
• Use $C_1\left(s\right)$ to cancel fractional zeros in $G\left(s\right)$.
• Use $C_2\left(s\right)$ to cancel fractional zeros in $G_1\left(s\right)$.
• Design $H_2\left(s\right)$ to achieve desired closed-loop behavior.

The application of the procedure to System 4, as an example, is shown below.

Step 1: Choose $C_1\left(s\right)=1/z\left(s\right)=1/\left(s^{\beta }+b_0\right)$. This cancels the fractional zeros of $G\left(s\right)$. ($b_0\ge 0$ must be true for the zero of the original plant to be stable).

Step 2: Move the fractional pole of $1/\left(s^{\alpha }+a_0\right)$ to the origin (feedback term $a_0$ in $H_1\left(s\right)$).

Step 3: Change the fractional pole at the origin to the simple pole $1/\left(s+1\right)$ (feedback term $1/s^{1-\alpha }$ in $H_1\left(s\right)$).

Step 4: Steps 1–3 transform $G\left(s\right)=z\left(s\right)/q\left(s\right)\to G_1\left(s\right)=s^{1-\alpha }/\left(s+1\right)$. Choose $C_2\left(s\right)=1/s^{1-\alpha }$ to cancel the fractional zeros of $G_1\left(s\right)$ (note that $1/s^{1-\alpha }$ is stable).

Step 5: Choose $H_2\left(s\right)=\left(p-1\right)$. With this, the closed-loop transfer function is $1/\left(s+p\right)$.

6. Control of the System in Section 3 with Currently Available and the New Methods

The system described in Equation (4) below is the one introduced in Section 3 with specific values of coefficients and exponents. It is used for comparing the control performance of all four techniques currently in use, as well as the new method.

$$G\left(s\right)=\frac{X\left(s\right)}{U\left(s\right)}=\frac{1}{s^2+s^{1.5}+s^{0.5}-1}$$

(4)

It can be shown that the poles of this system are $\left(s+1\right)$ and $\left(\sqrt{s}+0.5\pm d\right),$ $d=\sqrt{5}/2$. Therefore, it has a stable, simple pole at $s=-1$ (${\mathcal{L}}^{-1}\left(1/\left(s+1\right)\right)=e^{-t})$, stable fractional pole at $\sqrt{s}=-\left(0.5+d\right)$ (${\mathcal{L}}^{-1}\left(1/\left(\left(\sqrt{s}+0.5+d\right)\right)\right)=t^{-0.5}{E}_{0.5,0.5}\left(-\left(0.5+d\right)t^{1/2}\right))$ and an unstable one at $\sqrt{s}+1-d$ ${\mathcal{L}}^{-1}\left(1/\left(\left(\sqrt{s}+0.5-d\right)\right)\right)=t^{-0.5}{E}_{0.5,0.5}\left(\left(-0.5+d\right)t^{1/2}\right))$. It is noted that $E_{\alpha ,\beta }\left(.\right)$ is the two-parameter Mittag-Leffler function [33].

From a systems theoretic perspective, the authors consider the example in Equation (4) to be an ideal candidate for understanding how a standard second-order system that has been studied for nearly a century is impacted by fractional terms. From a practical point of view, it can be viewed as a very simple representation of the seismic isolation problem, where the building is a point mass and is protected by a device in which a spring-loaded piston (attached to the building) moves in a chamber filled with a fluid (the viscoelasticity of which is represented using the model proposed by Bagley and Torvik [34]). The model may also be used to describe the discharge characteristics of certain types of electrochemical storage devices (e.g., [13]).

6.1. Control Simulations

The control architecture in Figure 1 is used for Techniques 1–4. The one shown in Figure 2 is used for the new method. The control objectives considered in the paper are described below. In all cases, transient and steady-state behaviors are of interest.

A.

For step response, the objective is to have the system rapidly reach a steady state behavior of $\Vert 1-x\left(t\right)\Vert \le \epsilon$, $\forall t>T$ where $\epsilon ϵ ℝ$ is small and $T$ is the settling time.

B.

For periodic inputs, convergence to $\Vert v\left(t\right)-x\left(t\right)\Vert \le \epsilon , \forall t>T$ is of interest.

C.

As stated before, frequency response techniques cannot be used to study the generalizability of control designs used for fractional LTI systems. Therefore, a randomized periodic input will be used instead. The input signal considered here oscillates at frequencies that are randomly selected from the bandwidth of the input $v\left(t\right)$ in B.

D.

For robustness, controllers designed for periodic inputs will be subject to control noise and model uncertainty (both coefficients and exponents).

• Simulation results describe the responses of the closed-loop system to the following:

  i.

  Unit step input.

  ii.

  Periodic input $v\left(t\right)=\sin t+\sin 3t$ (multiple low-frequency harmonics). The randomized signal will therefore be selected in bandwidth $0\to 3/2\pi$ Hz.

6.2. Currently Available Methods

• Technique 1: The system in Equation (4) is controlled using the steps described below:

Step 1: Approximate $\sqrt{s}$ in $G\left(s\right)$ by the following fifth-order rational transfer function (Krishna [28]) and reconstruct the plant model using feedback, summation, and gains.

$$\sqrt{s}\approx \frac{10s^5+298.5s^4+1218s^3+768.5s^2+74.97s+1}{s^5+74.97s^4+768.5s^3+1218s^2+298.5s+1}$$

Step 2: With Step 1, the fractional system in Equation (3) is converted to an approximated standard one. In the control architecture shown in Figure 1, choose the following feedback and feedforward compensation terms:

-

$H\left(s\right)=1.9435\left(\left(6.4142s+8.3087\right)/\left(s+8.5334\right)\right)$ and $C\left(s\right)=1$ for Step.

-

$H\left(s\right)=\left(4.559s^2+5.357s+6.415\right)/\left(s^2+3.829s+2.21\right)$ and

-

$C\left(s\right)=\left(5.121s^2+7.536s+8.498\right)/\left(s^2-0.7667s+4.466\right)$ for Periodic.

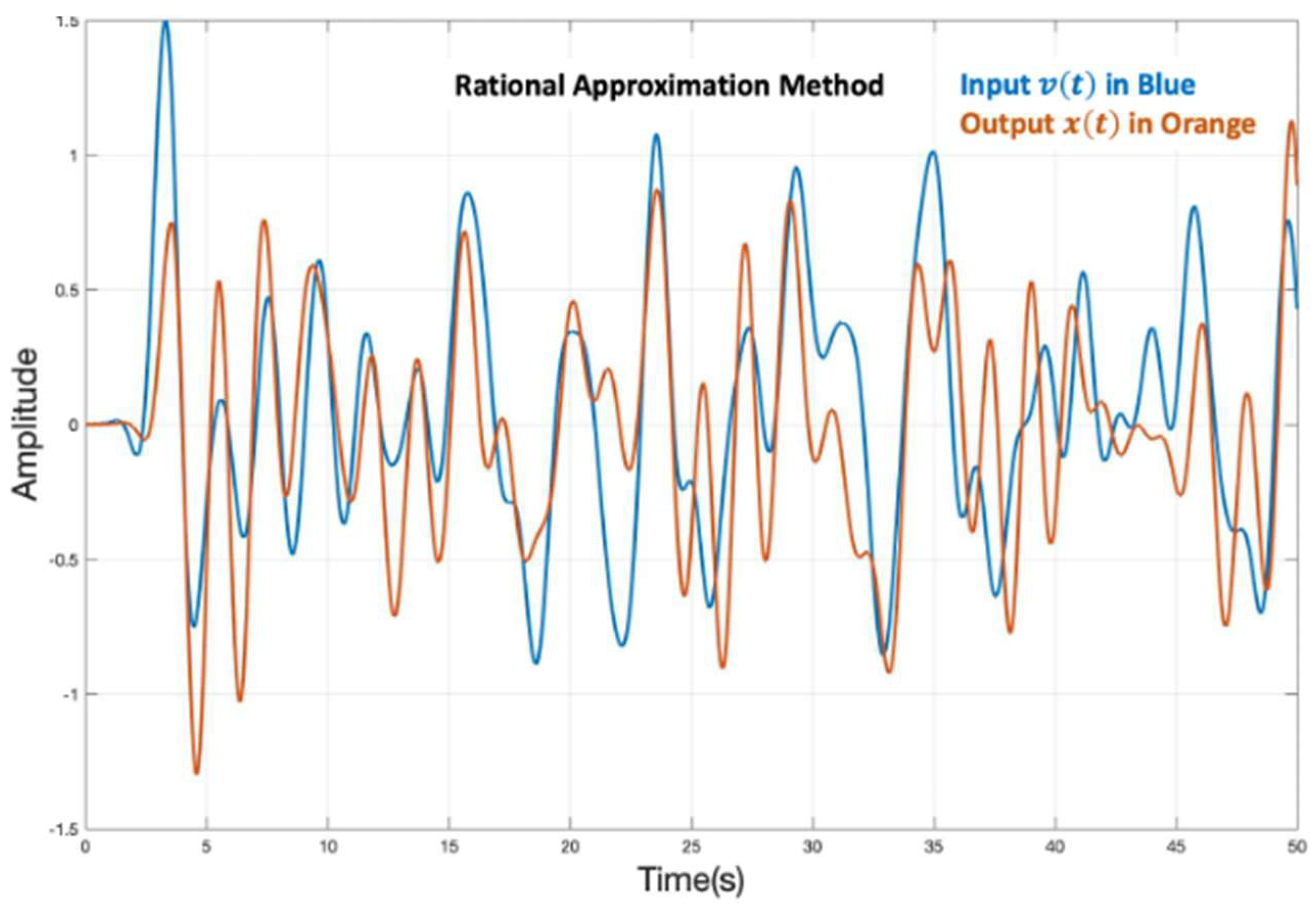

Simulation Results: Figure 3 and Figure 4 show the control performances achieved with Technique 1. It can be seen that:

-

The step response takes 70 s to move within a small error envelope (Figure 3).

-

A first-order feedback compensator is needed for step response.

-

Convergence in response to the periodic input takes 50 s (Figure 4).

-

Second-order compensators are needed to achieve a response to periodic input.

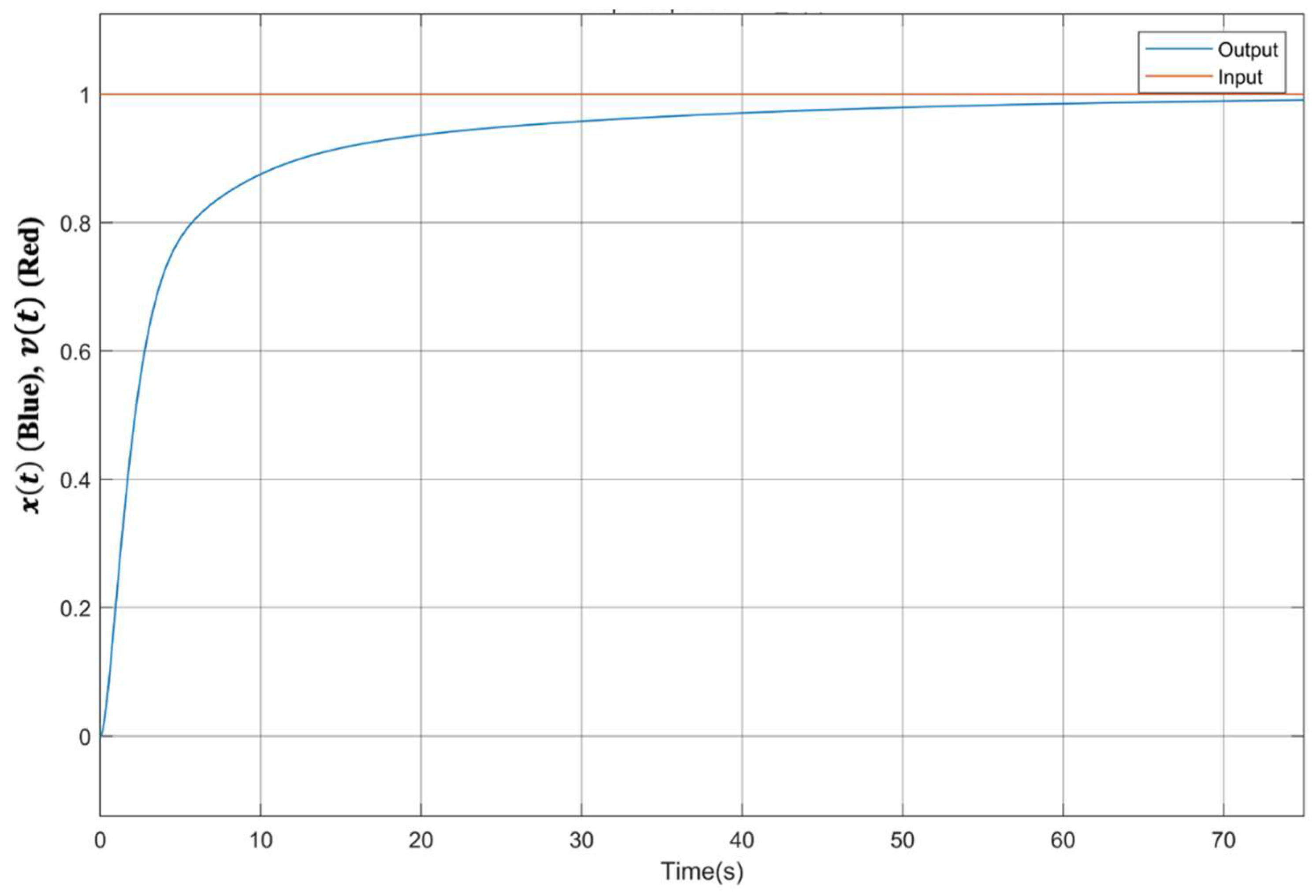

Figure 3. Response to a Step Input with Technique 1.

Figure 3. Response to a Step Input with Technique 1.

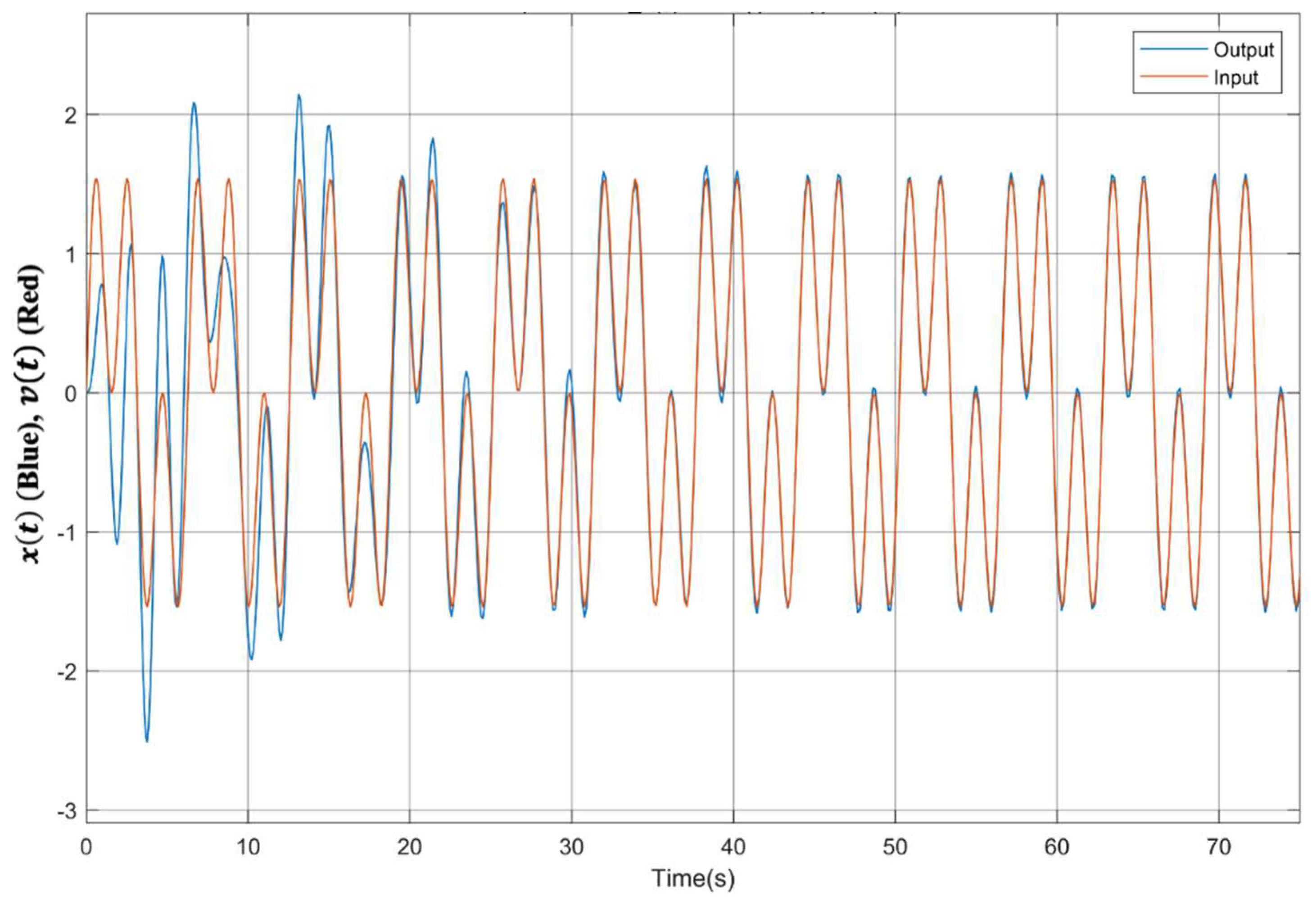

Figure 4. Response to the Periodic Input $\mathit{v}\left(\mathit{t}\right)=\mathbf{sin}\mathit{t}+\mathbf{sin}\mathbf{3}\mathit{t}$ with Technique 1.

Figure 4. Response to the Periodic Input $\mathit{v}\left(\mathit{t}\right)=\mathbf{sin}\mathit{t}+\mathbf{sin}\mathbf{3}\mathit{t}$ with Technique 1.

Note on Control Design: The fifth-order rational approximation of $\sqrt{s}$ results in a very high-order approximation of the fractional plant. Control designs presented above were the result of an iterative process that used Monte-Carlo simulations. A single design based on optimization techniques will be studied by the authors in future work.

• Techniques 2 and 3: Since the system in Equation (4) is commensurate, Techniques 2 and 3 are identical. Control of the system can be carried out as shown below:

Step 1: With $p=\sqrt{s}$, convert the system in Equation (4) into the standard one below:

$$G\left(p\right)=\frac{X\left(p\right)}{U\left(p\right)}=\frac{1}{p^4+p^3+p-1}$$

Step 2: In the architecture shown in Figure 1, choose the following feedback and feedforward compensators:

-

$H\left(p\right)=1.18\ast \left(900.7p^3+864.8p^2+652.8p+302.5\right)/\left(p^3+161.5p^2+245.4p+206.4\right)$ and $C\left(p\right)=\left(678p^3+869p^2+968.3p+689.5\right)/\left(p^3+265.8p^2+86.96p+807.4\right)$ for Step.

-

$H\left(p\right)=\left(1.21p^2+1.223p+2.782\right)/\left(p^2+1.2p+2.55\right)$ and $C\left(p\right)=1.35$ for Periodic.

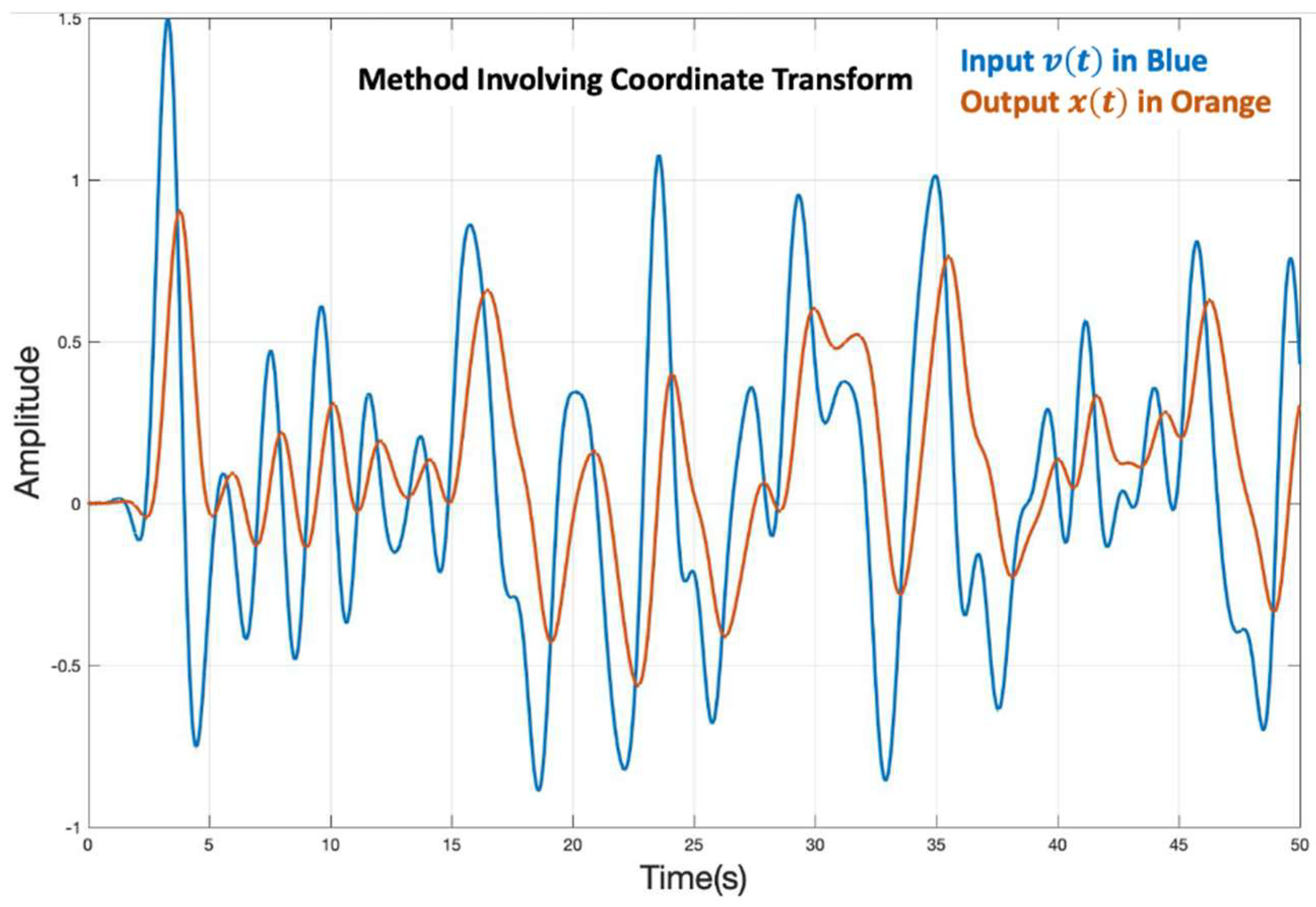

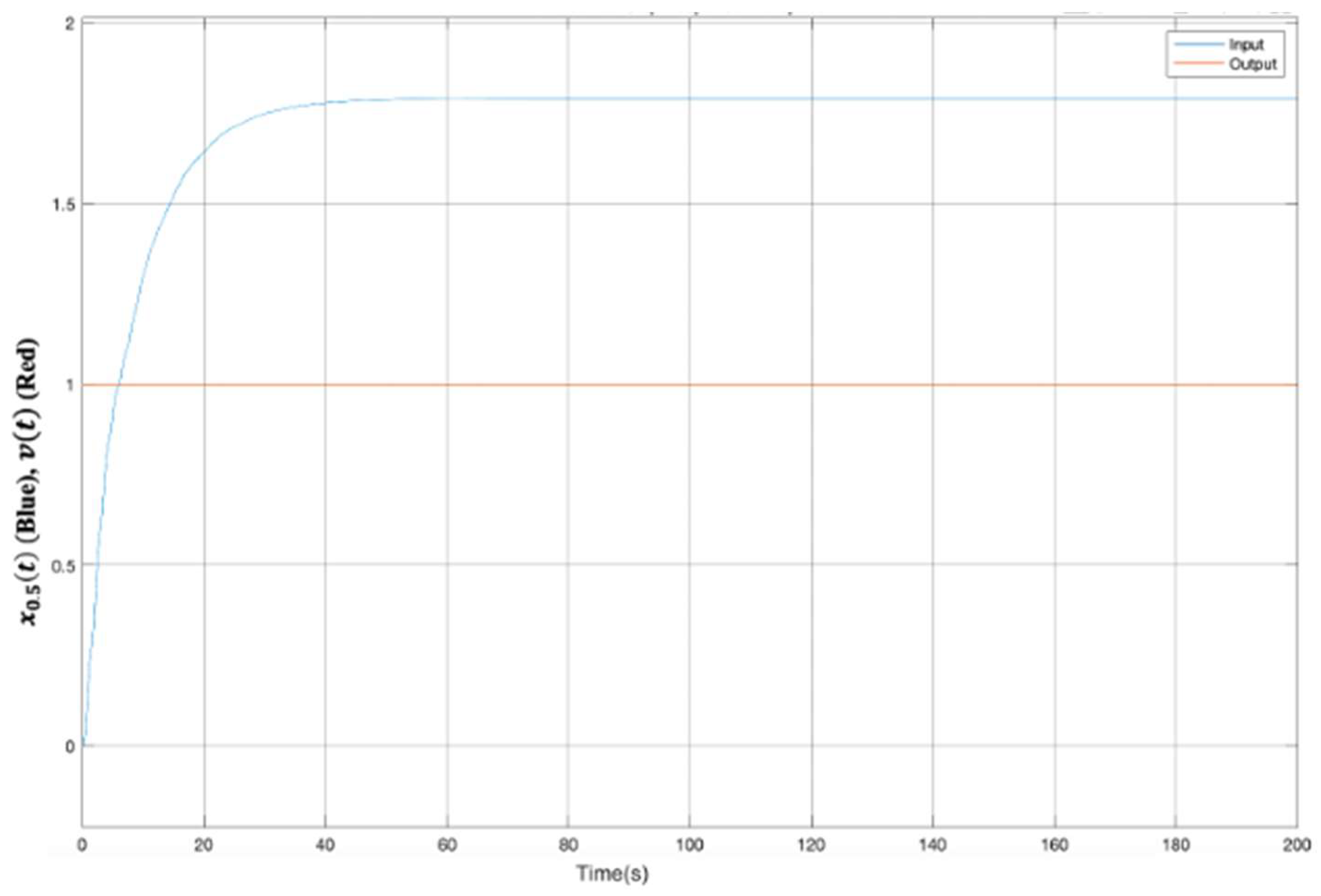

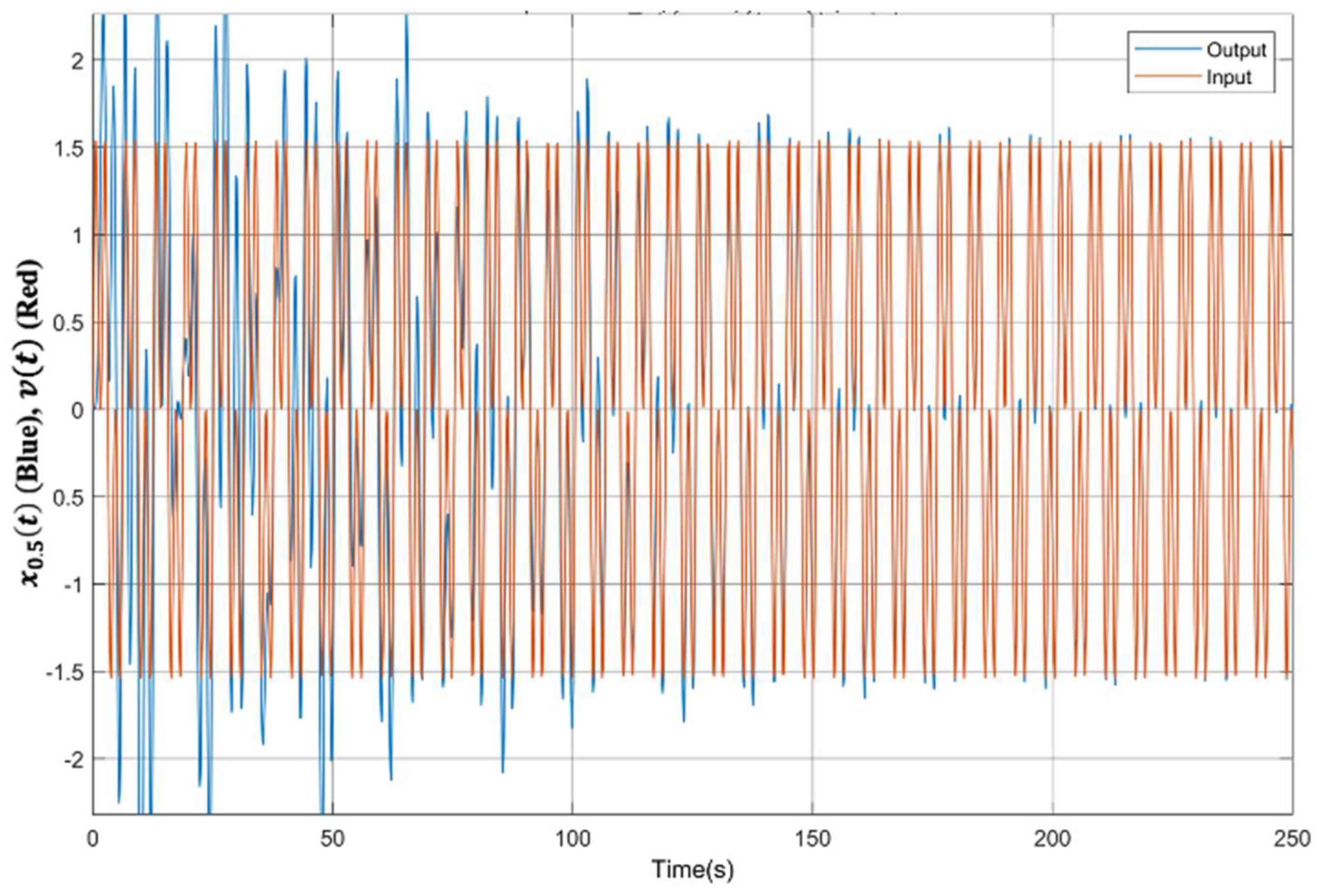

Simulation Results: Figure 5 and Figure 6 show responses to step and periodic inputs in the new coordinate $x_{0.5}\left(t\right)$, defined as the state that corresponds to the plant $\left(C\left(p\right)G\left(p\right)\right)/\left(1+C\left(p\right)G\left(p\right)H\left(p\right)\right)$. The response in Figure 5 (Figure 6) takes about 40 (200) seconds to converge to its steady-state behavior. Figure 7 and Figure 8 show responses to step and periodic inputs obtained by transferring the compensator designs ($H\left(p=\sqrt{s}\right)$ and $C\left(p=\sqrt{s}\right)$) back to the $s$-plane. In both cases, it is seen that significant differences exist in the control responses between $x_{0.5}\left(t\right)$ and $x\left(t\right)$. Step response takes longer (160 s) to converge to the steady state of $x\left(t\right)$. However, it is seen that the steady-state error is significantly smaller in the $s$-plane. Both transient and steady responses to the periodic input are far worse in the $s$-plane than in the $p$-plane.

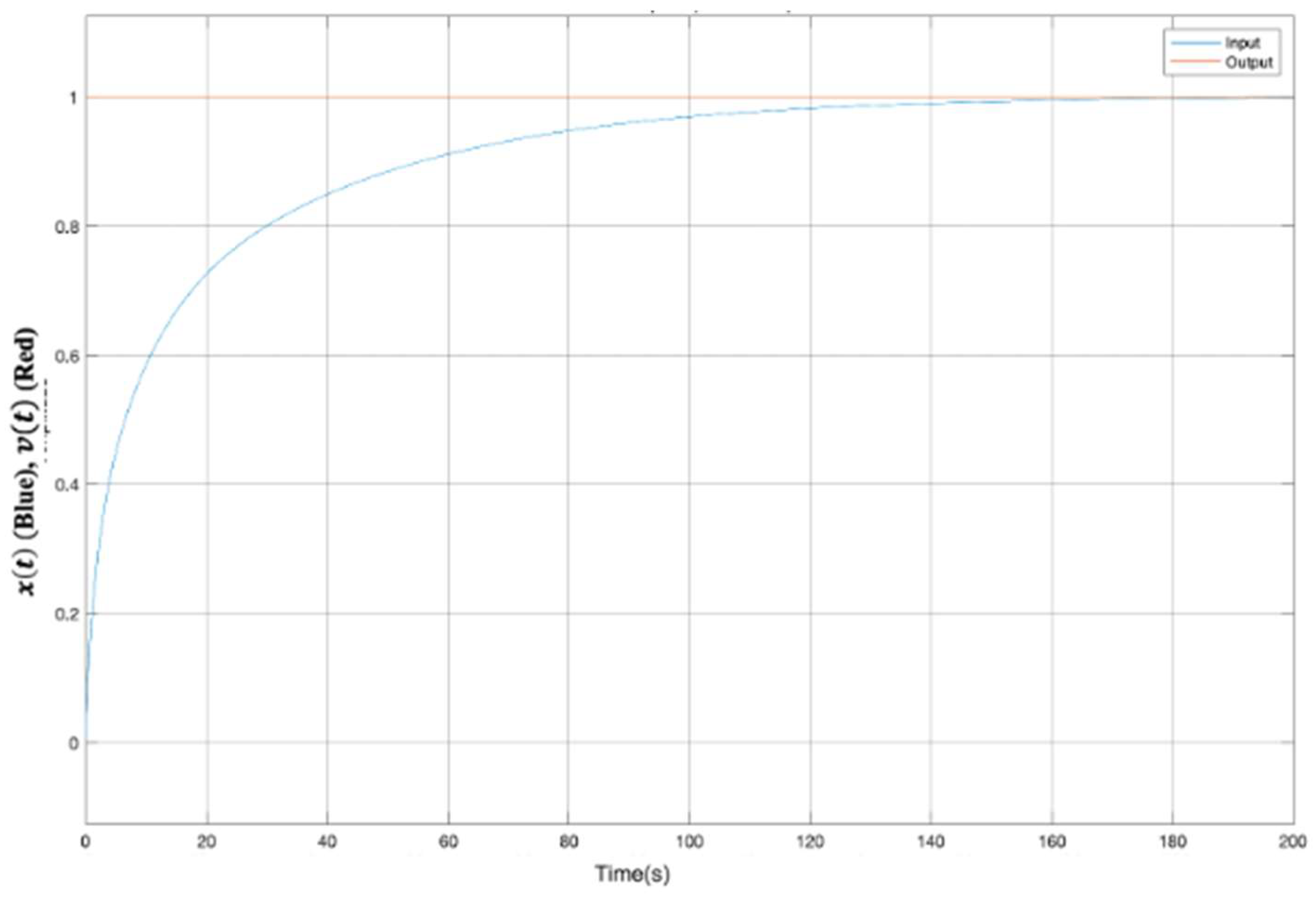

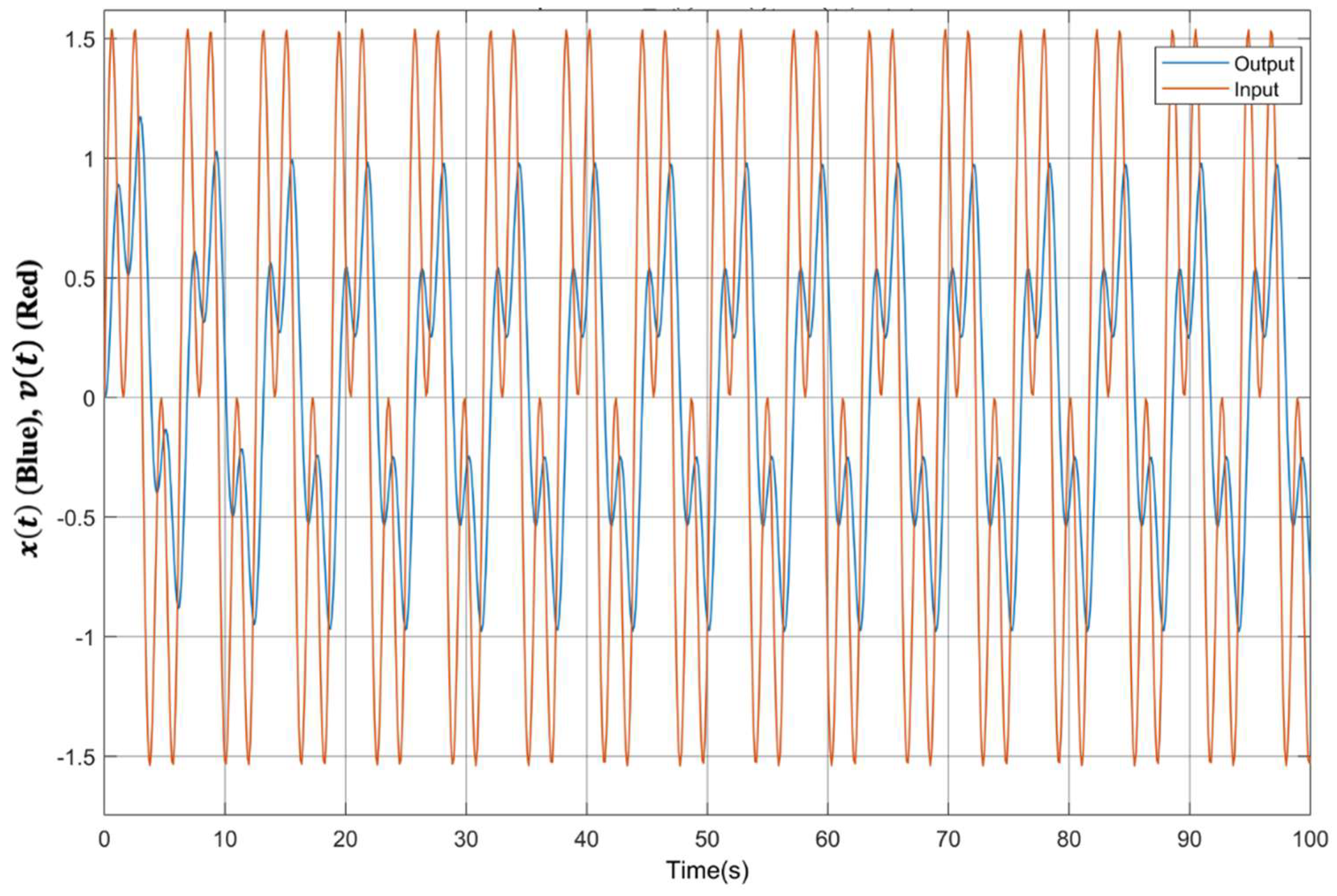

Note on Control Design: Initial simulations were conducted using control designs that exhibited good closed-loop responses to the step inputs in the $p$-plane. However, this approach led to large steady-state errors in the $s$-plane. The control performance presented here for step response is the result of an iterative process used to determine that control design in the $p$-plane, which would deliver desired performance in the $s$-plane. It is clear from Figure 5 and Figure 7 that poor response was needed in the $p$-plane to achieve good closed-loop behavior.

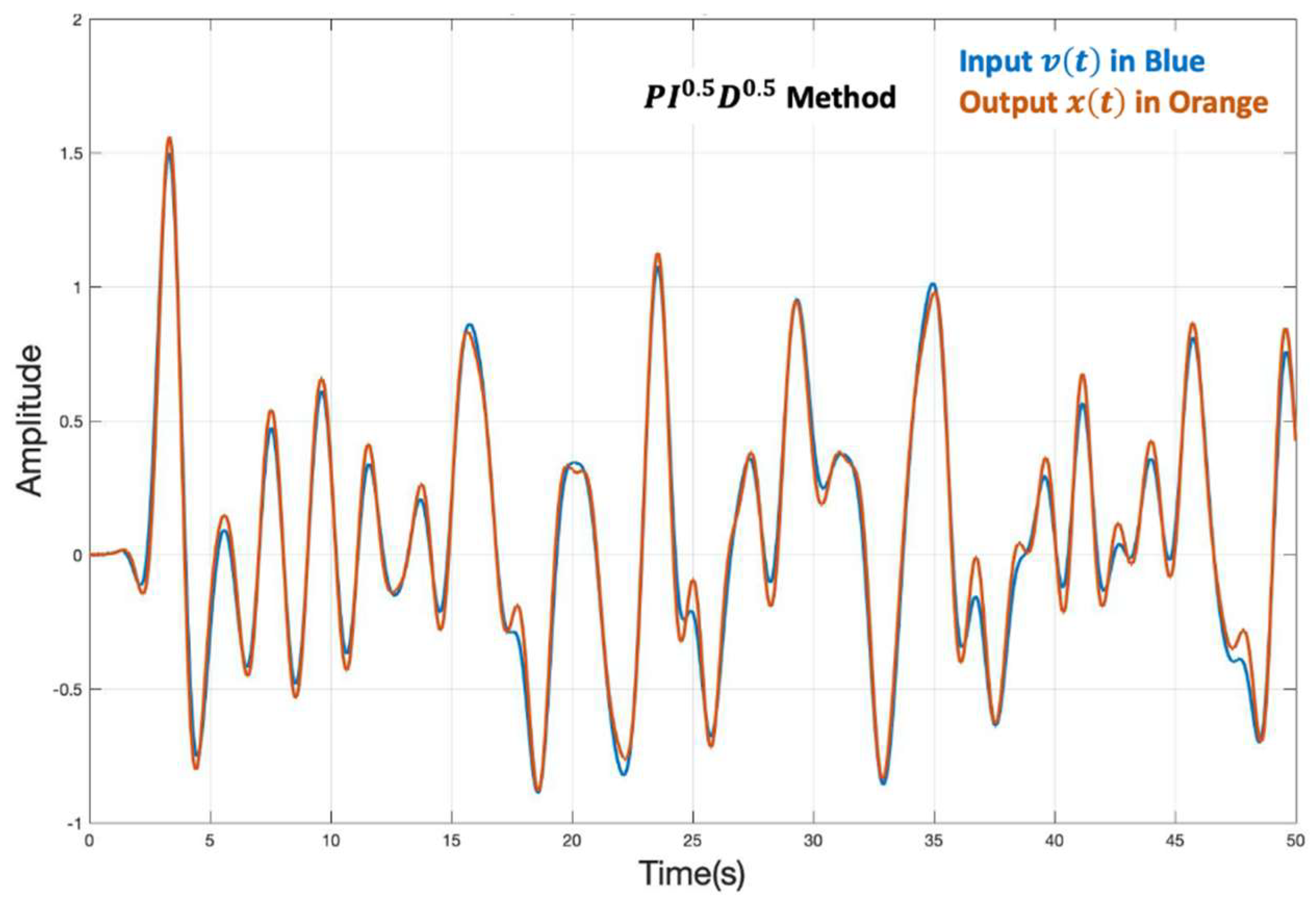

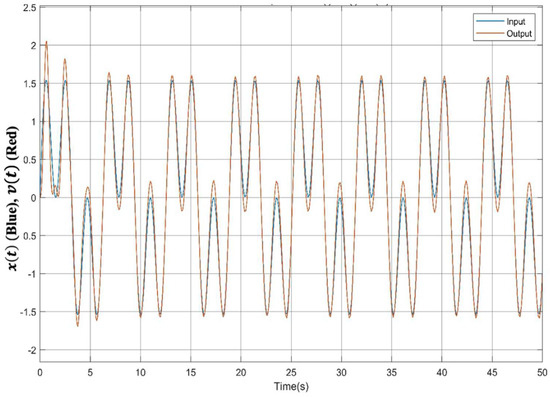

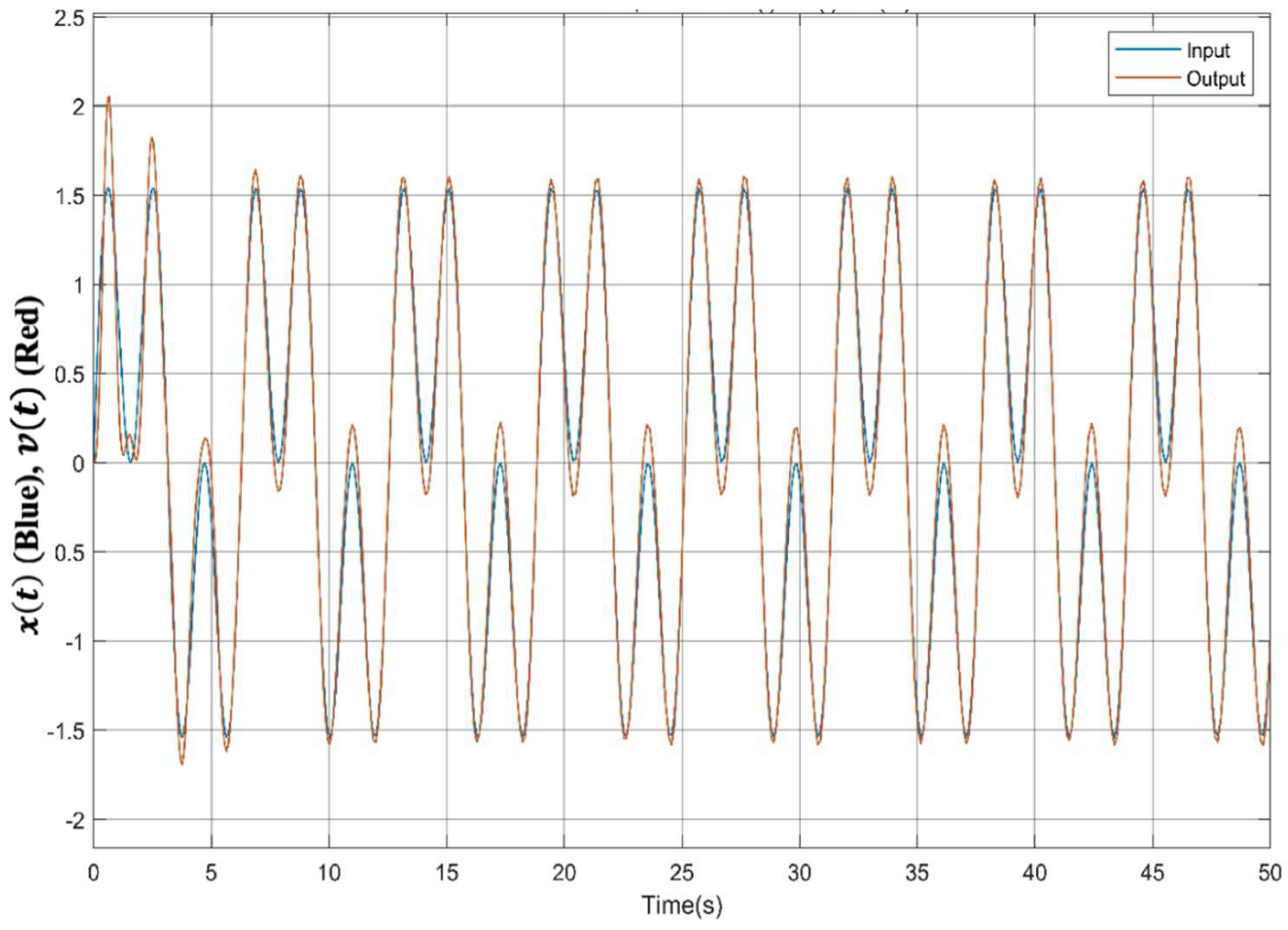

• Technique 4: Figure 9 and Figure 10 show the results of $P{I}^{\beta }{D}^{\alpha }$ control of the example system. The following compensation terms were selected for this method:

  -

  $H\left(s\right)=1.2746-0.1077\sqrt{s}-0.0850/\sqrt{s}$ and $C\left(s\right)=60.2364$ for Step Response.

  -

  $H\left(s\right)=13.2704+31.7961\sqrt{s}+0.0133/\sqrt{s}$ and $C\left(s\right)=53.0108$ for Frequency Response.

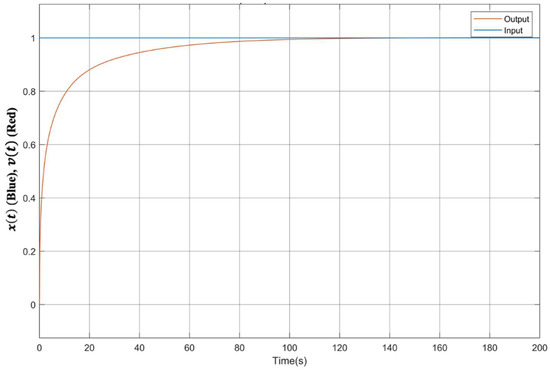

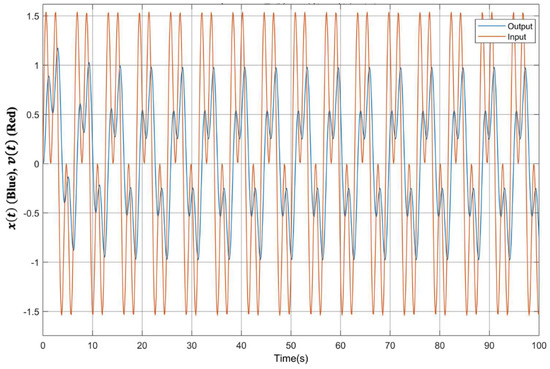

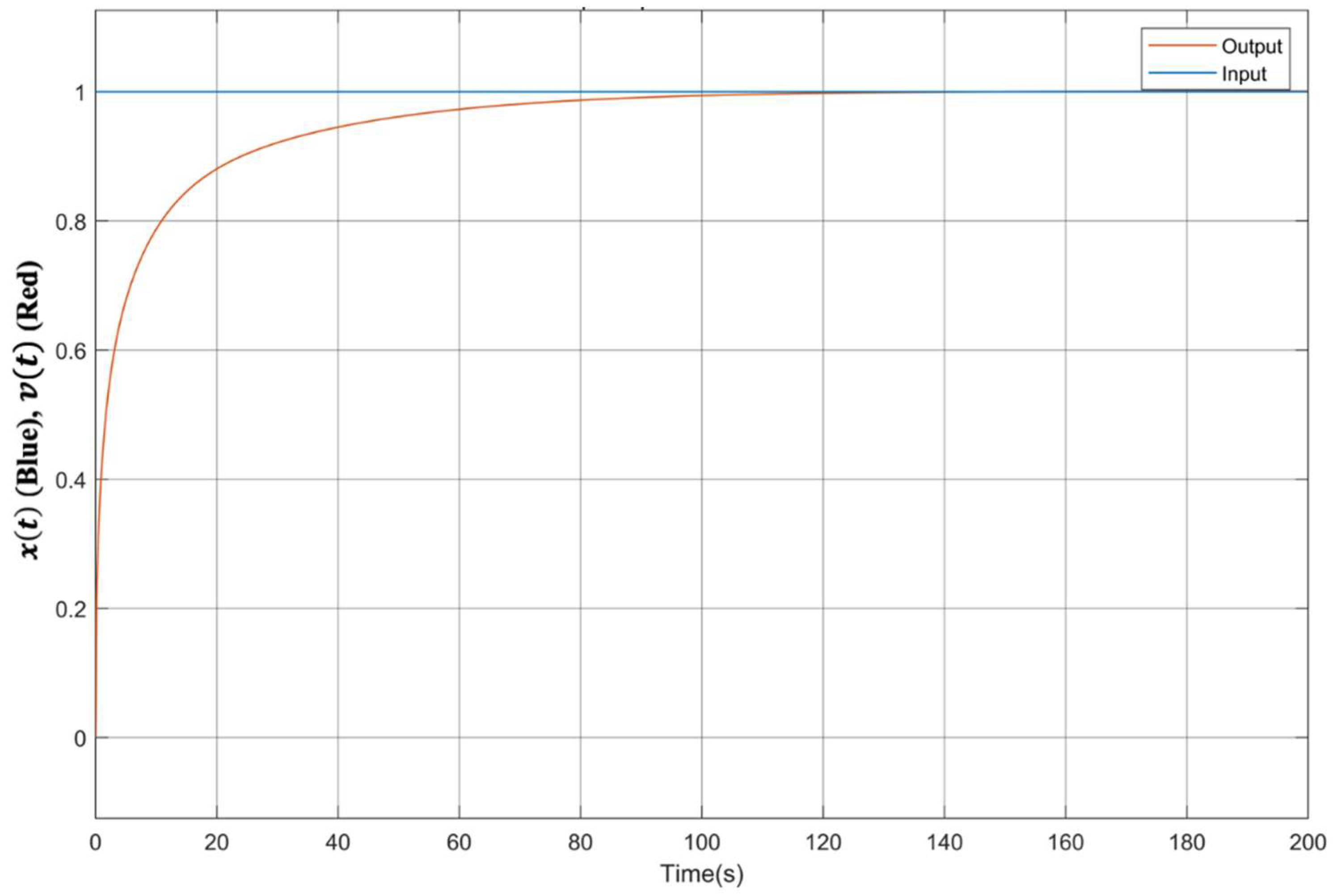

Simulation Results: Good step response is seen in Figure 9. However, the system takes close to 100 s to converge. Figure 10 shows that the method has some difficulty tracking the input $v\left(t\right)=\sin t+\sin 3t$.

Note on Control Design: It was assumed that $\alpha =\beta =0.5$ in the development of the $P{I}^{\beta }{D}^{\alpha }$ feedback compensation. The control gains were chosen based on iterations performed using Monte-Carlo simulations. As noted in [35], analytical techniques for the selection of the fractional powers in $P{I}^{\beta }{D}^{\alpha }$ control is not available at present.

6.3. The New Method

The feedback and feedforward compensation terms for the system in Equation (1) have been derived in Appendix B. The specific system chosen for simulations in Section 3 has $\alpha =\beta =0.5$, $a_{\alpha }=a_{\beta }=1$, $a_1=0,$ $a_0=-1$, $b_1=b_{\gamma }=0$ and $b_0=1$. Inserting these into the corresponding compensator designs, the inner loop terms will be as shown below:

$$C_1\left(s\right)=1$$

$$H_1\left(s\right)=-\frac{1}{\sqrt{s}}-\frac{1}{s\sqrt{s}}$$

For canceling the fractional zeros introduced in $G_1\left(s\right)$ as a result of the inner loop transformation, the following feedforward compensation is selected in the outer loop:

$$C_2\left(s\right)=K\left(1+\frac{1}{\sqrt{s}}+\frac{1}{s\sqrt{s}}\right)$$

It is noted that a gain of $K$ has been introduced in $C_2\left(s\right)$ to ensure appropriate amplitude response. The following selections of the outer loop feedforward and feedback compensation were made for closed-loop responses:

-

$H_2\left(s\right)=2.351\left(\left(46.6681s+14.7294\right)/\left(s+32.5484\right)\right)$ and $K=14.9314$ for Step.

-

$H_2\left(s\right)=\left(0.9238s+1898.8\right)/\left(s+1893\right)$ and $K=1893$ for Periodic.

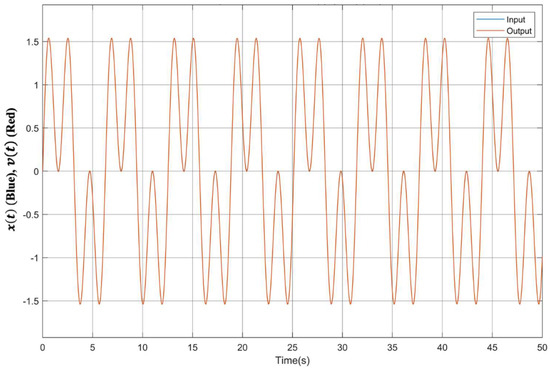

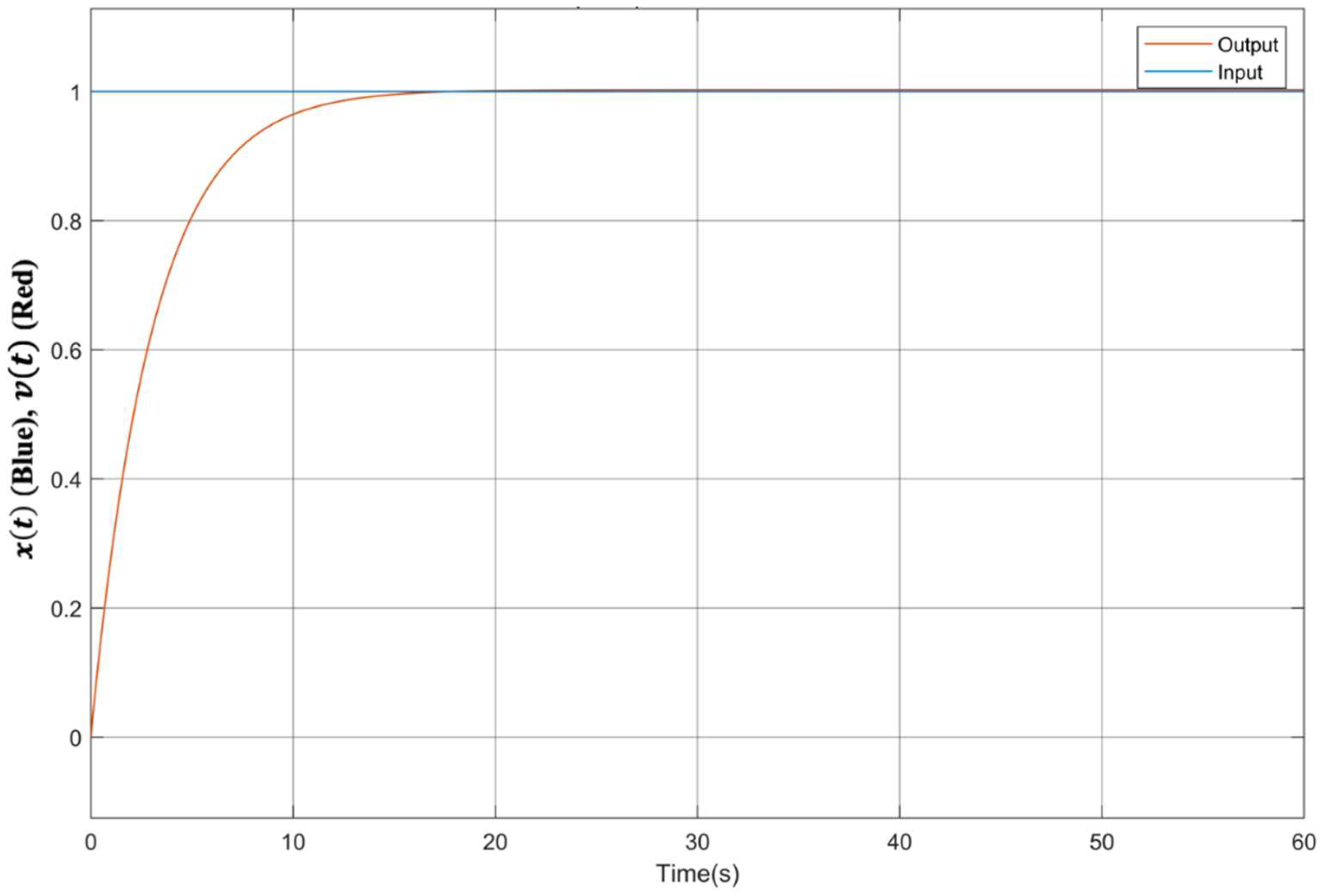

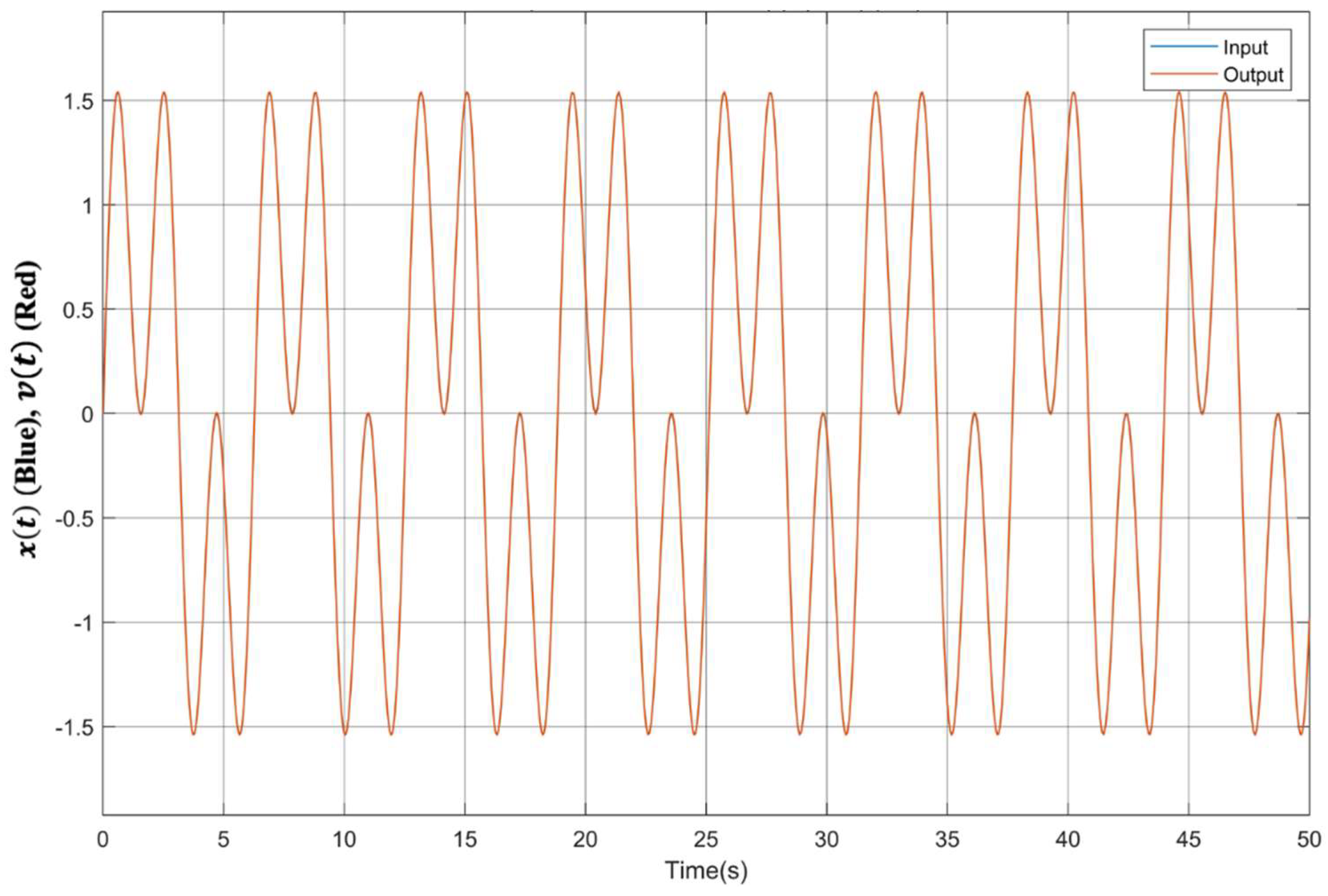

Simulation Results: Figure 11 and Figure 12 show the closed-loop behavior of the system in Section 3 controlled using the new method. For the former (latter), converge to steady state behavior occurs in a little over ten seconds (almost immediately).

6.4. Comparison of Closed Loop Responses

The following comparisons can be made between the methods:

• Closed Loop Responses to Step Input: Convergence to steady-state took many tens of seconds with all currently available methods. Of the four current techniques, $P{I}^{\beta }{D}^{\alpha }$ control seemed to exhibit the best steady-state behavior. A reasonable steady-state behavior was seen with a rational approximation of the original fractional plant. Techniques 2 and 3 required a control design that exhibited significant steady-state error in the $p$-plane in order to achieve a good response in the $s$-plane. The new method converged rapidly to excellent steady-state behavior with just a gain in the outer feedback loop.
• Closed Loop Responses to Periodic Input: As with step response, convergence to steady-state with a periodic input took many tens of seconds with all currently available methods. The best steady-state behavior was seen with the use of Technique 1. However, a second-order compensator was required for the control performance. $P{I}^{\beta }{D}^{\alpha }$ control seemed to exhibit reasonable tracking behavior for the $\sin t$ component but had difficulties doing so for $\sin 3t$. Techniques 2 and 3 did not yield good tracking behavior. While control performance was reasonable after prolonged transients (200 s) in the $p$-plane, it was poor in the $s$-plane. The new method converged quickly to excellent steady-state behavior with a first-order outer loop feedback compensator.
• Relationship between Fractional Orders and Compensator Designs: The choice of $H_2\left(s\right)$ and $K$ in the new method remains the same regardless of the actual values of the fractional terms in the original system. The latter only affected the compensation terms $H_1\left(s\right), C_1\left(s\right)$ and $C_2\left(s\right)$ chosen for the transformation of $G\left(s\right)$. For every $\alpha , \beta$ pair, the transformed system, and the choice of $H_2\left(s\right)$ and $K$ remained the same.
• Closed Loop Transfer Function: The closed-loop transfer function achieved with the new method for the example is always rational and of second order. With existing techniques, this is not the case. Technique 1 yields a fifth-order rational function. With Techniques 2, 3, and 4, the closed-loop transfer functions are not rational. In fact, they continue to require expressions that contain fractional powers of $s$.

In summary, the closed-loop step responses of the new method exhibit far better convergence and smaller steady-state errors than those from currently available ones. The response to a low-frequency periodic input with the new method showed excellent steady-state tracking behavior with few transients. On the other hand, those with existing techniques showed significant transients in all cases and poor tracking behavior in most.

7. Generalizability of Control Designs and Control Robustness

In this section, the generalizability and robustness of the control designs described in Section 6 for periodic inputs are investigated by studying the corresponding closed-loop behaviors under the following conditions:

i.

Ability to track a periodic input with randomized frequencies between $0$ and $3/2\pi$ Hertz, which is the frequency of the $\sin 3t$ component of $v\left(t\right)$.

• Comment: It is well known that the Fourier components of the outputs of a standard LTI system will be identical to the ones present in the corresponding inputs. This is due to the fact that it is represented by a rational transfer function. In contrast, a fractional LTI system requires a transfer function with expressions that contain fractional powers of $s$. Consequently, their analyses using frequency responses are not possible. The authors propose, therefore, the study of closed-loop responses to randomized periodic inputs to assess how generalizable control designs may be.

ii.

Closed-loop responses to a randomized periodic input and with control noise bandlimited to 250 Hz (Figure 13). The band limit selected here represents a frequency that is significantly higher than the one used for control designs.

iii.

Closed-loop responses to a randomized input, with control noise and uncertainties in both the coefficients and the fractional exponents of the system in Equation (4).

• Comment: For the purpose of studying the robustness to model uncertainties, the representation of the actual plant (denoted by $G\left(s\right)$) is described as shown below:

  -

  It is assumed that both the estimated and actual plant models are represented by standard LTI systems of second order, with the additional fractional terms (i.e., the structure is the same as shown in Equation (4)).

  -

  Parameters of the estimated and actual models are related as follows: $\lambda ϵ [\widehat{\lambda }-\Vert \mathsf{\Delta }\widehat{\lambda }\Vert , \widehat{\lambda }+\Vert \mathsf{\Delta }\widehat{\lambda }\Vert ]$, where $\widehat{\lambda } ϵ ℝ$ is the estimated value of $\lambda$, and $\Vert \mathsf{\Delta }\widehat{\lambda }\Vert ϵ ℝ$ is known (i.e., the uncertainty bound for each parameter is known).

  -

  It is assumed in this paper that $\lambda =\widehat{\lambda }+{\delta }_{\widehat{\lambda }}$, where ${\delta }_{\widehat{\lambda }}$ is a random value between $[-\Vert \mathsf{\Delta }\widehat{\lambda }\Vert ,+\Vert \mathsf{\Delta }\widehat{\lambda }\Vert ]$. Specifically, the system shown in Equation (5) below is used for the assessment of the robustness of all five control designs (the four currently available and the new method)

$$G\left(s\right)=\frac{X\left(s\right)}{U\left(s\right)}=\frac{1}{s^2+1.138 s^{1.45}+1.131 s^{0.425}-1.138}$$

(5)

7.1. Control Analysis

The control architecture in Figure 1 (Figure 2) is used for Techniques 1–4 (the new method), and the control laws used are the ones designed previously for the (estimated) plant model in Equation (6):

$$\frac{X\left(s\right)}{U\left(s\right)}=\frac{1}{s^2+s^{1.5}+s+s^{0.5}-1}$$

(6)

A.

For randomized periodic inputs, $\Vert v\left(t\right)-x\left(t\right)\Vert \le \epsilon , \forall t>T$ is once again of interest.

B.

For robustness to noise, convergence to $\Vert v\left(t\right)-x\left(t\right)\Vert \le \epsilon , \forall t>T$ will be assessed with the noise signal Figure 13 added to the control input.

C.

For robustness to noise and uncertainties, noise is added to the input to the plant model in Equation (5) (to account for the differences between estimated and actual plant models), and convergence to $\Vert v\left(t\right)-x\left(t\right)\Vert \le \epsilon , \forall t>T$ will be assessed.

• Generation of Randomized Periodic Inputs

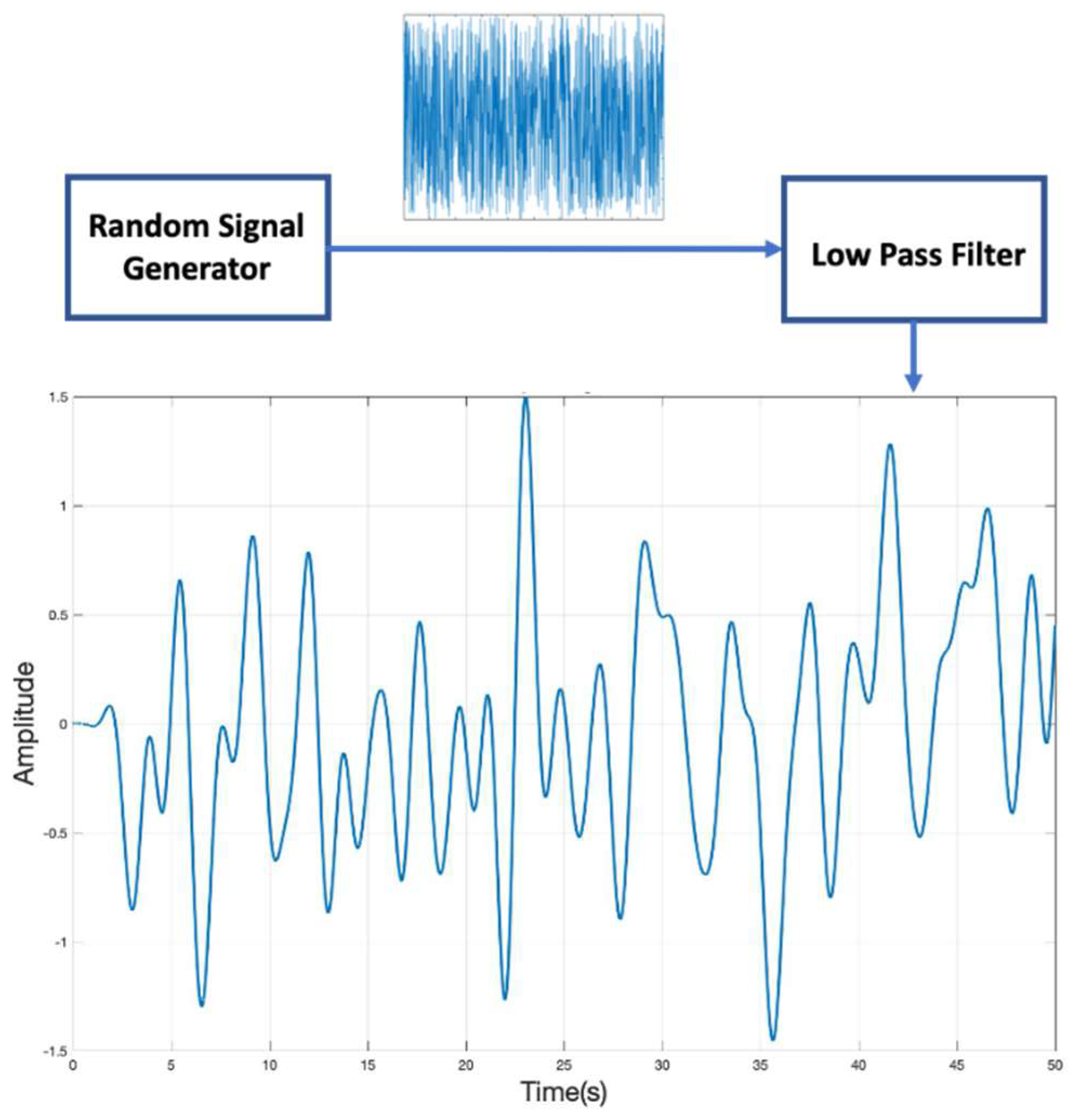

The randomized input is generated as shown below in Figure 14. The low pass filter used in Figure 14 has a roll-off at ~$3/2\pi$ Hertz. The signal shown in Figure 14 is a single instantiation of the method. It is noted that since a random number generator is used to drive the low pass filter, a different input waveform in the bandwidth is seen in the simulations presented in this section. No attempt was made to modify the randomized input automatically generated for any of the simulations. It is the authors’ opinion that this can provide a more general view of the performance of each control method under the study conditions, which in turn could serve to validate the comparative analysis.

• Technique 1:

The compensators used are identical to the ones designed for $v\left(t\right)=\sin t+\sin 3t$ in Section 4 and shown below:

$$H\left(s\right)=\left(4.559s^2+5.357s+6.415\right)/\left(s^2+3.829s+2.21\right)$$

$$C\left(s\right)=\left(5.121s^2+7.536s+8.498\right)/\left(s^2-0.7667s+4.466\right)$$

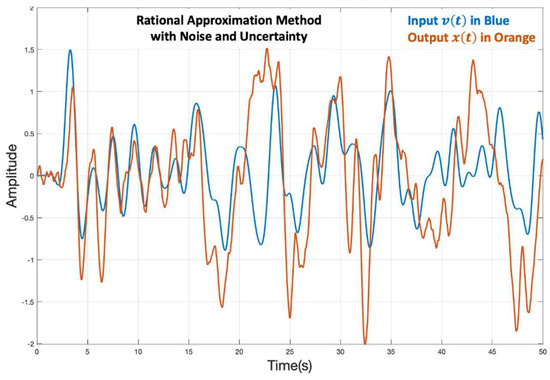

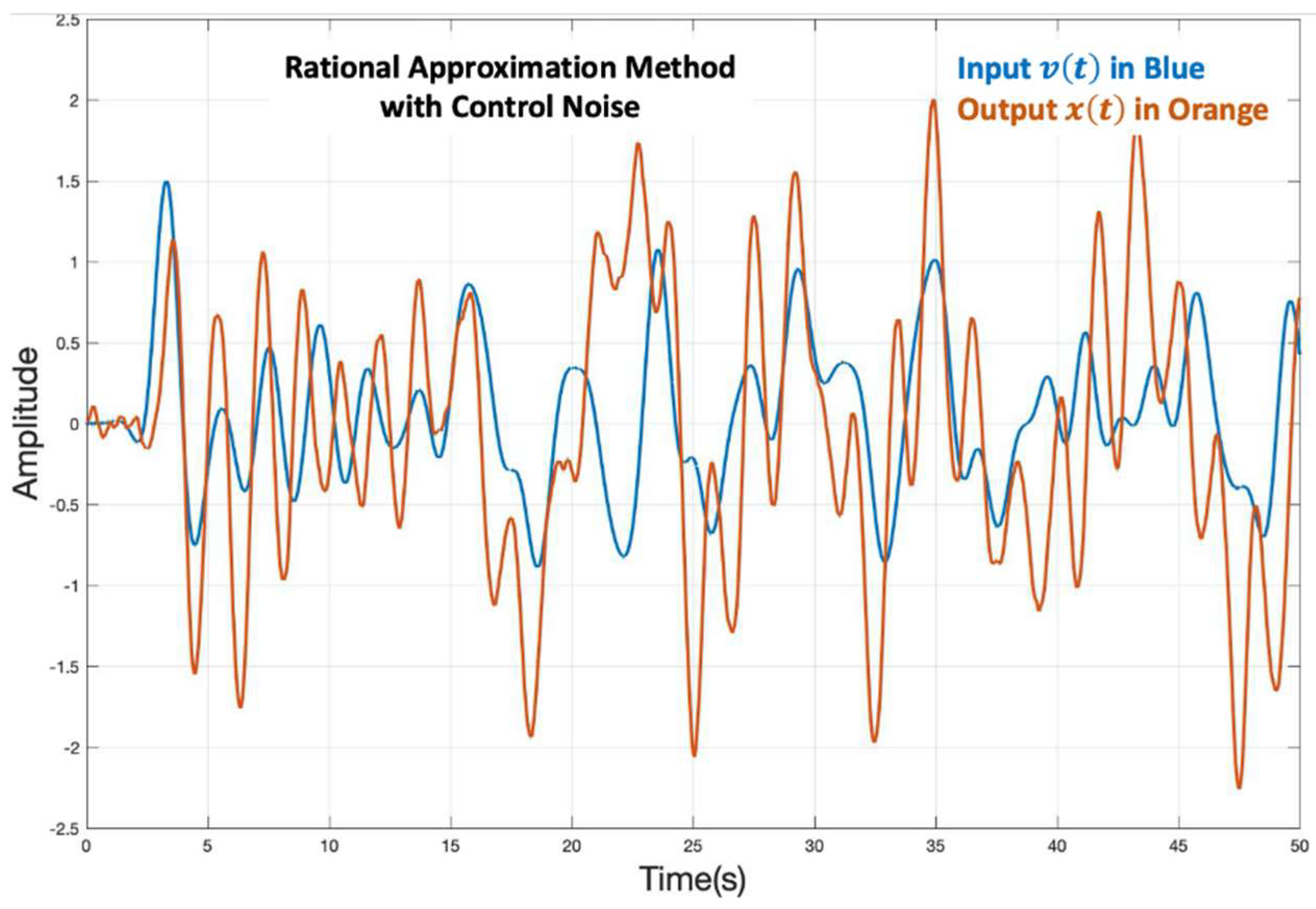

Simulation Results: Figure 15 shows the closed-loop response to the randomized periodic input, while Figure 16 and Figure 17 describe the robustness of the control designs. From the results, it appears that convergence to a neighborhood of the steady state cannot be achieved with Technique 1 in any of the three cases. In addition, noise and model uncertainty seems to have a substantial impact on the transient response of the system.

• Techniques 2 and 3:

Once again, the compensators are the same as before in the $p$-plane:

$$H\left(p\right)=\left(1.21p^2+1.223p+2.782\right)/\left(p^2+1.2p+2.55\right)$$

$$C\left(p\right)=1.35$$

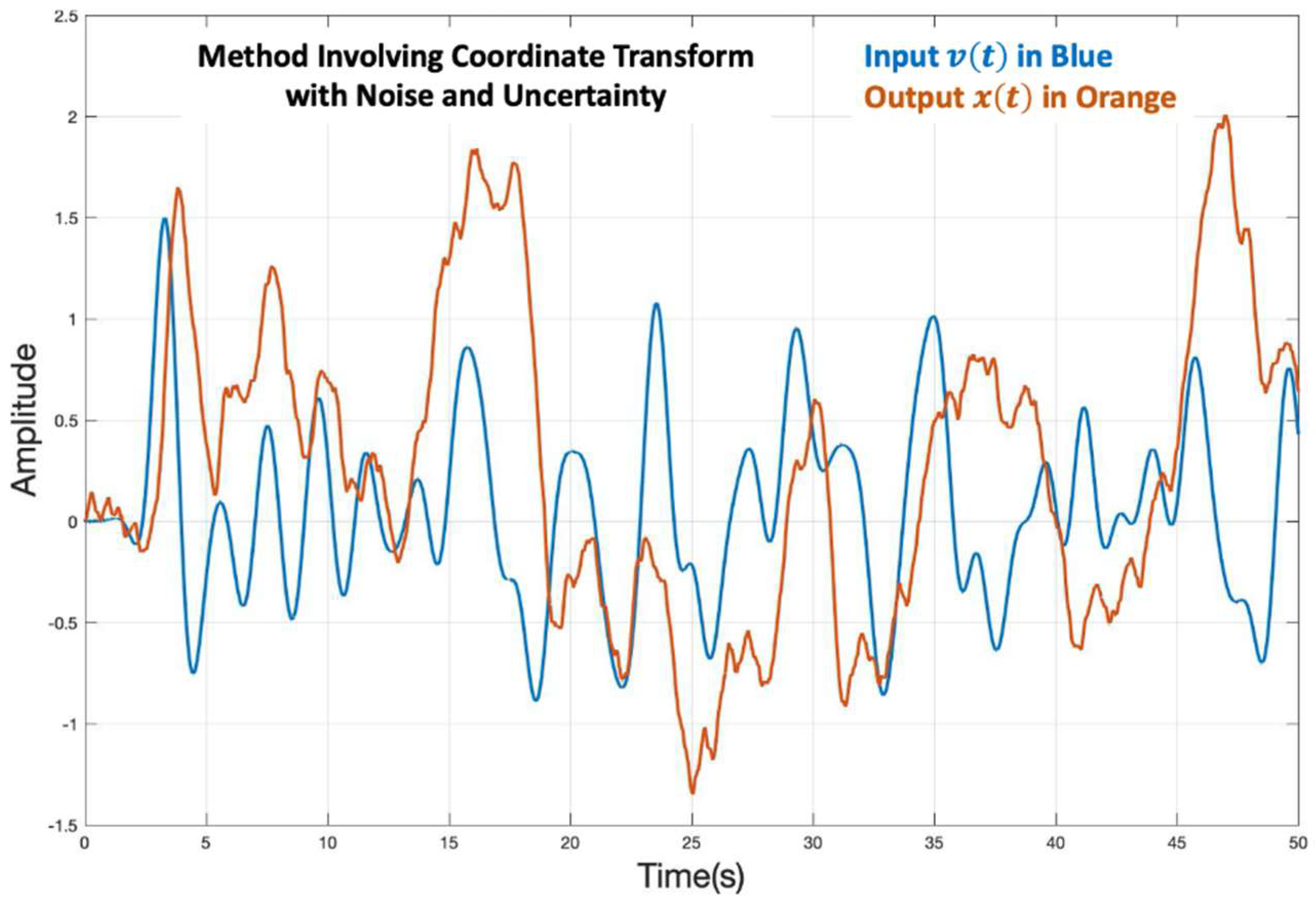

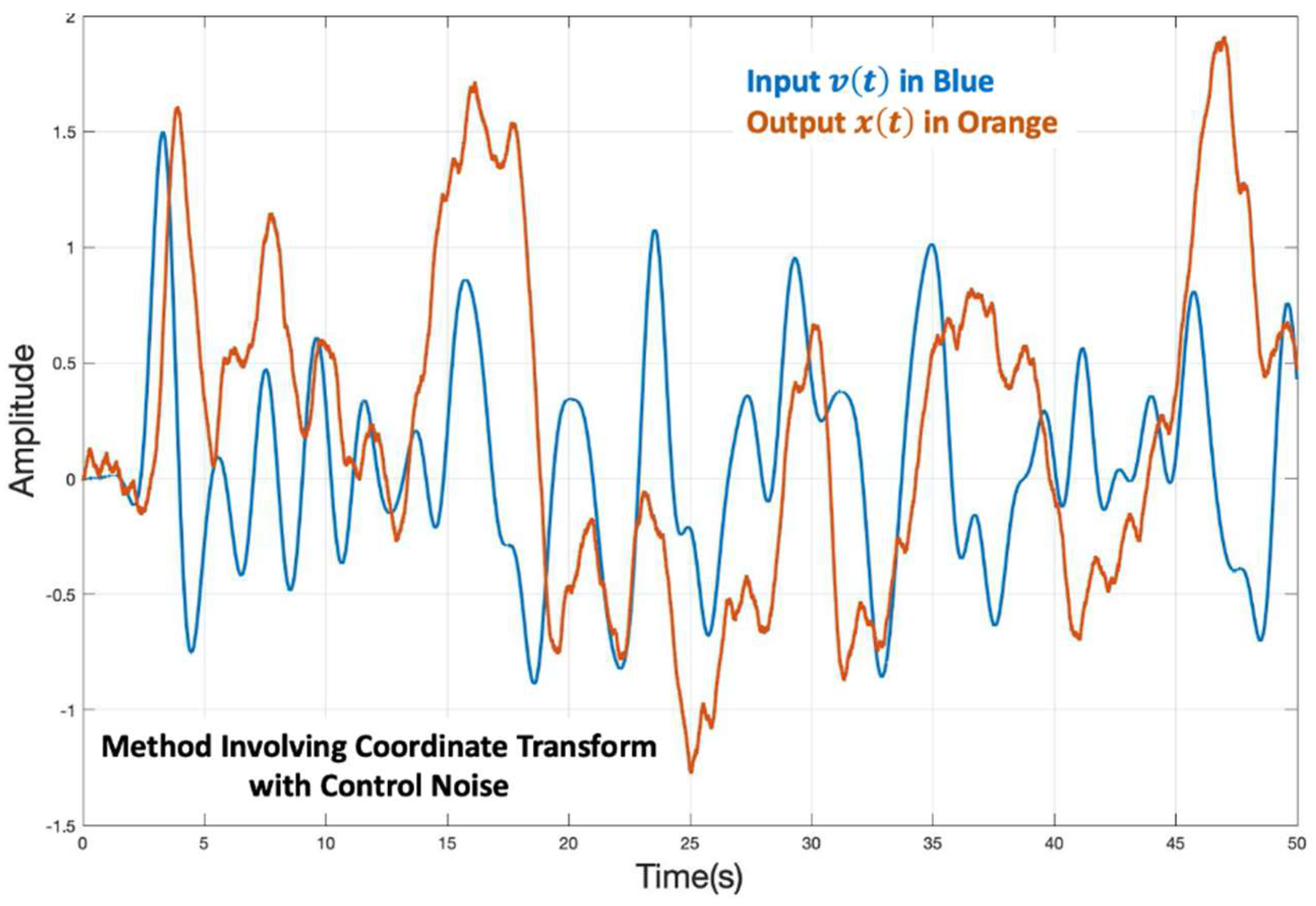

Simulation Results: As before, the control designs were transformed to the complex domain with $p=\sqrt{s}$. The results are presented in Figure 18, Figure 19 and Figure 20. Figure 18 shows the closed-loop response to the randomized periodic, while Figure 19 and Figure 20 show the robustness of the control designs. From the results, it appears that convergence to a neighborhood of the steady state cannot be achieved with Techniques 2 and 3 either in any of the three cases. As with Technique 1, noise and uncertainty have a substantial impact on the system’s transient response.

• Technique 4:

The compensators are the same as before (designed for $v\left(t\right)=\sin t+\sin 3t$):

$$\left(s\right)=13.2704+31.7961\sqrt{s}+0.0133/\sqrt{s}$$

$$HC\left(s\right)=53.0108$$

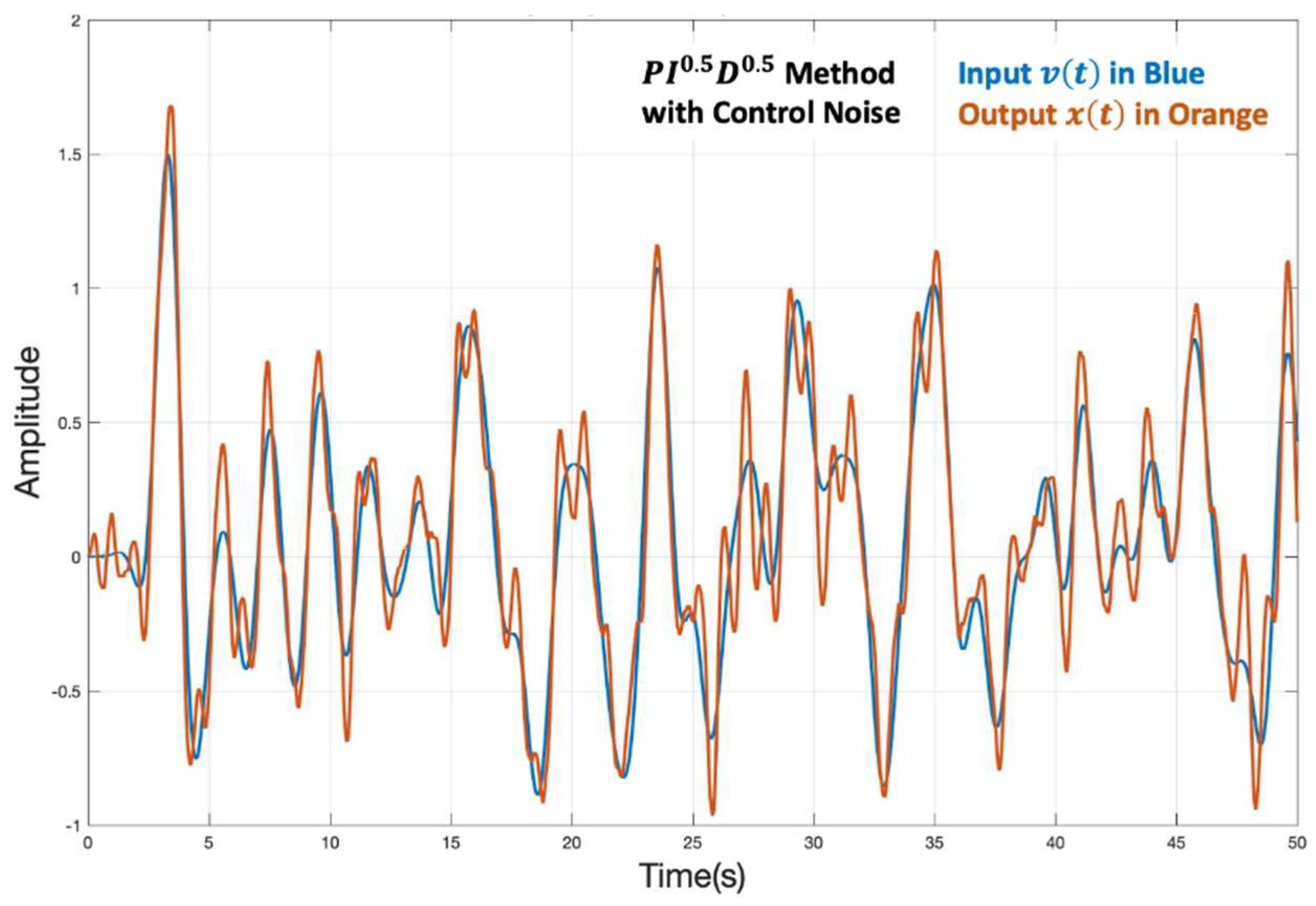

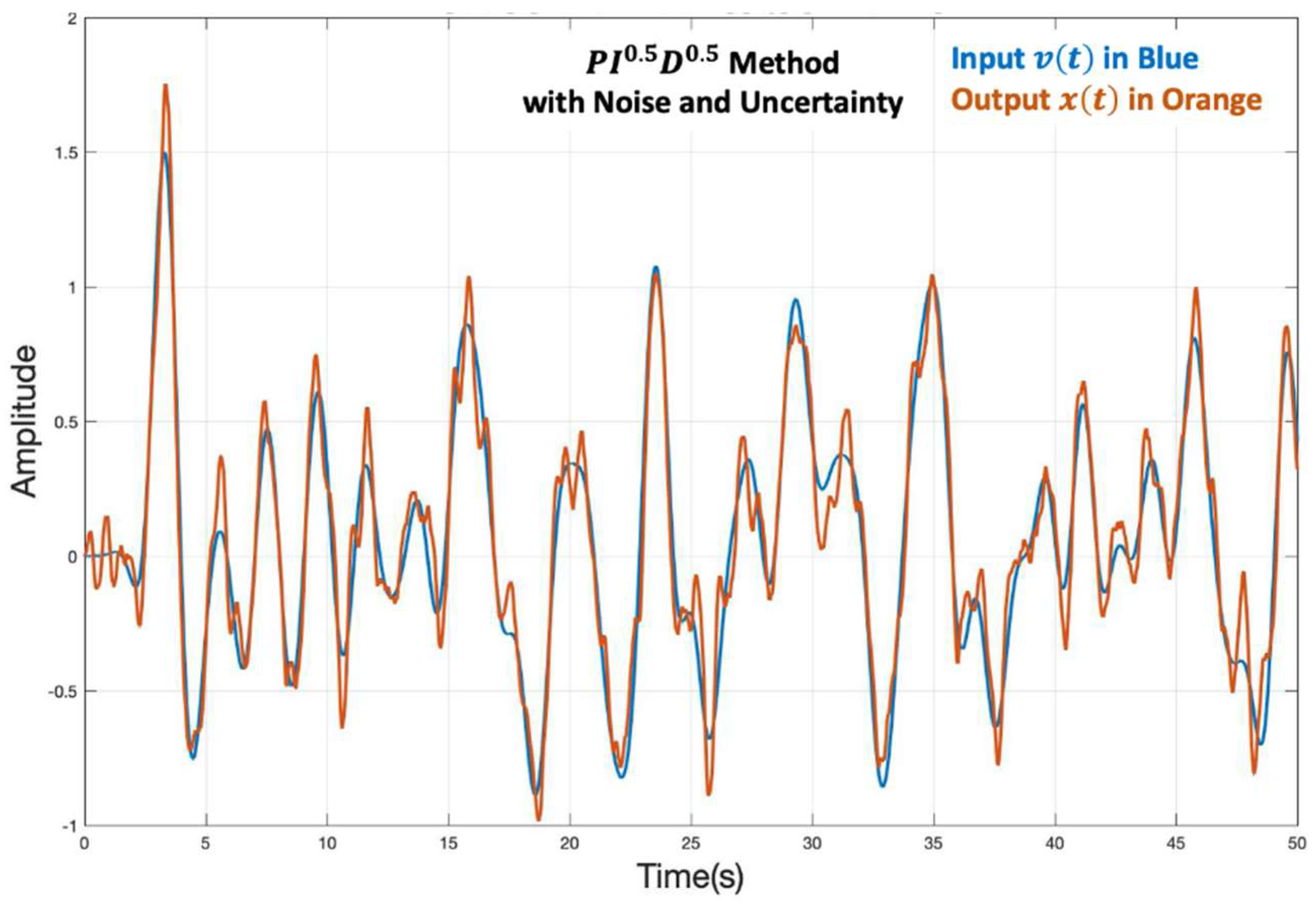

Simulation Results: The closed-loop responses with $P{I}^{\beta }{D}^{\alpha }$ are presented in Figure 21, Figure 22 and Figure 23. Figure 21 shows a very good transient response with the use of Technique 4 when compared to Techniques 1, 2, and 3. This is consistent with the comparative results presented in the research literature (e.g., [36]) for simpler inputs. Further, Figure 22 and Figure 23 show improved robustness of the method to control noise and model uncertainties, respectively. This notwithstanding, steady-state errors are still present in all cases with the use of Technique 4. As with the other methods, control noise continues to have a substantial impact on the corresponding closed-loop behavior (Figure 22). It appears from Figure 23, however, that Technique 4 may be more robust to model uncertainties than other methods that are currently available.

• New Method:

Compensator designs from previous sections for $v\left(t\right)=\sin t+\sin 3t$ are as follows:

$$C_1\left(s\right)=1$$

$$H_1\left(s\right)=-\frac{1}{\sqrt{s}}-\frac{1}{s\sqrt{s}}$$

$$C_2\left(s\right)=K\left(1+\frac{1}{\sqrt{s}}+\frac{1}{s\sqrt{s}}\right)$$

$$H_2\left(s\right)=\left(0.9238s+1898.8\right)/\left(s+1893\right)$$

$$K=1893$$

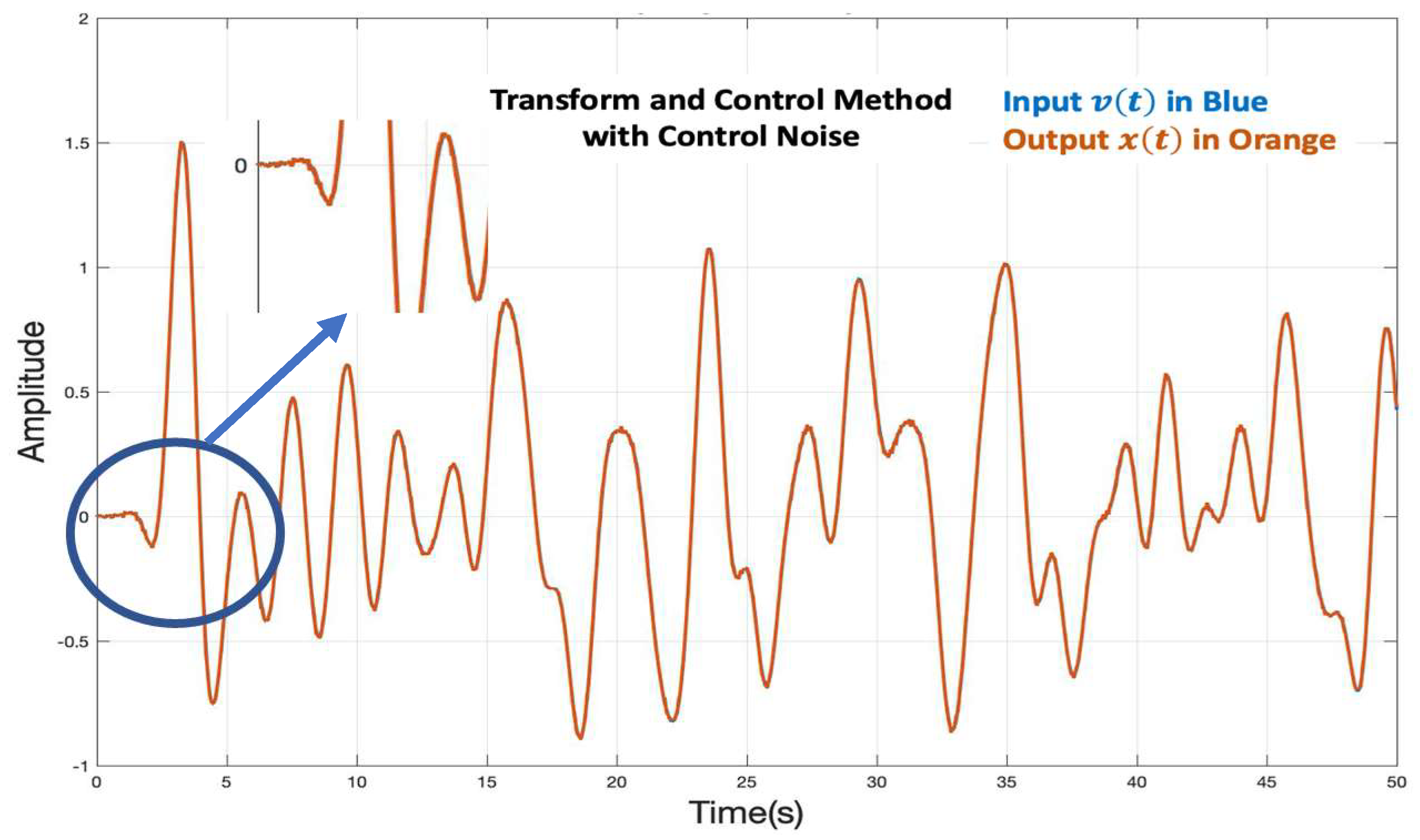

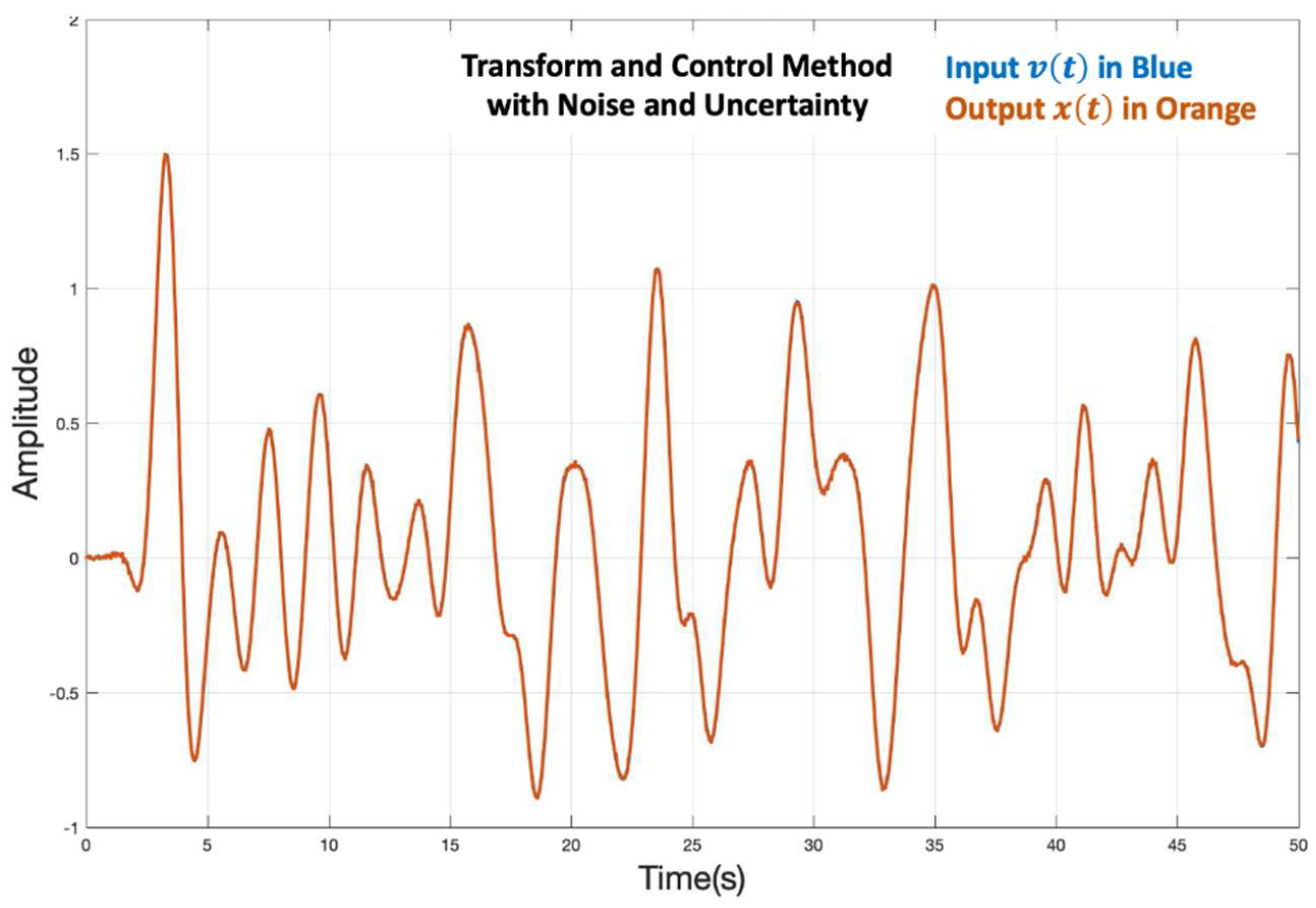

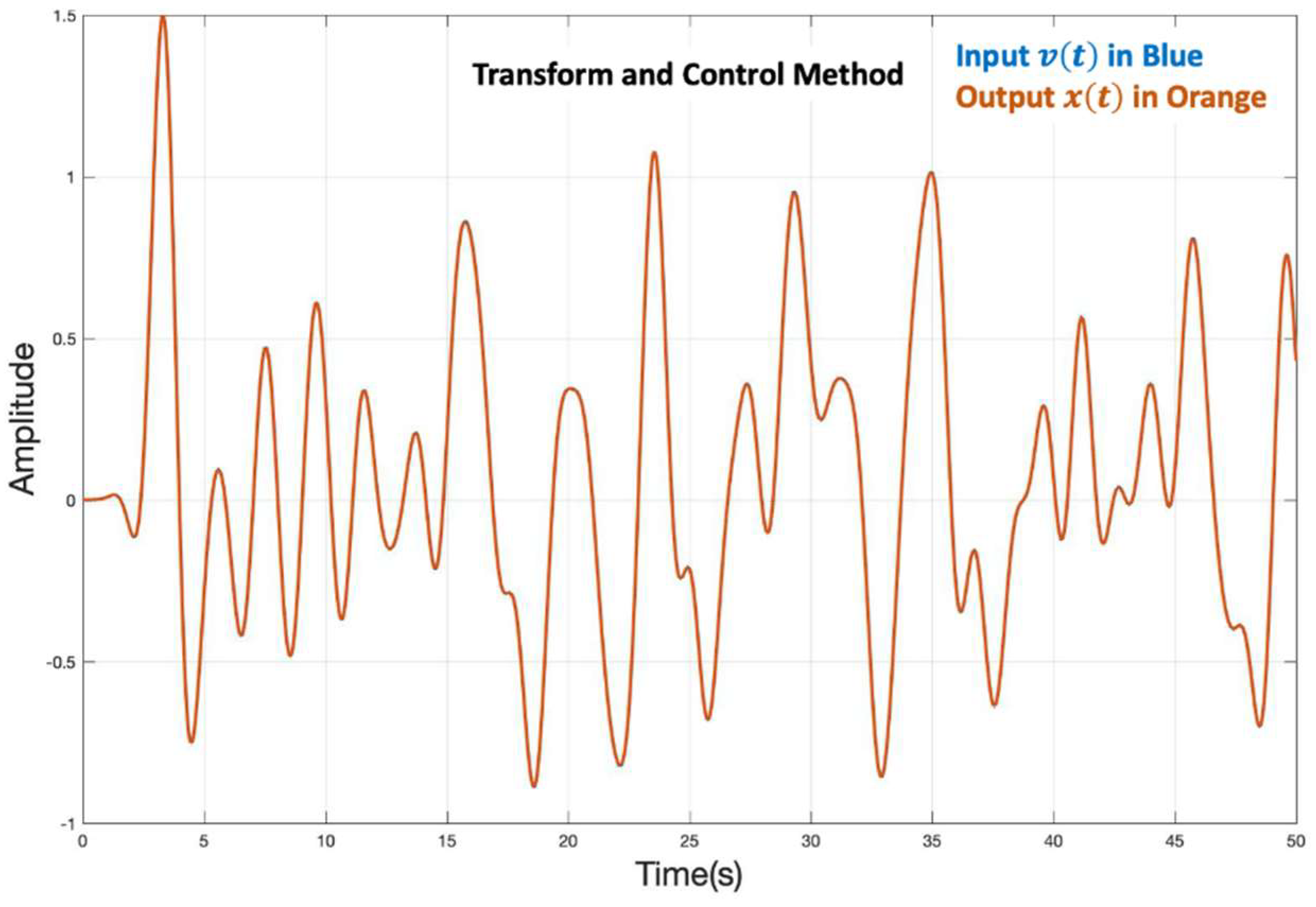

Simulation Results: The closed-loop responses with the new method are shown in Figure 24, Figure 25 and Figure 26. It can be seen that the closed-loop response to the randomized periodic input in Figure 24 is virtually identical to the one seen with $v\left(t\right)=\sin t+\sin 3t$. This clearly indicates that the new method has the potential to maintain control performance in the design bandwidth. Figure 25 shows the robustness of the new method to control noise, and Figure 26 includes the effects of model uncertainties. In all cases, an excellent closed-loop response is seen with the new method.

Comment: Robustness to model uncertainties with the new method is seen as a particularly important result. This is due to the fact that even with an approximate transformation of a fractional LTI plant, better control performance may be possible. The conditions under which this is true in more general cases is a topic of future research.

7.2. Comparison of Closed Loop Responses

• Closed Loop Responses to Periodic Input: Convergence to a neighborhood of the steady state could not be achieved with the use of Techniques 1, 2, and 3. Technique 4 exhibited large steady-state errors, while the new method showed excellent convergence and negligible steady-state behavior.
• Robustness to Control Noise: Control noise had a significant impact on the tracking performance of all currently available techniques in the bandwidth of the input signal. The new method showed excellent robustness in controlling noise. Some amount of chatter was seen in the closed-loop response. Future work will focus on smoothing this.
• Robustness to Parameter Uncertainty: Uncertainties in the coefficients and the exponents of the plant had a significant impact on the tracking performance of all currently available techniques in the bandwidth of the input signal. The new method showed excellent robustness to such uncertainties.

8. Realization of the Fractional Compensation Terms Used in the New Method

As noted in Section I and seen in the examples presented in Appendix B, the feedback and feedforward compensation laws needed to transform fractional systems into standard ones use terms that have the form $1/s^{\rho }$, $0<\rho <1$. It can be shown that the inverse transform of $1/s^{\rho }$ is the Riemann-Liouville fractional integral [37] shown below (with zero initial conditions for simplicity) In Equation (7):

$${\mathcal{L}}^{-1}\left(1/s^{\rho }\right)=\underset{0}{\overset{t}{{\displaystyle \int }}}{\left(t-\tau \right)}^{\rho -1}x\left(\tau \right)d\tau \triangleq I^{\rho }\left(x\left(t\right)\right)=t^{\left(\rho -1\right)}\ast x\left(t\right), 0<\rho <1$$

In the rest of this section, the existence of the convolution integral shown above, as well as its practical realization using hardware and software subsystems, are considered.

• Existence

It can be seen that the kernel function of the Riemann-Liouville integral, $t^{\left(\rho -1\right)}$ is Lebesgue measurable in the interval. Since the closed loop system is stable, $x\left(t\right)$ can be expected to remain bounded. Together, these imply that the Riemann-Liouville fractional integral does indeed exist in the Lebesgue sense and will be bounded in the interval. More general results on such integrals (including the existence of their Laplace transform in the Lebesgue sense) are discussed in [38].

• Realization of Fractional Terms

Two realizations of the Riemann-Liouville integral currently available are discussed here. First, software modules developed by the research community are available in MATLAB^® as part of the toolkits described in Section I. Second, hardware realizations using ladder networks of circuit components (e.g., [39]), operational amplifiers (e.g., [40]), and memristors (e.g., [41]) have been proposed and implemented over the past decade. Such advances suggest that the fractional transforms used for the transformation of a fractional system can be realized using HW/SW subsystems. The realization of $1/\sqrt{s}$ was addressed in a recent paper [42], and a conceptual design that is capable of accepting a value of the fractional order and realizing the related fractional order derivative is described by Gonzalez et al. in [43]. It is noted that, in a more general sense, the realization of the Riemann-Liouville integral is dependent on the implementation of a convolution operation in hardware or software. This is a topic with a rich history of developments in the field of digital signal processing (e.g., [44]).

• Realization of Feedback and Feedforward Compensation Transfer Functions

Table 2. Realization of the Inner Loop Compensation Terms.

G(s)	H1(s)	C1(s)
		1
		1

and

Table 3. Realization of the Outer Loop Compensation Terms.

G(s)	H2(s)	C2(s)
	(p − 1)
	(p − 1)
	(p − 1)
	(p − 1)
	(p1p2 – a0) + (p1 + p2)s

show the networks used for the realization of the inner and outer loop feedback and feedforward compensation transfer functions for the new method. It is clear from the figures that in each case, besides summation, feedback, and simple circuit elements, the only additional term needed for the transformation of a fractional LTI system into a standard one is a subsystem that emulates the Riemann-Liouville integral.

9. Applicability of the New Method to Systems with Arbitrary Initial Conditions

The new method proposed in this paper has been developed under the assumption of zero initial conditions. In this section, it is shown that the method can be easily extended to systems with arbitrary initial conditions by adding additional terms to the control law. The Laplace transform of the Caputo fractional order derivative, $D^{\alpha }\left(d^{n-1}x\left(t\right)/d{t}^{n-1}\right)$ with arbitrary initial conditions is given by the following equation:

$$\mathcal{L}\left(D^{\alpha }\left(d^{n-1}x\left(t\right)/d{t}^{n-1}\right)\right)=s^{\alpha -1}\left(s^{n}X\left(s\right)-{\displaystyle \sum }_{i=0}^{n-1}{s}^i{\left.\frac{d^{n-1-i}x\left(t\right)}{d{t}^{n-1-i}}\right|}_{t=0}\right)$$

(7)

With the assumption made in the paper regarding full observability and controllability, all the initial condition terms within the summation are available. The example used for control analysis may be represented in the time domain as shown in Equation (8) below:

$$x^{″}\left(t\right)+D^{0.5}\left(x^{\prime }\left(t\right)\right)+D^{0.5}\left(x\left(t\right)\right)-x\left(t\right)=u\left(t\right)$$

(8)

where, $x^{\prime }\left(t\right)=dx\left(t\right)/dt$ and $x^{″}\left(t\right)=d^{2}x\left(t\right)/d{t}^2$. Its Laplace transform with arbitrary initial conditions, $x\left(t\right)=x_0$ and $x^{\prime }\left(0\right)=x_0^{\prime }$ may be derived as shown below:

$$s^{2}X\left(s\right)+s^{-0.5}\left(s^{2}X\left(s\right)-s{x}_0-x_0^{\prime }\right)+s^{-0.5}\left(sX\left(s\right)-x_0\right)-X\left(s\right)=U\left(s\right)$$

(9)

$$\left(s^2+s^{1.5}+s^{0.5}-1\right)X\left(s\right)-s^{1.5}{x}_0-s^{-0.5}{x}_0^{\prime }-s^{-0.5}{x}_0=U\left(s\right)$$

(10)

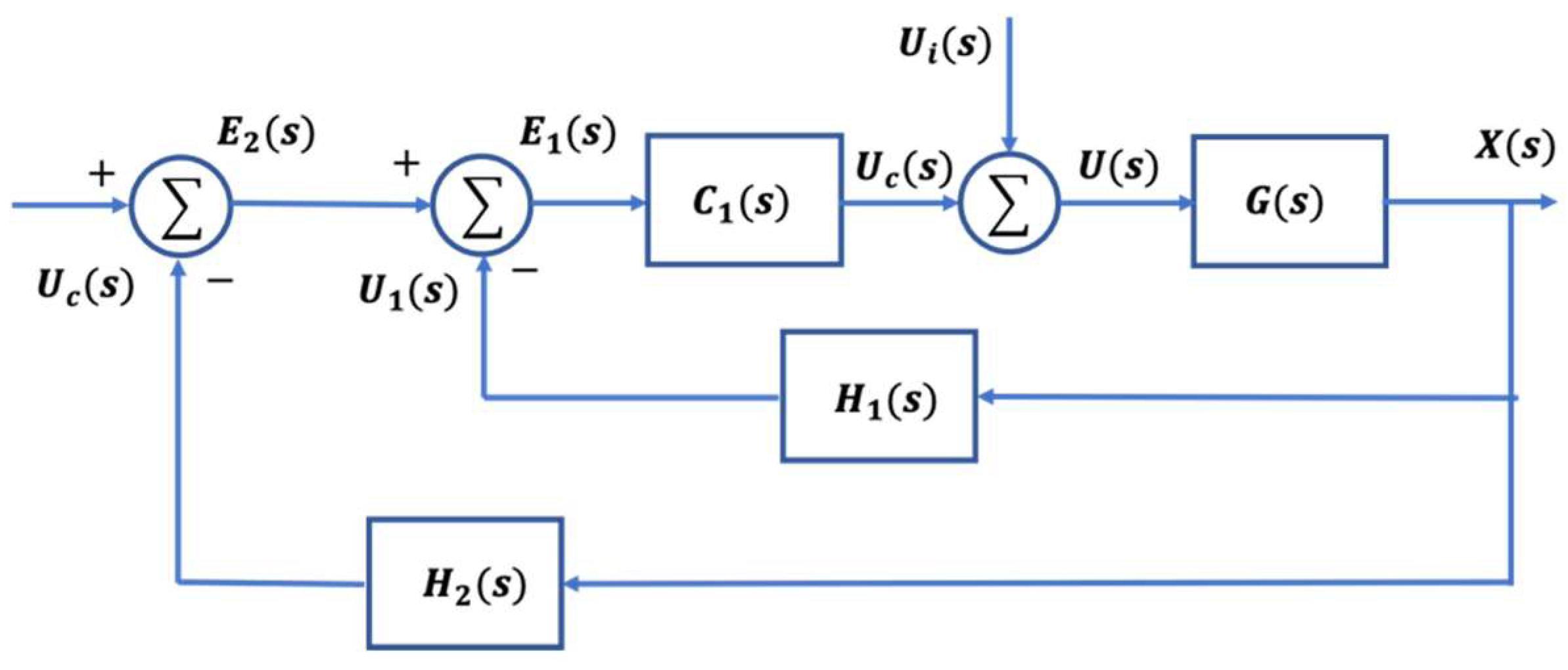

Let the control $U\left(s\right)=V\left(s\right)-U_i\left(s\right)$, where the former represents the control signal required for control and the former compensates for arbitrary initial conditions. For the example in Equation (6), $U_i\left(s\right)=s^{1.5}{x}_0+s^{-0.5}{x}_0^{\prime }+s^{-0.5}{x}_0$. With this, Equation (8) can be reduced to the form shown below in Equation (11):

$$\frac{X\left(s\right)}{V\left(s\right)}=\frac{1}{\left(s^2+s^{1.5}+s^{0.5}-1\right)}$$

(11)

All of the control results presented in the previous sections can be interpreted as compensator designs required for the generation of the control signal $V\left(s\right)$. Figure 1 and Figure 4 would be modified to include the additional signal $U_i\left(s\right)$ to account for arbitrary initial conditions, as shown in Figure 27 and Figure 28 below.

• Realization of $U_i\left(s\right)$

The final consideration in the paper is whether $U_i\left(s\right)$ exists, can be realized in the time domain, and is bounded. It is well known that the Laplace transform of the function $t^p, p>-1$ is $\mathsf{\Gamma }\left(p+1\right)/s^{p+1}$. The lower bound on $p$ assures the existence of the Gamma function. It is noted that the lowest value of $p$ in Equation (6) is 0.5 $0<\alpha <1 \forall n \ge 0$. In particular, for the example system in Equation (7), the control signal $u_i\left(t\right)={\mathcal{L}}^{-1}\left(U_i\left(s\right)\right)$ can be derived as shown below, and it can be seen that it remains bounded as $t$ grows.

$$u_i\left(t\right)={\mathcal{L}}^{-1}\left(s^{1.5}{x}_0+s^{-0.5}{x}_0^{\prime }+s^{-0.5}{x}_0\right)$$

$$={\mathcal{L}}^{-1}\left(s^2.s^{-0.5}{x}_0+s^{-0.5}{x}_0^{\prime }+s^{-0.5}{x}_0\right)$$

$$=\left(0.25\frac{ x_0}{\mathsf{\Gamma }\left(0.5\right)} t^{-2.5}+\frac{\left(x_0^{\prime }+x_0\right)}{\mathsf{\Gamma }\left(0.5\right)}{t}^{-0.5}\right)$$

Note that the derivation has been made with the common assumption that ${\left.d^{2}x/d{t}^2\right|}_{t=0}=0$. From the discussions here, it is clear that all of the control methods analyzed in the paper can be extended to fractional LTI systems with arbitrary initial conditions as long as they are observable and controllable. In fact, the extension presented here is no different from what is involved in the control of standard LTI systems. It is noted that while the signals remain bounded $\forall t>0$, control saturation constraints may limit the ability to generate the required inputs in practice for small values of $t$. A formal study of the impact of control saturation on control stability and performance will be needed for the full application of methods currently in use for controlling fractional LTI systems, as well as the new method.

10. Conclusions and Future Work

In this paper, the authors introduce a new approach called Transform and Control for the control of fractional LTI systems. It describes a procedure for the design of the feedback and feedforward compensation needed to transform a fractional system into a standard one and then control it to achieve the desired closed-loop behavior. From the results presented here (and in [20]), it is clear that the proposed method has the potential to address more general types of fractional systems. In each example considered for the development of the method, it was shown that the closed loop system is assured of having an order of one for Systems 1–4 and two for System 5. Realizations of the compensation transfer functions are computationally simple and involve the use of networks constructed using subsystem implementations of the Riemann-Liouville integral, summation, feedback, and simple circuit elements.

The simulation results presented in the paper using an example fractional LTI system show that better performance and robustness can be achieved with the new method compared to existing ones. Further, it was shown that the control designs discussed in the paper could be extended to systems with arbitrary initial conditions.

It is the authors’ opinion that the method described here will enable the development of a more general theory of fractional systems, begin its mainstreaming in systems theory, and lead to new control algorithms and implementations that address many different problem areas in engineering and the life sciences. Future work by the authors will investigate the generalizability of the new method to classes of fractional LTI systems, examine its robustness properties, and extend it to multi-input, multi-output (or higher order) systems that may be partially observable and controllable.
