# Seepage–Fractal Model of Embankment Soil and Its Application

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Hydraulic Conductivity Based on Pore Radius and Fractal Dimension

#### 2.2. Randomness of Hydraulic Conductivity of Embankment Soil

^{−5}cm/s and the fluctuation scale of the random field in any direction is fixed at 3 m. Different COV values result in changes in the dispersion degree and spatial structure of hydraulic conductivity, while the mean of hydraulic conductivity of soil is the same. In order to show this spatial distribution characteristic, different COV values were selected to generate the hydraulic conductivity random field: COV of 0.1 and 0.3 (Figure 1a) and 0.2 and 0.3 (Figure 1b). There are 1600 elements in the random field, and the element size is a 1 m square. Hydraulic conductivity is expressed in gray scale; from pure black to pure white, the scale represents hydraulic conductivity from minimum to maximum. According to the principle of minimum potential energy, groundwater mainly flows through light colored units.

## 3. Case Study

^{−6}cm/s and COV of 0.3, and then the fractal dimension of soil element was calculated according to the relationship between soil fractal dimension and hydraulic conductivity. There were three important boundary conditions: (1) the upstream slope was permeable, and the total head was 6 m; (2) the downstream slope was permeable, and the total head was 0 m; (3) without considering the influence of unsaturated zone, the bottom of the embankment was impervious.

## 4. Results and Discussion

^{−6}, 4 × 10

^{−6}], and only a few hydraulic conductivity units are distributed outside this interval. This phenomenon conforms to the objective law. In this research, the mean of hydraulic conductivity is 3.32 × 10

^{−6}cm/s, COV is 0.3, and the scale of fluctuations is 6 and 3 m, respectively. When the hydraulic conductivity random field is discretized, COV is within a certain range, and the value after discretization deviates little from the mean value. With increased COV, the value after discretization will be distributed in a larger range. In Figure 5b,c,e, the discrete points show a slight downward bending phenomenon, which means that the unit permeability may decrease slowly with increased fractal dimension.

## 5. Conclusions

- (1)
- The proposed seepage–fractal model of embankment soil is suitable for porous soil media under laminar flow. The influencing factors of hydraulic conductivity mainly include pore size, fractal dimension, and fluid viscosity coefficient, and fractal dimension is the main factor;
- (2)
- Hydraulic conductivity is inversely proportional to fractal dimension. Increased fractal dimension will reduce the connectivity of soil pores in a single direction, increase the seepage resistance of water, and reduce the hydraulic conductivity. Decreased fractal dimension will lead to consistency of seepage channels in the soil, limited seepage direction of water, decreased resistance in the seepage direction, and increased hydraulic conductivity;
- (3)
- Increased fractal dimension leads to decreased hydraulic conductivity, increased potential energy consumption through the same seepage path, and increased hydraulic gradient. When the seepage resistance increases further, the seepage path changes, and the water will bypass units with high fractal dimension and flow through units with low fractal dimension;
- (4)
- In the seepage–fractal model of embankment soil, the fractal dimension and hydraulic conductivity had significant field characteristics. Units with similar attributes formed agglomerates within which the soil interacts, and the attributes tended to be consistent. On the outside, the interaction between clusters shows obvious transition.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Peli, T. Multiscale fractal theory and object characterization. JOSA A
**1990**, 7, 1101–1112. [Google Scholar] [CrossRef] - Perfect, E.; Kay, B.D. Fractal theory applied to soil aggregation. Soil Sci. Soc. Am. J.
**1991**, 55, 1552–1558. [Google Scholar] [CrossRef] - Wang, L.; Zeng, X.; Yang, H.; Lv, X.; Guo, F.; Shi, Y.; Hanif, A. Investigation and application of fractal theory in cement-based materials: A review. Fractal Fract.
**2021**, 5, 247. [Google Scholar] [CrossRef] - Dıaz-Zorita, M.; Perfect, E.; Grove, J.H. Disruptive methods for assessing soil structure. Soil Tillage Res.
**2002**, 64, 3–22. [Google Scholar] [CrossRef] - Tyler, S.W.; Wheatcraft, S.W. Fractal scaling of soil particle-size distributions: Analysis and limitations. Soil Sci. Soc. Am. J.
**1992**, 56, 362–369. [Google Scholar] [CrossRef] - Romero, E.; Simms, P.H. Microstructure investigation in unsaturated soils: A review with special attention to contribution of mercury intrusion porosimetry and environmental scanning electron microscopy. Geotech. Geol. Eng.
**2008**, 26, 705–727. [Google Scholar] [CrossRef] - Gimenez, D.; Perfect, E.; Rawls, W.J.; Pachepsky, Y. Fractal models for predicting soil hydraulic properties: A review. Eng. Geol.
**1997**, 48, 161–183. [Google Scholar] [CrossRef] - Ju, X.; Jia, Y.; Li, T.; Gao, L.; Gan, M. Morphology and multifractal characteristics of soil pores and their functional implication. Catena
**2021**, 196, 104822. [Google Scholar] [CrossRef] - Wang, J.; Qin, Q.; Guo, L.; Feng, Y. Multi-fractal characteristics of three-dimensional distribution of reconstructed soil pores at opencast coal-mine dump based on high-precision CT scanning. Soil Tillage Res.
**2018**, 182, 144–152. [Google Scholar] [CrossRef] - Yang, M.; Fu, Y.; Li, G.; Ren, Y.; Li, Z.; Ma, G. Microcharacteristics of soil pores after raindrop action. Soil Sci. Soc. Am. J.
**2020**, 84, 1693–1704. [Google Scholar] [CrossRef] - Yang, Y.; Wu, J.; Zhao, S.; Han, Q.; Pan, X.; He, F.; Chen, C. Assessment of the responses of soil pore properties to combined soil structure amendments using X-ray computed tomography. Sci. Rep.
**2018**, 8, 1–10. [Google Scholar] [CrossRef] [Green Version] - Chang, D.S.; Zhang, L.M. Extended internal stability criteria for soils under seepage. Soils Found.
**2013**, 53, 569–583. [Google Scholar] [CrossRef] [Green Version] - Liu, Q.Q.; Li, J.C. Effects of water seepage on the stability of soil-slopes. Procedia IUTAM
**2015**, 17, 29–39. [Google Scholar] [CrossRef] [Green Version] - Yang, Y.; Sun, G.; Zheng, H. Modeling unconfined seepage flow in soil-rock mixtures using the numerical manifold method. Eng. Anal. Bound. Elem.
**2019**, 108, 60–70. [Google Scholar] [CrossRef] - Wilson, G.V.; Periketi, R.K.; Fox, G.A.; Dabney, S.M.; Shields, F.D.; Cullum, R.F. Soil properties controlling seepage erosion contributions to streambank failure. Earth Surf. Processes Landf. J. Br. Geomorphol. Res. Group
**2007**, 32, 447–459. [Google Scholar] [CrossRef] - Hu, S.; Tian, C.; Gan, Y. Determination and calculation of soil permeability coefficient. Trans. Chin. Soc. Agric. Eng.
**2011**, 27, 68–72. [Google Scholar] - Elhakim, A.F. Estimation of soil permeability. Alex. Eng. J.
**2016**, 55, 2631–2638. [Google Scholar] [CrossRef] [Green Version] - O’Kelly, B.C.; Nogal, M. Determination of soil permeability coefficient following an updated grading entropy method. Geotech. Res.
**2020**, 7, 58–70. [Google Scholar] [CrossRef] - Kozlowski, T.; Ludynia, A. Permeability coefficient of low permeable soils as a single-variable function of soil parameter. Water
**2019**, 11, 2500. [Google Scholar] [CrossRef] [Green Version] - Lu, M.M.; Xie, K.H.; Guo, B. Consolidation theory for a composite foundation considering radial and vertical flows within the column and the variation of soil permeability within the disturbed soil zone. Can. Geotech. J.
**2010**, 47, 207–217. [Google Scholar] [CrossRef] - Dathe, A.; Eins, S.; Niemeyer, J.; Gerold, G. The surface fractal dimension of the soil–pore interface as measured by image analysis. Geoderma
**2001**, 103, 203–229. [Google Scholar] [CrossRef] - Ghanbarian-Alavijeh, B.; Millán, H.; Huang, G. A review of fractal, prefractal and pore-solid-fractal models for parameterizing the soil water retention curve. Can. J. Soil Sci.
**2011**, 91, 1–14. [Google Scholar] [CrossRef] - Sun, X.; She, D.; Wang, H.; Fei, Y.; Gao, L. Modelling soil hydraulic properties with an improved pore-solid fractal (PSF) model through image analysis. Eur. J. Soil Sci.
**2022**, 73, e13156. [Google Scholar] [CrossRef] - Wise, W.R. A new insight on pore structure and permeability. Water Resour. Res.
**1992**, 28, 189–198. [Google Scholar] [CrossRef] - Wang, L.; Song, X.; Yang, H.; Wu, B.; Mao, W. Pore structural and fractal analysis of the effects of MgO reactivity and dosage on permeability and F–T resistance of concrete. Fractal Fract.
**2022**, 6, 113. [Google Scholar] [CrossRef] - Su, H.; Zhang, Y.; Xiao, B.; Huang, X.; Yu, B. A fractal-monte carlo approach to model oil and water two-phase seepage in low-permeability reservoirs with rough surfaces. Fractals
**2021**, 29, 2150003. [Google Scholar] [CrossRef] - Chang, B.; Du, C.; Sun, M.; Lin, Y.; Wang, Y.; Chu, X.; Zhang, L.; He, J. Mesoscopic Seepage Simulation and Analysis of Unclassified Tailings Pores Based on 3D Reconstruction Technology. ACS Omega
**2021**, 6, 14309–14316. [Google Scholar] [CrossRef] - Ye, W.; Hu, J.; Ma, F. Centrifuge model study on the influence of desiccation cracks on the seepage behavior of upstream clay anti-seepage system subjected to abrupt flood. Bull. Eng. Geol. Environ.
**2021**, 80, 5075–5090. [Google Scholar] [CrossRef] - Wang, L.; Li, G.; Li, X.; Guo, F.; Tang, S.; Xiao, L.; Hanif, A. Influence of reactivity and dosage of MgO expansive agent on shrinkage and crack resistance of face slab concrete. Cem. Concr. Compos.
**2022**, 126, 104333. [Google Scholar] [CrossRef] - Yang, H.M.; Zhang, S.M.; Lei, W.; Chen, P.; Shao, D.K.; Tang, S.W.; Li, J.Z. High-ferrite Portland cement with slag: Hydration, microstructure, and resistance to sulfate attack at elevated temperature. Cem. Concr. Compos.
**2022**, 130, 104560. [Google Scholar] [CrossRef] - Burrough, P.A. Multiscale sources of spatial variation in soil. I. The application of fractal concepts to nested levels of soil variation. J. Soil Sci.
**1983**, 34, 577–597. [Google Scholar] [CrossRef] - Shah, K.; Arfan, M.; Mahariq, I.; Ahmadian, A.; Salahshour, S.; Ferrara, M. Fractal-Fractional Mathematical Model Addressing the Situation of Corona Virus in Pakistan. Results Phys.
**2020**, 19, 103560. [Google Scholar] [CrossRef] [PubMed] - Yu, B. Analysis of Flow in Fractal Porous Media. Appl. Mech. Rev.
**2008**, 61, 050801. [Google Scholar] [CrossRef] - Freeze, R.A. A stochastic-conceptual analysis of one-dimensional groundwater flow in nonuniform homogeneous media. Water Resour. Res.
**1975**, 11, 725–741. [Google Scholar] [CrossRef] - Hoeksema, R.J.; Kitanidis, P.K. Analysis of the spatial structure of properties of selected aquifers. Water Resour. Res.
**1985**, 21, 563–572. [Google Scholar] [CrossRef] - Sudicky, E.A. A natural gradient experiment on solute transport in a sand aquifer: Spatial variability of hydraulic conductivity and its role in the dispersion process. Water Resour. Res.
**1986**, 22, 2069–2082. [Google Scholar] [CrossRef] - Huang, H.; Hu, B.X.; Wen, X.H.; Shirley, C. Stochastic inverse mapping of hydraulic conductivity and sorption partitioning coefficient fields conditioning on nonreactive and reactive tracer test data. Water Resour. Res.
**2004**, 40, 1–16. [Google Scholar] [CrossRef] - Shou, D.; Fan, J.; Ding, F. A difference-fractal model for the permeability of fibrous porous media. Phys. Lett. A
**2010**, 374, 1201–1204. [Google Scholar] [CrossRef]

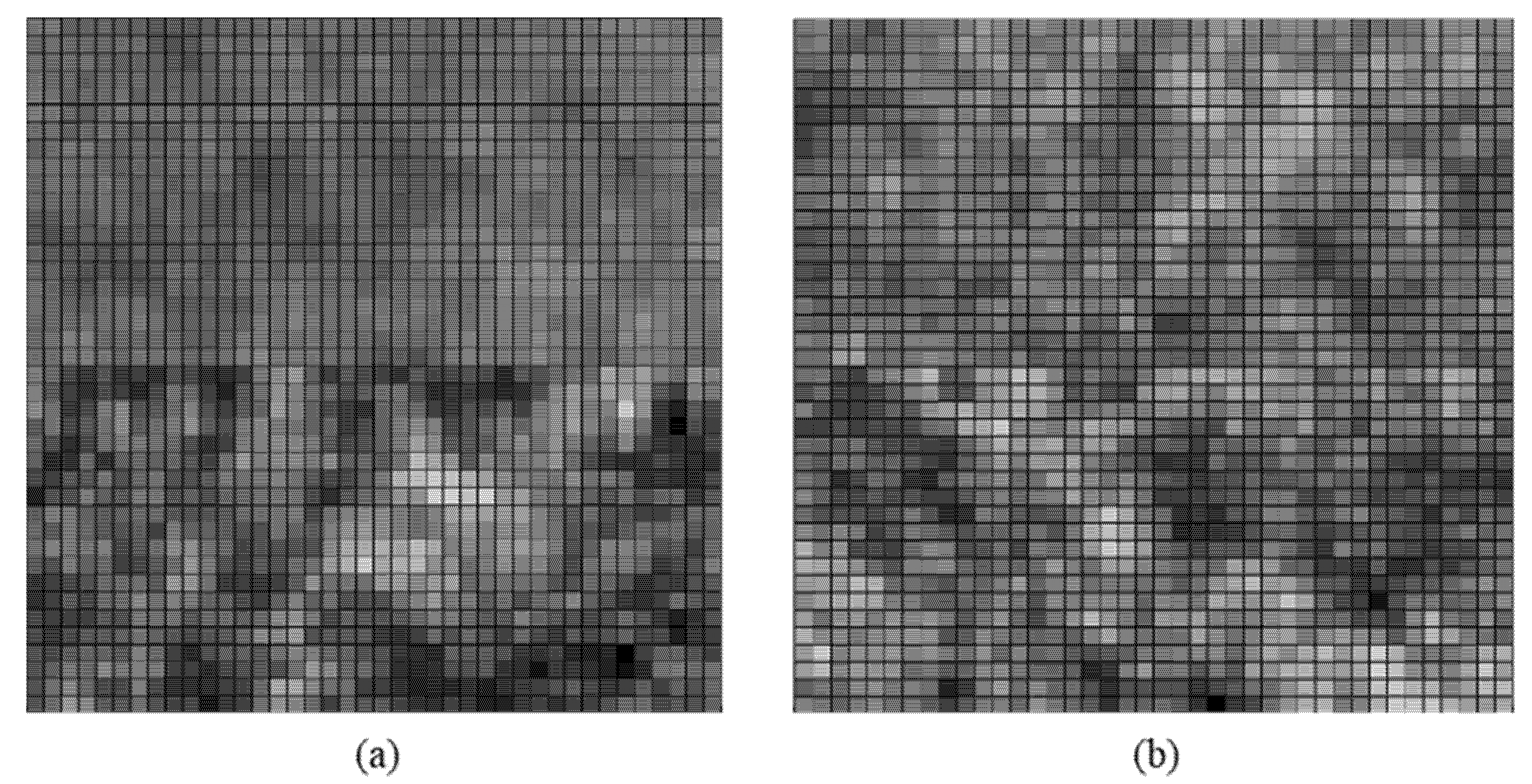

**Figure 1.**Gray scale diagram of hydraulic conductivity: (

**a**) COV of hydraulic conductivity (k) = 0.1 and 0.3; (

**b**) COV of k = 0.2 and 0.3.

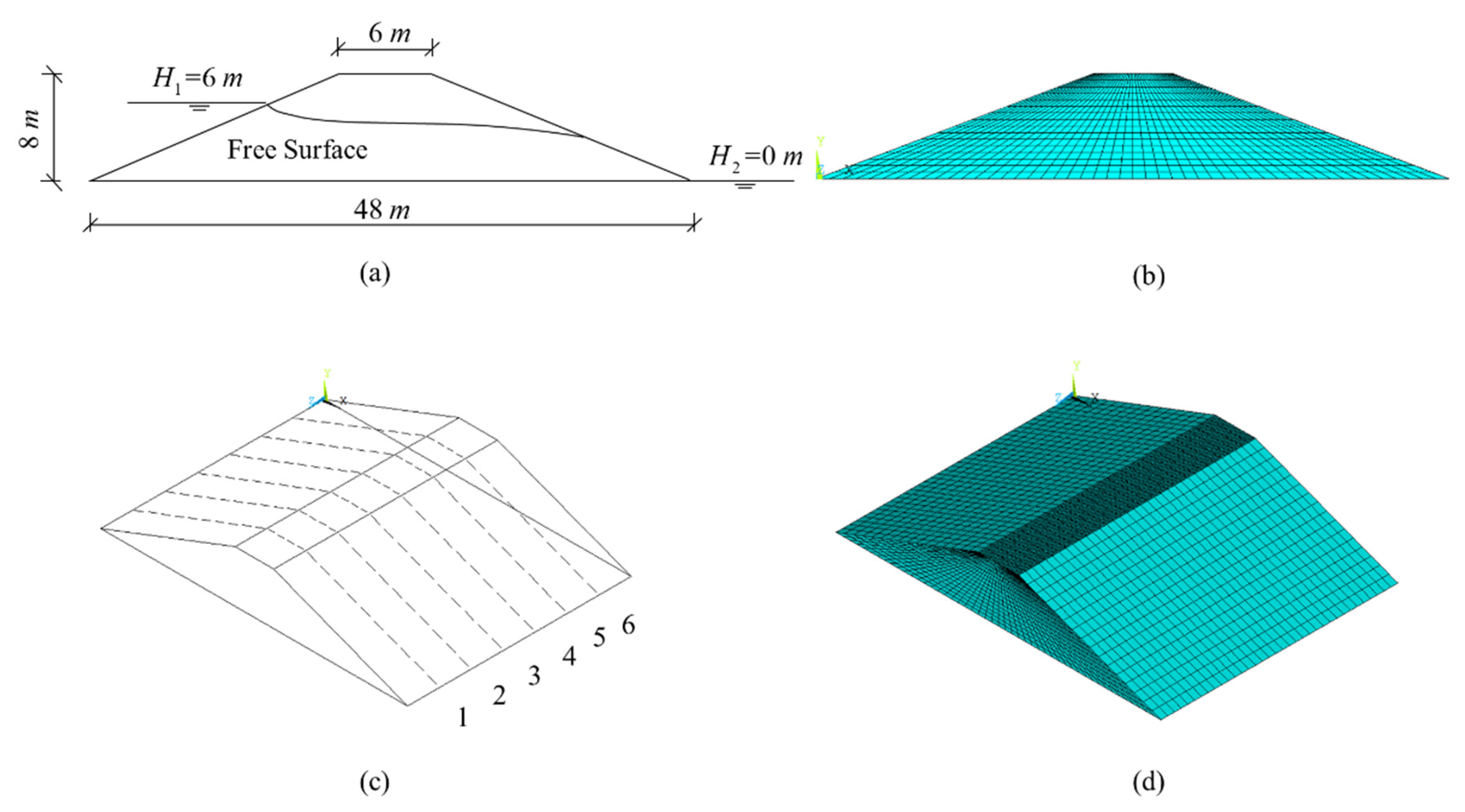

**Figure 3.**Embankment model of Shijiu Lake: (

**a**) dimensions of section; (

**b**) mesh generation of section; (

**c**) location of section in embankment model; (

**d**) mesh generation of embankment.

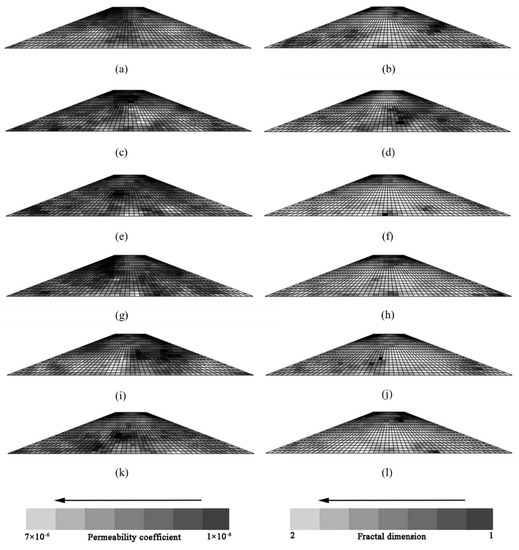

**Figure 4.**Distribution of hydraulic conductivity (k) and fractal dimension (D) of sections 1−6 in the embankment: (

**a**) k in section 1; (

**b**) D in section 1; (

**c**) k in section 2; (

**d**) D in section 2; (

**e**) k in section 3; (

**f**) D in section 3; (

**g**) k in section 4; (

**h**) D in section 4; (

**i**) k in section 5; (

**j**) D in section 5; (

**k**) k in section 6; (

**l**) D in section 6.

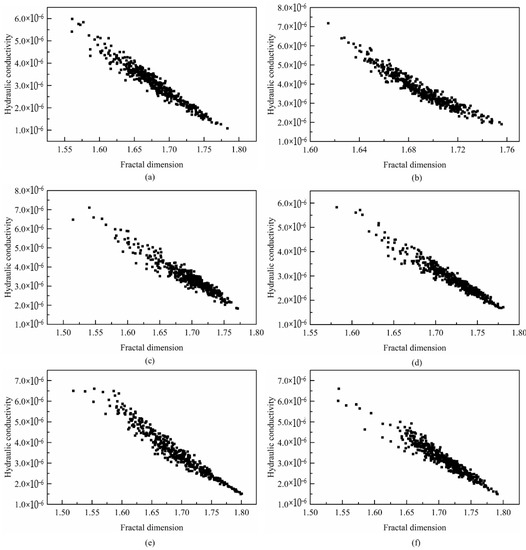

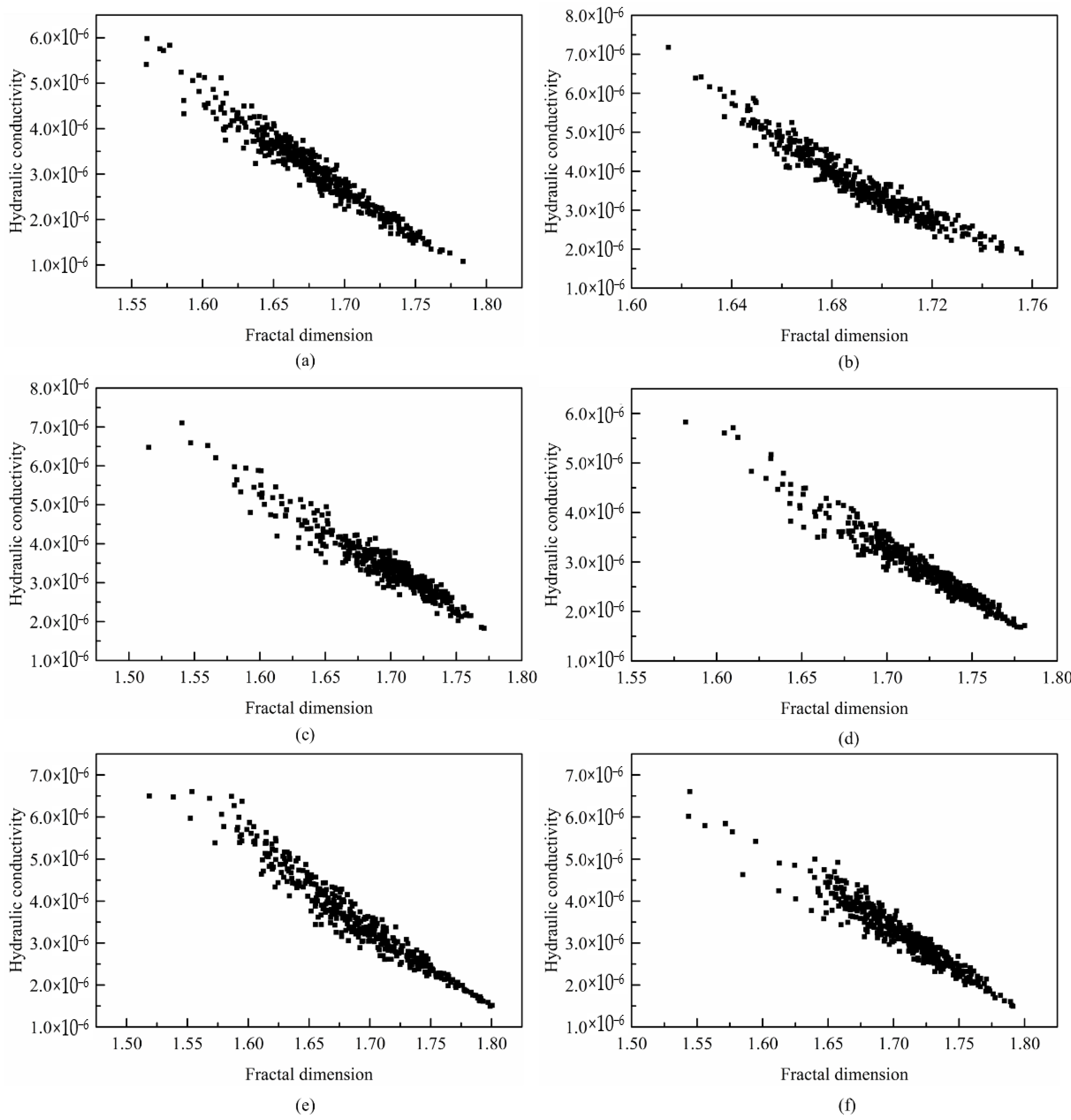

**Figure 5.**Variation in the hydraulic conductivity with fractal dimension in different sections: (

**a**) section 1; (

**b**) section 2; (

**c**) section 3; (

**d**) section 4; (

**e**) section 5; (

**f**) section 6.

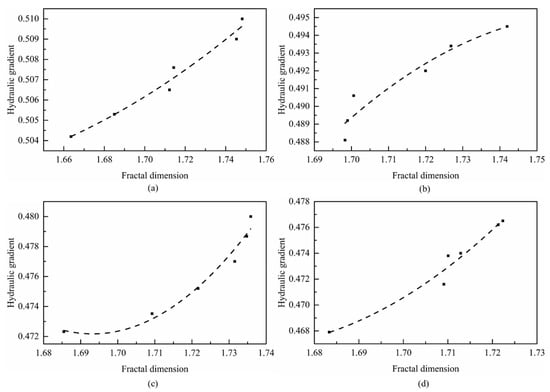

**Figure 6.**Variation in hydraulic gradient with fractal dimension in different sections: (
