First Molecular Identification of Bulinus africanus in Lake Malawi Implicated in Transmitting Schistosoma Parasites

Abstract

The freshwater snail genus Bulinus plays a vital role in transmitting parasites of the Schistosoma haematobium group. A hybrid schistosome between S. haematobium and S. mattheei has been recently detected using DNA-based identification methods in school children along the Lake Malawi shoreline in Mangochi District. This finding raised the need for contemporary revaluation of local interactions between schistosomes and snails, with a particular focus on snail species within the Bulinus africanus group. In 2017 and 2018, malacological surveys sampled several freshwater sites in Mangochi District. Collected snails (n = 250) were characterised using cytochrome oxidase subunit 1 gene (cox1), with DNA barcoding of the ‘Folmer’ region and a rapid PCR-RFLP typing assay with double digestion with HaeIII and SacI restriction enzymes. DNA cox1 sequence analysis, with phylogenetic tree construction, suggested the presence of at least three B. africanus group taxa in Lake Malawi, B. globosus, alongside first reports of B. africanus and B. angolensis, which can be differentiated by PCR-RFLP methods. In addition, a total of 30 of the 106 B. africanus group snails (28.30%) were positive to the Schistosoma-specific screen using real-time PCR methods. This study provides new insight into the recent changes in the epidemiology of urogenital schistosomiasis as likely driven by a new diversity of B. africanus group snails within the Lake.

1. Introduction

The freshwater snail genus Bulinus plays a crucial role in the transmission of species in the S. haematobium group that causes schistosomiasis. Meanwhile, the group includes three human pathogens (S. haematobium, S. guineensis and S. intercalatum) and five others that could infect wild and domestic ruminants (S. bovis, S. leiperi, S. curassoni, S. margrebowiei and S. mattheei). The interaction and relationship between schistosomes and snails are very precise, and compatibility may vary over relatively small geographical ranges [1]. Recently, there was a detection of a hybrid schistosome between S. haematobium and S. mattheei in Mangochi District along Lake Malawi among local people [2]. There is a lack of certainty about the compatibility of this hybrid schistosome with local snail species in Malawi. Some B. africanus group species are playing a role in the life cycle of S. haematobium, S. bovis and S. mattheei which would each continue to drive the hybridisation of human and zoonotic schistosomes.

It is essential to have up-to-date data about the intermediate hosts for schistosomiasis control; these data include accurate snail identity, their roles in transmission infection and population map distributions [3]. Several molecular characterisation methods are currently available to be used in the molecular identification of freshwater snails, such as DNA sequence analysis. The mitochondrial region of cytochrome oxidase subunit 1 (cox1) sequences is commonly used for snail identification, making it a suitable comparison gene for general species identification and phylogenetic inferences [4]. Fortunately, the relatively high genetic variation of Bulinus snails, particularly in the cox1 gene, provides a sufficient marker to distinguish between populations and species whereas it may be very challenging to identify some populations or individual snails utilizing traditional taxonomy [5]. Restriction fragment length polymorphism (RFLP) is a simple DNA characterisation method that relies on fragment sizes as cut by the restriction enzymes [6]. PCR-RFLP assays have been used for Bulinus snail discrimination, particularly B. africanus group [7,8].

Understanding the epidemiology of schistosomes requires a reliable taxonomy of the genus Bulinus [7]. For example, some species from the B. africanus group are well known or suspected as the intermediate host for S. haematobium, S. bovis and S. mattheei. However, classification within B. africanus species group complex is probably the most problematic of the four Bulinus snail species groups, as genetically this group is very diverse and also very geographically widely spread [7]. In Malawi, for example, it was previously believed that the open shores of Lake Malawi were free from S. haematobium as B. globosus was absent, being only found in more marshy marginal shorelines [9]. Surprisingly, in 2001, Madsen et al. (2001) reported that B. nyassanus, a deep-water snail, from the B. truncatus/tropicus complex could produce cercariae [10]. This new epidemiological change linked this snail with ongoing urogenital schistosomiasis transmission in some parts of the lake shoreline.

Species identification within the B. africanus group can be unreliable when based exclusively on morphology. The shell is often environmentally plastic in shape and size, being subject to ecophenotypic variation [11]. Brown (1994) suggests that more populations and advanced application of molecular analysis are needed to distinguish between Bulinus africanus group species with greater confidence to help in understanding their distribution and their roles in disease transmission [12]. Some studies have investigated certain species from this group using molecular identification methods applied across several populations [5,7,13]. The findings obtained from these studies were interesting, and some results were unexpected which reflect the need for further molecular identification methods for snail characterisation. For example, Allan et al. (2017) conducted a genetic investigation finding that B. angolensis should be reclassified to B. africanus group instead of originally documented in B. truncatus/tropicus complex [13].

The populations of B. africanus group in Malawi and precisely those snails in and along Lake Malawi have not been thoroughly investigated at a molecular level. Interestingly, during two malacological surveys in 2017 and 2018 in Mangochi District, Malawi, B. africanus group was found, often at human water contact sites within the lake as well as in fringing water bodies outside the lake. Therefore, this study aims to investigate these populations at a molecular level and, by exploiting different molecular applications, our study aims to find an optimum method to distinguish between different species in Malawi including B. africanus group and B. truncatus/tropicus complex. Although this study focuses on B. africanus group in Lake Malawi, we included some known Bulinus species collected from within and outside the lake for direct comparisons.

The development of rapid identification techniques and the data provided in this study would contribute to following the recent changes in Schistosoma intermediate hosts in Lake Malawi. Moreover, it helps in the reliable monitoring of the altering dynamic between the parasite and its snail host. Further observations are needed to evaluate the epidemiological changes reported recently in Malawi and the potential concerns of these hybridisation changes.

2. Materials and Methods

2.1. Sample Survey

Two malacological surveys were carried out in the Mangochi District along the southern lake shoreline and nearby water bodies in November 2017 (14 locations) and May 2018 (43 locations). Bulinus species samples were collected from the vast majority of visited sites, plus details of each site such as Global Positioning System (GPS). Then, each B. africanus shell was identified based on its morphological characteristics [12]. Additional B. globosus samples collected by J. R. Stothard from other two districts in Malawi were included in RFLP and sequencing analysis for comparison; the samples were collected from a river in Blantyre and a pond in Chikhwawa District located in the southern region of Malawi (Figure 1).

2.2. Morphology Study

A total of 135 B. africanus group snails were photographed with a background of a piece of paper covered by 1 mm² squares. Then Motic Image Plus 3.0 (Kowloon, Hongkong) was used for five measurements for each shell (Figure 2). Then, the data were recorded onto an Excel sheet.

2.3. Molecular Characterisation Analysis

First, B. africanus group shells were photographed with a background of a piece of paper covered by 1 mm² squares. Then, snail tissue from the foot and head (about 2 mm) was cut, and then we placed them in a 24-well plate, having distilled water for approximately 5 min to diffuse out ethanol in the tissue. Next, DNA was extracted using the DNeasy Blood and tissue kit (Qiagen™, Hilden, Germany), following the instructions. The quantity and quality of the DNA of samples were tested using spectrophotometry (Nanodrop™, Wilmington, NC, USA). Later, extracted DNA was diluted to 10 ng/µL in elution buffer (AE). Fifty samples were randomly selected for sequence analysis using cox1 gene, and partial mitochondrial cox1 was amplified using BulCox1 and HCO2198 [7,14] in PCR reaction for sequence analysis. Amplifications were performed using Illustra puReTaq Ready-To-Go PCR beads (GE Healthcare, Chicago, IL, USA) in 25 μL total volume consisting of 0.2 μM of forward and reverse primers, 21 μL of nuclease-free water and 2 μL of DNA. As per the manufacturer’s instructions, successfully amplified products were purified using MiniElute PCR purification kit (Qiagen™) before being sent for sequencing. This step was also conducted for non-B. africanus group samples to validate the results from the RFLP rapid assay.

2.4. Restriction Digestion

The cox1 fragments amplified from the ‘Folmer’ region in the snails were digested using SacI and HaeIII restriction enzymes in CutSmart^® Buffer (Hitchin, UK). Based on sequenced samples used as a control in this study, two species from B. africanus group were identified as B. africanus and B. globosus. Thus, we developed two markers (restriction enzymes) in the PCR-RFLP essay to distinguish between the identified species through the sequences generated. SacI (GAGCT^C) was expected to cut only B. globosus samples, while HaeIII (GG^CC) only cut B. africanus. The reaction contained 3.5 µL of nuclease-free water, 5 µL of DNA, 1µL of each enzyme and 4.5 µL of a buffer. Then, the mixture was incubated to digest 3 h at 37.5 °C before running on 1% agarose gel stained with SYBR™ Safe DNA gel stain at 100 V for 40 min. Additional B. globosus samples from the different areas were included in PCR-RFLP and sequencing analysis for comparison. Several samples identified as B. truncatus/tropicus complex from different sites were included as a negative control for amplification and PCR-RFLP to test the specificity of the primers and restriction enzymes used in this study.

2.5. Real-Time PCR Detection of Schistosomes within Snails

Real-time PCR to detect schistosome within snail was conducted to detect Schistosoma spp. within B. africanus group samples using Ssp48F (5′-GGT CTA GAT GAC TTG ATY GAG ATG CT-3′), Ssp124R (5′-TCC CGA GCG YGT ATA ATG TCA TTA-3′) and the probe Ssp78T(FAM-5′-TGG GTT GTG CTC GAG TCG TGGC-3′) as described by [15].

2.6. Statistical and Analytical Methods

Molecular data were analysed using Geneious Prime 2019 (Auckland, New Zealand), National Centre for Biotechnology Information (NCBI) for BLAST and alignment using MUSCLE (Mill Valley, CA, USA) to investigate molecular identification and sequence variation.

2.7. Phylogenetics Analysis

Evolutionary analyses were conducted in MEGA X (Philadelphia, PA, USA) to create a maximum likelihood and neighbour-joining trees based on the sequence generated of a fragment from the cox1. Based on the best evolutionary model test in MEGA X, maximum likelihood was created using the Tamura 3-parameter while in the neighbour-joining method, we used Jukes-Cantor method. We performed evolution analysis using a phylogenetic tree for fourteen B. africanus group samples. Seven samples represented four B. africanus group samples from Malawi, and seven Bulinus were retrieved from the GenBank and included due to their similarities to the project’s sequenced samples. Moreover, B. succcinoides and B. nyassanus collected from Lake Malawi were included while B. forskali from Lake Malawi was included as an out group. The evolutionary analysis was estimated with the bootstrap test (1000 replicates) in MEGA X.

3. Results

Generally, analysis of the B. globosus shells collected from pond and stream has shown a higher range in size of measurements taken compared to shells of B. africanus group collected from the Lake (

Table 1. Summary of the shell measurements for B. africanus group.

B. globosus (n = 18)	Spire Height (mm)	Lower Body Length (mm)	Whorl-Suture Width (mm)	Aperture Length (mm)	Aperture Width (mm)	Shell Total Height (mm)
Mean (95% CI of the mean)	1.3 (1.1–1.6)	13.2 (12.4–13.9)	5.83 (5.3–6.3)	10.5 (10.0–11.0)	5.0 (4.6–5.3)	14.5 (13.6–15.4)
Std. deviation	0.52	1.5	1.0	1.0	0.7	1.9
B. africanus (n = 117)	Spire height (mm)	Lower body length (mm)	Whorl-Suture width (mm)	Aperture length (mm)	Aperture width (mm)	Shell total height (mm)
Mean (95% CI of the mean)	0.7 (0.6–0.8)	9.7 (9.3–10.1)	3.9 (3.7–4.1)	8.1 (7.7–8.4)	3.7 (3.6–3.9)	10.4 (9.9–10.8)
Std. deviation	0.4	2.3	1.1	1.9	0.9	2.5

). The RFLP assay was utilised as the primary method to classify the species of the individual samples collected based on markers developed in this study. Thus, further investigation was conducted using cox1 markers in sequence analysis, resulting in an indication that four species of B. africanus group exist within the samples examined, classified based on blast to B. africanus, B. globosus, B. angolensis and Bulinus sp.

The specific band pattern was consistent in the known samples were identified and verified using DNA sequencing as controls. The rapid essay test RFLP used in this study aimed to distinguish between B. globosus and B. africanus using 250 samples, including twenty B. truncatus samples to test the sensitivity and specificity of the primers used in PCR and markers used in RFLP. As a result, the selected primers used to amplify the Folmer region worked successfully with B. africanus, while in B. truncatus samples, only a few were amplified. Despite the high level of variation among samples, there was no overlap in the results of B. globosus, B. africanus and B. truncatus samples. Interestingly, the RFLP assay unexpectedly revealed another group with no cut site: we found B. angolensis through further sequence analysis; there is no prior report of finding this species in Malawi. Plus, another group of B. africanus group was encountered via the molecular identification.

3.1. PCR-Restriction Fragment Length Polymorphism Assay

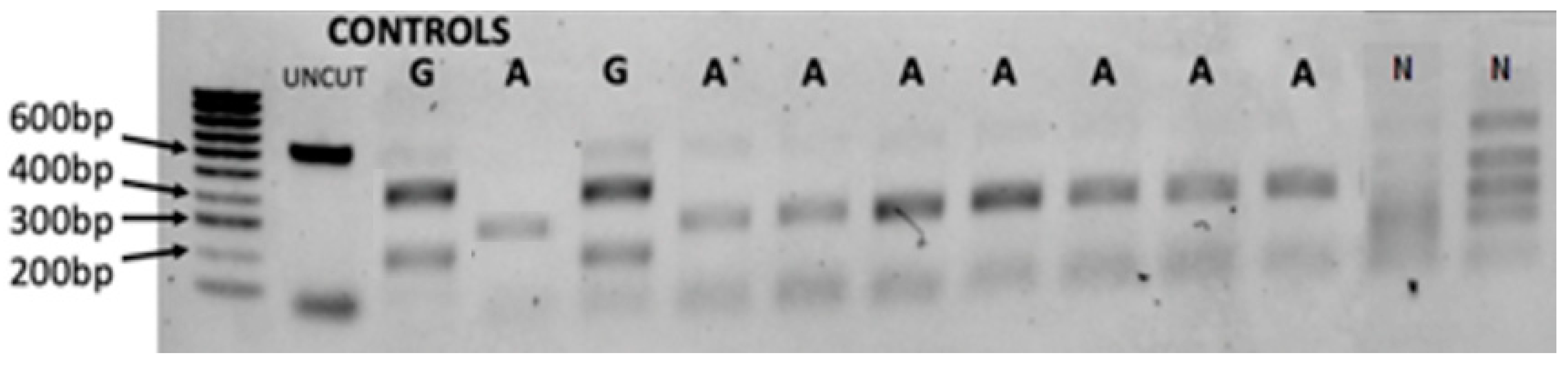

The PCR-RFLP gel result is illustrated in Figure 3 shows that the B. globosus profile was two bands digested by Sac1 enzyme at about 400 and 200 bp, while B. africanus shows two bands at approximately 320 bp. The test confirmed the validity of the developed markers besides the specificity of the selected primers being utilised for B. africanus group population. For example, 20 samples from B. truncatus/tropicus group from different locations were used as non-B. africanus group. Out of the 20 samples, 6 samples illustrate four bands while no amplification was found in 14 samples. Interestingly, this test reveals another species that shows no site cut, which has led to further molecular investigation for all specimens using sequence analysis and evolutionary analysis using phylogenetic tree inferences.

We used 1% agarose gel stained with SYBR™ Safe DNA showing the ‘Folmer’ region of cox1 restricted with double digestion enzymes Sac1 and HaeIII. Known controls of uncut DNA, B. africanus (A) and B. globosus (G), were used with hyperladder 100 bp as control. The uncut sample (UNCUT) and non-B. africanus group (N) are also labelled.

The mitochondrial cox1 gene sequence generated for all B. africanus group samples in this study was found highly variant, in agreement with a similar study [7,13]. Alignment of 50 sequence samples in this study has revealed four taxa of B. africanus group population in Malawi.

3.2. Distribution of B. africanus Group Snails on Lake Malawi

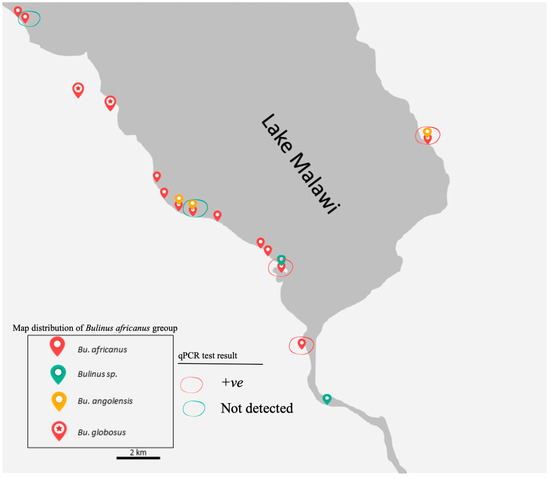

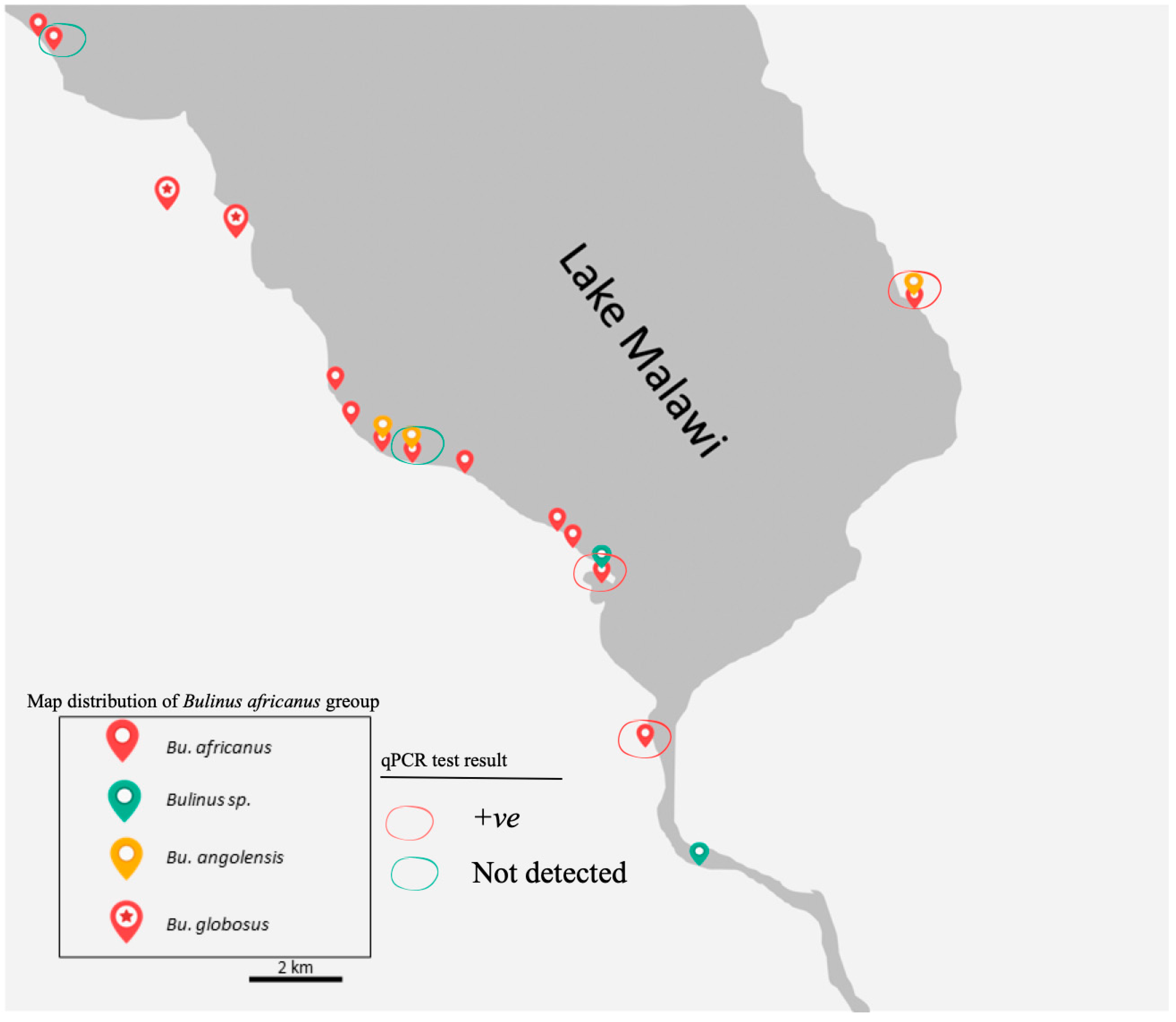

Although the surveys were carried out in two different seasons, B. globosus which was generally bigger in the shell was not found in the Lake, while all the other three main groups were collected from the Lake. Bulinus globosus snails were observed only at a stream, river and pond in Mangochi, Blantyre and Chikhwawa Districts, respectively. In contrast, B. africanus snail was found in all visited sites in the Lake whereas B. angolensis were collected exclusively from three sites in the Lake, including one site visited in the eastern region (Figure 4).

3.3. The Prevalence of Schistosoma DNA within B. africanus Group

A total of 30 of the 106 Bulinus snails (28.3%) were positive to the Schistosoma-specific screen using real-time PCR methods. DNA Schistosoma were detected in B. africanus and B. angolensis samples in eastern and southern shores of the Mangochi District. The positives samples were collected from the Lake and connected waterbodies.

3.4. Phylogenetics Analysis

The maximum likelihood and neighbour-joining trees of cox1 gene generated strongly supported phylogenies that showed the presence of four species within the Bulinus africanus group in Lake Malawi in addition to two species from the B. truncatus complex and B. forskali group (Figure 5). The phylogenetic trees illustrate similar results of genetic differentiation of B. africanus groups samples. In the cox1 tree, the B. africanus group specimens are split into four groups, namely B. africanus, B. globosus, B. angolensis and Bulinus sp.

3.5. The Differences between Molecular and Morphological Identification

Figure 6 generally shows a problematic identification based on the shell morphology among all four groups. Of note, the B. globosus (Figure 6A) from Mangochi, Blantyre and Chikhwawa District populations are very similar by visual inspection of the shell despite far geographical distances and different environmental conditions. Moreover, the B. globosus shell was relatively higher than the other groups, which are very similar and overlap in obtained shell measurements.

Although the species of the B. africanus group seemed to be similar, a closer investigation demonstrated a subtle morphological distinction in B. globosus only: for example, a curved columellar edge, a basal margin join, and a more pronounced and distinctive notch, or ‘tooth’,on the inside B. globosus shell; in other species, most of the shells show no extra curvature in the basal margin, and the notch is absent (Figure 6 and Figure 7).

4. Discussion

Due to the scale and spread of snails and their contribution to schistosomiasis transmission, updating information and monitoring is important to understand the disease and transmission dynamic. For example, detection of the intermediate host of S. mansoni in 2017 has led to increased disease surveillance and revealed the emergence of intestinal schistosomiasis in Mangochi District in 2018, followed by an outbreak of intestinal schistosomiasis in primary schools in Mangochi District in 2019 [16,17]. Additionally, detecting schistosomes hybrid in the same region is a significant epidemiology change and reveals potential new facts about schistosomiasis changes occurring in Lake Malawi (2).

During the past decades, the identification of natural populations and species belonging to the B. africanus group has been well known as problematic and sometimes indecisive [8,12]. Although the attempts were made to use some morphology characters such as microsculpture of the shell, it was sometimes misleading rather than helpful [18,19]. However, the combination of morphological and molecular data analysis conducted in this study suggested that at least two separate medical important species from B. africanus group species are present in Mangochi District and need to be assessed through a taxonomic appraisal. To our knowledge, this is the first investigation that thoroughly focuses on B. africanus group population from Malawi at a molecular level.

With regard to morphology, the B. globosus shells in Malawi can be distinguished from B. africanus shells by the distinctive small notch or tooth in the truncated columella margin of the aperture inside (Figure 7). A striking finding is that all molecular identification used in this study reveal that B. africanus, the intermediate host for S. haematobium and S. mattheei, is present in Lake Malawi; this species has not been reported before in Malawi. We validated the identification of B. africanus by sequence analysis, PCR-RFLP and phylogenetic tree. Finding a new intermediate host in Lake Malawi is considered a new significant alteration in the epidemiology of schistosomiasis transmission in Lake Malawi. The detection of DNA schistosomes in real-time PCR screening test in B. africanus is expected as it is known as an intermediate host for schistosomiasis. In contrast, detection of DNA schistosomes in B. angolensis was unexpected because B. angolensis has not been reported as an intermediate host for schistosomiasis. Therefore, a future study is suggested to investigate the roles of the B. africanus group in schistosomiasis in Lake Malawi.

Two possible explanations of the colonisation of B. africanus observed in 2017 and 2018 in Lake Malawi might be suggested. The colonisation might have recently occurred, similar to the colonisation of Biomphalaria, which was observed in the same surveys [16]. The second scenario is presumed to be because of mistaken identity for B. globosus in Lake Malawi in previous studies in light of no report of using molecular identification in this population. Additionally, B. africanus was not considered to go beyond the immediate southern African countries. Hence, the molecular applications used in this study, such as blast, sequence analysis and PCR-RFLP rapid essay, sustains the need to develop molecular applications to identify the B. africanus group, particularly in distinguishing between B. globosus and B. africanus.

Molecular identification using cox1 gene is a popular method for freshwater snails, as is species identification through sequence comparison with available reference data such as GenBank [4]. Furthermore, cox1 evolution is rapid enough to help discriminate species [20]. However, the genetic variation in the cox1 marker requires a good selection for critical primers, particularly for Bulinus [4,7]. The selected primers for the B. africanus group and the sequences generated in this study provide information, and data that can be used for comparison in different populations when trying to understand the distribution of B. africanus group species and their role in disease transmission.

Sequence analysis of restriction sites suggested that Sac1 enzyme could be a species-specific marker for B. globosus while HaeIII enzyme is a marker for B. africanus in molecular identification. Upon Sac1 digestion, only B. globosus sequences were cut, whereas B. africanus, B. angolensis and Bulinus sp. remained intact. Besides, upon double digestion with Sac1 and HaeIII, B. globosus and B. africanus produced a restriction profile where two fragments were generated that were estimated to be approximately 400 bp and 220 bp for B. globosus and two bands at a similar size at 300 bp in B. africanus. These restriction data show that a stable genetic marker has been found for B. globosus from Malawi. It would now be interesting to ascertain whether the B. africanus group from different parts of Africa can be similarly differentiated.

Despite the significant increase in Bulinus density after the rainy season in 2018, B. globosus was not directly present within the Lake during both surveys. Interestingly, the cox1 gene sequence generated for B. globosus samples collected from a river in Blantyre, a stream in Chikwawa and a stream in Mangochi District were identical through the distance and different environment. These data sustain the belief that B. globosus is not present within this part of the Lake, at least in Mangochi District, reflecting environmental factors such as aquatic plants might play a role in its distribution.

The phylogenetic tree in this study used two methods to measure the evolutionary relatedness among the four taxa collected in this study, with two known species from B. truncatus/tropicus complex collected from Lake Malawi and reference samples from GenBank from the B. africanus group.

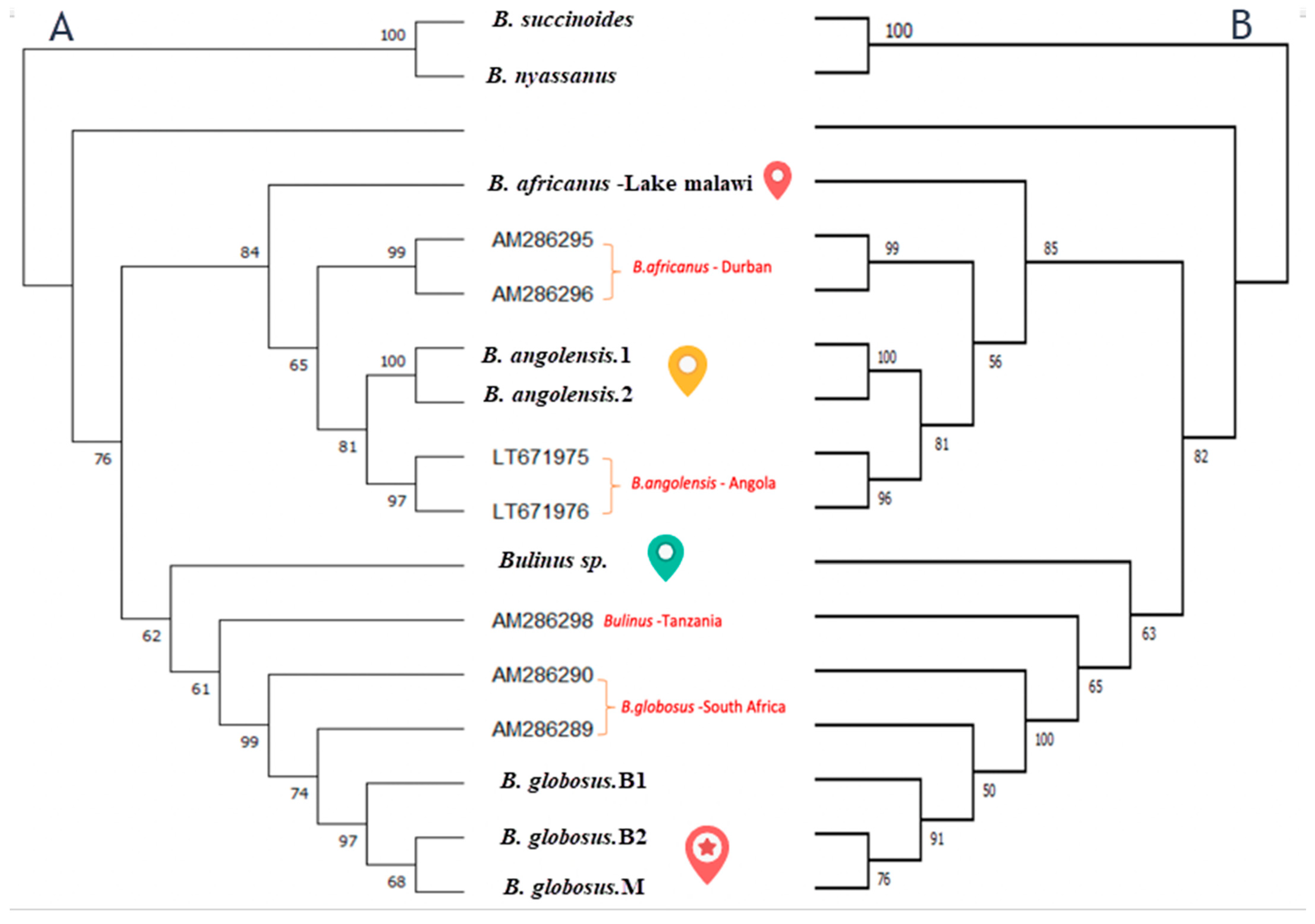

The neighbour-joining and maximum likelihood trees inferred an evolutionary relationship between the four taxa groupings within the specimens investigated (Figure 5). Phylogenetic analysis of the cox1 has confirmed that B. africanus from Lake Malawi can be separated from B. globosus collected from different areas in Malawi. Moreover, the tree is further evidence confirming three species from the B. africanus group are found in the lake: B. africanus, Bulinus sp. and B. angolensis. The latter could indicate a new species has not been reported before in Lake Malawi, which would probably reflect mistaken identification because of the similarity in shell morphology between B. angolensis and B. globosus. Our study provides further evidence for recent study that has suggested based on a genetic investigation that B. angolensis is more closely related to the B. africanus group than originally documented belonging to the B. truncatus/tropicus group [4]. However, looking more closely, tree and sequence analyses in our study found that B. angolensis from Lake Malawi is closer to B. africanus than B. globosus. It is worthwhile noting that Brown (1994) made the point that the treatment of B. angolensis is unclear partly as the molecular properties were unknown [12].

Interestingly, this study indicated few samples are similar to the B. africanus group based on morphology investigation. However, we could not determine the name of the taxa based on sequence analysis. The specimen shares a node in the phylogenetic tree with B. africanus and B. globosus specimens but is separate from these species. Although no medical report is known yet for B. angolensis and Bulinus sp., finding these species with evolutionary closeness to the B. africanus group species is providing data that deserve further investigation and could open the door for potential medical importance for these two species.
