Case Report

Putative Pathogenic Genes of Leptospira interrogans and Leptospira weilii Isolated from Patients with Acute Febrile Illness

by
Amira Wahida Mohamad Safiee
1,
Mohammad Ridhuan Mohd Ali
2,
Muhammad Zarul Hanifah Md Zoqratt
3,
Tan Hock Siew
3,
Chua Wei Chuan
4,5,
Lee Lih Huey
4,
Mohd Hashairi Fauzi
5,6,
Alwi Muhd Besari
5,7,
Chan Yean Yean
4,5 and
Nabilah Ismail
4,5,*
1
Microbiology Transfusion Unit, Department of Transfusion Medicine, Hospital Queen Elizabeth II, Lorong Bersatu Off Jalan Damai, Kota Kinabalu 88300, Sabah, Malaysia
2
Bacteriology Unit, Infectious Disease Research Center (IDRC), Institute for Medical Research, National Institutes of Health (NIH) Complex, Setia Alam, Shah Alam 40170, Selangor, Malaysia
3
School of Science, Monash University Malaysia, Bandar Sunway 47500, Selangor, Malaysia
4
Department of Medical Microbiology & Parasitology, School of Medical Sciences, Universiti Sains Malaysia, Health Campus, Kubang Kerian 16150, Kelantan, Malaysia
5
Hospital Universiti Sains Malaysia, Universiti Sains Malaysia, Health Campus, Kubang Kerian 16150, Kelantan, Malaysia
6
Department of Emergency Medicine, School of Medical Sciences, Universiti Sains Malaysia, Health Campus, Kubang Kerian 16150, Kelantan, Malaysia
7
Department of Medicine, School of Medical Sciences, Universiti Sains Malaysia, Health Campus, Kubang Kerian 16150, Kelantan, Malaysia
*
Author to whom correspondence should be addressed.
Trop. Med. Infect. Dis. 2022, 7(10), 284; https://doi.org/10.3390/tropicalmed7100284
Submission received: 11 September 2022 / Revised: 29 September 2022 / Accepted: 30 September 2022 / Published: 5 October 2022

Abstract

:
Leptospirosis is an important worldwide tropical disease caused by pathogenic Leptospira spp. The determination of virulence genes is important, as it influences patients’ clinical manifestations and clinical outcomes. This case report focused on detecting the pathogenic genes of Leptospira in association with the clinical manifestations of patients at the Hospital Universiti Sains Malaysia, Malaysia, who presented with acute febrile illness. Two cases were found and, to the best of our knowledge, these were the first two cases in Malaysia in which patients presented with febrile illness were associated with successful Leptospira isolation from clinical samples. Both clinical isolates were identified by 16S rRNA sequencing as Leptospira weilii and Leptospira interrogans, respectively, and they were classified as pathogenic Leptospira by the presence of different pathogenic genes, based on a polymerase chain reaction (PCR) amplification of targeted genes. This report emphasizes that different infecting Leptospira species and the presence of different virulence factors cause a slight difference in clinical manifestations and laboratory findings of leptospirosis. Genomic sequencing and annotation revealed the detection of classical leptospiral virulence factor genes that were otherwise missed using PCR for detection of Leptospira weilii genome B208.

1. Introduction

Leptospirosis is recognized as a great mimicker because of its enormously wide variety of symptoms, ranging from subclinical diseases, such as a flu-like illness, to a severe syndrome of multi-organ infection with high mortality. The symptoms can imitate influenza, hepatitis, meningitis, viral hemorrhagic fever, and dengue fever. One study reported that 38% of the leptospirosis cases were misdiagnosed as hemorrhagic fever or dengue fever, due to similar clinical appearances [1]. The history of exposure and risk factors compatible with leptospirosis should alert clinicians to a possible diagnosis. Acute leptospirosis constantly presents with chills, headache, fever, conjunctival suffusion, vomiting, severe myalgia, nausea, anorexia, and malaise [2]. The vast majority of the infections are caused by pathogenic species, such as L. interrogans, L. kirschneri, L. borgpetersenii, L. noguchii, L. santarosai, L. weilii, and L. alexanderi [3]. The different species represent differences in DNA relatedness and possibly different geographical distributions, virulence, and clinical presentations.
The pathogenicity of Leptospira in humans are complex mechanisms that involve multi-protein interactions, including adhesion, that overcome host defense mechanisms followed by the expression of several virulence genes. Virulence genes are genes that code for factors, or for enzymes that produce factors, that are involved in interactions with the host; they are directly responsible for pathological damage during infection, and they are absent in nonpathogenic organisms [4].
This report focuses on detecting the pathogenic genes of Leptospira in association with the clinical manifestations of patients at the Hospital Universiti Sains Malaysia, Malaysia, who presented with acute febrile illness.

2. Description of the Cases

Here, we report two cases of leptospirosis patients in Malaysia who presented with febrile illness, in association with successful Leptospira isolation from clinical samples.
The first case (B208) was a 30-year-old man with no known medical illness who presented with febrile episodes for 3 days that were associated with myalgia, arthralgia, and headache. In addition, he had prominent gastrointestinal manifestations, presented with diarrhea for 5 days, and experienced poor oral intake. His further history revealed that he was involved with jungle trekking in a rural area, and that two of his companions developed similar symptoms. On admission to the medical ward, his vital signs were stable, with normal oxygenation and blood pressure. He was tachycardic and his body temperature was elevated. Physical examination was unremarkable, except for conjunctival suffusion. There was no hepatosplenomegaly and no palpable cervical lymphadenopathy. A laboratory investigation revealed slight leucocytosis at 12.5 × 109/L (the normal range is 4 to 11 × 109/L) and elevated C-reactive protein at >200 mg/L (the normal range is <10 mg/L), with otherwise normal blood cell counts. Liver and renal function tests were also normal. Leptospira IgM enzyme-linked immunosorbent assay (ELISA) and rapid Leptospira IgM Duo rapid test (ImmuneMed, Korea) were negative; however, an in-house real-time polymerase chain reaction (qPCR) was positive for Leptospira DNA and the isolation of Leptospira was also positive at day seven of cultivation. The patient was treated with intravenous ceftriaxone for 4 days, followed by 3 days of oral doxycycline, and he required intravenous hydration for 2 days. He subsequently became afebrile after 3 days of antimicrobial therapy and he was discharged 4 days after admission.
The second case (B004) was a 19-year-old man who was previously healthy and presented with a high-grade fever for 6 days. The febrile episodes were associated with nausea and persistent vomiting for 3 days, with epigastric pain and a poor appetite. On further questioning, the patient indicated that he had a history of swimming in a river about 10 days prior to the illness. As in the first case, the patient was tachycardic and had a raised body temperature on initial examination. Otherwise, the patient’s blood pressure and oxygenation were normal. On abdominal examination, there was palpable tender liver at a two-finger breadth below the costal margin. The rest of the physical examination was unremarkable, with no jaundice or conjunctival suffusion noted. A laboratory investigation revealed that the patient had leukocytosis, with otherwise normal blood counts. His C-reactive protein was elevated at more than 200 mg/L (the normal range is <10 mg/L). There was also renal involvement with urea at 10.6 mmol/L (the normal range is 2.5 to 6.7 mmol/L), and creatinine at 182 μmol/L (the normal range is 70 to 100 μmol/L). The liver function test was normal. The Leptospira IgM Duo rapid test result (ImmuneMed, Korea) was intermediate; however, the microscopic agglutination test (MAT) result was negative. Then, Leptospira DNA was detected by in-house qPCR, and the isolation of Leptospira was positive on day 11 of cultivation. The patient initially required intravenous fluid and was treated with parenteral ceftriaxone for 4 days; subsequently, this was stepped down to 3 days of oral doxycycline. The condition improved and he was discharged 4 days after admission, with advice for an outpatient review of his renal profile.

3. Materials and Methods

Six ml of blood samples were collected from each patient prior to antibiotic administration and after obtaining their informed consent. The diagnosis of leptospirosis in both cases was confirmed by qPCR and positive isolation of Leptospira spp. Both clinical isolates, B208 and B004, were identified by 16S rRNA sequencing as L. weilii B208 (GenBank accession number JAMKEM000000000.1) and L. interrogans B004 (GenBank accession number JAMKEN000000000.1), respectively. Whole genomic sequencing for both isolates was performed and analyzed.

3.1. qPCR Detection of Leptospira

qPCR detection of Leptospira DNA was carried out, following a previous protocol [5]. Briefly, following DNA extraction, 8 µL of patient DNA was added to a PCR mix containing 1× Biorad SsoAdvanced™ Universal Probes Supermix, 200 nM forward and reverse primers, 100 nM probe, and PCR-grade water (adjusted to a total volume of 20 µL). The reactions were subjected to a thermal cycling condition, consisting of 95 °C (5 min) followed by 50 cycles of 95 °C for 30 s and 61.3 °C for 30 s.

3.2. Leptospira Isolation

The standard method to isolate Leptospira from the blood sample was by inoculating 1 to 5 drops (100 to 200 µL) of whole blood directly into EMJH media. The volume of the whole blood used for culturing was lower to avoid the inhibition of Leptospira growth by hemoglobin, antibiotics, antibodies, and other blood component factors [6,7]. The positive cultures from both patients were amplified and identified by PCR on the 16S rRNA gene by sequencing. In addition, the presence of the pathogenic genes was determined by using nine pathogenic genes: lfb1, flaB, OmpL1, ligA, ligB, ligC, lipL21, lipL32, and lipL41.

3.3. PCR Amplification of Virulence Genes

Amplification of the DNA was performed in a 25 µL reaction containing 1 mM of each primer, 12.5 µL of DreamTaq Green PCR Master Mix (Thermo Scientific, Malaysia), 2 µL of DNA template, and 8 µL of DNase-free water. The PCR cycling condition consisted of an initial denaturation step at 95 °C for 5 min, followed by 30 amplification cycles of denaturation at 95 °C for 30 s, annealing at a specified temperature for each primer for 30 s and extension at 72 °C for 30 s. A final extension step was performed at 72 °C for 5 min. The PCR cycles used in this study were based on the manufacturer’s recommendations for PCR Master Mix (Thermo Scientific, Selangor, Malaysia).

3.4. Genome Sequencing, Assembly, and Quality Control

Genomic DNA was extracted from bacterial isolates using an MN NucleoSpin Tissue Genomic DNA Purification Kit (Apical Scientific, Selangor, Malaysia). The genomic DNA was quantitated using a Multiskan Sky Microplate Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) and a Qubit Fluorometer (Bio-Diagnostics, Selangor, Malaysia) before being shipped for library preparation at Bio3 Scientific Sdn Bhd company (Selangor, Malaysia). DNA fragmentation was carried out using Covaris S220 (Covaris, Woburn, MA, USA), followed by end repair, dA-tailing, adapter ligation, and purification using a VAHTS Universal DNA Library Prep Kit for Illumina (Nanjing Vazyme Biotech Co., Nanjing, China). The Agilent 2100 (Agilent, Santa Clara, CA, USA) and the Qubit Fluorometer (Thermo Fisher Scientific, Waltham, MA, USA) were used to determine library quality. Whole-genome sequencing was performed on a Novaseq 6000 platform (Illumina, San Diego, CA, USA). Upon completion, sequencing reads were quality-filtered using a FastQC (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/; access date 10 February 2022) and adapter and were trimmed off using TrimGalore (https://www.bioinformatics.babraham.ac.uk/projects/trim_galore/; access date 10 February 2022) and CutAdapt (http://code.google.com/p/cutadapt/; access date 10 February 2022) [8] before genome assembly using SPAdes (http://bioinf.spbau.ru/spades; access date 10 February 2022) [9]. The quality of the genome assembly was assessed via EvalG (https://patricbrc.org/app/Annotation; access date 10 February 2022) [10].

3.5. Genomic Annotation

Genome annotation was carried out using Bakta version 1.3.3 (https://github.com/oschwengers/bakta; access date 10 February 2022) (database schema 3) [11]. The protein database included the UniRef protein sequence cluster universe. Then, reported Leptospira virulence genes were searched from the genome annotations [12], according to UniRef protein IDs (Table 1):
Annotation of antimicrobial resistance genes and virulence factor genes was conducted using Abricate (https://github.com/tseemann/abricate; access date 10 February 2022) against the comprehensive antibiotic resistance database (CARD) database and the virulence factor database (VFDB) database, respectively [13,14].

3.6. Taxonomic Assignment and Phylogenomic Tree Construction

Taxonomic assignment was carried out using GTDBtk (https://github.com/Ecogenomics/GTDBTk; access date 10 February 2022) against GTDB database release 202. An ANI value of over 95% in GTDBtk confirmed the assignment of the B004 genome as L. interrogans and the B208 genome as L. weilii.
The two genomes were analyzed against closely related Leptospira genomes that were accessible from the NCBI GenBank and RefSeq databases, based on SNPs. SNP calls were made against the sample genome, using snippy (https://github.com/tseemann/snippy; access date 10 February 2022). For sample B004 (L. interrogans), another 31 L. interrogans were used together for phylogenomic tree construction (gls454012v02 assembly as outgroup). For genome B208 (L. weilii), another 18 L. weilii genomes were included, with assembly ASM200984v1 (L. alexanderi 56659) as the outgroup. Then, variant calls of respective Leptospira species were merged, using the snippy-core program.
The core SNP tree was constructed from merged variant calls using Gubbins v3.1.6 (https://github.com/nickjcroucher/gubbins; access date 10 February 2022) [15]. The phylogenetic tree was visualized using iTOL v6 (https://itol.embl.de/; access date 10 February 2022) [16].

3.7. Multi Locus Sequence Typing (MLST)

The MLST assignment was carried out against the pubMLST database, using the software MLST (https://github.com/tseemann/mlst; access date 10 February 2022) [17].

4. Results

4.1. Leptospirosis Investigation Results

The leptospirosis investigation results for both cases are summarized in Table 2.

4.2. Whole-Genome Sequencing

The taxonomy of L. weilii and L. interrogans was further confirmed based on whole-genome sequencing using GTDBtk (GTDB release 202). Both of the isolates were classified as pathogenic Leptospira and were determined by the presence of five and nine pathogenic genes, respectively, as shown in Table 3, based on the PCR amplification of the targeted genes. In this study, PCR products were amplified in all tested primers, suggesting that the second patient’s isolate expressed all nine of the tested pathogenic genes, while the first patient’s isolate only expressed lfb1, flaB, ligB, ligC, and lipL32 genes.
MLST sequence type based on Leptospira scheme assigned genome B004 as sequence type 249, while there was no sequence type for genome B208. The raw output result from the MLST for L. interrogans and L. weilii are presented in Table 4 and Table 5, respectively.

4.3. Phylogenomic Study

The phylogenomic relationship of the B208 and B004 genomes conformed with the distribution of the virulence genes (Figure 1 and Figure 2).

5. Discussion

Leptospirosis is an endemic disease with global distribution, especially in Asia. In recent years, there have been increasing numbers of leptospirosis infection cases in Malaysia [18,19,20]. A case report showed that a real-time PCR assay was successfully used in a postmortem diagnosis of a woman whose death was caused by L. interrogans [21]. One study reported positively detected Leptospira cases and related risk factors in Sarawak, Malaysia [22]. Leptospirosis co-infected with other pathogens were normally seen in neighboring countries [23,24].
Advancements in molecular technology enable the expansion of the classical divisions of L. interrogans and L. biflexa into 64 species, based on DNA relatedness. These divisions are further classified into pathogenic species, non-pathogenic species, and species of indeterminate pathogenicity [25,26]. These classifications are quite different from the serologic classification, which may be of epidemiological value. The differences in genetic makeup among the pathogenic species may lead to the expression of different virulence factors, which may result in differences in clinical presentations [27].
Both of the clinical isolates in this study, L. interrogans and L. weilii, were pathogenic species. The slight difference in the presentations may be due to infection by different species of Leptospira with different virulence factors. Leptospira interrogans has a global distribution and there are some subgroups that are mostly isolated in the Asia–Pacific regions [28]. In comparison, L. weilii is a less commonly encountered species that has been previously reported in Australia [29]. In addition, the geographical distribution is related to the serovars [30]. However, a large number of patients infected by Leptospira have asymptomatic infections, particularly patients from endemic areas. Mild leptospirosis is the most common form of the disease, presenting in 90% of the cases [2] of patients who came from the endemic areas of leptospirosis.
Pathogenic Leptospira are responsible for human or animal infections. Although the pathogenic mechanisms of Leptospira are not clearly defined, potential virulence factors include lipopolysaccharide (LPS), OMPs, and adhesion molecule genes that are present in pathogenic Leptospira may help in understanding pathogenicity mechanisms. In animal cells, the pathways of Toll-like receptor 2 (TLR2) and Toll-like receptor 4 (TLR4) activate the host target, contrary to human cells that involve the activation of macrophage via TLR2 with the existence of CD14 [31]. The infection of Leptospira could result in problems with multiple organ systems or loss of life in unintentional hosts, such as humans, or merely moderate chronic or asymptomatic infections in reservoir hosts, including rodents [1]. All such primers were used to target the virulence factors and can be used to distinguish pathogenic from the saprophytic Leptospira. The differentiation of the pathogenic Leptospira is also crucial in classifying the pathogenic status for epidemiological and taxonomical study.
The role and contribution of individual virulence factors in the pathogenesis of leptospirosis are still not well defined. A combination of mechanisms, such as adhesions that allow adherence, immune-mediated responses, the ability of the host to recognize leptospiral LPS, toxin production, and surface proteins that result in immune evasion, may lead to a broad spectrum of clinical manifestation [32]. However, the spectrum and severity of clinical manifestations may also be influenced by several other factors, such as the duration of exposure to the pathogen, inoculum doses, and individual susceptibility.
Certain virulence factors found in pathogenic Leptospira can confer the ability to adhere to and enter mammalian host cells [12]. Several virulence factors, such as lipL32 and leptospiral immunoglobulin-like genes ligA, ligB, and ligC, were only found in pathogenic Leptospira and not in their non-pathogenic counterparts [12,33]. The lig sequence is a virulence factor and plays a role in host cell attachment and invasion during Leptospira pathogenicity; ligA and ligC are present in a limited number of pathogenic serovar, while ligB is universally distributed among all of the pathogenic strains. Because ligB is present among all the pathogenic Leptospira strains, it may be useful in the identification and classification of Leptospira [34]. A drastic reduction in L. interrogans survival upon serum challenge was observed after experimenting with a concomitant and complete silencing of both LigA and LigB proteins by CRISPR-interference (CRISPRi) [35]. This process possibly signifies that ligA and ligB are virulence factors that enhance survival. In this study, we did not recover known Leptospira virulence factors from VFDB (Figure 1 and Figure 2). Based on the detection of known Leptospira virulence factors of known L. interrogans and L. weilii genomes from genome annotation, we found that many of those virulence factors were broadly shared across all analyzed genomes. Genomic detection of a complete set of targeted virulence factors in the L. weilii genome B208 (Figure 1) contradicted PCR detection, as amplification for genes ligA, lipL21, lipL41, and ompL1 on genome B208 were negative (Table 3). This suggests that the PCR amplification method is limited to protein sequences of L. interrogans, while possibly failing for other Leptospira species. This highlights the importance of reassessing conventional leptospiral diagnostic methods. For instance, PCR methods will fail to detect genes whenever mutations occur at the primer binding sites, which will consequentially lead to failure of primers to hybridizes to the target gene. Future PCR detection methods should account for the dissimilarity in sequences found in other Leptospira virulence genes and target more conserved genomic regions that are exclusive to pathogenic Leptospira genomes.
Another virulence factor, the outer membrane protein (OMP), plays an important role in pathogen virulence mechanisms, because this protein may evade the host’s immune response [36]. OmpL1, LipL21, LipL32, and LipL41 have been used in this study to establish the pathogenicity of the isolate. All of the primers targeted a known gene sequence that was reported to be preserved among more than 200 of the pathogenic Leptospira serovars [34,36,37,38,39]. OmpL1 is a porin expressed in pathogenic Leptospira strains that allows the dispersion of hydrophilic solutes through the external membrane to the periplasm [40]. LipL32 is the most abundant protein in pathogenic Leptospira; it is absent in nonpathogenic organisms and expressed during human infection. It is mostly used in leptospirosis studies [36]. The sequence and expression of LipL32 are highly conserved among pathogenic Leptospira species. LipL41 is one of the immunogenic OMPs that is surface-exposed and it is expressed during infections [37,38]. In addition to those primers, FlaB and Lfb were used to identify pathogenic Leptospira. The FlaB primer only amplifies a specific fragment from pathogenic Leptospira. A previous study reported that the FlaB PCR-based approach is an effective method for distinguishing and identifying the pathogenic Leptospira isolates [41,42].
The intake of doxycycline effectively cured leptospiral infection in both cases. Our results showed that the gene vatB was present in the majority of our L. interrogans genomes, but it was absent in L. weillii genomes, which suggest its role in L. interrogans survival, unlike its role with respect to L. weillii. If vatB is of no importance, the expression of vatB presents as a metabolic liability to L. interrogans. This indicates that, despite observations of horizontal gene transfer (HGT) in other pathogens, such as Acinetobacter baumannii [43], Staphylococcus aureus [44], and Vibrio cholerae [45], the conservation of the antimicrobial resistance (AMR) profile across Leptospira genomes suggests that HGT occurs minimally in Leptospira.

6. Conclusions

This report emphasized that different infecting Leptospira species and the presence of different virulence factors cause a slight difference in clinical manifestations and laboratory findings of leptospirosis. Genomic sequencing and annotation revealed the detection of classical leptospiral virulence factor genes that were otherwise missed using PCR for detecting L. weilii genome B208. Further large-scale investigation is needed to study the broad clinical manifestation of the disease in relation to species or serovar variation, antimicrobial susceptibility testing, virulence, and/or the pathogenicity of the Leptospira species.

Author Contributions

Conceptualization, N.I. and C.Y.Y.; methodology, N.I. and C.Y.Y.; formal analysis, A.W.M.S., M.R.M.A., M.Z.H.M.Z. and T.H.S.; investigation, A.W.M.S., M.R.M.A., M.Z.H.M.Z., T.H.S. and L.L.H.; resources, M.H.F., A.M.B., C.Y.Y. and N.I.; data curation, A.W.M.S., M.Z.H.M.Z., T.H.S. and C.W.C.; writing—original draft preparation, A.W.M.S. and C.W.C.; writing—review and editing, N.I., A.W.M.S., M.R.M.A., M.Z.H.M.Z., T.H.S. and L.L.H.; supervision, N.I and C.Y.Y.; project administration, N.I., M.H.F. and A.M.B.; funding acquisition, N.I., C.Y.Y. and M.R.M.A. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Long-Term Research Grant Scheme (203/PPSP/6770004), a Research University Grant (1001/PPSP/812144), and a Bridging Grant (304/PPSP/6316187).

Institutional Review Board Statement

This study was approved by the Human Research Ethics Committee, Universiti Sains Malaysia (USM/JEPeM/16090300).

Informed Consent Statement

Written informed consent was obtained from all subjects involved in this study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We would like to give special thanks to the staff at the Department of Medical Microbiology and Parasitology, Health Campus, Universiti Sains Malaysia, for their direct and indirect contributions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Noor Rafizah, A.A.; Aziah, B.D.; Azwany, Y.N.; Kamarul Imran, M.; Mohamed Rusli, A.; Mohd Nazri, S.; Nabilah, I.; Siti Asma’, H.; Zahiruddin, W.M.; Zaliha, I. Leptospirosis in Northeastern Malaysia: Misdiagnosed or coinfection? Int. J. Collab. Res. Intern. Med. Public. Health 2012, 4, 1419–1427. [Google Scholar]
  2. Forbes, A.E.; Zochowski, W.J.; Dubrey, S.W.; Sivaprakasam, V. Leptospirosis and Weil’s disease in the UK. Q. J. Med. 2012, 105, 1151–1162. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Bulach, D.; Adler, B. Leptospiral genomics and pathogenesis. In Current Topics in Microbiology and Immunology; Adler, B., Ed.; Springer International Publishing: Cham, Switzerland, 2018; pp. 189–214. [Google Scholar]
  4. Wassenaar, T.M.; Wim Gaastra, W. Bacterial virulence: Can we draw the line? FEMS Microbiol. Lett. 2001, 201, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Mohd Ali, M.R.; Mohd Safee, A.W.; Ismail, N.H.; Abu Sapian, R.; Mat Hussin, H.; Ismail, N.; Chan, Y.Y. Development and validation of pan-Leptospira Taqman qPCR for the detection of Leptospira spp. in clinical specimens. Mol. Cell. Probes 2018, 38, 1–6. [Google Scholar] [CrossRef]
  6. Ellinghausen, H.C.; Mccullough, W.G. Nutrition of Leptospira Pomona and growth of 13 other Serotypes: A serum-free medium employing oleic albumin complex. Am. J. Vet. Res. 1965, 26, 39–44. [Google Scholar]
  7. Faine, S.; Adler, B.; Bolin, C.; Perolat, P. Leptospira and Leptospirosis, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 1999; 295p. [Google Scholar]
  8. Martin, M. Cutadapt removes adapter sequences from high-throughput sequencing reads. EMBnet. J. 2011, 17, 10–12. [Google Scholar] [CrossRef]
  9. Bankevich, A.; Nurk, S.; Antipov, D.; Gurevich, A.A.; Dvorkin, M.; Kulikov, A.S.; Lesin, V.M.; Nikolenko, S.I.; Pham, S.; Prjibelski, A.D.; et al. SPAdes: A new genome assembly algorithm and its applications to single-cell sequencing. J. Comput. Biol. 2012, 19, 455–477. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Parrello, B.; Butler, R.; Chlenski, P.; Olson, R.; Overbeek, J.; Pusch, G.D.; Vonstein, V. and Overbeek, R. A machine learning-based service for estimating quality of genomes using PATRIC. BMC BBioinform. 2019, 20, 1–9. [Google Scholar]
  11. Schwengers, O.; Jelonek, L.; Dieckmann, M.A.; Beyvers, S.; Blom, J.; Goesmann, A. Bakta: Rapid and standardized annotation of bacterial genomes via alignment-free sequence identification. Microb. Genom. 2021, 7, 000685. [Google Scholar] [CrossRef]
  12. Ko, A.; Goarant, C.; Picardeau, M. Leptospira: The dawn of the molecular genetics era for an emerging zoonotic pathogen. Nat. Rev. Microbiol. 2009, 7, 736–747. [Google Scholar] [CrossRef]
  13. Jia, B.F.; Raphenya, A.R.; Alcock, B.; Waglechner, N.; Guo, P.Y.; Tsang, K.K.; Lago, B.A.; Dave, B.M.; Pereira, S.; Sharma, A.N.; et al. CARD 2017: Expansion and model-centric curation of the comprehensive antibiotic resistance database. Nucleic Acids Res. 2017, 45, D566–D573. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, L.H.; Zheng, D.D.; Liu, B.; Yang, J.; Jin, Q. VFDB 2016: Hierarchical and refined dataset for big data analysis—10 years on. Nucleic Acids Res. 2016, 44, D694–D697. [Google Scholar] [CrossRef] [PubMed]
  15. Croucher, N.J.; Page, A.J.; Connor, T.R.; Delaney, A.J.; Keane, J.A.; Bentley, S.D.; Parkhill, J.; Harris, S.R. Rapid phylogenetic analysis of large samples of recombinant bacterial whole genome sequences using Gubbins. Nucleic Acids Res. 2015, 43, e15. [Google Scholar] [CrossRef]
  16. Letunic, I.; Bork, P. Interactive Tree of Life (iTOL) v5: An online tool for phylogenetic tree display and annotation. Nucleic Acids Res. 2021, 49, W293–W296. [Google Scholar] [CrossRef] [PubMed]
  17. Jolley, K.A.; Maiden, M.C. BIGSdb: Scalable analysis of bacterial genome variation at the population level. BMC Bioinform. 2010, 11, 595. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Garba, B.; Bahaman, A.R.; Khairani-Bejo, S.; Zakaria, Z.; Mutalib, A.R. Retrospective Study of Leptospirosis in Malaysia. EcoHealth 2017, 14, 389–398. [Google Scholar] [CrossRef]
  19. Lim, J.K.; Murugaiyah, V.A.; Ramli, A.; Abdul Rahman, H.; Mohamed, N.; Shamsudin, N.; Tan, J.C. A Case Study: Leptospirosis In Malaysia. Webmed Cent. Infect. Dis. 2011, 2, WMC002764. [Google Scholar] [CrossRef]
  20. Rao, M.; Amran, F.; Kamaruzaman, A.A.; Hakim Esa, H.A.; Hameed, A.A.; Mohamed Shabery, N.A. Case Report: Fatal Human Leptospirosis Caused by Leptospira interrogans Genotype ST149. Am. J. Trop. Med. Hyg. 2010, 104, 216–218. [Google Scholar] [CrossRef]
  21. Hii, K.C.; Robie, E.R.; Saihidi, E.R.I.; Berita, A.; Alarja, N.A.; Xiu, L.S.; Merchant, J.A.; Binder, R.A.; Goh, J.K.T.; Guernier-Cambert, V.; et al. Leptospirosis infections among hospital patients, Sarawak, Malaysia. Trop. Dis. Tra Vaccines 2021, 7, 32. [Google Scholar] [CrossRef]
  22. Mazhar, M.; Kao, J.J.; Bolger, D.T. A 23-year-old man with leptospirosis and acute abdominal pain. Hawaii J. Med. Public Health 2016, 75, 291–294. [Google Scholar]
  23. Sachu, A.; Madhavan, A.; Vasudevan, A.; Vasudevapanicker, J. Prevalence of dengue and leptospirosis co-infection in a tertiary care hospital in South India. Iran J. Microbiol. 2018, 10, 227–232. [Google Scholar] [PubMed]
  24. Sonthayanon, P.; Chierakul, W.; Wuthiekanun, V.; Limmathurotsakul, D.; Amornchai, P.; Smythe, L.D.; Day, N.P.; Peacock, S.J. Molecular confirmation of co-infection by pathogenic Leptospira spp. and Orientia tsutsugamushi in patients with acute febrile illness in Thailand. Am. J. Trop. Med. Hyg. 2013, 89, 797–799. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Bratsch, N.; Fernandes, L.G.V.; Busch, J.D.; Pearson, T.; Rivera-Garcia, S.; Soltero, F.; Galloway, R.; Sahl, J.W.; Nally, J.E.; Wagner, D.M. Diverse lineages of pathogenic Leptospira species are widespread in the environment in Puerto Rico, USA. PLoS Negl. Trop. Dis. 2022, 16, e0009959. [Google Scholar] [CrossRef]
  26. Vincent, A.T.; Schiettekatte, O.; Goarant, C.; Neela, V.K.; Bernet, E.; Thibeaux, R.; Ismail, N.; Mohd Khalid, M.K.N.; Amran, F.; Masuzawa, T.; et al. Revisiting the taxonomy and evolution of pathogenicity of the genus Leptospira through the prism of genomics. PLoS Negl. Trop. Dis. 2019, 13, e0007270. [Google Scholar] [CrossRef] [PubMed]
  27. Bourhy, P.; Collet, L.; Brisse, S.; Picardeau, M. Leptospira mayottensis sp. nov., a pathogenic species of the genus Leptospira isolated from human. Int. J. Syst. Evol. Microbiol. 2014, 64, 4061–4067. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Kumbhare, M.R.; Surana, A.R.; Arote, R.A.; Borse, G.D. Current status of Leptospirosis: A zoonotic tropical disease. Int. J. Microbiol. Curr. Res. 2019, 1, 14–19. [Google Scholar] [CrossRef] [Green Version]
  29. Slack, A.T.; Symonds, M.L.; Dohnt, M.F.; Corney, B.G.; Smythe, L.D. Epidemiology of Leptospira weilii serovar Topaz infections in Australia. Commun. Dis. Intell. 2007, 31, 216–222. [Google Scholar]
  30. Boonsilp, S.; Thaipadungpanit, J.; Amornchai, P.; Wuthiekanun, V.; Bailey, M.S.; Holden, M.T.G.; Zhang, C.C.; Jiang, X.G.; Koizumi, N.B.; Taylor, K.; et al. A single multilocus sequence typing (MLST) scheme for seven pathogenic Leptospira species. PLoSNegl. Trop. Dis. 2013, 7, e1954. [Google Scholar] [CrossRef] [Green Version]
  31. Evangelista, K.V.; Coburn, J. Leptospira as an emerging pathogen: A review of its biology, pathogenesis and host immune responses. Future Microbiol. 2010, 5, 1413–1425. [Google Scholar] [CrossRef] [Green Version]
  32. Nahori, M.A.; Fournié-Amazouz, E.; Que-Gewirth, N.S.; Balloy, V.; Chignard, M.; Raetz, C.R.; Saint Girons, I.; Werts, C. Differential TLR recognition of leptospiral lipid A and lipopolysaccharide in murine and human cells. J. Immunol. 2005, 175, 6022–6031. [Google Scholar] [CrossRef] [Green Version]
  33. Samrot, A.V.; Sean, T.C.; Bhavya, K.S.; Sahithya, C.S.; Chan-Drasekaran, S.; Palanisamy, R.; Robinson, E.R.; Subbiah, S.K.; Mok, P.L. Leptospiral infection, pathogenesis and its diagnosis—A review. Pathogens 2021, 10, 145. [Google Scholar] [CrossRef] [PubMed]
  34. Vieira, M.L.; Teixeira, A.F.; Pidde, G.; Ching, A.T.C.; Tambourgi, D.V.; Nascimento, A.L.T.O.; Herwald, H. Leptospira interrogans outer membrane protein LipL21 is a potent inhibitor of neutrophil myeloperoxidase. Virulence 2018, 9, 414–425. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Fernandes, L.G.V.; Hornsby, R.L.; Nascimento, A.L.T.O.; Nally, J.E. Genetic manipulation of pathogenic Leptospira: CRISPR interference (CRISPRi)-mediated gene silencing and rapid mutant recovery at 37 °C. Sci. Rep. 2021, 11, 1768. [Google Scholar] [CrossRef] [PubMed]
  36. Hsu, S.H.; Hung, C.C.; Chang, M.Y.; Ko, Y.C.; Yang, H.Y.; Hsu, H.H.; Tian, Y.C.; Chou, L.F.; Pan, R.L.; Tseng, F.G.; et al. Active components of Leptospira outer membrane protein LipL32 to toll-like receptor 2. Sci. Rep. 2017, 7, 8363. [Google Scholar] [CrossRef] [Green Version]
  37. Takahashi, M.B.; Teixeira, A.F.; Nascimento, A.L.T.O. The leptospiral LipL21 and LipL41 proteins exhibit a broad spectrum of interactions with host cell components. Virulence 2021, 12, 2798–2813. [Google Scholar] [CrossRef]
  38. Haake, D.A.; Zuckert, W.R. The leptospiral outer membrane. Curr. Top. Microbiol. Immunol. 2015, 387, 187–221. [Google Scholar] [CrossRef] [Green Version]
  39. Dezhbord, M.; Esmaelizad, M.; Khaki, P.; Fotohi, F.; Moghaddam, A.Z. Molecular identification of the ompL1 gene within Leptospira interrogans standard serovars. J. Infect. Dev. Ctries. 2014, 8, 688–693. [Google Scholar] [CrossRef] [Green Version]
  40. Yap, M.L.; Sekawi, Z.; Chee, H.Y.; Alan Ong, H.K.; Neela, V.K. Comparative analysis of current diagnostic PCR assays in detecting pathogenic Leptospira isolates from environmental samples. Asian. Pac. J. Trop. Med. 2019, 12, 472–478. [Google Scholar] [CrossRef]
  41. Natarajaseenivasana, K.; Vijayacharib, P.; Sharmab, S.; Sugunanb, A.P.; Vedhagiria, K.; Selvina, J.; Sehgalb, S.C. FlaB PCR-based identification of pathogenic leptospiral isolates. J. Microbiol. Immunol. Infect. 2010, 43, 62–69. [Google Scholar] [CrossRef] [Green Version]
  42. Chin, V.K.; Lee, T.Y.; Lim, W.F.; Wan Shahriman, Y.W.Y.; Syafinaz, A.N.; Zamberi, S.; Maha, A. Leptospirosis in human: Biomarkers in host immune responses. Microbiol. Res. 2018, 207, 108–115. [Google Scholar] [CrossRef]
  43. Hernández-González, I.L.; Mateo-Estrada, V.; Castillo-Ramirez, S. The promiscuous and highly mobile resistome of Acinetobacter baumannii. Microb. Genom. 2022, 8, 000762. [Google Scholar] [CrossRef] [PubMed]
  44. Lindsay, J.A. Staphylococcus aureus genomics and the impact of horizontal gene transfer. Int. J. Med. Microbiol. 2014, 304, 103–109. [Google Scholar] [CrossRef] [PubMed]
  45. Verma, J.; Bag, S.; Saha, B.; Kumar, P.; Ghosh, T.S.; Dayal, M.; Senapati, T.; Mehra, S.; Dey, P.; Desigamani, A.; et al. Genomic plasticity associated with antimicrobial resistance in Vibrio cholerae. Proc. Natl. Acad. Sci. USA 2019, 116, 6226–6231. [Google Scholar] [CrossRef] [PubMed]

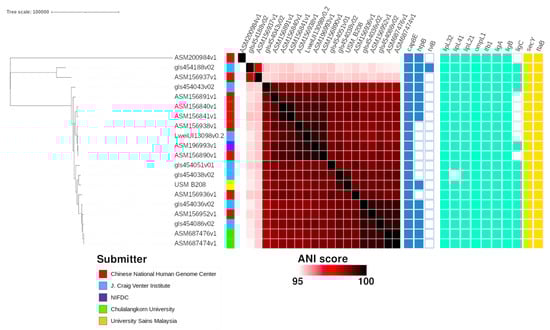

Figure 1. Phylogenomic tree of B208 genome against other L. weilii genomes. Metadata information provided in order are genome submitter, pairwise ANI score, predicted virulence genes in the virulence factor database (VFDB) and predicted virulence genes [12]. Assembly ASM200984v1 (L. alexanderi) acts as the outgroup.
Figure 1. Phylogenomic tree of B208 genome against other L. weilii genomes. Metadata information provided in order are genome submitter, pairwise ANI score, predicted virulence genes in the virulence factor database (VFDB) and predicted virulence genes [12]. Assembly ASM200984v1 (L. alexanderi) acts as the outgroup.
Tropicalmed 07 00284 g001
Figure 2. Phylogenomic tree of B004 genome against other L. interrogans genomes. Metadata information provided in order are genome submitter, pairwise ANI score, predicted antimicrobial resistance against the comprehensive antibiotic resistance database (CARD)and predicted virulence genes in VFDB, and predicted virulence genes [12].
Figure 2. Phylogenomic tree of B004 genome against other L. interrogans genomes. Metadata information provided in order are genome submitter, pairwise ANI score, predicted antimicrobial resistance against the comprehensive antibiotic resistance database (CARD)and predicted virulence genes in VFDB, and predicted virulence genes [12].
Tropicalmed 07 00284 g002
Table 1. Detection of Leptospira virulence factor genes by Bakta version 1.3.3.
Table 1. Detection of Leptospira virulence factor genes by Bakta version 1.3.3.
GeneIDsNote
lipL32UniRef90_Q6J0P4, UniRef50_Q6J0P4In L. interrogans genomes, the last three genomes have different versions
In L. weilii genomes, UniRef90_Q6J0P4 annotated as spirochaetales surface lipoprotein
lipL41UniRef90_A0A2M9XPR1, UniRef100_X5FKY1, UniRef90_A0A1D7V0C6
lipL21UniRef90_Q04WF0
ompL1UniRef90_Q6GXE0
lfb1UniRef90_E7DSE3, UniRef90_E7DSD4All L. weilii has only UniRef90_E7DSD4 form
ligAUniRef90_Q72MA6, UniRef90_Q8EYU4
ligBUniRef90_A0A540TD47, UniRef90_Q04UY1All L. weilii has only UniRef90_Q04UY1 form
ligCUniRef_C0J1R0
secYUniRef90_Q9XD16, UniRef90_M3CP76Housekeeping gene
flaBUniRef90_O51941Housekeeping gene
Table 2. Summary of leptospirosis investigation results.
Table 2. Summary of leptospirosis investigation results.
Laboratory TestPatient 1
(B208)
Patient 2
(B004)
Manufacturer
Leptospira IgM ELISANegative-Panbio, US
Leptospira IgM Duo RapidIntermediateNegativeImmuneMed, Korea
Microscopic agglutination test (MAT)Negative-In-house
Leptospira in-house PCRPositivePositiveIn-house
culturePositivePositiveIn-house
16S rRNA sequencingLeptospira weiliiLeptospira interrogansApical, Malaysia
Genomic characteristics:
Chromosome size (bp)4,298,5954,858,647
Number of contigs220169
N5010646083016
GC content (%)40.7235.09
No. of coding sequences38543884
No. of RNAs rRNA33
tRNA3637
tmRNA11
ncRNA44
CRISPR13
GenBank accession no.JAMKEM000000000.1JAMKEN000000000.1
Table 3. Detection of pathogenic genes of the isolates from positive cultures, based on PCR amplification.
Table 3. Detection of pathogenic genes of the isolates from positive cultures, based on PCR amplification.
Pathogenic GeneTarget GenePatient 1
(B208)
Patient 2
(B004)
ligAligA-+
ligBligB++
ligCligC++
lipL21lipL21-+
lipL32lipL32++
lipL41lipL41-+
flaBflaB++
lfb1lfb1++
ompL1ompL1-+
Table 4. Raw output result from the MLST software for L. interrogans.
Table 4. Raw output result from the MLST software for L. interrogans.
GenomeSchemeSTglmU_1pntA_1sucA_1tpiA_1pfkB_1mreA_1caiB_1
gls454012v02Leptospira611172182783
gls454088v2.0Leptospira2521107815552
ASM1028784v1Leptospira506822975
gls454027v2.0Leptospira51613221326
Lint2002000621v2.0Leptospira51613221326
Lint2002000623v2.0Leptospira51613221326
gls454067v02Leptospira241421534
LintsBulMalv1.0Leptospira1121112212
gls454077v2.0Leptospira495111327
gls454092v02Leptospira495111327
USM_B004Leptospira2491192636
ASM129261v1Leptospira-1122,2-48
ASM168377v1Leptospira-11265294-
IMG-taxon_2681812812_ annotated_assemblyLeptospira1711221048
LintFPW2026v1.0Leptospira4741822335
ASM237007v1Leptospira3311814453
gls454104v2.0Leptospira8311127652
gls454097v02Leptospira7713125662
gls454107v02Leptospira86118125662
gls454009v2.0Leptospira11120114665
gls454020v2.0Leptospira11120114665
gls454105v2.0Leptospira8412229459
gls454087v2.0Leptospira4231132458
LintL0996v0.2Leptospira464114466
LintL0448v0.2Leptospira464114466
gls454099v02Leptospira464114466
gls454069v2.0Leptospira373333455
gls454102v2.0Leptospira373333455
gls454096v2.0Leptospira80311734516
gls454045v1.0Leptospira14033334516
gls454014v2.0Leptospira14033334516
ASM196907v1Leptospira14033334516
Table 5. Raw output result from the MLST software for L. weilii.
Table 5. Raw output result from the MLST software for L. weilii.
GenomeSchemeSTglmU_1pntA_1sucA_1tpiA_1pfkB_1mreA_1caiB_1Order
ASM200984v1Leptospira2075367635973575319
gls454188v02Leptospira1924757605261504618
ASM156937v1Leptospira1915062585465534817
gls454043v02Leptospira-4863595169524516
ASM156891v1Leptospira1944960555169524515
ASM156840v1Leptospira-4863595369494514
ASM156841v1Leptospira-4863595360494513
ASM156938v1Leptospira-4963555169494512
LweiUI13098v0.2Leptospira1904963595160494511
ASM196993v1Leptospira-4963555180494510
ASM156890v1Leptospira182465655516049459
gls454051v01Leptospira-486359516954458
gls454038v02Leptospira-496157516449457
USM_B208Leptospira-496157536352456
ASM156936v1Leptospira-485859516349475
gls454036v02Leptospira-495957536349454
ASM156952v1Leptospira-465957536355473
gls454086v02Leptospira183465957536349452
ASM687476v1Leptospira94465957536352451
ASM687474v1Leptospira94465957536352450
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Safiee, A.W.M.; Mohd Ali, M.R.; Zoqratt, M.Z.H.M.; Siew, T.H.; Chuan, C.W.; Huey, L.L.; Fauzi, M.H.; Besari, A.M.; Yean Yean, C.; Ismail, N. Putative Pathogenic Genes of Leptospira interrogans and Leptospira weilii Isolated from Patients with Acute Febrile Illness. Trop. Med. Infect. Dis. 2022, 7, 284. https://doi.org/10.3390/tropicalmed7100284

AMA Style

Safiee AWM, Mohd Ali MR, Zoqratt MZHM, Siew TH, Chuan CW, Huey LL, Fauzi MH, Besari AM, Yean Yean C, Ismail N. Putative Pathogenic Genes of Leptospira interrogans and Leptospira weilii Isolated from Patients with Acute Febrile Illness. Tropical Medicine and Infectious Disease. 2022; 7(10):284. https://doi.org/10.3390/tropicalmed7100284

Chicago/Turabian Style

Safiee, Amira Wahida Mohamad, Mohammad Ridhuan Mohd Ali, Muhammad Zarul Hanifah Md Zoqratt, Tan Hock Siew, Chua Wei Chuan, Lee Lih Huey, Mohd Hashairi Fauzi, Alwi Muhd Besari, Chan Yean Yean, and Nabilah Ismail. 2022. "Putative Pathogenic Genes of Leptospira interrogans and Leptospira weilii Isolated from Patients with Acute Febrile Illness" Tropical Medicine and Infectious Disease 7, no. 10: 284. https://doi.org/10.3390/tropicalmed7100284

APA Style

Safiee, A. W. M., Mohd Ali, M. R., Zoqratt, M. Z. H. M., Siew, T. H., Chuan, C. W., Huey, L. L., Fauzi, M. H., Besari, A. M., Yean Yean, C., & Ismail, N. (2022). Putative Pathogenic Genes of Leptospira interrogans and Leptospira weilii Isolated from Patients with Acute Febrile Illness. Tropical Medicine and Infectious Disease, 7(10), 284. https://doi.org/10.3390/tropicalmed7100284

Article Metrics

Back to TopTop
