# An Automated Open-Source Approach for Debinding Simulation in Metal Extrusion Additive Manufacturing

^{*}

## Abstract

**:**

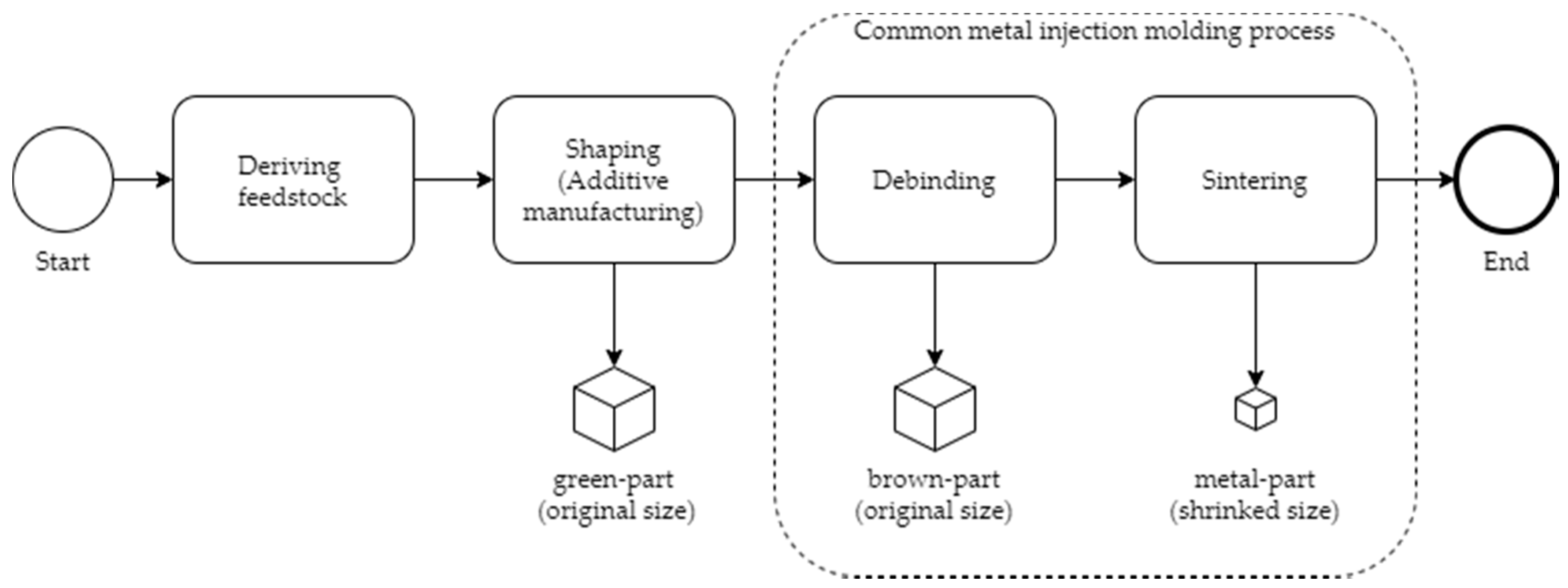

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Design for Debinding and Sintering

#### 2.2. Setup of the Finite Element Model

**C**describes the material matrix (consisting of the Young’s Modulus and the Poisson’s ratio of the material) and the displacement-strain-transformation matrix

**B**. Assembling the individual stiffness matrices leads to the following overall linear equation system:

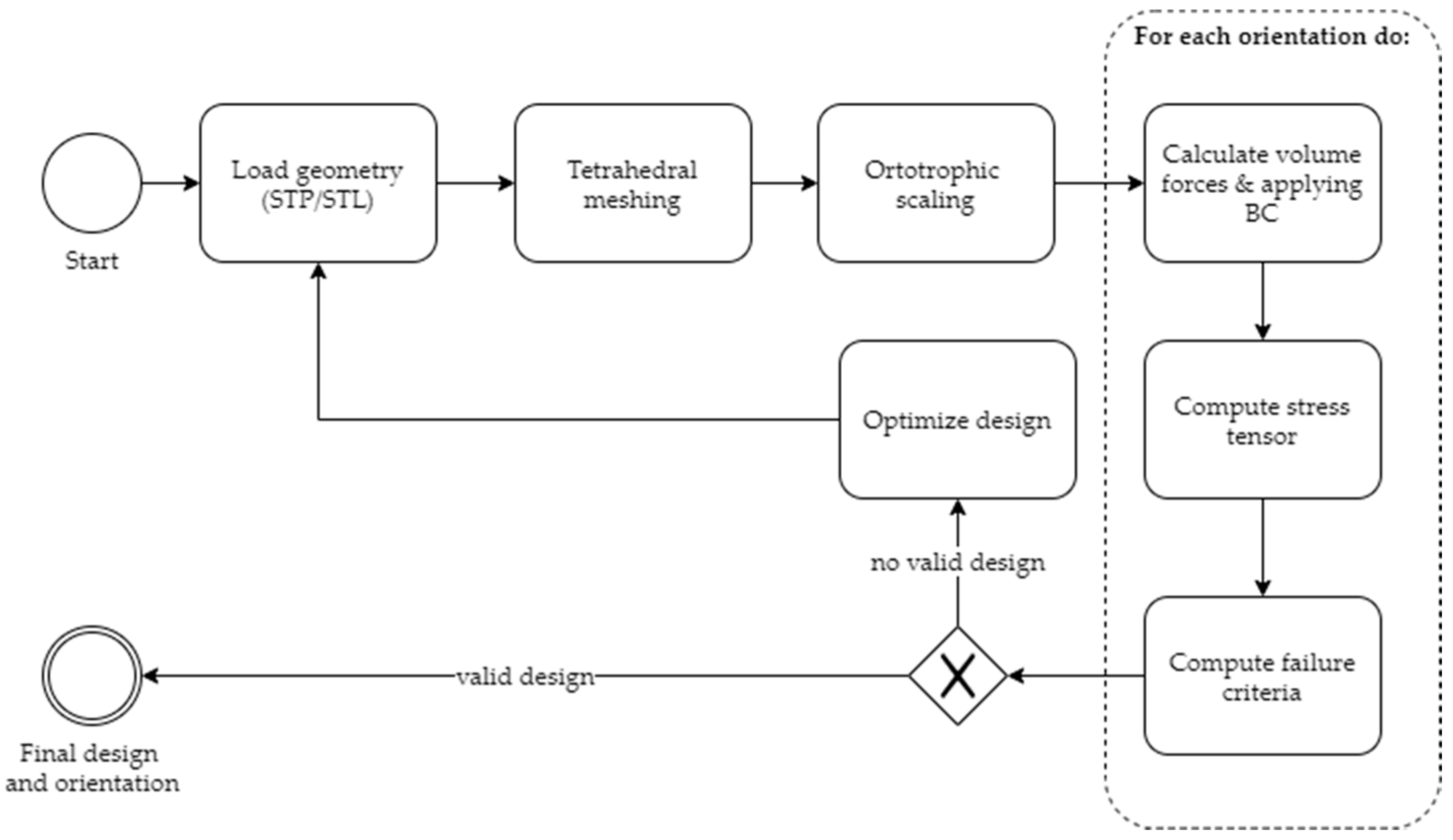

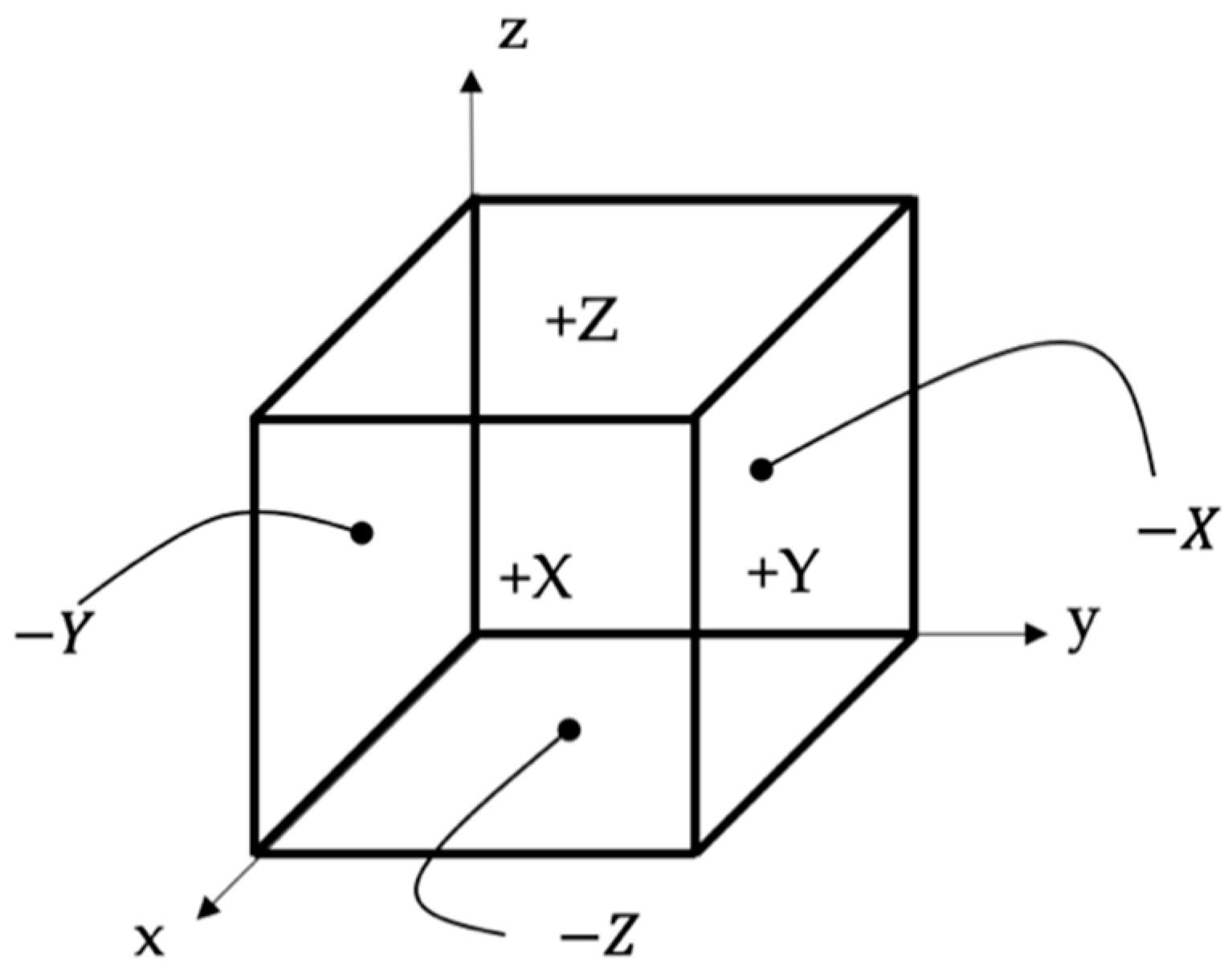

#### 2.3. Automated Simulation Framework

## 3. Results

^{®}(Chair of Engineering Design and CAD, Bayreuth, Germany) [23], using the hybrid optimization algorithm TOSS (Topology Optimization for Stiffness and Strength) [32] with a target volume of 75%. The chassis diverter was manually redesigned in Creo parametric based on the Topology optimization result. All presented example parts are meshed using quadratic tetrahedral elements and an edge length of 2 mm.

#### 3.1. Staircase

#### 3.2. Sprocket

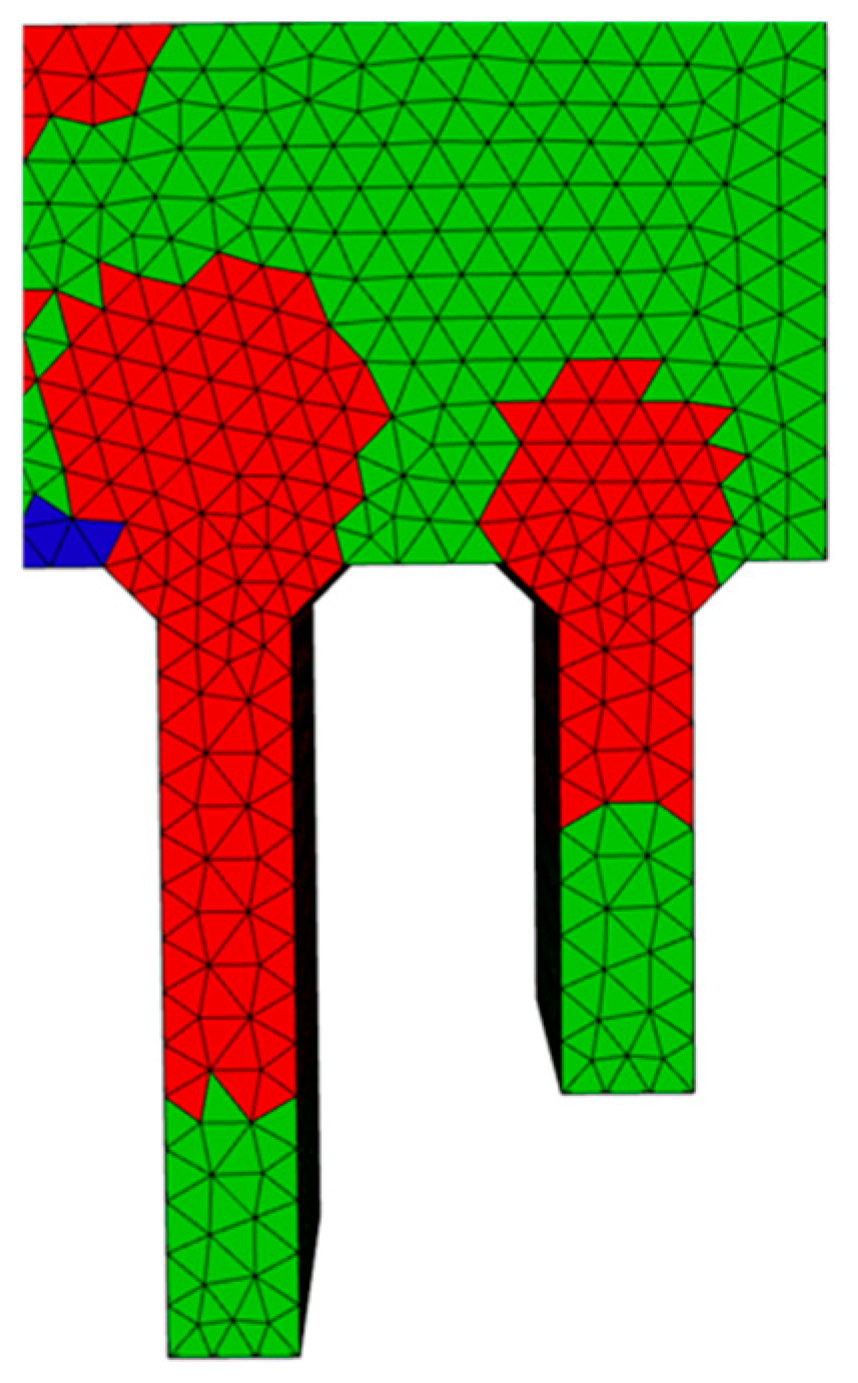

#### 3.3. Topology Optimized Chassis Diverter

## 4. Discussion

#### 4.1. Evaluation of Application Examples

#### 4.2. Impact for Design for Additive Manufacturing

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Gibson, I.; Rosen, D.; Stucker, B. Additive Manufacturing Technologies, 2nd ed.; Springer: New York, NY, USA; Heidelberg, Germany; Dodrecht, The Netherlands; London, UK, 2015. [Google Scholar] [CrossRef]
- Scime, L.; Wolf, S.D.; Beuth, J.; Mrdjenovich, S.; Kelley, M. Safety and Workflow Considerations for Modern Metal Additive Manufacturing Facilities. JOM
**2018**, 70, 1830–1834. [Google Scholar] [CrossRef] - Turner, B.N.; Gold, S.A. A review of melt extrusion additive manufacturing processes: II. Materials, dimensional accuracy, and surface roughness. Rapid Prototyp. J.
**2015**, 21, 250–261. [Google Scholar] [CrossRef] - Gonzalez-Gutierrez, J.; Godec, D.; Kukla, C.; Schlauf, T.; Burkhardt, C.; Holzer, C. Shaping, Debinding and Sintering of Steel Components via Fused Filament Fabrication. CIM 2017 Computer Integrated Manufacturing and High Speed Machining. In Proceedings of the 16th International Scientific Conference on Production Engineering, Zadar, Croatia, 8–10 June 2017; pp. 99–104. [Google Scholar]
- Wu, G.; Langrana, N.A.; Rangarajan, S.; McCuiston, R.; Sadanji, R.; Danforth, S.; Safari, A. Fabrication of Metal Components using FDMet: Fused Deposition of Metals. In Proceedings of the Solid Freeform Fabrication Symposium, Austin, TX, USA, 11–13 August 1999; pp. 775–782. [Google Scholar]
- Gonzalez-Gutierrez, J.; Cano, S.; Schuschnigg, S.; Kukla, C.; Sapkota, J.; Holzer, C. Additive Manufacturing of Metallic and Ceramic Components by the Material Extrusion of Highly-Filled Polymers: A Review and Future Perspectives. Materials
**2018**, 11, 840. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wu, G.; Langrana, N.A.; Sadanji, R.; Danforth, S. Solid freeform fabrication of metal components using fused deposition of metals. Mater. Des.
**2002**, 23, 97–105. [Google Scholar] [CrossRef] - Rane, K.; Strano, M. A Comprehensive review of extrusion-based additive manufacturing processes for rapid production of metallic and ceramic parts. Adv. Manuf.
**2019**, 7, 155–173. [Google Scholar] [CrossRef] - Rane, K.; Cataldo, S.; Parenti, P.; Sbaglia, L.; Mussi, V.; Annoni, M.; Giberti, H.; Strano, M. Rapid production of hollow SS316 profiles by extrusion based additive manufacturing. In Proceedings of the 21st international ESAFORM conference on material forming: ESAFORM, Palermo, Italy, 23–25 April 2018; Fratini, L., di Lorenzo, R., Buffa, G., Ingarao, G., Eds.; AIP Conference Proceedings 1960. AIP Publishing LLC: Melville, NY, USA, 2018. [Google Scholar] [CrossRef]
- Rosnitschek, T.; Hueter, F.; Alber-Laukant, B. FEM-Based Modelling of Elastic Properties and Anisotropic Sinter Shrinkage of Metal EAM. IJSIMM
**2020**, 19, 197–208. [Google Scholar] [CrossRef] - Rosnitschek, T.; Alber-Laukant, B.; Lange, C.; Rieg, F. Manufacturing Restrictions and Applitcation Options of the Metal Fused Filament Process. In Proceedings of the 4th Tagung des DVM-Arbeitskreises Additiv gefertigte Bauteile und Strukturen, DVM Bericht 404, Berlin, Germany, 6–7 November 2019. [Google Scholar]
- Jimbo, K.; Tateno, T. Shape Contraction in Sintering of 3D Objects Fabricated via Metal Material Extrusion in Additive Manufacturing. Int. J. Autom. Technol.
**2019**, 13, 354–360. [Google Scholar] [CrossRef] - Damon, J.; Dietrich, S.; Gorantla, S.; Popp, U.; Okolo, B.; Schulze, V. Process porosity and mechanical performance of fused filament fabricated 316L stainless steel. Rapid Prototyp. J.
**2019**, 25, 1319–1327. [Google Scholar] [CrossRef] - Ait-Mansour, I.; Kretzschmar, N.; Chekurov, S.; Salmi, M.; Rech, J. Design-dependent shrinkage compensation modeling and mechanical property targeting of metal FFF. Prog. Addit. Manuf.
**2020**, 51–57. [Google Scholar] [CrossRef] [Green Version] - Thompson, Y.; Gonzalez-Gutierrez, J.; Kukla, C.; Felfer, P. Fused filament fabrication, debinding and sintering as a low cost additive manufacturing method of 316L stainless steel. Addit. Manuf.
**2019**, 30, 100861. [Google Scholar] [CrossRef] - Godec, D.; Cano, S.; Holzer, C.; Gonzalez-Gutierrez, J. Optimization of the 3D Printing Parameters for Tensile Properties of Specimens Produced by Fused Filament Fabrication of 17-4PH Stainless Steel. Materials
**2020**, 13, 774. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Agne, A.; Barrière, T. Modelling and numerical simulation of Supercritical CO
_{2}debinding of Inconel 718 components elaborated by Metal Injection Molding. Appl. Sci.**2017**, 7, 1024. [Google Scholar] [CrossRef] [Green Version] - Ul Mohsin, I.; Lager, D.; Gierl, C.; Hohenauer, W.; Danninger, H. Simulation and optimisation for thermal debinding of copper MIM parts using thermokineticanalysis. Powder Metall.
**2011**, 54, 30–35. [Google Scholar] [CrossRef] - Dugauguez, O.; Agne, A.; Morales, A.; Torralba, J.M.; Barriere, T. Experimental and numerical analysis of effects of supercritical carbon dioxide debinding on Inconel 718 MIM components. Powder Technol.
**2019**, 355, 57–66. [Google Scholar] [CrossRef] - Debinding Guidelines for 3D Printed Parts using Ultrafuse® 316L. Available online: https://forward-am.com/find-material/filaments/ultrafuse-316l/ (accessed on 9 November 2020).
- FEM-Helden. Available online: https://fem-helden.de (accessed on 9 November 2020).
- BASF 3D-Printing Solutions GmbH. Ultrafuse 316LX: BASF’s ‘Catamold on a spool’ presents opportunities for MIM producers. Powder Inject. Mould. Int.
**2018**, 12, 83–87. [Google Scholar] - Geuzaine, C.; Remacle, J.-F. Gmsh: A three-dimensional finite element mesh generator with built-in pre- and post-processing facilities. Int. J. Numer. Methods Eng.
**2009**, 79, 1303–1331. [Google Scholar] [CrossRef] - Z88. Available online: https://z88.de (accessed on 9 November 2020).
- Sullivan, C.B.; Kaszynski, A.A. PyVista: 3D plotting and mesh analysis through a streamlined interface for the Visualization Toolkit (VTK). J. Open Source Softw.
**2019**, 4, 1450. [Google Scholar] [CrossRef] - Matsubara, S.; Tarada, K.; Kobayashi, T.; Saitou, T.; Umeda, M.; Mihara, Y.; Oide, K.; Shin, H.; Katsuda, Y. A set of constitutive functions for dried body to predict entire deformation process of ceramic products during firing. Eng. Comput.
**2017**, 34, 2668–2697. [Google Scholar] [CrossRef] - Gong, H.; Snelling, D.; Kardel, K.; Carrano, A. Comparison of Stainless Steel 316L Parts Made by FDM- and SLM-Based Additive Manufacturing Processes. JOM
**2019**, 71, 880–885. [Google Scholar] [CrossRef] - Rieg, F.; Hackenschmidt, R.; Alber-Laukant, B. Finite Element Analysis for Engineers: Basics and Practical Applications with Z88Aurora; Hanser: Munich, Germany, 2014. [Google Scholar]
- Zienkiewicz, O.; Taylor, R.; Zhu, J. The Finite Element Method: Its Basis and Fundamentals, 7th ed.; Butterworth-Heinemann: Kidlington, UK; Oxford, UK; Waltham, MA, USA, 2013. [Google Scholar]
- Neidnicht, M. Analyse und Implementierung des Lanzcos-Algorithmus zur Eigenwertberechnung Großer, dünn Besetzter Matrizen. Diploma Thesis, University of Bayreuth, Bayreuth, Germany, 2009. [Google Scholar]
- Creo Parametric. Available online: https://www.ptc.com/products/creo/parametric (accessed on 9 November 2020).
- Frisch, M. Entwicklung Eines Hybridalgorithmus zur Steifigkeits- und Spannungsoptimierten Auslegung von Konstruktionselementen. Ph.D. Thesis, University of Bayreuth, Bayreuth Germany, 2015. [Google Scholar]
- Jadaan, O.M.; Nemeth, N.N.; Bagdahn, J.; Sharpe, W.N., Jr. Probabilistic Weibull behavior and mechanical properties of MEMS brittle materials. J. Mater. Sci.
**2003**, 38, 4087–4113. [Google Scholar] [CrossRef] - Lu, C.; Danzer, R.; Fischer, F.D. Influence of Threshold Stress on the Estimation of the Weibull Statistics. J. Am. Ceram. Soc.
**2002**, 85, 1640–1642. [Google Scholar] [CrossRef] [Green Version] - Jankowiak, T.; Lodygowski, T. Plasticity Conditions and Failure Criteria for Quasi-brittle Materials. In Handbook of Damage Mechanics, Nano to Macroscale for Materials and Structures; Voyiadjis, G.Z., Ed.; Springer Reference: New York, NY, USA; Heidelberg, Germany; Dordrecht, The Netherlands; London, UK, 2015; pp. 1222–1250. [Google Scholar] [CrossRef]
- Song, Z.; Yin, G.; Ranjith, P.G.; Li, M.; Huang, J.; Liu, C. Influence of the Intermediate Principal Stress on Sandstone Failure. Rock Mech. Rock Eng.
**2019**, 52, 3033–3046. [Google Scholar] [CrossRef]

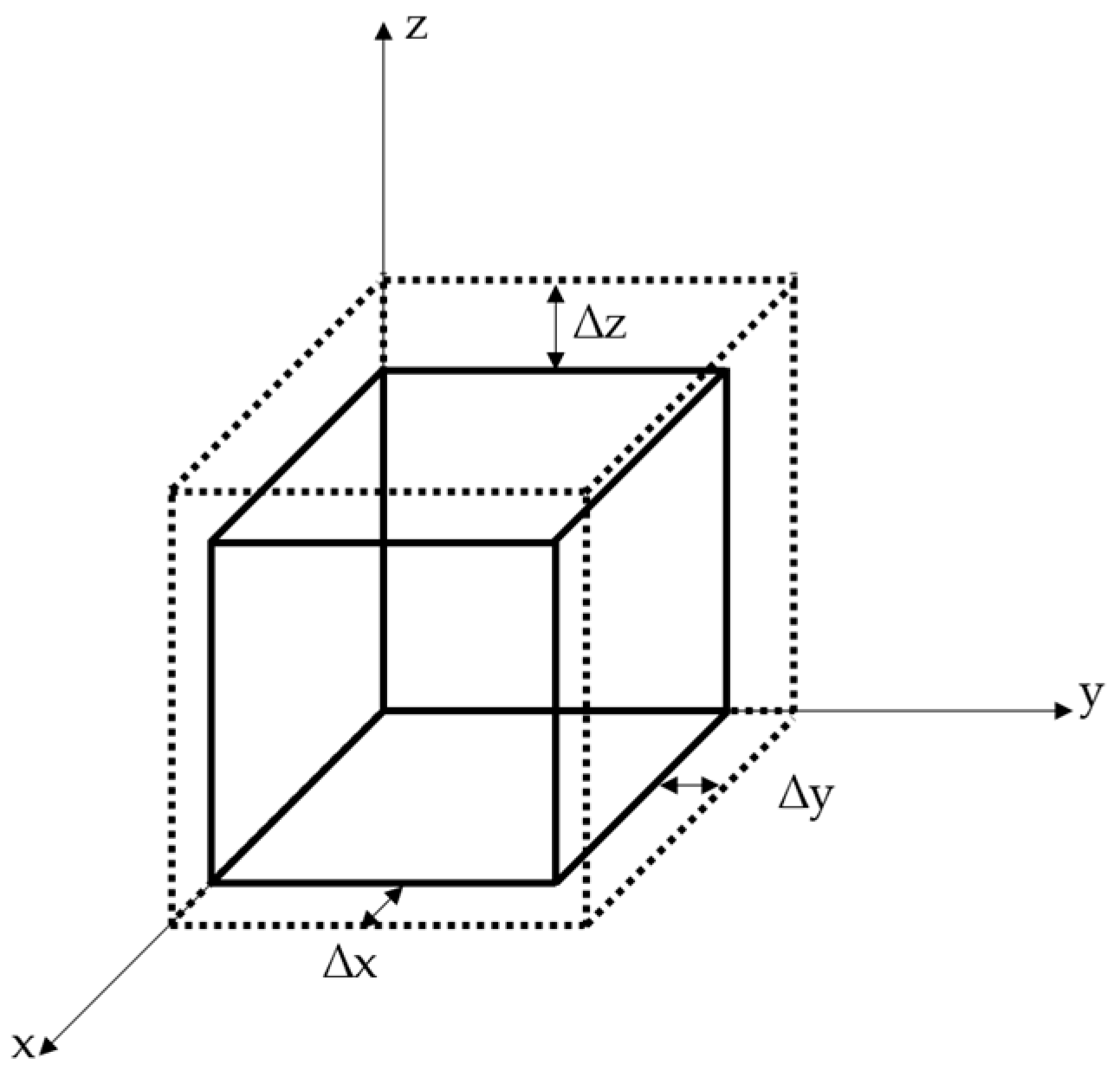

**Figure 3.**Sinter shrinkage behavior of metal EAM parts. The printing plane (x and y) shrinkage shows identical values, while the shrinkage in stacking direction (z) is significantly larger. The dashed lines represent the green-part and the solid lines the sintered metal-part.

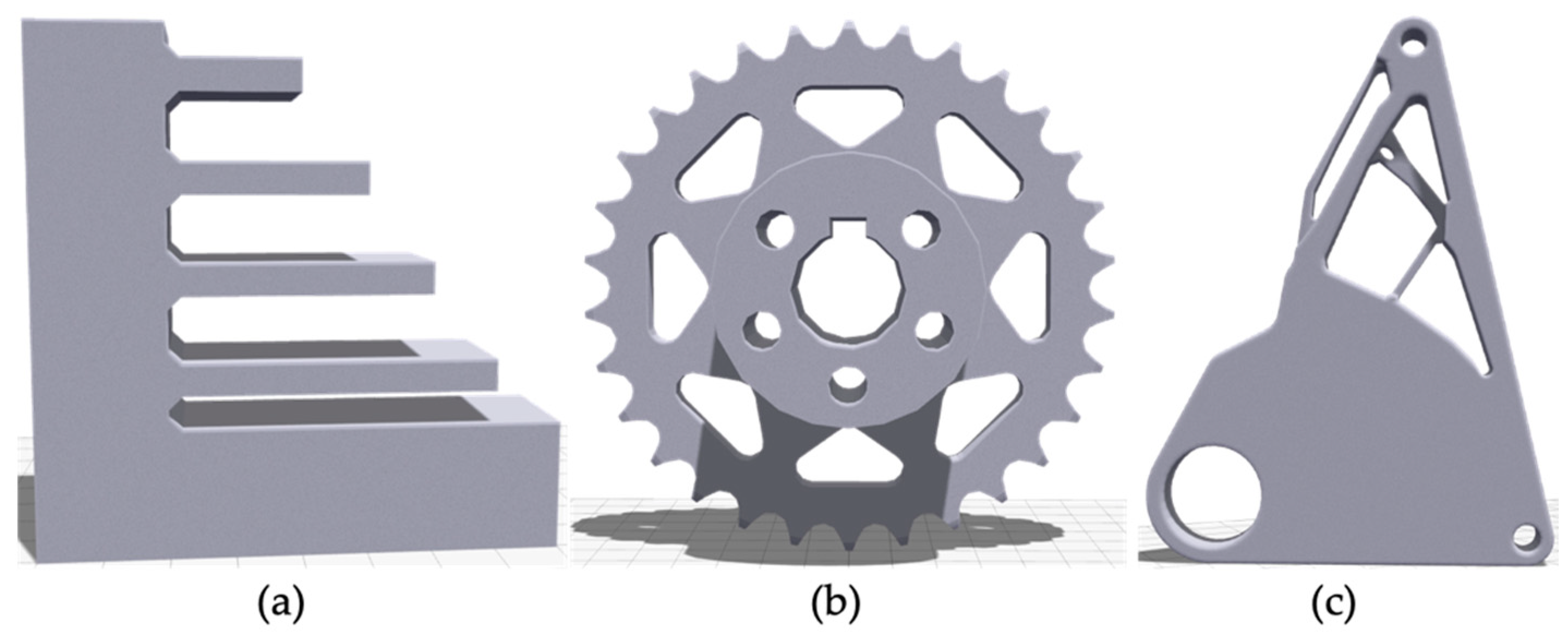

**Figure 5.**Example parts selected for testing the automated simulation framework before scaling. (

**a**) staircase; (

**b**) sprocket; (

**c**) topology optimized chassis diverter.

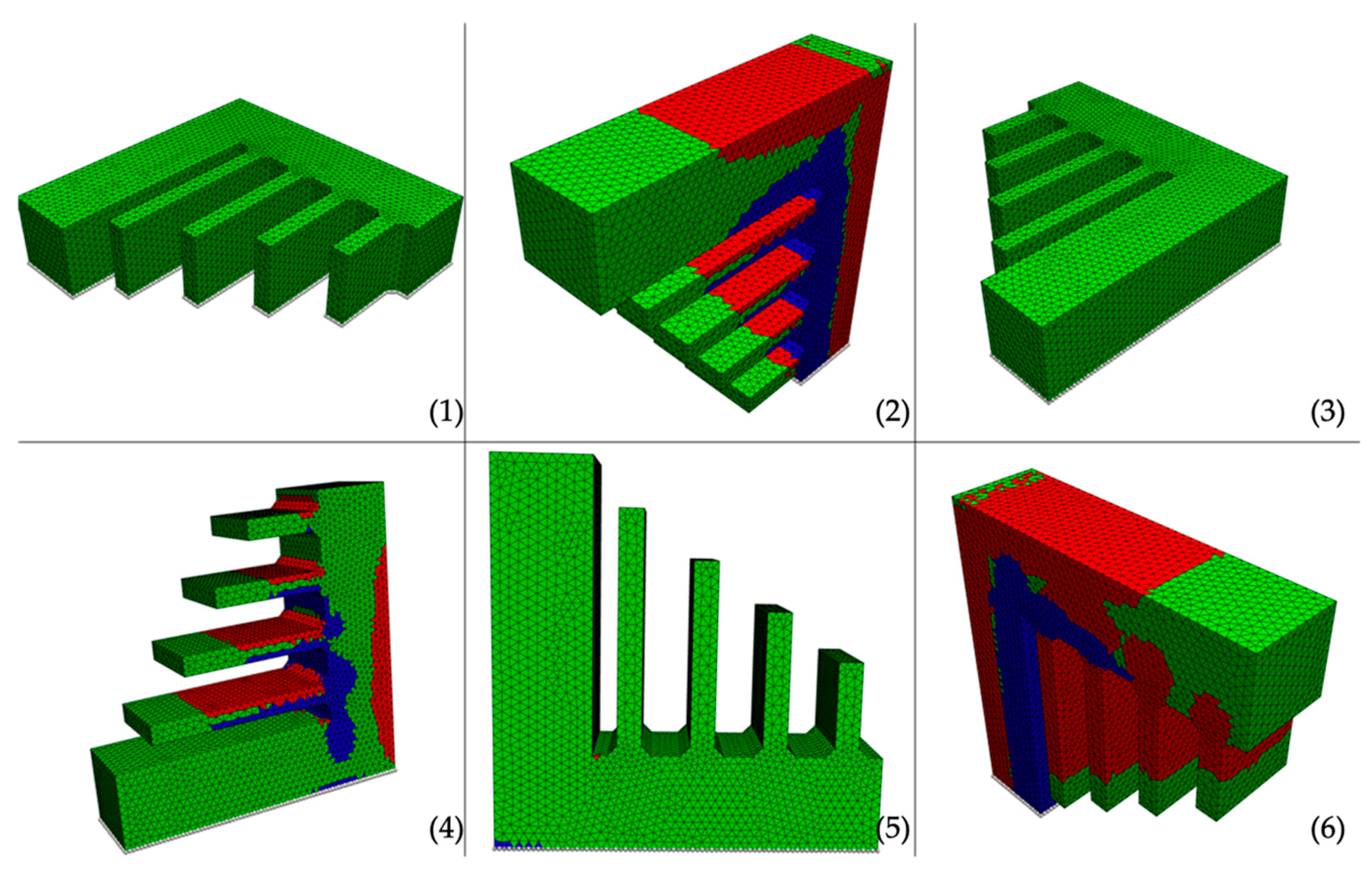

**Figure 6.**Failure-plot of the debinding simulation of the staircase. (

**1**)–(

**6**) denote the number of the orientation, white dots represent the bottom plane, red areas indicate failure due to tension, and blue areas indicate failure due to compression.

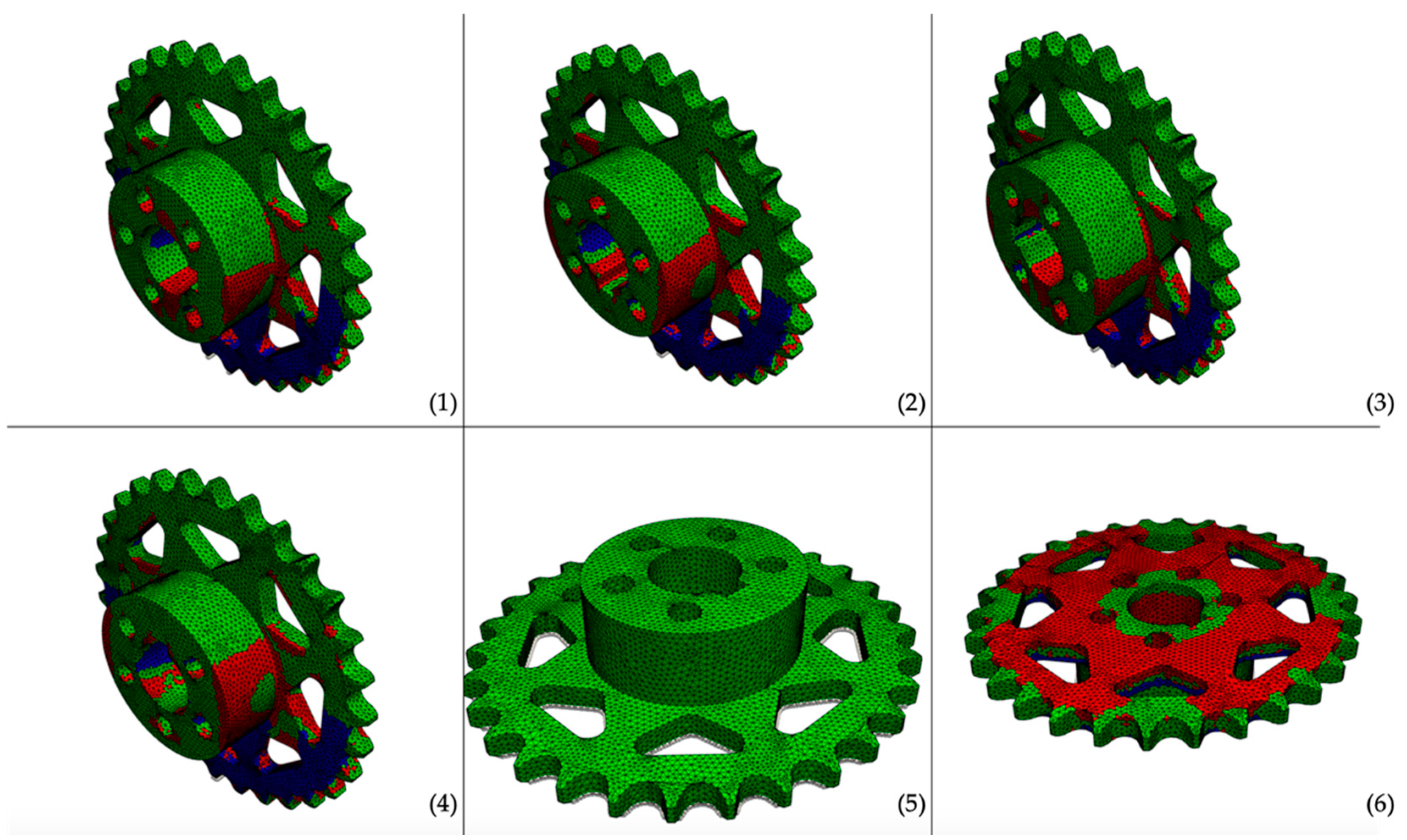

**Figure 7.**Failure-plot of the debinding simulation of the sprocket. (

**1**)–(

**6**) denote the number of the orientation, white dots represent the bottom plane, red areas indicate failure due to tension, and blue areas indicate failure due to compression.

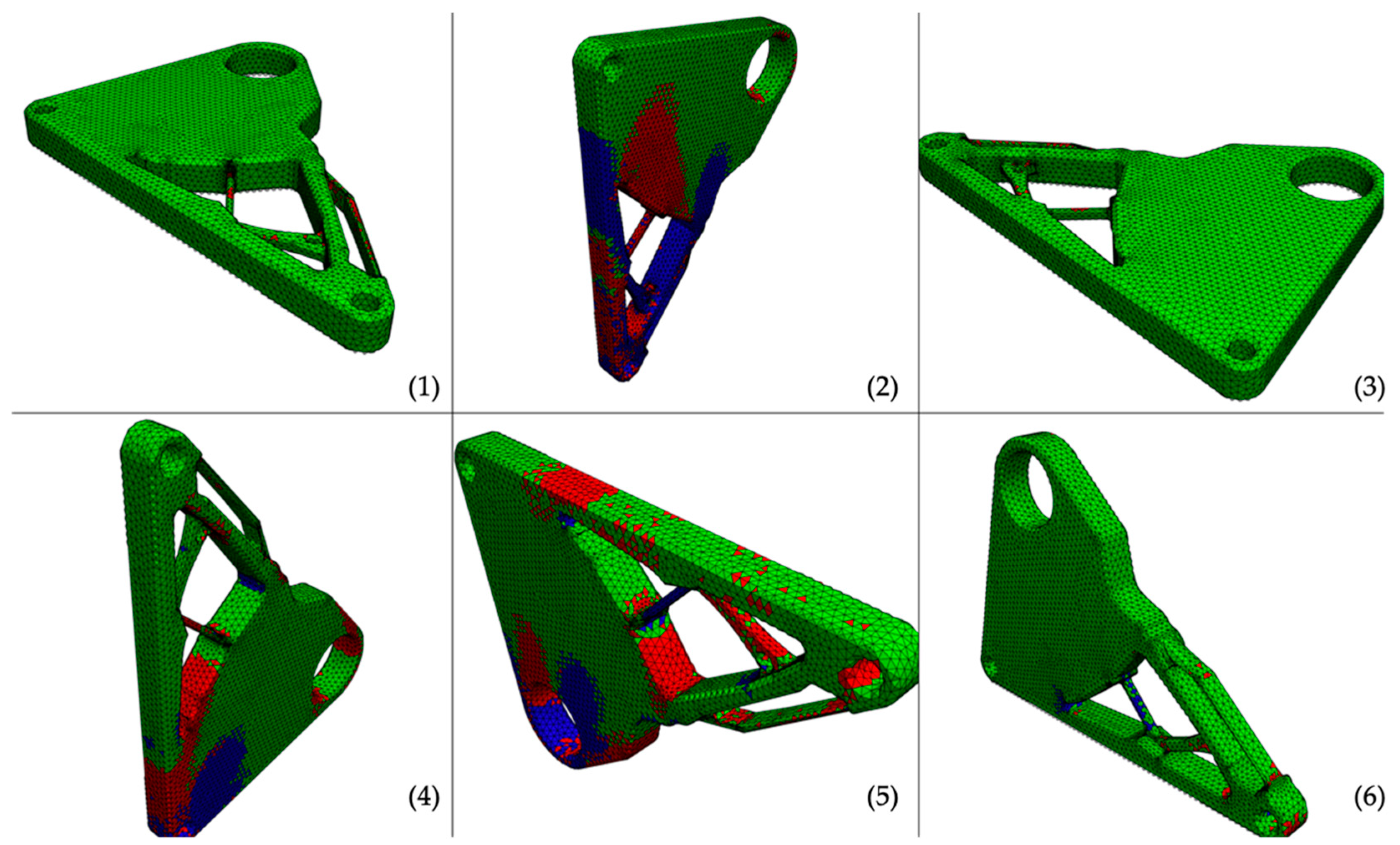

**Figure 8.**Failure-plot of the debinding simulation of the chassis diverter. (

**1**)–(

**6**) denote the number of the orientation, white dots represent the bottom plane, red areas indicate failure due to tension, and blue areas indicate failure due to compression.

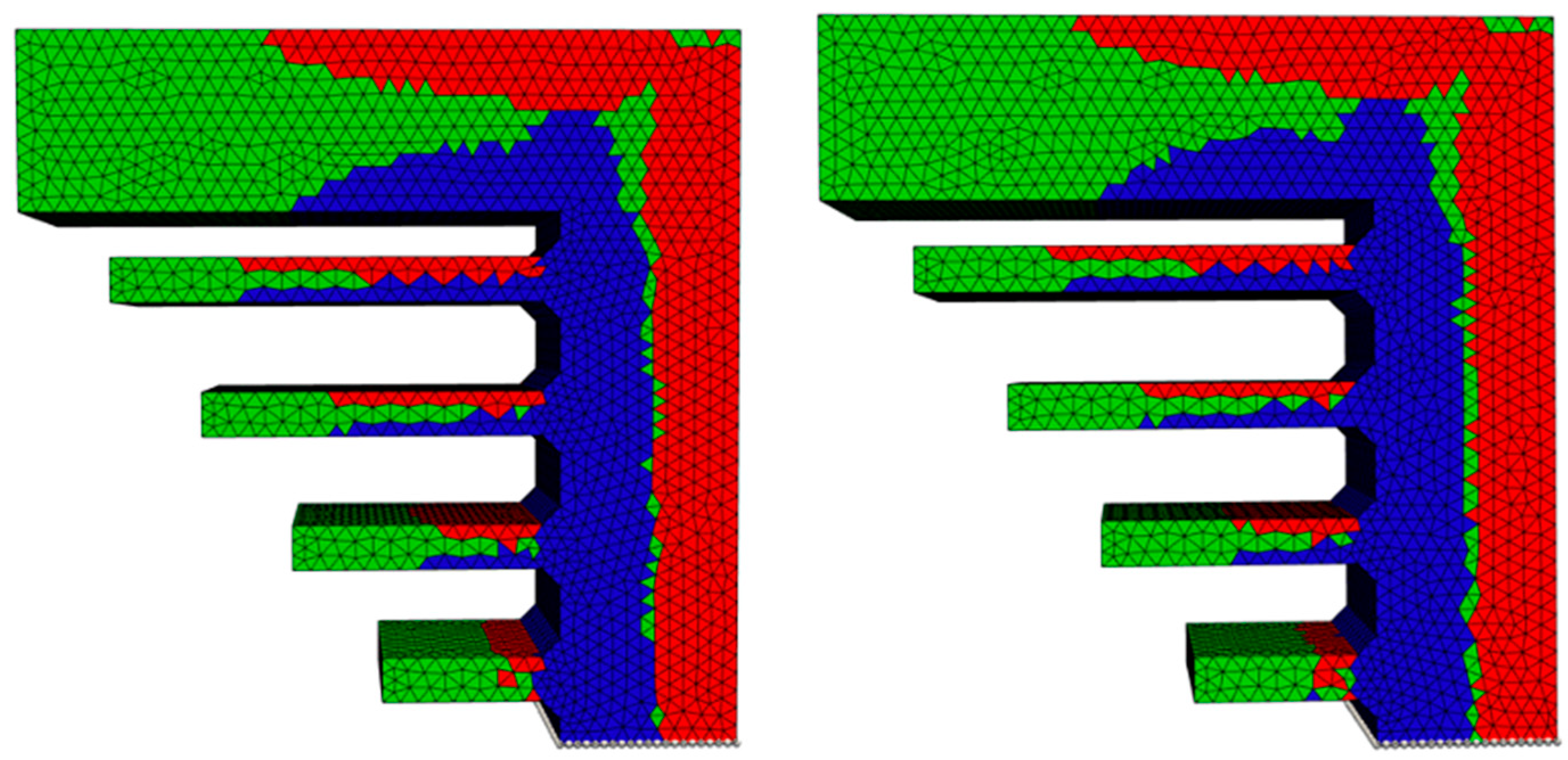

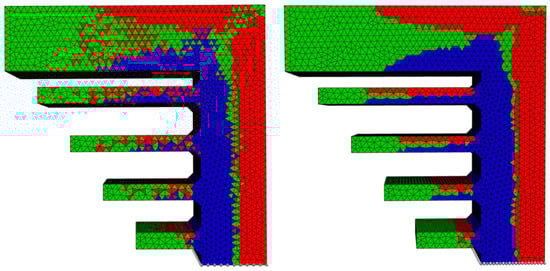

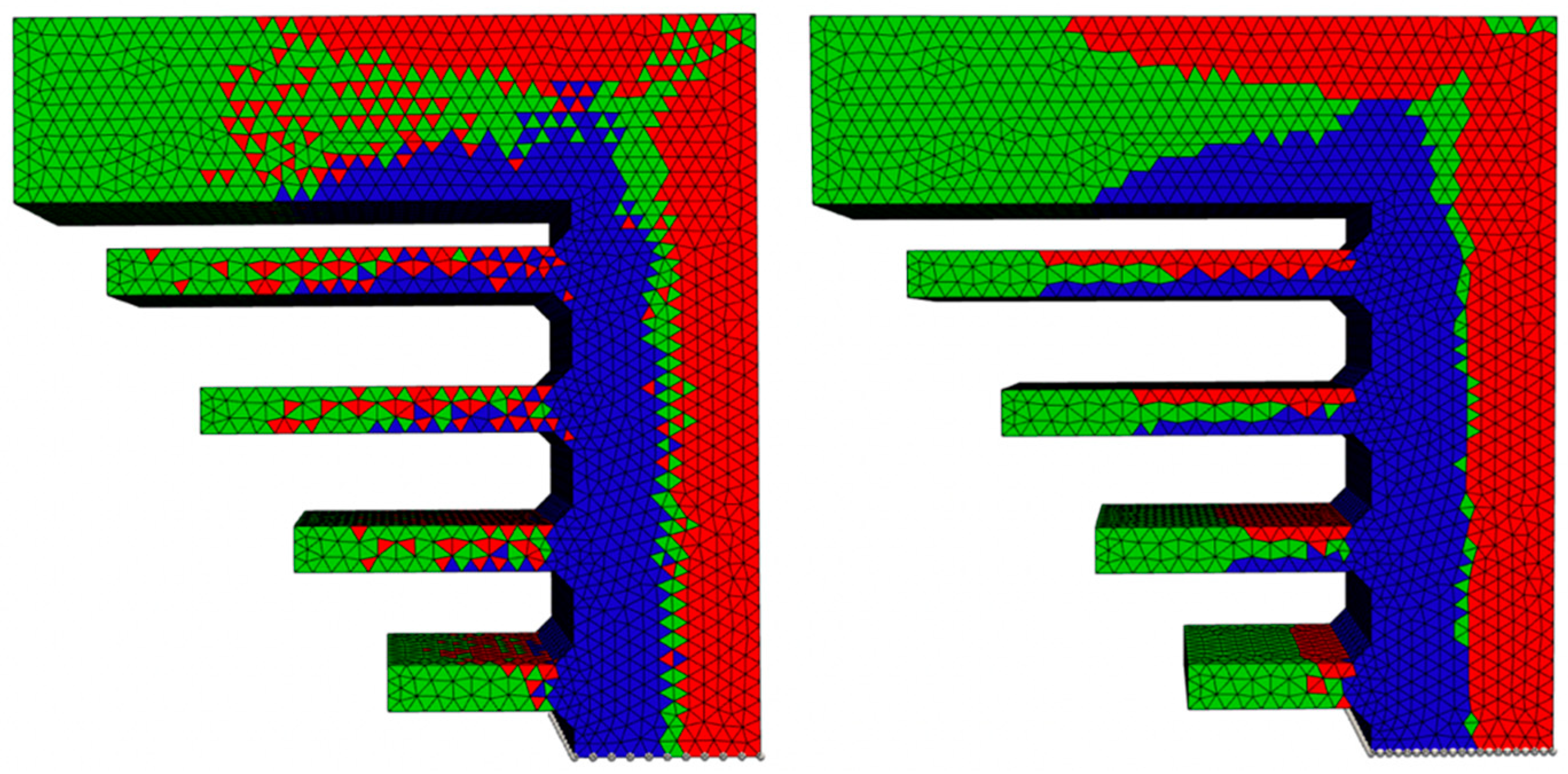

**Figure 11.**Comparison of STEP (

**left**) and STL (

**right**) structure types, exemplary shown for the quadratic meshed staircase.

**Table 1.**Material data of [20] chosen as the default for the simulation framework.

Parameter | Value |
---|---|

Young’s modulus | 210,000 MPa |

Poisson ratio | 0.4 |

Density | 4.7 × 10^{−9} t/mm^{3} |

**Table 2.**Maximum stress limits for debinding simulation according to [20]. The tensile stress limit is abbreviated with ${\sigma}_{t,li{m}_{i}}$ and the compression stress limit with ${\sigma}_{c,li{m}_{i}}$.

Direction | Component | Limit |
---|---|---|

Printing plane (x and y) | ${\sigma}_{t,li{m}_{x,y}}$ | 6.0 kPa |

${\sigma}_{c,li{m}_{x,y}}$ | −7.0 kPa | |

Stacking direction (z) | ${\sigma}_{t,li{m}_{z}}$ | 0.5 kPa |

${\sigma}_{c,li{m}_{z}}$ | −7.0 kPa |

**Table 3.**Maximum tensile and compression stresses ${\sigma}_{t,cma{x}_{i}}$ for each orientation $j$ of the staircase. The safety factor $S$ is written in brackets.

(1) | (2) | (3) | (4) | (5) | (6) | |
---|---|---|---|---|---|---|

${\sigma}_{tma{x}_{x}}$ | 0.361 kPa (16.62) | 85.33 kPa (0.07) | 0.356 kPa (16.85) | 85.50 kPa (0.07) | 1.615 kPa (3.72) | 41.08 kPa (0.15) |

${\sigma}_{cma{x}_{x}}$ | −1.475 kPa (4.75) | −94.05 kPa (0.07) | −0.151 kPa (46.33) | −85.45 kPa (0.08) | −6.331 kPa (1.11) | −82.41 kPa (0.08) |

${\sigma}_{tma{x}_{y}}$ | 0.338 kPa (17.75) | 45.67 kPa (0.13) | 0.392 kPa (15.32) | 36.71 kPa (0.16) | 1.707 kPa (3.51) | 42.81 kPa (0.14) |

${\sigma}_{cma{x}_{y}}$ | −1.483 kPa (4.72) | −62.65 kPa (0.11) | −1.477 kPa (4.74) | −36.60 kPa (0.19) | −6.192 kPa (1.13) | −142.4 kPa (0.05) |

${\sigma}_{tma{x}_{z}}$ | 0.022 kPa (22.73) | 66.18 kPa (0.01) | 0.027 kPa (18.52) | 21.53 kPa (0.02) | 0.641 kPa (0.78) | 75.52 kPa (0.01) |

${\sigma}_{cma{x}_{z}}$ | −2.514 kPa (2.78) | −113.3 kPa (0.06) | −2.518 kPa (2.78) | −55.63 kPa (0.13) | −10.75 kPa (0.65) | −167.4 kPa (0.04) |

**Table 4.**Maximum tensile and compression stresses ${\sigma}_{t,cma{x}_{i}}$ for each orientation $j$ of the gear. The safety factor $\mathrm{S}$ is written in brackets.

(1) | (2) | (3) | (4) | (5) | (6) | |
---|---|---|---|---|---|---|

${\sigma}_{tma{x}_{x}}$ | 5158 kPa (0.00) | 2498 kPa (0.00) | 2511 kPa (0.00) | 2495 kPa (0.00) | 0.524 kPa (11.45) | 26.52 kPa (0.23) |

${\sigma}_{cma{x}_{x}}$ | −3462 kPa (0.00) | −3511 kPa (0.00) | −3573 kPa (0.00) | −3904 kPa (0.00) | −1.974 kPa (3.55) | −48.24 kPa (0.15) |

${\sigma}_{tma{x}_{y}}$ | 5191 kPa (0.00) | 2338 (0.00) | 2436 kPa (0.00) | 2324 kPa (0.00) | 0.438 kPa (13.70) | 30.34 kPa (0.20) |

${\sigma}_{cma{x}_{y}}$ | −3556 kPa (0.00) | −3219 (0.00) | −3042 kPa (0.00) | −3684 kPa (0.00) | −1.933 kPa (3.62) | −43.90 kPa (0.16) |

${\sigma}_{tma{x}_{z}}$ | 8068 kPa (0.00) | 5155 (0.00) | 5427 kPa (0.00) | 5073 kPa (0.00) | 0.350 kPa (1.43) | 11.09 kPa (0.05) |

${\sigma}_{cma{x}_{z}}$ | −8094 kPa (0.00) | −7476 (0.00) | −6472 kPa (0.00) | −7928 kPa (0.00) | −3.287 kPa (2.13) | −43.77 kPa (0.16) |

**Table 5.**Maximum tensile and compression stresses ${\sigma}_{t,cma{x}_{i}}$ for each orientation $j$ of the staircase. The safety factor $S$ is written in brackets.

(1) | (2) | (3) | (4) | (5) | (6) | |
---|---|---|---|---|---|---|

${\sigma}_{tma{x}_{x}}$ | 7.419 kPa (0.81) | 5170 kPa (0.00) | 5.036 kPa (1.19) | 4305 kPa (0.00) | 1240 kPa (0.00) | 12.12 kPa (0.50) |

${\sigma}_{cma{x}_{x}}$ | −5.542 kPa (1.26) | −3859 kPa (0.00) | −8.222 kPa (0.85) | −7013 kPa (0.00) | −1393 kPa (0.01) | −20.19 kPa (0.35) |

${\sigma}_{tma{x}_{y}}$ | 7.726 kPa (0.78) | 5144 kPa (0.00) | 7.61 kPa (0.79) | 4742 kPa (0.00) | 1114 kPa (0.01) | 7.076 kPa (0.85) |

${\sigma}_{cma{x}_{y}}$ | −7.488 kPa (0.93) | −3650 kPa (0.00) | −7.978 kPa (0.88) | −6463 kPa (0.00) | −1736 kPa (0.00) | −27.69 kPa (0.25) |

${\sigma}_{tma{x}_{z}}$ | 6.859 kPa (0.07) | 7921 kPa (0.00) | 4.607 kPa (0.11) | 8662 kPa (0.00) | 2319 kPa (0.00) | 14.75 kPa (0.03) |

${\sigma}_{cma{x}_{z}}$ | −6.616 (1.06) | −6220 kPa (0.00) | −6.352 kPa (1.10) | −9114 kPa (0.00) | −2638 kPa (0.00) | −32.65 kPa (0.21) |
