Screw-Type Shredder for Solid Photopolymer Resin in Microgravity Environments

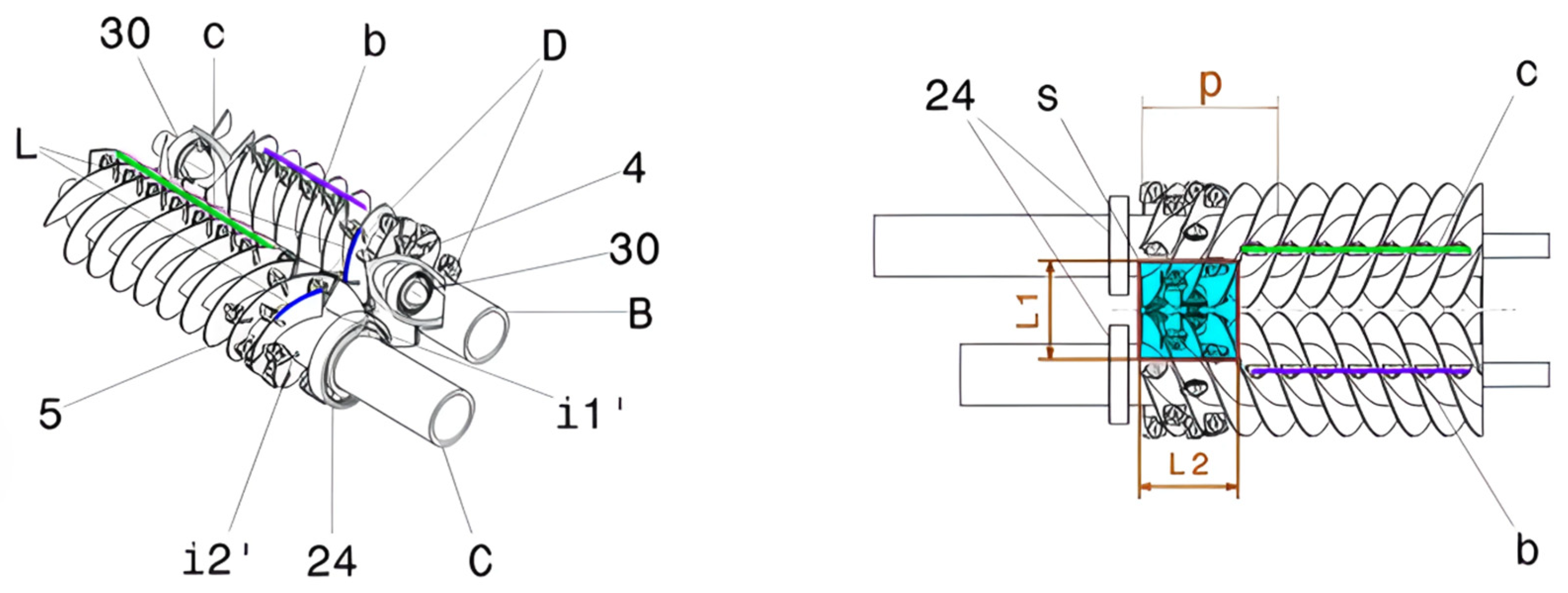

The invention concerns a screw-driven shredder for solid photopolymer resin, designed for both terrestrial use and prospective deployment in microgravity environments. The system addresses the need for efficient recycling of cured photopolymer waste generated by stereolithography (SLA) 3D printing—a process not yet implemented in orbit, but envisioned as part of future closed-loop additive manufacturing systems aboard space stations or lunar habitats. The proposed device is a compact, hermetically sealed mechanical unit composed of ten subassemblies, featuring two counter-rotating screw shafts equipped with carbide milling inserts arranged helically to achieve uniform and controlled fragmentation of solid SLA residues. The shredding process is supported by a pressurized inert fluid circuit, utilizing carbon dioxide (CO₂) as a cryogenic working medium to enhance cutting efficiency, reduce heat accumulation, and ensure particle evacuation under microgravity conditions. Studies indicate that CO₂-assisted cooling can reduce tool-tip temperature by 10–30 °C, cutting forces by 5–15%, and electrical power consumption by 5–12% while extending tool life by up to 50%. This invention thus provides a key component for a future in situ photopolymer recycling loop in space while also offering a high-efficiency shredding solution for Earth-based photopolymer waste management in additive manufacturing.
