Microwave Photon Emission in Superconducting Circuits

Abstract

Quantum computing requires a novel approach to store data as quantum states, opposite to classical bits. One of the most promising candidates is entangled photons. In this manuscript, we show the photon emission in the range of microwave frequencies of three different types of superconducting circuits, a SQUID, a JPA, and a JTWPA, often used as low-noise parametric amplifiers. These devices can be operated as sources of entangled photons. We report the experimental protocol used to produce and measure microwave radiation from these circuits, as well as data simulations. The collected spectra are obtained by performing single-tone measurements with a direct rf pump on the devices; the output spectra at low powers (below $-100$ dBm) are well interpreted by the dynamical Casimir model, while at high powers (above $-100$ dBm) the system is well described by the Autler–Townes fluorescence of a three-level atom.

1. Introduction

Josephson junctions (JJs) [1,2] are a strategic component of superconducting quantum circuits and will have an increasingly important role in the development of practical quantum technologies. They can be used in a wide variety of applications. Standalone JJs can be employed as single microwave photon detectors for axion dark matter search [3,4]. JJs are the building block of superconducting qubits, as well as more complex quantum circuits, such as superconducting circulators and quantum limited amplifiers [5,6].

Another important application for JJ-based devices is that of entangled photon generation [7,8]. The interest in entangled photon emitters lies in their potential to enable new types of quantum technologies. For example, entangled photon pairs can be used to perform secure quantum communication or quantum operations such as teleportation and error correction in quantum computing [9]. The study of the emission properties of quantum circuits is therefore extremely important since it enables the achievement of better control over entangled photons generation.

Phenomena such as electromagnetically induced transparency or Autler–Townes have been proposed as mechanisms to engineer the light propagation of superconducting circuits [10]. In this framework, we aim to study the emission properties of some of the fundamental superconductive devices in the GHz range, such as Superconducting Quantum Interference Devices (SQUIDs), Josephson Parametric Amplifiers (JPAs) and Josephson Traveling Wave Parametric Amplifiers (JTWPAs).

SQUIDs and JPAs are among the most relevant JJ-based superconducting circuits for sensing and amplification [11]. SQUIDs are initially born as extremely sensitive magnetometers, capable of detecting magnetic fields as low as ${10}^{-15}$ T [12], but can also be employed as low-noise microwave amplifiers in the MHz−GHz range [11]. JPAs are an enabling technology for superconducting qubit measurements [13], due to their high fidelity readout [14], and are, at this point, massively used in superconducting quantum information processing [15]. They usually work in the GHz range of frequency [16].

Recently, in the last decade, first SQUIDs and then JPAs have become the paradigm of cold-stage preamplification in light dark matter searches, such as axions and axion-like particles [17,18,19], since they give a significant improvement in the noise temperature compared to the cold semiconductor amplifiers (such as HEMTs) in the microwave range of frequencies. In fact, the noise temperature of SQUIDs is within a factor 2 of the standard quantum limit (SQL) below a physical temperature of 70 mK [20], $T_{\mathrm{SQL}}=h\nu /k_{\mathrm{B}}$, while JPAs are only slightly above the SQL, offering the possibility to reach the required sensitivity and signal-to-noise ratio in these type of searches.

In this paper, we present radiofrequency measurements on a SQUID and a JPA, showing their peculiar nonlinear nature. In particular, we show the possibility of using the devices as photon emitters since they exhibit the generation of couples of photons when driven with a single pump tone. Our interpretation of the results is twofold: we compare the data to the dynamical Casimir effect (DCE) [21,22,23] and to the Autler–Townes [24,25,26,27] fluorescence in three-level artificial atoms.

Additionally, we also present the same technique applied to JTWPAs, which are being developed and tested to serve in many fields [11], such as in quantum information processing, radio-astronomy, and dark matter searches [28]. Compared to JPAs, JTWPAs are characterized by a wider bandwidth (few GHz) and higher saturation power (>−90 dBm), at the price of more complex circuitry and a slightly higher noise level [29]. We believe that the DCE interpretation of the data is applicable to the JTWPA as well; however, precise quantitative modeling is left for future works.

2. Devices and Experimental Setup

2.1. SQUID

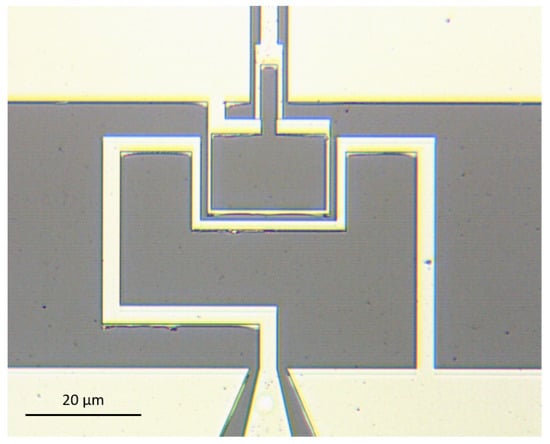

The chip for this device (Figure 1) contains a simple CPW (Coplanar Waveguide) transmission line ended with a dc-SQUID. Area, critical current, and capacitance of a single junction in the dc-SQUID are approximately $A=4\mathsf{\mu }{\mathrm{m}}^2$, $I_c=1.5\mathsf{\mu }$A and $C_J=0.59$ pF, respectively. More details on these parameters can be found in previous works [4,30]. The dc bias and rf pumping are obtained thanks to a coil printed on the chip next to the SQUID.

The junctions are fabricated using the shadow mask evaporation technique. A lift-off stencil is obtained by using electron beam lithography on a resist bilayer (in our case, PMMA 6% AR-P 669.06/on COP 33 10% AR-P 617.12). Some of the underlying polymer is removed due to its different sensitivity, forming the overhang. After the first angled Al evaporation ($155deg$), an oxidation step follows (2.5 mbar for 5 min). A second Al evaporation is performed at $90deg$ to define the tunnel junctions.

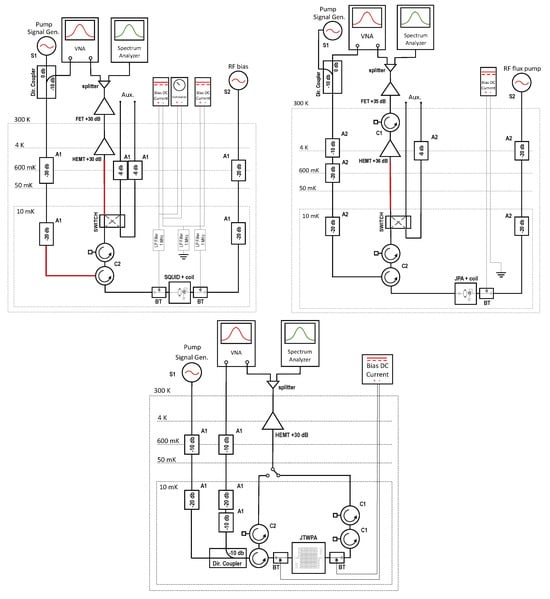

The experimental scheme for the SQUID is shown in Figure 2 (top left) —refer to

Table A1. Names, models, and working frequency ranges of rf components shown in Figure 2.

Instrument	Model	Bandwidth
VNA	Agilent E5071C	300 kHz–20 GHz
Signal generator (S1)	Rohde&Schwarz SMA100B	8 kHz–20 GHz
Signal generator (S2)	Rohde&Schwarz SGS100A	1 MHz–12.75 GHz
Spectrum Analyzer	Signal Hound SM200B	100 kHz–20 GHz
FET +30 dB	Narda Miteq LNA-30-08001200-09-10P	8 GHz–12 GHz
FET +35 dB	Narda Miteq LNA-30-04001200-15-10P	4 GHz–12 GHz
HEMT +30 dB	Low Noise Factory LNF-LNC6_20C s/n 1403Z	6 GHz–20 GHz
HEMT +36 dB	Low Noise Factory LNF-LNC4_16B s/n 2157Z	4 GHz–16 GHz
Attenuators (A1)	Radiall R413806000/R411810121/R411820121	DC–18 GHz
Attenuators (A2)	Narda Miteq 4768-6/4768-10/4768-20	DC–40 GHz
Directional Coupler	Mini-Circuits ZUDC10-02183-S+	2 GHz–18 GHz
Circulators (C1)	Low Noise Factory LNF-CIC4_12A	4 GHz–12 GHz
Double circulator (C2)	Quinstar Technology QCY-G0801202	8 GHz–12 GHz
Bias Tee (BT)	Marki Microwave BT-0018	40 kHz–18 GHz
Switch	Radiall R577443005	DC–18 GHz
Splitter	Mini-Circuits ZX10-2-183-S+	1.5 GHz–18 GHz

of Appendix A to know microwave components details. Here, the dashed lines indicate all the temperature stages of the cryostat, and the device is housed in the 10 mK stage. Two input coaxial cables send rf signals to the device. One is connected to the rf signal generator (S1), which is used as the pump tone generator, the other is connected to one port of a Vector Network Analyzer (VNA), which is used to send probe signals. Attenuators are shown with their attenuation value in dB units and are necessary to reduce the thermal noise at the device input. The rf sent from S1 and the VNA are combined at room temperature through a directional coupler and then travel on the same input line to the SQUID, passing through a bias tee (BT in Figure 2), which serves to simultaneously send radiofrequency and dc current to the device. The output line relies on a low-noise HEMT amplifier at the 4 K stage and an FET amplifier at room temperature, each giving 30 dB of amplification. Finally, the output signal is split and redirected to the readout port of the VNA and to a spectrum analyzer. The red segments on the transmission lines indicate superconducting coaxial cables. The lines indicated as “Aux” are auxiliary lines used for calibration purposes and are accessible thanks to a cryogenic switch mounted on the 50 mK plate. Additionally, the “rf bias” (S2) line indicated in the figure is used to send the rf flux bias on the coil. All the dc bias lines possess 1 MHz low-pass (LP) filters. The “Voltmeter” depicted in the scheme indicates that the voltage across the SQUID is detected; this is necessary for IV characteristics and escape distributions measurements.

For the SQUID, we estimated the attenuation of the input line from room temperature measurements without taking into account the superconducting segment. The reference value at 10 GHz is $-83$ dB when measured from the VNA port, and $-73$ dB when measured from the pump generator due to the 10 dB difference in the attenuations of the directional coupler ports.

2.2. JPA

The JPA device (Figure 3) is designed as a flux qubit [31,32] and is composed of a CPW transmission line coupled to a $\lambda /4$ coplanar resonator of length $l=2.6$ mm through an interdigital capacitance of 10 fF. The bare resonator frequency is ${\omega }_{0r}=11.35$ GHz. Then, the resonator is ended with a dc-SQUID which junctions have $C_J=0.4$ pF and $I_c=0.47\mathsf{\mu }$A, resulting in a plasma frequency of ${\omega }_{0J}/2\pi =9.24$ GHz. For completeness, we report that this sample device showed a gain of $G=(15.5\pm 2.0)\mathrm{dB}$ at the frequency of 7.42 GHz, with a bandwidth of 5 MHz when pumped with double the signal frequency and biased with a flux $\mathrm{\Phi }=0.19{\mathrm{\Phi }}_0$.

The fabrication of the Josephson junctions forming the dc-SQUID relies on the Niemeyer–Dolan technique [33], exploiting suspended Dolan-bridges and a double-angle aluminum evaporation step. The complete microfabrication process can be summarized as follows. A 150 nm thick aluminum film is sputter-deposited on a 6${}^{″}$ high-resistivity silicon wafer (FZ silicon wafers, diameter: 6${}^{″}$, thickness: $625\pm 15\mathsf{\mu }\mathrm{m}$, dopant: Boron (type p), orientation: <100>, resistivity: >8000 $\mathrm{\Omega }/\mathrm{cm}$). The film is patterned and plasma-etched to structure the resonator transmission line, the pump transmission line, and the dc-flux line. Subsequently, a second lithographic step is performed by preparing the suspended Dolan-bridges. The shadow evaporation process for the microfabrication of the Josephson junctions is performed with a tilting angle of 30${}^{\circ }$, depositing 50 nm and 60 nm of aluminum before and after the oxidation step, respectively. The oxidation dose is given by a pressure in the evaporator chamber of 2 Pa and an oxidation time of 2 min and 24 s. Such parameters are expected to yield a specific resistance of the single Josephson junction of about 346 $\mathrm{\Omega }\mathsf{\mu }{\mathrm{m}}^2$, as confirmed by dc electrical measurements performed on test dc-SQUID devices produced on the same wafer.

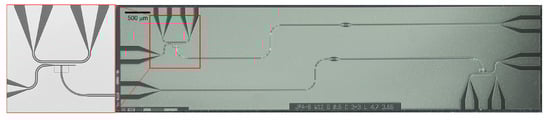

Each chip features a size of 10 mm × 2.5 mm, and it comprises two JPA devices, as shown in Figure 3. The JPA devices on the same chip differ in the size of the Dolan-bridges and, thus, in the difference in the areas of the Josephson junctions. The expected critical current value of the dc-SQUID of the JPA device that has been tested is about $1.8\mathsf{\mu }$A.

The rf scheme is quite similar to that in Section 2.1, except for some details (Figure 2 top right). In fact, here, the HEMT and FET amplifiers give, respectively, 36 dB and 35 dB of amplification, and a circulator has been added to the HEMT output for better isolation. Attenuators’ positions and values change according to the new scheme. The dc bias lines only supply current to the coil, and the low-pass filters are removed.

Here, the cryogenic switch allows for all the necessary combinations between lines for calibration purposes. A system of equations with the input, output, and auxiliary lines as unknown terms has been solved, where the known terms are the S21 parameters of the combinations input-output, input-Aux1, Aux1-Aux2, and Aux2-output. The only segment that does not enter the equations is the one from the JPA to the circulator, whose attenuation has been measured separately at room temperature. Since the calibration procedure is not fully self-consistent, we attributed a 2 dB uncertainty to the results. Thus, the attenuation of the input line at the reference frequency of 7.25 GHz is $(-75\pm 2)$ dB if measured from the VNA port, and $(-85\pm 2)$ dB if measured from the signal generator (due to the additional $-10$ dB in the coupled port of the directional coupler).

2.3. JTWPA

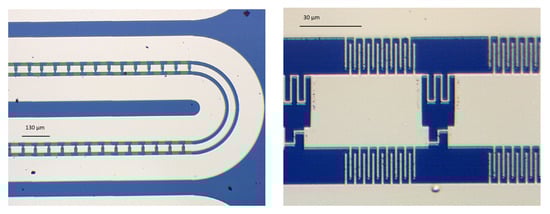

The JTWPA design follows the coupled mode equations developed in Refs. [34,35] and is optimized to avoid power leakage and improve the phase matching. It is composed of 15 sections of a CPW embedding 990 nonhysteretic rf-SQUIDs connected by bent sections of CPW. The values of the circuit parameters of the Josephson metamaterial, by design, are a ground capacitance of $C_g=13.0$ fF, a geometrical inductance $L_g=45$ pH, a Josephson capacitance of $C_J=25.8$ fF and a Josephson critical current of $I_c=1.5\mathsf{\mu }\mathrm{A}$. The Josephson junctions were fabricated by exploiting an electron beam lithography process on a double-layer polymeric mask, followed by an aluminum e-gun evaporation. The JTWPA is shown in Figure 4. The gain of this prototype device reached up to 25 dB with a signal frequency of 9 GHz when pumped at 18 GHz (degenerate mode) and up to 20 dB when pumped at 13.4 GHz (nondegenerate mode). All the details are present in [36].

The experimental setup for the JTWPA measurements is presented in Figure 2 (bottom). The device temperature during measurements settled at about 15 mK. In this case, two different input transmission lines are used to send radiofrequency to the device. One is connected to the rf pump tone generator (S1), and the other is connected to one port of the VNA. The pump and signal lines are then coupled together on the same line thanks to the directional coupler at the 10 mK stage. The JTWPA receives both microwaves and a dc bias current thanks to the two bias tees. The cryogenic switch mounted on the 50 mK plate allows us to test the device both in reflection and in transmission. Then, on the output line, the HEMT amplifier at the 4 K stage provides 30 dB of amplification.

Also, in this case, we measured the scattering parameters of each line at room temperature to calibrate the system. From these parameters, an estimation of attenuation values was given for the signal line from port 1 of the VNA, which is $-72$ dB at 9 GHz, and for the pump line, which is $-65$ dB at 18 GHz. These values are given at the reference frequencies where signal and pump were operated ($f_{\mathrm{p}}=2f_{\mathrm{s}}$).

All the Josephson devices tested are put in a magnetic shield composed of a lead box covered with a foil of Mu-metal, so we expect that the external magnetic field is properly shielded.

3. Results and Discussion

3.1. SQUID

Referring to the scheme of Figure 2 (top left), the experiment is conducted by sending a single pump tone from the signal generator (S1) to the SQUID and reading the response to it with a spectrum analyzer, after having properly amplified the output signal. As the device has only one rf port, the measurements are taken in reflection mode. Figure 5 shows the results of the SQUID response. The plot is obtained by keeping the drive frequency fixed at ${\omega }_d/2\pi =13.93$ GHz and changing the drive power $P_d$. The values of the y-axis refer to the power at the device input after calibration. The output photons are divided into two branches, with their peak frequencies symmetric with respect to the drive frequency, which means conservation of the photon energies, $({\omega }_1+{\omega }_2)/2\pi =2{\omega }_d/2\pi$.

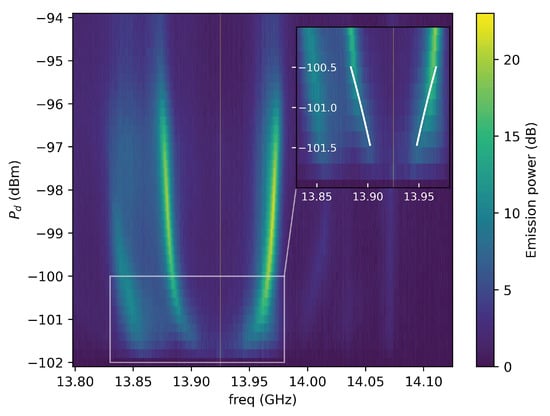

The low-power region of the spectrum has been interpreted as the emission due to the dynamical Casimir effect (DCE) [21,22,23], which has been modeled for our scheme in Appendix B. In Figure 5, the white lines in the inset show the behavior of the SQUID under the direct pump drive as predicted by the DCE, superimposed to the data. In the calculations, we start from the Lagrangian of a CPW and end with a SQUID, which is driven by microwaves parametrized as a flux field on the transmission line, and after finding the equation of motion, we calculate the output number of photons as the expectation value of the output field on the vacuum state (Equation (A24)). The resulting output spectrum is shown in Equation (A26):

$$\begin{array}{cc}\hfill n_{\mathrm{out}}\left(\omega \right)& ={\left|\sqrt{\omega }\sqrt{\frac{4\pi }{\hslash Z_0}}\delta (\omega -{\omega }_d)\left(\left(\frac{{\mathrm{\Phi }}_0}{2\pi }\right)\frac{\delta E_J^{\prime }}{2E_J^0}-{\left(\frac{{\mathrm{\Phi }}_0}{2\pi }\right)}^2\frac{A{\omega }_d^2{C}_J}{E_J^0}\right)·D\left(\omega \right)\right|}^2+\hfill \\ \hfill & +{\left|\frac{\delta E_J}{2E_J^0}\sqrt{\frac{\omega }{2{\omega }_d-\omega }}\mathrm{\Theta }(2{\omega }_d-\omega )2i{k}_{2{\omega }_d-\omega }{L}_{eff}^0·D(2{\omega }_d-\omega )·D\left(\omega \right)\right|}^2,\hfill \end{array}$$

with $D\left({\omega }^{\prime }\right)$

$$D\left({\omega }^{\prime }\right)=\frac{1}{1-\frac{C_J{\omega }^{\prime 2}}{E_J^0}{\left(\frac{{\mathrm{\Phi }}_0}{2\pi }\right)}^2-i{k}_{{\omega }^{\prime }}{L}_{eff}^0}.$$

The first term represents the drive tone reflected back on the transmission line, while the second term gives rise to two distributions, one peaked in the SQUID plasma frequency ${\omega }_J\left(P_d\right)$ (which is contained in the factor $D\left(\omega \right)$ of Equation (A27)), and another peaked in $2{\omega }_d-{\omega }_J\left(P_d\right)$. Note that the plasma frequency has a dependence on the drive amplitude through the definition of the energy $E_J^0$ (Equation (A19)):

$$E_J^0=2E_J-\delta E_J,\delta E_J=\frac{A^2}{2}{E}_J{\left(\frac{2\pi }{{\mathrm{\Phi }}_0}\right)}^2.$$

This is exactly the dependence, giving the variability of the simulated curves in Figure 5 explaining the linear regime of the data. In fact, increasing the drive amplitude, $E_J^0$ decreases and both ${\omega }_J$ and $(2{\omega }_d-{\omega }_J)$ increase, and consequently, the two output branches move away. Note, however, that this behavior is only valid at small drive powers, and the result of Equation (A26) can only predict the linear regime (below $-95\pm 2$ dBm the contribution of the quadratic term in the cosine expansion of Equation (A17) is less than 1%). To account for the saturation at higher powers, we should also include higher-order terms in the approximations.

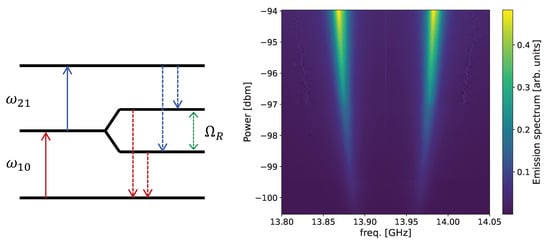

For the high-power region of the emission spectrum, a possible interpretation is given by the generation of Autler–Townes (AT) splitting. In a multi-level system, when a transition between two levels is driven by a strong drive, the dressed states can be viewed as split states [24]. This is the AT splitting, and it can be spectroscopically investigated, probing the transition to a third level of the system. In our case, we can consider the SQUID as an artificial atom with three levels, $|0\rangle$, $|1\rangle$, $|2\rangle$. In a canonical AT experiment, two tones are simultaneously sent to the device with frequencies almost resonant with the single photon transition $|0\rangle \to |1\rangle$, and $|1\rangle \to |2\rangle$ called ${\omega }_p$ and ${\omega }_c$ [25]. In this configuration, ${\omega }_p$ dresses the $|1\rangle$ state and at the same time ${\omega }_p+{\omega }_c$ excite the artificial atom in $|2\rangle$. The photons emitted as consequence of the decay $|2\rangle \to |1\rangle \to |0\rangle$ have energies ${\omega }_{10}\pm {\mathrm{\Omega }}_R/2$ [26] as illustrated in Figure 6 (left), where ${\mathrm{\Omega }}_R$ is the Rabi frequency. The probe tone ${\omega }_p$ is usually almost resonant with the transition ${\omega }_{10}$ and can be written as ${\omega }_{10}={\omega }_p+{\mathrm{\Delta }}_p$, with ${\mathrm{\Delta }}_p$ being the detuning between ${\omega }_{10}$ and ${\omega }_p$. The same relation holds for ${\omega }_c$ and ${\omega }_{21}$: ${\omega }_{21}={\omega }_c+{\mathrm{\Delta }}_c$ where ${\mathrm{\Delta }}_c$ is the detuning between ${\omega }_{21}$ and ${\omega }_c$. The Hamiltonian for this system written in the SQUID eigenstates basis and using the RWA is [27]: $\mathcal{H}={\sum }_{n=1}^2{\omega }_n|n\rangle \langle n|+{\mathrm{\Omega }}_{p}cos\left({\omega }_{p}t\right)|1\rangle \langle 0|+{\mathrm{\Omega }}_{c}cos\left({\omega }_{c}t\right)|2\rangle \langle 1|$, where ${\omega }_n$ is the n-th eigenvalue of the artificial atom, ${\mathrm{\Omega }}_p$ and ${\mathrm{\Omega }}_c$ are the amplitudes of the two driving fields.

In our case, we send a single tone to the SQUID. However, since the power arriving at the device is large, it is possible that single- and multi-photon absorption channels are open concomitantly. In this case, ${\omega }_p={\omega }_c$ and single photon absorption and K photons absorption are allowed. This scenario can be modeled as sending K different drives, each with frequency ${\omega }_p$ and amplitude ${\mathrm{\Omega }}_K$. The detuning of each drive can be expressed recursively as a function of the detuning ${\mathrm{\Delta }}_p$ and of the anharmonicity of the system. We assume that in a weakly anharmonic system the relation $E_{n,n-1}-E_{n+1,n}=\alpha$ holds, where $\alpha$ is the system anharmonicity and $E_{n,n-1}$ is the energy difference between the energy levels $E_n$ and $E_{n-1}$. The detuning ${\mathrm{\Delta }}_n$ of the n-th tone with respect to the energy $\hslash {\omega }_{n,n-1}$ can be expressed as: ${\mathrm{\Delta }}_n={\mathrm{\Delta }}_{n-1}-\alpha$ (with ${\mathrm{\Delta }}_1={\mathrm{\Delta }}_p$). Assuming multi-photon absorption, it is necessary to take into account higher levels above level $|2\rangle$. Using the approach of Ref. [25] the Hamiltonian of the system becomes:

$$\mathcal{H}=\sum _{n=1}^N\left(\sum _{i=1}^n{\mathrm{\Delta }}_i|n\rangle \langle n|+\left(\frac{{\mathrm{\Omega }}_n}{2}|n\rangle \langle n-1|+h.c.\right)\right),$$

(1)

where ${\sum }_{i=1}^n{\mathrm{\Delta }}_i=n{\mathrm{\Delta }}_p+\alpha \frac{n(n-1)}{2}$. We consider the energy levels up to $|4\rangle$, thus here $N=4$. The output power spectrum is constructed by numerically solving the Liouville equation choosing as decay rates ${\mathrm{\Gamma }}_{10}/2\pi ={\mathrm{\Gamma }}_{21}/2\pi =2.5$ MHz and ${\mathrm{\Gamma }}_{43}/2\pi ={\mathrm{\Gamma }}_{32}/2\pi =1$ MHz. We then chose as initial state $|0\rangle$ and as final state $|2\rangle$. We calculated the Fourier transform of their correlation function to obtain the emission spectra [25]. The simulated output spectrum as a function of the drive power is shown in Figure 6 (right). It reflects fairly well the splitting dispersion as a function of the drive power of the two main branches of the data as well as the peaks linewidths. The appearance and the trend of the sidebands around $13.85$ and 14 GHz in Figure 5 may be due to the simultaneous detection of AT doublet and Mollow triplets. In fact, the sideband frequency separation is roughly $2{\mathrm{\Omega }}_R$ [26]. The appearance of the sidebands is almost vanishing in our simulation, suggesting that a more accurate model of the energy levels anharmonicity should be adopted.

3.2. JPA

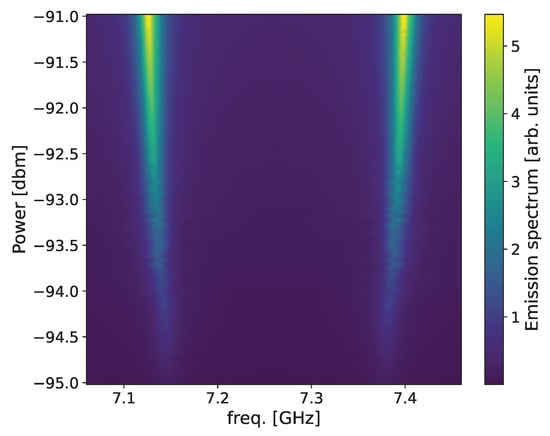

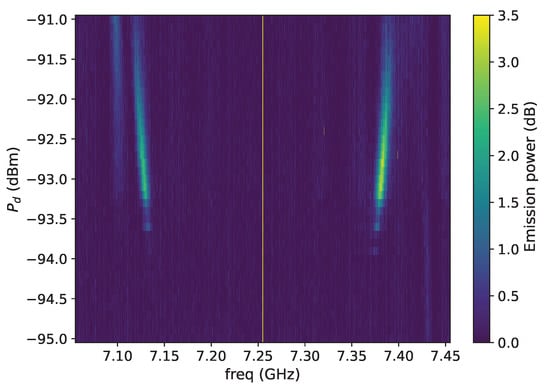

The experiment is conducted in the same way as in Section 3.1, and the JPA is also measured in reflection mode. The results are shown in Figure 7. In the power dependence, the peaks separation is about 250 MHz, and here the linear regime is not visible. This setup is equal to the open resonator circuit described in Ref. [21].

The data from Figure 7 do not show an observable low power signal as in the case of the SQUID (note that the power scales are different in the two cases). On the other hand, the high power region of the spectrum is clearly visible and was simulated using the Hamiltonian of Equation (1) for AT-like emission. The simulation result shown in Figure 8 is in good agreement with the spectrum in Figure 7. For the JPA we used as decay rates ${\mathrm{\Gamma }}_{10}/2\pi ={\mathrm{\Gamma }}_{21}/2\pi =2.5$ MHz and ${\mathrm{\Gamma }}_{43}/2\pi ={\mathrm{\Gamma }}_{32}/2\pi =1$ MHz, which are comparable with the S21 linewidth of 4 MHz. Lacking any effect at lower power, we did not consider the DCE approach here.

3.3. JTWPA

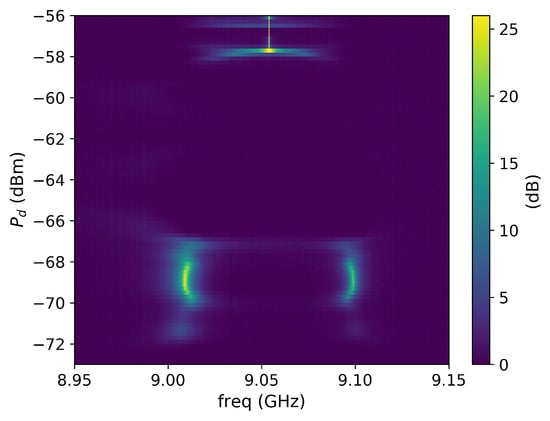

The same type of measurements were conducted on a JTWPA, which has two ports enabling the reading of both reflection and transmission signals. The results for the transmission data are presented in Figure 9 (results for reflection mode are identical). Qualitatively, we observe photon splitting in this case as well, which can be attributed to internal reflections driven by the pump. The reflection coefficient describes the behavior of the transition between the 15 linear sections and the 50 Ohm CPW curves of the JTWPA. This complex condition can be modeled as a series of semi-transparent mirrors, moving as a consequence of the pump drive (in analogy to solid state with a pump-induced time-varying refractive index; for our device, we have a time varying impedance). Then, the traveling tones in the metamaterial experience the presence of these moving mirrors as in the DCE. Given the intricacy of the JTWPA system, it is more challenging to derive a precise and quantitative interpretation of the data. Hence, we leave room for further investigation.

4. Conclusions

We investigated the generation of photons in three superconducting circuits, in particular a SQUID, a JPA, and a JTWPA, when they are driven by a single tone of monochromatic microwaves. The paper focused on the method of performing these types of radiofrequency measurements, with particular attention to the experimental setup and the description of microwave components. The response of the devices to a pump tone presents two photon distributions symmetric with respect to the rf drive, in which frequency spacing increases along with the power. The SQUID and JPA setups are very similar to the systems used to reproduce a mirror with variable boundary conditions, which generate the dynamical Casimir radiation, and the simulations of the DCE are comparable with the experimental spectra at low powers. The results at high power levels are well interpreted by the Autler–Townes fluorescence of a multi-level system in the presence of multi-photon absorption. As a further development, we aim to study these devices as generators of entangled photons as demonstrated in Ref. [8]. This topic will be treated in future works.
