Detection and Imaging with Leak Microstructures

Abstract

Results obtained with a new, very compact detector for imaging with a matrix of leak microstructures (LM) are reported. Spatial linearity and spatial resolution obtained by scanning and the detection of alpha particles with 100% efficiency, when compared with a silicon detector, are stressed. Preliminary results obtained in detecting single electrons emitted by the heated filament (Ec < 1 eV) at 1–3 mbar of propane are reported.

1. Introduction

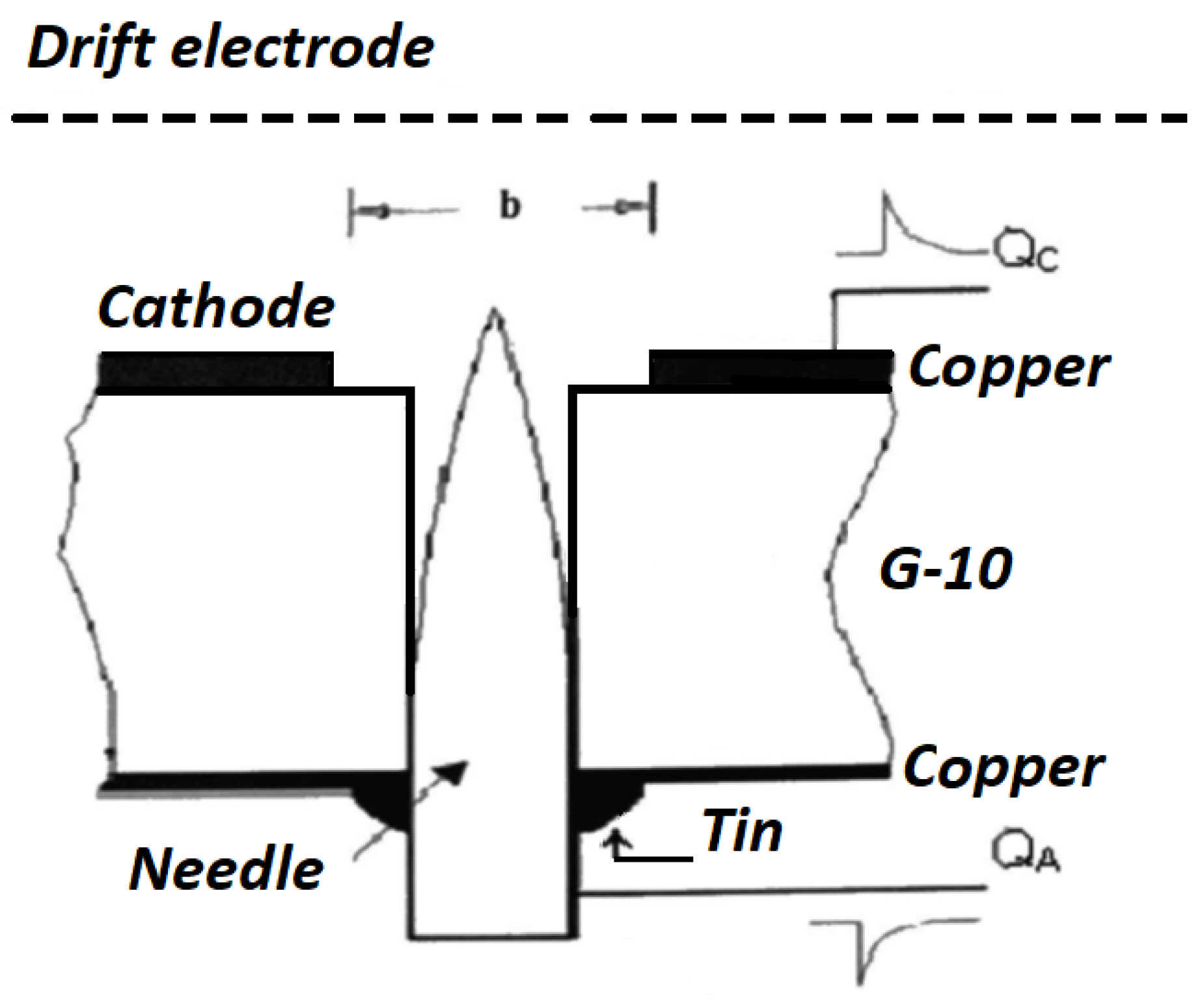

Some years ago, we introduced a new kind of gaseous detector based on tips of wires or needles used as anodes, that is, the leak microstructures (LM) [1,2,3,4,5,6,7,8]. It belongs to the family of gaseous detectors based on needles as anodes, such as the “multi-points detector with cathodic focalization” [9,10,11] and the “pin detector” [12,13]. The LM detector is different from the above detectors for its geometry and properties. The geometry of an LM is really simple (Figure 1): a needle, 315 µm diameter, whose tip (in the order of 20 µm diameter) acts as an anode, is inserted in a hole (0.35 mm diameter) drilled on a fiberglass supporting structure (G-10, commonly used for printed circuits), which is copper-clad on both sides: one side is the cathode of the detector, on the other one the needle is welded. Stable operating conditions were obtained at atmospheric pressure (760 Torr of isobutane) and at low pressure (1–3 mbar of propane) with slightly different detector geometry. The needle’s tip protrudes 0.1–0.2 mm to operate at atmospheric pressure and about 1 mm at low pressure [14]. The copper of the cathode surrounding the needle is removed to create an insulating space (b in Figure 1) about 550–600 µm in diameter to work at atmospheric pressure, 750–800 µm to work at low pressures. The thickness—4.5 mm of the supporting structure (G-10 in Figure 1)—is enough to easily allow a very good centering of the needle with respect to the insulating space of the cathode. At distances ranging from 3 to 10 mm from the cathode, a drift electrode is fixed, which marks the boundary of the active volume of the detector: this space is filled with gas. The electric field, generated between the tip of the needle and the cathode, is high enough to induce the multiplication of the ionization electrons. Induced charges (signals) are generated for each ionizing event detected, one anodic and the other cathodic, with the same amplitude and time duration, opposite sign and time coincidence, both proportional to the primary ionization. Typical of gaseous counters, these features are used in a matrix of LMs to obtain the needle address by the anode signals and a fine position determination by analyzing the cathode signals.

Let us briefly recall some properties of these microstructures:

• The lack of insulating material between the cathode and the needle tip, which represent the sensitive part of the anode where the avalanche develops, avoids the charging-up phenomena that can alter the electric field and thus the response of the detector: the LM detector shows a very stable and repetitive behavior;
• The extreme sensitivity: it can detect the electrons emitted by a heated filament (Ec < 1 eV) or extracted from copper with a mercury-vapor lamp [7,8,15];
• The high gas gain [4]: higher than 10⁶ in detecting single electrons emitted by the heated filament and more than 6 × 10⁵ in detecting X photons from a 5.9 keV ⁵⁵Fe source working in a proportional region at 760 Torr.

2. Imaging

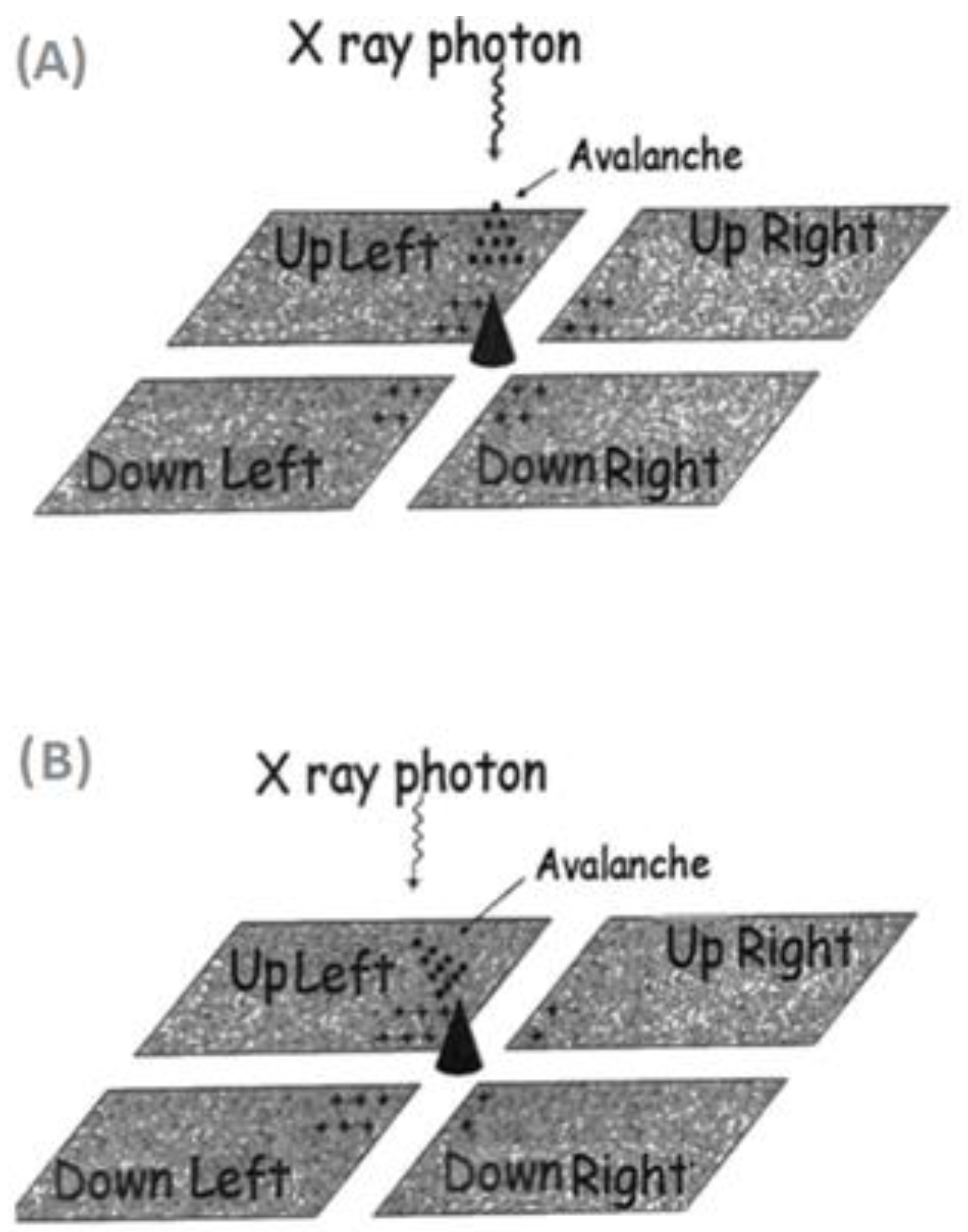

The image capability of these structures was investigated starting from a single LM [8]. The cathode of LM was divided into four square pads so that the microstructure was built with the tip of a needle surrounded by four pads: two related to the X coordinate and two to Y. This structure is particularly suitable for imaging purposes because the cathodic charge spreads out to the four pads according to the position of the striking radiation, as described in. [13] and sketched in Figure 2.

Using a 5.9 keV ⁵⁵Fe source and a mask of 7 holes, 300 µm in diameter, separated by 100 µm, well centered on the anode, Figure 3 was obtained. A “zoom” effect was evidenced by changing the potential of the drift electrode.

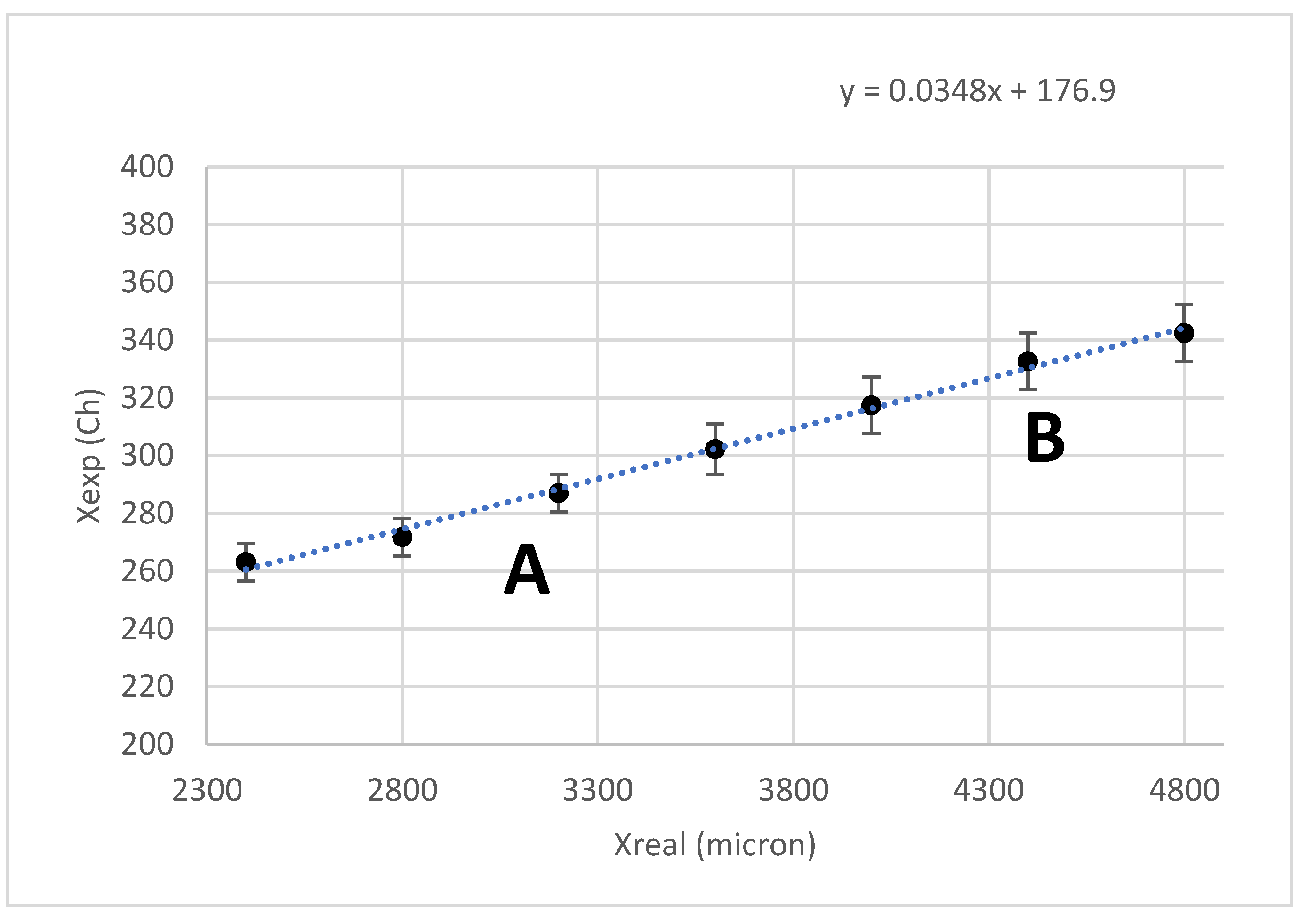

To study the spatial linearity, an X-ray tube with a copper anti-cathode at 20 kV as the source was used together with a multi LM detector with a 2.4 mm pitch operated at 1 bar of isobutane. A 0.1 mm slit was put onto the drift electrode and shifted along the x-axis of constant 0.4 mm pitches. In Figure 4, we report the spatial linearity. The x-axis represents the slit positions in 400 µm steps, whereas the y-axis shows the position in channels measured by the detector. The errors reported in the plot are the FWHM of the acquired data. This measurement also allowed the evaluation of the spatial detector resolution, as a function of the slit position concerning the anode (tip of the needles), up to the boundary between two anodes: the best spatial resolution was above an anode (A in Figure 4 evaluated 279 µm FWHM) and worse on the boundary between two anodes (B in Figure 4 evaluated 643 µm FWHM).

The electric field characteristic of LM was studied starting from a simplified geometry of a single element. In Figure 5, the electric field of a single LM, constituted by a 20 µm needle, is presented. An electric field in the order of some MV/m was achieved.

After these preliminary results, a more extended detector consisting of several needles surrounded by pads was developed.

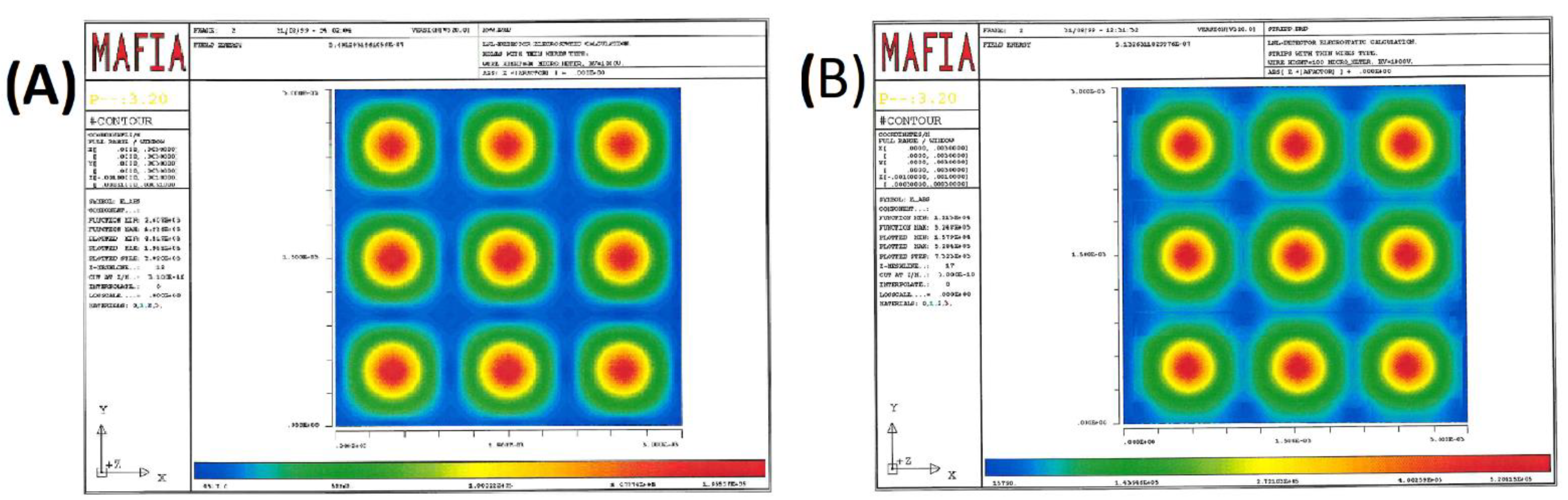

A general-purpose electromagnetic simulation software [16] was used to study a matrix of LMs. The aim was to define the geometrical parameters in such a way as to have a position sensitivity on the whole surface. At the fixed pitch, the height of the needle’s tip played an essential role in defining the sensitive area, together with the applied voltage. Figure 6 shows the simulation for two different configurations and the role of the needle height.

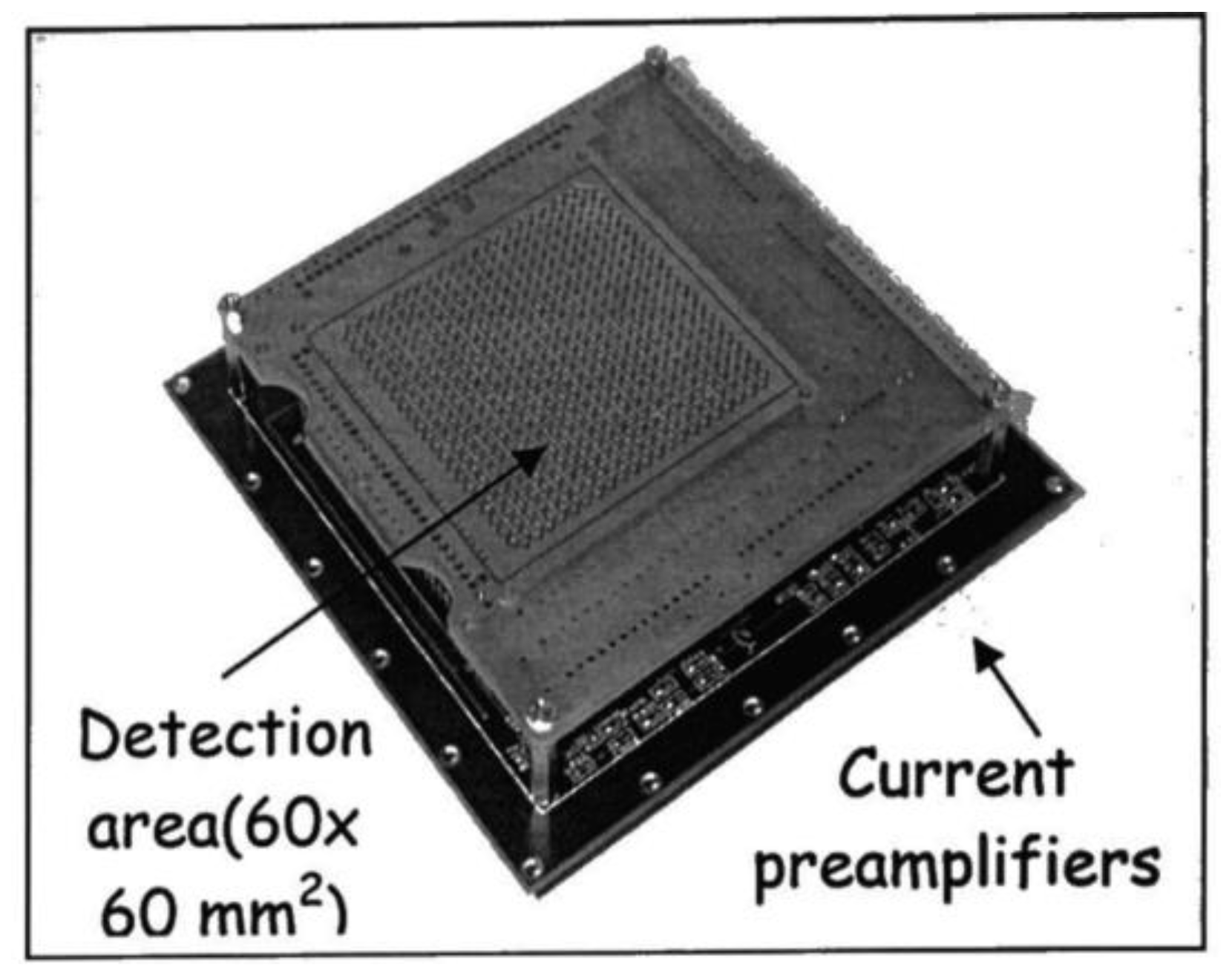

As a result of these simulations, a detector with an LM matrix made by 21 × 21 LMs, pitch 3 mm, distributed on a 60 × 60 mm² surface, as shown in Figure 7, was developed.

This last version of the LMs matrix follows the one described in [7,8]. Experimental measures and simulations have shown that to avoid the imaging dead zones, the needles’ pitch must be 3 mm or less with a needle height of 100 µm. To achieve better operation stability at high voltage, the thickness of the copper-clad cathode (originally of 70 µm) was increased up to 100 µm by galvanic deposition and nickel-plated to avoid oxidation.

The signal processing chain was very simple (Figure 8): as mentioned above, each LM had four cathode pads, two related to the X position (left and right) and two related to the Y (up and down).

All the 441 left pads were shorted together as well as all the 441 right, up, and down pads (Figure 8) so that they could all be read with only four channels (4 preamplifiers, 4 main amplifiers and 4 digital to analog converters (ADCs)). The next step was to address the matrix points to get an extended image.

The charge collected by a needle (anode) is able to turn on a Shottky diode and reach a preamp through it. Housed in a sot23 case (less than 3 × 3 mm²), two Shottky diodes were connected on the rear face of the detector to each needle to split the signal towards two delay lines for the addressing. With this tricky solution, only six analog-to-digital converters were required: four for the pad-channels and two to read the time to amplitude converter (TAC), which provided the X, Y address of the needles.

To check the imaging capability on the whole detector surface, half a razor blade was used as a mask on the drift electrode, fixed at a 3 mm distance from the cathode and working in isobutane at atmospheric pressure. Through an extended X-ray generator, we obtain the image of Figure 9. It is important to underline that this image did not undergo any further software elaboration: it is just the presentation of the raw data. With this new detector, we could obtain well-defined images without any imaging dead zone.

3. Alpha Particles Detection

To evaluate the detection efficiency of alpha particles, we used a single LM with a 241 Am source; its efficiency was compared with that of a silicon detector, which is known to have very high detection efficiency.

The measurements were performed in isobutane at a fixed threshold of the electronic chain. Operating at a pressure of 400 Torr, the counting plateau was achieved; at 760 Torr, we were not able to reach any plateau. This behavior could be explained by the increased efficiency in detecting the X-rays emitted by the source together with the alpha particles at this pressure.

The experimental setup used in this study is shown in Figure 10. A lead collimator, 15 mm thick with a 3 mm diameter hole, was placed at 3 mm from the cathode of an LM well centered on the tip.

The alpha range, under these conditions, was enough to pass through the collimator and enter the active volume of the detector. In a 300 V/cm drift electric field, we obtained the curve in Figure 11. The relative counting efficiency of the silicon detector is shown along the Y-axis. When replacing the LM, this was put in the collimator’s output to count how many alpha particles pass through it in the same lapse of measuring time. A 100% efficiency concerning the silicon detector was achieved, as well as the counting plateau.

4. Preliminary Results on Single-Electron Detection at Low-Pressure

The capability to detect single-electron was tested with LMs operated in propane gas at 3 mbar [15]. In these measurements, the LM detector consisted of a matrix of 4 × 4 LMs with nickel-plated needles of conical shape with rounded tips of about 20 µm radius. A stable operation was obtained in the following conditions: needles of 1 mm height (distance between the tip of the needles and the cathode plane), around each needle, an insulated pad of ϕ 0.8 mm (b in Figure 1) was used to separate anodes from the common grounded cathode layer. The structure had a pitch of 2.4 mm. At a distance of 7 mm from the cathode, a negatively biased copper wire drift grid defined the boundary of the detector’s active volume.

As calculated in [14] at 3 mbar of propane, with needles of 1 mm height, the Townsend ionization coefficient a was bigger than 1 everywhere in the active volume of the detector starting from the grid. This means that avalanches may occur everywhere and not only near the needle tip. The avalanche spreading depended on the voltage applied to the grid (Vd), which, therefore, influenced the drift and the multiplication process.

Single electrons were obtained by heated filament, as well as extracted from the grid by a mercury-vapors lamp (ORIEL 6035, main wavelength of 253.7 nm). The low quantum efficiency of Cu (of the order of 10⁻⁴ in the lamp wavelength bandwidth), together with an opportune attenuation of the UV light from the lamp, allowed limiting the counting rate to about 100 Hz. In this way, the probability that the observed signals were due to more than one electron was very low.

The signals from the current amplifier were collected, and the pulse–height spectra were fitted with Polya distribution. It is well-established that the avalanche size and consequently the single-electron charge pulse–height spectra follow the negative binomial, or Polya, distribution [17,18]. With the aim to evaluate the single-electron detection efficiency, the same distribution was applied to the current signals. The recorded spectrum is shown in Figure 12 together with the Polya fit, allowing calculating the single-electron detection efficiency according to the noise threshold level and the Polya integral [15]. A value of 96% was achieved, quite similar to that obtained with a multistep avalanche chamber detector [19,20].

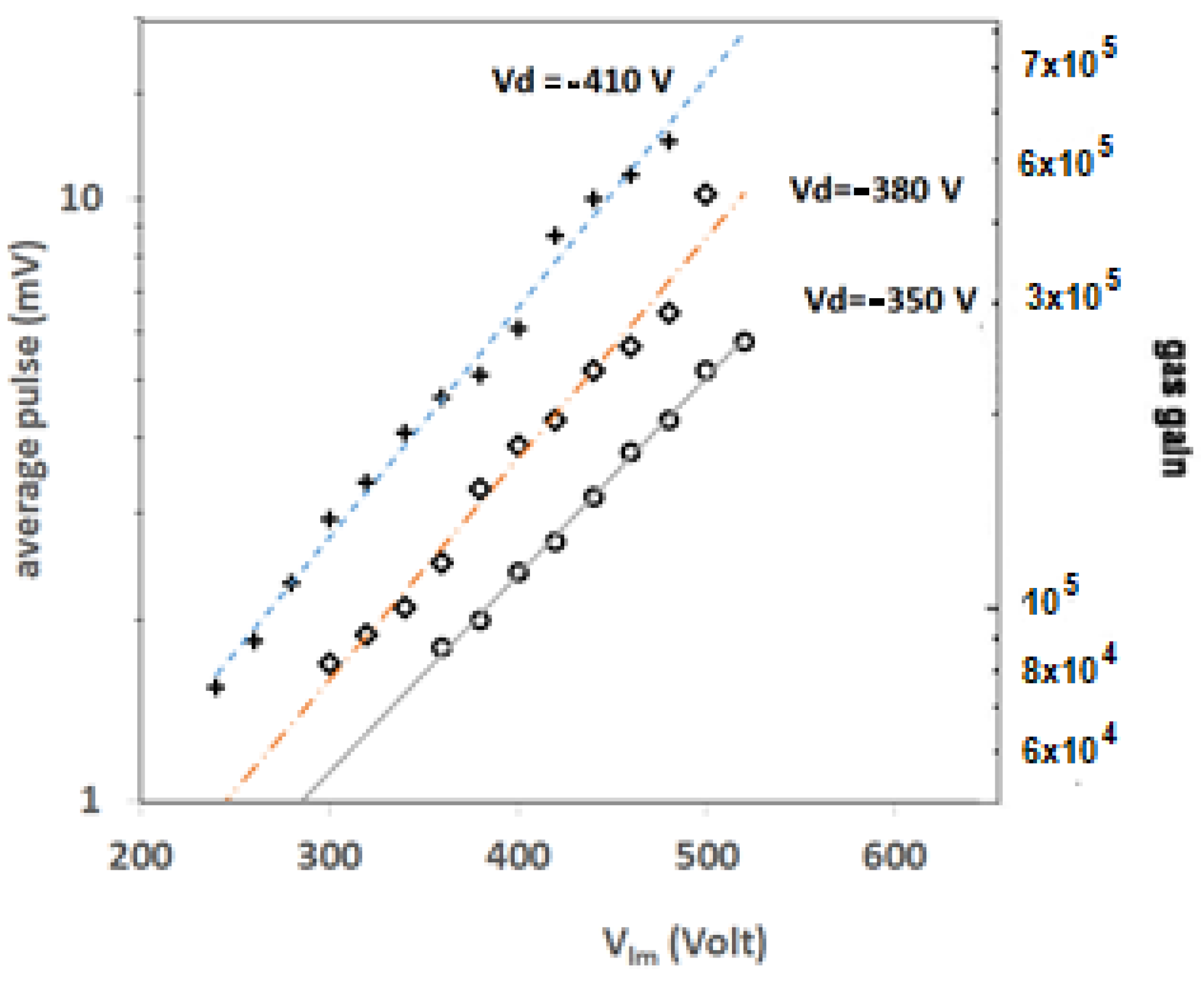

The gas gain was empirically evaluated from the collected charge, taking into account: pulse shape, electronic amplification, input impedance and considering the detection of single-electron. Measurements were performed for three different voltages applied to the grid (V_d) as a function of the high voltage applied to the needles (V_lm). Results, presented in Figure 13, show an exponential gain increase with voltage and gas gains in the order of 10⁵.

5. Conclusions

The LM detector has shown imaging capability by multiplicating primary electrons and the rough handling of the signals obtained in a very simple, compact and reliable way. Images of extended samples were produced with an X-ray source, obtaining quite good spatial resolution but with low X-ray conversion efficiency. In fact, the conversion efficiency of soft X-rays in the detector’s active volume at 760 Torr of isobutane was less than 1% [21,22]. Further development of this work is to enhance the detection efficiency obtained using a suitable photocathode, like secondary electron emission (SEE) type [20,23]. The system showed a detection capability of single electrons at very low gas pressure (3 mbar) working in a proportional region and with gas gain in the order of 10⁵. The measurements presented extend the fields of application of the LM detector.

Recently, this technique was used for the design and instrumentation of an active target time projection chamber for the detection of heavy-ion tracking in experiments with rare isotope beams [24].
