Practical Aspects of Multiwavelength Analytical Ultracentrifugation

Abstract

Open-source Multiwavelength Analytical Ultracentrifugation (MWL-AUC) detection systems have been evolving for over a decade. Continual advances emerging out of several research groups have brought the instrumentation technology to increasingly higher levels of performance. The capabilities of MWL-AUC have been documented in many publications, demonstrating the applicability of broad spectrum absorbance acquisitions in analytical ultracentrifugation to a wide array of scientific fields. Despite numerous examples of the usefulness and unique advantages of MWL-AUC, the adoption of the technology by more research groups has been slow. The complexity of the hardware, integration within an ultracentrifuge platform and lack of practical construction and operational information is the likely source of reluctance. Here, we clearly describe the challenges facing a researcher considering adopting MWL-AUC technology in their own laboratories, and provide the information necessary to implement and operate a MWL-AUC system. The discussion includes details of detector assembly, optical alignment, and acquisition parameter settings necessary to achieve high quality experimental results.

1. Introduction

Past publications on MWL-AUC have described the overarching principles, demonstrated the technical achievements and illustrated the potential uses of this technology. Many of the basic concepts and original design schemes for the hardware have been reported previously [1,2,3,4,5]. This manuscript provides additional details that have not yet been described or were more recently adapted, but have proven essential to producing high quality measurements from the instrument. We hope to present a realistic portrayal of the challenges a researcher faces when considering implementing one of these systems in their own laboratory, in addition to many of the critical aspects of the installation that we have found necessary for successful instrument operation demonstrated in past publications [2,6,7,8]. This includes a description of the necessary tools and expertise to build and install the detector, followed by a protocol for alignment and calibration. Finally, we discuss setting the operating parameters and considerations of experimental design for various types of sample investigations. Early design iterations of the open-source MWL-AUC hardware featured lens-based illumination and imaging optics. The integration of mirror-based illumination and imaging optics, free of chromatic aberration, has been described recently and is the subject of the alignment and focusing protocol in the following discussion [2,9]. In addition to the open-source MWL-AUC mirror optics hardware detailed here, a commercial spin-off version of the detector has been introduced by Nanolytics^© of Potsdam [10].

2. Materials and Methods

A MWL detector, which was built according to the Open AUC project standards, is composed of an illumination source, optical scanning assembly and spectrometer, retrofitted into a Beckman Coulter ultracentrifuge platform [11]. Many of the components may be ordered as stock items from the respective suppliers, while the aluminum mechanical assembly must be custom fabricated by a machine shop. An up to date parts list for all of the stock items, and schematics of the custom aluminum hardware, is available upon request from the authors or can be downloaded from http://wiki.aucsolutions.com/openAUC/. This includes the Beckman Coulter ultracentrifuge and hardware to build the detector. In addition, a Beckman Coulter analytical ultracentrifuge rotor, sample cells, and counterbalance cell will need to be purchased. The control software—MWL–OS—was developed by Johannes Walter, and operates on the latest versions of LabVIEW by National Instruments Corporation, Austin Texas [12]. The MWL–OS interfaces with a National Instruments PCI-6602 Counter/Timer Card for synchronization signal acquisition and generation. Earlier designs capture a rotor timing pulse from the Hall effect sensor that is standard to the centrifuges. Later adaptations use a reflective optical sensor that tracks a reflective strip polished into the bottom of the rotor, and provides a more reliable signal. The electronics schematics for the reflective optical sensor are provided in Appendix A.

3. Installation, Alignment and Calibration of a MWL Detector

3.1. Centrifuge Modifications for Detector Installation

The Optima series preparative XL and XPN series analytical ultracentrifuges from Beckman Coulter have nearly identical heat sink hardware in terms of dimensions, and can both be modified to mount a MWL detector. It is recommended to use a centrifuge with a turbomolecular pump so as to limit oil vapor contamination of the optics [13]. Centrifuge modification requires disassembly of the centrifuge chamber and involves only basic mechanics tools. However, removal of the drive is an awkward procedure, and is best performed by someone competent in mechanics. The following procedure describes the basic procedure and references part numbers identified in Figure 1 through 7. The figures include images of the detection system in a XL-A-modified centrifuge and the construction of a system within an Optima preparative style centrifuge. A complete list of numbered items in the figures is included below. The centrifuge modifications require drilling threaded holes in the bottom of the centrifuge chamber, and cutting a channel through the thermal can (Figure 1a #1) for the MWL scanning assembly. The centrifuge chamber is a thick steel cylinder with sliding lid. A thin aluminum thermal can (Figure 1a #1) sits in the chamber extending up the sides. Eight thermoelectric elements (Figure 1b #2) are sandwiched between the bottom of the thermal can and the bottom of the chamber, providing temperature regulation by thermal radiation while the chamber is under vacuum. The bottom of the chamber, which holds the electric drive, also provides heat transfer for the thermoelectric elements outside the AUC, and is referred to as the heat sink (Figure 1b #3). The thermoelectric modules are coated in thermal paste to provide heat transfer to the thermal can. Heating the thermal can with a heat gun just prior to removal helps to loosen the thermal paste such that the thermal can be removed without damaging the thermoelectric modules beneath. A 2.0 cm-wide channel (Figure 1d #4) may then be cut in the thermal can to allow the bottom of the MWL detector arm to slide freely below the rotor.

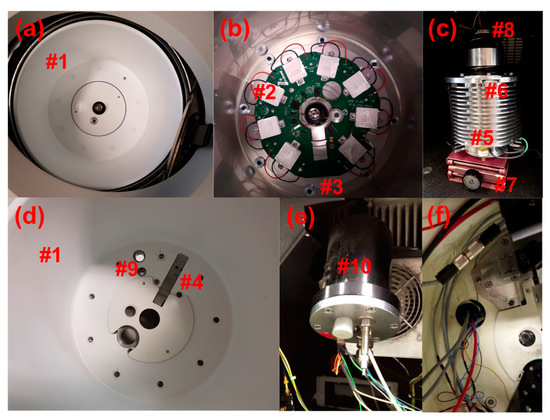

Removal of the heat sink requires detaching the electric drive. The drive (Figure 1c #5) is disconnected from the heat sink by recessed nuts (Figure 1c #6) below the can on the upper edge of the drive. A small scissor lift (Figure 1c #7) is useful for supporting and lowering the drive during removal. Care should be taken so that none of the greased rubber gaskets (Figure 1c #8) are damaged or dirtied during this process. Furthermore, it is important to keep the drive in the vertical position shown in Figure 1c because otherwise the drive oil will flow out.

Threaded holes (Figure 1d #9) may then be drilled in the heat sink bottom to accommodate the electrical and fiber optic vacuum feedthroughs. The holes drilled in the bottom of the chamber are of a similar dimension to those installed by Beckman Coulter for the absorbance or interference optics, and thereby impose no structural difference to the chamber integrity than that of a commercial AUC. However, the Beckman warranty will be lost upon the described modifications of the heat sink. Alternatively, with a XL-A/XL-I heat sink, the hole for the monochromator may be repurposed for cable feedthroughs, but this still requires an additional custom feedthrough mounting component (Figure 1e #10), as described in early publications on this detector [3]. Assembly of the heat sink, drive and thermal can is the reverse of removal. The use of a XL-A/XL-I heat sink is a useful option for laboratories where drilling holes through the bottom of the chamber are a prohibitive concern. However, the acquisition of an XL-A/XL-I heat sink is more expensive.

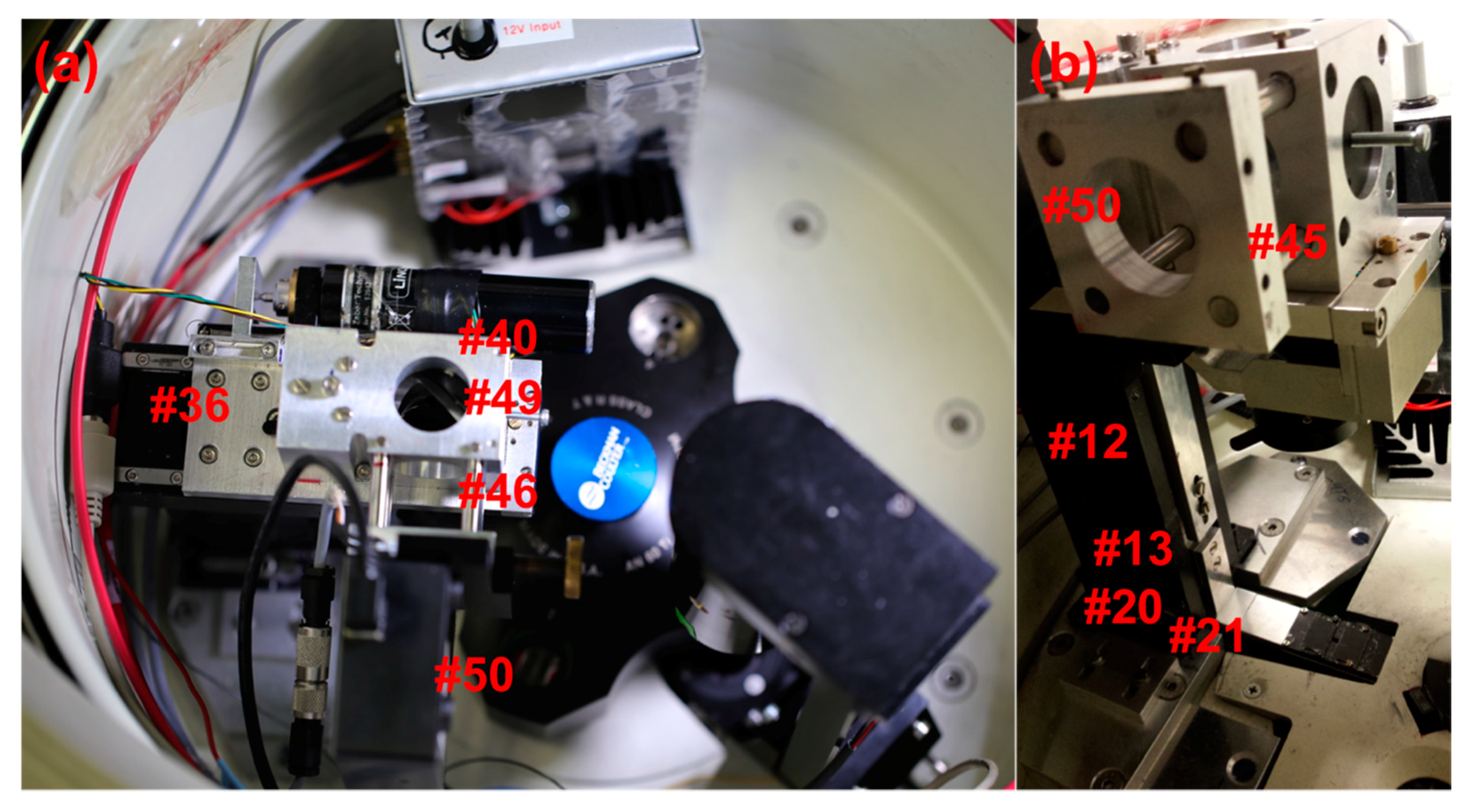

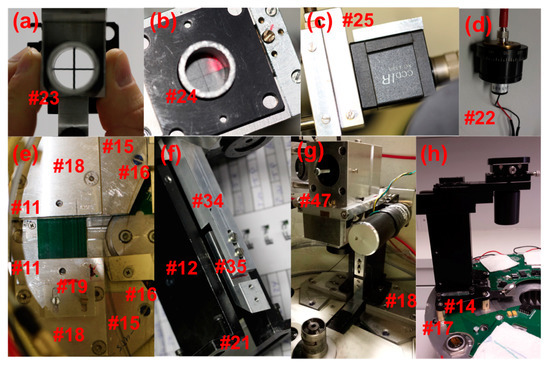

Extra threaded holes (Figure 2e #11) may also need to be added to the heat sink for mounting the detector arm (Figure 2f #12), depending on if the heat sink comes from a preparative or analytical centrifuge. The base of the detector arm has been designed with alternative configurations (Figure 3b #13) and (Figure 2h #14) to mount within the respective heat sink. For mounting within the XL-A type heat sink, two separate base plates (Figure 2e #15) are attached by three screws to the heat sink below each side of the detector arm base. Four of the screws use the existing holes (Figure 2e #16) normally used for attaching the thermal can to the heat sink, and two more screws are inserted in new holes (Figure 2e #11) near the back of the detector arm position to provide a third point of stability. This is a modification that was adapted to the original design, and was found to be necessary for additional stability when leveling the detector arm. When using a preparative centrifuge type heat sink (Figure 1b #3) and corresponding arm base (Figure 2h #14), no extra holes are required. The base plate screws go through cylinder standoffs Figure 2h (#17) fixing the mounting plates to the heat sink at a height slightly above the thermal can. The current design includes two additional mounting plates (Figure 2g #18) on top of the base plates. The additional mounting plates have a sliding guide block (Figure 2e #19) that is helpful with alignment, as described later. The detector arm is fastened to the mounting plates by two screws through the slotted holes of the detector arm base (Figure 3b #20). Another recent design modification features threaded holes added to each corner of the detector arm base to insert leveling adjustment screws (Figure 2f #21). Fine leveling adjustments of the arm have been shown to be crucial for good radial resolution and avoiding optical artifacts from a misaligned illumination beam [2].

3.2. Fundamentals of Detector Installation and Alignment

Installation and alignment of the detector arm must be done simultaneously. A step-by-step protocol for alignment is provided in Appendix B. Here we present an overview of the essential principles of our optics alignment method as they apply to the current detector architecture. However, many of the concepts of the method also apply generally to AUC optical alignment and will be useful for adapting to alternative detector designs.

The installation and alignment of the detector begins at the illumination source and follows the optical path to the detector. A few additional tools are required for the alignment procedure including a small machinists level, SMA adapter-coupled laser diode (Figure 2d #22), a custom cross-bars (Figure 2a #23) and cross-hair screen assembly (Figure 2b #24), and a 2D imaging camera with custom mounting adapter (Figure 2c #25). The laser diode is connected to the input end of the fiber optic cable for the first steps of the optics alignment. A custom slit mask, manufactured by the Universität Konstanz Workshop, covers the output end of the fiber optic cable, inside the chamber, shown in Figure 4c (Figure 4c #26). The slit mask was constructed from two half disks welded onto a 3.2 mm circular plate with a 1 mm center hole. A ~50 μm spacer is held between the two half disks while they are welded to the circular plate. The diameter of the plate is slightly smaller than the diameter of the barrel of an SMA fiber connector tip. A small amount of epoxy at the edge of the slit mask fixes it to the SMA connector tip. Fiber optic cables utilized in this design include adjustable SMA adapters (Figure 4a #27), where the length of the barrel extending from the tip of the connector may be varied. Adjustment of the barrel length is important for collimating the light reflected from the illumination collimating off-axis parabolic mirror (OAPM) (Figure 4a #28). The slit mask covered SMA adapter is inserted into the OAPM, and the SMA barrel length adjusted until good collimation is observed. The laser diode provides a strong beam that may be projected onto a surface 20 to 30 cm away while the room is dark. Good collimation will occur when the tip of the fiber is located precisely at the focal point of the OAPM (Figure 5a #29); 15 mm in this case. It is important to ensure the orientation of the slit mask remains orthogonal to the radial dimension of the mirror in the optical assembly while adjusting for collimation. The beam is slightly distorted due to the slit geometry of the fiber tip opening, this allows for orientation, while still approximating good collimation. Once the beam is collimated it may be installed in the lower illumination assembly (Figure 4a #30), including the illumination focusing OAPM (Figure 4a #31).

An adjustable illumination aperture (Figure 4b #32) is positioned over the focusing OAPM on the lower illumination assembly at a later step in the alignment process. With the illumination aperture off, there is access to four adjustment screws (Figure 4a #33) on the focusing OAPM holder. The adjustment screws should be set to the null position prior to installing the lower illumination assembly. The four adjustment screws at each corner of the focusing OAPM holder may be used to adjust the tilt of the mirror and thereby the direction of the illumination beams in a subsequent step. The focusing mirror is also able to slide radially in the illumination assembly channel. The lower illumination assembly is fastened to the sliding stage vertical connector (Figure 4f #34) by two pan head screws after the arm is installed. The sliding stage vertical connector is composed of two pieces, connected by screws through a slot, allowing for vertical adjustment of the lower illumination assembly (Figure 4f #35). This is important for setting the focus plane of the illumination beam, and ensuring the assembly is at a safe distance from the bottom of the rotor. The distance of a Beckman Coulter XL-A optical assembly from the bottom of the rotor in a XL-A centrifuge was measured to be 2.5 mm. This should be considered as a minimum safe working distance, and the lower mirror assembly must be set greater than 2.5 mm from the bottom of the rotor. Fortunately, the focusing OAPM has a focal length of 33 mm, and positioning of the lower assembly such that the beam is focused on the mid plane of the sample channel leaves a space of 3 mm to the bottom of the rotor.

The sliding stage with linear bearings (Figure 3f #36), and vertical connector (Figure 2f #34) should be preinstalled on the detector arm (Figure 3b #12) outside of the chamber. The arm and sliding stage assembly is then installed by carefully lowering it over the fiber optic cable and lower illumination assembly sitting in the channel (Figure 1d #4) of the thermal can, where it will attach to the arm. The arm is fastened to the mounting plates on the heat sink of the rotor by two screws through slotted holes (Figure 3b #20). Screws at the corners of the arm base (Figure 3b #21) allow for leveling adjustment with the aid of a machinists level. The first installation of the arm requires careful alignment by eye, such that the sliding mechanics of the arm can move along a radial trajectory from the center of the rotor. The arm must also be set such that the sliding range will cover the distance from the top of the sample channel (nearest the rotor center) to the bottom of the channel (nearest the rotor edge). Final testing of the arm alignment is made optically with the aid of a calibration software application, which is part of the LabVIEW^© MWL–OS [14]. Once the correct position is determined, it may be fixed for future reference by the positioning of the sliding guide block (Figure 2e #19) along the edge of the arm base. This tool greatly simplifies the alignment procedure and future disassembly of the optics. Once the arm is in place, the lower illumination assembly is fastened to the sliding stage vertical connector by two pan head screws (Figure 2f #34).

3.3. Beam Collimation and Coincidence

The illumination beam must be aligned parallel and coincident with the optical axis. The alignment relies partially on the precision machining of the mechanical assembly. The focused illumination geometry provides a cone of light. Nevertheless the highest power rays will propagate along the center of the illumination cone and are of primary concern. Custom alignment tools were developed for the following procedure, consisting of a cross-bar (Figure 2a #23) device, and cross-hair screen (Figure 2b #24). The cross-bars device is made up of two 0.7 mm rigid steel bars fixed perpendicular to one another and through the center of a cylindrical adapter that mounts to the first imaging OAPM assembly (Figure 4d #37), directly below the central ray axis of the first imaging OAPM. The first step of beam alignment is performed with the imaging mirrors removed, allowing the illumination beam to pass through the cross-bar cylinder and continue vertically along the central ray axis of the first imaging OAPM position. A second cross-hair cylinder may then be inserted from above, centered in the same hole as the cylinder holding the cross-bars. The cross-hair cylinder is fitted with a translucent paper screen on top (Figure 5b #24). On the paper screen are printed thin cross-hair lines. The cross-hairs are therefore mechanically centered approximately 10 cm above, and directly over, the cross-bars.

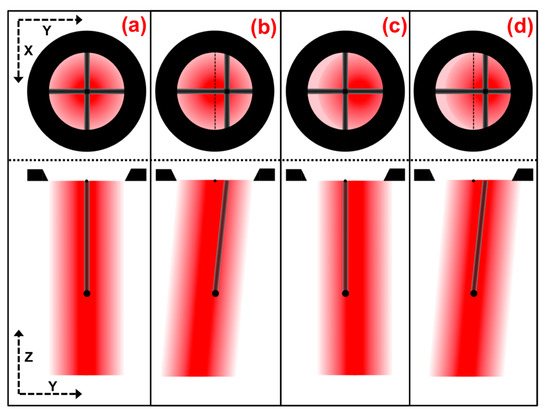

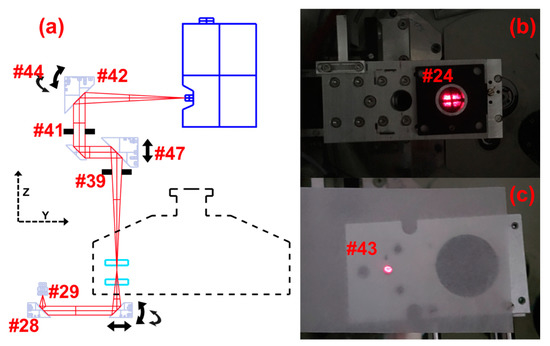

The beam from the laser diode is projected from the illumination optics assembly through the cross-bars cylinder and onto the cross-hair screen where it may be viewed from above (Figure 2b #24). The shadow of the cross-bars is also cast onto the screen. The bright center of the beam, as well as the shadow of the cross-bars, must be centered on the cross-hair screen. Both the beam center and cross-bars shadow may only be centered on the screen when the illumination beam is both parallel and coincident with the optical axis, as illustrated in Figure 6a. Figure 6b–d depicts the possible arrangements of misalignment that should be corrected for by adjustment of the focusing illumination OAPM.

Once the illumination beam is aligned, the adjustable illumination aperture (Figure 4b #32) is installed to limit stray light and protect the illumination optics. The aperture plates on top are set approximately 2.5 mm apart, centered over the illumination beam, and are checked by the rectangular beam profile projected onto the screen, see Figure 5b.

3.4. Installation, Alignment, and Focus of the Imaging Optics

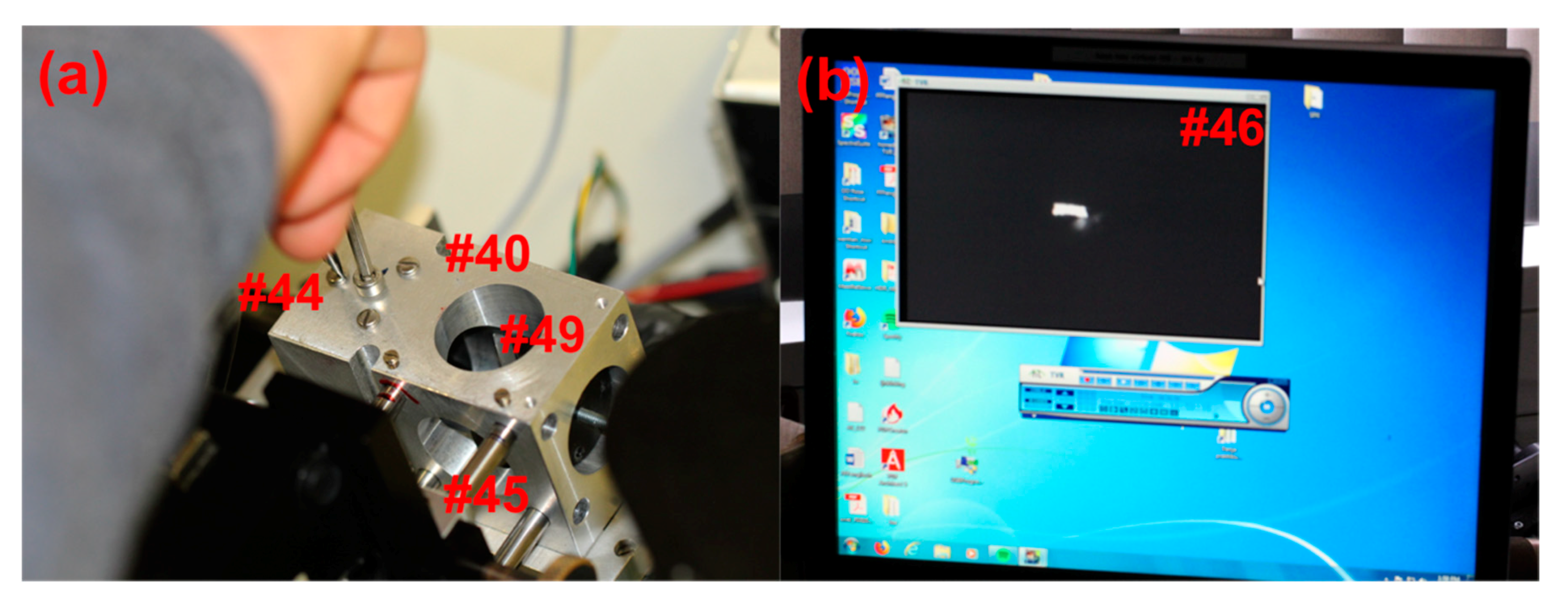

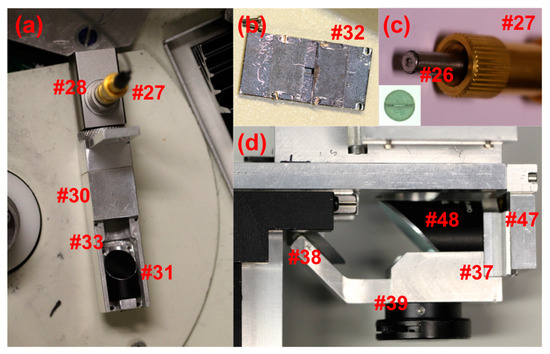

The cross-bars and cross-hairs are removed and the first imaging OAPM is installed in the focusing assembly (Figure 4d #37), including the 90° flat mirror (Figure 4d #38) and the lower iris (Figure 4d #39). The second imaging OAPM assembly (Figure 7a #40) is also installed, including the middle iris (Figure 5a #41), but without the OAPM (Figure 5a #42). When both the irises are closed down to a pinhole, a small beam of light is able to pass through the second imaging OAPM assembly and through the hole centered at the back of the OAPM mounting position. A translucent screen placed over the hole allows for visualization of the beam path, and thereby adjustment of the second imaging OAPM assembly to center (Figure 5c #43). With the second imaging OAPM assembly center fixed, the position is marked, the OAPM is then reinstalled, and the assembly set back to the marked position. The second imaging OAPM is then adjusted to direct the trajectory of the beam projected off the mirror. A Sony XC-EI30 CCD video camera (Figure 2c #25), without lenses and connected to a computer monitor, is used to set the beam direction along the optical axis. The CCD camera is attached to a custom adapter and fitted to the sliding rail assembly (Figure 7a #45), positioning it centered along the optical axis. The sliding rail assembly allows the focusing distance to the camera chip to be adjusted. The imaging OAPMs have a 101.6 mm focal length, therefore the camera is fixed along the sliding rail assembly at 101.6 mm from the center of the second imaging OAPM to plane of the CCD chip.

A low-power light source, such as a pocket flashlight directed at the entrance to the fiber optic cable, is used for the proceeding steps, and must be adjusted so as not to over saturate the CCD chip. The beam direction from the second imaging OAPM is adjusted via the screws (Figure 5a #44) accessible from the top of the second imaging OAPM assembly, and should be carefully moved until the image of the source slit is set at the center of the CCD chip, as viewed on a computer monitor (Figure 7b #46). The first imaging OAPM assembly is then set to focus by the adjustment screw setting (Figure 2g #47) of the first imaging OAPM assembly. The mirror assembly is raised and lowered until the image of the source slit is brought into sharp focus (Figure 7b #46). Note that the first imaging assembly holds the OAPM (Figure 4d #48) and the plane mirror (Figure 4d #38), so the adjustment screw moves both mirrors in unison. When the preceding alignment steps are properly made, adjustment of the lower imaging OAPM assembly will not alter the beam trajectory and the image of the slit will remain centered in the video capture screen, but can be brought in and out of focus. An empty sample cell in the rotor may be introduced in the light path to check the effect of cell windows on mirror focus position, and adjusted as necessary.

In the original design, the spectrometer position extends across the chamber and collides with the interferometer optics also installed on the machine in our lab. A design feature of the assembly allows the possibly of introducing a second 90° flat mirror (Figure 7a #49), after the second imaging OAPM, positioning the spectrometer mount to the side (Figure 3a #50). The second 90° flat mirror and CCD camera are installed in this arrangement, and then adjusted for alignment and focus. Keep in mind that the first imaging OAPM assembly was set to focus in the preceding steps, and thus the focus position of the spectrometer mount may be determined by again imaging the source slit, without adjustment of the first imaging OAPM. The final step is installation of the spectrometer (Figure 3a #50) and connection of the Xenon flash lamp to the fiber optic cable. With the spectrometer fixed in position, small adjustments of the second imaging OAPM can be made to perfectly center the beam direction onto the spectrometer slit. This will only require movement in the vertical plane of the spectrometer slit position, and can be monitored by intensity readings from the spectrometer. The adjustable iris below the first imaging OAPM (Figure 5a #39) and between OAPMs (Figure 5a #41) allows for setting of the numerical aperture of the optics and limiting stray light. Setting the iris opening to slightly before an intensity drop is observed has been found to yield good results in practice. Further detail on the effects of numerical aperture and optical imaging systems are discussed in Pearson et al. [9].

3.5. Alignment Test and Calibrations

It is absolutely imperative that all mechanical components are tightly fastened, and the sliding stage system is free to move without collision before proceeding to start the rotor. The importance of this step cannot be overstated, and is true for all ultracentrifuge devices. The inertial energy of a spinning titanium rotor is very high and an incident at speed would be catastrophic. To this point, it is also important to set the stepper motor limits so as not to exceed the range of the sliding stage. If the stepper motor were to attempt to extend beyond the limit of the sliding stage it could mechanically fail and fall onto the rotor below. A limit setting must be correctly fixed in the MWL–OS software prior to starting calibrations. The Zaber control software supplied with the motor may be used to manually adjust the position of the motor and note when the sliding stage is near the mechanical limit.

The first calibration step is to ensure the sliding stage scanning vector is aligned with the radial vector of the rotor. The ‘Angle Calibration’ application in the MWL–OS software plots the rotational angle of flash pulses across a defined interval, and is also used to determine alignment. An angular scan, at 3 krpm, of an empty sample cell is taken at radial positions near the top (nearest to rotor center) and bottom (nearest to the rotor edge) of the cell. The angular position of the sample and reference sector positions are mapped. The difference between the top and bottom angles should be less than 0.25°. If a greater difference is found, the detector arm must be rotated and the procedure repeated until satisfactory. The sliding guide block (Figure 2e #19) greatly simplifies this procedure, as the adjustments required are typically very small. The arm should be releveled after each arm adjustment.

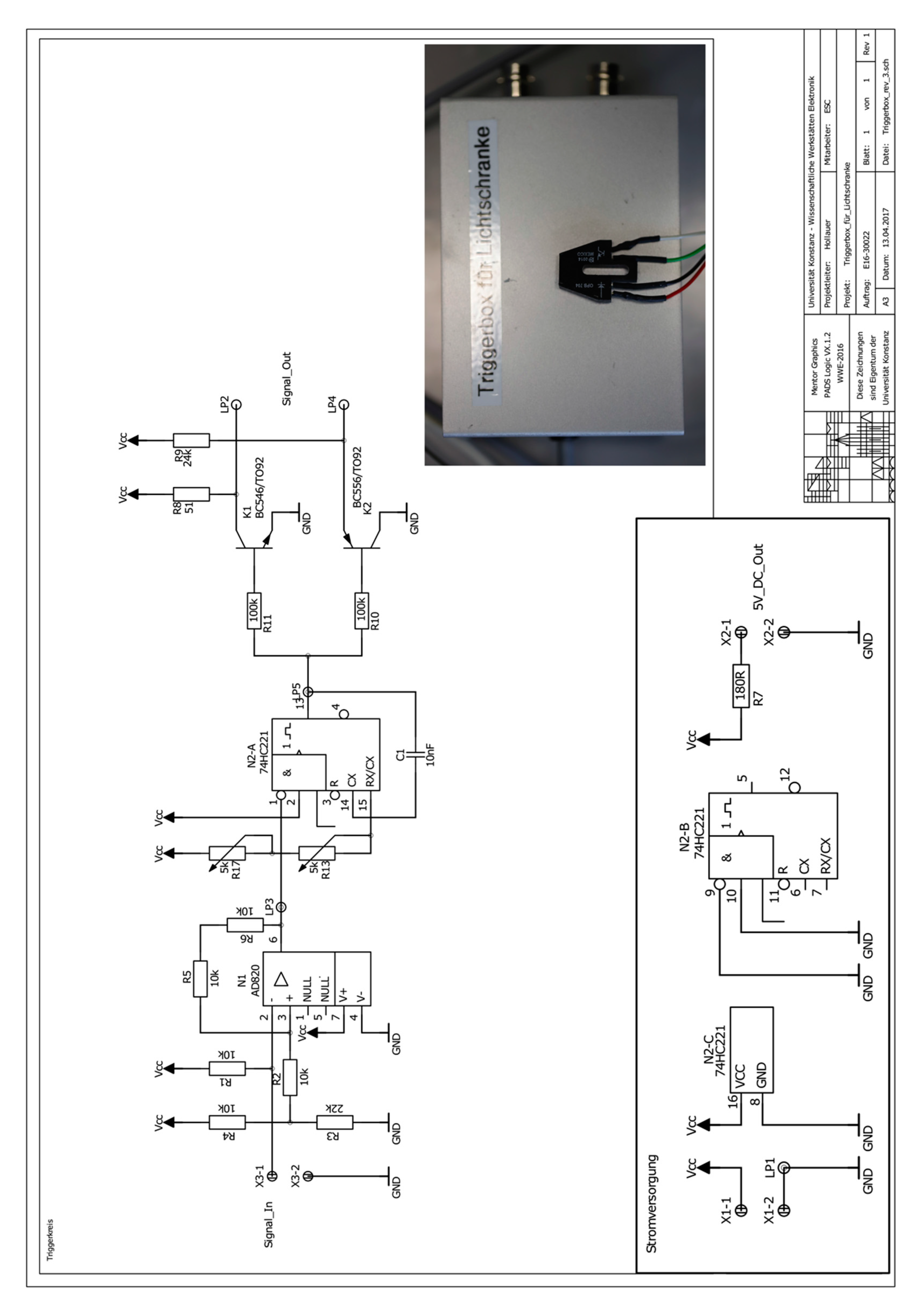

The ‘Angular Calibration’ application is executed to determine the synchronization timing of the flash lamp for all possible rotor speeds. The cell sector angular position is selected for scans at incremental rotor speed settings in the calibration routine, and the results are fitted to a linear function internally in the software, which may then be used during AUC experiments.

The ‘Radial Calibration’ application is subsequently executed by scanning the radial dimension of a counterbalance while the rotor is at low speed; 2000 rpm. The edges of the counterbalance mask, on the reference sector side, are set by the manufacturer to be 5.85 mm and 7.15 mm while in the rotor, and serve as reference points from which a radial calibration conversion of the stepper motor increments is generated within the software.

3.6. Final Checks

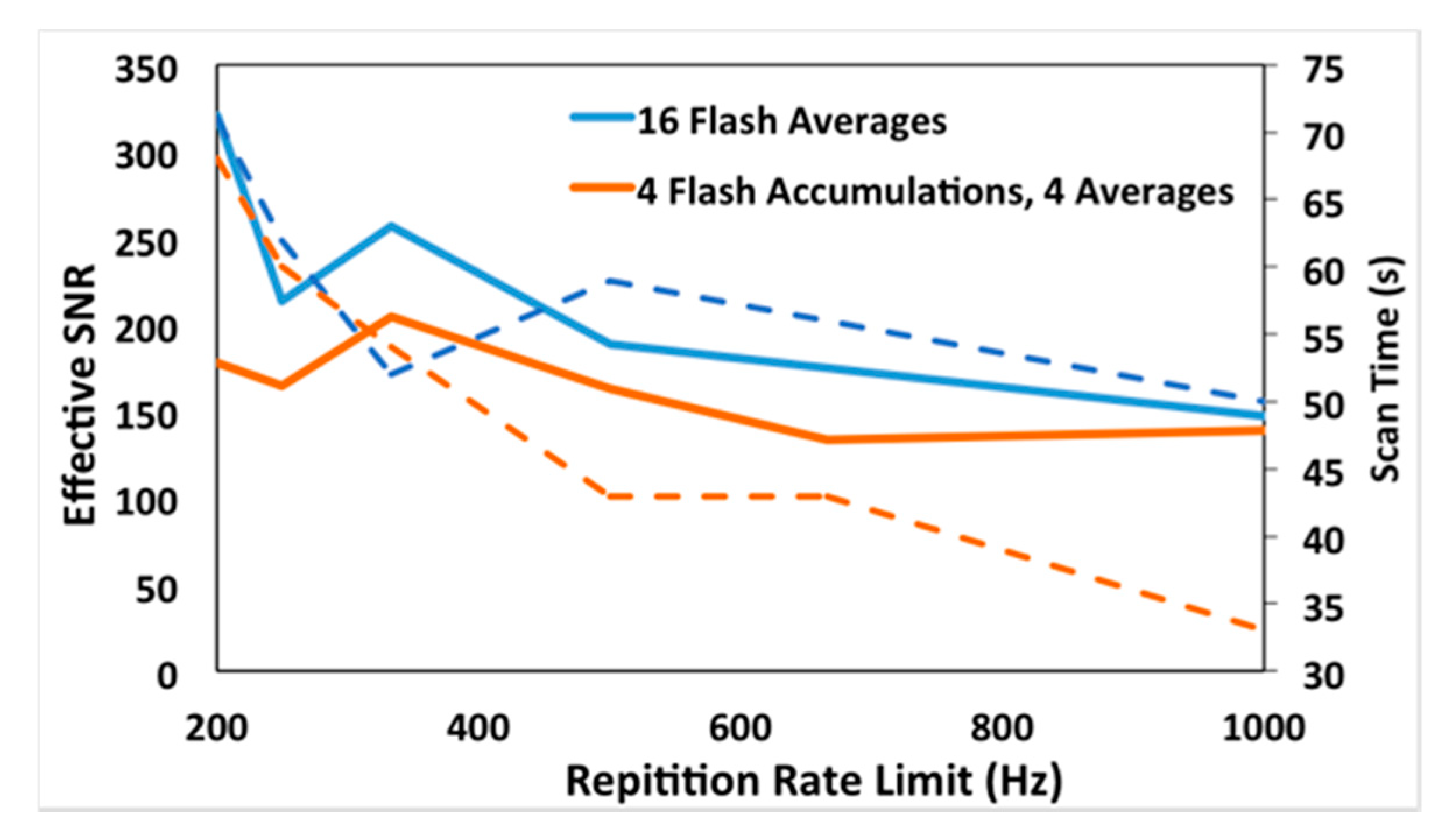

Once the optical system is properly aligned and focused, the flash lamp coupling is optimized. It has been observed that the fiber optic coupling to the flash lamp can affect the signal-to-noise (SNR) of the instrument. This can be explained by non-uniformity in the arc generated across the electrodes of the flash lamp. By observing the noise structure of the recorded signal, while adjusting the coupling of the fiber optic cable to the flash lamp, it is possible to find the position of highest SNR. It is important to note that the position equating to highest intensity, may not necessarily be the position of highest SNR. Additionally, the DC supply voltage to the flash lamps has been observed to influence the noise of the lamps. A galvanically isolated power supply should be used. Preliminary testing of a flash noise correction scheme, using a secondary spectrometer, was shown to be promising [2]. However, this relied on precise coupling of the two spectrometers, and is difficult to achieve in the current design iteration. Furthermore, recent release of a 20 W L12745 Xenon flash lamp from Hamamatsu provides significantly reduced signal noise, overcoming much of the benefit of secondary spectrometer correction.

Test scans of the system prior to experimentation with valuable samples are beneficial to assuring optimum data quality. A sharp meniscus and steep counterbalance edges in test scans are indicative of good alignment and focus. If time allows, the most revealing test of data quality is to perform an experiment on a well-characterized sample such as BSA. Evaluation with the 2DSA method in UltraScan3 across the relevant spectral range to be acquired is a particularly sensitive indicator of data quality [15]. The evaluation BSA results should yield S-Spectra of sharp monomer, dimer, and trimer peaks, across the UV spectral domain. For example see Pearson et al. [2].

4. Experimental Design and Data Acquisition

In the following pages we describe the essential principles of the AUC method, and how sample and data analysis considerations influence experimental design. This discussion is not meant to be a comprehensive account of all aspects of AUC, but is intended to provide an overview of the fundamentals and outline some of the most common types of AUC experiments. The basic principles of the AUC method, in regards to data acquisition settings and experimental design, will be given within the context of common analysis examples.

An AUC experiment records the redistribution of solutes in response to an applied centrifugal field. The experimental data may be acquired dynamically, known as sedimentation velocity, or at equilibrium. The following discussion will focus on the former, as velocity experiments are the most common type of modern AUC method used. Many excellent articles and book chapters have been written describing the theoretical principles of AUC experimentation [16,17,18,19,20,21]. The newcomer to AUC will also find a wealth of introductory material freely available through the Internet. The Internet resources are especially useful for learning to use the analysis software packages [22,23,24,25]. Many beginners find attending workshops invaluable to making effective use of the AUC method. This work offers guidance to the user of Open MWL-AUC technology for experimental design and optimizing data quality [11]. The general principles will apply to users of other absorbance optic AUC instrumentation, but the available acquisition settings may differ.

Sedimentation and diffusion coefficients (s and D) are the principle parameters that are recovered from AUC data, and may be modeled as a function of three solute properties: size, shape, and density. If one of the three is known, or may be assumed, then hydrodynamic models may be applied to estimate the other two. Two general approaches are considered for evaluating experimental data—simplified model interpretations that ignore or minimize diffusion—and finite element fitting techniques that model sedimentation and diffusion fluxes according to the Lamm equation [16,17,26]. Simplified model evaluation methods are typically used for generating an overview of solute distributions present in a sample, or for larger and heavier particles that sediment very quickly and cause very little diffusion flux during the time period of the experiment.

In order to achieve optimal data quality from AUC experiments, it is important to consider the appropriate experimental conditions for the sample under investigation. Many different variations of experimental techniques have been, and are continuing to be developed for AUC [27]. However, we will limit this discussion to focusing on three common sample types measured in this laboratory, and which are most instructive for understanding the principles of optimizing data acquisition: very small particles, very heavy particles, and ‘mid-sized’ particles.

All experimental techniques rely on precise thermal control of the rotor chamber, and most experiments are performed at ambient conditions. However, the centrifuge chamber may be cooled or heated to accommodate specific thermodynamic investigations or to mitigate sample instabilities. Operating at temperatures above 30 °C is not recommended, as significant amounts of oil vapor are released from the vacuum chamber and dirty the optics. Whatever temperature is selected, it is important that the rotor and samples are allowed to equilibrate before beginning the experiment.

Selecting a rotor speed requires careful consideration of the sedimentation characteristics of the sample, and what information content is required from the results. Larger, heavier particles will tend to sediment quickly and therefore require a slower rotor speed, while smaller, lighter particles will need a much greater centrifugal field to overcome diffusion. To aid in rotor speed selection, sedimentation rates may be estimated using reasonable assumptions about the sample properties and the classic Svedberg equation. Alternatively, AUC Lamm equation fitting programs may be used to simulate the sedimentation boundaries during an experiment [22,23,25].

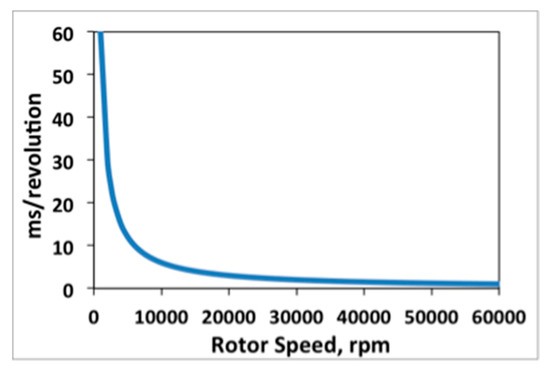

Modern AUC rotors are limited to 60 krpm rotational speed, setting an upper limit on centrifugal fields. At lower rotor speeds the period of rotation is greatly extended, requiring much more time between radial data points and therefore longer to record a complete scan of the sample cell. For this reason, 3 krpm is typically a practical lower limit; however, some researchers have reported experiments as low as 1100 rpm. Scan time stamps in AUC data files are recorded as single values for each scan. However, depending on acquisition settings, a radial scan typically takes at least one minute to complete. Therefore, radial scan points near the bottom may be significantly distorted from the true temporal assignment. As a result, the scan time limit is one of the basic constraints for consideration when setting up an experiment. Low RPM experiment scan times will be rotor speed limited, while high RPM scan times will be limited by the flash lamp repetition rate or the readout rate of the spectrometer. Typical scanning parameters and the resulting scan times have been discussed previously [2,10]. Two easily modulated parameters by which MWL-AUC performance may be improved are through signal accumulation and averaging. The details of operation and the resulting signal to noise ratio benefit have been described recently [2]. In summary, signal averaging will serve to increase the SNR in general, while signal accumulation can improve the SNR of spectral regions with low emission or detection sensitivity. The number of acquisitions at each radial point will be a multiple of both parameter settings. The researchers must decide what degree of temporal scanning distortion is acceptable, and optimize the resulting trade-off with signal accumulation and averaging to improve SNR. The nature of the analytes and the purpose of the experiment are necessary to inform a decision.

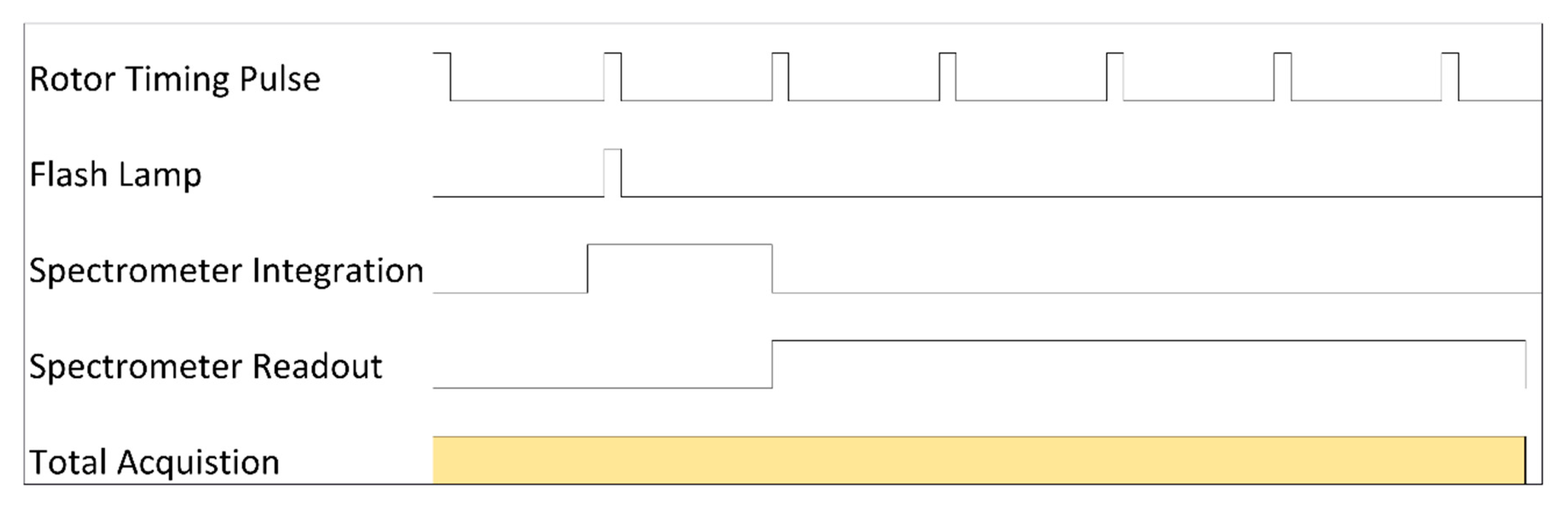

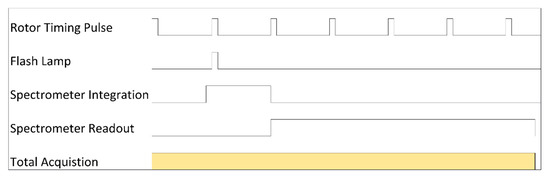

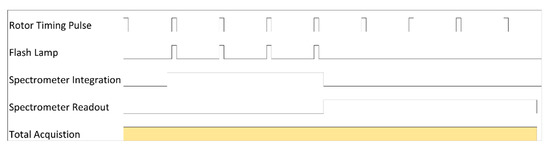

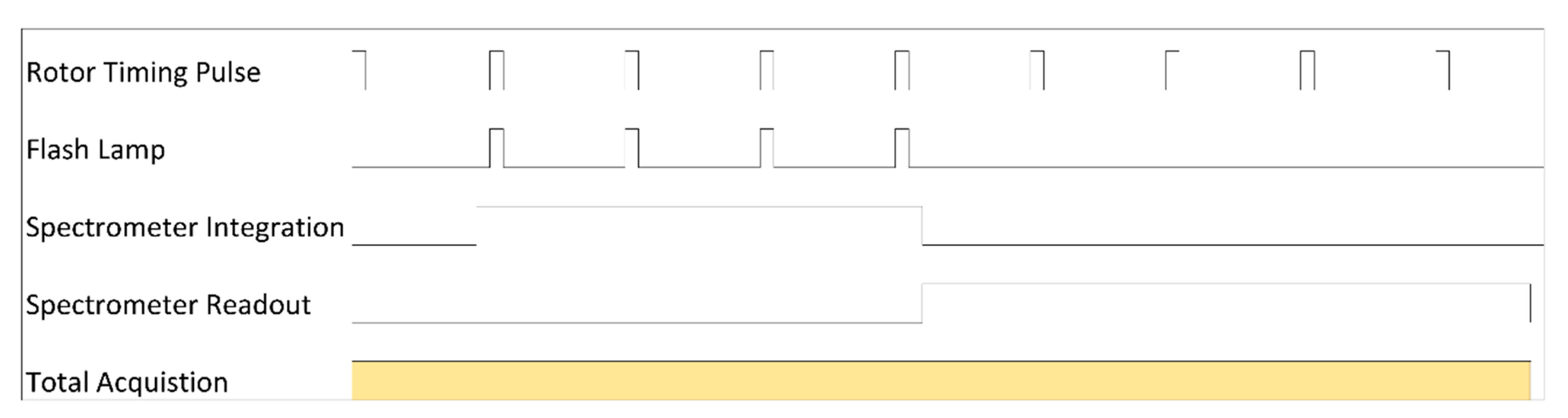

As a first example, we may consider very heavy analytes, such as gold nanoparticle dispersions, where typical sedimentation coefficients range from hundreds to thousands of Svedbergs [5,28]. At a low rotor speed of 3 krpm, these types of particles will typically sediment the complete length of the cell channel between tens of minutes to a few hours depending on size. The number of radial point acquisitions, i.e., the multiple of averaging and accumulations, is typically set between 3 and 5, in order to limit scan times to between 1 and 2 min. It is important to recognize the diffusion information contained in AUC scans for very large particles is insignificant. For this reason, model free data transformations, e.g., g(s) or fitting methods that ignore diffusion are appropriate. Furthermore, large analytes such as gold nanoparticle dispersions are inherently polydisperse due to synthesis mechanisms. Therefore, the boundary spreading appearing in experimental data primarily arises due to sample polydispersity and instrument noise, and diffusion contributions are safely ignored. The aim of an AUC experiment with these types of analytes is most often to characterize subpopulations of solutes, or to approximate particle sizing through interpretations of sedimentation coefficients and other material properties. For samples of varying size and high polydispersity, AUC speed ramp methods can be especially useful [28].

Biomolecular investigations are some of the predominant motivations employing AUC technology. Proteins and protein complexes are particularly well suited to the size regime accessible by AUC. Experiments typically range in length from 2 to 7 h for complete sedimentation, exhibiting the effects of diffusion through boundary broadening. The very low polydispersity, well-defined molecular weights, and good density estimation of proteins, allow precise extraction of additional molecular properties such oligomeric states, trace aggregates, or modeling interactions. Many types of nanoparticles, such as core–shell semiconductors, will sediment within a similar size regime, but will include a higher degree of polydispersity [7]. The choice of rotor speed must be carefully considered and can impose a large influence on the quality of the analysis. Model-independent analysis methods are often used as a first approximation to gain insight into the solute populations present and find reasonable estimates for upper limits of sedimentation coefficients. To further discriminate the solutes and improve sedimentation coefficient estimates, finite element modeling with Lamm equation solutions to fit for s and D information is typically necessary. The Lamm equation models are often reparameterized in terms of s and frictional ratios or molecular weight, using prior knowledge of partial specific volumes and substitution for D terms [16].

In some research, the aim is to discriminate the primary solute from subpopulations, such as identification of aggregates. For such experiments, higher rotor speeds will achieve better separation of components, by maximizing the physical separation of sedimentation boundaries and minimizing the diffusion broadening that can take effect over the time period of the experiment. In such cases, the s information in the recorded data is dominant, and the fitting technique may be described as ‘correcting’ for D. Meaning the D information recovered is subordinate, and serves to improve the resolution in sedimentation coefficients, but may not necessarily be a reliable value for independent interpretation. In other investigations, the goal is to accurately identify the molecular weight or oligomeric state or, additionally, to model a reversible association interaction of the samples. In this case, the user needs to accurately estimate, as well as possible, the sedimentation and diffusion information. This can be accomplished using a rotor speed that optimizes a balance of the sedimentation information, e.g., movement of the solute boundary, and the diffusion information, e.g., broadening of the boundary, in the experiment. At too high a speed, the particles will sediment quickly but not diffuse very much. This means there is boundary motion that is easily identified allowing for highly accurate estimates of the sedimentation coefficients, but minimal boundary spreading, causing fitting of the diffusion information to be unreliable. Conversely, at too slow a rotor speed, diffusion will dominate and instead of a concentration boundary propagating down the cell, a shifting exponential pattern is observed. In this case fitting for s will be compromised.

To optimize the contributions from sedimentation and diffusion, one should choose a speed such that the entire sample sediments completely down the cell channel over approximately 4 to 8 h. This rule of thumb allows for good fitting of both s and D in practice. For this class of analytes, rotor speeds are typically set between 30 and 50 krpm and the number of radial point acquisitions between 15 to 20, while still limiting scan times to between 1 and 2 min. A recent publication explored the relationship of analyte hydrodynamics, AUC rotor speed and data fitting through modeling of simulation data, suggesting a path to optimal rotor speed settings that minimize uncertainty of both s and D parameters [29]. Alternatively, one may choose to run the experiment twice, once at high speed, where the sedimentation is maximized and the best resolution of species in solution is enabled, allowing for optimal determination of the sedimentation coefficient. A subsequent experiment at lower speed can then be used to estimate the diffusion information. Having determined the number of solutes and corresponding s-values, these can be fixed in the analysis, and the fitting floated for D. Other researchers have implemented multispeed methods, where the rotor speed is increased at intervals within the experiment [20,29]. These methods have the same goal of optimizing both s and D parameters, but aim to do so within a single experiment. It should be noted that these multispeed methods are generally distinct from other speed ramp or gravitational sweep methods that use a continually varying rotor speed [19,30].

Researchers wishing to probe reversible associating solutes should run a sample at several different concentrations. A concentration dependence of the sedimentation coefficient is indicative of binding kinetics on the time scale of sedimentation. The analysis of reversibly associating systems in AUC is complex, and a large volume of research has been devoted to the subject [31,32].

For an experiment with very small analytes, where measured sedimentation coefficients are less than 2 S, the rotor speed will necessarily be set to 60 krpm. Even with maximum centrifugal fields, particles in this size regime never produce the classic sigmoidal sedimentation boundary of AUC experiments. Instead, a shifting exponential is observed over the course of many hours. Experiments of 10 to 20 h are often incurred, as the solutes shift to a final equilibrium gradient across the cell radius. Nevertheless, numerical evaluation techniques have been shown to provide good fits to experimental data for particles down to a few tenths of one S [6]. For analytes such as this, a discernable change in the experimentally acquired data is observed only after tens of minutes. Therefore, a sensible choice of acquisition parameters may be selected to take advantage of the slow hydrodynamics. Increasing radial point acquisitions to between 20 and 30, where scan times need approximately 10 min, can typically yield excellent SNR without significantly distorting distribution results.

It is important to keep in mind that scan rates will increase as approximately two times the number of cells included in the rotor. Therefore, the data quality due to temporal distortion will be greater for experiments of higher numbers of cells. In contrast, the Beckman Coulter XL-A AUC cells are scanned sequentially; therefore, increasing the number of cells reduces the number of scans that may be acquired for each cell within an experiment, but does not introduce greater temporal distortions than what is initially present. The effect of scan distortions due to time stamps has not been fully explored. The preceding discussion provides an overview of general factors that are necessary for consideration when deciding on appropriate instrument settings, and some heuristic guidelines for beginners. For the researcher interested in exploring possibilities for improving AUC hardware, the discussion provides a framework of the physical constraints confronted in that pursuit. A detailed discussion regarding the acquisition triggering and subsequent speed dependent scan averaging characteristics is included in Appendix C, for the advanced user.

5. Discussion and Conclusions

Advancements in open-source MWL-AUC technology have made it an increasingly useful method for the analysis of particles and (bio)polymers in solution. The complexity of the hardware has limited the implementation of the instruments to a few laboratories. The details of results that may be achieved with MWL-AUC have been described previously for a diverse array of sample types and investigative questions [5,6,7,14,28,30,33,34,35,36]. However, previous publications documenting the performance of MWL-AUC have provided only cursory descriptions of the requirements to build and operate a complete system. The preceding pages detail the steps necessary for implementing this technology in a new laboratory. Systematic guidance for the alignment and focusing of the optical system allows new users to reliably generate good quality data. The examples of several sample types, considerations for experiment design and relevant acquisition settings have until now not been described in detail. We believe that providing this thorough account of the practical aspects regarding implementation and use of open-source MWL-AUC technology will encourage researchers to adopt the method in their own laboratories, and will be a useful resource for newcomers to the field.

6. Disclaimer Statement

The information provided in this manuscript should be used at the reader’s discretion. The authors make no guarantees, either expressed or implied, nor assume liability for any unintentional consequences from the use of the instruments described herein.
