Beam-Background Tests with TOTEM Roman Pot Detectors at the LHC Injection Energy

1
Institute of Physics of the ASCR, 182 21 Prague, Czech Republic
2
CERN, 1211 Geneva, Switzerland
on behalf of the TOTEM Collaboration.
Instruments 2018, 2(4), 20; https://doi.org/10.3390/instruments2040020
Submission received: 22 August 2018 / Revised: 1 October 2018 / Accepted: 7 October 2018 / Published: 9 October 2018

Abstract

:
With the aim of measuring the total cross-section and the ρ parameter, TOTEM has performed tests of beam conditions at the LHC injection energy of s = 900   GeV . The tests have revealed complications in setting up the LHC collimators to minimise the background observed in the Roman Pot (RP) detectors, summarised in this article. In two tests a subset of the RPs was exposed to background compatible with the physics requirements. If no improvement of the collimation strategy is found, it is shown that a small retraction of the RPs can significantly reduce the observed background level.

1. Introduction

The TOTEM experiment [1] is dedicated to studies of forward hadronic phenomena at the LHC, particularly to the measurement of the total cross-section, elastic scattering and diffractive processes. It is located at the LHC Interaction Point (IP) 5 together with the CMS experiment. TOTEM’s detector apparatus [2] includes a forward proton spectrometer and two forward tracking telescopes. The proton spectrometer is composed of Roman Pot (RP) detectors, movable beam-pipe insertions capable of approaching the LHC beam to a distance of less than a millimetre, in order to detect protons with low scattering angles typical for forward hadronic processes. The RPs are placed symmetrically around the IP as shown in Figure 1, in the LHC sector 45 (region between IP 4 and 5) and sector 56 (region between IP 5 and 6). The RPs relevant for the present article approach the LHC beams vertically and are organised in two units: “210-fr” about 213   m from the IP and “220-fr” about 220   m from the IP. Each RP houses 10 planes of silicon strip sensors designed specifically to reduce the insensitive area at the edge facing the beam to only a few tens of micrometers [1].
Since elastic scattering events consist of two collinear protons emitted in opposite directions, the events detected by TOTEM RPs can have two topologies, called “diagonals”: 45 bottom–56 top (blue arrows in Figure 1) and 45 top–56 bottom, where the numbers refer to the LHC sector.

2. Physics Motivation for TOTEM Measurements at the LHC Injection Energy

The lowest energy at which the LHC can be easily operated is the injection energy, s = 900   GeV . TOTEM could profit from this configuration to perform several interesting physics measurements. As shown in Figure 2, left, the range of total cross-section, σ tot , measurements would extend from s = 0.9 to 13   TeV (and possibly to 14   TeV in the LHC Run III). Since all the results would come from a single experiment with a unified experimental method, it would present a valuable data set.
Another quantity of interest is the ρ parameter, the ratio of the real to the imaginary part of the forward elastic amplitude (for a historical review see e.g., Section 4.2 in Ref. [4]). Figure 3 shows that there are no proton-proton measurements available from s 0.007 to 7   TeV , thus a measurement at 0.9   TeV would be indicative for ρ behaviour in the medium energy range. Furthermore, due to the proximity of a precise UA4/2 measurement [5] an interesting pp to p ¯ p comparison could be made. Another argument for preferring the lowest energy possible comes from Figure 2, right. It shows several models compatible with the present TOTEM σ tot and ρ measurements. While the models give similar ρ value at s = 13   TeV , their predictions differ significantly at 0.9   TeV . Discrimination between the models should be possible with the expected ρ measurement precision.

3. Beam-Conditions Tests with Roman Pot Detectors

The ρ parameter is determined by analysing the interference between the Coulomb (electromagnetic) and nuclear (strong) components of the elastic scattering amplitudes [3,6]. This interference is sizeable at very low values of the four-momentum transfer squared, | t | = O ( 10 3 GeV 2 ) . In order to reach such small | t | values a special LHC optics and very close approach of RPs to the beam are needed.
The special optics is typically characterised by a high β * value, i.e., the betatron function at the IP ( β * = 1000 m at s = 8 TeV [6] and β * = 2500 m at 13 TeV [3]). This simultaneously optimises the low | t | acceptance (by large vertical effective length) and | t | resolution (by low beam divergence), for details see e.g., Ref. [3]. At the LHC injection energy β * 100 m fulfils these requirements [7].
The RPs typically need to be inserted to a distance of about 3 times the transverse beam size, σ beam [3,6]. At such distances, RPs can be subject to background particles from various sources including beam halo or collimator-induced showers. An appropriate collimation strategy [8] is thus essential for a successful measurement.
The collimation strategy for the injection energy measurements has been studied three times so far:
  • “campaign 1” on 8 November 2017 [9],
  • “campaign 2” on 22 November 2017 [10] and
  • “campaign 3” on 8 May 2018 [11].
In each of the campaigns several tests were performed: building the collimation hierarchy with different collimators, placed at different distances from the beam. For example, in campaign 1, in the vertical plane, the collimators TCP.D6L7, TCLA.A5R3, TCTPV.4L2 and TCTPV.4L8 (see Ref. [8] for explanation) were tried as primary collimators placed at 2.5 σ beam . These were accompanied by secondary collimators at 3 σ beam chosen from the same list plus the collimator TCTPV.4L5. Beyond the collimation optimisation, several other tests were performed: decreasing the bunch intensity (to prevent intra-beam scattering), increasing RF voltage (to prevent de-bunching) and verification of RP alignment (to exclude outliers). Details of the tests can be found in the LHC OP logbook [9,10,11].
Figure 4 compares the most successful tests from each campaign. The expected physics signal is concentrated at x 0 and at the sensor edge, see e.g., the top part in the top right plot. Beyond that, one can observe several background structures:
  • sharp horizontal bands (e.g., top part of campaign 3, sector 56),
  • wide round structures (e.g., top part of campaign 2, sector 45)
  • and vertical bands (e.g., bottom part of campaign 3, sector 45).
The occurrence, size and intensity of these structures is not reproducible from a test to another. Most likely they have origin in a non fully optimised collimation scheme, but no details neither a possible mitigation are known at the moment.
Taking the example of campaign 1 (top row in Figure 4), elastic scattering yields O ( 10 ) events per histogram bin in the signal region. When background structures are present (diagonal 45 top–56 bottom) they yield O ( 100 ) events per bin and therefore background strongly dominates over signal.

4. Background Estimate

The non-physical background can be suppressed by event selection during offline analysis. This selection enforces the kinematic properties of elastic scattering: two anti-collinear protons emerging from the same vertex. The list of tagging cuts reads as follows:
  • cuts 1 and 2: opposite scattering angles of the protons, in horizontal and vertical plane,
  • cuts 5 and 6: vertical correlation between track position and angle, in sector 45 and 56,
  • cuts 7 and 8: same vertex of the protons, in horizontal and vertical plane,
  • cuts 9 and 10: horizontal correlation between track position and angle, in sector 45 and 56.
All cuts are applied at 3 σ level.
Figure 5 illustrates the effect of the tagging cuts for the most successful test of campaign 3. This dataset was chosen since one diagonal (45 top–56 bottom) provides an optimistic example while the other diagonal (45 bottom–56 top) provides a pessimistic example (cf. Figure 4, bottom). The plots compare the distributions of the cut-7 discriminator obtained with different sets of tagging cuts. For diagonal 45 top–56 bottom, the increasing number of applied tagging cuts gradually suppresses the tails of the distributions (background) while keeping the central part (signal) almost untouched. The level of irreducible background can be estimated by interpolating the thick red histogram (after all cuts) to the signal region (in between the vertical dashed lines), yielding background/signal ratio of few percent. For the diagonal 45 bottom–56 top, the picture is completely different: even with all cuts applied (thick red histogram) the distribution shape does not correspond to the expected signal. One can conclude that the data from this diagonal are dominated by background.
The large background component in the diagonal 45 bottom–56 top can be already seen in Figure 4, bottom, mostly in the horizontal bands at the sensor edges. It is therefore interesting to repeat the background estimate excluding these background bands with a cut:
| y | > 10.5 mm ,
which would effectively correspond to a RP position of about 5 σ beam . This background estimate is illustrated in Figure 6 which shows that with the | y | cut the irreducible background is negligible for both diagonals.

5. Rate Evolution

Figure 7 shows the evolution of rates with time for the most successful test of campaign 3—the same example as in the previous section. When no | y | cut is applied (top row), the rate of events with a diagonal topology (red) grew very fast for the diagonal 45 bottom–56 top. This led to saturation of trigger bandwidth and a necessity to change the trigger configuration which is visible as a discontinuity in the histograms at the time about 42 min. For the diagonal 45 top–56 bottom the red histogram grew, too, but the tagging cuts were able to remove most of the increasing background and thus the corresponding blue histogram is independent of time (up to the discontinuity due to the trigger configuration change).
When the | y | cut is applied (bottom row), the red and blue histograms are very similar, confirming the conclusion of low residual background from the previous section. For the diagonal 45 top–56 bottom the histograms are flat (up to the discontinuity due to the trigger configuration change) as expected. For the diagonal 45 bottom–56 top the rate decreases with time. This can be explained by increasing inefficiency of track reconstruction—increasing rate of background particles also increases the probability of impeding the reconstruction of the elastic protons.

6. Summary

The first tests with RPs at s = 0.9 TeV demonstrated serious challenges with beam background when RPs were inserted to 3 σ beam . Most often the background appears as horizontal bands close to the sensor edges. The background tends to dominate over the physics signal and cannot be eliminated by standard tagging cuts. The background was present in all three test campaigns, however it had different sizes and intensities in different tests. The background is not reproducible from a test to another. Most likely the background is due to a non fully optimised collimation scheme, but no further details are yet known. In two tests there was one diagonal with a background level compatible with physics requirements. This shows that low-background configuration can be achieved.
Simulating an additional RP position margin of about 3 mm (thus RP position 5 σ beam ) in the offline analysis brings the background to a level which can be handled with the conventional tagging cuts and is thus appropriate for physics data-taking. The additional margin would reduce the RP acceptance from | t | min 3 × 10 4 to 7 × 10 4 GeV 2 which most likely would not compromise the ρ measurement.
TOTEM encourages further studies and developments of the collimation schemes for high β * optics at the LHC injection energy. If successful, this would allow TOTEM to take data with RPs at about 3 σ beam which maximises physics sensitivity. Taking data with RPs at about 5 σ beam remains a viable but less attractive option.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. TOTEM Collaboration. Total Cross-Section, Elastic Scattering and Diffraction Dissociation at the Large Hadron Collider at CERN: TOTEM Technical Design Report; CERN-LHCC-2004-002 and Addendum CERN-LHCC-2004-020; CERN: Geneva, Switzerland, 2009. [Google Scholar]
  2. TOTEM Collaboration. The TOTEM Experiment at the CERN Large Hadron Collider. JINST 2008, 3, S08007. [Google Scholar] [CrossRef]
  3. TOTEM Collaboration. First Determination of the ρ Parameter at S=13 TeV—Probing the Existence of a Colourless Three-Gluon Bound State; CERN-EP-2017-335; CERN: Geneva, Switzerland, 2017. [Google Scholar]
  4. Barone, V.; Predazzi, E. High-Energy Particle Diffraction; Springer: Berlin/Heidelberg, Germany, 2002; ISBN 978-3-662-04724-8. [Google Scholar]
  5. UA4/2 Collaboration. A precise measurement of the real part of the elastic scattering amplitude at the Sp¯pS. Phys. Lett. B 1993, 316, 448. [Google Scholar] [CrossRef]
  6. TOTEM Collaboration. Measurement of elastic pp scattering at s=8 TeV in the Coulomb–nuclear interference region: determination of the ρ-parameter and the total cross-section. Eur. Phys. J. 2016, C76, 661. [Google Scholar] [CrossRef]
  7. Burkhardt, H. High-Beta Optics and Running Prospects. Presented at the 4th Elba Workshop on Forward Physics @LHC Energy, Isola d’Elba, Italy, 24–26 May 2018; Available online: https://indico.cern.ch/event/705748/contributions/3014284/attachments/1656538/2652047/HighBeta_ELBA_2018_05_26.pdf (accessed on 8 October 2018).
  8. Redaelli, S. Beam Cleaning and Collimation Systems. arXiv, 2016; arXiv:1608.03159. [Google Scholar]
  9. LHC OP logbook. Available online: http://elogbook.cern.ch/eLogbook/eLogbook.jsp?shiftId=1092604 (accessed on 8 October 2018).
  10. LHC OP logbook. Available online: http://elogbook.cern.ch/eLogbook/eLogbook.jsp?shiftId=1093155 (accessed on 8 October 2018).
  11. LHC OP logbook. Available online: http://elogbook.cern.ch/eLogbook/eLogbook.jsp?shiftId=1097460 (accessed on 8 October 2018).

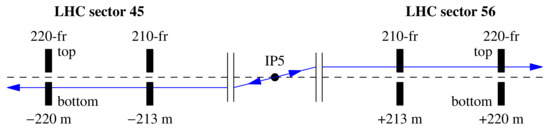

Figure 1. Layout of the TOTEM RPs (black boxes) relevant for the present article. The distances at the bottom indicate the positions of the RP units (“210-fr” and “220-fr”) with respect to the IP. The blue arrows illustrate one possible topology of two elastically scattered protons.
Figure 1. Layout of the TOTEM RPs (black boxes) relevant for the present article. The distances at the bottom indicate the positions of the RP units (“210-fr” and “220-fr”) with respect to the IP. The blue arrows illustrate one possible topology of two elastically scattered protons.
Instruments 02 00020 g001

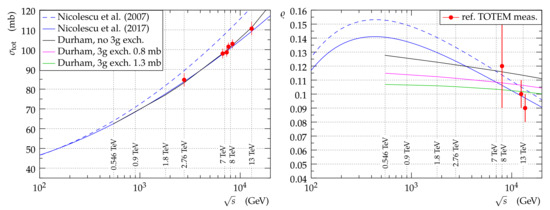

Figure 2. Selected TOTEM measurements of σ tot (left) and the ρ parameter (right) compared to selected models, from Ref. [3].
Figure 2. Selected TOTEM measurements of σ tot (left) and the ρ parameter (right) compared to selected models, from Ref. [3].
Instruments 02 00020 g002

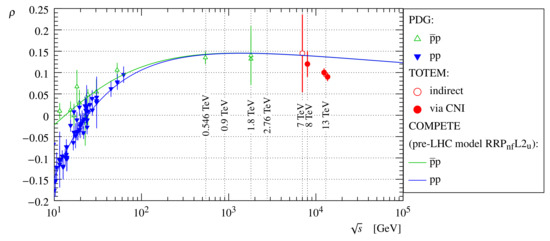

Figure 3. Compilation of ρ parameter measurements as a function of energy, from Ref. [3].
Figure 3. Compilation of ρ parameter measurements as a function of energy, from Ref. [3].
Instruments 02 00020 g003

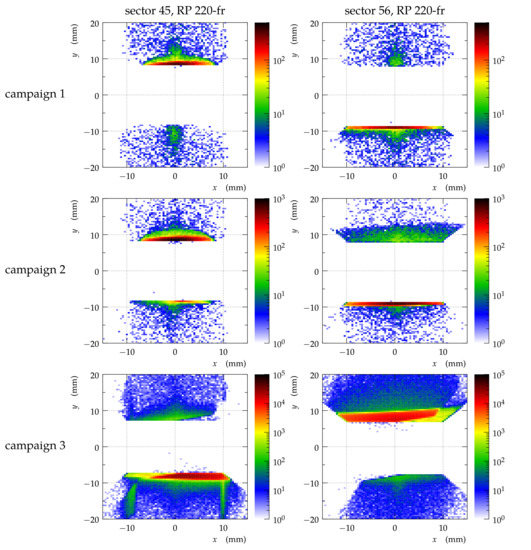

Figure 4. Distributions of track impact points at the RP locations (requiring reconstructed track coincidence in the 4 RPs that may contain elastic-scattering signal). x and y correspond to the coordinates transverse to the beam (prior to alignment). The colour code indicates the number of events per histogram bin. Each row corresponds to the most successful test of each campaign. Each column corresponds to one RP location, cf. Figure 1.
Figure 4. Distributions of track impact points at the RP locations (requiring reconstructed track coincidence in the 4 RPs that may contain elastic-scattering signal). x and y correspond to the coordinates transverse to the beam (prior to alignment). The colour code indicates the number of events per histogram bin. Each row corresponds to the most successful test of each campaign. Each column corresponds to one RP location, cf. Figure 1.
Instruments 02 00020 g004

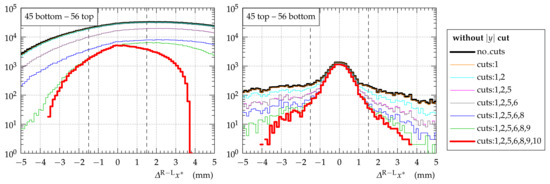

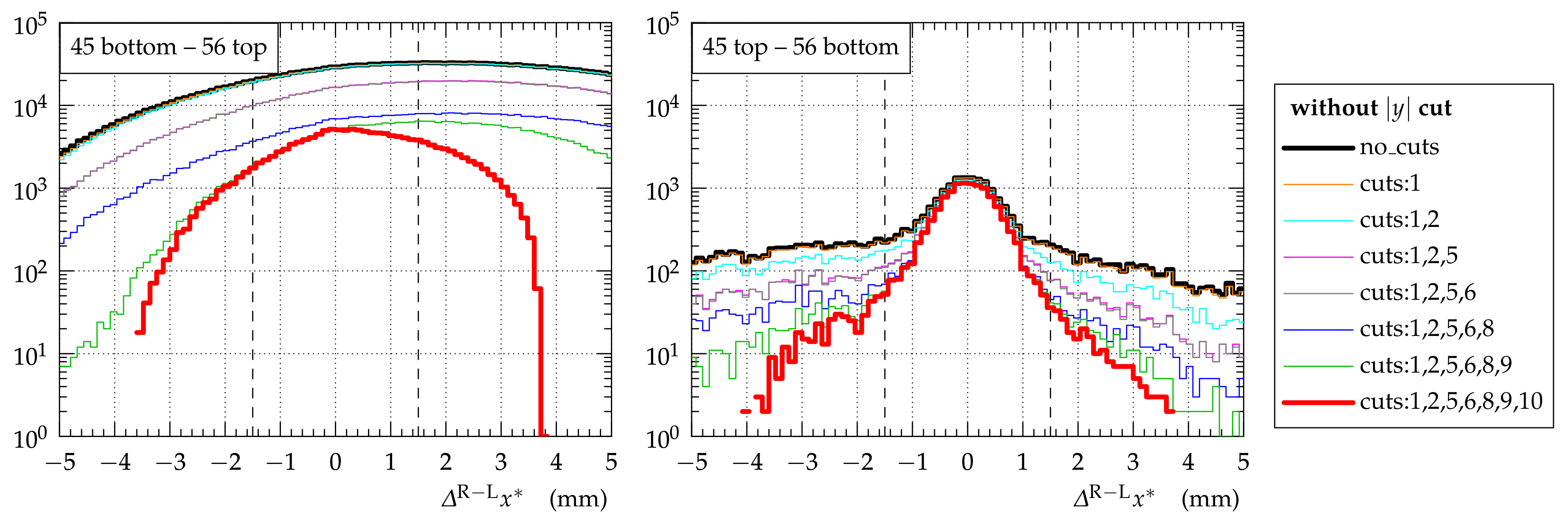

Figure 5. Distribution of the right (sector 56) - left (sector 45) difference of the reconstructed horizontal vertex, x * . Each plot corresponds to one diagonal. The colours correspond to different sets of tagging cuts, see text. The vertical dashed lines delimit the region where physics signal is expected.
Figure 5. Distribution of the right (sector 56) - left (sector 45) difference of the reconstructed horizontal vertex, x * . Each plot corresponds to one diagonal. The colours correspond to different sets of tagging cuts, see text. The vertical dashed lines delimit the region where physics signal is expected.
Instruments 02 00020 g005

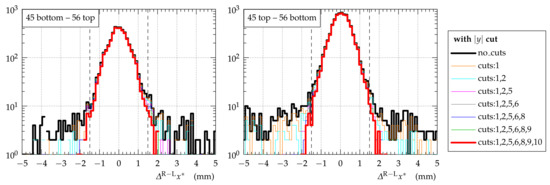

Figure 6. Distribution of the right - left difference of the reconstructed horizontal vertex, x * , after the | y | cut, Equation (1). Each plot corresponds to one diagonal. The colours correspond to different sets of tagging cuts, see text. The vertical dashed lines delimit the region where physics signal is expected.
Figure 6. Distribution of the right - left difference of the reconstructed horizontal vertex, x * , after the | y | cut, Equation (1). Each plot corresponds to one diagonal. The colours correspond to different sets of tagging cuts, see text. The vertical dashed lines delimit the region where physics signal is expected.
Instruments 02 00020 g006

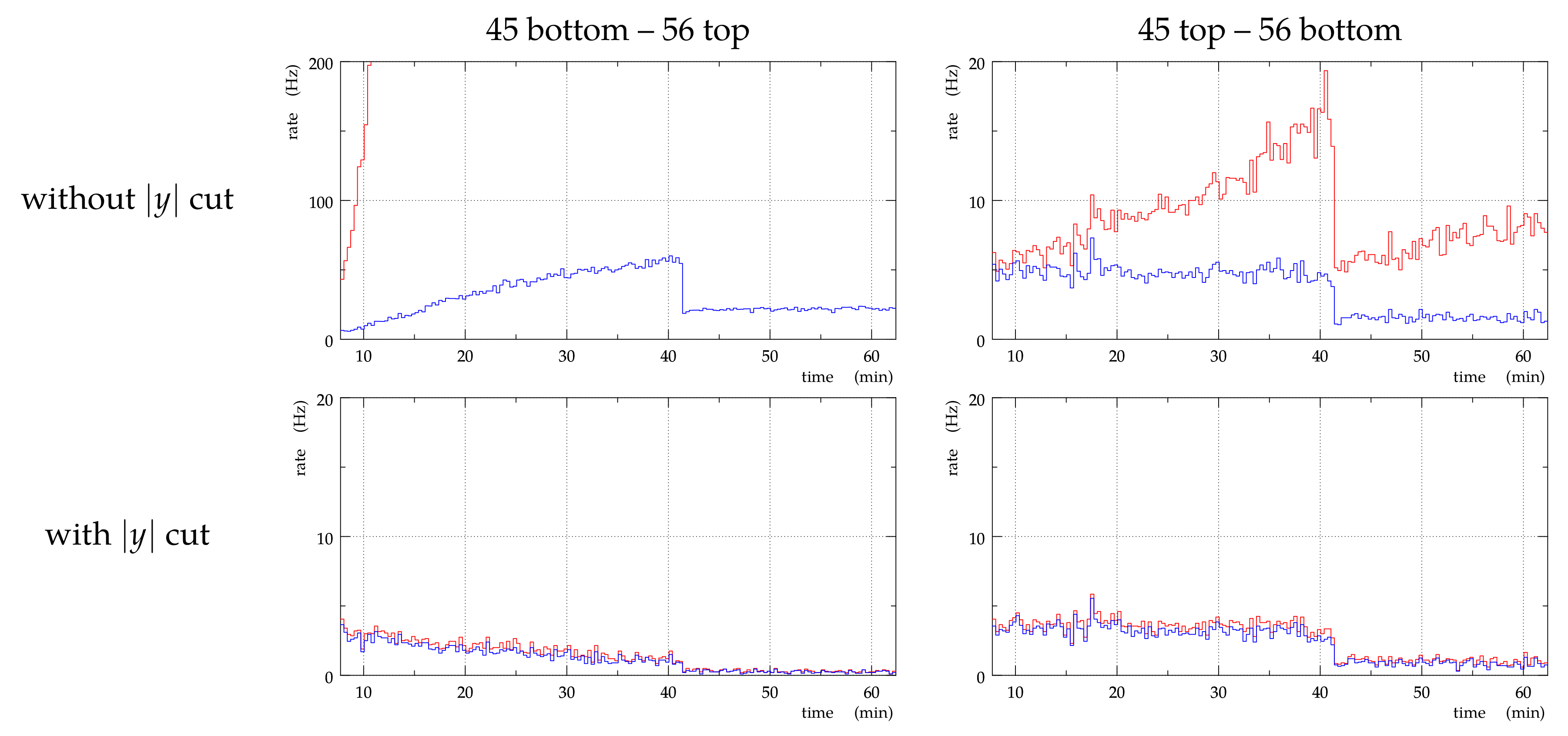

Figure 7. Event rates as a function of time. The top and bottom rows correspond to rates without and with the | y | cut, Equation (1). Each column represents one diagonal. The red histogram shows rates requiring reconstructed track in all RPs of the diagonal, the blue histogram shows rates after applying all tagging cuts described in Section 4.
Figure 7. Event rates as a function of time. The top and bottom rows correspond to rates without and with the | y | cut, Equation (1). Each column represents one diagonal. The red histogram shows rates requiring reconstructed track in all RPs of the diagonal, the blue histogram shows rates after applying all tagging cuts described in Section 4.
Instruments 02 00020 g007
