LinoSPAD: A Compact Linear SPAD Camera System with 64 FPGA-Based TDC Modules for Versatile 50 ps Resolution Time-Resolved Imaging
Abstract
:1. Introduction
2. LinoSPAD: A Versatile SPAD Line Sensor

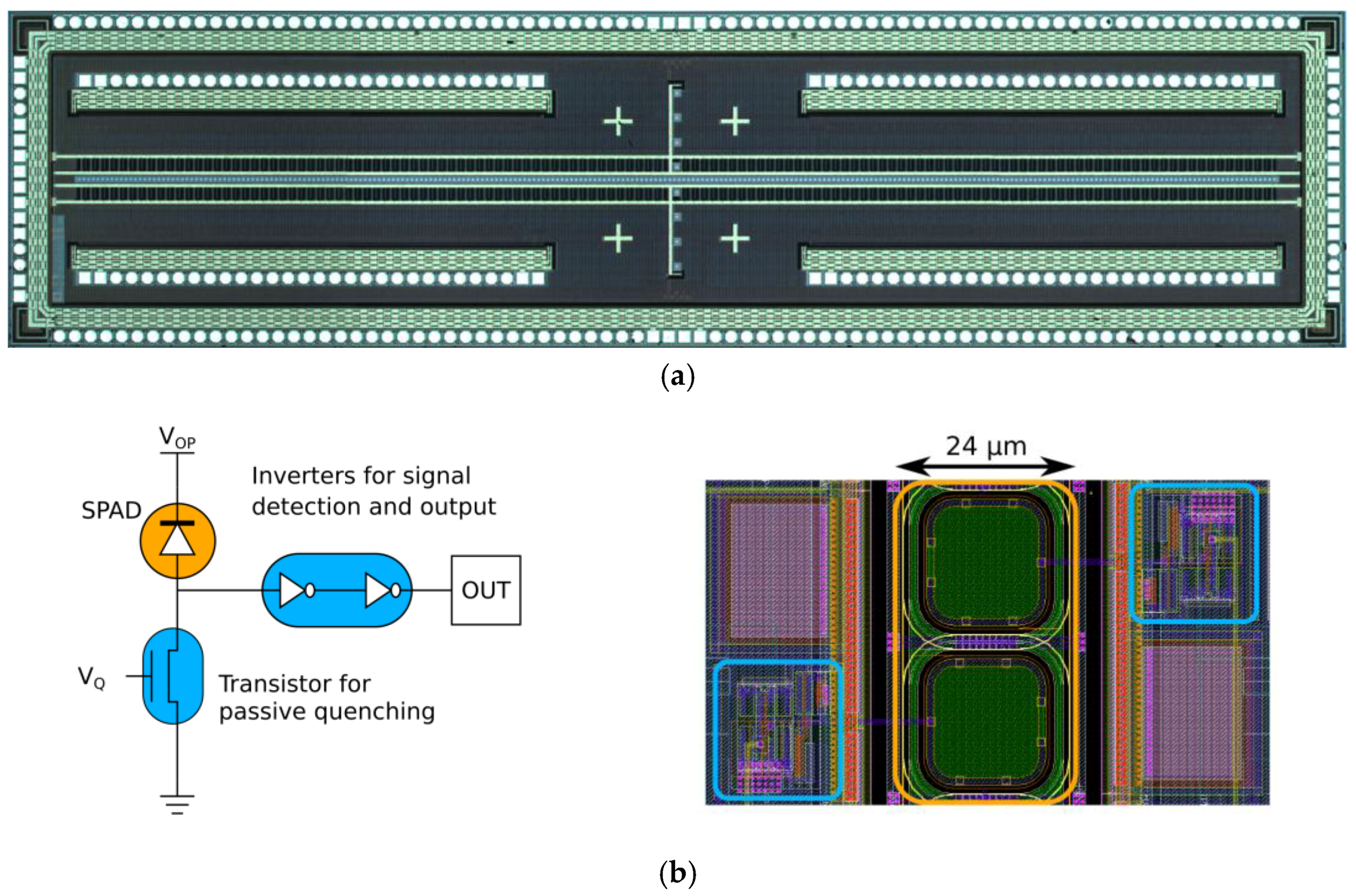

2.1. Sensor Architecture

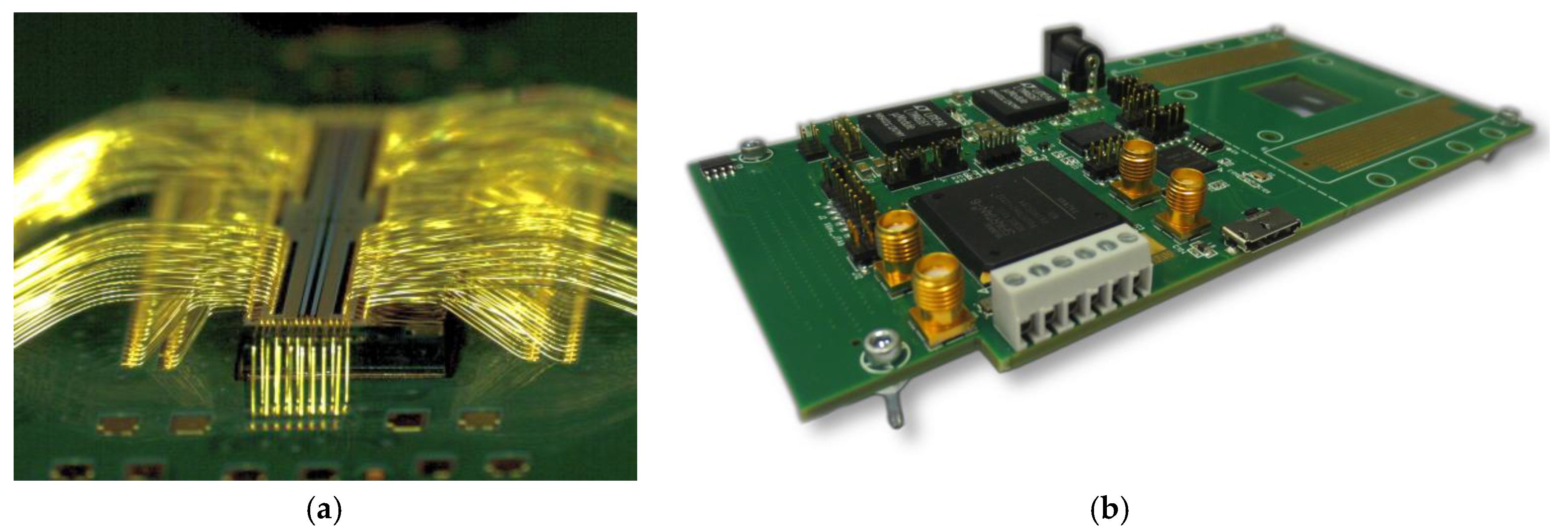

2.2. FPGA Interface Card
2.3. FPGA Architecture

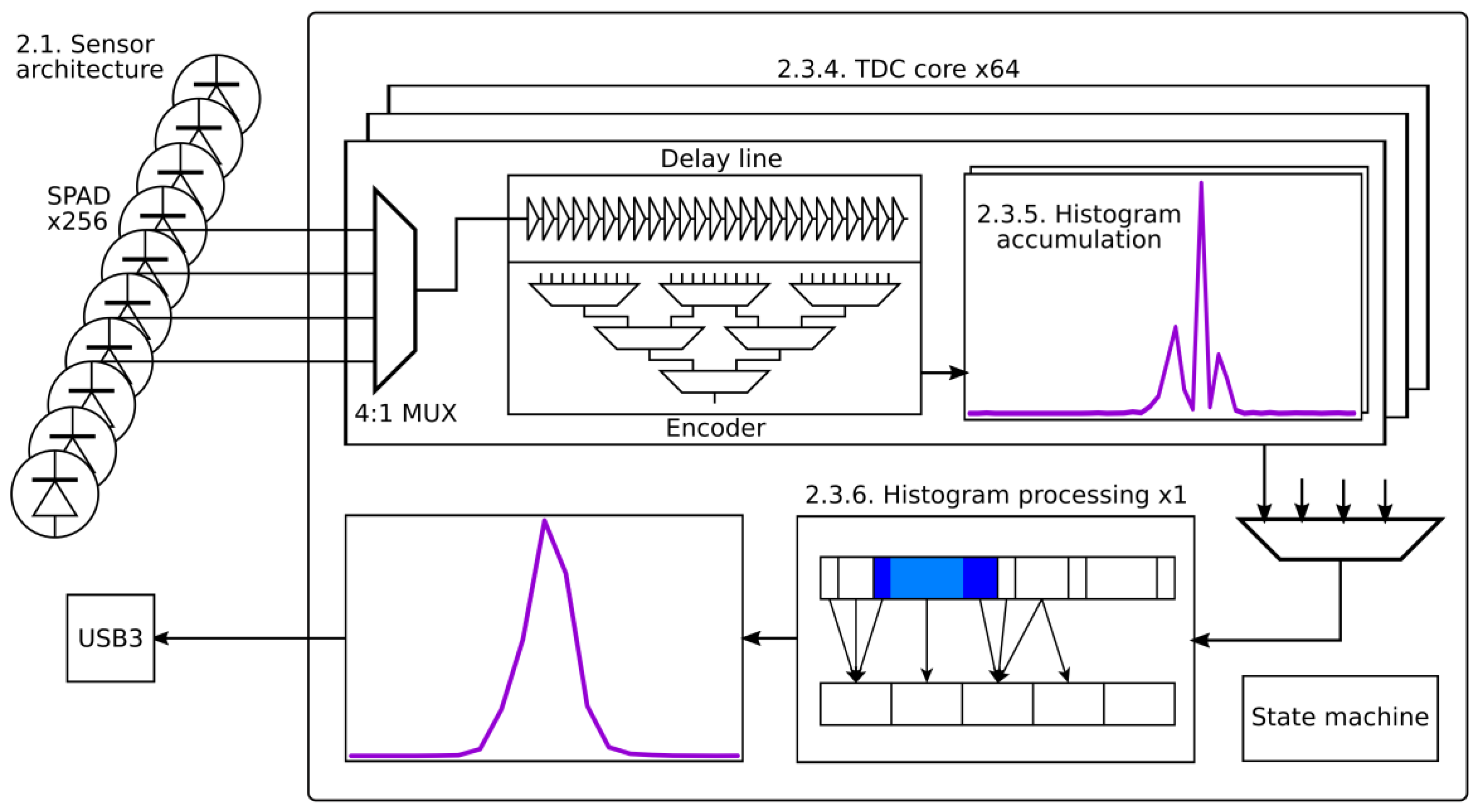

2.3.1. Global Architecture

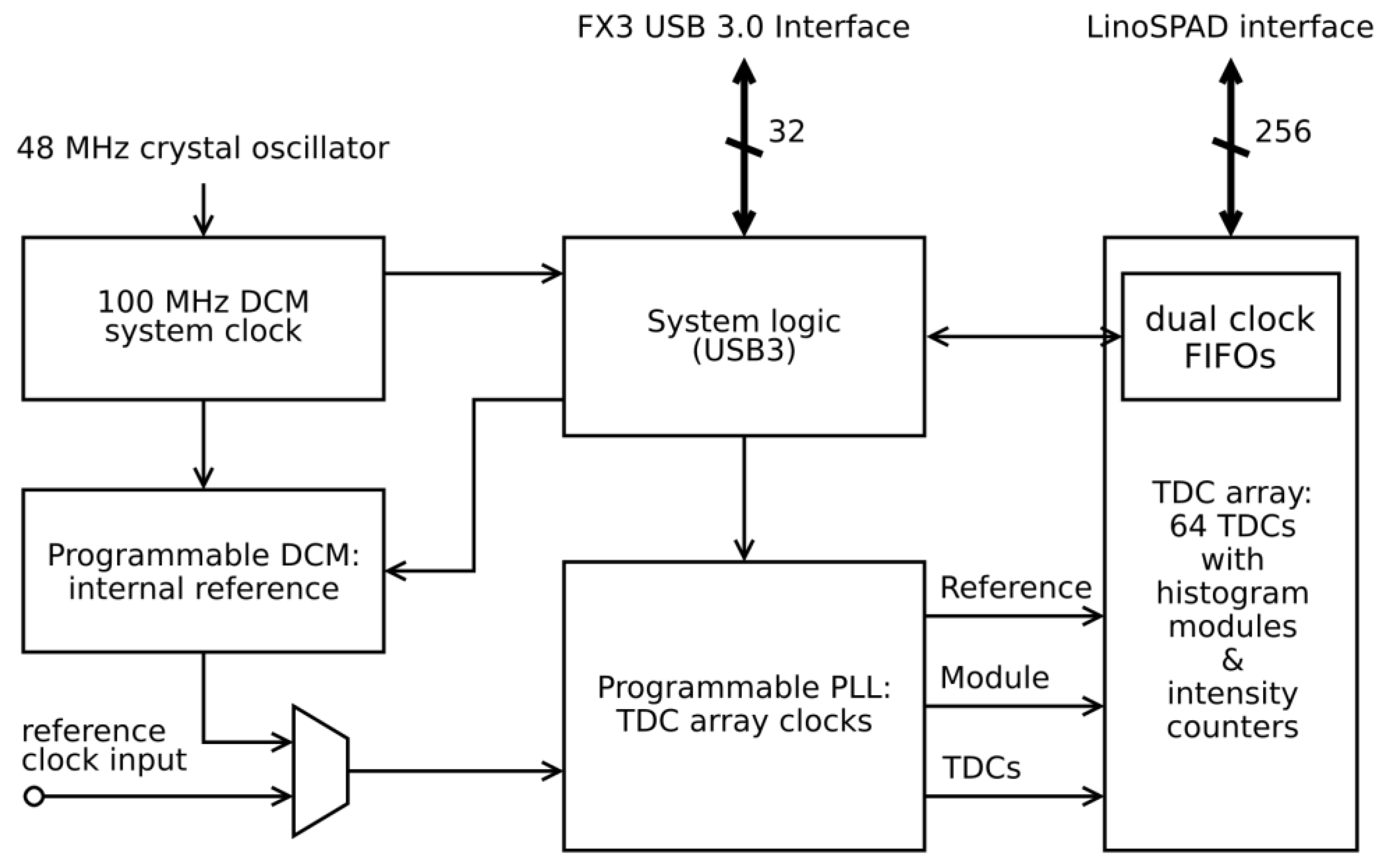

2.3.2. Clock Architecture
2.3.3. Event Counter Array
2.3.4. TDC Core
2.3.5. Histogram Accumulation

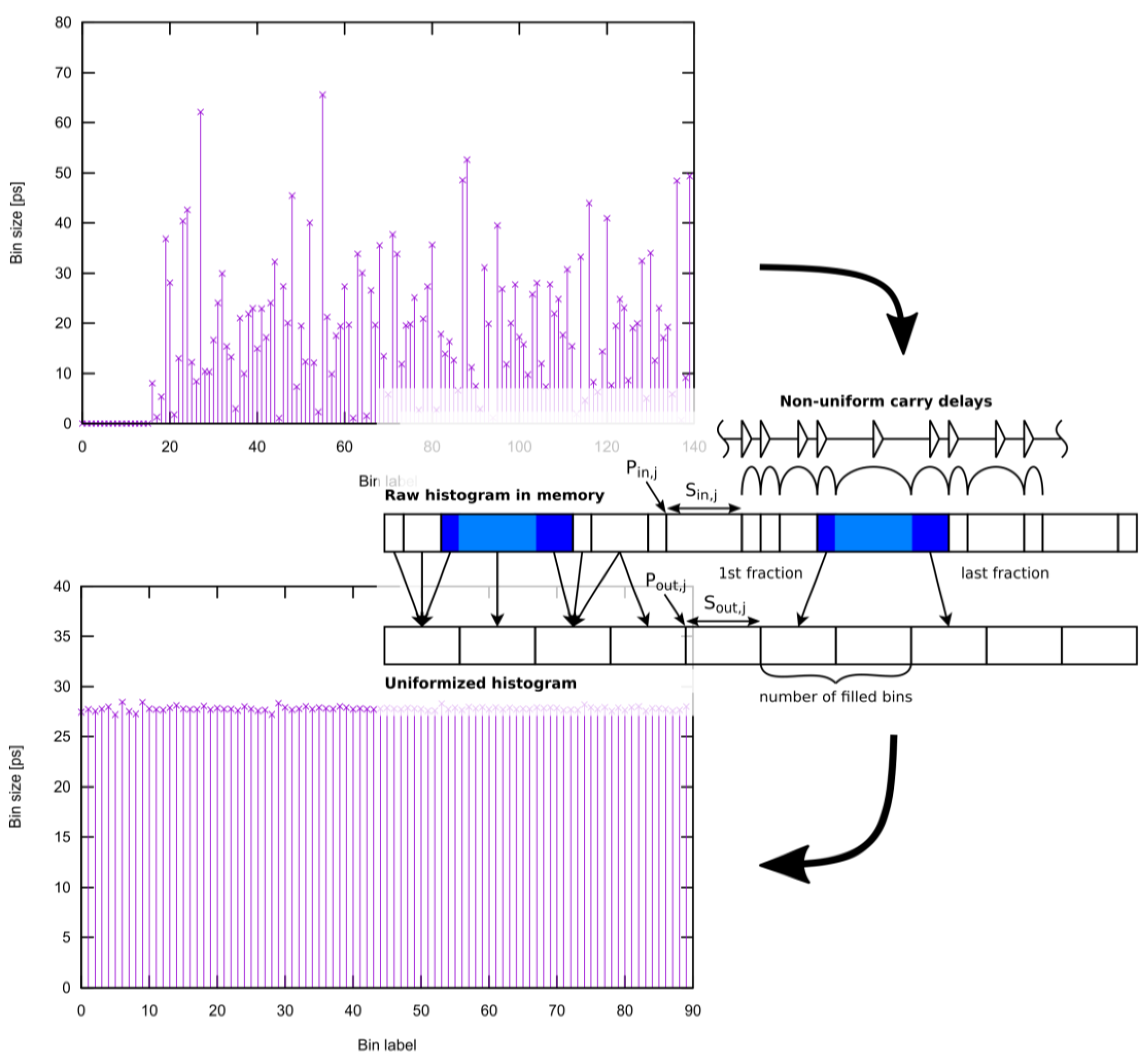

2.3.6. Histogram Processing
2.4. FPGA Implementation
3. LinoSPAD Characterization

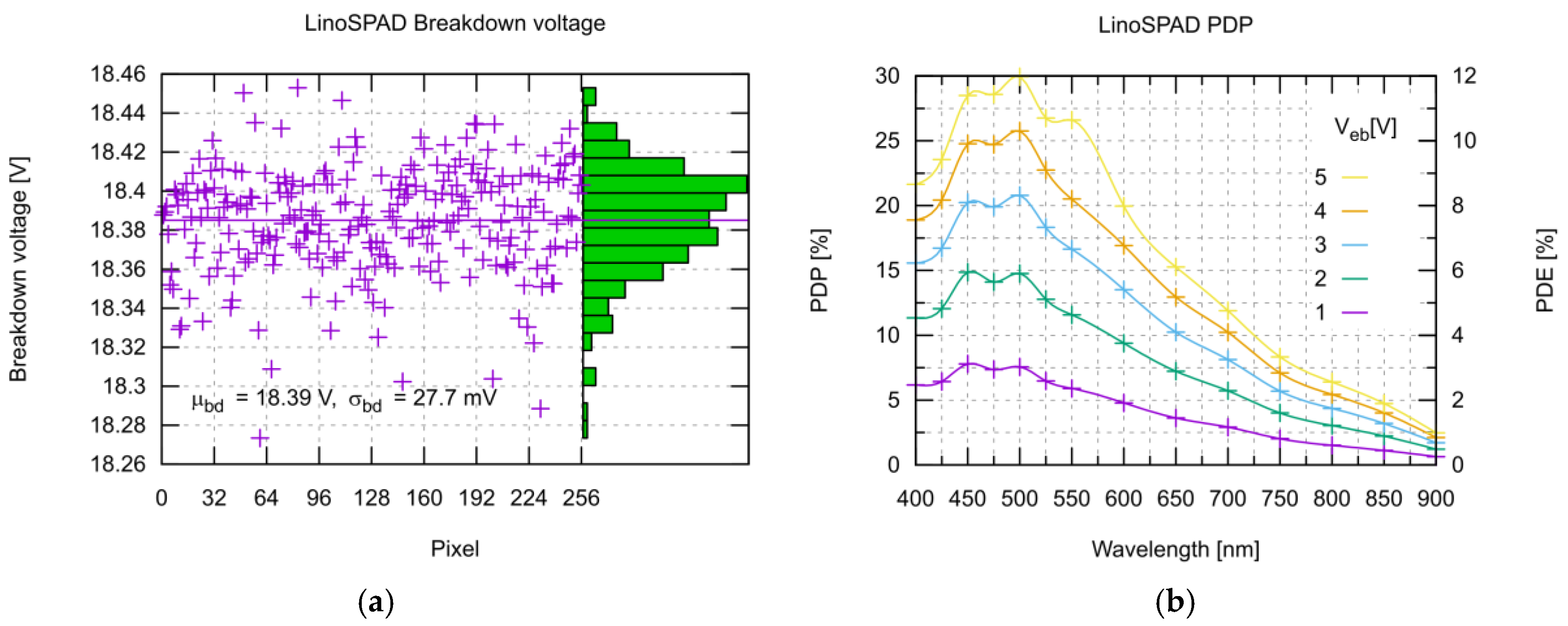

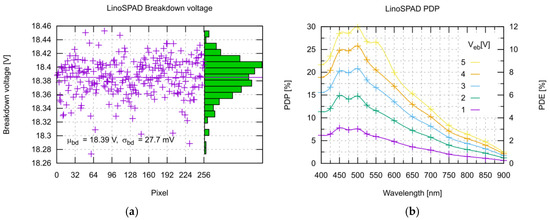

3.1. Breakdown Voltage

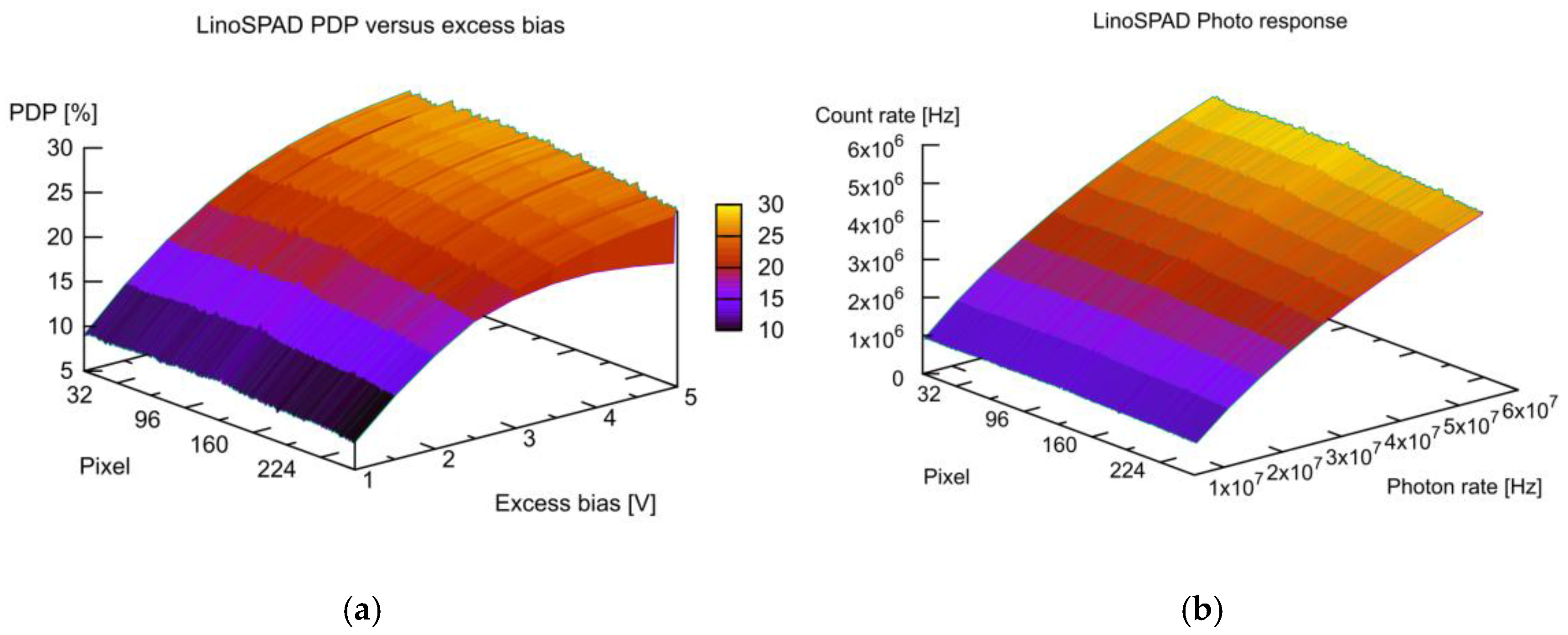

3.2. Photon Detection Probability (PDP) and Photo Response

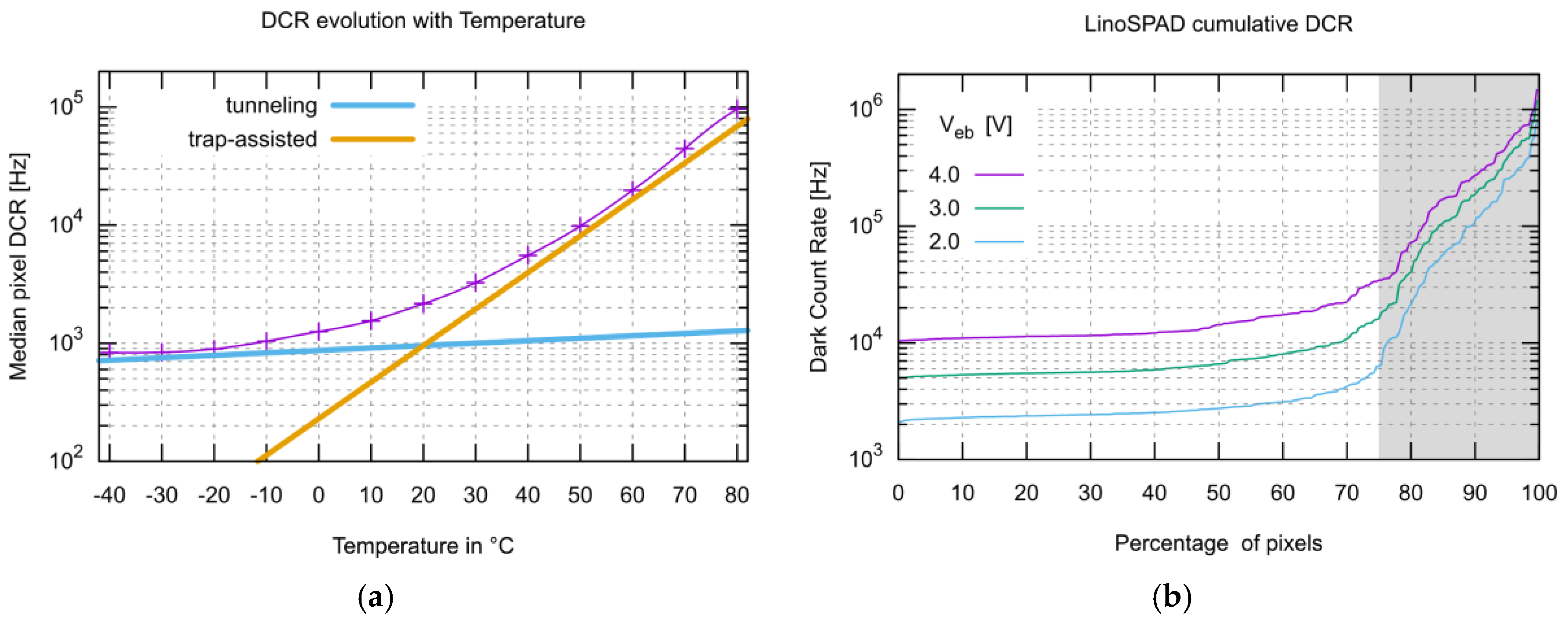

3.3. Dark Count Rate (DCR)
3.4. Power Consumption

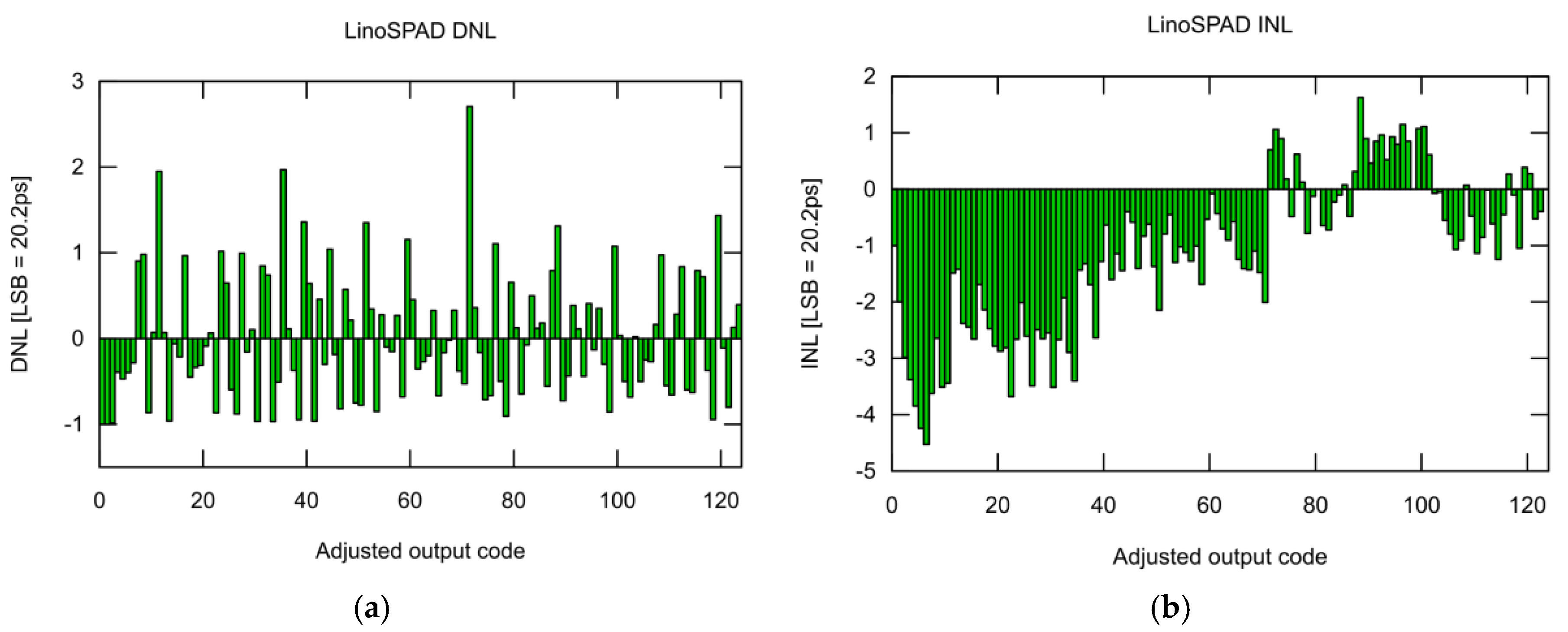

3.5. TDC Response

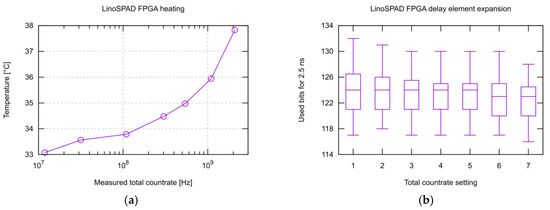

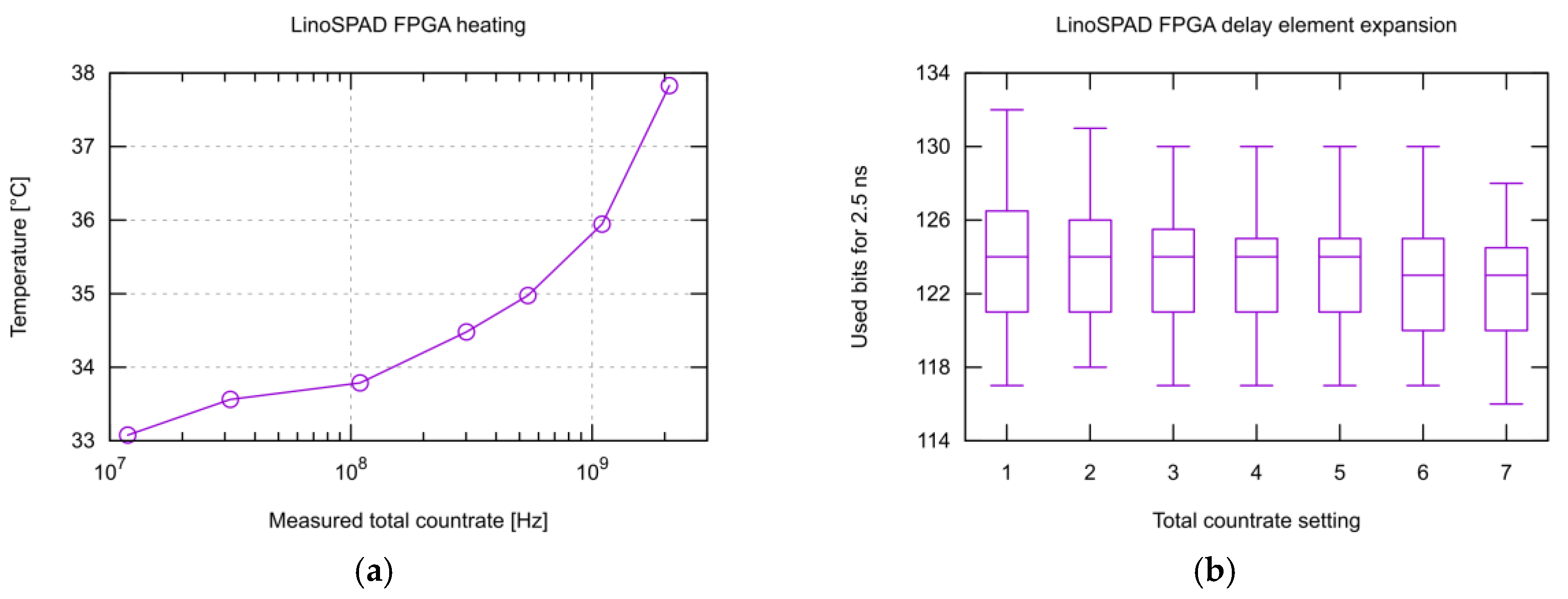

3.6. Temperature Effects in SPAD Sensors

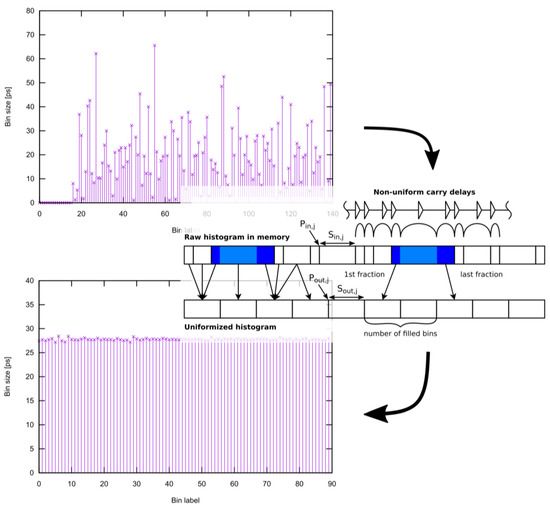

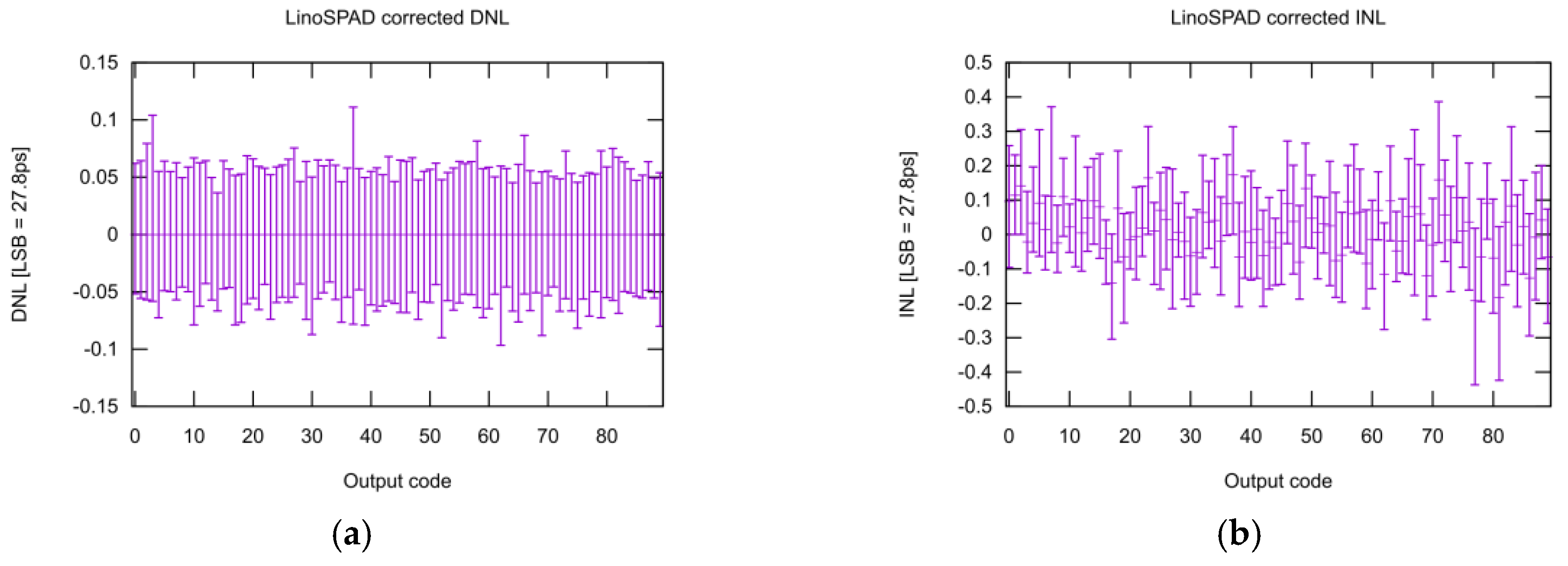

3.7. Post-Processing

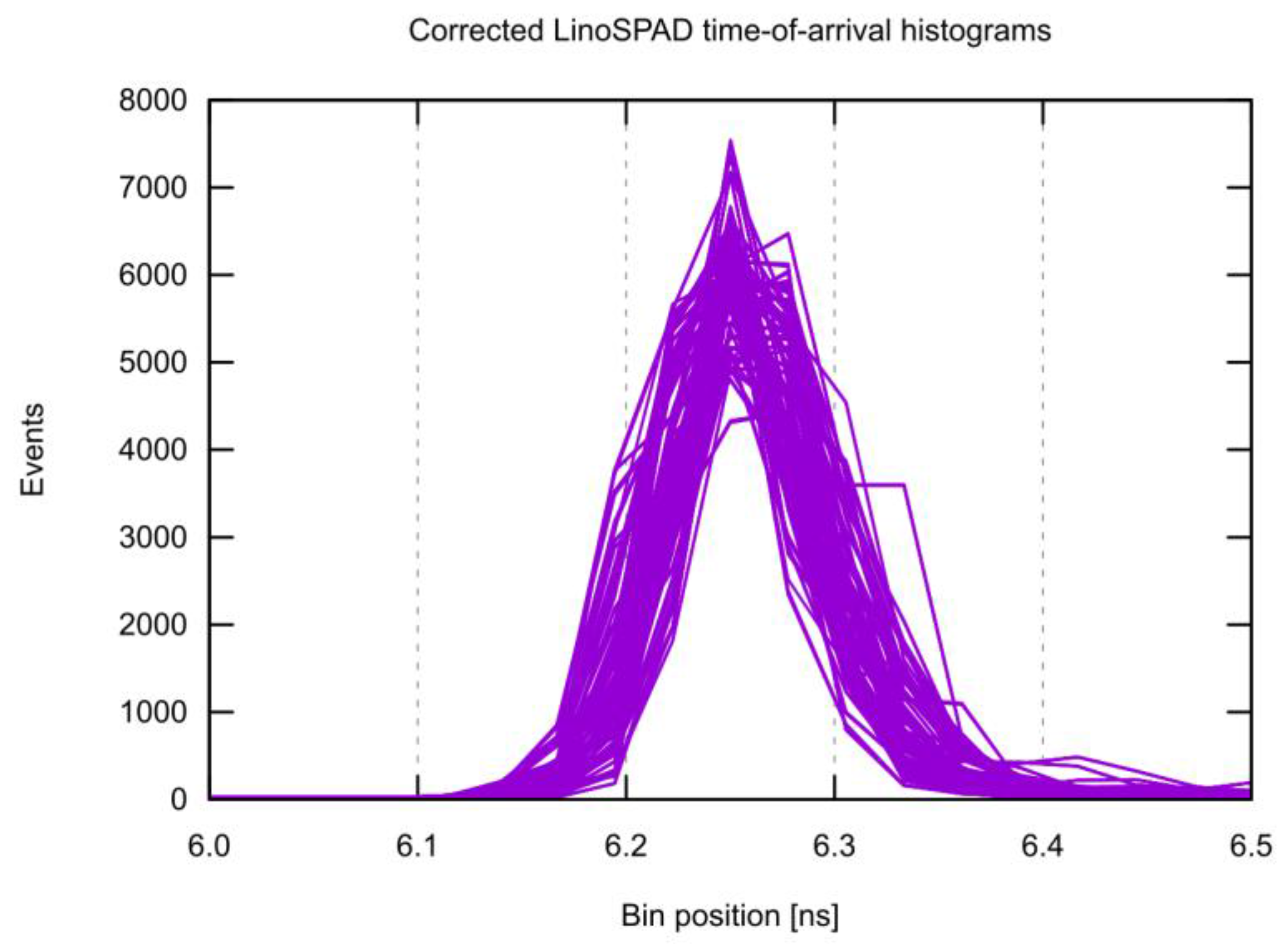

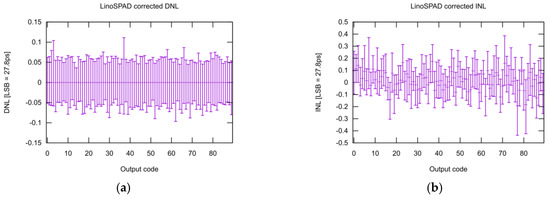

3.8. Histograms
3.9. Performance Summary and Comparison to other FPGA TDCs
4. Extended Non-Linearity Characterization and Fabrication Variations

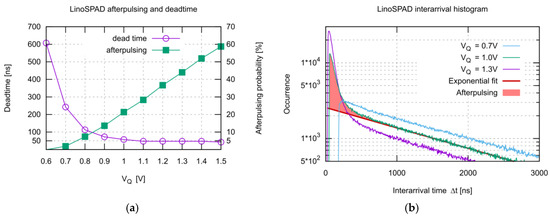

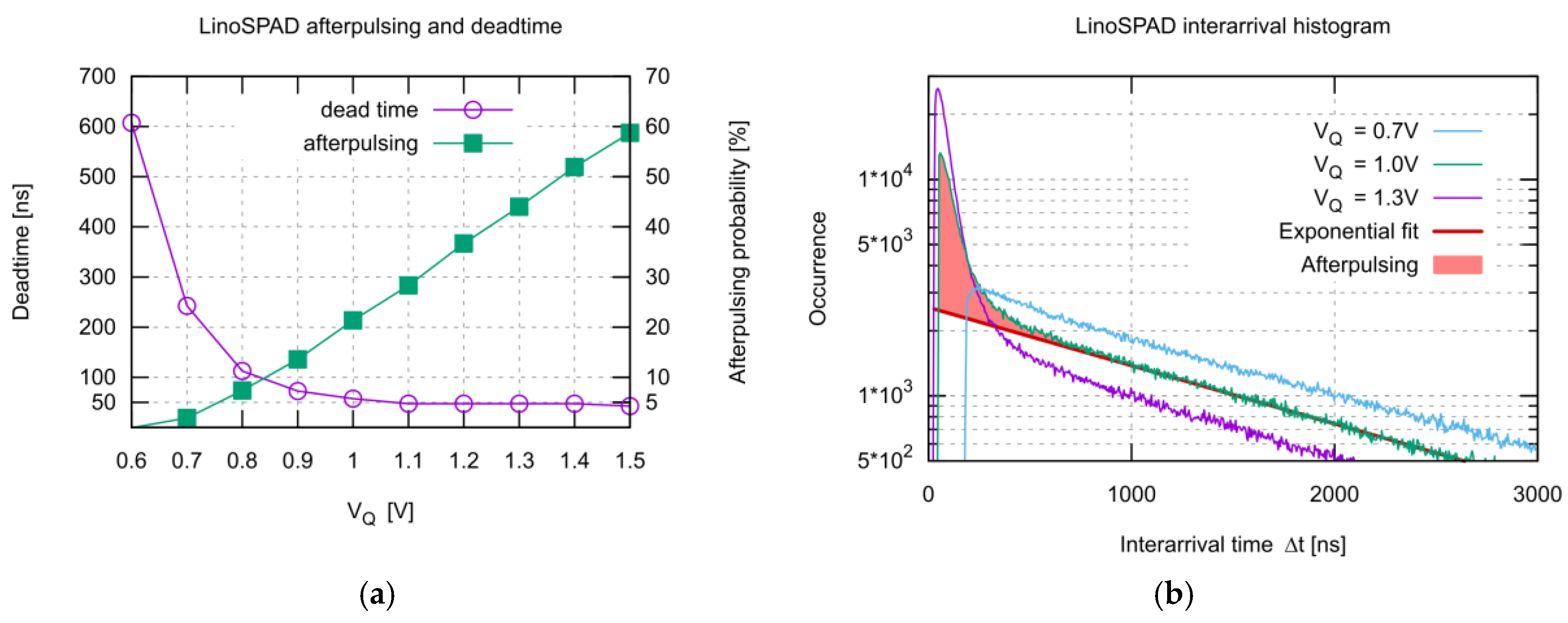

4.1. Dead Time and Afterpulsing

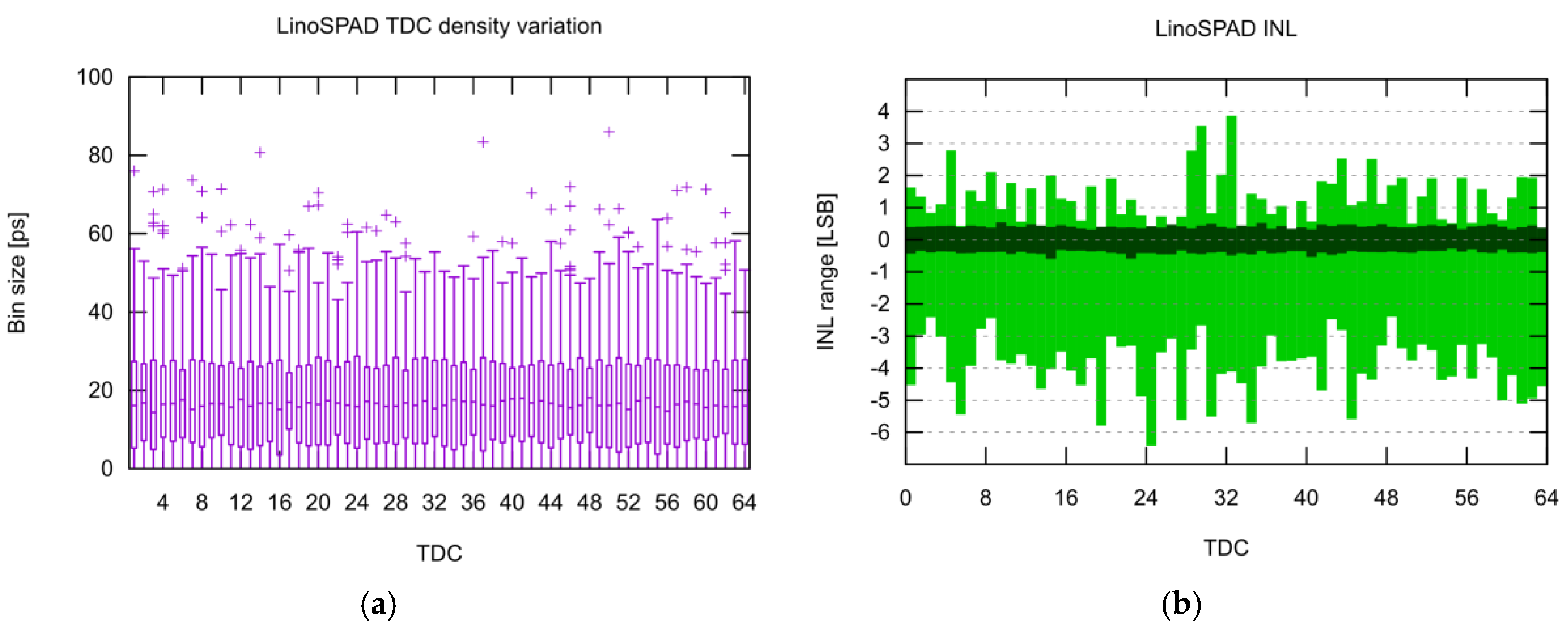

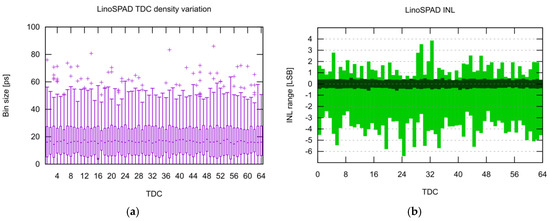

4.2. TDC-to-TDC Variation

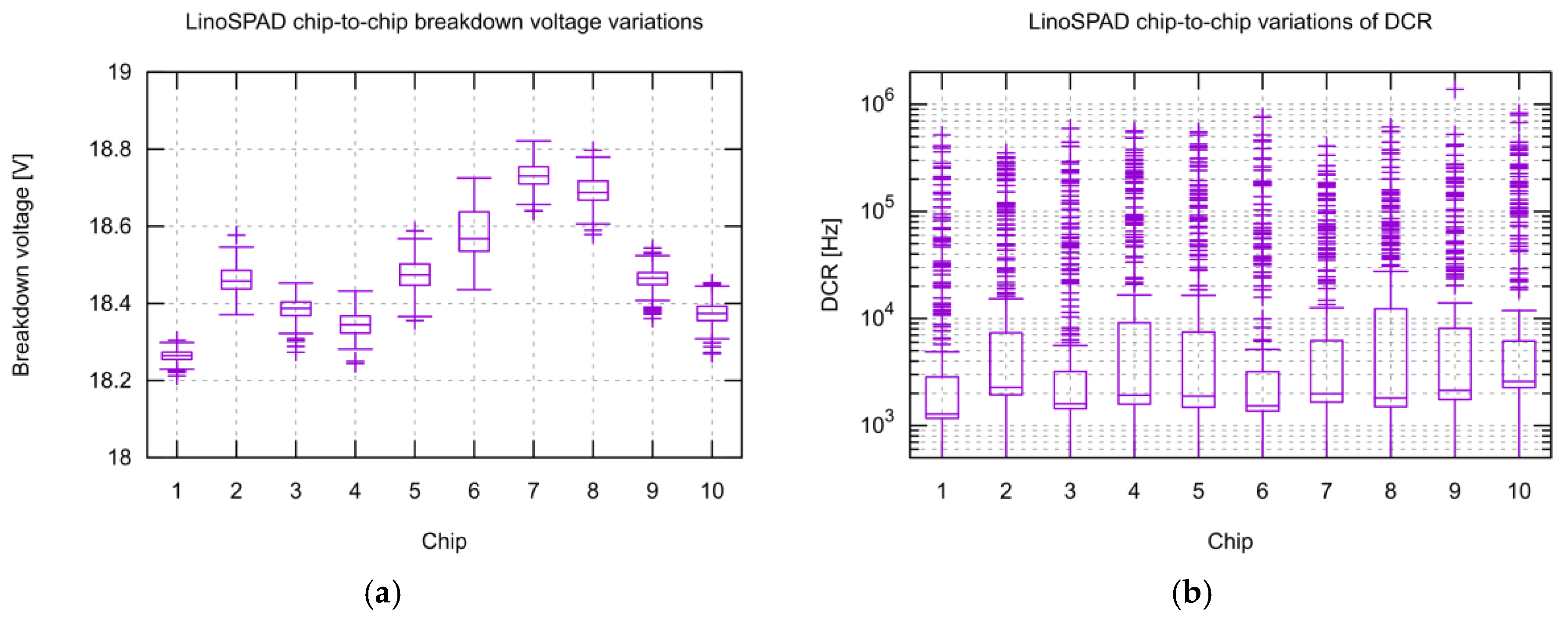

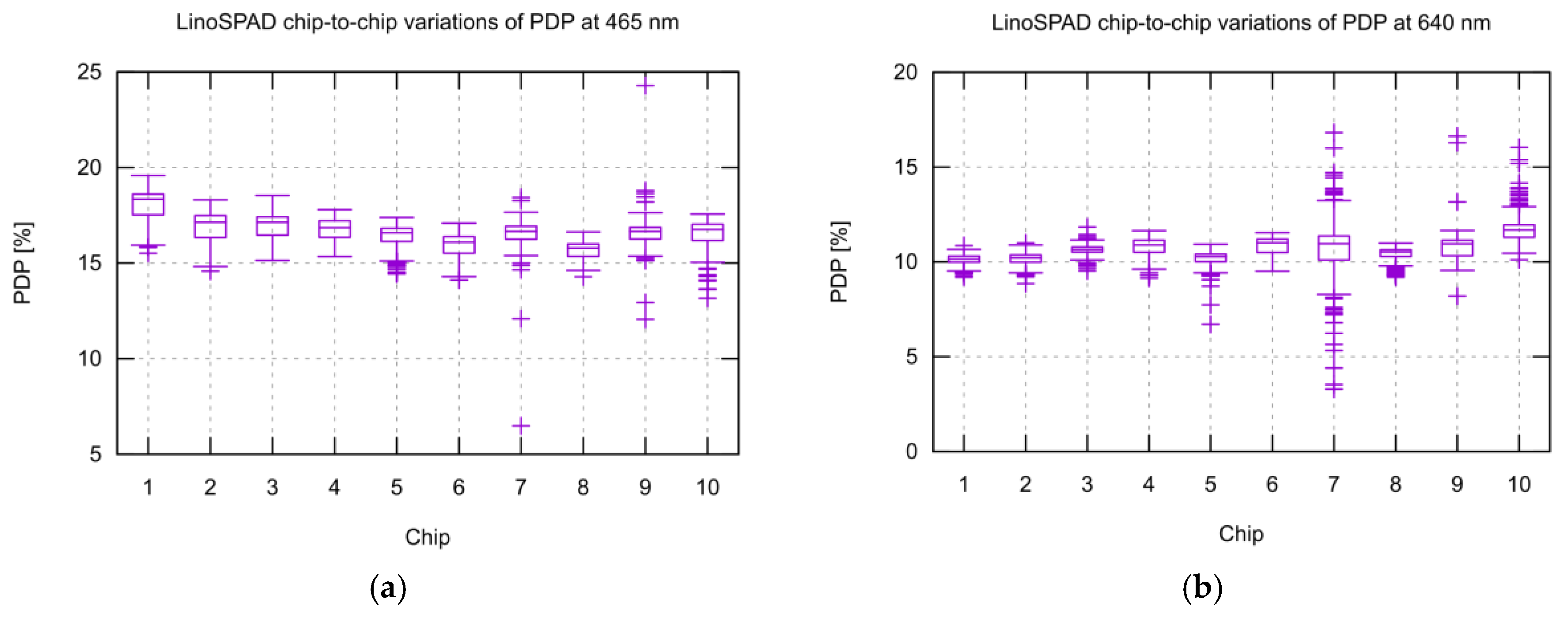

4.3. Sensor-to-Sensor Variation
4.4. FPGA-to-FPGA
5. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Hamamatsu Photonics. Photomultiplier Tubes: Basics and Applications, 3rd ed.; Hamamatsu Photonics K. K., Electron Tube Division, TOTH9001E03a: Hamamatsu, Japan, 2007; Available online: https://www.hamamatsu.com/resources/pdf/etd/PMT_handbook_v3aE.pdf (accessed on 6 October 2017).
- Lampton, M. The Microchannel Image Intensifier. Sci. Am. 1981, 245, 62–71. [Google Scholar] [CrossRef]
- Michalet, X.; Siegmund, O.H.W.; Vallerga, J.V.; Jelinsky, P.; Millaud, J.E.; Weiss, S. Photon-Counting H33D Detector for Biological Fluorescence Imaging. Nuclear Instrum. Methods Phys. Res. Sect. A Accel. Spectrom. Detect. Assoc. Equip. 2006, 567, 133. [Google Scholar] [CrossRef]
- Rochas, A.; Gösch, M.; Serov, A.; Besse, P.A.; Popovic, R.S.; Lasser, T.; Rigler, R. First Fully Integrated 2-D Array of Single-Photon Detectors in Standard CMOS Technology. IEEE Photon. Technol. Lett. 2003, 15, 963–965. [Google Scholar] [CrossRef]
- Charbon, E. Single-photon imaging in complementary metal oxide semiconductor processes. Phil. Trans. R. Soc. A 2014, 372, 20130100. [Google Scholar] [CrossRef] [PubMed]
- Gersbach, M.; Trimananda, R.; Maruyama, Y.; Fishburn, M.; Stoppa, D.; Richardson, J.; Walker, R.; Henderson, R.K.; Charbon, E. High frame-rate TCSPC-FLIM using a novel SPAD-based image sensor. Proc. SPIE 2010, 7780. [Google Scholar] [CrossRef]
- Carimatto, A.; Charbon, E. Large Scale CMOS Single-Photon Detector Arrays for PET Applications. In Proceedings of the Front End Electronics, Lemont, IL, USA, 20–23 May 2014. [Google Scholar]
- Krieger, J.W.; Buchholz, J.; Burri, S.; Bruschini, C.; Charbon, E.; Garbe, C.S.; Langowski, J. Imaging Fluorescence Correlation: Novel Results on New Image Sensors (SPAD Arrays) and a Comprehensive New Software Package (QUICKFIT 3.0). In Proceedings of the Focus on Microscopy, Göttingen, Germany, 29 March–1 April 2015. [Google Scholar]
- Mosconi, D.; Stoppa, D.; Pancheri, L.; Gonzo, L.; Simoni, A. CMOS Single-Photon Avalanche Diode Array for Time-Resolved Fluorescence Detection. In Proceedings of the 32nd European Solid-State Circuits Conference, 2006 (ESSCIRC 2006), Montreux, Switzerland, 19–21 September 2006. [Google Scholar]
- Panzeri, F.; Ingargiola, A.; Lin, R.R.; Sarkhosh, N.; Gulinatti, A.; Rech, I.; Ghioni, M.; Cova, S.; Weiss, S.; Michalet, X. Single-molecule FRET experiments with a red-enhanced custom technology SPAD. Proc. SPIE 2013, 8590. [Google Scholar] [CrossRef]
- Perenzoni, D.; Gasparini, L.; Massari, N.; Stoppa, D. Depth-range extension with folding technique for SPAD-based TOF LIDAR systems. In Proceedings of the 2014 IEEE Sensors, Valencia, Spain, 2–5 November 2014. [Google Scholar]
- Niclass, C.; Sergio, M.; Charbon, E. A Single Photon Avalanche Diode Array Fabricated in 0.35 µm CMOS and based on an Event-Driven Readout for TCSPC Experiments. Proc. SPIE 2006, 6372. [Google Scholar] [CrossRef]
- Sergio, M.; Niclass, C.; Charbon, E. A 128 × 2 CMOS Single-Photon Streak Camera with Timing-Preserving Latchless Pipeline Readout. In Proceedings of the 2007 IEEE International Solid-State Circuits Conference (ISSCC 2007), San Francisco, CA, USA, 11–15 February 2007. [Google Scholar]
- Krstajić, N.; Levitt, J.; Poland, S.; Ameer-Beg, S.; Henderson, R. 256 × 2 SPAD line sensor for time resolved fluorescence spectroscopy. Opt. Express 2015, 23, 5653–5669. [Google Scholar] [CrossRef] [PubMed]
- Nissinen, I.; Nissinen, J.; Keränen, P.; Länsman, A.-K.; Holma, J.; Kostamovaara, J. A 2 × (4) × 128 Multitime-Gated SPAD Line Detector for Pulsed Raman Spectroscopy. IEEE Sens. 2015, 15, 1358–1365. [Google Scholar] [CrossRef]
- Maruyama, Y.; Blacksberg, J.; Charbon, E. A 1024 × 8 700-ps Time-Gated SPAD Line Sensor for Planetary Surface Exploration with Laser Raman Spectroscopy and LIBS. IEEE J. Solid State Circ. 2014, 49, 179–189. [Google Scholar] [CrossRef]
- Charbon, E.; Scandini, M.; Mata Pavia, J.; Wolf, M. A dual backside-illuminated 800-cell multi-channel digital SiPM with 100 TDCs in 130 nm 3D IC technology. In Proceedings of the 2014 IEEE Nuclear Science Symposium and Medical Imaging Conference (NSS/MIC), Seattle, WA, USA, 8–15 November 2014. [Google Scholar]
- Burri, S.; Homulle, H.; Bruschini, C.; Charbon, E. LinoSPAD: A time-resolved 256x 1 CMOS SPAD line sensor system featuring 64 FPGA-based TDC channels running at up to 8.5 giga-events per second. Proc. SPIE 2016, 9899. [Google Scholar] [CrossRef]
- Favi, C.; Charbon, E. A 17ps Time-to-Digital Converter Implemented in 65 nm FPGA Technology. In Proceedings of the ACM/SIGDA International Symposium on Field Programmable Gate Arrays, Monterey, CA, USA, 22–24 February 2009. [Google Scholar]
- Fishburn, M.W.; Menninga, H.; Charbon, E. A 19.6 ps, FPGA-Based TDC with Multiple Channels for Open Source Applications. IEEE Trans. Nuclear Sci. 2013, 60, 2203–2208. [Google Scholar]
- Bourdeauducq, S. Time to Digital Converter core for Spartan 6 FPGAs. Available online: http://www.ohwr.org/projects/tdc-core/documents (accessed on 6 October 2017).
- Dadouche, F.; Turko, T.; Uhring, W.; Malass, I.; Dumas, N.; le Normand, J.-P. New Design-methodology of High-performance TDC on a Low Cost FPGA Targets. Sens. Transducers 2015, 193, 123–134. [Google Scholar]
- Xilinx. Spartan-6 FPGA Data Sheet: DC and Switching Characteristics (DS162). Available online: https://www.xilinx.com/support/documentation/data_sheets/ds162.pdf (accessed on 6 October 2017).
- Wu, J. Several Key Issues on Implementing Delay Line Based TDCs Using FPGAs. IEEE Trans. Nuclear Sci. 2010, 57, 1543–1548. [Google Scholar] [CrossRef]
- Van Hieu, B.; Beak, S.; Choi, S.; Seon, J.; Jeong, T.T. Thermometer-to-binary encoder with bubble error correction (BEC) circuit for Flash Analog-to-Digital Converter (FADC). In Proceedings of the 2010 Third International Conference on Communications and Electronics (ICCE), Nha Trang, Vietnam, 11–13 August 2010. [Google Scholar]
- Burri, S. Challenges and Solutions to Next-Generation Single-Photon Imagers. Ph.D. Thesis, Swiss Federal Institute of Technology, Lausanne, Switzerland, 2016. [Google Scholar]
- Fishburn, M.W. Fundamentals of CMOS Single-Photon Avalanche Diodes. Ph.D. Thesis, TU Delft, The Netherlands, 2012. [Google Scholar]
- Charbon, E.; Fishburn, M.W. Monolithic Single-Photon Avalanche Diodes: SPADs. In Single-Photon Imaging, 1st ed.; Seitz, P., Theuwissen, A.J.P., Eds.; Springer: Heidelberg, Germany, 2011; pp. 123–157. ISBN 978-3-642-18442-0. [Google Scholar]
- Burri, S.; Maruyama, Y.; Michalet, X.; Regazzoni, F.; Bruschini, C.; Charbon, E. Architecture and applications of a high resolution gated SPAD image sensor. Opt. Express 2014, 22, 17573–17589. [Google Scholar] [CrossRef] [PubMed]
- Pan, W.; Gong, G.; Li, J. A 20-ps Time-to-Digital Converter (TDC) Implemented in Field-Programmable Gate Array (FPGA) with Automatic Temperature Correction. IEEE Trans. Nuclear Sci. 2014, 61, 1468–1473. [Google Scholar] [CrossRef]
- Uhring, W.; Zint, C.-V.; Bartringer, J. A low-cost high-repetition-rate picosecond laser diode pulse generator. Proc. SPIE 2004, 5452. [Google Scholar] [CrossRef]
- Keränen, P.; Kostamovaara, J. A Wide Range, 4.2 ps(rms) Precision CMOS TDC With Cyclic Interpolators Based on Switched-Frequency Ring Oscillators. IEEE Trans. Circ. Syst. 2015, 62, 2795–2805. [Google Scholar]
- Wang, H.; Dai, F.F. A 14-Bit, 1-ps Resolution, Two-Step Ring and 2D Vernier TDC in 130 nm CMOS Technology. In Proceedings of the 43rd IEEE European Solid State Circuits Conference (ESSCIRC 2017), Leuven, Belgium, 11–14 September 2017. [Google Scholar]
- PicoQuant. HydraHarp 400—Multichannel Picosecond Event Timer and TCSPC Module with USB Interface. Product Brief. Available online: https://www.picoquant.com/images/uploads/downloads/hydraharp400.pdf (accessed on 21 November 2017).
Condition/Supply | VOP (2 Vex) | VDD (3.3 V) | VREG (5 V) |
---|---|---|---|
Darkness | 7 µA | 2.0 mA | 928 mA |
Intense ambient light | ~425 µA | ~600 mA | 1063 mA |
Saturation | ~750 µA | ~0.3 mA | 944 mA |
Parameter | Value |
---|---|
Chip size | 6.8 × 1.68 mm2 |
Technology | 0.35 µm 4 M high-voltage |
Number of pixels | 256 (+8 perpendicular) |
Pixel pitch | 24 µm |
Fill factor | 40% |
Dead time (Vex = 3 V, VQ = 1 V) | 100 ns |
Median DCR (Vex = 3 V, 20 °C) | 5–10 kHz |
Spectral range (Vex = 3 V, PDP > 5%) | 400–775 nm |
Light incidence | ±45° from normal |
Number of TDCs | 64 |
Maximum TDC event rate | 133 MHz/TDC |
Average TDC resolution (LSB) | <25 ps |
TDC range | 28 bit (4.5 ms) |
TDC DNL range, uncorrected | 4 LSB |
TDC DNL range, corrected | 0.2 LSB |
TDC INL range, uncorrected | 7 LSB |
TDC INL range, corrected | 0.5 LSB |
Data transfer rate | 200 MB/s |
LinoSPAD | [19] | [20] | [21] | [32] | [33] | [34] | ||
---|---|---|---|---|---|---|---|---|
Technology | S6 | V5 | V6 | S6 | C | C | A | |
Process | (nm) | 45 | 65 | 40 | 45 | 350 | 130 | - |
# of TDCs | 64 | 1 | 160 | 1 | 1 | 1 | 8 | |
# of channels | 256 | 1 | 160 | 1 | 1 | 1 | 8 | |
LSB Resolution | (ps) | 25 | 17 | 10 | 26 | 0.61 | 1 | 1 |
Event rate | (MHz) | 133 | 300 | 300 | 125 | 0.8 | 10 | 12.5 |
Carry blocks | (TDC−1) | 35 | 50 | 40 | 124 | n/a | n/a | n/a |
Clock frequency | (MHz) | 400 | 300 | 600 | 125 | 200 | 80 | n/a |
DNLpk-pk | (LSB) | 4 | 4.6 | 3 | n/a | 0.5 | 0.8 | 0.04 |
INLpk-pk | (LSB) | 7 | 5.6 | 6 | n/a | 9 | 1.6 | n/a |
