Detection of Surface States in Quantum Materials ZrTe_{2} and TmB_{4} by Scanning Tunneling Microscopy

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Samples and Experiments

## 3. Results

#### 3.1. ZrTe_{2}

#### 3.1.1. Topography

#### 3.1.2. Spectroscopy

#### 3.2. TmB_{4}

#### 3.2.1. Topography

#### 3.2.2. Spectroscopy

**Figure 9.**Spectroscopy on TmB${}_{4}$ within the two areas (denoted as S1 and S2) marked by the same color in Figure 6b. Set point: ${V}_{\mathrm{b}}=+$0.8 V, ${I}_{\mathrm{sp}}=$ 0.6 nA.

## 4. Discussion

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Hataugai, Y. Topological aspects of the quantum Hall effect. J. Phys. Condens. Matter
**1997**, 9, 2507–25491. [Google Scholar] [CrossRef] - Kane, C.L.; Mele, E.J. Z2 Topological Order and the Quantum Spin Hall Effect. Phys. Rev. Lett.
**2005**, 95, 146802. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Bernevig, B.A.; Hughes, T.L.; Zhang, S.C. Quantum spin Hall effect and topological phase transition in HgTe quantum wells. Science
**2006**, 314, 1757–1761. [Google Scholar] [CrossRef] [PubMed] [Green Version] - König, M.; Wiedmann, S.; Brüne, C.; Roth, A.; Buhmann, H.; Molenkamp, I.W.; Qi, X.L.; Zhang, S.C. Quantum spin Hall insulator state in HgTe quantum wells. Science
**2007**, 318, 766–770. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Fu, L.; Kane, C.L.; Mele, E.J. Topological Insulators in Three Dimensions. Phys. Rev. Lett.
**2007**, 98, 106803. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Fu, L.; Kane, C.L. Superconducting proximity effect and Majorana fermions at surface of a topological insulator. Phys. Rev. Lett.
**2008**, 100, 096407. [Google Scholar] [CrossRef] [Green Version] - Hasan, H.Z.; Kane, C.L. Colloquium: Topological insulators. Rev. Mod. Phys.
**2010**, 82, 3045–3067. [Google Scholar] [CrossRef] [Green Version] - Armitage, N.P.; Mele, E.J.; Vishwanath, A. Weyl and Dirac semimetals in three-dimensional solids. Rev. Mod. Phys.
**2018**, 90, 015001. [Google Scholar] [CrossRef] [Green Version] - Wieder, B.J.; Bradlyn, B.; Cano, J.; Nang, Z.; Vergniory, M.G.; Elcoro, L.; Soluyanov, A.A.; Felser, C.; Neu, T.; Regnault, N.; et al. Topological materials discovery from crystal symmetry. Nat. Rev. Mater.
**2022**, 17, 196–216. [Google Scholar] [CrossRef] - Lu, D.; Vishik, I.M.; Yi, M.; Moore, R.G.; Shen, Z.X. Angle-resolved photoemission Studies of Quantum Materials. Annu. Rev. Condens. Matter Phys.
**2012**, 3, 129–167. [Google Scholar] [CrossRef] - Lv, B.; Qian, T.; Ding, H. Angle-resolved photoemission spectroscopy and its application to topological materials. Nat. Rev. Phys.
**2019**, 1, 609–626. [Google Scholar] [CrossRef] [Green Version] - Chen, Y.; Gu, X.; Li, Y.; Du, X.; Yang, L.; Chen, Y. Recent advances in Topological Quantum Materials by angle-resolved Photoemission spectroscopy. Matter
**2020**, 3, 1114–1141. [Google Scholar] [CrossRef] - Sobota, J.A.; He, Y.; Shen, Z.X. Topological materials discovery from crystal symmetry. Rev. Mod. Phys.
**2021**, 93, 025006. [Google Scholar] [CrossRef] - Rader, O.; Sanchez-Barriga, J.; Rienks, E.D.L.; Varykhalov, A.; Springholz, G.; Yashina, L.V. Angle-resolved photoemission of topological matter: Examples from magnetism, electron correlation, and phase transitions. Phys. Stat. Sol. B
**2021**, 258, 2000371. [Google Scholar] [CrossRef] - Hsieh, D.; Xia, Y.; Wray, L.; Qian, D.; Pal, A.; Dil, J.H.; Osterwalder, J.; Meier, F.; Bihlmayer, G.; Kane, C.L.; et al. Observation of unconventional Quantum spin texture in topological insulator. Science
**2009**, 323, 919–922. [Google Scholar] [CrossRef] [Green Version] - Xu, N.; Biswas, P.K.; Dil, J.H.; Dhaka, R.S.; Landolt, G.; Muff, S.; Matt, C.E.; Shi, X.; Plumb, N.C.; Radović, M.; et al. Direct observation of the spin texture in SmB
_{6}as evidence of the topological Kondo insulator. Nat. Commun.**2014**, 5, 4566. [Google Scholar] [CrossRef] - Suga, S.; Sakamoto, K.; Okuda, T.; Miyamoto, K.; Kuroda, K.; Sekiyama, A.; Yamaguchi, J.; Fujiwara, H.; Irizawa, A.; Ito, T.; et al. Spin-Polarized Angle-Resolved Photoelectron Spectroscopy of the So-Predicted Kondo Topological Insulator SmB
_{6}. J. Phys. Soc. Jpn.**2014**, 83, 014705. [Google Scholar] [CrossRef] [Green Version] - Kirchner, S.; Paschen, S.; Chen, Q.; Wirth, S.; Feng, D.; Thompson, J.D.; Si, Q. Colloquium: Heavy-electron quantum criticality and single-particle spectroscopy. Rev. Mod. Phys.
**2020**, 92, 011002. [Google Scholar] [CrossRef] [Green Version] - Roushan, P.; Seo, J.; Parker, C.V.; Hor, Y.S.; Hsieh, D.; Qian, D.; Richardella, A.; Hasan, M.Z.; Cava, R.J.; Yazdani, A. Topological surface states protected from backscattering by chiral spin texture. Nature
**2009**, 460, 1106–1109. [Google Scholar] [CrossRef] [Green Version] - Zhao, K.; Lv, Y.F.; Ji, S.H.; Ma, X.; Chen, X.; Xue, Q.K. Scanning tunneling microscopy studies of topological insulators. J. Phys. Condens. Matter
**2014**, 26, 394003. [Google Scholar] [CrossRef] - Yin, J.X.; Pan, S.H.; Hasan, M.Z. Probing topological quantum matter with Scanning tunnelling microscopy. Nat. Rev. Phys.
**2021**, 3, 249–263. [Google Scholar] [CrossRef] - Pirie, H.; Liu, Y.; Soumyanarayanan, A.; Chen, P.; He, Y.; Yee, M.M.; Rosa, P.F.S.; Thompson, J.D.; Kim, D.J.; Fisk, Z.; et al. Imaging emergent heavy Dirac fermions of a topological Kondo insulator. Nat. Phys.
**2020**, 16, 52–56. [Google Scholar] [CrossRef] - Allen, J.W. Foreword for special issue of philosophical magazine on: Topological correlated insulators and SmB
_{6}. Philos. Mag.**2016**, 96, 3227–3238. [Google Scholar] [CrossRef] [Green Version] - Alpichshev, Z.; Analytis, J.G.; Chu, J.H.; Fisher, I.R.; Chen, Y.L.; Shen, Z.X.; Fang, A.; Kapitulnik, A. STM Imaging of Electronic Waves on the Surface of Bi
_{2}Te_{3}: Topologically Protected Surface States and Hexagonal Warping Effects. Phys. Rev. Lett.**2010**, 104, 016401. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wirth, S.; Schlottmann, P. An STM perspective on hexaborides: Surface states of the Kondo insulator SmB
_{6}. Adv. Quantum Technol.**2021**, 92, 011002. [Google Scholar] [CrossRef] - Zhang, H.; Pincelli, T.; Jozwiak, C.; Kondo, T.; Ernstorfer, R.; Sato, T.; Zhou, S. Angle-resolved photoemission spectroscopy. Nat. Rev. Methods Prim.
**2022**, 2, 54. [Google Scholar] [CrossRef] - Manzeli, S.; Ovchinnikov, D.; Pasquier, D.; Kis, O.V.Y.A. 2D transition metal dichalcogenides. Nat. Rev. Mater.
**2017**, 2, 17033. [Google Scholar] [CrossRef] - Tsipas, P.; Tsoutsou, D.; Fragkos, S.; Sant, R.; Alvarez, C.; Okuno, H.; Renaud, G.; Alcotte, R.; Baron, T.; Dimoulas, A. Massless Dirac Fermions in ZrTe
_{2}Semimetal Grown on InAs(111) by van der Waals Epitaxy. ACS Nano**2018**, 12, 1696–1703. [Google Scholar] [CrossRef] - Tian, Y.; Ghassemi, N.; Ross, J.H., Jr. Topological nodal line in ZrTe
_{2}demonstrated by nuclear magnetic resonance. Phys. Rev. B**2020**, 102, 165149. [Google Scholar] [CrossRef] - Kar, I.; Chatterjee, J.; Harnagea, L.; Kushnirenko, Y.; Fedorov, A.V.; Shrivastava, D.; Büchner, B.; Mahadevan, P.; Thirupathaiah, S. Metal-chalcogen bond-length induced electronic phase transition from semiconductor to topological semimetal in ZrX
_{2}(X = Se and Te). Phys. Rev. B**2020**, 101, 165122. [Google Scholar] [CrossRef] - Nguyen, T.; Aryal, N.; Pokharel, B.K.; Harnagea, L.; Mierstchin, D.; Popović, D.; Graf, D.E.; Shrestha, K. Fermiology of the Dirac type-II semimetal candidates (Ni,Zr)Te
_{2}using de Haas–van Alphen oscillations. Phys. Rev. B**2022**, 106, 075154. [Google Scholar] [CrossRef] - Wang, Y.; Xie, C.; Li, J.; Du, Z.; Cao, L.; Han, Y.; Zu, L.; Zhang, H.; Zhu, H.; Zhang, X.; et al. Weak Kondo effect in the monocrystalline transition metal dichalcogenide ZrTe
_{2}. Phys. Rev. B**2021**, 103, 174418. [Google Scholar] [CrossRef] - Siemensmeyer, K.; Wulf, E.; Mikeska, H.J.; Flachbart, K.; Gabáni, S.; Mat’aš, S.; Priputen, P.; Efdokimova, A.; Shitsevalova, N. Fractional Magnetization Plateaus and Magnetic Order in the Shastry-Sutherland Magnet TmB
_{4}. Phys. Rev. Lett.**2008**, 101, 177201. [Google Scholar] [CrossRef] [Green Version] - Bhowmick, D.; Sengupta, P. Topological magnon bands in the flux state of Shastry-Sutherland lattice model. Phys. Rev. B
**2020**, 101, 214403. [Google Scholar] [CrossRef] - Orendáč, M.; Gabáni, S.; Farkašovský, P.; Gažo, E.; Kačmarčík, J.; Marcin, M.; Pristáš, G.; Siemensmeyer, K.; Shitsevalova, N.; Flachbart, K. Ground state and stability of the fractional plateau phase in metallic Shastry-Sutherland system TmB
_{4}. Sci. Rep.**2021**, 11, 6835. [Google Scholar] [CrossRef] - Choi, H.; Zhu, W.; Cary, S.K.; Winter, L.E.; Huang, Z.; McDonald, R.D.; Mocko, V.; Scott, B.L.; Tobash, P.H.; Thompson, J.D.; et al. Experimental and theoretical study of topology and electronic correlations in PuB
_{4}. Phys. Rev. B**2018**, 97, 201114(R). [Google Scholar] [CrossRef] [Green Version] - Shitsevalova, N. Crystal chemistry and crystal growth of Rare-earth borides. In Rare-Earth Borides; Inosov, D., Ed.; Jenny Stanford Publishing: Singapore, 2021; pp. 1–243. [Google Scholar] [CrossRef]
- Omicron Nanotechnology GmbH. Taunusstein (Germany).
- Muhammad, Z.; Zhang, B.; Lv, H.; Shan, H.; Rehman, Z.; Chen, S.; Sun, Z.; Wu, X.; Zhao, A.; Song, L. Transition from Semimetal to Semiconductor in ZrTe
_{2}Induced by Se Substitution. ACS Nano**2020**, 14, 835–841. [Google Scholar] [CrossRef] - Hildebrand, B.; Didiot, C.; Novello, A.; Monney, G.; Scarfato, A.; Ubaldini, A.; Berger, H.; Bowler, D.; Renner, C.; Aebi, P. Doping Nature of Native Defects in 1T-TiSe
_{2}. Phys. Rev. Lett.**2014**, 112, 197001. [Google Scholar] [CrossRef] [Green Version] - Ren, M.Q.; Han, S.; Fan, J.Q.; Wang, L.; Wang, P.; Ren, W.; Peng, K.; Li, S.; Wang, S.Z.; Zheng, F.W.; et al. Semiconductor–Metal Phase Transition and Emergent Charge Density Waves in 1T-ZrX
_{2}(X = Se and Te) at the Two-Dimensional Limit. Nano Lett.**2022**, 22, 476–484. [Google Scholar] [CrossRef] - Novello, A.; Hildebrand, B.; Scarfato, A.; Didiot, C.; Monney, G.; Ubaldini, A.; Berger, H.; Bowler, D.R.; Aebi, P.; Renner, C. Scanning tunneling microscopy of the charge density wave in 1T-TiSe
_{2}in the presence of single atom defects. Phys. Rev. B**2015**, 92, 081101. [Google Scholar] [CrossRef] [Green Version] - Hildebrand, B.; Jaouen, T.; Didiot, C.; Razzoli, E.; Monney, G.; Mottas, M.L.; Ubaldini, A.; Berger, H.; Barreteau, C.; Beck, H.; et al. Short-range phase coherence and origin of the 1T-TiSe
_{2}charge density wave. Phys. Rev. B**2016**, 93, 125140. [Google Scholar] [CrossRef] [Green Version] - Wan, J.; Lacey, S.D.; Dai, J.; Bao, W.; Fuhrer, M.S.; Hu, L. Tuning two-dimensional nanomaterials by intercalation: Materials, properties and applications. Chem. Soc. Rev.
**2016**, 45, 6742–6765. [Google Scholar] [CrossRef] [PubMed] - Yang, L.N.; Xu, Y.J.; Li, Q.Y.; Meng, Y.X.; Zhao, Y.F.; Li, S.C. Coexistence of the charge density wave state and linearly dispersed energy band in 1T-TiSe
_{2}monolayer. Appl. Phys. Lett.**2022**, 120, 073105. [Google Scholar] [CrossRef] - Iaia, D.; Chang, G.; Chang, T.R.; Hu, J.; Mao, Z.; Lin, H.; Yan, S.; Madhavan, V. Searching for topological Fermi arcs via quasiparticle interference on a type-II Weyl semimetal MoTe
_{2}. NPJ Quantum Mater.**2018**, 3, 38. [Google Scholar] [CrossRef] - Jain, A.; Ong, S.P.; Hautier, G.; Chen, W.; Richards, W.D.; Dacek, S.; Cholia, S.; Gunter, D.; Skinner, D.; Ceder, G.; et al. Commentary: The Materials Project: A materials genome approach to accelerating materials innovation. APL Mater.
**2013**, 1, 011002. [Google Scholar] [CrossRef] [Green Version] - Munro, J.M.; Latimer, K.; Horton, M.K.; Dwaraknath, S.; Persson, K.A. An improved symmetry-based approach to reciprocal space path selection in band structure calculations. NPJ Comput. Mater.
**2020**, 6, 112. [Google Scholar] [CrossRef] - Data Retrieved from the Materials Project for ZrTe2 (mp-1018107) from Database Version v2021.11.10. Available online: https://materialsproject.org/materials/mp-1018107 (accessed on 2 December 2022).
- Available online: https://topologicalquantumchemistry.org/#/detail/653213 (accessed on 2 December 2022).
- Bradlyn, B.; Elcoro, L.; Cano, J.; Vergniory, M.G.; Wang, Z.; Felser, C.; Aroyo, M.I.; Bernevig, B.A. Topological quantum chemistry. Nature
**2017**, 547, 298–305. [Google Scholar] [CrossRef] [Green Version] - Vergniory, M.G.; Elcoro, L.; Felser, C.; Regnault, N.; Bernevig, B.A.; Wang, Z. A complete catalogue of high-quality topological materials. Nature
**2019**, 566, 480–485. [Google Scholar] [CrossRef] [Green Version] - Vergniory, M.G.; Wieder, B.J.; Elcoro, L.; Parkin, S.S.P.; Felser, C.; Bernevig, B.A.; Regnault, N. All topological bands of all nonmagnetic stoichiometric materials. Science
**2022**, 376, eabg9094. [Google Scholar] [CrossRef] - Available online: https://www.cryst.ehu.es (accessed on 2 December 2022).
- Li, J.T.; Schneider, W.D.; Berndt, R.; Delley, B. Kondo scattering observed at a single magnetic impurity. Phys. Rev. Lett.
**1998**, 80, 2893–2896. [Google Scholar] [CrossRef] - Madhavan, V.; Chen, W.; Jamneala, T.; Crommie, M.F.; Wingreen, N.S. Tunneling into a single magnetic atom: Spectroscopic evidence of Kondo resonance. Science
**1998**, 280, 567–569. [Google Scholar] [CrossRef] - Wirth, S.; Steglich, F. Exploring heavy fermions from macroscopic to microscopic length scales. Nat. Rev. Mater.
**2016**, 1, 16051. [Google Scholar] [CrossRef] - Jiao, L.; Rößler, S.; Kim, D.J.; Tjeng, L.H.; Fisk, Z.; Steglich, F.; Wirth, S. Additional energy scale in SmB
_{6}at low temperature. Nat. Commun.**2016**, 7, 13762. [Google Scholar] [CrossRef] [Green Version] - Shin, J.; Schlesinger, Z.; Shastry, B.S. Kondo-Ising and tight-binding models for TmB
_{4}. Phys. Rev. B**2017**, 95, 205140. [Google Scholar] [CrossRef] [Green Version] - Ossowski, T.; Pabisiak, T.; Kiejna, A.; Palotás, K.; Bauer, E. Simulation of STM Images of Hematite α-Fe
_{2}O_{3}Surfaces: Dependence on distance and bias. J. Phys. Chem. C**2021**, 125, 26711–26717. [Google Scholar] [CrossRef] - Michimura, S.; Shigekawa, A.; Iga, F.; Takabatake, T.; Ohoyama, K. Complex Magnetic Structures of a Shastry–Sutherland Lattice TmB
_{4}Studied by Powder Neutron Diffraction Analysis. J. Phys. Soc. Jpn.**2009**, 78, 024707. [Google Scholar] [CrossRef] - Enayat, M.; Sun, Z.; Singh, U.R.; Aluru, R.; Schmaus, S.; Yaresko, A.; Liu, Y.; Lin, C.; Tsurkan, V.; Loidl, A.; et al. Real-space imaging of the atomic-scale magnetic structure of Fe
_{1+y}Te. Science**2014**, 345, 653–656. [Google Scholar] [CrossRef] [Green Version] - Data Retrieved from the Materials Project for TmB4 (mp-568143) from Database Version v2021.11.10. Available online: https://materialsproject.org/materials/mp-568143 (accessed on 5 December 2022).
- Pakhira, N.; Krishna, J.; Nandy, S.; Maitra, T.; Taraphder, A. Electronic structure of metallic tetra-boride TmB
_{4}: An LDA+DMFT study. arXiv**2018**, arXiv:1807.05388. [Google Scholar] - Liu, J.; Li, B.; Li, Q. Two-dimensional doped materials. Magnetochemistry
**2022**, 8, 172. [Google Scholar] [CrossRef] - Tanaka, T.; Nishitani, R.; Oshima, C.; Bannai, E.; Kawai, S. The preparation and properties of CeB
_{6}, SmB_{6}, and GdB_{6}. J. Appl. Phys.**1980**, 45, 3877–3883. [Google Scholar] [CrossRef]

**Figure 1.**Crystalline structure of tetragonal TmB${}_{4}$. (

**a**) View along the $bc$ plane; red: Tm, gray: B octahedra, blue: B dimers. (

**b**) Tm plane visualizing the combination of square and triangular arrangements. (

**c**) B atoms in the $ab$ plane. All panels share the same color code, with one unit cell marked in gray.

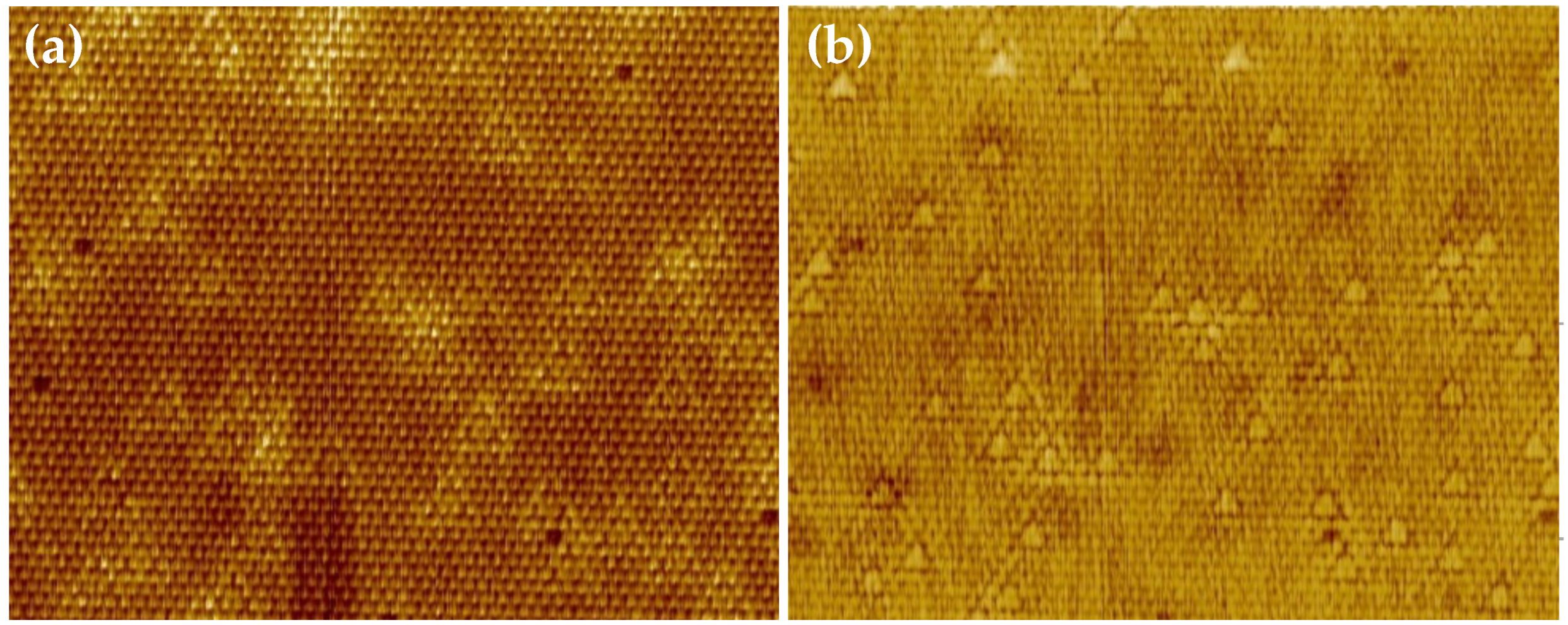

**Figure 2.**Topography overview of cleaved ZrTe${}_{2}$ over an area of $20\times 16$ nm${}^{2}$ obtained in dual bias mode, i.e., the two images show exactly the same sample area. (

**a**) ${V}_{\mathrm{b}}=+$0.6 V visualizing empty states and (

**b**) ${V}_{\mathrm{b}}=-$0.6 V, occupied states; ${I}_{\mathrm{sp}}=$ 200 pA in both cases. Two different types of defects can be recognized: Single-site vacancies and triangularly shaped defects extending over several lattice sites. The total height range of both topographies is 66 pm.

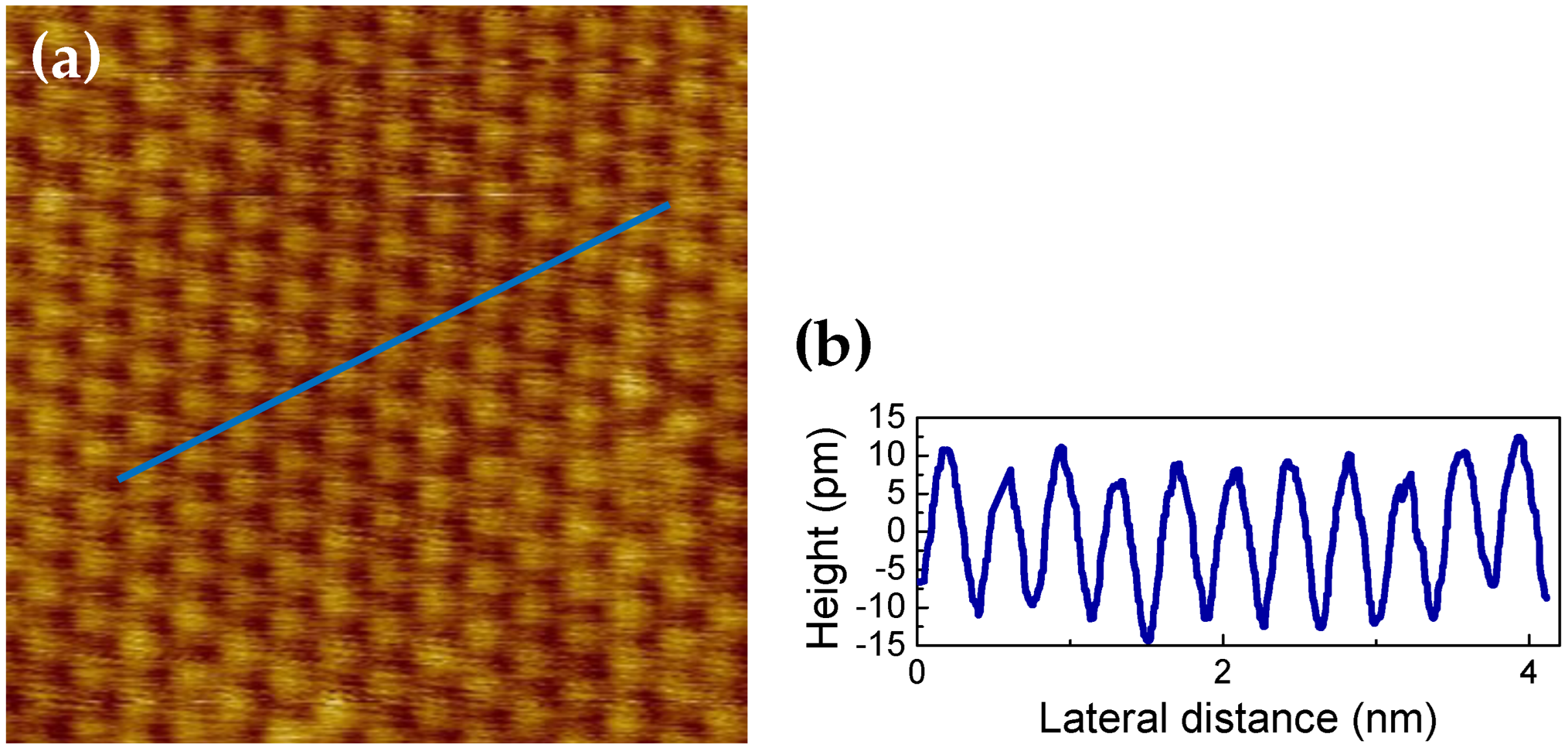

**Figure 3.**(

**a**) Atomically resolved, mostly defect−free area of $5\times 5$ nm${}^{2}$ on ZrTe${}_{2}$. ${V}_{\mathrm{b}}=+$0.6 V, ${I}_{\mathrm{sp}}=$ 200 pA. (

**b**) Height profile obtained along the blue line marked in (a).

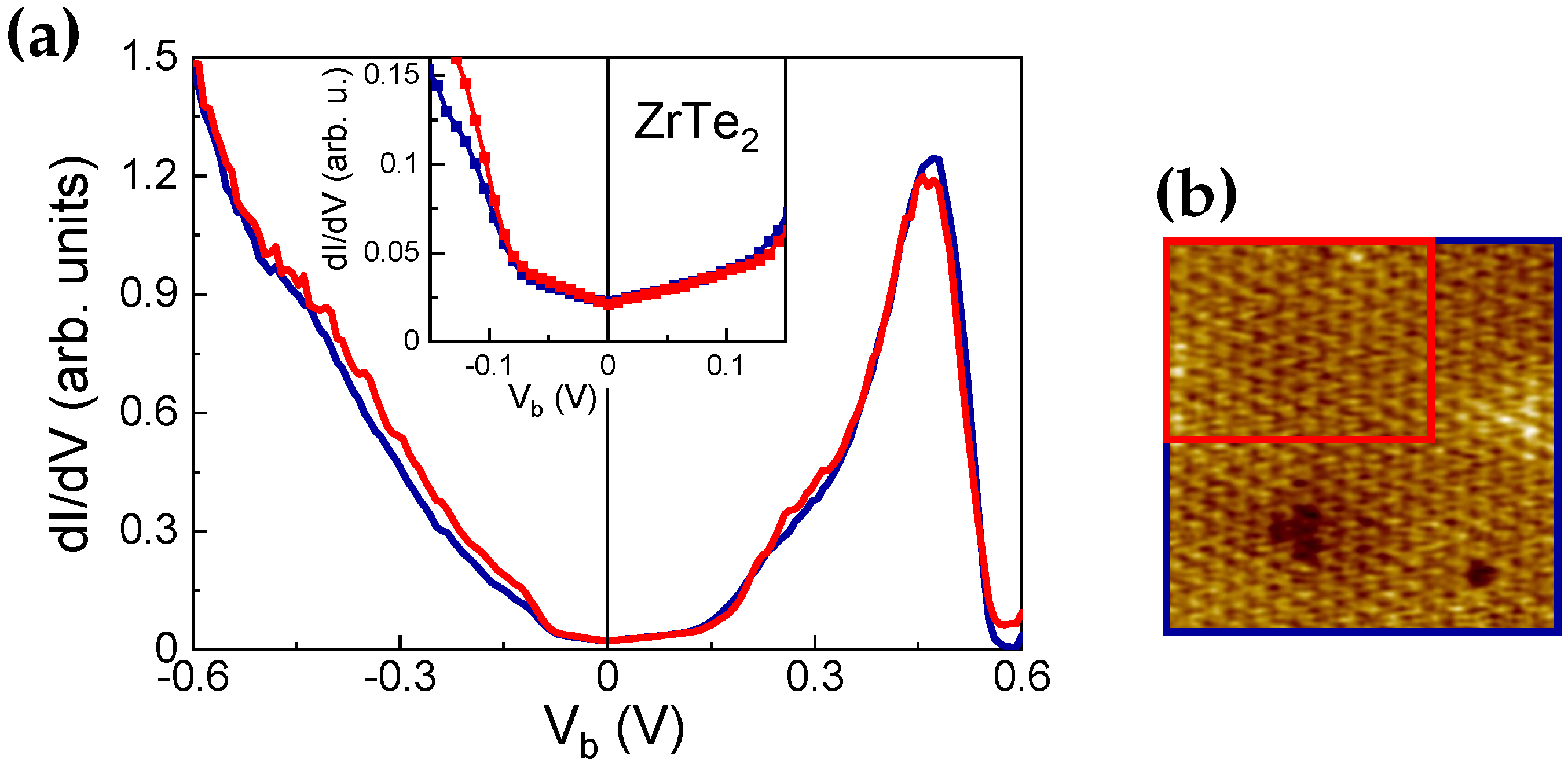

**Figure 4.**(

**a**) Tunneling spectroscopy on a surface of ZrTe${}_{2}$. The inset shows a zoom into the low−energy range of −0.15 V $\le {V}_{\mathrm{b}}\le $+0.15 V. Spectra were averaged over the total (blue) area and within the red rectangle. (

**b**) Topography of total area $6.2\times 6.2$ nm${}^{2}$ studied to obtain the spectra in (

**a**); ${V}_{\mathrm{b}}=+$0.6 V, ${I}_{\mathrm{sp}}=$ 200 pA. The area of the red rectangle ($4.2\times 3.2$ nm${}^{2}$) is largely free of defects.

**Figure 5.**Calculated band structure (

**left**) and density of states (

**right**) for ZrTe${}_{2}$. Figure reproduced from [49].

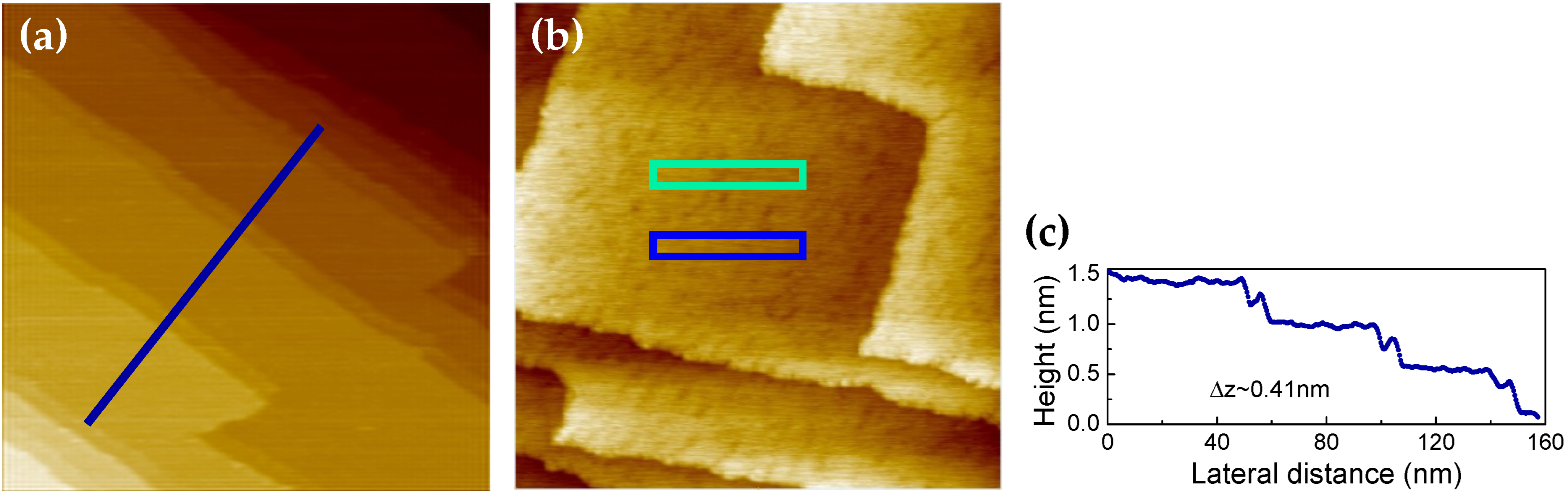

**Figure 6.**(

**a**) Topography overview of cleaved TmB${}_{4}$ over an area of $200\times 200$ nm${}^{2}$ exhibiting several terraces; ${V}_{\mathrm{b}}=+$0.4 V, ${I}_{\mathrm{sp}}=$ 600 pA. (

**b**) Zoom into one terrace within the $ab$ plane, area $60\times 60$ nm${}^{2}$, ${V}_{\mathrm{b}}=+$0.8 V, ${I}_{\mathrm{sp}}=$ 600 pA, total height range 770 pm. Numerous individual defects are visible. Green and blue rectangles mark areas within which spectroscopy was conducted, see Figure 9. (

**c**) Height scan along the blue line marked in (

**a**). The heights of the step edges of about 0.41 nm correspond to the lattice constant $c=$ 0.398 nm.

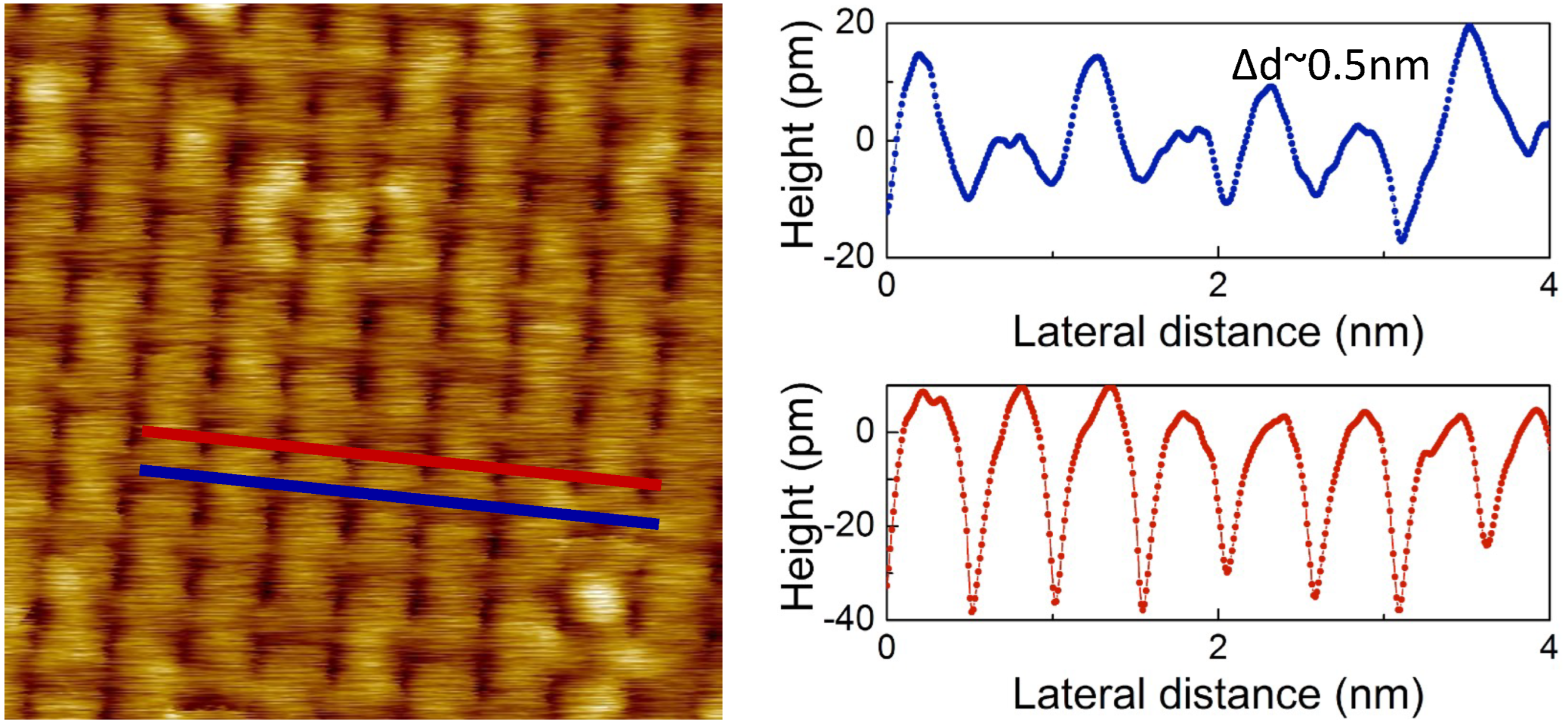

**Figure 7.**Topography (

**left**) on TmB${}_{4}$ of type A; area of $5\times 5$ nm${}^{2}$, ${V}_{\mathrm{b}}=+$0.15 V, ${I}_{\mathrm{sp}}=$ 600 pA.

**Right**: Height scans along the lines of corresponding color marked in the topography. The average distance between protrusions is ∼0.5 nm.

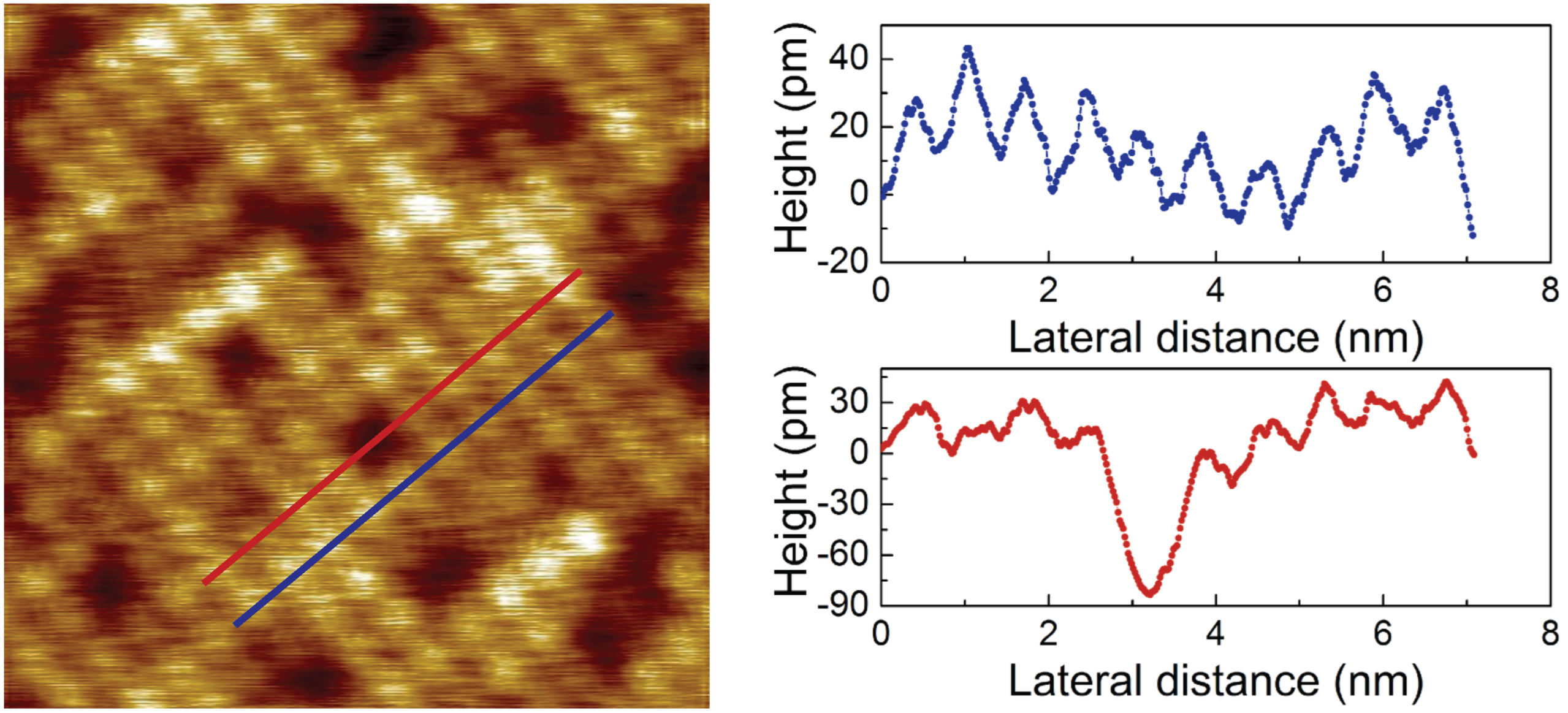

**Figure 8.**Atomically resolved surface topography type B (

**left**) of TmB${}_{4}$; area of $10\times 10$ nm${}^{2}$, ${V}_{\mathrm{b}}=+$0.4 V, ${I}_{\mathrm{sp}}=$ 600 pA.

**Right**: Height scans along the lines of corresponding color marked in the topography. The average distance between protrusions is ∼0.7 nm.
