Article

Investigation of the Frequency of Coronary Artery Anomalies in MDCT Coronary Angiography and Comparison of Atherosclerotic Involvement between Anomaly Types

by 1,* and 2
1
Department of Radiology, Faculty of Medicine, Adnan Menderes University, 09100 Aydın, Turkey
2
Department of Radiology, Malatya Training and Research Hospital, 44330 Malatya, Turkey
*
Author to whom correspondence should be addressed.
Tomography 2022, 8(3), 1631-1641; https://doi.org/10.3390/tomography8030135
Received: 29 April 2022 / Revised: 9 June 2022 / Accepted: 16 June 2022 / Published: 20 June 2022
(This article belongs to the Section Cardiovascular Imaging)

Abstract

Coronary artery anomalies (CAAs) are rare anatomical variations characterized by abnormal origin, course, or termination of the coronary arteries. This study aims to identify incidental CAAs in patients who underwent multidetector computed tomography coronary angiography (MDCTCA) to determine their incidence and to evaluate whether there is a difference between CAA types in terms of coronary atherosclerotic involvement. For this purpose, patients who underwent MDCTCA between December 2018 and January 2022 were retrospectively assessed. Of the 5200 MDCTCAs analyzed, CAAs were detected in 136 patients (2.61%). Of these 136 patients, 37 (27.2%) patients had an origin anomaly, 97 (71.3%) had a course anomaly, and 2 (1.5%) had a termination anomaly. There was no statistically significant difference between CAA types in terms of atherosclerotic involvement (p = 0.220). However, atherosclerotic involvement was high in vessels with anomalies when normal vessels with and without anomalies were compared (p = 0.005). Accurate detection of CAAs is vital for endovascular treatment or surgical intervention. MDCTCA is helpful both in the diagnosis of CAA and in the early detection and development of prevention strategies for coronary atherosclerosis.
Keywords: coronary artery anomaly; MDCT angiography; coronary atherosclerosis coronary artery anomaly; MDCT angiography; coronary atherosclerosis

1. Introduction

Coronary artery anomalies (CAAs) are congenital disorders with different clinical presentations and might be associated with congenital heart diseases. Most anomalies are detected accidentally by multidetector computed tomography coronary angiography (MDCTCA) or conventional coronary angiography (CCA) [1]. Their incidence has been recorded as 0.6% to 5.64% in angiographic series and 0.3% in autopsy data because of geographical variation [2]. The increased frequency of CAAs in adults has been attributed to the extensive use of coronary imaging for the evaluation of ischemic heart disease. Although it is mostly asymptomatic, arrhythmia, syncope, myocardial infarction, and sudden cardiac death can be seen, especially in young individuals [3]. It has also been reported that life-threatening ventricular arrhythmias, electrical disturbances, and sudden cardiac death due to thoracic aortic dissection can be seen during physical exercise, especially in young adult athletes with adolescent and hypertrophic cardiomyopathy [4,5,6,7,8].
Since CAAs are rare, current data on their clinical profile and management are insufficient in the literature. However, they can be better identified, especially with the introduction of MDCTCA into clinical use [9]. Many terminologies and classifications have been proposed for the definition, terminology, and classification of CAAs [2]. Greenberg et al. classified CAAs into three groups (shown in Table 1) as anomalies of termination, course, and origin [10].
It is essential to be able to accurately identify coronary anatomy and coronary artery stenosis to avoid complications such as incorrect ligation or transection during angioplasty or bypass [2]. There are studies in the literature investigating atherosclerotic involvement in abnormal coronary arteries [11,12]. The leading cause of chest pain is atherosclerotic disease. Moreover, myocardial ischemia can be seen in the absence of atherosclerotic disease in cases such as inter-arterial course of the coronary artery, myocardial bridging, vasculitis, coronary artery dissection, and abnormal termination of the left coronary artery from the fistula and pulmonary artery. The MDCTCA is a non-invasive diagnostic technique for assessing coronary arteries in people who are at low to moderate disease possibility of obstructive coronary artery disease. It is also useful for demonstrating non-atherosclerotic reasons for obstruction, especially abnormalities of coronary artery termination, course, and origin, as well as evaluating their relationship with surrounding structures. Today, the CAD-RADS scoring system is used in MDCTCA reports to ensure consistency, communicate effectively with clinicians, and provide reliable data for scientific studies and teaching. There are six levels in the CAD-RADS scoring system, ranging from 0 (no plaque) to 5 (1 total occlusion minimum). The maximum degree of stenosis available determines the group. Additional data about plaque sensitivity, bypass grafts, stents, and non-diagnostic picture quality are provided by four modifiers [13].
Both coronary anatomy and coronary artery stenosis are identified non-invasively with MDCTCA. The present study was carried out to determine incidental CAAs in patients who underwent MDCTCA, to determine their incidence, and to evaluate whether there is a difference between CAA types in terms of coronary atherosclerotic involvement.

2. Materials and Methods

Our institutional review board authorized this retrospective study methodology, and the research was carried out in accordance with the Declaration of Helsinki. This single-center study is based on coronary MDCT angiography data from the Adnan Menderes University School of Medicine, Radiology Department database. MDCTCA examinations performed between December 2018 and January 2022 were retrospectively reviewed. Patients with inadequate diagnostic image quality and examinations conducted for purposes other than coronary artery evaluation (congenital heart disease, evaluation of cardiac/pulmonary veins, cardiac masses, investigation, surgical planning, valve evaluation, and calcium scoring) were excluded from the research. CAAs were observed in 136 of the 5200 MDCTCA examinations that met the study criteria. All CAA patients’ hospital records were obtained from the institution’s database and 136 patients with CAAs were included in the study. Demographic information and cardiovascular risk factors of the patients were obtained from the hospital data-processing system. MDCTCA images were evaluated at the workstation by a radiologist with 12 years of experienced in cardiac imaging. Anomalies were grouped as anomalies of termination, course, and origin according to the categorization system suggested by Greenberg et al. [10]. All coronary arteries with and without anomalies in each group were analyzed and categorized by the CAD-RADS classification in terms of atherosclerotic involvement, degree of coronary obstruction, type of plaque, and presence and patency of bypass grafts and stents.

2.1. MDCTCA Scanning Protocol

A 160-slice computed tomography, 128-detector equipment was used for all MDCTCA tests (Aquilion Prime, Toshiba Medical Systems, Otawara, Japan). First, 70–100 mL of iohexol 350 mg/mL iodinated contrast material was injected into the left antecubital vein at a rate of 4 mL/s with an automated injection device. Following the beginning of contrast agent infusion, an MDCT scan was performed using the bolus tracking approach from the apex of the heart to the baseline. All MDCTCA studies were performed in the craniocaudal supine position within a single inhalation period. Examinations were performed using prospective or retrospective modulation accompanied by electrocardiography (ECG). In the retrospective modulation, all phases from 0% to 90% were assessed by reconstructing the R-R interval with 10% intervals.

2.2. MDCTCA Imaging Protocol for Coronary Artery Disease

Section thickness: 0.5 mm, rotation time: 400 ms, 300–400 mAs, 100 kVp, and section spacing: 0.25 mm. Axial MDCT sections were transferred to the workstation and examined using 3D volume rendering and maximum-intensity projection (MIP) as well as 2D multiplanar reconstructions (MPRs). A special cardiac analysis program (Terarecon-Aquarius Workstation Intuition Edition v.4.4.7.1021.7056) was used for vessel segmentation.

2.3. Statistical Analyses

SPSS v.22 (SPSS Inc., Chicago, IL, USA) was utilized for the statistical analysis. Mean and standard deviation values of continuous variables, numbers, and percentages of categorical data were calculated. According to the anomaly type, the participants were separated into three groups: origin, course, and termination anomalies. Patients with origin anomalies and course anomalies were compared using the chi-square test. Since the number of patients with termination anomalies was low (2 patients), they were not included in the chi-square analysis. The statistical significance level for all findings was p < 0.05.

3. Results

CAAs were detected in 136 of the 5200 patients who underwent MDCTCA (overall incidence of 2.61%). Of the patients with CAAs, 78 (57.4%) were male and 58 (42.6%) were female. The patients were aged between 24 and 85 years with a mean age of 57.6 ± 11.9 years. There was an origin anomaly in 37 patients (27.2%), course anomaly in 97 patients (71.3%), and termination anomaly in 2 (1.5%) patients. Anomaly types and percentage distributions are presented in Table 2.
All CAA patients with coronary artery disease risk factors were asymptomatic and none of them participated in exercise practice.
Regarding the risk factors for coronary artery disease, hypertension was present in 64 participants (47.1%), diabetes mellitus in 25 participants (18.4%), hypercholesterolemia (total cholesterol > 200 mg/dl) in 60, smoking in 48 (35.3%), and family history in 58 (42.6%). There was no significant difference between the anomaly types regarding the presence of these factors (Table 3).
There were 3 patients (2.2%) with high outlet anomalies among the participants with origin anomalies. In these participants, between the pulmonary artery and the aorta, the right coronary artery (RCA) had an inter-arterial course after a high outlet. There were 12 patients (8.8%) with multiple ostium anomalies. In these patients in whom the left main coronary artery (LMCA) was not observed, the left circumflex (LCX) artery and the left anterior descending artery (LAD) emerged from the left sinus with separate ostia. In addition, there were infiltrations compatible with COVID-19 in the thorax sections that entered the examination area, but the patient was asymptomatic. The diagnosis of COVID-19 was confirmed by PCR test (Figure 1).
There were 2 patients (1.47%) with a singular coronary artery anomaly with the artery starting in the right sinus. There was 1 patient (0.73%) in whom the coronary artery originated from the pulmonary artery. In this patient, the RCA originated from the pulmonary trunk (ARCAPA syndrome). The coronary artery originates from the contralateral or noncoronary sinus in 19 patients (13.9%). Fourteen of these patients had an RCA originating in the left coronary sinus and all had an inter-arterial course after termination. Two of them had LCX originating from the sinus of right coronary and both had a retro-aortic course after their termination. One had an LMCA originating from the right coronary sinus. Two participants had an RCA originating in the noncoronary sinus (Figure 2).
There were 57 patients (41.9%) with myocardial bridging among the patients with course anomalies. Myocardial bridging was present in only the LAD in 54 of these patients, and in both the LAD and LCX in 3 of them (Figure 3).
Of the two patients with myocardial bridging only in the LAD, one had a fusiform aneurysm in the LAD and the other in the LCX. There were 40 patients (29.4%) with artery duplications, and all were LAD duplications (Figure 4).
There were two patients (1.5%) with coronary artery fistula among those with termination anomalies. The first patient had a fistula and accompanying PDA aneurysm between the left atrium and posterior descending artery (PDA). In the other patient, there was a fistula between the pulmonary artery and the LAD, and there was concomitant LAD duplication (Figure 5). No patient had a non-cardiac termination anomaly.
The CAD-RADS scoring system and the degree of atherosclerotic disease as well as the number of affected vessels in patients with origin, course, and termination anomalies are shown in Table 4. Significant coronary artery disease (CAD-RADS 3, 4, and 5) was present in 8 patients (21.6%) with origin anomalies and in 12 patients (12.4%) with course anomalies. None of the patients with termination anomalies had significant coronary artery disease. There was no statistically significant difference between the groups in terms of the presence of significant coronary artery disease (p = 0.179). In addition, the patients were evaluated regarding the total number of affected vessels in terms of coronary artery disease, and no significant difference was detected between the groups in terms of the total number of affected vessels (p = 0.312) (Table 4).
Atherosclerotic involvement was evaluated for four major vessels (RCA, LMCA, LAD, and LCX). There were anomalies in 157 (28.9%) of the 544 vessels, while there was no anomaly in 387 (71.1%). Atherosclerotic involvement was observed in 69 vessels without anomalies (17.8%) and 45 vessels with anomalies (28.7%). The rate of atherosclerotic involvement in vessels with anomalies was significantly higher when normal and anomalous vessels were compared in terms of atherosclerotic involvement (p = 0.005). Furthermore, vessels were also compared in terms of having 50% or more stenosis. The rate of stenosis of 50% or more in vessels with anomalies was significantly higher than that in normal vessels (p = 0.023). The findings are presented in Table 5.

4. Discussion

CAAs are extremely rare in the general population. Coronary abnormalities do not have a standard nomenclature or categorization system. In our study, the categorization system described by Greenberg et al. was used [10]. There are also publications in the literature that do not accept myocardial bridging and coronary ectasia as coronary anomalies, instead considering them coronary anatomy variants [14,15]. The incidence of CAAs varies between 0.6% and 5.64%, depending on the population, definition, and type of imaging modality [16,17]. While the incidence was 1.30% in the largest angiographic study, which was conducted by Yamanaka and Hobbs, the rate was 5.64% in the prospective research by Angelini et al. [16,18]. In our study, the overall incidence of CAAs was 2.61%, and course anomalies were the most common type with an incidence of 1.86%. This was followed by origin anomalies with an incidence of 0.72% and termination anomalies with an incidence of 0.03%. The most common anomaly among the course anomalies was myocardial bridging with an incidence of 1.09%. This rate was close to the 0.9% incidence found in the study by Greenspan et al. [19]. It has been reported that typical or atypical angina can be seen in myocardial bridging and there is a high risk of myocardial infarction [3].
In our study, the incidence of arterial duplications, which was the second most common type, was 0.77%, and all of them were LAD duplications. This rate was very close to the 0.68% value found by Sidhu et al. [2]. Spindola-Franco et al. reported the incidence of LAD duplication as 1% and described four types in their conventional coronary angiography study [20].
The most common anomaly originated from the opposite sinus or noncoronary sinus of the coronary artery with an incidence of 0.37% in 19 patients among the origin anomalies. Among these anomalies, 14 patients had RCAs originating from the left coronary sinus with an incidence of 0.27%, and all had an inter-arterial course after termination. In previous studies, this rate ranged between 0.32% and 0.46% [2,21,22]. Angelini et al. found this rate to be 0.92% [18]. A potentially dangerous coronary abnormality is RCA’s aberrant origin in the left sinus. It has been reported that myocardial ischemia, syncope, ventricular tachycardia, myocardial infarction, and sudden death may occur at rest or during exercise as a result of intimal deterioration and vasospasm due to compression of the proximal RCA by the great arteries because of the inter-arterial course [16]. In two cases, LCX originating from the right sinus was seen with an incidence of 0.04%, and it demonstrated a retro-aortic course after termination. The incidence in our study was lower than that in previous studies [2,16,23]. This anomaly alone does not cause a functional deterioration in the myocardium, but care should be taken, especially in patients with obstructive coronary artery disease or aortic valve replacement [24]. Two patients had RCA originating from the noncoronary sinus with an incidence of 0.04%. This anomaly is rarely seen [25]. An LMCA originating from the right coronary sinus was observed in only one case and its incidence was 0.02%. Angelini et al. reported this rate to be 0.15% [18].
In one patient, the RCA emerged from the pulmonary trunk with an incidence of 0.02% (ARCAPA syndrome). An uncommon but serious congenital cardiac disorder is the origin abnormality of the RCA from the pulmonary artery. Cases are mostly asymptomatic and diagnosed at adult ages [26]. Two patients had a single coronary artery anomaly with an incidence of 0.04% and it originated from the right coronary sinus. It is unusual for a single coronary artery to originate from the right coronary sinus. Similar cases were described by Özyurtlu et al. and Pergola et al., and studies show that they comprised 3.3% of all coronary anomalies [27,28].
Although it was reported as the most common coronary artery anomaly in several previous studies, multiple ostium anomalies in which the LMCA was not observed and the LAD and LCX originate with ostia separate from the left coronary sinus were the fourth most frequently detected coronary artery anomaly in our study, with 12 patients and an incidence of 0.23%. This rate was lower than those reported in previous studies [2,16,17]. Four patients had RCA anomalies with a high incidence of 0.08%, and their incidence was lower than those in previous studies [2,16,23].
Coronary artery fistulas are the termination of one or more of the usually enlarged and tortuous coronary arteries in a low-pressure vascular bed, such as the heart chambers, vena cava, coronary sinus, pulmonary artery, and bronchial vessels, and they are rare in adults [2,29]. The incidence of coronary artery fistula has been reported to vary between 0.05% and 0.9%. RCA fistulas are the most common, and right-sided cardiac cavities and vessels are the most common termination sites [30]. Fistulas are usually small, do not cause significant hemodynamic effects, and are detected incidentally during cardiac catheterization or echocardiography. If the fistulas are large, they may cause shunts and cause fistula rupture, coronary steal, heart failure, or pulmonary hypertension [2]. In our study, fistula incidence was seen in two cases, 0.03%. This incidence, which was the same as that found by Ganga et al. [1], was similar to that seen in many studies [11,16,22]. In one case, there was a fistula and accompanying PDA aneurysm between the left atrium and the PDA. In the other case, there was a fistula between the LAD and the pulmonary artery. The fistulas in our study were small and did not cause a significant shunt. We did not have any patients with noncardiac termination anomalies.
There are studies in the literature investigating atherosclerotic involvement in normal and abnormal coronary arteries using catheter angiography, and incidence has been reported between 1.7% and 72.2% [2,11,12,21,23,24]. In addition to the importance of MDCTCA and catheter angiography in the diagnosis of CAA, cardiac magnetic resonance imaging (MRI) with virtual angioscopy is an important tool for demonstrating abnormal coronary anatomy and myocardial function and evaluating late gadolinium uptake and ischemia-induced fibrosis. There are also studies showing that it can be used in the initial and postoperative evaluation of children with CAAs [31].
In patients with coronary anomalies, nonpharmacological functional imaging (e.g., nuclear study, echocardiography, or stress cardiac MRI) is recommended to confirm/exclude myocardial ischemia [32]. Moreover, it has been shown that normal stress test results obtained using only stress ECG instead of sensitive methods such as nuclear perfusion imaging or stress echocardiography do not prevent sudden cardiac death. It has been shown that patients with CAAs but no coronary artery disease who underwent surgery had ischemia before surgical repair. This suggests that there is a relationship between coronary anomalies and ischemia, and ischemia can be detected by perfusion imaging [33]. However, no standard protocol has been proposed thus far to classify CAA-associated ischemia due to the limited number of studies.
We conducted our study using the MDCTCA and CAD-RADS scoring system, contrary to previous studies using catheter angiography. We investigated whether there was a difference between the anomaly groups in terms of CAD-RADS scores. Since there were two patients with termination anomalies, we compared atherosclerotic involvement only in patients with origin and course anomalies. There was no significant difference between the groups in terms of atherosclerotic involvement. We have not encountered any study in the literature that makes such a comparison. Considering that MDCTCA is being used with increasing frequency in recent years, we think that our study will be a guide for similar studies to be conducted in the future.
We found both atherosclerotic involvement and 50% or more involvement higher in vessels with anomalies compared to normal vessels, while no difference was detected between the anomalies. There are studies in the literature demonstrating that atherosclerotic involvement is high in vessels with anomalies, similar to our study [2,11,12].
MDCTCA is helpful both in the diagnosis of CAAs and in the early detection and development of prevention strategies for coronary atherosclerosis. We think that prospective studies with larger series are needed to investigate CAAs with MDCTCA and atherosclerotic involvement in individuals with CAAs.

5. Limitations

The data we obtained are limited and may not represent the general population since our study was retrospective and based on a single center.

Author Contributions

T.Ş. and M.I.: study concept and design, data acquisition, data analysis and interpretation, and writing of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

None of the authors received any external financial support for this research.

Institutional Review Board Statement

The Ethics Committee of Aydın Adnan Menderes University Faculty of Medicine authorized this retrospective study (approval No: 2022/80), which was carried out in conformity with the Declaration of Helsinki’s principles.

Informed Consent Statement

Informed consent was not required because of the study’s retrospective nature. The Ethics Committee approved this retrospective study and waived the need of informed consent.

Data Availability Statement

The data supporting this article are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare that they have no competing interests.

References

  1. Ganga, K.P.; Goyal, A.; Ojha, V.; Deepti, S.; Sharma, S.; Kumar, S. Prevalence Rate of CCAA and CV in Adult Indian Patients Undergoing CTCA. Indian J. Radiol. Imaging 2021, 31, 138–149. [Google Scholar] [PubMed]
  2. Sidhu, N.S.; Wander, G.S.; Monga, A.; Kaur, A. Incidence, Characteristics and Atherosclerotic Involvement of Coronary Artery Anomalies in Adult Population Undergoing Catheter Coronary Angiography. Cardiol. Res. 2019, 10, 358–368. [Google Scholar] [CrossRef] [PubMed]
  3. Gentile, F.; Castiglione, V.; De Caterina, R. Coronary Artery Anomalies. Circulation 2021, 144, 983–996. [Google Scholar] [CrossRef] [PubMed]
  4. Corrado, D.; Basso, C.; Rizzoli, G.; Schiavon, M.; Thiene, G. Does Sports Activity Enhance the Risk of Sudden Death in Adolescentsand and Young Adults? JACC 2003, 42, 1959–1963. [Google Scholar] [CrossRef]
  5. Drezner, J.A.; Malhotra, A.; Prutkin, J.M.; Papadakis, M.; Harmon, K.G.; Asif, I.M.; Owens, D.S.; Marek, J.C.; Sharma, S. Return to play with hypertrophic cardiomyopathy: Are we moving too fast? A critical review. Br. J. Sports Med. 2021, 55, 1041–1048. [Google Scholar] [CrossRef]
  6. Thijssen, C.G.E.; Bons, L.R.; Gökalp, A.L.; Van Kimmenade, R.R.J.; Mokhles, M.M.; Pelliccia, A.; Takkenberg, J.J.M.; Roos-Hesselink, J.W. Exercise and sports participation in patients with thoracic aortic disease: A review. Expert Rev. Cardiovasc. Ther. 2019, 17, 251–266. [Google Scholar] [CrossRef]
  7. Mascia, G.; Arbelo, E.; Solimen, F.; Giaccardi, M.; Brugada, R.; Brugada, J. The long-QT syndrome and exercise practice: Then ever-ending debate. J. Cardiovasc. Electrophysiol. 2018, 29, 489–496. [Google Scholar] [CrossRef]
  8. Mascia, G.; DellaBona, R.; Ameri, P.; Canepa, M.; Porto, I.; Brignole, M. Brugada syndrome and syncope: A systematic review. J. Cardiyovasc. Electrophysiol. 2020, 31, 3334–3338. [Google Scholar] [CrossRef]
  9. Lanjewar, C.P.; Kumar, D.; Sabnis, G.R.; Jare, M.; Phutane, M.; Shah, H.C.; Reddy, S.; Borgaonkar, D.; Thummar, A.; Kerkar, P.G. Anomalous origin of coronary artery from the opposite aortic sinus of Valsalva-a single center experience with a therapeutic conundrum. Indian Heart J. 2021, 73, 289–294. [Google Scholar] [CrossRef]
  10. Greenberg, M.A.; Fish, B.G.; Spindola-Franco, H. Congenital anomalies of the coronary arteries. Classification and significance. Radiol. Clin. N. Am. 1989, 27, 1127–1146. [Google Scholar]
  11. Tharwat, M.; El Ashtokhy, M.A.; Mahfouz, R.A.; Ibrahim, A.A. Angiographic study of anatomical variations of coronary arteries by using diagnostic catheter. Zagazig Univ. Med. J. 2015, 20, 826–833. [Google Scholar] [CrossRef]
  12. Somashekhara, G. Clinical and angiographic profile of coronary artery anomalies in patients undergoing coronary angiography. J. Cardiovasc. Med. Surg. 2017, 3, 167–174. [Google Scholar]
  13. Kumar, P.; Bhatia, M. Coronary Artery Disease Reporting and Data System: A Comprehensive Review. J. Cardiovasc. Imaging 2022, 30, 1–24. [Google Scholar] [CrossRef] [PubMed]
  14. Ete, T.; Kavi, G.; Mishra, A.; Jha, P.K.; Malviya, A.; Megeji, R.D. Coronary artery ectasia, an enigma in cardiology: A case report with review of literature. Heart India 2016, 4, 149–152. [Google Scholar]
  15. Mavrogeni, S. Coronary artery ectasia: From diagnosis to treatment. Hellenic. J. Cardiol. 2010, 51, 158–163. [Google Scholar]
  16. Yamanaka, O.; Hobbs, R.E. Coronary artery anomalies in 126,595 patients undergoing coronary arteriography. Catheter. Cardiovasc. Diagn. 1990, 21, 28–40. [Google Scholar] [CrossRef]
  17. Yildiz, A.; Okcun, B.; Peker, T.; Arslan, C.; Olcay, A.; Bulent, V. Prevalence of coronary artery anomalies in 12,457 adult patients who underwent coronary angiography. Clin. Cardiol. 2010, 33, 60–64. [Google Scholar] [CrossRef]
  18. Angelini, P.; Velasco, J.A.; Flamm, S. Coronary anomalies: Incidence, pathophysiology, and clinical relevance. Circulation 2002, 105, 2449–2454. [Google Scholar] [CrossRef]
  19. Greenspan, M.; Iskandrian, A.S.; Catherwood, E.; Kimbiris, D.; Bemis, C.E.; Segal, B.L. Myocardial bridging of the LAD: Evaluation using exercise thallium-201 myocardial scintigraphy. Catheter. Cardiovasc. Diagn. 1980, 6, 173–180. [Google Scholar] [CrossRef]
  20. Spindola-Franco, H.; Grose, R.; Solomon, N. Dual left anterior descending coronary artery: Angiographic description of important variants and surgical implications. Am. Heart J. 1983, 105, 445–455. [Google Scholar] [CrossRef]
  21. Kaku, B.; Shimizu, M.; Yoshio, H.; Ino, H.; Mizuno, S.; Kanaya, H.; Ishise, S.; Mabuchi, H. Clinical features of prognosis of Japanese patients with anomalous origin of the coronary artery. Jpn. Circ. J. 1996, 60, 731–741. [Google Scholar] [CrossRef] [PubMed]
  22. Namgung, J.; Kim, J.A. The prevalence of coronary anomalies in a single center of Korea: Origination, course, and termination anomalies of aberrant coronary arteries detected by ECG-gated cardiac MDCT. BMC Cardiovasc. Disord. 2014, 14, 48. [Google Scholar] [CrossRef] [PubMed]
  23. Nawale, J.M.; Chaurasia, A.S.; Nalawade, D.D.; Choudalwar, P.; Borikar, N.; Tiwari, D. Study of clinical profille, incidence, pattern, and atherosclerotic involvement of congenital coronary artery anomalies in adults undergoing coronary angiography: A study from a tertiary care institute in western part of India. Heart India 2018, 6, 133–140. [Google Scholar] [CrossRef]
  24. Eid, A.H.; Itani, Z.; Al-Tannir, M.; Sayegh, S.; Samaha, A. Primary congenital anomalies of the coronary arteries and relation to atherosclerosis: An angiographic study in Lebanon. J. Cardiothorac. Surg. 2009, 4, 58. [Google Scholar] [CrossRef] [PubMed]
  25. Kim, S.Y.; Seo, J.B.; Do, K.H.; Heo, J.N.; Lee, J.S.; Song, J.W.; Choe, Y.H.; Kim, T.H.; Yong, H.S.; Choi, S.I.; et al. Coronary artery anomalies: Classification and ECG-gated multi-detector row CT findings with angiographic correlation. Radiographics 2006, 26, 317–333. [Google Scholar] [CrossRef] [PubMed]
  26. Gupta, R.; Marwah, A.; Shrivastva, S. Anomalous origin of right coronary artery from pulmonary artery. Ann. Pediatric Cardiol. 2012, 5, 95–96. [Google Scholar]
  27. Ozyurtlu, F.; Acet, H.; Bilik, M.Z.; Tasal, A. A Rare Coronary Artery Anomaly: Single Coronary Artery Originate from Right Sinus Valsalva R-IIP Sub-Group Type. Cardiol. Res. 2012, 3, 140–142. [Google Scholar] [CrossRef]
  28. Pergola, V.; Cabrelle, G.; Barbiero, G.; Dellino, C.M.; Reffo, E.; Di Salvo, G.; Motta, R. Single coronary artery originating from right sinus. Role of MDCT and a review of literature. Monaldi Arch. Chest Dis. 2021, 92. [Google Scholar] [CrossRef]
  29. Yun, G.; Nam, T.H.; Chun, E.J. Coronary artery fistulas: Pathophysiology, imaging findings, and management. Radiographics 2018, 38, 688–703. [Google Scholar] [CrossRef]
  30. Challoumas, D.; Pericleous, A.; Dimitrakaki, I.A.; Danelatos, C.; Dimitrakakis, G. Coronary arteriovenous fistulae: A review. Int. J. Angiol. 2014, 23, 1–10. [Google Scholar]
  31. Brothers, J.A.; Kim, T.S.; Fogel, M.A.; Whitehead, K.K.; Tonia, M.; Morrison, M.S.M.; Paridon, S.M.; Harris, M.A. Cardiac magnetic resonance imaging characterizes stenosis, perfusion, and fibrosis preoperatively and postoperatively in children with anomalous coronary arteries. J. Thorac. Cardiovasc. Surg. 2016, 152, 205–210. [Google Scholar] [CrossRef] [PubMed]
  32. Baumgartner, H.; De Backer, J.; Babu-Narayan, S.V.; Budts, W.; Chessa, M.; Diller, G.P.; Iung, B.; Kluin, J.; Lang, I.M.; Meijboom, F.; et al. 2020 ESC Guidelines for the management of adult congenital heart disease. Eur. Heart J. 2021, 42, 563645. [Google Scholar] [CrossRef] [PubMed]
  33. Stout, K.K.; Daniels, C.J.; Aboulhosn, J.A.; Bozkurt, B.; Broberg, C.S.; Colman, J.M.; Crumb, S.R.; Joseph, A.; Dearani, J.A.; Fuller, S.; et al. 2018 AHA/ACC Guideline for the Management of Adults With Congenital Heart Disease: A Report of the American College of Cardiology/American Heart Association Task Force on Clinical Practice Guidelines. J. Am. Coll. Cardiol. 2019, 73, e81–e192. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Maximum-intensity projection (MIP) of the axial CT image (A) demonstrates the LCX and LAD emerging from the left coronary sinus with separate ostia. The same patient had ground glass infiltrates consistent with COVID-19 (B). On the volume-rendered (VR) image (C), the LAD and LCX emerge from the left coronary sinus, along with the RCA emerging from the right coronary sinus.
Figure 1. Maximum-intensity projection (MIP) of the axial CT image (A) demonstrates the LCX and LAD emerging from the left coronary sinus with separate ostia. The same patient had ground glass infiltrates consistent with COVID-19 (B). On the volume-rendered (VR) image (C), the LAD and LCX emerge from the left coronary sinus, along with the RCA emerging from the right coronary sinus.
Tomography 08 00135 g001

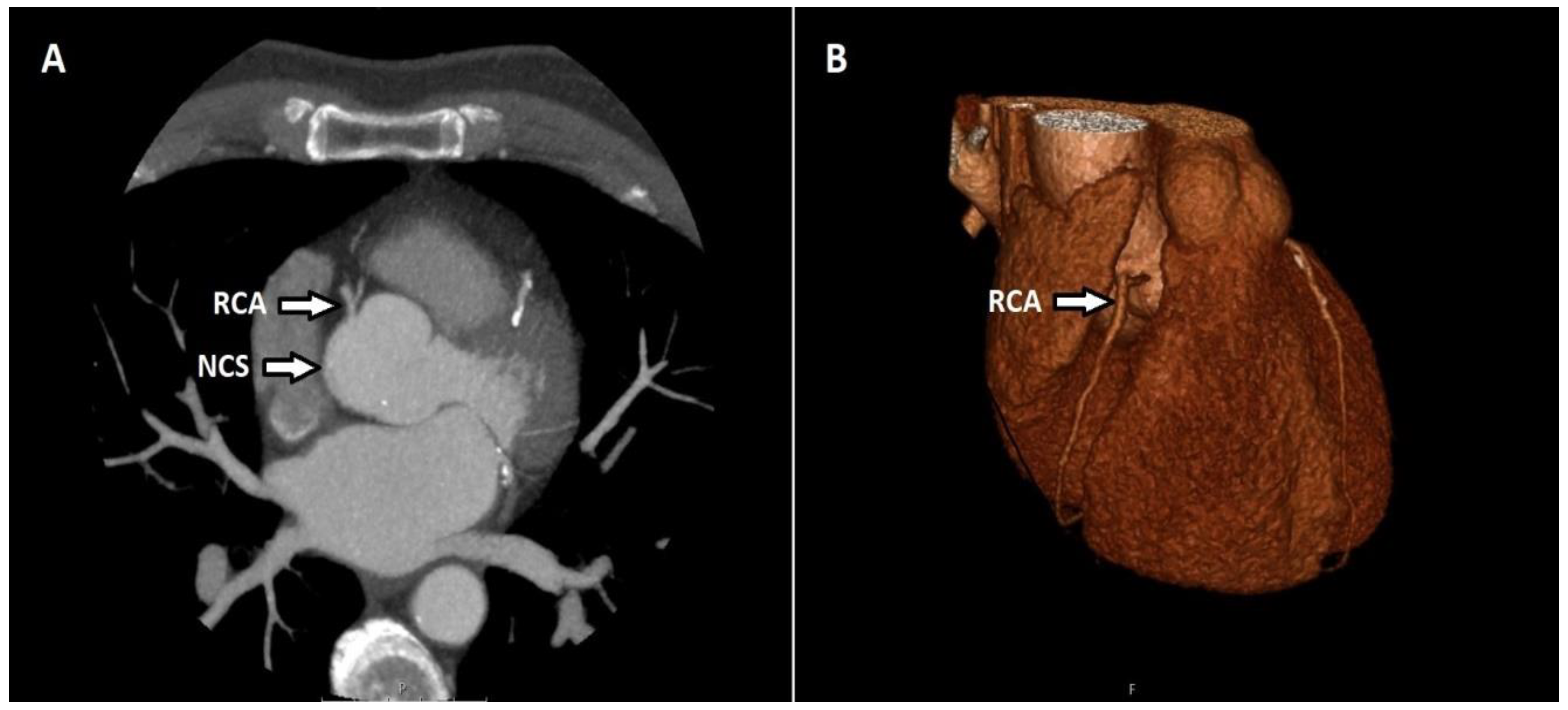

Figure 2. Axial CT maximum-intensity projection (MIP) (A) and volume-rendered (VR) (B) image shows the RCA originating in the noncoronary sinus (NCS).
Figure 2. Axial CT maximum-intensity projection (MIP) (A) and volume-rendered (VR) (B) image shows the RCA originating in the noncoronary sinus (NCS).
Tomography 08 00135 g002

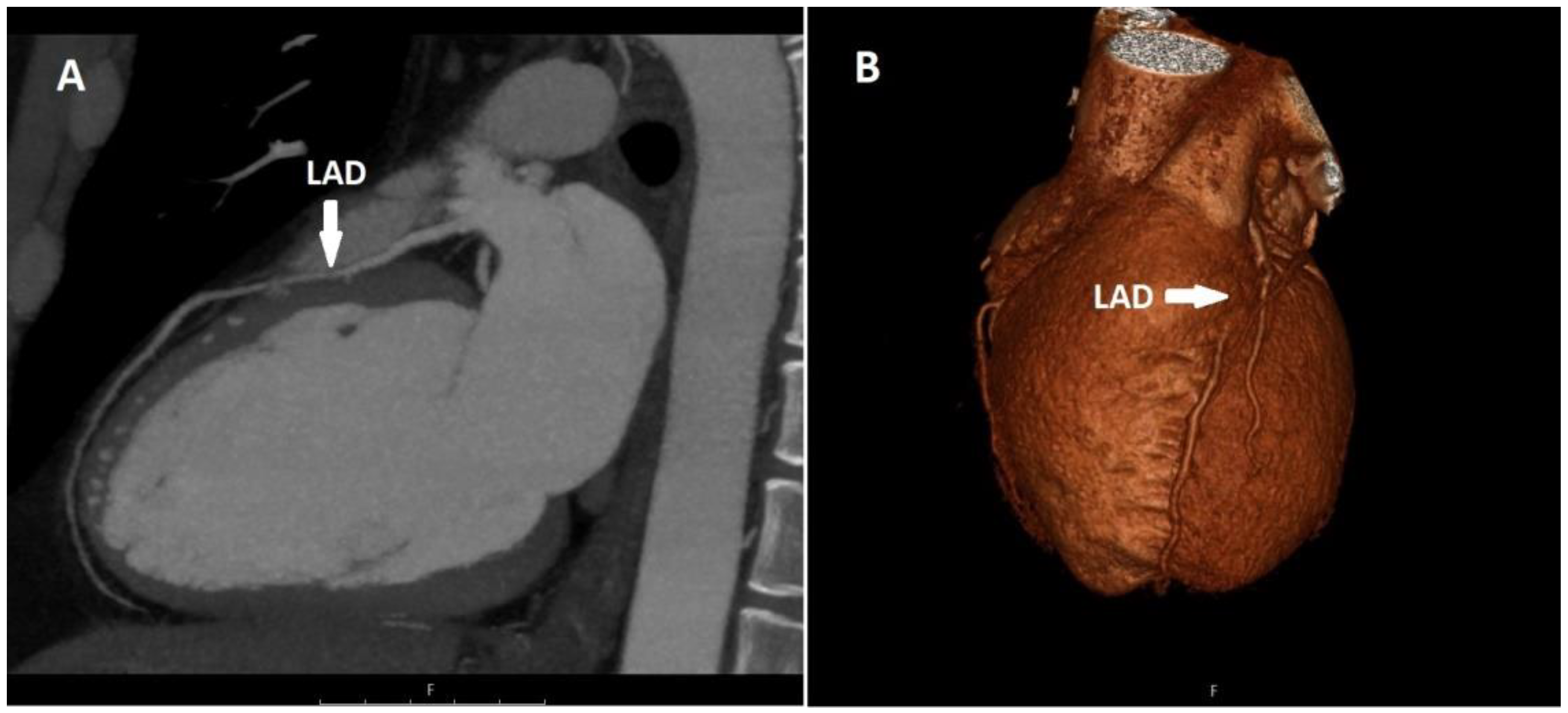

Figure 3. Sagittal CT maximum-intensity projection (MIP) (A) and volume-rendered (VR) (B) image shows myocardial bridging in the proximal segment of the LAD.
Figure 3. Sagittal CT maximum-intensity projection (MIP) (A) and volume-rendered (VR) (B) image shows myocardial bridging in the proximal segment of the LAD.
Tomography 08 00135 g003

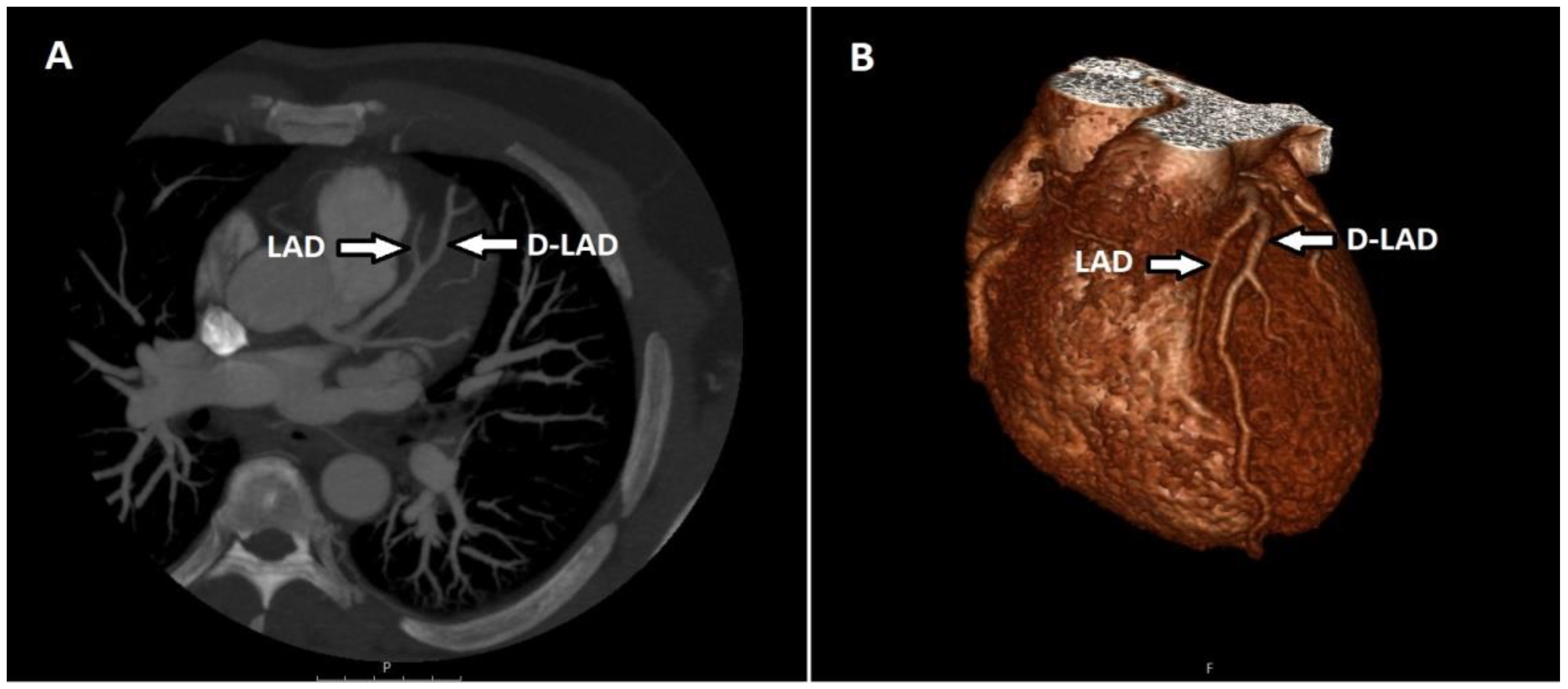

Figure 4. Maximum-intensity projection (MIP) of axial CT (A) and volume-rendered (VR) (B) image shows the LAD terminating above the atrioventricular groove and the duplicated LAD (D-LAD) extending distally along the groove.
Figure 4. Maximum-intensity projection (MIP) of axial CT (A) and volume-rendered (VR) (B) image shows the LAD terminating above the atrioventricular groove and the duplicated LAD (D-LAD) extending distally along the groove.
Tomography 08 00135 g004

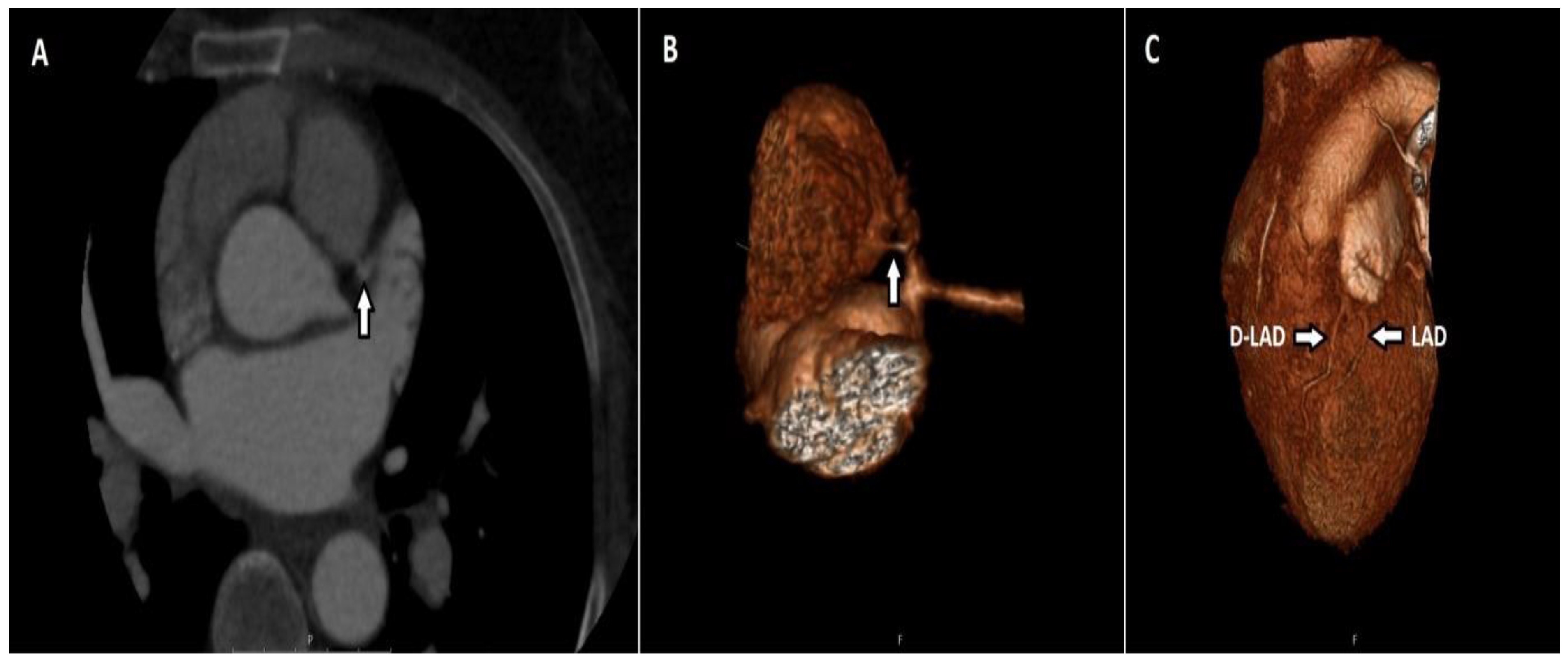

Figure 5. Axial CT maximum-intensity projection (MIP) (A) and volume-rendered (VR) (B) image shows a thin fistula line between the LAD and the main pulmonary artery. A duplicated LAD (D-LAD) with an LAD is seen in the same patient (C).
Figure 5. Axial CT maximum-intensity projection (MIP) (A) and volume-rendered (VR) (B) image shows a thin fistula line between the LAD and the main pulmonary artery. A duplicated LAD (D-LAD) with an LAD is seen in the same patient (C).
Tomography 08 00135 g005
Table 1. Classification of congenital coronary artery anomalies by Greenberg et al. [10].
Table 1. Classification of congenital coronary artery anomalies by Greenberg et al. [10].
Congenital Coronary Artery Anomalies
A.
Origin Anomalies
1.
High take-off
2.
Multiple ostium
3.
Single coronary artery
4.
Orgination of the coronary artery from the pulmonary artery
5.
Orgination of the coronary artery from the contralateral or non-coronary sinus
B.
Course Anomalies
1.
Myocardial bridging
2.
Artery duplication
C.
Termination Anomalies
1.
Coronary arterial fistulas
2.
Non-cardiac termination
Table 2. Types and percentage distributions of coronary artery anomalies of the patients.
Table 2. Types and percentage distributions of coronary artery anomalies of the patients.
Coronary Artery Anomaliesn (%)
Origin Anomalies n = 37 (27.2%)
High take-off3 (2.2)
High take-off RCA3(2.2)
Multiple ostium12 (8.8)
No LMCA + LAD and LCX orginating from left coronary sinus 12 (8.8)
Single coronary artery2 (1.5)
Origin of the coronary artery from the pulmonary artery1 (0.7)
RCA orginating from the pulmonary artery (ARCAPA syndrome)1(0.7)
Origin of the coronary artery from the contralateral or non-coronary sinus19 (13.9)
RCA orginating from the left coronary sinus14 (10.2)
LCX orginating from the right coronary sinus2 (1.5)
LMCA orginating from the right coronary sinus1 (0.7)
RCA orginating from the non-coronary sinus2 (1.5)
Course Anomalies n = 97 (71.3%)
Myocardial bridging57 (41.9)
LAD myocardial bridging54 (39.7)
LAD and LCX myocardial bridging3 (2.2)
Artery duplication40 (29.4)
LAD duplication40 (29.4)
Termination Anomalies n = 2 (1.5%)
Coronary arterial fistulas2 (1.5)
Left atrium-PDA fistula1 (0.75)
Pulmonary artery-LAD fistula1 (0.75)
Non-cardiac termination0 (0)
Total n = 136 (100%)136 (100)
Table 3. Demographic characteristics and coronary risk factor status of patients with coronary artery anomalies.
Table 3. Demographic characteristics and coronary risk factor status of patients with coronary artery anomalies.
FeatureOrigin ACourse ATermination ATotalp *
(n = 37)(n = 97)(n = 2)(n = 136)
n (%)n (%)n (%)n (%)
Female18 (48.6)38 (39.2)2 (100)58 (42.6)0.320
Male38 (39.2)59 (60.8)0 (0)78 (57.4)
Mean Age ± SD59.1 ± 11.957.0 ±12.060.5 ± 7.857.6 ± 11.90.373
Hypertension21 (56.8)43 (44.3)0 (0)64 (47.1)0.198
Diabetes Mellitus3 (8.1)22 (22.7)0 (0)25 (18.4)0.053
Hypercholesterolemia20 (54.1)39 (40.2)1 (50)60 (44.1)0.149
Smoking history10 (27.0)38 (39.2)0 (0)48 (35.3)0.190
Family history18 (48.6)40 (41.2)0 (0)58 (42.6)0.439
n: Number of patients; A: Anomaly. * Termination anomalies are not included when calculating p-values.
Table 4. The patients’ CAD-RADS scores and the number of affected vessels in terms of coronary artery disease.
Table 4. The patients’ CAD-RADS scores and the number of affected vessels in terms of coronary artery disease.
FeatureOrigin ACourse ATermination ATotalp **
(n = 37)(n = 97)(n = 2)(n = 136)
n (%)n (%)n (%)n (%)
CAD-RADS 016 (43.2)60 (61.9)1 (50.0)77 (56.6)
CAD-RADS 18 (21.6)13 (13.4)1 (50.0)22 (16.2)
CAD-RADS 25 (13.5)12 (12.4)0 (0)17 (12.5)
CAD-RADS 34 (10.8)9 (9.3)0 (0)13 (9.6)0.220
CAD-RADS 43 (8.1)3 (3.1)0 (0)6 (4.4)
CAD-RADS 51 (2.7)0 (0)0 (0)1 (0.7)
CAD-RADS 0,1,229 (78.4)85 (87.6)2 (100)116 (85.3)0.179
CAD-RADS 3,4,58 (21.6)12 (12.4)0 (0)20 (14.7)
Number of vessels
affected *
110 (27.0)15 (15.5)1 (50)26 (19.1)
25 (13.5)11 (11.3)0 (0)16 (11.8)
35 (13.5)6 (6.2)0 (0)11 (8.1)0.312
41 (2.7)4 (4.1)0 (0)5 (3.7)
50 (0)0 (0)0 (0)0 (0)
60 (0)1 (1.0)0 (0)1 (0.7)
A: Anomaly; n: number of patients. *: RCA, LMCA, LAD, LCX, PDA, and PLD included. **: Termination anomalies are not included when calculating p-values.
Table 5. Comparison of normal and anomalous vessels in terms of atherosclerotic involvement.
Table 5. Comparison of normal and anomalous vessels in terms of atherosclerotic involvement.
CharacteristicNormal Vessel
Total n = 387
n (%)
Vessel with Anomaly
Total n = 157
n (%)
p
Atherosclerotic involvement69 (17.8)45 (28.7)0.005
No atherosclerotic involvement318 (82.2)112 (71.3)
≥50% stenosis14 (3.6)13 (8.3)0.023
Normal or <50% stenosis373 (96.4)144 (91.7)
