Image Quality and Radiation Dose of Contrast-Enhanced Chest-CT Acquired on a Clinical Photon-Counting Detector CT vs. Second-Generation Dual-Source CT in an Oncologic Cohort: Preliminary Results

1
Department of Diagnostic and Interventional Radiology, Eberhard-Karls-University, Hoppe-Seyler-Str. 3, 72070 Tübingen, Germany
2
NYU Grossman School of Medicine, Department of Radiology, New York, NY 10016, USA
3
Siemens Healthcare GmbH, 91052 Erlangen, Germany
4
Department of Radiology, Albert-Ludwigs-University Freiburg, 79106 Freiburg, Germany
5
Department of Radiology, University of Mannheim, 68167 Mannheim, Germany
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Academic Editors: Emilio Quaia and Iacopo Carbone
Tomography 2022, 8(3), 1466-1476; https://doi.org/10.3390/tomography8030119
Received: 5 April 2022 / Revised: 14 May 2022 / Accepted: 30 May 2022 / Published: 3 June 2022

Abstract

Our aim was to compare the image quality and patient dose of contrast-enhanced oncologic chest-CT of a first-generation photon-counting detector (PCD-CT) and a second-generation dual-source dual-energy CT (DSCT). For this reason, one hundred consecutive oncologic patients (63 male, 65 ± 11 years, BMI: 16–42 kg/m2) were prospectively enrolled and evaluated. Clinically indicated contrast-enhanced chest-CT were obtained with PCD-CT and compared to previously obtained chest-DSCT in the same individuals. The median time interval between the scans was three months. The same contrast media protocol was used for both scans. PCD-CT was performed in QuantumPlus mode (obtaining full spectral information) at 120 kVp. DSCT was performed using 100 kV for Tube A and 140 kV for Tube B. “T3D” PCD-CT images were evaluated, which emulate conventional 120 keV polychromatic images. For DSCT, the convolution algorithm was set at I31f with class 1 iterative reconstruction, whereas comparable Br40 kernel and iterative reconstruction strengths (Q1 and Q3) were applied for PCD-CT. Two radiologists assessed image quality using a five-point Likert scale and performed measurements of vessels and lung parenchyma for signal-to-noise ratio (SNR), contrast-to-noise ratio (CNR), and in the case of pulmonary metastases tumor-to-lung parenchyma contrast ratio. PCD-CT CNRvessel was significantly higher than DSCT CNRvessel (all, p < 0.05). Readers rated image contrast of mediastinum, vessels, and lung parenchyma significantly higher in PCD-CT than DSCT images (p < 0.001). Q3 PCD-CT CNRlung_parenchyma was significantly higher than DSCT CNRlung_parenchyma and Q1 PCD-CT CNRlung_parenchyma (p < 0.01). The tumor-to-lung parenchyma contrast ratio was significantly higher on PCD-CT than DSCT images (0.08 ± 0.04 vs. 0.03 ± 0.02, p < 0.001). CTDI, DLP, SSDE mean values for PCD-CT and DSCT were 4.17 ± 1.29 mGy vs. 7.21 ± 0.49 mGy, 151.01 ± 48.56 mGy * cm vs. 288.64 ± 31.17 mGy * cm and 4.23 ± 0.97 vs. 7.48 ± 1.09, respectively. PCD-CT enables oncologic chest-CT with a significantly reduced dose while maintaining image quality similar to a second-generation DSCT for comparable protocol settings.
Keywords: photon-counting CT; dual-source dual-energy CT; radiation dose; image quality; chest-CT photon-counting CT; dual-source dual-energy CT; radiation dose; image quality; chest-CT

1. Introduction

Computed tomography (CT) is a cornerstone of oncologic imaging due to its wide availability, comparably lower cost, excellent spatial resolution, and fast acquisition speed, enabling high throughput and contributing to patient satisfaction.
One major limitation of CT imaging is the accumulating radiation exposure in oncologic patients undergoing serial CT scans for treatment monitoring. Radiation dose-reducing techniques include using a lower tube current and tube voltage, automated exposure control, protocol tailoring to the clinical question, automated control of image quality, increased pitch, reduction in scan length, imaging filtering, improved detector efficiency, iterative reconstruction, and the use of individualized imaging protocols [1,2,3,4,5]. However, reducing radiation doses often reduces image quality, limiting its clinical utility.
With the advent of dual-source CT technology coupled with improved detector quality, dose reductions of up to 30% could be achieved already with third-generation dual-energy dual-source CT (DSCT) compared to second-generation DSCT [6]. Photon-counting detector CT (PCD-CT) technology is promising to further reduce radiation doses [7,8] as it converts individual X-ray photons directly into electronic signals proportional to their deposited energy, almost unaffected by electronic noise [9,10,11,12]. As PCDs do not have scintillators and septa, they can be fabricated with smaller elements compared to DSCT, thus significantly improving the spatial resolution [13]. Moreover, image quality can be further improved by manipulating the weighting of energy bins in the spectral data and also by using the decomposition of the material. For chest-CT applications, a great improvement in the detectability of both lesions with low-contrast compared to the adjacent lung parenchyma (e.g., partial solid nodules) as well as for high-contrast lesions has been reported by Si-Mohamed et al. [14]. Accordingly, we hypothesized that a first-generation PCD-CT should require less of a radiation dose than second-generation DSCT for standard contrast-enhanced chest-CT in oncologic patients while delivering comparable or improved image quality.
The purpose of our study was to compare the image quality and the patient dose of contrast-enhanced oncologic chest-CT of a first-generation PCD-CT and a second-generation DSCT using comparable exam protocol settings.

2. Materials and Methods

2.1. Subjects

Our institutional review board approved this prospective data evaluation, which was assigned the approval number 696/2021B01. Participants gave written informed consent. Between October 2021 and December 2021, a total of 100 consecutive oncologic patients who were referred for staging or treatment monitoring to our radiology department were enrolled (Table 1).
The same enrolled participants first underwent a standardized contrast-enhanced DSCT of the chest during either primary diagnosis and/or treatment monitoring, followed at the time by a PCD-CT examination using a comparable standardized protocol. All of the patients were enrolled consecutively, and none of them had to be excluded from the final evaluation. As differences both in image quality and radiation dose became evident early in the course of the study, we decided to make a preliminary analysis of this cohort. The exclusion criteria included differences in the examinational protocols of PCD-CT and DSCT, contrast media concentrations, contrast media delay times, contrast agent volumes, and contrast media injection speed.

2.2. Dual-Source Chest-CT

DSCT studies were performed with the patients in a supine position using a 128-slice MDCT scanner (SOMATOM Definition Flash, Siemens Healthcare, Forchheim, Germany). The scan range comprised the entire chest, extending from the diaphragm to the thoracic inlet. We used the following examinational protocol: 100 kV for Tube A and 140 kV for Tube B, mean X-ray tube current of 100 mAs (automated tube current modulation called CareDose 4D was used), a slice thickness of 3 mm, focal spot 1.2, kernel I31f, iterative reconstruction ADMIRE1 (comparable to Q1 at PCD-CT), single collimation with a width of 0.6 mm, total collimation with a width of 57.6 mm, a table speed of 134.7 cm/s, a table feed/rotation of 38.6, a spiral pitch factor of 1.0, and a 512 × 512 matrix. The contrast medium protocol included intravenous administration of 1.2 mL/kg/body weight (IMERON 350 mg iodine/mL BRACCO Imaging, Germany) at a flow rate of 2 mL/s via the antecubital vein, followed by a 50 mL saline flush at 2.5 mL/s. The contrast material was administered using a dual-head pump injector (CT motion XD 8000, Ulrich Medical, Ulm, Germany). Arterial image acquisition started 31 s after intravenous administration and was the same for both scanners.

2.3. Photon-Counting Detector Chest-CT

PCD-CT was performed with the patients in the supine position using a first-generation dual-source CT scanner with quantum imaging (NAEOTOM Alpha, Siemens Healthineers, Forchheim, Germany) equipped with two photon-counting detectors. The polychromatic images were reconstructed for PCD-CT at 120 keV—so-called T3D— representing polychromatic information that can be considered comparable to a conventional polychromatic reconstruction on a DSCT scanner [15]. The following examinational protocol was used: 120 kV (automated tube current modulation—CareDose 4D), mean X-ray tube current 110 mAs, IQ level 60, a slice thickness of 3 mm, focal spot 0.8/1.2, kernel Br40f, iterative reconstruction factor Q1 and Q3, single collimation with a width of 0.4 mm, total collimation with a width of 57.6 mm, a table speed of 115.2 cm/s, a table feed/rotation of 57.6, and a spiral pitch factor of 1. The contrast agent protocol was standardized for all of the patients and was identical to the DSCT protocol.

2.4. Radiation Dose Quantification

In all of the patients, the volumetric CT dose index (CTDIvol) and dose length product (DLP) were obtained from the dose report, which was automatically stored in the picture archiving and communication system. The size-specific dose estimates (SSDE) were calculated based on each patient’s effective diameter (transverse), as measured on the axial images [16]:
SSDE = (3.70 × e − 0.0367 × effective diameter) × CTDIvol
Subsequently, the absolute values were compared between the two scanners.

2.5. Image Quality Quantification

Two radiologists with 1 (L.W.) and 2 (F.H.) years of experience in chest imaging performed the measurements. In each patient, round or oval ROIs were manually placed within the ascending thoracic aorta (ROI size, 80–120 mm2), descending thoracic aorta (ROI size 80–120 mm2), the pulmonary trunk (ROI size, 50–90 mm2), as well as in the peripheral lung parenchyma (200–300 mm2). For each region, three individual measurements were performed and averaged. The readers carefully avoided focal calcified aortic plaques or inhomogeneous areas of lung parenchymal attenuation, tumors, or areas of pulmonary consolidation. Mean attenuation values were calculated by averaging the attenuation values of both radiologists. The signal-to-noise ratio (SNR) was calculated for each ROI as follows: SNR = (HUROI)/SDROI. Contrast-to-noise ratio (CNR) of the individual anatomic structures (lung and vessels) were calculated by manually placing ROIs with a size of 100–300 mm2 in the patient’s pectoral muscles and subcutaneous fat. Image noise was defined as the standard deviation (SD) of the subcutaneous fat (SDfat), and the organ-specific CNR was calculated as follows: CNR = (HUROI − HUmuscle)/SDfat.
In the patients presenting with pulmonary lesions (all of them metastatic in origin) (n = 23), an additional ROI was placed in the main tumor manifestation (ROI size, 150–500 mm2), and a ratio to the attenuation of lung parenchyma was calculated according to the formula:
Tumor-to-lung parenchyma contrast ratio = |(ROItumor/ROIlung parenchyma)|

2.6. Subjective Image Quality

Two radiologists with 1 (L.W.) and 2 (F.H.) years of experience in chest imaging read all CT exams in a blinded, randomized, and independent fashion. Disagreements were resolved during a final consensus round (n = 10 cases). The consensus reading consisted of a third joint measurement using a new ROI set together by both readers.
The images were randomly analyzed with freely-adjustable window settings. Subjective image contrast, image noise, and image sharpness were evaluated for the mediastinum, the lung, and the vessels by using a five-point Likert scale: five, excellent image quality; four, good image quality; three, fair but comprised image quality; two, poor image quality; one, non-diagnostic. Within the region of interest, both radiologists were free to choose their slice level. However, both readers had to complete a questionnaire suggesting the anatomical areas to be evaluated (e.g., upper lung lobes, the pulmonary arteries close to their first branching, ascending thoracic aorta 3 cm above the aortic valve level, descendent thoracic aorta about 3 cm above the diaphragms) and the ROI size ranges to be used.

2.7. Statistical Analysis

The data analysis was performed using IBM SPSS Statistics for Windows, Version 26.0 (IBM Corp., Armonk, NY, USA). The level of significance was set at α = 0.05. Continuous variables are provided as mean ± standard deviation (95% confidence interval) for normally distributed variables and median ± standard deviation (95% confidence interval) for non-normal data. Normal data distribution was assessed by applying the Shapiro–Wilk test. In the case of normal distribution, the variables of the two groups were compared according to the t-test for pairs. The Wilcoxon signed-rank paired test was used if data were not normally distributed. Comparison of DSCT with PCD-CT Q1 and Q3 iterative reconstruction strengths was performed with the Friedman test, followed by post-hoc Dunn–Bonferroni-tests with an alpha correction to analyze differences between the three subgroups.

3. Results

3.1. Patient Characteristics

A total of 100 participants (63 male, 65 ± 11 years) were included (Table 2). The mean time between both examinations was 3 ± 3.7 months.

3.2. Radiation Dose Quantification

The mean values of CTDIvol and DLP were 4.17 ± 1.29 mGy (1.98–9.38 mGy) and 151.01 ± 48.56 mGy * cm (64.8–312.0 mGy * cm) for the PCD-CT group, and 7.21 ± 0.49 mGy (6.59–11.42 mGy) and 288.64 ± 31.17 mGy * cm (233.2–479,6 mGy * cm) for the DSCT group, respectively (p < 0.001 for both). The SSDE was 4.23 ± 0.97 (2.26–6.63) for the PCD-CT group and 7.48 ± 1.09 (3.81–10.47) for the DSCT group (p < 0.001). The mean SSDE could be reduced by 43% compared to the previous DSCT examination (4.23 vs. 7.48).

3.3. Image Quality Quantification

The objective analysis is displayed in Table 3. Q3 strength achieved the highest SNR for the vessels, lung parenchyma, subcutaneous fat, and chest muscle. Q1 strength had significantly lower SNR compared to DSCT. The CNR of Q1 and Q3 strengths achieved significantly higher values in the vessels compared to DSCT (18.02 ± 6.36 (Q1) and 22.48 (Q3) ± 8.07 vs. 11.98 ± 5.58 (DSCT), p < 0.001). The CNR of the lung parenchyma was highest for Q3 (PCD-CT), followed by ADMIRE1 (DSCT) and Q1 (PCD-CT) (p < 0.001).
Q1 and Q3 strength resulted in a significantly higher tumor-to-lung parenchyma contrast ratio compared to the corresponding DSCT data sets. The maximum tumor size was significantly larger at the time of PCD acquisition (12.4 ± 8.96 cm vs. 11.00 ± 8.63 cm) (Table 3 and Figure 1 and Figure 2).
A-C: Window width: 342 HU, Window level: 56 HU, D-E: Window width: 1500 HU, Window level: −500 HU, C and F: ADMIRE1 iterative reconstructed image data set, A and D: Q1 iterative reconstructed image data set, B and E: Q3 iterative reconstructed image data set.

3.4. Subjective Image Quality

After the first reading session, 10 image data sets (four male and six female patients) were separately rated by both radiologists. A common consent was reached after the final reading session. The median rating of overall image quality, noise, and contrast was four (good) for PCD-CT and DSCT. Nonetheless, especially the image contrast of the mediastinum, vessels, and lung parenchyma were rated significantly higher with PCD-CT compared to DSCT (p < 0.001) (see Figure 3, Figure 4 and Figure 5).
The Q1 strength of the PCD-CT was associated with a higher noise level in the mediastinum, vessels, or lung parenchyma compared to the equivalent DSCT images (Table 4). Lung parenchyma sharpness was significantly higher in Q3 level reconstructed PCD-CT images than the DSCT images (p = 0.027).

4. Discussion

Our results show that the radiation dose for contrast-enhanced chest-CT can be significantly reduced with PCD-CT compared to second-generation DSCT, thereby yielding similar image quality. Based on SSDE, PCD-CT enabled a 43% dose reduction. Concomitantly, reader-based image quality assessment yielded comparable results of PCD-CT and second-generation DSCT with potential for further improvement with increasing Q strength. There was no significant difference in body weight between DSCT and PCD-CT to suggest patient-based confounding factors. Quantitative image analysis showed the best SNR for the vessels, lung parenchyma, and subcutaneous fat for PCD-CT when using Q3, whereas Q1 was inferior to ADMIRE1 strength when applied to DSCT data. Combining vessel measurements of the aorta and pulmonary vessels resulted in a significantly higher CNR of PCD-CT for both Q1 and Q3 over DSCT.
Similarly, the visual reader assessment of image contrast and noise were best for PCD-CT in all tissues, but the differences to DSCT proved not significant. Moreover, the mediastinal noise levels were significantly lower for PCD-CT Q1 and Q3 strengths compared to DSCT. The image contrast was better for PCD-CT, even for the Q1 strength, than DSCT. For lung parenchyma, the image contrast and quality were significantly better for both Q1 and Q3 strengths. Finally, the tumor-to-lung parenchyma contrast ratio proved superior for the PCD over the EID.
The image quality of chest CT depends on many variables, which can be patient-dependent (BMI, compliance, size and density of organs and tumors), protocol-related (tube current, tube voltage, kernel, pitch, iterative reconstruction, individualization of scanning protocols depending on the clinical question, section thickness, section spacing, scan length), and hardware-dependent (beam-shaping filter and improved detector technology) [11,12].
In practice, CT image quality should comply with the clinical requirements. While reduced image quality may be sufficient for chest-CT screening, oncologic CT often requires high-diagnostic image quality to ensure the accurate detection of even subtle abnormalities. Despite previous reports recommending low-energy or even ultra-low-dose energy protocols for diagnosing pneumonia, lung nodules, and fibrosis [17,18], a meta-analysis evaluating the accuracy of low-dose-CT found widely varying accuracies that prevented deriving unified performance data [19]. Some reports indicated adequate detection accuracy of honeycombing and bronchiectasis with low-dose CT, as well as the adequacy of ultra-low-dose-CT for diagnosing pneumothorax, consolidations, and ground-glass opacities. Others have stated that low-dose chest-CT protocols are potentially beneficial in certain clinical settings but not in obese patients or with atypical interstitial lung diseases [20]. In contrast, oncologic chest-CT has a wide spectrum of abnormalities and complex clinical questions, including tumor monitoring, the detection of new metastases, the assessment of potential drug toxicity-induced pulmonary complications, and paraneoplastic coagulation disorders with aortic or pulmonary vascular thrombosis for which adequate image quality is a requisite for accurate diagnoses.
With dose reduction remaining a major goal in clinical practice, PCD-CT may bridge the gap between dose reduction and image quality comparable to the high image quality of conventional DSCT. The main difference between conventional energy-integrating detector (EID) CT and PCD-CT is that the former uses indirect conversion technology, with a layer of scintillators converting X-ray photons into visible light, which are consequently detected by a photodiode and converted into electronic signals, whereas the latter directedly converses X-ray photons into electron-hole pairs by using a semiconductor detector material with a better electron yield. Contrary to the conventional energy-integrating detector CT, which integrates the energy levels of all detected photons, PCDs count the number of individual photons exceeding a specified energy level. Therefore, the electronic noise is usually negligible for protocols used in average-sized patients [20]. Electronic noise is usually detected as a low-amplitude signal. PCD-CT excludes electron noise by setting a slightly higher low energy threshold than the energy level associated with the electronic noise signal amplitude. Based on the physical principles of PCD-CT, noise reduction, increased spatial resolution, and dose reduction have been anticipated [21,22,23,24]. This explains our results showing a clear trend towards higher CNR and lower noise levels. Regarding artifacts, PCD-CT has the potential to reduce blooming by means of improved spatial resolution and material decomposition [21].
PCD-CT increased iodine contrast with similar image noise compared to energy-integrating detectors, thereby realizing a dose reduction of 32% [25]. Dose reductions in a similar range were also described for chest, head, and neck applications [26,27]. The results of our oncologic chest CT are in keeping with the published data.
Our study has limitations. We did not intend to adjust the two protocols to comparable energies but to image quality. Based on the major technical differences between the DSCT and PCD-CT detector technologies, protocol parameters and applied energies may not be translatable in an identical fashion. Only one iterative reconstruction strength (1) was available for the second-generation DSCT, which limited comparability to PCD-CT. Some major aspects related to the superiority of PCD over EID in the chest diagnosis in terms of lesion detectability and improved spatial resolution for accurate display and interpretation of, e.g., interstitial lung diseases have not been addressed in this study.

5. Conclusions

In conclusion, PCD-CT enables oncologic chest-CT with a significantly reduced dose while retaining image quality similar to a second-generation DSCT.

Author Contributions

Conceptualization, M.H. and F.H.; Methodology, M.H. and K.N.; Formal Analysis, L.W. and F.H.; Investigation, M.H., F.H. and L.W.; Data Curation, F.H.; Writing—Original Draft Preparation, M.H., J.F., F.H. and L.W.; Writing—Review & Editing, M.H., J.F., B.S., S.F., R.G., F.B. and S.S. All authors have read and agreed to the published version of the manuscript.

Funding

This project is funded by the Baden-Württemberg Ministry of Economic Affairs, Labor and Tourism as part of the “Forum Gesundheitsstandort Baden-Württemberg, number: 35-4223.10/20.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board of the University hospital of Tuebingen (approval number 696/2021B01).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Conflicts of Interest

F.H. has no conflicts of interest. L.W. has no conflict of interest. J.F. received institutional research support from Siemens Healthcare USA, DePuy, Zimmer, Microsoft, and BTG International, and is a scientific advisor of Siemens Healthcare USA, Alexion Pharmaceuticals, and BTG International. He also received speaker’s honorarium from Siemens Healthcare USA and has shared patents with Siemens Healthcare and Johns Hopkins University. R.G. is employee of Siemens Healthcare. B.S. is employee of Siemens Healthcare. S.F. is employee of Siemens Healthcare. F.B. received speaker’s honorarium and an unrestricted research grant from Siemens Healthcare. He also received speaker’s honorarium and an unrestricted research grant from Bayer Healthcare. He is at the advisory board of Bayer Healthcare. S.S. has no conflict of interest. K.N. has no conflict of interest. M.H.: received institutional research support from Siemens Healthineers Germany; he is a scientific advisor of Siemens Healthineers Germany and received speaker’s honorarium from Siemens Healthineers Germany.

Abbreviation

CNRContrast-to-Noise Ratio
DSCTDual-Source CT
PCD-CTPhoton-Counting Detector CT
SNRSignal-to-Noise Ratio
SSDESize-Specific Dose Estimation

References

  1. Kalra, M.K.; Maher, M.M.; Toth, T.L.; Hamberg, L.M.; Blake, M.A.; Shepard, J.-A.; Saini, S. Strategies for CT radiation dose optimization. Radiology 2004, 230, 619–628. [Google Scholar] [CrossRef] [PubMed]
  2. McCollough, C.H.; Bruesewitz, M.R.; Kofler, J.M. CT dose reduction and dose management tools: Overview of available options. Radiographics 2006, 26, 503–512. [Google Scholar] [CrossRef] [PubMed]
  3. Huda, W.; Scalzetti, E.M.; Levin, G. Technique factors and image quality as functions of patient weight at abdominal CT. Radiology 2000, 217, 430–435. [Google Scholar] [CrossRef] [PubMed]
  4. Food and Drug Administration. FDA public health notification: Reducing radiation risk from computed tomography for pediatric and small adult patients. Pediatr. Radiol. 2002, 32, 314–316. [Google Scholar]
  5. Papadakis, A.E.; Perisinakis, K.; Damilakis, J. Angular on-line tube current modulation in multidetector CT examinations of children and adults: The influence of different scanning parameters on dose reduction. Med. Phys. 2007, 34, 2864–2874. [Google Scholar] [CrossRef]
  6. Higashigaito, K.; Euler, A.; Eberhard, M.; Flohr, T.G.; Schmidt, B.; Alkadhi, H. Contrast-Enhanced Abdominal CT with Clinical Photon-Counting Detector CT: Assessment of Image Quality and Comparison with Energy-Integrating Detector CT. Acad. Radiol. 2022, 29, 689–697. [Google Scholar] [CrossRef]
  7. Rajendran, K.; Petersilka, M.; Henning, A.; Shanblatt, E.R.; Schmidt, B.; Flohr, T.G.; Ferrero, A.; Baffour, F.; Diehn, F.E.; Yu, L.; et al. First Clinical Photon-counting Detector CT System: Technical Evaluation. Radiology 2022, 303, 130–138. [Google Scholar] [CrossRef]
  8. Hsieh, S.S.; Leng, S.; Rajendran, K.; Tao, S.; McCollough, C.H. Photon Counting CT: Clinical Applications and Future Developments. IEEE Trans. Radiat. Plasma Med. Sci. 2021, 5, 441–452. [Google Scholar] [CrossRef]
  9. Wichmann, J.L.; Hardie, A.D.; Schoepf, U.J.; Felmly, L.M.; Perry, J.D.; Varga-Szemes, A.; Mangold, S.; Caruso, D.; Canstein, C.; Vogl, T.J.; et al. Single- and dual-energy CT of the abdomen: Comparison of radiation dose and image quality of 2nd and 3rd generation dual-source CT. Eur. Radiol. 2017, 27, 642–650. [Google Scholar] [CrossRef]
  10. Tabatabaei SM, H.; Talari, H.; Gholamrezanezhad, A.; Farhood, B.; Rahimi, H.; Razzaghi, R.; Mehri, N.; Rajebi, H. A low-dose chest CT protocol for the diagnosis of COVID-19 pneumonia: A prospective study. Emerg. Radiol. 2020, 27, 607–615. [Google Scholar] [CrossRef]
  11. Kubo, T.; Lin, P.-J.P.; Stiller, W.; Takahashi, M.; Kauczor, H.-U.; Ohno, Y.; Hatabu, H. Radiation dose reduction in chest CT: A review. AJR Am. J. Roentgenol. 2008, 190, 335–343. [Google Scholar] [CrossRef] [PubMed]
  12. Yu, L.; Bruesewitz, M.R.; Thomas, K.B.; Fletcher, J.G.; Kofler, J.M.; McCollough, C.H. Optimal tube potential for radiation dose reduction in pediatric CT: Principles, clinical implementations, and pitfalls. Radiographics 2011, 31, 835–848. [Google Scholar] [CrossRef] [PubMed]
  13. Baek, J.; Pineda, A.R.; Pelc, N.J. To bin or not to bin? The effect of CT system limiting resolution on noise and detectability. Phys. Med. Biol. 2013, 58, 1433–1446. [Google Scholar] [CrossRef] [PubMed]
  14. Si-Mohamed, S.A.; Greffier, J.; Miailhes, J.; Boccalini, S.; Rodesch, P.A.; Vuillod, A.; van der Werf, N.; Dabli, D.; Racine, D.; Rotzinger, D.; et al. Comparison of image quality between spectral photon-counting CT and dual-layer CT for the evaluation of lung nodules: A phantom study. Eur. Radiol. 2022, 32, 524–532. [Google Scholar] [CrossRef]
  15. Euler, A.; Higashigaito, K.; Mergen, V.; Sartoretti, T.; Zanini, B.; Schmidt, B.; Flohr, T.G.; Ulzheimer, S.; Eberhard, M.; Alkadhi, H.; et al. High-Pitch Photon-Counting Detector Computed Tomography Angiography of the Aorta: Intraindividual Comparison to Energy-Integrating Detector Computed Tomography at Equal Radiation Dose. Investig. Radiol. 2022, 57, 115–121. [Google Scholar] [CrossRef]
  16. Christner, J.A.; Braun, N.N.; Jacobsen, M.C.; Carter, R.E.; Kofler, J.M.; McCollough, C.H. Size-specific dose estimates for adult patients at CT of the torso. Radiology 2012, 265, 841–847. [Google Scholar] [CrossRef]
  17. Tugwell-Allsup, J.; Owen, B.W.; England, A. Low-dose chest CT and the impact on nodule visibility. Radiography 2021, 27, 24–30. [Google Scholar] [CrossRef]
  18. Tækker, M.; Kristjánsdóttir, B.; Graumann, O.; Laursen, C.B.; Pietersen, P.I. Diagnostic accuracy of low-dose and ultra-low-dose CT in detection of chest pathology: A systematic review. Clin. Imaging 2021, 74, 139–148. [Google Scholar] [CrossRef]
  19. Ludes, C.; Schaal, M.; Labani, A.; Jeung, M.-Y.; Roy, C.; Ohana, M. Scanner thoracique ultra-basse dose la mort de la radiographie thoracique? Presse Med. 2016, 45, 291–301. [Google Scholar] [CrossRef]
  20. Schmidt, B.; Flohr, T. Principles and applications of dual source CT. Phys. Med. 2020, 79, 36–46. [Google Scholar] [CrossRef]
  21. Willemink, M.J.; Persson, M.; Pourmorteza, A.; Pelc, N.J.; Fleischmann, D. Photon-counting CT: Technical Principles and Clinical Prospects. Radiology 2018, 289, 293–312. [Google Scholar] [CrossRef] [PubMed]
  22. Flohr, T.; Petersilka, M.; Henning, A.; Ulzheimer, S.; Ferda, J.; Schmidt, B. Photon-counting CT review. Phys. Med. 2020, 79, 126–136. [Google Scholar] [CrossRef] [PubMed]
  23. Voelker, R. Advanced CT Technology Counts Photons to Produce Sharper Images. JAMA 2020, 326, 1667. [Google Scholar] [CrossRef] [PubMed]
  24. Leng, S.; Bruesewitz, M.; Tao, S.; Rajendran, K.; Halaweish, A.F.; Campeau, N.G.; Fletcher, J.G.; McCollough, C.H. Photon-counting Detector CT: System Design and Clinical Applications of an Emerging Technology. Radiographics 2019, 39, 729–743. [Google Scholar] [CrossRef]
  25. Kappler, S.; Hannemann, T.; Kraft, E.; Kreisler, B.; Niederloehner, D.; Stierstorfer, K.; Flohr, T. First results from a hybrid prototype CT scanner for exploring benefits of quantum-counting in clinical CT. In Medical Imaging 2012: Physics of Medical Imaging; 83130X; Pelc, N.J., Nishikawa, R.M., Whiting, B.R., Eds.; SPIE: New York, NY, USA, 2012. [Google Scholar]
  26. Symons, R.; Reich, D.S.; Bagheri, M.; Cork, T.E.; Krauss, B.; Ulzheimer, S.; Kappler, S.; Bluemke, D.A.; Pourmorteza, A. Photon-counting CT for vascular imaging of the head and neck: First in vivo human results. Investig. Radiol. 2018, 53, 135–142. [Google Scholar] [CrossRef]
  27. Symons, R.; Pourmorteza, A.; Sandfort, V.; Ahlman, M.A.; Cropper, T.; Mallek, M.; Kappler, S.; Ulzheimer, S.; Mahesh, M.; Jones, E.C.; et al. Feasibility of Dose-reduced Chest CT with Photon-counting Detectors: Initial Results in Humans. Radiology 2017, 285, 980–989. [Google Scholar] [CrossRef]
Figure 1. Pulmonary metastasis (arrows) of a colorectal carcinoma in a 75-year-old man. Tumor size: (C,F) 9 mm, (A,B,D,E) 10.5 mm, timespan between the examinations: 3 months.
Figure 1. Pulmonary metastasis (arrows) of a colorectal carcinoma in a 75-year-old man. Tumor size: (C,F) 9 mm, (A,B,D,E) 10.5 mm, timespan between the examinations: 3 months.
Tomography 08 00119 g001

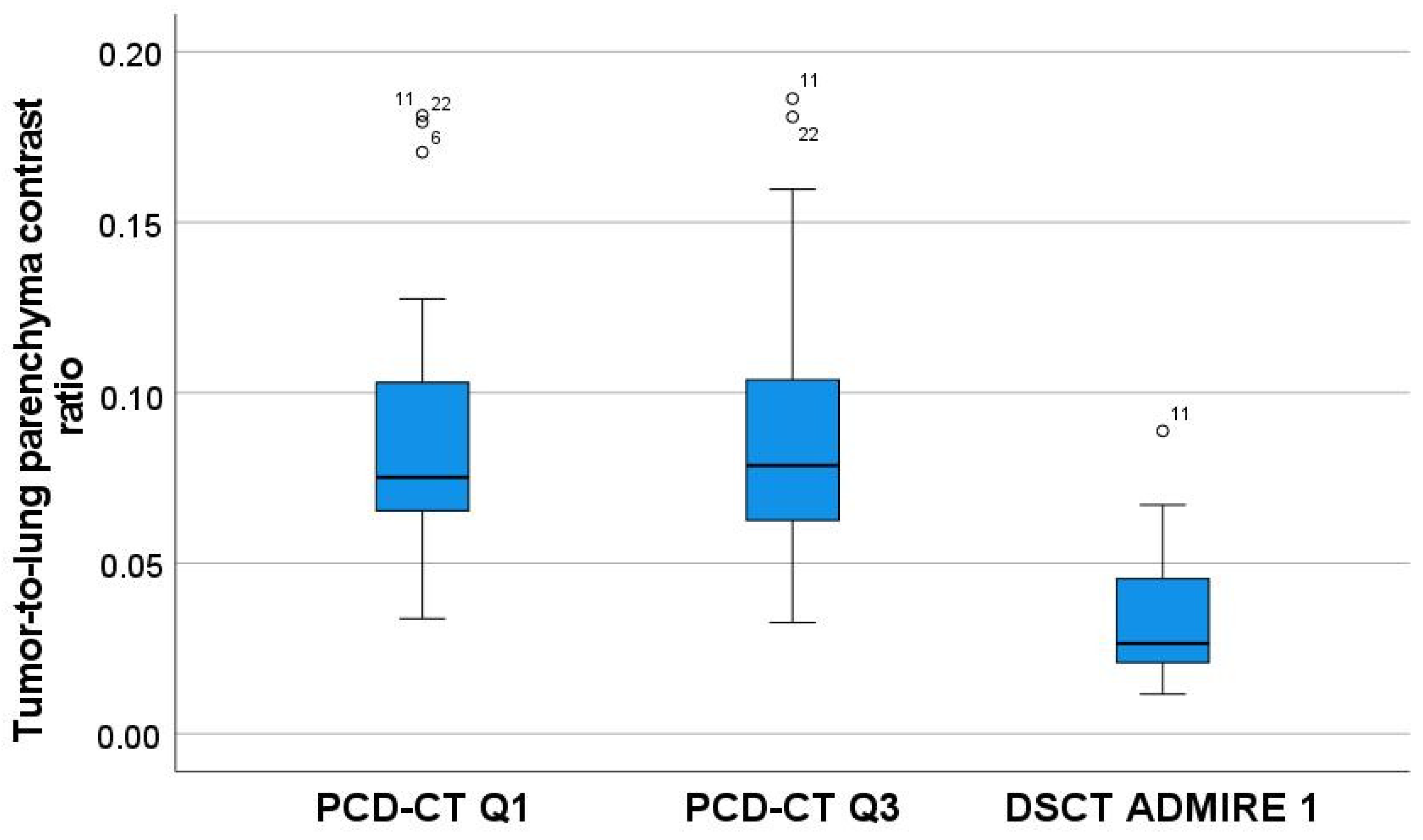

Figure 2. Boxplots representing the ratios of tumor-to-lung parenchyma contrast calculated for the two scanners, including the two Quantum strengths (Q1 and Q3) for the PCD.
Figure 2. Boxplots representing the ratios of tumor-to-lung parenchyma contrast calculated for the two scanners, including the two Quantum strengths (Q1 and Q3) for the PCD.
Tomography 08 00119 g002
Figure 3. Delineation of lung vessel contours in a 59-year-old man. Window width: 1000 HU, Window level: −590 HU, (A) Q1 iterative reconstructed image data set, (B) Q3 iterative reconstructed image data set, (C) ADMIRE1 iterative reconstructed image data set. Arrows: bifurcation of thin vessels.
Figure 3. Delineation of lung vessel contours in a 59-year-old man. Window width: 1000 HU, Window level: −590 HU, (A) Q1 iterative reconstructed image data set, (B) Q3 iterative reconstructed image data set, (C) ADMIRE1 iterative reconstructed image data set. Arrows: bifurcation of thin vessels.
Tomography 08 00119 g003
Figure 4. Delineation of mediastinal vessel contours in a 63-year-old man. Window width: 342 HU, window level: 56 HU (A) Q1 iterative reconstructed image data set, (B) Q3 iterative reconstructed image data set, (C) ADMIRE1 iterative reconstructed image data set. Arrows: thin mediastinal vessel.
Figure 4. Delineation of mediastinal vessel contours in a 63-year-old man. Window width: 342 HU, window level: 56 HU (A) Q1 iterative reconstructed image data set, (B) Q3 iterative reconstructed image data set, (C) ADMIRE1 iterative reconstructed image data set. Arrows: thin mediastinal vessel.
Tomography 08 00119 g004
Figure 5. Coronal reformats of a contrast-enhanced chest-CT in a 76-year-old female patient. Note the different quality in delineation of intercostal vessels. (A,C): Window width: 877 HU, Window level: 108 HU, (B,D): Window width: 342 HU, Window level: 56 HU, (A,B) Q1 iterative reconstructed image data set, (C,D) ADMIRE1 iterative reconstructed image data set. Arrows: thin intercostal vessels.
Figure 5. Coronal reformats of a contrast-enhanced chest-CT in a 76-year-old female patient. Note the different quality in delineation of intercostal vessels. (A,C): Window width: 877 HU, Window level: 108 HU, (B,D): Window width: 342 HU, Window level: 56 HU, (A,B) Q1 iterative reconstructed image data set, (C,D) ADMIRE1 iterative reconstructed image data set. Arrows: thin intercostal vessels.
Tomography 08 00119 g005
Table 1. Distribution of oncological disease among the participants.
Table 1. Distribution of oncological disease among the participants.
Oncological DiseasesAbsolute Value (Relative Value in %)
NSCLC/SCLC12 (12%)/7 (7%)
Colorectal carcinoma17 (17%)
Gastrooesophageal carcinoma15 (15%)
Pancreatic carcinoma10 (10%)
Hepatobiliary cancer8 (8%)
Lymphoma7 (7%)
Others (ovarian carcinoma, thymic carcinoma, etc.)24 (24%)
Table 2. Patient characteristics.
Table 2. Patient characteristics.
PCD-CT (Mean ± SD)DSCT (Mean ± SD)p-Value
Age (in [y])65.02 ± 11.3864.65 ± 11.14<0.001 *
Weight (in [kg])72.34 ± 14.7172.26 ± 14.850.142 *
Height (in [m])1.72 ± 0.0841.72 ± 0.0860.620 *
BMI (in [ k g m 2 ])24.43 ± 4.4324.45 ± 4.530.304 *
Transverse diameter (in [cm])34.67 ± 3.9834.91 ± 4.170.141 **
* Wilcoxon signed rank paired test, ** paired t-test.
Table 3. Comparison of the objective image quality between DSCT und PCD-CT.
Table 3. Comparison of the objective image quality between DSCT und PCD-CT.
DSCTPCD-CTp-ValueCorrected p-Value
ADMIRE 1Q1Q3
ROIascending_thoracic_aorta
(Median ± SD)
192.40 ± 42.28282.05 ± 47.62280.30 ± 45.34<0.001** < 0.001 (Q3/DSCT)
** < 0.001 (Q1/DSCT)
ROIdescending_thoracic_aorta
(Median ± SD)
182.90 ± 44.57274.10 ± 45.85273.90 ± 46.27<0.001** < 0.001 (Q3/DSCT)
** < 0.001 (Q1/DSCT)
ROIpulmonary_trunk
(Median ± SD)
208.25 ± 54.88295.25 ± 77.71294.65 ± 81.91<0.001** < 0.001 (Q3/DSCT)
** < 0.001 (Q1/DSCT)
ROIlung_parenchyma
(Median ± SD)
−888.65 ± 29.22−888.65 ± 30.95−891.60 ± 31.250.403
ROIpectoralis_muscle
(Median ± SD)
63.60 ± 11.6257.25 ± 8.0057.10 ± 7.55 0.002** 0.011 (Q3/DSCT)
** 0.010 (Q1/DSCT)
ROIsubcutaneous_fat
(Median ± SD)
−96.65 ± 34.73−108.25 ± 18.47−108.55 ± 18.67<0.001** < 0.001 (Q3/DSCT)
** < 0.001 (Q1/DSCT)
SNRascending_thoracic_aorta
(Mean ± SD)
21.67 ± 5.9819.44 ± 4.3824.86 ± 5.36<0.001 *** Q3 > DSCT > Q1 (p < 0.001)
SNRdescending_thoracic_aorta
(Median ± SD)
19.79 ± 6.7719.01 ± 4.6025.87 ± 6.35<0.001 *** 0.002 (Q3/DSCT)
** < 0.001 (Q1/DSCT)
SNRpulmonary_artery
(Median ± SD)
20.81 ± 7.3819.17 ± 5.3825.45 ± 6.96<0.001 *** Q3 > DSCT > Q1 (p < 0.001)
SNRchest_muscle
(Median ± SD)
5.62 ± 1.894.66 ± 3.576.02 ± 1.65<0.001 *** Q3 > DSCT > Q1 (p < 0.001)
SNRtracheal_air
(Median ± SD)
−110.72 ± 40.31−70.73 ± 25.48−84.14 ± 32.28<0.001 *** Q3 > DSCT > Q1 (p < 0.001)
SNRsubcutaneous_fat
(Mean ± SD)
−8.30 ± 3.73−8.31 ± 2.52−10.59 ± 3.36<0.001 *** Q3 > DSCT > Q1 (p < 0.001)
SNRlung_parenchyma
(Median ± SD)
−78.61 ± 24.46−70.21 ± 20.51−85.15 ± 26.63<0.001** < 0.001 (Q1/DSCT)
** < 0.001 (Q3/DSCT)
CNRvessel
(Median ± SD)
11.98 ± 5.5818.02 ± 6.3622.48 ± 8.07<0.001 *** Q3 > Q1 > DSCT (p < 0.001)
CNRlung_parenchyma
(Median ± SD)
−85.08 ± 22.61−75.00 ± 16.68−93.90 ± 26.44<0.001 *** Q3 > DSCT > Q1 (p < 0.001)
Tumor-to-lung parenchyma contrast ratio
(Median ± SD)
0.03 ± 0.020.08 ± 0.04 0.08 ± 0.04<0.001 *** Q3 > DSCT (p < 0.001)
** Q1 > DSCT (p < 0.001)
* Friedman-test, ** Post-Hoc Dunn–Bonferroni-Tests with corrected alpha.
Table 4. Comparison of the subjective image quality between the DSDECT and PCD-CT (Q1 and Q3).
Table 4. Comparison of the subjective image quality between the DSDECT and PCD-CT (Q1 and Q3).
DSCTPCD-CTp-ValueCorrected p-Value
Admire 1Q1Q3
MediastinumImage Noise Median (Min-Max)4 (3–5)3 (2–4)3 (2–4)<0.001 *** DSCT > Q1 (p < 0.001)
** DSCT > Q3 (p = 0.014)
Image Contrast Median (Min-Max)3 (2–4)4 (2–4)4 (2–4)<0.001 *** Q1 > DSCT (p < 0.001)
** Q3 > DSCT (p < 0.001)
Image Sharpness
Median (Min-Max)
4 (2–5)3 (1–4)3 (2–5)<0.001 *** DSCT > Q1 (p = 0.003)
** DSCT > Q3 (p = 0.024)
VesselsImage Noise Median (Min-Max)4 (3–5)4 (3–5)4 (3–5)<0.001 *No differences between the groups
Image Contrast Median (Min-Max)4 (2–5)5 (3–5)5 (3–5)<0.001 *** Q1 > DSCT (p < 0.001)
** Q3 > DSCT (p < 0.001)
Image Sharpness
Median (Min-Max)
4 (3–5)4 (3–5)4 (2–5)0.662 *No differences between the groups
Lung parenchymaImage Noise Median (Min-Max)4 (3–4)3 (2–4)4 (3–5)<0.001 *** Q3 > Q1 (p < 0.001)
** DSCT > Q1 (p < 0.001)
Image Contrast Median (Min-Max)4 (3–4)4 (3–5)4 (3–5)<0.001 *** Q3 > DSCT (p = 0.027)
Image Sharpness
Median (Min-Max)
4 (3–5)4 (3–5)4 (3–5)0.004 *No differences between the groups
* Friedman-test, ** Post-Hoc Dunn–Bonferroni-Tests with corrected alpha.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
