Restorative Materials Exposed to Acid Challenge: Influence of Temperature on In Vitro Weight Loss

by
Riccardo Beltrami
1,*,
Marco Colombo
1,
Gianpaolo Bitonti
1,
Marco Chiesa
1,
Claudio Poggio
1 and
Giampiero Pietrocola
2
1
Section of Dentistry, Department of Clinical-Surgical, Diagnostic and Pediatric Sciences, University of Pavia, 27100 Pavia, Italy
2
Department of Molecular Medicine, Unit of Biochemistry, University of Pavia, 27100 Pavia, Italy
*
Author to whom correspondence should be addressed.
Biomimetics 2022, 7(1), 30; https://doi.org/10.3390/biomimetics7010030
Submission received: 24 January 2022 / Revised: 20 February 2022 / Accepted: 22 February 2022 / Published: 26 February 2022
Browse Figure
Review Reports Versions Notes

Abstract

:
Consumption of acidic beverages and foods could provoke erosive damage, both for teeth and for restorative materials. Temperatures of consumption could influence the erosive effects of these products. The aim of this in vitro study is to assess the influence of an acidic challenge on the weight loss of different restorative materials. Resin composites and glass-ionomer cements (GIC) were tested. The medium of storage was Coca-Cola (Coca-Cola, Coca-Cola Company, Milano, Italy) at two different temperatures, 4 and 37 °C, respectively for Group A and Group B. For each group, nine specimens were prepared for each material tested. After 7 days, weight was assessed for each sample, and the percentage weight loss was calculated. For all the resin composites (Groups 1–13), no significant weight losses were noticed. (<1%). Conversely, GICs (Groups 14 and 15) showed significant weight loss during the acidic challenge, which was reduced in the case of these materials that included a protective layer applied above. Significant differences were registered with intra-group analysis; weight loss for specimens immersed in Coca Cola at 37 °C was significantly higher for almost all materials tested when compared to specimens exposed to a cooler medium. In conclusion, all the resin composites showed reliable behaviour when exposed to acidic erosion, whereas glass-ionomer cements generally tended to solubilize.

1. Introduction

A tooth may require restoration or filling for many reasons [1,2,3,4,5,6,7]. The most frequent reasons are caries, erosion, trauma, abrasion, congenital anomalies and aesthetically defective teeth. Among these, erosion seems to be one of the most prevalent reasons for intervention. The chemical loss or softening of enamel and dentin is not produced by bacteria but is due to the action of acids [8]. Aggressive erosion or enamel softening are also typical signs in patients with psychosocial pathological disorder, such as anorexia and bulimia, or autoimmune syndromes, such as Sjogren’s syndrome [9]. Sjogren’s syndrome causes a significant reduction in saliva, which in physiological conditions, provides protection through dilution, buffering, neutralization and elimination of acids, as well as through providing minerals for the remineralization of the eroded surface [10]. Except for this particular case, diet represents the key aetiology factor, and particular attention has been focused on acidic drinks [11,12,13]. Acidic solutions may destroy the hard tissue of the teeth by erosion if prolonged contact occurs [14]. Consumption of nonalcoholic beverages such as soft drinks is therefore the main cause of dental erosion in young patients [15,16,17,18,19,20,21]. Several studies have described the significant loss of hardness on enamel after immersion in different soft drinks such as orange juice, fruit juices or Coca-Cola, but the range of studies published on this topic could be easily widened if the research would comprise citric acid or hydrochloric acid. Citric acid is commonly chosen as a substitute for acidic beverages and is classified as a medium-strong to weak polyvalent acid. Hydrochloric acid was chosen because it is a compound of gastric juice. In vitro published research has shown that citric acid, when compared to hydrochloric acid, exhibits a great potential for further dissociation and delivery of H+ protons. Moreover, it is reported that citric acid has chelating properties for enamel’s calcium ions, thus enhancing further dissolution. Therefore, the acid erosion of enamel comprises different chemical mechanisms induced by the acid solution: type of acid, pH, amount of tithable acid, and chelating ability, in which calcium and phosphate have total impact on the degree of erosivity of any beverage. Even physical aspects seem to have influence on the erosive potential of acidic beverages; however, until now, few research regarding adhesiveness of the solution to the enamel surface, agitation and flow of the beverage, and temperature of consumption has been published [22,23,24]. These interesting theoretical results could be shifted to clinical situations adopting acidic beverages as a medium for enamel specimens [25]. Grobler et al. [26] reported that fruit juices are much more destructive to teeth than whole fruit due to the percentages and quality of sugar contained [27]. Gedalia et al. [28] stated that the microhardness of enamel decreased in only an hour from exposure to Coca-Cola due to the fact that it contains phosphoric acid, which is considered extremely erosive. In addition, soft drinks are generally consumed at a considerably different temperature from equilibrium temperature of the mouth at 36 °C. The consumption of hot or cold fluids causes a change in oral temperature as previously described by Airoldi et al. [29]. Chemical reactions, such as the dissociation of acidic substances, are thermodynamically favoured if environmental temperature is higher [30]. Therefore, the temperature of consumption of acidic drinks could affect the erosive lesion depths in a significant manner.
Aesthetic restorative composite resins should maintain the appearance of natural teeth, but the durability in the mouth is related to their microhardness and insolubility. Therefore, the erosive acidity of soft drinks introduced with diet affects the microhardness, wear and microleakage of the composite resins and the durability of the dental restoration in the long term [31,32,33]. Coehlo et al. [34] reported that generally there is a surface decrease in microhardness as well as an increase in roughness in the long term. The subsequent weight loss of the dental restorations could be measured in an in vitro design study and could be related to the acidogenic potential of the soft drinks. Clinicians could apply different strategies to minimize the effects of weight loss of dental restorations, such as informing patients about durability of restorations, advising patients regarding alimentary habits and use of topically applied fluoride formulations, performing preventive and minimally invasive treatments when the decay of restorations is evident [9].
A wide range of materials by different manufacturers has been tested, particularly composite resins and glass-ionomer cements. Composite resins allow one to carry out permanent dental restorations with good aesthetic and adequate mechanical/chemical parameters; glass-ionomer cements are more frequently used in orthodontics and pedodontics.
Physiological and para-physiological conditions could therefore change mechanical and chemical characteristics of restorative materials. Besides, several research articles have assessed, in vitro, different aspects and have shown a significant general decrease in surface microhardness as well as an increase in roughness [34]. The storage medium for the materials tested is therefore prepared mimicking the challenging situations, such as the case of high intake of acidic drinks.
The aim of the present study is to evaluate and compare the action of acidic challenges on the weight loss of restorative composite resins and of two glass-ionomer cements from different manufacturers. The tested hypothesis is that acidic drinks and their temperature of consumption cause no erosion, and consequently weight loss, of the restorative materials tested.

2. Materials and Methods

2.1. Materials Tested

Thirteen different composite resins and two glass-ionomer cements (GICs) were considered in this study and subdivided into groups. Table 1 reports the compositions and manufacturers of each material testes.

2.2. Determination of Sample Size

To determine a valid sample size (alpha = 0.05; power = 80%), we hypothesized an expected mean for percentage weight loss of 1.75 with a standard deviation of 0.85. The expected difference between the means was supposed to be 1.35, and therefore 9 specimens were requested for each group. For each material, we prepared 18 specimens as described above. The specimens were then randomly divided into two groups.

2.3. Sample Preparation

In order to obtain equal specimens, silicon rings (height 2 mm, internal diameter 6 mm, external diameter 8 mm) were filled with the materials tested. Each sample of glass-ionomer cements was prepared by mixing liquid and powder, and then silicon rings were filled as described. For each sample of glass-ionomer cements, we mixed powder and liquid, in order to fill molds with freshly prepared material. Molds were positioned above a dark opaque paper background with a polyester matrix strip interposed in order to obtain a smooth surface under the material, as well as to avoid light reflection from the bottom, thus reducing artificial hardening of this area. For each product, the A2 Vita shade was chosen in order to avoid the effects of colorants on light curing [35].
Each mould was slightly overfilled, and a second polyester matrix strip (Mylar strip, Henry Schein, Melville, NY, USA) was positioned on the top to avoid oxygen interfering with the polymerization of the most superficial layer of the composite; in order to extrude the excess composite resin and obtain a flat surface, a glass slide was pressed against the upper polyester film and removed before curing [36].
Each sample of the light-curing composite resins was light cured for 40 s with the LED unit Celalux 2 (Voco, Cuxhaven, Germany) and then removed from the mold without conducting polishing. Led unit Celalux 2 was checked with a radiometer (SDS Kerr, Orange, CA, USA) before every use. The terminal device of the LED unit was placed on the external (top) side of the molds and concentrically with the rings. Exclusively, one light polymerization mode was used, with an output irradiance of 1000 mW/cm2 [37,38].
Each sample of the glass-ionomer material was allowed to harden for the same time as reported in manufacturer’s instructions.
All the samples were subsequently dried at 37 °C for 24 h and then weighed with a Mettler–Toledo precision balance (AE1633, Mettler-Toledo SPA, Novate Milanese, Milan, Italy) with metering accuracy of 0.01 mg. Three weights were registered for each specimen, and mean value was considered for analysis.
Subsequently, 18 specimens of each material were divided into two experimental groups:
  • Group A: nine specimens immersed in 50 mL of a soft drink (Coca-Cola, Coca-Cola Company, Milano, Italy) at temperature 4 ± 1 °C;
  • Group B: nine specimens immersed in 50 mL of a soft drink (Coca-Cola, Coca-Cola Company, Milano, Italy) at temperature 37 ± 1 °C.
After 7 days, each specimen was removed from the liquid using tweezers, then dried with blotting paper, left undisturbed for 24 h at 37 °C to completely dry, and then weighed three times with the precision balance as previously described. Mean value for each specimen was considered for the analysis.
The difference between the mean weight before the immersion and the mean weight after the immersion was considered as the outcome of the study (WL: weight loss) and then expressed in percentage. The difference in percentage was considered the percentage of weight loss due to acidic erosion.
Weight loss (WL) = mean weight before immersion (Mwt0) − mean weight after immersion (Mwt1).

2.4. Statistical Analysis

Data were analysed with R (The R Foundation for Statistical Computing, Vienna, Austria). The resulting data were expressed as percentages of weight loss of materials after 7 days of acid challenge at different temperatures and pH. Descriptive statistic values median, minimum, maximum, mean and standard deviation were calculated. Data observed were not normally distributed, and non-parametric statistical methods were used for statistical analysis. The Wilcoxon test was used for intragroup comparison of weight loss of each material due to the different acidic expositions. The Kruskal–Wallis was used for intergroup multiple comparisons of the different materials tested. Significance value was set as p < 0.05.

3. Results

As shown in Table 2 and Figure 1, the exposure to the acidic drink of all restorative materials tested caused different values of weight loss. G-aenial, Enamel Plus Hai Bio Function, Grandioso Heavy Flow, Admira Fusion x-base, GrandiO Flow, G-aenial Flow, Ceram.x Spectra ST flow, Admira Fusion x-Tra, VisCalor Bulk, GC Equia Forte and GC Equia Forte + Coat assigned to Group A lost significantly less weight than Group B (p < 0.05), while Grandioso Flow showed the opposite result (p < 0.05). The protocols of acid exposure (Groups A and B) did not significantly affect the weight loss of Grandioso Light Flow, x-Tra Fil and GrandiOSO x-tra (p > 0.05), which showed similar results even if the acidic expositions at different temperatures were different. With intergroup multiple comparisons, it emerged that Enamel Plus Hai Bio Function, Admira Fusion x-base, G-aenial Flow, Ceram.x Spectra ST flow and Admira Fusion x-Tra had similar weight loss (p > 0.05) in Group A conditions, while G-aenial, Grandioso Light Flow, Grandioso Heavy Flow and x-Tra Fil had a significantly higher percentage of weight loss (p < 0.05). GC Equia Forte and GC Equia Forte + Coat showed similar results after exposure to conditions of Group A (p > 0.05). When considering materials exposed to Group B acidic conditions, intragroup multiple comparisons showed that GC Equia Forte and GC Equia Forte + Coat had the highest values of weight loss if compared to composite resins. Similar percentage values were recorded for G-aenial, GrandiOSO Light Flow, GrandiOSO Flow, x-tra Fill, G-aenial Flo-X, Ceram.x Spectra ST flow, Admira Fusion x.tra and GrandiOSO x-tra (p > 0.05). Admira Fusion x-base, GrandiO Flow and VisCalor Bulk showed similar low percentages of weight loss when exposed to conditions of Group B (p > 0.05).

4. Discussion

Currently, the large consumption of artificially sweetened beverages, sport drinks, energy drinks and other substances causes problems to restorative dental materials [39,40,41]. The reason is that the beverages come into contact with the oral cavity, and thus the pH of the beverage affects the cavity. Teeth undergo dental erosion due to the concentration of hydrogen ions, i.e., pH measurement. The softening and dissolution of dental tooth structure is primarily caused by weak acids such as citric and phosphoric acid. In the present study, to test the durability of restorative dental materials, Coca-Cola was selected because it is a frequently consumed beverage and because its pH is about 2.3–2.5. When the oral pH range is between 2.0 and 4.0, tooth enamel erodes, although enamel demineralization starts at a pH of less than 5.5 [42].
The composition of each restorative dental material and polishing techniques have a direct impact on final surface characteristics of the restorations. Roughness, hardness, susceptibility to erosion and susceptibility to staining could then be influenced by environmental factors [43]. In this study, specimens of all materials tested were polymerized under a polyester matrix strip because they are reported to give the smoothest surface in experimental studies [44].
It can be seen from Table 2 that a higher temperature of soft drink could cause a higher weight loss in almost all materials tested. The differences between the mean percentages are significant. An increase in temperature of about 33 °C causes an average decrease of 0.15–0.20 pH units for the beverage [45,46]. Grandioso Light Flow, x-Tra Fill and Grandioso x-Tra were the only restorative materials of which an increase in weight loss due to higher temperature was registered, but it was not statistically significant.
Several authors have found that restorative materials subjected to thermal changes in the oral environment undergo unfavourable effects on the margins of the restorations, thus provoking microleakage and secondary caries [44,47]. In vivo studies reported that the salivary buffering capacity could mitigate or increase the erosive effects of acidic beverages on enamel and on restorative dental materials. Sanchez et al. reported that low salivary flow rates are associated with wider eroded areas on enamel [47]. However, the influence of this confounder is unpredictable and is not reproducible in experimental assays [47]. In the literature, there is confusion about erosion characteristics and solubility of dental restorative materials between clinical and in vitro studies [48,49,50]. The application of different experimental protocols and media affects the possibility to fully understand and compare the physico-chemical properties of different restorative materials when in direct contact with acidic solutions.
The present study shows that all the composite resins tested have proven to be well resistant to the acid medium. Conversely, some glass-ionomer cements can be subjected to an elevated and progressive loss of weight after exposure to acidic beverages, but if they are coated with a protective material, this loss significantly decreases. The mechanism of loss of weight in acid buffer solutions depends on the diffusion of the eluted species in the function of H+ ion concentration. The dissolution of the cement is therefore the result of the diffusion of ion concentration and the surface reaction. The application of the coat in GC Equia Forte + Coat is motivated by these chemical aspects that significantly influence the behaviour of glass-ionomer cements [51]. Above these considerations, glass-ionomer cements remain among the most used materials in paediatric dentistry and orthodontics because of their action as a fluoride reservoir which increases the concentration of this ion in saliva, plaque, and hard tissues of teeth, thus reducing the incidence of secondary caries [47].
These results suggest that restorative materials could be effective in protecting from erosive damages caused by excessive consumption of acidic drinks. Even for long immersion times, all materials tested did not lose an amount of weight higher than 0.3%, except for GrandiOSO Flow, which reached 1% of weight loss.
Our results show that there is an influence of acidic beverages and their temperature of consumption on the erosion of restorative materials. The mean weight loss of restorative materials for an acid solution at 4 °C was 0.3477, while for an acid solution at 37 °C, it was 0.5024. The entity of weight loss was minimal in percentage for composite resins (<1%), while significant weight loss was recorded for glass-ionomer cements.
The erosion kinetics, considering the dissolution steps of surface wash-off, the surface corrosion and the diffusion in the solid state, are not taken into account in the present study, and this could be addressed as the main limitation of this in vitro research. However, as reported by Matsuya et al. [52], the chemical kinetics undergoing the dissolution in acidic solution are well known and could be synthesized in two processes: the diffusion and the surface reaction between the acid anion and the eluted ions.

5. Conclusions

Further in vivo studies are needed to confirm our preliminary results; however, the methodology about the type of acidic solution, immersion time and polishing technique should be maintained to achieve comparable results. The limit of the present study is that environmental confounders, such as salivary buffering capacity and oral hygiene procedures, are not weighted in the in vitro analysis. In in vitro analyses, the differences in methodology could bring differences in the results, as shown in many studies published on this topic [33,53,54]. Moreover, the present study did not consider a control medium such as distilled water, which could have highlighted or reduced the effects of the acidic beverage.

Author Contributions

Conceptualization, R.B.; Data curation, G.B., C.P. and G.P.; Formal analysis, M.C. (Marco Colombo) and G.P.; Investigation, M.C. (Marco Chiesa); Project administration, R.B.; Resources, M.C. (Marco Chiesa); Software, G.B., M.C. (Marco Chiesa) and G.P.; Validation, R.B., C.P. and G.P.; Visualization, M.C. (Marco Colombo); Writing—original draft, M.C. (Marco Colombo) and G.B.; Writing—review and editing, R.B., C.P. and G.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was not funded by any organization or company.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank the manufacturers of the products tested. The entire article or part of the research (methods, data, results) are not published elsewhere, and they are not under consideration for publication.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Smith, B.G. Toothwear: Aetiology and diagnosis. Dent. Update 1989, 16, 204–212. [Google Scholar] [PubMed]
  2. Bedi, R. Management of a child with anorexia nervosa who presents with severe tooth erosion. J. Prosthodont. Restor. Dent. 1991, 1, 13–17. [Google Scholar]
  3. Welbury, R.R. A clinical study of a microfilled composite resin for labial veneers. Int. J. Paediatr. Dent. 1991, 1, 9–15. [Google Scholar] [CrossRef] [PubMed]
  4. Dahl, B.L.; Carlsson, G.E.; Ekfeldt, A. Occlusal wear of teeth and restorative materials. A review of classification, etiology, mechanisms of wear, and some aspects of restorative procedures. Acta Odontol. Scand. 1993, 51, 299–311. [Google Scholar] [CrossRef] [PubMed]
  5. Bartlett, D.W.; Coward, P.Y.; Nikkah, C.; Wilson, R.F. The prevalence of tooth wear in a cluster sample of adolescent schoolchildren and its relationship with potential explanatory factors. Br. Dent. J. 1998, 184, 125–129. [Google Scholar] [CrossRef]
  6. Osborne-Smith, K.L.; Burke, F.J.; Wilson, N.H. The aetiology of the non-carious cervical lesion. Int. Dent. J. 1999, 49, 139–143. [Google Scholar] [CrossRef] [PubMed]
  7. Watson, M.L.; Burke, F.J. Investigation and treatment of patients with teeth affected by tooth substance loss: A review. Dent. Update 2000, 27, 175–183. [Google Scholar] [CrossRef]
  8. Ganss, C. Definition of erosion and links to tooth wear. In Dental Erosion: From Diagnosis to Therapy; Lussi, A., Ed.; Karger Publishers: Basel, Switzerland, 2006; p. 9.e16. [Google Scholar]
  9. Wegehaupt, F.J.; Tauböck, T.T.; Attin, T. Durability of the anti-erosive effect of surfaces sealants under erosive abrasive conditions. Acta Odontol. Scand. 2013, 71, 1188–1194. [Google Scholar] [CrossRef] [Green Version]
  10. Steiger-Ronay, V.; Kuster, I.M.; Wiedemeier, D.B.; Attin, T.; Wegehaupt, F.J. Erosive loss of tooth substance is dependent on enamel surface structure and presence of pellicle—An in vitro study. Arch. Oral Biol. 2020, 112, 104686. [Google Scholar] [CrossRef]
  11. Stafne, E.C.; Lovestedt, S.A. Dissolution of tooth substance by lemon juice, acid beverages and acids from some other sources. J. Am. Dent. Assoc. 1947, 34, 586–592. [Google Scholar] [CrossRef]
  12. Thomas, A.E. Further observations on the influence of citrus fruit juices on human teeth. N. Y. State Dent. J. 1957, 23, 424. [Google Scholar]
  13. Holloway, P.J.; Mellanby, M.; Stewart, R.J.C. Fruit drinks and tooth erosion. Br. Dent. J. 1958, 104, 305. [Google Scholar]
  14. Lussi, A.; Schaffner, M.; Hotz, P.; Suter, P. Dental erosion in a population of Swiss adults. Community Dent. Oral Epidemiol. 1991, 19, 286–290. [Google Scholar] [CrossRef] [PubMed]
  15. Lussi, A.; Jaeggi, T. Erosion—Diagnosis and risk factors. Clin. Oral Investig. 2008, 12 (Suppl. S1), S5–S13. [Google Scholar] [CrossRef] [Green Version]
  16. Levine, R.S. Fruit juice erosion—An increasing danger? J. Dent. 1973, 2, 85–88. [Google Scholar] [CrossRef]
  17. Eccles, J.D. Erosion affecting the palatal surfaces of upper anterior teeth in young people. A report of 19 cases. Br. Dent. J. 1982, 152, 375–378. [Google Scholar] [CrossRef] [PubMed]
  18. Asher, C.; Read, M.J. Early enamel erosion in children associated with the excessive consumption of citric acid. Br. Dent. J. 1987, 162, 384–387. [Google Scholar] [CrossRef]
  19. Mackie, I.C.; Blinkhorn, A.S. Unexplained losses of enamel on upper incisor teeth. Dent. Update 1989, 16, 403–404. [Google Scholar]
  20. O’Sullivan, E.A.; Curzon, M.E. Dental erosion associated with the use of ‘alcopop’—A case report. Br. Dent. J. 1998, 184, 594–596. [Google Scholar] [CrossRef]
  21. Lussi, A.; Hellwig, E. Erosive potential of oral care products. Caries Res. 2001, 35 (Suppl. S1), 52–56. [Google Scholar] [CrossRef]
  22. Maupome, G.; Aguilar-Avila, M.; Medrano-Ugalde, H.; Borges-Yanez, A. In vitro quantitative microhardness assessment of enamel with early salivary pellicles after exposure to an eroding cola drink. Caries Res. 1999, 33, 140–147. [Google Scholar] [CrossRef] [PubMed]
  23. Eisenburger, M.; Addy, M. Influence of liquid temperature and flow rate on enamel erosion and surface softening. J. Oral Rehabil. 2003, 30, 1076–1080. [Google Scholar] [CrossRef] [PubMed]
  24. Shellis, R.P.; Finke, M.; Eisenburger, M.; Parker, D.M.; Addy, M. Relationship between enamel erosion and liquid flow rate. Eur. J. Oral Sci. 2005, 113, 232–238. [Google Scholar] [CrossRef] [PubMed]
  25. Attin, T.; Becker, K.; Wiegand, A.; Tauböck, T.T.; Wegehaupt, F.J. Impact of laminar flow velocity of different acids on enamel calcium loss. Clin. Oral Investig. 2013, 17, 595–600. [Google Scholar] [CrossRef] [Green Version]
  26. Grobler, S.R.; Senekal, P.J.; Kotze, T.J. The degree of enamel erosion by five different kinds of fruit. Clin. Prev. Dent. 1989, 11, 23–28. [Google Scholar]
  27. Report of Health Promotion Administration, Ministry of Health and Welfare; Reference No. DOH94-HP-1310/DOH95-HP-1317; Health Promotion Administration, Ministry of Health and Welfare: Taipei, China, 2006.
  28. Gedalia, I.; Dakuar, A.; Shapira, L.; Lewinstein, I.; Goultschin, J.; Rahamim, E. Enamel softening with Coca-Cola and rehardening with milk or saliva. Am. J. Dent. 1991, 4, 120–122. [Google Scholar]
  29. Airoldi, G.; Riva, G.; Vanelli, M.; Filippi, V.; Garattini, G. Oral environment temperature changes induced by cold/hot liquid intake. Am. J. Orthod. Dentofac. Orthop. 1997, 112, 58–63. [Google Scholar] [CrossRef]
  30. Hankermeyer, C.R.; Ohashi, K.L.; Delaney, D.C.; Ross, J.; Constantz, B.R. Dissolution rates of carbonated hydroxyapatite in hydrochloric acid. Biomaterials 2002, 23, 743–750. [Google Scholar] [CrossRef]
  31. Ferracane, J.L. Is the wear of dental composites still a clinical concern? Is there still a need for in vitro wear simulating devices? Dent. Mater. 2006, 22, 689–692. [Google Scholar] [CrossRef]
  32. Yap, A.U.; Tan, S.H.; Wee, S.S.; Lee, C.W.; Lim, E.L.; Zeng, K.Y. Chemical degradation of composite restoratives. J. Oral Rehabil. 2001, 28, 1015–1021. [Google Scholar] [CrossRef]
  33. Da Silva, M.A.; Fardin, A.B.; de Vasconcellos, R.C.; Santos Lde, M.; Tonholo, J.; da Silva, J.G., Jr.; dos Reis, J.I. Analysis of roughness and surface hardness of a dental composite using atomic force microscopy and microhardness testing. Microsc. Microanal. 2011, 17, 446–451. [Google Scholar] [CrossRef] [PubMed]
  34. Coelho, A.; Paula, A.; Amaro, I.; Marto, C.M.; Costa, N.; Saraiva, J.; Ferreira, M.M.; Antunes, P.; Carrilho, E. Mechanical Characterization of Two Dental Restorative Materials after Acidic Challenge. J. Compos. Sci. 2021, 5, 31. [Google Scholar] [CrossRef]
  35. Cao, T.; Saw, T.Y.; Heng, B.C.; Liu, H.; Yap, A.U.; Ng, M.L. Comparison of different test models for the assessment of cytotoxicity of composite resins. J. Appl. Toxicol. 2005, 25, 101–108. [Google Scholar] [CrossRef] [PubMed]
  36. Saw, T.Y.; Cao, T.; Yap, A.U.; Ng, M.M.L. Tooth slice organ culture and established cell line culture models for cytotoxicity assessment of dental materials. Toxicol. Vitro 2005, 19, 145–154. [Google Scholar] [CrossRef] [PubMed]
  37. Van Dijken, J.W.; Sjöström, S.; Wing, K. Development of gingivitis around different types of composite resin. J. Clin. Periodontol. 1987, 14, 257–260. [Google Scholar] [CrossRef] [PubMed]
  38. Paolantonio, M.; D’ercole, S.; Perinetti, G.; Tripodi, D.; Catamo, G.; Serra, E.; Bruè, C.; Piccolomini, R. Clinical and microbiological effects of different restorative materials on the periodontal tissues adjacent to subgingival class V restorations. J. Clin. Periodontol. 2004, 31, 200–207. [Google Scholar] [CrossRef]
  39. Beltrami, R.; Chiesa, M.; Scribante, A.; Allegretti, J.; Poggio, C. Comparison of shear bond strength of universal adhesives on etched and nonetched enamel. J. Appl. Biomater. Funct. Mater. 2016, 14, e78–e83. [Google Scholar] [CrossRef] [Green Version]
  40. Da Silva, M.A.; Vitti, R.P.; Sinhoreti, M.A.; Consani, R.L.; Júnior, J.G.; Tonholo, J. Evaluation of the Surface Roughness and Microleakage of Dental Composites Exposed to Different Beverages. J. Contemp. Dent. Pract. 2015, 16, 800–804. [Google Scholar] [CrossRef]
  41. Seow, W.K.; Thong, K.M. Erosive effects of common beverages on extracted premolar teeth. Aust. Dent. J. 2005, 50, 173–178. [Google Scholar] [CrossRef]
  42. Sidhu, S.K.; Carrick, T.E.; McCabe, J.F. Temperature mediated coefficient of dimensional change of dental tooth-colored restorative materials. Dent. Mater. 2004, 20, 435–440. [Google Scholar] [CrossRef]
  43. Domingos, P.A.; Garcia, P.P.; Oliveira, A.L.; Palma-Dibb, R.G. Composite resin color stability: Influence of light sources and immersion media. J. Appl. Oral Sci. 2011, 19, 204–211. [Google Scholar] [CrossRef] [PubMed]
  44. Barbour, M.E.; Parker, D.M.; Allen, G.C.; Jandt, K.D. Human enamel dissolution in citric acid as a function of pH in the range 2.30≤pH≤6.30—A nanoindentation study. Eur. J. Oral Sci. 2003, 111, 258–262. [Google Scholar] [CrossRef] [PubMed]
  45. Mundim, F.M.; Garcia, L.D.A.F.; Pires-de-Souza, F.D.E.C. Effect of staining solutions and repolishing on color stability of direct composites. J. Appl. Oral Sci. 2010, 18, 249–254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Larsen, M.J.; Nyvad, B. Enamel erosion by some soft drinks and orange juices relative to their pH, buffering effect and contents of calcium phosphate. Caries Res. 1999, 33, 81–87. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Sanchez, G. pH measurement of carbonated beverages and commercial juices frequently consumed by children. Bull. Argent. Assoc. Dent. Child. 1999, 28, 8–10. [Google Scholar]
  48. McLean, J.W.; Wilson, A.D. The clinical development of the glass-ionomer cements. i. Formulations and properties. Aust. Dent J. 1977, 22, 31–36. [Google Scholar] [CrossRef]
  49. Roulet, J.F.; Walti, C. Influence of oral fluid on composite resin and glass-ionomer cement. J. Prosthet. Dent. 1984, 52, 182–189. [Google Scholar] [CrossRef]
  50. Akashi, A.; Matsuya, Y.; Unemori, M.; Akamine, A. The relationship between water absorption characteristics and the mechanical strength of resin-modified glass-ionomer cements in long-term water storage. Biomaterials 1999, 20, 1573–1578. [Google Scholar] [CrossRef]
  51. Fukazawa, M.; Matsuya, S.; Yamane, M. The mechanism for erosion of glass-ionomer cements in organic-acid buffer solutions. J. Dent. Res. 1990, 69, 1175–1179. [Google Scholar] [CrossRef]
  52. Matsuya, S.; Matsuya, Y.; Yamamoto, Y.; Yamane, M. Erosion process of a glass ionomer cement in organic acids. Dent. Mater. J. 1984, 3, 210–219. [Google Scholar] [CrossRef]
  53. Tunc, E.S.; Bayrak, S.; Guler, A.U.; Tuloglu, N. The effects of children’s drinks on the color stability of various restorative materials. J. Clin. Pediatr. Dent. 2009, 34, 147–150. [Google Scholar] [CrossRef] [PubMed]
  54. Dos Santos, P.A.; Garcia, P.P.; De Oliveira, A.L.; Chinelatti, M.A.; Palma-Dibb, R.G. Chemical and morphological features of dental composite resin: Influence of light curing units and immersion media. Microsc. Res. Tech. 2010, 73, 176–181. [Google Scholar] [CrossRef] [PubMed]
Biomimetics 07 00030 g001 550

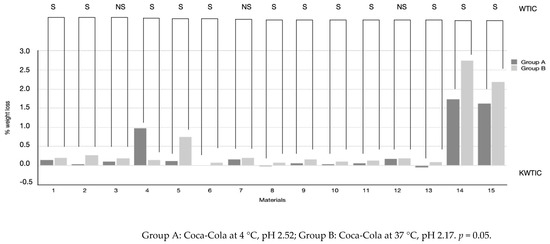

Figure 1. Representation of weight loss percentages after acid immersion in Coca-Cola at 4 °C (Group A) and Coca-Cola at 37 °C (Group B) for restorative materials tested. Wilcoxon test results for intragroup significance (WTIC) are reported in the rows for each material, and they evaluate the differences between Group A and B for each material (S: significant; NS: not significant).
Figure 1. Representation of weight loss percentages after acid immersion in Coca-Cola at 4 °C (Group A) and Coca-Cola at 37 °C (Group B) for restorative materials tested. Wilcoxon test results for intragroup significance (WTIC) are reported in the rows for each material, and they evaluate the differences between Group A and B for each material (S: significant; NS: not significant).
Biomimetics 07 00030 g001
Table
Table 1. Restorative dental materials tested in the study.
Table 1. Restorative dental materials tested in the study.
GroupMaterialTypeCompositionFiller % (w/w)ManufacturerLot Number
1G-ænial (Anterior)Radiopaque CompositeMatrix: UDMA, dimethacrylate co-monomers, no bis-GMa
Filler: silica, strontium, lanthanoid fluoride		76%GC Corporation, Tokyo, Japan1906251
2Enamel plus Hri Bio FunctionMicrofilled hybrid compositeMatrix: UDMA, Tricyclodecane dimethanol dimethacrylate
Filler: silicon dioxide		74%Micerium S.p.A., Avegno, Italy2018006379
3GrandiOSO Light FlowFlowable nanohybrid compositeMatrix: methacrylates (Bis-Gma, Bis-Ema, TEGDMA, 1,6 hexanodiylbismethacrylate, HEDMA).
Filler: inorganic filler		76%VOCO GmbH, Cuxhaven, Germany1944439
4GrandiOSO FlowFlowable nanohybrid compositeMatrix: methacrylate (Bis-Gma, Bis-Ema, TEGDMA and HEDMA).
Filler: inorganic fillers		81%VOCO GmbH, Cuxhaven, Germany1945398
5GrandiOSO HeavyFlowFlowable nanohybrid compositeMatrix: methacrylate (Bis-Gma, Bis-Ema, TEGDMA and HEDMA)
Filler: inorganic fillers		83%VOCO GmbH, Cuxhaven, Germany1947547
6Admira Fusion x-BaseNanohybrid ceramic based compositeMatrix: ORMOCER®
Filler: glass ceramic, silica nanoparticles, pigments		72%VOCO GmbH, Cuxhaven, Germany1946562
7x-Tra FilHybrid compositeMatrix: methacrylate (Bis-GMA, UDMA, TEGDMA)
Filler: inorganic filler		86%VOCO GmbH, Cuxhaven, Germany1946276
8GrandiO FlowFlowable nanohybrid compositeMatrix: methacrylate (Bis-Gma, Bis-Ema, TEGDMA and HEDMA)
Filler: inorganic filler		80%VOCO GmbH, Cuxhaven, Germany1944463
9G-ænial Flo XRadiopaque Flowable compositeMatrix: UDMA, Bis-MPEPP, TEGDMA
Filler: silicon dioxide, strontium glass		71%GC Corporation, Tokyo, Japan1905081
10Ceram.x Spectra ST flowHybrid aesthetic compositeMatrix: BisGma adduct modified with urethane, BisEMA and diluents, stabilizers, pigments, camphorquinone photoinitiator
Filler: based on Sphere TeC® system		62.50%Dentsply Sirona, Konstanz, Germany1902000743
11Admira Fusion x-TraNanohybrid ORMOCER® bulkfill compositeMatrix: ORMOCER®
Filler: glass ceramic, silica nanoparticles, pigments		84%VOCO GmbH, Cuxhaven, Germany1941488
12GrandiOSO x-TraNanohybrid bulkfill compositeMatrix: Bis-GMA, Bis-
EMA, aliphatic
dimethacrylate
Filler: inorganic filler, organically modified silica		86%VOCO GmbH, Cuxhaven, Germany1938102
13VisCalor BulkThermoviscous nanohybrid bulkfill compositeMatrix: Bis-GMA,
aliphatic
dimethacrylate.
Filler: inorganic filler		83%VOCO GmbH, Cuxhaven, Germany1946611
14GC Equia ForteBulk Fill Glass HybridPowder: fluoro-alumino-silicate glass, polyacrylic acid powder, pigment
Liquid: polyacrylic acid, distilled water, polybasic carboxylic acid		/GC Corporation, Tokyo, Japan161020A
15GC Equia Forte + CoatBulk Fill Glass HybridPowder: fluoro-alumino-silicate glass, polyacrylic acid powder, pigment
Liquid: polyacrylic acid, distilled water, polybasic carboxylic acid
Light curing protective coating		/GC Corporation, Tokyo, Japan161020A
Coat
1605131
Table
Table 2. Weight loss of materials after 7 days of acid challenge. Data are expressed as medium percentage of weight loss (SD). Different capital letters indicate statistically significant Kruskal–Wallis results for intergroup differences (KWTIC) between materials tested. Wilcoxon test results for intragroup significance (WTIC) are reported in the rows for each material, and they evaluate the differences between Group A and B for each material (S: significant; NS: not significant).
Table 2. Weight loss of materials after 7 days of acid challenge. Data are expressed as medium percentage of weight loss (SD). Different capital letters indicate statistically significant Kruskal–Wallis results for intergroup differences (KWTIC) between materials tested. Wilcoxon test results for intragroup significance (WTIC) are reported in the rows for each material, and they evaluate the differences between Group A and B for each material (S: significant; NS: not significant).
Group A7 DaysKWTICGroup B7 DaysKWTICWTIC
1A. G—aenial0.149 (0.011)A1B. G—aenial0.201 (0.049)AS
2A. Enamel plus HRi Bio Function0.041 (0.035)B2B. Enamel plus Hri Bio Function0.271 (0.010)BS
3A. GrandiOSO Light Flow0.109 (0.139)A3B. GrandiOSO Light Flow0.192 (0.031)ANS
4A. GrandiOSO Flow0.977 (0.016)C4B. GrandiOSO Flow0.150 (0.021)AS
5A. GrandiOSO HeavyFlow0.125 (1.419)A5B. GrandiOSO HeavyFlow0.752 (0.009)CS
6A. Admira Fusion x-base0.0145 (0.015)B6B. Admira Fusion x-base0.074 (0.015)DS
7A. x-Tra Fil0.163 (0.034)A7B. x-Tra Fil0.198 (0.010)ANS
8A. GrandiO Flow−0.019 (0.017)D8B. GrandiO Flow0.076 (0.043)DS
9A. G-aenial Flo-X0.066 (0.016)B9B. G-aenial Flo-X0.156 (0.024)AS
10A. Ceram.x Spectra ST flow0.034 (0.015)B10B. Ceram.x Spectra ST flow0.109 (0.019)AS
11A. Admira Fusion x-Tra0.068 (0.031)B11B. Admira Fusion x-Tra0.139 (0.013)AS
12A. GrandiOSO x-Tra0.182 (0.009)E12B. GrandiOSO x-Tra0.189 (0.011)ANS
13A. VisCalor Bulk−0.044 (0.014)F13B. VisCalor Bulk0.089 (0.013)DS
14A. GC Equia Forte1.73 (0.15)G14B. GC Equia Forte2.75 (0.006)ES
15A. GC Equia Forte + Coat1.62 (0.14)G15B. GC Equia Forte + Coat2.19 (0.35)FS
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Beltrami, R.; Colombo, M.; Bitonti, G.; Chiesa, M.; Poggio, C.; Pietrocola, G. Restorative Materials Exposed to Acid Challenge: Influence of Temperature on In Vitro Weight Loss. Biomimetics 2022, 7, 30. https://doi.org/10.3390/biomimetics7010030

AMA Style

Beltrami R, Colombo M, Bitonti G, Chiesa M, Poggio C, Pietrocola G. Restorative Materials Exposed to Acid Challenge: Influence of Temperature on In Vitro Weight Loss. Biomimetics. 2022; 7(1):30. https://doi.org/10.3390/biomimetics7010030

Chicago/Turabian Style

Beltrami, Riccardo, Marco Colombo, Gianpaolo Bitonti, Marco Chiesa, Claudio Poggio, and Giampiero Pietrocola. 2022. "Restorative Materials Exposed to Acid Challenge: Influence of Temperature on In Vitro Weight Loss" Biomimetics 7, no. 1: 30. https://doi.org/10.3390/biomimetics7010030

APA Style

Beltrami, R., Colombo, M., Bitonti, G., Chiesa, M., Poggio, C., & Pietrocola, G. (2022). Restorative Materials Exposed to Acid Challenge: Influence of Temperature on In Vitro Weight Loss. Biomimetics, 7(1), 30. https://doi.org/10.3390/biomimetics7010030

Article Metrics

Back to TopTop
