Assessing the Potential Impact of Fugitive Methane Emissions on Offshore Platform Safety

Abstract

One of the biggest risks to safety on offshore platform safety is the ignition of high-pressure natural gas streams. Currently, the size and number of fugitive emissions on offshore platforms is unknown and methods used to detect fugitives have significant shortcomings. To investigate the frequency, size, and potential impact of fugitives, a data collection exercise was conducted using incidents reported, leak survey data, and independent measurements. The size and number of fugitives on offshore facilities were simulated to investigate likely areas of safety concern. Incident reports indicate in 2021 there were 113 reports of gas leaks on 1119 offshore facilities, suggesting 0.02 fugitives per Type 1 facility (older, shallow-water platforms) and 0.31 fugitives per Type 2 facility (larger deeper-water facilities). Leak survey data report 12 fugitives per Type 1 facility (average emission 0.6 kg CH₄ h⁻¹ leak⁻¹) and 15 fugitives per Type 2 facility (average emission 1.5 kg CH₄ h⁻¹ leak⁻¹). Reconciliation of direct measurements with a bottom-up model suggests that the number of fugitive emissions generated from the leak report data is an underestimate for Type 1 platforms (44 fugitives facility⁻¹; average emission 0.6 kg CH₄ h⁻¹ leak⁻¹) and in general agreement for the Type 2 platforms (15 fugitives facility⁻¹; average emission 1.5 kg CH₄ h⁻¹ leak⁻¹). Analysis of the fugitive emission rates on an offshore platform suggests that gas will not collect to explosive concentration if any air movement is present (>0.36 mph); however, large volumes of air (~600 m³) near representative leaks on the working deck could become explosive in hour-long zero-wind conditions. We suggest that wearable technology could be employed to indicate gas build up, safety regulations amended to consider low-wind conditions and real-world experiments are conducted to test assumptions of air mixing on the working deck.

1. Introduction

Globally, 29% of all crude oil (27 MMbbl day⁻¹) and 28% of all natural gas (27 MMboe day⁻¹) is produced offshore [1,2]. Saudi Arabia (13% global production) and Brazil (12%) are the largest offshore-producing countries, while the largest production regions are the Persian Gulf, the Gulf of Mexico, West Coast of Africa, and the North Sea. In 2022, almost all US offshore oil and natural gas production took place in the Gulf of Mexico, where an average of 1.8 million barrels per day (15% of the total US crude oil) and 0.8 Tcf natural gas (2.3% of the total US natural gas) is produced by 1119 production platforms [2,3,4].

Offshore platforms operating in the Gulf of Mexico typically consist of a deck that is fixed in place above well heads on the seafloor by either a rigid structure (e.g., legs) or a floating structure tethered via cables. Produced oil, gas, and water are separated then either stored, exported to shore, or processed on the working deck. Typically, production platforms can be categorized into Fixed Leg (806 operating between Texas and Louisiana in the Gulf of Mexico in 2023; Figure 1), Caisson (253), Spar (17), Semi-Submersible (15), Tension Leg (17), Well Protector (6), Compliant tower (2), Floating Production, Storage and Offloading (FPSO) facilities (2), and Mobile Production Units (1). A full description of each type can be found in Lyons et al. (2016), [5] and a brief summary in Riddick et al. (2025) [6], but more usefully, they can be grouped into two types (described in Section 2.1).

The Bureau of Safety and Environmental Enforcement (BSEE) is America’s lead agency charged with advancing safety, environmental protection, and conserving natural resources related to energy development on the U.S. Outer Continental Shelf (OCS) for facilities in the Gulf of Mexico west of the 87.5° latitude and areas offshore the North Slope Borough of Alaska [7]. The mission statement of BSEE is to promote safety, protect the environment, and conserve resources offshore through vigorous regulatory oversight and enforcement. The BSEE 2023–2026 Strategic Plan has four goals (People, Protection, Reliability, and Sustainability), which are guided by five core principles (Culture, Communication, Coordination, Collaboration, and Commitment) [7]. The first goal, People, aims to attract, develop, and retain a diverse, skilled, and engaged workforce. Protection aims to reduce risk to people and the environment in offshore operations. Reliability aims to deliver consistent reliance on systems and tools that sustain trust, transparency, and accountability. Sustainability advances the conservation of natural resources through conscientious and responsible energy development. BSEE’s Center for Offshore Safety (COS) is focused on requiring Safety and Environmental Management System (SEMS) tools, good practices, and the implementation of techniques based on API Recommended Practice 75 (API RP 75) [8]. API RP 75 provides a framework for companies to evaluate and improve their safety and environmental protection programs. Organizations can mitigate risks and better protect their workforce and the environment by incorporating the API RP 75 guidelines into their operations. API RP 75 serves as a benchmark for best practices in safety and environmental protection within the oil and gas sector and encourages a proactive approach to safety management rather than a reactive one. As part of the BSEE remit, operators are responsible for implementing a SEMS program throughout the life of their offshore operations. This requires a commitment to hazard identification, risk management, and continual improvement as well as the goals of operational integrity and safety and environmental protection. US OCS contractors and drillers seeking a SEMS certificate are required to complete an audit which includes details of risk assessment and risk controls (Element 3) and safe work management and safe work practices (Element 5), both of which are directly affected by the presence of fugitive emissions which are hitherto not considered in the audit [8].

Despite the systems in place, upstream oil and gas production is one of the most dangerous occupations in the US. In 2023, and of the 382,928 people directly employed in the oil and gas upstream sector [9], 78 fatal injuries occurred in oil and gas extraction activities [10]. The fatal work injury rate for oil and gas (20.4 per 100,000 full-time workers) is larger than other private sector industries, agriculture–forestry–fishing–hunting (20.3), transportation/warehousing (12.9), construction (9.6), and seven times larger than the national average (3.3). Five occupational health risks for offshore workers are defined by the UK Health and Safety Executive (musculoskeletal disorders; hazardous substances; physical hazards; biological hazards; and psychosocial hazards) [11], which generally tracks with the causes of fatal injuries in the US (transportation events: 51% of offshore fatal events; contact with objects and equipment: 13%; fires and explosions: 13%; exposure to harmful substances/environments: 13%; others: 7%) [10,12,13,14]. While most of the causes of fatal events happen to an individual, offshore fires and explosions have been highlighted as being relatively rare but catastrophic in outcome where single events can result in multiple fatalities [13,14,15,16].

Methane gas is the primary component of natural gas (between 70 and 95%) and is generally considered harmless to an individual unless it collects within a space to a mixing ratio of between 4% (lower explosive limit) and 14% (upper explosive limit) where the methane-enriched atmosphere can ignite and/or cause an explosion [17]. The BSEE has identified ignition of high-pressure natural gas streams as a primary fire hazard [18] and offers guidance on best practice for offshore leak detection including using primary protection (SCADA-based methods that monitor flow, pressure, and temperature indicate leaks) and secondary protection (sensors to detect small leaks) [19]. On oil and gas production facilities there are many emissions sources, e.g., combustion slip in heater and venting from compressors, but these are typically vented far from potential ignition sources [20]. More hazardous are fugitive emissions that result from leaks from damaged or broken equipment (e.g., valves, seals, pipes), and accidental gas releases [21]. These can occur anywhere on the production facility and can result in an explosion when near an ignition source. In 1988, 165 crew members of the Piper Alpha production platform in the North sea died when a blind flange on a condensate pipe failed, with the released gas resulting in several explosions [22]. In 2001, 11 crew members of the Petrobras 36 (P-36) Semi-Submersible oil platform died when fugitives from the heater units ignited [23].

Following recommendations of the International Association of Oil and Gas Producers (IOGP), fixed methane sensors are deployed on production platforms to remotely observe methane concentrations and to alert operators to explosive environments [24]. However, the offshore environment is very harsh on electronic devices and serval gas sensor vendors have reported difficulties keeping instrumentation accurate in conditions that degrade the sensors, with difficulties including the corrosive environment; vibration and movement of the platforms; confined layouts which can accelerate gas accumulation; maintenance limitations where systems must remain operational without attention; and operational consequences resulting from false alarms [25]. One way to overcome some of these difficulties is to use portable instrumentation or wearable technology that can be repaired if damaged when the worker returns from the offshore facility. Recent advances in wearable and “connected-worker” technologies offer a promising pathway to enhance real-time detection of hazardous hydrocarbon releases on offshore platforms. Miniaturized gas sensors, including nanomaterial-based and metal-oxide (MOx) devices, compact non-dispersive infrared (NDIR) modules, and increasingly miniaturized laser-based systems (TDLAS), have been demonstrated in wearable and portable formats for environmental and occupational monitoring, with ongoing improvements in sensitivity, selectivity, power efficiency, and onboard signal processing [26]. Industrial trials of wearable technology on offshore platforms have demonstrated improved worker safety through real-time localization, electronic mustering, and enhanced situational awareness during emergencies, illustrating the feasibility of integrating wearable systems into offshore safety operations [27].

Currently, BSEE calculates fugitive methane emissions from offshore facilities using a bottom-up approach, leveraging offshore-specific emission factors published by the US Environmental Protection Agency (EPA) in 1996 [28] and based on measurements at four offshore production sites in the Gulf of Mexico [29] and seven offshore production sites in the Pacific outer continental shelf [30]. Details on when and how fugitives from the Gulf of Mexico facilities were detected and emission rates calculated are unavailable. The fugitive study on the Pacific OCS facilities conducted in 1989 and leaks were detected using soapy water and emission rates quantified using a chamber made from plastic sheeting and duct tape and methane samples analyzed a period of time later in a laboratory using a gas chromatograph [30]. The number of leaking components from offshore shore facilities in the Pacific Ocean with no processing equipment was estimated at 48 per facility, while the total facility emission rate was estimated at between 2.2 and 2.8 kg CH₄ h⁻¹. Correspondingly, the EPA emission factor for facilities operating in the Gulf of Mexico are estimated at 2.3 kg CH₄ h⁻¹. Given that emission factors for offshore fugitives were based on measurements made 36 years ago (at time of publication) using methods that would currently be considered to have very high associated uncertainty, we suggest that a more current and realistic estimate of number of leaks and average size of emission could be derived from contemporary observations.

Several top-down methods, including driving, tall tower, aircraft, and satellite surveys [31,32,33,34,35], have been used to detect and quantify methane emissions from onshore oil and gas operations and estimate normalized methane losses at between 2 and 4% of production. Currently, normalized methane loss from offshore oil and gas production is estimated by bottom-up approaches at 0.4% [36], and many studies have recently reported on discrepancy between the expected and observed emissions [37,38] with offshore emission thought to be underestimated by a factor of five [39]. Even though direct measurement of whole facility offshore emissions have been developed using downwind, aircraft, and satellite methods [40,41,42,43,44,45], fugitive emissions on offshore facilities are detected by operators only using methods that directly find emissions. Audio, visual, and olfactory (AVO) surveys are conducted when an offshore worker uses their senses to detect emissions. These surveys are limited by access, background noise, and the surveyor’s innate abilities. More recently, leak detection and repair (LDAR) surveys have been conducted using optical gas imaging (OGI) cameras that use infrared absorption to indicate the presence of methane; however, these cameras can only detect emissions greater than 130 g CH₄ h⁻¹, the detection is limited by operator experience, access, and background temperature, and emission cannot be detected in wind speeds more than 9 m/s (21 mph) [46].

To our knowledge, the only available data on the number and size of offshore fugitive emissions are either leakage incidents reported to BSEE [12], those reported to the US Bureau of Ocean Energy Management (BOEM) and used as part of their annual emission inventory from the Gulf of Mexico [47], or inferred from the direct measurement of emissions [40,41,45,48]. Using each of the sources has strengths and weaknesses; however, data are available and could be used synergistically to generate a holistic view of offshore fugitive emissions. The BSEE incident reports cover all events from all offshore practices and therefore should give a geo spatial spread of events. The BOEM data do not report emissions from all facilities; however, they include surveys that are looking for leaks from a sub-set of operating platforms. Inferring fugitives is difficult from direct measurements as total facility emissions include vented and combustions emissions as well as those unintended; therefore, methods must be used to disaggregate them.

Given differences between onshore–offshore normalized methane loss, the age and methods used to generate current EPA fugitive methane emission factors [28], and the importance of fugitives on offshore safety, we aim to better quantify the number and average size of fugitive emissions on offshore oil and gas production platforms using data being made available by BOEM, BSEE, and through published academic studies. At present, we suggest that current fugitive methane emission estimates from offshore are an underestimate. To accomplish this, we aim to 1. conduct a data collection exercise using incidents reported to BSEE, size–number of fugitives reported to BOEM and independent measurement data to better understand the size and number of fugitives on offshore production facilities in the Gulf of Mexico, and 2. use the size/number estimates superimposed onto a virtual oil production facility to investigate likely areas of safety concern. It is anticipated this study will help better inform safety protocols when working on manned offshore facilities and how best to prepare for visits to unmanned facilities.

2. Methods

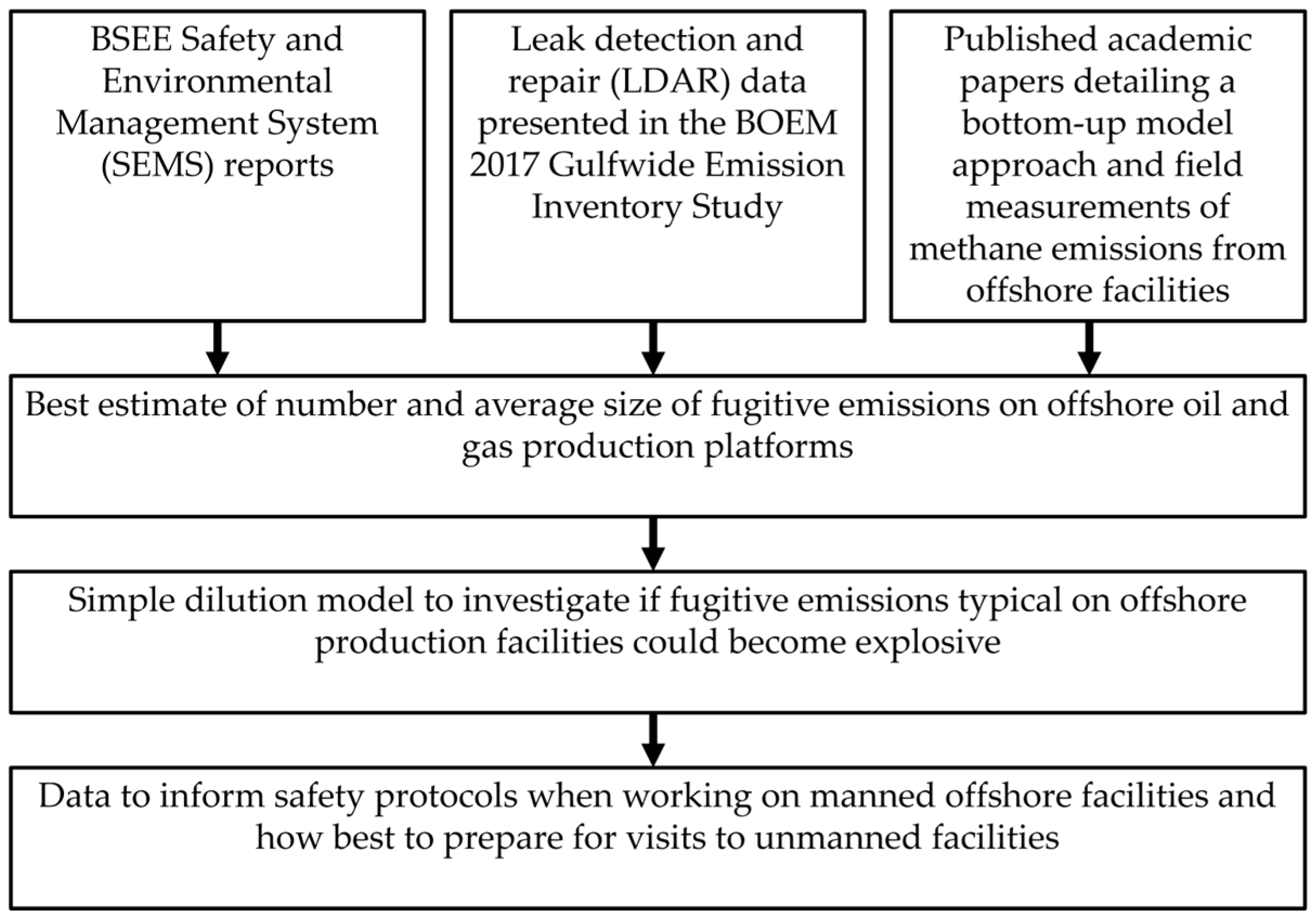

To better quantify the number and average size of fugitive emissions on offshore oil and gas production platforms, data are taken from three sources types: 1. the BSEE Safety and Environmental Management System (SEMS) reports [8]; 2. leak detection and repair (LDAR) data presented in the BOEM 2017 Gulfwide Emission Inventory Study [47]; and 3. published academic papers detailing a bottom-up model approach [6] and field measurements of methane emissions from offshore facilities [40,41,45] (Figure 2).

Number and average emission rate of fugitives will then be used in a simple dilution model to investigate if fugitive emissions typical on offshore production facilities could become explosive. This dilution model makes several simplified assumptions about gas dispersion, volumes, and leak characteristics and is only meant to serve as an exploratory initial study.

2.1. Platforms in the Gulf of Mexico

As mentioned in Section 1, similarities in location, production rates, and installed equipment exist between types of platforms. Here, and following the description in Riddick et al. (2025) [6], we describe how platforms in the Gulf of Mexico can be grouped into two facility types. Type 1 prototypical facilities are platforms that are fixed to the seabed that operate in shallower water (<200 m) and are closer to shore (<50 nm from shore). These are unmanned, typically older, have lower average facility production rates (178 bbl oil day⁻¹; 620 Mscf day⁻¹), have little or no processing equipment and both oil and gas are exported to shore via pipelines [3]. Type 2 prototypical facilities operate farther from shore (>50 nm from shore) in deeper water (>200 m). These platforms are manned 24 h a day, have higher average facility production rates (4032 bbl oil day⁻¹; 2928 Mscf day⁻¹), and have processing equipment across the working deck (oil storage tanks, compressors and power generation). Henceforth, unmanned Fixed Leg, and Caisson platforms are defined as Type 1 prototypical facilities while manned Fixed Leg platforms and all types of production platforms are defined as Type 2 (Figure 1).

2.2. BSEE Safety Reports

BSEE uses a performance-based approach, SEMS, that integrates and manages offshore operations to enhance the safety and environmental performance of operations by reducing the frequency and severity of incidents [8]. The four principal SEMS objectives are 1. focus attention on the influences that human error and poor organization have on incidents; 2. the continuous improvement in the offshore industry’s safety and environmental records; 3. encourage the use of performance-based operating practices; and 4. collaborate with industry in efforts that promote the public interests of offshore worker safety and environmental protection.

SEMS regulation requires all operators submit safety incident reports to BSEE [12]. The safety incidents detail injuries, loss of well control incidents, collisions, and other incidents occurring offshore. These also include gas leakage events, which can include gas leaks events reported by workers on the facility (i.e., detected through AVO), leak events that resulted in a fire, leaks detected by gas alarm systems and false alarms. For use in this study, data on the number of events reported to BSEE from each type of facility was collated as used to generate estimates of the number of leaks per facility for each type of facility.

2.3. LDAR Reports Published by BOEM

The number of leaks and size of fugitive emissions were generated using LDAR data presented in the BOEM 2017 Gulfwide Emission Inventory Study [47]. For this inventory, 5% of active platforms reported having an active LDAR program with 91% of facilities conducting annual surveys and 9% conducting monthly surveys. Data show that surveys were conducted using optical gas imagers (91% of leaks) or by visual inspection (9%) [47]. To generate figures for actual number of fugitives per platform and size of average leaks, we extracted all measurement data from the 54 facilities in the 2017 BOEM inventory and disaggregated by prototypical facility type.

2.4. Measured Methane Emissions

Estimating fugitive emission from offshore facilities using measurement data requires an understanding of facility emission during normal operation, which can be subtracted from the total measured emission to give the total fugitive emission rate. Following the calculation presented in Riddick et al. (2025) [6], total working emissions from Type 1 facilities can be calculated from intermittent bleed pneumatic controllers (4.9 controllers per well; 2.6 wells per facility), process equipment (chemical injectors and dehydrators), produced water storage tank (43 bbl water h⁻¹), and high-pressure 2-phase and low-pressure 3-phase separators. Similarly, emissions from Type 2 facility can be calculated from intermittent bleed pneumatic controllers (4.9 controllers per well; 4 wells per facility); process equipment (treater, headers, chemical injectors, and dehydrators); condensate/oil storage tanks (0.3 M bbl oil h⁻¹); a produced water storage tank (0.2 Mbbl water h⁻¹); 9 low-pressure 3-phase separators; one high-pressure 2-phase separator; a glycol dehydrator; and gas turbines driving dry seal centrifugal gas export compressors. Fugitive emission rates for both types of facility are taken from the results of the BOEM LDAR reports (as described in Section 2.2).

Whole facility measured methane emission data were taken from 294 platforms in the Gulf of Mexico: 151 measured using an aircraft-mounted spectrometer [40]; 52 measured using aircraft mass-balance [41]; and 103 using downwind dispersion approach [45]. Following Riddick et al. (2025) [6,49], these data were separated into types 1 and 2 and filtered using QC/QA criteria, which results in emissions from 43 facilities that were most likely to be operating under normal operations, i.e., high confidence in measured data and no upset conditions or maintenance. The bottom-up operating emissions were subtracted from these 43 measured emissions to generate average fugitive emission rates from Type 1 and Type 2 facilities.

2.5. Case Study: Fugitive Methane Accumulation on a Production Platform

2.5.1. Platform Description

Even though there are common features to platform types (i.e., caisson, fixed leg, and FPSO), the design and layout of each platform is not uniform. This means methane accumulation could vary significantly between individual structures. For the purposes of this study, we make several assumptions about the facility design and investigate if it is possible for methane from fugitive emission to accumulate to the lower explosive limit (LEL) of methane and, if so, what environmental conditions would make this possible and how long would take. The assumptions made are as follows:

• Pipes carrying methane are external and valves/flanges are not found within sealed volumes (i.e., pipes do not pass through internal rooms) and are naturally vented by the wind.
• The working deck area has floors and ceilings that are impermeable to gas flow, the sides are open, but the area is separated by solid walls.
• Fugitives emit at a continuous rate.

2.5.2. Size and Typical Locations of Fugitive Emissions

Using BOEM 2017 Gulfwide Emission Inventory Study [47], data were collected on the types of leaks observed on the 43 Type 1 and 11 Type 2 platforms and maximum, minimum, and average emission rates calculated (kg CH₄ h⁻¹), as well as the probability of the type of leak occurring (i.e., being detected on an LDAR survey). The largest leaks (average > 0.1 kg CH₄ h⁻¹) with a higher-than-average chance of being detected (probability > 0.25) were then used to investigate accumulation.

2.5.3. Estimating Accumulated Methane Concentrations

To investigate potential maximum methane concentrations resulting from fugitives, a simple dilution approach is used. It is assumed that methane is emitted from gas pipework on the working deck where there is no vertical dispersion, but gas can disperse horizontally with the wind. We also assume that the working deck has a height of 3 m and comprises sections separated by solid walls, but gas can move when wind moves the air [50]. The methane concentration of methane LEL (C_M, g m⁻³) can be calculated using principles of fluid mechanics [51] using the fugitive emission rate (Q, g s⁻¹) and the flow of air through the working deck (F, m³ s⁻¹) (Equation (1)). Here we assume the wind speed is a proxy for flow of air through the working deck.

$$C_M={\displaystyle \frac{Q}{F}}$$

(1)

Similarly, the time taken to reach LEL (t, s) can be calculated using C_M, Q, F, the density of air (ρ, g m⁻³) and the volume of the working space (V, m³) (Equation (2)) [51].

$$t={\displaystyle \frac{C_{M}V}{\left(Q-\rho F\right)}}$$

(2)

Wind data used in the analysis are taken from an AcuRite Pro Weather Center meteorological station (Weather Station ID: KLAGALLI42; Station Name: Accurate Iris) in Galliano, LA (29.41° N, 90.28° W) and published on Weather Underground (www.wunderground.com). For 2024, the daily meteorological observations were used to count how many hours had zero-wind conditions.

As this is a very simple modeling approach, we make several assumptions about the dilution model. Specifically, the assumptions are 1. the gases only disperse in the horizontal, i.e., do not move between levels of the facility; 2. the deck height of each level is fixed at 3 m deck height; and 3. all fugitive emissions are point source and continuous leaks.

3. Results

3.1. BSEE Safety Reports

In 2021, there were 544 individual offshore safety incidents reported to BSEE from 1119 platforms operating in the Gulf of Mexico. In total, 113 of these incidents were related to fugitive emissions, with 68 events reported by workers on the facility, 13 that resulted in a fire, 13 correctly detected by gas alarm systems, and 19 false alarms (

Table 1. Summary of number of leaks reported to BSEE for each platform type.

Platform Type	Total Number of Facilities	Number of Manned Facilities	Number of Fugitives on Unmanned Facilities	Number of Fugitives on Manned Facilities	Number of Fugitives Per Facility
Caisson	253	2	0	0	0.00
Well Protector	6	0	0	N/A	0.00
Fixed Leg (unmanned)	618	0	18	N/A	0.03
Fixed Leg (manned)	188	188	26	26	0.14
SPAR	17	16	10	10	0.59
Semi-Submersible	15	14	9	9	0.60
Tension Leg	14	14	22	22	1.60
MTL	3	3	0	0	0.00
Compliant tower	2	2	6	6	3.00
FPSO	2	2	3	3	1.50
MPU	1	1	0	0	0.00
PTF 1	877	2	18	0	0.02
PTF 2	242	240	76	76	0.31

). Of the 94 true fugitive emissions reported to BSEE, 76 were reported from the 242 platforms manned 24 h a day, while 18 were reported from the 877 unmanned platforms. Using the BSEE incident reports, there were an average of 0.02 fugitives per facility reported on Type 1 facilities and 0.31 fugitives on Type 2 facilities.

3.2. LDAR Reports Published by BOEM

In the 2017 Gulfwide Emission Inventory Study there were 54 LDAR surveys reported from 54 offshore platforms, 43 Fixed Leg, 1 FSPO, 3 Semi-Submersibles, 3 Spar, and 4 Tension Leg platforms (

Table 2. Summary of number of leaks reported to BOEM for each platform type.

Type	Platforms Surveyed	Fugitives Detected	Fugitives per Facility	Average Emission (kg h−1 Facility−1)	Average Emission (kg h−1 Fugitive−1)
Fixed Leg	43	537	12	7.7	0.62
FPSO	1	4	4	11.9	2.99
Semi-Submersible	3	54	18	28.3	1.57
Spar	3	49	16	20.8	1.27
Tension Leg	4	61	15	21.4	1.40
PTF 1	43	537	12	7.7	0.62
PTF 2	11	168	15	22.2	1.46

). For the 43 Fixed Leg platforms, there were 537 fugitives detected (average 12 fugitive emissions per platform) with an average emission rate of 0.64 kg h⁻¹. There were fewer fugitive emissions found on the FPSOs (4 total; 4 average), but more on the Semi-Submersibles (54 total; 18 average), Spar platforms (49 total; 16 average), and Tension Leg platforms (61 total; 15 average). Emission rates from the larger platforms are also larger than the average emissions from the simpler facilities (Table 2). We assume the Fixed Leg platform data are representative of the number and size of fugitive emissions from prototypical facility Type 1 facilities, resulting in 12 fugitive emissions per facility with an average emission of 0.62 kg CH₄ h⁻¹ leak⁻¹. Type 2 facilities are the others resulting in an average of 15 fugitive emissions per facility with an average emission rate of 1.46 kg CH₄ h⁻¹.

3.3. Measured Methane Emissions

3.3.1. Type 1 Platforms

Using the bottom-up approach outlined in Section 2.3, the total operational emissions from a prototypical facility Type 1 are estimated at 5.1 kg CH₄ h⁻¹ with the largest emissions from pneumatic controllers (2.0 kg CH₄ h⁻¹) and produced water treatment (2.2 kg CH₄ h⁻¹). This emission corresponds to a loss of 2.7% of the average facility production of 480 kg CH₄ h⁻¹. Average emission from 33 Type 1 platforms was estimated at 17.6 kg CH₄ h⁻¹, and when compared against facility-specific production rates, the median production loss is estimated at 8%.

3.3.2. Type 2 Platforms

The calculated total emission from processing equipment on deep water, higher production platform facilities is estimated at 64.2 kg CH₄ h⁻¹, with the largest emissions from the liquid storage tanks (48.9 kg CH₄ h⁻¹), water storage tanks (8.2 kg CH₄ h⁻¹), and pneumatic controllers (3.1 kg CH₄ h⁻¹). This emission corresponds to a normalized methane loss of 2.5% of production of the average facility production of 3495 kg CH₄ h⁻¹. Average emission from 19 Type 2 platforms was estimated at 35.5 kg CH₄ h⁻¹, and when compared against facility-specific production rates, the median production loss is estimated at 2.6%.

3.4. Simulating Methane Emissions

3.4.1. Size and Typical Locations of Fugitive Emissions

Data in the BOEM 2017 Gulfwide Emission Inventory Study show that fugitives from gas connectors, ‘other equipment’ related to gas pipework and valves on gas lines are encountered during every LDAR survey of a Type 1 facility with emissions ranging from 0.001 to 7.6 kg CH₄ h⁻¹ (Supplementary Materials Table S1). Fugitive emissions from oil and water pipelines are both less likely and emit at a lower rate when encountered. Even though emissions from gas pipelines (connectors, ‘other equipment’ and valves) are less likely, the emission on Type 2 facilities are much larger (0.1 to 15 kg CH₄ h⁻¹). Emissions from water and oil pipelines on Type 2 platforms are similar to those on Type 1 facilities.

3.4.2. Estimating Accumulated Methane Concentrations

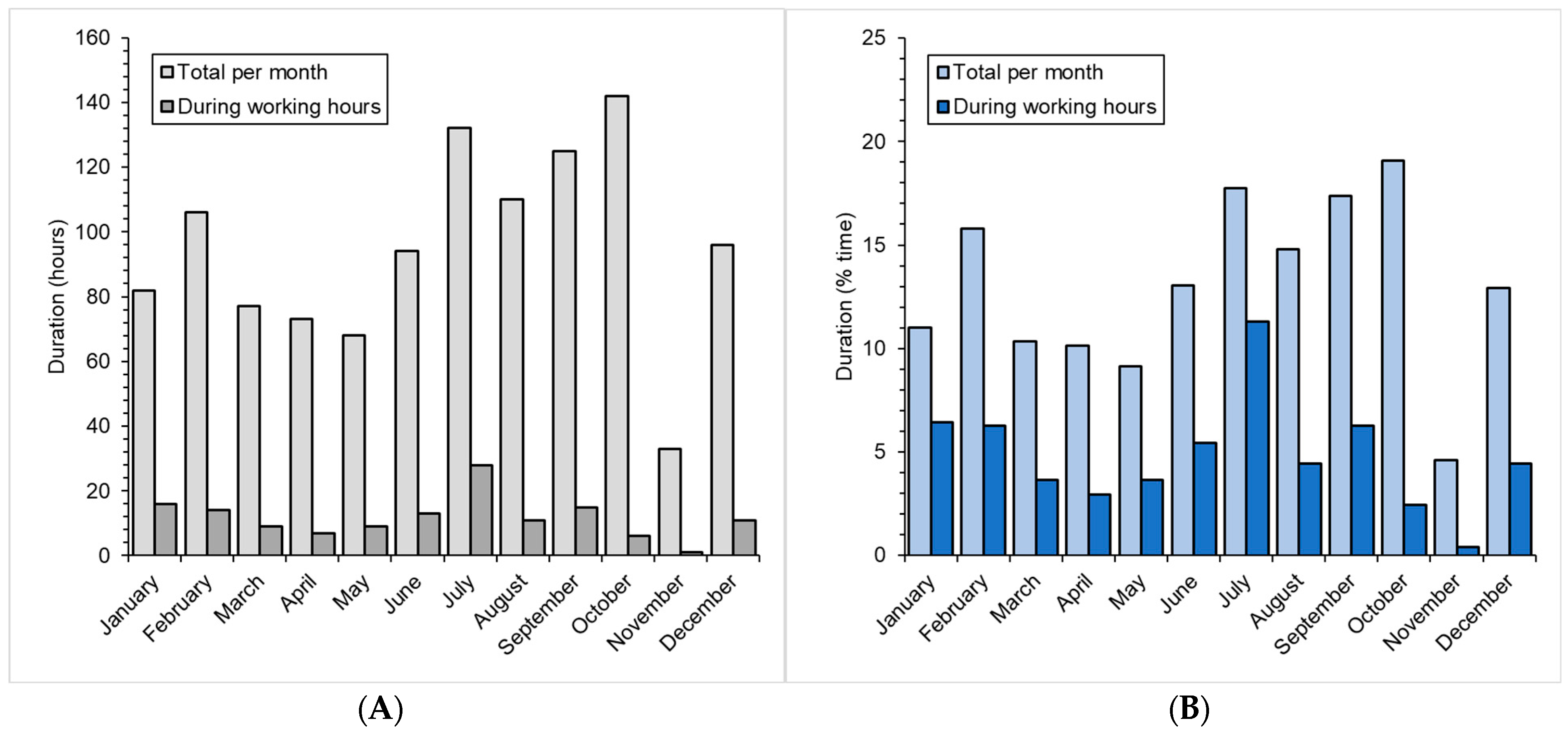

Using meteorological data observed in Galliano, LA, as proxy for wind speed in the Gulf of Mexico, all months in the year experience zero-wind conditions with between 4% and 19% of the time in November and October having zero-wind conditions, respectively (Figure 3). As zero-wind conditions typically occur at dawn and dusk, the fraction of time that is zero-wind is lower during the working day compared to at all times of the day. (Figure 3B)

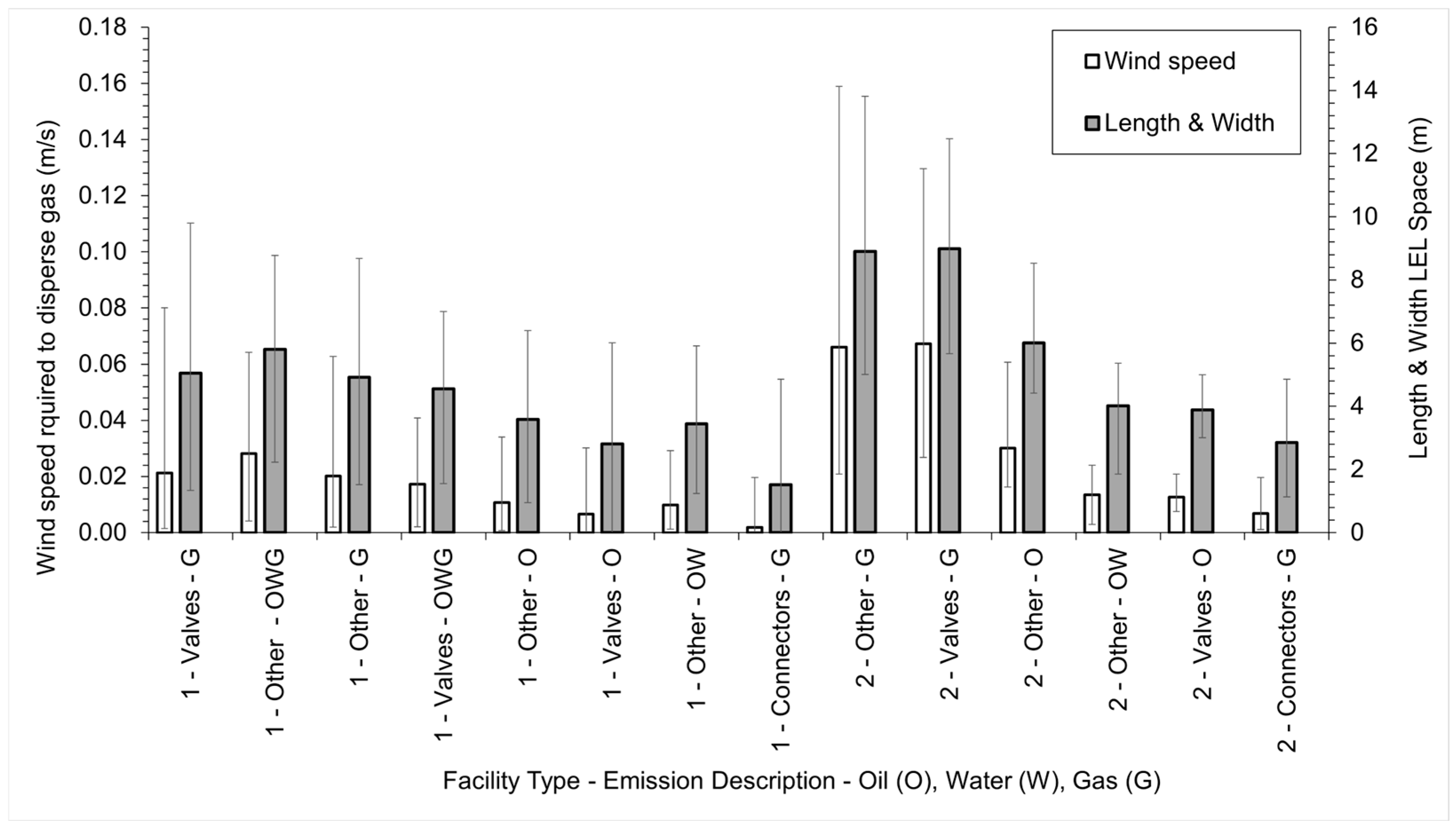

Any non-zero-wind speed will dilute all fugitives encountered during the BOEM 2017 Gulfwide Emission Inventory Study to below the LEL (Figure 4). The highest-emitting fugitive, 15 kg CH₄ h⁻¹ emission detected from ‘other equipment’ on a gas line, would need a wind of 0.16 m s⁻¹ (0.36 mph) to dissipate the methane. During zero-wind conditions, methane concentrations from the largest measured emissions (15 kg CH₄ h⁻¹) can build up to LEL in areas as large as 14 m by 14 m in one hour on Type 2 platforms and up to 9 m by 9 m spaces on Type 1 platforms (Figure 4).

4. Discussion

4.1. Likely Size and Number of Fugitive Emission Sources

This study investigates estimating the number and size of fugitive methane emissions from offshore oil and gas production platforms in the Gulf of Mexico using a range of data sources. Currently, the average EPA emission rates from production platforms without processing equipment in the Gulf of Mexico is estimated at 2.3 kg CH₄ h⁻¹ [28,30] and we suggest this may be an underestimate. Individual production platforms vary even within specific type, and to simplify our main findings they were defined as two types of facilities. Type 1 facilities are fixed to the seabed, operating in shallower water closer to shore, are unmanned, older, have lower production rates (178 bbl oil day⁻¹; 620 Mscf day⁻¹), negligible processing equipment, and product is exported to shore via pipelines. Type 2 facilities are farther from shore, in deeper water, manned 24 h a day, have higher production rates (4032 bbl oil day⁻¹; 2928 Mscf day⁻¹), have processing equipment, gas is piped to shore, and oil is generally stored on the platform.

Of the 544 safety incidents reported to BSEE from the 1119 platforms operating in the Gulf of Mexico in 2021, 94 were fugitive emissions: 76 fugitives from 242 manned platforms, and 18 fugitives from 877 unmanned platforms. This corresponds to an average of 0.02 fugitives per Type 1 facility and 0.31 fugitives per Type 2 facility. Significantly, these reports highlight the shortcomings of current leak detection approaches (gas detection alarms and AVO surveys): 1. even though alarms are installed on the facilities, it is just as likely that a fugitive emission will result in a fire than be detected by the alarm (the cause of this is currently unknown but likely the result of poor mixing of air); 2. if the alarm sounds, it will more likely be a false alarm than an actual fugitive (steam from showers is the most common cause of triggering alarms); 3. either there are more leaks on newer Type 2 facilities than older Type 1 facilities, or a large number of leaks remain undetected on unmanned facilities.

Of the 54 LDAR surveys reported in the 2017 Gulfwide Emission Inventory Study, there was an average of 12 fugitives per Type 1 facility (average emission of 0.62 kg CH₄ h⁻¹ leak⁻¹) and 15 fugitives per Type 2 facility (average emission rate of 1.46 kg CH₄ h⁻¹). This suggests that the actual number of fugitives is 600 times larger than the number of leaks currently detected by alarms or AVO surveys. The LDAR surveys show fugitives from gas pipelines are ubiquitous on Type 1 faculties and almost always present on Type 2 facilities. Emission rates are highest from gas pipelines on both Type 1 and 2 facilities and average emissions are a factor of 3 higher on Type 2 facilities. The main shortcoming of LDAR surveys is that they are inherently biased low and emissions can only be detected/quantified where they can be accessed.

Validation of the number/size of fugitive emissions generated from the BOEM reported LDAR surveys can be determined using whole facility emission estimates. For Type 1 facilities, the bottom-up total facility emission (including the 12 fugitives facility⁻¹ and average emission of 0.62 kg CH₄ h⁻¹ leak⁻¹) was estimated at 5 kg CH₄ h⁻¹ (produced gas loss of 2.7%), while the average measured emission loss was 17.6 kg CH₄ h⁻¹ (produced gas loss of 8%). For Type 2 facilities, the bottom-up total facility emission (15 fugitives facility⁻¹ and average emission of 1.46 kg CH₄ h⁻¹ leak⁻¹) was estimated at 64 kg CH₄ h⁻¹ (produced gas loss of 2.5%), while the average measured emission loss was 36 kg CH₄ h⁻¹ (produced gas loss of 2.6%). The agreement between the percentage of gas loss between the bottom-up and measured emissions for Type 2 facilities suggests that the fugitive emission rate is reasonably good and a fugitive emission rate of 1% of production is a good estimate for these types of facility. For Type 1 facilities, the disagreement between the percentage of gas loss between the bottom-up (2.7%) and measured emissions (8%) suggests the number and size of fugitives generated by the LDAR reports (2% of produced gas) is likely an underestimate and a fugitive emission rate of 7.3% of production a more reasonable estimate. A larger normalized fugitive emission rate from Type 1 facilities, compared to Type 2, is in line with current thinking that older, unmanned platforms undergo less maintenance and are likely adversely affected by the effects hurricanes on the edges of the Gulf of Mexico where the wind and wave action is at its maximum [40,41]. If we assume that the average emission rate reported by the LDAR surveys is reasonable, the number of fugitives is 3.7 times higher than the 12 reported; therefore, we suggest Type 1 facilities could have an average of 44 fugitives and average emission of 0.62 kg CH₄ h⁻¹ leak⁻¹.

The approaches used in this study to generate number and size of fugitive methane emissions relied on secondary data on varying timescales and quality. Even though these data come with significant uncertainty, they are the only available, viable data sources. The BSEE safety reports cover all facilities operating in the Gulf of Mexico and theoretically should detail all instances where fugitives are observed. The data suggest that this is not the case and many fugitives are likely unobserved, which may be a result of relying on AVO detection in an industrial setting. A larger number of fugitives were observed by LDAR surveys reported to BOM; however, data suggest the number of fugitives was also an underestimate and likely caused by the method of detection, where OGI cameras have a relatively high detection threshold and fugitives may exist in inaccessible parts of the facility. Even though unexpected, the number of fugitives detected using soapy water [29,30] is the closest to our best estimate and is most likely to detect the smallest of leaks.

The number of fugitives for Type 1 facilities estimated by our study using secondary data (44 fugitives per facility) is in good agreement with the number used to generate the EPA estimate [28] and based on observations made at similar types of offshore facilities (48 fugitives per facility) [30] using soapy water. Despite the simplicity of the method (i.e., coating the valves, etc., in soapy water and counting bubbles), this method is durable and likely to give accurate results, although collecting data would be very slow. Unlike the number of fugitives, confidence in the methods used to generate average EPA emission rates by the 1989 study is low (polythene sheeting and duct tape) and the reported facility estimate of 2.3 kg CH₄ unlikely to be representative [28,30]. Here, we suggest that the approach described in this study is likely a better estimate of total facility emission from fugitives.

The findings of this study broadly agree with other studies that have quantified fugitive methane emissions from offshore production facilities in the Gulf of Mexico, in that the EPA emission estimate for fugitive methane emissions is an understatement. The current EPA estimate of 2.3 kg CH₄ h⁻¹ [28,30] is much lower than our estimate of 26 kg CH₄ h⁻¹ facility⁻¹ for Type 1 platforms (44 fugitives facility⁻¹; average emission 0.6 kg CH₄ h⁻¹ leak⁻¹) and 23 kg CH₄ h⁻¹ facility⁻¹ for Type 2 platforms (15 fugitives facility⁻¹; average emission 1.5 kg CH₄ h⁻¹ leak⁻¹). In general, our findings agree with those of Yacovitch et al. (2020) where many platforms in the Gulf of Mexico emits tens of kg CH₄ h⁻¹ [45]. Other, aircraft-based studies [40,41] have reported much higher emission rates (>100 kg CH₄ h⁻¹), as have those using satellite observations [44]; however, it is not clear if the observations were made while the platforms were operating normally (i.e., combustion and fugitive emissions) or in an upset emission state (i.e., including maintenance or venting events). Using our estimates of 26 kg CH₄ h⁻¹ facility⁻¹ for Type 1 platforms and 23 kg CH₄ h⁻¹ facility⁻¹ for Type 2 platforms, we estimate the total emissions from fugitive methane emissions on production platforms in the Gulf of Mexico at 0.25 Tg CH₄ y⁻¹, which is half the estimate of Gorchov Negron et al. (2023) [41], which includes maintenance and venting.

One point of note is that if LDAR surveys were to be conducted on the gas lines alone, it is estimated that there would be a reduction in emissions of 72% (taking Type 2 platform LDAR surveys only; Supplementary Materials Table S1). Valves and ‘other equipment’ on the gas lines are the largest emitters and concentrating on these could significantly reduce the extent of the pipelines surveyed and the time taken to do the survey, making this a less onerous and more effective task.

4.2. Safety Implications

The analysis presented in Section 4.1 suggests that the number of fugitives on most production platforms in the Gulf of Mexico is significantly underestimated (by around a factor of 3); however, that does not necessarily correlate to increased safety concerns. Calculations suggest that even in very low wind speeds or ventilation rates (air movement greater than 0.36 mph), methane cannot accumulate to LEL near the largest of observed leaks (15 kg CH₄ h⁻¹) (Figure 4). This may help to explain why gas alarms set to identify %LEL appear to be poor at detecting fugitives that could result in a fire.

Assumptions about the dispersion modeling made in this study do not account for the actual airflow dynamics around the platform’s structure or the varying operating conditions on platforms. Here, we assume an emission scenario with horizontal-only dispersion, a fixed 3 m deck height, and continuous, point source fugitive emissions. These assumptions were made to present the simplest dispersion arrangement possible and an initial zeroth-order solution. The gas accumulations described in this paper are for only for the most simplistic of working environments; we suggest that in more complex aerodynamic environments, smaller volumes of air could become explosive, but it is not clear how this may affect platform safety. Given the aerodynamic complexity of offshore platforms, platform-specific scenarios run in a computational fluid dynamic environment would have to be performed to generate a better understanding of fugitive dispersion and accumulation. Basic gas dispersion models have been run in CFD [52,53] but these have not yet been run on offshore production platforms.

Additionally, as produced gas has no odor and background noise on facilities is high, the likelihood of detection through AVO is reduced significantly. With the development of low-power and lower-cost methane sensors [54,55,56], it is possible that wearable technology could be developed to report the location of methane concentration across a facility as workers move around the platforms. As mentioned in the introduction, advances in wearable technologies present an opportunity to detect hazardous hydrocarbon emissions on offshore platforms in real-time. Industrial trials in offshore environments suggest worker safety could be improved through real-time localization, electronic mustering, and enhanced situational awareness during emergencies [27]. However, deployment in offshore environments presents unique challenges including salt spray, humidity, temperature fluctuations, wind dilution, electromagnetic interference, and stringent explosion-proofing requirements, all of which influence sensor selection, calibration stability, and integration strategies [25,57]. Integrating wearable or personnel-borne gas sensors within multilayered detection frameworks could therefore improve early warning capability, incident response, and worker exposure tracking, provided that sensor robustness, wireless networking, false-alarm control, and human-factor considerations are rigorously addressed through targeted field trials [27,58]. Another major difficulty in developing wearable technology for offshore are the safety requirements (certifications including ATEX-, IECE-, and FM-approved) that can make sensor development for offshore prohibitively expensive. Even though they are exposed to the same environmental conditions as fixed sensors, the real advantage of wearable technology over fixed sensors is that they follow the wearer and can be routinely tested in a controlled environment and repair/replaced as necessary.

The major safety concern for fugitives on offshore platforms is the risk of an explosive atmosphere in zero-wind conditions. Historical meteorological data suggests that zero-wind conditions occur in the Gulf of Mexico every month with occurrences higher in late summer and autumn (July through October), with the highest in July (11% of working hours are zero-wind). In these conditions, large volumes of air on the working deck could become explosive (methane > LEL), up to 14 m by 14 m near the 15 kg CH₄ h⁻¹ leak. This is of particular concern for workers conducting hot work (welding or grinding) or those arriving at unmanned facilities. Here again, we suggest that wearable technology could alert the worker to methane build up or that safety regulations are amended to consider low-wind conditions as hazardous. With regard to the model outcomes, we suggest that workers are aware of the increased potential for explosive volumes of air on offshore facilities in low-wind conditions; this is especially important when the wind speed is lower than 1 mph or working in areas with low ventilation rates. Low ventilation rates could be caused by the geometry of the working decks or partially enclosed areas. An actionable response would be for workers to conduct an LDAR survey (preferably with an OGI camera, but AVO survey may be sufficient) when visiting unmanned offshore facilities or commencing hot work in low-wind-speed conditions (less than 1 mph). Fugitive emissions on Type 2 facilities are likely easier to detect as they are larger; leaks on Type 1 facilities could be more of a safety risk as they are both more numerous and harder to detect as they are smaller.

Here, we also note that the wind speed data were taken from Galliano, LA, which is low-lying (elevation of 5 m) but 20 km from the nearest active production platform in the Gulf of Mexico. This may mean that the actual fraction of the time that is zero-wind may be less than our estimate (13% of the time; 5% of the working hours). We suggest the importance of zero-wind may be mitigated as the assumptions discussed above on actual dynamics of airflow around the structure are likely to have a larger impact on methane accumulations, and low-wind conditions may be as influential as zero-wind in a complex aerodynamic environment.

4.3. Safeguarding Offshore Facilities

This study has used existing data to infer the number/size of fugitives on offshore platforms, how this could affect safety, and what operators can do to mitigate the effect of fugitives on workers’ safety. The major shortcoming is that there is currently no clear way to test the assumption made in a real-world environment. The likelihood is that the air flow around the working deck is more complex than assumed here and complete airflow past aerodynamic obstructions is improbable, resulting in small volumes of explosive air near fugitives.

One way to test this is to develop a controlled release offshore facility like the METEC-Offshore, which has been funded by the U.S. Department of Energy’s Office of Fossil Energy and Carbon Management. The main aim of this facility is to test methods that quantify whole facility emissions and better understand how solution quantification uncertainty changes in different environmental conditions. However, this facility could also be used to better understand how safety in more complex aerodynamic environments is affected by the presence of fugitive emissions. We speculate that geometry-driven recirculation, partial enclosures, and intermittent leaks would all affect the accumulation rates and resultant concentrations near fugitive emissions. These could be explored by releasing realistic and controlled methane emissions (i.e., size and duration) from likely emission points (connectors, valves, and flanges on gas infrastructure; Table S1) on non-operating offshore production platforms. Spatiotemporal changes in methane concentration could be observed using a high-density sensor network to investigate likely methane hotspots around the facility. These methane concentration data could also be used to validate CFD modeling efforts, which simulate the effects of fugitive methane emissions.

Experiments at the facility could be used to optimize policy that safeguards against safety risks associated with fugitive emissions using both continuous monitoring and survey methods and testing against protocols that were developed for the METEC Advancing Development of Emissions Detection (ADED) project [59]. Relatively small, controlled releases of methane in line with those observed during actual LDAR surveys could be used to simulate fugitive emissions from likely emission points across a facility (up to 44 fugitives for Type 1 facilities). These controlled releases would ideally simulate the duration, frequency, and size of typical fugitives, as measured at offshore facilities and modeled using METEC’s Mechanistic Air Emissions Simulator (MAES) [60].

Controlled release experiments could include informing safety protocol when approaching an unmanned facility, how these could differ in changing environmental conditions, establishing safe environments when near potential ignition sources (hot work, lightning, or sparks), and testing the ability of continuous or wearable monitors to detect localize and quantify emissions from fugitives. Following ADED protocols, survey method and continuous monitoring performers could be invited to test leak detection and quantification solutions and report the presence of an emission, the location of the source, and the emission rate.

An offshore measurement program could be implemented to better understand potential risks and help BSEE to achieve their core strategic goals of People, Protection, Reliability, and Sustainability. Controlled emission experiments conducted in an offshore environment could be used to investigate the effects of fugitive emissions on safety when approaching unmanned facilities, working on facilities and how best to monitor for fugitives. Here, we suggest the presence of fugitives will likely affect any facility risk assessment and alter safe work practices.

5. Conclusions

This study investigates the frequency, size, and potential impact of fugitives using incidents reported to the Bureau of Safety and Environmental Enforcement (BSEE), size–frequency data reported to the US Bureau of Ocean Energy Management (BOEM) and independent measurement data. BSEE safety records indicate in 2021 there were 113 reports of gas leaks on 1119 offshore facilities (68 identified using audio, visual, auditory methods; 13 that resulted in a fire; 13 detected by gas alarm systems; and 19 false alarms). This corresponds to an average of 0.02 fugitives per Type 1 facility and 0.31 fugitives per Type 2 facility. BOEM’s Gulf-wide Offshore Activity Data System data show 12 and 15 fugitives per facility per year with average emission rates of 0.6 and 1.5 kg CH₄ h⁻¹ on smaller inshore facilities and larger deeper platforms, respectively. Direct measurement data reconciled with a bottom-up model suggests that the number/size of fugitive emissions generated from BOEM-reported LDAR data underestimate the number for the smaller near-shore platforms (44 fugitives facility⁻¹ and emission 0.6 kg CH₄ h⁻¹ leak⁻¹) and are about right for the larger deeper facilities (15 fugitives facility⁻¹ and emission of 1.5 kg CH₄ h⁻¹ leak⁻¹). Analysis of the fugitive rates shows that gas will not collect to explosive concentration if any air movement is present (>0.36 mph); however, large volumes of air on the working deck could become explosive in prolonged zero-wind conditions. While wearable technology could be employed to indicate gas build up, it is suggested that safety regulations are amended to consider low-wind conditions and that real-world tests should be conducted to test the assumptions made on air flow across the working deck. Future work on fugitive methane emissions from offshore oil and gas production platforms could include investigating assumptions of dispersion made in this study. It is likely that geometry-driven recirculation, partial enclosures, and intermittent leaks could all affect accumulation rates and resultant concentrations near fugitive emissions. Further work could include releasing realistic and controlled methane emissions from likely emission points on non-operating offshore production platforms to investigate spatiotemporal changes in methane concentration and how these affect the safety of workers on these facilities.
