Unsupervised Domain Adaptation for Vertebrae Detection and Identification in 3D CT Volumes Using a Domain Sanity Loss
Abstract
:1. Introduction
2. Related Work

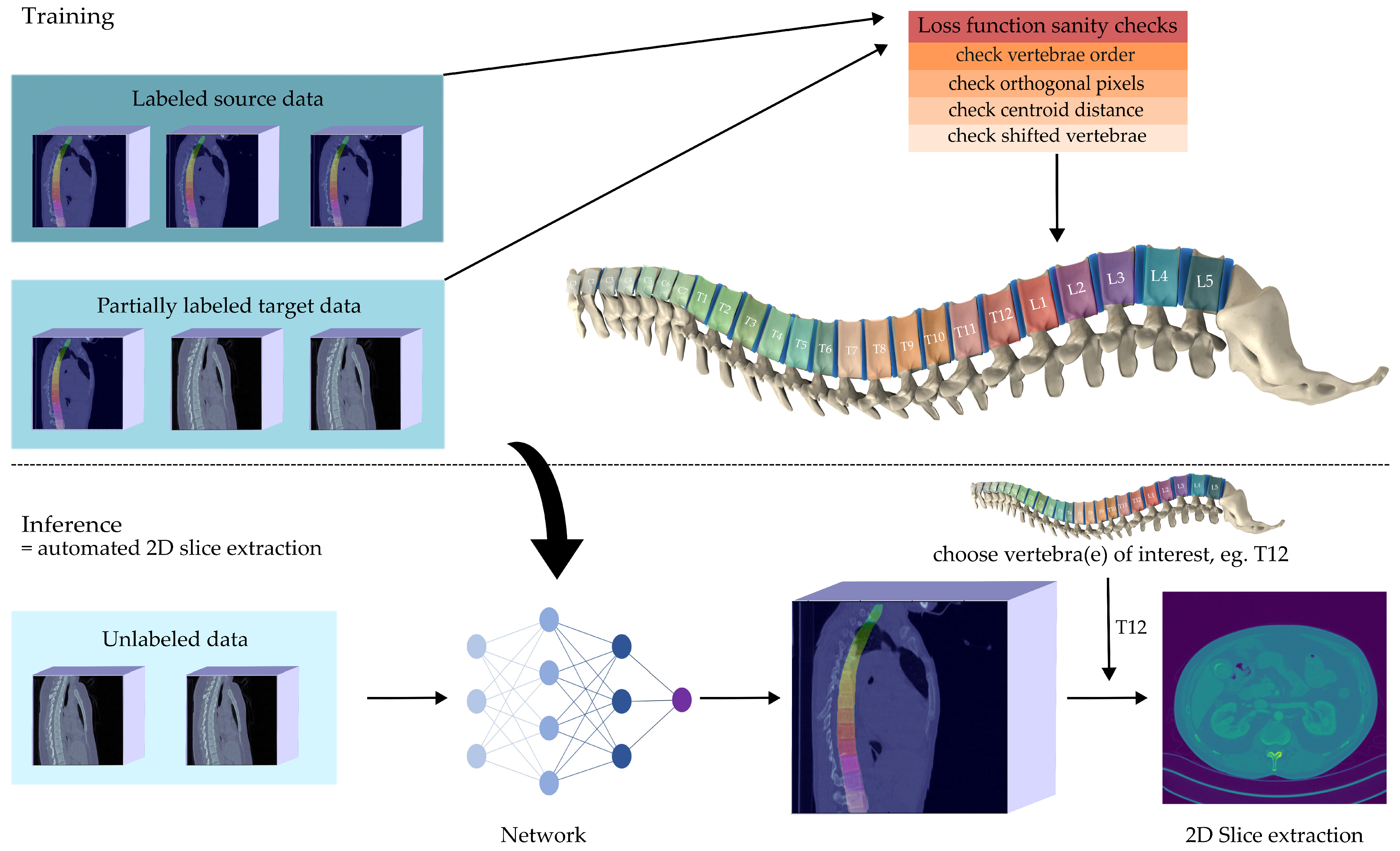

3. A Method for Unsupervised Domain Adaptation of CT Scans of the Spine
3.1. Detection Module

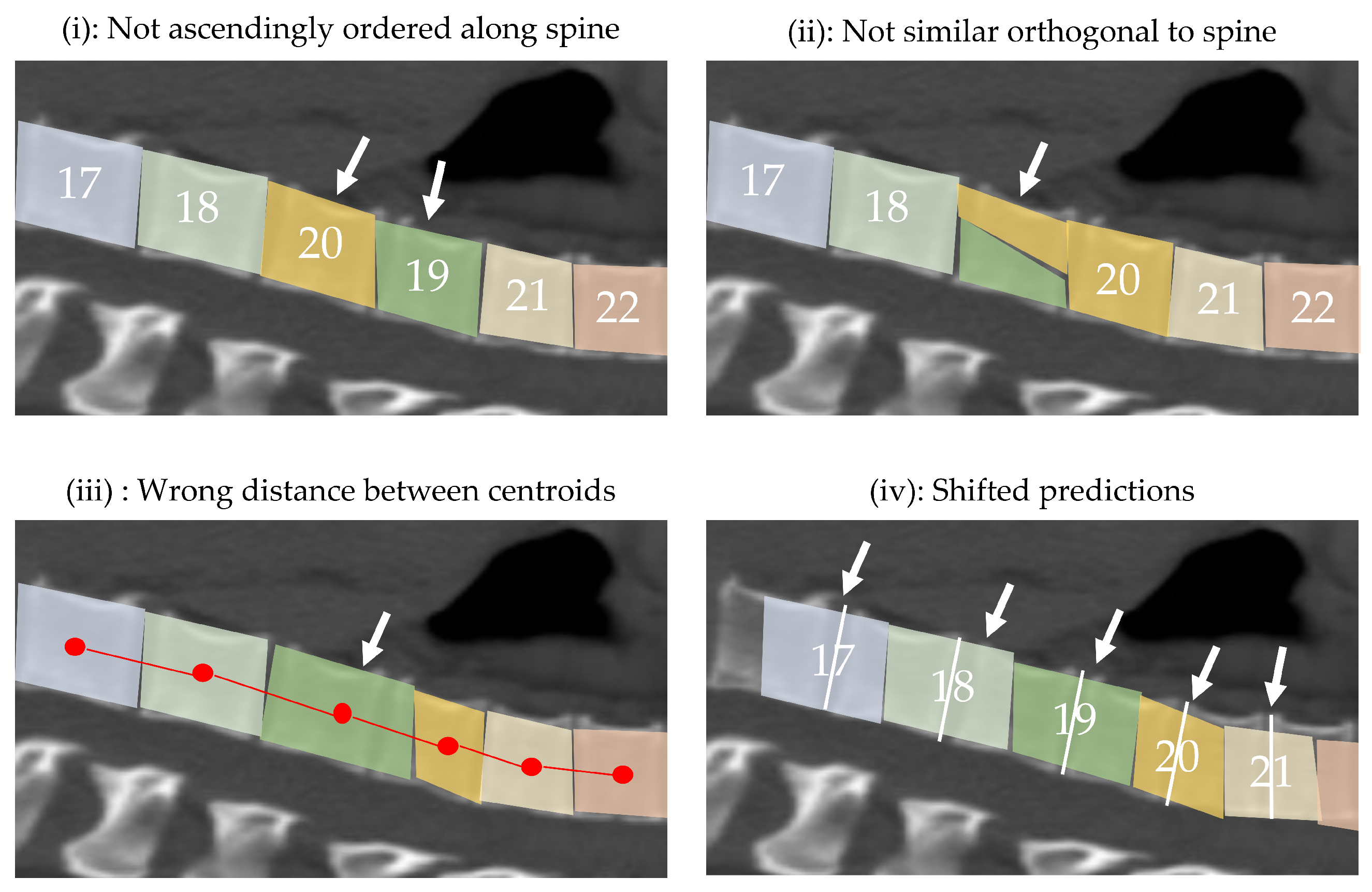

3.2. Identification Module and Domain Sanity Loss
3.3. Data Sets
4. Results

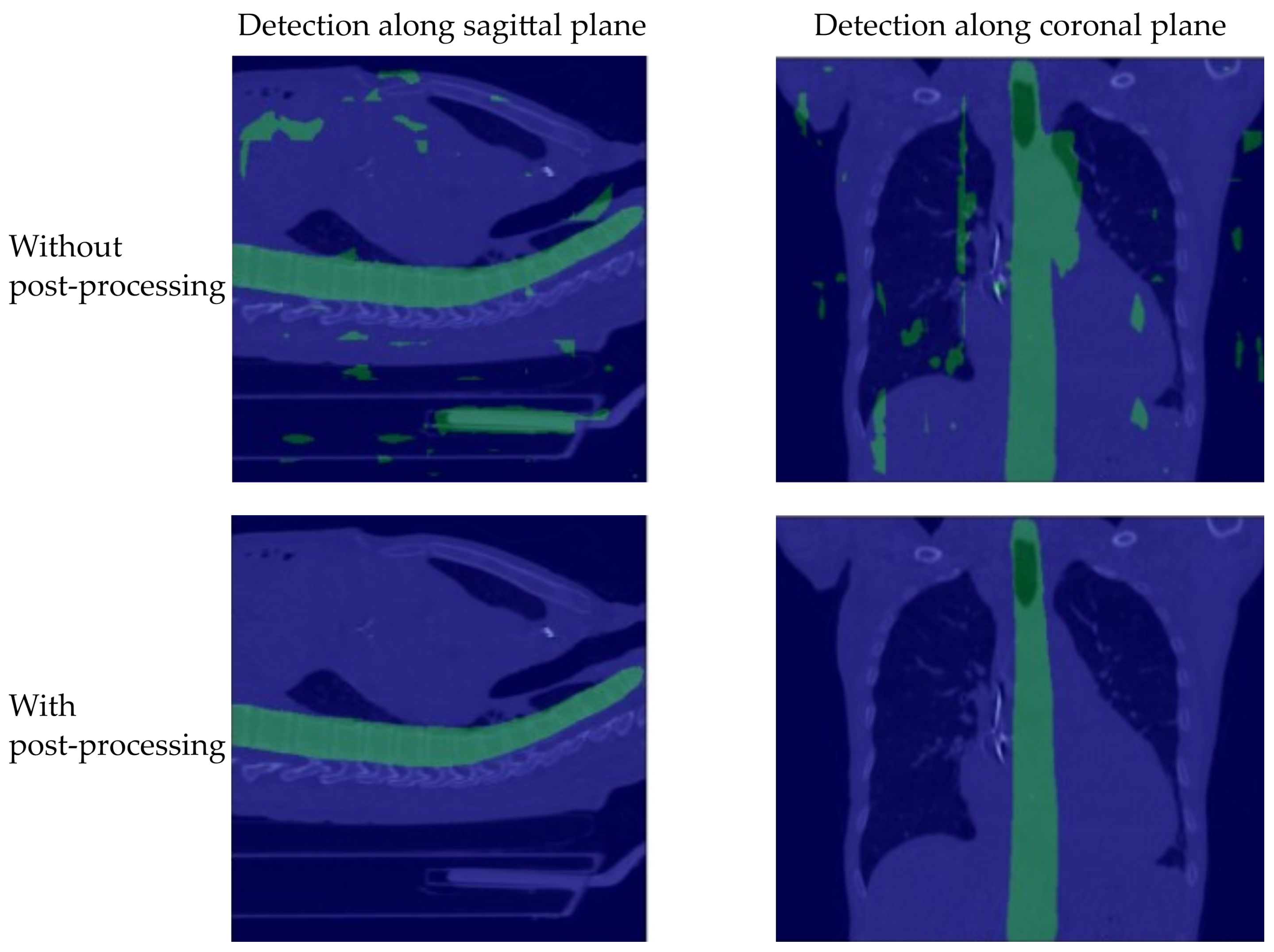

4.1. Detection Results with and without Post-Processing
4.2. Identification Results per Spinal Pixel
4.3. Identification Results per Vertebra
5. Conclusions
5.1. Discussion
5.2. Limitations and Future Work
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Esmaeilzadeh, P. Use of AI-based tools for healthcare purposes: A survey study from consumer’s perspectives. BMC Med Informatics Decis. Mak. 2020, 20, 170. [Google Scholar] [CrossRef] [PubMed]
- Paris, M. Body Composition Analysis of Computed Tomography Scans in Clinical Populations: The Role of Deep Learning. Lifestyle Genom. 2019, 13, 1–4. [Google Scholar] [CrossRef] [PubMed]
- Litjens, G.; Kooi, T.; Bejnordi, B.E.; Setio, A.A.A.; Ciompi, F.; Ghafoorian, M.; van der Laak, J.A.; van Ginneken, B.; Sánchez, C.I. A survey on deep learning in medical image analysis. Med. Image Anal. 2017, 42, 60–88. [Google Scholar] [CrossRef]
- Koitka, S.; Kroll, L.; Malamutmann, E.; Oezcelik, A.; Nensa, F. Fully automated body composition analysis in routine CT imaging using 3D semantic segmentation convolutional neural networks. Eur. Radiol. 2021, 31, 1795–1804. [Google Scholar] [CrossRef] [PubMed]
- Fu, Y.; Ippolito, J.E.; Ludwig, D.R.; Nizamuddin, R.; Li, H.H.; Yang, D. Automatic segmentation of CT images for ventral body composition analysis. Med. Phys. 2020, 47, 5723–5730. [Google Scholar] [CrossRef]
- Weston, A.D.; Korfiatis, P.; Kline, T.L.; Philbrick, K.A.; Kostandy, P.; Sakinis, T.; Sugimoto, M.; Takahashi, N.; Erickson, B.J. Automated Abdominal Segmentation of CT Scans for Body Composition Analysis Using Deep Learning. Radiology 2019, 290, 669–679. [Google Scholar] [CrossRef]
- Schweitzer, L.; Geisler, C.; Pourhassan, M.; Braun, W.; Glüer, C.C.; Bosy-Westphal, A.; Müller, M.J. Estimation of Skeletal Muscle Mass and Visceral Adipose Tissue Volume by a Single Magnetic Resonance Imaging Slice in Healthy Elderly Adults. J. Nutr. 2016, 146, 2143–2148. [Google Scholar] [CrossRef]
- Tolonen, A.; Pakarinen, T.; Sassi, A.; Kyttä, J.; Cancino, W.; Rinta-Kiikka, I.; Pertuz, S.; Arponen, O. Methodology, clinical applications, and future directions of body composition analysis using computed tomography (CT) images: A review. Eur. J. Radiol. 2021, 145, 109943. [Google Scholar] [CrossRef]
- Shen, W.; Punyanitya, M.; Wang, Z.; Gallagher, D.; St-Onge, M.P.; Albu, J.; Heymsfield, S.B.; Heshka, S. Total body skeletal muscle and adipose tissue volumes: Estimation from a single abdominal cross-sectional image. J. Appl. Physiol. 2004, 97, 2333–2338. [Google Scholar] [CrossRef]
- Popuri, K.; Cobzas, D.; Esfandiari, N.; Baracos, V.; Jagersand, M. Body Composition Assessment in Axial CT Images Using FEM-Based Automatic Segmentation of Skeletal Muscle. IEEE Trans. Med Imaging 2016, 35, 512–520. [Google Scholar] [CrossRef]
- Nowak, S.; Theis, M.; Wichtmann, B.D.; Faron, A.; Froelich, M.F.; Tollens, F.; Geißler, H.L.; Block, W.; Luetkens, J.A.; Attenberger, U.I.; et al. End-to-end automated body composition analyses with integrated quality control for opportunistic assessment of sarcopenia in CT. Eur. Radiol. 2021, 32, 3142–3151. [Google Scholar] [CrossRef]
- Stadelmann, T.; Klamt, T.; Merkt, P.H. Data Centrism and the Core of Data Science as a Scientific Discipline. Arch. Data Sci. Ser. A (Online First) 2022, 8, 1–16. [Google Scholar] [CrossRef]
- Simmler, N.; Sager, P.; Andermatt, P.; Chavarriaga, R.; Schilling, F.P.; Rosenthal, M.; Stadelmann, T. A Survey of Un-, Weakly-, and Semi-Supervised Learning Methods for Noisy, Missing and Partial Labels in Industrial Vision Applications. In Proceedings of the 8th Swiss Conference on Data Science (SDS), Lucerne, Switzerland, 9 June 2021; pp. 26–31, ISBN 978-1-6654-3874-2. [Google Scholar] [CrossRef]
- McCouat, J.; Glocker, B. Vertebrae Detection and Localization in CT with Two-Stage CNNs and Dense Annotations. arXiv 2019, arXiv:1910.05911. [Google Scholar] [CrossRef]
- Zhou, Y.; Liu, Y.; Chen, Q.; Gu, G.; Sui, X. Automatic Lumbar MRI Detection and Identification Based on Deep Learning. J. Digit. Imaging 2019, 32, 513–520. [Google Scholar] [CrossRef] [PubMed]
- Yi, J.; Wu, P.; Huang, Q.; Qu, H.; Metaxas, D.N. Vertebra-Focused Landmark Detection for Scoliosis Assessment. In Proceedings of the 2020 IEEE 17th International Symposium on Biomedical Imaging (ISBI), Iowa City, IA, USA, 3–7 April 2020; pp. 736–740, ISBN 978-1-5386-9330-8. [Google Scholar] [CrossRef]
- Altini, N.; De Giosa, G.; Fragasso, N.; Coscia, C.; Sibilano, E.; Prencipe, B.; Hussain, S.M.; Brunetti, A.; Buongiorno, D.; Guerriero, A.; et al. Segmentation and Identification of Vertebrae in CT Scans Using CNN, k-Means Clustering and k-NN. Informatics 2021, 8, 40. [Google Scholar] [CrossRef]
- Glocker, B.; Feulner, J.; Criminisi, A.; Haynor, D.R.; Konukoglu, E. Automatic Localization and Identification of Vertebrae in Arbitrary Field-of-View CT Scans. In Proceedings of the Medical Image Computing and Computer-Assisted Intervention—MICCAI, Nice, France, 1–5 October 2012; Hutchison, D., Kanade, T., Kittler, J., Kleinberg, J.M., Mattern, F., Mitchell, J.C., Naor, M., Nierstrasz, O., Pandu Rangan, C., Steffen, B., et al., Eds.; Springer: Berlin/Heidelberg, Germany, 2012; Volume 7512, pp. 590–598, ISBN 978-3-642-33454-2,. [Google Scholar] [CrossRef]
- Glocker, B.; Zikic, D.; Konukoglu, E.; Haynor, D.R.; Criminisi, A. Vertebrae Localization in Pathological Spine CT via Dense Classification from Sparse Annotations. In Proceedings of the Medical Image Computing and Computer-Assisted Intervention—MICCAI, Nagoya, Japan, 22–26 September 2013; Hutchison, D., Kanade, T., Kittler, J., Kleinberg, J.M., Mattern, F., Mitchell, J.C., Naor, M., Nierstrasz, O., Pandu Rangan, C., Steffen, B., et al., Eds.; Springer: Berlin/Heidelberg, Germany, 2013; Volume 7908, pp. 262–270, ISBN 978-3-642-40763-5,. [Google Scholar] [CrossRef]
- Yang, D.; Xiong, T.; Xu, D.; Huang, Q.; Liu, D.; Zhou, S.K.; Xu, Z.; Park, J.; Chen, M.; Tran, T.D.; et al. Automatic Vertebra Labeling in Large-Scale 3D CT using Deep Image-to-Image Network with Message Passing and Sparsity Regularization. In Proceedings of the International Conference on Information Processing in Medical Imaging, Boone, NC, USA, 25–30 June 2017; Niethammer, M., Styner, M., Aylward, S., Zhu, H., Oguz, I., Yap, P.T., Shen, D., Eds.; Springer International Publishing: Berlin/Heidelberg, Germany, 2017; pp. 633–644, ISBN 978-3-319-59050-9,. [Google Scholar] [CrossRef]
- Liao, H.; Mesfin, A.; Luo, J. Joint Vertebrae Identification and Localization in Spinal CT Images by Combining Short- and Long-Range Contextual Information. IEEE Trans. Med. Imaging 2018, 37, 1266–1275. [Google Scholar] [CrossRef]
- Ronneberger, O.; Fischer, P.; Brox, T. U-Net: Convolutional Networks for Biomedical Image Segmentation. In Proceedings of the Medical Image Computing and Computer-Assisted Intervention—MICCAI, Munich, Germany, 5–9 October 2015; Navab, N., Hornegger, J., Wells, W.M., Frangi, A.F., Eds.; Springer International Publishing: Berlin/Heidelberg, Germany, 2015; pp. 234–241, ISBN 978-3-319-24574-4. [Google Scholar] [CrossRef]
- Stadelmann, T.; Tolkachev, V.; Sick, B.; Stampfli, J.; Dürr, O. Beyond ImageNet: Deep learning in industrial practice. In Applied Data Science: Lessons Learned for the Data-Driven Business; Springer International Publishing: Berlin/Heidelberg, Germany, 2019; pp. 205–232. ISBN 978-3-030-118200-4. [Google Scholar] [CrossRef]
- Amirian, M.; Montoya-Zegarra, J.A.; Gruss, J.; Stebler, Y.D.; Bozkir, A.S.; Calandri, M.; Schwenker, F.; Stadelmann, T. PrepNet: A Convolutional Auto-Encoder to Homogenize CT Scans for Cross-Dataset Medical Image Analysis. In Proceedings of the 14th International Congress on Image and Signal Processing, BioMedical Engineering and Informatics (CISP-BMEI), Shanghai, China, 23–25 October 2021; pp. 1–7, ISBN 978-1-6654-0004-6. [Google Scholar] [CrossRef]
- Kingma, D.P.; Ba, J. Adam: A Method for Stochastic Optimization. arXiv 2014, arXiv:1412.6980. [Google Scholar] [CrossRef]
- Felzenszwalb, P.F.; Huttenlocher, D.P. Efficient Graph-Based Image Segmentation. Int. J. Comput. Vis. 2004, 59, 167–181. [Google Scholar] [CrossRef]
- Busscher, I.; Ploegmakers, J.J.W.; Verkerke, G.J.; Veldhuizen, A.G. Comparative anatomical dimensions of the complete human and porcine spine. Eur. Spine J. 2010, 19, 1104–1114. [Google Scholar] [CrossRef]
- Biomedical Image Analysis Group, Imperial College London. BioMedIA Spine Dataset. Available online: https://biomedia.doc.ic.ac.uk/data/spine/ (accessed on 15 November 2021).
- Shakouri, S.; Bakhshali, M.A.; Layegh, P.; Kiani, B.; Masoumi, F.; Ataei Nakhaei, S.; Mostafavi, S.M. COVID19-CT-dataset: An open-access chest CT image repository of 1000+ patients with confirmed COVID-19 diagnosis. BMC Res. Notes 2021, 14, 1–3. [Google Scholar] [CrossRef]
- Mostafavi, S.M. COVID19-CT-Dataset: An Open-Access Chest CT Image Repository of 1000+ Patients with Confirmed COVID-19 Diagnosis. BMC Res. Notes 2021, 14, 178. [Google Scholar] [CrossRef]
- Chen, H.; Shen, C.; Qin, J.; Ni, D.; Shi, L.; Cheng, J.C.Y.; Heng, P.A. Automatic Localization and Identification of Vertebrae in Spine CT via a Joint Learning Model with Deep Neural Networks. In Proceedings of the Medical Image Computing and Computer-Assisted Intervention—MICCAI, Munich, Germany, 5–9 October 2015; Navab, N., Hornegger, J., Wells, W.M., Frangi, A., Eds.; Springer International Publishing: Cham, Switzerland, 2015; Volume 9349, pp. 515–522, ISBN 978-3-319-24553-9. [Google Scholar] [CrossRef]
- Ma, D.; Chow, V.; Popuri, K.; Beg, M.F. Comprehensive Validation of Automated Whole Body Skeletal Muscle, Adipose Tissue, and Bone Segmentation from 3D CT images for Body Composition Analysis: Towards Extended Body Composition. arXiv 2021, arXiv:arXiv:2106.00652. [Google Scholar] [CrossRef]
- Cheplygina, V.; de Bruijne, M.; Pluim, J.P.W. Not-so-supervised: A survey of semi-supervised, multi-instance, and transfer learning in medical image analysis. Med Image Anal. 2019, 54, 280–296. [Google Scholar] [CrossRef] [PubMed]
- Guan, H.; Liu, M. Domain Adaptation for Medical Image Analysis: A Survey. IEEE Trans. Biomed. Eng. 2022, 69, 1173–1185. [Google Scholar] [CrossRef] [PubMed]
- Tuggener, L.; Satyawan, Y.P.; Pacha, A.; Schmidhuber, J.; Stadelmann, T. The DeepScoresV2 dataset and benchmark for music object detection. In Proceedings of the 25th International Conference on Pattern Recognition (ICPR), Milan, Italy, 10–15 January 2021; pp. 9188–9195, ISBN 978-1-7281-8808-9. [Google Scholar] [CrossRef]
BioMedIA (Source Data Set) | ||
---|---|---|
Metric | without Post-Processing | with Post-Processing |
Accuracy (overall) | 99.2% | 99.5% |
Recall (overall/vertebrae) | 99.2%/94.3% | 99.5%/94.1% |
IoU (overall/vertebrae) | 98.3%/67.4% | 99.0%/78.7% |
Dice (overall/vertebrae) | 99.2%/80.2% | 99.5%/88.0% |
COVID-19 CT (Target Data Set) | ||
Metric | without Post-Processing | with Post-Processing |
Accuracy (overall) | 99.6% | 99.9% |
Recall (overall/vertebrae) | 99.6%/95.1% | 99.9%/95.1% |
IoU (overall/vertebrae) | 99.2%/46.4% | 99.8%/79.1% |
Dice (overall/vertebrae) | 99.6%/63.0% | 99.9%/88.0% |
Classification Rate on COVID-19 CT (Target Data Set) | ||
---|---|---|
Our Method without UDA | Our Method | Our Method (with 10 Labels) |
13.3% | 61.4% | 74.2% |
Thoracic Vertebrae BioMedIA (Source Data Set) | |||
---|---|---|---|
Method | ID | Mean | Std |
Chen et al. [31] | 76.4% | 11.4 mm | 16.5 mm |
Liao et al. [21] | 84.0% | 7.8 mm | 10.2 mm |
McCouat and Glocker [14] | 79.8% | 6.6 mm | 7.4 mm |
Our method | 67.0% | 8.4 mm | 8.7 mm |
Our method (with 10 labels) | 80.1% | 6.2 mm | 7.2 mm |
Thoracic Vertebrae COVID-19 CT (Target Data Set) | |||
Method | ID | Mean | Std |
Our method without UDA | 45.6% | 17.4 mm | 24.2 mm |
Our method | 72.8% | 11.1 mm | 20.8 mm |
Our method (with 10 labels) | 89.2% | 8.1 mm | 20.3 mm |
