# Evaluating the Performance of Structure from Motion Pipelines

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Review of Structure from Motion

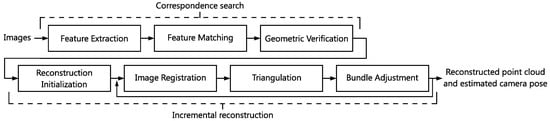

#### 2.1. SfM Building Blocks

**Feature Extraction:**For each image given in input to the pipeline, a collection of local features is created to describe the points of interest of the image (key points). For feature extraction different solutions can be used, the choice of the algorithm influences the robustness of the features and the efficiency of the matching phase. Once key points and their description is obtained, correspondences of these points in different images can be searched by the next step.

**Feature Matching:**The key points and features obtained through Feature Extraction are used to determine which images portray common parts of the scene and are therefore at least partially overlapping. If two points in different images have the same description, then those points can be considered as being the same in the scene respect to the appearance; if two images have a set of points in common, then it is possible to state that they portray a common part of the scene. Different strategies can be used to efficiently compute matches between images; solutions adopted by SfM implementations are reported in Table 1. The output of this phase is a set of images overlapping at least in pairs and the set of correspondences between features.

**Geometric Verification:**This phase of analysis is necessary because the previous matching phase only verifies that pairs of images apparently have points in common; it is not guaranteed that found matches are real correspondences of 3D points in the scene, outliers could be included. It is necessary to find a geometric transformation that correctly maps a sufficient number of points in common between two images. If this happens, the two images are considered geometrically verified, thus meaning that the points are also corresponding in the geometry of the scene. Depending on the spatial configuration with which the images were acquired, different methods can be used to describe their geometric relationship. An homography can be used to describe the transformation between two images of a camera that acquires a planar scene. Instead, the epipolar geometry allows to describe the movement of a camera through the essential matrix E if the intrinsic calibration parameters of the camera are known; alternatively, if the parameters are unknown, it is possible to use the uncalibrated fundamental matrix F. Algorithms used for geometric verification are reported in Table 1. Since the correspondences obtained from the matching phase are often contaminated by outliers, it is necessary to use robust estimation techniques such as RANSAC (RANdom SAmple Consensus) [19] during the geometry verification process [20,21]. Instead of RANSAC, some of its optimizations can be used to reduce execution times. Refer to Table 1 for a list of possible robust estimation methods. The output of this phase of the pipeline is the so-called Scene Graph, a graph whose nodes represent images and edges join the pairs of images that are considered geometrically verified.

**Reconstruction Initialization:**The initialization of the incremental reconstruction is an important phase because a bad initialization leads to a bad reconstruction of the three-dimensional model. To obtain a good reconstruction it is preferable to start from a dense region of the scene graph so that the redundancy of the correspondences provides a solid base for the reconstruction. In case the reconstruction starts from an area with few images, the Bundle Adjustment process does not have sufficient information to refine the position of the reconstructed camera poses and points; this leads to an accumulation of errors and a bad final result. For the initialization of the reconstruction a pair of geometrically verified images is chosen in a dense area of the scene graph. If more than one pair of images can be used as a starting point, the one with the most geometrically verified matching points is chosen. The points in common to the two images are used as the first points of the reconstructed cloud; they are also used to establish the pose of the first two cameras. Subsequently the Image Registration, Triangulation and Bundle Adjustment steps add iteratively new points to the reconstruction considering a new image at a time.

**Image Registration:**Image registration is the first step of the incremental reconstruction. In this phase a new image is added to the reconstruction and is thus identified as registered image. For the newly registered image the pose of the camera (position and rotation) that has acquired it must be calculated; this can be achieved using the correspondence with the known 3D points of the reconstruction. Therefore, this step takes advantage of the 2D-3D correspondence between the key points of the newly added image and the 3D reconstruction points that are associated with the key points of the previously registered images. To estimate the camera pose it is necessary to define the position in terms of 3D coordinates of the reference world coordinates system and the rotation (pitch, roll and yaw axes), for a total of six degrees of freedom. This is possible by solving the Perspective-n-Point (PnP) problem. Various algorithms can be used to solve the PnP problem (see Table 1). Often outliers are present in the 2D-3D correspondences, the above mentioned algorithms are used in conjunction with RANSAC (or its variants) to obtain a robust estimate of the camera pose. The new recorded image has not yet contributed to the addition of new points; this will be done by the triangulation phase.

**Triangulation:**The previous step identifies a new image that certainly observes points in common with the 3D point that cloud reconstructed so far. The new registered image may observe further new points; such points can be added to the three-dimensional reconstruction if they are observed by at least one previously registered image. A triangulation process is used to define the 3D coordinates of the new points that can be added to the reconstruction and thus generate a more dense point cloud. The triangulation problem takes a pair of registered images with points in common and the estimate of the respective camera poses; then it tries to estimate the 3D coordinates of each point in common between the two images. In order to solve the problem of triangulation, an epipolar constraint is placed. It is necessary that the positions from which the images were acquired allow to identify the position of acquisition of the counterpart in the image; these points are called epipoles. In the ideal case it is possible to use the epipolar lines to define the epipolar plane on which lies the point whose position is to be estimated. However, because of the inaccuracies in the previous phases of the pipeline it is possible that the point does not lie in the exact intersection of the epipolar lines; this error is known as a reprojection error. To solve this problem, special algorithms that take into account the inaccuracy are necessary. Algorithms used by SfM pipelines are listed in Table 1.

**Bundle Adjustment:**Since the estimation of camera poses and the triangulation can generate inaccuracies in the reconstruction it is necessary to adopt a method to minimize the accumulation of such errors. The purpose of the Bundle Adjustment (BA) [22] phase is to prevent inaccuracies in the estimation of the camera pose to propagate in the triangulation of cloud’s points and vice versa. BA can therefore be formulated as the refinement of the reconstruction that produces optimal values for the 3D reconstructed points and the calibration parameters of the cameras. The algorithm used for BA is Levenberg-Marquardt (LM), also known as Damped Least-Squares; it allows the resolution of the least squares method for the non-linear case. Various implementation can be used as shown in Table 1. This phase has an high computational cost and must be executed for each image that is added to the reconstruction. To reduce processing time BA can be executed only locally (i.e., only for a small number of images/cameras, the most connected ones); BA is executed globally on all images only when the rebuilt point cloud has grown by at least a certain percentage since the last time global BA was made.

#### 2.2. Incremental SfM Pipelines

**COLMAP**[14,23]—an open-source implementation of the incremental SfM and MVS pipeline. The main objective of its creators is to provide a general-purpose solution usable to reconstruct any scene introducing also enhancements in robustness, accuracy and scalability. The C++ implementation also comes with an intuitive graphical interface that also allows configuration of pipelines parameters. It is also possible to export the sparse reconstruction for different MVS pipelines.

**Theia**[24]—an incremental and global SfM open-source library. Many algorithms commonly used for feature detection, matching, pose estimation and 3D reconstruction are included. Furthermore, it is possible to extend the library with new algorithms using its software interfaces. Implementation is in form of a C++ library, executables can be compiled and then be used to build reconstructions. Obtained sparse reconstruction can be exported into Bundler or VisualSFM NVM file format that can be used by most MVS pipelines.

**OpenMVG**[25]—an open-source library to solve Multiple View Geometry problems. An implementation of the Structure from Motion pipeline is provided for both the incremental and global case. Different options are provided for feature detection, matching, pose estimation and 3D reconstruction. It is also possible to use geographic data and GPS coordinates for the pose estimation phase. The library is written in C++ and can be included in a bigger project or can be compiled in multiple executables each one for a specific set of algorithms. Sample code to run SfM is also included. Sparse reconstruction can be exported in different file formats for different MVS pipelines.

**VisualSFM**[16,26,27]—implementation of the incremental SfM pipeline. Compared to other solutions, this one is less flexible because only one set of algorithms can be used to make reconstructions. The software comes with an intuitive graphical user interface that allows SfM configuration and execution. Reconstructions can be exported in VisualSFM’s NVM format or in Bundler format. It is also possible to execute the dense reconstruction steps using CMVS/PMVS directly form the user interface (UI).

**Bundler**[17,28]—is one of the first incremental SfM pipeline implementation of success. It also defines a Bundler ‘out’ format that is commonly used as an exchange file between SfM and MVS pipelines.

**MVE**[29] (Multi-View Environment)—an incremental SfM implementation. It is designed to allow multi-scale scenes reconstruction, it comes with a graphical user interface and also includes an MVS pipeline implementation.

**Linear SFM**[30]—is a new approach to the SfM reconstruction that decouples the linear and nonlinear components. The proposed algorithm starts with small reconstructions based on Bundle Adjustment that are afterwards joined in a hierarchical manner.

## 3. Evaluation Method for SfM 3D Reconstruction

- Alignment and registration
- Evaluation of sparse point cloud
- Evaluation of camera pose
- Evaluation of dense point cloud

#### 3.1. Alignment and Registration

**Alignment:**In order to increase the probability of success of the Fine registration step (Section 3.1) and to reduce the processing time, it is necessary to find a good alignment of the reconstructed point cloud with the ground truth. This operation can be performed manually by defining the parameters of rotation, translation and scale or more conveniently by specifying pairs of corresponding points that are aligned by a specific algorithm defined by Horn in [55]. This algorithm uses three or more points of correspondence between the reconstructed cloud and the ground truth to estimate the transformation necessary to align the specified matching points. The method proposed by Horn estimates the translation vector by defining and aligning the barycenters of the two point clouds. The scaling factors are defined by looking for the scale transformation that minimizes the positioning error between the specified matching points. Finally, the rotation that allows the best alignment is estimated using unit quaternions from which the rotation matrix can be extracted. The algorithm then returns the transformation matrix ${T}_{1}$ that is the composition of translation, rotation and scaling.

**Fine registration:**Once the reconstruction has been aligned to the ground truth, it is possible to refine the alignment obtained from the previous step (Section 3.1) using a process of fine registration.

- For each point of the cloud to be aligned, look for the nearest point in the reference cloud.
- Search for a transformation (rotation and translation) that globally minimizes the distance (measured by RMSE) between the pairs of points identified in the previous step; it can include the removal of statistical outliers and pairs of points whose distance exceeds a given maximum allowed limit.
- Align the point clouds using the results from previous step.
- If the stop criterion has been verified, terminate and return the identified optimal transformation; otherwise re-iterate all phases.

#### 3.2. Evaluation of Sparse Point Cloud

#### 3.3. Evaluation of Camera Pose

**Position evaluation:**The position of a reconstructed camera is evaluated by calculating the Euclidean distance between the reconstructed position and the corresponding ground truth camera’s position. Such values can also be used to calculate average distance and standard deviation.

**Orientation evaluation:**The differences in orientation of the cameras are evaluated using the angle of the rotation necessary for the relative transformation that, applied to the reconstructed camera, brings it to the same orientation of the corresponding ground truth camera. The camera orientation can be defined using a unit quaternion. Therefore, it is possible to define ${\mathbf{q}}_{GT}$ as the camera ground truth orientation and ${\mathbf{q}}_{E}$ as the reconstructed camera orientation. The relative transformation that aligns the reconstructed camera at the same orientation of the ground truth is defined by the quaternion ${\mathbf{q}}_{R}$ that is calculated as follows:

#### 3.4. Evaluation of Dense Point Cloud

## 4. Synthetic Datasets Creation and Pipeline Evaluation: Blender Plug-In

- import the main object of the reconstruction and setup a scene with lights for illumination and uniform background walls. Also, the parameters for the path tracing rendering engine are set.
- add a camera and setup its intrinsic calibration parameters. Animate the camera using circular rotations around the object to observe the scene from different view points.
- render the set of images and add EXIF metadata of intrinsic camera parameters used by SfM pipelines.
- eventually, geometry ground truth can be exported. This is not necessary if next steps are processed using this plug-in as the current scene will be used as ground truth.
- run the SfM pipelines listed in Section 2.2.
- import the reconstructed point cloud form SfM output and allow the user to manually eliminate parts that do not belong to the main object of the reconstruction.
- align the reconstructed point cloud to the ground truth using the Iterative Closest Point algorithm (ICP).
- evaluate the reconstructed cloud by computing the distance between the cloud and the ground truth and generating statistical information like min, max and average distance values and also reconstructed point count.

## 5. Experimental Results

- Statue [67]—set of images about a statue of height 10.01 m, composed of 121 images
- Empire Vase [68]—set of images about an ancient vase of height 0.92 m, composed of 86 images
- Bicycle [69]—set of images about a bicycle of height 2.66 m, composed of 86 images
- Hydrant [70]—set of images about an hydrant of height 1.00 m, composed of 66 images
- Jeep [71]—set of images about a miniature jeep of height 2.48 m, composed of 141 images

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Real Datasets Creation: Guidelines

- The object to be reconstructed must not have a too uniform geometry and must have a varied texture. If the object has a uniform geometry and a repeated or monochromatic texture it becomes difficult for the SfM pipeline to correctly estimate the pose of the cameras that have acquired the images.
- The set must be composed of a number of images sufficient to cover the entire surface of the object to be rebuilt. Parts of the object not included in the dataset cannot be reconstructed; thus resulting in a geometry with missing parts or not accurately reconstructed.
- The images must portray, at least in pairs, common parts of the object to be rebuilt. If an area of the object is included only in a single image, it is not possible to correctly estimate 3D points for the reconstruction. Depending on the implementation of the pipeline, the reconstruction could improve with the increase of images that portray the same portion of the object from different view points; this because the 3D points can be estimated and confirmed through multiple images.
- The quality of the reconstruction also depends on the quality of the images. Sets of images with a good resolution and level of detail should lead to a good reconstruction. The use of poor quality or wide-angle optics requires that the reconstruction pipelines take into account the presence of radial distortions.
- The intrinsic parameters of the camera must be known for each image. In particular, the pipelines makes use of focal length, sensor size and image size to estimate the distance of the observed points and to generate the sparse point cloud. If the sensor size is unknown, the focal length in 35 mm format can be used.The accuracy of the intrinsic calibration parameters is of particular importance when the images composing the dataset have been acquired with different cameras; the imprecision of these parameters introduces imprecisions in camera pose estimation and points triangulation. It should also be taken into consideration that if the images have been cropped, the original intrinsic calibration parameters are no longer valid and must be recalculated.
- Along with the images, ground truth must also be available. This is not necessary for the reconstruction but is used to evaluate the quality of the obtained results.In order to be able to globally evaluate the SfM+MVS pipeline, it is sufficient to have the ground truth of the model to be reconstructed in the form of a mesh or a dense points cloud; this allows to compare the geometries.To make a better evaluation of the SfM pipeline, it is also necessary to know the actual camera pose of each image of the dataset. In this way, by comparing the ground truth with the reconstruction, it is possible to provide a measure of the accuracy of the estimated camera poses.
