Review

Machine-Learning Approaches for the Discovery of Electrolyte Materials for Solid-State Lithium Batteries

by
Shengyi Hu
1 and
Chun Huang
1,2,3,*
1
Department of Materials, Imperial College London, London SW7 2AZ, UK
2
The Faraday Institution, Quad One, Becquerel Ave, Harwell Campus, Didcot OX11 0RA, UK
3
Research Complex at Harwell, Rutherford Appleton Laboratory, Didcot OX11 0FA, UK
*
Author to whom correspondence should be addressed.
Batteries 2023, 9(4), 228; https://doi.org/10.3390/batteries9040228
Submission received: 12 February 2023 / Revised: 5 April 2023 / Accepted: 13 April 2023 / Published: 17 April 2023
Browse Figures
Versions Notes

Abstract

:
Solid-state lithium batteries have attracted considerable research attention for their potential advantages over conventional liquid electrolyte lithium batteries. The discovery of lithium solid-state electrolytes (SSEs) is still undergoing to solve the remaining challenges, and machine learning (ML) approaches could potentially accelerate the process significantly. This review introduces common ML techniques employed in materials discovery and an overview of ML applications in lithium SSE discovery, with perspectives on the key issues and future outlooks.

1. Introduction

Lithium batteries are indispensable energy storage devices in the growth of electronic devices [1]. In addition, they are also expected to be the driving force for sustainability, powering energy plants and electric vehicles as energy storage units [2]. A typical commercial lithium battery contains electrodes with an electrolyte in liquid form, leading to safety issues being a significant concern due to the flammability and narrow stability domain of the liquid electrolyte [3,4].
Solid-state lithium batteries could be a potential solution due to the potential higher safety measurement and large energy densities using a lithium metal anode [5]. Flammable liquid electrolytes could be replaced by solid-state electrolytes (SSEs) with the advantage of longer device lifetime expectations due to lower reactivity of side reactions [6]. The SSE materials need to exhibit high lithium-ion conductivity, low electronic conductivity, and large electrochemical stability windows. In addition, they could also contribute to better stability thermally and mechanically in a wide range of operating temperatures, such as Li2S-P2S5, which showed no sign of degradation up to 100 cycles at a high operating temperature of 170 °C and low temperature down to −40 °C [7,8]. The known good solid-state lithium-ion conductors could be characterised into different types depending on their compositions. For example, lithium thiophosphates (e.g., Li10GeP2S12), garnet (e.g., Li7Li3Zr2O12), NASICON (e.g., Li1.3Al0.3Ti1.7(PO4)3), perovskite (e.g., Li0.5La0.5TiO3), and argyrodite (e.g., Li6PS5Cl) [9,10,11,12,13]. These conductors exhibit fast lithium-ion conduction properties, with relatively high ionic conductivities at room temperature (RT) compared with other lithium conductors. However, they are still far from large-scale production and application due to lacking well-rounded properties [14]. The early discovered lithium nitride (Li3N) has a high ionic conductivity of 6 × 10−3 S cm−1 at RT, but it shows low electrochemical stabilities [15]. On the other hand, polymer electrolytes, such as polyethylene oxide, generally have significantly lower conductivities than common liquid electrolytes, which are unattractive for commercialisation [16,17]. Therefore, further research in discovering new solid-state lithium-ion conductors are needed.
There are more significant challenges for SSEs. For example, metallic lithium from anodes might still be able to penetrate the SEEs and could cause a similar dendrite growth and short-circuit issue as in the liquid electrolytes [18,19]. The contact between solids also leads to the problem of contact maintenance, as the performance of batteries is dependent on ion diffusion, which is more influenced by any structural changes in solid-state batteries [20,21,22].
Therefore, there is an urgent need to research novel materials for solid-state lithium batteries such as SSEs. The machine-learning (ML) data-driven approach is a popular field that many research groups are currently exploring. Hence, this perspective paper will begin by briefly discussing a few ML techniques employed in materials discovery, followed by an emphasis on the discovery and screening methods of new materials for SSEs. Moreover, the recent progress in the materials discovery will be discussed with different ML approaches and results. Finally, this paper will offer a perspective on the ML screening results with a short outlook on challenges and future opportunities.

2. Discovery and Screening Methods of New Materials for SSEs

Computational methods have been developed over the years to accelerate material discovery progress. For solid-state lithium batteries, atomistic simulation techniques based on first-principles density functional theory (DFT) working with databases could perform various accurate calculations, including interface stability and new structure predictions, which overcome the labour-consuming and experimental limitations issues from laboratory approaches. Most importantly, as the methods are based on the fundamentals of quantum mechanics, ion transport mechanisms understanding could be obtained with little input required [23,24,25,26,27,28,29,30].
The modelling of ionic mobility mechanisms could be achieved by using ab initio molecular dynamics (AIMD) simulations, and the atoms in the system are driven by the atomic forces from the first principles [31,32]. The diffusivity could be evaluated at a constant temperature and volume. On the other hand, Kinetic Monte Carlo (kMC) simulation examines the hopping mechanism at a more microscopic level with the benefit of thermodynamic factors that could be considered in grand-canonical simulations [33,34,35,36]. There are more approaches available for different requirements. However, these computational methods are all physics-based and generally expensive and unsuitable for performing material screening for large databases, and there are already other reviews on these physics-based modelling methods for electrolyte materials of solid-state batteries [37,38,39].

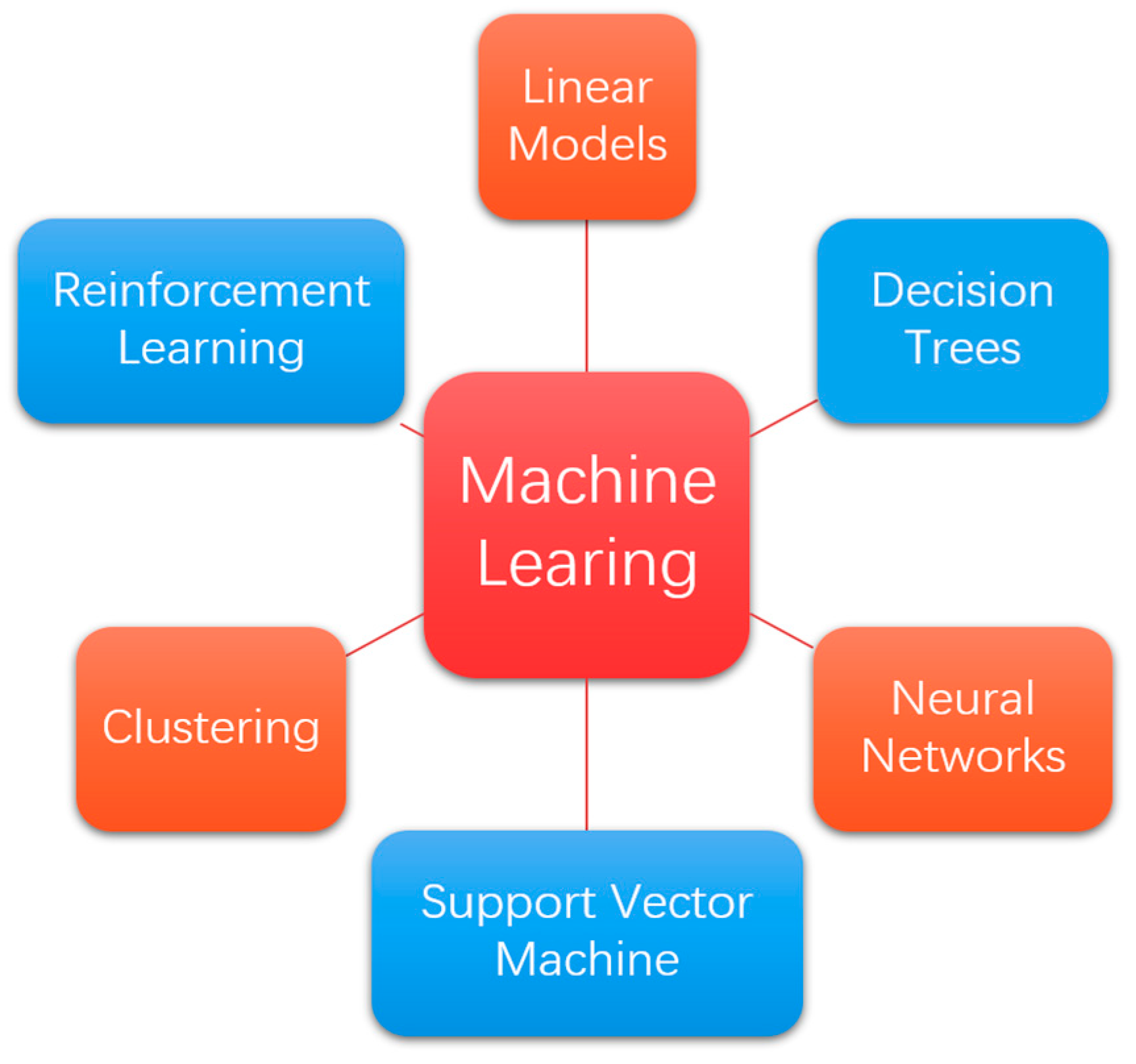

3. Typical Machine Learning Techniques Used in Materials Discovery

Traditional approaches for materials discovery require trial-and-error methods, which usually employ DFT simulation and/or experiments that generally take months and years to obtain the desired properties [37]. On the other hand, ML techniques employ approximated features and data to recognise the pattern or provide predictions, usually taking a significantly shorter time combined with validations of the results [38,39,40]. Therefore, ML can be used to identify new materials, predict their properties, and gain insight into the electrochemical performance of novel battery chemistries, ML attracts attention in material discovery for possibilities to accelerate the process and reduce the cost [39,40,41,42]. Typically, ML methods can be categorised as supervised learning, unsupervised learning, reinforcement learning, and neural networks [43]. The ML techniques widely used in materials discovery are supervised learning and unsupervised learning. They could be selected based on the data quantity and data type, while the theoretical meaning of the properties in materials science is not understood by the ML models. Therefore, this opens opportunities for researchers to investigate a wide range of parameters in the battery design field. For example, Jalem et al. employed a partial least squares regression model to predict the activation energy barriers to lithium diffusion in olivine-type materials, which was a pioneer work of data-driven approaches used in battery research [41]. The partial least squares regression is a relatively robust model, even when the data contain significant noise, and the sample size is small. However, the model test statistics might be unreliable [42]. Moreover, Sendek et al. developed an ionic conductivity classification model with logistic regression to identify candidate lithium solids with desired fast ion conduction properties, which was a relatively early form of research using the supervised learning ML model followed by further investigations using density functional theory molecular dynamics (DFT-MD) to validate the predictions [43]. Figure 1 shows commonly employed ML algorithms grouped in underlying mechanisms.
Supervised learning requires labelled data, and data is split into training data and testing data. Statistical regression is performed on training data to build the prediction model [44]. The model performance is examined by comparing the prediction and expected results using testing data [45]. The model then could be used to make predictions on new input when the model performance is satisfactory for specific applications [46,47]. In contrast, unsupervised learning could input data without labelled outputs and has been employed in material science for applications such as pattern recognition and clustering when the dataset is not well-labelled, with a limited quantity for training and relatively low quality [48,49,50,51,52]. The goals of using an unsupervised learning model in material discovery usually involve finding new suitable materials similar to the known good candidate materials with desired properties [53].
Reinforcement learning optimises the output by influencing the environment without labelled supervised samples and changes parameters based on feedback [54]. It may be considered a time-delayed version of supervised learning. On the other hand, neural networks are complex interconnected networks of many parameters, and theoretically, more parameters mean more model capacity and more complicated learning can be processed. Complex models are represented by deep learning, which uses neural networks with many layers [55,56]. It is worth noting that reinforcement learning and deep learning are advancing quickly in multiple research areas, showing promising potential for future materials discovery research. However, on the topic of lithium SSE materials discovery, these advanced ML techniques have not been used as much as other supervised and unsupervised learning approaches and more research focus in these areas are expected, and ML techniques and applications discussed later will focus on supervised and unsupervised learning. Figure 2 shows simplified framework for SSE materials discovery using ML data-driven approaches.

3.1. Supervised Learning

Generally, frequently used supervised learning algorithms could be categorised into regression and classification. Regression is used to estimate the relationship between independent variables and a dependent variable using functions connecting data points and making predictions. On the other hand, classification is based on common characteristics and usually produces a label or probability as the output for the predictions [55,56,57].
Support vector machine (SVM) is a popular algorithm with capabilities in both regression and classification. It demonstrates effectiveness in high dimensional spaces even when the sample size is not sufficiently big compared to the feature size [58,59]. The mathematics theories are complex; however, in simple terms, the SVM mechanism divides space in order to group data points into different categories [60]. In the process, hyperplanes are generated in high dimensional space, and different Kernel functions could be employed to solve the problem by adding new dimensions [61]. Applying the technique requires careful consideration of Kernel functions and regularisation terms, as inappropriate choices might lead to unnecessary dimensions and overfitting [62]. Overfitting should be avoided as the model will perform poorly on testing data and application inputs despite having high-score performance on the training data [63,64,65]. To solve this problem, a trial-and-error method on standard functions and cross-validation may be needed, which is time-consuming [66]. Overall, it is an effective technique due to its versatility in function selections and strength in predictive power, with a relatively small number of samples required [67,68].

3.2. Unsupervised Learning

Clustering is an important concept in unsupervised learning, and the goal is grouping similar unlabelled input data points together in clusters based on selected methods [69,70]. Different clustering algorithms could be chosen carefully based on the application needs and sample size. K-means, spectral, and hierarchical clustering are some of the most common methods.
K-means clustering is general purpose, and the algorithm separates samples into clusters with equal variance, minimising the within-cluster sum-of-squares criterion [71]. It usually requires a very large sample size and a medium number of clusters input with advanced knowledge of the number of resultant clusters [69,72]. On the other hand, spectral clustering performs well for inputting a small number of clusters and medium size sample size. The mechanism is based on graph distance, employing eigenvalues of the similarity matrix [73,74,75,76]. These techniques are relatively straightforward to implement, giving the existing packages in multiple programming languages, such as Python, obtaining documentation and examples to follow. However, these clustering algorithms usually suffer from initialisations, and the cluster number is needed before running the codes [77]. There are papers in the computer science field suggesting methods, such as the global k-means algorithm from Likas et al. [78], using an incremental approach to dynamically add cluster centres. Nevertheless, it is difficult to find use cases in the material discovery that implement advanced methods in order to tackle this issue, and usually, extra steps to estimate the number of clusters is needed, which is not optimal [77].
Hierarchical clustering does not require pre-specifying the number of clusters, and the mechanism could be stopped at any number of clusters [79]. The algorithm merges or splits clusters successively, and the result could be visualised as a dendrogram [80]. It does not require a very large sample size to perform well, and a range of pairwise distance metrics could be selected as a criterion for clustering results. For the parameters, Euclidean is a typical distance metric used to measure the distance between [81] clusters and is simply the straight-line distance between two points. Additionally, the standard linkage criterion parameter ‘ward’ minimises the variance of the clusters being merged as a cluster dissimilarity measurement [53,82].

4. Machine Learning Applications for Materials Discovery of SSEs

ML algorithms offer a wide range of options for SSEs research, as the models themselves input data points without understanding the underlying physical meanings as humans do. Any properties, in theory, could be featured, and this, indeed, could be reflected in the diversity of ML applications. Typically, SSEs could be categorised into organic and inorganic materials, as well as, more specifically, into groups based on their compositions, such as oxides, halides, etc. As this perspective emphasises ML techniques, the following section will cover recent advances in applications considered with their ML methods.
Fujimura et al. employed an ML technique combined with DFT data to estimate the lithium-ion conductivity values at 373 K [83]. The datasets contain both theoretical and experimental data, and the support vector regression (SVR) was applied with a Gaussian kernel, along with bootstrapping method error optimisation. Input features included the diffusivity at 1600 K, the average volume of disordered structures, transition temperatures from simulations and experimental temperatures. The predicted ionic conductivity was obtained for 72 compositions, and γ-Li4GeO4 had the highest predictive conductivity at 373 K, which was reported as approximately 5.5 × 10−4 S cm−1 from the ML model. It could potentially exceed the conductivity of LISICON (Li3.5Zn0.25GeO4) by a significant amount. However, primarily due to the difficulties in synthesising γ-Li4GeO4, further experiments are expected for the prediction validations to evaluate this candidate as one of the next-generation SSE materials. Guo et al. mapped the lithium thiophosphate (LPS) phase diagram by combining first-principles and artificial intelligence (AI) methods, integrating DFT, artificial neural network potentials, genetic algorithm sampling, and ab initio molecular dynamics simulations [84]. Based on the discovered trends in the LPS phase diagram, Guo et al. propose a candidate solid-state electrolyte composition, (Li2S)x(P2S5)1−x (x~0.725), that exhibits high ionic conductivity of >10−2 S cm−1, demonstrating a design strategy for amorphous or glassy/ceramic solid electrolytes [84].
For the case of unsupervised ML applications, Zhang et al. utilised data entries from Inorganic Crystal Structure Database (ICSD) and processed 528 modified X-ray diffraction (mXRD) quantitative representations as the training dataset [53,85]. An agglomerative hierarchical clustering model was first trained, and the clustering results showed good differentiations between the clusters. Then, an additional spectral clustering model and a third model with limited information were employed to confirm the results. All methods showed that the most already-known fast-conducting examples in the input data were aggregated into two clusters out of seven, which means the clustering models were highly likely to successfully draw boundaries between the promising and bad candidates for SSEs. The materials in these two clusters were further investigated using AIMD simulations. Three structures, Li8N2Se, Li6KBiO6 and Li5P2N5, had conductivities exceeding the best-known lithium fast-conductors, which showed the effectiveness of the clustering techniques. However, some materials did not exhibit high conductivity values in the simulation, and the clustering results might be improved by further research in the featurisation of the clustering input. In addition, experimental validations are required to investigate the fast-conducting SSE candidates from the AIMD simulation.
While ICSD is the most extensive database for completely identified inorganic crystal structures, the Materials Project provides data on diverse properties of inorganic materials with an easy-to-use interface, which is also a popular choice for solid-state battery research [86]. Sendek et al. employed an ML model with DFT-MD simulations to perform material discovery for SSEs based on ionic conductivity [87]. A logistic regression model was used to predict the possibility of an input material exhibiting superionic behaviour at RT based on its atomic and electronic structure data with a 0.1 mS cm−1 boundary of ionic conductivity. The model predicted 317 fast-ion lithium-conducting materials from over 12,000 inputs, and 21 crystalline compounds were identified as promising candidates with desired structural and electrochemical stability. Only one false positive material prediction was reported as LiCl obtains poor conduction properties from the literature. DFT-MD was then performed for identified candidates with unknown conductivity at 900 K to evaluate the performance of the ML model. With scaling to RT based on the Arrhenius relationship, eight candidates exhibit high ionic conductivity at RT. In particular, Li5B7S13 exhibited a conductivity of 74 mS cm−1, which is many times higher than the best-known lithium conductors. In addition, the ML-based approach showed a much higher efficiency and accuracy for predicting superionic materials compared with a random selection from 317 materials and Ph.D. student screening [87]. With further experimental research, these eight candidates could be promising materials for SSEs.
Due to the limited availability of a large volume of data in the materials design field, Cubuk et al. demonstrated that it is difficult to apply standard learning methodologies using genetic descriptors on small data [88]. A linear SVM model was initially trained with 40 data points and 30 elemental descriptors using the leave-one-out cross-validation. Then, a model with physically motivated descriptors using structural information was compared using validation error. The performance showed a trade-off between the model accuracy and the potential for screening previously uncharacterised materials. A novel transfer learning approach was suggested, and an accurate ML model was trained with structural information descriptors on the lithium-ion conductivity measurements from the experimental literature. Predictions were made on the Materials Project database, and these predictions were used as labels to train a new model referred to as esML with elemental descriptors. An accurate esML model could screen all possible element combinations for novel materials with only composition information, approaching nearly 90% validation accuracy. The model was able to provide a screening for 20 billion ternary and quaternary lithium-containing compounds at an extremely fast speed compared with DFT calculations. Overall, the methods allow for training models on available datasets and provide predictions about other tasks with unavailable datasets. A number of promising lithium-ion conductors were suggested after screening 20 billion materials, including LiPO3 and Li2MgO2. While some compounds were studied before, further investigations are required for other candidate materials. Table 1 summarises the algorithms and approaches used in the literature and compares their advantages and disadvantages.
It is worth noting that there are other challenges for solid-state lithium batteries developing into high-performance large-scale production applications. For example, the interface electrochemical stabilisation [95], interfacial physical contact maintenance during cycling [96], and cathode materials performance improvement [97]. ML applications for these issues were also explored by researchers. Eckhoff et al. constructed a DFT-based high-dimensional neural network potential which could predict a range of properties, including lattice parameters, volume changes, phase transition, lithium diffusion barriers, and phonon frequencies for electrode material lithium manganese oxide spinels [98]. Furthermore, Gao et al. utilised an AI scheme via the swarm-intelligence-based crystal structure analysis with particle swarm optimisation method to predict heterogeneous interface structures and investigate the lithium-ion transport mechanism at the cathode/SSE interface [99]. ML data-driven approach could potentially accelerate the research process for tackling these problems and aid the commercialisation of solid-state lithium batteries. Promising cathode materials need to have a high voltage against lithium, a high capacity, and high energy density while keeping the cathode volume as stable as possible without excessive expansion, which may cause mechanical stress to the SSE. Hence, putting the battery pieces together, cathode and SSE, is needed to make sure they are compatible with each other and use ML to predict the time and extent of degradation that occurs.

5. Conclusions and Future Directions

In this perspective, brief introductions about screening techniques for materials discovery are presented with emphasis on ML approaches and their applications on SSE materials discovery. Employing ML techniques significantly accelerates the screening process compared with experimental and DFT-based methods and provides a promising future for design acceleration with new lithium fast-conductors.
However, substantial research effort is required for follow-up validations of the ML prediction results, including more computational simulations and experimental investigations. The newly discovered SSE candidates must go through a long research period before reaching applications. A range of properties should be evaluated, including interfacial and electrochemical stability when in contact with electrodes. These parameters are critical for feasibility in large-scale production beyond the lab and will likely take a lot more research efforts than the initial electrolyte discovery stages. Although the overall development process is usually accelerated by ML, the new potential electrolyte materials candidates from the discovery results would not be meaningful if lacking in practical validations. As mentioned in the previous section, some recent ML applications of material discovery of SSEs gave promising candidates that have high possibilities of performance exceeding current SSEs and also potentially provide well-rounded properties for a wide range of applications. Unfortunately, in most cases, necessary follow-up research has not been carried out to the experimental investigation stage yet or struggles to synthesise the specific composition of the candidate materials from the modelling results.
Moreover, the ML models do not understand the physical meaning of the features but investigate the correlations and patterns of the input data. Obtaining a pattern from the results is difficult and requires significant research effort to find the optimal models for the specific data sets. Nevertheless, understanding the physical reasons behind the results is even more challenging. After arriving at the results from the ML discovery stages, the questions of why the candidate materials are standing out arise. Why does this specific composition obtain high ionic conductivity? Which is the crystallographic structure at what temperature? Are the physical reasons related to lithium-ion diffusion channels? At what conditions will the desired ionic conductivity and stability no longer exist? Therefore, ML techniques should be used with caution, and the output quality hugely relies on the data quantity, which makes data pre-processing and model selection critical. Extensive research training on ML models and their mechanisms is required before implementing ML data-driven approaches and a robust understanding of the fundamental principles of electrolyte applications needs to be obtained to ensure the results are relatively reliable for inspiring further research.
Applying ML models to lithium SSE materials discovery is still a niche research area. For future outlooks, attention to both materials databases and ML models is suggested. More established databases are great sources for ML training, e.g., PubChem [100], NIST [101], Open Quantum Materials Database (OQMD) [102,103], also ICSD and the Materials Project, as mentioned in the previous section, as these datasets usually provide good quality and quantity data. At the same time, web interfaces are often more user-friendly and can be connected to the programming environment. Therefore, more exploration of these databases is suggested. In general, no matter what databases are chosen, the most important step is the featurisation of the data. The representation of the properties needs to be effective in order to summarise the specific properties of the molecules with the lowest dimensions possible.
Finally, advanced ML models, including reinforcement learning, can be employed to aid the discovery. ML is a very popular research topic constantly developing in the computer science field, with more advanced concepts and models becoming available for more accurate and higher predictive power applications. These complex models generally require more understanding before implementation. Utilising these advanced ML techniques with an improved understanding of their effectiveness on materials science databases would be a potential solution to accelerate further the design process. Therefore, collaboration with experts in the ML field might be a new trend for materials discovery in order to drive the development of next-generation SSEs.

Author Contributions

Conceptualization, C.H. and S.H.; writing—original draft preparation, C.H. and S.H.; writing—review and editing, C.H. and S.H.; supervision, C.H.; funding acquisition, C.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was carried out with the support of the EPSRC UKRI Innovation Fellowship (EP/S001239/1, EP/S001239/2), the Faraday Institution Industry Fellowship (FIIF015), the Faraday Institution Training Grant (FITG034), and the Imperial College London UKRI Impact Acceleration Account (EP/X52556X/1). This work was supported by the Faraday Institution (FIRG060).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
SSESolid-State Electrolyte
MLMachine Learning
DFTDensity Functional Theory
AIMDAb Initio Molecular Dynamics
kMCKinetic Monte Carlo
SVMSupport Vector Machine
SVRSupport Vector Regression
ICSDInorganic Crystal Structure Database
mXRDModified X-ray Diffraction
DFT-MDDensity Functional Theory Molecular Dynamics
RTRoom Temperature
