Experimental Investigation of State and Parameter Estimation within Reconfigurable Battery Systems
Abstract
:1. Introduction

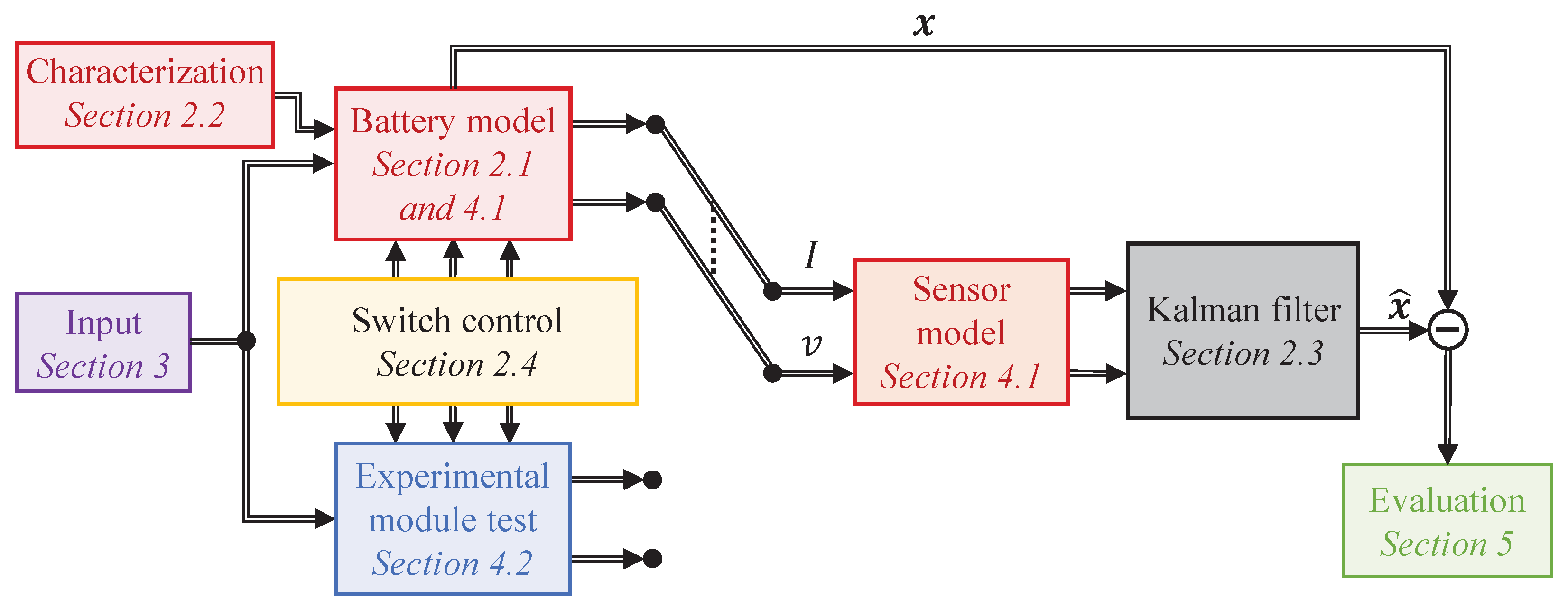

2. Enhanced State and Parameter Estimation

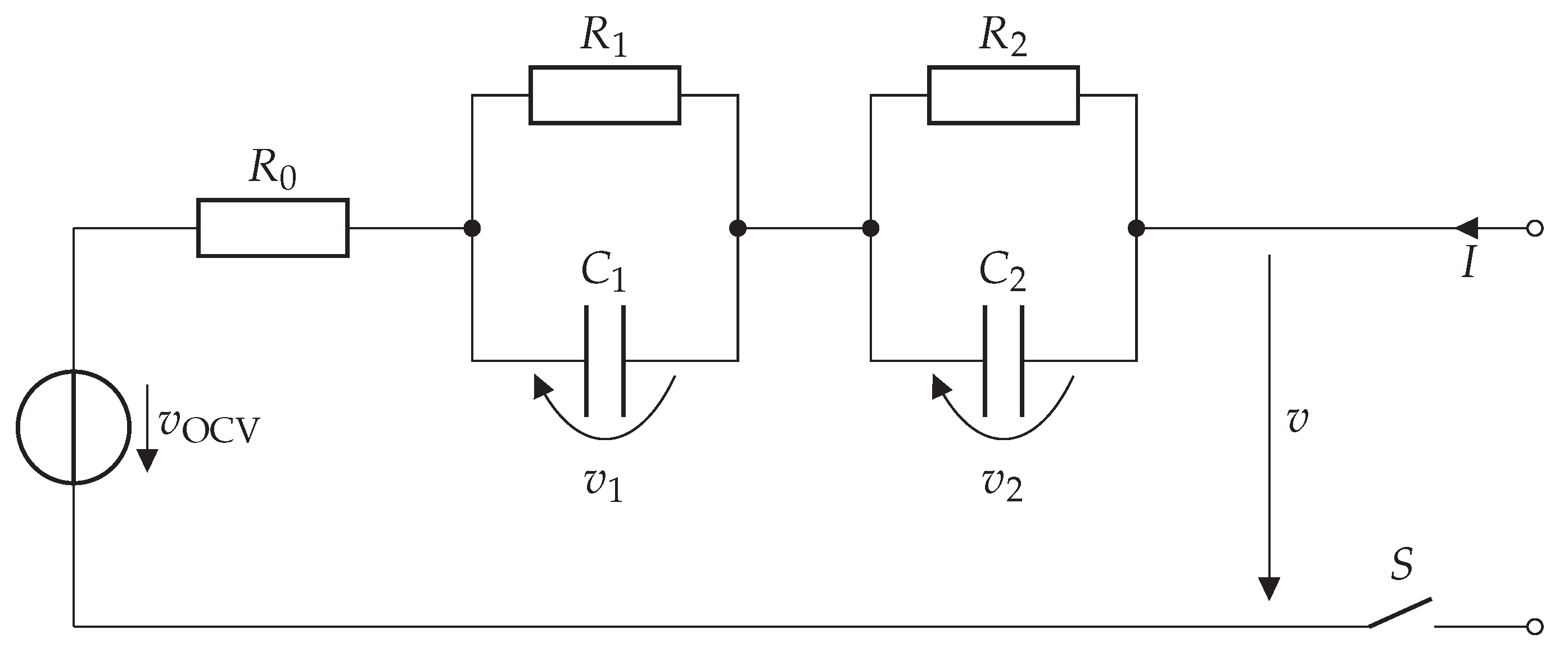

2.1. Battery Model

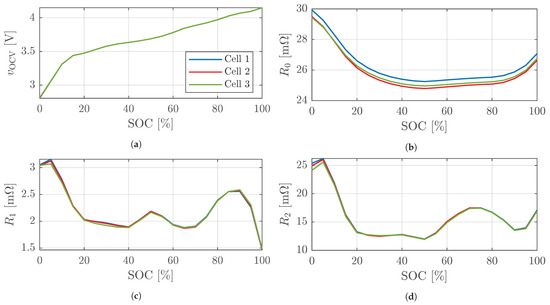

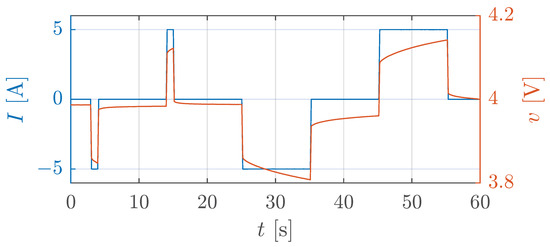

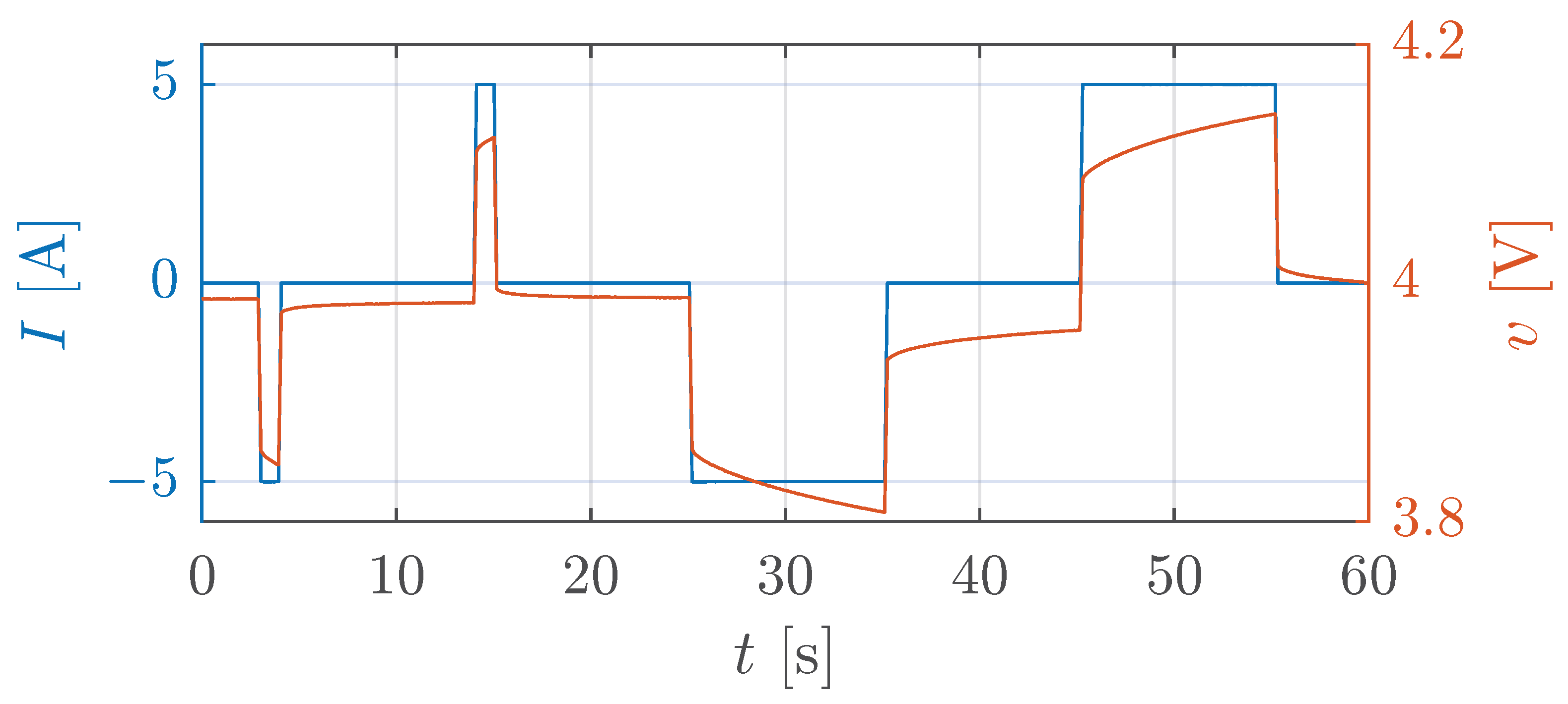

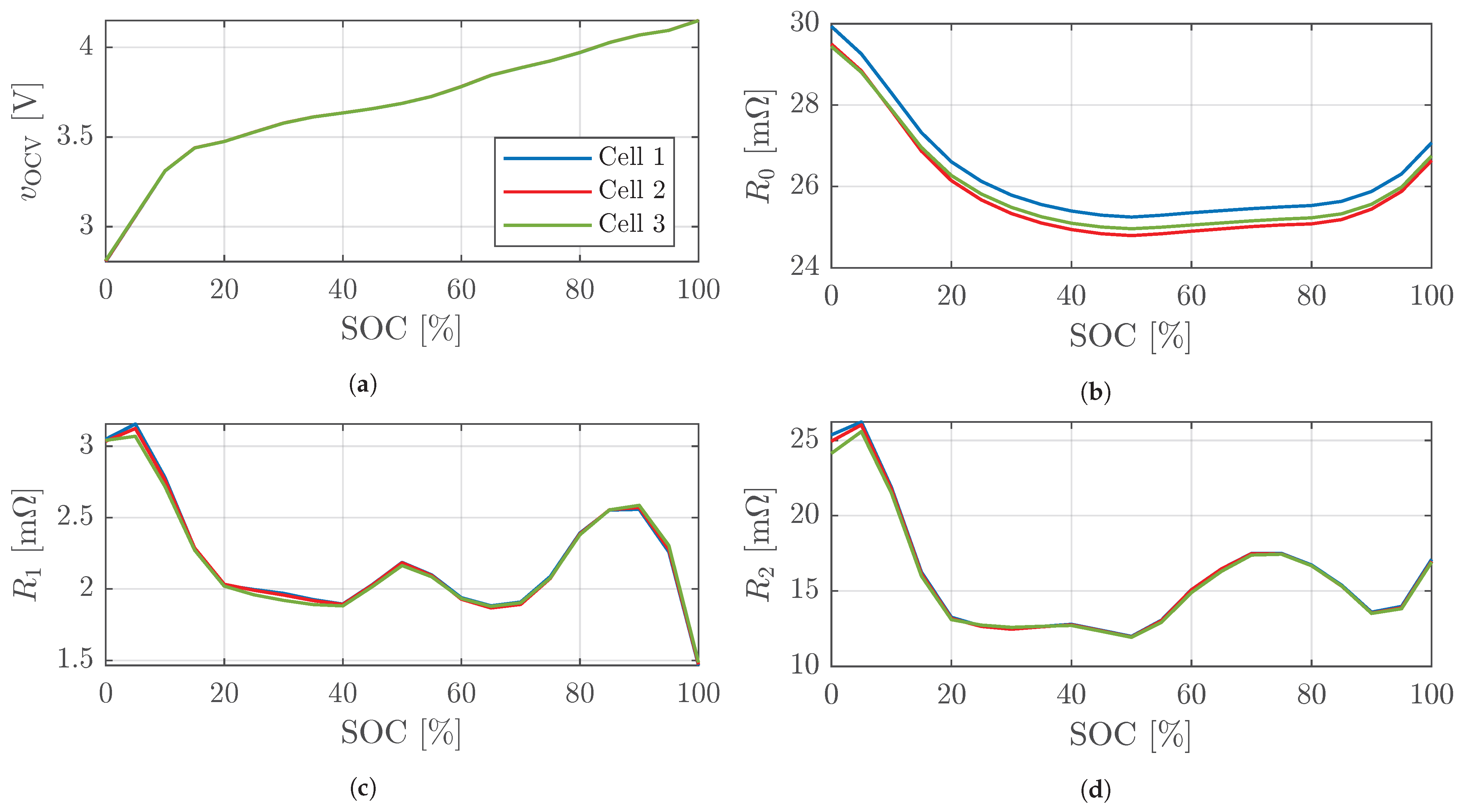

2.2. Cell characterization
2.3. Kalman Filtering
Algorithm 1 Extended Kalman filter.

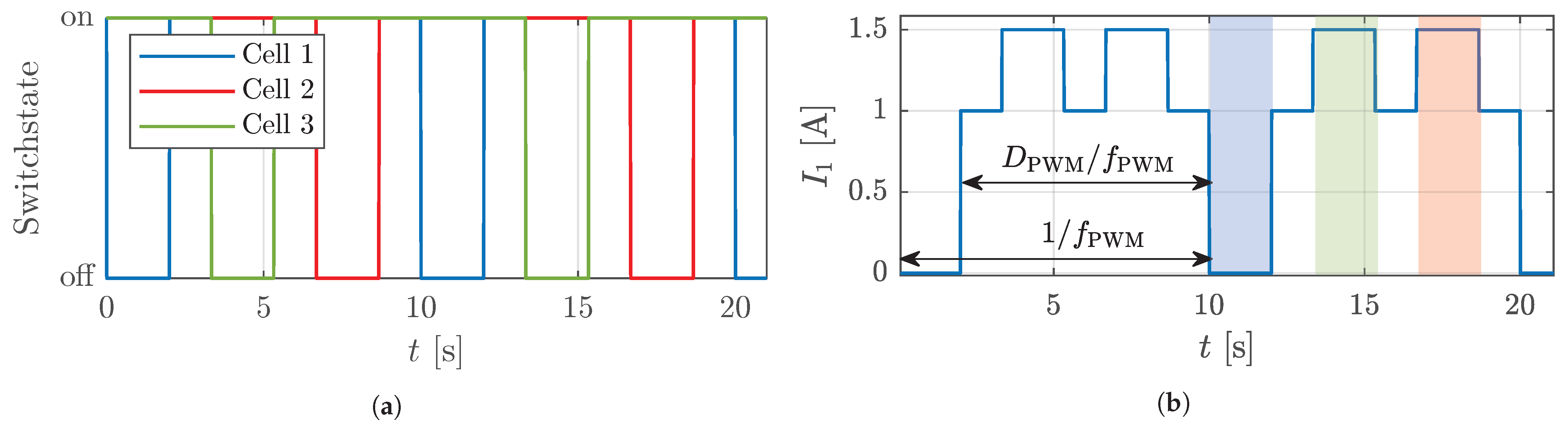

2.4. Switching

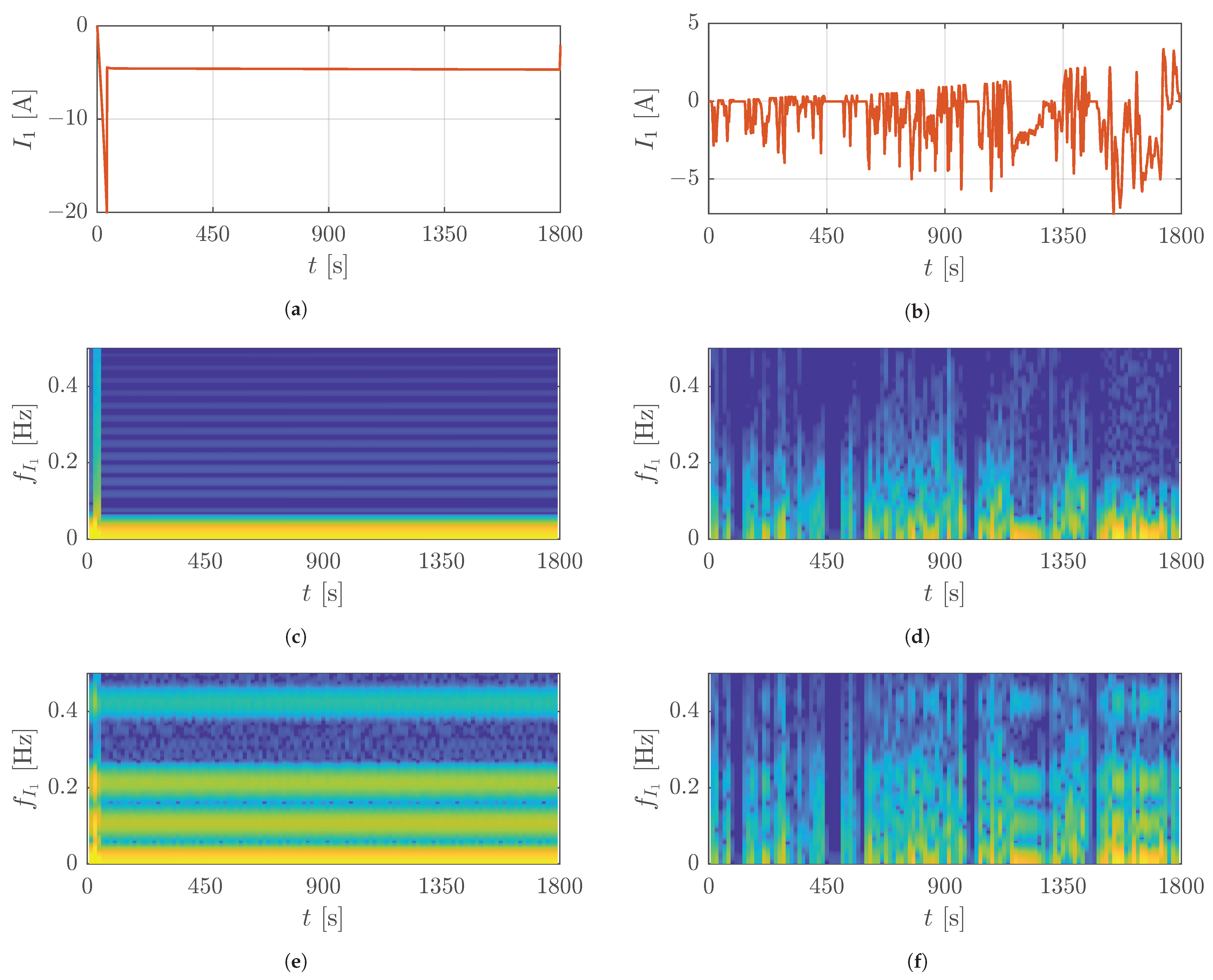

3. Input Signal Analysis
4. Implementation
4.1. Simulation

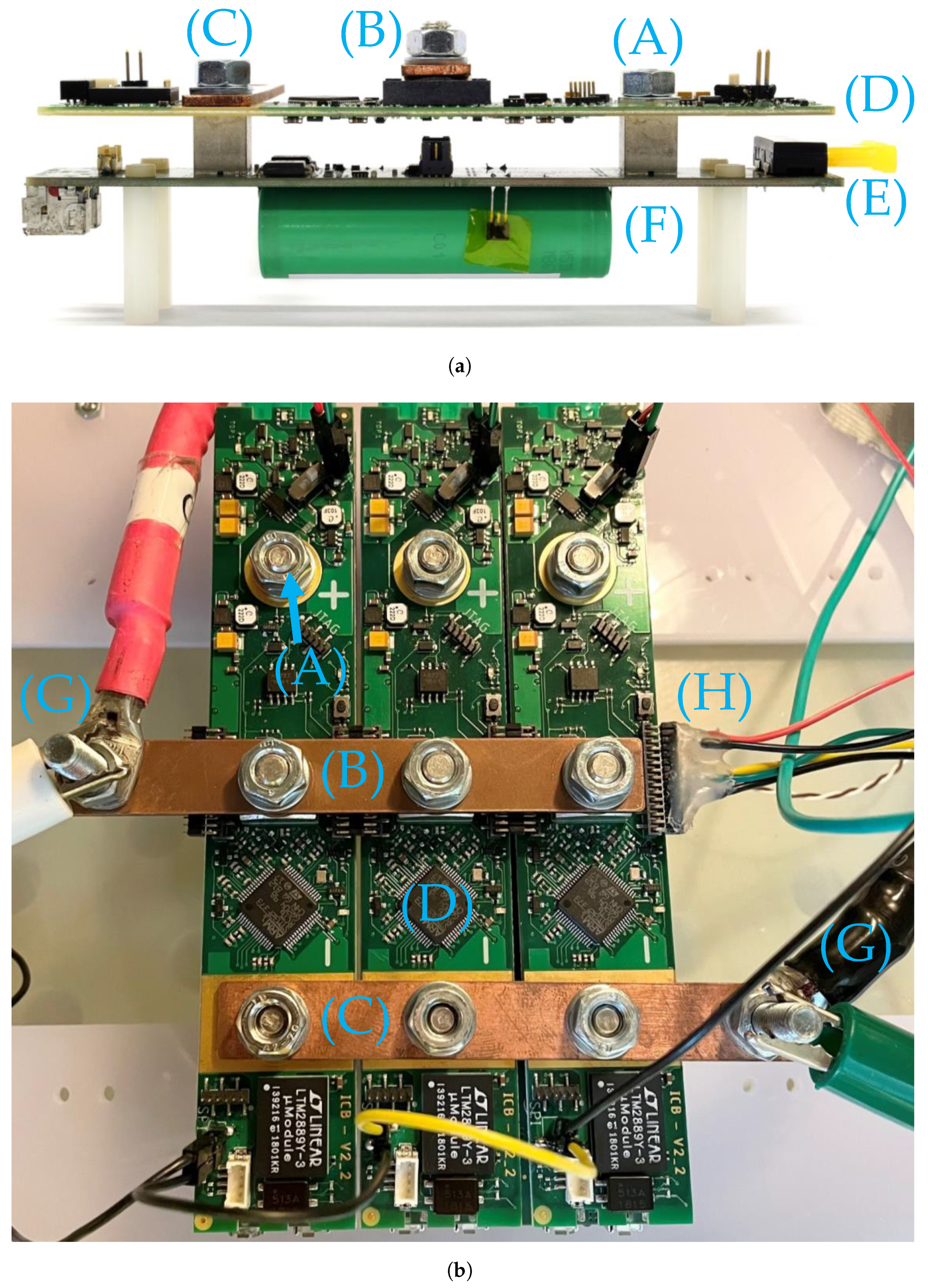

4.2. Experimental Section
5. Results and Discussion

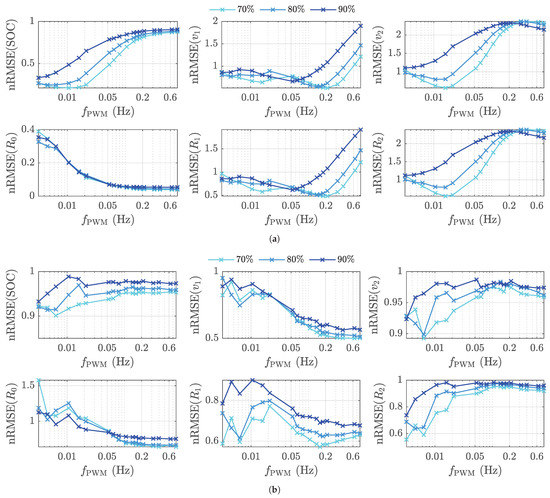

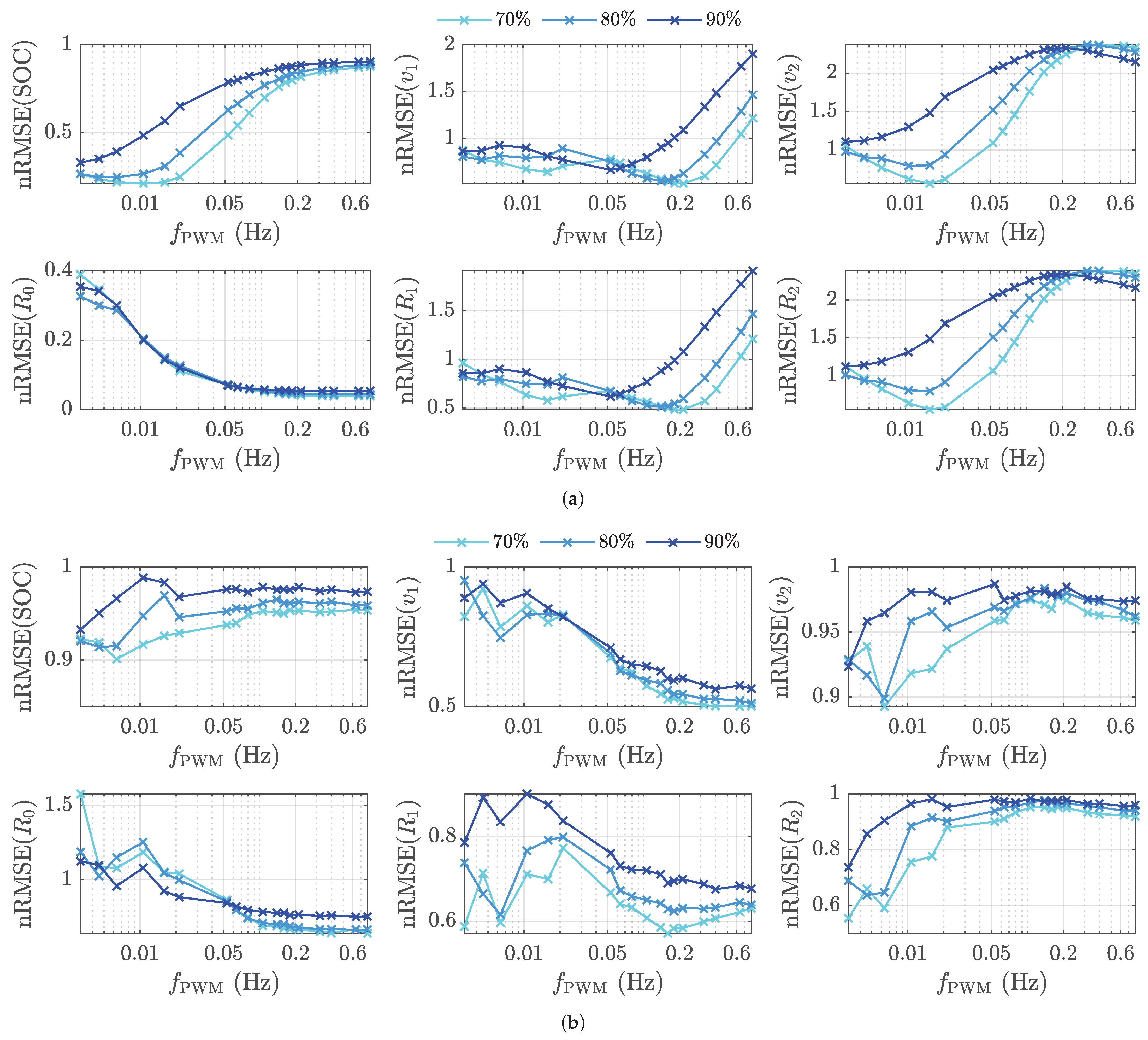

5.1. Simulation

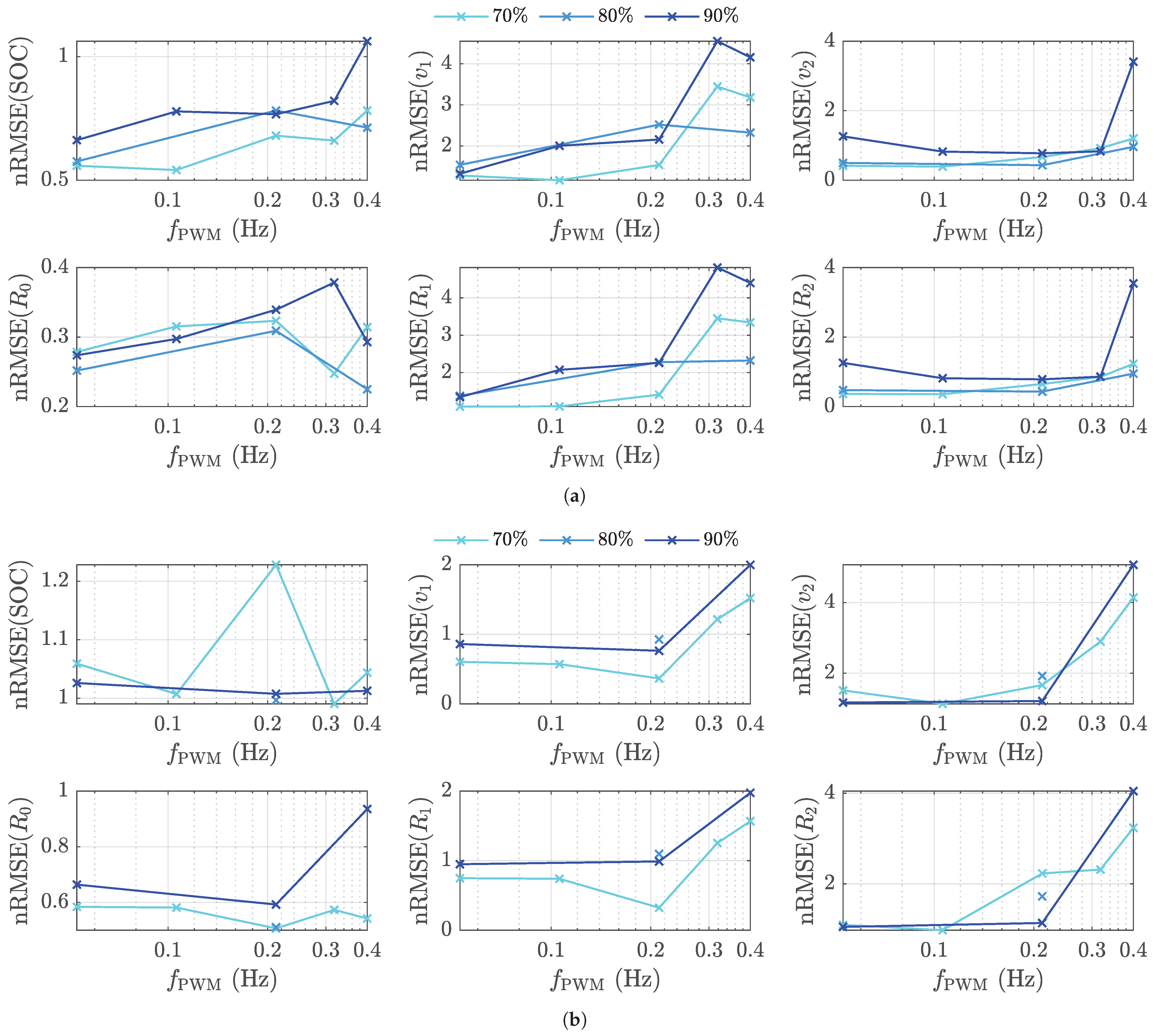

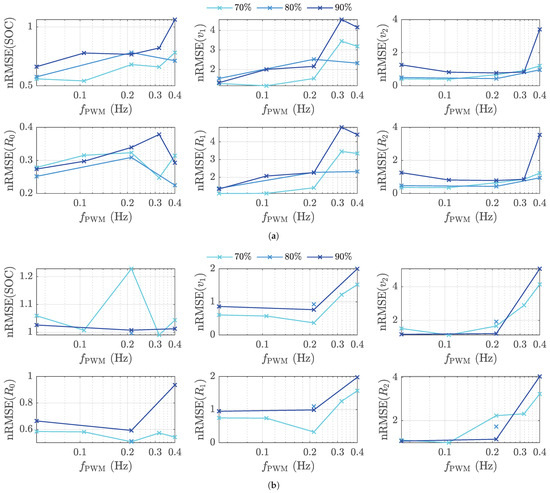

5.2. Experimental Results
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviations
BEV  Battery electric vehicle
BMS  Battery management system
CCCV  Constant current/constant voltage
DST  Dynamic stress test
ECM  Equivalent circuit model
EKF  Extended Kalman filter
HPPC  Hybrid pulse power characterization
nRMSE  Normalized rootmeansquared error
OCV  Opencircuit voltage
PRBS  Pseudorandom binary sequence
PWM  Pulsewidth modulation
RBS  Reconfigurable battery system
RC  Resistor–capacitor
RMS  Root mean square
RMSE  Rootmeansquared error
SISO  Singleinput, singleoutput
SOC  State of charge
SOH  State of health
UDDS  Urban Dynamometer Driving Schedule
WLTP  Worldwide Harmonized LightDuty Vehicles Test Procedure
Nomenclature
$\mathit{A}$  Statespace system matrix
$\mathit{B}$  Statespace input matrix
${C}_{1/2}$  Capacity of the RC elements (F)
$\mathit{C}$  Statespace output matrix
D  Statespace feedthrough scalar
${D}_{PWM}$  Duty cycle of the PWM signal (%)
f  Nonlinear system function
${f}_{PWM}$  Frequency of the PWM signal (Hz)
h  Nonlinear measurement function
I  Cell current (A)
$\mathit{I}$  Identity matrix
k  Time step
K  Number of time steps
$\mathit{K}$  Kalman gain
$\mathit{P}$  State covariance matrix
$\mathit{q}$  Process noise
$\mathit{Q}$  Process noise covariance matrix
r  Measurement noise
R  Measurement noise covariance
${R}_{0}$  Internal resistance ($\Omega $)
${R}_{1/2}$  Resistance of the RC elements ($\Omega $)
S  Switch
SOC  State of charge (%)
${t}_{off}$  Time the cell is disconnected (s)
u  Statespace input
v  Terminal voltage (V)
${v}_{1/2}$  Voltage of the RC elements (V)
${v}_{\mathrm{OCV}}$  Open circuit voltage (V)
$\mathit{w}$  Statespace parameter vector
$\mathit{x}$  Statespace state vector
$\mathit{y}$  Statespace measurement
$\Delta t$  Step size (s)
$\eta $  Coulombic efficiency
${\sigma}_{I}$  Standard deviation of the current (A)
${\sigma}_{v}$  Standard deviation of the voltage (V)
${\tau}_{1/2}$  Time constant of the RC elements (s)
$\mathbb{R}$  Real numbers
$\mathbb{E}\left\{\xb7\right\}$  Expectation
$\mathrm{diag}\{\xb7\}$  Diagonal matrix
${\xb7}^{T}$  Transpose
$\widehat{\xb7}$  Estimation
References
 Lu, L.; Han, X.; Li, J.; Hua, J.; Ouyang, M. A review on the key issues for lithiumion battery management in electric vehicles. J. Power Sources 2013, 226, 272–288. [Google Scholar] [CrossRef]
 Zhang, J.; Lee, J. A review on prognostics and health monitoring of Liion battery. J. Power Sources 2011, 196, 6007–6014. [Google Scholar] [CrossRef]
 Berecibar, M.; Gandiaga, I.; Villarreal, I.; Omar, N.; van Mierlo, J.; van den Bossche, P. Critical review of state of health estimation methods of Liion batteries for real applications. Renew. Sustain. Energy Rev. 2016, 56, 572–587. [Google Scholar] [CrossRef]
 RiveraBarrera, J.; MuñozGaleano, N.; SarmientoMaldonado, H. SoC Estimation for Lithiumion Batteries: Review and Future Challenges. Electronics 2017, 6, 102. [Google Scholar] [CrossRef] [Green Version]
 Adaikkappan, M.; Sathiyamoorthy, N. Modeling, state of charge estimation, and charging of lithium–ion battery in electric vehicle: A review. Int. J. Energy Res. 2021, 46, 2141–2165. [Google Scholar] [CrossRef]
 Wang, Q.; Kang, J.; Tan, Z.; Luo, M. An online method to simultaneously identify the parameters and estimate states for lithium ion batteries. Electrochim. Acta 2018, 289, 376–388. [Google Scholar] [CrossRef]
 Wang, S.L.; Fernandez, C.; Cao, W.; Zou, C.Y.; Yu, C.M.; Li, X.X. An adaptive working state iterative calculation method of the power battery by using the improved Kalman filtering algorithm and considering the relaxation effect. J. Power Sources 2019, 428, 67–75. [Google Scholar] [CrossRef]
 Yang, R.; Xiong, R.; He, H.; Mu, H.; Wang, C. A novel method on estimating the degradation and state of charge of lithiumion batteries used for electrical vehicles. Appl. Energy 2017, 207, 336–345. [Google Scholar] [CrossRef]
 Tian, Y.; Lai, R.; Li, X.; Xiang, L.; Tian, J. A combined method for stateofcharge estimation for lithiumion batteries using a long shortterm memory network and an adaptive cubature Kalman filter. Appl. Energy 2020, 265, 114789. [Google Scholar] [CrossRef]
 Plett, G.L. Extended Kalman filtering for battery management systems of LiPBbased HEV battery packs: Part 2. Modeling and identification. J. Power Sources 2004, 134, 262–276. [Google Scholar] [CrossRef]
 Kim, I.S. The novel state of charge estimation method for lithium battery using sliding mode observer. J. Power Sources 2006, 163, 584–590. [Google Scholar] [CrossRef]
 Meng, J.; Boukhnifer, M.; Diallo, D.; Wang, T. A New Cascaded Framework for LithiumIon Battery State and Parameter Estimation. Appl. Sci. 2020, 10, 1009. [Google Scholar] [CrossRef] [Green Version]
 Schneider, D.; Liebhart, B.; Endisch, C. Active state and parameter estimation as part of intelligent battery systems. J. Energy Storage 2021, 39, 102638. [Google Scholar] [CrossRef]
 Nejad, S.; Gladwin, D.T.; Stone, D.A. A hybrid battery parameter identification concept for lithiumion energy storage applications. In Proceedings of the IECON 201642nd Annual Conference of the IEEE Industrial Electronics Society, Florence, Italy, 23–26 October 2016; pp. 1980–1985. [Google Scholar] [CrossRef] [Green Version]
 Wei, Z.; Zhao, J.; He, H.; Ding, G.; Cui, H.; Liu, L. Future smart battery and management: Advanced sensing from external to embedded multidimensional measurement. J. Power Sources 2021, 489, 229462. [Google Scholar] [CrossRef]
 Komsiyska, L.; Buchberger, T.; Diehl, S.; Ehrensberger, M.; Hanzl, C.; Hartmann, C.; Hölzle, M.; Kleiner, J.; Lewerenz, M.; Liebhart, B.; et al. Critical Review of Intelligent Battery Systems: Challenges, Implementation and Potential for Electric Vehicles. Energies 2021, 14, 5989. [Google Scholar] [CrossRef]
 Bouchhima, N.; Schnierle, M.; Schulte, S.; Birke, K.P. Active modelbased balancing strategy for selfreconfigurable batteries. J. Power Sources 2016, 322, 129–137. [Google Scholar] [CrossRef]
 Schmid, M.; Gebauer, E.; Hanzl, C.; Endisch, C. Active ModelBased Fault Diagnosis in Reconfigurable Battery Systems. IEEE Trans. Power Electron. 2021, 36, 2584–2597. [Google Scholar] [CrossRef]
 Rodriguez, J.; Lai, J.S.; Peng, F.Z. Multilevel inverters: A survey of topologies, controls, and applications. IEEE Trans. Ind. Electron. 2002, 49, 724–738. [Google Scholar] [CrossRef] [Green Version]
 Lain, M.J.; Brandon, J.; Kendrick, E. Design Strategies for High Power vs. High Energy Lithium Ion Cells. Batteries 2019, 5, 64. [Google Scholar] [CrossRef] [Green Version]
 Schmid, M.; Vögele, U.; Endisch, C. A novel matrixvectorbased framework for modeling and simulation of electric vehicle battery packs. J. Energy Storage 2020, 32, 101736. [Google Scholar] [CrossRef]
 Yang, J.; Xia, B.; Shang, Y.; Huang, W.; Mi, C.C. Adaptive StateofCharge Estimation Based on a Split Battery Model for Electric Vehicle Applications. IEEE Trans. Veh. Technol. 2017, 66, 10889–10898. [Google Scholar] [CrossRef]
 BarShalom, Y.; Li, X.R.; Kirubarajan, T. Estimation with Applications to Tracking and Navigation: Theory Algorithms and Software; John Wiley & Sons, Inc.: New York, NY, USA, 2001. [Google Scholar] [CrossRef]
 Theiler, M.; Schneider, D.; Endisch, C. Kalman Filter Tuning Using MultiObjective Genetic Algorithm for State and Parameter Estimation of LithiumIon Cells. Batteries 2022, 8, 104. [Google Scholar] [CrossRef]
 Schneider, D.; Liebhart, B.; Endisch, C.; Kennel, R. Enhanced State and Parameter Estimation within Reconfigurable Battery Systems for Electric Vehicles. In Proceedings of the 2022 12th International Conference on Power, Energy and Electrical Engineering (CPEEE), Shiga, Japan, 25–27 February 2022; IEEE: Piscataway, NJ, USA, 2022; pp. 71–77. [Google Scholar] [CrossRef]
 Juang, L.W.; Kollmeyer, P.J.; Anders, A.E.; Jahns, T.M.; Lorenz, R.D.; Gao, D. Investigation of the influence of superimposed AC current on lithiumion battery aging using statistical design of experiments. J. Energy Storage 2017, 11, 93–103. [Google Scholar] [CrossRef]
 Ngaleu, G.; Theiler, M.; Straßer, X.; Hanzl, C.; Komsiyska, L.; Endisch, C.; Lewerenz, M. Influence of Switching on the Aging of High Power LithiumIon Cells. Batteries 2022, 8, 33. [Google Scholar] [CrossRef]
Manufacturer  Samsung

Type  INR1865025R
Format  18650
Chemistry  NCA/graphite
Charge cutoff voltage  $4.2\phantom{\rule{0.166667em}{0ex}}$V
Discharge cutoff voltage  $2.5\phantom{\rule{0.166667em}{0ex}}$V
Maximum constant charge current  $4\phantom{\rule{0.166667em}{0ex}}$A
Maximum constant discharge current  $20\phantom{\rule{0.166667em}{0ex}}$A
Nominal voltage  $3.6\phantom{\rule{0.166667em}{0ex}}$V
Nominal capacity @ $0.2\phantom{\rule{0.166667em}{0ex}}$C  $2.5\phantom{\rule{0.166667em}{0ex}}$Ah
Energy density  216 Wh/kg
Power density  1.7 kW/kg
${\mathit{D}}_{\mathbf{PWM}}$  $70\%$  $80\%$  $90\%$

${\mathit{f}}_{\mathbf{PWM}}$
$400\phantom{\rule{0.166667em}{0ex}}$mHz  ×∘  ×  ×∘
$318\phantom{\rule{0.166667em}{0ex}}$mHz  ×∘  ×
$212\phantom{\rule{0.166667em}{0ex}}$mHz  ×∘  ×∘  ×∘
$106\phantom{\rule{0.166667em}{0ex}}$mHz  ×∘  ×
$53\phantom{\rule{0.166667em}{0ex}}$mHz  ×∘  ×  ×∘
Quantity  SOC  ${\mathit{v}}_{1}$  ${\mathit{v}}_{2}$  ${\mathit{R}}_{0}$  ${\mathit{R}}_{1}$  ${\mathit{R}}_{2}$

WLTP  0.90  0.50  0.89  0.64  0.57  0.55
Highway  0.21  0.51  0.56  0.04  0.48  0.55
Quantity  SOC  ${\mathit{v}}_{1}$  ${\mathit{v}}_{2}$  ${\mathit{R}}_{0}$  ${\mathit{R}}_{1}$  ${\mathit{R}}_{2}$

WLTP  0.99  0.37  1.13  0.51  0.32  0.98
Highway  0.54  1.17  0.38  0.22  1.10  0.36
${\mathit{D}}_{\mathbf{PWM}}$  Passive  $90\%$  $80\%$  $70\%$

WLTP  $1.859\phantom{\rule{0.166667em}{0ex}}$A  $1.989\phantom{\rule{0.166667em}{0ex}}$A  $2.114\phantom{\rule{0.166667em}{0ex}}$A  $2.237\phantom{\rule{0.166667em}{0ex}}$A
Highway  $4.864\phantom{\rule{0.166667em}{0ex}}$A  $5.200\phantom{\rule{0.166667em}{0ex}}$A  $5.533\phantom{\rule{0.166667em}{0ex}}$A  $5.852\phantom{\rule{0.166667em}{0ex}}$A
