High-Performance Layered Oxides for Sodium-Ion Batteries Achieved through Combined Aluminum Substitution and Surface Treatment

by
Mariya Kalapsazova
1,*,
Rositsa Kukeva
1,
Sonya Harizanova
1,
Pavel Markov
1,
Diana Nihtianova
1,2,
Ekaterina Zhecheva
1 and
Radostina Stoyanova
1,*
1
Institute of General and Inorganic Chemistry, Bulgarian Academy of Sciences, 1113 Sofia, Bulgaria
2
Institute of Mineralogy and Crystallography, Bulgarian Academy of Sciences, 1113 Sofia, Bulgaria
*
Authors to whom correspondence should be addressed.
Batteries 2023, 9(2), 144; https://doi.org/10.3390/batteries9020144
Submission received: 28 January 2023 / Revised: 9 February 2023 / Accepted: 16 February 2023 / Published: 20 February 2023
(This article belongs to the Special Issue Emerging Technologies and Electrode Materials for Metal Batteries)
Browse Figures
Versions Notes

Abstract

:
Layered sodium transition metal oxides belong to electrode materials for sodium-ion batteries that combine, in a better way, high performance with environmental requirements. However, their cycling stability is still far from desirable. Herein, we demonstrate a rational approach to control the cycling stability of sodium-deficient nickel manganese oxides, Na2/3Ni1/2Mn1/2O2, with two- and three-layer stacking through Al substitution and Al2O3 treatment. Layered Na2/3Ni1/2Mn1/2O2 oxide displays a limited ability to accommodate aluminum in its structure (i.e., up to 8 at. %). The substitution of Ni ions with electrochemically inactive Al3+ ions and keeping the amount of Mn ions in Na2/3Ni1/2−xAlxMn1/2O2 leads to the stabilization of the two-layer stacking and favors the participation of lattice oxygen in the electrochemical reaction in addition to Ni ions. This results in an increase in the specific capacity of the Al-substituted oxides. Furthermore, the kinetics of the cationic migration between layers occurring during oxide cycling was manipulated by oxide morphology. The best cycling stability is observed for Na2/3Ni0.42Al0.08Mn1/2O2 having a column-like morphology of stacked plate-like particles along the common faces. The treatment of the layered oxides with Al2O3 mitigates the Mn dissolution reaction during electrode cycling in the NaPF6-based electrolyte, thus contributing to a high cycling stability.

Graphical Abstract

1. Introduction

To transform sodium-ion batteries into the technology of choice for grid-scale energy storage, there is a need to identify electrode materials that unify high performance with a low environmental footprint and high safety [1,2]. Sodium-deficient transition metal oxides (NaxTMO2) are the most perspective-positive electrodes since they display the unique property of delivering large capacities at high potentials, as well as containing non-critical raw elements [3,4]. This is a consequence of their propensity to adopt flexible layered structures where Na+ ions migrate easily and quickly between the layers composed of Mn, Ni and Fe ions with different oxidation states [5]. However, their cycling stability is still far from desirable [3,4,5]. To improve cycling stability, several structural approaches have been proposed [6,7]. One of them concerns the substitution of transition metal ions with light metal ions [8]. The improvement of the performance of NaxTMO2 is a result of the stabilization of the layered structure upon Na+ extraction and insertion [9], the control of the cationic order inside the transition metal layers [10,11], the reduction of the Jahn–Teller distortion of Mn3+ [12], the activation of the oxygen redox activity in addition to that of transition metal ions [13], and the enhancement of Na+ diffusion [14]. Among light metal ions, the most widely studied are Mg2+, Zn2+ and Al3+, all of which are electrochemically inactive [15,16,17,18,19,20]. The aluminum exhibits a specific effect in improving Na+ diffusion kinetics in layered oxides by enlarging the space between TM layers [21,22].
The second approach is based on the surface modification of layered oxides by electrochemically inactive oxides such as Al2O3, MgO, ZnO, CeO2, phosphates, etc. [23]. Aluminum oxide is of primary technological interest due to its simple synthesis, relatively high Na+ ion diffusivity in NaxAl2O3 and low cost [24]. The main idea of using an A2O3 coating is to prevent the oxide surface from interacting with the electrolyte, especially at high potentials; to modify the degradation pathways of the cathode surface from hydrogen fluoride (HF) attack; and to tune the structural stresses occurring during Na+ extraction/insertion cycling [25,26,27]. In addition, oxygen-storage modifiers such as CeO2 play a new role, which consists of the stabilization of oxygen redox activity through the oxide buffer supplying and receiving oxygen during alkali ion intercalation [28]. The phosphate coating (such as AlPO4) of layered oxides serves to stabilize the surface by avoiding element dissolution, as well as by suppressing the dissolution–migration–deposition process in full sodium-ion cells [29]. In general, the improvement of the performance of NaxTMO2 can be achieved through the rational control of metal substitution and surface modifications.
This study aims to delve into the interplay between the structure and surface modifications and their influence on the Na storage capacity of layered sodium nickel manganese oxides, Na2/3Ni1/2Mn1/2O2. Aluminum is used as both the structure and surface modifier. The structural modification of Na2/3Ni1/2Mn1/2O2 is achieved through the selective substitution of Ni with aluminum and keeping Mn ions as Mn4+. This approach is different from previously studied Al-substituted oxides, where Mn and Fe ions are targets for Al substitution [19,20,30,31]. Therefore, the first part of our study is focused on the evaluation of the concentration limits of Al substitution into Na2/3Ni1/2Mn1/2O2, and based on these results, the oxides with the highest Al content are studied electrochemically further on. The deposition of Al2O3 on layered oxides serves as a surface modification. Layered oxides with different layer stacking are selected for Al2O3 treatment: pristine Na2/3Ni1/2Mn1/2O2 and Al-substituted oxide, Na0.67Ni0.42Al0.08Mn0.50O2, with a three- and two-layer sequence (i.e., P3 and P2 structure according to the notation of Delmas [32]). The comparison of the electrochemical properties of Al-substituted and Al2O3-treated oxides allows determining new correlations for the improvement of the performance of electrode materials. The changes in layered oxides upon cycling are monitored by electron paramagnetic resonance spectroscopy (EPR).

2. Materials and Methods

2.1. Materials

The Al-substituted oxides were prepared by the freeze-drying of aqueous solutions containing acetate salts of Na+, Ni2+, Mn2+ and Al3+ ions. The amount of Al varied between 4 and 16 at. %. The acetate precursors were decomposed at 400 °C to eliminate the organic part. The solid residues were ground, pelleted and annealed at 700, 800 and 900 °C for 24 h. The acetate precursors were preferred over the nitrate ones since they yield smaller particles and a narrower particle size distribution, as recently found [33].
The Al2O3 treatment of layered oxides was carried out by the impregnation of P3-Na2/3Ni1/2Mn1/2O2 and P2-Na0.67Ni0.42Al0.08Mn0.50O2 with an aqueous solution of aluminum acetate. The Al2O3 content was 5 wt. %. The impregnated P3-Na2/3Ni1/2Mn1/2O2 and P2-Na0.67Ni0.42Al0.08Mn0.50O2 were annealed for 2 h at 700 and 800 °C, respectively.

2.2. Methods

The structural analysis was carried out by using a powder X-ray diffractometer (Bruker Advance D8) working with CuKα radiation. The oxide morphology and chemical composition were monitored by using a scanning electron microscope (SEM, JEOL JSM 6390) equipped with the Oxford INCA energy-dispersive X-ray spectrometer. The local structure of oxides was determined by electron diffraction using the JEOL 2100 TEM microscope. The images were calculated by using Digital Micrograph software. The oxidation states of transition metal ions were quantified by using an EPR spectrometer (Bruker EMXplus) between 100 and 400 K. The electrical resistivity was measured in the framework of the van der Pauw method between 300 and 500 K using MMR’s Variable Temperature Hall System (K2500-5SLP-SP).
The electrochemical experiments were performed on two- and three-electrode Swagelok-type cells. The electrodes consisted of the active material (80 wt. %), conductive additives (carbon black, Super C65, 10 wt. %) and polymer binder (polyvinylidene fluoride (PVDF), 10 wt. %). The electrode mixture was cast on an Al collector, which after drying at 80 °C overnight, was cut into electrodes with a diameter of 10 mm each. The active material was around 3.50 ± 0.5 mg/cm2 for each electrode. The electrolyte contained 1M NaPF6 in the PC. The amount of the used electrolyte was about 140 μL. A Whatman GF/D glass microfiber layer was used as a separator. All electrochemical experimenters were carried out on the Biologic VMP-3e battery cycler. To ensure reproducibility, electrochemical measurements were repeated at least twice. For ex situ EPR experiments, the subjects of the study were electrodes after 100 cycles between 1.5 and 4.8 V and, finally, discharged up to 1.5 V. The electrodes recovered from the switched-off cells were filled into EPR quartz tubes inside the glovebox (MBraun, MB-Unilab Pro SP 1500/780).

3. Results and Discussion

3.1. Al Substitution of Ni in Layered Na2/3[Ni1/2Mn1/2]O2: Concentration Limits

To understand the ability of the layered structure to uptake Al, Figure 1a gives the XRD patterns of oxides with Al content varying between 0.04 and 0.16 at. %. The indexation of the XRD patterns reveals the formation of a phase mixture between P2 and P3 modifications for the Al-containing oxides. This is not observed for the unsubstituted oxide P3-Na2/3Ni1/2Mn1/2O2, where only P3 modification is stabilized. By increasing the Al content above 8 at. % (i.e., per structural formula), an impurity phase indexed as NaAlO2 appears in addition to both the P2 and P3 phases. This indicates a limited insertion of Al3+ into the layered oxide Na2/3Ni1/2Mn1/2O2, the upper concentration limit being 8 at. %. It is worth mentioning that the concentration limit is wider when Al3+ is substituted for Mn in the layered Mn-rich oxides, i.e., 40 and 22 at. % for O′3-NaMn0.6Al0.4O2 and P2-Na2/3Mn7/9Al2/9O2 [12,34]. The oxide having the maximal Al content (i.e., 8 at. %) is studied further on.
The phase composition depends additionally on the annealing temperature. Figure 1b shows the XRD patterns of the oxides containing 8 at. % Al annealed at 700, 800 and 900 °C. The P2 and P3 phases can be clearly distinguished through the diffraction peak (012) and (015), respectively (Figure 1b). Although the oxide annealed at 700 °C contains both the P3 and P2 phases, the oxides annealed at 800 and 900 °C display an occurrence of P2 modification only. In comparison with the Al-containing oxides, the P2 modification of the unsubstituted oxides is formed at 900 °C only [35]. The XRD data disclose that Al3+ ions destabilize the P3 modification at the expense of the P2 modification.
To analyze the Al distribution in the layered structure, the lattice parameters of both the P2 and P3 phases are listed in Table 1. The same table also gives the lattice parameters for P3-Na2/3Ni1/2Mn1/2O2 and P2-Na2/3N1/3Mn2/3O2 used as standards. The comparison shows that the Al3+ additives slightly contract the lattice volume of both phases. Given the smaller ionic radius of Al3+ vs. that of Ni2+ and Ni3+, the lattice contraction supports that the Al3+ ions substitute for Ni ions in P3-Na2/3Ni1/2Mn1/2O2 and P2-Na2/3Ni1/3Mn2/3O2. Furthermore, the lattice volume of the P2 phase shows a tendency to decrease after the oxide annealing from 800 to 900 °C. Compared with Al additives, the annealing temperature has a gentler effect on the layered structure. Although the Al3+ provokes a transformation from a P3- to a P2-type structure, the annealing temperature leads to a slight lattice volume compression.
The distribution of Al3+ into P3 and P2 phases is examined by EPR spectroscopy. Figure 2A compares the EPR spectra of the oxides annealed at 700, 800 and 900 °C, as well as P3-Na2/3Ni1/2Mn1/2O2 and P2-Na2/3Ni1/3Mn2/3O2 as references for the Ni-Mn magnetic systems. The EPR spectra of the layered reference oxides consist of a single Lorentzian line due to the two-dimensional magnetic interactions between the Ni2+/3+ and Mn4+ ions inside the layers [36]. The magnetically coupled ions provoke a strong temperature dependence of the EPR parameters. Both the g-factor and EPR line width decrease with cooling from 400 to 80 K (Figure 2B). The different strengths of the magnetic interactions between the Ni and Mn ions in the P3 and P2 phases enable their differentiation with respect to the EPR line width: P3-Na2/3Ni1/2Mn1/2O2 has a broader EPR signal than that of P2-Na2/3Ni1/3Mn2/3O2 (i.e., 140 mT vs. 131 mT at 450 K).
The insertion of Al3+ into P3-Na2/3Ni1/2Mn1/2O2 and P2-Na2/3Ni1/3Mn2/3O2 proceeds without changing the EPR line shape, as well as the temperature dependence of the g-factor. This shows that the Ni-Mn spin system gives rise to the EPR spectra for the Al-substituted oxides too. The only parameter that is changed after Al3+ insertion is the EPR line width. For the Al-substituted oxide annealed at 700 °C (which is a mixture of the main P3 phase and the impurity P2 phase in the ratio of 88:12 wt. %), the EPR line width is narrowed in comparison to that of the unsubstituted P3-Na2/3Ni1/2Mn1/2O2. The line narrowing reflects a dilution of the Ni-Mn spin system due to the replacement of paramagnetic Ni ions with diamagnetic Al3+ ions. This is in agreement with the XRD data, where a smaller lattice volume is observed for the Al-substituted P3 phase. In addition, the effect of a small amount of the P2 phase (having narrower line width) on the EPR line width cannot be discarded.
For the Al-substituted oxides annealed at 800 and 900 °C and containing a single P2 phase, the EPR signal has the same line width, which is broader than that of the unsubstituted P2-Na2/3N1/3Mn2/3O2. At first glance, this is in contradiction to the dilution of the Ni-Mn spin system after Al3+ insertion. However, the simple substitution model does not take into account the cationic distribution inside the layers. For P2-Na2/3N1/3Mn2/3O2, it has been found that Ni2+ and Mn4+ ions are ordered so that every Ni2+ is surrounded by Mn4+, and every Mn4+ has 3 Ni2+ and 3 Mn4+ [32]. This pattern of ordering ensures the maximum number of contacts between Ni2+ and Mn4+ via a common O, which in turn favors the development of effective Ni-Mn magnetic interactions. As a result, the EPR line width adopts the lowest value. The replacement of Ni by Al3+ appears to destroy the in-layer Ni-Mn cationic ordering, thus contributing to line broadening. The lack of Ni-Mn cationic ordering in Al-substituted oxides can be related to XRD patterns, where there is no peak at around 22°, which is typical for in-plane cationic ordering (Figure 1).
The next parameter that is changed after Al insertion is morphology (Figure 3). At 700 °C, large and irregular aggregates are formed. This type of morphology is typical for the layered oxides obtained by the thermal decomposition of organic-containing precursors [34]. The peculiarities in the oxide morphology are observed after their annealing above 700 °C. By increasing the annealing temperature from 700 to 800 °C, the individual particles begin to crystallize, adopting a plate-like shape and tending to stick together via common faces into column-like aggregates (Figure 3). In addition to plate-like particles, smaller and irregular particles are also visible. Further annealing of the oxide at 900 °C favors the growth of both plate-like and irregular particles, resulting in the disturbance of the column-like aggregates. The comparison indicates that, at 800 °C, the plate-like particles possess dimensions of around 1.0–2.0 μm in length and 0.1–0.3 μm in thickness, while at 900 °C, the particles become thicker (i.e., around 0.5 μm) without significantly changing their length (around 2.0 μm). In synchrony with the plate-like particles, the irregular particles also increase their dimensions from about 100 nm to 500 nm after enhancing the annealing temperature from 800 to 900 °C. It is worth mentioning that, at the same annealing temperature of 900 °C, the unsubstituted oxide having a P2 structure displays better-crystalized particles with larger dimensions: an average length of 2–3 μm and a thickness of around 0.5–0.6 μm.
The primary particles are monitored by TEM (Figure 4). For the oxide annealed at 700 °C, well-crystallized particles with sizes between 200 and 500 nm are formed. SAED demonstrates that particles contain separate phases with a P3 and P2 structure, which is in accordance with XRD analysis (Figure 1b). This reveals that Al substitution proceeds through the formation of distinct P2 and P3 phases, and there is no intergrowth between them. After the enhancement of the annealing temperature from 700 to 800 °C, the particles retain their shapes and sizes, and the main phase crystallizes in the P2-type structure. This supports once again the transformation of the P3 into the P2 structure after annealing at 800 °C. A close examination of the TEM images for the oxide annealed at 800 °C discloses that the particles are stacked along the common faces, as observed in the SEM images (Figure 3b,d and Figure 4b). Any attempt to take HR-TEM images shows that the lattice fringes corresponding to d001 and d002 for the P2 structure, as well as to d003 for the P3 structure (which is indistinguishable from d002 for the P2 structure), are systematically lower than those determined from the X-ray diffraction experiments: 0.99 vs. 1.11 nm and 0.49 vs. 0.56 nm, respectively. This interlayer instability could be related to a well-known effect, according to which electron beam irradiation might induce a local temperature variation inside the particles during the HR-TEM experiment. This means that the Al-substituted oxides are unstable under electron beam irradiation, and they undergo some lattice compression. The compactness of the layered structure is also observed after increasing the annealing temperature from 700 to 900 °C (Table 1). This is an interesting finding that requires further examination.

3.2. Treatment of Layered Oxides with Al2O3

Given the phase composition of the Al-substituted oxides, the samples with a P3 and P2 structure are selected for the treatment with alumina. These are pristine Na2/3Ni1/2Mn1/2O2 with a P3-type structure and Al-substituted Na2/3Al0.08Ni0.42Mn0.50O2 with a P2-type structure. The procedure includes the treatment of layered oxides with aluminum acetate, followed by thermal annealing at 700 °C for the pristine oxide and 800 °C for the Al-substituted oxide. After Al2O3 treatment, both the P3 and P2 structures are preserved, with the lattice parameters of P3-Na2/3Ni1/2Mn1/2O2 and P2-Na2/3Al0.08Ni0.42Mn0.50O2 being the same (Figure 5). The close examination of XRD patterns of the treated oxides reveals the appearance of low-intensity peaks due to NaAlO2. However, one can take into account that the thermal decomposition of the aluminum acetate at 700 and 800 °C results in the formation of amorphous aluminum oxide (Figure 5). Based on these data, it appears that, during the decomposition, one part of the aluminum acetate interacts with the surface of the layered oxides, yielding a separate phase of NaAlO2 without affecting the oxide bulk, while the other part gives rise to the formation of amorphous aluminum oxide.
The morphology of the Al-treated oxides retains its main features (Figure 6). For the P3 phase treated at 700 °C with alumina, there are large and irregular aggregates, which are composed of closely bonded individual particles with sizes of around 0.3 μm. The same picture is observed for the untreated P3 phase [34]. For the P2 phase treated at 800 °C, the typical column-like aggregates are also distinguished (Figure 6), as in the case of pristine P2-Na2/3Al0.08Ni0.42Mn0.50O2 (Figure 3). To analyze the distribution of Al along the aggregates, SEM-EDS analysis is undertaken (Figure 3 and Figure 6). The results evidence the uneven distribution of aluminum for both the P3 and P2 phases. For the Al-treated P2-Na2/3Al0.08Ni0.42Mn0.50O2, the Al content is higher for the regions composed of small particles (i.e., sizes less than 100 nm), while the regions containing mainly plate-like particles display lower Al content. It is of importance that the Al content of the plate-like particles is slightly higher than that determined for the plate-like particles of the untreated oxide: 2.1 ± 0.4 wt. % vs. 1.5 ± 0.3 wt. % (Figure 3 and Figure 6). The SEM data disclose that the Al treatment of the layered oxide leads to a concentration of Al on the smaller particles, while the plate-like particles slightly accommodate alumina.

3.3. Na Storage Performance of Al-Substituted and Al2O3-Treated Layered Oxides

Figure 7, Figure 8 and Figure 9 compare the CV curves for the Al-substituted oxides and those of unsubstituted P3 and P2 phases. The comparison enables outlining two features. First, the P3 and P2 phases display the same CV curve profiles, as previously found [34] (Figure 7). After the first anodic and consecutive cathodic scan, two types of peaks dominate the CV curves: low-voltage peaks between 3.0 and 3.8 V and high-voltage peaks between 3.8 and 4.5 V. The anodic peaks observed at 4.75 V for the P3 phase and above 4.5 V for the P2 phase most probably come from the decomposition of the electrolyte. The low-voltage peaks at 3.50 and 3.85 V reflect the oxidation and reduction of Ni ions occurring during partial Na+ extraction and insertion, as previously established. At a potential of 4.0 V, the extraction of 1/3 of Na+ leads to the monoclinic distortion of the P3 phase (i.e., Na~0.3Ni1/2Mn1/2O2), while this process results in a strong change in the lattice parameters in the framework of the P2 structure for Na~0.3Ni1/3Mn2/3O2 [34,36,37]. The origin of the high-voltage peak around 4.4 V is more complex. For the P3 phase, the peak at 4.34 V corresponds to the complete extraction of Na+ concomitant with the oxidation of nickel ions and lattice oxygen [7,37], while for the P2 phase, the complete extraction of Na+ proceeds at 4.34 V together with a structural transformation from the P2 to the O2 type and a strong interlayer space contraction (more than 20%) [38]. This structural transition determines the poor cycling stability of P2-Na2/3Ni1/3Mn2/3O2 in the extended voltage range [2]. The poor performance of the P2 phase is well demonstrated by the CV curves after the five anodic and cathodic scans. Although the low-voltage peaks remain almost unchanged, the high-voltage peak diminishes significantly. On the contrary, the high-voltage peak appears more stable for the P3 phase, which is a consequence of the restoration of the P3 structure after the complete extraction of Na+ [35]. The additional peak at 2.2/1.7 V corresponds, most probably, to the oxidation of Mn ions instead of the Ni ones. This process is also similar for both the P3 and P2 phases.
Second, the Al additives do not influence the oxidation and reduction peaks in the CV curves (Figure 8). This indicates the preservation of the mechanism of the electrochemical reaction after the Al substitution of Ni in the layered oxides. For the layered oxides treated with Al2O3, the CV curves also retain their profiles (Figure 9). The insensitivity of the redox peaks from the Al additives and Al2O3 modifiers can be related to the electrochemical reaction taking place in the layered oxides. The insertion and extraction of Na+ are concomitant with the redox activity of Ni ions and lattice oxygen, which are common for all oxides. However, a close inspection of the CV curves reveals some peculiarities for the Al-substituted and Al2O3-treated oxides. These peculiarities are associated with the high-voltage peak after the five cathodic and anodic scans. The comparison shows that the high-voltage peak is better resolved for the Al-substituted and Al2O3-treated oxides than those of the unsubstituted P3-Na2/3Ni1/2Mn1/2O2 and P2-Na2/3Ni1/3Mn2/3O2. The stabilization of the high-voltage peak is a prerequisite for the improved electrochemical performance of the Al-substituted and Al2O3-treated oxides.
To verify this suggestion, the cycling stability of Al-substituted oxides is compared in Figure 10. The electrochemical test is carried out in two potential ranges: in a narrow range between 1.5 and 4.2 V and in a broad potential range between 1.5 and 4.8 V, where the proceeding of the high-voltage reaction is activated. In a narrow potential range, all Al-substituted oxides deliver nearly the same capacity, which varies between 60 and 70 mAh/g. The cycling stability is also comparable for all oxides: 17%, 15% and 24% after 100 cycles at a rate of C/2 for oxides annealed at 700, 800 and 900 °C, respectively. Contrary to the narrow potential range, the broad potential range enables a clear differentiation of the Al-substituted oxides. The highest capacity is delivered by the Al-substituted oxide annealed at 800 °C and having a P2-type structure, while the counterpart annealed at 900 °C delivers the smallest capacity. The Al-substituted oxide annealed at 700 °C and containing a phase mixture between P3 and P2 displays an intermediate capacity in comparison with that of the oxides annealed at 800 and 900 °C. The difference in the capacities of the Al-substituted oxides comes from the high-voltage peak, which is well demonstrated by the corresponding charge/discharge curves (Figure 11). Thus, the galvanostatic experiments support the concept of the stabilization of the high-voltage peak as a sign of the improved electrochemical performance of the Al-substituted oxides. To explain this effect, we measured the electrical resistivity of the substituted oxides. In comparison with the high-voltage peak, the electrical resistivity of Al-substituted oxides is relatively comparable (i.e., the values vary around 2–5 × 106 Ohm.cm at 470 K without any clear dependence on the structure type and oxide annealing temperature). In addition, the lack of intergrowth between the P3 and P2 phases (Figure 4) cannot also explain the observed stabilization of the high-voltage peak, as has been discussed in previous reports [39,40]. This means that the stabilization of the high-voltage peak is not a simple consequence of the replacement of Ni by Al.
When P3-Na2/3Ni1/2Mn1/2O2 is treated with Al2O3, the capacity increases from 120 to around 150 mAh/g, but the capacity stability remains comparable with that of the untreated oxide (Figure 10). This is not the case when P2-Na2/3Ni0.42Al0.08Mn1/2O2 is treated with Al2O3, with the capacity and cycling stability being unchanged. The difference between the Al2O3-treated P3 and P2 oxides can be related to the high-voltage peak. P2-Na2/3Ni0.42Al0.08Mn1/2O2 displays a well-resolved high-voltage peak before its treatment with Al2O3, while the high-voltage peak becomes visible only after the treatment of P3-Na2/3Ni1/2Mn1/2O2 with Al2O3 (Figure 9 and Figure 10). The results underline once again the concept of the relationship between the high-voltage peak, capacity and capacity stability. The better the resolution of the high-voltage peak, the greater the capacity and the superior the cyclic stability.
Further insight into the cycling stability of layered oxides is provided by ex situ EPR spectroscopy (Figure 12). The EPR spectra of the cycled oxides show a Lorentzian line, whose line width increases dramatically for the Al-substituted oxides annealed at 700 and 900 °C (more than 20 mT, Table 1). On the contrary, for the cycled Al-substituted oxide annealed at 800 °C, the EPR line width tends to be that of the pristine oxide. It is important that line broadening proceeds without changing the g-factor of the EPR signal, thus indicating the preservation of the Ni-Mn spin system during oxide cycling. Therefore, EPR line broadening can be interpreted in terms of cationic reorganization occurring during the electrochemical reaction. One of the possible cationic reorganization processes includes the well-known reaction of transition metal ion migration initiated during the complete extraction of Na+ from layered oxides [16,41]. Cationic migration has been shown to be responsible for the cycling performance of layered oxides when they are charging/discharging in a wide potential range [16,41]. Among the transition metal ions, nickel, iron and magnesium ions display a strong tendency to migrate toward the depleted Na+ layers, while manganese and cobalt ions remain in their crystallographic positions [16,41]. This causes a structural evolution, which contributes to the worse cycling stability of layered oxides [41]. Returning to the samples we studied, the retention of the EPR line width during oxide cycling is a sign that the cationic migration is a reversible process for the oxide annealed at 800 °C. This oxide is characterized by the best cycling stability. On the contrary, for the oxides annealed at 700 and 900 °C, the cationic migration appears to be a partially reversible process, which leads to a structural degradation expressed in the broadening of the EPR signal. As a result, both oxides exhibit worse cycling stability.
The question is why cationic migration is a reversible process for the oxide annealed at 800 °C only. This can be related to the oxide morphology, which contributes to the improvement in cationic migration kinetics. It seems that the reaction kinetics are facilitated by the specific oxide morphology, which comprises plate-like particles stacked via common faces into column-like aggregates (Figure 3). This interesting finding needs further examination in order to design more-efficient electrode materials.
For the oxides treated with Al2O3, there is no clear dependence of the EPR line width upon oxide cycling (Table 2). However, even in this case, the EPR spectroscopy allows differentiating the pristine oxide and Al2O3-treated oxides with respect to their cycling stability (Figure 12). In addition to the broad signal, a new sextet signal is detected for the cycled oxides. This signal is characterized by a g-factor of 2.002 and a hyperfine constant of 90 mT (Figure 12). Based on previous literature data [42], the sextet signal is assigned to Mn2+ ions surrounded by F- ions. The origin of the sextet signal can be related to an “electrode–electrolyte” interaction. It is well accepted that Mn-rich layered oxides undergo a severe Mn2+ dissolution in carbonate-based electrolytes due to the disproportion of Mn3+ into Mn2+ and Mn4+ [43]. Recently, the dissolution of nickel and cobalt ions from oxide-based cathodes has also been detected and discussed for conventional LiCoO2 and Ni-rich and oxides [44,45]. Through EPR spectroscopy, it appears that dissolved Mn2+ ions in the electrolyte are re-deposited on the electrode surface as fluoride complexes. Deposed MnF2 has been shown to play a twofold role: on the one hand, it passivates the electrode surface, thus preventing further interaction with the electrolyte and its decomposition; on the other hand, it impedes the alkali ion transfer from the oxide surface into the bulk [7,28]. Through EPR, we detected only the signal due to MnF2 and any signal due to Ni-fluoride complexes. However, the different sensitivity of the EPR spectroscopy in the X-band toward Mn2+ and Ni2+ ions should be taken into account. Therefore, the deposition of NiF2 on the electrode surface cannot be rejected.
The comparison of the EPR spectra demonstrates that the most intensive sextet signal is detected for P3-Na2/3Ni1/2Mn1/2O2, while for Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2, the sextet signal is hardly visible. The same picture is observed for Al2O3-treated P2-Na2/3Ni0.42Al0.08Mn1/2O2 (not shown). This means that Mn dissolution is suppressed for the Al2O3-treated oxides.
In comparison with the Al2O3-treated oxides, the Al-substituted oxides display a more complex picture, especially for the oxide annealed at 900 °C. Although the Al-substituted oxides annealed at 700 and 800 °C display only one broad signal, the EPR spectrum of the annealed oxide at 900 °C can be deconvoluted by at least of two signals: a broad signal due to the Ni-Mn spin systems of layered oxides and a narrow signal. The EPR parameters of the narrow signal are a g-factor of 2.002 and an EPR line width of 26 mT. These EPR parameters permit attributing the narrow signal to Mn2+ ions in Mn-F complexes too. In this case, the merge of the sextet signal into one single envelope is induced by the increased concentration of Mn2+ ions deposed on the surface of the oxide annealed at 900 °C: the higher the concentration of Mn2+ ions, the stronger the magnetic interactions (both dipole–dipole and exchange interactions), which, in turn, leads to a coalesce of the sextet lines [36]. This means that the oxide annealed at 900 °C suffers from strong Mn dissolution in the NaPF6-based electrolyte, which yields a capacity degradation upon cycling (Figure 10B).

4. Conclusions

Layered sodium nickel manganese oxide displays a limited ability to accommodate aluminum in its structure (i.e., up to 8 at. %). Aluminum substitution of Ni in Na2/3Ni1/2Mn1/2O2 facilitates the stabilization of P2 structural modification and provokes the disordering of Ni and Mn ions inside the layers. The oxide annealed at 800 °C exhibits a P2-type structure with a specific morphology consisting of column-like aggregates of stacked plate-like primary particles along the face. The impregnation of pristine P3-Na2/3Ni1/2Mn1/2O2 and Al-substituted P2-Na2/3Al0.08Ni0.42Mn0.50O2 with aluminum acetate leads to the formation of composites between layered oxides and Al2O3 without affecting their layered structure and morphology.
The Na+ extraction/insertion into Al-substituted and Al2O3-treated oxides proceeds thanks to the redox reactions of nickel and oxygen ions, and it is insensitive toward layer stacking. The Al substituents and Al2O3 modifiers contribute to the stabilization of the high-voltage peak at 4.4 V, thus resulting in the enhancement of the capacity. During the cycling of tAl-substituted oxides, a cationic reconstruction including mainly cationic migration between layers takes place. The reversibility of the cationic migration depends on the oxide morphology; for the oxide with stacked plate-like particles, the migration becomes a reversible process. The treatment of layered oxides with Al2O3 mitigates the Mn dissolution reaction occurring during electrode cycling in the NaPF6-based electrolyte. Mn dissolution followed by the reverse deposition of MnF2 on the electrode surface is the most intensive process for the Al-substituted oxide annealed at 900 °C.
Based on the established relationships between structure and surface modifications, the best electrode was selected. This is an Al-substituted oxide, P2-Na2/3Ni0.42Al0.08Mn1/2O2, annealed at 800 °C; thanks to the Al additives and specific column-like morphology, the high-voltage redox reaction is facilitated together with suppression of the Mn dissolution of the oxide in the electrolyte, enhancing the reversibility of the cationic migration between layers. As a result, the oxide P2-Na2/3Ni0.42Al0.08Mn1/2O2 is resistant in a broad potential range and delivers a capacity of around 110 mAh/g at a rate of C/2 after 100th cycles.
This study demonstrates how the manipulation of the high-voltage reaction, cationic migration between layers and Mn dissolution through Al substitution and Al2O3 treatment enable designing high-performance electrode materials for sodium-ion batteries.

Author Contributions

Conceptualization, R.S. and M.K.; methodology, E.Z. and R.S.; software, M.K. and R.K.; validation, M.K., R.K., S.H., P.M. and D.N.; investigation, M.K., R.K. and S.H.; resources, R.S.; data curation, M.K.; writing—original draft preparation, R.S. and M.K.; writing—review and editing, E.Z. and R.S.; visualization, M.K. and R.K.; project administration, R.S. and M.K.; funding acquisition, R.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Bulgarian National Science Fund, grant number contract CARiM (NSP Vihren, KП-06-ДB-6).

Data Availability Statement

Not applicable.

Acknowledgments

M.K. would like to acknowledge L’Oréal-UNESCO For Women in Science National Awards for Bulgaria for the financial support for the realization of this investigation. The MBRAUN glovebox and Biologic VMP-3e battery cycler were used within the framework of the National Center of Mechatronics and Clean Technologies (BG05M2OP001-1.001-0008). The EPR experiments are performed by support of the Bulgarian National Science Fund, contract CARiM (NSP Vihren, KП-06-ДB-6).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, T.; Zhang, Y.; Jiang, Z.; Zeng, X.; Ji, J.; Li, Z.; Gao, X.; Sun, M.; Lin, Z.; Ling, M.; et al. Exploring competitive features of stationary sodium ion batteries for electrochemical energy storage. Energy Environ. Sci. 2019, 12, 1512–1533. [Google Scholar] [CrossRef]
  2. Hirsh, H.S.; Li, Y.; Tan, D.H.S.; Zhang, M.; Zhao, E.; Meng, Y.S. Sodium-Ion Batteries Paving the Way for Grid Energy Storage. Adv. Energy Mater. 2020, 10, 2001274. [Google Scholar] [CrossRef]
  3. Su, H.; Jaffer, S.; Yu, H. Transition metal oxides for sodium-ion batteries. Energy Storage Mater. 2016, 5, 116–131. [Google Scholar] [CrossRef]
  4. Wei, F.; Zhang, Q.; Zhang, P.; Tian, W.; Dai, K.; Zhang, L.; Mao, J.; Shao, G. Review—Research Progress on Layered Transition Metal Oxide Cathode Materials for Sodium Ion Batteries. J. Electrochem. Soc. 2021, 168, 050524. [Google Scholar] [CrossRef]
  5. Liu, Q.; Hu, Z.; Li, W.; Zou, C.; Jin, H.; Wang, S.; Chou, S.; Dou, S.-X. Sodium transition metal oxides: The preferred cathode choice for future sodium-ion batteries? Energy Environ. Sci. 2021, 14, 158–179. [Google Scholar] [CrossRef]
  6. Shi, C.; Wang, L.; Chen, X.; Li, J.; Wang, S.; Wang, J.; Jin, H. Challenges of layer-structured cathodes for sodium-ion batteries. Nanoscale Horiz. 2022, 7, 338–351. [Google Scholar] [CrossRef] [PubMed]
  7. Kalapsazova, M.; Kukeva, R.; Zhecheva, E.; Stoyanova, R. Metal Substitution versus Oxygen-Storage Modifier to Regulate the Oxygen Redox Reactions in Sodium-Deficient Three-Layered Oxides. Batteries 2022, 8, 56. [Google Scholar] [CrossRef]
  8. Chang, Y.-X.; Yu, L.; Xing, X.; Guo, Y.-J.; Xie, Z.; Xu, S. Ion Substitution Strategy of Manganese-Based Layered Oxide Cathodes for Advanced and Low-Cost Sodium Ion Batteries. Chem. Rec. 2022, 10, e202200122. [Google Scholar] [CrossRef] [PubMed]
  9. Li, Y.; Chen, M.; Liu, B.; Zhang, Y.; Liang, X.; Xia, X. Heteroatom Doping: An Effective Way to Boost Sodium Ion Storage. Adv. Energy Mater. 2020, 10, 2000927. [Google Scholar] [CrossRef]
  10. Kaufman, J.L.; Vinckevičiūtė, J.; Kolli, S.K.; Goiri, J.G.; Van der Ven, A. Understanding intercalation compounds for sodium-ion batteries and beyond. Philos. Trans. A Math. Phys. Eng. Sci. 2019, 377, 20190020. [Google Scholar] [CrossRef] [Green Version]
  11. Zhang, X.; Yu, H.J. Crystalline Domain Battery Material. Acc. Chem. Res. 2020, 53, 368–379. [Google Scholar] [CrossRef] [PubMed]
  12. Ma, Z.; Zhao, Z.; Xu, H.; Sun, J.; He, X.; Lei, Z.; Liu, Z.-H.; Jiang, R.; Li, Q. A Queue-Ordered Layered Mn-Based Oxides with Al Substitution as High-Rate and High-Stabilized Cathode for Sodium-Ion Batteries. Small 2021, 17, e2006259. [Google Scholar] [CrossRef] [PubMed]
  13. Abate, I.; Kim, S.Y.; Pemmaraju, C.D.; Toney, M.F.; Yang, W.; Devereaux, T.P.; Chueh, W.C.; Nazar, L.F. The Role of Metal Substitution in Tuning Anion Redox in Sodium Metal Layered Oxides Revealed by X-Ray Spectroscopy and Theory. Angew. Chem. Int. Ed. 2021, 60, 10880–10887. [Google Scholar] [CrossRef] [PubMed]
  14. Di Lecce, D.; Campanella, D.; Hassoun, J. Insight on the Enhanced Reversibility of a Multi-Metal Layered Oxide for Sodium-Ion Battery. J. Phys. Chem. C 2018, 122, 23925–23933. [Google Scholar] [CrossRef]
  15. Singh, G.; Tapia-Ruiz, N.; del Amo, J.M.L.; Maitra, U.; Somerville, J.W.; Armstrong, A.R.; de Ilarduya, J.M.; Rojo, T.; Bruce, P.G. High Voltage Mg-Doped Na0.67Ni0.3–xMgxMn0.7O2 (x = 0.05, 0.1) Na-Ion Cathodes with Enhanced Stability and Rate Capability. Chem. Mater. 2016, 28, 5087–5094. [Google Scholar] [CrossRef] [Green Version]
  16. Kalapsazova, M.; Markov, P.; Kostov, K.; Zhecheva, E.; Nihtianova, D.; Stoyanova, R. Controlling at Elevated Temperature the Sodium Intercalation Capacity and Rate Capability of P3-Na2/3Ni1/2Mn1/2O2 through the Selective Substitution of Nickel with Magnesium. Batter. Supercaps 2020, 3, 1329–1340. [Google Scholar] [CrossRef]
  17. Wu, X.; Xu, G.-L.; Zhong, G.; Gong, Z.; McDonald, J.; Zheng, S.; Fu, R.; Chen, Z.; Amine, K.; Yang, Y. Insights into the effects of zinc doping on structural phase transition of P2-type sodium nickel manganese oxide cathodes for high-energy sodium ion batteries. ACS Appl. Mater. Interfaces 2016, 8, 22227–22237. [Google Scholar] [CrossRef]
  18. Bai, X.; Sathiya, M.; Mendoza-Sanchez, B.; Iadecola, A.; Vergnet, J.; Dedryvere, R.; Saubanere, M.; Abakumov, A.M.; Rozier, P.; Tarascon, J.-M. Anionic Redox Activity in a Newly Zn-Doped Sodium Layered Oxide P2-Na2/3Mn1−yZnyO2 (0 < y < 0.23). Adv. Energy Mater. 2018, 8, 1802379. [Google Scholar]
  19. Wang, H.; Gao, R.; Li, Z.; Sun, L.; Hu, Z.; Liu, X. Different Effects of Al Substitution for Mn or Fe on the Structure and Electrochemical Properties of Na0.67Mn0.5Fe0.5O2 as a Sodium Ion Battery Cathode Material. Inorg. Chem. 2018, 57, 5249–5257. [Google Scholar] [CrossRef]
  20. Cheng, C.; Ding, M.; Yan, T.; Jiang, J.; Mao, J.; Feng, X.; Chan, T.-S.; Li, N.; Zhang, L. Anionic Redox Activities Boosted by Aluminum Doping in Layered Sodium-Ion Battery Electrode. Small Methods 2022, 6, 2101524. [Google Scholar] [CrossRef]
  21. Ramasamy, H.V.; Kaliyappan, K.; Thangavel, R.; Seong, W.M.; Kang, K.; Chen, Z.; Lee, Y.-S. Efficient Method of Designing Stable Layered Cathode Material for Sodium Ion Batteries Using Aluminum Doping. J. Phys. Chem. Lett. 2017, 8, 5021–5030. [Google Scholar] [CrossRef] [PubMed]
  22. Soares, C.; Silvan, B.; Choi, Y.-S.; Celorrio, V.; Seymour, V.R.; Cibin, G.; Griffin, J.M.; Scanlon, D.O.; Tapia-Ruiz, N. Na2.4 Al 0.4 Mn2.6 O7 anionic redox cathode material for sodium-ion batteries—A combined experimental and theoretical approach to elucidate its charge storage mechanism. J. Mater. Chem. A 2022, 10, 7341–7356. [Google Scholar] [CrossRef]
  23. Li, J.; Hu, H.; Wang, J.; Xiao, Y. Surface chemistry engineering of layered oxide cathodes for sodium-ion batteries. Carbon Neutralization 2022, 1, 96–116. [Google Scholar] [CrossRef]
  24. Jung, S.C.; Kim, H.-J.; Choi, J.W.; Han, Y.-K. Sodium Ion Diffusion in Al2O3: A Distinct Perspective Compared with Lithium Ion Diffusion. Nano Lett. 2014, 14, 6559–6563. [Google Scholar] [CrossRef] [PubMed]
  25. Zuo, W.; Qiu, J.; Liu, X.; Zheng, B.; Zhao, Y.; Li, J.; He, H.; Zhou, K.; Xiao, Z.; Li, Q.; et al. Highly-stable P2–Na0.67MnO2 electrode enabled by lattice tailoring and surface engineering. Energy Storage Mater. 2020, 26, 503–512. [Google Scholar] [CrossRef]
  26. Hwang, J.-Y.; Myung, S.-T.; Choi, J.U.; Yoon, C.S.; Yashirod, H.; Sun, Y.-K. Resolving the degradation pathways of the O3-type layered oxide cathode surface through the nano-scale aluminum oxide coating for high-energy density sodium-ion batteries. J. Mater. Chem. A 2017, 5, 23671–23680. [Google Scholar] [CrossRef]
  27. Liu, Y.; Fang, X.; Zhang, A.; Shen, C.; Liu, Q.; Enaya, H.A.; Zhou, C. Layered P2-Na2/3[Ni1/3Mn2/3]O2 as high-voltage cathode for sodium-ion batteries: The capacity decay mechanism and Al2O3 surface modification. Nano Energy 2016, 27, 27–34. [Google Scholar] [CrossRef]
  28. Kalapsazova, M.; Kostov, K.; Kukeva, R.; Zhecheva, E.; Stoyanova, R. Oxygen-Storage Materials to Stabilize the Oxygen Redox Activity of Three-Layered Sodium Transition Metal Oxides. J. Phys. Chem. Lett. 2021, 12, 7804–7811. [Google Scholar] [CrossRef]
  29. Zhang, Q.; Gu, Q.-F.; Li, Y.; Fan, H.-N.; Luo, W.-B.; Liu, H.-K.; Dou, S.-X. Surface Stabilization of O3-type Layered Oxide Cathode to Protect the Anode of Sodium Ion Batteries for Superior Lifespan. Iscience 2019, 19, 244–254. [Google Scholar] [CrossRef]
  30. Feng, Y.-H.; Cheng, Z.; Xu, C.-L.; Yu, L.; Si, D.; Yuan, B.; Liu, M.; Zhao, B.; Wang, P.-F.; Han, X. Low-Cost Al-Doped Layered Cathodes with Improved Electrochemical Performance for Rechargeable Sodium-Ion Batteries. ACS Appl. Mater. Interfaces 2022, 14, 23465–23473. [Google Scholar] [CrossRef]
  31. Nayak, D.; Jha, P.K.; Ghosh, S.; Adyam, V. Aluminium substituted β–type NaMn1-xAlxO2: A stable and enhanced electrochemical kinetic sodium-ion battery cathode. J. Power Sources 2019, 438, 227025. [Google Scholar] [CrossRef]
  32. Delmas, C.; Fouassier, C.; Hagenmuller, P. Structural Classification and Properties of the Layered Oxides. Phys. B+C 1980, 99, 81–85. [Google Scholar] [CrossRef]
  33. Kalapsazova, M.; Zhecheva, E.; Tyuliev, G.; Nihtianova, D.; Mihaylov, L.; Stoyanova, R. Effects of the Particle Size Distribution and of the Electrolyte Salt on the Intercalation Properties of P3-Na2/3Ni1/2Mn1/2O2. J. Phys. Chem. C 2017, 121, 5931–5940. [Google Scholar] [CrossRef]
  34. Pang, W.-L.; Zhang, X.-H.; Guo, J.-Z.; Li, J.-Y.; Yan, X.; Hou, B.-H.; Guan, H.-Y.; Wu, X.-L. P2-type Na2/3Mn1-xAlxO2 cathode material for sodium-ion batteries: Al-doped enhanced electrochemical properties and studies on the electrode kinetics. J. Power Sources 2017, 356, 80–88. [Google Scholar] [CrossRef]
  35. Kalapsazova, M.; Ortiz, G.F.; Tirado, J.L.; Dolotko, O.; Zhecheva, E.; Nihtianova, D.; Mihaylov, L.; Stoyanova, R. P3-Type Layered Sodium-Deficient Nickel-Manganese Oxides: A Flexible Structural Matrix for Reversible Sodium and Lithium Intercalation. ChemPlusChem 2015, 80, 1642–1656. [Google Scholar] [CrossRef] [PubMed]
  36. Kalapsazova, M.; Ivanova, S.; Kukeva, R.; Simova, S.; Wegner, S.; Zhecheva, E.; Stoyanova, R. Combined use of EPR and Na-23 MAS NMR spectroscopy for assessing the properties of the mixed cobalt-nickel-manganese layers of P3-NayCo1-2xNixMnxO2. Phys. Chem. Chem. Phys. 2017, 19, 27065–27073. [Google Scholar] [CrossRef]
  37. Kim, E.J.; Ma, L.A.; Duda, L.C.; Pickup, D.M.; Chadwick, A.V.; Younesi, R.; Irvine, J.T.S.; Armstrong, A.R. Oxygen Redox Activity through a Reductive Coupling Mechanism in the P3-Type Nickel-Doped Sodium Manganese Oxide. ACS Appl. Energy Mater. 2020, 3, 184–191. [Google Scholar] [CrossRef] [Green Version]
  38. Lee, D.H.; Xu, J.; Meng, Y.S. An advanced cathode for Na-ion batteries with high rate and excellent structural stability. Phys. Chem. Chem. Phys. 2013, 15, 3304–3312. [Google Scholar] [CrossRef]
  39. Xu, G.-L.; Amine, R.; Xu, Y.-F.; Liu, J.; Gim, J.; Ma, T.; Ren, Y.; Sun, C.-J.; Liu, Y.; Zhang, X.; et al. Insights into the structural effects of layered cathode materials for high voltage sodium-ion batteries. Energy Environ. Sci. 2017, 10, 1677–1693. [Google Scholar] [CrossRef]
  40. Huang, Q.; Wang, M.; Zhang, L.; Qi, S.; Feng, Y.; He, P.; Ji, X.; Wang, P.; Zhou, L.; Chen, S.; et al. Shear-resistant interface of layered oxide cathodes for sodium ion batteries. Energy Storage Mater. 2022, 45, 389–398. [Google Scholar] [CrossRef]
  41. Chen, C.; Ding, Z.; Han, Z.; Liang, C.; Lan, H.; Wang, P.; Gao, P.; Wei, W. Unravelling Atomically Irreversible Cation Migration in Sodium Layered Oxide Cathodes. J. Phys. Chem. Lett. 2020, 11, 5464–5470. [Google Scholar] [CrossRef] [PubMed]
  42. Hall, T.P.P.; Hayes, W.; Stevenson, R.H.W.; Wilkens, J. Investigation of the Bonding of Iron-Group Ions in Fluoride Crystals. I. J. Chem. Phys. 1963, 38, 1977. [Google Scholar] [CrossRef]
  43. Zhan, C.; Wu, T.; Lu, J.; Amine, K. Dissolution, migration, and deposition of transition metal ions in Li-ion batteries exemplified by Mn-based cathodes—A critical review. Energy Environ. Sci. 2018, 11, 243–257. [Google Scholar] [CrossRef]
  44. Jung, R.; Linsenmann, F.; Thomas, R.; Wandt, J.; Solchenbach, S.; Maglia, F.; Stinner, C.; Tromp, M.; Gasteiger, H.A. Nickel, Manganese, and Cobalt Dissolution from Ni-Rich NMC and Their Effects on NMC622-Graphite Cells. J. Electrochem. Soc. 2019, 166, A378–A389. [Google Scholar] [CrossRef] [Green Version]
  45. Pang, P.; Wang, Z.; Tan, X.; Deng, Y.; Nan, J.; Xing, Z.; Li, H. [email protected] as high-voltage lithium-ion battery cathode materials with improved cycling performance and thermal stability. Electrochim. Acta 2019, 327, 135018. [Google Scholar] [CrossRef]
Batteries 09 00144 g001 550

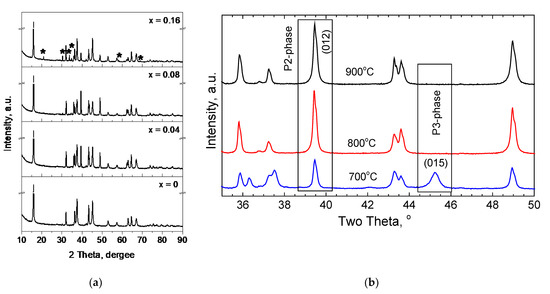

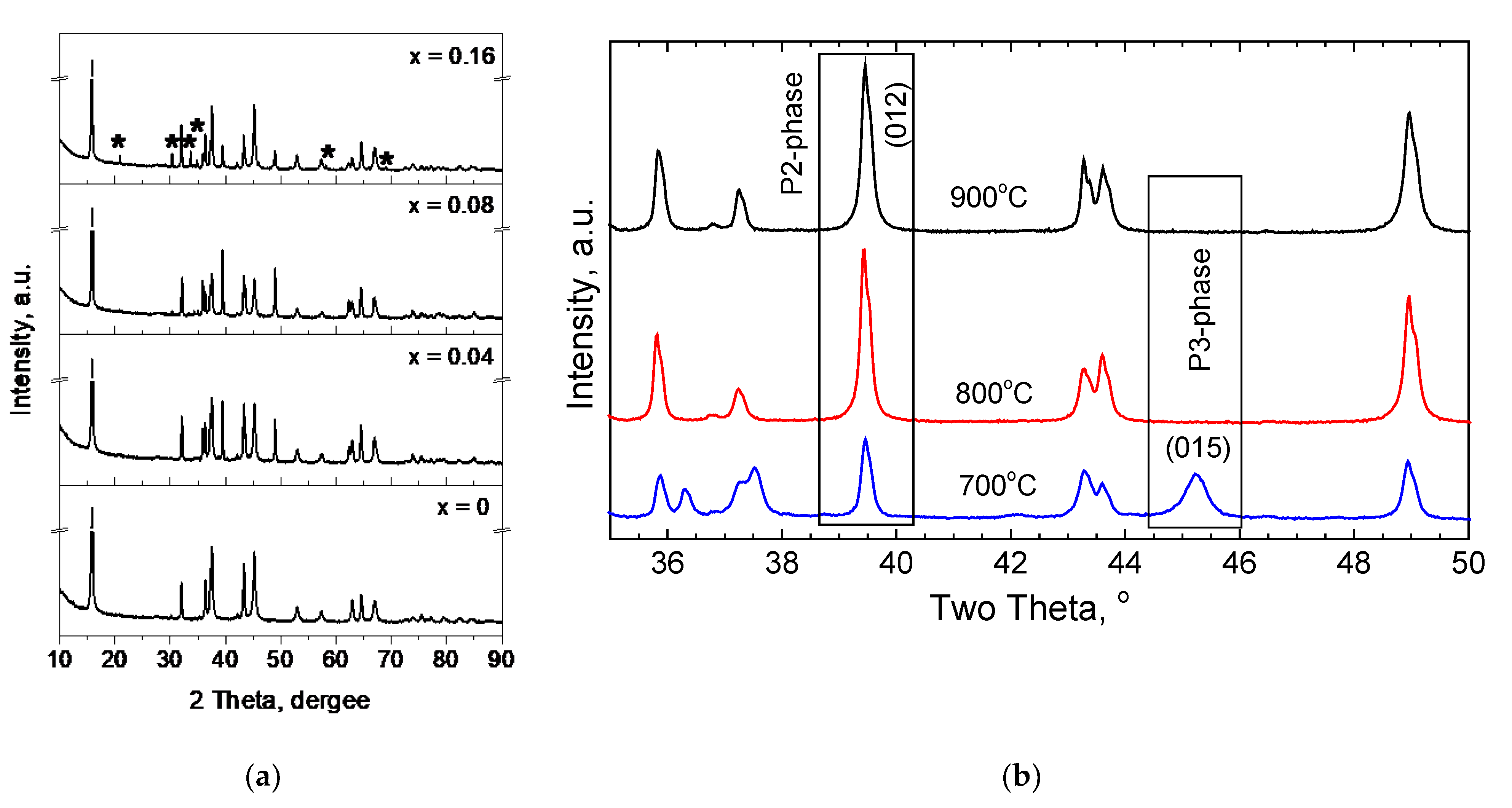

Figure 1. (a) XRD patterns of Na2/3Ni1/2−xAlxMn1/2O2 annealed at 700 °C. The asterisks correspond to the impurity NaAlO2 phase. (b) XRD patterns of oxides containing 8 at. % of Al and annealed at 700, 800 and 900 °C. The peak indexation for P2 and P3 phases are shown.
Figure 1. (a) XRD patterns of Na2/3Ni1/2−xAlxMn1/2O2 annealed at 700 °C. The asterisks correspond to the impurity NaAlO2 phase. (b) XRD patterns of oxides containing 8 at. % of Al and annealed at 700, 800 and 900 °C. The peak indexation for P2 and P3 phases are shown.
Batteries 09 00144 g001
Batteries 09 00144 g002 550

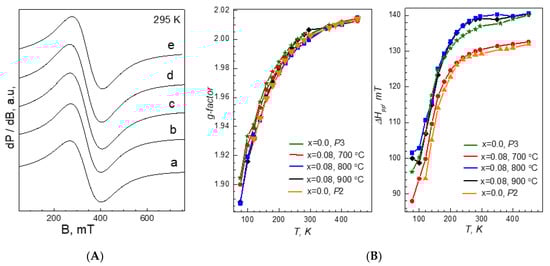

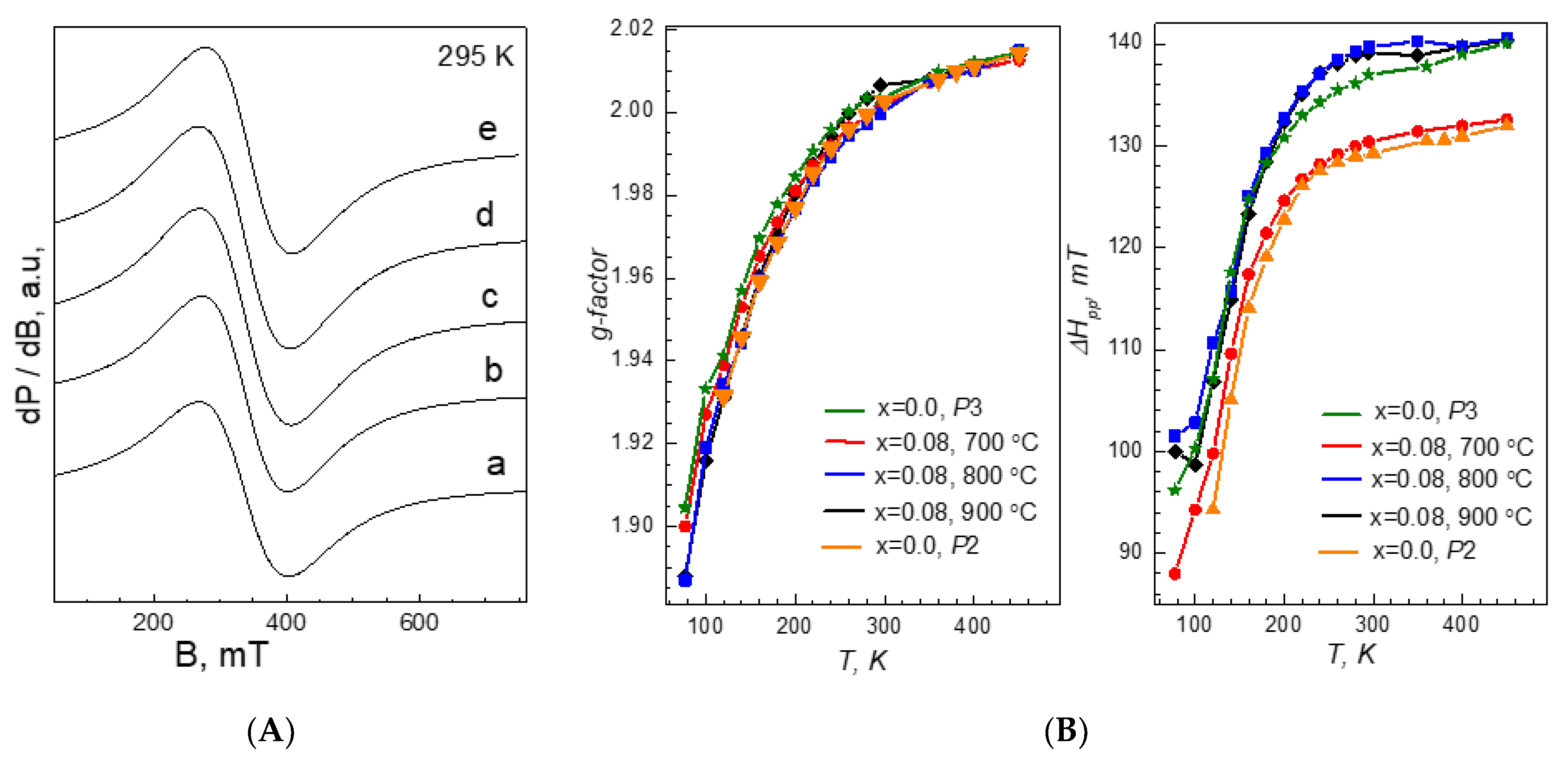

Figure 2. (A) EPR spectra of Al-substituted oxides annealed at 700 (b), 800 (c) and 900 °C (d) and reference oxides P3-Na2/3Ni1/2Mn1/2O2 (a) and P2-Na2/3Ni1/3Mn2/3O2 (e). (B) Temperature dependence of the g-factor and EPR line width (ΔHpp) for P3-Na2/3Ni1/2Mn1/2O2, P2-Na2/3Ni1/3Mn2/3O2 and Al-substituted oxides annealed at 700, 800 and 900 °C.
Figure 2. (A) EPR spectra of Al-substituted oxides annealed at 700 (b), 800 (c) and 900 °C (d) and reference oxides P3-Na2/3Ni1/2Mn1/2O2 (a) and P2-Na2/3Ni1/3Mn2/3O2 (e). (B) Temperature dependence of the g-factor and EPR line width (ΔHpp) for P3-Na2/3Ni1/2Mn1/2O2, P2-Na2/3Ni1/3Mn2/3O2 and Al-substituted oxides annealed at 700, 800 and 900 °C.
Batteries 09 00144 g002
Batteries 09 00144 g003 550
Figure 3. SEM images of Al-substituted oxides annealed at 700, 800 and 900 °C (a–c). SEM images with a high-resolution for Al-substituted oxides annealed at 800 and 900 °C (d,e) and P2-Na2/3Ni1/3Mn2/3O2 annealed at 900 °C (f). The box indicates the Al content (expressed in wt. %) determined by SEM-EDS analysis.
Figure 3. SEM images of Al-substituted oxides annealed at 700, 800 and 900 °C (a–c). SEM images with a high-resolution for Al-substituted oxides annealed at 800 and 900 °C (d,e) and P2-Na2/3Ni1/3Mn2/3O2 annealed at 900 °C (f). The box indicates the Al content (expressed in wt. %) determined by SEM-EDS analysis.
Batteries 09 00144 g003
Batteries 09 00144 g004 550
Figure 4. Bright-field images and SAED for Al-substituted oxides annealed at 700 °C (a) and 800 °C (b). The indexation of the electron diffraction is indicated.
Figure 4. Bright-field images and SAED for Al-substituted oxides annealed at 700 °C (a) and 800 °C (b). The indexation of the electron diffraction is indicated.
Batteries 09 00144 g004
Batteries 09 00144 g005 550

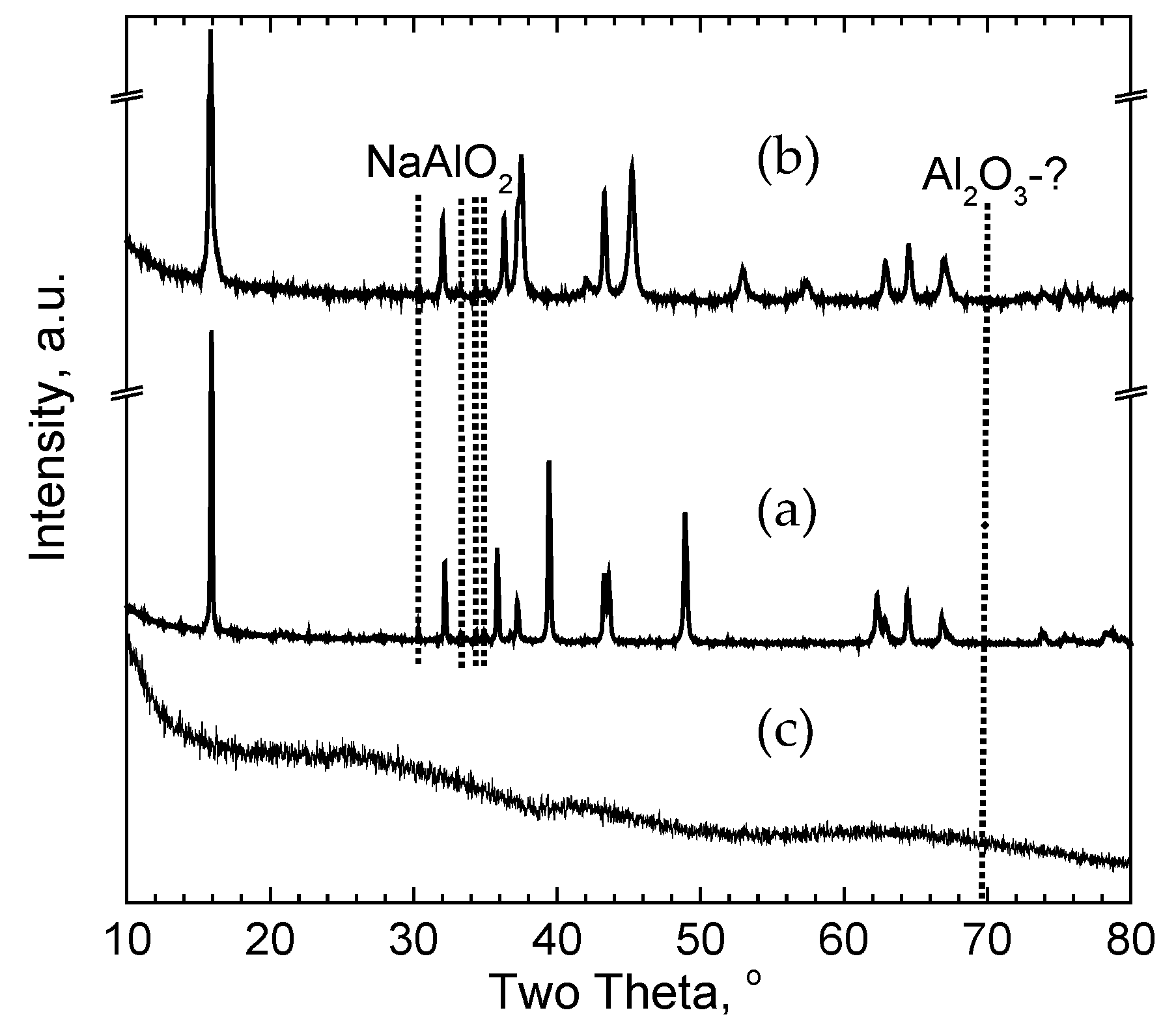

Figure 5. XRD patterns of Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 (a) and P2-Na2/3Al0.08Ni0.42Mn0.50O2 (b). The XRD pattern of Al2O3 obtained at 800 °C after the thermal decomposition of Al acetate is also shown (c).
Figure 5. XRD patterns of Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 (a) and P2-Na2/3Al0.08Ni0.42Mn0.50O2 (b). The XRD pattern of Al2O3 obtained at 800 °C after the thermal decomposition of Al acetate is also shown (c).
Batteries 09 00144 g005
Batteries 09 00144 g006a 550Batteries 09 00144 g006b 550
Figure 6. SEM images of Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 (a,a’) and P2-Na2/3Al0.08Ni0.42Mn0.50O2 (b,b’). The box indicates the Al content (expressed in wt. %) determined by SEM-EDS analysis.
Figure 6. SEM images of Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 (a,a’) and P2-Na2/3Al0.08Ni0.42Mn0.50O2 (b,b’). The box indicates the Al content (expressed in wt. %) determined by SEM-EDS analysis.
Batteries 09 00144 g006aBatteries 09 00144 g006b
Batteries 09 00144 g007 550

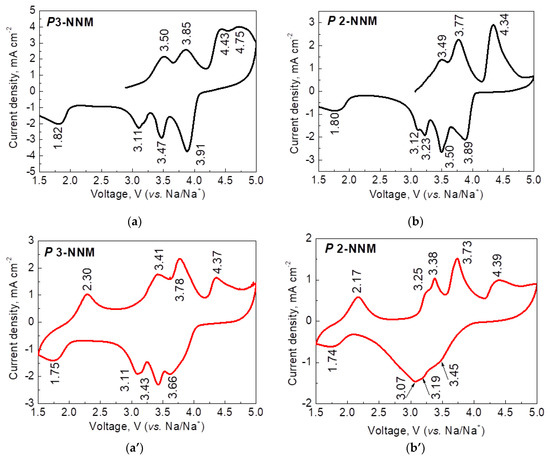

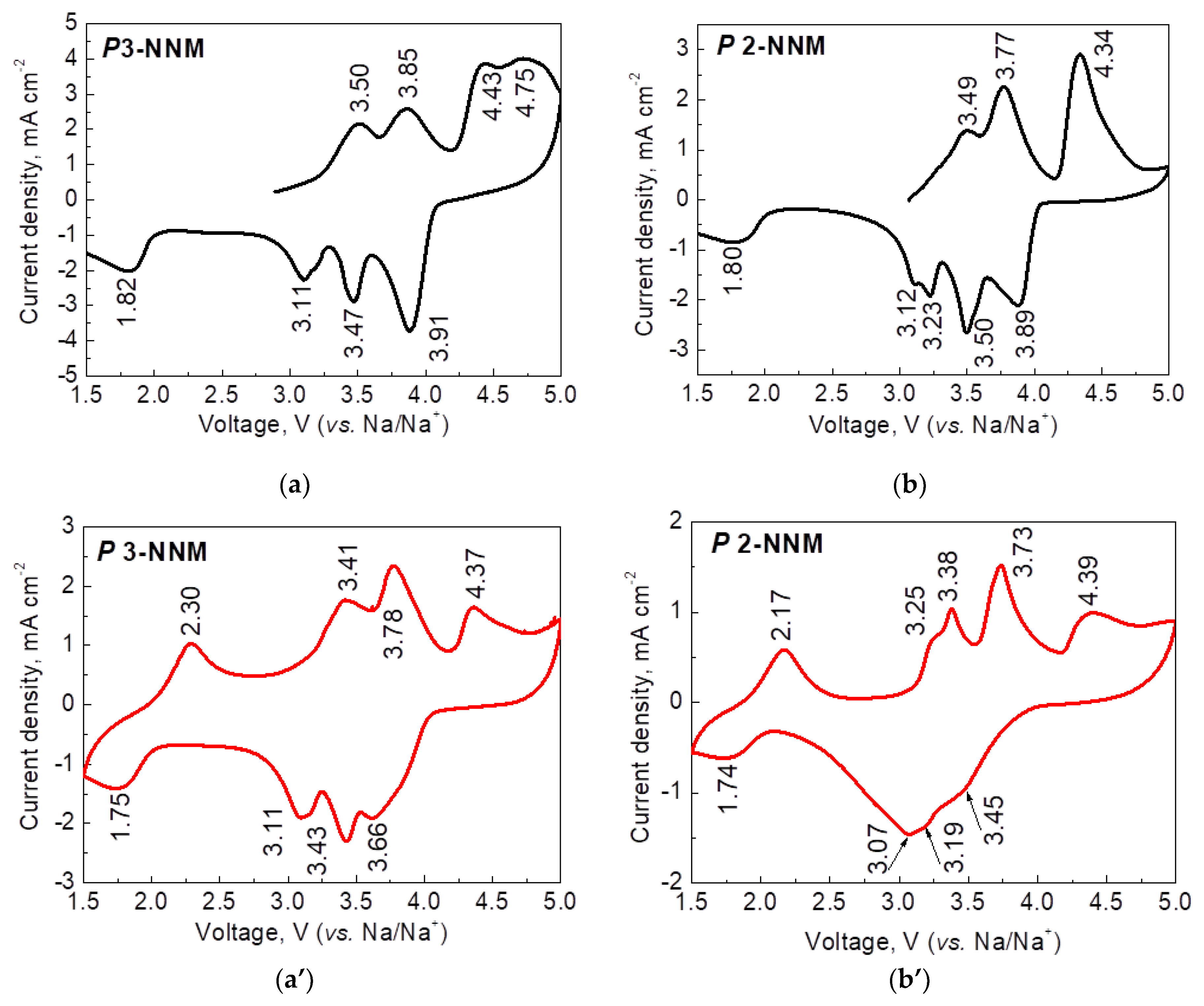

Figure 7. CV curves after the 1st and 5th scans for P3-Na2/3Ni1/2Mn1/2O2 (P3-NNM—a,a’) and P2-Na2/3Ni1/3Mn2/3O2 (P2-NNM, b,b’).
Figure 7. CV curves after the 1st and 5th scans for P3-Na2/3Ni1/2Mn1/2O2 (P3-NNM—a,a’) and P2-Na2/3Ni1/3Mn2/3O2 (P2-NNM, b,b’).
Batteries 09 00144 g007
Batteries 09 00144 g008 550

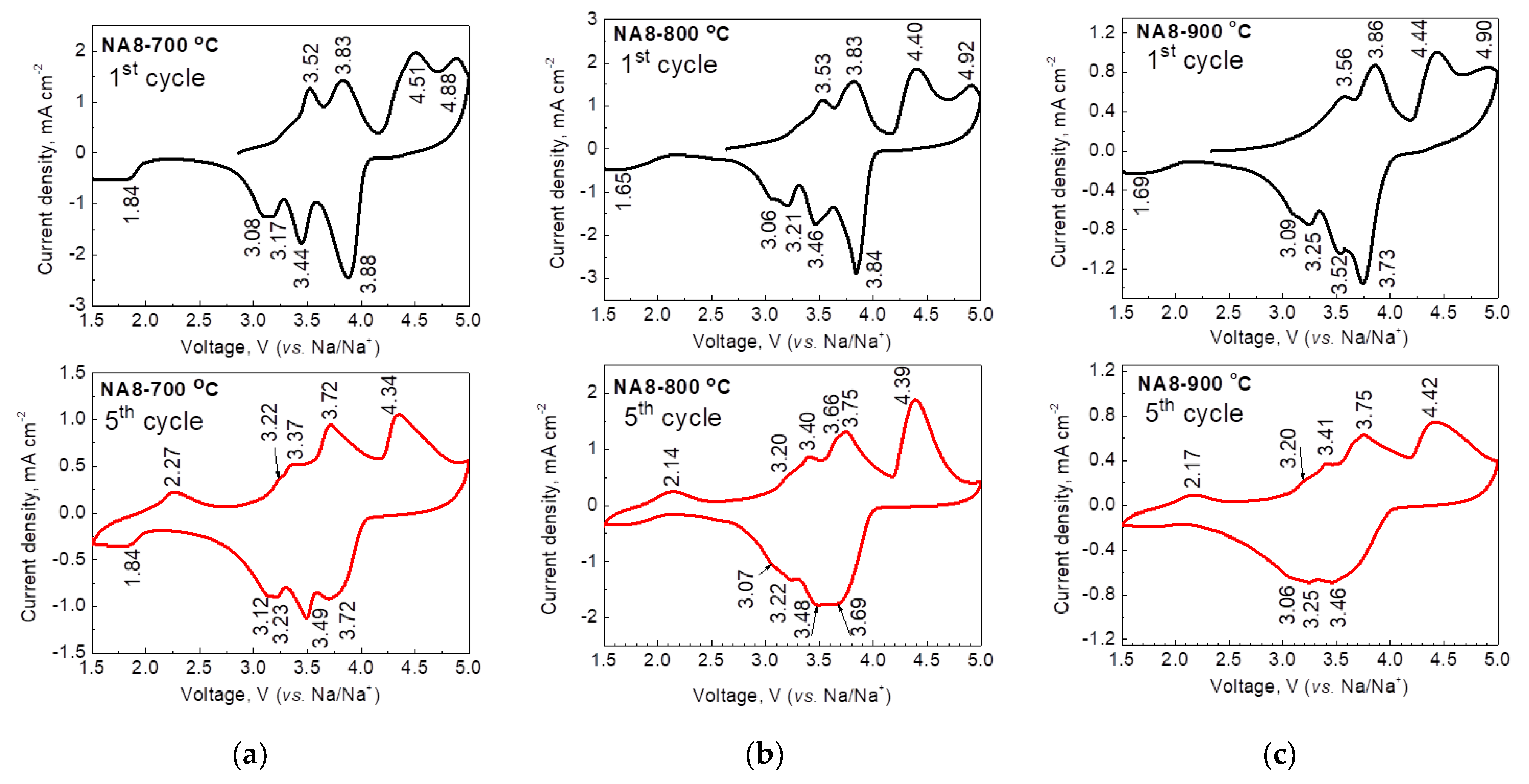

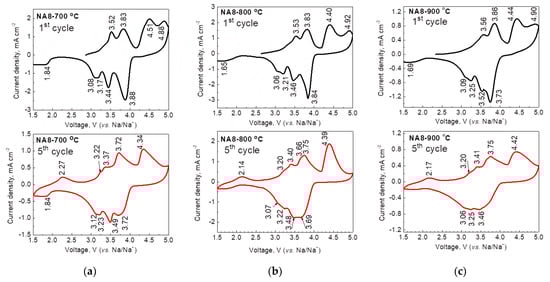

Figure 8. CV curves after the 1st and 5th scans for Al-substituted oxides annealed at 700, 800 and 900 °C (a–c).
Figure 8. CV curves after the 1st and 5th scans for Al-substituted oxides annealed at 700, 800 and 900 °C (a–c).
Batteries 09 00144 g008
Batteries 09 00144 g009 550

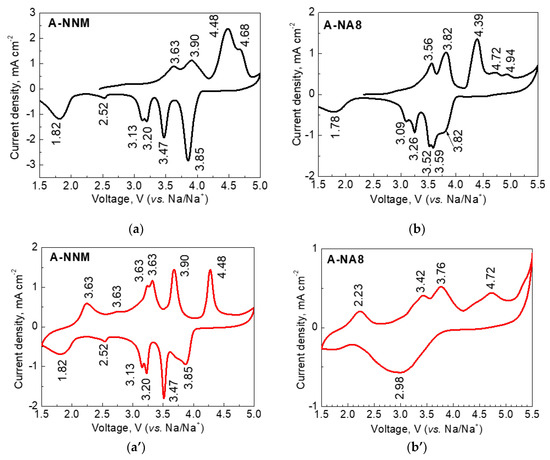

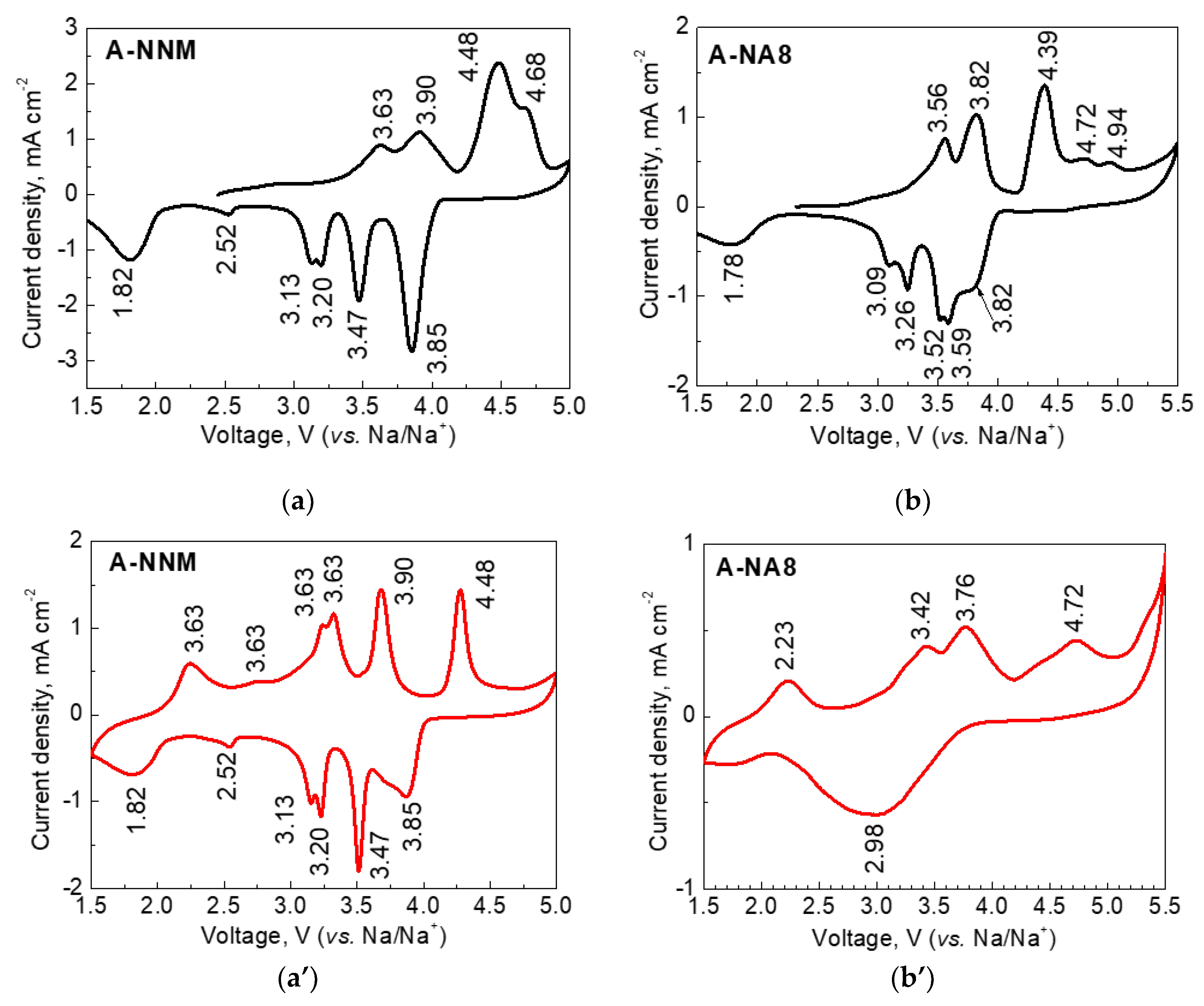

Figure 9. CV curves after the 1st and 5th scans for Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 annealed at 700 °C (a,a’) and Al2O3-treated P2-Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 800 °C (b,b’).
Figure 9. CV curves after the 1st and 5th scans for Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 annealed at 700 °C (a,a’) and Al2O3-treated P2-Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 800 °C (b,b’).
Batteries 09 00144 g009
Batteries 09 00144 g010a 550Batteries 09 00144 g010b 550

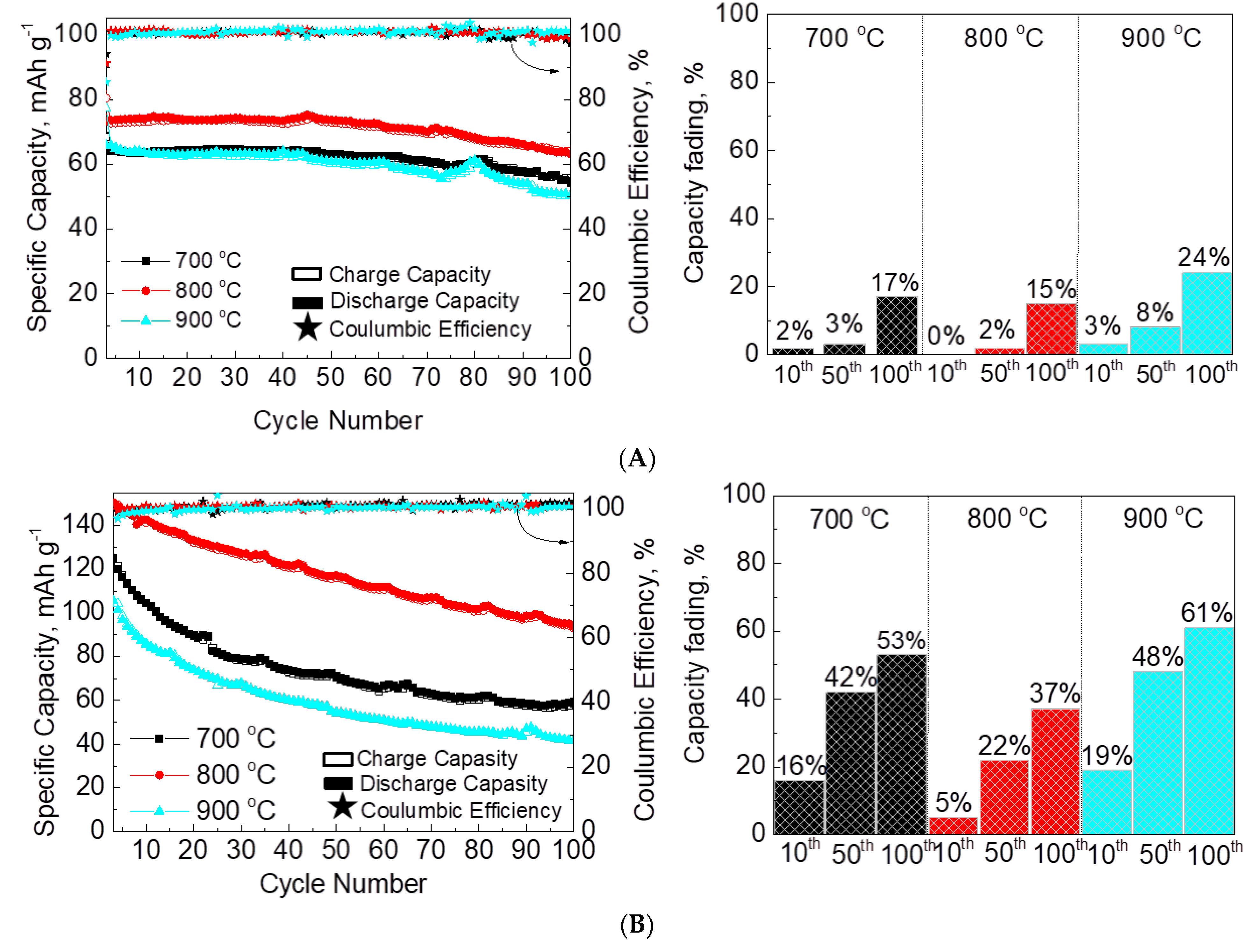

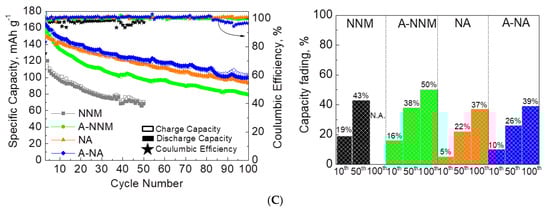

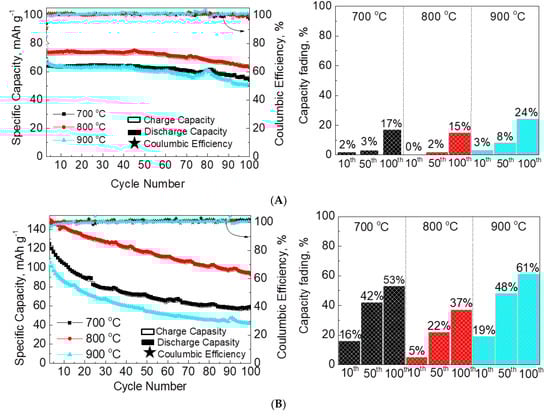

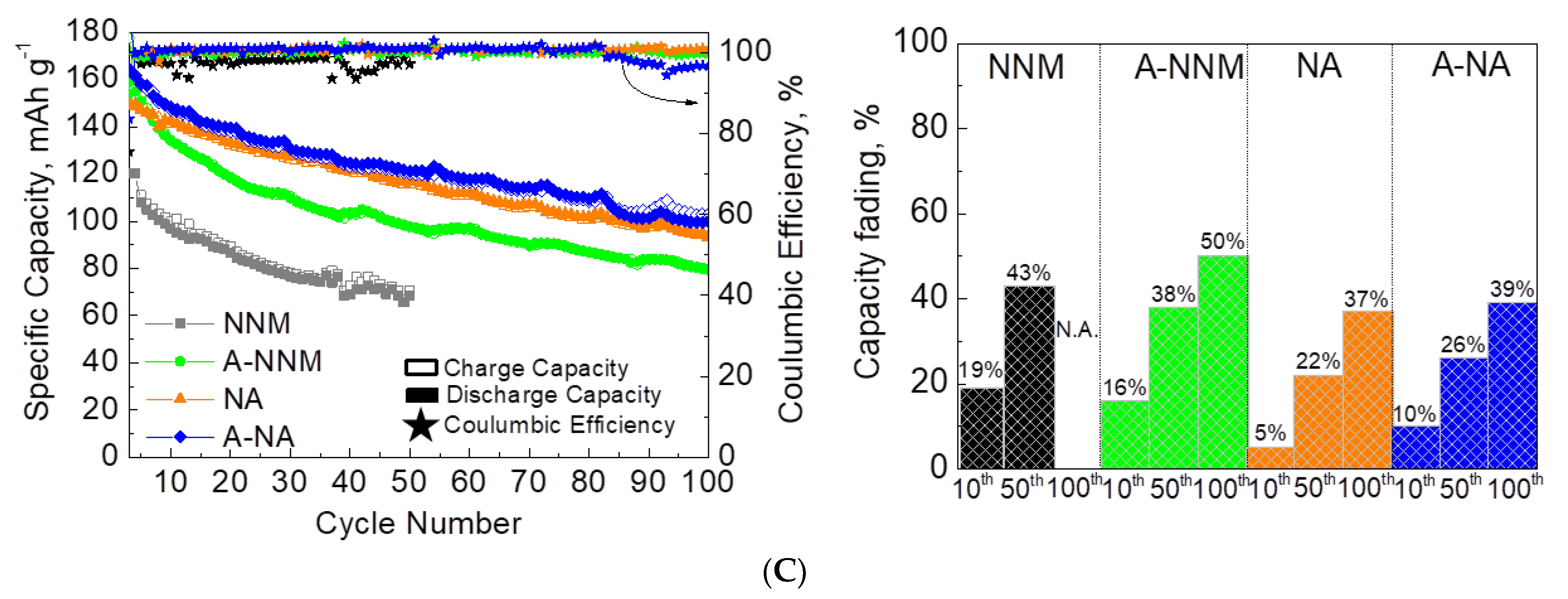

Figure 10. Cycling stability and Coulombic efficiency (left) of Al-substituted oxides annealed at 700, 800 and 900 °C in two voltage ranges: 1.5–4.2 V (A) and 1.5–4.8 V (B). Cycling stability and Coulombic efficiency of Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 annealed at 700 °C (A-NNM) and Al2O3-treated P2-Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 800 °C (A-NA) in the voltage range of 1.5–4.8 V (C). The charging rate is C/2. The capacity fading for the 10th, 50th and 100th cycles is shown on the right.
Figure 10. Cycling stability and Coulombic efficiency (left) of Al-substituted oxides annealed at 700, 800 and 900 °C in two voltage ranges: 1.5–4.2 V (A) and 1.5–4.8 V (B). Cycling stability and Coulombic efficiency of Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 annealed at 700 °C (A-NNM) and Al2O3-treated P2-Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 800 °C (A-NA) in the voltage range of 1.5–4.8 V (C). The charging rate is C/2. The capacity fading for the 10th, 50th and 100th cycles is shown on the right.
Batteries 09 00144 g010aBatteries 09 00144 g010b
Batteries 09 00144 g011a 550Batteries 09 00144 g011b 550

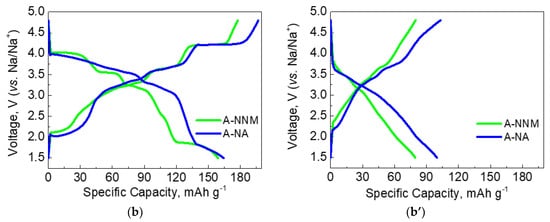

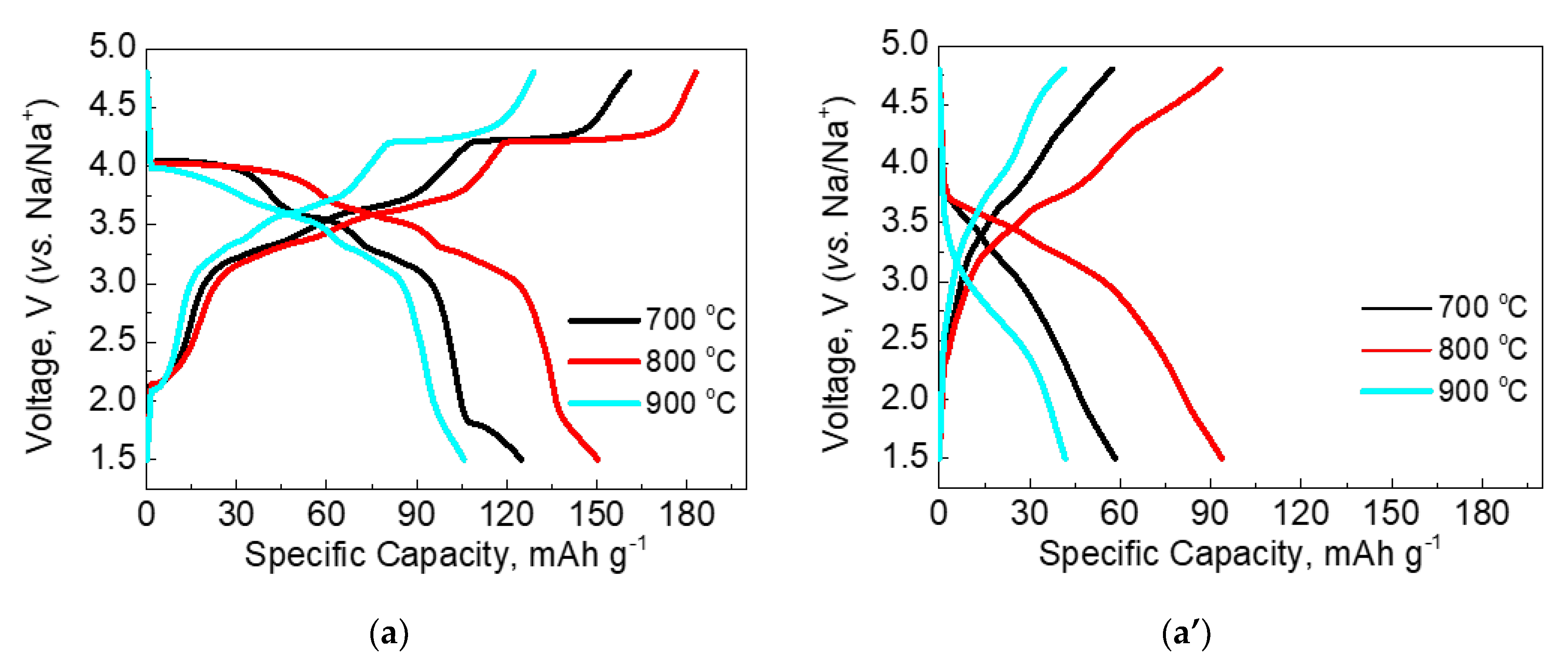

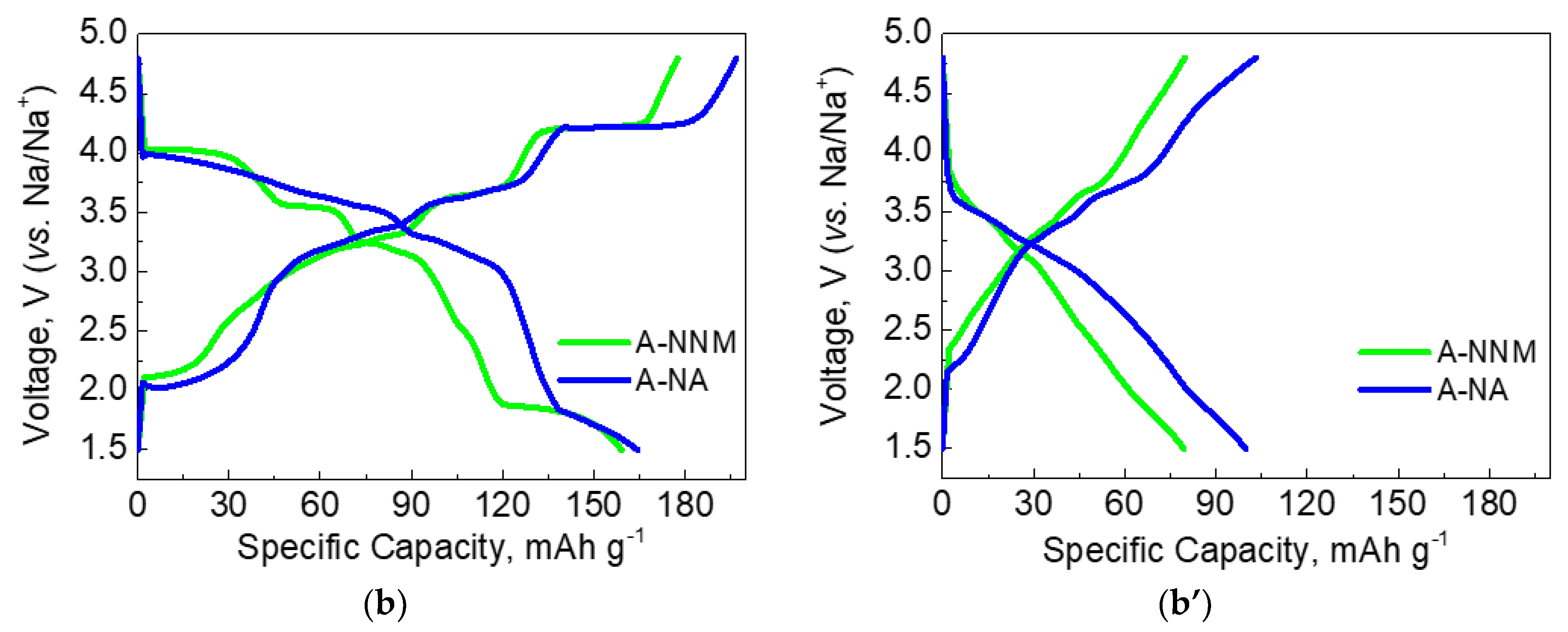

Figure 11. Charge/discharge curves after 1st and 100th cycles for Al-substituted oxides annealed at 700, 800 and 900 °C (a,a’), as well as Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 annealed at 700 °C and Al2O3-treated P2-Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 800 °C. The charging rate is C/2 (b,b’).
Figure 11. Charge/discharge curves after 1st and 100th cycles for Al-substituted oxides annealed at 700, 800 and 900 °C (a,a’), as well as Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2 annealed at 700 °C and Al2O3-treated P2-Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 800 °C. The charging rate is C/2 (b,b’).
Batteries 09 00144 g011aBatteries 09 00144 g011b
Batteries 09 00144 g012 550

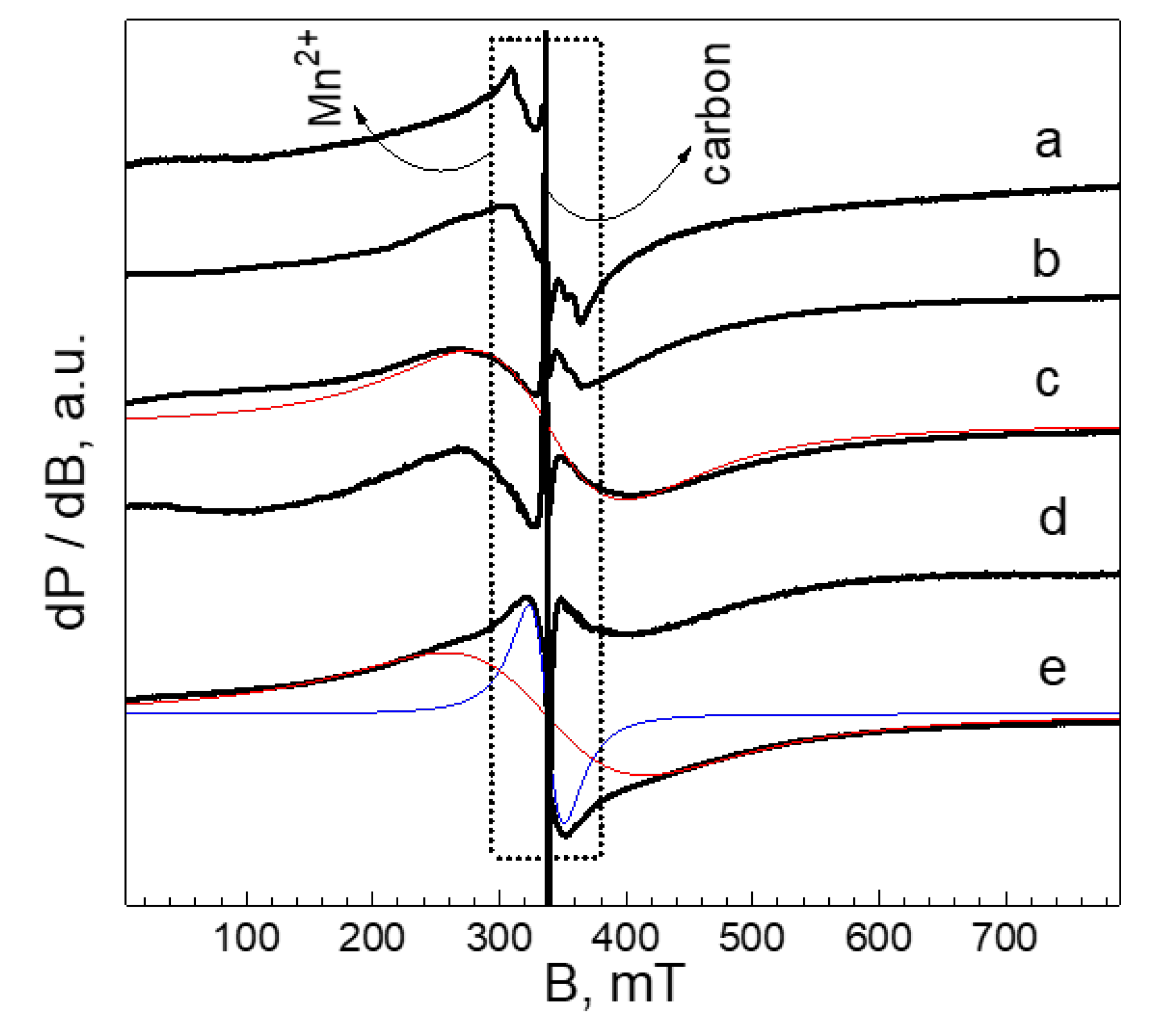

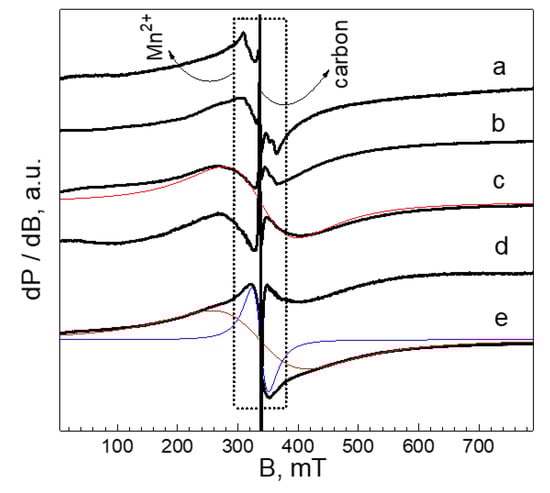

Figure 12. Ex situ EPR spectra of oxide electrodes cycled between 1.5 and 4.8 V for 100th cycles: (a) P3-Na2/3Ni1/2Mn1/2O2; (b) Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2; (c) Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 700 °C; (d) Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 800 °C; (e) Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 900 °C. The signals due to Mn2+ ions and carbon additives are indicated.
Figure 12. Ex situ EPR spectra of oxide electrodes cycled between 1.5 and 4.8 V for 100th cycles: (a) P3-Na2/3Ni1/2Mn1/2O2; (b) Al2O3-treated P3-Na2/3Ni1/2Mn1/2O2; (c) Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 700 °C; (d) Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 800 °C; (e) Na2/3Ni0.42Al0.08Mn1/2O2 annealed at 900 °C. The signals due to Mn2+ ions and carbon additives are indicated.
Batteries 09 00144 g012
Table
Table 1. Lattice parameters of P3 and P2 phases for Na2/3Ni1/2−xAlxMn1/2O2 (x = 0.08) annealed at 700, 800, and 900 °C. XRD-evaluated amount of P3 and P2 phases is expressed in weight %. For the sake of comparison, the lattice parameters for unsubstituted P3-Na2/3Ni1/2Mn1/2O2 and P2-Na2/3Ni1/3Mn2/3O2 are also given.
Table 1. Lattice parameters of P3 and P2 phases for Na2/3Ni1/2−xAlxMn1/2O2 (x = 0.08) annealed at 700, 800, and 900 °C. XRD-evaluated amount of P3 and P2 phases is expressed in weight %. For the sake of comparison, the lattice parameters for unsubstituted P3-Na2/3Ni1/2Mn1/2O2 and P2-Na2/3Ni1/3Mn2/3O2 are also given.
SamplesStructurea, Åc, ÅV, Å3wt. %
P3-Na2/3Ni1/2Mn1/2O2
700 °C		P32.889016.7230120.88
x = 0.08, 700 °CP32.889016.7230120.8888
P22.890511.125480.4912
x = 0.08, 800 °CP22.890311.086580.21
x = 0.08, 900 °CP22.888811.098680.20
P2-Na2/3Ni1/3Mn2/3O2
900 °C		P22.888911.156280.63
Table
Table 2. EPR line width for Al-substituted and Al2O3-treated oxide electrodes after 100 cycles at a charge rate of C/2.
Table 2. EPR line width for Al-substituted and Al2O3-treated oxide electrodes after 100 cycles at a charge rate of C/2.
SamplesT = 295 KT = 100 K
Pristine Oxide, ΔHpp (mT)Cycled Oxide, ΔHpp (mT)Pristine Oxide, ΔHpp (mT)Cycled Oxide, ΔHpp (mT)
Al-substituted oxide annealed at 700 °C (x = 0.08)13013794117
Al-substituted oxide annealed at 800 °C (x = 0.08)140146103110
Al-substituted oxide annealed at 900 °C (x = 0.08)14015899123
Al2O3-treated oxide, annealed at 700 °C13013995105
Al2O3-treated Al-substituted oxide, annealed at 800 °C13714298104
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kalapsazova, M.; Kukeva, R.; Harizanova, S.; Markov, P.; Nihtianova, D.; Zhecheva, E.; Stoyanova, R. High-Performance Layered Oxides for Sodium-Ion Batteries Achieved through Combined Aluminum Substitution and Surface Treatment. Batteries 2023, 9, 144. https://doi.org/10.3390/batteries9020144

AMA Style

Kalapsazova M, Kukeva R, Harizanova S, Markov P, Nihtianova D, Zhecheva E, Stoyanova R. High-Performance Layered Oxides for Sodium-Ion Batteries Achieved through Combined Aluminum Substitution and Surface Treatment. Batteries. 2023; 9(2):144. https://doi.org/10.3390/batteries9020144

Chicago/Turabian Style

Kalapsazova, Mariya, Rositsa Kukeva, Sonya Harizanova, Pavel Markov, Diana Nihtianova, Ekaterina Zhecheva, and Radostina Stoyanova. 2023. "High-Performance Layered Oxides for Sodium-Ion Batteries Achieved through Combined Aluminum Substitution and Surface Treatment" Batteries 9, no. 2: 144. https://doi.org/10.3390/batteries9020144

APA Style

Kalapsazova, M., Kukeva, R., Harizanova, S., Markov, P., Nihtianova, D., Zhecheva, E., & Stoyanova, R. (2023). High-Performance Layered Oxides for Sodium-Ion Batteries Achieved through Combined Aluminum Substitution and Surface Treatment. Batteries, 9(2), 144. https://doi.org/10.3390/batteries9020144

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
