Electrochemical Evaluation of Different Graphite Felt Electrode Treatments in Full Vanadium Redox Flow Batteries

Abstract

The use of flow batteries for energy storage has attracted considerable attention with the increased use of renewable resources. It is well known that the performance of a flow battery depends, among other factors, on the properties of the electrodes, which are generally composed of graphite felt (GF). In this work, thermal, chemical and plasma treatments have been employed to modify the surface of the graphite felt to improve the electrochemical activity of the redox flow cell. The influence of the variables of each of these processes on the generation of surface functional groups and on changes in the obtained surface area have been examined. In this work, the kinetics of redox reactions relevant to the VO²⁺/VO₂⁺ reaction have been studied with these treated electrodes and the relationship between the nature of the surface and electrochemical activity of the GF is discussed. As a result, an enhanced electrochemical performance (reduction over 200 mV of the separation between anodic and cathodic peaks and 110 mV of the onset potential) in comparison to the untreated GF is obtained for those GF treatments with low oxygenated groups concentration.

1. Introduction

The continuous increase in electricity consumption in a world of finite fuel sources and a changing climate, urgently requires the impulse of renewable energy sources [1]. The fluctuating nature of renewable energy generation [2] entails the development of reliable large-scale energy storage systems (ESSs) that improve the stability, efficiency and sustainability of the power grid [3].

Among the different electrochemical ESSs, redox flow batteries (RFBs) are considered an excellent technology for cost-effective large-scale stationary applications [4] due to their high energy density, good cyclability, flexible architecture and distinctive decoupling between power and energy [5]. The core of RFBs lies in the electroactive species in which the energy is stored [6], and several metal-based redox couples have been investigated over the past few decades [7]. Among them, “all-vanadium” RFBs (VRFBs) are the most studied and are among the few RFBs that have been tested and demonstrated at utility scale [8,9].

The VRFB technology was developed in 1985 by Skyllas-Kazakos [10] and consists of an electrochemical cell where the energy conversions take place and two external tanks where the positive (catholyte, containing VO²⁺/VO₂⁺ ions) and negative (anolyte, containing V²⁺/V³⁺ ions) electrolytes are stored. The electrolyte flows through each of the two half-cells, which are separated by a membrane that allows selective ion exchange to maintain charge balance, to return to the storage tank.

Considering that they provide the reaction sites, electrodes are an essential component of RFBs that directly affect battery performance [11]. The main requirements of the electrodes are (1) good electrocatalytic activity, (2) chemical stability, (3) electrochemical stability in the operating potential window, (4) excellent electrical conductivity and (5) mechanical durability under flow conditions. Carbonaceous materials have been identified as the best candidates for both the negative and positive half-cells in vanadium flow batteries (VRFB) [12,13,14] as they exhibit excellent catalytic activity, good conductivity, good chemical and mechanical stabilities, and are easy to manufacture at a low price in different forms [15]. The most common carbonaceous electrode formats are graphite felt (GF) and carbon paper (CP), based on rayon and polyacrylonitrile (PAN) precursors [16], [17]. Despite their overall favorable properties, they also present disadvantages such as their inherent hydrophobicity [18] attributed to the C-C structure [19] and their low surface area, which can lead to low electrode wettability with associated pumping losses and slower reaction kinetics.

To improve the electrical, electrochemical, and surface properties and extend the lifetime of carbon electrodes, different surface treatments have been studied. The most common strategies described in the literature can be mainly classified into thermal [20,21,22], chemical [23,24], and plasma [25,26] treatments. Most studies focus on (i) morphological modifications that increase the surface area, which creates more active sites, or on (ii) chemical modifications of the surface, often introducing oxygen groups such as hydroxyl (-OH) or carboxyl (-COOH) to improve the wettability of the electrode. However, there is a lack of understanding regarding the influence of the chemical and morphological modifications in the electrode surface on the final electrochemical performance of the redox flow batteries. In addition, other approaches, including heteroatom doping [19,27,28] in order to increase the donor or acceptor levels to accelerate the charge transfer, and the decoration of GF with different materials, such as carbon-based catalysts [29] (e.g., carbon nanotubes [30], nanoparticles [31], graphene [32], nanofibers [33], …) or metal and metal-oxides (e.g., bismuth [34], zirconium oxide [35], niobium [36], manganese oxide [37], …), have also been recurrent strategies to increase the electrocatalytic properties of the electrode over a specific surface area. Nevertheless, these treatments are more complex, costly, and time consuming, which may impede their further exploitation in cells. This is the main reason why, during the present work, only surface treatments (thermal, chemical, and plasma) were selected as the most promising to overcome the main drawbacks inferred by graphite felt properties. However, they must be carefully evaluated to further understand their influence in the electrochemical performance of graphite felt as electrode in redox flow batteries.

The thermal treatment stands out as one of the most attractive common methods for improving the electrode performance of RFBs. There is consensus that the functionalization of electrodes by heat treatment is carried out at temperatures above 400 °C and in oxidizing atmospheres. The exposure time is an important parameter since it has been shown that an excessive time at high temperatures generates a deterioration of the fibers and produces a decrease in surface oxygen. In general, optimum conditions for good surface functionalization are obtained at temperatures of 500–550 °C and a minimum of 5 h of treatment [22]. To reduce the time of this type of treatment, different works have studied the modification of the treatment atmosphere using oxygen or nitrogen-enriched atmospheres [21]. Generally, this type of treatment results in an improvement in cell performance associated with the generation of oxygen-based functional groups (also related to wettability) and the increase in surface area produced by this type of treatment. However, thermal treatment is presented as a method of low reproducibility and selectivity and their specific effects are under discussion [38], being not clear whether the enhanced kinetics on the treated electrode surfaces are related to the oxygen functional groups and its associated wettability improvement or to the increased surface area [21]. All studies agree that there is an improvement in electrochemical activity as a result of increased wettability attributed to oxygen functional groups. Nevertheless, the connection between increased surface area and electrode activity is not so clear and has not been conclusively verified.

In the chemical treatments, the different surface modification is performed by an oxidizing agent. The degree of functionalization is controllable [24], and this type of treatment involves simple reaction steps but with a very thorough final washing step. The treatments are carried out at room or moderate temperature by refluxing or boiling in the oxidizing agent generating a large amount of chemisorbed oxygen functional groups that improve the wettability of the electrode. Several studies demonstrate the increase of oxygen groups without involving any morphological difference in the treated felt implying substantial improvements in cell performance [23,39]. Regarding the possibility of using acid mixtures, in a more recent work [24,40,41], it was shown that the combination of acids (nitric acid with phosphoric acid or with sulfuric acid) induced more oxygen groups compared to a simple treatment with nitric acid.

Plasma treatments are a versatile, controllable, fast, and simple method to modify the surface properties of the graphite felt in a uniform manner by physically bombarding molecules of different gases (O₂, N₂, NH₃, CH₄ or Ar), accelerated through various discharge methods (glow, arc, radiofrequency, microwave, corona...) [42]. This process is an environmentally friendly route to improve the physicochemical properties of the graphite felt, as it is solvent-free, produces low or no waste, and involves shorter treatment times [43]. In addition, plasma treatments are used to implant functional groups without changing the bulk structure compared to other techniques because bond breaking by high-energy electrons and radicals introduces chemically active species more easily and with less damage [44]. Some nitrogen plasma treatments have been shown to improve the electrochemical reactivity of graphite felts by creating N-doped heteroatom defects, which generate an increase in the number of active sites and improve the wettability of the electrode [25]. Using oxygen plasma, increased redox activity has also been reported without an associated significant improvement in surface area, thus attributing the improved properties to the surface functional groups [26,45].

In this context, it is difficult to distinguish between the benefit obtained by increasing surface area and functional groups in the evaluation of cell performance. The increase of the number of oxygen groups in the electrode surface is consistently related with an improvement of the kinetics of the V⁺²/V⁺³ redox reaction; however, it is unclear how it affects the VO²⁺/VO₂⁺ half-reaction [46]. Therefore, it is necessary to evaluate the effect of GF modification, especially on the positive electrode.

The aim of this paper is, firstly, to understand which process parameters in the thermal, chemical, and plasma treatment have more influence on the functionalization of GFs and, secondly, how this functionalization (related to surface area modification and incorporation of new functional groups) is affecting the electrochemistry of the VO²⁺/VO₂⁺ half-reaction. Therefore, in this study, a commercial GF has been modified by thermal, chemical, and plasma treatments to create different morphologies and different oxygen group contents. For each treatment, key variables influencing acidic oxygen group content, surface area, and wettability have been selected based on a deep physicochemical characterization of the treated felts. Furthermore, the electrochemical activity of the electrodes is evaluated to discern among the influence of the specific variables under study on the cell performance.

2. Materials and Methods

2.1. Materials and Reagents

The GF used in this study was a polyacrylonitrile (PAN)-based precursor from SGL Carbon (GFD 4.6 EA PAN). The sample dimension used for the application of the different treatments was 10 × 10 cm².

The reagents used in the chemical treatment were purchased from Sigma Aldrich. Analytical grade HNO₃ (60% vol/vol) and H₃PO₄ (85% vol/vol) were used without further purification. The reagents used in the titration were NaOH and HCl, 0.1 N and phenolphthalein as indicator, all from Sigma Aldrich. Each reagent was diluted with deionized H₂O to the required concentration.

2.2. Graphite Felt Treatments

Prior to the application of the different treatments, the samples were rinsed with water and isopropanol to remove any residual impurities and were dried at 120 °C for one hour.

For the thermal treatments, samples were introduced in a furnace (Nabertherm P 330) and heated from room temperature to the set-point temperature in an hour. After the defined exposure time, the samples were let to cool down to room temperature. The studied variables were oven atmosphere (air or nitrogen), temperature (400–650 °C), and exposure time (3–27 h).

Chemical treatments were performed by immersion. Due to the hydrophobic nature of GF, it tends to float in the liquid, so specific tooling was manufactured to ensure the complete immersion of the sample. Homogeneous contact with the mixture of acids was achieved by constant magnetic stirring of the solution on a temperature-controlled hot plate. After applying the different chemical treatments, the treated samples were rinsed twice in a deionized water bath to remove acid residues. Finally, the samples were dried in an oven for 2 h at 150 °C. The controlled variables in the chemical treatment were the ratio between both acids in weight H₃PO₄: HNO₃ (1:3 (25%), 1:1 (50%), 3:1 (75%)), the temperature (30 °C, 55 °C, 80 °C), and the exposure time (2, 5, 8 h).

For the plasma treatments, a Diener Zepto Plasma equipment was used at 40 mHZ. The evaluated variables were the power rating (50, 75, 100 W), pressure (0.1, 0.75, 1 bar), and exposure time (from 1 to 10 min) with O₂ gas.

2.3. Physicochemical Characterization

The physicochemical characterization of the treated GFs comprised a specific surface area measurement by BET (Brunauer–Emmett–Teller), oxygen acid groups concentration determination through the Boehm method and wettability measurements to determine the hydrophilicity or hydrophobicity character of the material. In addition, resistance measurements have been carried out with the 4-point probe method and the identification of surface functional groups by XPS has been performed.

2.3.1. BET Surface Area Analysis

Multi-point BET measurement was carried out by N₂ (77 K) adsorption with a Quantachrome Autosorb-iQ-MP (Quantachrome Instruments, Boynton Beach, FL, USA). The process of isothermal absorption started after the vacuum degasification and was maintained at 250 °C for 10 h.

2.3.2. Boehm Method for Oxygen Groups Determination

The titration in aqueous solution was performed by the method proposed by Boehm [47,48] which was subsequent adapted by Sara Goertzen [49]. By this method, it is possible to determine the concentration of acidic oxygen groups (hydroxyl, carbonyl, and lactone groups) at GF surface. For this purpose, 1.5 g of GF was added to 50 mL of 0.05 M NaOH (Solution B). This mixture was maintained under magnetic stirring for 24 h and subsequently filtered with Whatman paper grade 1 to separate the GF.

The resulting solution was back-titrated, taking 3 aliquots (10 mL of Solution B each) to ensure the repeatability of the measurements. The process consisted in the addition of 20 mL of 0.05 M HCl to each aliquot for the back-titration using phenolphthalein as an indicator.

The functionalization grade of the surface of the GF is calculated by the following equations:

$$\left[HCl\right]V_{HCl}=\left[NaOH\right]V_{NaOH}+\left(\frac{n_{HCl}}{n_B}\left[B\right]V_b-n_{CSF}\right)\frac{V_a}{V_B}$$

(1)

$$n_{CSF}=\frac{n_{HCl}}{n_B}\left[B\right]V_B-\left(\left[HCl\right]V_{HCl}-\left[NaOH\right]V_{NaOH}\right)\frac{V_B}{V_a}$$

(2)

where n_CSF represents the moles of surface functionalized [B] and V_B are the concentration and the volume of the Solution B. V_a is the volume of the aliquot taken from the Solution B, [HCl] and V_HCl are the concentration and volume of the acid added to the aliquot and [NaOH] and V_NaOH are the concentration and the volume of the amount of titrant.

2.3.3. Wettability Measurements

Static water contact angle (WCA) measurements are often used to characterize the intrinsic wettability of surfaces. For this purpose, the GFs were measured with a SURFTENS universal goniometer by depositing a 5 µL drop of distilled water on the different treated surfaces. However, it was only possible to discern between the hydrophilic (0°) or hydrophobic (122°) character of the samples, since when the electrode has a hydrophilic character, the droplets are completely adsorbed on contact with the surface giving rise to a zero-contact angle.

2.3.4. Scanning Electron Microscopy (SEM)

SEM was employed to analyze the morphology and topography of the CF electrodes. A Carl Zeiss SMT Ultra Gemini-II microscope (Carl Zeiss, Thornwood, NY, USA) was employed. Samples were analyzed without being coated.

2.3.5. Resistance Test

Through-plane area specific resistance (ASR) of the graphite felts was measured by Keithley 2400 SourceMeter with the S302-4 resistivity measurement stand and SP4-500855TRY 4-point probe. The samples were held between two copper sheets and compressed to 23% of their initial thickness.

2.3.6. X-ray Photoelectron Spectroscopy (XPS)

X-ray Photoelectron Spectra were recorded using a Phoibos 150 XPS spectrometer (SPECS Surface Nano Analysis) in Fixed Analyzer Transmission mode with 2 mm lateral view on the sample. The chamber base pressure was 1 × 10⁻¹⁰ mbar and a non-monochromatic Mg source (Mg Kα with hν = 1253.6 eV) was employed. Pass energies of 90 eV and 30 eV were used respectively for acquiring the survey spectra and the high-resolution regions (C 1s, O 1s, and N 1s). Quantifications of atomic surface species were done by applying tabulated Scofield cross sections for each element and core level to the corresponding integrated intensity [50] after correcting the energy dependent analyzer transmission function and differences in effective attenuation length of the collected photoelectrons depending on their kinetic energies [51,52]. The background of inelastically scattered photoelectrons was simulated by a Shirley function, and a Voigt profile (30% Gaussian, 70% Lorentzian) was employed as a line shape for all components except the semi-metallic sp² C=C. Aromatic carbon asymmetry was defined in the Doniach–Sunjic (DS) model [53] as using an asymmetric pseudo-Voigt (APV) function instead to overcome the integral divergence of the DS function. The fitting model was constrained to be quantitatively consistent so that the O % obtained directly by integration of the O 1s peak agrees with the amount indirectly calculated through deconvolution of the C 1s peak. Peak positions of the different carbon species were set to: 284.4 eV for aromatic carbon (C=C), 284.8 eV for aliphatic carbon (C-C) and/or defects, 286.5 ± 0.3 eV for hydroxyl (C-OH) and epoxy (C-O-C), 287.8 ± 0.2 eV for carbonyl (C=O), and 289.0 ± 0.2 eV for carboxyl (O-C=O) groups, with secondary peaks of plasmon/shake-up contributions at +6.4 eV and +10.1 eV with respect to the main C=C peak [54].

2.4. Electrochemical Characterization

For the electrochemical measurements, a three-electrode configuration was employed, with the modified graphite felt under study as working electrode (WE), an Ag/AgCl reference electrode (RE), and a Pt spiral wire as counter electrode (CE). To ensure the comparability, the orientation and distance of all three electrodes were kept the same by means of a Teflon cap. For the preparation of the WE, the different graphite felt were cut into 1 × 1 cm² samples, which were soaked in ethanol and then rinsed with DI water before immersing them in the electrolyte by means of a Pt wire holder. 10 mL of the electrolyte (160 mM VOSO₄ dissolved in 4 M H₂SO₄) were used for all the measurements. Cyclic voltammetry (CV) measurements were conducted with a Biologic SP-300-bi-potentiostat between 0 V and 1.6 V (vs. Ag/AgCl) at different scan rates (1, 3, 5, 7, 10 mV/s) to study the performance of each electrode to catalyze the VO²⁺/VO₂⁺ half-reaction.

3. Results

A commercial GF was treated by a thermal, chemical, and plasma treatment. The main parameters of these electrode treatments were varied to study their influence on the surface area, the formation of oxygen groups, and the wettability of the electrode. Based on the obtained results, it is discussed which of the process parameters have a greater influence on the physicochemical properties of the electrodes.

Furthermore, some treated GF electrodes were characterized electrochemically to relate the surface area, oxygen cluster formation, and wettability of the electrodes with their electrochemical performance.

3.1. Thermal Treatment

The electrode samples were submitted to several thermal processes under two different atmospheres (air and nitrogen [21,55]). Temperatures between 450 and 650 °C [38,56] and exposure times from 3 to 27 h were applied.

The objective of the developed thermal processes was to introduce functional groups on the surface of the electrode, enhancing its wettability but simultaneously increasing the surface area of the electrode. The specific combination of variables and associated measurements are shown in

Table 1. Experimental conditions and measured parameters for thermally treated GF.

	Temperature (°C)	Time (h)	Atmosphere	Oxygen Acid Groups (mM)	BET (m2 g−1)	Wettability
Reference				-	1.66	Hydrophobic
TT1	450	3	Air	0.57	4.30	Hydrophilic
TT2	450	27	Air	0.82	12.72	Hydrophilic
TT3	550	15	Air	0.85	5.24	Hydrophilic
TT4	650	3	Air	0.90	4.00	Hydrophilic
TT5	650	27	Air	1.12	38.15	Hydrophilic
TT6	450	3	Nitrogen	-	3.00	Hydrophobic
TT7	450	27	Nitrogen	-	7.72	Hydrophobic
TT8	550	15	Nitrogen	-	5.62	Hydrophobic
TT9	650	3	Nitrogen	-	3.50	Hydrophobic
TT10	650	27	Nitrogen	-	9.73	Hydrophobic

. Overall, the modification of the variables of the thermal treatments allowed to obtain a wide range of hydrophilic samples, with contents of oxygen groups from 0.57 to 1.12 mM and specific surface areas from 4 to 38 m² g⁻¹.

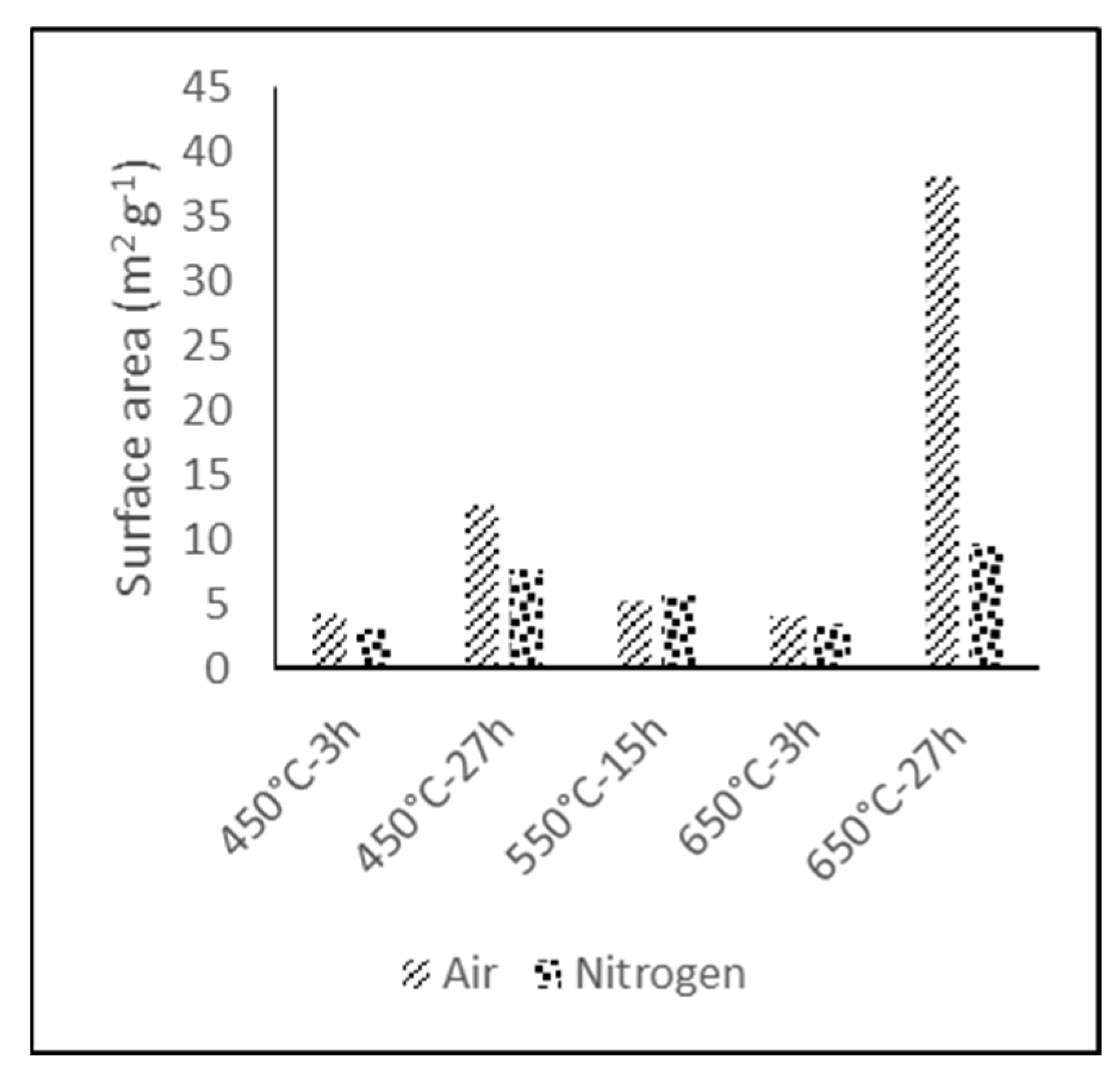

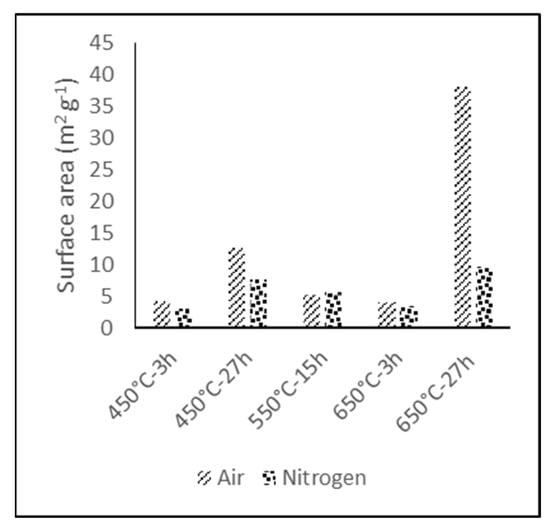

The thermal treatment variable with major influence in the BET specific surface area is the type of atmosphere, although it is also dependent on temperature and exposure time, as it is shown in Figure 1.

BET specific surface area of the electrodes treated for prolonged times (27 h) under air atmosphere underwent a significant gain with respect to the reference reaching 12 m² g⁻¹ and 38 m² g⁻¹ for the electrode treated at 450 °C and 650 °C, respectively. In the case of the electrodes treated under nitrogen atmosphere or with shorter treatment times, the increase was not significant. This drastic increase in the specific surface area under air atmosphere could be due to the reduction of the fiber diameter.

Figure 2 shows the morphology of the original and the treated GF fibers at 650 °C during 27 h in air and nitrogen, the thermal treatments with higher effects in the specific surface area. It is observed that these treatments caused a fiber degradation, reaching around a 50% decrease of the original diameter in the treated fibers.

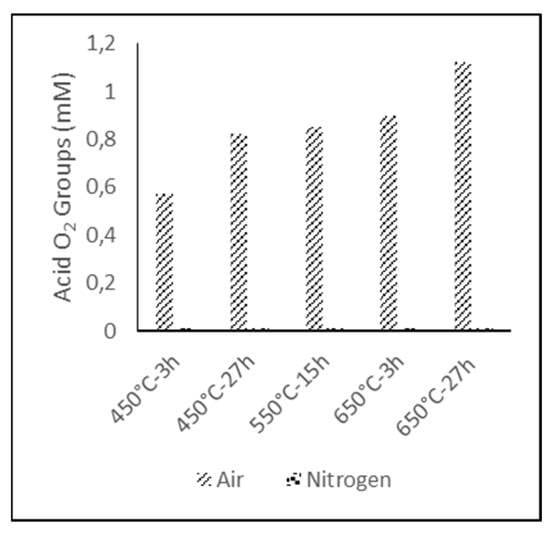

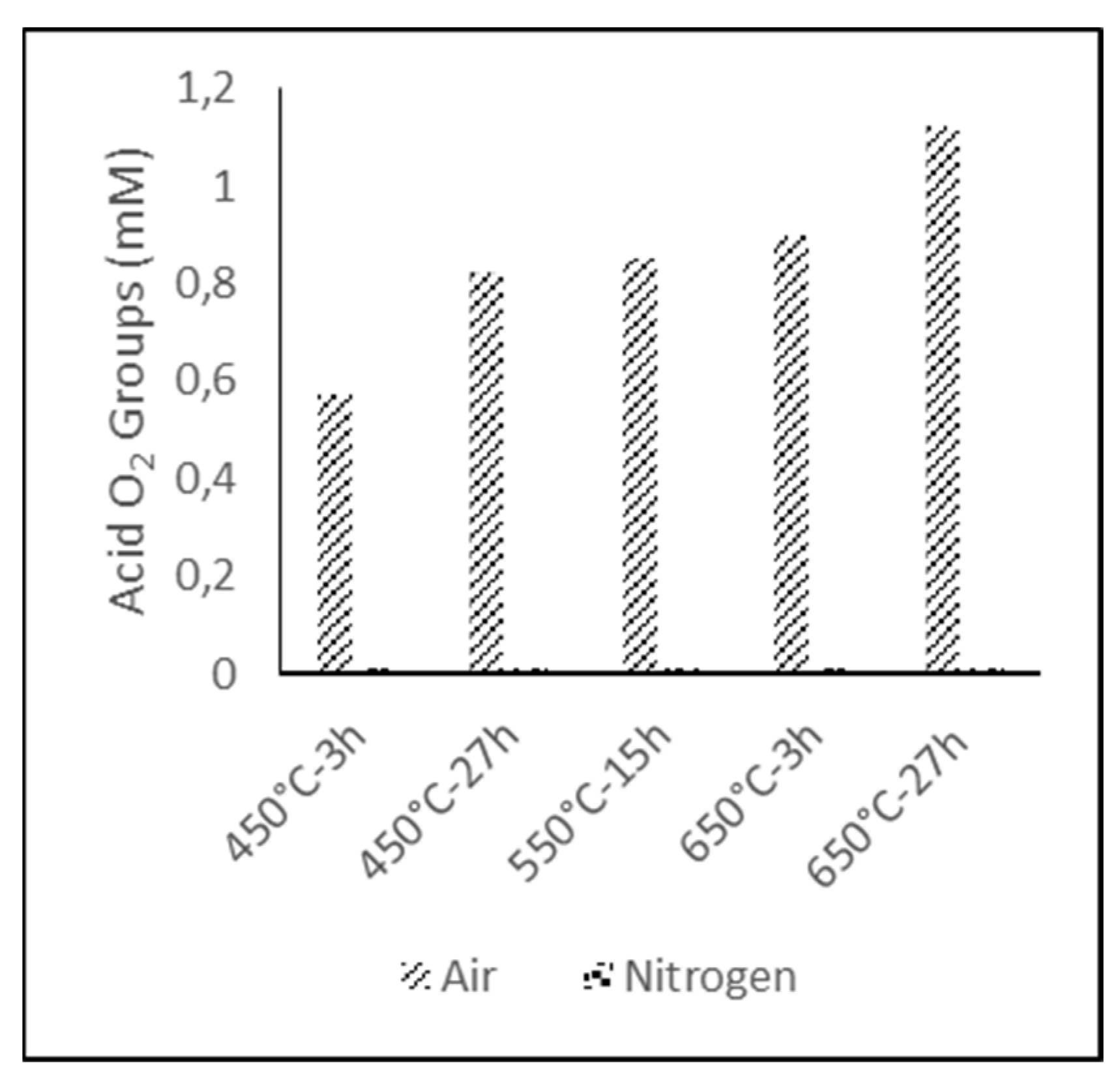

The amount of acidic oxygen groups on the surface, represented in Figure 3, revealed that the samples treated under nitrogen atmosphere could not be performed by Boehm titration, due to their hydrophobic character, so this value was assumed to be zero. For the electrodes treated under air atmosphere, the results showed that higher functionalization degrees could be obtained either increasing the temperature during the treatment or its duration, being possible to achieve the same level of functionalization by adjusting the time and temperature in an operational window [57]. For example, a surface acid oxygen group concentration of 0.8–0.9 mM (miliMoles) can be obtained at 450 °C for 27 h, 550 °C for 15 h, or 650 °C for 3 h; thus, the treatment conditions can be adjusted to be as energy efficient as possible.

The electrochemical performance of the redox flow batteries is also influenced by the wettability of the electrodes, that is, of the GF [22]. Functionalization with oxygen functional groups improves the surface wettability. In this sense, it has been confirmed that the GF treated in an inert atmosphere, with an inappreciable content of oxygen groups, presents a hydrophobic character, so as the untreated GF.

The results indicated the prominent influence of the treatment atmosphere compared to the rest of the parameters. In the case of the thermally treated GF under a nitrogen atmosphere, the droplets remain and roll on the surface at a low inclination, leaving the felt dry (water contact angle of 122°). On the other hand, when GF is treated under an air atmosphere, the droplets are adsorbed by the felts as soon as they contact the surface. This is because of their superhydrophilic character.

Furthermore, there is a clear relationship between the content of oxygen groups on the surface and the hydrophilic character. Values higher than 0.5 mM of oxygen acid groups lead to superhydrophilic surfaces, which implies a total adsorption of water on the surface. A higher number of oxygen acid groups does not have a major impact on wettability, since at this level, the wettability obtained is total.

3.2. Chemical Treatment

The chemical treatments were performed in liquid phase using acids [23], with the aim of increasing the concentration of surface oxygen groups. The treatment of carbonaceous materials with nitric acid, or with a mixture of acids, has been studied by several researchers, concluding that it generated the formation of functional oxygen groups as carboxylic, phenolic, and free radicals.

In this work, the modifications of the GFs were performed at different ratios of a mixture of H₃PO₄:HNO₃ [58] by varying the treatment time and temperature [23,24,59]. The combination of variables used in the different treatments and the associated measurements are shown in

Table 2. Experimental conditions and measured parameters for chemical treatments.

	Temperature (°C)	Time (h)	Acid Ratio (H3PO4 %)	Oxygen Acid Groups (mM)	BET (m2 g−1)	Wettability
Reference				-	1.66	Hydrophobic
CT1	30	2	25	3.71	3.55	Hydrophilic
CT2	30	2	75	4.98	6.49	Hydrophilic
CT3	30	8	25	2.98	2.65	Hydrophobic
CT4	30	8	75	3.82	1.32	Hydrophobic
CT5	55	5	50	2.90	1.16	Hydrophobic
CT6	55	5	50	2.90	1.21	Hydrophobic
CT7	55	5	50	2.90	0.82	Hydrophobic
CT8	80	2	25	3.71	4.43	Hydrophilic
CT9	80	2	75	4.87	5.42	Hydrophilic
CT10	80	8	25	2.88	2.60	Hydrophobic
CT11	80	8	75	2.93	1.52	Hydrophobic

. The modification of the defined variables of the chemical process allowed to obtain hydrophobic to hydrophilic surfaces, with contents of oxygen groups from 2.88 to 4.98 mM and specific surface areas from 0.82 to 6.49 m² g⁻¹.

The specific surface area of GF is not significantly affected by the variables of the chemical process in the analyzed range of values (varying from 0.82 to 6.49 m² g⁻¹). The largest increases were observed at the shortest treatment times (2 h).

Prolonged exposure times caused a strong decrease in BET specific surface area, as already described in previous work [60,61], attributed to both blockage of the pores, due to oxygenated groups formation on the surface of the activated carbon, and/or damages in the porous structure.

Regarding the amount of surface oxygen groups, all the samples showed a significant increase, though short treatment times and high ratios H₃PO₄:HNO₃ (that is, higher amounts of phosphoric acid) led to a higher amount of oxygen groups. However, it was observed that the temperature of the treatment hardly affected the generation of oxygenated groups.

By chemical treatments, values higher than 3.55 mM of oxygen acid groups provide superhydrophilicity at the surface, which implies a total adsorption of water on the surface. A higher number of oxygen groups does not have a major impact on wettability, since at this level, the obtained wettability is total.

When comparing the thermal and chemical treatments, 0.57 mM of oxygen groups already provided this hydrophilic behavior in thermal treatment, so it is concluded that hydrophilicity does not only depend on the oxygen groups as other factors, such as surface area, also influence it. In addition, chemical treatments provided a higher amount of oxygen groups and lower surface areas, which is in good agreement with previously published results [62].

3.3. Plasma Treatment

The oxygen plasma treatment is used to modify the physical and chemical properties of GF simultaneously with the final aim of generating hydrophilic groups, thus improving the wettability of the GF. For the oxygen plasma treatment, the parameters studied were time, power, and pressure [26]. The specific combination of these variables and the main physicochemical properties of the GF obtained at those conditions are shown in

Table 3. Experimental conditions and parameters measured for plasma treatments.

	Time (min)	Power (W)	Pressure (bar)	Oxygen Acid Groups (mM)	BET (m2 g−1)	Wettability
Reference				0	1.66	Hydrophobic
PT1	1	50	1	1.25	3.61	Hydrophobic
PT2	1	50	0.5	1.40	2.45	Hydrophobic
PT3	1	100	1	1.30	2.68	Hydrophobic
PT4	1	100	0.5	1.35	1.74	Hydrophobic
PT5	5.5	75	0.75	1.26	2.74	Hydrophobic
PT6	5.5	75	0.75	1.20	2.50	Hydrophobic
PT7	5.5	75	0.75	1.27	2.60	Hydrophobic
PT8	10	50	0.5	3.75	7.08	Hydrophilic
PT9	10	50	1	2.13	2.82	Hydrophilic
PT10	10	100	0.5	4.05	8.43	Hydrophilic
PT11	10	100	1	2.35	5.62	Hydrophilic

. This series of plasma treatments allowed to obtain hydrophilic samples with different contents of oxygen acid groups (from 2.13 to 4.05 mM) and different surface areas (from 2.82 to 8.43 m² g⁻¹).

The surface area showed a moderate increment (up to 8.43 m² g⁻¹), greater with longer treatment times and higher power, in good agreement with previous work [12].

Regarding the amount of surface oxygen groups, all samples showed a moderate increase, although it is observed that higher exposure times generated a higher concentration of oxygen on the surface. Therefore, the treatment time is the variable that has the major influence over the oxygen groups concentration. This phenomenon has been previously described [42]. It must also be mentioned that values higher than 2 mM of oxygen groups provide superhydrophilicity at the surface.

As for the rest of the variables, the influence of pressure on the generation of oxygen groups on the electrode surface is noteworthy, with lower pressures leading to higher levels of functionalization.

However, oxygen plasma has a limited penetration ability [42] to the graphite felt surface, and it is difficult to observe drastic changes inside the graphite felt even after long-term treatments.

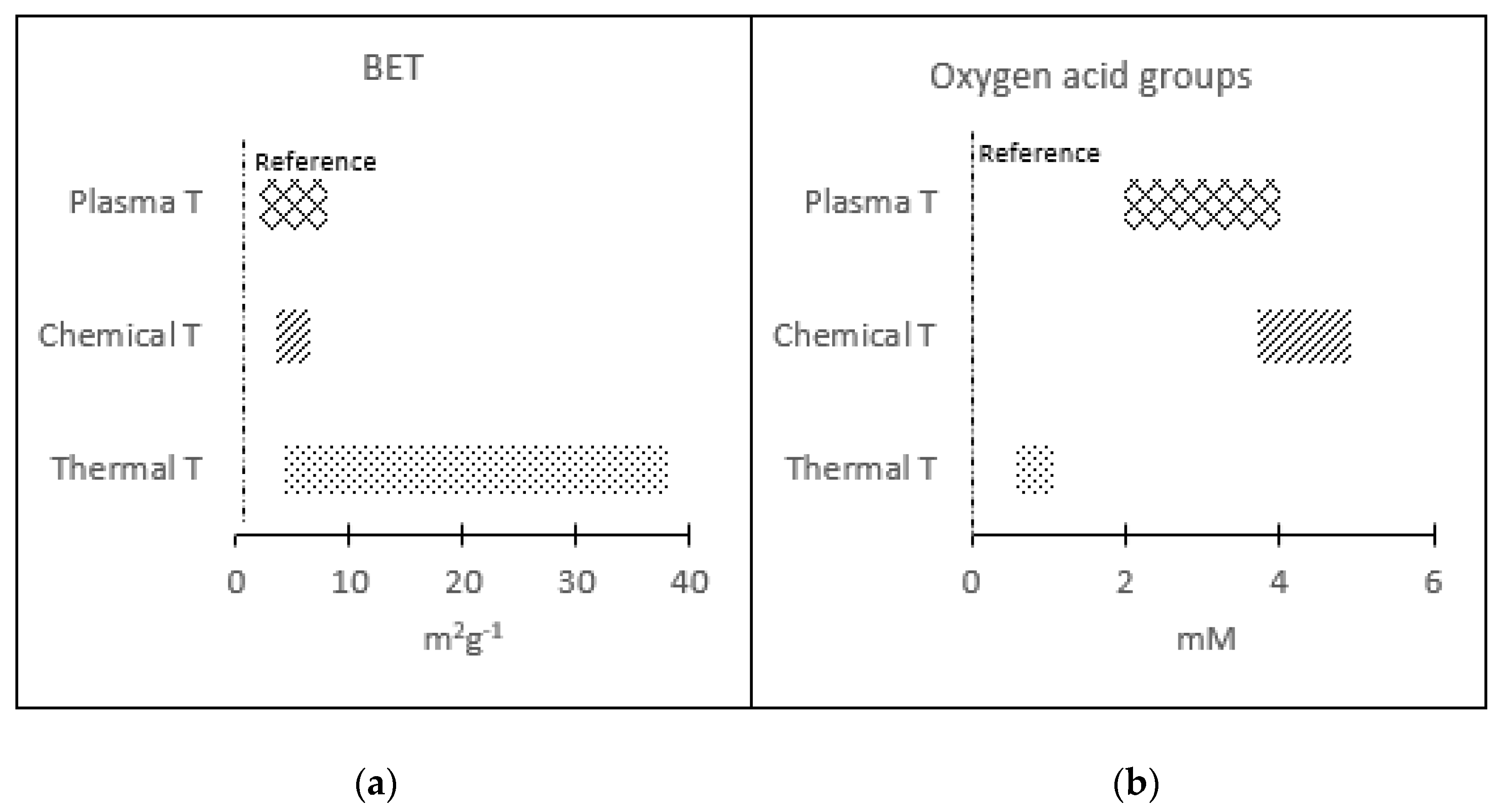

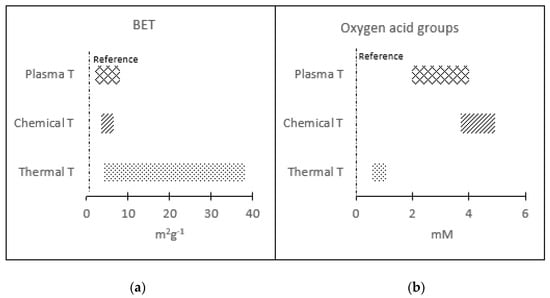

Comparing the results obtained by applying the three types of treatments, it can be concluded that it is possible to obtain electrodes with hydrophilic character, but with different physicochemical properties. A comparative analysis of the BET and Oxygen acid groups of the different hydrophilic samples obtained during the different treatments is shown in

Table 4. Comparison range of treatment methods considering the surface area and oxygenated groups.

	Reference	Thermal Treatments	Chemical Treatments	Plasma Treatment
BET range (m2 g−1)	1.66	4.30–38.15	3.55–6.49	2.82–8.43
Oxygen acid groups range (mM)	-	0.57–1.12	3.71–4.98	2.13–4.05

and Figure 4.

The results indicated that thermal treatments generate larger changes in the specific surface area when the generation of oxygenated groups is modest. Plasma or chemical treatments achieved the opposite effect: a significant generation of oxygenated groups with no significant changes in surface area. The chemical treatments were the ones that caused the greatest generation of oxygenated groups.

In order to be able to distinguish between the positive benefit obtained from an increase in the specific surface area and functional groups, it was decided to electrochemically evaluate different hydrophilic samples obtained by the different studied treatments. In this context, it was decided to focus the study on comparing samples with similar surface area levels but different oxygenated group concentrations, and conversely, samples with similar concentrations of oxygenated groups but different surface area values (see

Table 5. Selected samples for the electrochemical study.

	Oxygen Acid Groups (mM)	BET (m2 g−1)	ASR (Ω cm−2)
Reference	-	1.66	0.96
Similar BET but different oxygen groups content
TT3	0.85	5.24	0.13
CT9	4.87	5.42	0.24
PT11	2.35	5.62	0.29
Similar oxygen group amount but different BET
CT1	3.71	3.55	0.25
PT8	3.75	7.08	0.33

).

Futhermore, the electrical resistance was measured in the selected treated GFs to further understand the influence of the surface treatments on the properties of the electrodes. As it can be perceived, all the treatments significantly decreased the resistance in comparison to the reference GF. This fact is noteworthy because it translates in a reduction of the ohmic losses, thus leading to an increase in the energy efficiency of the cell.

3.4. Electrochemical Performance

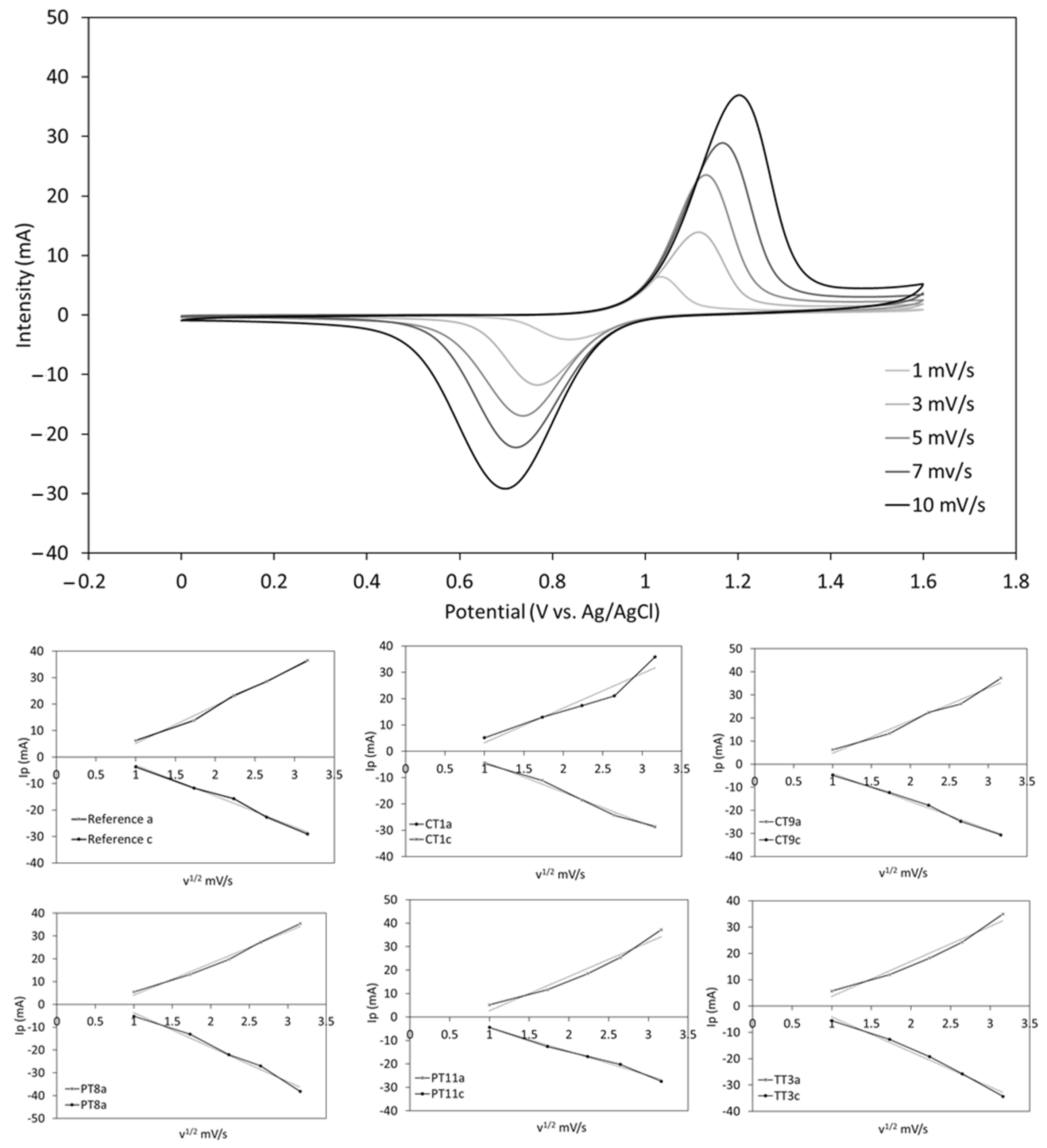

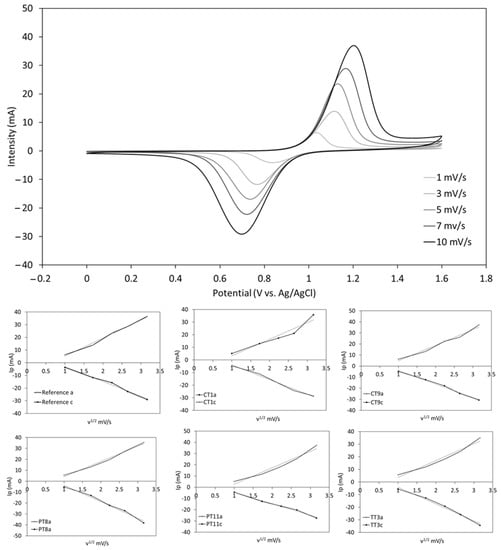

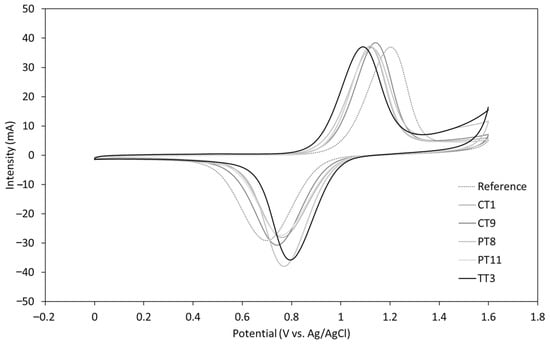

Samples listed in Table 5 (Reference electrode, CT1, CT9, PT8, PT11 and TT3) were electrochemically characterized by comparing the onset potentials, peak potential separation (ΔEp) and peak current ratios (Ipa/Ipc) at different scan rates. The CV measurements at different scan rates revealed the chemical reversibility of the system for all the treated electrodes, as they all show a linear relationship between Ip and ν1/2, following the Randles–Sevcik equation [63], as shown in Figure 5.

Regarding the electrochemical reversibility of the VO²⁺/VO₂⁺ reaction, the variation of ΔEp with the scan rate indicates that the process is quasi-reversible. However, the comparison of the ΔEp values at 10 mV/s shows that all the treatments significantly improve the electron transfer kinetics as compared to the untreated (Reference) graphite, as shown in Figure 6 and

Table 6. Main parameters calculated from the voltammograms at a 10 mV/s scan rate for the different electrode treatments.

Electrode	Epa (V)	Epc (V)	ΔEp (mV)	Ipa (mA)	Ipc (mA)	Ipa/Ipc	Onset Potential
Reference	1.20	0.70	504	36.51	29.01	1.26	0.95
CT1	1.12	0.76	357	35.89	28.56	1.26	0.90
CT9	1.14	0.74	398	37.22	30.63	1.22	0.90
PT8	1.12	0.77	355	35.39	38.2	0.93	0.87
PT11	1.11	0.76	354	37.23	27.38	1.36	0.90
TT3	1.09	0.79	293	34.98	34.31	1.02	0.84

. While both the plasma (PT8, PT11) and chemical (CT1, CT9) treatments show a similar performance enhancement, the thermal treatment (TT3) provides a remarkable increase in the electrochemical reversibility of the system with an over 200 mV reduction of ΔEp. The near to 1 Ipa/Ipc ratio also indicates the excellent chemical reversibility of the process using the thermically treated felts. Moreover, a 110 mV reduction in the onset potential (vs. untreated electrode) was achieved by this method, which eventually translates into a better energy storage efficiency as it requires a lower charge voltage for the battery [64]. This response is in accordance with the smaller resistance obtained in the resistance test.

A low oxygen surface group concentration generally leads to lower peak to peak voltage separations, indicating an improved electrochemical reversibility of the VO²⁺/VO₂⁺ reaction, as deduced from the comparison between treatments that generate different surface chemical compositions but similar BET results (TT3, CT9 and PT11). Interestingly, this effect has been found to be independent of the measured surface area, as inferred from the evaluation of two electrode treatments that produce similar oxygen groups but different surface areas (CT1 and PT8). However, this outcome is only achieved when a minimum surface area threshold is surpassed and, therefore, remarkably low BET measurements tend to put that reversibility at stake (treatment CT1). Moreover, high surface areas generally lead to an improved performance as they also favor the chemical reversibility of the VO²⁺/VO₂⁺ reaction, as shown by the closer to a unit Ipa/Ipc ratio of treatments with alike surface compositions and different BET results (PT8 vs. CT1).

To sum up, according to the evaluation of the electrochemical activity of the VO²⁺/VO₂⁺ redox pair with the different treated GF, it can be stated that TT3 treatment revealed promising electrochemical performance to take part as an electrode in a RFB.

3.5. XPS Analysis

XPS measurements were performed in the reference GF and most promising treated electrode (TT3) to further understand the changes in the surface composition caused by the thermal treatment. The results (

Table 7. Surface elemental composition of the untreated and TT3 graphite felt calculated by XPS.

Sample	C (%)	%O (%)	N (%)
Reference	98.5	1.5	0.0
TT3	91.6	7.9	0.3

) revealed an increase in %O content from 1.5% in the reference sample to 7.9% in the thermally treated TT3, in good agreement with previously published results for thermal treatments [65]. Although a significant increase in the amount of surface O is appreciated after the thermal treatment, the reported results for plasma or chemical treatments show a O percentage around 20 [66] or 40% [67], respectively. This trend perfectly correlates with the obtained results for the Boehm method.

The relative concentration of different functional groups was calculated from the C 1s peak fitting, as shown in the results presented in

Table 8. Concentration of the different C chemical bonds (in%) got from XPS fitting of C 1s core level for the reference GF and the thermally treated TT3.

Sample	sp2 C (%)	sp3 C (%)	C-O-H (%)	C=O (%)	O-C=O (%)	π-π* (%)
Reference	88.4	3.1	1.5	1.1	0.0	4.9
TT3	61.6	24.6	5.7	2.5	1.6	3.5

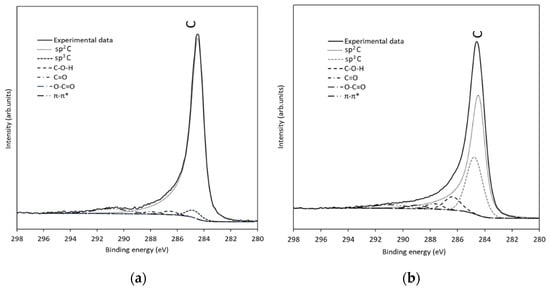

(corresponding to Figure 7). There is a significant decrease in the sp² C proportion from the reference (88.4%) to the TT3 thermally treated (61.6%) sample. Consequently, an increase in the second peak (284.8 eV) corresponding to sp³ C and defects is appreciated, changing from 3.1% in the reference to 24.6% in TT3. Moreover, the rest of the peaks corresponding to different oxygen functionalities increase in TT3 compared to the reference. XPS analysis revealed that the more abundant oxygenated groups in the surface of the thermally treated felt are hydroxyl (C-OH) and epoxy (C-O-C), resulting in the contribution at 286.5 eV, followed by carbonyl C=O groups (at 287.8 eV) and finally carboxyl O-C=O groups (at 289.0 eV).

From the C 1s peak deconvolution, the relative concentration of different functional groups were calculated, as shown in the results presented in Table 8 (obtained from Figure 7). There is a significant decrease from the reference to the TT3 thermally treated in sp² (284.4 eV) proportion from 87.85% to 54.85%. Consequently, an increased in sp³ (285.6 eV) is appreciated from 3.58% in the reference to 29.19% in TT3. Moreover, XPS analysis revealed that the main contribution of oxygenated groups in the surface of the thermally treated felt is C-O-(C/H) (286.1 eV), followed by the presence of C=O groups (287.4 eV).

4. Conclusions

The present work reports the modification of a commercial GF by thermal, chemical, and plasma treatments. As a result, it reveals which process parameters have significant influence on the GF functionalization depending on the treatment, so as the effect on their electrochemical activity as electrodes for a vanadium RFB.

During the thermal treatment, the control of the atmosphere is the main feature to successfully modify the GF surface. It is required air atmosphere to ensure hydrophilic behavior. In the chemical treatment, the ratio between acids and time must be carefully selected. It has been demonstrated that large periods of time may cause the blockage of the pores because of the great number of functional groups. For the plasma treatment, time and power are the main variables to control during the GF functionalization.

Comparing the treatments’ performance, it can be stated that carefully selecting the main parameters during the functionalization, a wide range of the GF properties can be designed regarding specific surface area, oxygen groups content, electrical resistance, or wettability. Thermal treatments generate larger changes in surface area, while a modest generation of oxygenated groups. Contrary, chemical, or plasma treatments allowed to reach significant number of oxygenated groups without changes in the surface area.

The study of the electrochemical activity of the treated GFs revealed an increased performance for all the treatments in comparison to the untreated one. Moreover, this study brought the importance of having and adequate relation between surface area and surface oxygenated groups, showed enhanced performance for the VO²⁺/VO₂⁺ redox pair. It was demonstrated that GF with surface area in the ranges 4.5–5.6 m² g⁻¹ with a minimum presence of surface oxygenated groups, 0.85 mM, are more favourable to VO²⁺/VO₂⁺ reactions than GF with higher oxygenated groups regardless of the surface area. This implies an excess of oxygenated groups, may interfere in the reaction VO²⁺/VO₂⁺ creating a polarization in the cell. This is demonstrated by the enhanced activity for TT3 in the electrochemical measurements, being decreased over 200 mV the peak-to-peak potential and 110 mV the onset potential, which reveals an improved reversibility of the VO²⁺/VO₂⁺ reaction. Consequently, enhanced energy efficiency in the cell is expected, thanks to the enhanced electrochemical activity, so as the reduced ohmic resistance losses of the electrode, which have been shown during the resistance test.

To conclude, this study discerns among the main variables that affect the GF electrode functionalization and what it is more, it assesses some of the most important properties of the developed electrodes, so as their electrochemical activity depending on their chemical composition and morphology.
