Comparison of the Properties of Ni–Mn Hydroxides/Oxides with Ni–Mn Phosphates for the Purpose of Hybrid Supercapacitors

Abstract

This study aims to quantify the synergistic effect of Ni²⁺ and Mn²⁺ ions on the capacitive performance of oxide, hydroxide and phosphate electrodes in alkaline electrolytes. Three types of phases containing both nickel and manganese in a ratio of one-to-one were selected due to their stability in alkaline media: oxides with ilmenite and spinel structures (NiMnO₃ and Ni_1.5Mn_1.5O₄); hydroxides with layered structures (β-Ni_1/2Mn_1/2(OH)₂); and phosphates with olivine and maricite structures (LiNi_1/2Mn_1/2PO₄ and NaNi_1/2Mn_1/2PO₄). In the mixed hydroxides and phosphates, Ni²⁺ and Mn²⁺ ions randomly occupied one crystallographic site, whereas in the ilmenite oxide, a common face was shared by the Ni²⁺ and Mn⁴⁺ ions. The electrochemical parameters of the Ni–Mn compositions were evaluated in asymmetric hybrid supercapacitor cells working with alkaline electrolytes and activated carbon as a negative electrode. A comparative analysis of oxides, hydroxides and phosphates enabled us to differentiate the effects of nickel and manganese ions, structures and morphologies on their capacitive performance. Thus, the best performed electrode was predicted. The electrode composition should simultaneously contain Ni and Mn ions, and their morphologies should comprise spherical aggregates. This was an ilmenite NiMnO₃, which delivers high energy and power density (i.e., 65 W h kg⁻¹ at 3200 W kg⁻¹) and exhibits a good cycling stability (i.e., around 96% after 5000 cycles at a current load of 240 mA g⁻¹).

1. Introduction

The elaboration of hybrid supercapacitors with improved energy density and cycling stability is a current challenge that requires identification of the most suitable electrode materials [1,2,3,4]. In this context, transitional metal oxides or hydroxides are considered as attractive electrode materials due to their capability to store energy by different mechanisms [1,5,6,7,8,9,10]. For example, MnO₂ displays a classical pseudocapacitive mechanism based on fast surface redox reactions with the participation of Mn³⁺ and Mn⁴⁺ ions [5,6], whereas Ni(OH)₂ is characterized by reversible electrochemical redox reactions with Ni²⁺/Ni³⁺ pair which is concomitant with ion/molecule intercalation [7,8,9,10]. The electrochemical storage mechanisms become more diverse when ternary metal oxides/hydroxides having multiple oxidation states are used. According to A/B/O notation, ternary metal compounds can be categorized mainly into three groups: AB₂O₄, ABO_2/3/4 and A₃B₂O₈ [11,12]. In comparison with MnO₂, mixed nickel manganese oxide (NiMn₂O₄) stored in aqueous electrolytes (e.g., 1 M Na₂SO₄), the vast majority of capacitance (91%) is by intercalation, and only 9% is by a capacitive mechanism [13]. The performance of oxides depends also on the type of the crystal structure; it has been found that NiMnO₃ with an ilmenite structure outperforms NiMn₂O₄ with a spinel structure [14]. The ratio between Ni and Mn is also of importance [15,16]; the best capacitive properties have been established for Ni–Mn oxide with Ni:Mn = 1:3. The replacement of oxides with hydroxides has a positive impact on the electrochemical performance of mixed nickel manganese compounds [17,18]. Layered double hydroxides (Ni–Mn LDH), as well as Ni–Mn LDH deposited on reduced graphene oxide, exhibit high faradaic pseudocapacitance, which makes them attractive electrodes for hybrid supercapacitors [12,17,18].

The improved storage performance of mixed Ni–Mn oxides/hydroxides is directly related with the synergistic effect of Ni and Mn ions [19]. The next question is whether the Ni/Mn effect is specific for oxides/hydroxides. In this context, phosphate compounds represent an alternative towards oxides/hydroxides due to their stability in aqueous and carbonate-based electrolytes [20]. Irrespective of this, intensive studies on phosphate-based supercapacitors started in 2012 with NH₄CoPO₄.H₂O [21,22]. Regarding alkaline transition metal phosphates, the first report appeared in 2015, with the electrode being lithium manganese phosphate, LiMnPO₄, with an olivine-type structure [23,24]. It has been found that nano-crystalline LiMnPO₄ coated with a thick carbon layer delivers high capacitance when lithium aqueous electrolytes (such as LiOH and Li₂SO₄) are used. This phospho-olivine shows non-faradic behavior in neutral aqueous electrolytes, whereas in alkaline electrolytes, the faradic kind of the capacitive profiles is more pronounced. Furthermore, the capacitive performance of the phospho-olivine is amplified when the composite between LiMnPO₄ and reduced graphene oxide aerogel is formed [25]. Like LiMnPO₄, nickel analogue LiNiPO₄ stores electrochemical energy by faradaic and non-faradaic mechanisms [26]. Recently, it has been reported that sodium manganese and sodium nickel phosphates (NaMnPO₄ and NaNiPO₄) have maricite structures that operate through the same mechanisms in NaOH electrolytes; battery-like reversible redox processes are owed to Mn²⁺/Mn³⁺ and Ni²⁺/Ni³⁺ redox pairs concomitant with adsorption/desorption reactions at the electrode/electrolyte interface [27,28,29]. In neutral electrolytes, such as NaCl and Na₂SO₄, however, the non-faradaic mechanism prevails [27]. The nickel compound NaNiPO₄ displays higher specific capacitance than the manganese one, NaMnPO₄, with a voltametric specific capacitance of 390 F g⁻¹ vs. 219 F g⁻¹ at a scan rate of 2 mV s⁻¹ [27]. Mixed sodium manganese-nickel-cobalt phosphate (i.e., NaMn_1/3Ni_1/3Co_1/3PO₄) demonstrates stable capacitive performance in hybrid supercapacitors irrespective of the kind used electrolytes (i.e., 2 M NaOH solution and 1 M NaPF₆ in EC/DEC/DMC) [30,31]. Regardless of these few reports, the capacitive performance of phosphates is still far from that which is desired. That is why the challenge is how to improve the capacitive performance of phosphates.

This study aims to quantify the synergistic effect of nickel and manganese ions on the capacitive performance of oxide, hydroxide and phosphate electrodes in alkaline electrolytes. For all electrodes, the ratio of Ni-to-Mn was selected to be one-to-one. Two types of phosphate phases stable in alkaline media were selected: LiNi_1/2Mn_1/2PO₄ with an olivine structure and NaNi_1/2Mn_1/2PO₄ with a maricite structure. As a measure of the phosphate performance, mixed Ni–Mn oxides with ilmenite and spinel structures, as well as mixed Ni–Mn hydroxides with layered structures, were used as references. For the phosphates and hydroxides, Ni²⁺ and Mn²⁺ ions randomly occupied one crystallographic site, whereas in the ilmenite oxide, a common face was shared by Ni²⁺ and Mn⁴⁺ ions (Figure 1).

The electrochemical parameters were evaluated in hybrid supercapacitor cells working with alkaline electrolytes and activated carbon as a negative electrode [10]. The comparative analysis of the phosphates and oxides/hydroxides is of significance to obtain insight into the synergistic effect of nickel and manganese on the capacitive performance of electrodes.

2. Results and Discussion

For the preparation of single phases containing both nickel and manganese, specific synthetic procedures were adopted.

Table 1. Experimental conditions, preparation methods, phase compositions and labeling of the studied hydroxides, oxides and phosphates.

Sample	Description	Preparation Method	T, °C	Annealing Time, hs	Phase Composition	Labeling
1	Ni–Mn hydroxide	Co-precipitation from nitrate salts	25	-	β-type Ni0.5Mn0.5(OH)2	N-OH
2	Ni–Mn oxide	Thermal decomposition of hydroxides prepared from nitrates	400	3	Mixture of ilmenite NiMnO3 and spinel Ni1.5Mn1.5O4	IS-O
3	Ni–Mn oxide	Thermal decomposition of Ni1/2Mn1/2CO3	400	3	Single ilmenite NiMnO3 phase	I-O
4	Li–Ni–Mn phosphate	Li–Ni–Mn phosphate-formate precursor	500	10	Single olivine phase LiNi1/2Mn1/2PO4	LP
5	Na–Ni–Mn phosphate	Na–Ni–Mn phosphate-formate precursor	700	10	Single maricite phase NaNi1/2Mn1/2PO4	NP

summarizes all the experimental conditions necessary for the synthesis of the given electrode, as well as its notation. Mixed nickel-manganese hydroxide, Ni_1/2Mn_1/2(OH)₂, is prepared by the co-precipitation of a nickel-manganese aqueous solution with KOH. Interestingly, the kind of the used Ni and Mn salts affects the composition of the precipitated hydroxides (Figure S1); single Ni_1/2Mn_1/2(OH)₂ phase, which is isostructural to the well-known β-Ni(OH)₂ (Figure 1a, ICSD 28101), is obtained only in the case when nickel and manganese nitrate salts are used. The nickel and manganese sulfate salts yield a phase mixture between α- and β-type Ni_xMn_1-x(OH)₂, as well as individual Mn(OH)₂ and β-Ni(OH)₂ (Figure S1). In this study, single β-Ni_1/2Mn_1/2(OH)₂ phase was only tested as an electrode in a supercapacitor cell. Contrary to the hydroxides, precipitation in the presence of CO₂ leads to the formation of a single carbonate phase, Ni_1/2Mn_1/2CO₃, irrespective of the kind of the used nickel and manganese salts. The common features of β-Ni_1/2Mn_1/2(OH)₂ and Ni_1/2Mn_1/2CO₃ are the random distributions of Ni²⁺ and Mn²⁺ ions in hydroxide and carbonate crystal structures (Figure S1).

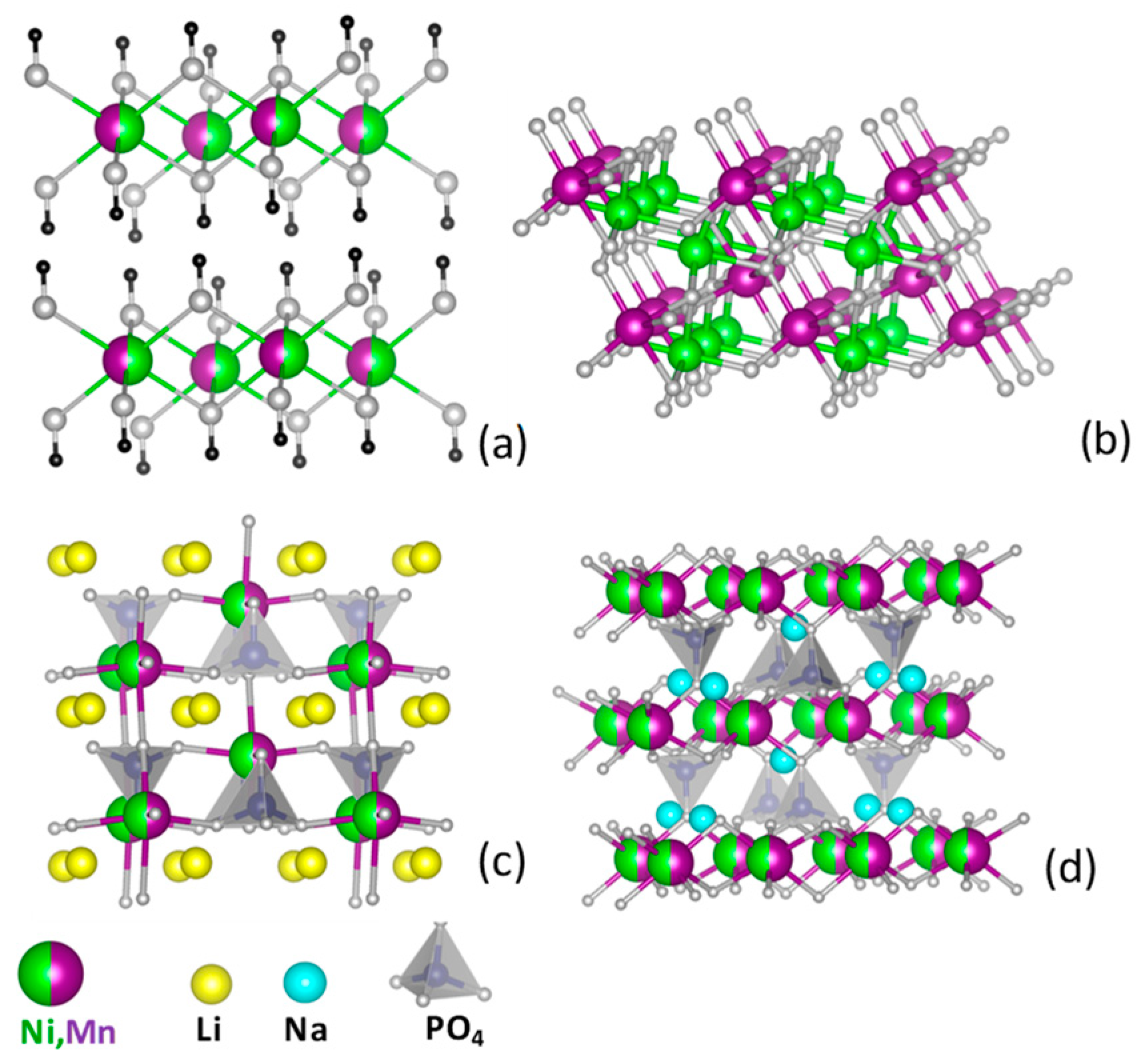

Oxide electrodes are prepared by the thermal decomposition of the corresponding carbonate and hydroxide phases (Figure S1, Table 1). Although thermal decomposition of the carbonate phase, Ni_1/2Mn_1/2CO₃, yields single NiMnO₃ phase with an ilmenite type of structure (Figure 1b, ICSD 31853), a mixture between oxide phases with ilmenite and spinel structures (i.e., NiMnO₃ and Ni_1.5Mn_1.5O₄) is formed after the decomposition of a single β-Ni_1/2Mn_1/2(OH)₂ phase. As electrodes in a supercapacitor cell, NiMnO₃ ilmenite and an oxide mixture, “NiMnO₃+Ni_1.5Mn_1.5O₄”, are used.

The phosphate phases LiNi_1/2Mn_1/2PO₄ and NaNi_1/2Mn_1/2PO₄ are obtained from the lithium and sodium phosphate-formate precursors. XRD patterns evidence that lithium and sodium compounds crystallize in different types of structures, although the same synthetic method (Figure S1): LiNi_1/2Mn_1/2PO₄ adopts an olivine-type structure (Figure 1c), whereas NaNi_1/2Mn_1/2PO₄ crystallizes in a maricite-type structure (Figure 1d). The olivine- and maricite-type structures are closely related to each other; they have the same PO₄ framework but with a reverse distribution of M⁺ and M²⁺ ions over the two octahedral sites (4a and 4c) [32,33]. It is of importance that Ni²⁺ and Mn²⁺ ions are randomly distributed on the given octahedral positions in the two structures, as discussed in the supporting information.

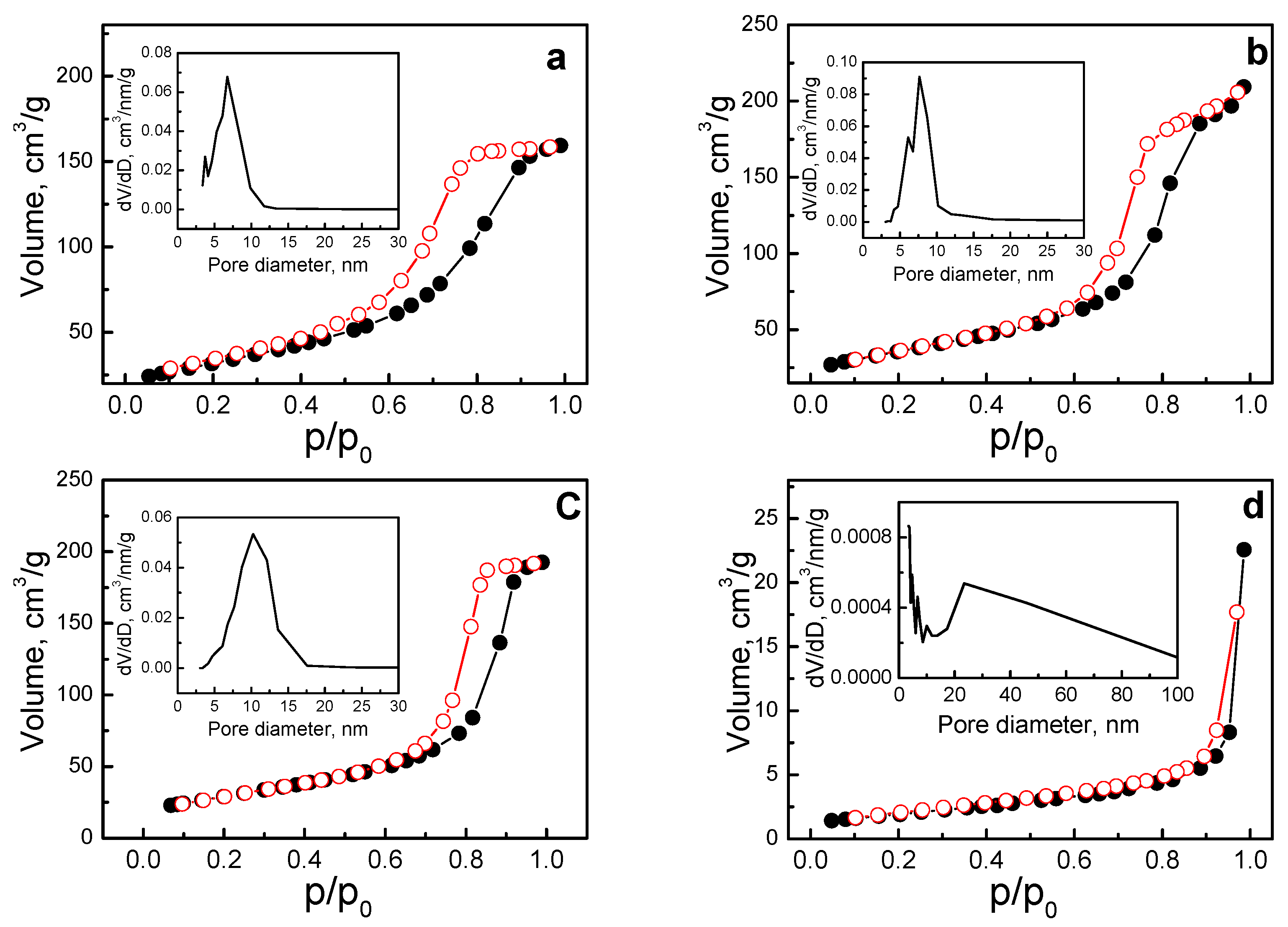

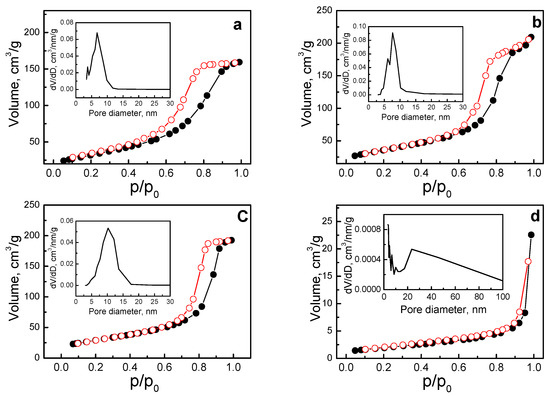

Specific surface area is another important factor contributing to the electrochemical performance of materials [34,35]. Figure 2 compares the specific surface area for all the samples. Hydroxides, oxides and phosphates are typical mesoporous materials (Figure 2). For β-Ni_0.5Mn_0.5(OH)₂ and its oxide-derived product (IS-O), the isotherms show characteristic H1-type hysteresis loops associated with the narrow distribution of relatively uniform cylindrical-like pores (Figure 2a,c) [36]. The calculated specific surface areas, total pore volumes and pore size distributions are collected in

Table 2. Specific surface area S_BET, total pore volume V_t and pore size distribution for the studied compounds.

Samples	Detailed Description	SBET, m2 g−1	Vt, cm3 g−1	Pore size Distribution, nm
N-OH	β-Ni1/2Mn1/2(OH)2	117	0.25	Uniform narrow pore size distribution between 3 and 12 nm; mean pore size of 8 nm
I-O	NiMnO3	128	0.35	Narrow pore size distribution between 3 and 12 nm; mean pore size of 10 nm
IS-O	NiMnO3 + Ni1.5Mn1.5O4	106	0.30	Uniform narrow pore size distribution between 3 and 18 nm; mean pore size of 11 nm
LP	LiNi1/2Mn1/2PO4	7	0.04	Broad pore size distribution between 5 and 100 nm, with mesopores between 10 and 50 nm being predominant
NP	NaNi1/2Mn1/2PO4	≈1	-	-

. The hydroxides and oxides have close porous characteristics with high specific surface areas (varying between 106 and 128 m² g⁻¹) and total pore volumes (i.e., varying between 0.25 and 0.35 cm³ g⁻¹). However, close inspection of the pore size distribution curves (Figure 2 and Table 2) reveals that the mean pore size was slightly shifted after the thermal decomposition of the hydroxide to an oxide (i.e., from 8 to 11 nm). This means that the H₂O evolution from a hydroxide caused an opening of pores in the mesopore range. The phosphates exhibited low specific surface areas: 7 m² g⁻¹ for LiNi_1/2Mn_1/2PO₄ and about 1 m² g⁻¹ for N37Ni_1/2Mn_1/2PO₄ (Table 2). (For the sake of convenience, the isotherm of NaNi_1/2Mn_1/2PO₄ is not shown due to its lowest specific surface area.) For lithium compounds, the pores were distributed in a broad range from 5 to 100 nm, with mesopores with sizes between 10 and 50 nm being predominant. The different porosity of hydroxides/oxides and phosphates is related with the preparation conditions; phosphates are prepared at higher temperatures using longer heating times in comparison with oxides (Table 1).

In synchrony with the porosity, the morphology of the samples is also specific. The morphology consisted of micrometric aggregates with various shapes (Figure 3). For NiMnO₃, spherical aggregates with sizes of around 1–5 µm dominated, whereas for β-Ni_1/2Mn_1/2(OH)₂ and its oxide-derivative, unshaped aggregates with sizes larger than 10 µm appeared. For NaNi_1/2Mn_1/2PO₄, having a lower specific surface area, primary well-shaped particles inside aggregates could be distinguished, with the particle dimensions being of 0.4–0.8 µm. For LiNi_1/2Mn_1/2PO₄, spherical aggregates were mostly observed.

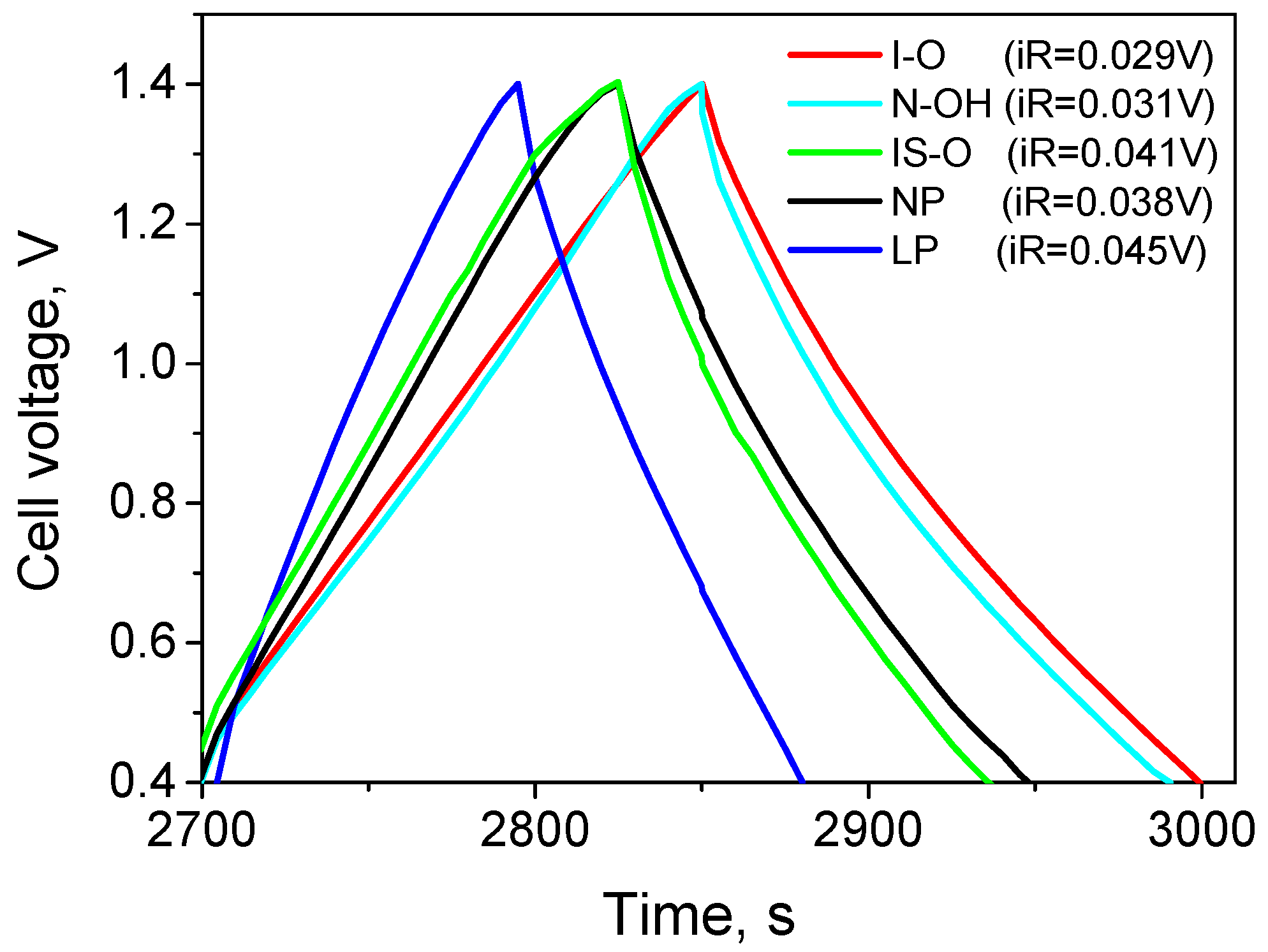

All the samples used as positive electrodes in asymmetric electrochemical cells displayed charge/discharge curves whose shapes are typical for supercapacitor behavior [5,6,7,8,9] (Figure 4). The comparison shows that hydroxides, oxides and phosphates delivered different capacitances, with the highest being for ilmenite I-O and the lowest being for olivine LP. This reflects a current–resistance iR drop calculated from the discharge curve. I-O exhibited the lowest iR drop (i.e., drop in voltage ΔV of 0.029 ± 0.002 V at 240 mA g⁻¹), and the highest value was calculated for LP (i.e., drop in voltage ΔV of 0.045 ± 0.002 V at 240 mA g⁻¹).

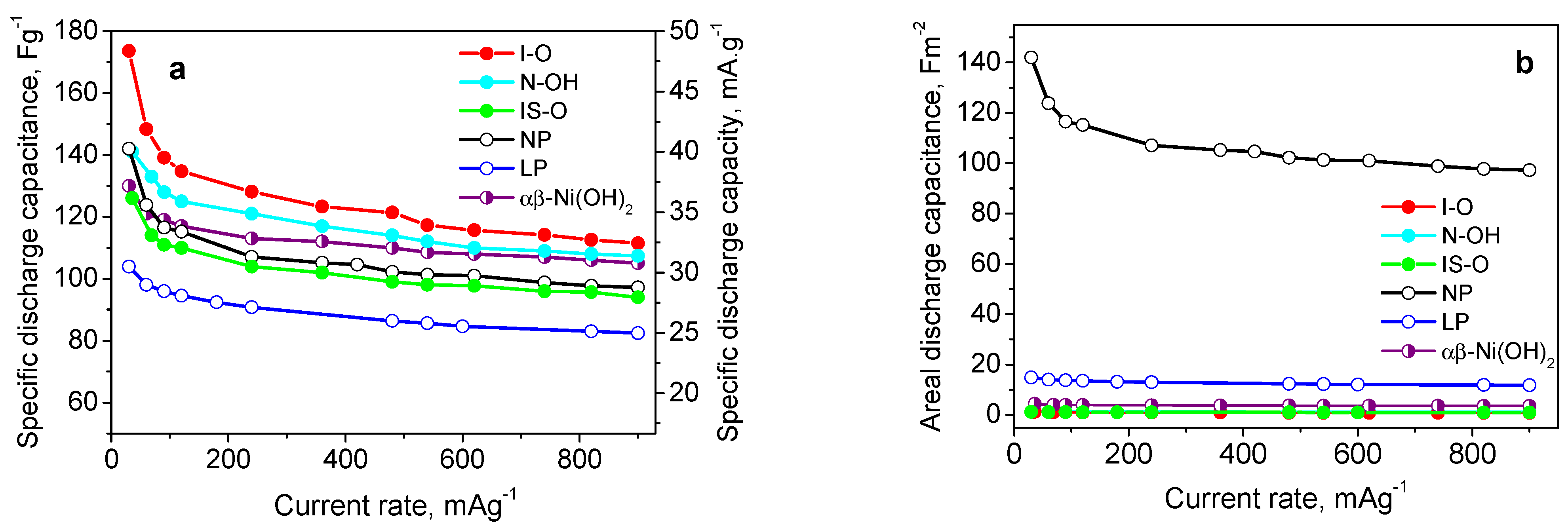

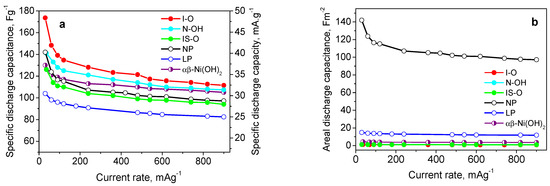

To more precisely compare the electrochemical performances of all the samples, two experimental protocols are used. Firstly, the electrochemical cells are cycled at a constant current load that increases stepwise from 30 to 900 mA g⁻¹ for 25 cycles per each step (Figure 5). Secondly, the electrochemical cells are tested at a current load of 240 mA g⁻¹ for 5000 cycles (Figure 6). According to the first protocol, the highest capacitance is delivered by the ilmenite oxide I-O regardless of the current load, with 175 F g⁻¹ and 115 F g⁻¹ at a current load of 30 and 900 mA h g⁻¹, respectively (Figure 5). The hydroxide N-OH displays lower capacitance than that of the ilmenite oxide I-O at a low current load, whereas at high current loads, the capacitances of hydroxides and oxides become comparable. This reveals a better rate performance of the hydroxides in comparison with that of the oxides. To understand the effect of the mixing of Ni and Mn, Figure 5 gives the capacitance behavior of α,β-Ni(OH)₂ reference, for which it has been shown to display the best performance among nickel hydroxide modifications [9]. This comparison indicates high capacitance values for mixed β-Ni_1/2Mn_1/2(OH)₂ hydroxide at lower current loads, whereas at high current loads, the capacitances of β-Ni_1/2Mn_1/2(OH)₂ and α,β-Ni(OH)₂ tend towards each other. When a spinel oxide Ni_1.5Mn_1.5O₄ is mixed with ilmenite oxide NiMnO₃ (IS-O), there is a decrease in the capacitance, thus indicating worse supercapacitor behavior of the spinel. It is worth mentioning that the better performance of ilmenite NiMnO₃ compared to that of the spinel with a composition of NiMn₂O₄ has been previously established [14]. Given that both oxides have close specific surface areas, the different capacitances disclose the effect of crystal structures on the supercapacitor behavior of oxides. This is more evidence for the complex features of energy storage for oxides, including capacitive and faradaic mechanisms. That is why the energy storage of oxides is calculated and presented in Figure 5 with units of F g⁻¹ and mA h g⁻¹.

The lowest capacitance was observed for the olivine LP, with 105 F g⁻¹ and 90 F g⁻¹ at a current load of 30 and 900 mA h g⁻¹, respectively. However, the olivine LP outperformed the oxides and hydroxides with respect to the rate capability. Going from 30 to 900 mA g⁻¹, the capacitance loss was around 50 F g⁻¹ for I-O and only 15 F g⁻¹ for LP. Irrespective of the lowest specific surface area, the maricite NP demonstrated a capacitance that was close to that of the mixed oxide “ilmenite-spinel”. To outline the performance of maricite NP, the discharge capacitance was calculated per specific surface area (Figure 5). According to this scheme, the maricite NP delivered the highest areal capacitance, followed by the phospho-olivine (Figure 5). On one hand, this illustrates the impact of the crystal structure on the supercapacitor behavior of phosphates, which mimics that of the oxides. On the other hand, the maricite NP may be of interest as an electrode material in hybrid supercapacitors if its specific surface area is increased drastically.

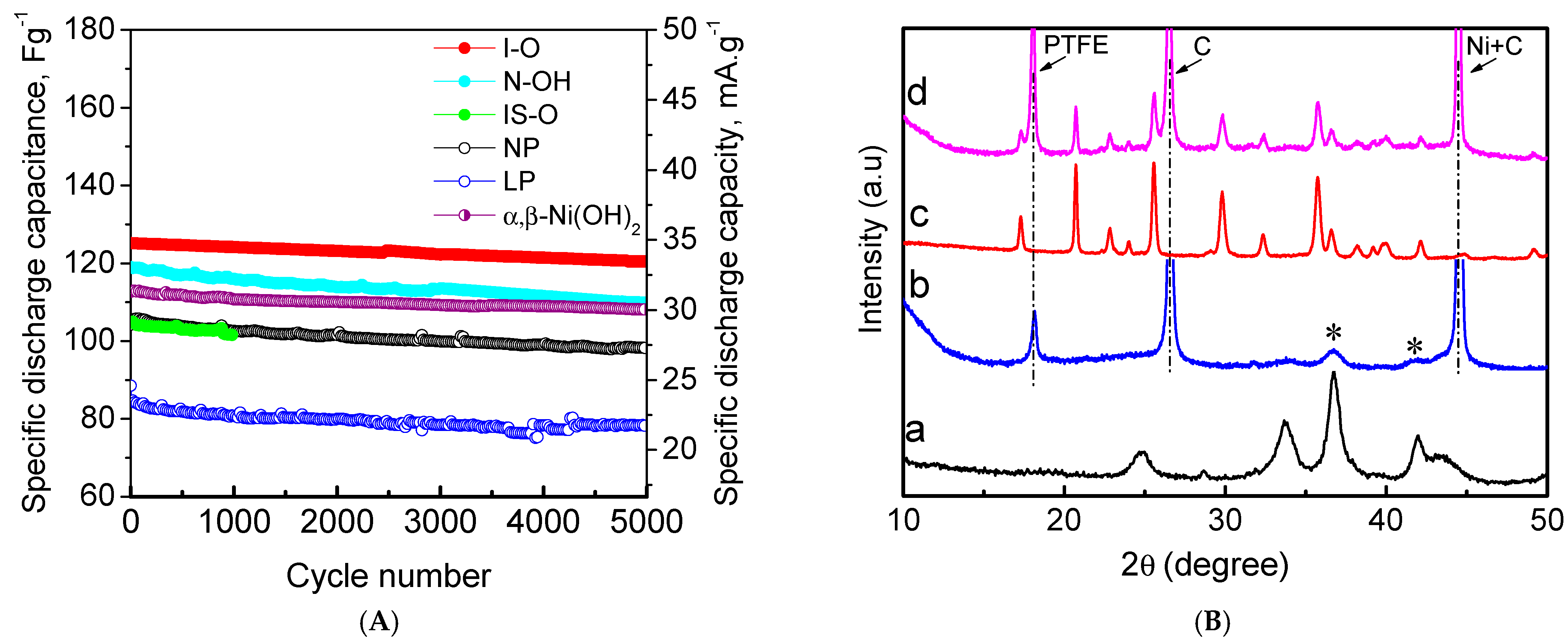

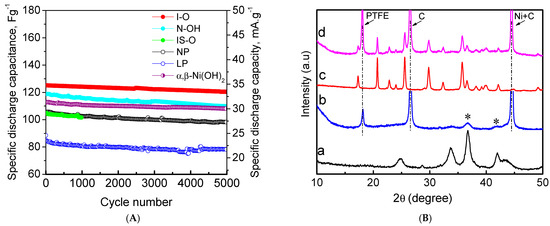

The second protocol of electrochemical testing is based on an extended number of cycles, and it enables the further differentiation of samples as electrode materials (Figure 6A). After 5000 cycles, the ilmenite I-O delivered the highest capacitance (i.e., of around 125 F g⁻¹) and better cycling stability (i.e., around of 96%). The oxide mixture between ilmenite and spinel underperforms the single ilmenite phase, thus supporting once again the better capacitive performance of the ilmenite phase. The N-OH hydroxide is characterized by a slightly lower capacitance than that of ilmenite I-O (i.e., around of 115 F g⁻¹), but the cycling stability was worse (around 92%). It is noticeable that α,β-Ni(OH)₂ reference, having a lower capacitance than that of N-OH (113 versus 119 F g⁻¹), displayed better cycling stability (i.e., around 95%). In comparison with oxides and hydroxides, the performance of the phosphate electrodes was worse; the capacitance was lower than 100 F g⁻¹, and the cycling stability tended to 92% regardless of the crystal structure (i.e., maricite or olivine). It is of importance that the capacitances of mixed Ni–Mn phosphates are among the highest values reported in the literature, in which single Mn and Ni phosphates are mainly examined [23,24,25,26,27,28,29]. Moreover, single maricite phosphate NP and mixed ilmenite and spinel oxides IS-O had comparable capacitances regardless of their different specific surface areas (Table 2). The above data allow the outlining of two important features; the capacitance depends mainly on whether the electrode simultaneously contains nickel and manganese and, to a lesser extent, on the type of anionic constituents. On the other hand, the cycling stability is a function of the morphology; it appears that better cycling stability is achieved at spherical aggregates.

Cycling stability is directly associated with the chemical stability of electrodes in alkaline electrolytes. For that reason, Figure 6B gives the ex situ XRD patterns of ilmenite and phospho-olivine after 5000 cycles at 240 mA g⁻¹. These electrodes were selected since they exhibit the best and worst performances. As one can see, both XRD patterns remained unchanged, thus indicating the chemical stability of the ilmenite and phospho-olivine phases during cycling in alkaline electrolytes.

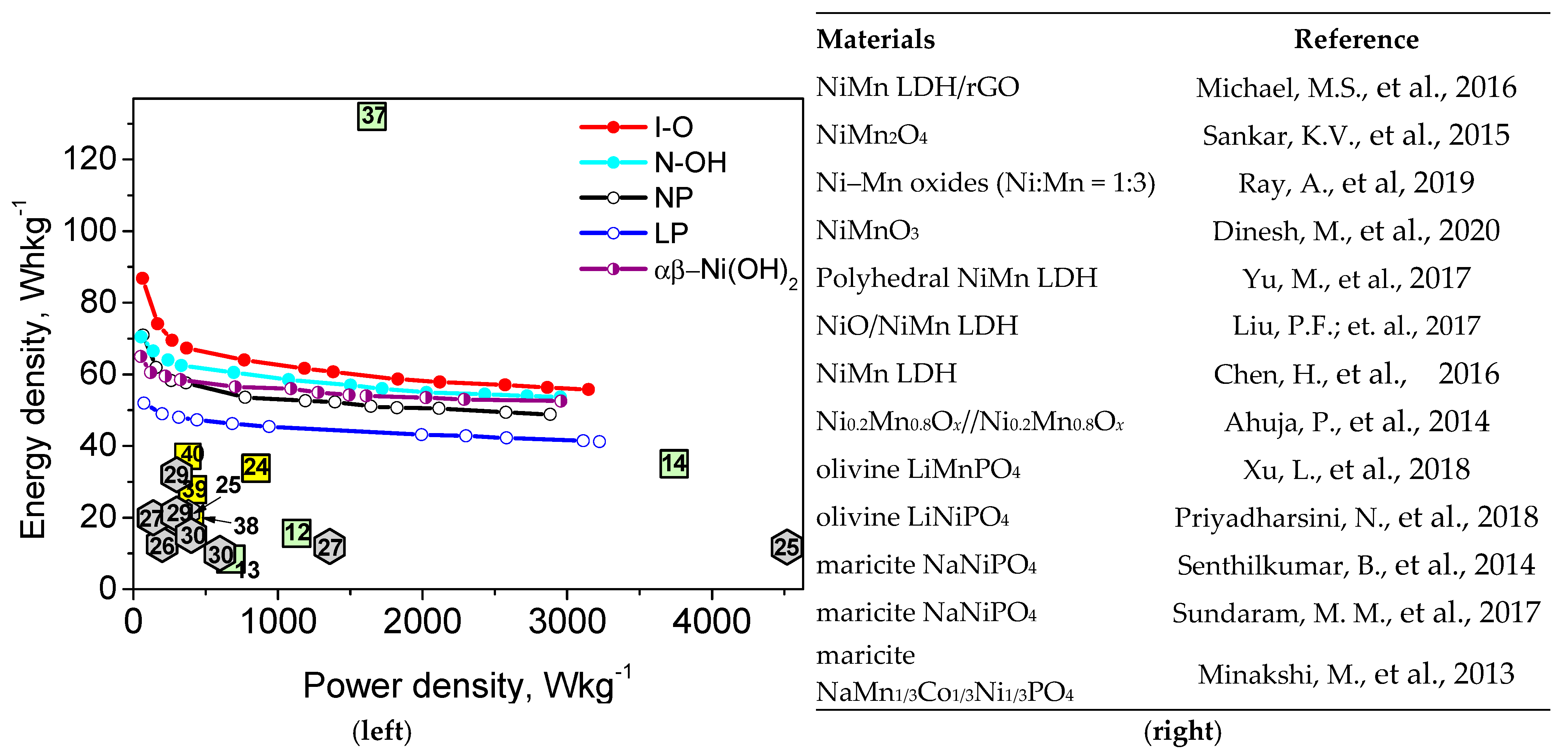

To rationalize the electrochemical performance of oxides, hydroxides and phosphates, Figure 7 compares the relationship between energy density and power density. For the sake of comparison, the data available in the literature are also given. At lower power densities, the specific energy density decreases in following the order: I-O > N-OH~NP > α,β-Ni(OH)₂ > LP, whereas at a high power density, the specific energy of I-O, N-OH and >α,β-Ni(OH)₂ becomes close and higher than that of the phosphates. It is of importance that the ilmenite NiMnO₃ still displays a high energy density at the highest power density (i.e., 65 W h kg⁻¹ at 3200 W kg⁻¹).

This can be related with the synergistic effect of Ni and Mn elements, as well as with the specific morphology and texture of I-O. The capacitance performance of ilmenite I-O is one of the good performances reported in literature (Figure 7). In comparison with ilmenite I-O with a Ni-to-Mn ratio of one-to-one, composite Ni_0.2Mn_0.8O_x//Ni_0.2Mn_0.8O_x oxides with a Ni-to-Mn ratio of one-to-four exhibit an energy density of around 38 W h kg⁻¹ at 3800 W kg⁻¹ power density, whereas the energy and the power density of Ni–Mn oxide with a one-to-three ratio reach around 130 W h kg⁻¹ at 1700 W kg⁻¹ [23,26]. The ilmenite NiMnO₃ prepared by the hydrothermal method displays significantly lower energy density (i.e., around 10 W h kg⁻¹ at 700 W kg⁻¹ [22]) than that of ilmenite NiMnO₃ prepared by us using the co-precipitation method. Interestingly, the hydrothermal-derived NiMnO₃, having worse performance, is characterized by a low specific surface area (i.e., around 21 m² g⁻¹) and irregularly shaped particles with a size of 100–200 nm, whereas co-precipitate-derived NiMnO₃, having the best performance, possesses a high specific surface area (around 125–130 m² g⁻¹) and spherical morphology. It is well recognized that spherical morphology is an important factor contributing to the improved performance of battery-like materials due to a higher volume-to-surface ratio of the electrode and its better wetting with electrolytes [41]. Given that the energy storage mechanism of Ni–Mn oxides in supercapacitors is more complex than the single capacitive and faradaic one, it is not surprising that spherical morphology has a favorable effect in asymmetric supercapacitors too.

Both LP and NP phosphates deliver lower specific energy densities than those of oxides and hydroxides (Figure 7), with NP being slightly better than LP. Keeping a Ni-to-Mn ratio of one-to -one, this implies, at first glance, that the capacitive performance of an electrode depends further on the anionic constituents and on the type of structure. Considering that the morphology of phosphates is not optimized, it appears that the phosphates are also suitable for supercapacitor applications. Moreover, the energies and power densities of the phosphates prepared by us, which simultaneously contained Ni and Mn, were more than two times higher than those of phosphates containing one element, such as Ni or Mn (Figure 7). This supports once again the leading effect of Ni and Mn elements on the performance of electrodes in hybrid supercapacitors.

3. Conclusions

Three types of electrodes were evaluated in hybrid supercapacitor cells with alkaline electrolytes: oxides with ilmenite and spinel structures, hydroxides isostructural to β-Ni(OH)₂ and phosphates with olivine and maricite structures. The common feature between them is that their crystal structures are able to simultaneously accommodate nickel and manganese ions. The capacitance performances of oxides, hydroxides and phosphates depend mainly on whether the electrode contains simultaneously contains nickel and manganese in a ratio of one-to-one and, to a lesser extent, on the type of anionic constituents. Cycling stability becomes better when the morphology consists of spherical aggregates. Based on these findings, one can predict the electrode with the best capacitance performance; the electrode composition should simultaneously contain Ni and Mn ions, and the morphology should comprise spherical aggregates. A proof-of-concept is demonstrated by NiMnO₃ with an ilmenite structure and optimized morphology; it delivers high energy and power density (i.e., 65 W h kg⁻¹ at 3200 W kg⁻¹) and exhibits good cycling stability (i.e., around 96% after 5000 cycles at a current load of 240 mA g⁻¹). The capacitive performance of olivine and maricite phosphates outperforms the previously reported phosphates by more than two times due to the synergistic effect of Ni²⁺ and Mn²⁺ ions. Further optimization of phosphate morphology is needed in order to reach the capacitance performance of NiMnO₃ ilmenite.

4. Material and Methods

4.1. Synthesis

The mixed Ni–Mn hydroxides were prepared via the classical co-precipitation method from nickel and manganese salts (1:1 mole ratio) and KOH as a precipitant. Two kinds of salts were used: nitrates and sulfates. The mixed Ni–Mn oxides were obtained by the thermal decomposition of the following at 400 °C: (i) corresponding hydroxides; (ii) calcite-type Ni_1/2Mn_1/2CO₃ prepared by a co-precipitation from the nitrate salts with NaHCO₃ in a flow of CO₂. For the synthesis of LiNi_1/2Mn_1/2PO₄ and NaNi_1/2Mn_1/2PO₄, we adopted the phosphate-formate precursor method developed previously for the preparation of electrochemically active LiMPO₄ (M = Fe, Mn, Co, Ni) and NaMPO₄ [32,33]. The synthetic procedure consists of mixing aqueous solutions of Ni(HCOO)₂.2H₂O, Mn(HCOO)₂.2H₂O and LiH₂PO₄, accordingly NaH₂PO₄, taken in a mole ratio of 1:1:2. The metal-phosphate-formate solutions were frozen instantly with liquid nitrogen and subjected to freeze-drying for about 18 h in vacuum (20–30 mbar) using an Alpha-Christ Freeze Dryer. Thus, the obtained solid phosphate-formate precursors were pre-decomposed in an air atmosphere at 350 °C for 4 h. The solid products were further annealed at temperatures between 500 and 700 °C.

4.2. Characterization Methods

The XRD patterns of the oxides/hydroxides and phosphates were recorded on a Bruker D8 Advance diffractometer using CuKα radiation (LynxEye detector). The Ni and Mn contents in the mixed composition were determined by inductively coupled plasma atomic emission spectrometry (ICP-AES). The morphology of the electrode materials was examined by JEOL JSM-5510 SEM. The porous texture of the samples was studied by low-temperature (77.4 K) nitrogen adsorption using the Quantachrome (Boynton Beach, FL, USA) NOVA 1200e instrument. The specific surface area was evaluated by the BET method at a relative pressure p/p_o in a range of 0.10–0.30. The total pore volume was calculated according to Gurwitsch’s rule at p/p_o = 0.99. The pore size distribution was estimated by using the Barett–Joyner–Halenda method.

4.3. Electrochemical Characterization

Two-electrode cells were used to monitor the electrochemical performances of the electrodes. The cell was constructed from a positive electrode (consisting of a mixture between activated carbon (AC) and oxides/hydroxides in a content of 25 wt.%) and a negative electrode (containing only AC) with the mass ratio between them being 1:1. As a binder and a conductive additive, we used polytetraflourethylene (PTFE) (10 wt.%) and graphite ABG 1005 EG1 (10 wt.%). The electrolyte contained 7 M KOH solutions with additives of 35 g l-1 LiOH. The charge–discharge curves were recorded on the Arbin Instrument System BT-2000. The capacitance (F g-1) was calculated from the charge–discharge curves using the following equations [42,43]:

C = (I × Δt)/(m × ΔV)

(1)

where I (A), Δt (s), m (g) and ΔV (V) are the discharge current, discharge time, mass of the active material and voltage window, respectively. Based on the capacitance, the energy densities (E, W h kg⁻¹) and power densities (P, W kg⁻¹)) were calculated as [44]:

E = C ΔV2/2

(2)

P = E × 3600/t

(3)
