Article

Effect of Ga2O3 Addition on the Properties of Garnet-Type Ta-Doped Li7La3Zr2O12 Solid Electrolyte

by
Yusuke Yamazaki
,
Shotaro Miyake
,
Keigo Akimoto
and
Ryoji Inada
*
Department of Electrical and Electronic Information Engineering, Toyohashi University of Technology, Toyohashi 4418580, Aichi, Japan
*
Author to whom correspondence should be addressed.
Batteries 2022, 8(10), 158; https://doi.org/10.3390/batteries8100158
Submission received: 12 July 2022 / Revised: 17 September 2022 / Accepted: 3 October 2022 / Published: 6 October 2022
(This article belongs to the Special Issue Advancements towards Practical All-Solid-State Batteries)
Browse Figures
Versions Notes

Abstract

:
Garnet-type Ta-doped Li7La3Zr2O12 (LLZO) ceramic solid electrolytes with Ga2O3 additive were synthesized using a conventional solid-state reaction process. When the amounts of Ga2O3 additive were below 2 mol %, the sintered sample has a dense structure composed of grains with an average size of 5 to 10 μm, whereas 3 mol % or more Ga2O3 addition causes a significant increase in grain size above several 10 to 100 μm, due to high-temperature sintering with a large amount of liquid Li-Ga-O phase. At room temperature, the highest total (bulk + grain-boundary) ionic conductivity of 1.1 mS cm−1 was obtained in the sample with 5 mol % Ga2O3 addition. However, this sample was shorted by Li dendrite growth into solid electrolyte at a current density below 0.2 mA cm−2 in galvanostatic testing of the symmetric cell with Li metal electrodes. The tolerance for Li dendrite growth is maximized in the sample sintered with 2 mol % Ga2O3 addition, which was shorted at 0.8 mA cm−2 in the symmetric cell. Since the interfacial resistance between Li metal and solid electrolyte was nearly identical among all samples, the difference in tolerance for Li dendrite growth is primarily attributed to the difference in microstructure of sintered samples depending on the amounts of Ga2O3.

1. Introduction

The application field of lithium (Li) ion batteries (LiBs) has expanded from a power source for portable electronic devices to a large-scale one for electric vehicles, plugin hybrid electric vehicles and stationary energy storage systems for load leveling. Along with the expansion of application fields for LiBs, not only further enhancement of the energy density of batteries but also higher safety and reliability are highly required.
Replacing a flammable organic liquid electrolyte with a non-flammable solid electrolyte is the most promising way to drastically improve battery safety. Inorganic ceramic Li ion conductors used as solid electrolytes are the key materials for achieving high performance all-solid-state batteries with high safety and reliability [1,2]. For solid-state battery applications, the materials used as solid electrolytes need good ionic conducting properties, plasticity and excellent chemical and electrochemical stabilities. Although oxide-based solid electrolyte materials have lower ionic conductivity and poorer deformability than sulfide-based ones, they have other advantages such as their chemical stability and ease of handling [3].
Among the various candidates, Li-stuffed garnet-type oxide with the composition of Li7La3Zr2O12 (LLZO) has been extensively investigated for application to solid-state batteries [4,5,6,7,8,9,10] because of the high ionic conductivity of 10−4–10−3 S cm−1 at room temperature, good thermal stability, and moderate chemical stability in air. Although the dopant elements used to stabilize highly conductive cubic phase and improve ionic conducting properties may affect the electrochemical stability of LLZO against Li metal [11,12,13], LLZO generally exhibits good chemical and electrochemical stability against Li metal compared to other solid electrolyte materials.
The use of Li metal anodes with a large gravimetric theoretical capacity (=3860 mAh g−1) and the lowest electrode potential (=−3.045 V vs. standard hydrogen electrode) may result in a higher energy density of battery [14], while forming a solid–solid interface between LLZO and Li metal electrode remains a challenging issue. Poor interfacial connection due to the void formation at the cell assembling stage or by multiple charge and discharge cycling results in non-uniform Li plating. Intergranular Li dendrite growth occurs in polycrystalline LLZO when the cell is cycled at high current densities, resulting in internal short circuit failure [15,16,17,18].
The establishment of suppression technology for the possible Li dendrite growth into solid electrolyte has been a top priority for realizing solid-state Li-metal batteries. To date, significant research efforts have been made to reduce the interfacial charge-transfer resistance between LLZO and Li and improve the stability against Li plating/stripping at the interface. This includes eliminating secondary phases by polishing or chemical etching of the surface of LLZO [17,19,20,21,22], introducing thin film layers and thermal treatment at specific temperatures before and/or after contacting with Li [23,24,25,26,27,28,29], controlling the grain size and morphology of LLZO [30,31,32,33,34,35,36,37,38], and introducing three-dimensional porous LLZO structure at the interface to secure Li deposition sites and reduce effective current density [39,40]. Multiscale analysis for understanding the phenomenon occurring at the Li/LLZO interface and LLZO grain-boundary areas will play a critical role in overcoming this issue [41,42,43,44,45,46,47,48].
The microstructure of LLZO is one of the main factors for the stability of Li plating and stripping because the fracture toughness of polycrystalline LLZO is strongly influenced by density, grain size, and grain-boundary structure of LLZO [31,32,36,37,38]. In this research, we investigated the effect of Ga2O3 addition on the properties for Ta-doped LLZO (Li6.55La3Zr1.55Ta0.45O12). It is expected that the added Ga2O3 reacts with Li in Ta-doped LLZO, and Li-Ga oxides are formed at the sintering process, including the liquid phase at 980–1000 °C [49]. The grain sizes, densities and electrochemical properties of sintered Ta-doped LLZO may be strongly influenced by the amounts of Ga2O3 added using liquid phase sintering with Li-Ga oxides. The optimal amounts of Ga2O3 are discussed in high ionic conductivity and tolerance for Li dendrite growth.

2. Materials and Methods

2.1. Synthesis and Characterization of Ta-Doped LLZO with Ga2O3 Addition

Calcined Ta-doped LLZO powder was synthesized using a conventional solid state reaction method. LiOH·H2O (Kojundo Chemical Laboratory, Saitama, Japan, 99%), La(OH)3 (Kojundo chemical laboratory, 99.99%), ZrO2 (Kojundo chemical laboratory, 98%) and Ta2O5 (Kojundo chemical laboratory, 99.9%) were weighed with the molar ratio of Li:La:Zr:Ta = 7.205:3:1.55:0.45 (adding 10% excess Li, considering the volatilization of Li during the sintering process). Here, the composition of Ta-doped LLZO was set to maximize the ionic conductivity based on our previous research [17,50]. Then, these starting materials were mixed and ground with ethanol for 5 h by planetary ball-milling (Planet M2-3F, Nagao System, Kawasaki, Japan) with zirconia balls with the diameter of 10 mm in a zirconia pot. The mixture was dried at 80 °C and then calcined at 900 °C for 6 h in the air using a Pt-5%Au alloy crucible.
Amounts of 1, 2, 3, 5 and 7 mol % Ga2O3 powder (Kojundo chemical laboratory, Saitama, Japan, 99.99%) was added to Ta-doped LLZO calcined powders and ground again by planetary ball-milling for 1 h. Then, the ball-milled powder was pelletized at 300 MPa by cold isostatic pressing. Finally, the pelletized samples were sintered at 1150 °C for 15 h in air using a Pt-5%Au alloy crucible. The pellets were covered with the same mother powder to suppress Li loss and the formation of secondary phases by high sintering temperature. For comparison, samples without Ga2O3 addition were also prepared under the same condition.
The crystal phase for all sintered samples was evaluated by X-ray diffraction (XRD, RIGAKU Multiflex, Rigaku, Tokyo, Japan) using CuKα radiation (λ = 0.15418 nm), with a measurement range of 2θ = 5–90° and a step interval of 0.02°. The powder diffraction patterns were measured using a Bragg Brentano (focusing beam X-ray) optical system. Using X-ray diffraction (XRD) data, lattice constant for each sample was calculated by PDXL XRD analysis software (Rigaku, Tokyo, Japan). Microstructures for fractured cross-sectional surfaces of all sintered samples were observed using a scanning electron microscope (SEM, VE-8800, Keyence, Osaka Japan). The distributions of constituent elements in Ga2O3 added samples were investigated by energy dispersive X-ray analysis, using a field-emission SEM (FE-SEM, SU8000 Type II, Hitachi, Tokyo Japan). Brunauer–Emmett–Teller (BET) specific surface area for each sintered sample was obtained from N2 adsorption/desorption isotherms recorded at 77 K, using a gas/vapor adsorption measurement apparatus (BELSORP MAX, Nippon Bel, Osaka Japan) in Aichi Center for Industry and Science Technology, Aichi, Japan.

2.2. Electrochemical Characterization of Ta-Doped LLZO with Ga2O3 Addition

Ionic conductivity for all sintered samples was evaluated using an impedance meter (IM3536, Hioki, Ueda, Japan) at temperatures ranging from 27 °C to 102 °C using an impedance meter (IM3536, Hioki) by electrochemical impedance spectroscopy (EIS) measurement with a frequency from 4 Hz to 2 MHz and applied voltage amplitude of 0.01 V. Before measuring conductivity, both parallel end surfaces of each sintered sample were polished and sputtered with Au films to serve as ion-blocking electrodes.
Then, all samples were used to evaluate the tolerance for Li dendrite growth through the galvanostatic cycling test using a symmetric cell with Li metal electrodes. Before assembling a symmetric cell, both end surfaces of the Ta-doped LLZO pellet were polished to remove surface contamination, and the pellet thickness was controlled to 0.16 cm. Both the end surfaces of the pellet were coated again with Au films (thickness = 100 nm) by sputtering. The pellet was then sandwiched with two Li metal foils with a diameter of 0.8 cm and thickness of 0.15 cm in an argon-filled grove box with a cell fixture (KP-Solid Cell, Hosen, Osaka, Japan), followed by heating at 175 °C for 5 h, to reduce the interfacial charge-transfer resistance (Rint) between Ta-doped LLZO and Li via an alloying reaction of Li and Au [23,25,27,34,49]. It is noted that the stacking pressure of each symmetric cell was set to 4 MPa. Both introduced Au interlayer and unifying the cell stacking pressures are effective in minimizing the difference in Rint among the samples as much as possible [35,50].
Each symmetric cell was cycled by changing the current densities from 0.05 to 1.0 mA cm−2 and the cell voltage response was measured using a Battery Test System (TOSCAT-3100, TOYO SYSTEM, Iwaki, Japan) at 25 °C until the cell showed evidence of Li dendrite growth and propagation into a solid electrolyte. EIS measurement was carried out at room temperature using an impedance meter to characterize the resistance of each symmetric cell before and after the cycling test.

3. Results and Discussion

3.1. Structural Analysis of Ta-Doped LLZO with Ga2O3 Addition

Figure 1a presents XRD patterns for sintered Ta-doped LLZO with or without Ga2O3 addition. The calculated diffraction pattern based on the reported structural parameter for cubic LLZO is also plotted in Figure 1a as the reference [51]. All the peaks for sintered samples are well indexed as a cubic garnet-type structure and no other secondary phases were observed. Compared with the calculated peak pattern for cubic LLZO, the peaks for sintered samples are shifted toward a higher angle 2θ, attributing to the smaller lattice size by the partial replacement of Zr4+ (72 pm) in LLZO with smaller Ta5+ (64 pm) [17,50]. In Figure 1b, calculated lattice constant for all samples is plotted against the amount of Ga2O3 addition. It is evident that the lattice constant for Ga2O3 added samples is slightly lower than the sample without Ga2O3 addition. This indicates that Ga3+ is incorporated to the lattice of Ta-doped LLZO [12]. Except for 2 mol % Ga2O3 added sample, the lattice constant tends to decrease with increasing Ga2O3 content. This suggests the possibility that the more Ga2O3, the greater the incorporation amount of Ga in the lattice of Ta-doped LLZO.
Figure 2 presents the SEM images for the fractured cross sections of sintered Ta-doped LLZO with or without Ga2O3 addition. Although the sintering conditions are identical among the samples, microstructures of sintered samples are strongly influenced by Ga2O3 addition. When the amounts of Ga2O3 additive were below 2 mol %, the sintered sample had a dense structure composed of grains with the averaged size of 5–10 µm, but a few abnormally grain growth areas were confirmed. Conversely, 3–7 mol % Ga2O3 addition causes a significant increase in grain size above several 10 µm and forms micrometer-sized pores. As reported in the literature [49], Ga2O3 forms a liquid Li-Ga-O phase at a temperature of 980–1000 °C, which promotes the densification of LLZO and/or LLZO grain growth via liquid phase sintering. We believe that increasing the Li-Ga-O phase causes a significant increase in grain sizes, as observed with 3–7 mol % Ga2O3 added. Conversely, it is considered that micro-pores are formed by gas generation at the sintering process by the decomposition of Li2CO3 contained in calcined Ta-doped LLZO powder [52]. An increase in Ga2O3 addition greatly enhanced the sintering speed via liquid-phase sintering, but the release of gas from the Ta-doped LLZO pellet was inhibited by excess Ga2O3 addition.
Figure 3 depicts the distributions of constituent elements (O, La, Zr, Ta and Ga, excluding Li) on the fractured cross-sectional surfaces of Ta-doped LLZO sintered with 2 mol % and 5 mol % Ga2O3 addition. It is confirmed that the distribution of La, Zr and Ta seems to be very similar in the SEM observation area for each sample. Interestingly, Ga distributes on the surface of Ta-doped LLZO grains, suggesting that the small amount of Ga may be incorporated into Ta-doped LLZO. Furthermore, several segregation areas with Ga and O are confirmed mainly at the grain-boundary regions, which seems more remarkable in 5 mol % Ga2O3 added samples. Although the secondary phase by Ga2O3 addition was not detected in XRD measurements (Figure 1), Ga2O3 added sample contains a tiny amount of Ga-containing oxide.
Table 1 shows the BET specific surface area Asurf and density ρ for Ta-doped LLZO sintered with and without Ga2O3 addition. Asurf for each sample was obtained from N2 adsorption/desorption isotherms (Figure S1 in Supplementary Materials). The density ρ of each sample is calculated using mass and geometrical parameters of each sample. It is considered that Asurf is affected by both the particle size and density of each sample. Compared to sample without Ga2O3 addition, 1 and 2 mol % Ga2O3 added samples have higher density and smaller Asurf. Since the grain growth in these two samples is not so remarkable (Figure 2b,c), Asurf becomes smaller than that for sample without Ga2O3 addition. On the other hand, 3–7 mol % Ga2O3 added samples have slightly lower density than sample without Ga2O3 addition, but the grain size for these three samples is very large. Therefore, it is considered that Asurf for 3–7 mol % Ga2O3 added samples becomes smaller than that for sample without Ga2O3 addition.

3.2. Ionic Conductin Properties of Ta-Doped LLZO with Ga2O3 Addition

Figure 4 presents the Nyquist plots for complex impedance Z’ + jZ” of all sintered samples with Au blocking electrodes measured at room temperature. Real and imaginary parts of complex impedance Z’ and Z” multiplied by a factor of S/t are plotted for direct comparison of the data, where S and t are the surface area and thickness of each sample. At room temperature, the plot for all samples consists of a linear tail below 0.1 MHz and a small part of the semicircle above 0.1 MHz. The intersection point of the exterior straight line of the data in the linear tail and the Z′ axis nearly corresponds to the total (bulk + grain-boundary) resistance Rtotal of each sample. The Rtotal values for Ga2O3 added samples are confirmed to be slightly smaller than the sample without Ga2O3 addition, suggesting that Ga2O3 addition has a positive effect on ionic conduction in sintered Ta-LLZO. Only for the samples sintered with 1 and 2 mol % Ga2O3 addition, the portion of semicircle for grain-boundary resistance is observed (Figure 4a), but its contribution in total resistance is minimal.
Figure 5 presents the density ρ and total ionic conductivity σtotal at room temperature for sintered Ta-doped LLZO plotted against the amounts of Ga2O3 addition. As can be seen, the Ga2O3 amount dependence of σtotal and is slightly different. Slightly higher densities of 1 and 2 mol % Ga2O3 added samples than the sample without Ga2O3 addition could be due to the small gaps at the grain-boundaries being filled with Ga-containing oxides, but this is difficult to confirm in Figure 2a–c and Figure 3a. In contrast, a slight decrease in densities of samples sintered with 3–7 mol % Ga2O3 addition may be attributed to the formation of micrometer-sized pores, as shown in Figure 2d–f.
For the sample with 5 mol % Ga2O3 addition, σtotal shows the maximum value (=1.1 mS cm−1), and other Ga2O3 added samples have a slightly higher σtotal than those without Ga2O3 addition. Since the contribution of grain-boundary resistance is very small for all samples (Figure 4), the change in σtotal is mainly governed by the difference in bulk conductivity. Small amounts of Ga inclusion in cubic garnet structure may influence the Li distribution in the crystal lattice and bulk ionic conductivity [12,53]. The effect of simultaneous doping of Ta and Ga on the structure and bulk ionic conductivity of LLZO should be investigated in the future. From the temperature dependence of σtotal (Figure S2 in Supplementary Materials), the activation energy Ea for ionic conduction in each sample was estimated and summarized in Table 1 together with σtotal and ρ. At room temperature, σtotal increases slightly and Ea tends to become lower by Ga2O3 addition.

3.3. Tolerance for Li Dendrite Growth of Ta-Doped LLZO with Ga2O3 Addition

Next, we discussed the tolerance for Li dendrite growth in Ta-doped LLZO sintered with or without Ga2O3 addition. Nyquist plots for complex impedance Z’ + jZ” at room temperature for Li symmetric cells composed of each solid electrolyte sample are shown in Figure 6. Before the galvanostatic testing, the plot for each symmetric cell is composed of a large semicircle with a characteristic frequency from 2.5 to 5 MHz and a small distorted one at frequency range from 100 Hz to 0.1 MHz. The contribution of ionic conduction for sintered Ta-LLZO with or without Ga2O3 addition was obtained using high frequency (>0.1 MHz) impedance data, and the diameters of the semicircle at higher frequencies well correlate with the difference in σtotal, as summarized in Table 2.
The contribution of interfacial charge transfer resistance Rint is limited to frequencies ranging from 100 Hz to 0.1 MHz [16,49]. For the cells with 3 mol % and 5 mol % added Ta-doped LLZO, the contribution of Rint is confirmed in the plot, while for other cells, it is considered that the contribution of Rint is partly contained in a large semicircle. The electrochemical impedance of each symmetric cell is fitted by the equivalent circuit model composed of (RSE − QSE)(Rint − Qint)(Rpore − Qpore) (Figure S3 in Supplementary Materials) [54], where RSE and QSE are the resistance and constant phase angle element of a solid electrolyte, Qint is the constant phase angle element at the interface between solid electrolyte and Li metal, Rpore and Qpore are the contributions from pores at the interface. Figure 6 depicts the fitting curves for all samples and experimental data. Table 3 summarizes Rint and Qint for all samples. Estimated Rint values vary in the range of 2–20 Ω cm2 and Qint values lie in the range from 10−7 to 10−6 F. The difference in Rint among the tested cells could be attributed to variations in the surface microstructures of the samples before the attachment of Li metals.
Figure 7 shows the voltage response in galvanostatic cycling of each symmetric cell tested at room temperature. Here, the applied current density was firstly set to 0.05 mA cm−2 and was increased to 0.05 mA cm−2 around five cycles. As can be seen, cell voltage increases gradually with applied current density for each cell, but the sudden drop and fluctuation of cell voltage occur when the current density reaches a specific value. This indicates potential Li dendrite growth and propagation into a solid electrolyte. We confirmed the decrease in cell impedance shown in Figure 6, after the cycling test of each cell, as discussed later. Several symmetric cells have large residual impedances, and the plots are shaped like part of a semicircle, suggesting that they are not shorted completely [50].
The current density at which Li dendrite growth and propagation into a solid electrolyte occurred is commonly called the critical current density (CCD). CCD may be affected by the testing method because the interface condition between Li metal and a solid electrolyte is generally changed by the area-specific capacity and cycling numbers of Li plating/stripping [7,19,20,21]. In order to directly compare the CCD values reported by other groups, the test conditions must be considered as well. In this study, the method and condition for the galvanostatic cycling test are unified, and the difference in Rint between the samples is adjusted to be as small as we can. Consequently, CCD obtained in this work can be used for discussing the difference in the tolerance for Li dendrite growth depending on the microstructure of the solid electrolyte. CCD for 1 mol % Ga2O3 added sample (Figure 7b) is 0.40–0.45 mA cm−2 and close to the sample without Ga2O3 addition (Figure 7a). A total of 2 mol % Ga2O3 added sample shows the highest CCD of 0.8 mA cm−2, while 3 mol % or more Ga2O3 added samples show CCD below 0.4 mA cm−2. CCD of 3 and 5 mol % Ga2O3 added samples are the lowest (=0.15 mA cm−2) while 7 mol % Ga2O3 added sample shows higher CCD of 0.35 mA cm−2. The difference in Rint among 3–7 mol % Ga2O3 added samples may cause the difference in CCD, as confirmed in Figure 6. A larger Rint in 3 and 5 mol % Ga2O3 added samples may result in lower CCD.
In Figure 8, σtotal and CCD are plotted against the amounts of Ga2O3 addition. The optimum amount of Ga2O3 added to Ta-doped LLZO for σtotal and CCD is completely different. Although the conductivity shows the highest in 5 mol % Ga2O3 added sample, the difference in conductivity between samples is small. In contrast to the difference in conductivity, the microstructure of the solid electrolyte and the quality of the interfacial bonding strongly influence stability for Li plating and stripping and tolerance for Li dendrite. Notably, using 2 mol % Ga2O3 added sample, we fabricated another Li symmetric cell with larger Rint (>50 Ω cm2) by changing the cell stacking condition. A galvanostatic cycling test was performed under the same condition. Although the polarization becomes larger by large Rint, the cell was cycled at a current density above 0.5 mA cm−2 without any evidence of a short circuit by Li dendrite growth. CCD attained 0.6 mA cm−2 (Figures S4 and S5 in Supplementary Materials), which is better than the symmetric cells with other solid electrolyte samples and lower Rint shown in Figure 7. This result supports the present work that the optimum Ga2O3 amount added to Ta-doped LLZO is 2 mol % to obtain higher CCD. Excessive addition of Ga2O3 causes deterioration of the tolerance for Li dendrite growth of Ta-doped LLZO due to the abnormal grain growth promoted by liquid-phase sintering.
Although the present results reported here is the opposite of the result obtained in hot-pressed Al-doped LLZO followed by high temperature (1300 °C) and long-time annealing in an Ar atmosphere [35], we believe dense structure with tightly connected small Ta-doped LLZO grains (below 10 µm) is suitable for higher CCD because uniform and a dense structure composed of small-sized LLZO grains effectively enhance the fracture toughness of sintered sample [36,37,38]. Furthermore, grain-boundary composed of large-sized LLZO grains tends to behave like a path through which Li dendrite can easily propagate [30,32]. Thus, we are carefully optimizing the sintering temperature and time for 2 mol % Ga2O3 added Ta-doped LLZO to reduce the grain size and improve structural uniformity to enhance the tolerance for Li dendrite growth and the results will be presented in a forthcoming paper.

4. Conclusions

We synthesized Ga2O3 added Ta-doped LLZO with garnet-type structure using a conventional solid-state reaction method and examined their microstructures and electrochemical properties. When the amounts of Ga2O3 additive were below 2 mol %, the sintered sample has a dense structure mainly composed of grains with the averaged size of 5–10 μm, whereas 3 mol % or more Ga2O3 addition causes the significant increase in grain size above several 10 to 100 μm, due to the liquid-phase sintering with a large amount of Li-Ga-O. The highest total ionic conductivity of 1.1 mS cm−1 at room temperature was observed in a 5 mol % Ga2O3 added sample, but in galvanostatic testing of the symmetric cell with Li metal electrodes, this sample was shorted by Li dendrite growth into solid electrolyte below 0.2 mA cm−2. The tolerance for Li dendrite growth is maximized in the sample sintered with 2 mol % Ga2O3 addition, which was shorted at 0.8 mA cm−2 in the symmetric cell. Since the method and condition for the galvanostatic cycling test are unified and the difference in Rint between the samples is adjusted to be as small as possible, the difference in CCD among the samples with different amounts of Ga2O3 addition is mainly governed by the difference in microstructures. A dense structure with tightly connected small Ta-doped LLZO grains is suitable to improve the tolerance for Li dendrite growth.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/batteries8100158/s1, Figure S1: N2 gas adsorption/desorption isotherms for Ta-doped LLZO with or without Ga2O3 addition, Figure S2: Temperature dependence for total ionic conductivity σtotal for Ta-doped LLZO sintered with or without Ga2O3 addition, Figure S3: Equivalent circuit for fitting the electrochemical impedance of Li symmetric cell, Figure S4: Nyquist plot for complex impedance and voltage response in galvanostatic cycling test for Li symmetric cell with larger interfacial resistance Rint composed of 2 mol % Ga2O3 added Ta-doped LLZO, Figure S5: Change in cell resistance Rcell during galvanostatic cycling test for Li symmetric cells with different Rint composed of 2 mol % Ga2O3 added Ta-doped LLZO.

Author Contributions

Conceptualization, Y.Y. and R.I.; methodology, Y.Y., S.M., K.A. and R.I.; validation, Y.Y., S.M., K.A. and R.I.; formal analysis, Y.Y., S.M., K.A. and R.I.; investigation, Y.Y., S.M., K.A. and R.I.; resources, R.I.; data curation, Y.Y., S.M., K.A. and R.I.; writing—original draft preparation, Y.Y. and R.I.; writing—review and editing, R.I.; supervision, R.I.; project administration, R.I.; funding acquisition, R.I. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partly supported by Grant-in-Aid for Scientific Research (JSPS KAKENHI) Grant Number 19H02128 and 22H01468 from the Japan Society for the promotion of Science (JSPS).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We acknowledged the support of the Cooperative Research Facility Center at Toyohashi University of Technology. We would like to thank Yoshitada Abe in Aichi Center for Industry and Science Technology for his cooperation in BET specific surface area measurement of our samples.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Zheng, F.; Kotobuki, M.; Song, S.; Lei, M.O.; Lu, L. Review on solid electrolytes for all-solid-state lithium-ion batteries. J. Power Sources 2018, 389, 198–213. [Google Scholar] [CrossRef]
  2. Takada, K. Progress in solid electrolytes toward realizing solid-state lithium batteries. J. Power Sources 2018, 394, 74–85. [Google Scholar] [CrossRef]
  3. Ren, Y.; Chen, K.; Chen, R.; Liu, T.; Zhang, Y.; Nan, C. Oxide electrolytes for lithium batteries. J. Am. Ceram. Soc. 2015, 98, 3603–3623. [Google Scholar] [CrossRef]
  4. Murugan, R.; Thangadurai, V.; Weppner, W. Fast lithium ion conduction in garnet-type Li7La3Zr2O12. Angew. Chem. Int. Ed. 2007, 46, 7778–7781. [Google Scholar] [CrossRef]
  5. Samson, A.J.; Hofstetter, K.; Bag, S.; Thangadurai, V. A bird’s-eye view of Li-stuffed garnet-type Li7La3Zr2O12 ceramic electrolytes for advanced all-solid-state Li batteries. Energy Environ. Sci. 2019, 12, 2957–2975. [Google Scholar] [CrossRef]
  6. Wang, C.; Fu, K.; Palakkathodi, K.S.; McOwen, D.W.; Zhang, L.; Hitz, G.T.; Nolan, A.; Samson, A.; Wachsman, E.D.; Mo, Y.; et al. Garnet-type solid-state electrolytes: Materials, interfaces, and batteries. Chem. Rev. 2020, 120, 4257–4300. [Google Scholar] [CrossRef]
  7. Alexander, G.V.; Indu, M.S.; Murugan, R. Review on the critical issues for the realization of all-solid-state lithium metal batteries with garnet electrolyte: Interfacial chemistry, dendrite growth, and critical current densities. Lonics 2021, 27, 4105–4126. [Google Scholar] [CrossRef]
  8. Patra, S.; Narayanasamy, J.; Panneerselvam, M.R. Review—Microstructural modification in lithium garnet solid-state electrolytes: Emerging trends. J. Electrochem. Soc. 2022, 169, 030548. [Google Scholar] [CrossRef]
  9. Chen, B.; Sarkar, S.; Kammampata, S.P.; Zhou, C.; Thangadurai, V. Li-stuffed garnet electrolytes: Structure, ionic conductivity, chemical stability, interface, and applications. Can. J. Chem. 2022, 100, 311–319. [Google Scholar] [CrossRef]
  10. Kim, Y.; Yoo, A.; Schmidt, R.; Sharafi, A.; Lee, H.; Wolfenstine, J.; Sakamoto, J. Electrochemical Stability of Li6.5La3Zr1.5M0.5O12 (M = Nb or Ta) against Metallic Lithium. Front. Energy Res. 2016, 4, 20. [Google Scholar] [CrossRef]
  11. Zhu, Y.; Connell, J.G.; Tepavcevic, S.; Zapol, P.; Garcia-Mendez, R.; Taylor, N.J.; Sakamoto, J.; Ingram, B.J.; Curtiss, L.A.; Freeland, J.W.; et al. Dopant-dependent stability of garnet solid electrolyte interfaces with lithium metal. Adv. Energ. Mater. 2019, 9, 1803440. [Google Scholar] [CrossRef]
  12. Tsai, C.-L.; Tran, N.T.T.; Schierholz, R.; Liu, Z.; Windmüller, A.; Lin, C.-A.; Zu, Q.; Lu, X.; Yu, S.; Tempel, H.; et al. Instability of Ga-substituted Li7La3Zr2O12 toward metallic Li. J. Mater. Chem. A 2022, 10, 10998–11009. [Google Scholar] [CrossRef]
  13. McClelland, I.; El-Shinawi, H.; Booth, S.G.; Regoutz, A.; Clough, J.; Altus, S.; Cussen, E.J.; Baker, P.J.; Cussen, S.A. The role of the reducible dopant in solid electrolyte–lithium metal interfaces. Chem. Mater. 2022, 34, 5054–5064. [Google Scholar] [CrossRef]
  14. Wang, M.; Carmona, E.; Gupta, A.; Albertus, P.; Sakamoto, J. Enabling “lithium-free” manufacturing of pure lithium metal solid-state batteries through in situ plating. Nat. Commun. 2020, 11, 5201. [Google Scholar] [CrossRef] [PubMed]
  15. Ren, Y.; Shen, Y.; Lin, Y.; Nan, C.-W. Direct observation of lithium dendrites inside garnet-type lithium-ion solid electrolyte. Electrochem. Commun. 2015, 57, 27–30. [Google Scholar] [CrossRef]
  16. Cheng, E.J.; Sharafi, A.; Sakamoto, J. Intergranular Li metal propagation through polycrystalline Li6.25Al0.25La3Zr2O12 ceramic electrolyte. Electrochim. Acta 2017, 223, 85–91. [Google Scholar] [CrossRef] [Green Version]
  17. Inada, R.; Yasuda, S.; Hosokawa, H.; Saito, M.; Tojo, T.; Sakurai, Y. Formation and stability of interface between garnet-type Ta-doped Li7La3Zr2O12 solid electrolyte and lithium metal electrode. Batteries 2018, 4, 26. [Google Scholar] [CrossRef] [Green Version]
  18. Kazyak, E.; Garcia-Mendez, R.; LePage, W.S.; Sharafi, A.; Davis, A.L.; Sanchez, A.J.; Chen, K.-H.; Haslam, C.; Sakamoto, J.; Dasgupta, N.P. Li penetration in ceramic solid electrolytes: Operando microscopy analysis of morphology, propagation, and reversibility. Matter 2020, 2, 1025–1048. [Google Scholar] [CrossRef]
  19. Sharafi, A.; Kazyak, E.; Davis, A.L.; Yu, S.; Thompson, T.; Siegel, D.J.; Dasgupta, N.P.; Sakamoto, J. Surface chemistry mechanism of ultra-low interfacial resistance in the solid-state electrolyte Li7La3Zr2O12. Chem. Mater. 2017, 29, 7961–7968. [Google Scholar] [CrossRef]
  20. Basappa, R.H.; Ito, T.; Yamada, H. Contact between garnet-type solid electrolyte and lithium metal anode: Influence on charge transfer resistance and short circuit prevention. J. Electrochem. Soc. 2017, 164, A666–A671. [Google Scholar] [CrossRef]
  21. Taylor, N.J.; Stangeland-Molo, S.; Haslam, C.G.; Sharafi, A.; Thompson, T.; Wang, M.; Garcia-Mendez, R.; Sakamoto, J. Demonstration of high current densities and extended cycling in the garnet Li7La3Zr2O12 solid electrolyte. J. Power Sources 2018, 396, 314–318. [Google Scholar] [CrossRef]
  22. Motoyama, M.; Tanaka, Y.; Yamamoto, T.; Tsuchimine, N.; Kobayashi, S.; Iriyama, Y. The Active interface of Ta-doped Li7La3Zr2O12 for Li plating/stripping revealed by acid aqueous etching. ACS Appl. Energy Mater. 2019, 2, 6720–6731. [Google Scholar] [CrossRef]
  23. Tsai, C.-L.; Roddatis, V.; Chandran, C.V.; Ma, Q.; Uhlenbruck, S.; Bram, M.; Heitjans, P.; Guillon, O. Li7La3Zr2O12 interface modification for Li dendrite prevention. ACS Appl. Mater. Interfaces 2016, 8, 10617–10626. [Google Scholar] [CrossRef]
  24. Han, X.; Gong, Y.; Fu, K.; He, X.; Hitz, G.T.; Dai, J.; Pearse, A.; Liu, B.; Wang, H.; Rublo, G.; et al. Negating interfacial impedance in garnet-based solid-state Li metal batteries. Nat. Mater. 2017, 16, 572–579. [Google Scholar] [CrossRef] [PubMed]
  25. Huang, X.; Lu, Y.; Guo, H.; Song, Z.; Xiu, T.; Badding, M.E.; Wen, Z. None-mother-powder method to prepare dense Li-garnet solid electrolytes with high critical current density. ACS Appl. Energy Mater. 2018, 1, 5355–5365. [Google Scholar] [CrossRef]
  26. Zhou, C.; Samson, A.J.; Hofstetter, K.; Thangadurai, V. A surfactant-assisted strategy to tailor Li-ion charge transfer interfacial resistance for scalable all-solid-state Li batteries. Sustain. Energy Fuels 2018, 2, 2165–2170. [Google Scholar] [CrossRef]
  27. Sastre, J.; Futscher, M.H.; Pompizi, L.; Aribia, A.; Priebe, A.; Overbeck, J.; Stiefel, M.; Tiwari, A.N.; Romanyuk, Y.E. Blocking lithium dendrite growth in solid-state batteries with an ultrathin amorphous Li-La-Zr-O solid electrolyte. Commun. Mater. 2021, 2, 76. [Google Scholar] [CrossRef]
  28. Du, M.; Sun, Y.; Liu, B.; Chen, B.; Liao, K.; Ran, R.; Cai, R.; Zhou, W.; Shao, Z. Smart construction of an intimate lithium | garnet interface for all-solid-state batteries by tuning the tension of molten lithium. Adv. Funct. Mater. 2021, 31, 2101556. [Google Scholar] [CrossRef]
  29. Guo, S.; Wu, T.-T.; Sun, G.; Zhang, S.-D.; Li, B.; Zhang, H.-S.; Qi, M.-Y.; Liu, X.-H.; Cao, A.-M.; Wan, L.-J. Interface engineering of a ceramic electrolyte by Ta2O5 nanofilms for ultrastable lithium metal batteries. Adv. Funct. Mater. 2022, 32, 2201498. [Google Scholar] [CrossRef]
  30. Cheng, L.; Chen, W.; Kunz, M.; Persson, K.; Tamura, N.; Chen, G.; Doeff, M. Effect of surface microstructure on electrochemical performance of garnet solid electrolytes. ACS Appl. Mater. Interfaces 2015, 7, 2073–2081. [Google Scholar] [CrossRef]
  31. Sharafi, A.; Meyer, H.M.; Nanda, J.; Wolfenstine, J.; Sakamoto, J. Controlling and correlating the effect of grain size with the mechanical and electrochemical properties of Li7La3Zr2O12 solid-state electrolyte. J. Mater. Chem. A 2017, 5, 21491–21504. [Google Scholar] [CrossRef]
  32. Matsuki, Y.; Noi, K.; Deguchi, M.; Sakuda, A.; Hayashi, A.; Tatsumisago, M. Lithium dissolution/deposition behavior of Al-doped Li7La3Zr2O12 ceramics with different grain sizes. J. Electrochem. Soc. 2019, 166, A5470. [Google Scholar] [CrossRef]
  33. Basappa, R.H.; Ito, T.; Morimura, T.; Bekarevich, R.; Mitsuishi, K.; Yamada, H. Grain boundary modification to suppress lithium penetration through garnet-type solid electrolyte. J. Power Sources 2017, 363, 145–152. [Google Scholar] [CrossRef]
  34. Xu, B.; Li, W.; Duan, H.; Wang, H.; Guo, Y.; Li, H.; Liu, H. Li3PO4-added garnet-type Li6.5La3Zr1.5Ta0.5O12 for Li-dendrite suppression. J. Power Sources 2017, 354, 68–73. [Google Scholar] [CrossRef]
  35. Hosokawa, H.; Takeda, A.; Inada, R.; Sakurai, Y. Tolerance for Li dendrite penetration in Ta-doped Li7La3Zr2O12 solid electrolytes sintered with Li2.3C0.7B0.3O3 additive. Mater. Lett. 2020, 279, 128481. [Google Scholar] [CrossRef]
  36. Hong, M.; Dong, Q.; Xie, H.; Clifford, B.C.; Qian, J.; Wang, X.; Luo, J.; Hu, L. Ultrafast sintering of solid-state electrolytes with volatile fillers. ACS Energy Lett. 2021, 6, 3753–3760. [Google Scholar] [CrossRef]
  37. Guo, H.; Su, J.; Zha, W.; Xiu, T.; Song, Z.; Badding, M.E.; Jin, J.; Wen, Z. Achieving high critical current density in Ta-doped Li7La3Zr2O12/MgO composite electrolytes. J. Alloys Compd. 2021, 856, 157222. [Google Scholar] [CrossRef]
  38. Zheng, C.; Ruan, Y.; Su, J.; Song, Z.; Xiu, T.; Jin, J.; Badding, M.E.; Wen, Z. Grain boundary modification in garnet electrolyte to suppress lithium dendrite growth. Chem. Eng. J. 2021, 411, 128508. [Google Scholar]
  39. Hitz, G.T.; McOwen, D.M.; Zhang, L.; Ma, Z.; Fu, Z.; Wen, Y.; Gong, Y.; Dai, J.; Hamann, T.R.; Hu, L.; et al. High-rate lithium cycling in a scalable trilayer Li-garnet-electrolyte architecture. Mater. Today 2019, 22, 50–57. [Google Scholar] [CrossRef]
  40. Huo, H.; Liang, J.; Zhao, N.; Li, X.; Lin, X.; Zhao, Y.; Adair, K.; Li, R.; Guo, X.; Sun, X. Dynamics of the garnet/Li interface for dendrite-free solid-state batteries. ACS Energy Lett. 2020, 5, 2156–2164. [Google Scholar] [CrossRef]
  41. Koshikawa, H.; Matsuda, S.; Kamiya, K.; Miyayama, M.; Kubo, Y.; Uosaki, K.; Hashimoto, K.; Nakanishi, S. Electrochemical impedance analysis of the Li/Au-Li7La3Zr2O12 interface during Li dissolution/deposition cycles: Effect of pre-coating Li7La3Zr2O12 with Au. J. Electroanal. Chem. 2019, 835, 143–149. [Google Scholar] [CrossRef]
  42. Wang, M.; Wolfenstine, J.; Sakamoto, J. Temperature dependent flux balance of the Li/Li7La3Zr2O12 interface. Electrochim. Acta 2019, 296, 842–847. [Google Scholar] [CrossRef]
  43. Wang, M.; Choudhury, R.; Sakamoto, J. Characterizing the Li-solid-electrolyte interface dynamics as a function of stack pressure and current density. Joule 2019, 3, 2165–2178. [Google Scholar] [CrossRef]
  44. Krauskopf, T.; Mogwitz, B.; Hartmann, H.; Singh, D.K.; Zeier, W.G.; Janek, J. The fast charge transfer kinetics of the lithium metal anode on the garnet-type solid electrolyte Li6.25Al0.25La3Zr2O12. Adv. Energy Mater. 2020, 10, 2000945. [Google Scholar] [CrossRef]
  45. Liu, X.; Garcia-Mendez, R.; Lupini, A.R.; Cheng, Y.; Hood, Z.D.; Han, F.; Sharafi, A.; Idrobo, J.C.; Dudney, N.J.; Wang, C.; et al. Local electronic structure variation resulting in Li ‘filament’ formation within solid electrolytes. Nat. Mater. 2021, 20, 1485–1490. [Google Scholar]
  46. Cao, D.; Sun, X.; Li, Q.; Natan, A.; Xiang, P.; Zhu, H. Lithium dendrite in all-solid-state batteries: Growth mechanisms, suppression strategies, and characterizations. Matter 2020, 3, 57–94. [Google Scholar] [CrossRef]
  47. Lu, Y.; Zhao, C.-Z.; Yuan, H.; Cheng, X.-B.; Huang, J.-Q.; Zhang, Q. Critical current density in solid-state lithium metal batteries: Mechanism, influences, and strategies. Adv. Funct. Mater. 2021, 31, 2009925. [Google Scholar] [CrossRef]
  48. Sarkar, S.; Thangadurai, V. Critical current densities for high-performance all-solid-state Li-metal batteries: Fundamentals, mechanisms, interfaces, materials, and applications. ACS Energy Lett. 2022, 7, 1492–1527. [Google Scholar] [CrossRef]
  49. Matsuda, Y.; Sakaida, A.; Sugimoto, K.; Mori, D.; Takeda, Y.; Yamamoto, O.; Imanishi, N. Sintering behavior and electrochemical properties of garnet-like lithium conductor Li6.25M0.25La3Zr2O12 (M: Al3+ and Ga3+). Solid State Ion. 2017, 311, 69–74. [Google Scholar] [CrossRef]
  50. Inada, R.; Takeda, A.; Yamazaki, Y.; Miyake, S.; Sakurai, Y.; Thangadurai, V. Effect of postannealing on the properties of a Ta-doped Li7La3Zr2O12 solid electrolyte degraded by Li dendrite penetration. ACS Appl. Energy Mater. 2020, 3, 12517–12524. [Google Scholar] [CrossRef]
  51. Awaka, J.; Takashima, A.; Kataoka, K.; Kijima, N.; Idemoto, Y.; Akimoto, J. Crystal structure of fast lithium-ion-conducting cubic Li7La3Zr2O12. Chem. Lett. 2011, 40, 60–62. [Google Scholar] [CrossRef]
  52. Wakasugi, J.; Munakata, H.; Kanamura, K. Improvement of sintering of Li6.25Al0.25La3Zr2O12 by using pre-heat treatment. Solid. State Ion. 2017, 309, 9–14. [Google Scholar] [CrossRef]
  53. Allen, J.L.; Wolfenstein, J.; Rangasamy, E.; Sakamoto, J. Effect of substitution (Ta, Al, Ga) on the conductivity of Li7La3Zr2O12. J. Power Sources 2012, 206, 315–319. [Google Scholar] [CrossRef]
  54. Eckhardt, J.K.; Klar, P.J.; Janek, J.; Heiliger, C. Interplay of dynamic constriction and interface morphology between reversible metal anode and solid electrolyte in solid state batteries. ACS Appl. Mater. Interface 2022, 14, 33545–33554. [Google Scholar] [CrossRef] [PubMed]
Batteries 08 00158 g001 550

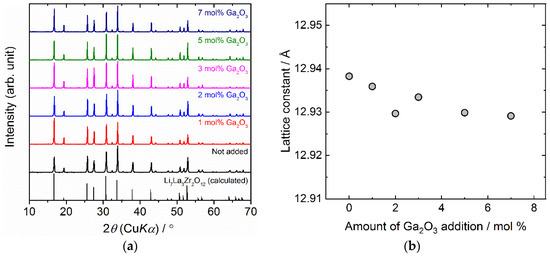

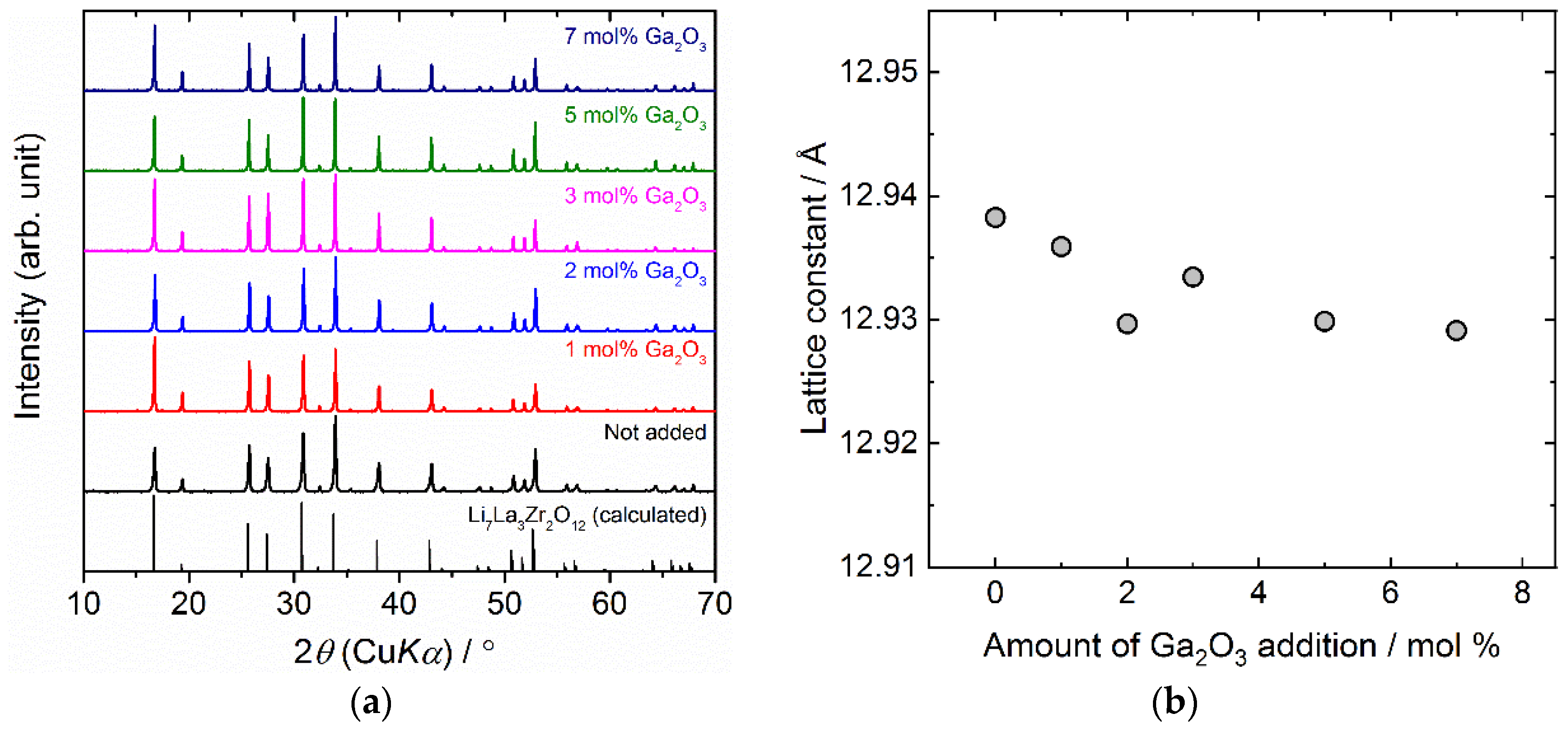

Figure 1. (a) X-ray diffraction patterns for sintered Ta-doped LLZO with or without Ga2O3 addition. (b) Calculated lattice constant for Ta-doped LLZO is plotted as a function of the amount of Ga2O3 addition. Enlarged data at 2θ = 24–36° and 24–56° are shown in (b). Calculated pattern for LLZO is also plotted in (a) as the reference.
Figure 1. (a) X-ray diffraction patterns for sintered Ta-doped LLZO with or without Ga2O3 addition. (b) Calculated lattice constant for Ta-doped LLZO is plotted as a function of the amount of Ga2O3 addition. Enlarged data at 2θ = 24–36° and 24–56° are shown in (b). Calculated pattern for LLZO is also plotted in (a) as the reference.
Batteries 08 00158 g001
Batteries 08 00158 g002 550

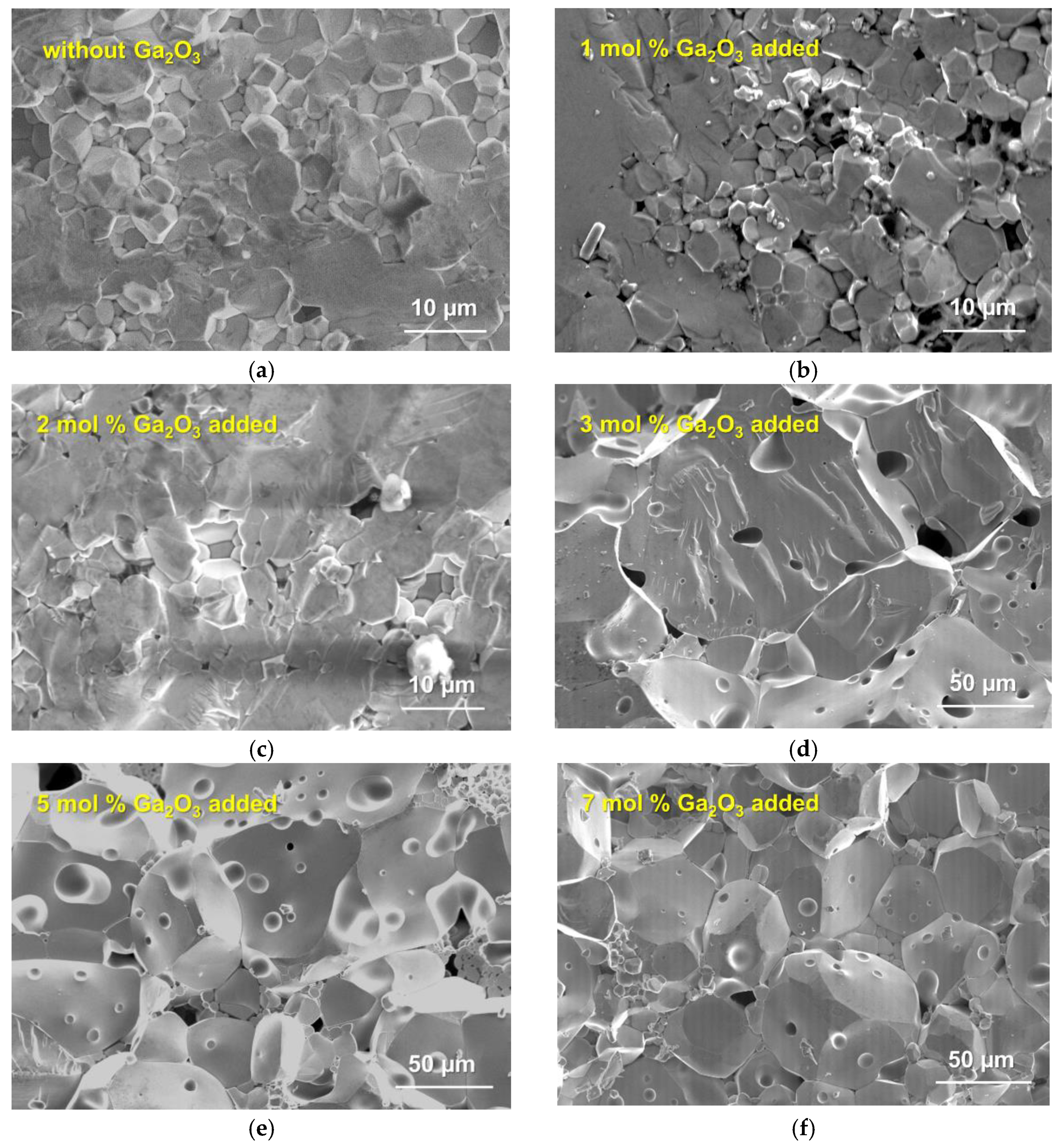

Figure 2. SEM images for fractured cross-sectional surfaces of sintered Ta-doped LLZO: (a) without Ga2O3 addition, (b) 1 mol % Ga2O3 addition, (c) 2 mol % Ga2O3 addition, (d) 3 mol % Ga2O3 addition, (e) 5 mol % Ga2O3 addition and (f) 7 mol % Ga2O3 addition. Note that the scale bars in (a–c) are different from (d–f).
Figure 2. SEM images for fractured cross-sectional surfaces of sintered Ta-doped LLZO: (a) without Ga2O3 addition, (b) 1 mol % Ga2O3 addition, (c) 2 mol % Ga2O3 addition, (d) 3 mol % Ga2O3 addition, (e) 5 mol % Ga2O3 addition and (f) 7 mol % Ga2O3 addition. Note that the scale bars in (a–c) are different from (d–f).
Batteries 08 00158 g002
Batteries 08 00158 g003 550

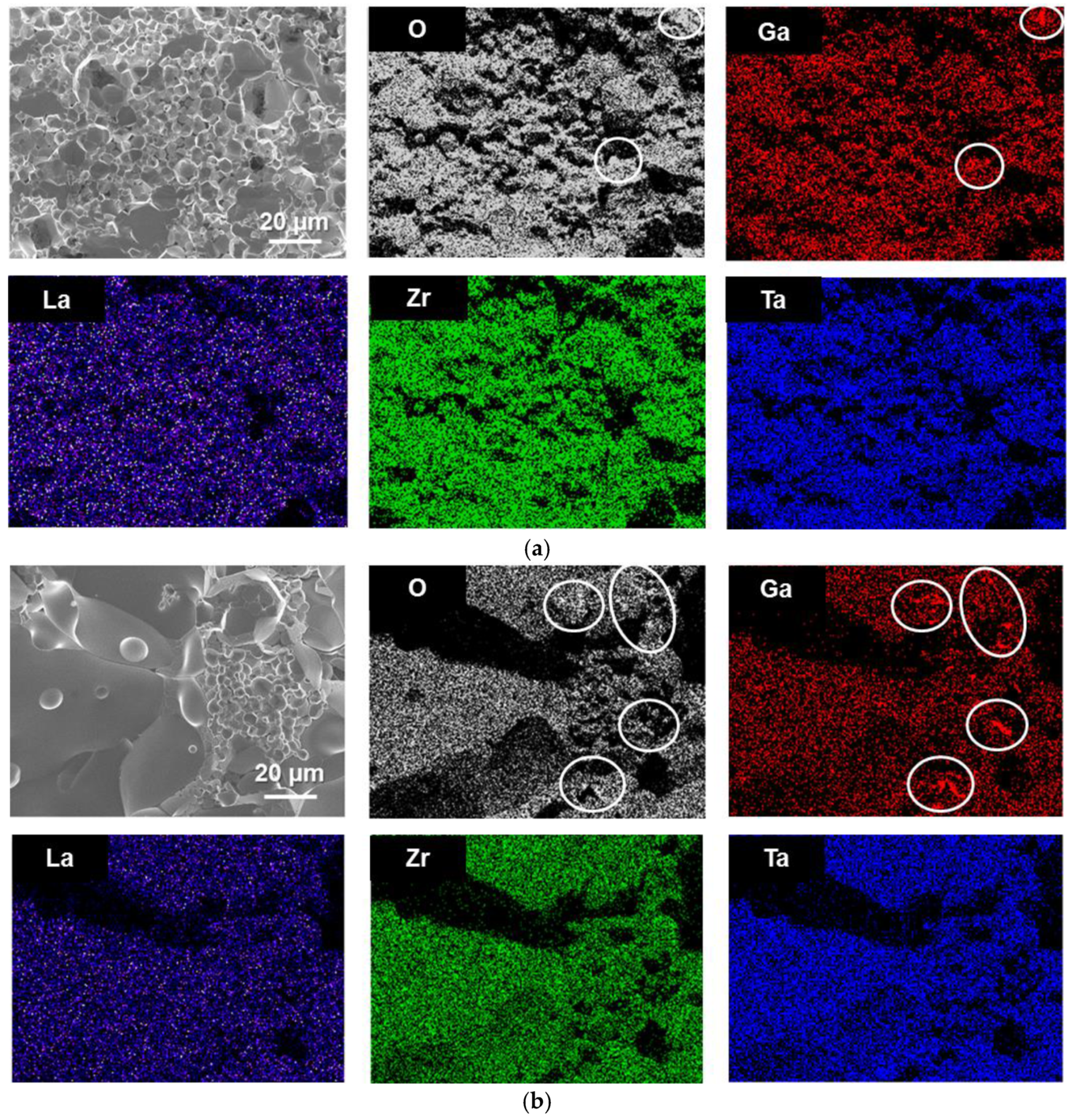

Figure 3. Constituent element (La, Zr, Ta, Ga and O) distributions on the fractured cross-sectional surfaces of Ta-doped LLZO sintered with (a) 2 mol % Ga2O3 and (b) 5 mol % Ga2O3. The segregation areas of Ga and O in each sample are marked with white-lined circles.
Figure 3. Constituent element (La, Zr, Ta, Ga and O) distributions on the fractured cross-sectional surfaces of Ta-doped LLZO sintered with (a) 2 mol % Ga2O3 and (b) 5 mol % Ga2O3. The segregation areas of Ga and O in each sample are marked with white-lined circles.
Batteries 08 00158 g003
Batteries 08 00158 g004 550

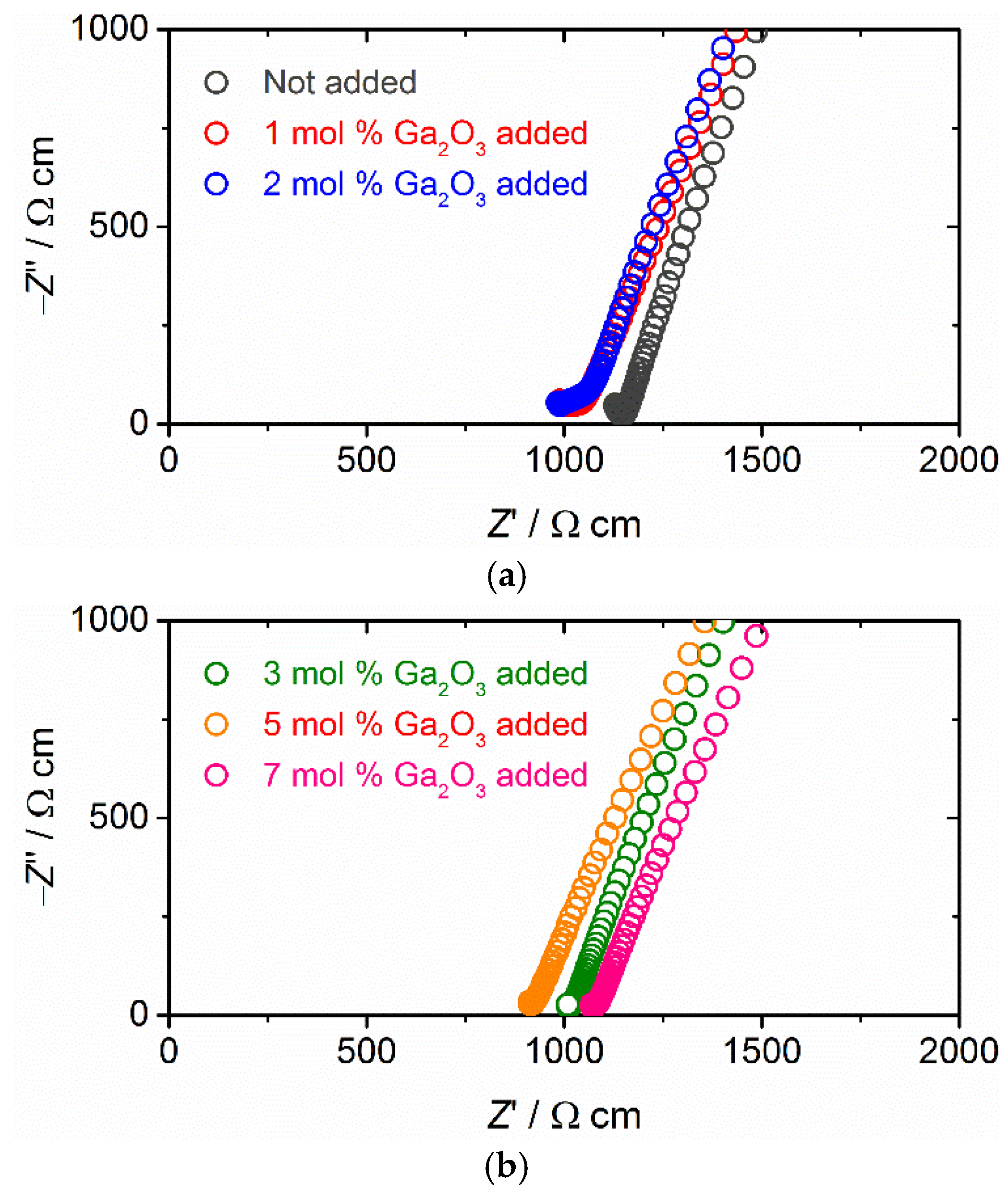

Figure 4. Nyquist plots for complex impedance Z’ + jZ” in Ta-doped LLZO sintered with or without Ga2O3 addition measured at 27 °C: (a) 0, 1 and 2 mol % Ga2O3 addition and (b) 3, 5 and 7 mol % Ga2O3 addition. Au ionic blocking electrodes were used for the measurement.
Figure 4. Nyquist plots for complex impedance Z’ + jZ” in Ta-doped LLZO sintered with or without Ga2O3 addition measured at 27 °C: (a) 0, 1 and 2 mol % Ga2O3 addition and (b) 3, 5 and 7 mol % Ga2O3 addition. Au ionic blocking electrodes were used for the measurement.
Batteries 08 00158 g004
Batteries 08 00158 g005 550

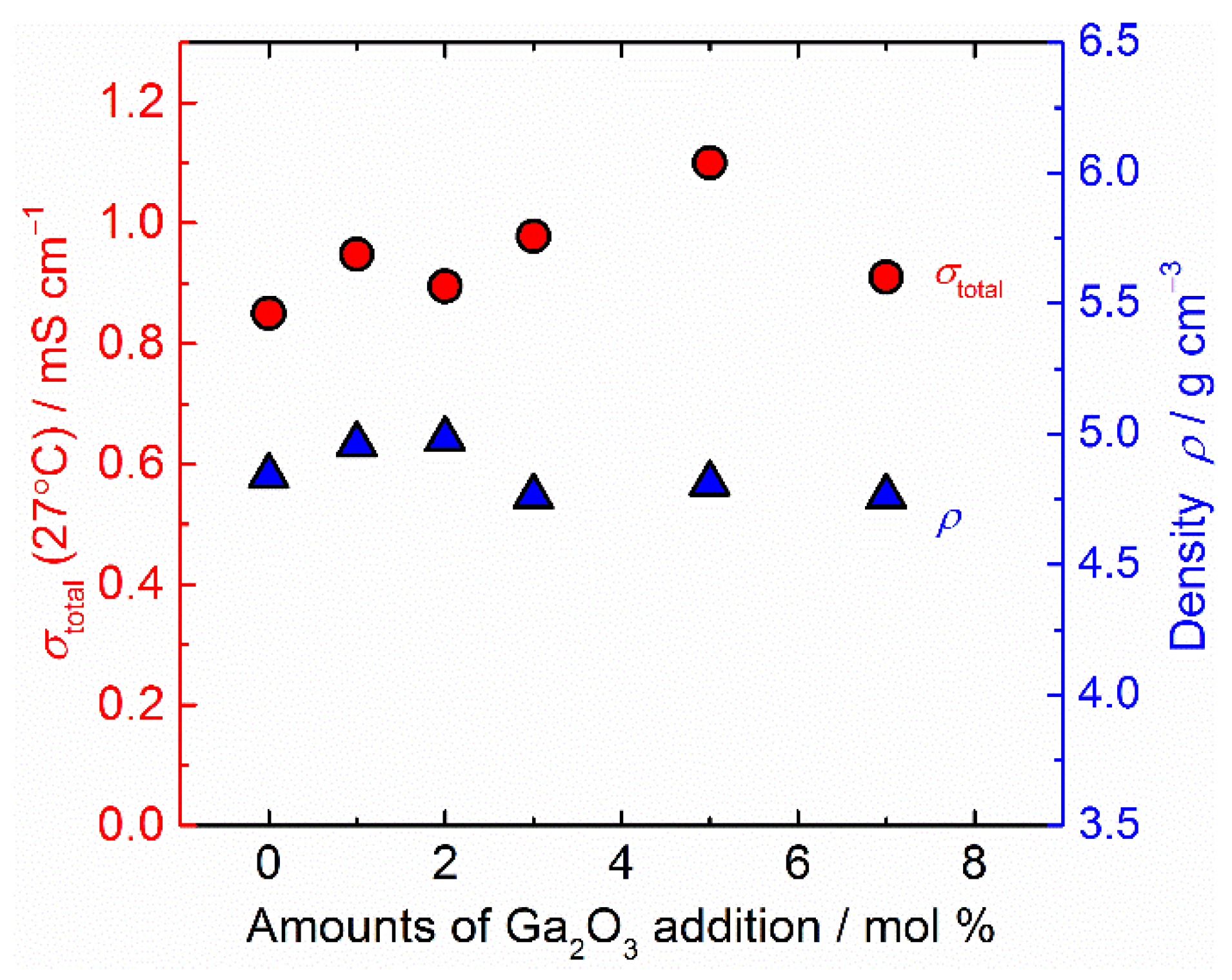

Figure 5. Density ρ and total ionic conductivity σtotal at room temperature of all sintered samples are plotted against the amounts of Ga2O3 addition.
Figure 5. Density ρ and total ionic conductivity σtotal at room temperature of all sintered samples are plotted against the amounts of Ga2O3 addition.
Batteries 08 00158 g005
Batteries 08 00158 g006 550

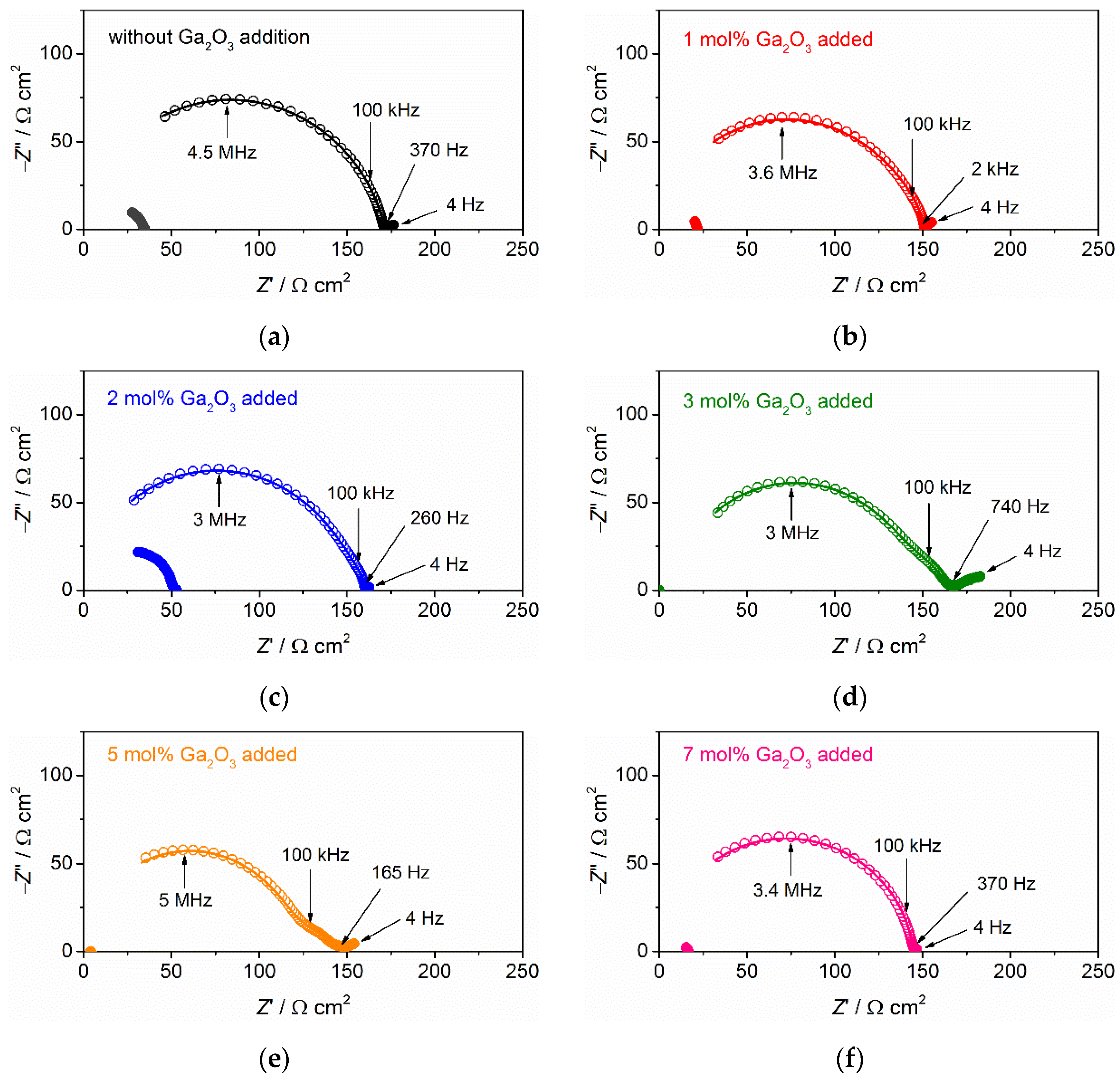

Figure 6. Nyquist plots for complex impedance Z’ + jZ” at 27 °C in symmetric cells composed of Li metal electrodes and Ta-doped LLZO: (a) without Ga2O3 addition, (b) 1 mol % Ga2O3 addition, (c) 2 mol % Ga2O3 addition, (d) 3 mol % Ga2O3 addition, (e) 5 mol % Ga2O3 addition and (f) 7 mol % Ga2O3 addition. Blank and solid symbols correspond to the impedance data before and after the galvanostatic cycling test, respectively. The solid lines are the fitting curves for the data before galvanostatic testing by the equivalent circuit.
Figure 6. Nyquist plots for complex impedance Z’ + jZ” at 27 °C in symmetric cells composed of Li metal electrodes and Ta-doped LLZO: (a) without Ga2O3 addition, (b) 1 mol % Ga2O3 addition, (c) 2 mol % Ga2O3 addition, (d) 3 mol % Ga2O3 addition, (e) 5 mol % Ga2O3 addition and (f) 7 mol % Ga2O3 addition. Blank and solid symbols correspond to the impedance data before and after the galvanostatic cycling test, respectively. The solid lines are the fitting curves for the data before galvanostatic testing by the equivalent circuit.
Batteries 08 00158 g006
Batteries 08 00158 g007 550

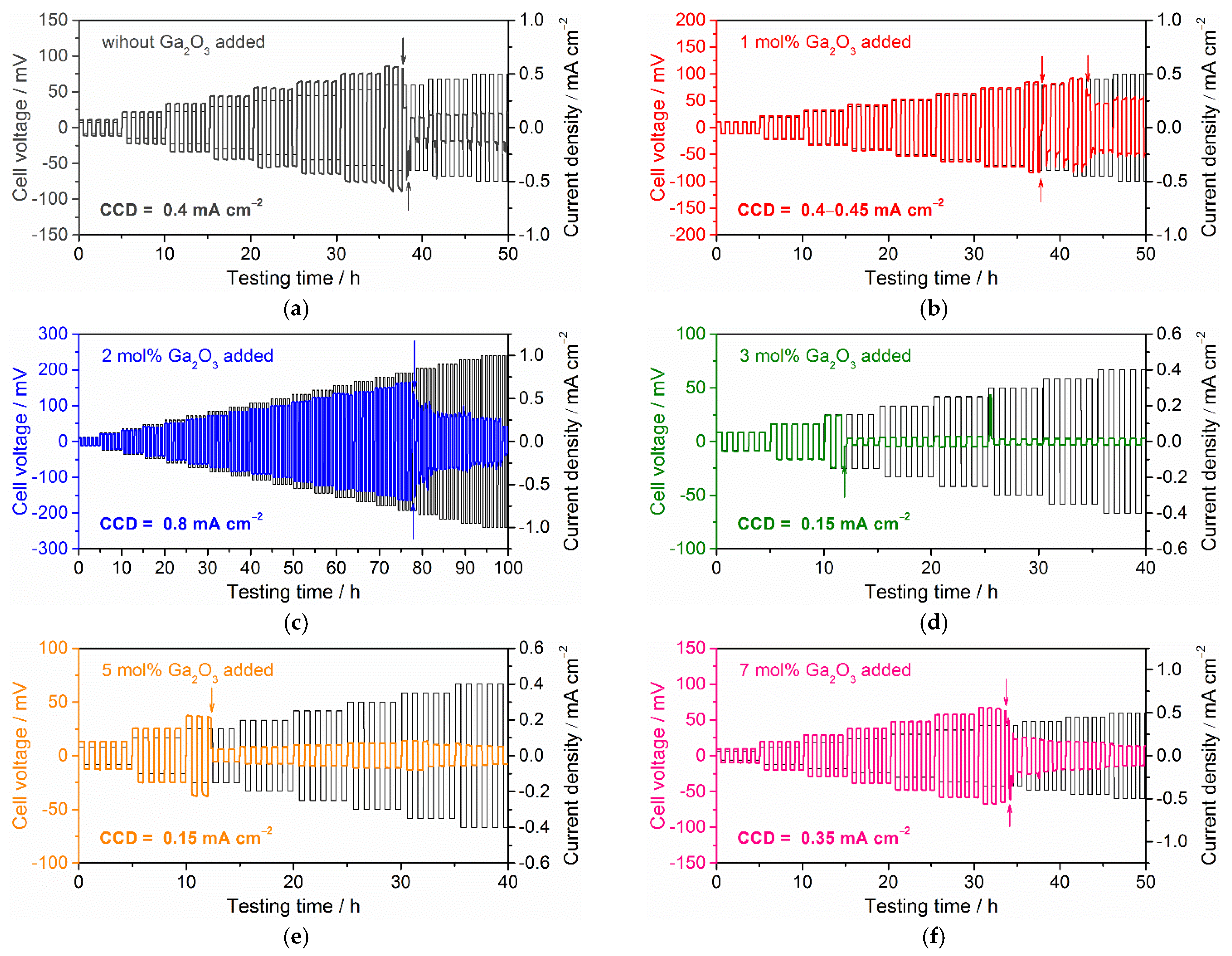

Figure 7. Cell voltage changes during galvanostatic cycling test at 25 °C for Li symmetric cell with Ta-doped LLZO: (a) without Ga2O3 addition, (b) 1 mol % Ga2O3 addition, (c) 2 mol % Ga2O3 addition, (d) 3 mol % Ga2O3 addition, (e) 5 mol % Ga2O3 addition and (f) 7 mol % Ga2O3 addition. The arrows in each graph represent the sudden voltage drops caused by possible Li dendrite growth into a solid electrolyte.
Figure 7. Cell voltage changes during galvanostatic cycling test at 25 °C for Li symmetric cell with Ta-doped LLZO: (a) without Ga2O3 addition, (b) 1 mol % Ga2O3 addition, (c) 2 mol % Ga2O3 addition, (d) 3 mol % Ga2O3 addition, (e) 5 mol % Ga2O3 addition and (f) 7 mol % Ga2O3 addition. The arrows in each graph represent the sudden voltage drops caused by possible Li dendrite growth into a solid electrolyte.
Batteries 08 00158 g007
Batteries 08 00158 g008 550

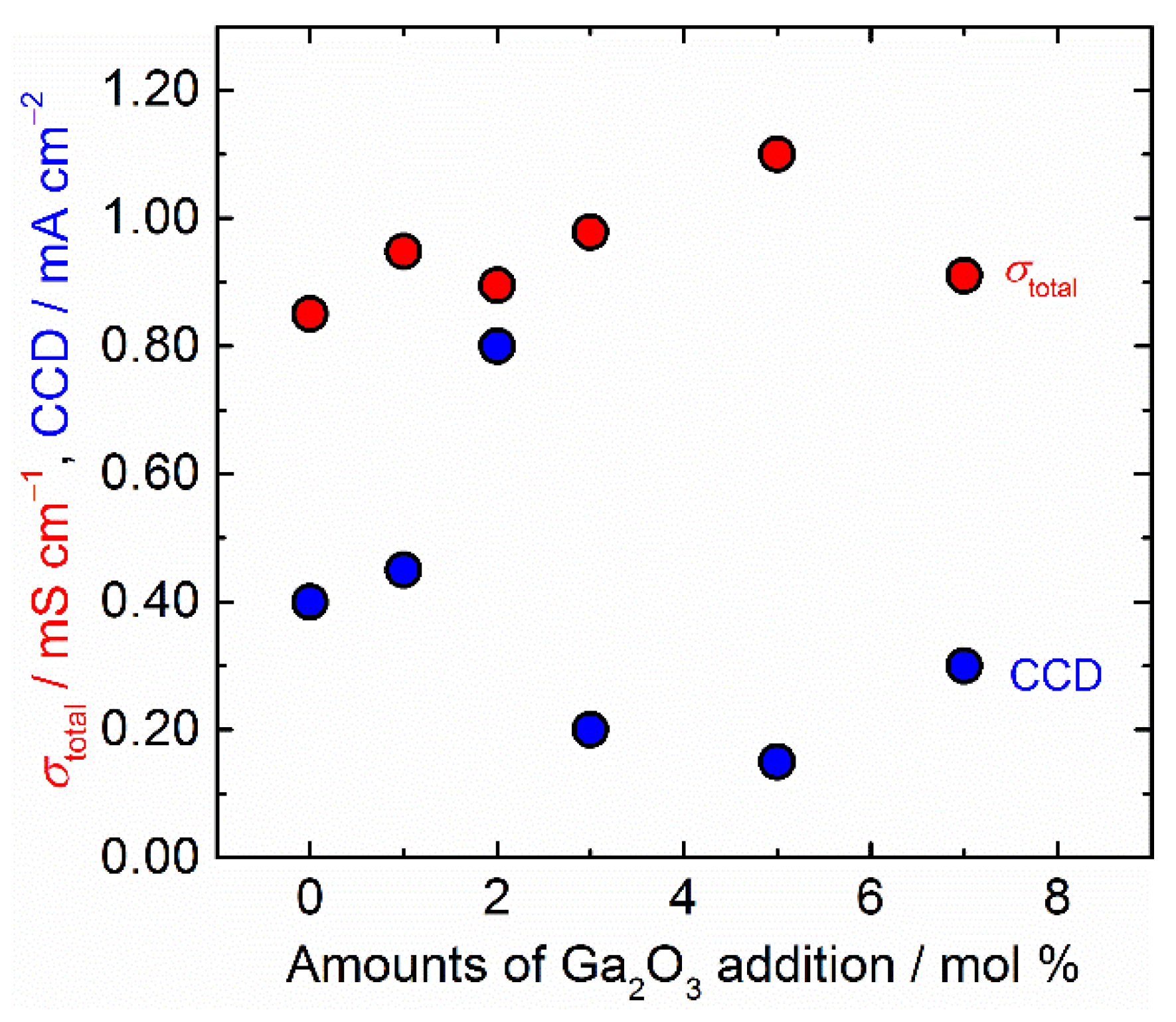

Figure 8. Total ionic conductivity σtotal and critical current density (CCD) at room temperature of all sintered samples are plotted against the amounts of Ga2O3 addition.
Figure 8. Total ionic conductivity σtotal and critical current density (CCD) at room temperature of all sintered samples are plotted against the amounts of Ga2O3 addition.
Batteries 08 00158 g008
Table
Table 1. Densities ρ and BET specific surface areas Asurf of Ta-doped LLZO sintered with or without Ga2O3 addition.
Table 1. Densities ρ and BET specific surface areas Asurf of Ta-doped LLZO sintered with or without Ga2O3 addition.
Ga2O3 Addition/mol %ρ/g cm−3Asurf/m2 g−1
Not added4.842.418
14.961.488
24.981.139
34.761.475
54.811.163
74.761.144
Table
Table 2. Total ionic conductivity σtotal at room temperature and activation energy Ea for Ta-doped LLZO sintered with or without Ga2O3 addition.
Table 2. Total ionic conductivity σtotal at room temperature and activation energy Ea for Ta-doped LLZO sintered with or without Ga2O3 addition.
Ga2O3 Addition/mol %σtotal at 27 °C/mS cm−1Ea/eV
Not added0.850.38
10.950.31
20.900.36
30.980.31
51.10.33
70.910.30
Table
Table 3. Rint and Qint are obtained by equivalent circuit fitting electrochemical impedance of symmetric cells composed of Ta-doped LLZO with or without Ga2O3 addition.
Table 3. Rint and Qint are obtained by equivalent circuit fitting electrochemical impedance of symmetric cells composed of Ta-doped LLZO with or without Ga2O3 addition.
Ga2O3 Addition/mol %Rint/Ω cm2Qint/F
Not added9.51.1 × 10−7
16.05.8 × 10−7
26.72.3 × 10−7
310.11.2 × 10−7
517.52.3 × 10−6
72.04.7 × 10−7
