Charge-Discharge Properties of the Surface-Modified ZrNi Alloy Electrode with Different Degrees of Boiling Alkaline Treatment

by
Akihiro Matsuyama
1,2,*,
Hironori Mizutani
1,
Takumi Kozuka
1 and
Hiroshi Inoue
2
1
Advanced and High Functional Products Development Division, Aichi Steel Corporation, Tokai, Aichi 476-8666, Japan
2
Department of Applied Chemistry, Graduate School of Engineering, Osaka Prefecture University, Sakai, Osaka 599-8531, Japan
*
Author to whom correspondence should be addressed.
Batteries 2016, 2(4), 30; https://doi.org/10.3390/batteries2040030
Submission received: 2 August 2016 / Revised: 21 September 2016 / Accepted: 22 September 2016 / Published: 28 September 2016
Browse Figures
Versions Notes

Abstract

:
Charge-discharge properties of the surface-modified ZrNi negative electrodes with different degrees of boiling alkaline treatment were investigated. The boiling alkaline treatment was performed by immersing the ZrNi electrode in a boiling 6 M KOH aqueous solution for 2 h or 4 h. The initial discharge capacity for the untreated ZrNi negative electrode was 21 mAh·g−1, but it was increased to 114 mAh·g−1 and 308 mAh·g−1 after the boiling alkaline treatments for 2 h and 4 h, respectively. The discharge capacity for the ZrNi negative electrode after the treatment for 2 h steadily increased with repeating charge-discharge cycles as well as that of the untreated electrode, whereas that for the ZrNi negative electrode after the 4 h treatment greatly decreased. The high rate of dischargeability was improved with an increase in the treatment period of time, and the charge-transfer resistance was drastically decreased. Scanning electron microscopy (SEM) and electron dispersive X-ray spectroscopy demonstrated the ZrO2 passive layer on the ZrNi alloy surface was removed by the boiling alkaline treatment to form a porous morphology containing Ni(OH)2, which can be reduced to Ni during charging, leading to the reduction of a barrier for the charge-discharge reactions.

1. Introduction

The nickel-metal hydride (Ni-MH) battery is one of the most important devices for energy storage. AB5-type rare earth alloys have been commercially used as negative electrode active materials, and have exhibited good battery performances with strong rate capability and cycle stability [1,2]. However, for increasing the energy density of Ni-MH batteries, the hydrogen storage capacity needs to be improved, which gives us a motivation to develop new high-capacity hydrogen storage alloys. So far, high-capacity hydrogen storage alloys such as ZrMn2 (AB2)-type Laves phase alloys [3,4], Mg-based alloys [5,6], La2Mg1Ni9 (AB3)-type super lattice alloys [7,8], TiNi-type alloys [9] and V-based body-centered cubic (BCC)-type alloys [10] have been developed.
The ZrNi alloy is expected as a new high-capacity negative electrode active material for the Ni-MH battery because it has a hydrogen storage capacity of about 2.0 mass% H2 [11,12], which corresponds to a charge capacity of 536 mAh·g−1. The discharge capacity of the ZrNi alloy negative electrode, however, has been very low so far [13,14], because the passive ZrO2 layer on the alloy surface inhibited hydrogen absorption into the alloy [15,16]. The surface structures of alloys as well as their composition influence the battery performance, including the initial activity, maximum discharge capacity, rate capability and charge-discharge cycle stability. Therefore, various techniques such as mechanical milling [17,18], melt spinning to make the surface amorphous [19], alkaline or acidic treatment to remove the passive layer [20,21,22], fluorination treatment [23] and electroless coating [24] have been utilized for the modification of the surface structure or composition. The alkaline treatment, in which LaNi5-based alloys and Zr-type Laves phase alloys were immersed in a hot alkaline solution, has been extensively reported as an effective technique for removing the surface passive layer, leading to the improvement of the battery’s performance [20,24,25]. Recently, we have reported that the boiling alkaline treatment of the ZrNi alloy negative electrode greatly improved the initial discharge capacity [26].
In this study, we investigated the other negative electrode properties such as the charge-discharge cycle performance, the high rate of dischargeability and the charge-transfer resistance for the ZrNi negative electrodes with the boiling alkaline treatment for different periods of time or different degrees of the treatment effect.

2. Experimental

2.1. Preparation and Surface Treatment of the ZrNi Alloy

The ZrNi alloy ingot was prepared with element constituents (Zr 99.0% and Ni 99.9% purities) by arc-melting in an Ar atmosphere. Before arc-melting, a piece of titanium was melted a few times to remove the residual oxygen in the apparatus. The resultant ingot was annealed at 1173 K for 20 h in an Ar atmosphere, followed by mechanically crushing and sieving between 20 μm and 40 μm in diameter. The resultant alloy powders were immersed in a boiling 6 M KOH alkaline solution for 2 h or 4 h. After the boiling alkaline treatment, the alloy powders were thoroughly rinsed with ion exchange water and then dried in vacuum.

2.2. Electrochemical Measurement of the ZrNi Electrodes with and without the Boiling Alkaline Treatment

The ZrNi negative electrodes with and without the boiling alkaline treatment were prepared as follows. Briefly, the ZrNi powders (42.5 mg) were mixed with Cu powders (5 mg) and 25 μL of 10 wt% polyvinyl alcohol aqueous solution to make a paste. The paste was cast in a porous Ni as a current collector to make a negative electrode. The resultant ZrNi electrode was treated by immersing in a boiling 6 M KOH solution for 2 h or 4 h. The electrolyte solution was a 6 M KOH solution containing 1 M LiOH. The positive and reference electrodes were NiOOH/Ni(OH)2 and Hg/HgO electrodes, respectively.
In the charge-discharge cycle tests, each negative electrode was charged at 100 mA·g−1 for 5 h and discharged at 25 mA·g−1 to the cut off potential of −0.5 V versus Hg/HgO at 303 K or 333 K. After each charging and discharging, the circuit was opened for 10 min. In the rate performance tests, each negative electrode was charged at 100 mA·g−1 for 5 h and then discharged at 10–200 mA·g−1 to −0.5 V versus Hg/HgO at 333 K. Electrochemical impedance spectroscopy was performed in a frequency range between 0.1 Hz and 64 kHz with an amplitude of 5 mV after each electrode was charged at 100 mA·g−1 for 5 h, and then kept at an open-circuit potential for 1 h at 333 K. All electrochemical properties were measured by VMP3 (Bio-Logic, Claix, France).

2.3. Characterization of the ZrNi Alloy with and without the Boiling Alkaline Treatment

The chemical compositions of the ZrNi powders with and without the boiling alkaline treatment were measured by induced couple plasma spectroscopy (ICPs, ICPV-1017, Shimadzu, Kyoto, Japan). Changes surface morphology of the ZrNi powders with and without the boiling alkaline treatment were examined by scanning electron microscopy (SEM, S-4300, HITACHI, Tokyo, Japan) and energy dispersive X-ray (EDX, EMAX, Horiba, Kyoto, Japan) spectroscopy. After the boiling alkaline treatment, the Zr and Ni concentrations in the solution were analyzed by ICPs (SPS4000, Seiko, Tokyo, Japan).

3. Results and Discussion

3.1. Electrochemical Properties of the ZrNi Electordes with and without the Boiling Alkaline Treatment

Figure 1 shows the initial discharge curves at 303 K and 333 K for the ZrNi negative electrodes with and without the boiling alkaline treatments for 2 h and 4 h. As shown in Figure 1a, at 303 K the initial discharge capacity (C1) for the untreated ZrNi negative electrode was 9 mAh·g−1, whereas the C1 values after the boiling alkaline treatments for 2 h and 4 h were 24 mAh·g−1 and 89 mAh·g−1, respectively. On the other hand, at 333 K the C1 value for the untreated ZrNi negative electrodes was 21 mAh·g−1, and it increased to 114 mAh·g−1 and 308 mAh·g−1 after the boiling alkaline treatments for 2 h and 4 h, respectively, as shown in Figure 1b. Thus, the C1 value was greatly improved by the boiling alkaline treatment for 4 h.
Figure 2 shows the cycle performance at 333 K for the untreated and treated ZrNi negative electrodes. The discharge capacities of the ZrNi electrodes with and without the boiling alkaline treatment for 2 h steadily increased from 114 mAh·g−1 to 142 mAh·g−1 and 21 mAh·g−1 to 43 mAh·g−1 for the initial five cycles, respectively, because these electrodes were activated during the charge-discharge cycles. However, after the boiling alkaline treatment for 4 h, the discharge capacity of the ZrNi electrode decreased from 308 mAh·g−1 to 85 mAh·g−1 for the initial five cycles. The ZrNi particles were pulverized under 10 μm in diameter by the charge-discharge cycling as shown in our previous study [26]. This can lead to the increase in the contact resistance and the decrease in the utilization of alloy particles.
Figure 3 shows the C1 values as a function of the specific discharge current at 333 K for the untreated and treated ZrNi negative electrodes. The C1 values at 10 mA·g−1 and 200 mA·g−1 for the untreated ZrNi negative electrode were 32 mAh·g−1 and 14 mAh·g−1, respectively, whereas those for the ZrNi electrodes after the boiling alkaline treatments for 2 h and 4 h were 175 mAh·g−1 and 29 mAh·g−1, and 320 mAh·g−1 and 98 mAh g‒1, respectively. These results clearly indicate that the rate performance was greatly improved by the boiling alkaline treatment. However, the discharge capacity greatly decreased more than 25 mA·g−1 at specific discharge currents. Because the β-hydride ZrNiH and γ-hydride ZrNiH3 are stable [11,27], they will not easily release hydrogen in the discharge process, leading to slow hydrogen diffusion. Consequently, the electrochemical hydrogen desorption rate will be dominated by the hydrogen diffusion rate, which causes the larger decrease in the discharge capacity at higher specific discharge currents, as shown in Figure 3.
To confirm the formation of the ZrNi hydrides in the charge process, X-ray diffraction (XRD) profiles after charging and discharging were measured. The XRD profiles after charging and discharging for the ZrNi negative electrodes with and without the boiling alkaline treatment for 4 h are shown in Figure 4. The strong diffraction peaks around 44.8° and 51.8° are due to the Ni current collector. In each electrode the XRD pattern after charging demonstrated the formation of ZrNiH3 (ICDD Card No. 01-089-2626). After discharging at 25 mA·g−1, the XRD pattern for the untreated ZrNi negative electrode was similar to that after charging, but the intensity of each peak was a little weak. In addition, some tiny diffraction peaks assigned to ZrNiH (ICDD Card No. 01-084-0567) were also detected. On the other hand, for the treated ZrNi negative electrode, the peak intensity for ZrNiH3 greatly decreased, and that for ZrNiH was stronger than for the untreated ZrNi negative electrode, suggesting that the dehydrogenation from ZrNiH3 to ZrNiH in the discharging process was facilitated by the boiling alkaline treatment. However, the peaks for ZrNiH were broad, probably because the crystal structure of the ZrNi alloy was distorted by the absorption and desorption of hydrogen. The complete dehydrogenation from ZrNiH3 to ZrNiH corresponds to 357 mAh·g−1, so the conversion from ZrNiH3 to ZrNiH for the treated ZrNi negative electrode is estimated as 86%.
Figure 5a shows the Nyquist plots after the first charging for the ZrNi negative electrodes with and without the boiling alkaline treatments for 2 h and 4 h. The area surrounded by the broken line in Figure 5a was enlarged, as shown in Figure 5b. The equivalent circuit is shown in Figure 5c. Each Nyquist plot was composed of three depressed semicircles and a straight line [28]. The first semicircle is attributed to the resistance (R2) and capacitance (C2) between the alloy particles and the current collector. The second semicircle represents the contact resistance (R3) and capacitance (C3) between the alloy particles. The third semicircle represents the charge-transfer resistance (R4) and double-layer capacitance (C4). The straight line is attributable to the hydrogen diffusion in alloy particles, which is called Warburg impedance (W). The intercept at the Z’ axis in the high frequency range represents electrolyte resistance (R1).
Table 1 summarizes resistances (R1–R4) and capacitances (C2–C4), estimated by simulating the equivalent circuit for the ZrNi negative electrodes with and without the boiling alkaline treatments for 2 h and 4 h. In Table 1, R2 and R4 significantly decreased with increasing the boiling alkali treatment period of time, whereas C2 and C4 increased. On the other hand, R3 and C3 were scarcely changed before and after the boiling alkaline treatment, suggesting that the pulverization of alloy particles did not occur during the boiling alkaline treatment but did during charge-discharge cycling [28].

3.2. Morphology of the ZrNi Alloys with and without the Boiling Alkaline Solution

The chemical compositions of the ZrNi powders with and without the boiling alkaline treatment for 2 h and 4 h by ICPs are shown in Table 2. The composition of the untreated ZrNi powder was equivalent to the theoretical one. The total content was slightly decreased as the treatment time was increased, suggesting that the oxygen content was increased for the untreated ZrNi powder, because ZrO2 was detected by X-ray photoelectron spectroscopy (XPS) [26]. On the contrary, when the ZrNi powders were treated in the boiling alkaline solution, the contents of Zr and Ni and the Zr/Ni ratio steadily decreased with an increase in the alkaline treatment time, suggesting that both Zr and Ni dissolved during the boiling alkaline treatment, and Zr dissolved faster than Ni. The decrease in total content with an increase in the alkaline treatment time suggests that oxygen was contained in the treated ZrNi powders as Ni(OH)2 and ZrO2, because Ni(OH)2 and ZrO2 were detected after the boiling alkaline treatment by XPS [26].
Figure 6a–c shows the SEM images of the ZrNi powders with and without the boiling alkaline treatments for 2 h and 4 h, respectively. The elemental analysis for the ZrNi powder surface was performed at 10 points in a row by EDX spectroscopy, and the results are summarized in Figure 6d–f. The surface of the untreated ZrNi powder was uniformly smooth, as shown in Figure 6a. In Figure 6d, the composition at each point of the smooth surface was similar, and the Zr/Ni ratio was almost one regardless of the sampling point.
After the 2 h treatment, the surface of the ZrNi powder consisted of smooth areas (Spots 4, 5, 7 and 10 in Figure 6e), rough areas (Spots 3, 8 and 9 in Figure 6e) and porous areas (Spots 1, 2 and 6 in Figure 6e). As can be seen from Figure 6e, the smooth areas had compositions similar to the untreated powder surface, suggesting that no modification occurred in these areas. During the boiling alkaline treatment some alloy powders were stirred, but others were sunk in the vessel. Therefore, the alloy surface may not have been uniformly modified. In the rough areas, the Zr content decreased and the O content increased. Moreover, in the porous areas, the decrease in Zr content and increase in O content were greater. On the other hand, the Ni content slightly decreased in the rough and porous areas. The Zr/Ni ratio was less than one as a whole. The ICP analysis exhibited that the Zr concentration in the alkaline solution was 7 ppm, and Ni was not detected, suggesting that during the boiling alkaline treatment Zr was oxidized and partially dissolved as HZrO3− in the boiling alkaline solution from the rough and porous areas [29]. On the other hand, Ni also seems to be oxidized to Ni(OH)2 [29,30].
After the 4 h treatment, the ZrNi surface mostly changed to a porous morphology, as shown in Figure 6c. The Zr and Ni contents greatly decreased and the O content greatly increased, as shown in Figure 6f. The ICP analysis showed that the Zr and Ni concentrations in the alkaline solution were 20 ppm and 8 ppm, respectively. These results indicate that the amount of dissolved Zr increased, and part of the oxidized Ni also dissolved as HNiO2− [29,30], supporting the extensive formation of the porous morphology.
As shown in Figure 1 and Figure 2, the C1 was greatly increased by the longer boiling alkaline treatment, and the high rate of dischargeability was also improved, as shown in Figure 3. In addition, Table 1 shows that R4 and C4 drastically changed. These results are due to the ZrO2 passive layer on the ZrNi alloy surface being removed to form the porous morphology containing Ni(OH)2 [26], which can be reduced to metallic Ni during charging [31], leading to the reduction of a barrier for the charge-discharge reactions. The metallic Ni is well known to work as a catalyst for the electrochemical hydrogen desorption reaction [22]. However, C1 after the boiling alkaline treatment for 2 h was much lower than that after the 4 h treatment. This seems to mean that the residual ZrO2 inhibited the electrochemical reactions.

4. Conclusions

To improve the charge-discharge performance of the ZrNi alloy, which had a high theoretical hydrogen storage capacity and low utilization because of the surface ZrO2 passive layer, boiling alkaline treatments for different periods of time were performed, and the electrochemical properties for the treated ZrNi alloys were examined.
The initial discharge capacities at 303 K for the ZrNi negative electrodes increased from 9 mAh·g−1 to 24 mAh·g−1 and 89 mAh·g−1 after boiling alkaline treatments for 2 h and 4 h, respectively. Moreover, the initial discharge capacities at 333 K increased from 21 mAh·g−1 to 114 mAh·g−1 and 308 mAh·g−1 after boiling alkaline treatments for 2 h and 4 h, respectively, and the high rate of dischargeability was also improved. The charge-transfer resistance was drastically decreased by the boiling alkaline treatment, and the dehydrogenation from ZrNiH3 to ZrNiH was facilitated. SEM and EDX showed that the ZrO2 passive layer on the ZrNi alloy surface was removed by the boiling alkaline treatment to form the porous morphology containing Ni(OH)2, which would be converted to Ni during charging, leading to the improvement of the electrochemical properties of the ZrNi negative electrode. From these results, the modification of the ZrNi alloy surface with the boiling alkaline treatment is a useful approach to improve its electrochemical properties.

Acknowledgments

This work is financially supported by Aichi Steel Corporation.

Author Contributions

Akihiro Matsuyama designed the experiments and analyzed the results. Hironori Mizutani and Takumi Kozuka analyzed and interpreted the data. Hiroshi Inoue assisted in data analysis and manuscript preparation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boussami, S.; Khaldi, C.; Lamloumi, J.; Mathlouthi, H.; Takenouti, H. Electrochemical study of LaNi3.55Mn0.4Al0.3Fe0.75 as negative electrode in alkaline secondary batteries. Electrochim. Acta 2012, 69, 203–208. [Google Scholar] [CrossRef]
  2. Drulis, H.; Hackemer, A.; Flocik, L.; Giza, K.; Bala, H.; Gondek, Ł.; Figiel, H. Thermodynamic and electrochemical hydrogenation properties of LaNi5−xInx alloys. Int. J. Hydrog. Energy 2012, 37, 15850–15854. [Google Scholar] [CrossRef]
  3. Sun, J.C.; Li, S.; Ji, S.J. The effects of the substitution of Ti and La for Zr in ZrMn0.7V0.2Co0.1Ni1.2 hydrogen storage alloys on the phase structure and electrochemical properties. J. Alloy. Compd. 2007, 446, 630–634. [Google Scholar] [CrossRef]
  4. Iwakura, C.; Kasuga, H.; Kim, I.; Inoue, H.; Matsuoka, M. Effect of alloy composition on electrochemical properties of the Zr-based Laves-phase hydrogen storage alloys. Electrochim. Acta 1996, 41, 2691–2694. [Google Scholar] [CrossRef]
  5. Anik, M.; Karanfil, F.; Küҫükdeveci, N. Development of the high performance magnesium based hydrogen storage alloy. Int. J. Hydrog. Energy 2012, 37, 299–308. [Google Scholar] [CrossRef]
  6. Inoue, H.; Ueda, T.; Nohara, S.; Fujita, N.; Iwakura, C. Effect of ball-milling on electrochemical and physicochemical characteristics of crystalline Mg2Ni alloy. Electrochim. Acta 1998, 43, 2215–2219. [Google Scholar] [CrossRef]
  7. Kohno, T.; Yoshida, H.; Kawashima, F.; Inaba, T.; Sakai, I.; Yamamoto, M.; Kanda, M. Hydrogen storage properties of new ternary system alloys: La2MgNi9, La5MgNi23, La3MgNi14. J. Alloy. Compd. 2000, 311, L5–L7. [Google Scholar] [CrossRef]
  8. Liao, B.; Lei, Y.Q.; Chen, L.X.; Lu, G.L.; Pan, H.G.; Wang, Q.D. A study on the structure and electrochemical properties of La2Mg(Ni0.95M0.05)9 (M = Co, Mn, Fe, Al, Cu, Sn) hydrogen storage electrode alloys. J. Alloy. Compd. 2004, 376, 186–195. [Google Scholar] [CrossRef]
  9. Guiose, B.; Cuevas, F.; Déamps, B.; Leroy, E.; Percheron-Guégan, A. Microstructural analysis of the ageing of pseudo-binary (Ti,Zr)Ni intermetallic compounds as negative electrodes of Ni-MH batteries. Electrochim. Acta 2009, 54, 2781–2789. [Google Scholar] [CrossRef]
  10. Inoue, H.; Kotani, N.; Chiku, M.; Higuchi, E. High capacity hydrogen storage alloy negative electrodes for use in nickel-metal hydride batteries. J. Alloy. Compd. 2015, 645, S136–S139. [Google Scholar] [CrossRef]
  11. Dantzer, P.; Millet, P.; Flanagan, T.B. Thermodynamic characterization of hydride phase growth in ZrNi-H2. Metall. Mater. Trans. A 2001, 32A, 29–38. [Google Scholar] [CrossRef]
  12. Cantrell, J.S.; Bowman, R.C., Jr.; Wade, L.A.; Luo, S.; Clewley, J.D.; Flanagan, T.B. Thermodynamic properties of and the degradation of ZrNiHx at elevated temperatures. J. Alloy. Compd. 1995, 231, 518–523. [Google Scholar] [CrossRef]
  13. Nei, J.; Young, K.; Regmi, R.; Lawes, G.; Salley, S.O.; Ng, K.Y.S. Gaseous phase hydrogen storage and electrochemical properties of Zr8Ni21, Zr7Ni10, Zr9Ni11 and ZrNi metal hydride alloys. Int. J. Hydrog. Energy 2012, 37, 16042–16055. [Google Scholar] [CrossRef]
  14. Wakao, S.; Sawa, H.; Nakano, H.; Chubachi, S.; Abe, M. Capacities and durabilities of Ti-Zr-Ni alloy hydride electrodes and effects of electroless plating on their performances. J. Less-Common Met. 1987, 131, 311–319. [Google Scholar] [CrossRef]
  15. Matsuoka, M.; Nakayama, E.; Uematsu, F.; Yamamoto, Y.; Iwakura, C. Activation mechanism of Ti0.5Zr0.5Ni1.3V0.7Mn0.1Cr0.1 electrode in nickel-hydride batteries. Electrochim. Acta 2001, 46, 2693–2697. [Google Scholar] [CrossRef]
  16. Züttel, A.; Meli, F.; Schlapbach, L. Surface and bulk properties of the TiyZr1−y(VxNi1−x)2 alloy system as active electrode material in alkaline electrolyte. J. Alloy. Compd. 1995, 231, 645–649. [Google Scholar] [CrossRef]
  17. Huang, H.; Huang, K.; Chen, D.; Liu, S.; Zhuang, S. The electrochemical properties of MgNi–x wt% TiNi0.5Co0.44 (x = 0, 10, 30, 50) composite alloys. J. Mater. Sci. 2010, 45. [Google Scholar] [CrossRef]
  18. Benavides, L.A.; Cuscueta, D.J.; Ghilarducci, A.A. MWCNT as mechanical support during ball milling of AB5 alloy used as negative electrode of a Ni-MH battery. Int. J. Hydrog. Energy 2015, 40, 4925–4930. [Google Scholar] [CrossRef]
  19. Mishima, R.; Miyamura, H.; Sakai, T.; Kuriyama, N.; Ishikawa, H.; Uehara, I. Hydrogen storage alloys rapidly solidification by the melt-spinning method and their characteristics as metal hydride electrodes. J. Alloy. Compd. 1993, 192, 176–178. [Google Scholar] [CrossRef]
  20. Ikoma, M.; Komori, K.; Kaida, S.; Iwakura, C. Effect of alkali-treatment of hydrogen storage alloy on the degradation of Ni/MH batteries. J. Alloy. Compd. 1999, 284, 92–98. [Google Scholar] [CrossRef]
  21. Yanagimoto, K.; Majima, K.; Sunada, S.; Sawada, T. Effects of surface modification on surface structure and electrochemical properties of Mm(Ni,Co,Mn,Al)5.0 alloy powder. J. Alloy. Compd. 2004, 377, 174–178. [Google Scholar] [CrossRef]
  22. Li, H.W.; Inada, K.; Nakamori, Y.; Orimo, S.; Yakushiji, K.; Takanashi, K.; Ohyama, H.; Nakatsuji, K.; Dansui, Y. Size distribution of precipitated Ni clusters on the surface of an alkaline-treated LaNi5-based alloy. Acta Mater. 2007, 55, 481–485. [Google Scholar] [CrossRef]
  23. Gao, X.P.; Sun, Y.M.; Higuchi, E.; Toyoda, E.; Suda, S. Electrochemical properties and characteristics of the fluorinated Zr0.9Ti0.1V0.2Mn0.6Ni1.3La0.05 electrode. J. Alloy. Compd. 1999, 293, 707–711. [Google Scholar] [CrossRef]
  24. Parimala, R.; Ananth, M.V.; Ramaprabhu, S.; Raju, M. Effect of electroless coating of Cu, Ni and Pd on ZrMn0.2V0.2Fe0.8Ni0.8 alloy used as anodes in Ni-MH batteries. Int. J. Hydrog. Energy 2004, 29, 509–513. [Google Scholar] [CrossRef]
  25. Choi, W.K.; Yamataka, K.; Zhang, S.G.; Inoue, H.; Iwakura, C. Effects of surface treatment with boiling alkaline solution on electrochemical and physicochemical properties of the Zr0.9Ti0.1Ni1.1Co0.1Mn0.6V0.2 alloy electrode. J. Electrochem. Soc. 1999, 146, 46–48. [Google Scholar] [CrossRef]
  26. Matsuyama, A.; Mizutani, H.; Kozuka, T.; Inoue, H. Effect of surface treatment with boiling alkaline solution on electrochemical properties of the ZrNi alloy electrode. Int. J. Hydrog. Energy 2016, 41, 9908–9913. [Google Scholar] [CrossRef]
  27. Cuevas, F.; Latroche, M.; Vigeron-Bourée, F.; Percheron, G.A. A conjoint XRD–ND analysis of the crystal structures of austenitic and martensitic Ti0.64Zr0.36Ni hydrides. J. Solid State Chem. 2006, 179, 3295–3307. [Google Scholar] [CrossRef]
  28. Kuriyama, N.; Sakai, T.; Miyamura, H.; Uehara, I.; Ishikawa, H. Electrochemical impedance and deterioration behavior of metal hydride electrodes. J. Alloy. Compd. 1993, 202, 183–197. [Google Scholar] [CrossRef]
  29. Poubaix, M. Atlas Electrochemical Equilibria in Aqueous Solutions, 2nd ed.; National Association of Corrosion Engineers (NACE): Houston, TX, USA, 1974; p. 333. [Google Scholar]
  30. Senoh, H.; Ueda, M.; Inoue, H.; Furukawa, N.; Iwakura, C. Theoretical evaluation for thermodynamic stability of constituents of hydrogen storage alloy in concentrated alkaline solution at higher temperature. J. Alloy. Compd. 1998, 266, 111–117. [Google Scholar] [CrossRef]
  31. Souza, L.M.M.; Kong, F.P.; Mclarnon, F.R.; Muller, R.H. Spectroscopic ellipsometry study of nickel oxidation in alkaline solution. Electrochim. Acta 1997, 42, 1253–1267. [Google Scholar] [CrossRef]
Batteries 02 00030 g001 550

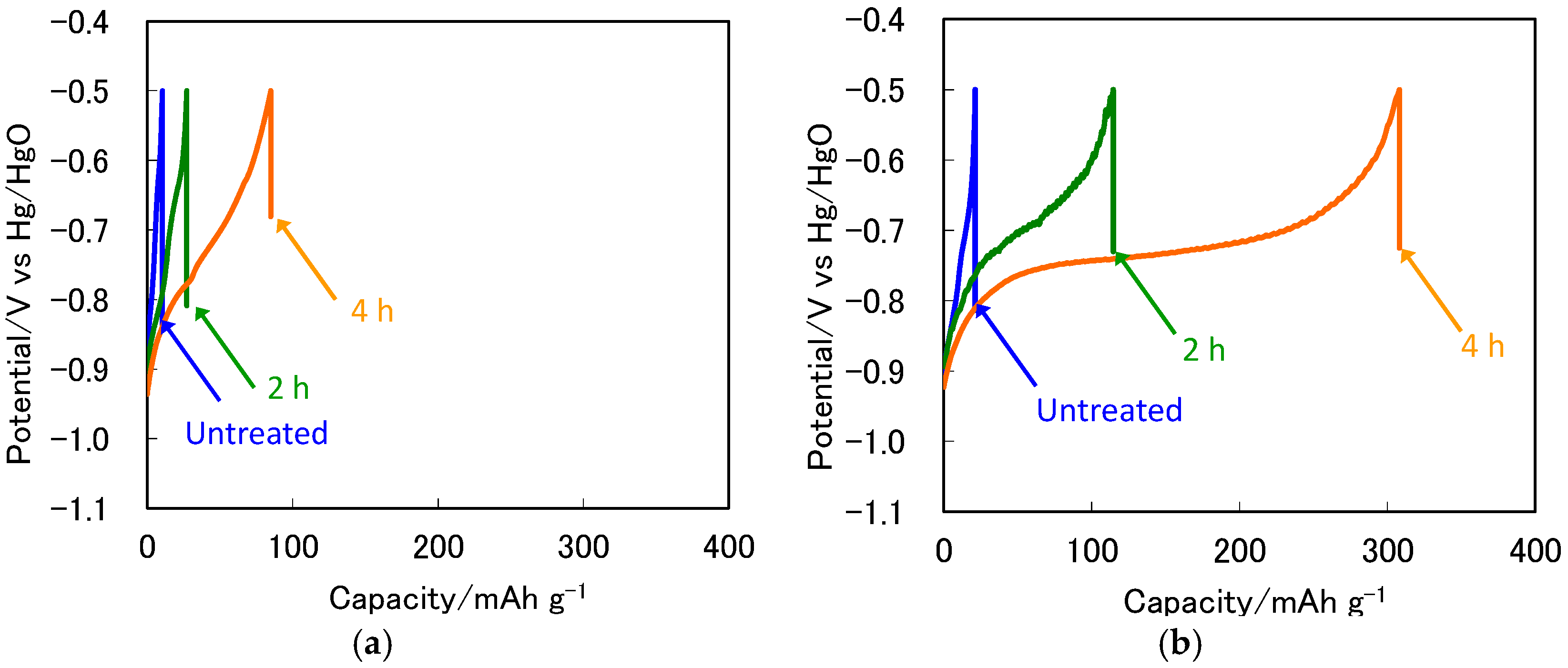

Figure 1. Discharge curves for the ZrNi electrode with and without the boiling alkaline treatment for 2 h and 4 h at (a) 303 K and (b) 333 K.
Figure 1. Discharge curves for the ZrNi electrode with and without the boiling alkaline treatment for 2 h and 4 h at (a) 303 K and (b) 333 K.
Batteries 02 00030 g001
Batteries 02 00030 g002 550

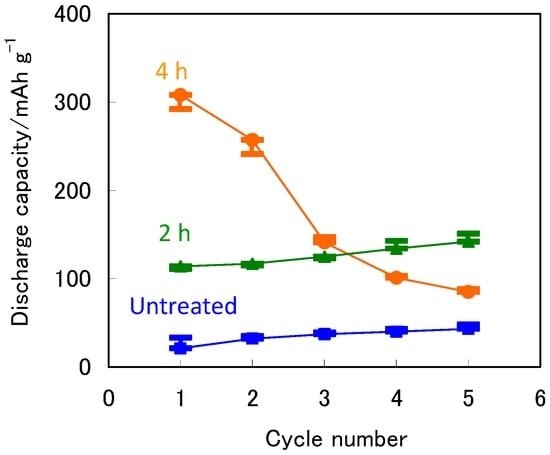

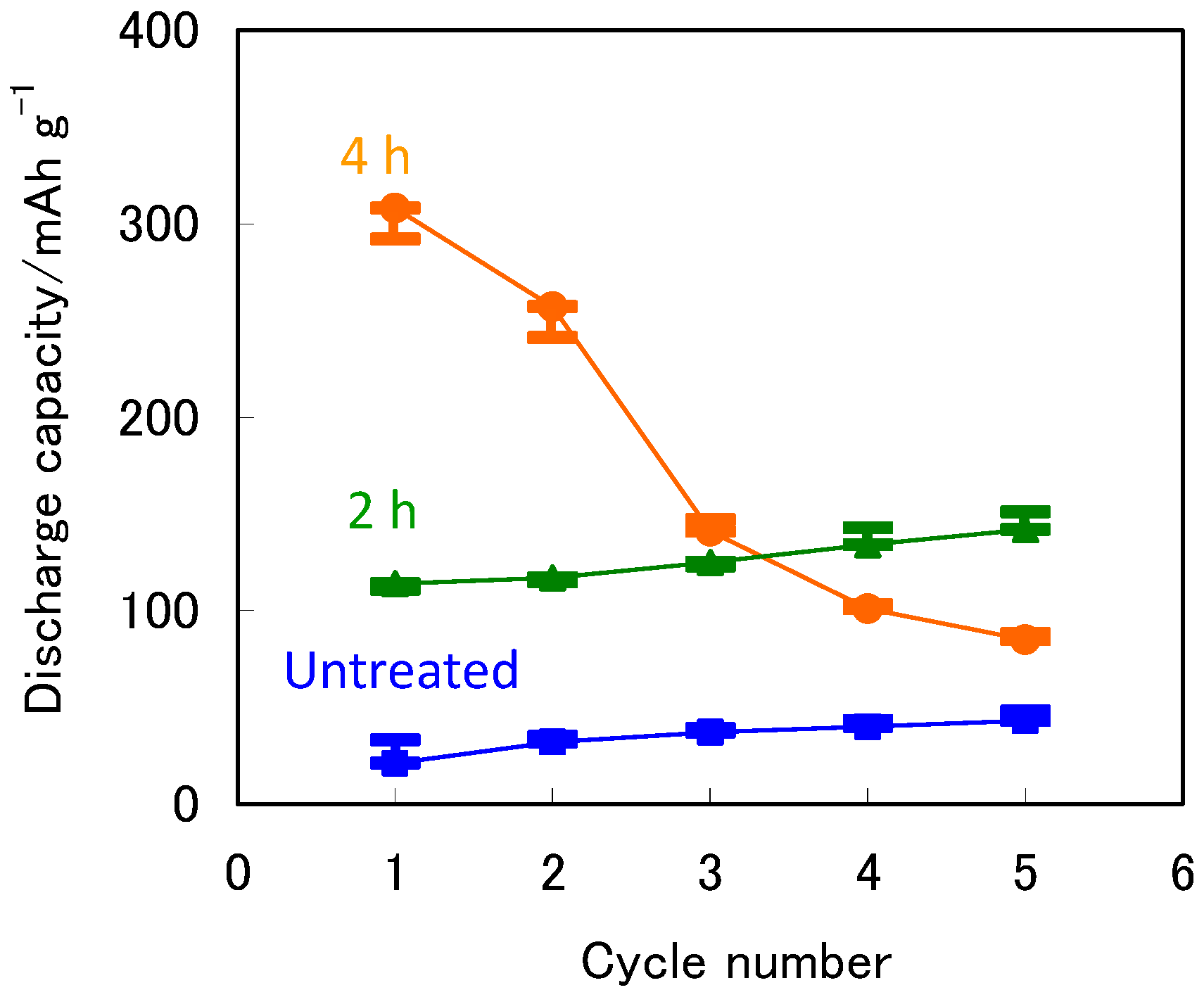

Figure 2. Discharge capacities as a function of the cycle number for the ZrNi negative electrodes with and without the boiling alkaline treatments for 2 h and 4 h at 333 K.
Figure 2. Discharge capacities as a function of the cycle number for the ZrNi negative electrodes with and without the boiling alkaline treatments for 2 h and 4 h at 333 K.
Batteries 02 00030 g002
Batteries 02 00030 g003 550

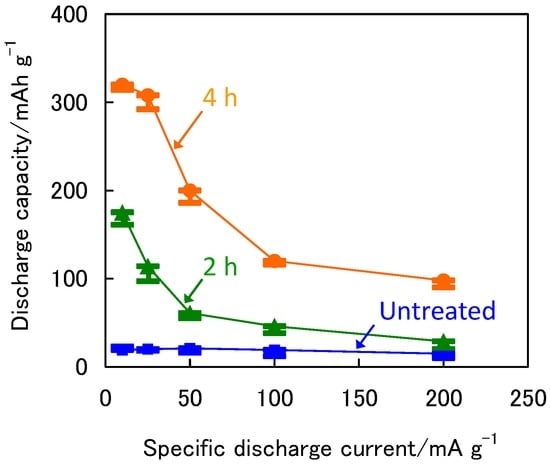

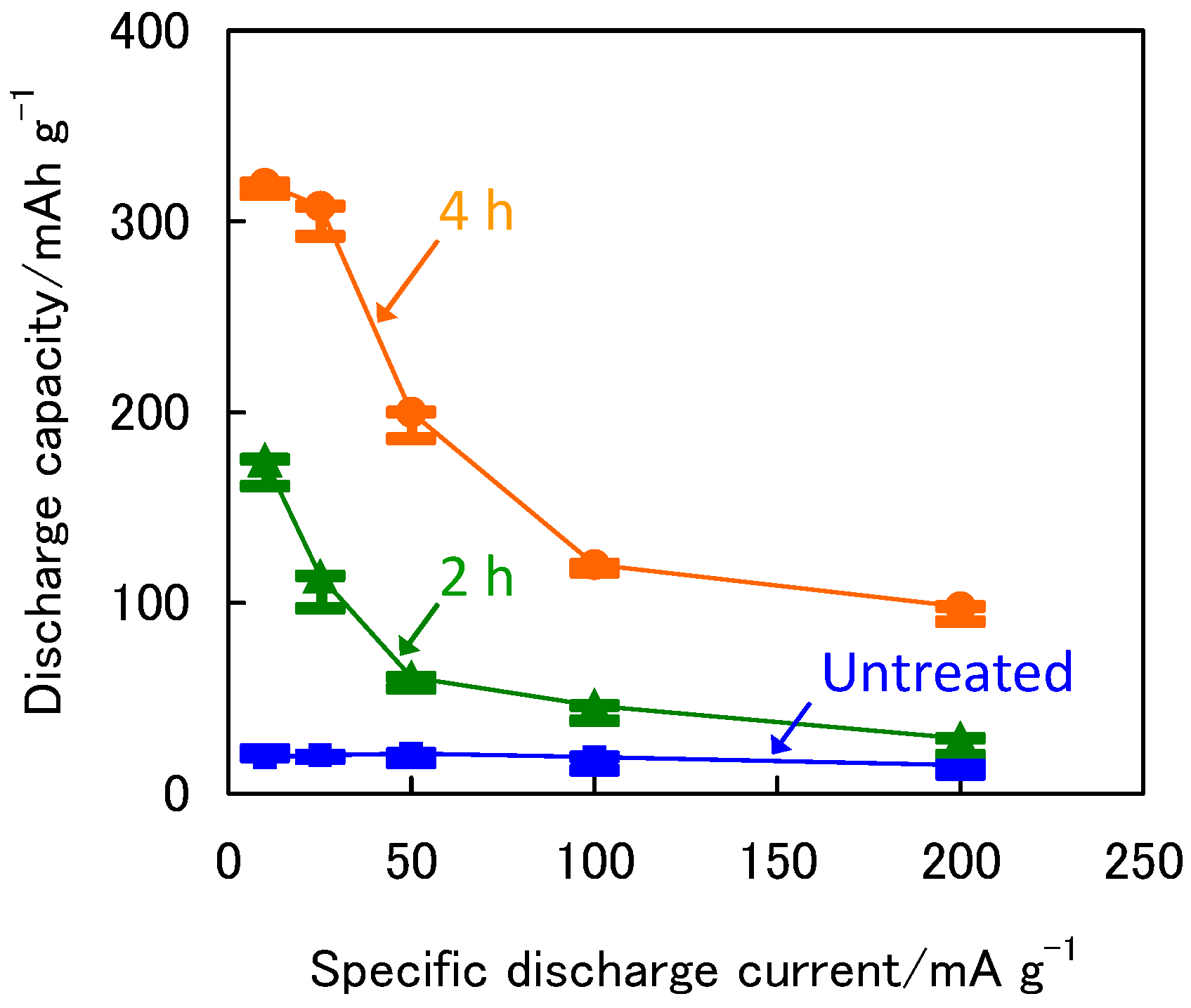

Figure 3. The initial capacities as a function of specific discharge current at 333 K for the ZrNi electrodes with and without the boiling alkaline treatment for 2 h and 4 h.
Figure 3. The initial capacities as a function of specific discharge current at 333 K for the ZrNi electrodes with and without the boiling alkaline treatment for 2 h and 4 h.
Batteries 02 00030 g003
Batteries 02 00030 g004 550

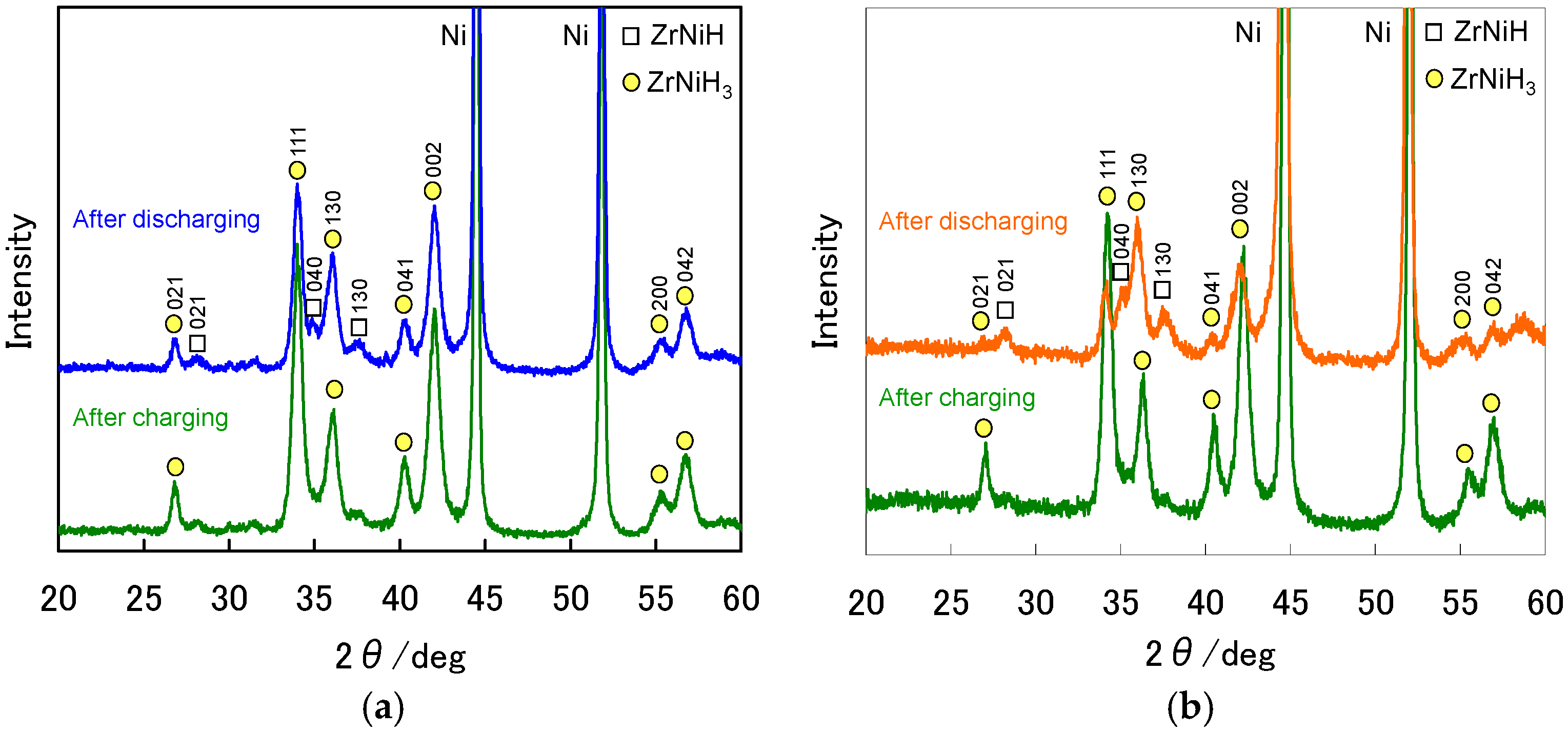

Figure 4. The X-ray diffraction (XRD) profiles after charging and discharging for the ZrNi electrodes: (a) without and (b) with the boiling alkaline treatment for 4 h.
Figure 4. The X-ray diffraction (XRD) profiles after charging and discharging for the ZrNi electrodes: (a) without and (b) with the boiling alkaline treatment for 4 h.
Batteries 02 00030 g004
Batteries 02 00030 g005 550

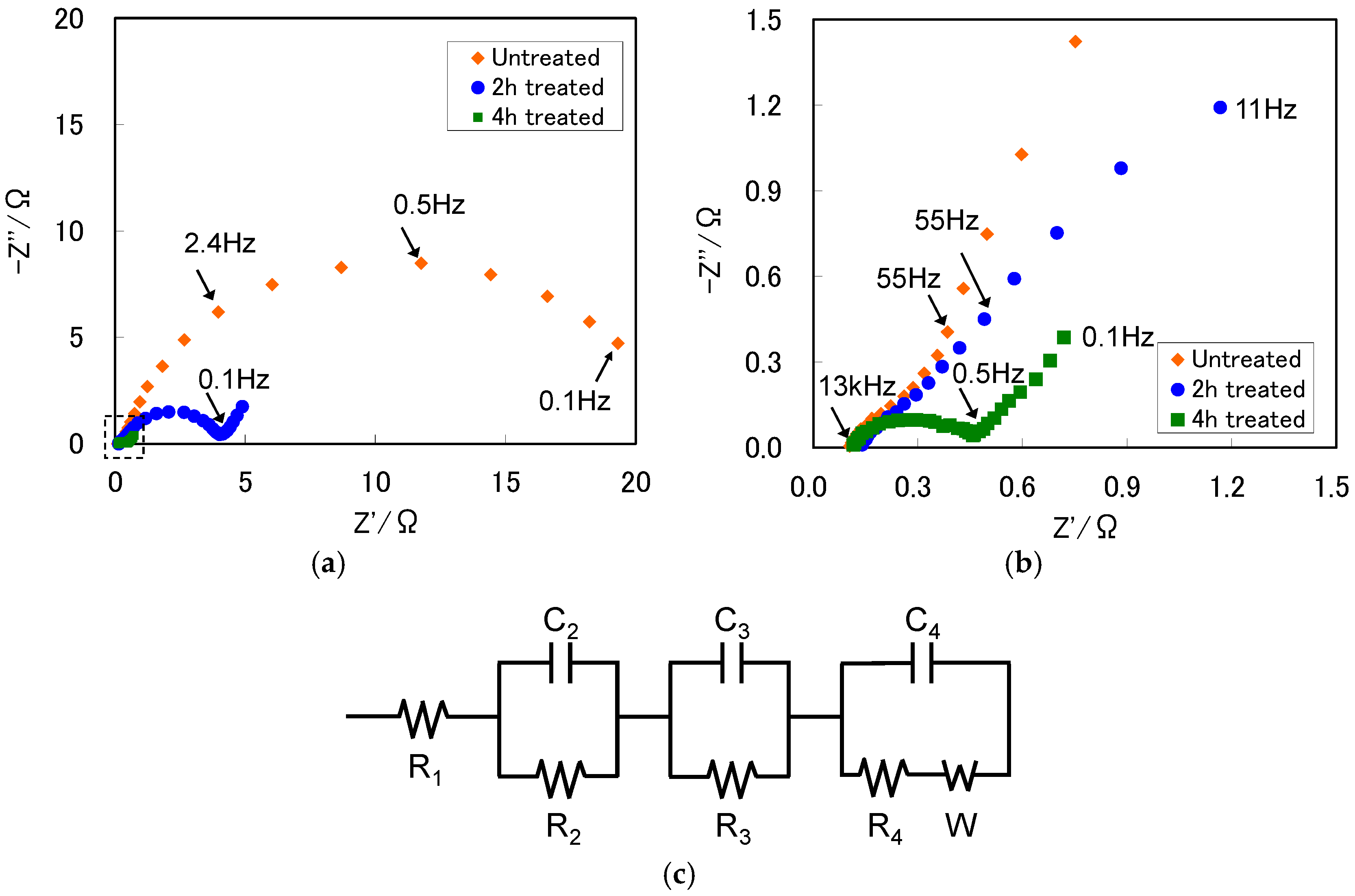

Figure 5. (a) Nyquist plots; (b) enlarged Nyquist plots for the fully charged ZrNi alloys with and without the boiling alkaline treatment for 2 h and 4 h; and (c) equivalent circuit.
Figure 5. (a) Nyquist plots; (b) enlarged Nyquist plots for the fully charged ZrNi alloys with and without the boiling alkaline treatment for 2 h and 4 h; and (c) equivalent circuit.
Batteries 02 00030 g005
Batteries 02 00030 g006 550

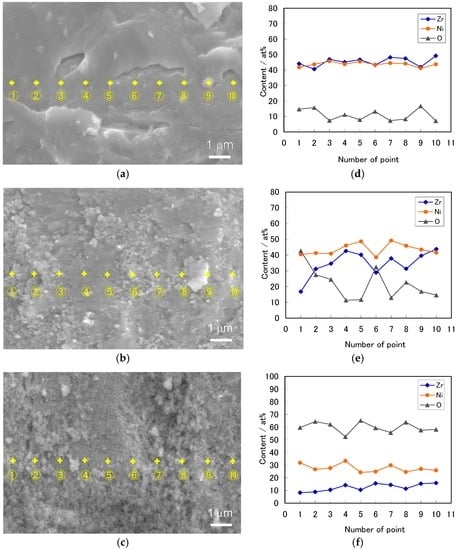

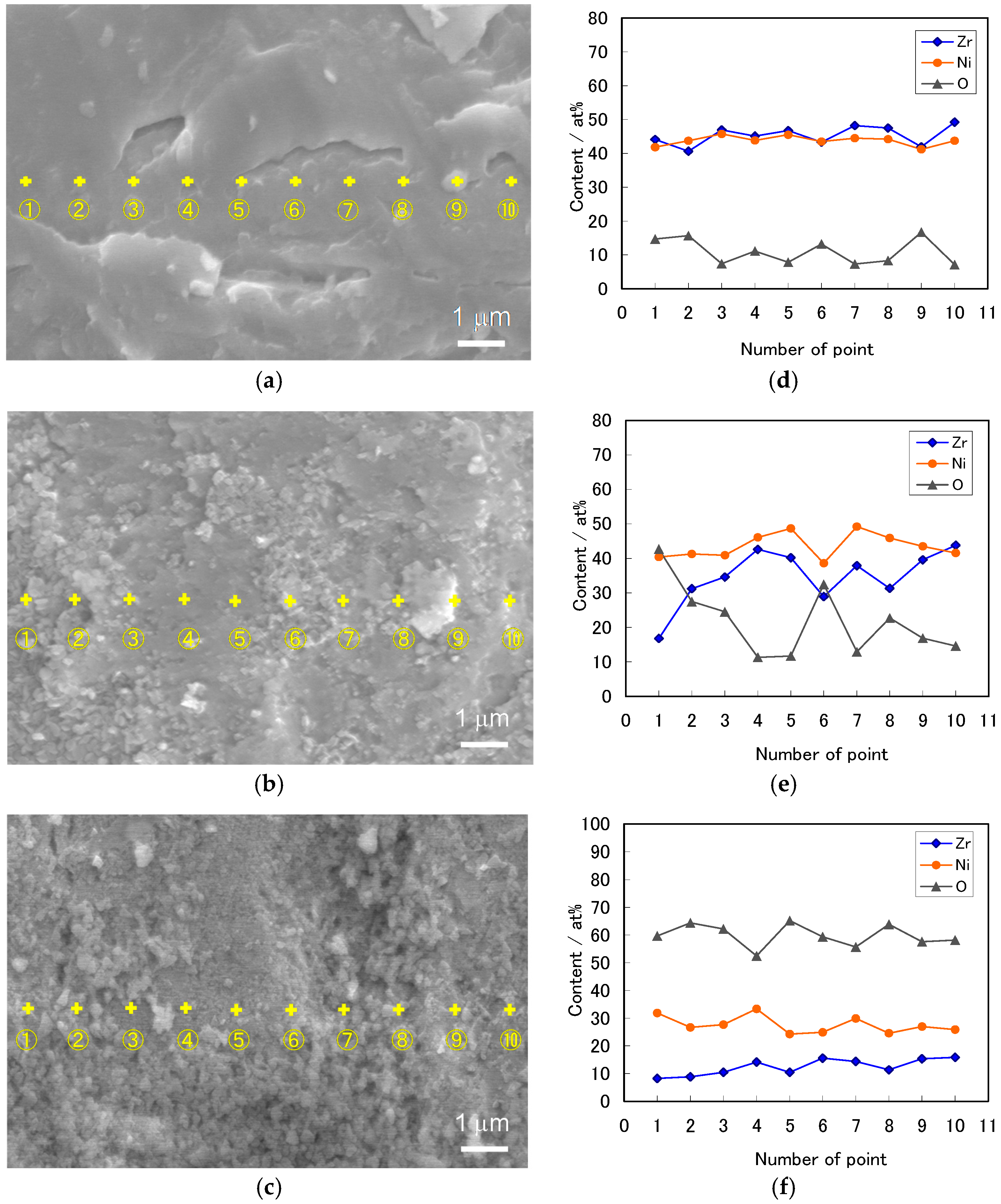

Figure 6. The scanning electron microscopy (SEM) images and Zr, Ni, and O contents at 10 spots analyzed by energy dispersive X-ray (EDX) for the ZrNi alloy powders with and without the boiling alkaline treatments for 2 h and 4 h: (a,d) untreated; (b,e) 2 h; and (c,f) 4 h.
Figure 6. The scanning electron microscopy (SEM) images and Zr, Ni, and O contents at 10 spots analyzed by energy dispersive X-ray (EDX) for the ZrNi alloy powders with and without the boiling alkaline treatments for 2 h and 4 h: (a,d) untreated; (b,e) 2 h; and (c,f) 4 h.
Batteries 02 00030 g006
Table
Table 1. Resistances (R1–R4) and capacitances (C2–C4) for the ZrNi negative electrode with and without the alkaline treatment for 2 h and 4 h.
Table 1. Resistances (R1–R4) and capacitances (C2–C4) for the ZrNi negative electrode with and without the alkaline treatment for 2 h and 4 h.
Treatment TimeR1/ΩR2/ΩR3/ΩR4/ΩC2/FC3/FC4/F
Untreated0.124.390.1316.160.0173.68 × 10−314.76 × 10−3
2 h0.121.580.163.622.783.79 × 10−321.50 × 10−3
4 h0.110.670.110.273.602.04 × 10−375.79 × 10−3
Table
Table 2. Chemical composition of the ZrNi alloy powers with and without the boiling alkaline treatment for 2 h and 4 h.
Table 2. Chemical composition of the ZrNi alloy powers with and without the boiling alkaline treatment for 2 h and 4 h.
Treatment TimeContent/at%TotalZr/Ni
ZrNi
Theoretical50.0050.00100.001.00
Untreated49.7649.3799.131.00
2 h48.8549.7898.630.98
4 h47.3248.6195.930.97
