Prospective Obstacles and Improvement Strategies of Manganese-Based Materials in Achieving High-Performance Rechargeable Zinc–Air Batteries

Abstract

Zinc–air batteries (ZABs) are crucial for renewable energy conversion and storage due to their cost-effectiveness, excellent safety, and superior cycling stability. However, developing efficient and affordable bifunctional electrocatalysts for the oxygen reduction reaction (ORR) and the oxygen evolution reaction (OER) at the air cathode remains a significant challenge. Manganese (Mn)-based materials, known for their tunable oxidation states, adaptable crystal structures, and environmental friendliness, are regarded as the most promising candidates. This review systematically summarizes recent advances in Mn-based bifunctional catalysts, concentrating on four primary categories: Mn–N–C electrocatalysts, manganese oxides, manganates, and other Mn-based compounds. By examining the intrinsic merits and limitations of each category, we provide a comprehensive discussion of optimization strategies, which include morphological modulation, structural engineering, carbon hybridization, heterointerface construction, heteroatom doping, and defect engineering, aimed at enhancing catalytic performance. Additionally, we critically address existing challenges and propose future research directions for Mn-based materials in rechargeable ZABs, offering theoretical insights and design principles to advance the development of next-generation energy storage systems.

1. Introduction

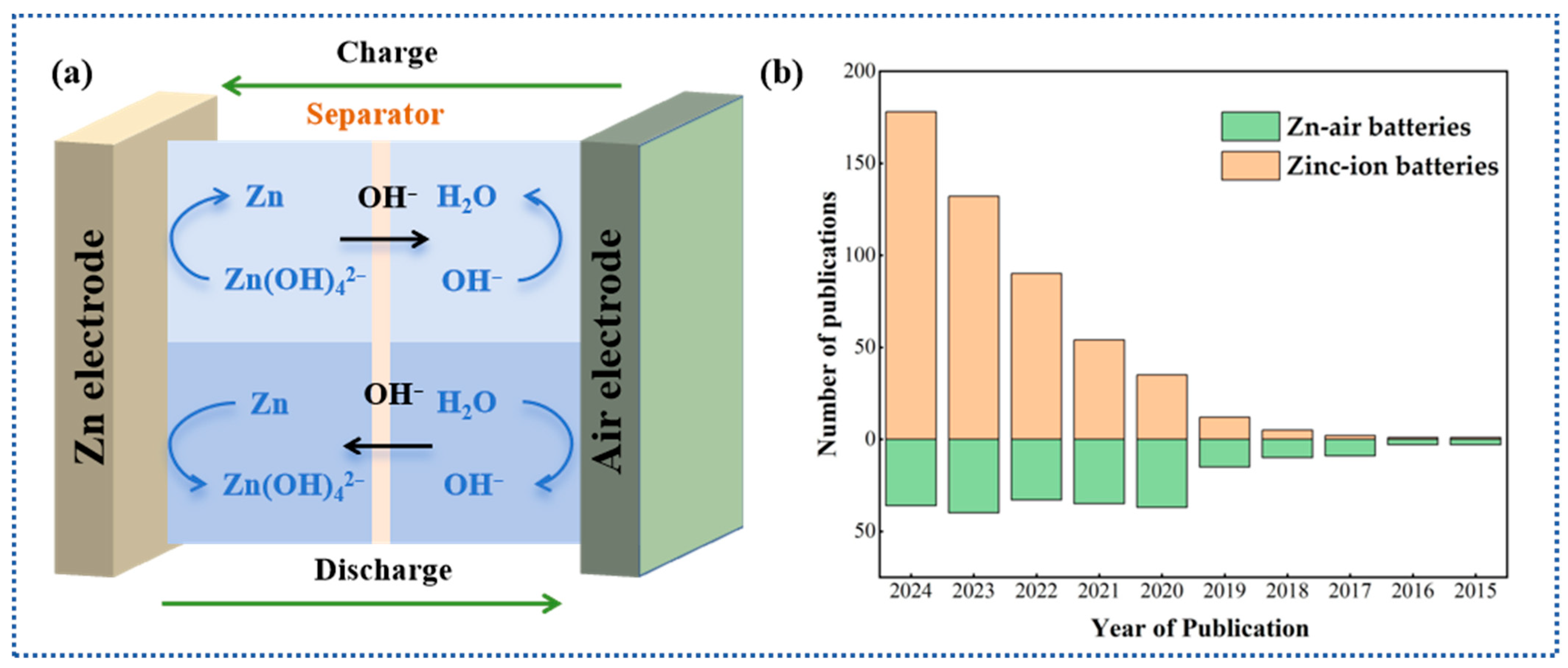

Rechargeable zinc–air batteries (ZABs) are emerging as a critical research focus within the future energy landscape due to their exceptional theoretical energy capacity (up to 1086 Wh kg⁻¹), cost-effectiveness, inherent operational safety, coupled with excellent cyclability during charge–discharge cycles, and the widespread availability of zinc raw materials globally [1]. However, the large-scale application of the current state-of-the-art ZABs is still hindered by several challenges, such as the deactivation and degradation of oxygen electrocatalysts, corrosion and passivation of zinc, as well as consumption and carbonization of the electrolyte [2,3,4]. Consequently, more efforts are required, including the development of efficient oxygen electrocatalysts, suppression of corrosion and dendrite growth on the zinc anode, and optimization and modification of the electrolyte, to enhance the reversibility of electrochemical redox reactions in rechargeable ZABs (Figure 1a). A typical rechargeable ZAB consists of four main components: a zinc anode, an air cathode, a liquid electrolyte, and a separator. The electrochemical reactions occurring at the two electrodes are as follows [5,6]:

Anode reaction of zinc:

Zn + 4OH⁻ → Zn(OH)₄²⁻ + 2e⁻

(1)

Zn(OH)₄²⁻ → ZnO + H₂O + 2OH⁻

(2)

Cathode reaction of air:

1/2O₂ + H₂O + 2e⁻ → 2OH⁻

(3)

The anode reaction of zinc is a two-step process. During discharge, zinc is first oxidized to form soluble zincate ions (Zn(OH)₄²⁻). When the electrolyte becomes supersaturated, the zincate ions decompose into insoluble ZnO. Meanwhile, at the air cathode, oxygen from the atmosphere diffuses into the gas diffusion layer and is immediately reduced to hydroxide ions upon contact with the alkaline electrolyte. During charging, the electrochemical reactions are reversed, with zinc metal being deposited from the aqueous electrolyte and oxygen being evolved and diffused out. However, the development of rechargeable ZABs is limited by the lack of robust and cost-effective catalysts to efficiently drive the ORR and OER at the air cathode [7,8].

Contemporary research on cathode catalysts for rechargeable ZABs predominantly focuses on two paradigms: noble metal-based and non-noble metal-based catalysts. While noble metal catalysts (e.g., IrO₂, RuO₂, Pt/C) exhibit superior electrocatalytic activity, their practical deployment is hindered by prohibitive costs, resource depletion risks, suboptimal selectivity, and compromised long-term durability under operational conditions [9,10]. In contrast, non-noble metal catalysts, particularly transition metal-based materials, demonstrate exceptional properties attributed to their variable oxidation states stemming from incompletely filled d-orbitals, superior electrical conductivity, and abundant active defect sites [11,12,13]. Among these, manganese-based catalysts exhibit promising application prospects in rechargeable ZABs due to the low reactivity of Mn²⁺ with H₂O₂, which effectively mitigates the Fenton reaction [14]. Moreover, their diverse oxidation states, crystalline structures, high catalytic activity, environmental compatibility, cost-efficiency, compositional versatility, and scalability collectively underscore their extensive applicability in rechargeable ZABs.

Although significant advances have been made in the development of manganese-based electrocatalysts for rechargeable ZABs, the existing literature predominantly focuses on their applications in alternative electrochemical systems, such as zinc-ion batteries, as shown in Figure 1b. As a result, there is a notable gap in the systematic summarization of catalytic mechanisms and optimization strategies tailored for rechargeable ZABs. This review delineates the research progress of manganese-based materials as air cathodes in rechargeable ZABs, categorizing them into four distinct classes (Scheme 1): Mn–N–C electrocatalysts, manganese oxides, manganates, and novel Mn-based compounds. For each material category, the unique characteristics, inherent limitations, and optimization strategies of Mn-based electrocatalysts are critically analyzed. Additionally, this review highlights the existing challenges, future development trends, and research prospects of Mn-based materials in rechargeable ZABs. By elucidating these aspects, the study aims to provide actionable insights for researchers, thereby accelerating the efficient advancement of rechargeable ZABs in energy storage applications.

2. Mn–N–C Electrocatalysts

Mn-based materials, either in metallic form or alloyed with other elements and encapsulated within nitrogen-doped porous carbon frameworks (denoted as Mn–N–C electrocatalysts), have demonstrated significant potential as oxygen electrocatalysts for rechargeable ZABs. This is ascribed to their high specific surface area, three-dimensionally interlinked conductive network, and remarkable stability in alkaline electrolyte environments. Within this configuration, the N-doped carbon matrix demonstrates dual functionality, serving as both an efficient conductive network for electron transfer and a structural separator preventing manganese species accumulation. This synergistic mechanism facilitates the homogeneous dispersion of catalytically active Mn centers throughout the composite architecture. Additionally, heteroatom doping introduces synergistic catalytic sites that further enhance electrocatalytic performance. Based on the structural attributes of active sites and the configuration of Mn species, Mn–N–C catalysts are systematically categorized into two discrete classes, which will be comprehensively delineated in the subsequent analysis.

2.1. Atomic Mn-N_x-C

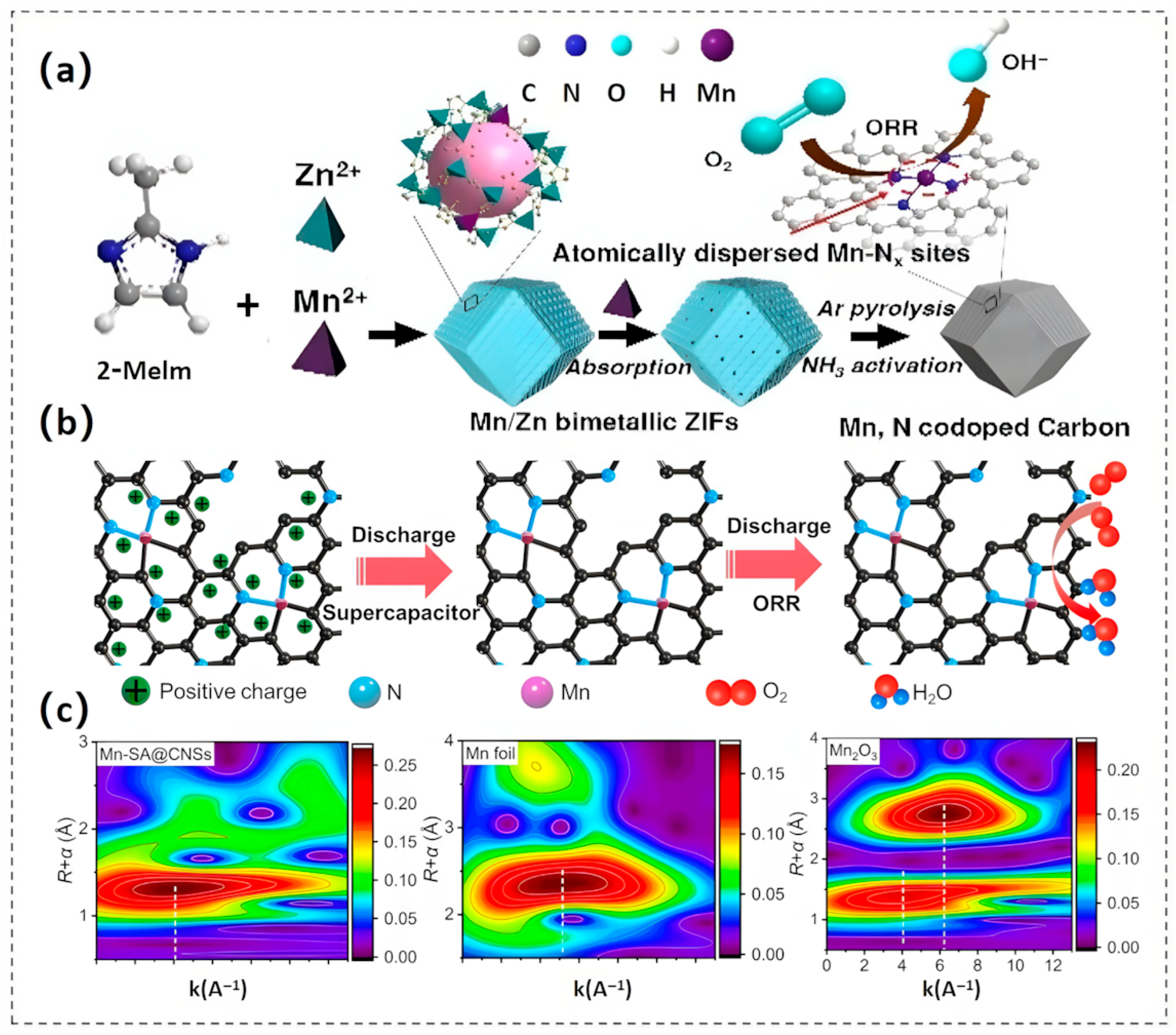

With the evolution of nanotechnology and advancements in catalyst characterization methodologies, surface atoms bearing unsaturated coordination configurations have been conclusively identified as the predominant active sites in heterogeneous catalytic reactions. Through the judicious control of the grain dimensionality, morphological architecture, and the exposed crystal facet ratios of catalytic materials, the topological arrangement and coordination environment of surface atoms can be strategically engineered to optimize catalytic efficacy. Notably, as catalyst architectures approach atomic-scale dimensions through cluster formation or isolated atomic distribution, the electronic configurations and reactive properties of Mn–N_x–C-based systems demonstrate substantial modifications. This reduction enables the maximal utilization of the active material by exposing isolated Mn–N_x coordination units, which synergistically optimize the adsorption/desorption kinetics of critical reaction intermediates and stabilize key reaction intermediates. Consequently, the catalyst demonstrates a marked enhancement in both electrocatalytic activity and operational stability. Currently, the synthetic strategies for atomic Mn–N_x–C catalysts predominantly encompass precursor engineering, coordination environment modulation, and spatial confinement techniques. These methodologies collectively stabilize the atomic dispersion of metal centers at the nanoscale, thereby effectively mitigating the propensity for metal atom migration across the carbonaceous substrate.

Morphological, structural, and functional regulation of Mn–N_x–C catalysts can be achieved through systematic modulation of precursor chemistry, reaction pathways, and transformation conditions. Specifically, atomic Mn–N–C catalysts are synthesized through a sequential adsorption–thermal decomposition strategy, utilizing bimetallic Mn/Zn-ZIF precursors with tailored topological frameworks. Significantly, the high-temperature-induced Zn volatilization from ZIF skeletons inhibits Mn nanoparticle coalescence, thereby facilitating the generation of atomically dispersed Mn–N_x moieties coordinated with nitrogen-based donors. Subsequent NH₃ activation (designated as Mn–N–C (2.0)) introduces carbon lattice defects, significantly increasing specific surface area (1557 m² g⁻¹) and microporosity (Figure 2a). This hierarchical architecture maximizes exposure of reactive Mn single-atom sites, conferring exceptional ORR activity in alkaline electrolytes [15]. Beyond MOF-derived precursors, salt-assisted templating strategies have emerged as a complementary approach for carbon structural engineering and single-atom site implantation. Li et al. [16] successfully fabricated Mn single-atom catalysts (MnSAs) anchored on nitrogen-doped mesoporous carbon (NMC) nanosheets via a salt-templated strategy, demonstrating that MnCl₂ acts as a bifunctional mediator for hierarchical pore formation and morphological tuning. The resulting MnSAs/NMC composite exhibits a highly interconnected mesoporous framework with abundant accessible active sites, facilitating efficient electron/ion diffusion pathways (Figure 2b). When utilized as the cathode material in rechargeable ZABs, the MnSAs/NMC-based rechargeable ZABs exhibit an open-circuit voltage (OCV) of 1.52 V, attains a peak power density of 210.3 mA cm⁻² under a specified current density, and presents a specific capacity of 842 mAh g⁻¹. These performance metrics collectively outperform those of a rechargeable ZABs employing a Pt/C-based cathode.

In addition to the previously mentioned engineering approaches, heteroatomic species such as nitrogen, sulfur, phosphorus, and oxygen can serve as stable coordination sites for metal atoms. This capability facilitates the rational design of atomically dispersed Mn–N_x–C catalysts by enhancing interactions between the metal and the support (as illustrated in Figure 2c). For example, by tailoring the N/O coordination microenvironments, researchers can engineer the atomic-level electron delocalization of the d-orbitals in manganese single-atom (Mn-SA) centers [17]. Theoretical calculations based on DFT reveal that transitioning the coordination environment of Mn-SA centers from exclusive nitrogen coordination Mn-(N-C₂)₄ to hybrid N/O-coordinated Mn-(N-C₂)₂(O-C₂)₂ configuration modifies the electronic distribution of the d-orbitals. This alteration consequently affects the binding energies of the ORR intermediates at the catalytic Mn-SA sites. The electronic reconfiguration resulting from N/O dual-ligand coordination significantly reduces the kinetic barrier for oxygen reduction, allowing Mn-SA@CNSs catalysts to achieve exceptional electrocatalytic performance in the ORR.

Unlike traditional methods that introduce Mn single atoms through precursors and coordinate them with heteroatoms, the spatial confinement strategy takes advantage of the unique architecture of molecular cages to securely anchor metal atoms in a confined space (

Table 1. ORR performance and ZAB metrics of reported atomic Mn–N_x–C catalysts.

Electrocatalysts	Loading [Mn Atoms]	ORR	Performance (ZABs)				Ref.
		E1/2 [V]	OCV [V]	Specific Capacity [mAh·g−1]	Peak Power Density [mW cm−2]	Stability
Mn-NÀC (2.0)	0.035 wt%	0.885	1.53	828.1	116.6	3000 cycles	[15]
MnSAs/NMC	1.61 wt%	0.9	1.52	842	210.3	200 h@ 10 mA cm−2	[16]
MnNCS-4-800	0.20 wt%	0.89 (acidic) 0.71 (alkaline)	1.51	796.43	233	-	[18]
MnSA-MnP-980	-	0.88	-	-	51	27 h@2 mA cm−2	[19]
Mn-N-C-35	1.71 wt%	0.92 (acidic) 0.78 (alkaline)	-	655	176	250,000 s cycle test at 10 mA cm−2	[20]
Mn-N2S2-C	0.7 wt%	0.91	1.51	780.4	193	250 h@10 mA cm−2	[21]
Mn-N3-O	-	0.900	1.53	-	210	>350 h@10 mA cm−2	[22]
Mn/NDC	0.2 wt%	-	1.48	1.29	268.5	>1600 h@20 mAcm−2	[23]
Mn-N-P-C	1.54 wt%	0.82	1.45	830	133	-	[24]
Mn@NC-900	1.17 wt%	0.900	1.33	-	118	20,000 s	[25]
Mn-N-C	-	0.87	1.55	-	141	100 h@10 mA cm−2	[26]

). This approach effectively restricts their movement and prevents aggregation. For example, the ZIF-8 nanocages possess intrinsic spatial confinement properties that facilitate the efficient trapping of individual Mn(acac)₃ molecules within their internal cavities, as demonstrated by Xu and his team [4]. This methodology significantly reduces manganese agglomeration during thermal treatment by enhancing thermodynamic coordination with nitrogen dopants, which optimizes the stabilization process for creating Mn-N_x catalytic sites. Structural characterization and performance evaluations confirmed that the atomically dispersed Mn-N-C-900 material exhibited exceptional ORR kinetics and electrochemical durability.

2.2. Mn-Based Alloys Confined in N-Doped C

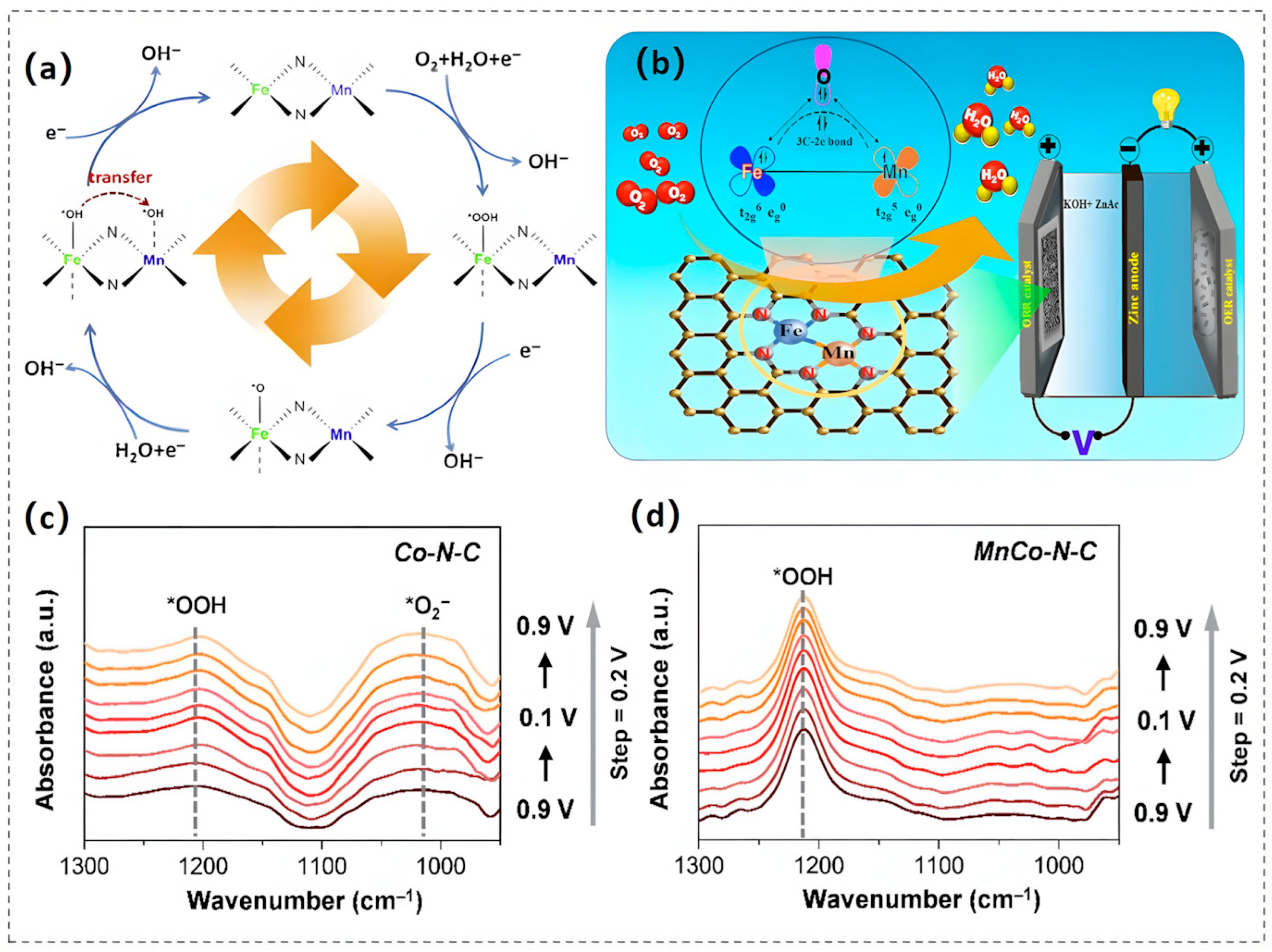

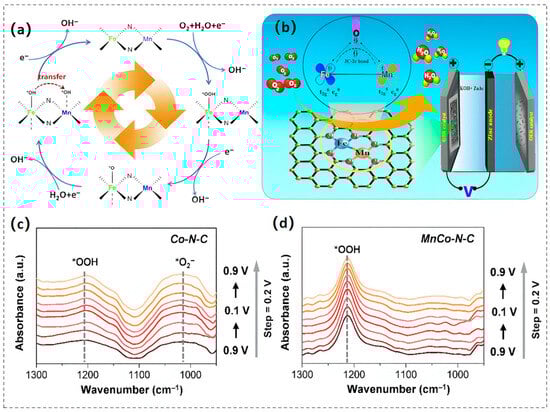

The integration of manganese-based alloys, such as MnFe and MnCo, enhances the modulation of their electronic structure, improves electron conduction efficiency, and increases the density of active sites for reversible oxygen electrocatalysis. The geometric architectures of the Mn–AMA active sites (with AMA representing another metallic component, such as Fe or Co) can be categorized into two main structures: (1) an isolated bimetallic site structure that features both Mn-N₄ and AMA-N₄ moieties; and (2) a bridged bimetallic bonding structure, where direct coordination between manganese and ANA creates a Mn-AMA dimer, resulting in an N₃-Mn-AMA-N₃ coordination geometry.

Experimental and theoretical investigations have demonstrated that Fe-N moieties exhibit optimal adsorption/desorption energies during catalytic processes, conferring exceptional ORR activity and OER performance(in Table 2). Consequently, MnFe-N-C materials have been engineered to exploit the synergistic coupling of Fe-N_x and Mn-N_x active centers for enhanced electrocatalysis. To illustrate, Chen and colleagues synthesized a Mn-Fe bimetallic dual-site catalyst (Fe/Mn-N_x-C/NC) with isolated active sites, revealing a Mn-Fe cooperative cascade mechanism for O₂ activation [27]. Specifically, Fe sites facilitate O₂ protonation to form *OOH and *O, followed by *OH transfer to adjacent Mn-N_x sites, thereby optimizing activity by mitigating weak *OH binding at single-metal sites (Figure 3a). The activation energy barrier for this pathway is significantly lower than that of isolated Fe-N_x or Mn-N_x sites, surpassing Pt/C in ORR activity and exhibiting superior rechargeable ZAB performance. To optimize catalytic performance, a high-activity FeMn-N/S-C-1000 catalyst was developed by incorporating dual heteroatoms (N/S) into a carbon-based framework through high-temperature pyrolysis [28]. The catalytic core of the FeMn-N₅/S-C configuration demonstrates superior inherent activity toward both ORR/OER, serving as the principal active site for bifunctional electrocatalytic processes. The N/S co-doping strategy expands the surface area, enhances active site dispersion, and modulates the electronic structures of Fe and Mn, thus accelerating reaction kinetics. Furthermore, the N₃–Mn–Fe–N₃ configuration exhibits remarkable performance in rechargeable ZABs. The carbon-based catalyst co-doped with Fe, Mn, and N, synthesized through pyrolysis of fish gill biomass (designated as Fe, Mn, N-FGC), exhibits pronounced pH-universal oxygen reduction performance. This catalytic capability facilitates exceptional operational stability in rechargeable ZAB applications, obtaining a maximum power output of 220 mW cm⁻² under alkaline conditions. Spectroscopic and computational analyses reveal that the π–electron repulsion between adjacent Fe²⁺ centers within the Fe–Mn bimetallic pair modulates the electronic structure of Mn²⁺, leading to strengthened π–conjugation interactions. This electronic tuning stabilizes the 3C-2e⁻ oxygen intermediate bond, thereby promoting enhanced O₂ adsorption and activation at the heteronuclear catalytic sites (Figure 3b). Consequently, the energy barrier for ORR is significantly reduced versus monometallic Mn-N-C counterparts [29].

The unique electronic configuration of cobalt (featuring partially occupied d-orbitals) endows it with exceptional coordination capability toward organic ligands, enabling its effective encapsulation within zeolitic imidazolate frameworks (ZIFs). Leveraging the ZIF architecture, Chao’s research group synthesized bimetallic Mn-Co and nitrogen co-doped carbon matrix catalyst (MnCo-N-C) for ORR, demonstrating a synergistic catalytic mechanism mediated by atomically dispersed CoN_x and MnN_x sites acting as dual active centers [30]. Mechanistic investigations revealed that, in contrast to monometallic Co-N-C catalysts, the MnCo-N-C catalyst optimizes ORR kinetics through modulated electronic distribution between Mn and Co. This modulation enhances the adsorption of the *OOH intermediate, promoting the 4e⁻ ORR pathway, while concurrently weakening the binding of the *O₂ intermediate to mitigate oxidative attack from H₂O₂, thereby enhancing the catalyst’s durability (Figure 3c,d). Furthermore, the atomic-scale configuration of Mn-Co bimetal centers may adopt a coordination architecture where manganese and cobalt atoms establish covalent linkages within nitrogen-rich porous carbon matrices, forming N₃-Mn-Co-N₃ moieties. DFT calculations unveiled that this configuration facilitates a −O−O− bridged adsorption model, accelerating O−O bond cleavage thus promoting an efficient 4e⁻ transfer reaction. Additionally, the cooperative interaction between Mn and Co active centers provides two anchoring sites conducive to metal−oxygen bond formation, thereby lowering the activation energy of the rate-limiting O₂ activation step and expediting ORR kinetics. Consequently, the MnCo-N-C catalyst shows remarkable ORR kinetics in proton-conducting electrolytes [31].

Table 2. Electrocatalytic ORR performance and ZABs of Mn-based alloys confined in N-doped carbon.

Electrocatalysts	ORR	Performance (ZABs)				Ref.
	E1/2 [V]	OCV [V]	Specific Capacity [mAh g−1]	Peak Power Density [mW cm−2]	Stability
Fe/Mn-Nx-C	0.88	-	-	208.6	>18 h@10 mA cm−2	[27]
FeMn-N/S-C-1000	0.924	1.45	-	346	90 h@10 mA cm−2	[28]
CoMn/NC	0.82 (acidic) 0.89 (alkaline)	1.487	-	176	>30 h@40 mA cm−2	[31]
Fe/Mn-N/C	0.891	1.35	-	178.18	-	[32]
Z-Fe1Mn1-NC	0.80 (acidic) 0.82 (alkaline)	1.475	596.0 −	164.3	-	[33]
PBA-MnCo-N-C	0.859	1.48	917.31	102.25	>167 h	[34]
FeMn ac/Mn-N4C	0.79	1.46	-	207	100 h	[35]
Co3Fe7/N, Mn-PC	0.87	-	-	-	2000 cycles	[36]
MnNC-PDA-700	0.87	-	760.2	122.7	10,000 cycles	[37]
Mn-Fe@NCNTs	0.80 (acidic) 0.872 (alkaline)	1.487	628.7	139.2	29,000 s	[38]
FeMn(mIm)-N-C	0.778 (acidic) 0.861 (alkaline)	1.518	-	160	20,000 s	[39]
FeMn-DSAC	0.922	1.45	-	184	80 h@ 2mA cm−2	[40]
MnCoZn-NC	0.88	1.50	-	119.2	>150 h	[41]
MnCoNi-C-D	-	1.46	841.3	116.4	>180 h	[42]

Table 2. Electrocatalytic ORR performance and ZABs of Mn-based alloys confined in N-doped carbon.

Electrocatalysts	ORR	Performance (ZABs)				Ref.
	E1/2 [V]	OCV [V]	Specific Capacity [mAh g−1]	Peak Power Density [mW cm−2]	Stability
Fe/Mn-Nx-C	0.88	-	-	208.6	>18 h@10 mA cm−2	[27]
FeMn-N/S-C-1000	0.924	1.45	-	346	90 h@10 mA cm−2	[28]
CoMn/NC	0.82 (acidic) 0.89 (alkaline)	1.487	-	176	>30 h@40 mA cm−2	[31]
Fe/Mn-N/C	0.891	1.35	-	178.18	-	[32]
Z-Fe1Mn1-NC	0.80 (acidic) 0.82 (alkaline)	1.475	596.0 −	164.3	-	[33]
PBA-MnCo-N-C	0.859	1.48	917.31	102.25	>167 h	[34]
FeMn ac/Mn-N4C	0.79	1.46	-	207	100 h	[35]
Co3Fe7/N, Mn-PC	0.87	-	-	-	2000 cycles	[36]
MnNC-PDA-700	0.87	-	760.2	122.7	10,000 cycles	[37]
Mn-Fe@NCNTs	0.80 (acidic) 0.872 (alkaline)	1.487	628.7	139.2	29,000 s	[38]
FeMn(mIm)-N-C	0.778 (acidic) 0.861 (alkaline)	1.518	-	160	20,000 s	[39]
FeMn-DSAC	0.922	1.45	-	184	80 h@ 2mA cm−2	[40]
MnCoZn-NC	0.88	1.50	-	119.2	>150 h	[41]
MnCoNi-C-D	-	1.46	841.3	116.4	>180 h	[42]

3. Manganese Oxide

Manganese oxides, including MnO, MnO₂, Mn₃O₄, and Mn₂O₃, have been recognized as competitive bifunctional electrocatalysts for electrochemical reactions. This performance is attributed to their adaptable 3d electronic structures, varying polymorphic phases, and properties that can be tailored through modifications in morphology [43]. The related electrochemical performances are listed in Table 3. However, the inherent semiconductor characteristics of manganese oxides limit the accessibility of electroactive sites, hinder mass transport processes, and decrease charge mobility, which ultimately leads to suboptimal electrocatalytic efficiency. To address these challenges, researchers have developed several effective strategies. Among the most commonly used approaches are compositing with conductive materials, modifying morphology, fabricating heterostructures, and implementing doping modifications.

3.1. MnO

The rock-salt-type crystal structure of manganese oxide (MnO) is relatively stable, allowing it to maintain its structural integrity effectively. However, during prolonged charge–discharge cycling, MnO can undergo phase transformations or structural degradation, which may lead to a decline in its catalytic activity and electrical conductivity. To address these issues, researchers have developed various optimization strategies. One promising approach involves fabricating MnO-based composites using graphene derivatives and porous carbonaceous matrices, which have proven effective in enhancing electrochemical performance. Additionally, nitrogen doping can be used to adjust the electronic configuration and improve the inherent electronic conductivity of the material. In a notable study, a light-driven synthesis strategy was employed to prepare highly crystalline Mn₃O₄ nanoparticles [44]. Subsequently, these nanoparticles were anchored onto nitrogen-doped reduced graphene oxide (N-rGO) through a one-step calcination process. This innovative strategy effectively yielded a MnO/N-rGO composite electrocatalyst, which demonstrated exceptional catalytic performance. Electrochemical evaluations in alkaline media revealed an E_1/2 of 0.843 V for the hybrid material, accompanied by outstanding resistance to methanol crossover and significant durability over extended operational periods.

Moreover, the integration of additional metal (such as Co [45,46], Cu [47]) onto nitrogen-doped carbon-coated MnO presents a more efficient method for enhancing its dual-functional oxygen electrocatalytic performance compared to single-component systems. Recent breakthroughs in core–shell-structured MnO@Cu-N-C nanorods have showcased remarkable bifunctional catalytic capabilities [47]. This excellent electrocatalytic behavior arises from the well-defined interfacial synergy inherent in the heterostructure design, which promotes efficient electron transport at the MnO-Cu-N-C junction interface. Concurrently, the architecture precisely modulates the binding energetics of critical oxygen intermediates (*O, *OH, *OOH) during adsorption and desorption processes, thereby optimizing reaction kinetics. As a direct consequence, these optimized kinetic processes accelerate the rates of the OER and the ORR (Figure 4a). The rechargeable ZABs assembled with this catalyst attained a peak power density of 196.8 mW cm⁻² and exhibited stable charge–discharge cycling performance, sustaining over 650 h of cycling without significant performance degradation, as shown in Figure 4b.

Unlike the construction of composite materials, the engineering of metal/metal oxide heterointerfaces primarily focuses on enhancing catalytic performance through electronic effects, lattice matching, and chemical bonding at the interface [48,49]. As illustrated in Figure 4c, Ji and his team pioneered the controlled synthesis of Ni|MnO heterostructure interfaces embedded within porous carbon nanofiber matrices (Ni|MnO/CNF) by leveraging carboxyl-functionalized carbon nanotubes as reactive templates for stabilizing metal-ion precursors [50]. At the Ni|MnO heterointerface, Ni-Mn alloy nanobridges establish a covalent linkage that stabilizes the interface by reinforcing interfacial adhesion. This architecture inhibits catalyst particle coalescence through steric hindrance and suppresses activity decay by blocking grain boundary migration during electrochemical cycling. DFT calculations indicate that the formation of this interface triggers lattice distortion within the MnO sub-lattice. This distortion leads to an elongation of Mn-O bond lengths and a modification of the electronic configuration of Mn atoms. Nearby Ni atoms serve as electron-donating species, causing a downward shift in their d-band centers. The synergistic interplay between electronic redistribution and charge transfer mechanisms optimizes the thermodynamic stability of reactive intermediates adsorbed on catalytic surfaces, thereby conferring superior bifunctional activity.

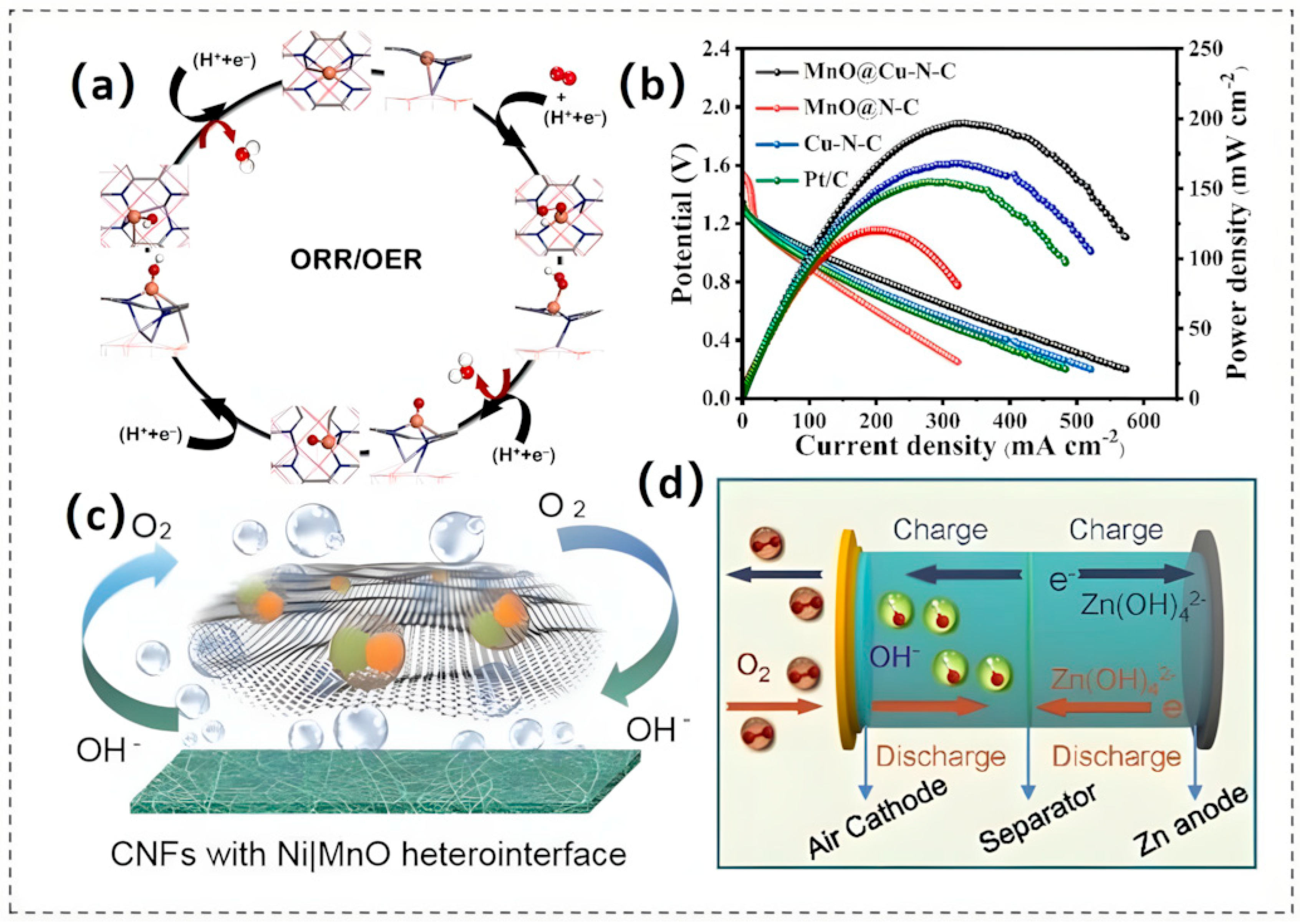

Figure 4. (a) Refined structural configurations (exhibiting both top and side perspectives) of the intermediates involved in the ORR and OER adsorbed onto the MnO@Cu-N-C substrate. (b) Polarization characteristics and power density profiles of the Zn–air battery utilizing MnO@Cu-N-C or Pt/C as the catalytic agent. Reproduced with permission [47]. Copyright 2022 Elsevier. (c) Depiction of Ni|MnO CNF serving as a dual-function oxygen catalyst. Reproduced with permission [50]. Copyright 2020 Wiley-VCH GmbH. (d) Diagrammatic layout of the Zn–air battery. Reproduced with permission [43]. Copyright 2022 Elsevier.

Figure 4. (a) Refined structural configurations (exhibiting both top and side perspectives) of the intermediates involved in the ORR and OER adsorbed onto the MnO@Cu-N-C substrate. (b) Polarization characteristics and power density profiles of the Zn–air battery utilizing MnO@Cu-N-C or Pt/C as the catalytic agent. Reproduced with permission [47]. Copyright 2022 Elsevier. (c) Depiction of Ni|MnO CNF serving as a dual-function oxygen catalyst. Reproduced with permission [50]. Copyright 2020 Wiley-VCH GmbH. (d) Diagrammatic layout of the Zn–air battery. Reproduced with permission [43]. Copyright 2022 Elsevier.

3.2. MnO₂

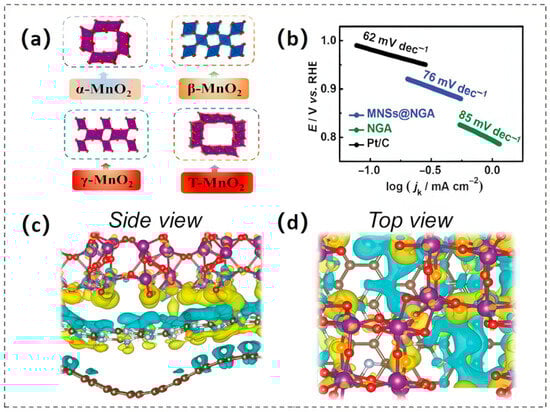

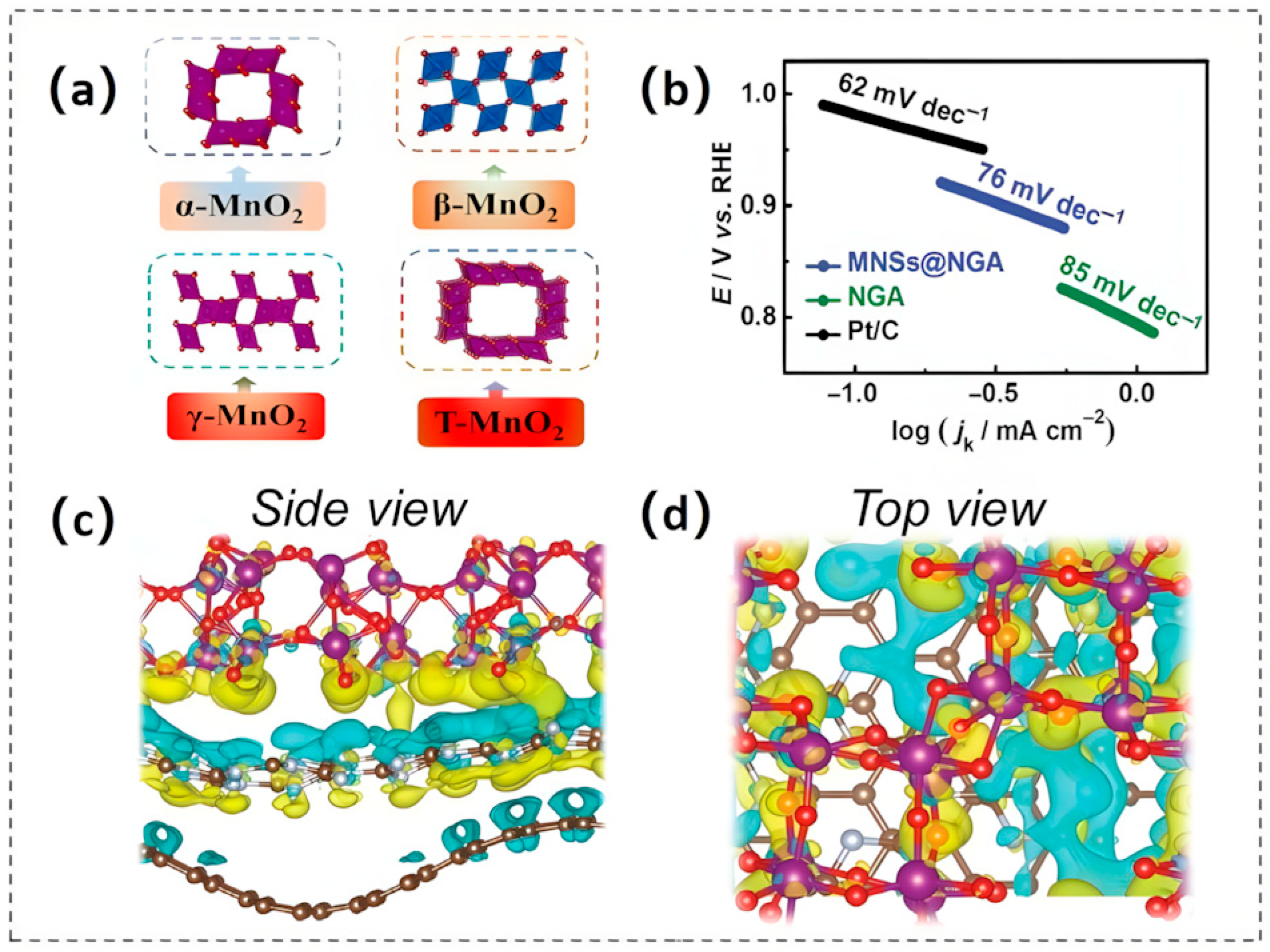

Manganese dioxide (MnO₂), a pivotal member of the manganese oxide family, exhibits exceptional potential serving as a dual-functional electrocatalyst enabling OER/ORR, attributed to its tunable crystal structures, high intrinsic conductivity, and reversible redox kinetics. Its fundamental structural unit is the [MnO₆] octahedron, which forms various crystal structures such as cryptomelane (α-MnO₂), pyrolusite (β-MnO₂), and birnessite (δ-MnO₂) through different stacking and connection patterns. α-MnO₂ comprises two types of tunnel structures: [2 × 2] tunnels (0.46 nm × 0.46 nm) and [1 × 1] tunnels (0.23 nm × 0.23 nm) [51]. The [2 × 2] tunnel architecture, comprising corner- and edge-coordinated [MnO₆] octahedra that form interconnected voids accommodating hydrated cations or solvent species, amplifies the electrochemically accessible surface area (EASA) through exposure to high-energy Mn sites and facilitates mass transport via ordered ion/molecule diffusion pathways within the periodic lattice [52]. β-MnO₂ exhibits a [1 × 1] tunnel framework constituted by edge-linked [MnO₆] octahedral chains bridged via vertex sharing, yielding one-dimensional confined channels with restricted ionic accessibility. In contrast, δ-MnO₂ adopts a layered structure stabilized by interlayer van der Waals interactions, enabling open interlayer galleries for facile ion intercalation and a high specific surface area [53]. Amorphous MnO₂ (AMO) lacks long-range order, with [MnO_6] octahedra randomly cross-linked, resulting in a defect-rich and structurally heterogeneous electrocatalytic interface (Figure 5a). Electrocatalytic activity trends of MnO₂ polymorphs in alkaline media exhibit structure-dependent hierarchy: α-MnO₂ (2 × 2 tunnels) surpasses AMO, β-MnO₂, and δ-MnO₂ in activity, attributed to its optimal balance between accessible surface sites and ionic conductivity [54]. However, this ranking is morphology- and electrolyte-sensitive, as the activity of MnO_x-based catalysts is further modulated by surface facet exposure, interlayer spacing, and alkali cation co-intercalation [53].

MnO₂ exhibits low intrinsic electronic resistivity (10⁻⁵–10⁻⁶ S/cm), which imposes kinetic constraints on charge storage kinetics, particularly at high current densities. To address this issue, MnO₂ is often supported on conductive carbonaceous scaffolds (e.g., graphene sheets [57], carbon nanotube arrays [58], and carbon nanofiber networks) to engineer charge transfer pathways and enhance overall electrochemical utilization efficiency. Additionally, morphologically engineering MnO₂ at the nanoscale can optimize charge transport and enhance mass transfer capabilities. For instance, a study presented a hierarchical aerogel composite comprising manganese dioxide nanosheets (MNSs) and nitrogen-doped graphene aerogel (NGA), which was denoted as MNSs@NGA [55]. In this architecture, NGA acts as a conductive carbon scaffold, establishing a percolative electron-conducting pathway for MNSs while simultaneously engaging in strong interfacial heteroatomic coupling with MnO₂ via Mn-O-C/Mn-N covalent bonding. Such synergistic nanostructuring enables accelerated electron-ion co-transport, as evidenced by the Koutecky–Levich (K-L) analysis indicating a dominant 4e⁻ ORR pathway. The low Tafel kinetic parameter further confirms its efficient ORR catalytic activity (Figure 5b).

Beyond augmenting the electrical conductivity of MnO₂, carbonaceous substances play a pivotal role in promoting the formation of surface oxygen vacancies (V_o) within the lattice framework of α-MnO₂. The presence of V_o optimizes electron localization, anchors high-spin Mn (III) species in oxidized states, and consequently boosts the bifunctional catalytic efficiency of MnO₂. A dual-carbon heterostructure strategy was employed, in which protonated carbon nitride (p-C₃N₄) was assembled with lignin-derived nitrogen/phosphorus co-doped activated carbon (NPAC). This composite was then integrated with oxygen vacancy modulation to synthesize a MnO₂-based bifunctional oxygen electrocatalyst (MCC) (Figure 5c,d) [56]. DFT simulations demonstrated that the superior catalytic activity of MCC originates from interfacial electronic hybridization between the dual-carbon supports and MnO₂. Specifically, the d-band center of Mn in MCC (−1.238 eV) exhibits an upward shift (ΔE = +0.361 eV) relative to that in pristine MnO₂ (−1.599 eV), approaching the Fermi level. This electronic reconfiguration stabilizes the adsorption geometries of oxygen intermediates and optimizes the kinetic barriers for both the ORR and OER.

Moreover, cation doping proposes a structure–activity modulation approach for tailoring the electronic configuration of MnO₂ and optimizing its electrocatalytic performance. Zheng and colleagues fabricated a cobalt–nickel co-doped MnO₂ nanorod catalyst with a tunnel-type architecture, self-supported on conductive microfibrous carbon substrates, using a hydrothermal synthesis approach [59]. These cations (Co or Ni) partially substitute Mn ions within the [MnO₆] octahedral framework through substitutional doping, thereby modulating the electronic configuration of MnO₂ by elevating the proportion of Mn³⁺ species, which subsequently induces structural deformation of the [MnO₆] octahedra through the Jahn–Teller effect. Doping substantially improves the kinetics of the ORR, as demonstrated by a positive shift in the E_1/2 exceeding 20 mV and a rise in the limiting current density. The close approximation to the ideal 4e⁻ transfer pathway further corroborates this enhancement. For the OER, the doped catalysts show a reduction in overpotential at 10 mA cm⁻² and achieve a 600% enhancement in current density relative to pristine MnO₂ at 1.76 V (vs. RHE), demonstrating synergistic bifunctional electrocatalytic activity. In contrast, a molten-salt-mediated synthesis approach was utilized to seamlessly incorporate Ru ions into the MnO₂ crystal lattice, culminating in the successful fabrication of Mn_0.3Ru_0.7O₂ nanosheets [60]. The solid-solution structure formed as a result facilitated the reallocation of interatomic charges between Ru and Mn atoms. Consequently, it adjusted the electronic surroundings of Mn sites by reducing their oxidation states and elevating the position of the d-band center. This electronic modulation strengthened the binding affinity of Mn sites towards oxygen-containing intermediates, which in turn expedited the kinetics of the ORR. Meanwhile, the Ru sites demonstrated elevated oxidation states and downshifted d-band centers, weakening oxygen intermediate adsorption and favoring OER kinetics. Thus, Mn_0.3Ru_0.7O₂ nanosheets exhibited superior bifunctional catalytic activity. Analogous to cation doping, the anchoring of metal oxides (MO_x, M = Fe, Co, Ni) on MnO₂ surfaces can also supply metal cations to modulate its electronic structure and catalytic performance. In hierarchical hybrid catalysts, MO_x species activate Mn active sites by back-donating electrons to Mn 3d orbitals, shifting their density toward lower energy levels and weakening intermediate binding. Remarkably, the anchoring of Co₃O₄ onto MnO₂/CNTs surfaces to form a distinct “core–shell” architecture demonstrated superior electrocatalytic activity compared to Fe-MnO₂/CNTs or Ni-MMnO₂/CNTs counterparts [53].

3.3. Mn₃O₄

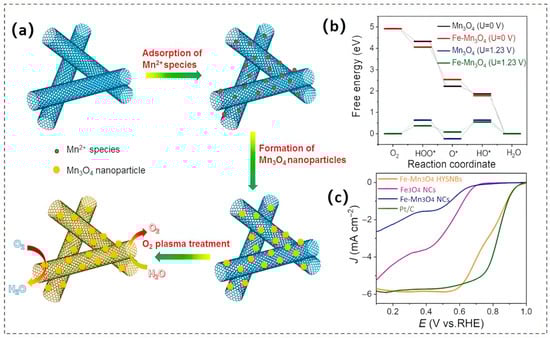

In the spinel compound Mn₃O₄ (Mn²⁺Mn³⁺₂O₄), Mn²⁺ ions occupy tetrahedral interstices, whereas Mn³⁺ ions are stabilized within octahedral voids. This arrangement creates a densely interpenetrated cationic framework embedded within an oxygen sublattice. As a result, Mn₃O₄ exhibits unique physicochemical properties, making it an ideal candidate for O₂-related catalytic reactions [61]. However, when compared to benchmark Pt-based catalysts, pristine Mn₃O₄ faces several limitations, including inadequate electrical conductivity, high overpotentials, and issues such as dissolution or agglomeration during the catalytic process. To enhance the performance of Mn₃O₄, similar optimization strategies used for other metal oxides have been applied, including the incorporation of conductive carbonaceous additives [62]. These materials not only improve the electronic conductivity of Mn₃O₄-based composites but also provide various catalytic active sites. For example, the incorporation of Mn₃O₄ nanoparticles within oxygen-functionalized carbon nanotubes (Mn₃O₄/O-CNTs) facilitates the spatial segregation of OER and ORR active centers (Figure 6a). In this configuration, CNTs serve as nucleation sites for the growth and embedding of Mn₃O₄ nanoparticles, while simultaneously enhancing their electrical conductivity through improved connections. Additionally, the oxygen-plasma-induced functionalities on the CNTs create a high density of reactive centers that facilitate OER catalysis [63].

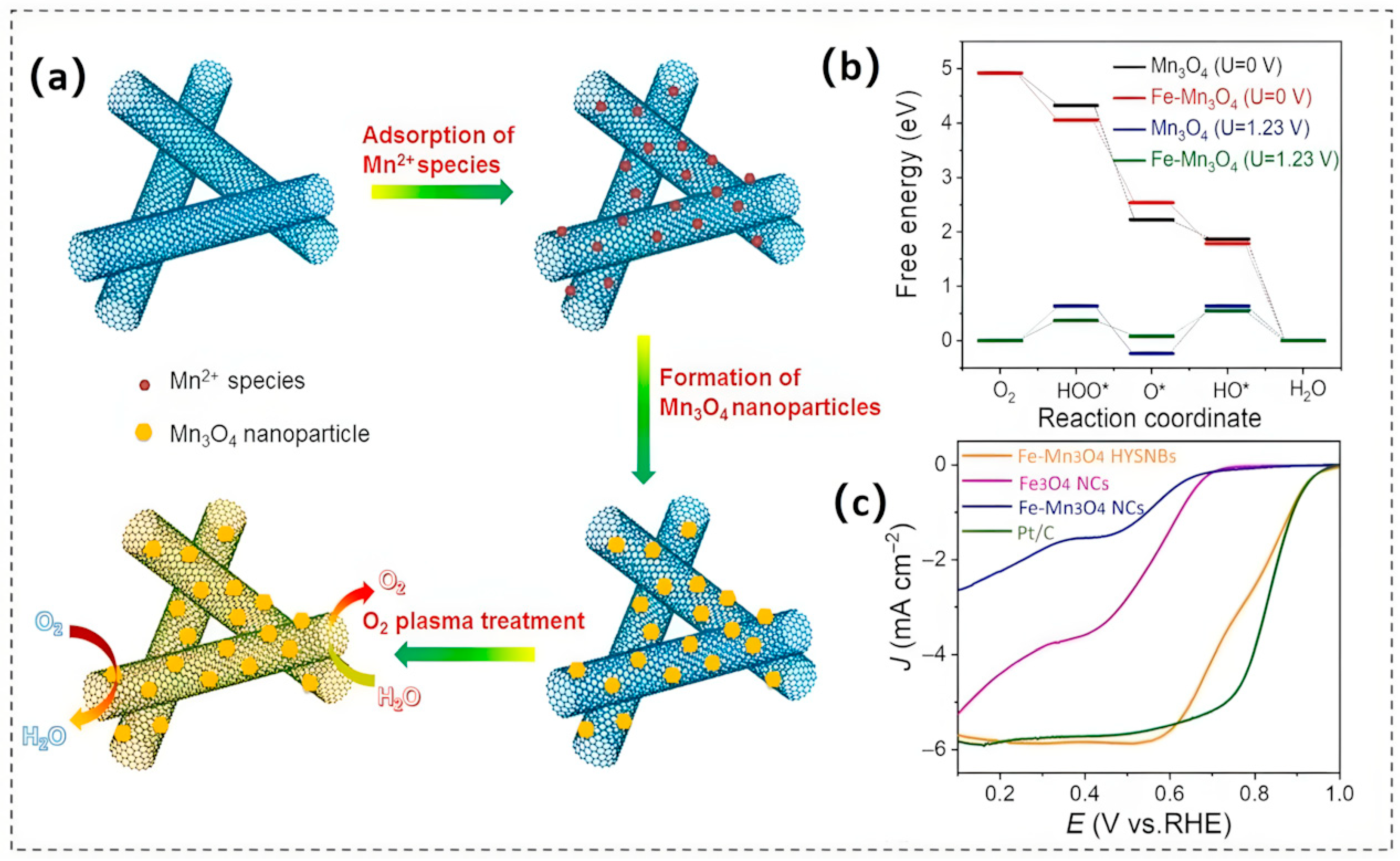

The surface metal doping of Mn₃O₄ constitutes another viable approach for enhancing its electrochemical performance, which can modulate the electronic structure and binding strength of ORR intermediates, thereby enhancing the electron transfer capability towards adsorbed oxygen molecules and consequently exhibiting improved ORR performance. Doping the surface of Mn₃O₄ with metal elements is an effective strategy for enhancing its electrochemical performance. This process can adjust the electronic structure and binding strength of the ORR intermediates, which in turn improves the electron transfer capability to adsorbed oxygen molecules, resulting in better ORR performance. Metals such as Fe [61], Co [64], and Ce [65] have been utilized to boost the electrocatalytic performance of Mn₃O₄. For instance, Li et al. [61] demonstrated the precise fabrication of hollow yolk-shell nanostructures of Fe-doped Mn₃O₄. The incorporation of Fe-induced coordinated electronic modulation within the host matrix through three synergistic mechanisms. Primarily, the integration of Fe promoted the formation of oxygen vacancies, significantly increasing the number of catalytically active sites. Additionally, this heteroatom doping caused a favorable shift in the d-band center toward the Fermi level, enhancing the overlap of orbitals with the oxygenated intermediates during electrochemical reactions. Furthermore, the modification improved the thermodynamics of adsorption and desorption for critical ORR species, as illustrated in Figure 6b. Electrochemical evaluations showed that this engineered catalyst had exceptional performance, achieving an onset potential (E_onset) of 1.02 V and a half-wave potential (E_1/2) at 0.78 V while maintaining exceptional stability over prolonged operation cycles (Figure 6c).

Furthermore, the construction of heterostructure interfaces has been recognized as a crucial method for enhancing the catalytic performance of Mn₃O₄-based materials. This approach facilitates interactions in the electronic structures of different materials, which facilitates charge redistribution and optimizes the activity of catalytic sites. A Co₃O₄/Mn₃O₄/N-rGO hybrid catalyst with heterointerfaces was synthesized by Huang’s research group [66]. DFT calculations revealed that the formation of these heterointerfaces promotes a reconfiguration of charge density. As a result, the highly conductive Co₃O₄ phase promotes directional electron transfer to the semimetallic Mn₃O₄, resulting in exceptional electrical conductivity for the Co₃O₄/Mn₃O₄/N-rGO hybrid catalyst. Additionally, engineering these heterointerfaces increases both the density of catalytic active centers and the electrolyte-accessible surface area. This optimization enhances the utilization efficiency of the active sites and synergistically boosts the catalytic activity of Mn₃O₄.

3.4. Mn₂O₃

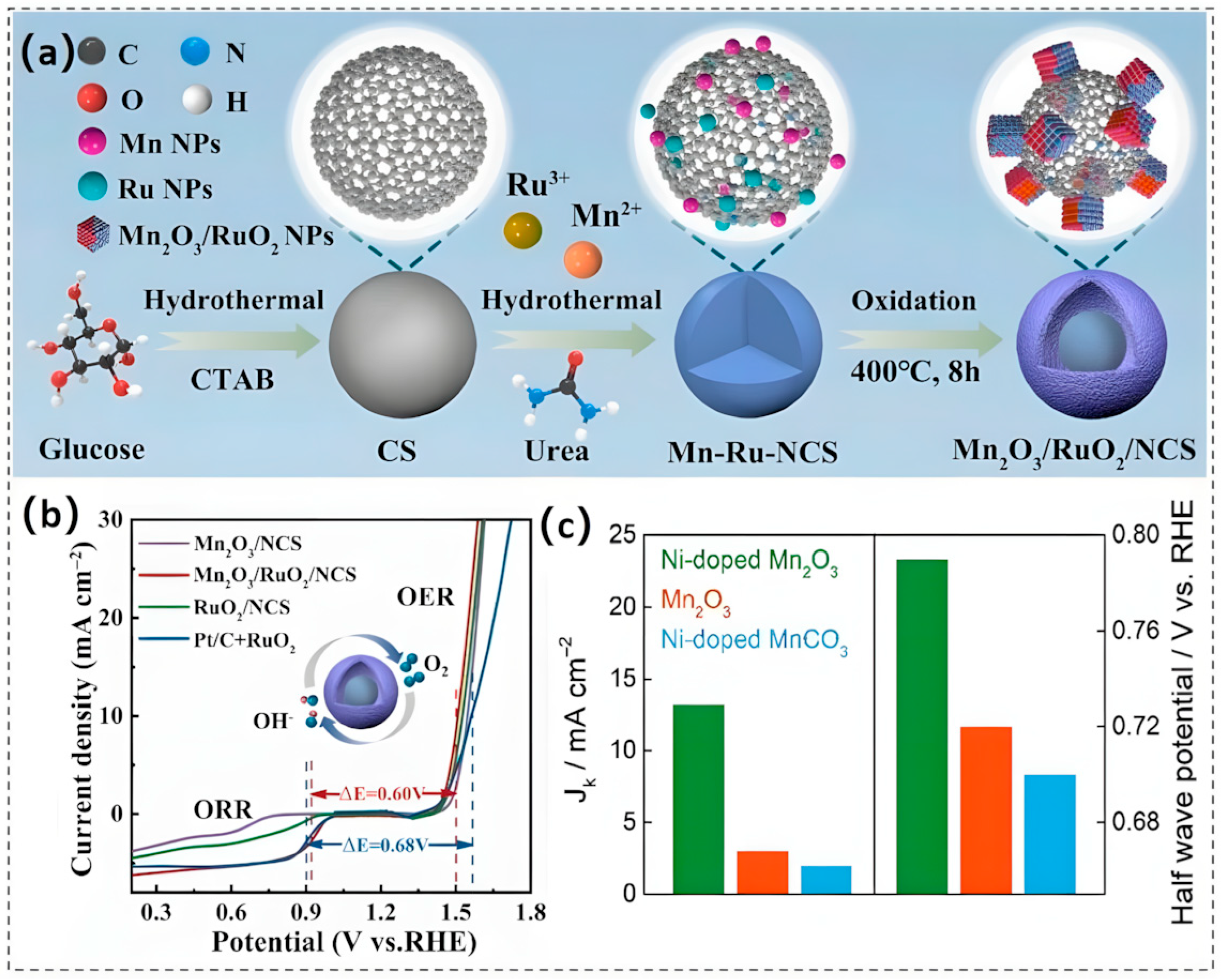

A plethora of research has demonstrated that Mn₂O₃, owing to its distinctive electronic configuration and facile synthesis, exhibits remarkable efficacy as a bifunctional catalyst for oxygen electrocatalytic reactions [67]. Nevertheless, the practical applications of pure Mn₂O₃ are hindered by its suboptimal electrical conductivity, inadequate active site density, and compromised operational stability. Among various strategies, morphological engineering stands out as a cornerstone approach to enhance the catalytic efficacy and durability of Mn₂O₃. Specific morphologies, including nanosheets [68], spheres [69], hollow structures [70], and yolk-shell architectures [71], offer high specific surface areas and porosity, facilitating mass/charge transport and thereby promoting ORR/OER activities. As research progresses, morphological modulation is often combined with other strategies to further elevate the catalytic performance of Mn₂O₃. As a case in point, the research group led by Ma devised a self-assembly–oxidation coupled synthesis approach to fabricate a Mn₂O₃/RuO₂ heterojunction nanocomposite encapsulated within nitrogen-doped porous carbon microspheres (Mn₂O₃/RuO₂/NCS) (Figure 7a) [72]. This catalyst features a hierarchical yolk-shell architecture with tunable internal cavities and porous interfaces, enhancing active site–electrolyte contact and mass-transfer kinetics. The Mn₂O₃/RuO₂ heterointerface facilitates interfacial electron redistribution, modulates metal–oxygen coordination, and optimizes OER/ORR intermediate adsorption, collectively boosting the bifunctional catalytic activity of Mn₂O₃ (Figure 7b). Rechargeable ZABs employing the Mn₂O₃/RuO₂/NCS catalyst delivers 153.5 mW cm⁻² peak power density, 59.35% round-trip efficiency, and 850 h cycling stability. In contrast to the aforementioned study, Shao and colleagues achieved enhanced catalytic performance by bridging NiO and Mn₂O₃ with carbon dots to form a heterostructure [73].

Similarly to other manganese oxides introduced above, heteroatom doping has also been systematically implemented to tailor the electronic configuration of Mn₂O₃ by introducing surface defect engineering, which synergistically augments its intrinsic electrical conductivity and generates oxygen-vacancy-dominated active centers, ultimately elevating the electrocatalytic efficiency. Kim et al. [74] successfully synthesized Ni-doped Mn₂O₃ microspheres through a co-precipitation and heat treatment process. Compared with undoped Mn₂O₃, the Ni-doped Mn₂O₃ exhibited a higher electrochemically active surface area and superior ORR electrocatalytic activity. The experimental results demonstrate that Ni incorporation effectively optimizes electron transport pathways through increased surface exposure, generates additional electrocatalytic active centers, and facilitates oxygen species diffusion (Figure 7c). When implemented in rechargeable ZABs, the Ni-Mn₂O₃ composite catalyst delivers superior electrochemical performance with a recorded specific capacity of 813.5 mAh g⁻¹ (Zn) and gravimetric energy density of 1038.2 mAh g⁻¹ (Zn), representing an enhancement over conventional Pt/C counterparts.

Table 3. Performance summary of Mn-based oxides as bifunctional electrocatalysts performance in rechargeable ZABs.

Electrocatalysts	OER E10 [V]	ORR E1/2 [V]	Performance (ZABs)				Ref.
			OCV [V]	Specific Capacity [mAh g−1]	Peak Power Density [mW cm−2]	Stability
Co–Mn3O4/G	1.505	0.866	1.415	-	115.24	945 cycles@10 mAcm−2	[64]
α-MnO2 Nanowires	1.625	0.83	1.51	717	166	40 h@100 mA cm−2	[75]
Mn0.3Ru0.7O2 nanosheets	1.44	0.85	1.52	821	154	200 h	[60]
MC@NC	1.59	0.82	1.43	950	153	300 h@4 mAcm−2	[46]
Co@C,MnO-NAC	1.55	0.83	1.46	-	58	37 h@5 mA cm−2	[45]
Ni|MnO/CNF	1.58	0.83	1.563	-	138.6	350 cycles @10 mAcm−2	[50]
Co-MnO2/CNTs	1.65	0.872	1.578	-	342.5	129 h	[53]
Co3O4/Mn3O4 (2:1)/N-rGO	1.59	0.86	1.54	-	194.6	2000 cycles	[66]
Co@Co4N/MnO–NC	1.62	0.81	1.47	762	200.5	2800 cycles@10 mAcm−2	[76]
MnxOy/C (ZMC)	-	0.763	1.443	-	140	-	[77]
MnO (II)	-	0.895	-	-	63.2	>35 h@40 mA cm−2	[78]
FG-MnOx	-	-	-	-	170	100 h	[79]

Table 3. Performance summary of Mn-based oxides as bifunctional electrocatalysts performance in rechargeable ZABs.

Electrocatalysts	OER E10 [V]	ORR E1/2 [V]	Performance (ZABs)				Ref.
			OCV [V]	Specific Capacity [mAh g−1]	Peak Power Density [mW cm−2]	Stability
Co–Mn3O4/G	1.505	0.866	1.415	-	115.24	945 cycles@10 mAcm−2	[64]
α-MnO2 Nanowires	1.625	0.83	1.51	717	166	40 h@100 mA cm−2	[75]
Mn0.3Ru0.7O2 nanosheets	1.44	0.85	1.52	821	154	200 h	[60]
MC@NC	1.59	0.82	1.43	950	153	300 h@4 mAcm−2	[46]
Co@C,MnO-NAC	1.55	0.83	1.46	-	58	37 h@5 mA cm−2	[45]
Ni|MnO/CNF	1.58	0.83	1.563	-	138.6	350 cycles @10 mAcm−2	[50]
Co-MnO2/CNTs	1.65	0.872	1.578	-	342.5	129 h	[53]
Co3O4/Mn3O4 (2:1)/N-rGO	1.59	0.86	1.54	-	194.6	2000 cycles	[66]
Co@Co4N/MnO–NC	1.62	0.81	1.47	762	200.5	2800 cycles@10 mAcm−2	[76]
MnxOy/C (ZMC)	-	0.763	1.443	-	140	-	[77]
MnO (II)	-	0.895	-	-	63.2	>35 h@40 mA cm−2	[78]
FG-MnOx	-	-	-	-	170	100 h	[79]

4. Manganate

Compared to pure manganese oxides, manganates demonstrate significant potential for high-efficiency catalysis in rechargeable ZABs. This is achieved through the synergistic charge transfer between the Mn³⁺ and Mn⁴⁺ oxidation states, the high density of active sites provided by their three-dimensional framework structures, and the precise modulation of surface electronic states via defect engineering. Among these materials, manganese-based perovskites and spinels are the two most extensively studied families. The related electrochemical performances are listed in Table 4. The following sections will detail their structural characteristics and modification strategies separately.

4.1. MMnO₃

ABO₃-structured perovskite oxides have attracted significant scientific interest due to their flexible crystalline frameworks, abundant defect sites, and tunable electronic states [80,81,82]. Among them, LaMnO₃ is a notable perovskite that exhibits remarkable electrocatalytic activity attributed to the presence of mixed manganese valence states (Mn³⁺/Mn⁴⁺) [83]. Notably, recent research advancements in the field of nanostructured perovskite electrocatalysts, particularly the innovative synthesis methods tailored for LaMnO₃-based materials, have further enhanced their electrocatalytic performance [84,85]. When used as a cathode material in rechargeable ZABs, LaMnO_3+δ shows a near-ideal OCV of 1.43 V, which is 97.3% of the benchmark OCV of 1.47 V achieved by commercial Pt/C catalysts. Under operational conditions with a current density of 200 mA cm⁻², the ZABs produce a power density of 198.6 mW cm⁻², only 2.1% lower than that of the battery using Pt/C catalysts at the same catalyst loading. This finding confirms the effectiveness and practical viability of LaMnO_3+δ as a cathode catalyst in rechargeable ZABs [86].

However, LaMnO₃ suffers from inherent issues such as poor electrical conductivity, inadequate chemical stability, and a need for further enhancement in catalytic activity. It has been demonstrated that employing an A-site deficiency strategy (e.g., introducing Sr [87], Ce [88]) combined with B-site doping techniques (e.g., incorporating transition metals such as Co [89], Ni [90], Fe [83]) in LaMnO₃ can significantly improve its catalytic performance. Specifically, A-site deficiency enhances catalytic activity by inducing Mn⁴⁺ species enrichment and the formation of surface V_o [91]. Utilizing the sol–gel technique, a series of La_1-xCe_xMnO₃ perovskite-type oxides were successfully synthesized [88]. The research revealed that when a portion of La³⁺ in LaMnO₃ was substituted with Ce⁴⁺, the relative surface abundance of Mn⁴⁺ increased. Specifically, it rose from 45.4% in LaMnO₃ (LMO) to 49.9% in the Ce-doped sample with a doping level of 0.10 (LCMO-0.10). Simultaneously, the surface coverage of adsorbed oxygen also saw an uptick, going from 41.7% in LMO to 47.2% in LCMO-0.10. These alterations promote the exchange process of O₂²⁻/OH⁻, which subsequently contributes to the improvement of ORR performance. Concurrently, B-site doping optimizes catalytic efficacy via valence state modulation, active site density augmentation, and oxygen transport activation energy reduction [92]. A bifunctional La(Ni_0.1)MnO₃ perovskite modified with N-doped carbon to enhance its activity was developed through a B-site doping strategy (Figure 8a) [90]. The La(Ni_0.1)MnO₃@NC composite demonstrates markedly enhanced ORR activity relative to pristine LaMnO₃, achieving a diffusion-limiting current density (J_L) of 5.8 mA cm⁻² alongside an E_onset and E_1/2 of 0.91 V and 0.77 V, respectively. The remarkable performance observed can primarily be ascribed to the synergistic interactions facilitated by the porous architecture, which provides a large surface area, along with the moderate coupling of the preserved active species within the [NiO₆] and [MnO₆] octahedral units. Moreover, the heteroatom-doped carbon material, serving as a highly conductive catalyst support, plays an indispensable role in enhancing the electron and ion transport capabilities as well as the catalytic activity [93].

Furthermore, untreated manganese-based perovskites face inherent limitations, such as cation segregation and a reduced specific surface area. These issues collectively hinder the efficiency of electrochemical utilization [94]. Surface modification presents a promising solution to address these challenges. By selectively dissolving the segregated cations on the surface of the perovskite, this approach increases the available specific surface area and promotes the formation of V_o. These two effects work together to significantly enhance the material’s catalytic and electrochemical properties. V_o is well-known for its crucial role in influencing reaction kinetics and altering reaction mechanisms [95,96]. Li and colleagues adopted a surface pre-restructuring protocol to synthesize Fe-doped La_0.7Sr_0.3MnO₃ nanoparticles (LSM/Fe-1.5) [97]. The optimized catalyst demonstrated improvements of 1.8 times in the ORR activity and 4.9 times in the OER activity (Figure 8b,c). This enhancement in ORR is attributed to the dissolution of A-site cations induced by Fe³⁺, which modifies the Mn³⁺/Mn⁴⁺ redox couple through electronic structure engineering. This process raises the concentration of V_o and facilitates bidentate O₂ adsorption. The charge reorganization associated with V_o effectively reduces H₂O₂ generation by encouraging a four-electron reduction pathway, thus increasing the number of electrons transferred. Additionally, the deliberate adjustment of the B-site electronic configuration weakens the binding affinity of reaction intermediates, accelerating the ORR kinetics by lowering activation energy barriers. In terms of OER, the increased catalytic activity arises from the synergistic relationship between the enhanced adsorption capacity of Fe on the perovskite surface and the cooperative electronic interactions between Fe³⁺ dopants and surface V_o species (Figure 8d).

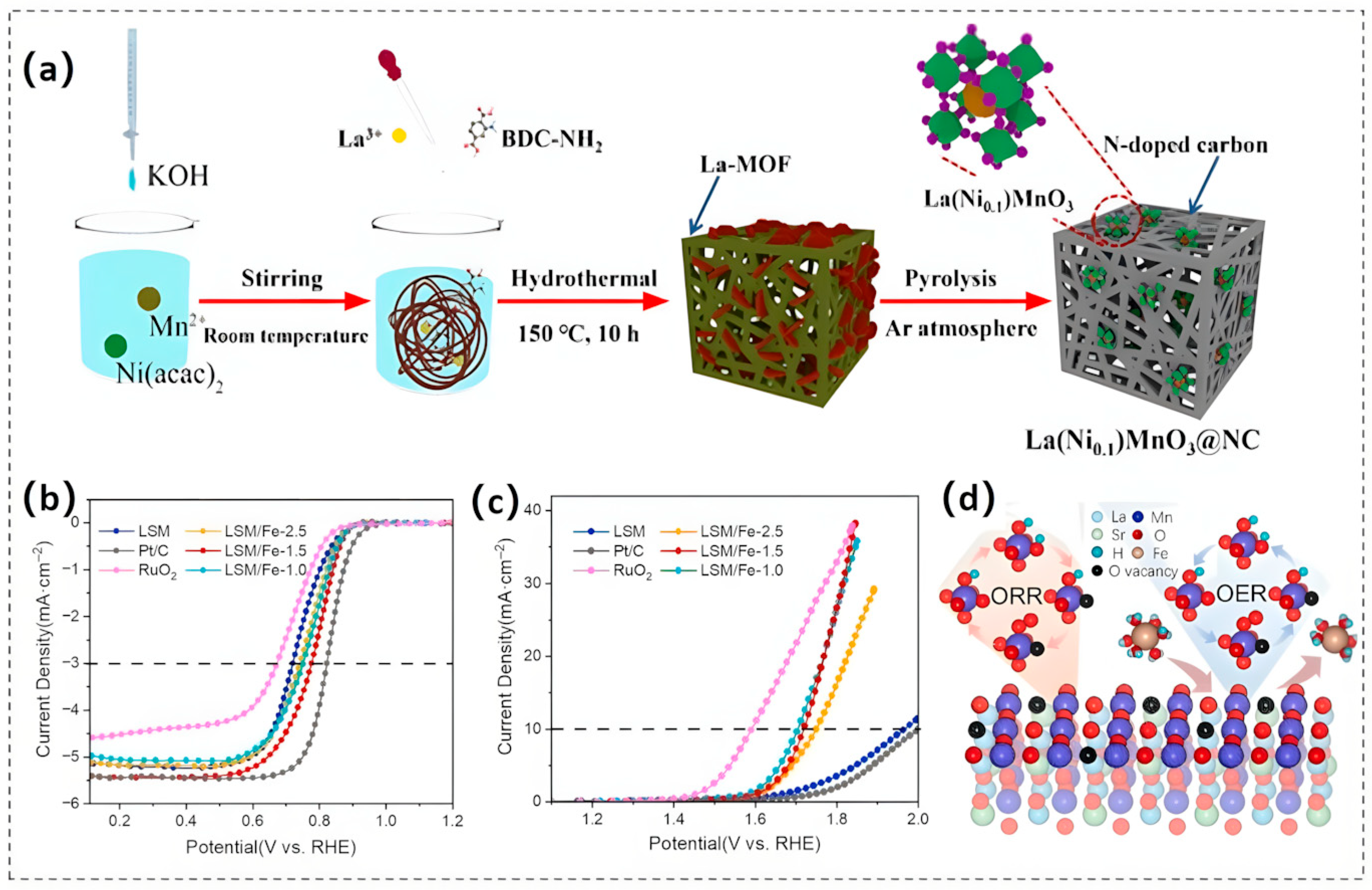

Figure 8. (a) Schematic depiction of the synthesis procedure for the La(Ni_0.1)MnO₃@NC catalyst. Reproduced with permission [90]. Copyright 2023 American Chemical Society. (b) ORR and (c) OER polarization curves of LSM, Fe-doped LSM/Fe-x series catalysts, commercial Pt/C, and RuO₂ under O₂-saturated 0.1 M KOH electrolyte (scan rate: 5 mV·s⁻¹; rotation rate: 1600 rpm for ORR). (d) Catalytic mechanism underlying the ORR and OER. Reproduced with permission [97]. Copyright 2023 Elsevier.

Figure 8. (a) Schematic depiction of the synthesis procedure for the La(Ni_0.1)MnO₃@NC catalyst. Reproduced with permission [90]. Copyright 2023 American Chemical Society. (b) ORR and (c) OER polarization curves of LSM, Fe-doped LSM/Fe-x series catalysts, commercial Pt/C, and RuO₂ under O₂-saturated 0.1 M KOH electrolyte (scan rate: 5 mV·s⁻¹; rotation rate: 1600 rpm for ORR). (d) Catalytic mechanism underlying the ORR and OER. Reproduced with permission [97]. Copyright 2023 Elsevier.

In addition to designing novel manganese-based perovskites free of noble metals, another viable approach entails coupling non-noble metals with low-loading, yet highly efficient noble-metal components to optimize atomic utilization and catalytic performance. This strategy exploits the electronic structure modulation of electrocatalysts via intermetallic synergistic effects, thereby dictating their bifunctional electrocatalytic performance. As an illustration, Dai and his group [98] showed excellent bifunctional catalytic activity by combining ultrafine RuO_x with La_0.8Sr_0.2Mn_0.5Co_0.5O₃ perovskite.

4.2. MMn₂O₄ and MnM₂O₄

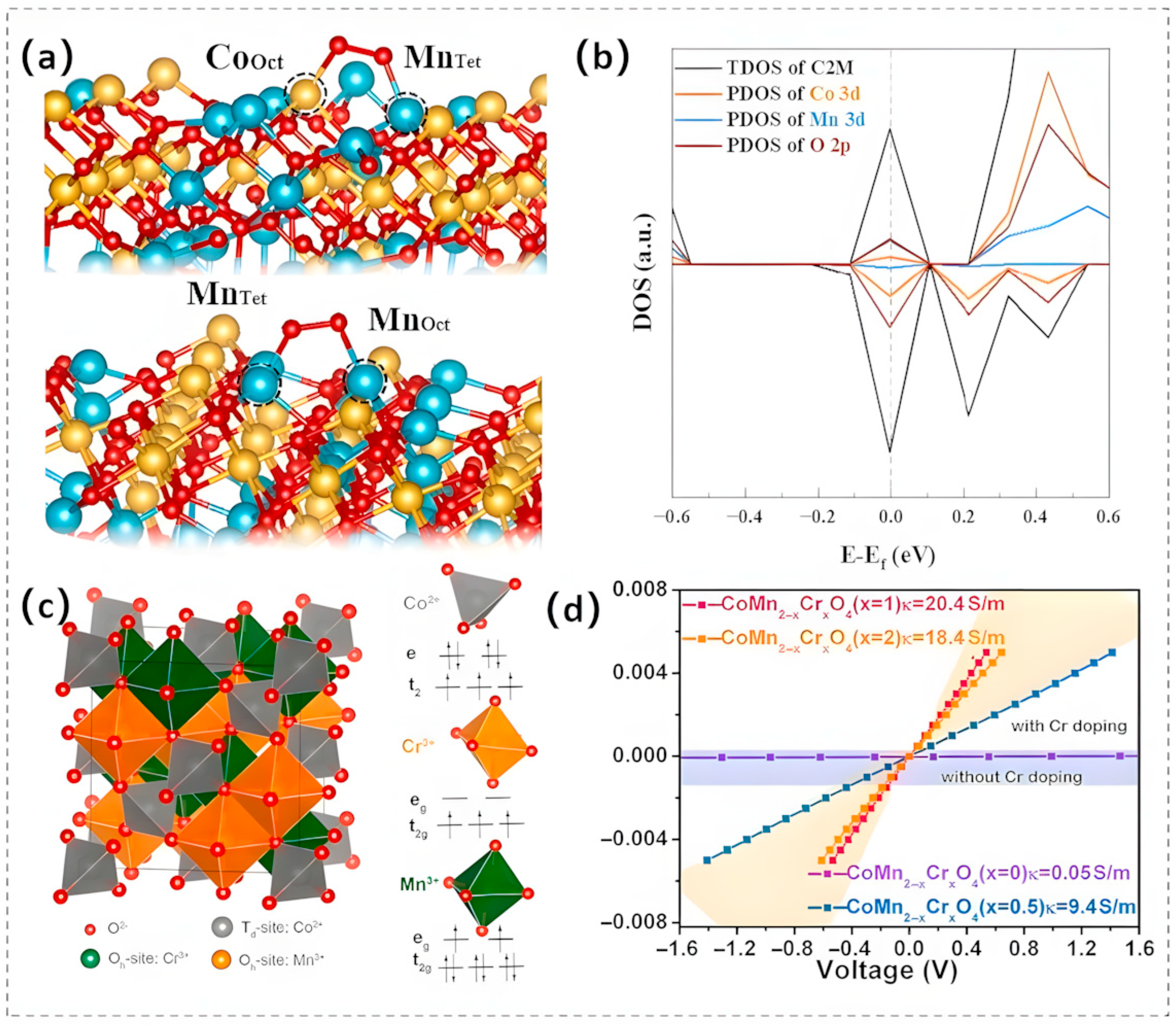

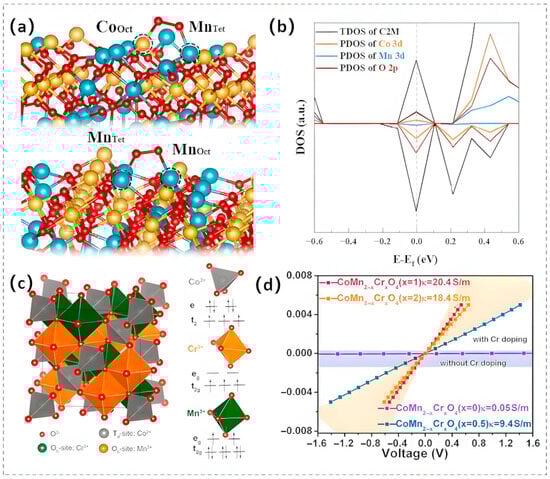

Spinel oxides (AB₂O₄) are characterized by a dual-site framework comprising tetrahedrally coordinated A-sites (denoted as M_Td) and octahedrally coordinated B-sites (denoted as M_Oh), which collectively define their structural anisotropy and catalytic functionality. This distinctive structural topology allows identical or distinct transition metal elements to flexibly occupy both M_Td and M_Oh positions, thereby endowing spinel oxides with exceptional structural adaptability and tunability [99]. Based on the Mn occupancy within the spinel lattice, manganese-based spinels can be categorically classified into two primary types: (1) the MMn₂O₄-type (M = Co, Ni, Zn, etc.), where Mn serves as the central ion occupying M_Oh sites, and (2) the MnM₂O₄-type, where Mn resides in M_Td positions. Among these, Co/Mn-based spinel oxides have demonstrated significant potential as oxygen electrocatalysts attributed to their tunable valence configurations and distinct crystal structures. However, their practical application remains constrained by critical limitations, including suboptimal bifunctional catalytic activity, inadequate durability, and inefficient oxygen transport kinetics at the three-phase interface.

The integration of spinel oxides with carbon nanostructures, particularly heteroatom-doped (e.g., N, S) carbonaceous architectures, represents a highly effective strategy for enhancing their performance. Electrospinning technology provides an elegant implementation of this approach, enabling intimate mixing of N-doped carbon nanofibers (N-CNFs) with metal-active phases to successfully synthesize Co₂MnO₄ spinel nanoparticles anchored on N-CNF. The coexistence of redox-active couples (Mn⁴⁺/Mn³⁺ and Co³⁺/Co²⁺) and surface nitrogen moieties (graphitic and pyridinic N) within the hybrid catalyst endows it with bifunctional catalytic excellence [100]. In addition to the aforementioned methods, atomic-scale surface engineering strategies, such as introducing defects and regulating the distribution of surface elements, are also widely adopted to optimize the catalytic efficacy and functionality of the materials. Taking the preparation of Co₂MnO₄ nanosheets (denoted as C₂M) via a coprecipitation method combined with acid treatment as an example, the resulting nanosheets possess a Mn-enriched surface and a large number of twin-boundary defects. Research findings indicate that the Mn-enriched surface facilitates the bridged adsorption of O₂ with lower energy, thereby promoting the four-electron transfer mechanism in the ORR (Figure 9a). Simultaneously, the cation occupation at multivalent sites facilitates Mn/Co-O orbital hybridization, leading to the formation of impurity states within the bandgap, which accelerates charge transfer (Figure 9b). Moreover, the acid treatment process effectively mitigates Mn leaching during the catalytic reaction, further enhancing the durability of C₂M in ORR [101].

In addition to introducing defects via optimized synthesis methods to enhance catalytic activity and durability, metal doping represents another widely adopted modification strategy. In manganese-based spinels, the A_Td and B_Oh sites are uniquely connected through corner-sharing and edge-sharing oxygen bridges, rendering the electronic state of B_Oh highly susceptible to the electronic influence of ions occupying either the A_Td sites or neighboring B_Oh positions. Consequently, the incorporation of a third metal ion, such as Cr³⁺ [102] or Ni²⁺ [103,104] enables the effective modulation of the B_Oh electronic structure, thereby optimizing catalytic performance. Liu’s research team designed a series of Cr³⁺-doped spinel oxides with the crystal structure depicted in Figure 9c [102]. Their analysis demonstrated that in CoMn_2-xCr_xO₄ (x = 0–2), the e₉g orbital occupancy of octahedral transition metal cations (TM_Oh) diminish from 2 to 0 with increasing Cr substitution. This reduction facilitates Cr³⁺-mediated orbital hybridization between transition metal 3d and oxygen 2p orbitals through interactions with vacant e₉g states. This orbital coupling reconfigures the electronic configuration of the catalyst, enhancing its electrical conductivity and subsequently boosting electrocatalytic performance (Figure 9d).

Besides the aforementioned Co/Mn-based spinel oxides, other manganese-containing spinels, such as ZnMn₂O₄ nanospheres [105] and NiMn₂O₄ nanosheets [106], have also been reported. José Béjar et al. [106] synthesized small-sized NiMn₂O₄ spinels using an electrodeposition approach, resulting in a three-dimensional (3D) porous architecture composed of interconnected nanosheets. The hierarchical architecture of this material facilitates the exposure of a large number of active sites and, at the same time, enhances the mass/charge transfer kinetics through an optimized network for ion/electron diffusion. Critically, the surface defect ensemble (including V_o, dislocations, and lattice strain) acts as a catalytic performance enhancer. In rechargeable ZAB tests, the NiMn₂O₄ electrode exhibits a peak power density (74 mW cm⁻²) similar to what the benchmark catalyst can achieve, coupled with exceptional cycling durability over extended charge–discharge cycles.

Table 4. Summary of performance of manganates as bifunctional electrocatalysts in ZABs.

Electrocatalysts	OER E10 [V]	ORR	Performance (ZABs)				Ref.
		E1/2 [V]	OCV [V]	Specific Capacity [mAh g−1]	Peak Power Density [mW cm−2]	Stability
CoMn2-xCrxO4/N-rGO	1.52	0.82	1.37	806.89	140.26	43 h@10 mA cm−2	[102]
CoMn1.5Ni0.5O4	1.643	0.780	1.6	-	147.4 (aqueous state) 85.8 (solid state)	-	[103]
Co0.5Ni0.5Mn2O4	1.78	0.65	1.36	808.9	49	10 h@2 mA cm−2	[104]
ZnMn2O4	1.813	0.75	-	-	-	40 cycles@10 mA cm−2	[105]
NiMn2O4	1.85	0.74	1.30	-	72	300 cycles@10 mA cm−2	[106]
Ball-milled Ni-Co-Mn oxides	1.597	-	1.45	-	85.42	100 h@10 mA cm−2	[107]
Optimized Co-Mn spinel cathode	1.587	0.898	-	717.7	-	2000 cycles@10 mA cm−2	[108]
Co2MnO4/NCNTs	1.593	0.76	1.48	827	74.63	300 cycles@5 mA cm−2	[109]
ZnMn1.4Co0.6O4/NCNTs	-	0.77	1.48	848	93	280 h@5 mA cm−2	[110]
MnCo2O4 3DOM CoMn2O4 3DOM	-	0.94 0.96	1.49 1.42	1004 1440	98.7 101.6	-	[111]

Table 4. Summary of performance of manganates as bifunctional electrocatalysts in ZABs.

Electrocatalysts	OER E10 [V]	ORR	Performance (ZABs)				Ref.
		E1/2 [V]	OCV [V]	Specific Capacity [mAh g−1]	Peak Power Density [mW cm−2]	Stability
CoMn2-xCrxO4/N-rGO	1.52	0.82	1.37	806.89	140.26	43 h@10 mA cm−2	[102]
CoMn1.5Ni0.5O4	1.643	0.780	1.6	-	147.4 (aqueous state) 85.8 (solid state)	-	[103]
Co0.5Ni0.5Mn2O4	1.78	0.65	1.36	808.9	49	10 h@2 mA cm−2	[104]
ZnMn2O4	1.813	0.75	-	-	-	40 cycles@10 mA cm−2	[105]
NiMn2O4	1.85	0.74	1.30	-	72	300 cycles@10 mA cm−2	[106]
Ball-milled Ni-Co-Mn oxides	1.597	-	1.45	-	85.42	100 h@10 mA cm−2	[107]
Optimized Co-Mn spinel cathode	1.587	0.898	-	717.7	-	2000 cycles@10 mA cm−2	[108]
Co2MnO4/NCNTs	1.593	0.76	1.48	827	74.63	300 cycles@5 mA cm−2	[109]
ZnMn1.4Co0.6O4/NCNTs	-	0.77	1.48	848	93	280 h@5 mA cm−2	[110]
MnCo2O4 3DOM CoMn2O4 3DOM	-	0.94 0.96	1.49 1.42	1004 1440	98.7 101.6	-	[111]

5. Other Manganese-Based Compounds

5.1. Mn-LDHs

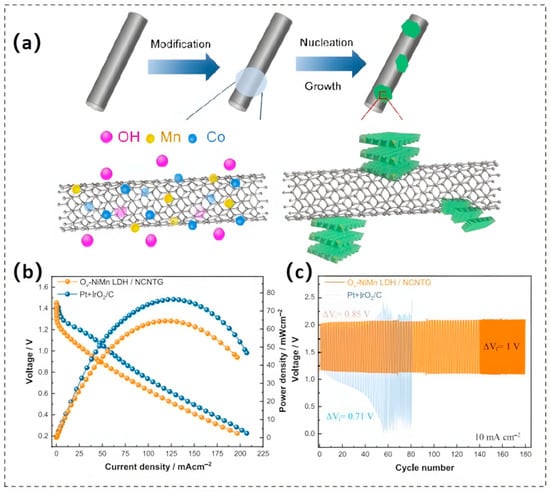

Manganese-based layered double hydroxides (Mn-LDHs) have recently garnered significant interest as a key research topic within the field of electrochemical technologies, owing to their unique two-dimensional structure, excellent ion-exchange capacity, abundant surface hydroxyl groups, and numerous active sites [112,113]. Among them, NiMn-LDH and CoMn-LDH exhibit outstanding activity in OER catalysis. However, the inherent low electrical conductivity of LDHs and the deterioration of active sites due to material stacking severely limit their practical applications. Furthermore, their sluggish ORR kinetics also restrict their widespread application in secondary rechargeable ZABs.

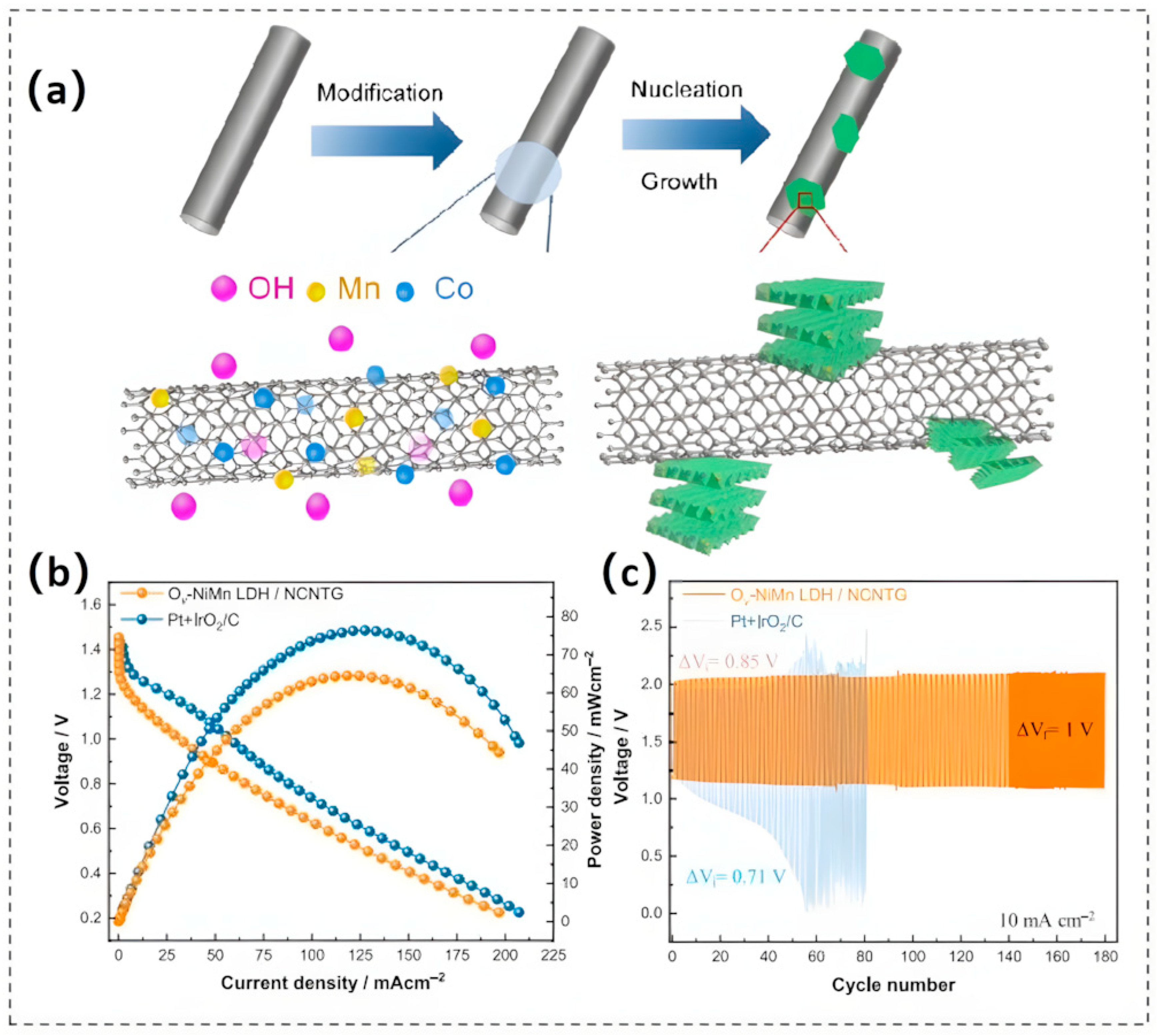

To address the insufficient electrical conductivity of LDHs, incorporating them into high-conductivity frameworks, such as carbon nanotubes, graphene oxide, and conductive metals, is a viable strategy for improving their electrochemical performance. For example, in the hybrid system composed of conductive silver nanowires (Ag NWs) integrated with NiMn-LDHs, the incorporation of Ag NWs not only significantly enhances the electronic conductivity of the composite but also alleviates the agglomeration of LDH nanosheets, thereby exposing a highly accessible electrochemical surface area. This expansion of the surface area, which is closely related to the density of active sites, significantly improves both the catalytic efficiency and durability of the hybrid material, as demonstrated by experimental results [114]. Similarly, the combination of highly conductive CNTs with CoMn-LDH nanosheets can also improve the electron transport properties of Mn-LDHs (Figure 10a), resulting in an increase in their electrocatalytic activity. The resulting hybrid materials demonstrate a notably reduced overpotential, a substantially decreased Tafel slope, and exceptional electrochemical stability [115].

Furthermore, structural engineering strategies are a pivotal approach for improving the catalytic efficiency and long-term stability of Mn-LDHs. By carefully designing hollow spherical structures composed of ultrathin CoMn double hydroxide nanosheets, highly efficient multifunctional catalytic performance can be attained [116]. This unique structure not only significantly increases the density of accessible active sites exposed to the electrolyte but also promotes rapid gas product release due to its hollow characteristics, effectively preventing the blockage of active sites caused by product accumulation during catalysis, thus exhibiting excellent catalytic activity and stability.

Moreover, to address the limitation of bifunctional electrocatalytic performance in Mn-LDHs, the synergistic application of surface defect engineering and interface engineering has emerged as an effective strategy for precisely modulating their electronic structures and active sites. Oscar et al. [7] successfully introduced V_o onto the surface of NiMn LDHs via a chemical reduction method. This approach induced the generation of mid-gap defect states, thereby refining the electronic energy landscape and expediting electron migration kinetics during the ORR. Concurrently, the introduction of V_o resulted in the exposure of additional metal cations (particularly Mn sites) on the LDH surface. These cations served as highly efficient catalytic active centers, effectively lowering the adsorption energies of oxygenated species and significantly accelerating the kinetic process of OER. Notably, the incorporation of nitrogen dopants not only introduced supplementary active sites but also profoundly altered the local electronic environment, thus contributing significantly to the enhanced performance. In subsequent rechargeable ZAB tests, the material with introduced V_o exhibited an OCV (1.47 V) comparable with the benchmark catalyst, while demonstrating exceptional cyclic stability and long-life characteristics (Figure 10b,c).

5.2. Manganese Sulfide

Nanostructured manganese sulfides have emerged as pivotal materials in electrochemical research, attributed to their unique electronic structures, high conductivity, and facile synthesis processes [117,118,119]. Among them, heterogeneous manganese sulfide structures exhibit tremendous potential due to their high-density active site ensembles at interfacial regions, including edges, corners, defects, and vacancies [120]. Specifically, Chen’s group successfully constructed a triphasic Co/Co₉S₈/MnS heterojunction interface by introducing the MnS phase into the Co/Co₉S₈ heterostructure [121]. The interface not only expedites the kinetics of electron transport but also triggers a modulation of the electronic landscape through interfacial charge redistribution and the hybridization of frontier orbitals. Furthermore, the abundant heterojunction interfaces introduce additional active sites that promote intimate electrolyte–intermediate contact, thereby synergistically enhancing the intrinsic activities of oxygen electrocatalysis reaction. Similarly, the fabrication of a V₂O₃/MnS heterostructure hybrid electrode for OER/ORR was reported [122]. Interface engineering strategies effectively optimized the heterojunction’s capability to regulate adsorption free energy of essential intermediates across dual reaction pathways, leading to accelerated catalytic kinetics. In practical evaluations employing liquid rechargeable ZAB configurations, the V₂O₃/MnS/CC cathode demonstrated exceptional energy conversion characteristics, delivering a peak power density of 118 mW cm⁻² alongside a substantial capacity retention of 808 mAh gZn⁻¹.

5.3. Manganese Phosphide and Manganese Nitride

The unique electronic configuration of P enables it to sequester electrons from neighboring metal atoms, thereby modulating the charge density at catalytic sites and optimizing the binding affinity for reaction intermediates/products. Consequently, research on manganese phosphides as catalysts for the OER has garnered increasing attention [123]. For example, the research team led by Zhang employed a one-pot in situ doping-phosphorization strategy to synthesize an N,P co-doped carbon-based electrocatalyst (MnSA-MnP-980 °C) incorporating MnP nanoparticles (NPs) and single-atom Mn sites [19]. The MnP nanoparticles, which serve as a pivotal component, enhance the catalyst’s adsorptive capacity for reaction intermediates. Meanwhile, the cooperative coupling between monodispersed Mn atomic centers and MnP nanocrystalline domains induced strategic electronic configuration engineering of manganese species, preferentially maintaining their low oxidation states while minimizing activation barriers for oxygen reduction processes. Systematic electrochemical characterization demonstrated superior catalytic performance of the MnSA-MnP-980 °C composite in alkaline environments, attaining the E_1/2 of 0.88 V, while concurrently demonstrating sustained operational durability and methanol resistance.

In recent years, substantial research attention has been directed toward transition metal nitrides within the realm of metal electrocatalysts, owing to their distinctive physicochemical and electronic attributes [124]. The integration of nitrogen into transition metal lattices leads to an elevation of the d-band electron density and a concomitant narrowing of the d-band width, thereby yielding an electronic structure and cross-Fermi-level density of states (DOS) akin to those of noble metals. Davari et al. [125] successfully synthesized manganese nitride catalysts containing Mn₄N and Mn₆N_2.58 phases by high-temperature nitridation of manganese powder, and evaluated their bifunctional electrocatalytic performance in rechargeable ZABs for the first time. Notably, the 10h-annealed sample demonstrated the most favorable E_onset for the ORR and superior durability compared to all tested electrocatalysts. When integrated into rechargeable ZABs, this catalyst achieved a 52.7% energy conversion efficiency after 14 h of uninterrupted charge–discharge cycling at a current density of 7.5 mA cm⁻². This result clearly highlights the catalyst’s promising potential for practical applications in energy storage.

6. Summary and Outlook

In the field of renewable energy conversion and storage, rechargeable ZABs demonstrate significant application potential due to their high theoretical energy density, cost-effectiveness, and environmental friendliness. As a critical component of the air cathode in rechargeable ZABs, manganese-based electrocatalysts are regarded as highly promising bifunctional oxygen electrocatalysts owing to their tunable oxidation states, flexible crystal structures, and environmental benignity. This paper systematically reviews the latest research progress on manganese-based electrocatalysts in rechargeable ZABs, particularly focusing on the catalytic performance of Mn–N–C electrocatalysts, manganese oxides, manganates, and other manganese-based compounds in the ORR and OER. It also provides an in-depth analysis of the challenges and opportunities they face. Despite the remarkable performance of manganese-based electrocatalysts in rechargeable ZABs, they still suffer from inherent drawbacks such as poor electrical conductivity, unstable catalytic activity, structural collapse, and low oxygen evolution reaction efficiency. To address these shortcomings, researchers have proposed various improvement strategies, including morphological regulation, structural engineering, carbon hybridization, heterointerface construction, heteroatom doping, and defect engineering in

Table 5. Comparative analysis of optimization strategies: key advantages and limitations.

Optimization Strategies	Main Advantages	Limitations	Ref.
Morphological modulation	(1) Increase the specific surface area and improve the exposure of active sites. (2) Optimize mass transfer path and improve reaction rate.	(1) Difficult to control morphology, requiring precise regulation of synthesis conditions. (2) Some forms may be unstable and prone to agglomeration.	[98]
Structural engineering	Constructing specific structures such as core–shell structures and hollow structures to improve stability and activity.	(1) High structural complexity and increased synthesis costs. (2) The structural stability is greatly affected by the preparation process.	[115]
Carbon hybridization	(1) Improve conductivity and promote electron transport. (2) Provide a stable support structure to prevent agglomeration of manganese-based materials.	(1) The selection and composite ratio of carbon materials need to be optimized. (2) Impurities may be introduced during the carbonization process, affecting performance.	[55]
Heterointerface construction	(1) Generates synergistic effects to enhance catalytic activity. (2) Facilitates rapid electron and ion transfer at the interface.	(1) The interface engineering is complex and difficult to control precisely. (2) The stability of the interface is significantly influenced by environmental factors.	[66]
Heteroatom doping	(1) Modulates the electronic structure to optimize adsorption energy. (2) Introduces new active sites, thereby improving catalytic performance.	(1) The type and amount of doping elements need to be precisely controlled. (2) Doping may lead to lattice distortion, affecting the stability of the material.	[19,47]
Defect engineering	(1) Generates defects such as oxygen vacancies to enhance catalytic activity. (2) Modulates the surface electronic structure to optimize reaction pathways.	(1) The type and concentration of defects are difficult to control accurately. (2) Excessive defects may cause structural damage to the material, leading to a decrease in stability.	[56]

. These strategies significantly enhance the catalytic activity and stability of manganese-based electrocatalysts by optimizing their microstructures, electronic structures, and surface properties.

To further promote the application of manganese-based electrocatalysts in rechargeable ZABs, future research should focus on the following aspects:

(1)

Elucidating Catalytic Mechanisms: By combining experimental exploration with theoretical simulations, a deep understanding of the specific catalytic roles and synergistic effects of each constituent element in manganese-based catalysts during ORR and OER should be achieved, providing a theoretical basis for the rational design of catalysts.

(2)

Optimizing Catalyst Design: Based on a comprehensive understanding of reaction pathways, surface/interface behaviors, and deactivation factors, systematic and rational design of manganese-based electrocatalysts should be conducted, including optimization of their structures, compositions, and morphologies, to improve their catalytic activity and stability.

(3)

Developing In Situ Characterization Techniques: Utilizing in situ Raman, infrared spectroscopy (IR), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and other in situ characterization techniques, the real-time tracking of reaction pathways and a comprehensive understanding of reaction mechanisms should be achieved, providing direct evidence for catalyst improvement.

(4)

Establishing Standard Evaluation Systems: For the commercialization of rechargeable ZABs, a series of standard evaluation criteria for catalytic/battery performance testing should be established to unify evaluation standards, promote the dissemination and application of ZAB technology, and drive the development of the entire industry [126].

By addressing current challenges and advancing the aforementioned research directions, manganese-based electrocatalysts are expected to play a more significant role in the field of rechargeable ZABs, providing strong support for achieving efficient and sustainable green energy storage and conversion. We firmly believe that with continuous research and technological advancements, manganese-based electrocatalysts will exhibit broader application prospects in the future energy landscape.
