Review

Tuning of Ionic Liquid–Solvent Electrolytes for High-Voltage Electrochemical Double Layer Capacitors: A Review

by
Yan Wang
1,2,3,
Kaiyuan Xue
1,
Changzeng Yan
4,
Yuehui Li
5,
Xingyun Zhang
1,
Kailimai Su
1,
Pengjun Ma
1,
Shanhong Wan
1,* and
Junwei Lang
1,2,3,*
1
Laboratory of Clean Energy Chemistry and Materials, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, Lanzhou 730000, China
2
Shandong Laboratory of Advanced Materials and Green Manufacturing at Yantai, Yantai 264000, China
3
Qingdao Center of Resource Chemistry & New Material, Qingdao 266000, China
4
College of Smart Energy, Shanghai Jiao Tong University, Shanghai 200240, China
5
State Key Laboratory of Oxo Synthesis and Selective Oxidation, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, Lanzhou 730000, China
*
Authors to whom correspondence should be addressed.
Batteries 2024, 10(2), 54; https://doi.org/10.3390/batteries10020054
Submission received: 12 December 2023 / Revised: 22 January 2024 / Accepted: 25 January 2024 / Published: 2 February 2024
(This article belongs to the Special Issue Advances in Hybrid Supercapacitors: Materials, Devices, Models, Systems, and Applications)
Browse Figures
Versions Notes

Abstract

:
Electrochemical double-layer capacitors (EDLCs) possess extremely high-power density and a long cycle lifespan, but they have been long constrained by a low energy density. Since the electrochemical stability of electrolytes is essential to the operating voltage of EDLCs, and thus to their energy density, the tuning of electrolyte components towards a high-voltage window has been a research focus for a long time. Organic electrolytes based on ionic liquids (ILs) are recognized as the most commercially promising owing to their moderate operating voltage and excellent conductivity. Despite impressive progress, the working voltage of IL–solvent electrolytes needs to be improved to meet the growing demand. In this review, the recent progress in the tuning of IL- based organic electrolyte components for higher-voltage EDLCs is comprehensively summarized and the advantages and limitations of these innovative components are outlined. Furthermore, future trends of IL–solvent electrolytes in this field are highlighted.

1. Introduction

Renewable forms of energy, including solar, wind, hydroelectric, geothermal, and biomass, are essential to move forward the sustainable economy [1]. However, these renewable energies have the disadvantages of intermittency and require the participation of energy storage devices [2]. Reversible energy storage and discharge technology has become indispensable, requiring the development of systems that deliver both high energy and high-power capability. Electrical energy can be stored electrochemically in batteries and capacitors. Various types of batteries include lithium-ion batteries (Li-ion), sodium–sulfur batteries (Na–S), lead–acid (Pb–acid) batteries, and flow batteries. Among the various types of battery systems, lithium-ion batteries hold the dominant position in the market with their energy density of up to 300 Wh/kg. Nevertheless, their power density and lifetime are constrained by the mechanism of store charge, that is, the change is converted into electrical energy through an electrochemical redox reaction. Moreover, the batteries always face the problem of short life and slow charging rate due to the limitations of volume charge, phase transition, and solid diffusion rate during charging and discharging.

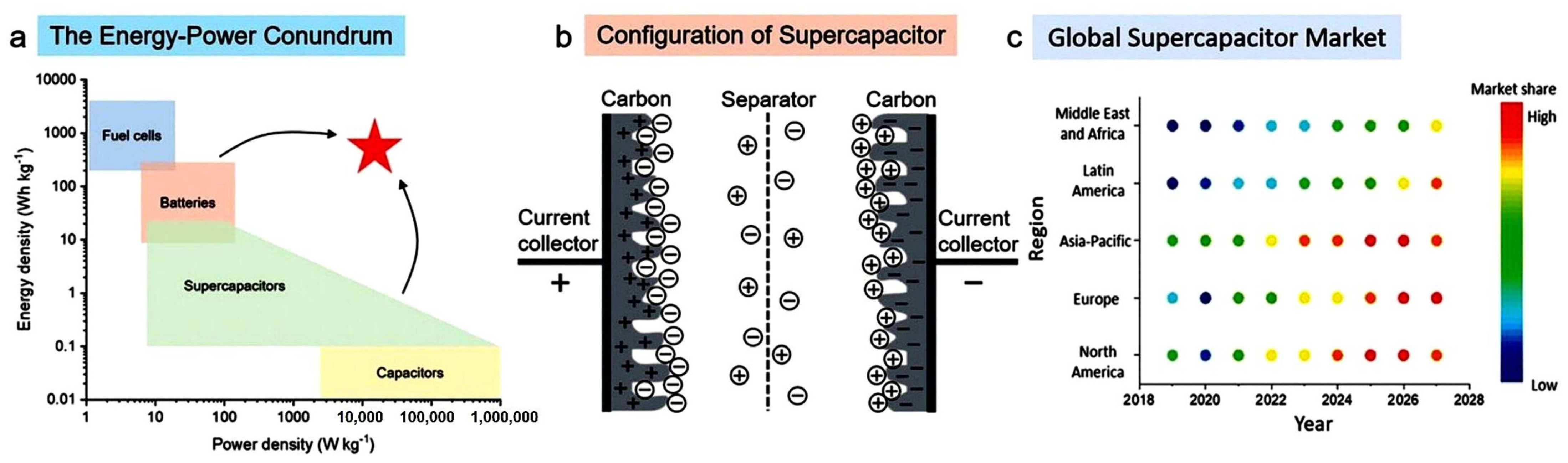

Electrochemical double-layer capacitors (EDLCs) [3,4], also referred to as supercapacitors, store and release energy based on charge adsorption and desorption on electrode surfaces (Figure 1b). Therefore, they exhibit advantages such as exceedingly high power density (>10 kW kg−1), rapid charging/discharging, and an extremely long cycle life. The devices do not undergo Faraday reactions during operation, making their charge and discharge processes very effective, and the cycle life significantly surpasses other energy storage devices. Thus, EDLCs are considered as a promising renewable energy storage device and have become the preferred technology for applications that need to provide a rapid and sustained energy supply [5]. Moreover, EDLCs are suitable for incorporation into grid energy storage to conserve power units and for frequency regulation, as well as to enhance power quality and smoothness. As a result of the application of these features, the global EDLC market continues to grow, which can be observed in Figure 1c. Among the regional markets, the Asia–Pacific region has great potential for market growth in the upcoming years, whereas Europe and North America also hold a considerable market share.
Typically, the energy density of an EDLC is determined by its electrodes and electrolytes [6]. Based on the equation of energy density (E = 1/2 CV2, where C is the capacitance of the electrodes and V represents the operating voltage window) [7], one strategy is to develop novel electrode materials to deliver higher capacitance. Carbon-based materials have become the most widely studied active materials [8,9] due to their excellent chemical and thermal stability. According to the basic structure and shape of carbon materials, three main types of carbon-based materials for symmetrical EDLCs are as follows: (I) graphene [10,11] and carbon nanotubes [12,13]; (II) carbide-derived carbon and aerogels [14,15]; and (III) activated carbon (AC) [16,17]. Nevertheless, the reported specific capacitance for alternative materials typically ranges between 100 and 150 F g−1, which is not significantly superior to activated-carbon-based electrodes. Strategies for modifying carbon-based materials have been employed in high-voltage EDLCs, encompassing methods like heteroatom doping, selection of diverse raw precursor materials, activation techniques for AC, and controlling the growth process of CNT to prevent the formation of amorphous carbon. However, the synthesis process of these carbon materials for high-voltage uses is considered to be complex and costly, which is not suitable for industrial application. Apart from increasing the specific capacitance of electrodes [18], expanding the operating voltage window (V) is another efficient technique for enhancing the energy density. Meanwhile, the operating voltage of EDLCs is closely associated with the properties of the electrolyte, which are mainly limited by the electrochemical stability of the electrolyte. Due to this consideration, the development of alternative electrolyte salts, or the tuning of electrolyte composition, represents one of the keys to achieving high-energy EDLCs nowadays [19,20,21].
Ionic liquids (ILs) are salt-like materials formed by ionic bonds between cations and anions. Due to their wide electrochemical potential windows, high thermal and chemical stability, non-volatility, and non-combustibility, ILs can significantly help EDLCs obtain higher energy densities than aqueous electrolytes. Therefore, ILs as electrolytes in EDLCs have garnered considerable interest [22]. To date, extensive research has been conducted on IL-based electrolytes, including pure ILs, binary mixtures of ILs, and ILs combined with organic solvent electrolytes. Among them, solvent-free IL–electrolytes can provide the highest operating voltage window in the range of 3–4 V for the carbon–electrode combination [23]. However, due to large ion sizes, their high viscosity and low ionic conductivity limit the dynamic behaviors of the EDLCs by ionic diffusion. Moreover, the high cost of neat ILs also poses a challenge for the commercialization of EDLCs. IL–organic solvent electrolytes, featuring a moderate operating voltage window, are the most extensively commercialized type of electrolyte for EDLCs at present. However, the operating voltage of EDLC devices using commercial tetra–ethylamine tetrafluoroborate (TEABF4)/acetonitrile electrolyte is limited to 2.8 V. Thus, the development of a novel IL-based electrolyte with a voltage up to 3.0 V or higher has been a research hotspot in this field.
Recently, many studies have focused on developing suitable IL–solvent electrolyte components for EDLCs to attain increased voltage and enhanced energy density. IL–solvent electrolytes were mentioned in some reviews [21,24,25] as the key materials of high-energy-density EDLCs, but so far, no review has summarized in great detail the tuning of the components of IL–solvent for the high voltage requirement. Therefore, this review will focus on the tuning strategies for high-voltage IL–solvent electrolytes for EDLCs that have been executed so far, focusing on the tuning of concentration, solvent composition, and the solute salt component of electrolytes based on common ILs, as well as the design principle. At the same time, we also hope to provide reference strategies for the further development of advanced electrolytes in the future.

2. Electrolytes for EDLCs

Electrolytes are the important components of EDLCs, affecting the electrochemical performance, operation life, and safety. Electrolytes with high voltage and ionic conductivity have demonstrated a substantial enhancement in the overall performance of energy storage devices [26]. The cell voltage is mainly limited by the electrochemical stability window (ESW) of the electrolyte, which is defined as the range between the reduction potential and oxidation potential. The ESW is influenced by the characteristics of ions and solvents, along with the interactions between ion–ion, ion–solvent, and electrode–electrolyte surfaces. Several studies have suggested that the decomposition of the electrolyte can be attributed to the presence of catalytic active centers, particularly functional groups on the carbon electrode [27].
Electrolytes primarily consist of solute salts and solvents, in which the solute salts provide ions and the solvents facilitate pathways for the transport of these electrolyte ions. The electrolytes can be classified into liquid electrolytes and solid electrolytes [28,29], and the liquid electrolytes can be further classified into aqueous electrolytes and non-aqueous electrolytes according to the types of solvents. The liquid electrolytes used in EDLCs include aqueous and organic electrolytes and pure ILs (Table 1). Aqueous electrolytes possess inherent advantages, including safety, low cost, high conductivity (~1 S cm−1), minimum ion-pairing possibility, and environmental friendliness [30]. The ionic conductivity of aqueous electrolytes significantly surpasses that of non-aqueous electrolytes, resulting in superior rate performance. Nevertheless, the stable window of water is limited to only 1.23 V, which imposes constraints on the practical application of aqueous electrolyte [31,32,33]. “Water–in–salt” (WIS) electrolyte refers to an electrolyte with an exceptionally high concentration that approaches saturation levels. The number of “free” water molecules is lower than that of the solute molecules, so WIS electrolytes can increase the operating voltage of aqueous EDLCs [34,35,36,37]. Until now, the working potential voltages of symmetric EDLCs assembled by AC electrode and WIS electrolyte are still ≤3.0 V [38]. In contrast, organic electrolytes [39,40] have wider stable electrochemical potential windows of 2.5–3.0 V and therefore are more preferred than aqueous electrolytes.

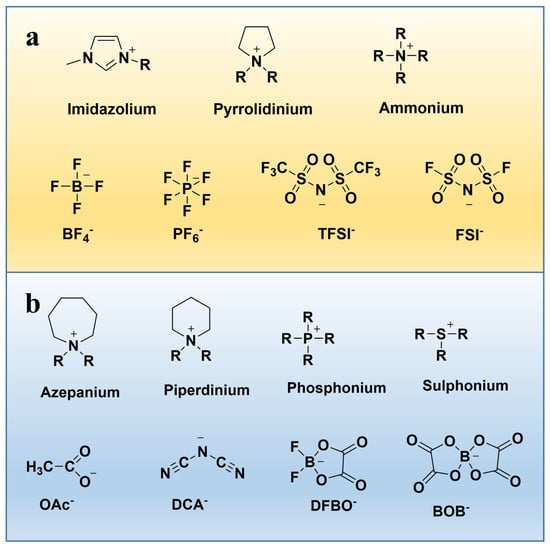

ILs are unique ionic compounds composed of organic cations and organic/inorganic anions. They are also described as molten salts with melting points below 100 °C [55]. ILs are also known for their remarkable properties, including the ability to maintain liquid state over a wide temperature range, negligible vapor pressure, and high thermal stability. The higher electrochemical stability and thermal stability of ILs make them well-suited for high voltage and high-temperature supercapacitors. The cations of ILs can be classified as imidazolium [42,43], pyrrolidinium [44,45], pyridinium, piperidium, quaternary ammonium [54], and quaternary phosphonium. So far, ILs utilizing pyrrolidinium, ammonium, and imidazolium cations are the most promising and widely utilized types. In general, the pyrrolidinium-based ILs have higher electrochemical stability than imidazole-based ILs, while the imidazole-based ILs show higher conductivity and lower viscosity than pyrrolidinium-based ILs [56]. These features make pyrrolidinium-based ILs suitable for greater energy output, while imidazole-based ILs have fast charge/discharge performance. The conventional ILs in EDLCs are based on cations of 1–ethyl–3–methylimidazolium (EMIm) [41], N-propyl-N-methylpyrrolidinium (Pyr13), 1–butyl–1–methylpyrrolidinium (Pyr14) [50], 1–butyl–3–methylimidazolium (BMIm) [57]. Additionally, the most commonly used anions include bis(trifluoromethanesulfonyl)imide (TFSI–), hexafluorophosphate (PF6–), bis(fluorosulfonyl)imide (FSI–), and tetrafluoroborate (BF4–). These reported ILs exhibited operating potential windows up to 3.5 V or ever higher when used alone as electrolytes [58]. Furthermore, the structure of the most commonly used anions and cations for ILs is depicted in Figure 2a [59]. In addition, some new ILs (Figure 2b), such as azepanium [60], acetate- and lactate-based piperidinium [46], piperazinium [61], and bis(oxalate)borate-based ILs [62] have been reported for EDLCs (Figure 2b). Relevant reviews have summarized the regulation of the cation and anion structures of ILs used in EDLCs [63,64]. The adjusting methods of the structures include the optimization of side chain lengths for cations and incorporation of functional groups into the cations, such as substituting F with the electron-withdrawing substituent (–CN). Mixed ILs with different anions or cations could alter the initial ion accumulation due to the difference in ion sizes, thereby adjusting the thickness of the electric double layer on the electrode interface and the distribution of ions within the nanopores, which lead to the excellent electrochemical performances of EDLCs, such as wide operating voltage, high capacitance, and long cycle life [41,47,48,49]. However, solvent–free single ILs and mixed ILs are not utilized in commercial devices owing to their drawbacks such as high expense, limited transport properties, and excessive viscosity. Therefore, the reasonable selection and manipulation of IL-based electrolytes to exploit their advantages and solve their shortcomings will be the future direction of building EDLCs with high energy density.
The cations and anions in ILs are bound by potent Coulombic forces and van der Waals forces, resulting in the high viscosity, low conductivity, and low ion migration rate of ILs. Thus, adding organic solvents to ILs would weaken the Coulombic force and van der Waals force to alleviate the drawbacks of low conductivity and high viscosity of pure ILs. In IL–solvent electrolyte, ILs provide a similar role to other salts, supplying cations and anions in organic solutions. The operating voltage windows of EDLCs with these IL–solvent electrolytes are 2.7–3.0 V [65], which are generally lower than that of pure-IL electrolytes (Table 1). Therefore, EDLCs using IL–solvent electrolytes have moderate operating voltage windows between aqueous electrolytes and pure-IL electrolytes and have excellent electrical conductivity; thus, they are the most widely commercialized currently. The majority of commercially available organic electrolytes are solutions of 1 M ammonium salt, often TEABF4, dissolved in organic solvents like propylene carbonate (PC) or acetonitrile (AN) [66]; their operating voltages are 2.7–2.8 V. Compared with PC-based electrolytes, AN-based IL electrolytes are more commonly used due to their higher conductivity and superior performance at low temperatures. However, the voltage window of the IL–solvent electrolyte system still has a lot of room for improvement. Therefore, increasing the operating voltage of EDLCs using IL–solvent electrolytes is still the research direction in this field, and it is also the focus of this review. There have been some reviews on the structure regulations of ILs and their application in EDLCs [67,68,69,70,71], so many reports on the use of innovative pure ILs as electrolytes for EDLCs are out of the scope of this article.

3. Tuning of IL–Solvent Electrolytes for EDLCs

At high operating voltage, the electrolyte components may decompose on the surface of the carbon-based active material, resulting in an irreversible electrochemical process for the device [72,73]. Therefore, the stability of each component of the electrolyte determines the operating voltage limit. Over recent years, many efforts have been made to develop advanced IL–solvent electrolyte systems to meet the necessary criteria for achieving high-energy EDLCs. At present, for the existing IL solute salts, the methods of tuning IL–solvent electrolyte components to achieve higher voltage can be divided into four categories (Figure 3): (1) increasing the concentration of IL solute salts; (2) selecting single-substitute solvents with high electrochemical stability to replace AN and PC; (3) adding co-solvent to AN or PC to improve the electrochemical stability or conductivity; and (4) introducing solute salt additives.

3.1. Higher Salt Concentration for High Voltage

The concentration of solute salt in commercial electrolyte is usually 1.0 M. The energy density of EDLCs is determined by the quantity of electrolyte ions per unit area of the electrode surface. The IL concentration plays a pivotal role in regulating viscosity, ionic liquid conductivity, and the potential window. Higher salt concentration can not only increase the number of adsorbed/desorbed ions, which may increase the specific capacity (C), but also has been considered as a method to break through the voltage limits of EDLCs [74], because less free solvent molecules will reduce the redox reaction on the electrode. For example, the use of 2.0 M N,N–dimethyl pyrrolidinium tetrafluoroborate (Pyr11BF4)/AN [75], enabled the EDLC to achieve a high operating voltage of 3.4 V with a capacitance retention of 88% after 500 h. In addition, EDLCs using higher-salt-concentration electrolytes also surpassed the current leading devices in terms of high-temperature performance (retaining 91% capacitance after floating 500 times at 3.0 V and 60 °C) (Figure 4a,b). Meanwhile, post-mortem gas chromatography/mass spectrometry (GC–MS) indicated that the higher performances of 2M Pyr11BF4/AN were related to its high thermal and electrochemical stability. In addition, a Pyr14TFSI/PC (1:1 wt.%) mixture (equivalent to a concentration of 2.3 M) [51] provided the operating voltage of the EDLCs at 3.5 V, which was similar to that of EDLCs using neat Pyr14TFSI. The electrolyte system also ensured excellent cycle stability, with a 5% decrease in capacitance after 100,000 cycles at 3.5 V. Another report of 2.3 M Pyr14BF4/PC electrolyte [76] indicated that the electrolyte allowed the cells to work at a high operating voltage of 3.2 V in a float test, and the conductivity and viscosity were comparable to those of the traditional 1.0 M Et4NBF4/PC electrolyte. Moreover, due to the high electrochemical stability of electrolyte, the high cycle stability of EDLCs at 3.2 V was confirmed by charge-discharge measurement. EMImBF4 with small contents (from 0.005 M to 1.0 M) of different organic solvents (AN, PC or γ–butyrolactone) [77] were studied as electrolytes in EDLCs at high potentials (≥3.2 V). Jia et al. [52] systematically studied the effect of EMImBF4 concentrations (including 1.0 M, 2.0 M, 4.0 M, and 6.54 M) on the potential window, ionic conductivity, and viscosity of the EMImBF4/AN electrolyte. The results show that the ESWs of FRGO-based EDLCs increased with increasing IL concentrations: 1M EMImBF4/AN (3.4 V), 2M EMImBF4/AN (3.4 V), and 4M EMImBF4/AN (3.5 V). The increase in specific capacitances had a similar trend: 1M EMImBF4/AN (94.4 F g−1), 2M EMImBF4/AN (147.8 F g−1), and 4M EMImBF4/AN (158.3 F g−1). The maximum specific capacitance offered by the 4M EMImBF4/AN was due to the fact that the capacitance of EDLCs increased with the increase in voltage across electrodes. The reason for the low ESW of dilute solution was that the “freer” AN molecule was prone to irreversible redox reactions on the electrode surface. With rising IL concentrations, the viscosity of the electrolytes increased, whereas the ionic conductivity decreased. The peak was reached when the concentration of EMImBF4 was 2.0 M (Figure 4c–f).
Scalia et al. [78] used N–butyl–N–methyl–pyrrolidinium 4,5-dicyano-2–(trifluoromethyl) imidazole (Pyr14TDI) as the solute salt for EDLCs for the first time and evaluated the performances of the electrolytes with different Pyr14TDI/PC ratios from 1:3 to 3:1 (w/w). By adjusting the concentrations of the solution, a wide liquid range and high conductivities were achieved. The highest cell voltage of 3.3 V was attained with a Pyr14TDI/PC ratio of 3:1. Meanwhile, although the voltage window of the most diluted electrolyte Pyr14TDI:PC (1:3) was limited to 3.0 V, it delivered the highest specific energy and power. Balducci et al. [79] explored the impact of salt concentrations on the theoretical and practical energy of EDLCs with PC-based Pyr14BF4 and trimethylsulfonium bis[(trifluoromethyl)sulfonyl]imide (Me3TFSI). The study indicates that 1.5 M Pyr14BF4/PC and 3.8 M Me3TFSI/PC were promising for higher operative voltages of 3.49 V and 2.88 V, respectively.
Based on the examples given above, a high concentration of IL–solvent electrolyte does have a significant effect on raising the voltage, but the reasons for the formation of this electrochemical stability in high-concentration electrolytes have not been clearly studied. Moreover, there are still some shortcomings to limit their commercial application, such as low conductivity, high viscosity, and high cost.

3.2. The Use of Single-Substitute Solvent with High Electrochemical Stability

AN and PC are the commonly used organic solvents in the electrolyte for EDLCs. With regard to improving the stable voltage window of IL-based electrolytes, several organic solvents with higher electrochemical stability were proposed and tested as the alternative solvents of AN and PC [80], such as ethyl isopropyl sulfone, propionitrile, adiponitrile, and butylene carbonate. Ethyl isopropyl sulfone (EiPS) has a high boiling point (265 °C) and a relatively low melting point (−8 °C) and low reactivity with water, which makes it a potential organic solvent for high-voltage EDLCs [81,82]. Balducci et al. [83] further studied the electrochemical performance of EDLCs using TEABF4/EiPS at high voltage and different temperatures from 20 to 80 °C. The results show that 0.5 M TEABF4/EiPS electrolyte featured high electrochemical and thermal stability, allowing EDLCs to operate at high voltages from 3.0 V to 3.4 V at 60 °C and 80 °C. At 20 °C, 90% and 74% of the initial capacitance of EDLCs with TEABF4/EiPS were retained after 500 h of floating at 3.4 V and 3.6 V, respectively. This superior stability is one of the highest reports of laboratory-scale TEABF4-based EDLCs and is much higher than AN-based TEABF4 electrolyte. In addition, the devices retained 68% of their original capacitance after floating at 3.4 V at 60 °C for 500 h, while devices using TEABF4/electrolytes were unstable under these conditions. Based on a postmortem GC–MS analysis of the TEABF4/EiPS electrolyte, no soluble decomposition products were found from the solvent, and the post-mortem X-ray photoelectron spectra (XPS) analysis of the electrodes revealed the accumulation of non-soluble decomposition compounds on the electrode surface at high temperatures. The electrochemical reactions on the electrode surface were confirmed, including cation degradation via Hofmann elimination, the fluorination of the carbon surface, the in situ formation of HF, and the decomposition of EiPS. Based on the characterization results, the high electrochemical stability was attributed to the deposition of EiPS decomposition products on the electrode surface, which might act as a passivation layer to inhibit further degradation (Figure 5).
Butylene carbonate (BC) is similar to PC in reduction stability and has higher oxidative stability than PC. Therefore, BC has higher electrochemical stability than PC and is a potential high-voltage alternative solvent of PC. BC has some isomers, including BC, 2,3–BC, and 1,2–BC. The boiling point of 2,3–butylene carbonate (BC) [84] is higher (243 °C) than that of PC. A spiro-(1,10)-bipyrrolidinium tetrafluoroborate (SBPBF4)/2,3–BC electrolyte showed a voltage window of 3.5 V, far exceeding the PC-based electrolyte (2.7 V). The interface stability at high voltage was explained by the fact that the 4th and 5th positions provided a high-level protection from the external environment. This protective effect made these sites less vulnerable to attack by compounds that decompose the electrolyte (such as H2O). Furthermore, 1,2–Butylene carbonate, as the isomer of 2,3–BC, also worked as alternative for PC [85]. The use of 1.5 M Pyr14BF4/1,2–BC allowed EDLCs to operate at 3.15 V, and the capacitance retention reached 90% after 500 h of floating.
Propionitrile (PN) has a higher boiling point (97 °C) and a lower melting point (−93 °C) than AN [86]. Nguyen et al. [87] reported the utilization of 1.0 M SBPBF4/PN and N, N-dimethyl pyrrolidinium tetrafluoroborate (DMPBF4)/PN as EDLC electrolytes and compared their performances with 1.0 M DMPBF4/AN and SBPBF4/AN electrolyte. The PN-based electrolytes exhibited high electrochemical stability, low viscosity, good ionic conductivity, and excellent anodic potential limit. The symmetrically stable electrochemical windows of alternative electrolytes helped to protect these electrolytes from decomposition when charged to high oxidation potentials. Consequently, EDLCs using 1.0 M DMPBF4/PN and SBPBF4/PN electrolytes were cycled over 10,000 times at 3.5 V and 1000 h at 3.3 V. The DMPBF4/PN electrolyte enabled EDLCs to achieve the highest power density (22.9 kW kg−1) and energy density (49.3 Wh kg−1). Otherwise, adiponitrile (ADN) also worked as an alternative solvent of AN due to its high boiling point (295 °C) and high flashpoint (163 °C). The voltage of EDLCs using 1.75 M Pyr14BF4/ADN electrolyte [88] ranged from 3.2 V to 3.7 V, and the capacitance retention of devices reached 81% at 3.7 V after 100,000 cycles (at 5 A g−1). The operating voltage of EDLCs reached 3.4 V when galvanostatic charge-discharge processes were performed at room temperature as well as 60 °C, while that of EDLCs reached 3.0 V in the float tests. The temperature-programmed desorption and nitrogen adsorption analysis of the aged electrodes proved that the primary factor contributing to the degradation of EDLC performance was the formation of surface functional groups, which led to the gradual blockage of pores. Nevertheless, electrolytes using these nitrile solvents exhibit elevated viscosity and reduced conductivity compared to AN, thus constraining the power performance of the EDLCs.
It is noted that the use of some new solvents with high electrochemical stability indeed improves the voltage window of the IL–solvent electrolytes. However, due to their high viscosity and low ionic conductivity, this is usually accompanied by a reduction in power output.

3.3. Adding Co-Solvents to AN or PC for High Voltage

Co-solvents are often employed to adjust macroscopic properties of electrolyte components, including viscosity, dielectric constant, and melting point [89]. Electrolytes with multi-solvent systems demonstrate broad tolerances owing to the co-solvent’s relatively lower viscosity and higher dielectric constant [90]. AN works as the widely used solvent for EDLC electrolyte, as the co-solvent can improve the electrochemical stability of AN-based electrolyte. As mentioned earlier, EDLCs utilizing TEABF4–EiPS electrolyte achieved an operating voltage window of 3.4 V [83]. Balducci et al. [53] used AN and EiPS as mixed solvents to prepare 1.0 M TEMABF4/EiPS/AN electrolyte. It was found that the operating voltage of the electrolytes using EiPS and AN (75:25 and 50:50) as co-solvent was 3.0 V, and the electrolyte system with EiPS/AN (75:25) showed excellent cycle and floating stability. In fact, EDLCs using the electrolyte with a 75:25 ratio exhibited only a 3% loss of initial capacitance after a 500 h cycles test at 3.0 V. Lang et al. [91] found that incorporating methyl acetate (MA) into EMImBF4/AN can improve the performance of EDLCs at low temperature. The optimal pairing of an APDC electrode with the EMImBF4/AN/MA electrolyte allowed the EDLCs to operate normally at –50 °C and exhibited an operating voltage of 3.5 V, a maximum power density of 26 kW kg−1, a maximum energy density of 80 Wh kg−1, and a long cycle lifespan of 10,000 cycles. Subsequent studies found that adding a fluorinated ether, 1,1,2,2–tetrafluoroethyl–2,2,3,3–tetrafluoropropyl ether (TTE), into TEABF4/AN electrolyte could improve the stability of the electrolyte. As a result, a high working voltage of 3.6 V was assembled, which was much higher than the typical working voltage of 2.7 V for AN-based electrolytes without TTE [92]. In addition, the leakage current of TEABF4–TTE/AN was smaller than that of electrolyte without TTE at the same charging voltage, and no decomposition of electrolyte was observed at 3.6 V. When charged to 3.6 V, the open-circuit voltage of ELDC with TEABF4–TTE/AN decayed by 2.03 V after 24 h, which was lower than that of the EDLC without TTE (2.60 V). A mechanistic analysis indicated that cell self-discharge with the TTE additive was slowed down, which could be attributed to the inhibition of the faradaic reaction process caused by electrolyte decomposition.
As a common solvent for EDLCs with organic electrolyte, PC has higher electrochemical stability and better safety than AN, but its electrical conductivity is lower than AN. Thus, the electrochemical stability and conductivity of IL/PC-based electrolytes also need to be improved by adding other solvents. A common linear ether, 1,2–dimethoxyethane (DME), which has favorable chemical/electrochemical stability and quite low viscosity, has also been as a co-solvent for PC to enhance the transport behavior of ions. The EDLCs assembled with EMImBF4–PC–DME (PC: DME = 1:1) electrolyte [93] had a voltage of 3.0 V and the property of fast charge-discharge. Ethylene carbonate (EC) has lower viscosity and a higher dielectric constant than PC. Dimethyl carbonate (DMC) has a linear structure, and its viscosity and melting point are significantly lower than those of ethylene carbonate (EC). For instance, the dielectric constants of propylene carbonate (PC), DMC, and EC are 65, 3.1, and 90 V/m, respectively, while their viscosities are 2.5, 0.6, and 1.9 mPa s, respectively. Therefore, the adding of DMC or EC into PC-based electrolyte is beneficial to the preparation of advanced electrolytes with high electrical conductivity and low viscosity [94]. The electrolytes containing SBPBF4 with a solvent mixture of PC/DMC/EC (1:1:1 in volume) and PC/DMC (1:1 in volume) were studied for EDLCs [95]. The PC/DMC system exhibited the lowest viscosity (3.14 mPa s), while the PC/DMC/EC system showed the highest conductivity (18.08 mS cm−1). Additionally, SBPBF4 using a solvent mixture of the PC/DMC/EC system exhibited a stable voltage of 3.2 V and superior rate performance. In addition, the monofluorination of carbonates can increase relative permittivity and kinematic and dynamic viscosity. The dynamic viscosity of fluoroethylene carbonate (FEC) at 40 °C (4.1 mPa s) is higher than that of PC at 25 °C (2.53 mPa), and the relative dielectric constant of FEC at 40 °C (78.4) is higher than that of PC at 25 °C (64.92). Jänes et al. [96] introduced FEC as the co-solvent to construct FEC/PC solvent mixtures in various volume ratios. The EDLCs assembled with 1M (C2H5)3CH3NBF4/FEC:PC (1:19) (5 vol.% FEC) and microporous TiC–CDC electrodes reached a voltage of 3.0 V. Therefore, the co-solvent in the above IL–PC system could reduce the viscosity or freezing point of electrolyte and slightly increase the voltage window.
From the above examples, it can be seen that co-solvents are mainly eaters, and there are few types of co-solvents reported at present. The co-solvent can slightly enhance the voltage window of the IL–AN (PC) electrolyte, and the main promotion effect is the improvement of other electrochemical properties, such as the increase in conductivity to improve the rate performance or low–temperature performance, which also are the important factors of EDLCs.

3.4. The Use of Solute Salt Additives for High Voltage

The ions of the solute salt play a direct role in forming the electric double layer, so the selection of solute salts is crucial for developing advanced EDLCs [97,98]. Encouragingly, it is of practical significance to study the IL–solvent electrolyte additives that can improve the operating voltage for improving energy density. F-containing compounds can form an effective passivation layer on the electrode surface, thereby minimizing the decomposition of solvent or AN polymerization. Back in 2005, Ishikawa et al. [99] reported that the cathodic stability of EMImBF4 could be expanded by adding LiBF4. Compared with EMImBF4 and TEMABF4/PC, EMImBF4+LiBF4/PC had a higher electrochemical stability window. They later confirmed that the enhancement of cathodic stability in the LiBF4/EMImBF4 system was associated with an “inhibiting effect” caused by the presence of Li+ ions, rather than the “coating effect” from the formation of SEI [100]. The protective impact of Li+ ions helped in curbing the side reactions on the AC electrode. Li et al. [101] used LiFP6 as an additive to prepare the EMImBF4/LiPF6/PC/DMC electrolyte, which had a low viscosity of 2.89 mPa s, a high ionic conductivity of 20.72 mS cm−1, and high electrochemical stability. The inhibiting effect brought by Li+ effectively hindered the reduction of cations in IL. The advanced 3V-class EDLCs were successfully constructed using this electrolyte, and their comprehensive performance was obviously better than that of EDLCs using pure EMImBF4 or EMImBF4/solvent, with a capacitance retention of 95.8% after 20,000 cycles at 3.0 V. The improvement of the overall performance was primarily attributed to the improved ion transport capacity, the balance charge storage of the electrodes, and the passivation of the electrode surface, which were caused by the combined action of Li salt and carbonate solvent.
Krause et al. [102] reported fluorinated additives such as ethyl(2,2,2–trifluoroethyl) carbonate (ETFEC), (2,2,2–trifluorothyl) methyl carbonate (TFEMC), lithium difluoro(oxalate) borate (LiDFOB), bis(2,2,2–trifluorothyl) carbonate (bTFEC), and tris(2,2,2–trifluoroethul) phophite (TTFEPi) for the SBPBF4/AN system. The results demonstrate that LiDFOB and ETFEC could improve the stability at high voltage (>2.7 V). In particular, when 2 wt% LiDFOB additive was added to SBPBF4/AN, the resulting EDLC cells revealed good capacitance retention and reduced internal resistance in the voltage ranges of 3.5 to 4.0 V (Figure 6). In addition, EDLCs using TTFEPi showed lower self-discharge performance. The electrochemical decomposition degree of the internal components of the cell was reflected by the steady-state current value. The cell with TTFEPi additive showed the lowest current value in the test, indicating that TTFEPi might reduce aluminum corrosion at high voltage to improve the coulombic efficiency.
Besides the F-containing compounds, different kinds of ILs can also be used as the additives for IL-based electrolytes. In addition to the organic solvent with high dielectric constant and minimal viscosity, incorporating ILs with other cations can also improve the electric conductivity and reduce the viscosity of IL-based electrolytes. Adding different contents of EMImBF4 to 0.2 M SBPBF4/PC/DME [103] electrolyte reduced the interfacial resistance and bulk resistance, thereby increasing the ionic conductivity. In particular, the electrolyte with 15 vol% EMImBF4 showed superior capacitance, electrochemical stability, ionic conductivity, and low interfacial resistance. Moreover, when 15 vol% EMImBF4 was added, the XPS spectra confirmed the thinnest SEI film. Otherwise, adding EMImBF4 or EMImTFSI as additive into TEABF4/PC [104] also improved the ionic conductivity and stability by inhibiting electrolyte decomposition. The ESWs of the electrolytes with IL additive were wider than that of the conventional electrolyte, which enabled EDLCs to operate stably at 3.7 V. When the amounts of EMImBF4 and EMImTFSI were 7 wt.%, the specific capacitances of the initial value of EDLC after 10,000 cycles were 97.5% and 91.3%, respectively. By mixing N–butyl–N–methylpyrrolidinium bis(trifluoromethanesulfonyl)imide (Pyr14TFSI) and trimethyl propylammonium bis(trifluoromethanesulfonyl)imide (TMPATFSI) with an equivalent mole ratio into AN at 1.0 M concentration [105], the binary IL electrolyte exhibited a low viscosity of 0.692 mPa s−1, an exceptional electric conductivity of 44.3 mS cm−1, and a wide electrochemical stability window of 4.82 V. EDLCs constructed with AC electrodes and this binary ILs electrolyte achieved an elevated operating voltage of 3.1 V, a maximum power density of 32.16 kW kg−1, and a maximum energy density of 28.30 Wh kg−1. These metrics were notably superior compared to those of commercially available EDLCs using organic electrolytes.
Unlike the common ILs, which can improve the conductivity and reduce the viscosity of the electrolyte by cationic regulation, functional ILs with large-sized groups can enlarge the operating voltage window by adjusting the polarization limit of the electrode. The operating voltage of EDLCs is determined by the upper limit potential (PU) and lower limit potential (PL), which correspond to the potential of oxidation and reduction of electrolyte, respectively. By adding a silica-grafted ILs additive into the EMImTFSI/PC electrolyte, Yan et al. [106] developed an effective strategy to adjust the polarization potential of electrodes and improved the potential limits of the positive and negative electrodes of EDLCs (Figure 7a). Compared with the electrolyte without additives, the electrolyte with 10% SiO2–IL–TFSI exhibited a more symmetric potential range for two electrodes, and the P0V was adjusted to ~0 V vs. Ag. In this case, PU and PL were expanded to 1.6 and −1.6 V vs. Ag in a three-electrode system, and the voltage of the AC-based EDLCs increased from 2.8 to 3.2 V. The energy density was increased by 39% with the improvement in cycle stability. Subsequently, a polymeric imidazole IL with ether branch (PVEImTFSI) was synthesized and worked as an additive to EMImTFSI/PC. It was found that PVEImTFSI could also enlarge the limit potential ranges of carbon-based EDLC [107]. The addition of PVEImTFSI improved the electrochemical stability and effectively adjusted the upper limit potential (PU) and lower limit potential (PL) of the electrolytes. The PU and PL of electrolytes with 10% PVEImTFSI reached 1.7 and −1.5 V vs. Ag. The working voltage of EDLCs with 10% PVEImTFSI was increased to 3.2 V compared with EDLCs at 2.8 V without additives. As a result, the energy density was increased by approximately 41.5%. The cycling stability of EDLCs with electrolyte containing 10% PVEImTFSI at 3.0 V and 3.2 V was also significantly enhanced. In addition, the equivalent circuit model was simulated and the Bode plots were proposed according to the results of electrochemical impedance spectroscopy (EIS). Both simulated and measured date show that the resistance of each element was reduced by adding PVEImTFSI, which improved the ion dynamic and reduced the energy barrier of the ion diffusion, thereby improving the electrochemical performance of EDLCs (Figure 7b).
Moreover, novel electrolytes for EDLCs were prepared by adding cetyltrimethylammonium-bromide-grafted Ti3C2 MXene (Ti3C2–CTAB) into EMImBF4/PC and Et4NBF4/PC [108]. Remarkably, the ionic conductivity of electrolyte with the Ti3C2–CTAB additive increased by 38%, and the solid–liquid surface energy decreased from 18.03 mN m−1 to 12.37 mN m−1. The hydrogen bonds and electrostatic force generated between Ti3C2-CTAB and EMImBF4 promoted the dissociation and ion transfer of electrolyte ion pairs. Comparing with free-additive electrolyte, the EDLCs assembled with 0.5% additive showed higher rate capability (76.4% vs. 45.8%), higher specific capacitance (29.6 F g−1 vs. 21.6 F g−1), and longer cycling life after 9000 cycles at 3.0 V (83.6% vs. 59.8%). The addition of Ti3C2–CTAB reduced the interfacial resistance of electrolyte/electrode, which improved the electrochemical performance. Consequently, EDLCs based on Ti3C2–CTAB/EMImBF4/PC obtained a high energy density of 28.3 Wh kg−1 and a power density of 18.3 kW kg−1.
It can be seen from the results reported above that there are many kinds of solute additives, including F-containing compounds, ILs, and ionic compounds with large-sized groups. The effect of adding these additives is immediate, so the addition of solute additives is a very effective and relatively simple way to achieve high voltage. However, designing or selecting suitable additives is still a challenge.

4. Conclusions and Future Perspectives

EDLCs have become important energy storage devices to improve the power quality of renewable energy because of their fast energy storage and high power output. As mentioned above, the electrochemical stability window is an important factor restricting the energy density of EDLCs. The development of electrolytes with wider electrochemical windows is an important direction for constructing high-energy-density EDLCs. IL–solvent electrolytes are the most commercially promising for EDLCs due to their moderate conductivity and electrochemical window. In the past few years, many efforts have been dedicated to the study of new solvents and electrolyte salts to achieve high-voltage EDLCs.
This review provides insights to expand the working window from the IL–solvent component level. In summary, tuning the components of the IL–solvent electrolyte is an effective method to broaden the voltage window of EDLCs with IL–solvent electrolytes. Various excellent organic IL electrolytes have been developed, including those that have increased IL concentration, those that have novel organic solvents with high electrochemical stability, and those that have co-solvents and solute salt additives in their electrolytes. The as–discussed high-voltage IL–solvent electrolyte components and their electrochemical performances are summarized in Table 2. Studies show that the voltage of EDLCs with the use of these electrolytes increased compared to that of the initial. The results indicate that the electrolyte salts, solvents, and additives have strong effects on the electrochemical voltage window and the properties of the interface. Despite the fact that some progress has been made in the research of IL–solvent electrolytes, there are still some works to be carried out in order to meet their practical applications. The future research of IL–solvent electrolytes will involve the following considerations:
(1) It is necessary to develop high-purity, newly low-cost IL salts with high electrochemical stability windows. Firstly, the structure innovations of IL electrolyte salts with high surface ion density are carried out by the cation structure regulation strategy. Secondly, the purity of IL should be taken into account. It is well known that a small number of halides or water may influence the physicochemical properties of electrolytes and the behavior of EDLCs significantly. Thirdly, the cost is the major consideration while using IL in commercial applications. It is necessary to explore the development of simple and atom-economic synthesis methods with low-cost raw materials and post-treatment purification steps, which make the IL a cheap solute. Finally, the strong effect of innovation on IL–solvent electrolytes on the structure and the formation of the double layer is necessary to study. Among the several aspects, the influences of the solvation process and ion mobility need to be analyzed, which will indicate the advantages and limitations of innovative electrolyte components.
(2) We must continue to screen novel organic co-solvents with high dielectric constants, wide temperature ranges, low costs, and low toxicities to improve the electrochemical stability of EDLCs. Nevertheless, in some AN systems, the increase in voltage is obtained at the expense of power reduction. Therefore, it is necessary to carry out research on the tuning technology of multi-solvent components and explore the synergistic mechanism between the components. Considering that the high electrolyte concentration and highly stable alternative solvents in the above strategies can increase the voltage window and that additives and co-solvents can also increase the conductivity, the combination of these strategies can develop a high-concentration ionic liquid–mixed solution electrolyte to achieve a synergistic effect in high-performance EDLCs.
(3) The selection and design of solute additives still remain a major challenge. Large-cation ILs are the main research content of large-size salts as IL additives, and the rarely involved anions may be a future direction. Meanwhile, it is necessary to analyze the influence of solute additives to the functional groups on the electrode surface, which will allow us to deeply understand the advantages of electrolyte components and the enhanced mechanisms.
(4) As the microscopic reaction of the electrode–electrolyte interface occurs in the Stern layer of the electric double layer, which is determined by the ion dynamics and physicochemical interactions, theoretical study of the formation, thickness, and composition of the Stern layer will be the focus of research in the field of high voltage. The ionic interaction and kinetics of the IL–solvent system at the electrolyte/electrode interface should be systematically studied using molecular dynamics simulations. The influence mechanisms of ion size and solvation on the formation and thickness of the Stern layer in the electric double layer also need to be systematically studied via simulation. In addition, it is necessary to introduce an effective computational screening method to identify ILs, solvents, and additives suitable for EDLCs.
(5) A clear understanding of the electrochemical degradation mechanism of the IL–solvent electrolyte of EDLCs at high voltage is still lacking at present, which gives important guidance for the design of IL–solvent components with a wide operating window. The inhibition of electrochemical reactions on the electrode surface caused by the electrolyte components requires a deep understanding so that a highly electrochemical stable electrolyte and an electrode material with a stable surface can be designed.

Author Contributions

Y.W.: investigation, writing—original draft, methodology, funding acquisition; K.X.: investigation, formal analysis; X.Z.: investigation, formal analysis; C.Y.: funding acquisition, formal analysis; Y.L.: funding acquisition; K.S.: review—editing; P.M.: supervision—review, funding; S.W.: supervision—review; J.L.: supervision, funding acquisition, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Taishan Scholars Program, No. tsqnz20230629; the Western Young Scholars Foundations of Chinese Academy of Sciences; the Science Fund of Shandong Laboratory of Yantai Advanced Materials and Green Manufacturing, No. AMGM2022A02, AMGM2023A04; the Collaborative Innovation Alliance Fund for Young Science and Technology Worker, No. HZJJ23-5; and the FAW Volkswagen China Environmental Protection Foundation Automotive Environmental Protection Innovation Leadership Program.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hu, X.; Zuo, D.; Cheng, S.; Chen, S.; Liu, Y.; Bao, W.; Deng, S.; Harris, S.J.; Wan, J. Ultrafast materials synthesis and manufacturing techniques for emerging energy and environmental applications. Chem. Soc. Chem. 2023, 52, 1103. [Google Scholar] [CrossRef]
  2. Zhang, Z.; Ding, T.; Zhou, Q.; Sun, Y.; Qu, M.; Zeng, Z.; Ju, Y.; Li, L.; Wang, K.; Chi, F. A review of technologies and applications on versatile energy storage systems. Renew. Sustain. Energy Rev. 2021, 148, 111263. [Google Scholar] [CrossRef]
  3. Huang, J.; Xie, Y.; You, Y.; Yuan, J.; Xu, Q.; Xie, H.; Chen, Y. Rational design of electrode materials for advanced supercapacitors: From lab research to commercialization. Adv. Funct. Mater. 2023, 33, 2213095. [Google Scholar] [CrossRef]
  4. Zhao, J.; Burke, A.F. Review on Supercapacitors: Technologies and performance evaluation. J. Energ. Chem. 2021, 59, 276–291. [Google Scholar] [CrossRef]
  5. Pershaanaa, M.; Bashir, S.; Ramesh, S.; Ramesh, K. Every bite of supercap: A brief review on construction and enhancement of supercapacitor. J. Energy Storage 2022, 50, 104699. [Google Scholar] [CrossRef]
  6. Pathak, M.; Bhatt, D.; Bhatt, R.C.; Bohra, B.S.; Tattari, G.; Rana, S.; Arya, M.C.; Sahoo, N.G. High Energy Density Supercapacitors: An Overview of Efficient Electrode Materials, Electrolytes, Design, and Fabrication. Chem. Rec. 2024, 24, e202300236. [Google Scholar] [CrossRef]
  7. Simon, P.; Gogotsi, Y. Materials for electrochemical capacitors. Nat. Mater. 2008, 7, 845–854. [Google Scholar] [CrossRef]
  8. Song, G.; Li, C.; Wang, T.; Hu, K.L.F.; Cheng, S.; Hondo, E.; Liu, S.; Kawi, S. Hierarchical hollow carbon particles with encapsulation of carbon nanotubes for high performance supercapacitors. Small 2023, 20, 2305517. [Google Scholar] [CrossRef]
  9. Luo, L.; Lan, Y.; Zhang, Q.; Deng, J.; Luo, L.; Zeng, Q.; Gao, H.; Zhao, W. A review on biomass-derived activated carbon as electrode materials foe energy storage supercapacitors. J. Energy Storage 2022, 55, 105839. [Google Scholar] [CrossRef]
  10. Wu, Y.; Ye, J.; Jiang, G.; Ni, K.; Shu, N.; Taberna, P.; Zhu, Y.; Simon, P. Electrochemical characterization of single layer graphene/electrolyte interface: Effect of solvent on the interfacial capacitance. Angew. Chem. Int. Ed. 2021, 60, 13317–13322. [Google Scholar] [CrossRef]
  11. Tareen, A.K.; Khan, K.; Iqbal, M.; Zhang, Y.; Long, J.; Nazeer, F.; Mahmood, A.; Mahmood, N.; Shi, Z.; Ma, C.; et al. Recent advanced in novel graphene: New horizons in renewable energy storage technologies. J. Mater. Chem. C 2022, 10, 11472–11531. [Google Scholar] [CrossRef]
  12. Das, S.; Manuraj, M.; Rakhi, R.B.; Ajayaghosh, A. High-frequency electrochemical double layer capacitor based in carbon nanotubes ink coated eggshell membrane electrodes. J. Energy Storage 2022, 45, 103799. [Google Scholar] [CrossRef]
  13. Liu, J.; Yuan, Y.; Fang, H.; Xu, Y.; Sun, W.; Chen, S.; Wang, Y.; Lv, L. Redox-active tetramino-benzoquinone π-π stacking and H-bonding onto multiwalled carbon nanotubes toward a high-performance asymmetric supercapacitor. ACS Appl. Energy Mater. 2022, 5, 8112–8122. [Google Scholar] [CrossRef]
  14. Martín-Illán, J.; Sierram, L.; Ocón, P.; Zamora, F. Electrochemical double-layer capacitor based on carbon@ covalent organic framework aerogels. Angew. Chem. Int. Ed. 2022, 61, e202213106. [Google Scholar] [CrossRef]
  15. Shalkh, J.S.; Shalkh, N.S.; Mishra, Y.K.; Pawar, S.S.; Parveen, N.; Shewale, P.M.; Sabale, S.; Kanjanaboos, P.; Praserthdam, S.; Lokhande, C.D. The implementation of graphene-based aerogel in the field of supercapacitor. Nanotechnology 2021, 32, 362001. [Google Scholar]
  16. Najib, S.; Erdem, E. Current progress achieved in novel materials for supercapacitor electrodes: Mini review. Nanoscale Adv. 2019, 1, 2817–2827. [Google Scholar] [CrossRef] [PubMed]
  17. Schütter, C.; Pohlmann, S.; Balducci, A. Industrial requirements of materials for electrical double layer capacitors: Impact on current and future applications. Adv. Energy Mater. 2019, 9, 1900334. [Google Scholar] [CrossRef]
  18. Tao, R.; Yang, T.; Zhang, J.; Wu, Z.; Qiu, L. Design strategies of covalent organic framework-based electrodes for supercapacitor application. Chem. Commun. 2023, 59, 3175–3192. [Google Scholar] [CrossRef] [PubMed]
  19. Balducci, A. Electrolytes for high voltage electrochemical double layer capacitors: A perspective article. J. Power Sources 2016, 326, 534–540. [Google Scholar] [CrossRef]
  20. Simon, P.; Gogotsi, Y. Perspectives for electrochemical capacitors and related devices. Nat. Mater. 2020, 19, 1151–1163. [Google Scholar]
  21. Lim, J.M.; Jang, Y.S.; Nguyen, H.V.T.; Kim, J.S.; Yoon, Y.; Park, B.J.; Seo, D.H.; Lee, K.; Han, Z.; Ostrikov, K.; et al. Advances in high-voltage supercapacitors for energy storage systems: Materials and electrolyte tailoring to implementation. Nanoscale Adv. 2023, 5, 615–626. [Google Scholar] [CrossRef]
  22. Kim, E.; Han, J.; Ryu, S.; Choi, Y.; Yoo, J. Ionic liquid electrolyte for electrochemical energy storage devices. Materials 2021, 14, 4000. [Google Scholar] [CrossRef] [PubMed]
  23. Ray, A.; Saruhan, B. Application of ionic liquids for batteries and supercapacitors. Materials 2021, 14, 2942. [Google Scholar] [CrossRef] [PubMed]
  24. Miao, L.; Song, Z.; Zhu, D.; Li, L.; Gan, L.; Liu, M. Ionic liquids for supercapacitive energy storage: A mini-review. Energy Fuels 2021, 35, 8443–8455. [Google Scholar] [CrossRef]
  25. Gerdroodbar, A.E.; Alihemmati, H.; Safavi-Mirmahaleh, S.; Golshan, M.; Damircheli, R.; Eliseeva, S.N.; Salami-Kalajahi, M. A review on transport pathways and coordination chemistry between ions and electrolytes in energy storage devices. J. Energy Storage 2023, 74, 109311. [Google Scholar] [CrossRef]
  26. Xia, L.; Yu, L.; Hu, D.; Chen, G.Z. Electrolytes for electrochemical energy storage. Mater. Chem. Front. 2017, 1, 584–618. [Google Scholar] [CrossRef]
  27. Venâncio, R.; Vicentini, R.; Pinzón C., M.J.; Corrêa, D.A.; Miranda, A.N.; Queiroz, A.C.; Degasperi, F.T.; Siqueira, L.J.A.; Da Silva, L.M.; Zanin, H. Combining electrochemical, molecular simulation and operando techniques to investigate the stability of electrodes and organic electrolytes used in EDLCs. Energy Storage Mater. 2023, 62, 102943. [Google Scholar] [CrossRef]
  28. Zhang, J.; Wang, J.; Zuo, D.; Xu, J.; Wang, Q.; Zhang, H. A supramolecular gel polymer electrolyte based on poly(vinyl alcohol) and tannic acid for flexible electrical double layer capacitors. J. Energy Storage 2023, 72, 108618. [Google Scholar] [CrossRef]
  29. Gajewski, P.; Lewandowska, A.; Szczesniak, K.; Voelkel, A.; Marcinkowska, A. Optimization of ionogel polymer electrolytes composition for their best performance in electric double layer capacitor. ChemElectroChem 2022, 27, e202200745. [Google Scholar] [CrossRef]
  30. Bhat, M.Y.; Hashmi, S.A.; Khan, M.; Choi, D.; Qurashi, A. Frontiers and recent developments on supercapacitor’s materials, design, and applications: Transport and power system applications. J. Energy Storage 2023, 58, 106104. [Google Scholar] [CrossRef]
  31. Lu, S.; Song, Y.; Guo, K.; Chen, X.; Xu, J.; Zhao, L. Effect of aqueous electrolytes on the electrochemical behaviors of ordered mesoporous carbon composites after KOH activation as supercapacitors electrodes. J. Electroanal. Chem. 2018, 818, 58–67. [Google Scholar] [CrossRef]
  32. Zhang, X.; Shen, C.; Kao, E.; Warren, R.; Zhang, R.; Teh, K.S.; Zhong, J.; Wei, M.; Li, B.; Chu, Y.; et al. Titanium Disulfide Coated Carbon Nanotube Hybrid Electrodes Enable High Energy Density Symmetric Pseudocapacitors. Adv. Mater. 2018, 30, 1704754. [Google Scholar] [CrossRef]
  33. Tian, Z.; Deng, W.; Wang, X.; Liu, C.; Li, C.; Chen, J.; Xue, M.; Li, R.; Pan, F. Superconcentrated aqueous electrolyte to enhance energy density for advanced supercapacitors. Funct. Mater. Lett. 2017, 10, 1750081. [Google Scholar] [CrossRef]
  34. Xiao, D.; Zhang, L.; Li, Z.; Dou, H.; Zhang, X. Design strategies and research progress for Water-in-Salt electrolytes. Energy Storage Mater. 2022, 44, 10–28. [Google Scholar] [CrossRef]
  35. Xiao, D.; Wu, Q.; Liu, X.; Dou, Q.; Liu, L.; Yan, B.; Yu, H. High-voltage and high-capacitance aqueous supercapacitor using carbon nanorods electrodes and water-in-salt electrolyte. ChemElectroChem 2019, 6, 439–443. [Google Scholar] [CrossRef]
  36. Martins, V.L.; Mantovi, P.S.; Torresi, R.M. Suppressing early capacitance fade of electrochemical capacitors with water-in-salt electrolytes. Electrochim. Acta 2021, 372, 137854. [Google Scholar] [CrossRef]
  37. Lannelongue, P.; Bouchal, R.; Mourad, E.; Bodin, C.; Olarte, M.; Vot, S.; Favier, F.; Fontaine, O. “Water-in-Salt” for Supercapacitors: A Compromise between Voltage, Power Density, Energy Density and Stability. J. Electrochem. Soc. 2018, 165, A657–A663. [Google Scholar] [CrossRef]
  38. Samanta, P.; Ghosh, S.; Kundu, A.; Samanta, P.; Murmu, N.C.; Kulia, T. Review a strategic way of high-performance energy storage device development with envirmentally viable “Water-in-salt” electrolytes. J. Energy Chem. 2023, 78, 350–373. [Google Scholar] [CrossRef]
  39. Laheäär, A.; Jänes, A.; Lust, E. NaClO4 and NaPF6 as potential non-aqueous electrolytes salts for electrical double layer capacitor application. Electrochim. Acta 2012, 82, 309–313. [Google Scholar] [CrossRef]
  40. Chidiac, J.; Timperman, L.; Anouti, M. Role of FTFSI anion asymmetry on physical properties of AFTFSI (A=Li, Na and K) based electrolytes and consequences on supercapacitor application. ChemPhysChem 2021, 22, 1863–1879. [Google Scholar] [CrossRef]
  41. Wang, X.; Mahandzhiyski, A.Y.; Arstad, B.; Van Aken, K.L.; Mathis, T.S.; Gallegos, A.; Tian, Z.; Ren, D.; Sheridan, E.; Grimes, B.A.; et al. Selective charging behavior in an ionic mixture electrolyte supercapacitor system for higher energy and power. J. Am. Chem. Soc. 2017, 139, 18681–18687. [Google Scholar] [CrossRef] [PubMed]
  42. Handa, N.; Sugimoto, T.; Yamagata, M.; Kikuta, M.; Kono, M.; Ishikawa, M. A neat ionic liquid electrolyte based on FSI anion for electric double layer capacitor. J. Power Sources 2008, 185, 1585–1588. [Google Scholar] [CrossRef]
  43. Largeot, C.; Portet, C.; Chmiola, J.; Teberna, P.L.; Gogotsi, Y.; Simon, P. Relation between the ion size and pore size for an electric double-layer capacitor. J. Am. Chem. Soc. 2008, 130, 2730–2731. [Google Scholar] [CrossRef]
  44. Rennie, A.J.R.; Martins, V.L.; Torresi, R.M.; Hall, P.J. Ionic liquids containing sulfonium cations as electrolytes for electrochemical double layer capacitors. J. Phys. Chem. C 2015, 119, 23865–23874. [Google Scholar] [CrossRef]
  45. Lee, J.H.; Ryu, J.; Lee, A.S.; Na, W.; Yoon, H.; Kim, W.; Koo, C.M. High-voltage ionic liquid electrolytes based on ether functionalized pyrrolidinium for electric double-layer capacitors. Electrochim. Acta 2016, 222, 1847–1852. [Google Scholar] [CrossRef]
  46. Martins, V.L.; Rennie, A.J.R.; Sanchez-Ramirez, N.; Torresi, R.M.; Hall, P.J. Improved performance of ionic liquid supercapacitors by using tetracyanoborate anions. ChemElectroChem 2018, 5, 598–604. [Google Scholar] [CrossRef] [PubMed]
  47. Aken, K.L.V.; Beidaghi, M.; Gogotsi, Y. Formulation of ionic-liquid electrolyte to expand the voltage window of supercapacitors. Angew. Chem. Int. Ed. 2015, 54, 4806–4809. [Google Scholar] [CrossRef]
  48. Lin, R.; Taberna, P.L.; Fantini, S.; Presser, V.; Pérez, C.R.; Malbosc, F.; Rupesinghe, N.L.; Teo, K.B.K.; Gogosti, Y.; Simon, P. Capacitive energy storage from −50 to 100 °C using an ionic liquid electrolyte. J. Phys. Chem. Lett. 2011, 2, 2396–2401. [Google Scholar] [CrossRef]
  49. Newell, R.; Faure-Vincent, J.; Iliev, B.; Schubert, T.; Aradilla, D. A new high performance ionic liquid mixture electrolyte for large temperature range supercapacitor application (−70 °C to 80 °C) operating at 3.5 V cell voltage. Electrochim. Acta 2018, 267, 15–19. [Google Scholar] [CrossRef]
  50. Krummacher, J.; Schütter, C.; Passerini, S.; Balducci, A. Characterization of different conductive salts in CAN-based electrolytes for electrochemical double-layer capacitors. ChemElectroChem 2013, 4, 353–361. [Google Scholar] [CrossRef]
  51. Balducci, A. High voltage electrochemical double layer capacitor containing mixtures of ionic liquids and organic carbonate as electrolytes. Electrochem. Commun. 2011, 13, 814–817. [Google Scholar] [CrossRef]
  52. Wong, S.I.; Lin, H.; Sunarso, J.; Wong, B.T.; Jia, B. Optimization of ionic-liquid based electrolyte concentration for high-energy density graphene supercapacitors. Appl. Mater. Today 2020, 18, 100522. [Google Scholar] [CrossRef]
  53. Schütter, C.; Bothe, A.; Balducci, A. Mixtures of acetonitrile and ethyl isopropyl sulfone as electrolytes foe electrochemical double layer capacitors. Electrochim. Acta 2020, 331, 135421. [Google Scholar] [CrossRef]
  54. Koh, A.R.; Hwang, B.; Roh, K.C.; Kim, K. The effect of the ionic size of small quaternary ammonium BF4 salts on electrochemical double layer capacitors. Phys. Chem. Chem. Phys. 2014, 16, 15146–15151. [Google Scholar] [CrossRef] [PubMed]
  55. Lei, Z.; Chen, B.; Koo, Y.M.; Macfarlane, D.R. Introduction: Ionic liquids. Chem. Rev. 2017, 117, 6633. [Google Scholar] [CrossRef] [PubMed]
  56. Choudhary, G.; Dhariwal, J.; Saha, M.; Trivedi, S.; Banjare, M.K.; Kanaoujiya, R.; Behera, K. Ionic liquids: Environmentally sustainable materials for energy conversion and storage applications. Environ. Sci. Pollut. Res. 2023. [CrossRef] [PubMed]
  57. Wang, X.; Zhou, H.; Sheridan, E.; Walmsley, J.C.; Ren, D.; Chen, D. Geometrically confined favorable ion packing for high gravimetric capacitance in carbon-ionic liquid supercapacitors. Energy Environ. Sci. 2016, 9, 232–239. [Google Scholar] [CrossRef]
  58. Ali, E. Supercapacitors utilising ionic liquids. Energy Storage Mater. 2017, 9, 47–69. [Google Scholar]
  59. Lethesh, K.C.; Bamgbopa, M.O.; Susantyoko, R.A. Prospects and design insights of neat ionic liquids as supercapacitor electrolytes. Front. Energy Res. 2021, 9, 741772. [Google Scholar] [CrossRef]
  60. Pohlmann, S.; Olschläger, T.; Giidrich, P.; Jacquemin, J.A.V.J.; Balducci, A. Mixtures of azepanium based ionic liquids and propylene cabonates as high voltage electrolytes for supercapacitors. Electrochim. Acta 2015, 153, 426–432. [Google Scholar] [CrossRef]
  61. Kasprzak, D.; Stepniak, I.; Galinski, M. Acetate- and lactate-based ionic liquids: Synthesis, characterisation and electrochemical properties. J. Mol. Liq. 2018, 264, 233–241. [Google Scholar] [CrossRef]
  62. Nguyen, H.V.; Lee, S.; Kwak, K.; Lee, K.K. Bis(oxalate)borate-containing electrolytes for high voltage electric double-layer capacitors: A comparative study. Electrochim. Acta 2019, 321, 134649. [Google Scholar] [CrossRef]
  63. Mishra, A.; Shetti, N.P.; Basu, S.; Reddy, K.R.; Aminabhavi, T.M. Chapter 7- Recent developments in ionic liquid-based electrolytes for energy storage supercapacitors and rechargeable batteries. In Green Sustainable Process for Chemical and Environmental Engineering and Science; Elsevier Inc.: Amsterdam, The Netherlands, 2020; pp. 199–221. [Google Scholar]
  64. Feng, J.; Wang, Y.; Xu, Y.; Sun, Y.; Tang, Y.; Yan, X. Ion regulation of ionic liquid electrolytes for supercapacitors. Energy Environ. Sci. 2021, 14, 2859. [Google Scholar] [CrossRef]
  65. Krummacher, J.; Schütter, C.; Hess, L.H.; Balducci, A. Non-aqueous electrolytes for electrochemical capacitors. Curr. Opin. Electrochem. 2018, 9, 64–69. [Google Scholar] [CrossRef]
  66. Zhong, C.; Deng, Y.D.; Hu, W.B.; Qiao, J.L.; Zhang, L.; Zhang, J.J. A review of electrolyte materials and compositions for electrochemical supercapacitors. Chem. Soc. Rev. 2015, 44, 7484–7539. [Google Scholar] [CrossRef]
  67. Shahzad, S.; Shah, A.; Kowsari, E.; Iftikhar, F.J.; Nawab, A.; Piro, B.; Akhter, M.S.; Rana, U.A.; Zou, Y. Ionic liquids as environmentally benign electrolytes for high-performance supercapacitors. Glob. Chall. 2019, 3, 1800023. [Google Scholar] [CrossRef]
  68. Pan, S.; Yao, M.; Zhang, J.; Li, B.; Xing, C.; Song, X.; Su, P.; Zhang, H. Recognition of ionic liquids as high-voltage electrolytes for supercapacitors. Front. Chem. 2020, 8, 261. [Google Scholar] [CrossRef] [PubMed]
  69. Stettner, T.; Balducci, A. Protic ionic liquids in energy storage devices: Past, present and future perspective. Energy Storage Mater. 2021, 40, 402–444. [Google Scholar] [CrossRef]
  70. Sun, L.; Zhuo, K.; Chen, Y.; Du, Q.; Zhang, S.; Wang, J. Ionic liquid-based redox active electrolytes for supercapacitors. Adv. Funct. Mater. 2022, 32, 2203611. [Google Scholar] [CrossRef]
  71. Zhou, T.; Gui, C.; Sun, L.; Hu, Y.; Lyu, H.; Wang, Z.; Song, Z.; Yu, G. Energy application of ionic liquids: Recent developments and future prospects. Chem. Rev. 2023, 123, 12170–12253. [Google Scholar] [CrossRef]
  72. Bittner, A.M.; Zhu, M.; Yang, Y.; Waibel, H.F.; Konuma, M.; Starke, U.; Weber, C.J. Ageing of electrochemical double layer capacitors. J. Power Sources 2012, 203, 262–273. [Google Scholar] [CrossRef]
  73. Kurzweil, P.; Schottenbauer, J.; Schell, C. Past, present and future of electrochemical capacitors: Pseudocapacitance, aging mechanisms and service life estimation. J. Energy Storage 2021, 35, 102311. [Google Scholar] [CrossRef]
  74. Zheng, J.P. The limitations of energy density of battery/double-layer capacitor asymmetric cells. J. Electrochem. Soc. 2003, 150, A484–A492. [Google Scholar] [CrossRef]
  75. Köps, L.; Kreth, F.A.; Bothe, A.; Balducci, A. High voltage electrochemical capacitors operating at elevated temperature besed on 1,1-dimethylpyrrolidinium tetrafluoroborate. Energy Storage Mater. 2022, 44, 66–72. [Google Scholar] [CrossRef]
  76. Pohlmann, S.; Balducci, A. A new conducting salt for high voltage propylene carbonated-based electrochemical double layer capacitors. Electrochim. Acta 2013, 110, 221–227. [Google Scholar] [CrossRef]
  77. Palm, R.; Kurig, H.; Tõnurist, K.; Jänes, A.; Lust, E. Influence of different organic solvent additives on 1-ethyl-3-methylimidazolium tetrafluoroborate electrolyte based electrical double layer capacitors. J. Electrochem. Soc. 2013, 160, A1741–A1745. [Google Scholar] [CrossRef]
  78. Scalia, A.; Varzi, A.; Moretti, A.; Ruschaupt, P.; Lamberti, A.; Tress, E.; Passerini, S. Electrolytes based on N-butyl-N-methyl-pyrrolidium 4,5-dicyano-2-(trifluoromethyl) imidazole for high voltage electrochemical double layer capacitors. ChemElectroChem. 2019, 6, 552–557. [Google Scholar] [CrossRef]
  79. Brandt, A.; Balducci, A. Theoretical and practical energy limitations of organic and ionic liquid-based electrolytes for high voltage electrochemical double layer capacitors. J. Power Sources 2014, 250, 343–351. [Google Scholar] [CrossRef]
  80. Schütter, C.; Husch, T.; Korth, M.; Balducci, A. Toward new solvents for EDLCs: From computational screening to electrochemical validation. J. Phys. Chem. C 2015, 119, 13413–13424. [Google Scholar] [CrossRef]
  81. Chiba, K.; Ueda, T.; Yamaguchi, Y.; Oki, Y.; Shimodate, F.; Naoi, K. Electrolyte systems for high withstand voltage and durability I. linear sulfones for electric double-layer capacitors. J. Electrochem. Soc. 2011, 158, A872. [Google Scholar] [CrossRef]
  82. Senoh, H.; Sakaebe, H.; Sano, H.; Yao, M.; Kuratani, K.; Takeichi, N.; Kiyobayashi, T. Sulfone-based electrolyte solutions for rechargeable magnesium batteries using 2,5-dimethoxy-1,4-benzoquinone positive electrode. J. Electrochem. Soc. 2014, 161, A1315. [Google Scholar] [CrossRef]
  83. Köps, L.; Kreth, F.A.; Leitenschneider, D.; Schutjajew, K.; Glä, R.; Oschatz, M.; Balducci, A. Improving the stability of supercapacitors at high voltages and high temperature by implementation of ethyl isopropyl sulfone as electrolyte solvent. Adv. Energy Mater. 2023, 13, 2203821. [Google Scholar] [CrossRef]
  84. Chiba, K.; Ueda, T.; Yamaguchi, Y.; Oki, Y.; Saiki, F.; Naoi, K. Electrolyte systems for high withstand voltage and durability II: Alkylated cyclic carbonates for electric double-layer capacitors. J. Electrochem. Soc. 2011, 158, A1320–A1327. [Google Scholar] [CrossRef]
  85. Hess, L.H.; Balducci, A. 1,2-butylene carbonate as solvent for EDLCs. Electrochimica Acta 2018, 281, 437–444. [Google Scholar] [CrossRef]
  86. Rumble, J.R.; David, R.L.; Thomas, J.B. CRC Handbook of Chemistry and Physics: A Ready Reference Book of Chemical and Physical Data, 99th ed.; CRC Press: Boca Raton, FL, USA, 2018. [Google Scholar]
  87. Nguyen, H.V.T.; Faheem, A.B.; Kwak, K.; Lee, K. Propionitrile as a single organic solvent for high voltage electric double-layer capacitors. J. Power Sources 2020, 463, 228134. [Google Scholar] [CrossRef]
  88. Bothe, A.; Pourhosseini, S.E.M.; Ratajczak, P.; Beguin, F.; Balducci, A. Towards understanding the impact of operating voltage on the stability of adiponitrile-based electrical double-layer capacitors. J. Power Sources 2021, 496, 229841. [Google Scholar] [CrossRef]
  89. Tabarov, F.S.; Galimzyanov, R.R.; Krechetov, I.S.; Kalashnik, A.T.; Galimzyanov, T.R.; Boboev, I.R.; Lisitsin, A.V.; Stakhanova, S.V. Vinylene carbonate, toluene and diethyl ether as electrolyte additives for a wide-temperature range operating of EDLCs. J. Power Sources 2023, 560, 232658. [Google Scholar] [CrossRef]
  90. Yang, H.; Wang, Z.; Qi, Y.; Zhang, C.; Huang, Y.; Yan, J.; Cen, K.; Xiong, G.; Bo, Z.; Ostrikov, K. A strong-weak binary solvation structure for unimpeded low-temperature ion transport in nanoporous energy storage materials. J. Mater. Chem. A 2023, 11, 16995–18006. [Google Scholar] [CrossRef]
  91. Lang, J.; Zhang, X.; Liu, L.; Yang, B.; Yang, J.; Yan, X. Highly enhanced energy density of supercapacitors at extremely low temperatures. J. Power Sources 2019, 423, 271–279. [Google Scholar] [CrossRef]
  92. Yao, J.; Shi, M.; Li, W.; Han, Q.; Wu, M.; Yang, W.; Wang, E.; Lu, X. Fluorinated ether-based electrolyte for supercapacitors with increased working voltage and suppressed self-discharge. ChemElectroChem 2022, 9, e202200223. [Google Scholar] [CrossRef]
  93. Lu, H.; He, L.; Li, X.; Zhang, W.; Che, J.; Liu, X.; Hou, Z.; Du, H.; Qu, Y. Ionic liquid-solvent mixture of propylene carbonate and 1,2-dimethoxyethane as electrolyte for electric double-layer capacitor. J. Mater. Sci. Mater. Electron. 2019, 30, 13933–13938. [Google Scholar] [CrossRef]
  94. Nambu, N.; Kobayashi, D.; Sasaki, Y. Physical and electrolytic properties of different cyclic carbonates as solvents for electric double-layer capacitors. Electrochemistry 2013, 81, 814–816. [Google Scholar] [CrossRef]
  95. Yu, X.; Wang, J.; Wang, C.; Shi, Z. A novel electrolyte used in high working voltage application for electrical double-layer capacitor using spiro-(1,1′)-bipyrridinium tetrafluoroborate in mixtures solvents. Electrochim. Acta 2015, 182, 1166–1174. [Google Scholar] [CrossRef]
  96. Jänes, A.; Thomberg, T.; Eskusson, J.; Lust, E. Fluoroethylene carbonate as co-solvent for propylene carbonate based electrical double layer capacitors. J. Electrochem. Soc. 2013, 160, A1025. [Google Scholar] [CrossRef]
  97. Vatamanu, J.; Borodin, O.; Olguin, M.; Yushin, G.; Bedrov, D. Charge storage at the nanoscale: Understanding the trends from the molecular scale perspective. J. Mater. Chem. A 2017, 5, 21049–21076. [Google Scholar] [CrossRef]
  98. Azmi, S.; Klimek, A.; Frackowiak, E. Why electrochemical capacitor electrolytes should not be ignored? Electrochim. Acta 2023, 452, 142347. [Google Scholar] [CrossRef]
  99. Murayama, I.; Yoshimoto, N.; Egashira, M.; Morita, M.; Kobayashi, Y.; Ishiikawa, M. Characteristics of electric double layer capacitors with an ionic liquid electrolyte containing Li ion. Electrochemistry 2005, 73, 600–602. [Google Scholar] [CrossRef]
  100. Fukuda, Y.; Tanaka, R.; Ishikawa, M. Beneficial effects of a Li salt on electrode behavior in an ionic liquid for electric double layer capacitors. Electrochemistry 2007, 75, 589–591. [Google Scholar] [CrossRef]
  101. Li, X.; Li, H.; Feng, R.; He, L.; Lu, H. Electrochemical double-layer capacitor containing mixtures of ionic liquid, lithium salt, and organic solvent as an electrolyte. Front. Mater. 2021, 8, 633460. [Google Scholar] [CrossRef]
  102. Krause, F.C.; Jones, J.; Smart, M.C.; Chin, K.B.; Brandon, E.J. Screening electrolytes designed for high voltage electrochemical capacitors. Electrochim. Acta 2021, 374, 137898. [Google Scholar] [CrossRef]
  103. Kim, M.K.K.; Kim, S. Conducting and interface characterization of carbonate-type organic electrolyte containing EMImBF4 as an additive against activated carbon electrode. Carbon Lett. 2015, 16, 51–56. [Google Scholar] [CrossRef]
  104. Kwon, H.; Jang, S.; Kang, Y.; Roh, K. The effect of ILs as co-salts in electrolytes for high voltage supercapacitors. Sci. Rep. 2019, 9, 1180. [Google Scholar] [CrossRef] [PubMed]
  105. Bo, Z.; Zhang, X.; Huang, Z.; Huang, Y.; Yan, J.; Cen, K.; Yang, H. Binary ionic liquids hybrid electrolyte based supercapacitors with high energy & power density. RSC Adv. 2023, 13, 15762. [Google Scholar] [PubMed]
  106. Dou, Q.; Lian, C.; Lei, S.; Chen, J.; Liu, H.; Yan, X. Silica-grafted ionic liquid for maximizing the operational voltage of electrical double-layer capacitors. Energy Storage Mater. 2019, 18, 253–259. [Google Scholar] [CrossRef]
  107. Wang, Y.; Xue, K.; Zhang, X.; Zhang, X.; Ma, P.; Yang, B.; Xu, S.; Lang, J. High-voltage electrochemical double layer capacitors enabled by polymeric ionic liquid. Electrochim. Acta 2023, 441, 141829. [Google Scholar] [CrossRef]
  108. Jiang, X.; Wu, X.; Xie, Y.; Wang, Z.; Huang, J.; Qu, Y.; Mu, D.; Zhang, X.; Yang, W.; Zhang, H. Additive engineering enables ionic-liquid electrolyte-based supercapacitors to deliver simultaneously high energy and power density. ACS Sustain. Chem. Eng. 2023, 11, 5685–5695. [Google Scholar] [CrossRef]
Batteries 10 00054 g001
Figure 1. (a) A Ragone plot depicting various energy storage systems; (b) fundamental design and operational principles of an EDLC; (c) global distribution of supercapacitor market shares by region and year [3].
Figure 1. (a) A Ragone plot depicting various energy storage systems; (b) fundamental design and operational principles of an EDLC; (c) global distribution of supercapacitor market shares by region and year [3].
Batteries 10 00054 g001
Batteries 10 00054 g002
Figure 2. Commonly used cations and anions (a) and other cations and anions with new structure (b) in ILs.
Figure 2. Commonly used cations and anions (a) and other cations and anions with new structure (b) in ILs.
Batteries 10 00054 g002
Batteries 10 00054 g003

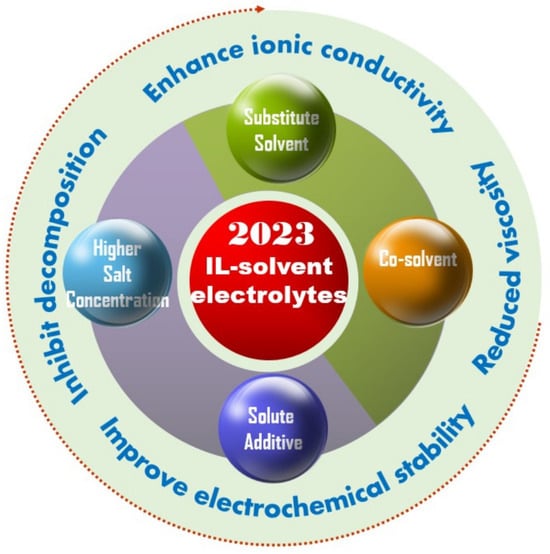

Figure 3. The methods of increasing the voltage of IL–solvent electrolytes as well as the corresponding improved physicochemical properties.
Figure 3. The methods of increasing the voltage of IL–solvent electrolytes as well as the corresponding improved physicochemical properties.
Batteries 10 00054 g003
Batteries 10 00054 g004

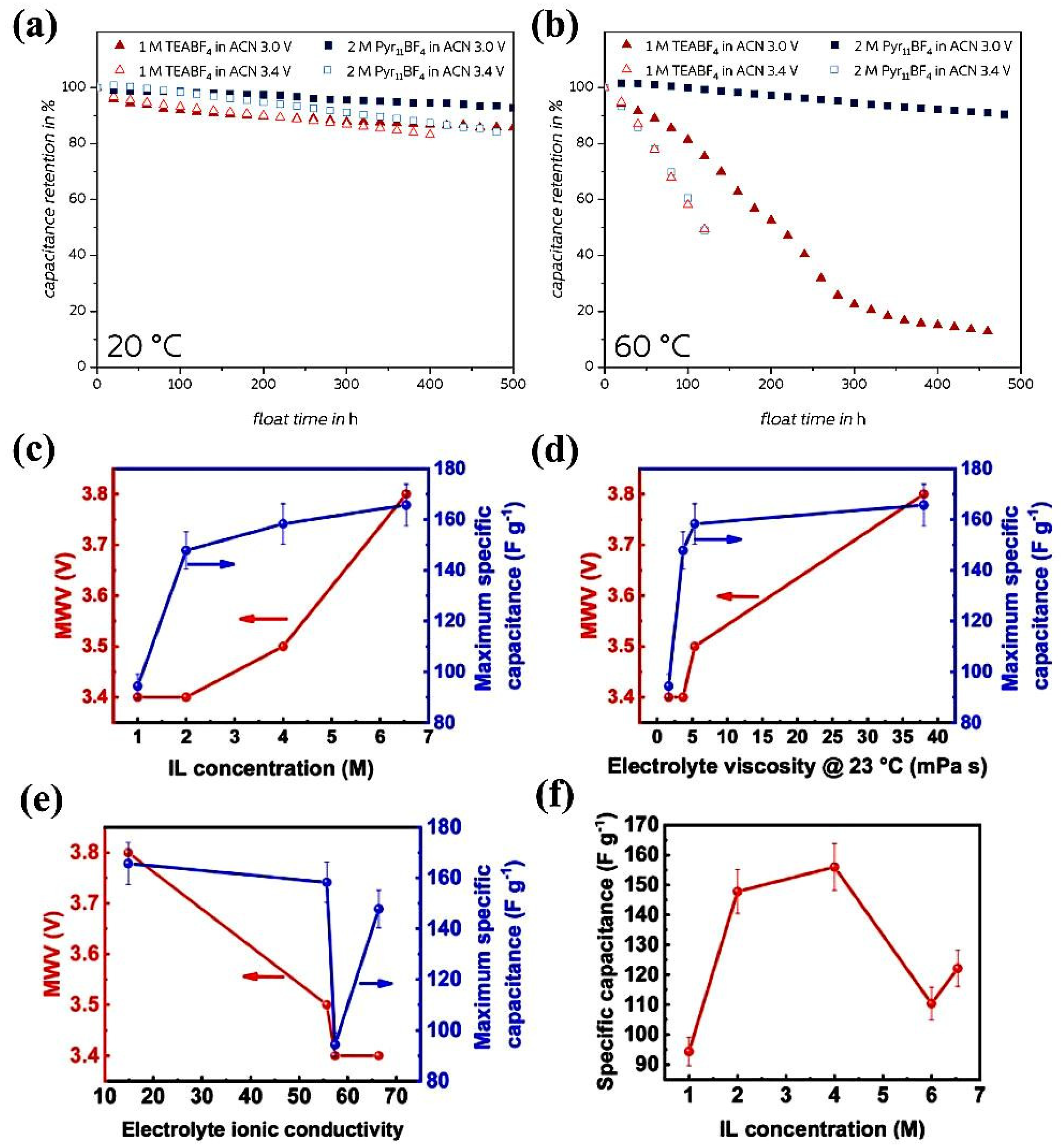

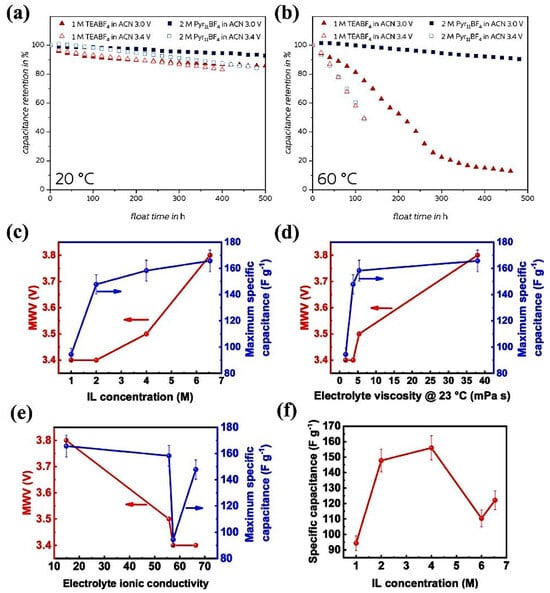

Figure 4. Comparisons of the floating stability of 1 M TEABF4/AN and 2 M Pyr11BF4/AN at 20 °C (a) and 60 °C (b) [75]. The maximum operating voltages (MWVs) and maximum specific capacitance related to (c) the concentration of IL, (d) the viscosity of the electrolyte, and (e) the ionic conductivity of electrolytes. The variation curve of specific capacitance with IL concentration at 3.4 V (f) [52].
Figure 4. Comparisons of the floating stability of 1 M TEABF4/AN and 2 M Pyr11BF4/AN at 20 °C (a) and 60 °C (b) [75]. The maximum operating voltages (MWVs) and maximum specific capacitance related to (c) the concentration of IL, (d) the viscosity of the electrolyte, and (e) the ionic conductivity of electrolytes. The variation curve of specific capacitance with IL concentration at 3.4 V (f) [52].
Batteries 10 00054 g004
Batteries 10 00054 g005

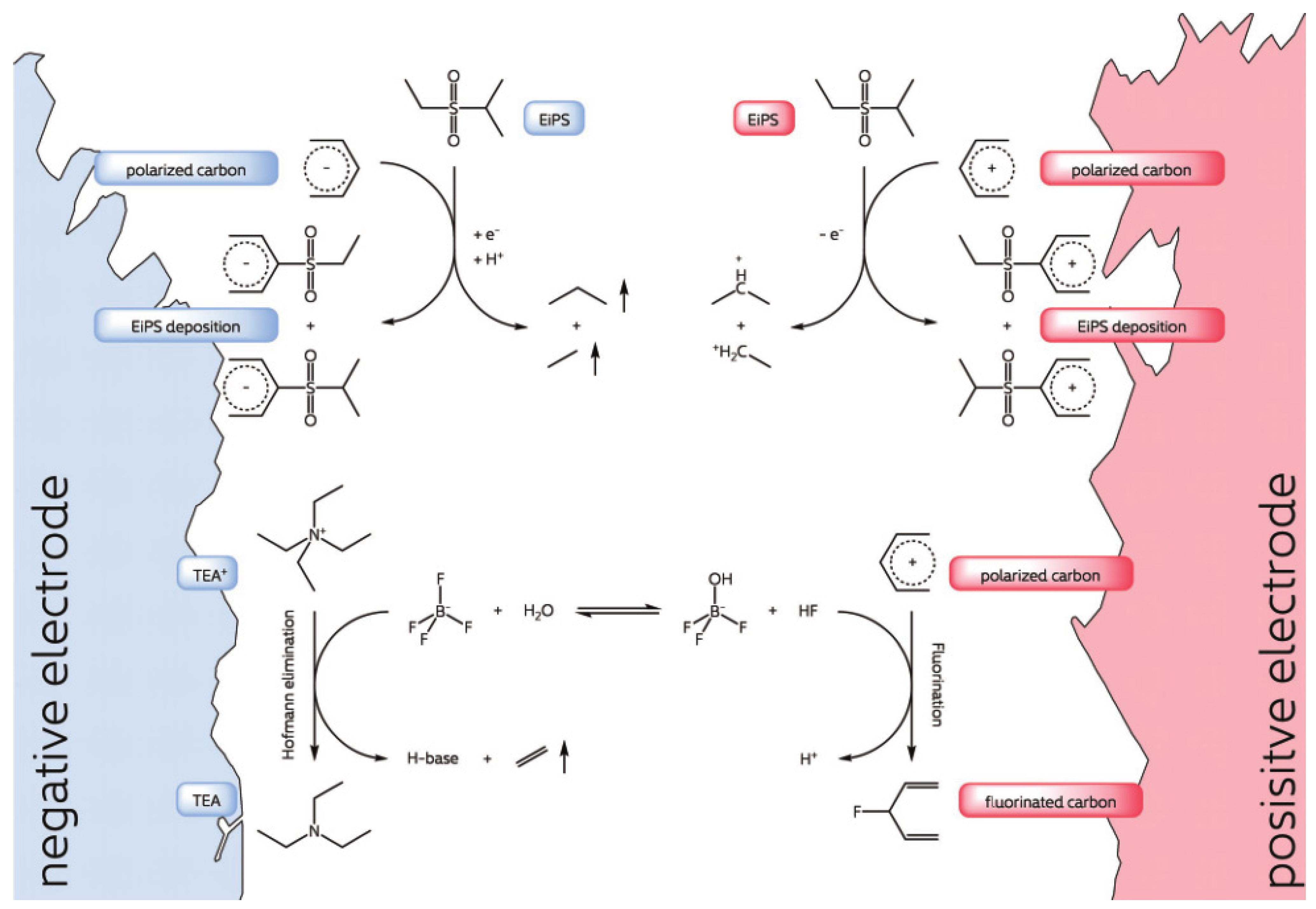

Figure 5. Proposed aging processes occurred on the interphase between TEABF4/EiPS electrolyte and activated carbon electrodes at elevated temperatures [83].
Figure 5. Proposed aging processes occurred on the interphase between TEABF4/EiPS electrolyte and activated carbon electrodes at elevated temperatures [83].
Batteries 10 00054 g005
Batteries 10 00054 g006

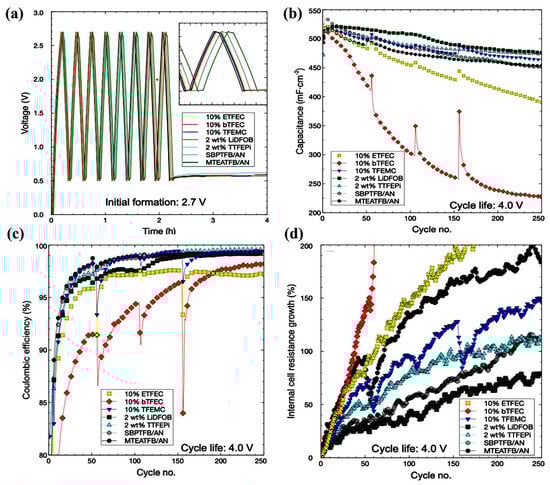

Figure 6. (a) Eight constant current charge/discharge cycles at a current of 5 mA across a voltage range of 0.5 to 2.7 V. (b) Capacitance of EDLCs during cycle life testing across a range of 0.5 to 4.0 V. (c) Coulombic efficiency of EDLCs under a voltage range of 0.5 to 4.0 V cycle life. (d) Increase in internal resistance as determined by current interrupting a voltage range of 0.5 to 4.0 V in cycle life test [102].
Figure 6. (a) Eight constant current charge/discharge cycles at a current of 5 mA across a voltage range of 0.5 to 2.7 V. (b) Capacitance of EDLCs during cycle life testing across a range of 0.5 to 4.0 V. (c) Coulombic efficiency of EDLCs under a voltage range of 0.5 to 4.0 V cycle life. (d) Increase in internal resistance as determined by current interrupting a voltage range of 0.5 to 4.0 V in cycle life test [102].
Batteries 10 00054 g006
Batteries 10 00054 g007

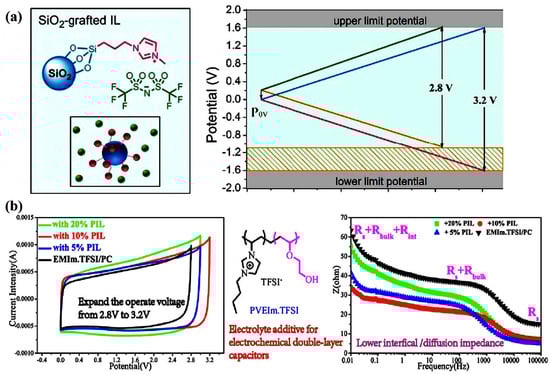

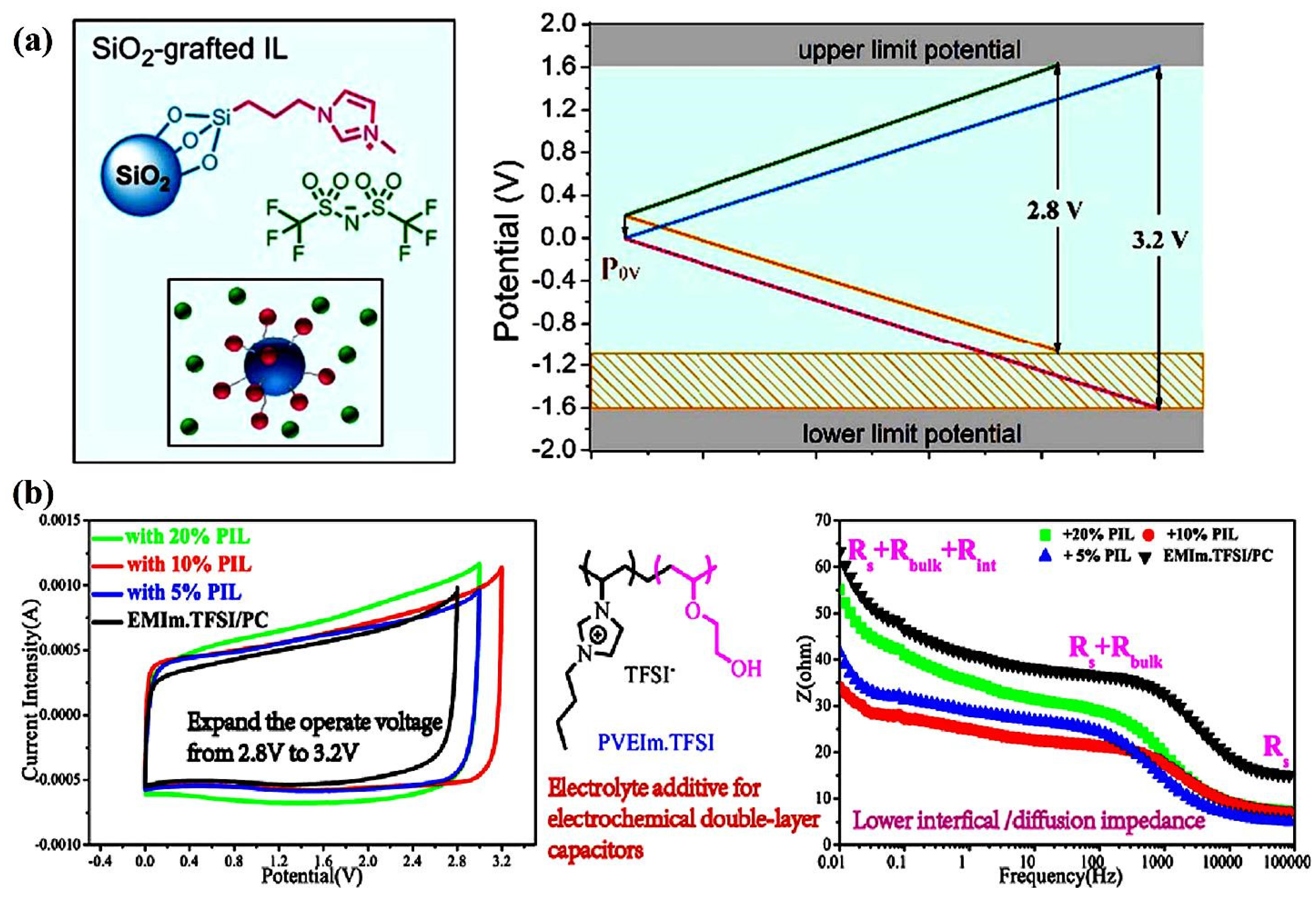

Figure 7. (a) The structure of SiO2–IL–TFSI and the schematic of increasing the operational potential [106]; (b) chemical structure of PVEImTFSI and its positive effects on voltage and impedance [107].
Figure 7. (a) The structure of SiO2–IL–TFSI and the schematic of increasing the operational potential [106]; (b) chemical structure of PVEImTFSI and its positive effects on voltage and impedance [107].
Batteries 10 00054 g007
Table 1. Electrolytes used in EDLCs.
Table 1. Electrolytes used in EDLCs.
TypesElectrolytesOperating Voltage (V)References
Aqueous electrolyte6M KOH,6M NaOH, 1M HCl, 0.5M H2SO40.9[33]
1M NaCl, 1M KCl, 0.5M Na2SO4, 0.5M K2SO41.7[34]
0.5M H2SO41.2[34]
LiCl (1M, 10M, 20M)1.4, 1.5, 2.35[34]
KCH3COO2.0[38]
WIS (21M LiTFSI)2.2[35]
WIS (21M LiTFSI)2.6[36]
WIS (31.3M LiTFSI)2.4[37]
Solvent-free ILsEMImBF43.5[41]
EMImFSI2.0[42]
EMImTFSI3.0[43]
Pyr14TFSI3.7[44]
MPImFSI3.5[45]
MPPyrFSI3.5[45]
MeoMPyrFSI3.5[45]
Pip14B(CN)43.7[46]
Pyr14B(CN)43.7[46]
Mixed ILsEMImTFSI + EMImBF43.5[47]
Pyr14FSI + PIP13FSI3.7[48]
EMImBF4 + TMABF43.5[41]
EMImTFSI + MPPyrTFSI3.5[49]
IL–solventPyr14TFSI/AN3.1[50]
Pyr14BF4/AN3.1[50]
Pyr14BF4/PC3.2[51]
TEABF4/AN or PC2.5–2.8[52]
SBPBF4/AN or PC2.8–3.2[53]
(TEMABF4; DEDMABF4; TMPABF4; TMEABF4)/AN3.0[54]
Table 2. The methods to achieve high voltage of EDLCs with IL–solvent electrolytes.
Table 2. The methods to achieve high voltage of EDLCs with IL–solvent electrolytes.
Tuning MethodsElectrolytesVoltage (V)Ref.Challenges
High salt concentration2M Pyr11BF4/AN3.4[75]High viscosity and high cost limit the commercial application
2.3M Pyr14TFSI/PC3.5[51]
EMIMBF4/AN or PC or γ-butyrolactone (0.005–1.0 M solvent)3.2[77]
High stable solventTEABF4/EiPS3.4[83]Accompanied by a reduction in power output
SBPBF4/2,3-BC3.5[84]
Pyr14BF4/1,2-BC3.15[85]
SBPBF4/PN3.5[87]
DMPBF4/PN3.3[87]
Pyr14BF4/ADN3.4[88]
Co-solventTEMABF4/EiPS/AN3.0[53]The increase of voltage window is limited
EMImBF4/MA/AN3.5[91]
TEABF4/TTE/AN3.6[92]
SBPBF4/DME/PC3.2[95]
(C2H5)3CH3NBF4/FEC/PC3.0[96]
Solute salt additiveEMImBF4/LiPF6/PC/DMC3.0[101]The designing and selecting suitable additives lack systematic guidance
SBPBF4/LiDFOB/AN4.0[102]
TEABF4/EMImBF4/PC3.7[104]
Pyr14TFSI/TMPATFSI/AN3.1[105]
EMImTFSI/SiO2-IL/PC3.2[106]
EMImTFSI/PVEImTFSI/PC3.2[107]
EMImBF4/Ti3C2CTAB/PC3.0[108]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, Y.; Xue, K.; Yan, C.; Li, Y.; Zhang, X.; Su, K.; Ma, P.; Wan, S.; Lang, J. Tuning of Ionic Liquid–Solvent Electrolytes for High-Voltage Electrochemical Double Layer Capacitors: A Review. Batteries 2024, 10, 54. https://doi.org/10.3390/batteries10020054

AMA Style

Wang Y, Xue K, Yan C, Li Y, Zhang X, Su K, Ma P, Wan S, Lang J. Tuning of Ionic Liquid–Solvent Electrolytes for High-Voltage Electrochemical Double Layer Capacitors: A Review. Batteries. 2024; 10(2):54. https://doi.org/10.3390/batteries10020054

Chicago/Turabian Style

Wang, Yan, Kaiyuan Xue, Changzeng Yan, Yuehui Li, Xingyun Zhang, Kailimai Su, Pengjun Ma, Shanhong Wan, and Junwei Lang. 2024. "Tuning of Ionic Liquid–Solvent Electrolytes for High-Voltage Electrochemical Double Layer Capacitors: A Review" Batteries 10, no. 2: 54. https://doi.org/10.3390/batteries10020054

APA Style

Wang, Y., Xue, K., Yan, C., Li, Y., Zhang, X., Su, K., Ma, P., Wan, S., & Lang, J. (2024). Tuning of Ionic Liquid–Solvent Electrolytes for High-Voltage Electrochemical Double Layer Capacitors: A Review. Batteries, 10(2), 54. https://doi.org/10.3390/batteries10020054

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
