Article

Magnetic Field Perturbations to a Soft X-ray-Activated Fe (II) Molecular Spin State Transition

by
Guanhua Hao
1,2,
Alpha T. N’Diaye
2,*,
Thilini K. Ekanayaka
1,
Ashley S. Dale
3,
Xuanyuan Jiang
1,
Esha Mishra
1,
Corbyn Mellinger
1,
Saeed Yazdani
3,
John W. Freeland
4,
Jian Zhang
5,
Ruihua Cheng
3,*,
Xiaoshan Xu
1 and
Peter A. Dowben
1,*
1
Department of Physics and Astronomy, University of Nebraska-Lincoln, Lincoln, NE 68588, USA
2
Advanced Light Source, Lawrence Berkeley National Laboratory, Berkeley, CA 94720, USA
3
Physics Department, Indiana University Purdue University-Indianapolis, Indianapolis, IN 46202, USA
4
Advanced Photon Source, Argonne National Laboratory, Argonne, IL 60439, USA
5
Molecular Foundry, Lawrence Berkeley National Laboratory, Berkeley, CA 94720, USA
*
Authors to whom correspondence should be addressed.
Magnetochemistry 2021, 7(10), 135; https://doi.org/10.3390/magnetochemistry7100135
Submission received: 17 August 2021 / Revised: 10 September 2021 / Accepted: 15 September 2021 / Published: 2 October 2021
(This article belongs to the Section Spin Crossover and Spintronics)
Browse Figures
Versions Notes

Abstract

:
The X-ray-induced spin crossover transition of an Fe (II) molecular thin film in the presence and absence of a magnetic field has been investigated. The thermal activation energy barrier in the soft X-ray activation of the spin crossover transition for [Fe{H2B(pz)2}2(bipy)] molecular thin films is reduced in the presence of an applied magnetic field, as measured through X-ray absorption spectroscopy at various temperatures. The influence of a 1.8 T magnetic field is sufficient to cause deviations from the expected exponential spin state transition behavior which is measured in the field free case. We find that orbital moment diminishes with increasing temperature, relative to the spin moment in the vicinity of room temperature.

1. Introduction

Switching of the spin state, and the accompanying conductivity, with an electric field is a long-sought goal with great potential for energy-efficient electronics and data storage. Such magneto-electric coupling has a long history [1], dating back to 1894 [2]. Currently, magneto-electric coupling is being explored in oxides, and raises increasing interest because magneto-electric and multiferroic materials are seen as a pathway to voltage-controlled nonvolatile logic [3,4] and memory [4]. There are few investigations of magneto-electric coupling in molecular systems, with clear demonstrations now provided for [Mn3+(taa)] (H3taa = tris(1-(2-azolyl)-2-azabuten-4-yl) amine) [5,6], and [Mn3+(3,5-diBr-sal)2323)]BPh4 [7], which undergo a spin state transition; these have recently been accompanied by a complementary theory [7,8]. Magneto-electric coupling has also been observed in single crystals of NiCl2–4SC(NH2)2 [9]. Magnetic fields have been seen to perturb the spin state transition in [Mn3+(taa)] [10], Fe(1,10-phenanthroline)2(NCS)2 [9], Fe(phen)2(NCS)2 [11], [Fe{H2B(pz)2}2(bipy)] (H2B(pz)2 = bis(hydrido)bis(1H-pyrazol-1-yl) borate, bipy = 2,2’-bipyridine) [12]. These latter spin crossover systems all have a static electric dipole which is intrinsically dependent on the spin state; therefore, the perturbation of the spin state, such as with a magnetic field, is an example of magneto-electric coupling because there is an accompanying change in the electric polarization.
The fact that the application of a magnetic field tends to relax [Fe{H2B(pz)2}2(bipy)] back to the low-spin state after the soft X-ray excitation to the high-spin state [12] suggests that an applied magnetic field may lower the activation barriers separating high-spin and low-spin states. A lowering of the free energy of the high-spin state and a decrease in the activation barrier separating the high-spin state from the low-spin state, by application of a magnetic field, has also been suggested for Fe(phen)2(NCS)2 [11]. This magnetic-field-induced perturbation of the low-spin to high-spin state barrier is explored here for [Fe{H2B(pz)2}2(bipy)]. The influence of magnetic fields on the excitation and de-excitation in molecules has been observed before [13,14,15,16,17,18] and is not unique to spin crossover complexes. These latter studies are not of molecular systems, but organics such as anthracene and rubrene where this phenomenon arises due to the coupling of a molecule in the electronic singlet ground state with an adjacent molecule in the first excited singlet state to form a correlated triplet–pair state. In the case of [Fe{H2B(pz)2}2(bipy)], the excitation is accompanied by a spin state change [12,19] and can be influenced by an applied magnetic field. Looking forward, understanding perturbations to the spin state transition, caused by a magnetic field, is a step toward elucidating the origin of any magneto-electric coupling.

2. Results

2.1. Magnetic Field Effects on the Excitation of a Spin Crossover Molecule

As previously reported [12], soft X-ray irradiation excites [Fe{H2B(pz)2}2(bipy)] thin films on NiCo2O4(111) from the low-spin state to the high-spin state. Furthermore, an alternating magnetic field has been shown to perturb the [Fe{H2B(pz)2}2(bipy)] thin film spin state on NiCo2O4(111) [12]. Here, we demonstrate how a static applied magnetic field subtly changes the characteristics of the spin state evolution induced by incident X-rays.
The spin state occupancy of [Fe{H2B(pz)2}2(bipy)] Fe(II) thin films may be ascertained from the X-ray absorption spectra (XAS) [12,19,20,21,22,23,24,25,26,27]. In the low-spin (LS) state of the [Fe{H2B(pz)2}2(bipy)] molecule, the 3d electrons occupy the t2g orbitals in pairs, leaving the eg orbitals empty. The empty eg orbitals are generally observed in the Fe L3 edge (2p3/2) X-ray absorption spectra as a major feature at a photon energy around 708.9 eV. In the high-spin (HS) state configuration, the eg orbitals are partially populated while the t2g orbitals become partly depopulated, which thus contributes features in the XAS spectra at lower photon energies, leading to a decrease in the peak intensity at 708.9 eV and an increase in the t2g shoulder at around 706.8 eV, as shown in Figure 1. The asymmetry between the empty t2g and empty eg state peaks is a measure of the fraction of molecules in the high-spin state, as has been shown experimentally [12,19,20,21,22,23,24,25,26,27]. Such analysis of the XAS spectra is also in agreement with the theory as the spin state occupancy changes [20].
There is an evolution of the XAS spectra of [Fe{H2B(pz)2}2(bipy)] thin films, on NiCo2O4(111), that occurs with an incident X-ray fluence, as seen in Figure 1. From these spectra, there is clear evidence of an evolution of the average spin state from a low-spin state towards a larger fraction of high-spin state occupancy with increasing incident X-ray fluence, as reported elsewhere [12]. This soft X-ray excitation into the high-spin state has been demonstrated to be reversible [12].
This evolution of the average spin state occupancy is perturbed by the presence of an external magnetic field. The XAS spectra indicate differences in the spin state occupancy for identical X-ray exposures where the only variable is the applied external magnetic field. Figure 1a shows spectra from the time evolution at 300 K, measured both without any magnetic field and with an applied field of 1.8 T. The eg to t2g peak ratios for the initial state are identical, whereas the XAS spectra, with and without an applied magnetic field, differ markedly after 3000 s of X-ray exposure. Analyses of the relative intensities of the eg and t2g XAS features show that in the absence of an applied magnetic field, the [Fe{H2B(pz)2}2(bipy)] molecular thin film achieves a more than 80% occupancy in the high-spin state after 3000 s of X-ray exposure. In the presence of a 1.8 T out-of-plane applied magnetic field, however, the [Fe{H2B(pz)2}2(bipy)] molecular thin film resides in a mixed spin state with a smaller high-spin state fraction (i.e., < 70% high-spin), as summarized in Figure 2. Differences in the spin state occupancy are evident at 200 K, 250 K and 300 K temperatures as well (Figure 1b and Supplementary Material). This is consistent with prior observations that the magnetic field has been seen to perturb the [Fe{H2B(pz)2}2(bipy)] thin film spin state on NiCo2O4(111) [12].
To clarify this soft X-ray-induced spin state evolution of [Fe{H2B(pz)2}2(bipy)] molecular thin film on NiCo2O4(111), with and without an applied magnetic field, we extracted the occupancy evolution from series of spectra taken over the course of 6000 s (the data for 200 K and 300 K are plotted in Figure 2). All temperatures shown here are above the spin crossover temperature of the pure molecule, which is generally observed to occur at about 160 K [20,21,22,26,28,29,30]. However, without an incident X-ray fluence, the [Fe{H2B(pz)2}2(bipy)] molecular thin films on NiCo2O4 (111) are locked in the low-spin state by the interface to the substrate [12]. The evolution towards the high-spin state is the result of the X-ray fluence overcoming the tendency of the substrate to lock the [Fe{H2B(pz)2}2(bipy)] molecular thin film in the low-spin state. In the presence of an applied magnetic field, the initial increase towards the high-spin state occupancy is rapid (red shaded curves in Figure 2). We denote this initial increase in high-spin state occupancy as region I. This is followed by a slower and more linear increase in high-spin state occupancy (the blue shaded curves in Figure 2). We denote this latter evolution toward the high-spin state, in an applied magnetic field, as region II. This evolution towards high-spin state occupancy behavior, in an applied magnetic field, differs significantly from the exponential increase in high-spin state occupancy observed in the absence of an applied magnetic field (black shaded curves in Figure 2).
The excitation to the high-spin state in the presence of the X-ray fluence and an applied magnetic field is complicated by competing processes, which are also evident from the fluctuations in the evolution to the high-spin state (Figure 2, blue regions). These fluctuations, on the time scale of 10 s to 200 s in region II (Figure 2, blue regions), are both magnetic field and temperature dependent, and are thus unlikely to be instrumental, but are indicative of competing dynamic processes whose nature should be investigated but is outside the scope of this work. Here, we focus on the effects on a long timescale of tens of minutes to hours.

2.2. The Temperature Dependence of the Spin-to-Orbital Moment Ratio

A thermal component to the magnetic moment and the spin state transition most likely occurs through the ligands. This implies that the orbital moment is more susceptible to temperature than the spin moment in the high-spin state. To test this, we measured the spin and orbital moments of [Fe{H2B(pz)2}2(bipy)] thin films in the high-spin state on a substrate where the influence of the substrate on the spin state of the [Fe{H2B(pz)2}2(bipy)] thin film is known to be minimal, e.g., graphite [25,26]. Temperatures in the vicinity of 300 K are well above the spin state transition of about 160 K [20,21,22,26,28,29,30] as noted above, but thermal effects are seen in the orbital contribution to the local moments, as seen in X-ray circular dichroism (XMCD) spectra at the Fe 2p core thresholds of [Fe{H2B(pz)2}2(bipy)] thin films on graphite in Figure 3.
The normalized XMCD data, for the Fe 2p3/2 and 2p1/2 (L3 and L2 edges) of [Fe{H2B(pz)2}2(bipy)] thin films on graphite, are shown in Figure 3a for different temperatures. After subtracting a linear background, sum rules were applied to calculate the average spin moment based on the relative integrated XMCD signals, as shown in Figure 3b, following the procedure of Chen et al. [31]. The moments obtained from XMCD will be only a small fraction of the actual Fe (II) moments, largely because the [Fe{H2B(pz)2}2(bipy)] moments are not saturated [32]. Contributing to the low moment measured, it should be noted that the incident light is elliptical, not perfectly circularly polarized, and there is likely a misalignment of light angular momentum vector with respect to the magnetic moment, in addition to the Fresnel boundary conditions in play. However, in the high-spin state, [Fe{H2B(pz)2}2(bipy)] represents a molecular local moment system. As seen in Figure 4a, the relative spin moment Sz (red), extracted from the XMCD spectra, is relatively insensitive to small changes in temperature, whereas the relative orbital moment Lz (blue) decreases significantly with a small increase in temperature for the [Fe{H2B(pz)2}2(bipy)] on graphite sample.
The expected spin-to-orbital moment ratio should lie between three and six for an Fe (II) spin crossover complex, such as [Fe{H2B(pz)2}2(bipy)], in the high-spin state [33]. Estimating the ratio of the spin to orbital moment from the XMCD spectra as <Sz>/<Lz> = (9p − 6q)/2q [31], with p and q determined from the integrated XMCD plots, as indicated in Figure 3, we found that the <Sz>/<Lz> was from about 4.5 to nearly 7 (Figure 4b). This is reasonably consistent with expectations. More surprising is that the spin-to-orbital moment ratio <Sz>/<Lz> varied widely with small changes in temperature (Figure 4b) as a result of the changes in orbital moment with temperature (Figure 4a). This indicates that the orbital moment of [Fe{H2B(pz)2}2(bipy)] is very soft with respect to temperature changes.

3. Discussion

It is clear that a static applied magnetic field has an influence on the X-ray-induced transition from the low-spin to high-spin state for [Fe{H2B(pz)2}2(bipy)] molecular thin films on NiCo2O4(111). We note that, in the absence of an applied magnetic field, the observed exponential increase in high-spin state occupancy for [Fe{H2B(pz)2}2(bipy)] molecular thin films on NiCo2O4(111), between 200 K and 300 K (black shaded curves in Figure 2), resembles the exponential increase in high-spin state occupancy observed as a result of X-ray beam induce low-spin state (LS) to high-spin state (HS) transitions at low temperatures (5 K), seen for [Fe{H2B(pz)2}2(bipy)] molecular thin films on graphite [25,26]. This soft X-ray-induced excited spin state trapping (SOXIESST), seen for [Fe{H2B(pz)2}2(bipy)] molecular thin films on graphite at below 40–50 K, occurs because the graphite substrate does not lock the spin state of the [Fe{H2B(pz)2}2(bipy)] molecular thin films into the low-spin state [25,26]. In contrast to the case of graphite where the graphite substrate is the weakly interacting {25,26], a spin state locking effect occurs for [Fe{H2B(pz)2}2(bipy)] molecular thin films on NiCo2O4(111) [12].
The temperature dependence of the spin state evolution provides an opportunity to estimate the thermal component of the activation barrier in this X-ray-induced transition. Arrhenius rate plots with temperature (Figure 5) were calculated based on the high-spin occupancy results shown above, based on the initial rates of spin state. In the absence of an applied magnetic field, an activation barrier of 14.5 ± 1.5 meV per molecule was calculated. The initial rates of [Fe{H2B(pz)2}2(bipy)] conversion to the high-spin state in an applied magnetic field (region I, in Figure 2) suggest a somewhat lower activation energy of 7.2 ± 2 meV, as schematically illustrated in Figure 6. After a significant fraction of the film has already been converted to the high-spin state (region II in Figure 2), the activation energy in an applied magnetic field is again restored to 15.9 ± 2.7 meV, as indicated by the inset in Figure 5. A magnetic field dependence on the free energy and activation barrier has been suggested for the Fe (phen)2(NCS)2 spin state transition [11]; thus, the effect of larger magnetic fields than those exploited here is of considerable interest.
The decrease in the thermal component to the activation energy can also explain the conversion rate curves of Figure 2 for this X-ray-induced transition. When the [Fe{H2B(pz)2}2(bipy)] high-spin state occupancy increases enough, it is clear that X-ray-induced photo-excitation to the high-spin state of the small amount of material remaining in the low-spin state begins to compete with the conversion of the large amount of film in the high-spin state back to the low-spin state favored by the [Fe{H2B(pz)2}2(bipy)] interaction with the NiCo2O4 (111) substrate. This is certainly consistent with a nearly 50% decline in activation energy with the application of a magnetic field. Due to possible inhomogeneities, such as a distribution of crystalline grain sizes, the thermal energy barriers towards conversion to the high-spin state or back-conversion to the low-spin state could only be lowered for part of the film, either unchanged or retaining a different value for another part of the film.
The presence of this low-spin state back-conversion prevents a full excitation into the high-spin state when there is an applied magnetic field. Indeed, this enhanced back-conversion to the low-spin state has previously been seen for [Fe{H2B(pz)2}2(bipy)] thin films, as a result of the applied alternating magnetic field [12]. It is the competition between excitation to the high-spin state and the enhanced back conversion to the low-spin state which then leads to the apparent increase in the thermal component of the activation energy. The appearance of two regimes in the soft X-ray-fluence-induced evolution (regions I and II in Figure 2) can be explained by expanding the model to include two separate conversion rates, as indicated in models of the spin crossover plotted in Figure 7. This difference in [Fe{H2B(pz)2}2(bipy)] spin state conversion rates could either be induced by heterogeneity or by a different behavior of the film depending on the proximity to the substrate or vacuum interface, as has been observed before [21].
A single molecule could gain E = H ⋅ Δ m energy for a moment change under the presence of a magnetic field, but with a moment change of Δm = 4 µB and an applied field H = 1.8 T, this gain would be 0.42 meV at most. In fact, because of finite temperature effects, leading to moment canting, the actual energy in the vicinity of room temperature would be much smaller. A magnetic-field-dependent change on an energy scale of several meV is well above that level, and can only be explained by the cooperative coupling of several molecules. This suggests that the spin crossover occurs collectively with a cluster of molecules, consistent with previous work [21,23] which has indicated spin-state domains in Fe{H2B(pz)2}2(bipy)] thin films.
These activation energy values of 14.5 to 15.9 meV per molecule are close to the 14 to 18 meV value of the thermal activation energy component of the X-ray-fluence-induced transition to the high-spin state for [Fe{H2B(pz)2}2(bipy)] locked in the low-spin state with zwitterion additions [27]. This similarity suggests that the energetics involved in the locking of [Fe{H2B(pz)2}2(bipy)] in the low-spin state by zwitterion additions or by a NiCo2O4(111) substrate are comparable. The presence of thermal activation barriers implies that the ligands of [Fe{H2B(pz)2}2(bipy)] are subject to temperature variations. The ligands do contribute to the orbital moment of [Fe{H2B(pz)2}2(bipy)] [12]; thus, thermal effects from the ligands are expected. The significant changes in the relative orbital moment, with temperature as validated by the XMCD measurements, tend to validate the principle that the ligands have dynamical motion enhanced by increasing temperature. As noted above, the spin-to-orbital moment ratio <Sz>/<Lz> for [Fe{H2B(pz)2}2(bipy)] thin films on graphite varies widely with small changes in temperature (Figure 4b). For such a wide variation of <Sz>/<Lz> to occur, in response to small temperature changes, the ligand contributions to the orbital moment of [Fe{H2B(pz)2}2(bipy)] must be sensitive to temperature. This sensitivity of the orbital moment to the dynamical motion of the ligands, evident in the wide variation in <Lz> with small changes in temperature, also provides some explanation as to why there is a thermal component of the activation energy barrier in the soft X-ray activation of the spin crossover transition for [Fe{H2B(pz)2}2(bipy)] molecular thin films.
Magnetic anisotropy is very characteristic of local moment molecular systems [34]; however, the effect of an anisotropy barrier resulting from the substrate [19,21] or cooperative effects [21,23] cannot be excluded by any data presented here. The fact that these ligands are both temperature-sensitive and that there are known cooperative effects [21,23,25,26] indicates that magnetic anisotropy is a very real possibility.

4. Materials and Methods

The [Fe{H2B(pz)2}2(bipy)] molecule was synthesized as described elsewhere [20], and characterized as noted elsewhere [12,19,20,21,22,23,28]. A schematic diagram of [Fe{H2B(pz)2}2(bipy)] is shown in Figure 1. The X-ray absorption spectroscopy measurements of [Fe{H2B(pz)2}2(bipy)] thin films were performed at the Advanced Light Source at Lawrence Berkeley National Laboratory on the bending magnet beamline 6.3.1 at a reduced storage ring current of 15 mA using circularly polarized, negative helicity photons. Spectra were taken both in the absence of an applied magnetic field as well as in the presence of a 1.8 T applied magnetic field, with the field applied perpendicular to the surface of the film. The incident photon flux was in the region of 1011 photons s−1 0.1% BW−1. The sample temperature was allowed to equilibrate for 2 h at each temperature before the measurement, ensuring not only a stable temperature, but also negligible positional drift with respect to the ~80 µm diameter of the X-ray beam along the cryostat direction (the X-ray beam spot size is 180 µm × 80 at the Advanced Light Source beamline 6.3.1). The total electron yield mode was used to measure the absorption across the Fe 2p3/2 (L3) edge, as performed in previous studies [12,19,20,21,22,23,24] which have also confirmed that the X-ray-induced excitation into the high-spin (HS) state is reversible.
As in previous studies [12], [Fe{H2B(pz)2}2(bipy)] was thermally evaporated [12,19,21,22,23,24,28] on nickel cobaltate (NiCo2O4(111)) (~100 nm) thin films grown on Al2O3(0001) substrates by pulsed laser deposition (PLD) [12]. The substrate temperature for thermal evaporation was −33 °C, and the growth rate for [Fe{H2B(pz)2}2(bipy)] molecules was 0.02 Å/s under the high vacuum (1.0 × 10−7 Torr). The [Fe{H2B(pz)2}2(bipy)] SCO molecular films were nominally 15 nm thick; the film thickness was measured with a quartz thickness monitor. After the deposition, the samples were naturally warmed up to room temperature. It has been established [12] that a NiCo2O4 (111) substrate will lock a 10 to 15 nm [Fe{H2B(pz)2}2(bipy)] spin crossover molecular thin film largely in the low-spin state, almost independent of temperature. The magnetic properties of the NiCo2O4 (111) thin films have been studied systematically [35,36]. In particular, for the semiconducting NiCo2O4(111) films grown on Al2O3 (001) film, ferrimagnetism occurs below Tc = 330 K. Although the easy axis is not along the out-of-plane direction, there is significant remanence (>50% saturation value) with a coercivity about 1000 Oe [35]. These experimentally advantageous parameters make NiCo2O4 (111) very suitable as the substrate for the [Fe{H2B(pz)2}2(bipy)] thin film. Due to the stability of the [Fe{H2B(pz)2}2(bipy)] thin film on NiCo2O4 (111), the experiments can be repeated at several different temperatures.
To enter the high-spin state, a soft X-ray fluence has been seen to be effective, and as noted previously, this is seen for [Fe{H2B(pz)2}2(bipy)] on NiCo2O4(111) [12]. The experiments were repeated at different temperatures on a fresh spot of the [Fe{H2B(pz)2}2(bipy)] thin film on NiCo2O4 (111), to ensure otherwise equivalent starting conditions for each measurement. In addition, control experiments with a swapped order of in-field and field free measurement conditions and various stabilizations time of the electromagnet were made to exclude thermal drift.
Additional X-ray absorption spectroscopy (XAS) and magnetic circular dichroism (XMCD) characterizations of [Fe{H2B(pz)2}2(bipy)] thin films were performed at Advanced Photon Source beamline 4-ID-C at Argonne National Laboratory [37,38]. The spot size was roughly 1 mm at Advanced Photon Source beamline 4-ID-C. For these XMCD measurements, the samples consisted of nominal ~30 nm of [Fe{H2B(pz)2}2(bipy)] thin films on HOPG substrates, again prepared using thermal evaporation. The growth rate was calibrated to ensure that the deposition was consistent from sample to sample. These growth rates were then separately checked with a profilometer, as an independent check of film thickness. Graphite, as a substrate, is better suited for studies of magnetic field perturbations of [Fe{H2B(pz)2}2(bipy)] in the high-spin state than NiCo2O4 (111). Graphite is known as a substrate where [Fe{H2B(pz)2}2(bipy)] undergoes a complete thermal- and light-induced spin transition even in the monolayer limit [25,26], very similar to the powder. Substrate effects on the [Fe{H2B(pz)2}2(bipy)] thin film spin state are thus minimal when the substrate is graphite [25,26]. Measurements of the Fe L2,3-edge XMCD spectra were taken in total electron yield mode with a 2 T magnetic field applied nearly perpendicular to the sample surface. In order to eliminate some of the artifacts, the final spectrum was obtained from the difference of two spectra taken at ± 2 T magnetic field. To study the temperature effects, XMCD data were obtained at several temperatures near room temperature, T = {280 K, 290 K, 300 K}.

5. Conclusions

There is now clear evidence that a moderate, static magnetic field can affect the soft X-ray-induced conversion of [Fe{H2B(pz)2}2(bipy)] thin film spin state, locked in the low-spin state by a NiCo2O4(111) substrate. The changes in the activation energy and in the soft X-ray photo-excitation-enhanced spin crossover transition indicate an influence of the magnetic field on the thermal component of the spin-crossover transition. In the presence of a large magnetic field (2T), the ligand contributions to the orbital moment are seen to be sensitive to variations in temperature because the relative orbital moment changes dramatically with small changes in temperature. This is consistent with a temperature dependence of the soft X-ray-induced conversion of the [Fe{H2B(pz)2}2(bipy)] thin film spin state. Deepening the understanding of this relationship between magnetic, electric, and optical factors of the spin-crossover transition is a prerequisite for thermodynamic bases of multiferroic behavior and magneto-electric coupling.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/magnetochemistry7100135/s1. Figure S1 contains X-ray absorption spectra taken at 250 K with and without the presence of an applied 1.8 T magnetic field. Reference X-ray absorption spectra of the [Fe{H2B(pz)2}2(bipy)] low-spin and high-spin states are shown in Figure S2. The evolution of the high-spin state at 250 K, with and without the presence of an applied 1.8 T magnetic field, is shown in Figure S3.

Author Contributions

Conceptualization, A.T.N., P.A.D. and R.C; methodology, A.T.N., J.W.F., P.A.D. and R.C; software, A.T.N. and J.W.F.; validation, G.H., A.T.N., A.S.D., P.A.D. and R.C.; formal analysis, G.H., T.K.E., A.S.D., A.T.N., S.Y. and P.A.D.; investigation, G.H., A.T.N., T.K.E., A.S.D., X.J., E.M., C.M., S.Y., J.Z., R.C. and X.X.; resources, X.J., C.M., S.Y., J.Z., R.C. and X.X.; data curation, G.H., A.S.D. and T.K.E.; writing—original draft preparation, G.H., A.T.N. and P.A.D.; writing—review and editing, A.T.N. and P.A.D.; supervision, A.T.N., P.A.D. and R.C.; project administration, A.T.N., P.A.D. and R.C.; funding acquisition, A.T.N., P.A.D. and R.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Science Foundation through NSF-DMR 2003057 [G. Hao, T. Ekanayaka, Ashley S. Dale, Esha Mishra, Ruihua Cheng, P. A. Dowben] and the EPSCoR RII Track-1: Emergent Quantum Materials and Technologies (EQUATE), Award OIA-2044049 [X. Jiang, C. Mellinger, X. Xu]. Use of the Advanced Light Source, Lawrence Berkeley National Laboratory, was supported by the U.S. Department of Energy (DOE) under contract no. DE-AC02-05CH11231, and use of the Advanced Photon Source was supported by DOE’s Office of Science under contract DE-AC02-06CH11357. G. Hao was partly supported by an Advanced Light Source Graduate student fellowship throughout this effort.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study arose from the sources cited or are available on request from the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Fiebig, M. Revival of the magnetoelectric effect. J. Phys. D Appl. Phys. 2005, 38, R123–R152. [Google Scholar] [CrossRef]
  2. Curie, P. Sur la symétrie dans les phénomènes physiques, symétrie d’un champ électrique et d’un champ magnétique. J. Phys. Théorique Appliquée 1894, 3, 93–415. [Google Scholar] [CrossRef]
  3. Sharma, N.; Bird, J.P.; Binek, C.; Dowben, A.P.; Nikonov, D.E.; Marshall, A. Evolving magneto-electric device technologies. Semicond. Sci. Technol. 2020, 35, 073001. [Google Scholar] [CrossRef]
  4. International Roadmap for Devices and Systems 2020 Edition, Beyond CMOS; 3.4.4 Magnetoelectric Logic; IEEE, 2020; pp. 38–40. Available online: https://irds.ieee.org/editions/2020 (accessed on 5 October 2020).
  5. Chikara, S.; Gu, J.; Zhang, X.G.; Cheng, H.P.; Smythe, N.; Singleton, J.; Scott, B.; Krenkel, E.; Eckert, J.; Zapf, V.S. Magnetoelectric behavior via a spin state transition. Nat. Commun. 2019, 10, 4043. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Otsuki, Y.; Kimura, S.; Awaji, S.; Nakano, M. Magnetocapacitance effect and magnetostriction by the field-induced spin-crossover in [MnIII(taa)]. AIP Adv. 2019, 9, 085219. [Google Scholar] [CrossRef]
  7. Jakobsen, V.B.; Chikara, S.; Yu, J.-X.; Dobbelaar, E.; Kelly, C.T.; Ding, X.; Weickert, F.; Trzop, E.; Collet, E.; Cheng, H.-P.; et al. Giant Magnetoelectric Coupling and Magnetic-Field-Induced Permanent Switching in a Spin Crossover Mn(III) Complex. Inorg. Chem. 2021, 60, 6167–6175. [Google Scholar] [CrossRef]
  8. Yum, J.-X.; Chen, D.-T.; Gu, J.; Chen, J.; Jiang, J.; Zhang, L.; Yu, Y.; Zhang, X.-G.; Zapf, V.S.; Cheng, H.-P. Three Jahn-Teller States of Matter in Spin-Crossover System Mn(taa). Phys. Rev. Lett. 2020, 124, 227201. [Google Scholar] [CrossRef]
  9. Zapf, V.S.; Sengupta, P.; Batista, C.D.; Nasreen, F.; Wolff-Fabris, F.; Paduan-Filho, A. Magnetoelectric effects in an organometallic quantum magnet. Phys. Rev. B 2011, 83, 140405. [Google Scholar] [CrossRef] [Green Version]
  10. Kimura, S.; Narumi, Y.; Kindo, K.; Nakano, M.; Matsubayashi, G.-E. Field-induced spin-crossover transition of [MnIII(taa)] studied under pulsed magnetic fields. Phys. Rev. B 2005, 72, 064448. [Google Scholar] [CrossRef]
  11. Bousseksou, A.; Negre, N.; Goiran, M.; Salmon, L.; Tuchagues, J.-P.; Boillot, M.-L.; Boukheddaden, K.; Varret, F. Dynamic triggering of a spin-transition by a pulsed magnetic field. Eur. Phys. J. B 2000, 13, 451–456. [Google Scholar] [CrossRef]
  12. Zhang, X.; N’Diaye, A.T.; Jiang, X.; Zhang, X.; Yin, Y.; Chen, X.; Hong, X.; Xu, X.; Dowben, P.A. Indications of magnetic coupling effects in spin cross-over molecular thin films. Chem. Commun. 2018, 54, 944–947. [Google Scholar] [CrossRef] [Green Version]
  13. Ketsle, G.A.; Levshin, L.V.; Mel’nikov, G.V.; Minaev, B.F. Effect of a magnetic field on delayed fluorescence of anthracene exciplexes. J. Appl. Spectrosc. 1981, 34, 287–291. [Google Scholar] [CrossRef]
  14. Hodges, M.P.P.; Grell, M.; Morley, N.A.; Allwood, D.A. Wide Field Magnetic Luminescence Imaging. Adv. Funct. Mater. 2017, 27, 1606613. [Google Scholar] [CrossRef] [Green Version]
  15. Klein, G.; Voltz, R.; Schott, M. Magnetic field effect on prompt fluorescence in anthracene: Evidence for singlet exciton fission. Chem. Phys. Lett. 1972, 16, 340–344. [Google Scholar] [CrossRef]
  16. Kalinowski, J.; Godlewski, J. Magnetic field effects on recombination radiation in tetracene crystal. Chem. Phys. Lett. 1975, 36, 345–348. [Google Scholar] [CrossRef]
  17. Ern, V.; Merrifield, R.E. Magnetic Field Effect on Triplet Exciton Quenching in Organic Crystals. Phys. Rev. Lett. 1968, 21, 609–611. [Google Scholar] [CrossRef]
  18. Piland, G.B.; Burdett, J.J.; Kurunthu, D.; Bardeen, C.J. Magnetic Field Effects on Singlet Fission and Fluorescence Decay Dynamics in Amorphous Rubrene. J. Phys. Chem. C 2013, 117, 1224–1236. [Google Scholar] [CrossRef]
  19. Zhang, X.; Costa, P.S.; Hooper, J.; Miller, D.P.; N’Diaye, A.T.; Beniwal, S.; Jiang, X.; Yin, Y.; Rosa, P.; Routaboul, L.; et al. Locking and Unlocking the Molecular Spin Crossover Transition. Adv. Mater. 2017, 29. [Google Scholar] [CrossRef]
  20. Zhang, X.; Mu, S.; Chastanet, G.; Daro, N.; Palamarciuc, T.; Rosa, P.; Létard, J.-F.; Liu, J.; Sterbinsky, G.E.; Arena, D.A.; et al. Complexities in the Molecular Spin Crossover Transition. J. Phys. Chem. C 2015, 119, 16293–23302. [Google Scholar] [CrossRef]
  21. Jiang, X.; Hao, G.; Wang, X.; Mosey, A.; Zhang, X.; Yu, L.; Yost, A.J.; Zhang, X.; DiChiara, A.D.; N’Diaye, A.T.; et al. Tunable spin-state bistability in a spin crossover molecular complex. J. Phys. Condens. Matter 2019, 31, 315401. [Google Scholar] [CrossRef]
  22. Warner, B.; Oberg, J.C.; Gill, T.G.; El Hallak, F.; Hirjibehedin, C.F.; Serri, M.; Heutz, S.; Arrio, M.-A.; Sainctavit, P.; Mannini, M.; et al. Temperature- and Light-Induced Spin Crossover Observed by X-ray Spectroscopy on Isolated Fe(II) Complexes on Gold. J. Phys. Chem. Lett. 2013, 4, 1546–1552. [Google Scholar] [CrossRef] [Green Version]
  23. Mosey, A.; Dale, A.S.; Hao, G.; N’Diaye, A.; Dowben, P.A.; Cheng, R. Quantitative Study of the Energy Changes in Voltage-Controlled Spin Crossover Molecular Thin Films. J. Phys. Chem. Lett. 2020, 11, 8231–8237. [Google Scholar] [CrossRef] [PubMed]
  24. Hao, G.; Mosey, A.; Jiang, X.; Yost, A.J.; Sapkota, K.R.; Wang, G.T.; Zhang, X.; Zhang, J.; N’Diaye, A.T.; Cheng, R.; et al. Nonvolatile voltage controlled molecular spin state switching. Appl. Phys. Lett. 2019, 114, 032901. [Google Scholar] [CrossRef] [Green Version]
  25. Kipgen, L.; Bernien, M.; Nickel, F.; Naggert, H.; Britton, A.J.; Arruda, L.; Schierle, E.; Weschke, E.; Tuczek, F.; Kuch, W. Soft-x-ray-induced spin-state switching of an adsorbed Fe(II) spin-crossover complex. J. Physics. Condens. Matter 2017, 29, 394003. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Kipgen, L.; Bernien, M.; Ossinger, S.; Nickel, F.; Britton, A.J.; Arruda, L.; Naggert, H.; Luo, C.; Lotze, C.; Ryll, H.; et al. Evolution of cooperativity in the spin transition of an iron(II) complex on a graphite surface. Nat. Commun. 2018, 9, 1–8. [Google Scholar] [CrossRef] [PubMed]
  27. Costa, P.; Hao, G.; N’Diaye, A.T.; Routaboul, L.; Braunstein, P.; Zhang, X.; Zhang, J.; Doudin, B.; Enders, A.; Dowben, P.A. Perturbing the spin crossover transition activation energies in Fe(H2B(pz)2)2(bipy) with zwitterionic additions. J. Physics. Condens. Matter 2018, 30, 305503. [Google Scholar] [CrossRef] [PubMed]
  28. Palamarciuc, T.; Oberg, J.C.; El Hallak, F.; Hirjibehedin, C.F.; Serri, M.; Heutz, S.; Létard, J.-F.; Rosa, P. Spin crossover materials evaporated under clean high vacuum and ultra-high vacuum conditions: From thin films to single molecules. J. Mater. Chem. 2012, 22, 9690. [Google Scholar] [CrossRef]
  29. Moliner, N.; Salmon, L.; Capes, L.; Muñoz, M.C.; Létard, J.-F.; Bousseksou, A.; Tuchagues, J.-P.; McGarvey, J.J.; Dennis, A.C.; Castro, M.; et al. Thermal and Optical Switching of Molecular Spin States in the {[FeL[H2B(pz)2]2} Spin-Crossover System (L = bpy, phen). J. Phys. Chem. B 2002, 106, 4276–4283. [Google Scholar] [CrossRef]
  30. Real, J.A.; Muñoz, M.C.; Faus, J.; Solans, X. Spin Crossover in Novel Dihydrobis(1-pyrazolyl)borate [H2B(pz)2]-Containing Iron(II) Complexes. Synthesis, X-ray Structure, and Magnetic Properties of [FeL{H2B(pz)2}2] (L = 1,10-Phenanthroline and 2,2′-Bipyridine). Inorg. Chem. 1997, 36, 3008–3013. [Google Scholar] [CrossRef] [PubMed]
  31. Chen, C.T.; Idzerda, Y.U.; Lin, H.-J.; Smith, N.V.; Meigs, G.; Chaban, E.; Ho, G.H.; Pellegrin, E.; Sette, F. Experimental Confirmation of the X-Ray Magnetic Circular Dichroism Sum Rules for Iron and Cobalt. Phys. Rev. Lett. 1995, 75, 152–155. [Google Scholar] [CrossRef]
  32. Zhang, X.; Palamarciuc, T.; Létard, J.-F.; Rosa, P.; Lozada, E.V.; Torres, F.; Rosa, L.G.; Doudin, B.; Dowben, P.A. The spin state of a molecular adsorbate driven by the ferroelectric substrate polarization. Chem. Commun. 2014, 50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Weber, B. Koordinationschemie Grundlagen und aktuelle Trends; Springer Spectrum, Springer Verlag: Berlin/Heidelberg, Germany, 2014. [Google Scholar] [CrossRef]
  34. Hao, G.; Cheng, R.; Dowben, P.A. The emergence of the local moment molecular spin transistor. J. Phys. Condens. Matter 2020, 32. [Google Scholar] [CrossRef] [PubMed]
  35. Zhen, C.; Zhang, X.; Wei, W.; Guo, W.; Pant, A.; Xu, X.; Shen, J.; Ma, L.; Hou, D. Nanostructural origin of semiconductivity and large magnetoresistance in epitaxial NiCo2O4/Al2O3 thin films. J. Phys. D. Appl. Phys. 2018, 51, 145308. [Google Scholar] [CrossRef] [Green Version]
  36. Mellinger, C.; Waybright, J.; Zhang, X.; Schmidt, C.; Xu, X. Perpendicular magnetic anisotropy in conducting NiCo2O4 films from spin-lattice coupling. Phys. Rev. B 2020, 101, 014413. [Google Scholar] [CrossRef] [Green Version]
  37. Beamline 4-ID-C. Available online: https://www.aps.anl.gov/Sector-4/4-ID-C/Instrumentation (accessed on 5 October 2020).
  38. Shepit, M.; Paidi, V.K.; Roberts, C.A.; Reddy, G.K.; van Lierop, J. Unusual magnetism in CuxCo3-xO4 nanoparticles. Phys. Rev. B 2021, 103, 024448. [Google Scholar] [CrossRef]
Magnetochemistry 07 00135 g001 550
Figure 1. The time evolution of the X-ray absorption spectra of [Fe{H2B(pz)2}2(bipy)] thin films, on NiCo2O4(111), with and without an applied 1.8 T magnetic field, under a constant incident X-ray fluence at (a) 300 K and (b) 200 K. The spectra in blue are indicative of a film in a largely low-spin state (roughly 30% high-spin), whereas the spectra in red are largely indicative of a high-spin state. On the left is a schematic of [Fe{H2B(pz)2}2(bipy)] (H2B(pz)2 = bis(hydrido)bis(1H-pyrazol-1-yl) borate, bipy = 2,2’-bipyridine). Hydrogens are omitted for clarity.
Figure 1. The time evolution of the X-ray absorption spectra of [Fe{H2B(pz)2}2(bipy)] thin films, on NiCo2O4(111), with and without an applied 1.8 T magnetic field, under a constant incident X-ray fluence at (a) 300 K and (b) 200 K. The spectra in blue are indicative of a film in a largely low-spin state (roughly 30% high-spin), whereas the spectra in red are largely indicative of a high-spin state. On the left is a schematic of [Fe{H2B(pz)2}2(bipy)] (H2B(pz)2 = bis(hydrido)bis(1H-pyrazol-1-yl) borate, bipy = 2,2’-bipyridine). Hydrogens are omitted for clarity.
Magnetochemistry 07 00135 g001
Magnetochemistry 07 00135 g002 550

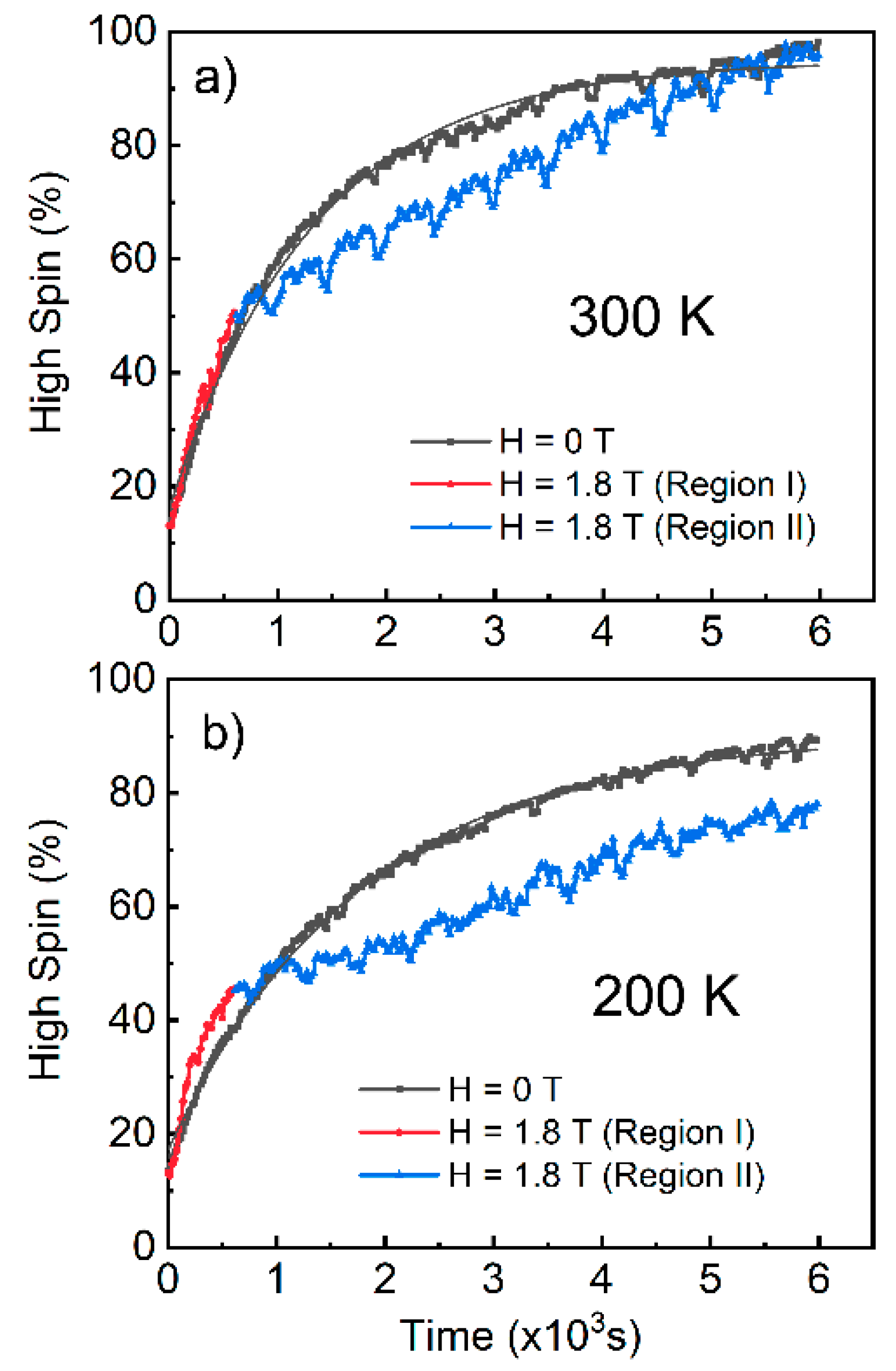

Figure 2. The evolution of the high-spin state occupancy in the [Fe{H2B(pz)2}2(bipy)] thin films, on NiCo2O4(111), that accompany an incident soft X-ray fluence are plotted for (a) 300 K and (b) 200 K, in the absence of an applied magnetic field (black) as well as in the presence of a 1.8 T applied magnetic field (red and blue). Exponential fits to the high-spin state conversion in the absence of an applied magnetic field are indicated.
Figure 2. The evolution of the high-spin state occupancy in the [Fe{H2B(pz)2}2(bipy)] thin films, on NiCo2O4(111), that accompany an incident soft X-ray fluence are plotted for (a) 300 K and (b) 200 K, in the absence of an applied magnetic field (black) as well as in the presence of a 1.8 T applied magnetic field (red and blue). Exponential fits to the high-spin state conversion in the absence of an applied magnetic field are indicated.
Magnetochemistry 07 00135 g002
Magnetochemistry 07 00135 g003 550

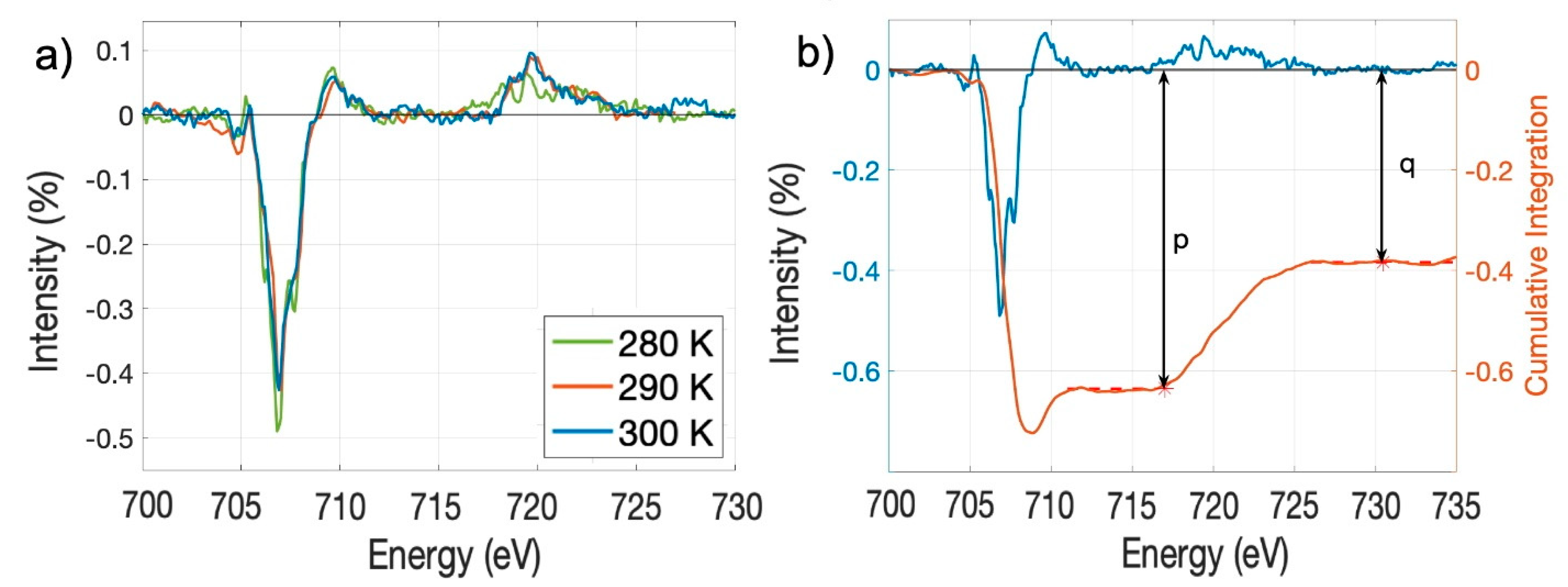

Figure 3. The Fe 2p3/2 and 2p1/2 (L3 and L2 edges) XMCD spectra of 30 nm [Fe{H2B(pz)2}2(bipy)] thin films on graphite. (a) The spectra were taken at 280 K (green), 290 K (red) and 300 K (blue). (b) The Fe 2p3/2 and 2p1/2 (L3 and L2) XMCD spectrum taken at 280 K (blue curve) compared to the integrated XMCD signal (red curve). The XMCD spectra are plotted as a percentage of the total X-ray absorption spectra.
Figure 3. The Fe 2p3/2 and 2p1/2 (L3 and L2 edges) XMCD spectra of 30 nm [Fe{H2B(pz)2}2(bipy)] thin films on graphite. (a) The spectra were taken at 280 K (green), 290 K (red) and 300 K (blue). (b) The Fe 2p3/2 and 2p1/2 (L3 and L2) XMCD spectrum taken at 280 K (blue curve) compared to the integrated XMCD signal (red curve). The XMCD spectra are plotted as a percentage of the total X-ray absorption spectra.
Magnetochemistry 07 00135 g003
Magnetochemistry 07 00135 g004 550

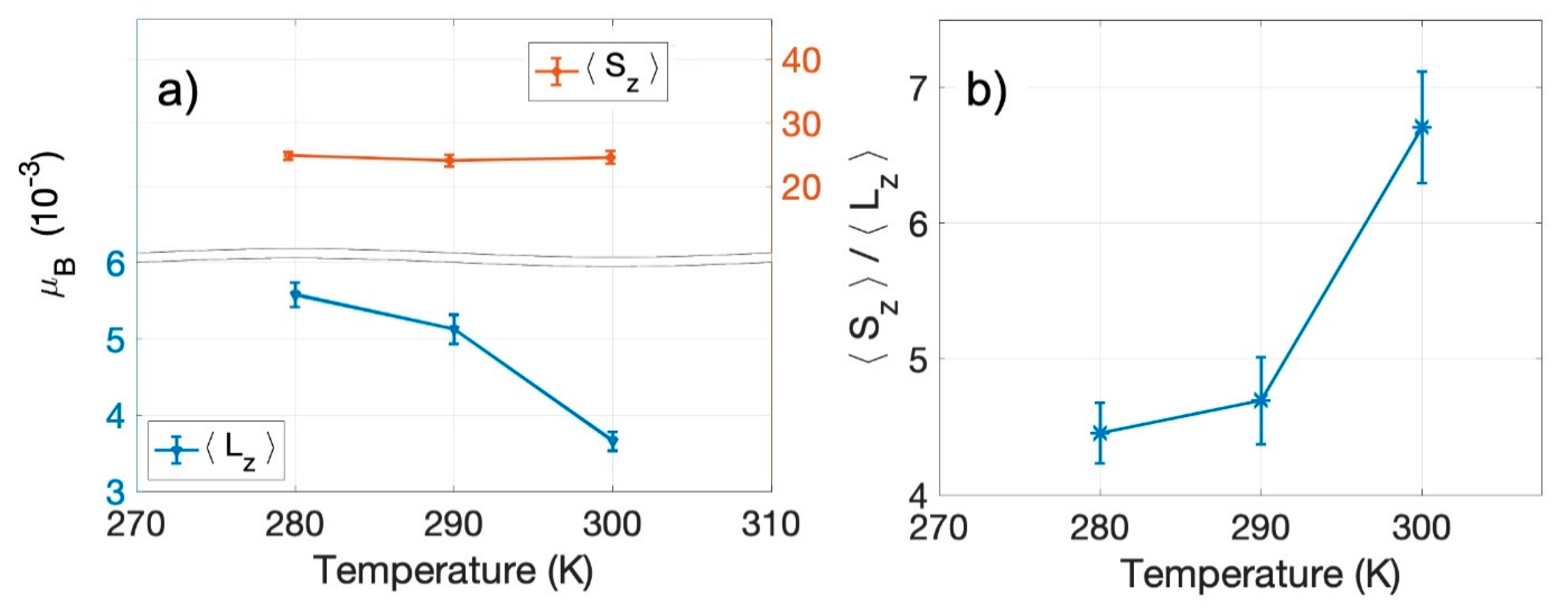

Figure 4. The temperature dependence of the relative spin Sz and orbital Lz moments extracted from Fe (II) XMCD taken from a 30 nm [Fe{H2B(pz)2}2(bipy)] thin film on graphite. (a) The temperature-dependent spin moment (red plot) and orbital moment (blue plot) of Fe (II). (b) The ratio of spin moment Sz to orbital moment Lz as a function of temperature in the vicinity of room temperature.
Figure 4. The temperature dependence of the relative spin Sz and orbital Lz moments extracted from Fe (II) XMCD taken from a 30 nm [Fe{H2B(pz)2}2(bipy)] thin film on graphite. (a) The temperature-dependent spin moment (red plot) and orbital moment (blue plot) of Fe (II). (b) The ratio of spin moment Sz to orbital moment Lz as a function of temperature in the vicinity of room temperature.
Magnetochemistry 07 00135 g004
Magnetochemistry 07 00135 g005 550

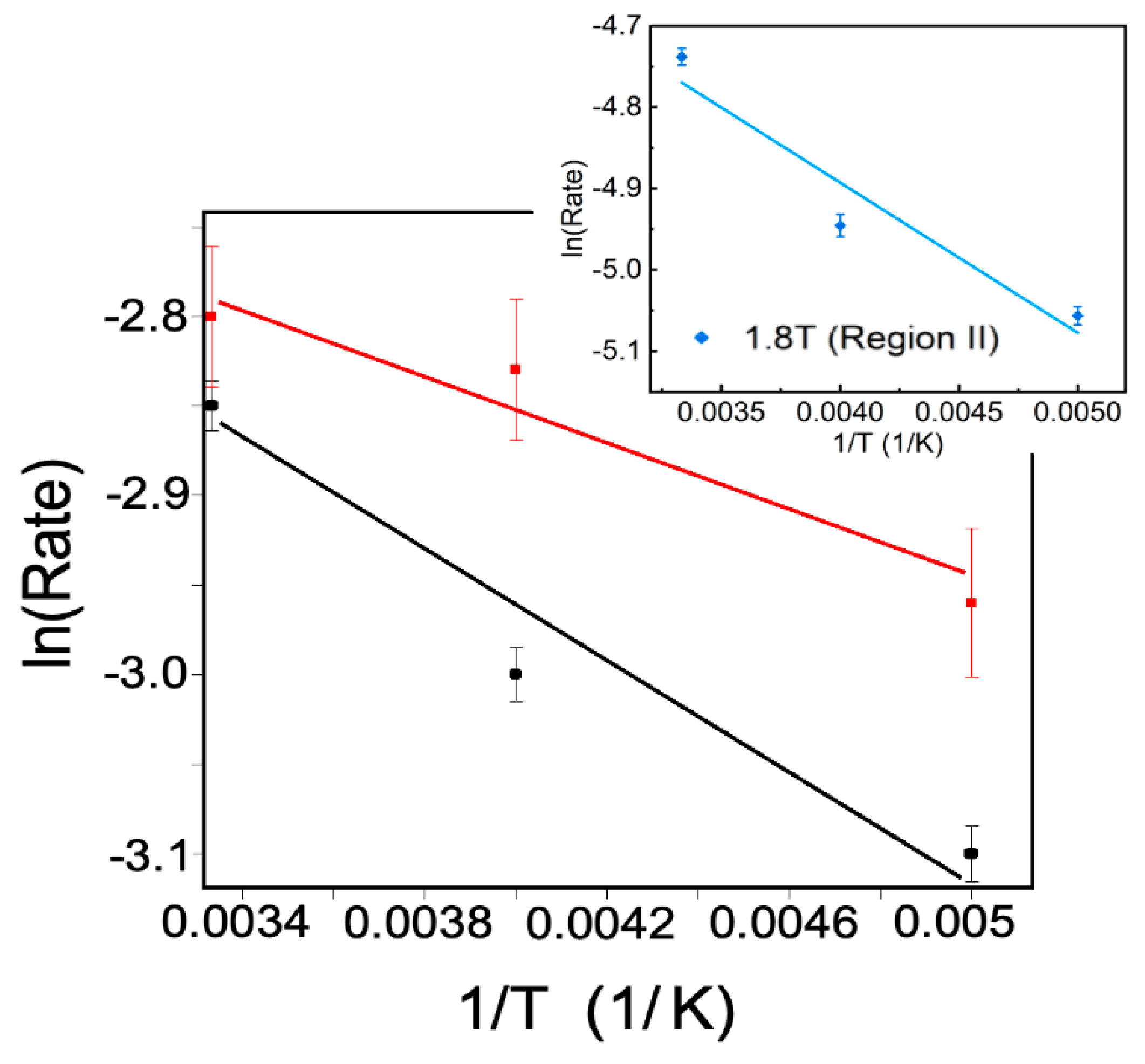

Figure 5. The temperature-dependent Arrhenius plots of the conversion rate to a high-spin state for [Fe{H2B(pz)2}2(bipy)] thin films on NiCo2O4(111), induced by a soft X-ray fluence. In the absence of an applied magnetic field, this temperature dependence indicates a thermal component of the activation energy of 14.5 ± 1.5 meV (black). The Arrhenius plot for the initial period when 1.8 T external magnetic field is applied (region I, Figure 2) suggests a thermal component of the activation energy of 7.2 ± 2 meV (red). The inset is the Arrhenius plot for the following 1.8 T transition to the high-spin state when a significant fraction of the [Fe{H2B(pz)2}2(bipy)] thin film on NiCo2O4 (111) has converted to the high-spin state (region II, Figure 2) and indicates a thermal component of the activation energy of 15.9 ± 2.7 meV (blue).
Figure 5. The temperature-dependent Arrhenius plots of the conversion rate to a high-spin state for [Fe{H2B(pz)2}2(bipy)] thin films on NiCo2O4(111), induced by a soft X-ray fluence. In the absence of an applied magnetic field, this temperature dependence indicates a thermal component of the activation energy of 14.5 ± 1.5 meV (black). The Arrhenius plot for the initial period when 1.8 T external magnetic field is applied (region I, Figure 2) suggests a thermal component of the activation energy of 7.2 ± 2 meV (red). The inset is the Arrhenius plot for the following 1.8 T transition to the high-spin state when a significant fraction of the [Fe{H2B(pz)2}2(bipy)] thin film on NiCo2O4 (111) has converted to the high-spin state (region II, Figure 2) and indicates a thermal component of the activation energy of 15.9 ± 2.7 meV (blue).
Magnetochemistry 07 00135 g005
Magnetochemistry 07 00135 g006 550

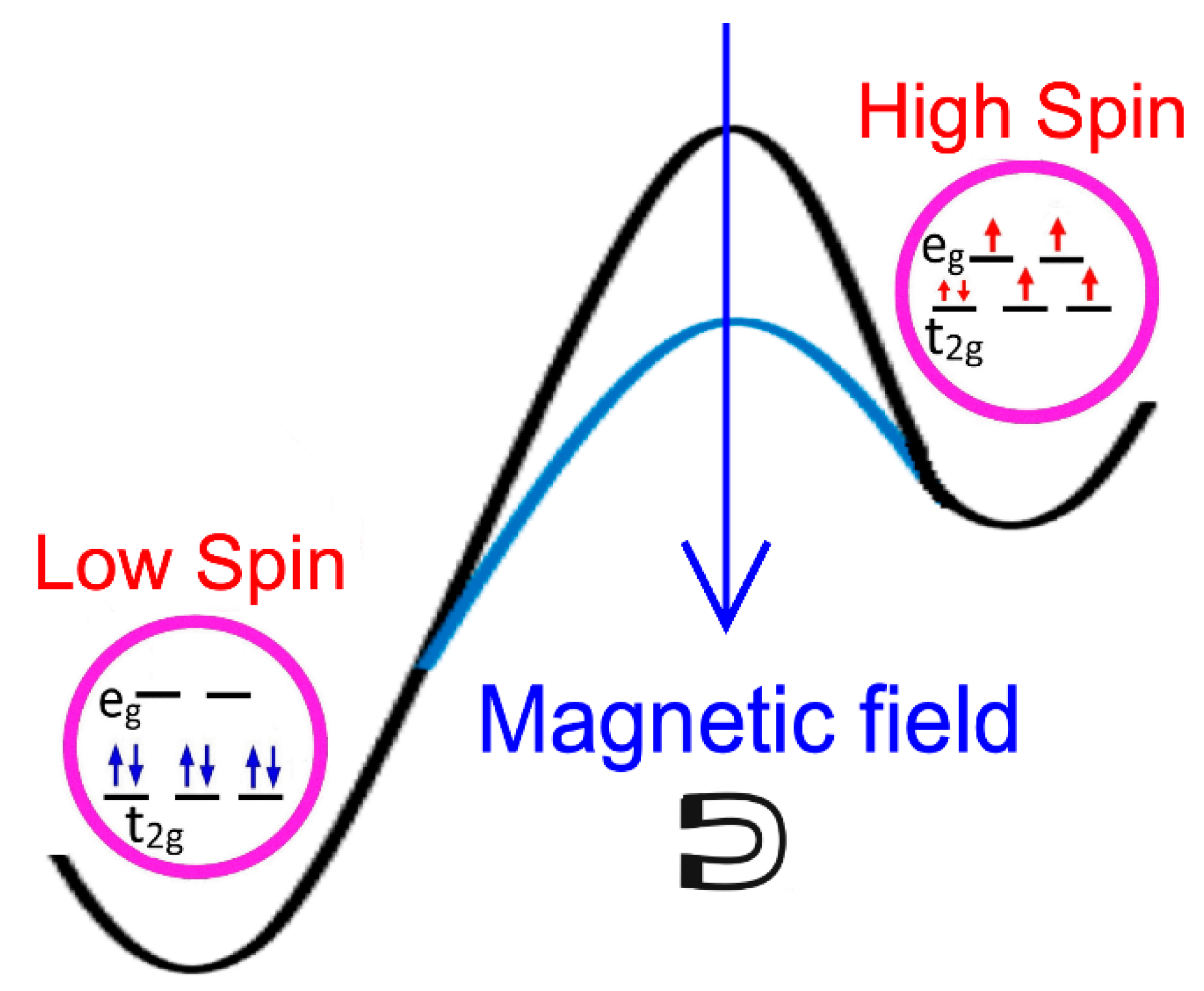

Figure 6. A schematic representation of the reduction in the thermal activation barrier in the presence of a magnetic field.
Figure 6. A schematic representation of the reduction in the thermal activation barrier in the presence of a magnetic field.
Magnetochemistry 07 00135 g006
Magnetochemistry 07 00135 g007 550

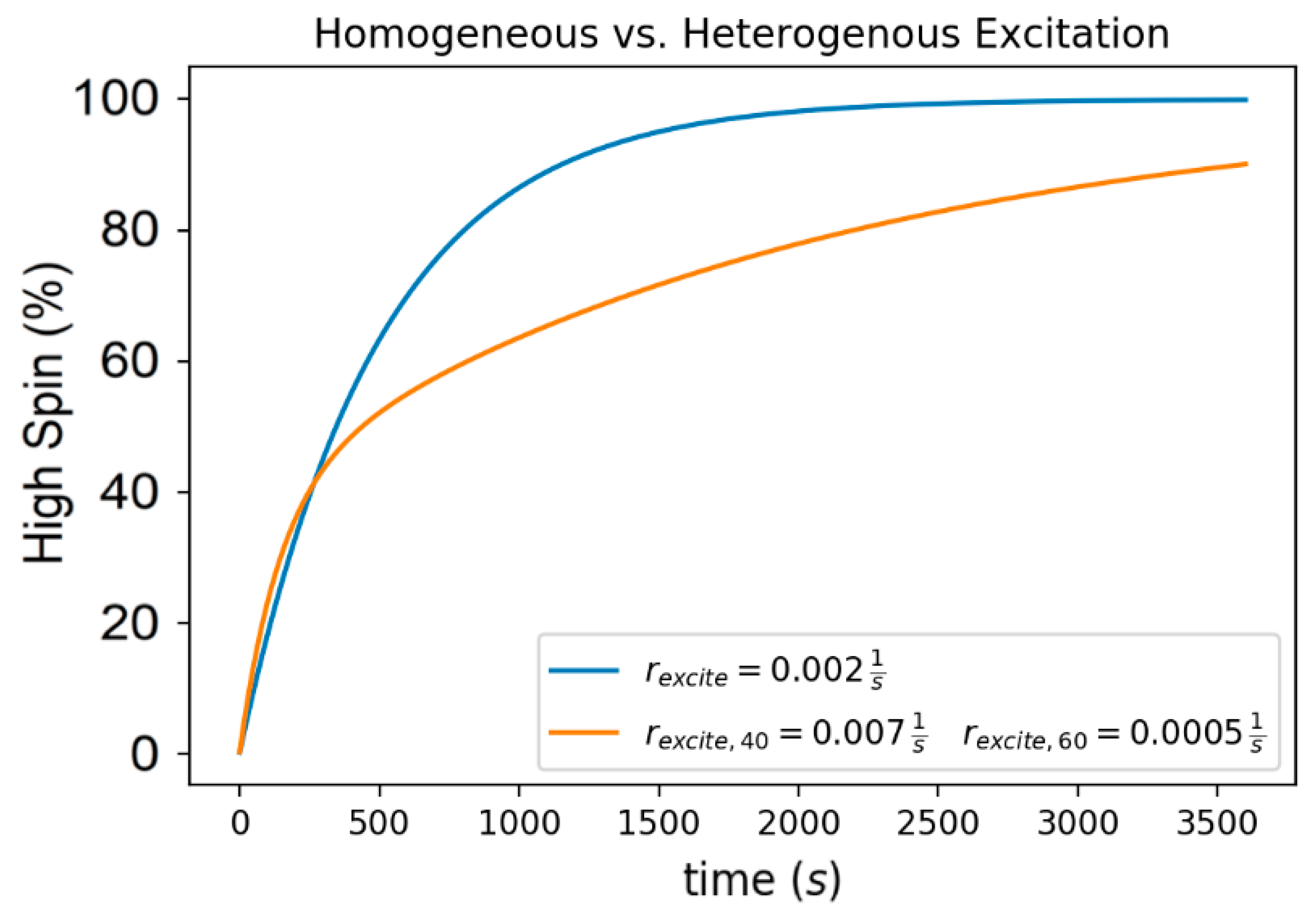

Figure 7. A simulation of the evolution of the high-spin state occupancy in the [Fe{H2B(pz)2}2(bipy)] molecular thin film assuming a simple excitation rate uniformly throughout the film (blue) and an inhomogeneous excitation process where 40% of the film is activated with one constant rate and 60% of the film at a lower rate that is 10% of the higher rate (orange).
