Towards Nanomaterials for Cancer Theranostics: A System of DNA-Modified Magnetic Nanoparticles for Detection and Suppression of RNA Marker in Cancer Cells
Department of Chemistry and Biomolecular Science, Clarkson University, Potsdam, NY 13699-5810, USA
Nanostructured Materials Lab, University of Georgia, Athens, GA 30602, USA
Chemistry Department, University of Central Florida, 4000 Central Florida Boulevard, Orlando, FL 32816-2366, USA
Authors to whom correspondence should be addressed.
Received: 24 January 2019 / Accepted: 1 April 2019 / Published: 4 April 2019
Theranostics of cancer using smart biocompatible materials can enable early cancer diagnostics and treatment. Here, we report on a DNA-nanoparticle functional material, which can simultaneously report the presence of an mRNA cancer biomarker and trigger its degradation in cultured cells. The nanodevice consists of two species of magnetic beads, each of which is conjugated with different components of a multicomponent deoxyribozyme (DZ) sensor. The system is activated only under two conditions: (i) in the presence of a specific target mRNA and (ii) when a magnetic field is applied. We demonstrate that delivery of such a system is markedly enhanced by the application of a magnetic field. The system not only fluorescently detects target mRNA in cultured MCF-7 cancer cells, but also induces its downregulation. Thus, the two-component magnetic nanoparticle system has characteristics of a material that can be used for cancer theranostics.
Keywords:RNA analysis; magnetic nanoparticles; theranostics; cancer biomarker; deoxyribozyme; biosensor
Cancer theranostics is among the major focuses of nanotechnology and nanomaterials [1,2]. Theranostics combines diagnosis and therapeutics and aims to eliminate multi-step procedures and reduce delays in treatment. Application of magnetic nanoparticles in cancer theranostics has been driven in large part due to the success of magnetic nanoparticles as contrast agents in magnetic resonance imaging , as well as the development of magnetic hyperthermia [3,4]. These individual features, when combined into one functional material, allow simultaneous therapeutic action and monitoring of the therapeutic action. These effects are mostly based on physical properties of the magnetic nanoparticles rather than their chemical composition. In this study we explore another approach for the design of cancer theranostic material based on magnetic nanoparticles conjugated with a deoxyribozyme (DZ) probe complementary to a known mRNA biomarker for metastatic breast adenocarcinoma. Deoxyribozymes [5,6,7] are catalytic DNA molecules that are widely used in the areas of biocomputational logic gates and circuits (DNA computing) [8,9], programmable materials , ultrasensitive analytical methods [11,12], and for therapeutic applications [13,14,15].
Recently, we reported on a magnetic field-activated binary deoxyribozyme (MaBiDZ) fluorescent sensor for mRNA detection in intact live cells [16,17] based on binary deoxyribozyme (BiDZ) technology [18,19,20], as shown in Figure 1. In this approach, two DNA strands—DZa and DZb—specifically recognize a nucleic acid analyte and form a DZ catalytic core, which cleaves a fluorophore and quencher labeled substrate, F-sub, thus producing a fluorescent signal, as shown in Figure 1. Notably, the signal appears only in the presence of the DNA/RNA analyte species which are needed for assembling the catalytic BiDZ core. A BiDZ sensor was applied for molecular diagnostics of diseases [21,22,23]. The MaBiDZ system, which includes DNA-functionalized magnetic nanoparticles, was developed for the detection of a specific biomarker inside cancer cells. The system consists of two species of 100 nm magnetic beads (MaB)—MaB1 and MaB2—as shown in Figure 2. The DZa strand was covalently conjugated to MaB1, while F-sub was non-covalently attached to MaB2 via hybridization to the covalently bound hook strand, as shown in Figure 2. A DNA or RNA analyte hybridized to DZa and DZb strands enables formation of the DZ catalytic core. However, the system does not produce the fluorescent signal unless a magnetic field is applied because the catalytic core is spatially separated from F-sub [16,17]. Application of an external magnetic field induces aggregation of the MaB1 and MaB2, thus bringing the activated BiDZ sensor in close proximity to F-sub followed by F-sub cleavage, thus resulting in a fluorescence signal. MaBiDZ is the first magnetic system that enables magnetic field-mediated control of sensors’ activity inside cells. It was able to specifically detect Twist mRNA (a cancer biomarker) in MCF-7 cell culture . Moreover, we demonstrated that the magnetic field facilitates internalization of the MaBiDZ system in cell cultures and that sensing of mRNA can occur within 2.5 h, shortly after endosomal escape (compared with at least 8 h required for the analysis with NanoFlares technology ).
Antisense oligonucleotides  regulate gene expression by binding target mRNA and preventing translation and through interactions with ribonuclease H (RNase H). Given that after cell entry, mRNA binding is the first step in MaBiDz sensing, MaBiDz could function as a therapeutic agent by the antisense mechanism. While there has been significant investment in a number of oligonucleotide-based approaches for cancer therapy, including antisense oligonucleotides , RNAi and CRISPR/Cas9 , there is no clinically significant oligonucleotide-based anticancer treatment as of today. In this work, we investigated the potential of the MaBiDz system to be used as an anticancer gene therapy agent.
One major barrier of gene therapy approaches is the delivery and monitoring the delivery of gene therapy agents to cancer cells . Indeed, nucleic acid delivery to cells in culture is to a large extent a diffusion-limited process if the nucleic acid shuttle (the vector) is of nanometric size; transport to the target cells is a limiting factor in nucleic acid delivery [24,29]. Hence, apart from the major biological barriers (e.g., blood plasma), delivery of only a fraction of the applied oligonucleotide agent via cellular membranes to the cytoplasm of target cells represents a major limitation to the bioavailability of anticancer oligonucleotide agents . Indeed, the few reported tools in the literature require several hours of incubation [24,29], which has the inherent side effects of cellular toxicity and lysosomal sequestration. This is in contrast to functionalized magnetic nanoparticles, in which case active ingredients associated with magnetic particles are concentrated at a target site by magnetic force . Indeed, we previously showed that MaBiDz-generated fluorescence upon detection of Twist mRNA in MCF-7 cells at 2.5 h was at least 2-fold greater with an applied magnetic field than without. In in vitro studies, MaBiDz also demonstrated a nearly 2-fold greater mRNA detection within 20 min with an applied magnetic field than without .
Previous findings [30,31] suggest this magnetic-field-induced enhancement in the rate of MaBiDz transport occurs due to the following two reasons: (i) the magnetic field accelerates transport of MaBiDz to the target cell following an aggregation of MaBiDz on the cell surfaces; (ii) it also enhances uptake through membranes via magnetic force, allowing cellular internalization to proceed at a greater rate. Thus, although the applied dose may be the same in magnet ON/OFF controls, the effective uptake inside the cells is vastly different. Normally, larger doses are required to achieve an enhanced therapeutic or sensing effect. Additionally, the magnetic field causes MaBiDz to aggregate in close proximity to cells, decreasing the time required to diffuse to or sediment on the cell surface. Achieving the same frequency of MaBiDz-target cell contact may take hours without a magnetic field [24,29]. Thus, the use of a magnetic field can impart efficacy enhancement in both time and dosage, increasing efficiency and reducing toxicity.
To quantify and validate this previously observed enhancement, we first measured the magnetic nanoparticle responsiveness, as shown in Figure 3. We placed a magnet under a cuvette containing a suspension of superparamagnetic MaB and measured the suspension clarification kinetics using UV absorbance at 317 nm. We used this to derive a magnetophoretic velocity of ca. 0.5 µm s−1. We then compared this with the sedimentation velocity of the nanoparticles without a magnetic field and determined this to be 6.9 × 10−3 µm s−1 (see Supplementary Materials (SM), Tables S2–S4, for calculations)—a difference of ca. 100-fold. This supported our earlier observations of enhanced magnetic-field-induced transport of MaBiDz.
To investigate if the enhanced transport translates to the enhanced uptake of the MaB, we quantified cellular uptake of Quasar 670-tagged, oligo-modified MaB at various time points, with and without an applied magnetic field. We first imaged internalized, fluorescently-tagged MaB at the respective points, with and without magnetic field, using confocal microscopy. For the “Magnet ON” control we placed a magnet below the cell culture dish. Using this series of images, we used Image J software to determine the fluorescence per cell, as shown in Figure 4. Results demonstrate that the cells with the internalized MaB in the magnet ON/OFF populations were most distinct at 2 h, as shown in Figure 4B.
After quantifying the advantage of the magnetic field with regard to cellular uptake, and determining the optimal temporal window for uptake, we investigated the ability of MaBiDZ to reduce the concentration of targeted Twist mRNA in MCF-7 cell culture. We chose to target Twist mRNA as it has been shown to be a biomarker for metastatic breast adenocarcinoma . MCF-7 were incubated with Twist-specific MaBiDz (0.50, 1.00, or 2.00 pM) for 2, 4, 6, and 8 h. Following treatment, the cells were harvested, and the relative abundance of Twist mRNA was measured using qPCR. Twist levels were normalized to ribosomal mRNA, an off-target gene. In a control experiment, we measured Twist mRNA level in untreated MCF-7 cells or treated with DNA-free magnetic particles (“particles only” controls) (see Tables S8–S11 in Supplementary Materials).
In all samples, the level of Twist mRNA was lower in the presence of a magnetic field, as shown in Figure 5A(a–d) (red bars), compared to its absence (blue bars). The effect of the magnetic field on % knockdown of Twist mRNA is summarized in Figure 5B. Based on the obtained results, we conclude the following: (i) there is a dose-dependent downregulation of Twist mRNA both in the presence and in the absence of magnetic field, (ii) for each concentration, the effect of the magnetic field decreases over time, although more drastically for the lower concentration, and (iii) the magnetic field is not required for therapeutic efficacy at longer time points when the concentration of MaBiDz is 2 pM.
In summary, we have designed, synthesized, and characterized a nanoconjugate that can both detect and regulate intracellular mRNA levels. These nanoconjugates signal the presence of target mRNA with the cleavage of a fluorophore-quencher pair, which results in an increase in fluorescence. The target binding and response of the MaBiDz is highly efficient and depletes mRNA levels by as much as 99% in a dose-dependent manner. Although similar gene regulation and detection strategies have been used in the past, this work represents a combination of gene regulation and detection in a single material that operates in a highly efficient manner. MaBiDz is thus a promising first step toward the development of mRNA-directed theranostics and is expected to combine the advantages of gene therapy with personalized medicine.
Additional experimental results, technical details, and calculations are available online at https://www.mdpi.com/2312-7481/5/2/24/s1.
S.B. performed most of the experiments with RNA sensing in cells and prepared the paper draft, A.Z. prepared magnetic nanoparticles, S.M. supervised the work with nanoparticles, D.M.K. advised on the work with DNAzymes and edited the paper draft, E.K. supervised the project and edited the final paper draft.
This work at Clarkson University (E.K.) and at the University of Georgia (S.M.) was supported by the NSF awards CBET-1403208 and DMR-1309469. The work at University of Central Florida (D.M.K.) was supported by NIH awards R15AI10388001A1 and 1R15CA173703-01. The authors thank Craig Woodworth, Guz, Han Deng, and Elham Honarvarfard for technical assistance and scientific discussions.
Conflicts of Interest
The authors declare no conflicts of interest.
- Cole, A.J.; Yang, V.C.; David, A.E. Cancer theranostics: The rise of targeted magnetic nanoparticles. Trends Biotechnol. 2011, 29, 323–332. [Google Scholar] [CrossRef]
- Palekar-Shanbhag, P.; Jog, S.V.; Chogale, M.M.; Gaikwad, S.S. Theranostics for cancer therapy. Curr. Drug Deliv. 2013, 10, 357–362. [Google Scholar] [CrossRef] [PubMed]
- Engelmann, U.M.; Roeth, A.A.; Eberbeck, D.; Buhl, E.M.; Neumann, U.P.; Schmitz-Rode, T.; Slabu, I. Combining bulk temperature and nanoheating enables advanced magnetic fluid hyperthermia efficacy on pancreatic tumor cells. Sci. Rep. 2018, 8, 13210. [Google Scholar] [CrossRef] [PubMed]
- Avazzadeh, R.; Vasheghani-Farahani, E.; Soleimani, M.; Amanpour, S.; Sadeghi, M. Synthesis and application of magnetite dextran-spermine nanoparticles in breast cancer hyperthermia. Prog. Biomater. 2017, 6, 75–84. [Google Scholar] [CrossRef][Green Version]
- Breaker, R.R.; Joyce, G.F. A DNA enzyme that cleaves RNA. Chem. Biol. 1994, 1, 223–229. [Google Scholar] [CrossRef]
- Santoro, S.W.; Joyce, G.F. A general purpose RNA-cleaving DNA enzyme. Proc. Natl. Acad. Sci. USA 1997, 94, 4262–4266. [Google Scholar] [CrossRef][Green Version]
- Silverman, S.K. Catalytic DNA: Scope, applications, and biochemistry of deoxyribozymes. Trends Biochem. Sci. 2016, 41, 595–609. [Google Scholar] [CrossRef] [PubMed]
- Stojanovic, M.N.; Stefanovic, D.; Rudchenko, S. Exercises in molecular computing. Acc. Chem. Res. 2014, 47, 1845–1852. [Google Scholar] [CrossRef] [PubMed]
- Gerasimova, Y.V.; Kolpashchikov, D.M. Divide and control: Split design of multi-input DNA logic gates. Chem. Commun. 2015, 51, 870–872. [Google Scholar] [CrossRef] [PubMed]
- Xiong, X.; Zhou, C.; Wu, C.; Zhu, G.; Chen, Z.; Tan, W. Responsive DNA-based hydrogels and their applications. Macromol. Rapid Commun. 2013, 34, 1271–1283. [Google Scholar] [CrossRef] [PubMed][Green Version]
- McGhee, C.E.; Loh, K.Y.; Lu, Y. DNAzyme sensors for detection of metal ions in the environment and imaging them in living cells. Curr. Opin. Biotechnol. 2017, 45, 191–201. [Google Scholar] [CrossRef] [PubMed]
- Gerasimova, Y.V.; Kolpashchikov, D.M. Folding 16S RNA in a signal-producing structure for detection of bacteria. Angew. Chem. Int. Ed. 2013, 52, 10586–10588. [Google Scholar] [CrossRef] [PubMed]
- Fokina, A.A.; Meschaninova, M.I.; Durfort, T.; Venyaminova, A.G.; Francois, J.-C. Targeting insulin-like growth factor I with 10–23 DNAzymes: 2′-o-methyl modifications in the catalytic core enhance mRNA cleavage. Biochemistry 2012, 51, 2181–2191. [Google Scholar] [CrossRef] [PubMed]
- Yehl, K.; Joshi, J.P.; Greene, B.L.; Dyer, R.B.; Nahta, R.; Salaita, K. Catalytic deoxyribozyme-modified nanoparticles for RNAi-independent gene regulation. ACS Nano 2012, 6, 9150–9157. [Google Scholar] [CrossRef]
- Zhou, W.; Ding, J.; Liu, J. Theranostic DNAzymes. Theranostics 2017, 7, 1010–1025. [Google Scholar] [CrossRef][Green Version]
- Bakshi, S.F.; Guz, N.; Zakharchenko, A.; Deng, H.; Tumanov, A.V.; Woodworth, C.D.; Minko, S.; Kolpashchikov, D.M.; Katz, E. Magnetic field-activated sensing of mRNA in living cells. J. Am. Chem. Soc. 2017, 139, 12117–12120. [Google Scholar] [CrossRef] [PubMed]
- Bakshi, S.F.; Guz, N.; Zakharchenko, A.; Deng, H.; Tumanov, A.V.; Woodworth, C.D.; Minko, S.; Kolpashchikov, D.M.; Katz, E. Nanoreactors based on DNAzyme-functionalized magnetic nanoparticles activated by magnetic field. Nanoscale 2018, 10, 1356–1365. [Google Scholar] [CrossRef]
- Kolpashchikov, D.M. A binary deoxyribozyme for nucleic acid analysis. ChemBioChem 2007, 8, 2039–2042. [Google Scholar] [CrossRef] [PubMed]
- Mokany, E.; Bone, S.M.; Young, P.E.; Doan, T.B.; Todd, A.V. MNAzymes, a versatile new class of nucleic acid enzymes that can function as biosensors and molecular switches. J. Am. Chem. Soc. 2010, 132, 1051–1059. [Google Scholar] [CrossRef]
- Smith, A.; Kolpashchikov, D.M. Divide and control: Comparison of split and switch hybridization sensor. Chem. Select. 2017, 2, 5427–5431. [Google Scholar] [CrossRef] [PubMed]
- Kamar, O.; Sun, S.-C.; Lin, C.-H.; Chung, W.-Y.; Lee, M.-S.; Liao, Y.-C.; Kolpashchikov, D.M.; Chuang, M.-C. A mutation-resistant deoxyribozyme OR gate for highly selective detection of viral nucleic acids. Chem. Commun. 2017, 53, 10592–10595. [Google Scholar] [CrossRef] [PubMed]
- Bengtson, H.N.; Homolka, S.; Niemann, S.; Reis, A.J.; da Silva, P.E.A.; Gerasimova, Y.V.; Kolpashchikov, D.M.; Rohde, K.H. Multiplex detection of extensively drug resistant tuberculosis using binary deoxyribozyme sensors. Biosens. Bioelectron. 2017, 94, 176–183. [Google Scholar] [CrossRef] [PubMed]
- Zagorovsky, K.; Chan, W.C.W. A plasmonic DNAzyme strategy for point-of-care genetic detection of infectious pathogens. Angew. Chem. Int. Ed. 2013, 52, 3168–3171. [Google Scholar] [CrossRef] [PubMed]
- Halo, T.L.; McMahon, K.M.; Angeloni, N.L.; Xu, Y.; Wang, W.; Chinen, A.B.; Malin, D.; Strekalova, E.; Cryns, V.L.; Cheng, C.; et al. NanoFlares for the detection, isolation, and culture of live tumor cells from human blood. Proc. Natl. Acad. Sci. USA 2014, 111, 17104–17109. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Dias, N.; Stein, C.A. Antisense oligonucleotides: Basic concepts and mechanisms. Mol. Cancer Ther. 2002, 1, 347–355. [Google Scholar] [PubMed]
- Moreno, P.M.D.; Pêgo, A.P. Therapeutic antisense oligonucleotides against cancer: Hurdling to the clinic. Front. Chem. 2014, 2, 87. [Google Scholar] [CrossRef] [PubMed]
- Luo, J. CRISPR/Cas9: From genome engineering to cancer drug discovery. Trends Cancer 2016, 2, 313–324. [Google Scholar] [CrossRef]
- Das, S.K.; Menezes, M.E.; Bhatia, S.; Wang, X.Y.; Emdad, L.; Sarkar, D.; Fisher, P.B. Gene therapies for cancer: Strategies, challenges and successes. J. Cell. Physiol. 2015, 230, 259–271. [Google Scholar] [CrossRef]
- Prigodich, A.E.; Seferos, D.S.; Massich, M.D.; Giljohann, D.A.; Lane, B.C.; Mirkin, C.A. Nano-flares for mRNA regulation and detection. ACS Nano 2009, 3, 2147–2152. [Google Scholar] [CrossRef]
- Plank, C.; Schillinger, U.; Scherer, F.; Bergemann, C.; Rémy, J.-S.; Krötz, F.; Anton, M.; Lausier, J.; Rosenecker, J. The magnetofection method: Using magnetic force to enhance gene delivery. Biol. Chem. 2003, 384, 737–747. [Google Scholar] [CrossRef]
- Plank, C.; Zelphati, O.; Mykhaylyk, O. Magnetically enhanced nucleic acid delivery. Ten years of magnetofection-progress and prospects. Adv. Drug Deliv. Rev. 2011, 63, 1300–1331. [Google Scholar] [CrossRef] [PubMed]
- Cheng, G.Z.; Chan, J.; Wang, Q.; Zhang, W.; Sun, C.D.; Wang, L.-H. Twist transcriptionally up-regulates AKT2 in breast cancer cells leading to increased migration, invasion, and resistance to paclitaxel. Cancer Res. 2007, 67, 1979–1987. [Google Scholar] [CrossRef] [PubMed]

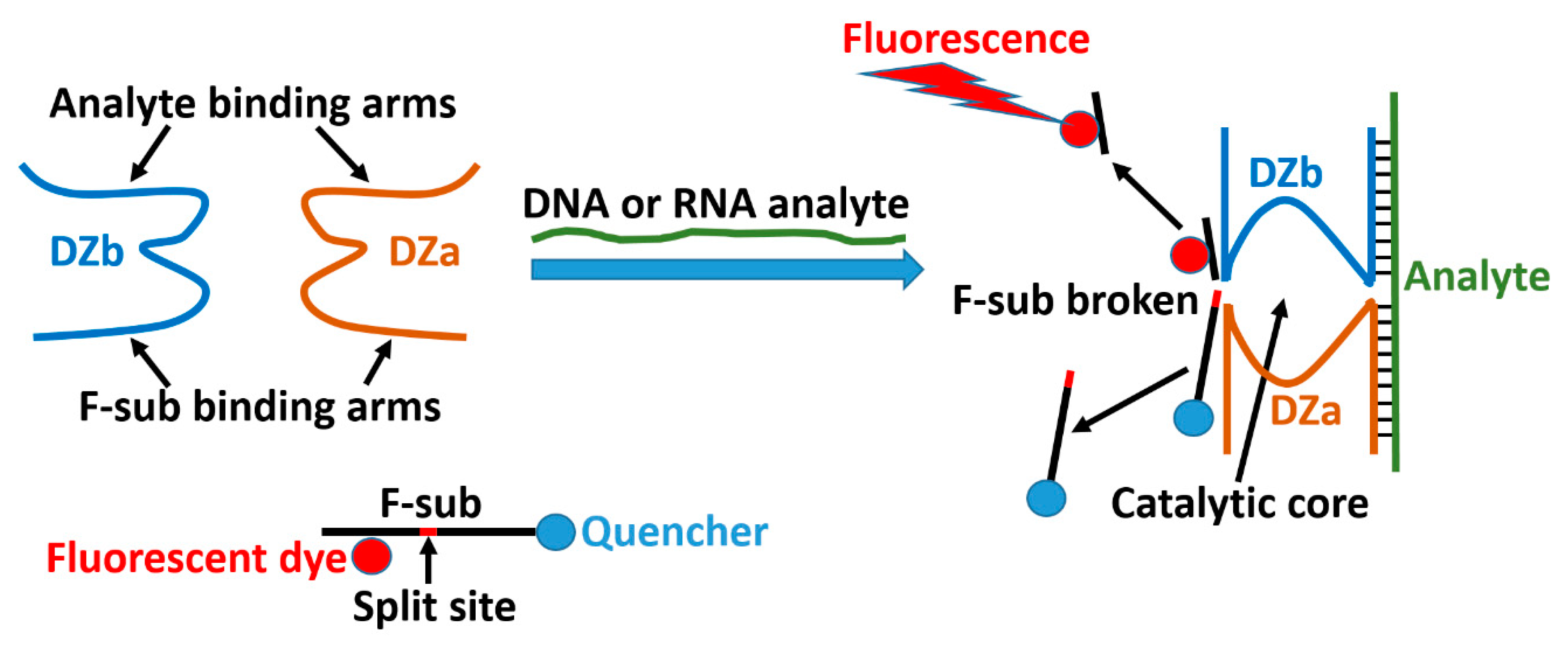

Figure 1. Binary deoxyribozyme sensor (BiDZ) as reported earlier . DNA strands DZa and DZb hybridize to an adjacent position of the analyte and form a deoxyribozyme catalytic core, which cleaves fluorogenic F-sub and increases sample fluorescence. Note that the BiDZ operates in a solution and it is not responsive to the magnetic field. The present scheme illustrates the general concept of the BiDZ sensor operation and it does not correspond to the magneto-activated system used in the present study.

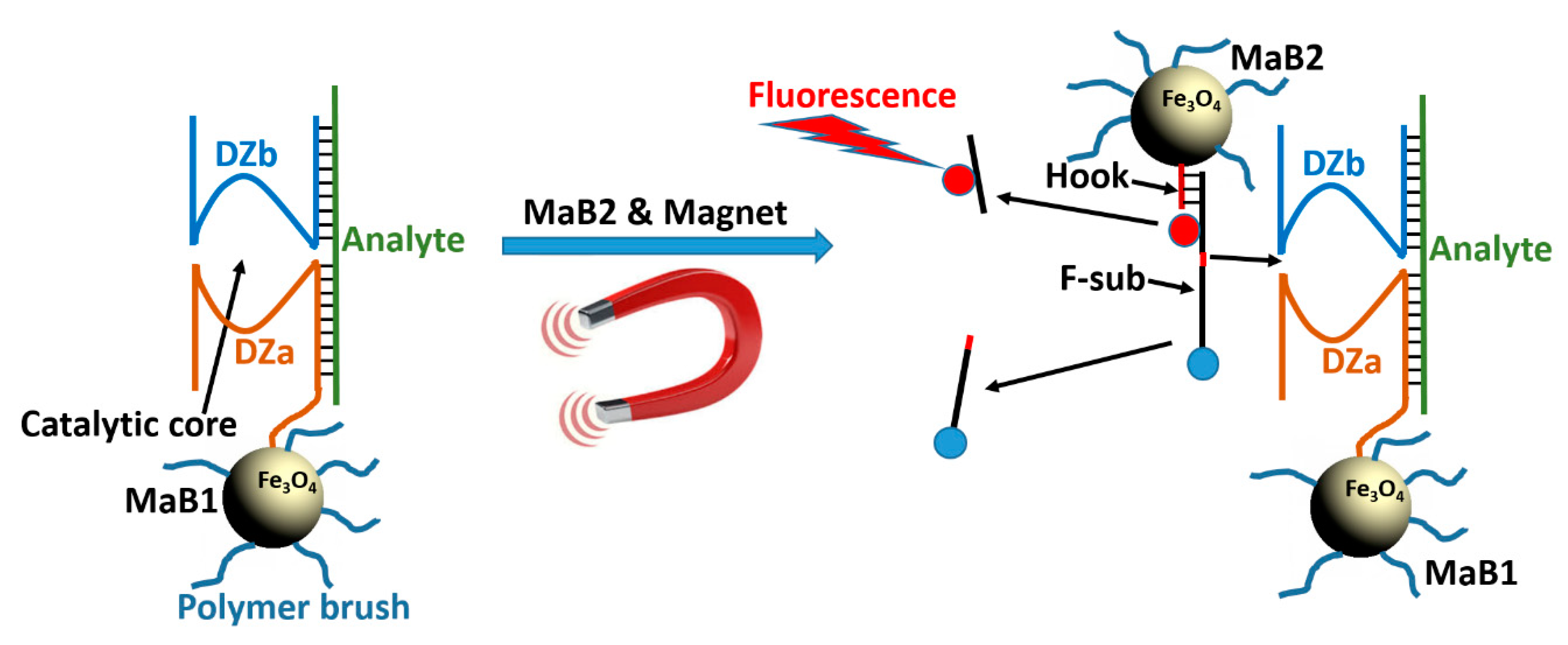

Figure 2. MaBiDZ used in this study. Magnetic bead (MaB1)-bound DZa forms a catalytic core with DZb in the presence of an analyte. The activated nanoreactor produces signal only when: (i) a second species of magnetic beads, MaB2 carrying F-sub is present, and (ii) a magnetic field that aggregates MaB1 and MaB2 is applied. See the DNA sequences in Table 1.

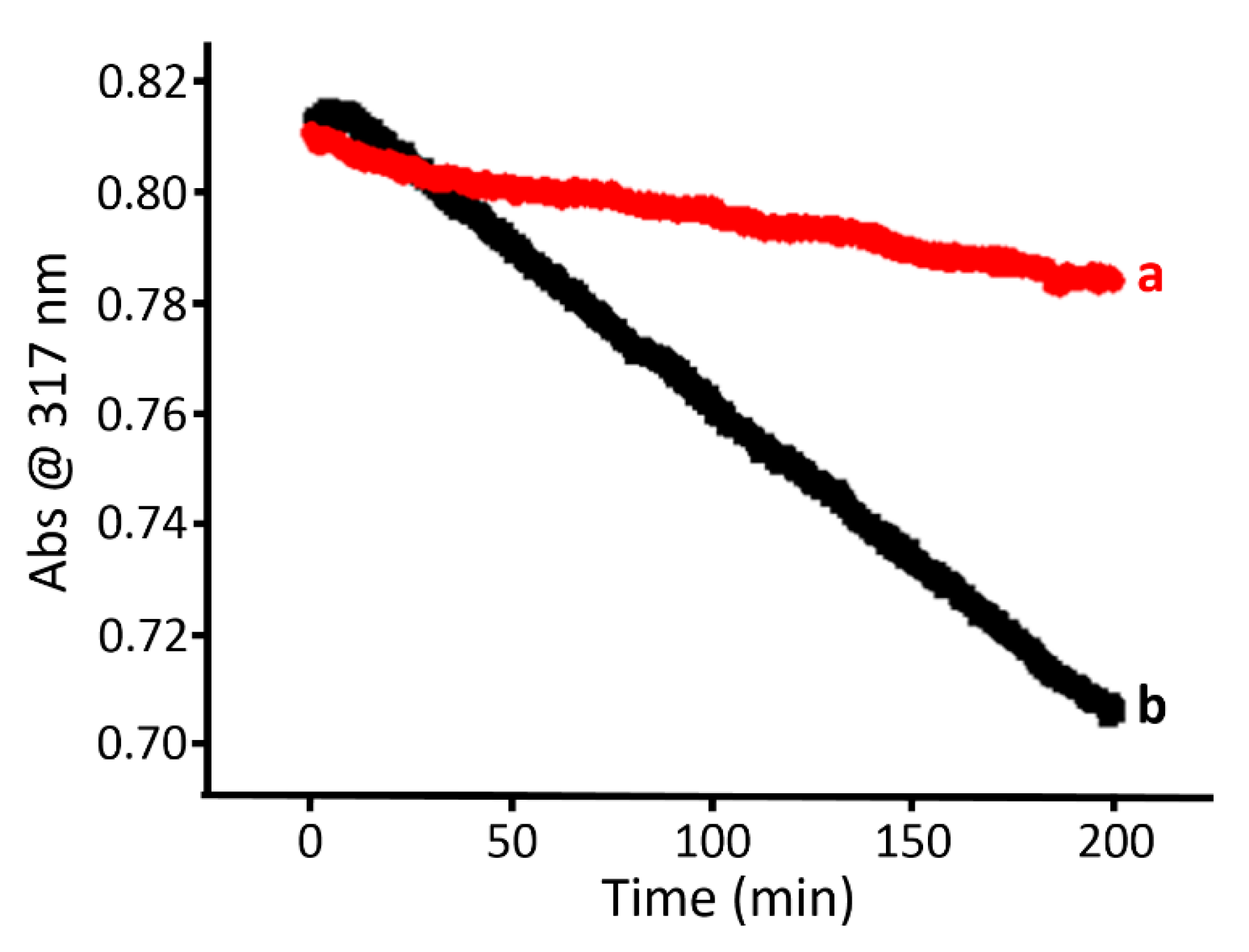

Figure 3. In vitro characterization of magnetic beads (MaB) mobility: (a) optical changes due to sedimentation of the MaB in the absence of a magnetic field, (b) optical changes due to magnetophoretic mobility of the MaB in the presence of a magnetic field (ca. 0.3 T).

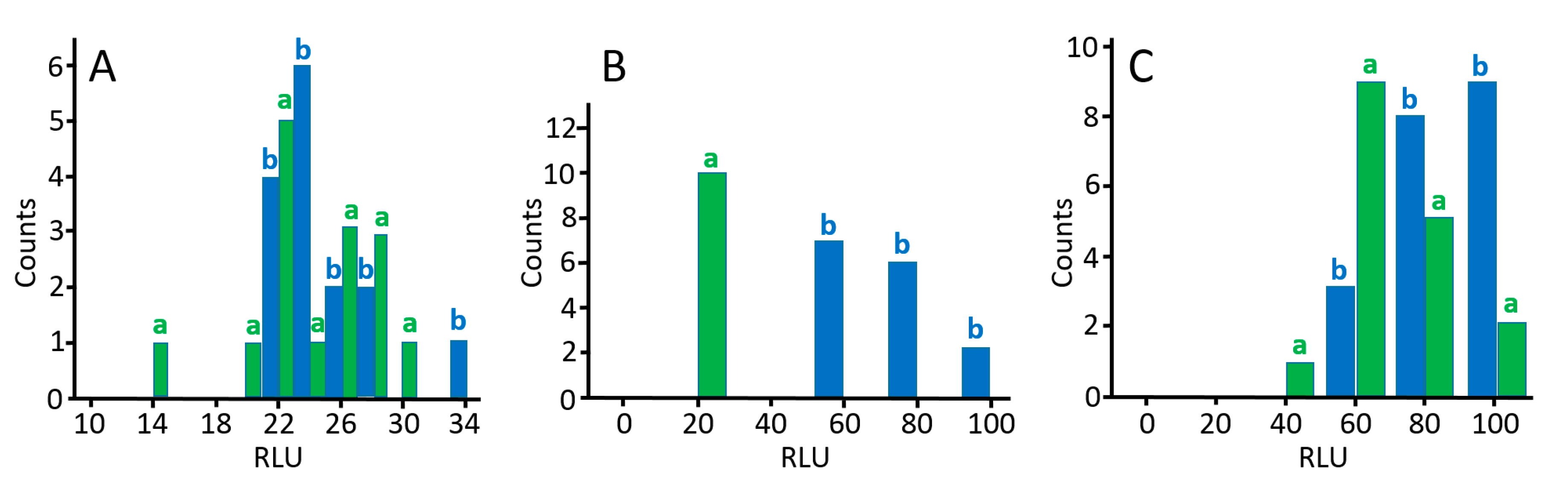

Figure 4. Graphs of pivot tables showing distribution of relative light units (RLU) in MCF-7 cells at (A) 1 h, (B) 2 h, and (C) 3 h for cells incubated with Quasar-670-modified MaB, with (blue bars—b) and without (green bars—a) an applied magnetic field. Fluorescence intensities per cell were measured using Image J software using a collection of confocal microscopy images taken at the respective time points.
