Synthesis, Characterization and Copper(2+) Coordination Chemistry of a Polytopic Paramagnetic Ligand

Abstract

We describe the synthesis of a new tetratopic phenoxyl radical ligand based on the previously reported ditopic “baqp” radical. The tetratopic ligand is prepared in five steps from 4-tert-butylphenol. Coordination of the ligand with Cu(OAc)₂ produced a tetranuclear complex with an S = ½ ground state featuring a coordinated hexa-anion radical with very strong intramolecular antiferromagnetic exchange coupling.

1. Introduction

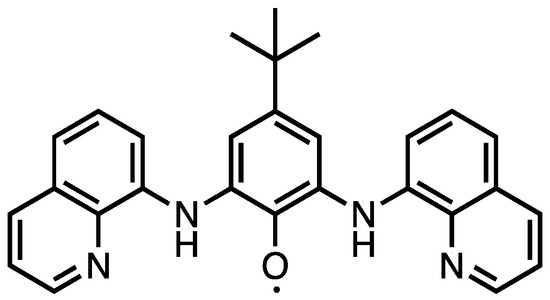

The coordination chemistry of redox-active ligands (RALs) is currently an active area of synthetic research with a wide scope of potential applications, including catalysis [1,2,3], bio-mimetics [4,5], and materials [6,7,8]. Redox-active ligands share an important trait in common with transition metal ions—the ability to exist in multiple charge and spin configurations and as a result RALs are often found to be in paramagnetic oxidation states when coordinated to transition metal ions. This aspect of RAL chemistry has been exploited to produce transition metal complexes with very strong intramolecular magnetic exchange couplings leading to interesting properties, including single molecule magnet behavior [9,10,11]. Recently we synthesized a ditopic bridging ligand baqp 1 (Figure 1) that when uncoordinated provides an unusual example of a stable phenoxyl radical [12]. Herein we show that the synthetic method used to prepare 1 can be extended to produce paramagnetic ligands with greater topicity. The synthesis and characterization of the tetratopic analogue of 1 is described. We also present a tetranuclear Cu²⁺ complex containing the polytopic ligand in a S = ½ state with very strong Cu–radical exchange coupling.

2. Results and Discussion

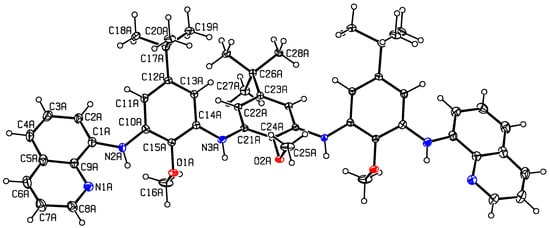

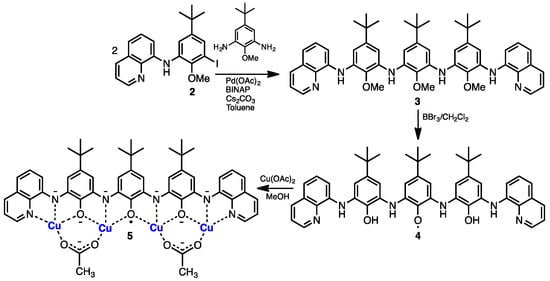

The paramagnetic phenoxyl ligand 4 is prepared in five steps from 4-tert-butylphenol. Iodination, protection of the phenol, and Buchwald-Hartwig cross-coupling [13] with one equivalent of 8-aminoquinoline afforded mono-iodosubstituted 2. Two equivalents of 2 were reacted with commercially available 2,6-diamino-4-tert-butylanisole to produce the tri-methoxy protected 3 (Scheme 1; Figures S1–S4). Crystals of 3 suitable for X-ray crystallography were obtained from the slow diffusion of water into a THF solution of 3. The molecular structure of 3 is presented in Figure 2 with crystallographic and metrical properties reported in Tables S1 and S2. In the crystal structure of 3 there are three independent molecules, one of which is shown in Figure 2 (the structures of the other two independent molecules of 3 can be found in Supplementary Materials Figure S5). In the structure of 3, the contiguous inner three phenyl rings are out-of-plane with respect to one another, with the central ring tilted with respect to the plane containing the two adjacent rings (the structural properties of the two other independent molecules are similar). In Figure 2, the dihedral angle between the central and adjacent phenyl rings is 49.9(2)° and between the central phenyl ring and the quinoline ring is 16.9(2)°.

Deprotection of 3 in the presence of BBr₃ solution produced a brown paramagnetic compound 4 following work-up under an inert atmosphere that over approximately 48 h converted to a black paramagnetic material. Based on the spectroscopic data (Figures S6–S8) from the brown material, we conclude that 4 is a transient mono-phenoxyl radical. We were unable to acquire an NMR spectrum from paramagnetic 4; however, Electrospray ionization (ESI) mass spectrometry presents a base peak that is one m/z unit less than the anticipated m/z for the diamagnetic tri-phenol. We also observed an electron paramagnetic resonance (EPR) spectrum and a low energy band in the UV-Visible-NIR spectrum that were each similar to the spectroscopic properties of 1 [12]. Over a period of approximately 48 h, brown compound 4 turns black in color (the black material we refer to as oxidized 4). High-resolution mass spectrometry (Figure S8) of this black material produced an exact mass three units less than anticipated for the fully deprotected tri-phenol; consistent with a triphenoxyl radical structure but there are other possibilities. Our attempts to grow X-ray quality crystals of the oxidized form of 4 have been hindered by the poor stability of this species in solution (in the solid-state, the material is very stable). Other spectroscopic data from oxidized 4 was provided by FT-IR spectroscopy; no OH stretching absorptions could be identified, only broad (H-bonded) N-H stretches that are similar in energy to those found in the protected compound 3 were observed (Figure S9). UV-Visible spectroscopy also suggests a phenoxyl radical structure for oxidized 4; a NIR (~970 nm) absorption of moderate intensity is observed (Figure S10), which was also observed in the electronic spectrum of 1 [12]. The higher energy observed for this absorption in oxidized 4 relative to 1 is in line with the anticipated decreased planarity. The cathodic electrochemical behavior (DPV) of oxidized 4 in CH₂Cl₂ (Figure S11) produces a rich manifold of waves.

The EPR spectrum of oxidized 4 was recorded in the solid state and in solution (CH₂Cl₂) at room temperature and at 100 K (Figure S12). In the solid state, a sharp featureless absorption centered at g = 1.986 is observed at 298 and 100 K. In CH₂Cl₂ solution, a similar absorption is observed at 298 K free of any hyperfine structure consistent with the proposed phenoxyl radical structure. Freezing the solution resulted in a dramatic decrease in EPR signal intensity. We have observed similar behaviour in solutions containing crystalline samples of 1, which we are currently investigating and preliminary results suggest reversible formation of diamagnetic π-dimers in solution at low temperature. Solutions of oxidized 4 are unstable and decompose over time; therefore, we carried out coordination reactions on fresh, deprotected solutions of 4 prior to its oxidation to black oxidized 4.

Coordination of freshly prepared 4 to an excess of Cu(OAc)₂ in methanol in the presence of triethylamine produced a dark purple microcrystalline precipitate over the course of about 3 weeks. The microcrystalline material is poorly soluble in most organic solvents with the exception of methanol but is very stable in the solid state. We were unable to grow crystals suitable for X-ray diffraction; however, microanalysis, mass spectrometry, and UV-Vis/FT-IR spectroscopy point to the formula Cu₄L(OAc)₂ 5. Charge balance requires that in this complex the ligand (L) is bound as a hexa-anion, and FT-IR (absence of ν_N–H/O–H, Figure S13) and mass spectrometry (Figures S14 and S15) confirm the ligand is fully deprotonated and, therefore, must be paramagnetic with one unpaired electron. The coordinated ligand hexa-anion radical can be considered to be in an iminosemiquinone oxidation state in one interpretation of the electronic structure [14]. Further support for this electronic structure is provided by superconducting quantum interference device (SQUID) magnetometry described later. Two acetates are present to balance the charge and are very likely to be bridging the four coordinated Cu²⁺ ions (this is supported by FT-IR spectroscopy, where absorptions typical for bridging acetate are noted). The structure that we propose for this complex is provided in Figure 3 and was optimized by density functional theory (DFT). In this structure, four Cu²⁺ ions are bound by the four binding pockets of the tetratopic ligand (two of the binding pockets feature NNO donor atoms and the inner pockets have ONO donors). Each of the Cu²⁺ ions are in a square planar coordination geometry with the fourth coordination site occupied by an O donor from a bridging acetate. The positive ion mode ESI mass spectrum in CH₃OH produced an intense base peak at m/z 1159, which is consistent with the molecular ion [M + CH₃OH + H⁺]⁺ including the correct isotope distribution demonstrating the presence of four Cu ions per molecule. The MALDI mass spectrum produced a [M + Na⁺]⁺ peak at m/z 1150 as the highest m/z peak in the spectrum. Microanalysis is also consistent with the proposed structure. The UV-Visible spectrum of 5 (Figure S16) exhibits a very intense absorption at 645 nm, which can be typical for transition metal complexes coordinated to iminosemiquinone radical anions [15,16].

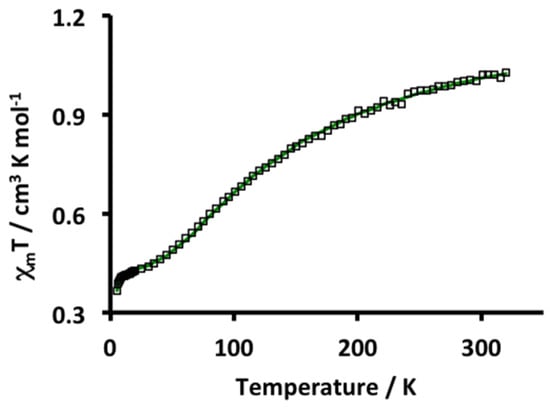

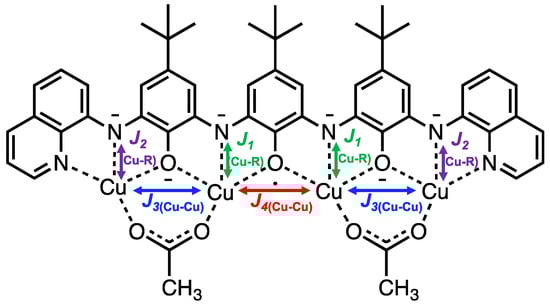

The variable temperature magnetic properties of 5 were investigated by SQUID magnetometry and the results are plotted in Figure 4. At 320 K the value of χ_mT (1.03 cm³·K·mol⁻¹) is much less than the theoretical value for a spin system containing five uncorrelated S = ½ fragments from four Cu²⁺ ions and one radical (1.875 cm³·K·mol⁻¹). With decreasing temperature there is a steady decrease in χ_mT suggesting antiferromagnetic intramolecular interactions are operative in 5. At a very low temperature (5 K) χ_mT is 0.37 cm³·K·mol⁻¹, consistent with an S = ½ ground state. The experimental data was fit with a model incorporating four different intramolecular magnetic exchange coupling constants: Two Cu–radical couplings between the two inner (J_1(Cu–rad)) and two terminal (J_2(Cu–rad)) Cu ions with the radical, respectively, and two Cu–Cu exchange pathways, one between the terminal (J_3(Cu–Cu)) and inner (J_4(Cu–Cu)) Cu ions and the other between the two inner Cu ions (Figure 5). The ligand unpaired electron is delocalized over the entire molecule and so all four Cu²⁺ ions would be exchanged coupled to the ligand. It was anticipated that the two sets of Cu–radical and Cu–Cu exchange coupling constants should be antiferromagnetic and of the same order of magnitude, which is what was obtained in the best fit using the simulation program PHI [17] (J_1(Cu–rad) = −517, J_2(Cu–rad) = −260, J_3(Cu–Cu) = −192 and J_4(Cu–Cu) = −186 cm⁻¹; zJ’ = −0.93 cm⁻¹, g_av = 2.05 (fixed), TIP = 233 × 10⁻⁶ cm³·mol⁻¹, ρ = 0.039 (S = 3/2), R = 0.0024. Other models gave similar fits but with either non-plausible exchange coupling constants or other parameters and so they were not used. These alternate models included one that only considered Cu–radical exchange coupling, another with four different Cu–radical exchange coupling constants, or only one Cu–radical exchange coupling. Support for the S = ½ ground state is also provided by EPR spectroscopy. At 100 K in the solid state an absorption centered at g = 2.059 is observed with unresolved Cu hyperfine coupling (Figure S17). Preliminary qualitative broken symmetry (BS) DFT calculations predict a spin density distribution (Figure S18) that is consistent with the proposed electronic structure. The calculated energy of the BS doublet is 355 cm⁻¹ less than the sextet state.

3. Materials and Methods

3.1. General Considerations

All reagents were commercially available and used as received unless otherwise stated. Anhydrous solvents (CH₂Cl₂, toluene, diethyl ether) were obtained by distillation over CaH₂ or Na/benzophenone ketyl. ¹H/¹³C-NMR spectra at room temperature were recorded on a Bruker Avance III HD 400 Digital NMR spectrometer with a 9.4 T Ascend magnet using deuterated solvents. FT-IR spectra were recorded on a Shimadzu (IRAffinity spectrometer as KBr discs. UV-Vis measurements were recorded on a Shimadzu 3600 UV-Vis-NIR spectrophotometer in CH₂Cl₂ or methanol solution using quartz cuvettes. Cyclic voltammetry (CV) and differential pulse voltammetry (DPV) experiments were performed with a Bioanalytical Systems Inc. (BASI) Epsilon electrochemical workstation. Oxidized 4 was dissolved in anhydrous solvent (CH₂Cl₂), and then deaerated by sparging with N₂ gas for 10–15 min. Solution concentrations were approximately 10⁻³ M in analyte containing approximately 0.5 M supporting electrolyte (Bu₄NPF₆). A typical three-electrode set-up was used including a glassy carbon working electrode, Ag/AgCl reference electrode, and a platinum wire auxiliary electrode. The scan rate for all CV experiments was 100 mV/s (or 25 mV/s for DPV). Electron impact (EI) and fast atom bombardment (FAB) mass spectra were acquired on a ThermoFisher high resolution double focusing magnetic sector mass spectrometer system. ESI mass spectra were obtained on a Bruker HCT Plus Proteineer LC-MS with electrospray and a syringe pump was used for direct sample infusion. MALDI mass spectra were obtained on a Bruker Autoflex TOF/TOF MALDI spectrometer. Variable temperature magnetic susceptibility measurements for 5 were recorded on a Quantum Design-Magnetic Property Measuring System (QD-MPMS) SQUID magnetometer at an external magnetic field of 5000 Oe over a temperature range of 5–325 K. The sample was weighed into a gel cap and diamagnetic contributions were calculated using Pascal’s constants. EPR measurements on powder samples of oxidized 4 and 5 were recorded using a Bruker Elexsys E580 pulse spectrometer operating in continuous wave (CW) mode. Spectra were recorded at 300 and 100 K. Microanalyses were performed by Guelph Chemical Labs (Guelph, ON, Canada).

3.2. Computational Details

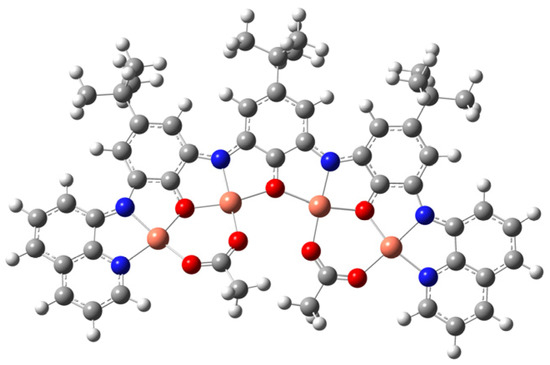

The geometry optimization and frequency calculation of 5 were carried out using the suite of programs included in the Turbomole 6.5 package [18,19,20] at the def2-SVP [21,22] level of theory using the BP86 functional [23,24,25] with the Resolution-of-the-Identity (RI) approximation [26,27,28,29,30] switched on. The calculated geometry was checked to ensure that it was a minimum on the potential energy surface (no negative frequencies). Single point energy calculations were performed on the optimized geometry using the B3LYP [31,32] hybrid functional and the def2-SVP basis set on all atoms with the Gaussian09 (Revision D.01) [33] package. Tight self-consistent field (SCF) convergence criteria were used for all calculations. The program Chemissian [34] was used for the preparation of the spin density distribution figure.

3.3. Synthesis of 2–5

[3-Iodo-2-methoxy-5-(tert-butyl)phenyl]-8-quinolylamine (2). 2,6-diiodo-4-tert-butylanisole (3.54 g, 8.57 mmol), Pd(OAc)₂ (0.096 g, 0.43 mmol, 5 mol %), rac-BINAP (0.524 g, 0.857 mmol, 10 mol %), Cs₂CO₃ (5.59 g, 17.1 mmol), and 8-aminoquinoline (1.23 g, 8.54 mmol) were combined in a Schlenk flask containing dry toluene (70 mL) under an N₂ atmosphere. The mixture was heated to 105 °C and stirred rapidly at this temperature for 6 d. Reaction progress was monitored by thin layer chromatography (TLC) (25:1 Hex/EtOAc) and small amounts of catalyst/co-catalyst and 8-aminoquinoline were added if consumption of the starting material was not complete. Upon reaction completion the reaction mixture was cooled to room temperature and then diluted with CH₂Cl₂ (250 mL) and H₂O (250 mL). The organic layer was separated, pre-absorbed onto silica gel, and evaporated. The solid residue was loaded on top of a large diameter chromatography column and eluted with 25:1 Hex/EtOAc. The product is isolated as the first yellow band to elute from the column. Yield, 2.8 g (76%). ¹H NMR (400 MHz, CDCl₃): δ 8.85 (d, 1H, J = 3.8 Hz), 8.63 (br s, 1H), 8.16 (d, 1H, J = 8.3 Hz), 7.69 (s, 1H), 7.49–7.42 (m, 4H), 7.33–7.26 (m, 1H), 3.85 (s, 3H), 1.36 (s, 9H). ¹³C NMR (100 MHz, CDCl₃): δ 149.4, 148.6, 147.8, 139.6, 139.0, 136.1, 135.0, 128.9, 128.7, 127.2, 121.7, 117.1, 116.9, 108.3, 91.8, 60.3, 34.6, 31.4. FT-IR (KBr): 3360 (w), 3259 (w), 3043 (w), 2960 (m), 1668 (m), 1591 (m), 1573 (m), 1527 (s), 1471 (s), 1431 (m), 1379 (m), 1365 (m), 1332 (m), 1271 (m), 1201 (m), 1132 (w), 1114 (w), 1064 (w), 844 (w), 819 (m), 788 (m), 746 (m), 671 (w), 607 (w), 574 cm⁻¹ (w). UV-Vis (CH₂Cl₂): λ_max = 373 nm. HR-MS (EI): Calc’d for C₂₀H₂₁N₂OI = 432.0693, found 432.0674.

2-Methoxy-1,3-bis[2-methoxy-3-(8-quinolylamino)-5-(tert-butyl)phenylamino]-5-(tert-butyl)benzene (3). 2 (1.4 g, 3.4 mmol), Pd(OAc)₂ (37.6 mg, 0.168 mmol, 5 mol %), and rac-BINAP (0.209 g, 0.336 mmol, 10 mol %) were combined in a Schlenk flask containing toluene (110 mL) under an N₂ atmosphere. The solution was stirred for 5 min at room temperature followed by the addition of 4-tert-butyl-2,6-diaminoanisole (0.261 g, 1.34 mmol) and Cs₂CO₃ (1.75 g, 5.37 mmol). The reaction mixture was refluxed for 7 d. Once completion of the reaction was noted by TLC, the reaction mixture was cooled to room temperature and then diluted with CH₂Cl₂ (250 mL) and H₂O (250 mL). The organic layer was separated and pre-absorbed on to silica gel. Purification of 3 via column chromatography was achieved with a gradient elution, starting at 25:1 Hex/EtoAc and changing to 10:1 Hex/EtoAc to collect a yellow band, which was evaporated to a fluffy yellow product. Crystals can be grown by slow diffusion of water into a THF solution of 3 in a narrow diameter tube. Yield, 3.36 g (78%). ¹H NMR (400 MHz, CDCl₃): δ 8.87 (s, 2H), 8.60 (d, 2H, J = 5.6 Hz), 8.16 (d, 2H, J = 8.2 Hz), 7.60–7.43 (m, 6H), 7.37–7.25 (m, 6H), 7.22 (d, 2H, J = 6.9 Hz), 6.67 (d, 2H, J = 6.9 Hz), 3.90 (d, 3H, J = 5.5 Hz), 3.87 (d, 6H, J = 5.3 Hz), 1.43–1.38 (m, 27 H). ¹³C (100 MHz, CDCl₃): δ 147.6, 147.4, 147.3, 140.3, 139.1, 138.3, 136.3, 136.1, 136, 135.9, 134.8, 128.9, 127.4, 121.6, 116.4, 108.6, 108.3, 107.6, 105.9, 60.1, 59.9, 34.9, 31.6. FT-IR (KBr): 3421 (m), 3362 (m), 3044 (w), 2961 (s), 2902 (w), 2866 (w), 1586 (s), 1573 (s), 1519 (s), 1503 (s), 1475 (m), 1433 (s), 1381 (s), 1261 (m), 1209 (m), 1169 (w), 993 (m), 951 (w), 839 (w), 818 (w), 789 (w), 745 (w), 657 (w), 606 (w), 575 (w), 545 (w) cm⁻¹. HR-MS (EI): Calc’d for C₅₁H₅₈O₃N₆ = 802.4565, found 802.4540.

2-Oxy-1,3-bis[2-hydroxy-3-(8-quinolylamino)-5-(tert-butyl)phenylamino]-5-(tert-butyl)benzene (4) & (oxidized 4). 3 (0.140 g, 0.174 mmol) was dissolved in CH₂Cl₂ (30 mL) under an N₂ atmosphere and cooled in ice-water with vigorous stirring. BBr₃ solution (1.57 mmol, 1 M in CH₂Cl₂) was added drop-wise to the solution of 3 and the reaction was left to warm to room temperature over a 12 h period. Deoxygenated water (15 mL) was added to the reaction contents and the resulting mixture was rapidly stirred for another 0.5 h followed by dilution with CH₂Cl₂ (50 mL) and water (50 mL). The aqueous layer was extracted with 3 × 50 mL CH₂Cl₂ and all of the organic extracts were combined and evaporated to an orange product that quickly turns brown. Yield, 0.112 g (85%). 4: MS (ESI+): m/z 759 (M⁺). Over a 48 h period the brown solid turns black (oxidized 4): HR-MS (EI+): Calc’d for C₄₈H₄₉O₃N₆ = 757.3861, found = 757.3894. Anal. Calc’d for C₄₈H₄₉O₃N₆ (found): C, 76.06 (75.85); H, 6.52 (6.68); N, 11.09 (11.24). FT-IR (KBr): 3356 (m), 3050 (w), 2959 (s), 2903 (w), 2866 (w), 1703 (w), 1591 (s), 1573 (s), 1514 (s), 1473 (s), 1456 (s), 1421 (s), 1379 (s), 1361 (m), 1329 (m), 1256 (m), 1215 (s), 1198 (s), 1101 (m), 1024 (w), 951 (w), 820 (m), 789 (m), 747 (w), 651 (w), 600 (w), 575 (w), 542 cm⁻¹ (w). UV-Vis (CH₂Cl₂): λ_max nm (ε (M⁻¹·cm⁻¹)) = 371 (1.5 × 10⁴), 552 (2.9 × 10³), 972 (4.4 × 10³).

Cu₄(CH₃CO₂)₂(C₄₈H₄₅N₆O₃⁶⁻) (5). 4 (0.150 g, 0.200 mmol) was dissolved in MeOH (40 mL), excess triethylamine (0.4 mL) was added and the solution was left to stir for 5 min. Solid Cu(OAc)₂·4H₂O (0.220 g, 1.00 mmol) was added to the solution of 4 and the flask was stoppered and stirred for 48 h at room temperature. After this time, the reaction contents were left to slowly evaporate for approximately 3 weeks. A dark purple microcrystalline precipitate was collected by vacuum filtration, washed with water, and dried. Yield, 0.162 g (74%). Anal. Calc’d for Cu₄C₅₂H₅₁O₇N₆ (found): C, 55.46 (55.89); H, 4.56 (4.37); N, 7.46 (7.21). MS (ESI+, CH₃OH): m/z 1159 [M + CH₃OH + H⁺]⁺, 100%. MS (MALDI+): m/z 1150 (MNa⁺). FT-IR (KBr): 3065 (w), 2961 (m), 2868 (w), 1599 (m), 1575 (m), 1539 (m), 1499 (m), 1464 (m), 1420 (s), 1327 (m), 1273 (s), 1252 (m), 1240 (m), 1196 (m), 1175 (w), 1107 (w), 1024 (w), 989 (w), 841 (w), 820 (w), 783 (w), 733 (w), 699 (w), 638 (w), 543 (w), 436 cm⁻¹ (w). UV-Vis (MeOH): λ_max = 645 nm.

4. Conclusions

In summary we have reported the synthesis and coordination chemistry of a novel polytopic paramagnetic ligand. When coordinated with Cu²⁺ this ligand adopts a hexa-anion radical oxidation state with very strong intramolecular antiferromagnetic exchange coupling. We are developing the coordination chemistry further and anticipate similar exchange coupling constants but larger overall ground state spin values through ferromagnetic or ferromagnetic interaction transition metal ions other than Cu²⁺. In our opinion, these redox-active ligands hold strong promise for new molecule-based materials as well as for other aspects of RAL chemistry. The synthetic method can be expanded to other derivatives, which we will report on in due course.
