Genetic Mapping of a Candidate Gene ClIS Controlling Intermittent Stripe Rind in Watermelon

by
Yinping Wang
†,
Shixiang Duan
†,
Qishuai Kang
,
Dongming Liu
,
Sen Yang
,
Huanhuan Niu
,
Huayu Zhu
,
Shouru Sun
,
Jianbin Hu
,
Junling Dou
* and
Luming Yang
*
College of Horticulture, Henan Agricultural University, Zhengzhou 450002, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Horticulturae 2023, 9(2), 263; https://doi.org/10.3390/horticulturae9020263
Submission received: 4 January 2023 / Revised: 11 February 2023 / Accepted: 14 February 2023 / Published: 15 February 2023
(This article belongs to the Special Issue Advance in Molecular Mechanism of Horticultural Crops - Pathogens)
Browse Figures
Review Reports Versions Notes

Abstract

:
Rind pattern is one of the most important appearance qualities of watermelon, and the mining of different genes controlling rind pattern can enrich the variety of consumer choices. In this study, a unique intermittent rind stripe was identified in the inbred watermelon line WT20. The WT20 was crossed with a green stripe inbred line, WCZ, to construct F2 and BC1 segregating populations and to analyze the genetic characterization of watermelon stripe. Genetic analysis showed that the intermittent stripe was a qualitative trait and controlled by a single dominant gene, ClIS. Fine mapping based on linkage analysis showed that the ClIS gene was located on the 160 Kb regions between 25.92 Mb and 26.08 Mb on watermelon chromosome 6. Furthermore, another inbred watermelon line with intermittent stripe, FG, was re-sequenced and aligned on the region of 160 Kb. Interestingly, only two SNP variants (T/C, A/T) were present in both WT20 and FG inbred lines at the same time. The two SNPs are located in 25,961,768 bp (T/C) and 25,961,773 bp (A/T) of watermelon chromosome 6, which is located in the promoter region of Cla019202. We speculate that Cla019202 is the candidate gene of ClIS which controls the intermittent stripe in watermelon. In a previous study, the candidate gene ClGS was proved to control dark green stripe in watermelon. According to the verification of the two genes ClIS and ClGS in 75 watermelon germplasm resources, we further speculate that the ClGS gene may regulate the color of watermelon stripe, while the ClIS gene regulates the continuity of watermelon stripe. The study provides a good entry point for studying the formation of watermelon rind patterns, as well as providing foundation insights into the breeding of special appearance quality in watermelon.

1. Introduction

The appearance quality of fruit is a critical attribute that heavily influences consumer preference. A distinctive and novel rind pattern can greatly enhance the appeal of a fruit, and therefore have a significant impact on consumer choice. Thus, consumer habits play a crucial role in shaping plant evolution and domestication [1]. As an important appearance trait, fruit rind pattern has many kinds of variation, especially in horticultural crops. In tomato, the fruit peels are distinguished as red, dark green, light green, green shoulders, dark green stripe and so on. It has been reported that many different genes regulate tomato peel color and pattern. APRR2-Like and TKN2 genes regulate the formation of dark green fruit by increasing the accumulation of chlorophyll content [2,3]. TKN4 and TKN2 regulate gradient expression of GLK2 and APRR2-Like to establish chloroplast developmental gradient from fruit shoulder to hilum during tomato fruit development, which ultimately leads to the formation of green shoulder tomato fruit [3,4]. Furthermore, methylation of TAGL1 promoter has been identified as regulating the formation of green stripes in tomato peel [5]. In cucumber, transcription factor MYB36 has been identified as regulating the formation of yellow-green fruit [6], while two genes, Csa7G05143 and Csa6G133820, were reported to associate with light-green rind [7,8], and the gene Csa3G904140 was associated with immature rind color in cucumber [9]. The gene Csa1G005490, encoding polygalacturonase, was identified as regulatingan irregular striped pattern in cucumber [10]. In apple, the transcription factor MYB10 was identified as regulating a red stripe in fruit rind [11], and many other transcription factors (MdMYB1a, MdMYB1, MdbHLH3-1, MdbHLH33-1, MdUFGT2-1, and MdUFGT4) which are involved in anthocyanin synthesis can also affect rind color [12]. In addition, many other genes have also been identified controlling fruit rinds in pepper [13], pear [14], wax gourd [15], sweet cherry [16] and so on.
A member of the Cucurbitaceae, watermelon (Citrullus lanatus) is grown widely and very popular with consumers all over the word. It has 11 chromosomes (2n = 2X = 22) with an approximately 425 Mb reference genome size. Watermelon reference genome ‘97103’ v1 was sequenced and released in 2013 [17]. Subsequently, the ‘Charleston Gray’ reference genome and ‘97103’ v2 have also been released [18]. All these make it possible to study the inheritance pattern and functional genes of some important agronomic traits in watermelon. As an important appearance quality, watermelon rinds are rich in diversity. According to the background color, watermelon rinds can be distinguished as yellow, dark green, light green, white and so on. According to the stripe patterns, watermelon rinds can be distinguished as striped, netted, intermittent, mottled and so on [19,20,21]. In addition, there are some other special rind patterns, such as yellow spots, yellow belly, and uneven rind [21,22,23]. Different kinds of rind pattern have always been the research hotspot of watermelon breeders.
In pervious studies, the research on watermelon rinds has focused on inheritance and preliminary mapping. Inheritance analysis has shown that light green rind color is controlled by a single gene g, with light green exhibiting recessive behavior compared to the dominant dark green rind color [21,22,24]. However, it has been reported that two loci together regulate dark green and light green rind patterns [25]. Yellow rind color has been confirmed to be controlled by a dominant gene [20,26]. For watermelon stripes, a series of alleles have been identified to control different stripe patterns, and the dominance relationship of solid medium/dark green (G) > wide stripe (gW) > medium stripe (gM) > narrow stripe (gN) > light green (g) has also been identified [27]. In addition, some other special rind patterns have also been investigated. For example, the intermittent stripe pattern has been confirmed to be controlled by a single recessive gene [20]. A single dominant gene was identified as regulating watermelon yellow belly [20]. The ‘moon and star’ pattern, with different kinds of yellow spots on the fruit rind, has been shown to be regulated by two genes [23].
With the reference genome sequences available, a total of 32,869 SSR markers distributed throughout watermelon whole genome were developed according to ‘97103’ genome [28], which makes it easy to carry out fine mapping of the functional genes and to study the regulatory mechanisms. To date, few genes and loci controlling watermelon rind traits have been reported. It has been reported that the gene RS8.1, located on chromosome 8, was identified to control dark green rind through the construction of a genetic map using BC1 generations crossed by watermelons with dark green rind and light green rind [29]. Furthermore, the ClCGMenG gene on chromosome 8 encoding a methyltransferase was identified to be responsible for watermelon dark green rind [30]. Additionally, a 3-bp insertion/deletion in the ClGS gene may be responsible for dark green stripes [31]. Yellow rind is regulated by a locus on the forefront of chromosome 4 [26]. For the ‘moon and star’ trait, two gene loci distributed on chromosomes 1 and 8 were identified as playing the decisive role [23]. In addition, studies have shown that several loci on chromosome 6 were identified to be related to watermelon rind stripes [32,33,34,35]. The 611.78 kb region on chromosome 6, which consistsof four discrete haploblocks and continuous recombination suppression, was identified as regulating watermelon stripe patterns [35]. A similar result was also found in genome-wide association analysis of 414 different watermelon accessions [36]. However, the research on fine mapping and cloning of some special watermelon rind patterns, especially intermittent stripes, have not yet been reported.
In our study, an intermittent stripe watermelon inbred line WT20 and a green stripe watermelon inbred line WCZ were crossed to construct an F2 population. The inheritance analysis showed that the intermittent stripe was controlled by a single dominant gene, which was named ClIS (Citrullus lanatus Intermittent Stripe). Further research has shown that Cla019202 may be the candidate gene for intermittent stripes, and that variation in the Cla019202 promoter region may be responsible for the continuity of watermelon stripes. This study provides valuable insights into the regulatory mechanisms involved in watermelon rind stripe formation and organ development, and it holds great potential to assist breeders in marker-assisted selection, manipulation of rind pattern, and improvement of fruit quality during watermelon breeding.

2. Materials and Methods

2.1. Plant Materials and Phenotypic Measurement

In our study, the fruit rind of the watermelon accession WT20 displayed an intermittent stripe pattern, which could be observed 10 days after pollination (DAP). On the other hand, the watermelon accession WCZ was characterized by a green stripe pattern, which became apparent during ovary development (Figure 1). Both accessions were homozygous inbred lines which had been self-pollinated for more than five generations. WT20 (P1) and WCZ (P2) were used to construct a segregation population of watermelon stripe patterns for gene mapping and genetic analysis. WT20 was crossed with WCZ to obtain F1, and the F2 population was obtained by self-crossing of F1. The populations BC1P1 (F1 × P1) and BC1P2 (F1 × P2) were obtained through the backcrossing of F1 with each parent.
For genetic analysis, the F2 population was grown and investigated in three experiments conducted in spring 2020, autumn 2020, and spring 2021 with 130, 217, and 849 F2 individuals, respectively, while 59 BC1P1 individuals and 59 BC1P2 individuals were grown and investigated in spring 2020 only. The parents with 10 individuals and F1 with 10 individuals were included in all experiments. The phenotyping of stripe pattern of each individuals was investigated and recorded two times at 10 DAP and 30 DAP (mature period). The χ2 test was used to calculate the segregation ratio in F2 population and backcross population (Table S1). All the individuals in this study were grown in the greenhouses in the Science and Education Park of Henan Agricultural University, Zhengzhou, China.

2.2. Marker Development and Fine Mapping

The whole genome sequence of watermelon ‘97103’ was released to the Cucurbit Genomics Database (http://www.icugi.org. accessed on 1 January 2020) in 2013 [17]; a total of 32, 869 SSR markers distributed in the watermelon whole genome were developed according to the ‘97103’ reference genome [28]. In order to confirm the candidate region of watermelon stripe pattern, we screened the SSR markers in the watermelon whole genome to analyze the polymorphism between the parents WT20 and WCZ. Then, in the F2 population in autumn 2020, we constructed two DNA pools: the intermittent stripe pool (I-pool) and the green stripe pool (G-pool), by mixing an equal amount of DNA from 20 intermittent stripe individuals and 20 green stripe individuals. The SSR markers which were polymorphic between WT20 and WCZ were used to screen the polymorphisms between two DNA pools. Finally, the polymorphic markers were used for linkage analysis through the F2 population of spring 2021 (849 individuals) and autumn2020 (217 individuals), which totaled 1066 individuals (Table S1). The primary mapping was based on SSR markers as above, and then Indel markers and dCAPS markers were developed during the interval of primary mapping according to the re-sequencing data for fine mapping in the F2 population. The Indel markers and dCAPS markers were designed based on the Primer3 software (http://bioinfo.ut.ee/primer3-0.4.0/. accessed on 12 January 2022) and dCAPS Finder 2.0 [37], respectively. The PCR reaction system, reaction procedure, restriction enzyme digestion reactions, and subsequent gel electrophoresis were conducted as described by Dou et al. [38]. The key markers used for linkage analysis in this study are listed in Table S2.

2.3. Prediction and Verification of Candidate Gene

The predicted gene in the candidate region was retrieved from the watermelon reference genome ‘97103’ (http://cucurbitgenomics.org/. accessed on 12 January 2022). The gene-specific primers were designed according to the DNA and CDS sequence of the candidate gene. The DNA and CDS sequence of the candidate gene were amplified from the ovary of two parents WT20 and WCZ, and then PCR products were sequenced and aligned between the ‘97103’ reference genome and two parents for detecting sequence differences. The function of the candidate gene was predicted based on NCBI (https://blast.ncbi.nlm.nih.gov/Blast.cgi. accessed on 12 January 2022) and the Cucurbitaceae Genome Database (http://cucurbitgenomics.org/. accessed on 12 January 2022). Furthermore, a watermelon accession which has the intermittent stripe pattern, FG, was obtained from Henan Yuyi Seed Co., Ltd., Zhengzhou, China. The stripe pattern of FG was the same as WT20, while other traits such as seed color and seed size were different between WT20 and FG. To verify the candidate gene of intermittent stripe watermelon, FG was re-sequenced for further testing.
In a previous study, the candidate gene ClGS (Cla019205) was provento control dark green stripe, and an Indel marker was developed according to the sequence of ClGS [31]. In this study, 75 watermelon germplasm resources (Table S3), including 41 darkgreen stripe watermelons, 32 green stripe watermelons and 2 intermittent stripe watermelons were used to test the linkage of candidate gene and phenotype. The sequences of intermittent stripe gene ClIS from watermelon germplasm can only be amplified and sequenced because of two close SNPs existing in the exon regions.

2.4. RNA Extraction, cDNA Synthesis, and qRT-PCR Analysis

In order to examine the expression of the intermittent stripe gene ClIS and the dark green stripe gene ClGS, watermelon rind displaying three kinds of stripe pattern (intermittent stripe WT20, green stripe WCZ, and dark green stripe WT2) was isolated at 10 DAP, and RNA was extracted for investigating the expression pattern of candidate gene. Total RNA was extracted using the plant RNA purification kit (Huayueyang, China) according to the protocol of the manufacturer. The quantity and quality of RNA samples were determined and assayed using NanoDrop 2000 (Thermo) and 1.5% agarose gel, respectively. The cDNA was synthesized using reverse transcriptase M-MLV (RNase H-) based on the instructions of the manufacturer (Takara, Japan). The primers for real-time PCR were designed for amplifying products of 100–250 bp using the Primer 5.0 online software. The Actin primer [39] and genes primers are listed in Table S4. The qRT-PCR reaction was carried out as previously reported [38]. The experiments were repeated three times, both biologically and technically, and the relative expression pattern was performed and calculated using the 2-△△CT method [40].

3. Results

3.1. Inheritance Features of Intermittent Stripe in Watermelon Rind

The intermittent stripe phenotypein the inbred line WT20 can be easily distinguished at 10 DAP, and becomes more and more obvious during later development of the fruit. Conversely, the inbred line WCZ shows a green stripe pattern throughout the fruit development period, from ovary to fruit maturity (Figure 1). Both inbred lines had been manually self-pollinated for at least five generations and were genetically stable. In order to study the genetic regulation of the intermittent stripe, WT20 (P1) and WCZ (P2) were used as parents to construct genetically segregated populations. All the fruits of F1 individuals displayed an intermittent stripe, suggesting that watermelon intermittent stripe is dominant in this study (Figure 1). F2 and BC1 segregated populations were constructed through the cross of WT20 and WCZ. The segregation ratio of the stripe pattern among different populations grown in three replicates is presented in Table S1. In spring 2020, there were 100 intermittent stripe individuals and 30 green stripe individuals among 130 F2 plants. All 59 BC1P1 individuals showed an intermittent stripe, while out of 59 BC1P2 individuals, 33 and 26 showed an intermittent stripe and green stripe, respectively. In autumn 2020, 164 and 53 individuals showed intermittent stripes and green stripes, respectively, out of 217 F2 individuals. In spring 2021, 849 F2 individuals were grown, of which 622 were intermittent stripe individuals and 227 were green individuals. The χ2 test showed that the segregation ratios in the F2 population and the BC1 population were in line with 3:1 and 1:1, respectively (Table S1), indicating that watermelon intermittent stripe is a qualitative trait and regulated by a single dominant gene. We named this gene ClIS (Citrullus lanatus Intermittent Stripe).

3.2. Fine Mapping of the ClIS Gene

In our previous study, a total of 1,257 SSR genome-wide markers were developed [28]. Of these markers, 532 showed good polymorphism between the two parental lines, WT20 and WCZ. Two pools (I-pool and G-pool) mixed an equal amount of DNA from 20 intermittent stripe individuals, and 20 green stripe individuals were used for preliminarily mapping the locus of ClIS. Among the 532 SSR markers, nine distributed on watermelon chromosome 6 presented good polymorphism between the two pools (Table S2). According to the location of nine SSR markers, the ClIS gene locus was located on the end of the watermelon chromosome 6 (Figure 2A). To check these results and map the candidate gene of watermelon intermittent stripe, 217 F2 individuals from autumn 2020 were used for polymorphic analysis using the nine polymorphism markers. The ClIS gene was mapped to 340 Kb genetic distances between ClSSR18071 and ClSSR18124 on watermelon chromosome 6 (Figure 2A).
To further narrow the candidate region of ClIS gene, an additional five SSR markers with good polymorphism between markers ClSSR18071 and ClSSR18124 were developed (Table S2). These markers were used to perform a more detailed linkage analysis and fine mapping using 1066 F2 individuals, which contained 217 individuals from autumn 2020 and 849 individuals from spring2021. The linkage analysis showed that the ClIS gene was mapped to 230 Kb genetic distance between markers ClSSR18071 and ClSSR18098 on watermelon chromosome 6 (Figure 2A). To obtain more markers for fine mapping, two parents of WT20 and WCZ were re-sequenced and analyzed by aligning with the reference genomes. Based on the re-sequenced data between the two parents, two dCAPS markers and one Indel marker between markers ClSSR18071 and ClSSR18098 were developed and used for polymorphic analysis in the recombinant individuals. The candidate gene ClIS was finally located at the interval between markers dCAPS-C and dCAPS-E (Figure 2B). Using the physical position of markers dCAPS-C and dCAPS-E, the ClIS gene was finally fine mapped to the 160 Kb region between 25.92 Mb and 26.08 Mb on watermelon chromosome 6 (Figure 2).

3.3. Sequence Alignment and Gene Identification

According to the annotation database of the watermelon reference genome ‘97103’ (http://cucurbitgenomics.org/. accessed on 12 January 2022), 18 functional genes (from Cla019198 to Cla019215) have been annotated in the 160 Kb candidate region (Figure 3). The sequences of these 18 functional genes were amplified and blasted. The results showed that there were no base differences in exons among WT20, WCZ, and the reference genome. Furthermore, another intermittent stripe watermelon accession, FG, was re-sequenced for further analysis of the variation in the 160 Kb candidate region. We blasted the sequence differences in the candidate region between WT20 and FG because they share the same stripe pattern. Interestingly, only two SNP variants (T/C, A/T) were present in both the WT20 and FG inbred lines (Figure 4A). The two SNPs were at 25,961,768 bp (T/C) and 25,961,773 bp (A/T) of watermelon chromosome 6. Furthermore, the two SNPs were in the promoter region of Cla019202: one was at the 1538th base (T/C) in the front of the start codon, and another was at the 1533rd base (A/T) in the front of the start codon. Analysis of promoter action elements (http://bioinformatics.psb.ugent.be/. accessed on 12 January 2022) showed that there was an additional CTCC-binding element in the promoter region of the Cla019202 gene (Figure 4A). However, the two SNPs were also present in the green stripe watermelon WCZ. In a previous study, the candidate gene ClGS (Cla019205) was proved to control watermelon dark green stripe, and a 3 bp insertion was identified in watermelons with nodark green stripe [31]. In order to further verify the candidate gene of dark green stripe pattern and intermittent stripe pattern, 75 watermelon germplasm resources selected from a previous study [36] were used to test the linkage between gene and phenotype (Table S3). The results showed that there were no SNPs of the promoter of Cla019202 presented in 41 dark green stripe watermelon accessions, while 3 bp insertions in ClGS gene were also not present, which was the same as in the previous study [31]. For the 32 green stripe watermelon accessions, there were two SNP variations in the promoter of Cla019202, and a 3 bp insertion in the ClGS gene was also present. For the two intermittent stripe watermelon accessions, there were two SNP variations in the promoter of Cla019202, and the 3 bp insertion in the ClGS gene was not presented (Figure 4B). We speculate that the genes Cla019202 (ClIS) and Cla019205 (ClGS) together regulate three stripe patterns of watermelon rind.

3.4. Expression Analysis of ClIS and ClGS Genes

In order to analyze the expression pattern of ClIS (Cla019202) and ClGS (Cla019205) genes in differently striped watermelon, the rind tissues at 10 DAP from three watermelons (intermittent stripe watermelon WT20, dark green stripe watermelon WT2, green stripe watermelon WCZ) were isolated and RNA was extracted for investigating the expression pattern. The specific primers of ClIS, ClGS, and the reference gene Actin are listed in Table S4. For the ClIS gene, there was no significant difference in expression level between WT20 and WCZ, but the expression level in WT20 and WCZ were higher than it was in WT2. For the ClGS gene, there was no significant difference in expression level between WT2 and WT20, but the expression levels in WT2 and WT20 were significantly lower than in WCZ (Figure 5). The stripe pattern could be easily distinguished at 10 DAP, which corresponded to the expression pattern of two genes. We speculate that different combinations of ClIS and ClGS determined different gene expression level, and then affected the formation of different watermelon stripe patterns.

3.5. Formation of Watermelon Stripe Patterns

In a previous study, the ClGS gene was shown to regulate the formation of dark green stripes [31]. The expression level of the ClGS gene was also the same as the previous study, so we determined that the ClGS gene regulates watermelon dark green stripes. For the intermittent stripe watermelon, the variation in the promoter region of ClIS can result in changes of expression level, and then affect the formation of the intermittent stripe pattern (Figure 6). According to the verification of co-segregation and expression level of the two genes (Figure 4, Figure 5), we think that the ClGS gene regulates the color of the watermelon stripe, while the ClIS gene regulated the continuity of the watermelon stripe (Figure 6).

4. Discussion

Watermelon is one of the most popular and widely cultivated fruits all over the world. As an important appearance trait, there have been reports on the study of watermelon rind pattern. However, the research mainly focused on common traditional rind patterns, such as dark green rind color background regulated by the ClCGMenG gene [30], dark green stripe regulated by the ClGS gene [31], different stripe patterns regulated by four discrete haploblocks of chromosome 6 [35], and yellow rind color regulated by a locus on the forefront of chromosome 4 [26]. There have been few reports on unique watermelon rind patterns. In the present study, an inbred watermelon line with intermittently striped rind, WT20, which had been manually self-pollinated for at least five generations, was collected and preserved (Figure 1). WT20 was the ideal material for researching watermelon intermittent stripe pattern in view of its stable inheritance without trait segregation during cultivation. The F2 populations were constructed by crossing between WT20 and WCZ (green stripe). Segregation in F2 populations exhibited the ratio of 3 intermittent stripes: 1 green stripe (Table S1), which indicated that watermelon intermittent stripe is a qualitative trait that is regulated by a single dominant gene.
With the release of the watermelon reference genome, gene mapping and cloning have accelerated using the technology of NGS (Next Generation Sequencing), and the efficiency of genotyping has also improved. NGS-assisted BSA provides an effective and simple method to identify molecular markers linked to target genes/QTLs because it is less laborious, much cheaper and has no population size limitation for genotyping work. It can be performed by obtaining a sufficient number of plants with extreme traits in a specific population [41]. Using the combination of BSA-seq technology and SSR markers distributed throughout the watermelon genome, several genes in watermelon have been mapped and cloned, such as the ClFS1 gene controlling fruit shape [42], the ClCGMenG gene controlling rind color [30], the Cldf gene controlling plant dwarfism [43,44], the ClERF4 gene controlling rind hardness [45], and the ClTFL1 gene controlling branchlessness [38]. This study utilized BSA-seq technology along with linkage analysis to map the ClIS gene.The candidate gene was delimited in a 160 Kb region between 25.92 Mb and 26.08 Mb on chromosome 6 (Figure 2), and 18 functional genes (from Cla019198 to Cla019215) were annotated in the 160 Kb candidate region (Figure 3). Additionally, an inbred line of intermittent stripe watermelon (FG) was collected and re-sequenced. The 18 genes were aligned and the differences in the sequences among WT20, WCZ, FG and 97103 (reference genome, dark green stripe) were analyzed. However, no differences were found among these 18 genes in the four watermelon accessions. Previous research has identified the candidate gene ClGS (Cla019205) as controlling watermelon dark green stripes and found a 3 bp insertion in watermelons without dark green stripes [31]. Our further analysis found that the 3 bp insertion in the ClGS gene was only presented in the green stripe watermelon WCZ. Interestingly, only two SNP variants (T/C, A/T), located on the promoter region of Cla019202, were present in WT20, FG, and WCZ inbred lines, which was different with dark green stripe watermelon 97103 (Figure 4A). Linkage analysis among 75 watermelon germplasm resources showed that 32 green striped watermelons presented variation in two SNPs in the Cla019202 gene and a 3 bp insertion in the ClGS gene, 41 dark green stripe watermelons showed no variation in the two genes, and two intermittent stripe watermelons only present in two SNPs variation were in the Cla019202 gene (Figure 4B). So we speculate that Cla019202 is the candidate gene of ClIS which regulated watermelon intermittent stripe rind. Additionally, the ClGS gene regulates the color of watermelon stripe, while the ClIS gene regulated the continuity of watermelon stripe (Figure 6).
It has been reported that the accumulation of pigment plays an important role in fruit rind. Many genes related to the biosynthesis of different pigments have been mapped and cloned. The CCD4b gene (carotenoid cleavage dioxygenase 4b) affects the color of Citrus peel by regulating the production of β-citraurinene [46]. Many MYB transcription factors have been identified as regulating pigment biosynthesis. CsMYB36 transcription factor is responsible for the formation of cucumber yellow-green rind [6]. The methylation of MYB10 transcription factors regulates the formation of fruit rind in apples and pears [11,14]. In addition, methylation in the promoter region of TAGL1 regulates the accumulation of chloroplasts in different parts of immature tomato fruit rinds, resulting in the appearance of green stripe traits in mature fruit [5]. In watermelons, there is some research on the regulation of watermelon rind stripe. GWAS analysis in 414 different watermelon accessions showed that the watermelon fruit stripe gene is linked to chromosome 6, and it has been predicted that Cla97C06G126710 is the candidate gene of watermelon rind stripe [36]. Subsequent research showed that the 611.78 kb region on chromosome 6 which consisted of four discrete haploblocks and continuous recombination suppression was identified as regulating watermelon stripe pattern [35]. Wang et al. [31] identified that ClGS (Cla019205) was responsible for watermelon dark green stripe. However, there were no further researches on unique intermittent stripe rind patterns in watermelon.
In the present study, the Cla019202 gene was identified to be the candidate gene for regulating watermelon intermittent stripe. Furthermore, a proposed model of watermelon rind stripe formation was established: the ClGS gene regulates the color of watermelon stripe, while the ClIS gene regulates the continuity of watermelon stripe. Genetic variants and gene mutation start from rare mutations with extremely low frequency, which appear in an individual from a specific population. The variants or mutation are then transformed into common ones during the evolutionary process through migration, selection, and genetic drift [38]. In watermelon, the genome speciation event occurred in 15–23 million years ago [17]. Wild watermelon originated in desert area, where itexhibited the phenotype of dark green or light-green rind stripes [36]. We speculate that the ClIS gene may have caused the natural variation in the long-term process of evolution and domestication, and that the variation was preserved through artificial selection. After many generations of selection and purification, the locus for intermittent stripe was preserved and inherited stably. In this study, it has been identified that the ClIS gene, combined with the ClGS gene, plays an important role in the development of watermelon rind patterns. However, the molecular mechanism of these two genes in regulating the formation of watermelon rind stripe development needs to be further studied. As a unique stripe trait in watermelon, intermittent stripe can be not only used as amorphological marker for cultivar identification, but can also provide the theoretical basis for the breeding and improvement of distinctive watermelon varieties. The cloning of watermelon stripe genes provides a good entry point for studying the development of watermelon rind, as well as providing foundation insights into breeding of different kinds of rind pattern in watermelon.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae9020263/s1, Table S1. The segregation ratio of intermittent stripe and green stripe among different populations (WT20×WCZ). Table S2. The information of remaining important markers on chromosome 6 used to analysis the polymorphic. Table S3. The genotypes in 75 watermelon germplasm resources. Table S4. The information of qRT-PCR markers.

Author Contributions

Conceptualization and methodology, J.D. and L.Y.; software, S.D. and D.L.; validation, Y.W., S.Y. and H.Z.; formal analysis, S.Y.; investigation, D.L., H.N. and Q.K.; resources, J.D.; data curation, Y.W. and S.D.; writing—original draft preparation, J.D.; writing—review and editing, J.H. and L.Y.; visualization, H.Z. and S.S.; supervision, S.S.; project administration, J.D.; funding acquisition, L.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (32102389, 32172602), the Project for Scientific and Technological Activities of Overseas Students of Henan Province, the Zhongyuan Youth Talent Support Program (ZYQR201912161), the Funding of Joint Research on Agricultural Varieties Improvement of Henan Province (2022010503), the Major Science and Technology Project of Henan Province (221100110400), and the Science and Technology Innovation Fund of Henan Agricultural University (KJCX2021A14).

Data Availability Statement

All new research data were presented in this contribution.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Encinas-Viso, F.; Revilla, T.A.; van Velzen, E.; Etienne, R.S. Frugivores and cheap fruits make fruiting fruitful. J. Evol. Biol. 2014, 27, 313–324. [Google Scholar] [CrossRef] [Green Version]
  2. Pan, Y.; Bradley, G.; Pyke, K.; Ball, G.; Lu, C.; Fray, R. Network inference analysis identifies an APRR2-like gene linked to pigment accumulation in tomato and pepper fruits. Plant Physiol. 2013, 161, 1476–1485. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Nadakuduti, S.S.; Holdsworth, W.L.; Klein, C.L.; Barry, C.S. KNOX genes influence a gradient of fruit chloroplast development through regulation of GOLDEN2-LIKE expression in tomato. Plant J. 2014, 78, 1022–1033. [Google Scholar] [CrossRef] [PubMed]
  4. Powell, A.; Nguyen, C.V.; Hill, T.; Cheng, K.L.; Figueroa-Balderas, R.; Aktas, H.; Bennett, A.B. Uniform ripening encodes a Golden 2-like transcription factor regulating tomato fruit chloroplast development. Science 2012, 336, 1711–1715. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Liu, G.; Li, C.; Yu, H.; Tao, P.; Yuan, L.; Ye, J.; Zhang, Y. GREEN STRIPE, encoding methylated TOMATO AGAMOUS-LIKE 1, regulates chloroplast development and Chl synthesis in fruit. New Phytol. 2020, 228, 302–317. [Google Scholar] [CrossRef]
  6. Hao, N.; Du, Y.; Li, H.; Wang, C.; Wang, C.; Gong, S.; Zhou, S.; Wu, T. CsMYB36 is involved in the formation of yellow green peel in cucumber (Cucumis sativus L.). Theor. Appl. Genet. 2018, 131, 1659–1669. [Google Scholar] [CrossRef]
  7. Lun, Y.; Wang, X.; Zhang, C.; Yang, L.; Gao, D.; Chen, H.; Huang, S. A CsYcf54 variant conferring light green coloration in cucumber. Euphytica 2016, 208, 509–517. [Google Scholar] [CrossRef]
  8. Zhou, Q.; Wang, S.; Hu, B.; Chen, H.; Zhang, Z.; Huang, S. An accumulation and replication of chloroplasts 5 gene mutation confers light green peel in cucumber. J. Integr. Plant Biol. 2015, 57, 936–942. [Google Scholar] [CrossRef] [Green Version]
  9. Tang, H.; Dong, X.; Wang, J.; Xia, J.; Xie, F.; Zhang, Y.; Wan, Z.J. Fine Mapping and candidate gene prediction for white immature fruit skin in cucumber (Cucumis sativus L.). Int. J. Mol. Sci. 2018, 19, 1493. [Google Scholar] [CrossRef] [Green Version]
  10. Song, M.; Zhang, M.; Cheng, F.; Wei, Q.; Wang, J.; Davoudi, M.; Lou, Q. An irregularly striped rind mutant reveals new insight into the function of PG1β in cucumber (Cucumis sativus L.). Theor. Appl. Genet. 2020, 133, 371–382. [Google Scholar] [CrossRef]
  11. Telias, A.; Lin-Wang, K.; Stevenson, D.E.; Cooney, J.M.; Hellens, R.P.; Allan, A.C.; Hoover, E.; Bradeen, J.M. Apple skin patterning is associated with differential expression of MYB10. BMC Plant Biol. 2011, 11, 93. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Meng, R.; Zhang, J.; An, L.; Zhang, B.; Jiang, X.; Yang, Y.; Zhao, Z. Expression profiling of several gene families involved in anthocyanin biosynthesis in apple (Malus domestica Borkh.) skin during fruit development. J. Plant Growth Regul. 2016, 35, 449–464. [Google Scholar] [CrossRef]
  13. Huh, J.; Kang, B.; Nahm, S.; Kim, S.; Ha, K.; Lee, M.; Kim, B. A candidate gene approach identified phytoene synthase as the locus for mature fruit color in red pepper (Capsicum spp.). Theor. Appl. Genet. 2001, 102, 524–530. [Google Scholar] [CrossRef]
  14. Qian, M.; Sun, Y.; Allan, A.C.; Teng, Y.; Zhang, D. The red sport of ‘Zaosu’ pear and its red-striped pigmentation pattern are associated with demethylation of the PyMYB10 promoter. Phytochemistry 2014, 107, 16–23. [Google Scholar] [CrossRef]
  15. Jiang, B.; Liu, W.; Xie, D.; Peng, Q.; He, X.; Ye, L.; Liang, Z. High-density genetic map construction and gene mapping of pericarp color in wax gourd using specific-locus amplified fragment (SLAF) sequencing. BMC Genom. 2015, 16, 1035. [Google Scholar] [CrossRef] [Green Version]
  16. Jin, W.; Wang, H.; Li, M.; Wang, J.; Yang, Y.; Zhang, X.; Zhang, K. The R2R3-MYB transcription factor PavMYB10.1 involves in anthocyanin biosynthesis and determines fruit skin colour in sweet cherry (Prunus avium L.). Plant Biotechnol. J. 2016, 14, 2120–2133. [Google Scholar] [CrossRef] [Green Version]
  17. Guo, S.; Zhang, J.; Sun, H.; Salse, J.; Lucas, W.J.; Zhang, H.; Xu, Y. The draft genome of watermelon (Citrullus lanatus) and resequencing of 20 diverse accessions. Nat. Genet. 2013, 45, 51–58. [Google Scholar] [CrossRef] [Green Version]
  18. Wu, S.; Wang, X.; Reddy, U.; Sun, H.H.; Bao, K.; Gao, L.; Fei, Z. Genome of ‘Charleston Gray’, the principal American watermelon cultivar, and genetic characterization of 1365 accessions in the US National Plant Germplasm System watermelon collection. Plant Biotechnol. J. 2019, 17, 2246–2258. [Google Scholar] [CrossRef] [Green Version]
  19. Gusmini, G.; Wehner, T.C. Genes determining rind pattern inheritance in watermelon: A review. Hortscience 2005, 40, 1928–1930. [Google Scholar] [CrossRef] [Green Version]
  20. Gusmini, G.; Wehner, T.C. Qualitative inheritance of rind pattern and flesh color in watermelon. J. Hered. 2006, 97, 177–185. [Google Scholar] [CrossRef] [Green Version]
  21. Guner, N.; Wehner, T.C. The genes of watermelon. Hortscience 2004, 39, 1175–1182. [Google Scholar] [CrossRef]
  22. Poole, C. Genetics of cultivated cucurbits. J. Hered. 1944, 35, 122–128. [Google Scholar] [CrossRef]
  23. Liu, D.; Sun, D.; Liang, J.; Dou, J.; Yang, S.; Zhu, H.; Yang, L. Characterization and bulk segregant analysis of ‘moon and star’ appearance in watermelon. Sci. Hortic. 2021, 285, 110140. [Google Scholar] [CrossRef]
  24. Weetman, L.M. Inheritance and correlation of shape size, and color in the watermelon. Iowa Agric. Exp. Stn. Res. Bull. 1937, 228, 222–256. [Google Scholar]
  25. Kumar, R.; Wehner, T.C. Discovery of second gene for solid dark green versus light green rind pattern in watermelon. J. Hered. 2011, 102, 489–493. [Google Scholar] [CrossRef] [Green Version]
  26. Dou, J.; Lu, X.; Ali, A.; Zhao, S.; Zhang, L.; He, N.; Liu, W. Genetic mapping reveals a marker for yellow skin in watermelon (Citrullus lanatusL.). PLoS ONE 2018, 13, e0200647. [Google Scholar] [CrossRef]
  27. Wehner, T.C.; Lou, L. Qualitative inheritance of external fruit traits in watermelon. Hortscience 2016, 51, 487–496. [Google Scholar]
  28. Zhu, H.; Song, P.; Koo, D.H.; Guo, L.; Li, Y.; Sun, S.; Weng, Y.; Yang, L. Genome wide characterization of simple sequence repeats in watermelon genome and their application in comparative mapping and genetic diversity analysis. BMC Genom. 2016, 17, 557. [Google Scholar] [CrossRef] [Green Version]
  29. Zhang, Z.; Zhang, Y.; Sun, L.; Qiu, G.; Sun, Y.; Zhu, Z.; Wang, X. Construction of a genetic map for Citrullus lanatus based on CAPS markers and mapping of three qualitative traits. Sci. Hortic. 2017, 233, 532–538. [Google Scholar] [CrossRef]
  30. Li, B.; Zhao, S.; Dou, J.; Ali, A.; Gebremeskel, H.; Gao, L.; Liu, W. Genetic mapping and development of molecular markers for a candidate gene locus controlling rind color in watermelon. Theor. Appl. Genet. 2019, 132, 2741–2753. [Google Scholar] [CrossRef]
  31. Wang, D.; Zhang, M.; Xu, N.; Yang, S.; Dou, J.; Liu, D.; Sun, S. Fine mapping a ClGS gene controlling dark-green stripe rind in watermelon. Sci. Hortic. 2022, 291, 110583. [Google Scholar] [CrossRef]
  32. Gama, R.N.; Santos, C.A.; Dias, R.C.; Alves, J.C.; Nogueira, T.O. Microsatellite markers linked to the locus of the watermelon fruit stripe pattern. Genet. Mol. Res. 2015, 14, 269–276. [Google Scholar] [CrossRef]
  33. Kim, H.; Han, D.; Kang, J.; Choi, Y.; Levi, A.; Lee, G.P.; Park, Y. Sequence characterized amplified polymorphism markers for selecting rind stripe pattern in watermelon (Citrullus lanatusL.). Hortic. Environ. Biotechnol. 2015, 56, 341–349. [Google Scholar] [CrossRef]
  34. Park, S.W.; Kim, K.T.; Kang, S.C.; Yang, H.B. Rapid and practical molecular marker development for rind traits in watermelon. Hortic. Environ. Biotechnol. 2016, 57, 385–391. [Google Scholar] [CrossRef]
  35. Yue, Z.; Ma, R.; Cheng, D.; Yan, X.; He, Y.; Wang, C.; Wei, C. Candidate gene analysis of watermelon stripe pattern locus ClSP ongoing recombination suppression. Theor. Appl. Genet. 2021, 134, 3263–3277. [Google Scholar] [CrossRef] [PubMed]
  36. Guo, S.; Zhao, S.; Sun, H.; Wang, X.; Wu, S.; Lin, T.; Xu, Y. Resequencing of 414 cultivated and wild watermelon accessions identifies selection for fruit quality traits. Nat. Genet. 2019, 51, 1616–1623. [Google Scholar] [CrossRef] [Green Version]
  37. Neff, M.M.; Neff, J.D.; Chory, J.; Pepper, A.E. dCAPS, a simple technique for the genetic analysis of single nucleotide polymorphisms: Experimental applications in Arabidopsis thaliana genetics. Plant J. 1998, 14, 387–392. [Google Scholar] [CrossRef]
  38. Dou, J.; Yang, H.; Sun, D.; Yang, S.; Sun, S.; Zhao, S.; Yang, L. The branchless gene Clbl in watermelon encoding a TERMINAL FLOWER1 protein regulates the number of lateral branches. Theor. Appl. Genet. 2022, 135, 65–79. [Google Scholar] [CrossRef]
  39. Kong, Q.; Yuan, J.; Gao, L.; Zhao, L.; Cheng, F.; Huang, Y.; Bie, Z. Evaluation of appropriate reference genes for gene expression normalization during watermelon fruit development. PLoS ONE 2015, 10, e0130865. [Google Scholar] [CrossRef]
  40. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2-ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  41. Takagi, H.; Abe, A.; Yoshida, K.; Kosugi, S.; Natsume, S.; Mitsuoka, C.; Terauchi, R. QTL-seq: Rapid mapping of quantitative trait loci in rice by whole genome resequencing of DNA from two bulked populations. Plant J. 2013, 74, 174–183. [Google Scholar] [CrossRef] [PubMed]
  42. Dou, J.; Zhao, S.; Lu, X.; He, N.; Zhang, L.; Ali, A.; Kuang, H.; Liu, W. Genetic mapping reveals a candidate gene (ClFS1) for fruit shape in watermelon (Citrullus lanatusL.). Theor. Appl. Genet. 2018, 131, 947–958. [Google Scholar] [CrossRef] [PubMed]
  43. Wei, C.; Zhu, C.; Yang, L.; Zhao, W.; Ma, R.; Li, H.; Zhang, X. A point mutation resulting in a 13bp deletion in the coding sequence of Cldf leads to a GA-deficient dwarf phenotype in watermelon. Hortic. Res. 2019, 6, 132. [Google Scholar] [CrossRef] [Green Version]
  44. Gebremeskel, H.; Dou, J.; Li, B.; Zhao, S.; Muhammad, U.; Lu, X.; He, N.; Liu, W. Molecular mapping and candidate gene analysis for GA3 responsive short internode in watermelon (Citrullus lanatus). Int. J. Mol. Sci. 2020, 21, 290. [Google Scholar] [CrossRef] [Green Version]
  45. Liao, N.; Hu, Z.; Li, Y.; Hao, J.; Chen, S.; Xue, Q.; Zhang, M. Ethylene-responsive factor 4 is associated with the desirable rind hardness trait conferring cracking resistance in fresh fruits of watermelon. Plant Biotechnol. J. 2020, 18, 1066–1077. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zheng, X.; Zhu, K.; Sun, Q.; Zhang, W.; Wang, X.; Cao, H.; Deng, X. Natural variation in CCD4 promoter underpins species-specific evolution of red coloration in Citrus peel. Mol. Plant 2019, 12, 1294–1307. [Google Scholar] [CrossRef]
Horticulturae 09 00263 g001 550
Figure 1. The phenotypes of watermelon inbred line WT20, WCZ, and F1. (A) The ovary period of WT20. (B) 10 days after pollination of WT20. (C) 30 days after pollination of WT20. (D) The ovary period of WCZ. (E) 10 days after pollination of WCZ. (F) 30 days after pollination of WCZ. (G) The ovary period of F1. (H) 10 days after pollination of F1. (I) 30 days after pollination of F1. Bar = 2 cm.
Figure 1. The phenotypes of watermelon inbred line WT20, WCZ, and F1. (A) The ovary period of WT20. (B) 10 days after pollination of WT20. (C) 30 days after pollination of WT20. (D) The ovary period of WCZ. (E) 10 days after pollination of WCZ. (F) 30 days after pollination of WCZ. (G) The ovary period of F1. (H) 10 days after pollination of F1. (I) 30 days after pollination of F1. Bar = 2 cm.
Horticulturae 09 00263 g001
Horticulturae 09 00263 g002 550

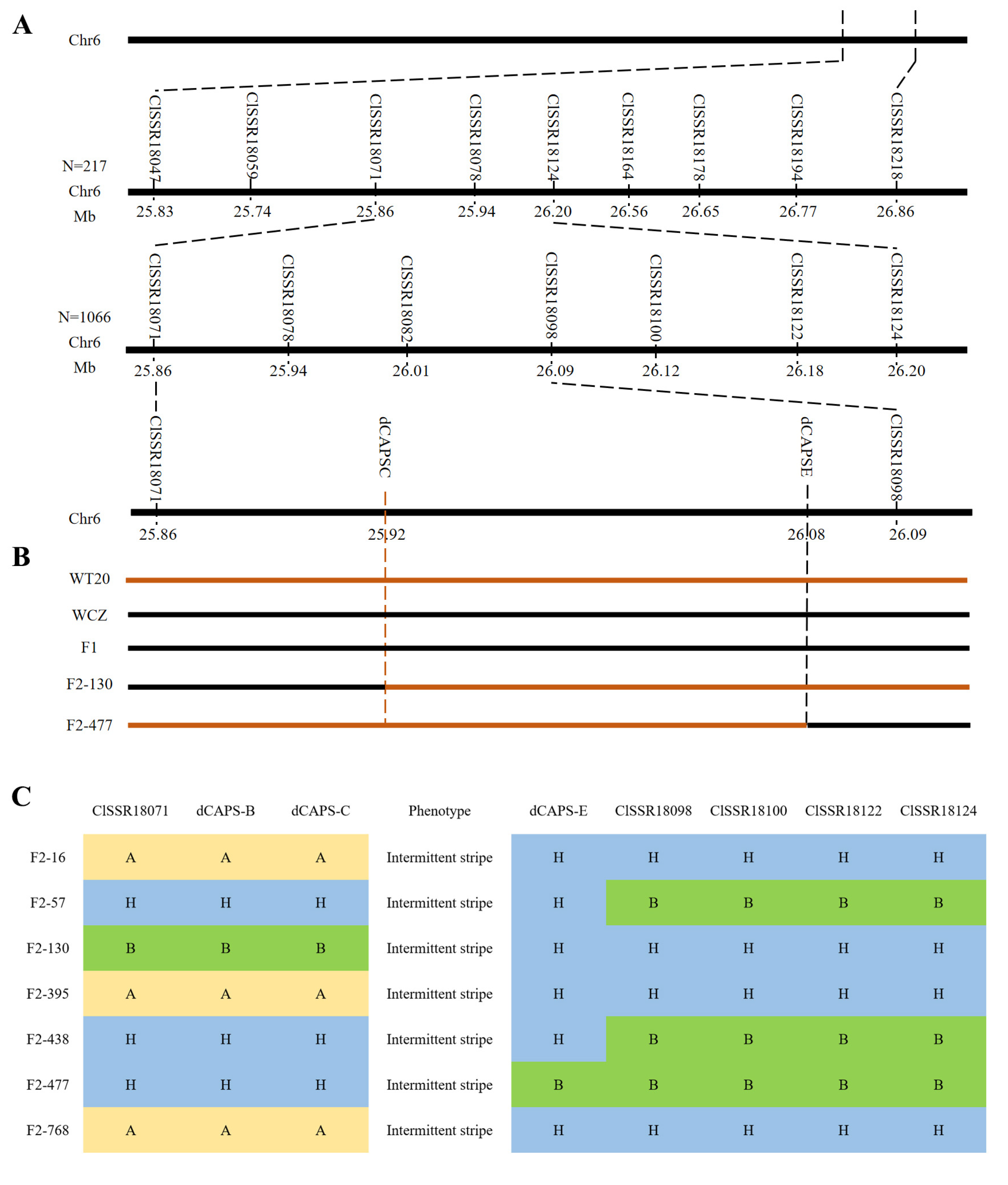

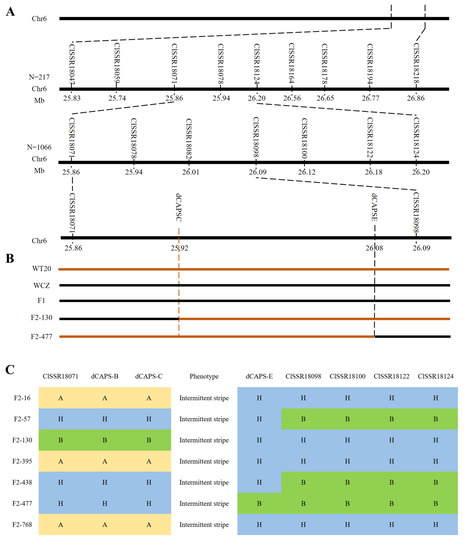

Figure 2. Linkage analysis based on the F2 population.The candidate gene was located between dCAPS-C and dCAPS-E markers on chromosome 6. (A) The linkage analysis of the F2 population. (B,C) The genotype of recombinant individuals: A is responsible for dominant homozygosity; B is responsible for recessive homozygosity; H is responsible for heterozygosity.
Figure 2. Linkage analysis based on the F2 population.The candidate gene was located between dCAPS-C and dCAPS-E markers on chromosome 6. (A) The linkage analysis of the F2 population. (B,C) The genotype of recombinant individuals: A is responsible for dominant homozygosity; B is responsible for recessive homozygosity; H is responsible for heterozygosity.
Horticulturae 09 00263 g002
Horticulturae 09 00263 g003 550

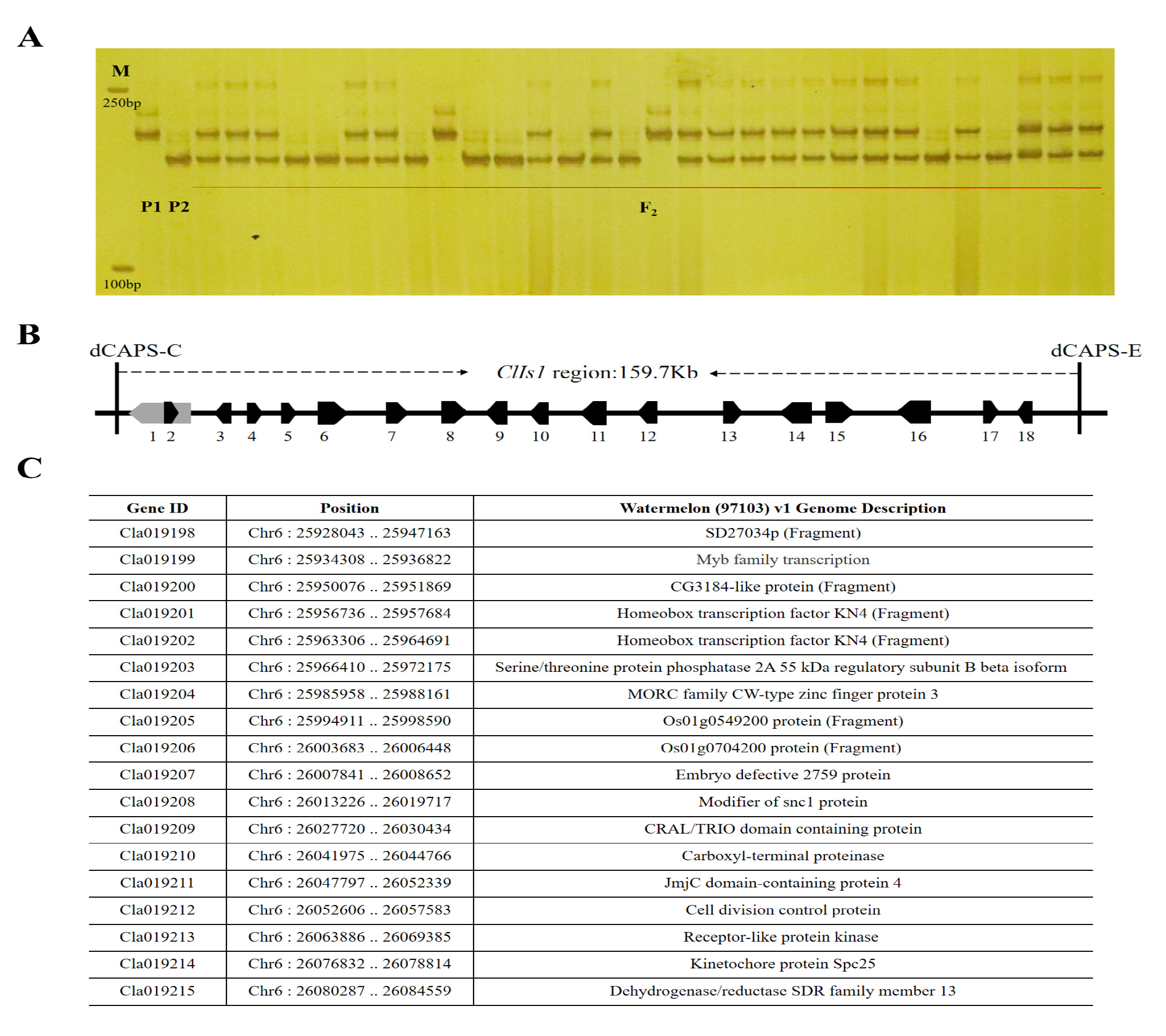

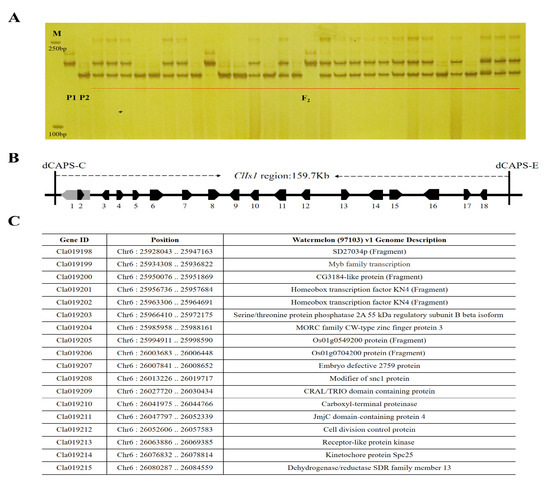

Figure 3. The functional genes between dCAPS-C and dCAPS-E markers. (A) The F2 population was co-segregated in the candidate interval. (B) 18 function genes were present in candidate interval. (C) Details information of the 18 functional genes.
Figure 3. The functional genes between dCAPS-C and dCAPS-E markers. (A) The F2 population was co-segregated in the candidate interval. (B) 18 function genes were present in candidate interval. (C) Details information of the 18 functional genes.
Horticulturae 09 00263 g003
Horticulturae 09 00263 g004 550

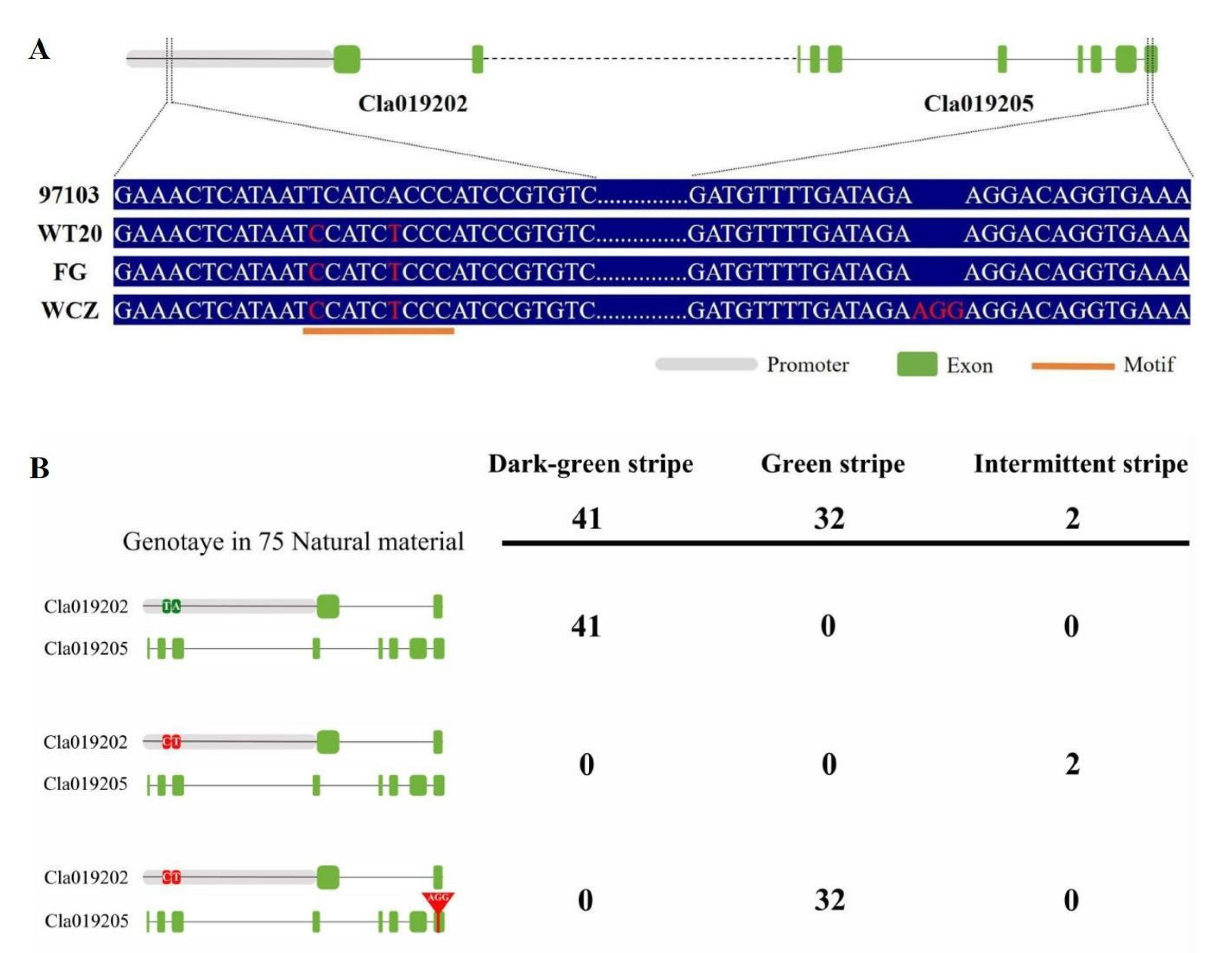

Figure 4. Co-segregation verification of the ClIS and ClGS genes. (A) Sequence alignment of the ClIS and ClGS genes among different stripe patterns; 97103, dark green stripe; WT20 and FG, intermittent stripe; WCZ, green stripe. (B) The verification of ClIS and ClGS genes among 75 watermelon germplasm resources.
Figure 4. Co-segregation verification of the ClIS and ClGS genes. (A) Sequence alignment of the ClIS and ClGS genes among different stripe patterns; 97103, dark green stripe; WT20 and FG, intermittent stripe; WCZ, green stripe. (B) The verification of ClIS and ClGS genes among 75 watermelon germplasm resources.
Horticulturae 09 00263 g004
Horticulturae 09 00263 g005 550

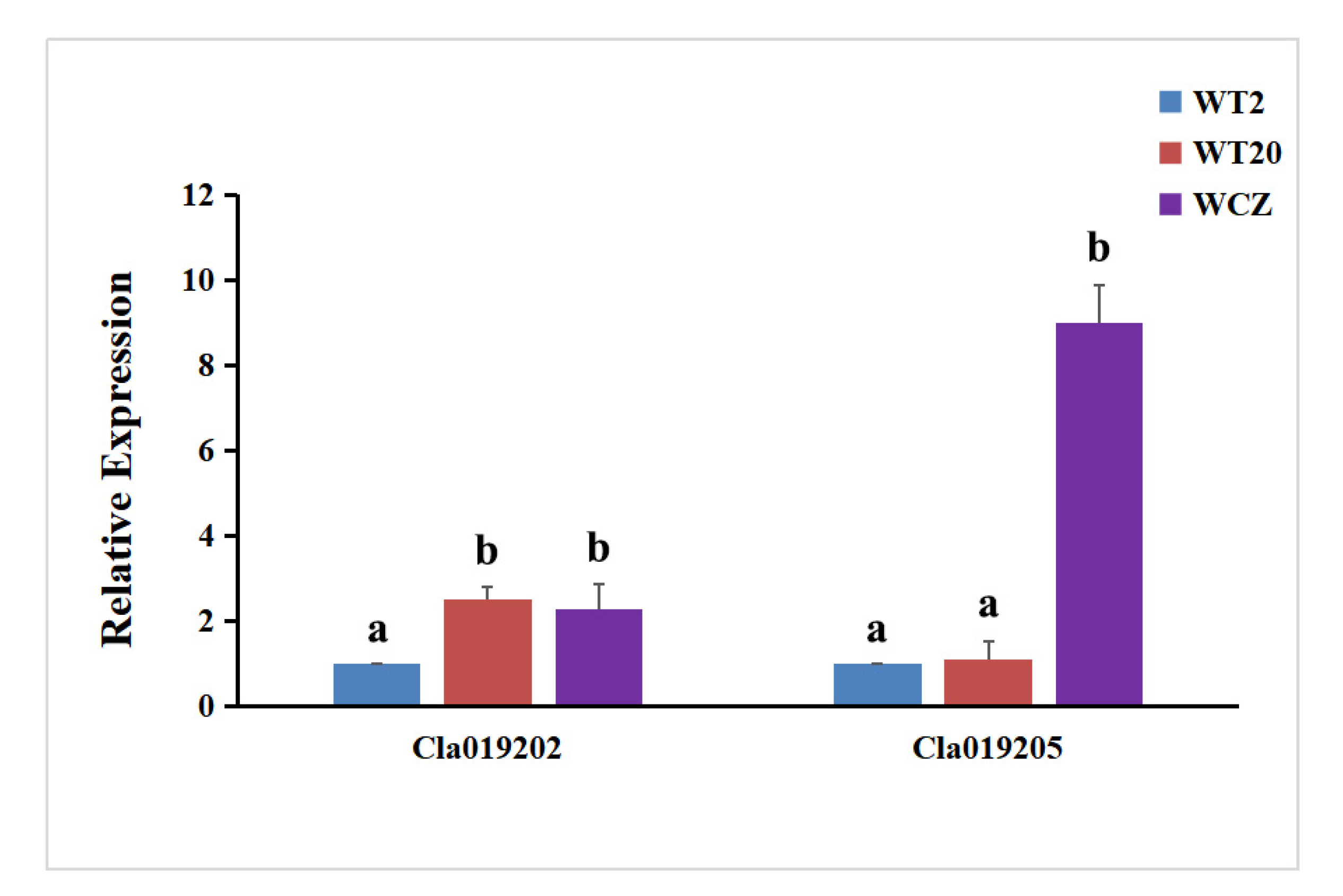

Figure 5. Expression analyses of ClIS and ClGS genes in fruit of 10 DAP. a and b represent significant differences.
Figure 5. Expression analyses of ClIS and ClGS genes in fruit of 10 DAP. a and b represent significant differences.
Horticulturae 09 00263 g005
Horticulturae 09 00263 g006 550

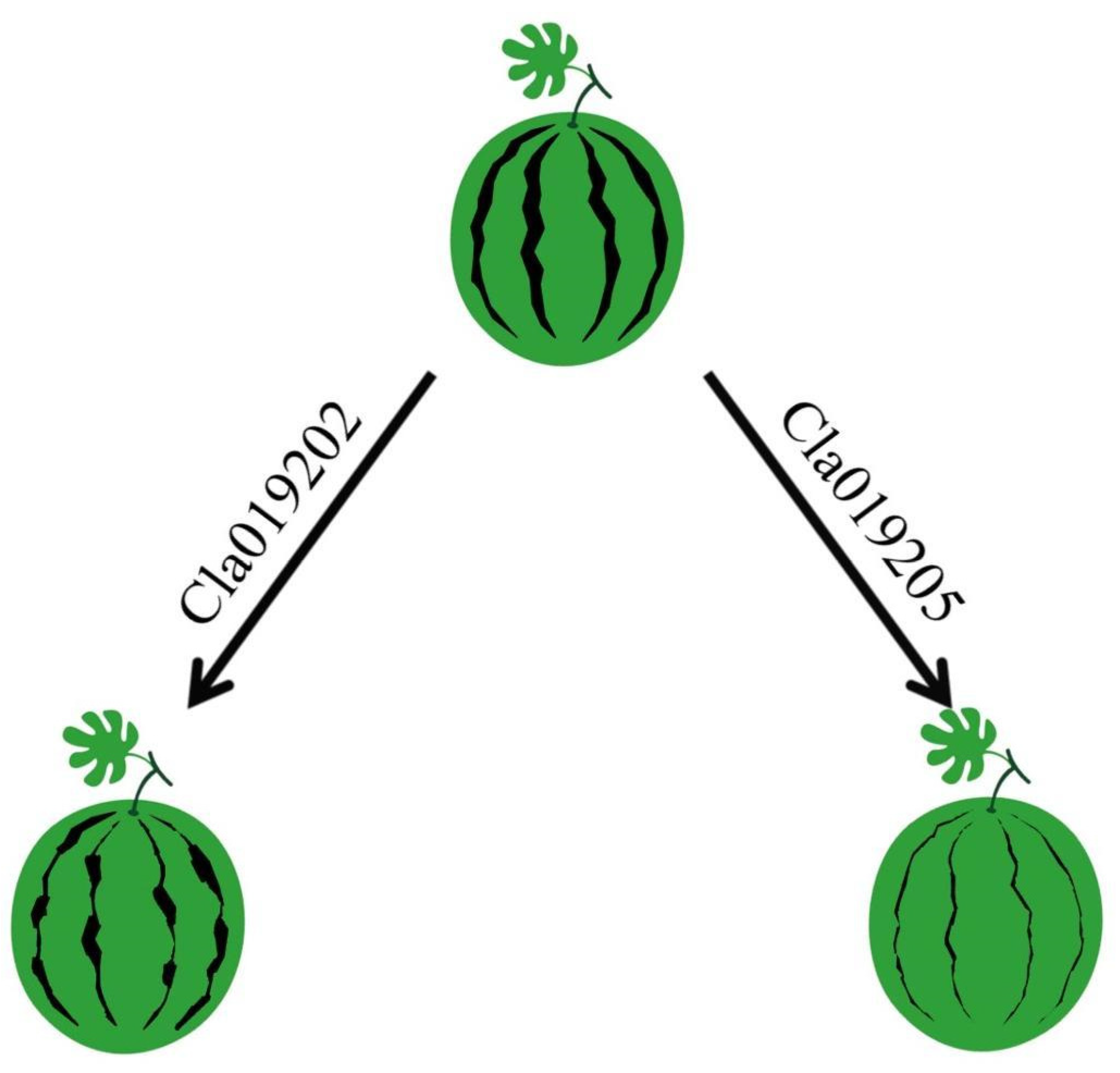

Figure 6. The predictive regulatory model of watermelon stripe pattern.
Figure 6. The predictive regulatory model of watermelon stripe pattern.
Horticulturae 09 00263 g006
