Cleaning of Tomato brown rugose fruit virus (ToBRFV) from Contaminated Clothing of Greenhouse Employees
Abstract
:1. Introduction
2. Materials and Methods
2.1. Source of ToBRFV and Plant Material
2.2. Inoculum Preparation and Mechanical Inoculation
2.3. Selection of Products and Preparation of the Working Solutions

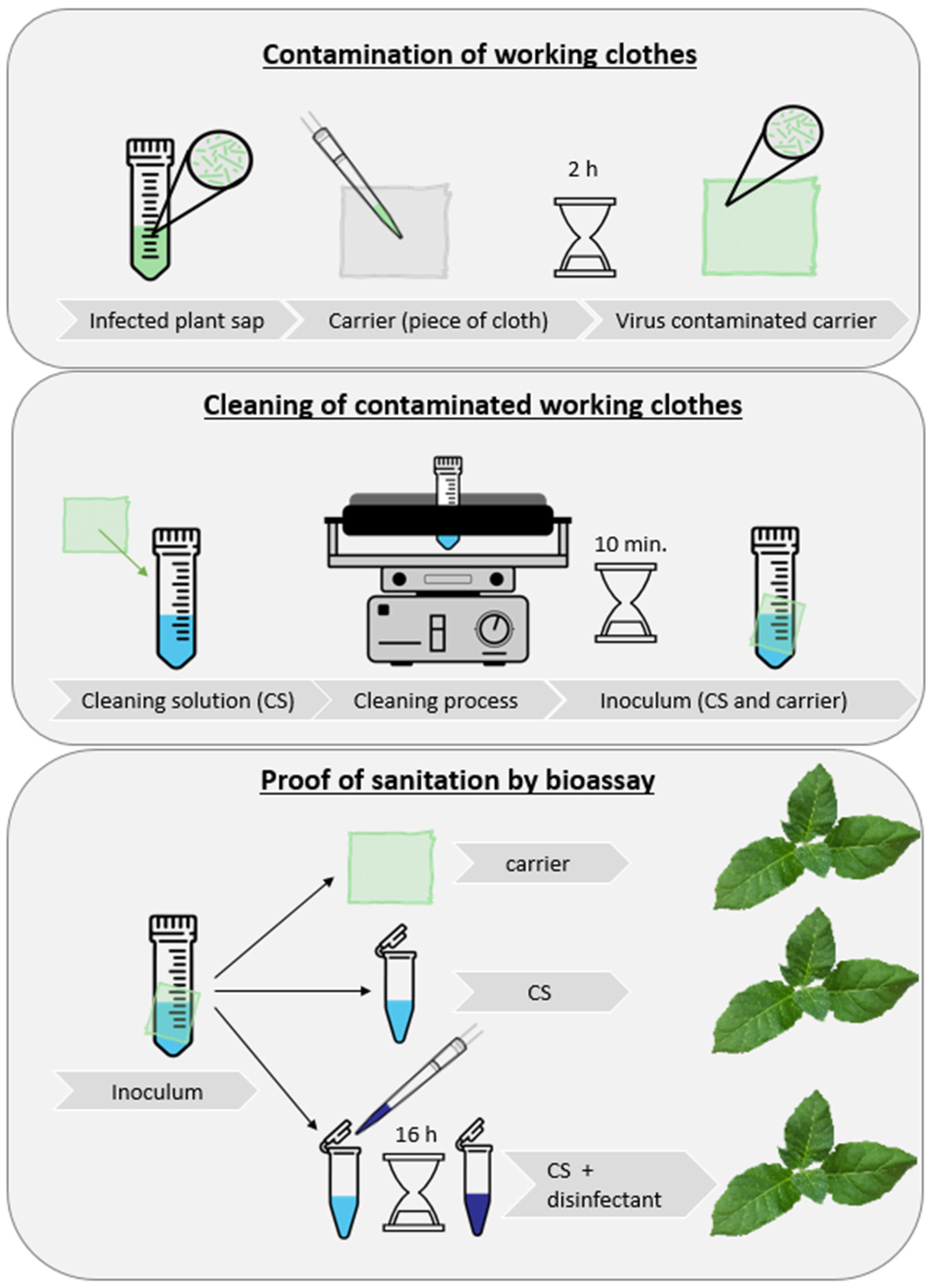

2.4. Experimental Design
2.5. Detection of ToBRFV
2.6. Data Analysis
3. Results

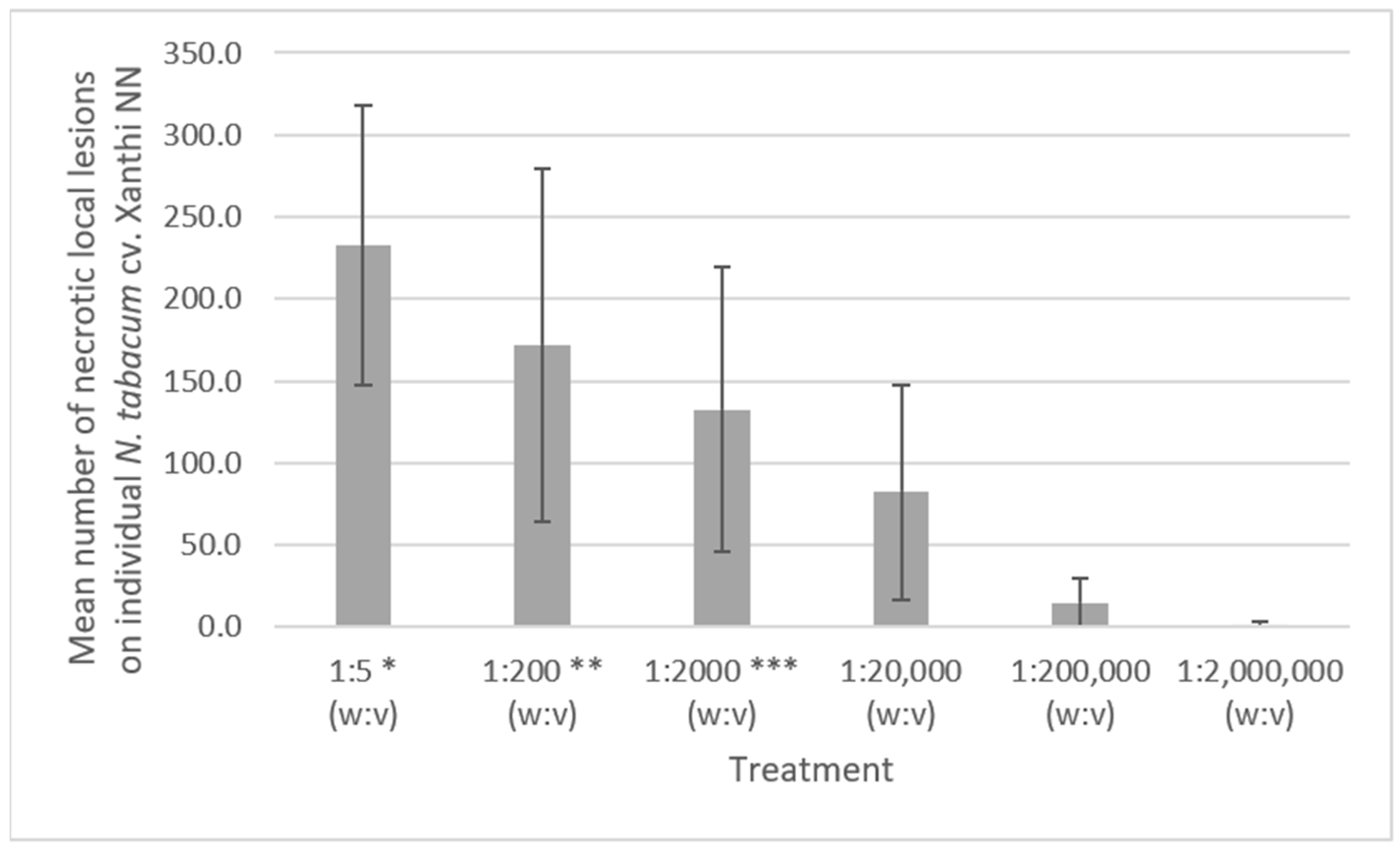

3.1. Infectivity of Tomato Brown Rugose Fruit Virus in N. tabacum cv. Xanthi NN
3.2. Qualitative Cleaning Efficacy of Detergents and the Disinfectant
3.3. Cleaning of ToBRFV-Contaminated Clothes
3.4. Infectivity of ToBRFV in the Resulting Cleaning Solution

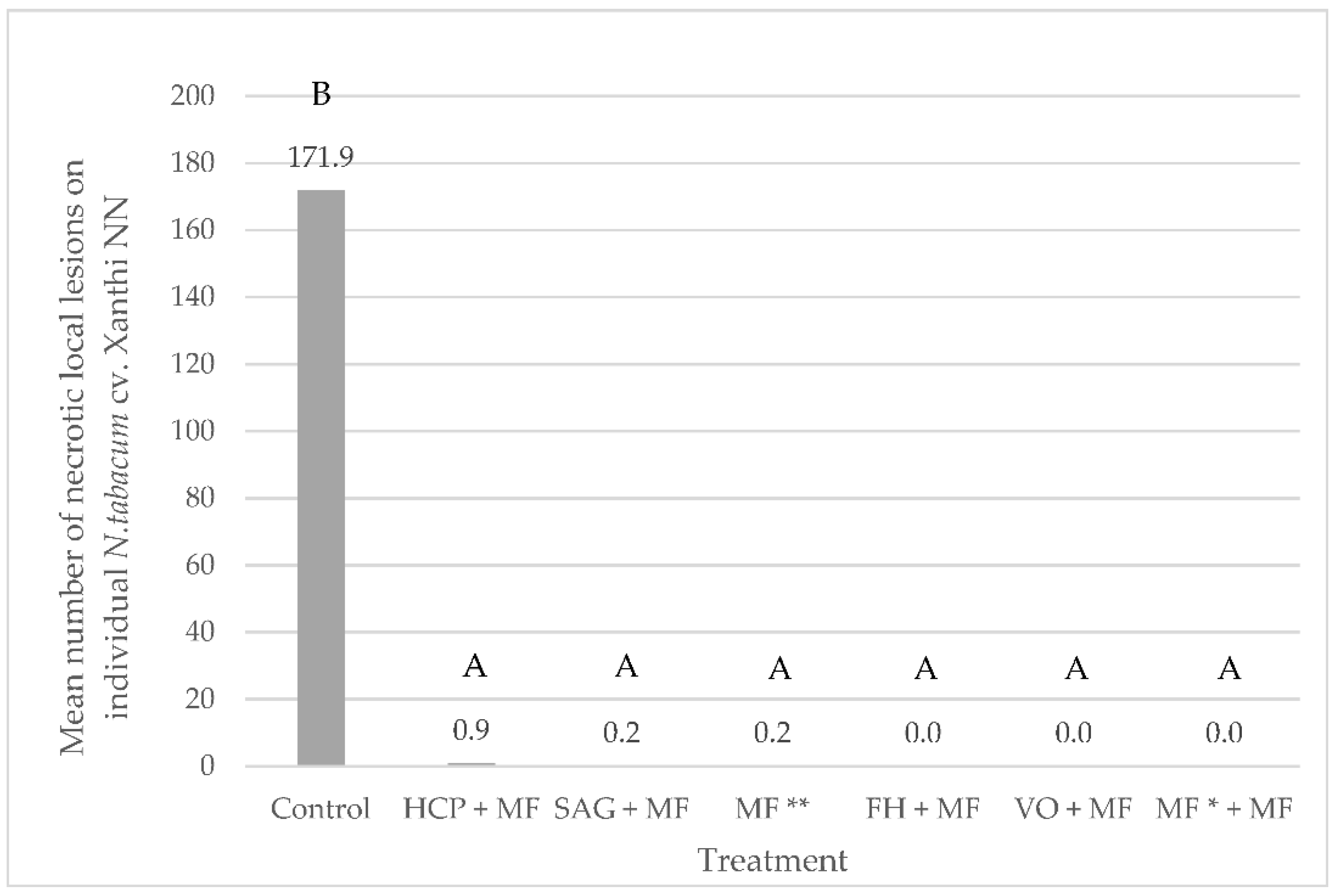

3.5. Disinfection of the Contaminated Cleaning Solution
4. Discussion
5. Recommendations for Practical Application in Greenhouses
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Van der Vlugt, R.A.A.; Stijger, C.C.M.M.; Verhoeven, J.T.J.; Lesemann, D.-E. First Report of Pepino Mosaic Virus on Tomato. Plant Dis. 2000, 84, 103. [Google Scholar] [CrossRef] [PubMed]
- Hanssen, I.M.; Lapidot, M.; Thomma, B.P. Emerging viral diseases of tomato crops. Mol. Plant-Microbe Interact. 2010, 23, 539–548. [Google Scholar] [CrossRef]
- EPPO. Tomato Brown Rugose Fruit Virus (ToBRFV) Categorization. Available online: https://gd.eppo.int/taxon/TOBRFV/categorization (accessed on 8 March 2022).
- Salem, N.; Mansour, A.; Ciuffo, M.; Falk, B.; Turina, M. A new tobamovirus infecting tomato crops in Jordan. Arch. Virol. 2016, 161, 503–506. [Google Scholar] [CrossRef] [PubMed]
- EPPO. Tomato Brown Rugose Fruit Virus (ToBRFV) Distribution. Available online: https://gd.eppo.int/taxon/TOBRFV/distribution (accessed on 8 March 2022).
- González-Concha, L.F.; Ramírez-Gil, J.G.; García-Estrada, R.S.; Rebollar-Alviter, Á.; Tovar-Pedraza, J.M. Spatiotemporal analyses of tomato brown rugose fruit virus in commercial tomato greenhouses. Agronomy 2021, 11, 1268. [Google Scholar] [CrossRef]
- Zhang, S.; Griffiths, J.S.; Marchand, G.; Bernards, M.A.; Wang, A. Tomato brown rugose fruit virus: An emerging and rapidly spreading plant RNA virus that threatens tomato production worldwide. Mol. Plant Pathol. 2022, 23, 1262–1277. [Google Scholar] [CrossRef]
- García-Estrada, R.S.; Diaz-Lara, A.; Aguilar-Molina, V.H.; Tovar-Pedraza, J.M. Viruses of Economic Impact on Tomato Crops in Mexico: From Diagnosis to Management—A Review. Viruses 2022, 14, 1251. [Google Scholar] [CrossRef] [PubMed]
- Luria, N.; Smith, E.; Reingold, V.; Bekelman, I.; Lapidot, M.; Levin, I.; Elad, N.; Tam, Y.; Sela, N.; Abu-Ras, A. A new Israeli Tobamovirus isolate infects tomato plants harboring Tm-22 resistance genes. PLoS ONE 2017, 12, e0170429. [Google Scholar] [CrossRef] [PubMed]
- Chanda, B.; Gilliard, A.; Jaiswal, N.; Ling, K.-S. Comparative analysis of host range, ability to infect tomato cultivars with Tm-22 gene and real-time RT-PCR detection of tomato brown rugose fruit virus. Plant Dis. 2021, 105, 3643–3652. [Google Scholar] [CrossRef]
- Zhang, H.; Zhao, J.; Liu, S.; Zhang, D.-P.; Liu, Y. Tm-22 confers different resistance responses against tobacco mosaic virus dependent on its expression level. Mol. Plant 2013, 6, 971–974. [Google Scholar] [CrossRef]
- Ling, K.-S. Pepino mosaic virus on tomato seed: Virus location and mechanical transmission. Plant Dis. 2008, 92, 1701–1705. [Google Scholar] [CrossRef]
- Salem, N.M.; Sulaiman, A.; Samarah, N.; Turina, M.; Vallino, M. Localization and mechanical transmission of tomato brown rugose fruit virus in tomato seeds. Plant Dis. 2022, 106, 275–281. [Google Scholar] [CrossRef]
- Panno, S.; Caruso, A.G.; Barone, S.; Lo Bosco, G.; Rangel, E.A.; Davino, S. Spread of tomato brown rugose fruit virus in sicily and evaluation of the spatiotemporal dispersion in experimental conditions. Agronomy 2020, 10, 834. [Google Scholar] [CrossRef]
- Mishra, S.K.; Maharjan, S.; Yadav, S.K.; Sah, N.P.; Sharma, S.; Parajuli, K.; Sherchand, J.B. Bacteria on Medical Professionals’ White Coats in a University Hospital. Can. J. Infect. Dis. Med. Microbiol. 2020, 2020, 5957284. [Google Scholar] [CrossRef]
- Wong, D.; Nye, K.; Hollis, P. Microbial flora on doctors’ white coats. Br. Med. J. 1991, 303, 1602–1604. [Google Scholar] [CrossRef]
- Heinzel, M.; Kyas, A.; Weide, M.; Breves, R.; Bockmühl, D.P. Evaluation of the virucidal performance of domestic laundry procedures. Int. J. Hyg. Environ. Health 2010, 213, 334–337. [Google Scholar] [CrossRef]
- Broadbent, L.; Fletcher, J. The epidemiology of tomato mosaic: IV. Persistence of virus on clothing and glasshouse structures. Ann. Appl. Biol. 1963, 52, 233–241. [Google Scholar] [CrossRef]
- Anonymous. Gesetz zur Verhütung und Bekämpfung von Infektionskrankheiten beim Menschen (Infektionsschutzgesetz—IfSG) vom 20 Juli 2000 (BGBl. I S. 1045), Zuletzt Geändert Durch Artikel 4 des Gesetzes vom 18 März 2022 (BGBl. I S. 473). 2022. Available online: https://www.gesetze-im-internet.de/ifsg/IfSG.pdf (accessed on 4 August 2022).
- Anonymous. Commission Implementing Regulation (EU) 2021/1809 of 13 October 2021 Amending Implementing Regulation (EU) 2020/1191 on Measures to Prevent the Introduction into and the Spread within the Union of Tomato Brown Rugose Fruit Virus (ToBRFV). 2021. pp. 41–45. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:32021R1809 (accessed on 4 August 2022).
- Menzel, W.; Knierim, D.; Winter, S.; Hamacher, J.; Heupel, M. First report of tomato brown rugose fruit virus infecting tomato in Germany. New Dis. Rep. 2019, 39, 1. [Google Scholar] [CrossRef]
- Holmes, F.O. Local lesions in tobacco mosaic. Bot. Gaz. 1929, 87, 39–55. [Google Scholar] [CrossRef]
- Rodríguez-Díaz, C.I.; Zamora-Macorra, E.J.; Ochoa-Martínez, D.L.; González-Garza, R. Disinfectants effectiveness in Tomato brown rugose fruit virus (ToBRFV) transmission in tobacco plants. Mex. J. Phytopathol. 2022, 40, 240–253. [Google Scholar] [CrossRef]
- DSMZ. Double Antibody Sandwich ELISA (DAS-ELISA). Available online: https://www.dsmz.de/fileadmin/_migrated/content_uploads/DAS-ELISA_01.pdf (accessed on 15 March 2022).
- Stroup, W.W.; Milliken, G.A.; Claassen, E.A.; Wolfinger, R.D. SAS for Mixed Models: Introduction and Basic Applications; SAS Institute: Cary, NC, USA, 2018. [Google Scholar]
- Li, R.; Baysal-Gurel, F.; Abdo, Z.; Miller, S.A.; Ling, K.-S. Evaluation of disinfectants to prevent mechanical transmission of viruses and a viroid in greenhouse tomato production. Virol. J. 2015, 12, 1–11. [Google Scholar] [CrossRef]
- Davino, S.; Caruso, A.G.; Bertacca, S.; Barone, S.; Panno, S. Tomato brown rugose fruit virus: Seed transmission rate and efficacy of different seed disinfection treatments. Plants 2020, 9, 1615. [Google Scholar] [CrossRef]
- Shargil, D.; Zemach, H.; Belausov, E.; Lachman, O.; Luria, N.; Molad, O.; Smith, E.; Kamenetsky, R.; Dombrovsky, A. Insights into the maternal pathway for cucumber green mottle mosaic virus infection of cucurbit seeds. Protoplasma 2019, 256, 1109–1118. [Google Scholar] [CrossRef]
- Ling, K.-S.; Tian, T.; Gurung, S.; Salati, R.; Gilliard, A. First report of tomato brown rugose fruit virus infecting greenhouse tomato in the United States. Plant Dis. 2019, 103, 1439. [Google Scholar] [CrossRef]
- Yan, Z.-Y.; Ma, H.-Y.; Han, S.-L.; Geng, C.; Tian, Y.-P.; Li, X.-D. First report of tomato brown rugose fruit virus infecting tomato in China. Plant Dis. 2019, 103, 2973. [Google Scholar] [CrossRef]
- Camacho-Beltrán, E.; Pérez-Villarreal, A.; Leyva-López, N.; Rodríguez-Negrete, E.; Ceniceros-Ojeda, E.; Méndez-Lozano, J. Occurrence of Tomato brown rugose fruit virus Infecting Tomato Crops in Mexico. Plant Dis. 2019, 103, 1440. [Google Scholar] [CrossRef]
- Alfaro-Fernández, A.; Castillo, P.; Sanahuja, E.; Rodríguez-Salido, M.; Font, M.I. First report of Tomato brown rugose fruit virus in tomato in Spain. Plant Dis. 2021, 105, 515. [Google Scholar] [CrossRef]
- JKI. Confirmed Presence of Tomato Brown Rugose Fruit Virus in Germany (Lower Saxony). 2021. Available online: https://pflanzengesundheit.julius-kuehn.de/dokumente/upload/Tomato_brown_rugose_fruit_virus_pr_2021-08-30_NI.pdf (accessed on 4 August 2022).
- JKI. Confirmed Presence of Tomato Brown Rugose Fruit Virus (ToBRFV) in Germany (Rhineland-Palatinate). 2021. Available online: https://pflanzengesundheit.julius-kuehn.de/dokumente/upload/Tomato_brown_rugose_fruit_virus_2021-07-21_RP.pdf (accessed on 4 August 2022).
- FAO. Crops and Livestock Products. Available online: Fao.org/faostat/en/#data/QCL (accessed on 11 April 2022).
- European Commission. The Tomato Market in the EU: Vol. 1: Production and Area Statistics. AGRI.G2—F&V: 2021; p. 12p. Available online: https://agriculture.ec.europa.eu/documents_en (accessed on 4 August 2022).
- Padmanabhan, P.; Cheema, A.; Paliyath, G. Solanaceous Fruits Including Tomato, Eggplant, and Peppers. Encycl. Food Health 2016, 5, 24–32. [Google Scholar] [CrossRef]
- McGovern, R. Management of tomato diseases caused by Fusarium oxysporum. Crop Prot. 2015, 73, 78–92. [Google Scholar] [CrossRef]
- St Laurent, J.B.; de Buzzaccarini, F.; De Clerck, K.; Demeyere, H.; Lebeque, R.; Lodewick, R.; Van Langenhove, L. Laundry cleaning of textiles. In Handbook for Cleaning/Decontamination of Surfaces; Elsevier: Amsterdam, The Netherlands, 2007. [Google Scholar]
- Darzi, E.; Lachman, O.; Smith, E.; Koren, A.; Klein, E.; Pass, N.; Frenkel, O.; Dombrovsky, A. Paths of cucumber green mottle mosaic virus disease spread and disinfectant-based management. Ann. Appl. Biol. 2020, 177, 374–384. [Google Scholar] [CrossRef]
- Del Olmo, A.; Calzada, J.; Nuñez, M. Benzoic acid and its derivatives as naturally occurring compounds in foods and as additives: Uses, exposure, and controversy. Crit. Rev. Food Sci. Nutr. 2017, 57, 3084–3103. [Google Scholar] [CrossRef]
- Chipley, J.R. Sodium benzoate and benzoic acid. In Antimicrobials in Food; CRC Press: Boca Raton, FL, USA, 2020; pp. 41–88. [Google Scholar]
- BVL. REGISTRATION REPORT Part A Risk Management Menno Florades. 2017, pp. 1–37. Available online: https://www.bvl.bund.de/SharedDocs/Downloads/04_Pflanzenschutzmittel/01_zulassungsberichte/044407-00-00.pdf?__blob=publicationFile&v=2 (accessed on 4 August 2022).
- Humphrey, T.; Lanning, D. The vertical transmission of salmonellas and formic acid treatment of chicken feed: A possible strategy for control. Epidemiol. Infect. 1988, 100, 43–49. [Google Scholar] [CrossRef] [PubMed]
- Kamenova, I.; Adkins, S. Transmission, in planta distribution, and management of Hibiscus latent Fort Pierce virus, a novel tobamovirus isolated from Florida hibiscus. Plant Dis. 2004, 88, 674–679. [Google Scholar] [CrossRef] [PubMed]
- Koh, S.; Li, H.; Sivasithamparam, K.; Admiraal, R.; Jones, M.; Wylie, S. Low root-to-root transmission of a tobamovirus, yellow tailflower mild mottle virus, and resilience of its virions. Plant Pathol. 2018, 67, 651–659. [Google Scholar] [CrossRef]
- Anonymous. Guidelines for the Approval of Chemothermal Disinfection Washing Processes. For Use in Companies Certified According to the Following Quality Mark RAL-GZ 992 for Professional Textile Services. 2021. Available online: https://www.waeschereien.de/en/counselor/guide-qualification (accessed on 4 August 2022).
- EPPO. Disinfection in plant production. Effic. Eval. Plant Prot. Prod. 2008, 38, 311–315. [Google Scholar]
- EN14885:2018; Chemical Disinfectants and Antiseptics—Application of European Standards for Chemical Disinfectants and Antiseptics. British Standard Institution: London, UK, 2015.
- Rabenau, H.F.; Schwebke, I.; Blümel, J.; Eggers, M.; Glebe, D.; Rapp, I.; Sauerbrei, A.; Steinmann, E.; Steinmann, J.; Willkommen, H. Leitlinie der Deutschen Vereinigung zur Bekämpfung der Viruskrankheiten (DVV) e. V. und des Robert Koch-Instituts (RKI) zur Prüfung von Chemischen Desinfektionsmitteln auf Wirksamkeit Gegen Viren in der Humanmedizin; Springer: Berlin/Heidelberg, Germany, 2015. [Google Scholar]
- Samarah, N.; Sulaiman, A.; Salem, N.; Turina, M. Disinfection treatments eliminated tomato brown rugose fruit virus in tomato seeds. Eur. J. Plant Pathol. 2021, 159, 153–162. [Google Scholar] [CrossRef]
- Dombrovsky, A.; Mor, N.; Gantz, S.; Lachman, O.; Smith, E. Disinfection Efficacy of Tobamovirus-Contaminated Soil in Greenhouse-Grown Crops. Horticulturae 2022, 8, 563. [Google Scholar] [CrossRef]
- Chanda, B.; Shamimuzzaman, M.; Gilliard, A.; Ling, K.-S. Effectiveness of disinfectants against the spread of tobamoviruses: Tomato brown rugose fruit virus and Cucumber green mottle mosaic virus. Virol. J. 2021, 18, 1–12. [Google Scholar] [CrossRef]
- Caruso, A.G.; Bertacca, S.; Parrella, G.; Rizzo, R.; Davino, S.; Panno, S. Tomato brown rugose fruit virus: A pathogen that is changing the tomato production worldwide. Ann. Appl. Biol. 2022, 23, 1262–1277. [Google Scholar] [CrossRef]
Product | Active Ingredient | Working Solution | ||
---|---|---|---|---|
Trade name | Name | Concentration | Concentration | pH |
Menno Florades (MF) | Benzoic acid | 9% (w/v) | 4% (40 mL/L) | 2 |
Menno Hortisept Clean Plus (HCP) | Sodium hydroxide | 10− < 15% | 2% (20 mL/L) | 12.5 |
Fadex H+ (FH) | Formic acid | 45− < 50% | 2% (20 mL/L) | 1 |
Spee ActivGel (SAG) | Anionic tensides | 5–15% | 0.25% (2.5 mL/L) | 5 |
Vanish Oxi Action Gel (VO) | Hydrogen peroxide | ≤10% | 2.5% (25 mL/L) | 6 |
Treatment | Cleaning Time | Cloth Carrier | Cleaning Solution (CS) |
---|---|---|---|
number of infected plants/total number of plants | |||
Negative control | 10 min. | 0/15 | 0/15 |
Control | 10 min. | 24/24 (A) | 24/24 (A) |
Disinfectants | |||
MF 4% | 10 min. | 5/24 (B) | 7/24 (B) |
MF 4% | 4 h | 2/24 (B) | 8/24 (B) |
Detergents | |||
HCP 2% | 10 min. | 2/24 (B) | 1/24 (B) |
FH 2% | 10 min. | 3/24 (B) | 1/24 (B) |
Household detergents | |||
SAG 0.25% | 10 min. | 24/24 (A) | 24/24 (A) |
VO 2.5% | 10 min. | 24/24 (A) | 24/24 (A) |
Cleaning Solution (CS) | Disinfectant | Disinfection Time | Decontaminated CS |
---|---|---|---|
number of infected plants/total number of plants | |||
Negative control | MF 4% | 16 h | 0/15 |
Control | / | / | 24/24 (A) |
Disinfectants | |||
MF 4% 10 min | MF 4% | 16 h | 0/24 (B) |
MF 4% 4 h | / | / | 2/24 (B) |
Detergents | |||
HCP 2% | MF 4% | 16 h | 3/24 (B) |
FH 2% | MF 4% | 16 h | 0/24 (B) |
Household detergents | |||
SAG 0.25% | MF 4% | 16 h | 2/24 (B) |
VO 2.5% | MF 4% | 16 h | 0/24 (B) |
