Seed Geometry in the Arecaceae

Abstract

Fruit and seed shape are important characteristics in taxonomy providing information on ecological, nutritional, and developmental aspects, but their application requires quantification. We propose a method for seed shape quantification based on the comparison of the bi-dimensional images of the seeds with geometric figures. J index is the percent of similarity of a seed image with a figure taken as a model. Models in shape quantification include geometrical figures (circle, ellipse, oval…) and their derivatives, as well as other figures obtained as geometric representations of algebraic equations. The analysis is based on three sources: Published work, images available on the Internet, and seeds collected or stored in our collections. Some of the models here described are applied for the first time in seed morphology, like the superellipses, a group of bidimensional figures that represent well seed shape in species of the Calamoideae and Phoenix canariensis Hort. ex Chabaud. Oval models are proposed for Chamaedorea pauciflora Mart. and cardioid-based models for Trachycarpus fortunei (Hook.) H. Wendl. Diversity of seed shape in the Arecaceae makes this family a good model system to study the application of geometric models in morphology.

1. Introduction

The Arecaceae Schultz Sch. (Palmae nom. cons.) is a unique family in the order Arecales, class Monocotyledoneae. It includes about 2600 species grouped in 181 genera of climbers, shrubs, and tree-like and stemless plants, all commonly known as palms, with a worldwide distribution in tropical and subtropical regions. Economically important species are the oil palm (Elaeis oleifera [Kunth] Cortes ex Prain), the coconut palm (Cocos nucifera L.), the date palm (Phoenix dactilifera L.) Other species in this family are the most used by local people in many tropical places like the Amazonian basin, with a great variety of applications [1,2,3,4,5,6]. It is remarkable that whole human communities, particularly in the tropics, depend on palms for their survival [1,6]. Trachycarpus fortunei (Hook.) H.Wendl. and Chamaerops humilis L. are frequently used as ornamentals in temperate zones in Mediterranean countries for their resistance to extreme temperatures.

The Arecaceae form a monophyletic group among the monocotyledons as supported by both molecular and morphological data that, in recent years, have integrated much information from DNA sequencing. Current taxonomy presents five subfamilies (Calamoideae, Nypoideae, Coryphoideae, Ceroxyloideae, and Arecoideae) divided into tribes and subtribes [1].

Table 1. A summary of the taxonomy of the Arecaceae. Subfamilies Calamoideae, Nypoideae, Coryphoideae, Ceroxyloideae, and Arecoideae divided into tribes. The number of genera in each subfamily and tribe is given between parentheses. Some examples of genera in each of the tribes are shown. Data adapted from [1].

Subfamilies	Tribes	Genera
I. Calamoideae (21)
	Eugeissoneae (1)	Eugeissona
	Lepidocaryae (7)	Oncocalamus, Eremospatha, Laccosperma, Raphia
	Calameae (13)	Calamus, Retispatha, Ceratolobus
II. Nypoideae (1)		Nypha
III. Coryphoideae (46)
	Sabaleae (1)	Sabal
	Cryosophileae (10)	Coccothrinax, Hemithrinax, Leucothrinax, Thrinax
	Phoeniceae (1)	Phoenix
	Trachycarpeae (18)	Chamaerops, Guihaia, Trachycarpus, Rhapis
	Chuniophoeniceae (4)	Livistona, Licuala, Johannesteijsmannia
	Caryoteae (3)	Caryota, Arenga, Wallichia
	Corypheae (1)	Corypha
	Borasseae (8)	Bismarckia, Lodoicea, Borassodendron, Borassus
IV. Ceroxyloideae (8)
	Cyclospatheae (1)	Pseudophoenix
	Ceroxyleae (4)	Ceroxylon, Juania, Oraniopsis, Ravenea
	Phytelepheae (3)	Ammandra, Aphandra, Phytelephas
V. Arecoideae (106)
	Iriarteeae (5)	Iriartea
	Chamaedoreae (5)	Chamaedorea
	Podococceae (1)	Podococcus
	Oranieae (1)	Orania
	Sclerospermeae (1)	Sclerosperma
	Roystoneeae (1)	Roystonea
	Reinhardtieae (1)	Reinhardtia
	Cocoseae (18)	Cocos, Jubaea, Bactris, Elaeis
	Manicarieae (1)	Manicaria
	Euterpeae (5)	Hyospathe, Euterpe
	Geonomateae (6)	Asterogyne, Geonoma
	Leopoldiniaeae (1)	Leopoldinia
	Pelagodoxeae (2)	Pelagodoxa, Sommieria
	Areceae (58)	Archontophoenix, Areca, Basselinia, Carpoxylon, Clinosperma, Dypsis, Linospadix, Oncosperma, Ptychosperma, Rhopalostylis, Verschaffeltia,

shows the distribution of tribes within subfamilies and representative examples of genera. The largest subfamily, the Arecoideae, contains 106 genera grouped into 14 tribes, of which the largest, the Areceae is formed by 11 subtribes that receive their names from the respective genera (Archontophoenicinae, Arecinae, Basseliniinae, Carpoxylinae, Clinospermatinae, Dypsidinae, Linospadicinae, Oncospermatinae, Ptychospermatinae, Rhopalostylidinae, and Verschaffeltiinae), plus an additional group of ten unplaced genera (Bentinckia, Clinostigma, Cyrtostachys, Dictiosperma, Dransfieldia, Heterospathe, Hydriastele, Iguanura, Loxococcus, and Rhopaloblaste).

Based on the utility of palms in industry at both subsistence and world market levels, the Arecaceae has been reported to be the third family in applied importance in the Plant Kingdom following the Poaceae and the Fabaceae [5]. Detailed analyses of fruit and seed morphology in this family may provide valuable information.

2. Seed Morphology in the Arecaceae

The seeds of the Arecaceae are varied in size ranging from the small size of Prestoea Hook., a few millimeters in length, to the largest seeds of all plants weighing up to 25 kg: The “coco de mer” (Lodoicea maldivica [J. F. Gmelin] Persoon). The size and shape of fruits and seeds correspond to a diversity of types of dispersion, often in water or by zoochory by a variety of animals [6,7,8,9,10], with a predominance of the circular, ellipsoid, and oval morphology [1,11]. The combinations of fibrous mesocarps and hard endocarps enclosing a cavity made of the fruits of Cocos nucifera L. (Cocoseae, Arecoideae), L. maldivica (Borasseae, Coryphoideae), and other species, adaptations to floating in sea water, while other fruits have fleshy mesocarps and brightly colored epicarps attractive to mammalians such as civets (Caryota maxima Blume; Arenga pinnata [Wurmb] Merr. and Pinanga coronata Blume), gibbons (Arenga obtusifolia Mart.), coyotes (Washingtonia spp. H. Wendl.), elephants (Hyphaene Gaertn. and Borassus L.), and agoutis (Socratea H. Karst) [1,6,7,8,9,10,12]. In the large Amazonian palms, once ripe, some of the fruits fall and are consumed by peccaries (Tayassu pecari) and species of rodents such as the guantas (Cuniculus paca), guatusas (Dasyprocta spp.), and coatis (Nasua spp.), which disperse their seeds and bury them at times of abundance [6]. Other fruits are food for birds like the Malabar hornbills (Korthalsia Blume) and parrots, or fishes [9]. The fruits of Prestoea ensiformis (Ruiz & Pav.) H.E. Moore or Astrocaryum chambira Burret fall by their own weight and once on the ground are eaten and their seeds transported by rodents, tapirs, and wild boar [6]. For reviews on animal-mediated seed dispersal in palms see [10,13].

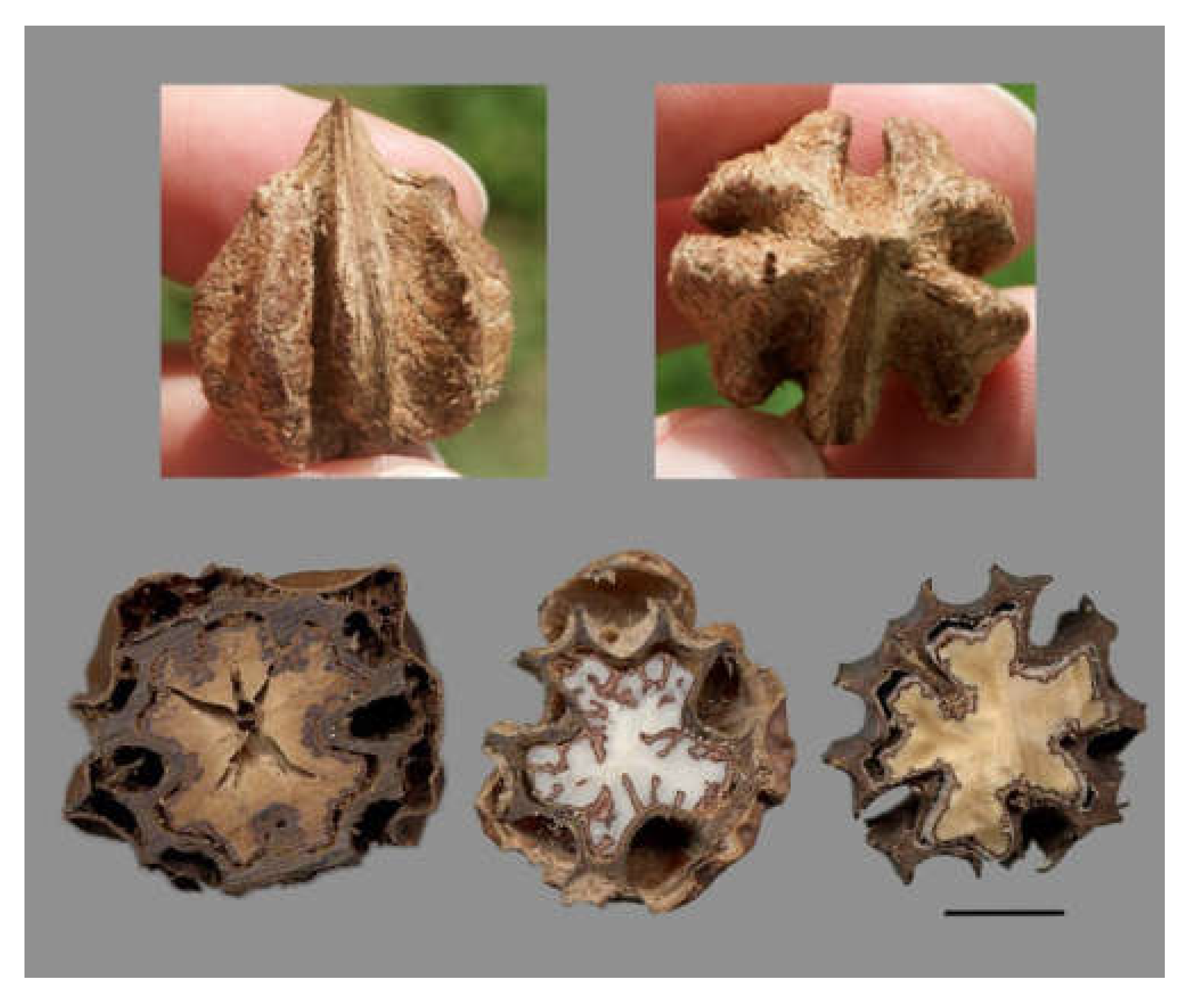

In some palms, it is impossible to distinguish between the endocarp and the seed. In many species of Licuala (Chuniophoeniceae, Coryphoideae), such as L. spinosa, L. glabra, and L. grandis, the former is very thin and crustaceous. In other species, it is very thick and hard, e.g., in Eugeissona (Calamoideae), Nypa (Nypoideae), Borasseae, a few species of Licuala (e.g., L. beccariana), Ptychococcus, the Cocoseae (Arecoideae), and the Phytelepheae (Ceroxyloideae) [1]. Three types of endocarp have been described [14]: the coryphoid type differentiates from the inner part of the fruit wall; the chamaedoreoid type forms solely from the locular epidermis; the cocosoid-arecoid type develops from the locular epidermis, bundle sheaths, and intervening parenchyma. Different developmental patterns, described as continuous, discontinuous, and basipetal, are correlated with these endocarp types [1].

Numerous taxonomic groups in the Arecaceae received their Latin names according to characteristics of their fruits and seeds (size, hardness…).

Table 2. Some of the names in the taxonomy of the Arecaceae are related to morphological characteristics of their fruits and seeds.

Name	Meaning
Actinorhytis	Radiate wrinkled (seed)
Astrocaryum	Star-like pattern of fibers around endocarp pores
Attalea amygdalina	Almond-shaped fruits
Barcella	Little boat-shaped (seed)
Calamus pycnocarpus	Thick fruit
Carpoxylon	Thick, woody fruit
Ceratolobus	Lobate horn-shaped fruit
Chelyocarpus	Turtle carapace-shaped fruit
Clinosperma, Clinospermatinae	Bent seeds (asymmetric)
Cyphosperma	Gibbous seeds
Chrysalidocarpus, Chrysalidosperma	Chrysalid-like fruit (seed)
Daemonorops oxycarpa	Sharp, pointed (fruit)
Dictyocaryum	Net of branches in the fruit
Dictyosperma	Net of branches in the seed
Eremospatha macrocarpa	Large fruit
Kentiopsis oliviformis	Olive shaped
Kentiopsis pyriformis	Pear shaped
Laccosperma	Seed with a hole or pit
Lepidocaryum	Fruit with scales
Lithocarpos cocciformis	Fruit hard and round
Lytocarium	Loose fruit
Nephrosperma	Kidney-shaped seeds
Oncosperma, Oncospermatinae	Humped or swollen seed
Pholidocarpus	Fruit with scales
Podococcus Podococceae	Foot shaped fruit
Ptychococcus Ptychosperma, Ptychospermatinae	Folding or doubled seed surface

contains examples of the names that refer to seed or fruit shape. For example, the prefix Ptychos, meaning folding or doubled gives the name of two genera Ptychococcus and Ptychosperma (Figure 1), both in the sub-tribe Ptychospermatinae, in the sub-family Areceae. Seedling morphology and anatomical studies have been the basis for classification in the family [15]; nevertheless, seed morphology specifically has not received much attention.

The shapes of many seeds in the Arecaceae are often described as circular, ellipsoidal or elliptic, globose, ovoid, ovoidal, piriform, or rounded, including double adjectives such as “irregularly globose” or “broadly ovoid” [1]. A conclusion from a review of the literature is that a large proportion of species in this family have seeds resembling spheres, ellipsoids, and ovoids, but in general, the descriptions lack definition and are far from seed shape quantification. On the other hand, in regions with a great diversity of palms, such as the Amazon basin, most of the vegetative parts are difficult to access, while the seeds, due to the hardness of the endocarp, last for some time under the producing tree, being easy to find. In consequence, seed structure is often the key to the identification of palm species in the field.

Geometric models can be defined that adjust to the shapes observed making it possible to give accurate morphological descriptions of seed shape for a number of species, as well as the quantification of shape by comparison between the seed image and the model. The possibility of a model depends on the uniformity of seed shape in samples of a given species. Only when the shape is relatively constant, it is possible to describe it by means of a geometric model. Difficulties may arise from developmental aspects.

The shape is the result of a growth process and, in the same plant, or even in the same fruit, there may be differences in seed shape depending on many factors such as the developmental status, the type of inflorescence, the position of the seed in the plant or the fruit, and depending on the type of fruit. The seeds may form aggregates in the same fruit, such as Camellia japonica (Theaceae), Swietenia mahogany Jacq. (Meliaceae), Eucalyptus sp. L’Hér. (Myrtaceae), and Peganum harmala L., in the Nitrariaceae [11]. In the Arecaceae, this occurs in diverse genera (Latania, Phytelephas, Salacca…), and in the case of Eremospatha macrocarpa H. Wendl. (Lepidocaryae, Calamoideae), results in three morphological types having respectively the shape of 1/3 of a sphere, hemispherical or ellipsoidal depending on the number of seeds developing simultaneously in a fruit [1].

Shape is the tridimensional result of complex developmental processes, but the description of it is based on particular aspects. Bi-dimensional images of seeds are often similar to geometric figures that can be used as models. To find a model, the images of different seeds must be taken from a similar perspective to avoid differences in orientation and maximize similarity. The overall shape of the seed (elongated, thinner, or thicker in a different position) and anatomical points (hilium, germination pore, ventral groove) can be references for orientation. Slight changes in orientation can give different images (Figure 2).

3. Geometric Models: Definition and Application

3.1. A Conceptual Aspect

In this work, the shape of seeds will be related to geometric figures in a plane (bi-dimensional). In the literature, it can be seen that some of the adjectives used for shape description are applied to different objects: two-dimensional images of plane objects, three-dimensional objects, and their contours. This is a drawback because the same word has a different meaning when applied to each case. In other cases, different terms apply to precise, well-defined objects. For example, ovoid, or ovoidal refers to three-dimensional objects, while an oval is a bi-dimensional, plane figure. An important aspect of morphology is to define the object we work with; and a second aspect, not less important, is to define also the point of view we adopt for this object. In the description of seed shape, we consider a bi-dimensional approach easier and more straightforward than a tri-dimensional one. For example, to compare a seed with a sphere (3D) is much more difficult than to compare the image of that seed with a circle (2D). In addition, some of the models for the comparison of tri-dimensional objects are not sufficiently defined; for example, reniform means kidney-shaped, but a kidney is not an object described with precision; globose and globular mean approximatively rounded, but in a vague sense, not indicating similarity to any well-described figure.

Computer-assisted methods allow the measurements of multiple magnitudes of objects, but often the measurements are made in two dimensions [16,17]. Thus, when applying artificial vision methods [18], figures are represented by the coordinates of a set of points in the plane, that can be submitted to algebraic transformations and compared with a set of figures in databases. Plant organs, in general, and seeds in particular, have a similarity with geometric objects, and the comparison between both 2D images, the plant structure, and the geometric model, provides a direct method for the quantitative description of shapes.

3.2. J Index, a Magnitude in Seed Morphology

To be useful for classification, the geometric description of seed shape must be open to quantification. Comparing the shape of seeds (outline of seed images) to geometric figures permits a precise quantification of seed shape, and in this condition, shape description is independent of size. We have established a method based on the comparison of the bi-dimensional images of seeds with geometric figures by the calculation of J index [19,20]. J index is the percent of similarity between two plane figures: the seed image and the geometric model [19,20,21,22,23,24,25,26,27]. It ranges between 1 and 100 and is a measure of shape, not size. In consequence, the adjectives used to define the shapes of seeds are based on the names of well-defined geometric figures. The morphological type of seeds, corresponding to a geometric model, is a characteristic of the species, and more rarely of the genus. In some genera, such as Acoelorrhaphe, Copernicia, Sabal, and others, there may be a predominance of the circular type, but several observations with statistical support need to be done for each species. With this method, we can get information about seed morphology in wild species or cultivated varieties [27], as well as on aspects of seed shape related to taxonomy and life forms [28,29,30] or habitat [31].

3.3. Calculation of J Index

J index measures the percent of similarity of a seed image with the geometric model. To calculate J index in each seed image a series of graphic compositions are elaborated with Corel PHOTO-PAINT X7, in which the outline of the geometric model (circle, ellipse, or any other) is superimposed to the seed image, searching a maximum adjustment between both shapes, the seed, and the model. For each sample three graphic documents are kept: (1) a file in PSD format with the seed image and the geometric figure adapted to it, in which it is possible to make changes and corrections; (2) a file in JPG format with the geometric models in white, to discriminate between shared and total areas and thus, obtain the values of the area shared between the geometric figure and the seed image (S; Figure 3A,C), and (3) another file in JPG format with the geometric models in black, to obtain total area (T; Figure 3B,D). Representative images of (2) and (3) are shown in Figure 3 taking as an example the seed of Geonoma congesta H. Wendl. ex Spruce.

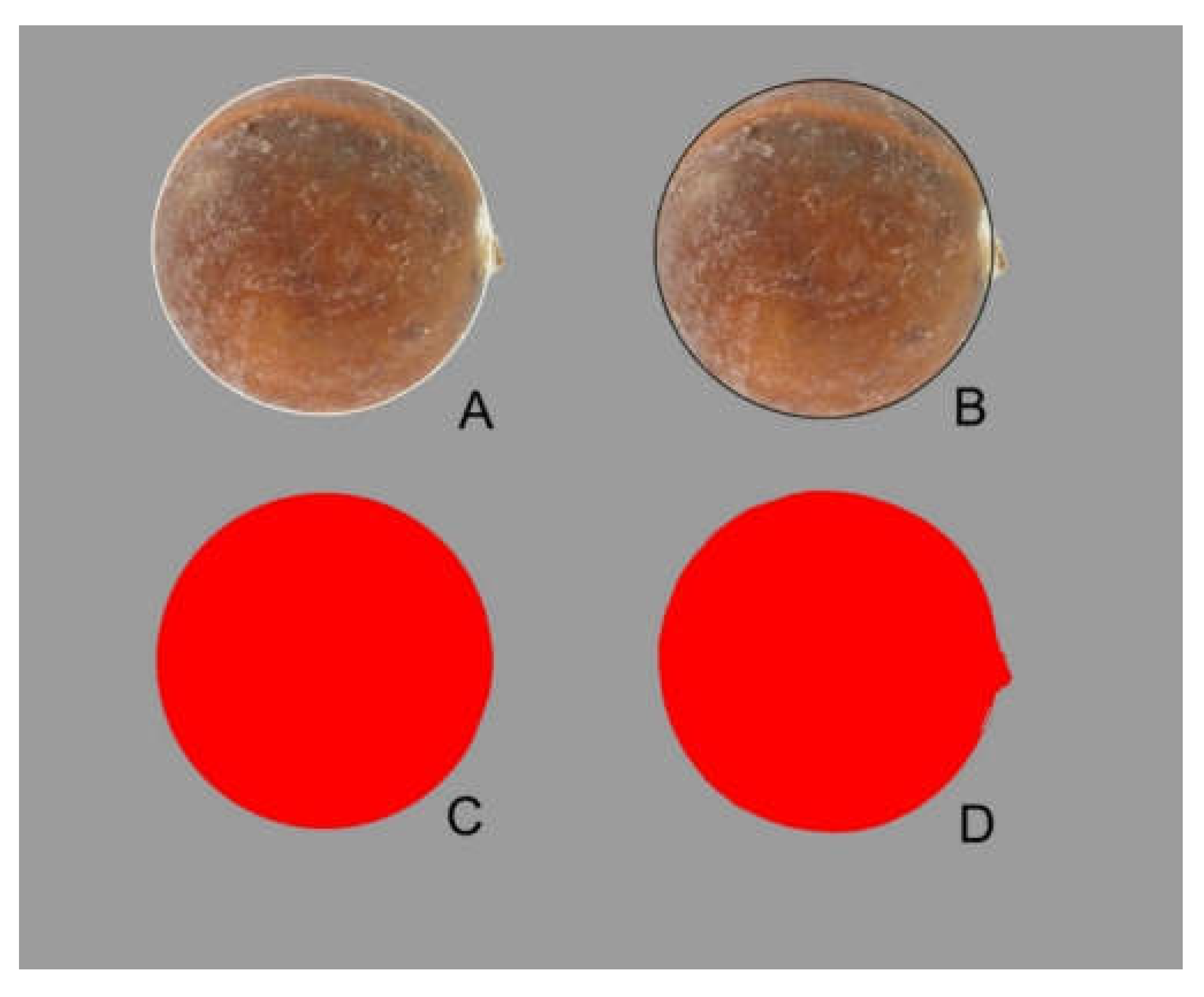

It can be observed that the size of the red-figure represented in D (Total area, T) is slightly superior to the represented in C (Shared area, S). J index is the ratio S/T × 100.

4. Geometric Models: Definition of the Models

This section describes the geometric figures that are models in the description of seeds in the Arecaceae. Most of the descriptions are accompanied by a formula; these algebraic formulae correspond to the equation in Cartesian coordinates of the curve that delimits the figure (notice that in almost all cases the same name is used for the curve and the figure). The first groups belong to elementary geometry, while the latter groups include a set of figures constructed as graphical representations of algebraic equations. In general, we use the traditional terminology, but a particular case deserves attention. An oval is a convex figure limited by a C² closed curve. Convex means that any pair of its points are joined by a segment contained in the figure. The C² property or continuous second degree of smoothness ensures the continuity of the curvature, in particular, the absence of “peaks”. In this sense, many common geometric figures are ovals (circles, ellipses…). On the other hand, the word “oval” derives from the similarity with an egg shape (ovus in Latin), and this invites to its utilization in a restrictive sense, that will be used in this work, excluding, e.g., circles and ellipses.

4.1. Circle

The circle [32], the figure delimited by a circumference, is defined, according to Euclid (Book 1 Definition 15):

“A circle is a plane figure bounded by one curved line, and such that all straight lines drawn from a certain point within it to the bounding line, are equal. The bounding line is called its circumference and the point, it’s center.”

A circumference (centered at the origin) of radius $r$ is represented by the expression:

$$x^2+y^2=r^2$$

(1)

4.2. Ellipse

The ellipse [33] is “a curve surrounding two focal points, such that for all points on the curve, the sum of the two distances to the focal points is a constant”. An ellipse (centered at the origin) is represented by the formula:

$$\frac{x^2}{a^2}+\frac{y^2}{b^2}=1$$

(2)

where $a, b>0$ represent the semi-major and semi-minor axis, respectively. The circumference is a particular ellipse in which the two focal points coincide; in this case, $a=b=r$.

4.3. Oval

In our restricted sense, an oval is a curve resembling the silhouette of an egg. Unlike ellipses, ovals have only a symmetry axis [34]. Ovals can vary depending on their construction as well as on their degree of symmetry, going from figures close to ellipses to others with a remarked single symmetry. The family of ovals used in this work have the equation

(x² +ay²)² = bx³ + cxy²

(3)

with a > 0; b, c constants.

4.4. Lemniscate

A lemniscate (of Bernoulli) [35] is the locus of points whose product of distances from two fixed points (called foci) equals a constant. A lemniscate is given by the equation

$${\left(x^2+y^2\right)}^2-2a^2\left(x^2-y^2\right)=0$$

(4)

where $a$ is a real constant. By simple algebra, the equation for a half lemniscate is obtained as

$$y^2=\sqrt{a^4+4a^{2}x\left|x\right| }-a^2-x\left|x\right|$$

(5)

4.5. Superellipse

Superellipses [36] can be seen as intermediate curves between an ellipse and its circumscribed rectangle. They are determined by the equation:

$${\left|\frac{x}{a}\right|}^p+{\left|\frac{y}{b}\right|}^p=1$$

(6)

with $p>2$. In particular, for $a=b$ squared circles are obtained.

4.6. Cardioid and Derivatives

The cardioid [37] has the Cartesian equation:

$${\left(x^2+y^2+ax\right)}^2=a^2\left(x^2+y^2\right)$$

(7)

with a > 0. It has been used as a model for seed morphology in model plants [22,23] and it adjusts well to seeds of many species in diverse taxonomic groups [28,30,31].

4.7. Lens

A lens [38] is a convex region formed as the intersection of two circular disks (when one disk does not completely enclose the other). If the two circles that determine a lens have an equal radius, it is called a symmetric lens, otherwise, it is an asymmetric lens. The Vesica piscis (“fish bladder”) is a special type of symmetric lens formed with circles whose centers are offset by a distance equal to the circle radii [39]. The 3D solid obtained rotating a lens around the axis through its tips is called a lemon.

4.8. Waterdrop

In the description of seed shape, it may be useful to modify geometric figures to obtain better adaptations to the bidimensional shape of seeds. For example, we obtained a figure resembling a water drop adapting the basis in the heart curve [40] to a circumference overlapping the maximum width of the curve. It can be seen as the joint graphical representation of the functions:

$$\mathrm{f}\left(\mathrm{x}\right)=-\frac{2}{3}+\sqrt{36-{\mathrm{x}}^2}+\frac{16}{3\left(2+{\mathrm{x}}^2+\left|\mathrm{x}\right|\right)};\mathrm{g}\left(\mathrm{x}\right)=-\frac{6}{11}-\sqrt{36-{\mathrm{x}}^2}$$

(8)

Derived from this combination (Model 4 in [25]), an elongated waterdrop can be obtained modifying the aspect ratio of the figure.

5. Geometric Models: Examples in Different Species in the Arecaceae

The following sections contain examples of seeds with the morphological types corresponding to the geometric models. Photographs corresponding to some of the examples are given in Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10 and a list of species for each type is provided in

Table 3. Geometric models with some representative examples of seeds for each morphological type.

Geometric Figure	Representative Examples
Circle (42 examples)	Acoelorrhaphe wrightii [41], Acrocomia aculeata, Brahea armata, B. edulis, Butia capitata, Ceroxylon parvum, Chelyocarpus chuco, Coccothrinax argentata, Copernicia alba [42], C. baileyana, C. macroglossa, Corypha macropoda, C. umbraculifera, Cryosophila stauracantha, Dictyocaryum lamarckianum, Dypsis decipiens, Geonoma congesta, Guihaia argyrata, Hemithrinax ekmaniana, Hydriastele microcarpa, Iriartea deltoideia, Johannesteijsmannia altifrons, Licuala grandis, L. parviflora, L. orbicularis, Livistona chinensis [43], Livistona jenkinsiana, Metroxylon warburgii, Normanbya normanbyi, Oncosperma horridum, Orania palindan, Pelagodoxa henriana, Prestoea acuminata, P. pubens, Pritchardia pacifica, Rhapis multifida, Sabal mexicana, S. minor, S. uresana, Thrinax excelsa, T.radiata, Wedlandiella sp.
Ellipse (15 examples)	Adonidia merrillii, Attalea butyracea, Bactris cruegeriana, B. gassipaes, Bismarckia nobilis, Calyptrogyne ghiesbreghtiana, Iriartella sp., Mauritiella aculeata, Nephrosperma vanhoutteanum, Nanorhops ritchiana, Roystonea regia, Socratea exorrhiza, S. salazarii, Washingtonia filifera, W. robusta.
Oval (34 examples)	Actinorhytis calapparia, Archontophoenix alexandrae, Adonidia merrellii, Astrocaryum standleyanum, Attalea blepharophus, A. cohune, A. martiana, A. speciosa, Beccariophoenix fenestralis, Brahea armata, Brahea moorei, Calyptronoma occidentalis, Carpoxylon macrospermum, Chamaerops humilis, Corypha utan, Cyrtostachys renda, Desmoncus sp., Dypsis bejofo, D. marojejyi, Iriartella sp., Kerriodoxa elegans, Medemia argun, Nannorrhops ritchiana, Oenocarpus sp. [44], Pholidostachys dactiloides, P. occidentalis, P. pulchra, P. synanthera, Retispatha dumetosa, Rhapidophyllum histrix, Serenoa repens, Voanioala gherardii, Wallichia disticha, Washingtonia robusta.
Superellipse (5 examples)	Cyphophoenix elegans, P. canariensis, Ph. roebelenii, Raphia taedigera, Welfia regia.
Squared circle (4 examples)	Johannesteijsmannia altifrons, Clinosperma macrocarpa, Mauritia flexuosa [45], Ravenea rivularis
Half lemniscate (10 examples)	Aphandra natalia, Astrocaryum alatum, A. urostachys, Attalea dubia, Beccariophoenix fenestralis, Brahea moorei, Latania loddigesii, Pholidostachys panamensis, Phytelephas macrocarpa, Veitchia sp.
Lens (3 examples)	Asterogyne martiana, Butia sp., Carpentaria acuminata
Water drop (1 example)	Syagrus romanzoffiana

. Appendix A contains the sources of the images used in the Figures, while a Dataset has been published containing all the images used in this study (Supplementary Materials, doi:10.5281/zenodo.4009081). Chapter 6 discusses the relationships between morphological types and taxonomical groups. Seeds of a species can fit different models when observed from a different point of view, and for this reason, it is important to indicate the orientation in the images before proceeding to quantification with a given model.

5.1. Seeds That Project Circular Images

Round seeds project circular images from any perspective. However, ellipsoidal and ovoidal seeds can also give circular images that are useful for species identification and classification. For an accurate description, the seed orientation has to be given and, in any case, values of J index need to be obtained in a representative number of samples. Figure 4 shows representative examples of circular seeds: Acoelorrhaphe wrightii (Corypheae, Coryphoideae), Acrocomia aculeata (Cocoseae, Arecoideae), Coccothrinax argentata (Cryosophileae, Coryphoideae), Geonoma congesta (Geonomateae, Arecoideae), Iriartea deltoideia (Iriarteeae, Arecoideae), and Thrinax radiata (Cryosophileae, Coryphoideae). Other examples are also found in diverse sub-families and tribes (Table 3).

5.2. Elliptical Seeds

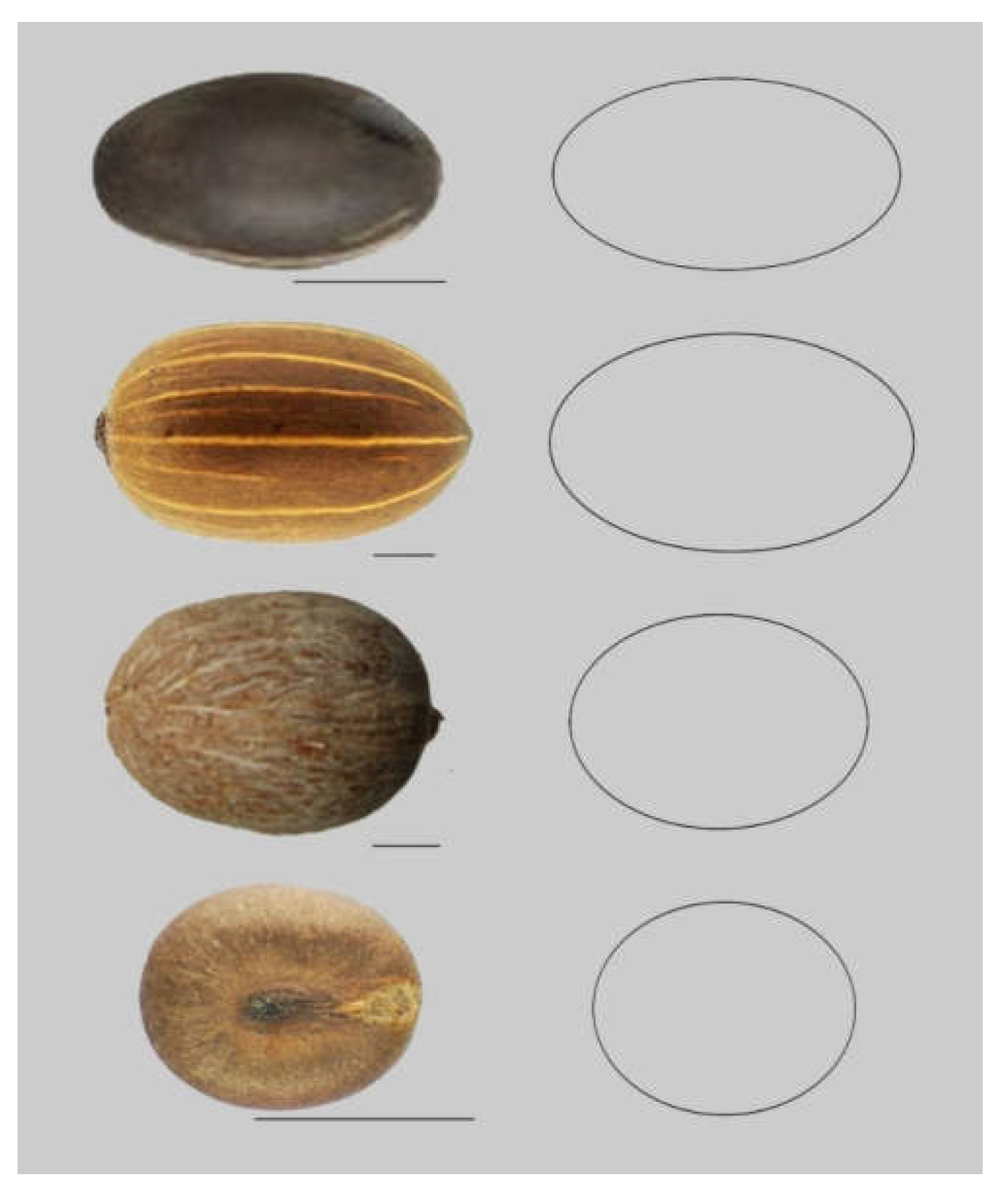

Ellipsoidal seeds give bi-dimensional images that vary from circular to elliptical, depending on the selected point of view. The elliptical shape is determined by the ratio between the major and minor axes (aspect ratio). Figure 5 shows representative examples of seeds whose images adjust well to ellipses of different values. These are Iriartella sp. and Socratea exorrhiza (Iriarteae, Arecoideae), Adonidia merrillii (Areceae, Arecoideae), and Washingtonia filifera (Corypheae, Coryphoideae). Other examples are also found in diverse sub-families and tribes (Table 3).

5.3. Seeds Resembling Ovals

As was pointed out in Section 4.3, the oval has just one symmetry axis. A list of species whose seed images resemble ovals are given in Table 3. A useful mode to define the oval is by an algebraic formula, see, e.g., Equation (3). Figure 6 contains representative examples of oval seeds with their respective models: Serenoa repens (Corypheae, Coryphoideae), Desmoncus sp. (Cocoseae, Arecoideae), Astrocaryum standleyanum (Cocoseae, Arecoideae), and Medemia argun (Borasseae, Coryphoideae). Other examples are also found in diverse sub-families and tribes (Table 3).

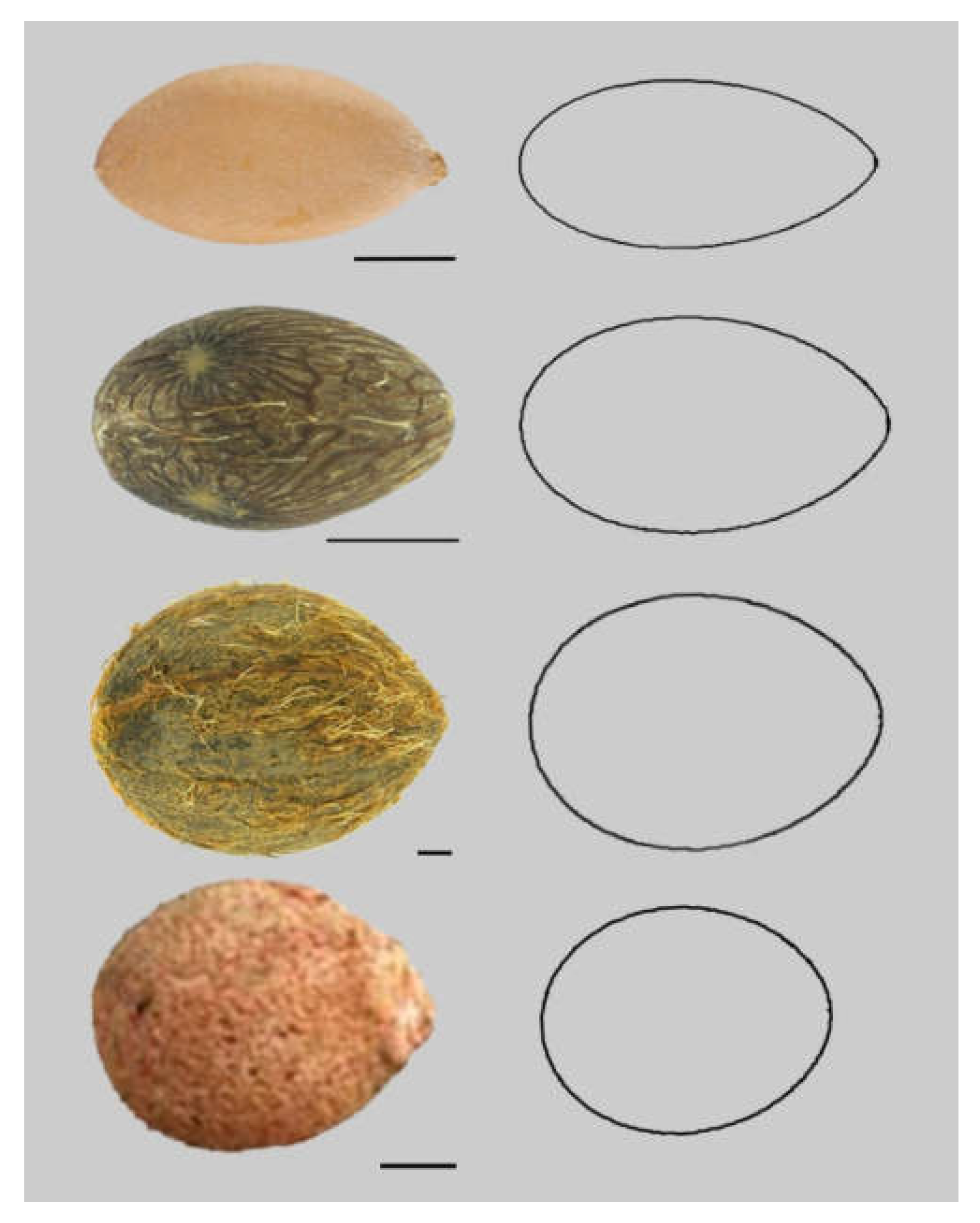

The shape of the seeds represented in Figure 6 are ovals and all the curves representing them have been obtained with Equation (3) varying the parameters:

• Serenoa repens: $a=2; b= 5; c=2.6$;
• Desmoncus sp.: $a=1.4; b=4.3; c=3;$
• Astrocaryum standleyanum: $a=1; b=4; c=3.3$;
• Medemia argun: $a=1; b=3.4; c=3.3$

Often the seeds of the different species in a genus have different morphological types, such as in Bactris, Brahea, Butia, Chamaedorea, Geonoma, and Pholidostachys. In some genera there is a considerable degree of variation in seed shape, for example, the seeds of Pholidostachys have ovoid shapes with varying degrees of polarity in a gradient in the direction from (acute) ovoid to ellipse (and circular):

P. panamensis > (P. synanthera, P. dactiliodes, P. occidentalis) > P. pulchra (P. kalbreyeri)

Once a model has been proposed for a species or a population, the proposal has to be validated statistically. T-test allow us to validate the hypothesis that seed lots belong to a given morphological type. We consider that a seed population belongs to a given morphological type when the hypothesis test concludes that the mean J index of the species is equal to or superior to 90 with a significance level of 95%. An example is later given with seeds of Phoenix canariensis (Figure 7).

The transitions between related forms (Circle–Ellipse–Oval) are very subtle and many species have seeds of variable shape. A mixture of shapes of the main types may be observed in images containing multiple seeds of the following species: Actinorhytis calaparia, Aiphanes horrida, Archontophoenix alexandrae, Bismarckia nobilis, Brahea armata, Caryota maxima, Chamaedorea tuerkeimii, Chamaerops humilis, Corypha utan, Guihaya argyrata, Jubaeopsis caffra, Medemia argun, Nanorrhops ritchiana, and Washingtonia robusta.

5.4. Seeds Resembling the Superellipse and Related Figures

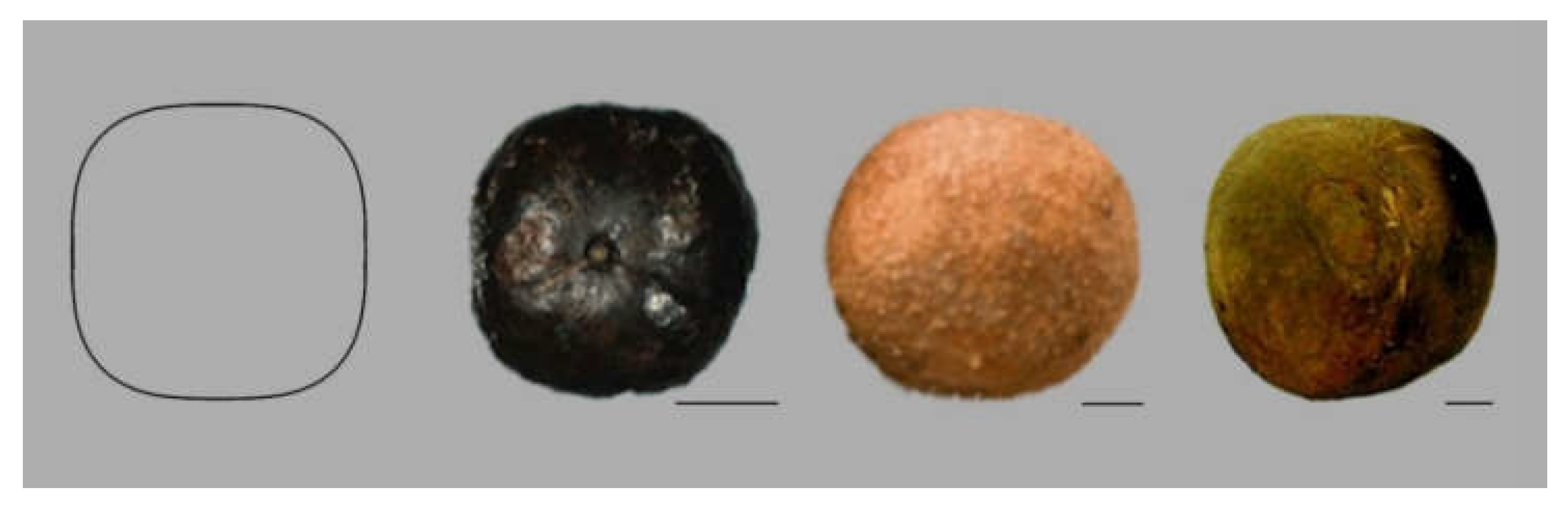

The superellipses and squared circles [36] are figures that, to our knowledge, have not yet been mentioned in the morphological description of seeds in the Arecaceae.

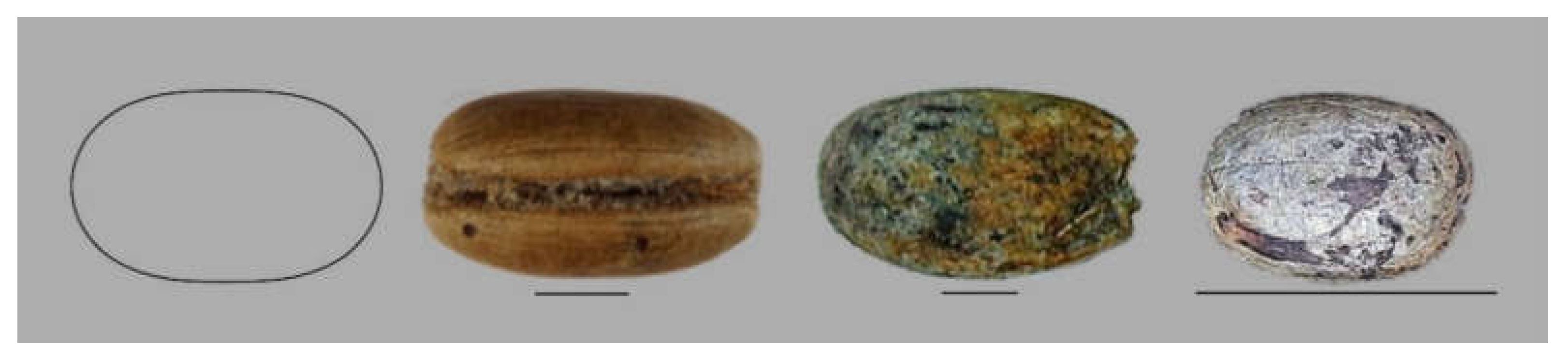

The squared circle may be considered as a particular case of the superellipse (Equation (6)). Figure 7 represents the superellipse and seeds representative of this morphological type. The seeds of P. canariensis (Phoeniceae, Coryphoideae), Welfia regia (Geonomateae, Arecoideae), and Raphia taedigera (Lepidocaryeae, Calamoideae) adjust to a superellipse. The hypothesis test done with 25 seeds (sample mean = 92.15) concludes that the mean J index of the population of P. canariensis from which the seeds were taken is equal or superior to 90 with a significance level of 99%.

The seeds of Clinosperma macrocarpa (Areceae, Arecoideae), Johannesteijsmannia altifrons (Chuniophoeniceae, Coryphoideae), and Mauritia flexuosa (Lepidocaryeae, Calamoideae) and others (Table 3) adjust to a squared circle (Figure 8).

5.5. Seeds Resembling Other Figures: Half Lemniscate, Lens and Waterdrops

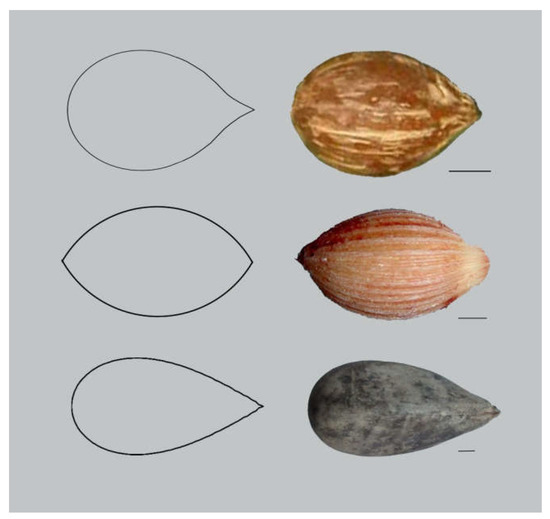

The figures of half lemniscate and waterdrops resemble elongated ovals with a peak in their apex. Depending on the degree of asymmetry perpendicular to the symmetry axis, the seeds resembling ovals may have shapes near to ellipses, such as Medemia argun or, on the other hand, be more asymmetric and divergent from the ellipse, such as Serenoa repens (see Figure 6). In other seeds there is still more asymmetry between the two poles, giving images similar to half lemniscate as in the case of some seeds of Aphandra natalia (Phytelepheae, Coryphoideae, Figure 9). Seeds of this type can be observed in other species such as Astrocaryum urostachis, Syagrus romanzoffiana and Beccariophoenix fenestralis (Cocoseae, Arecoideae), Phytelephas macrocarpa (Phytelepheae, Coryphoideae), Pholidostachys panamensis (Geonomeae, Arecoideae), and Wodyetia bifurcata (Areceae, Arecoideae).

Images of seeds of Asterogyne martiana (Geonomeae, Arecoideae) adjust well to a lens. This model may also be helpful in the quantification of some seeds in Butia sp. (Cocoseae, Arecoideae), Carpentaria acuminata (Areceae, Arecoideae), and others.

6. Seed Shape Quantification by Comparison with an Oval in Chamaedorea pauciflora

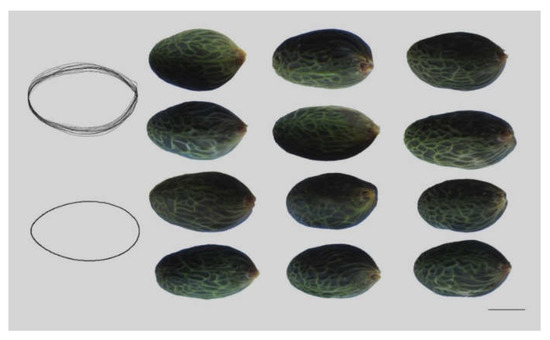

Figure 10 shows a sample of 12 seeds of Ch. pauciflora (Chamaedoreae, Arecoideae), with an image containing the sum of their profiles in a composed image and the model used for their quantification. The model is an oval (Equation (3) with values a = 1, b = 4, c = 3.3). J index value (mean of the measurements in the 12 images of Figure 10) is 90.7.

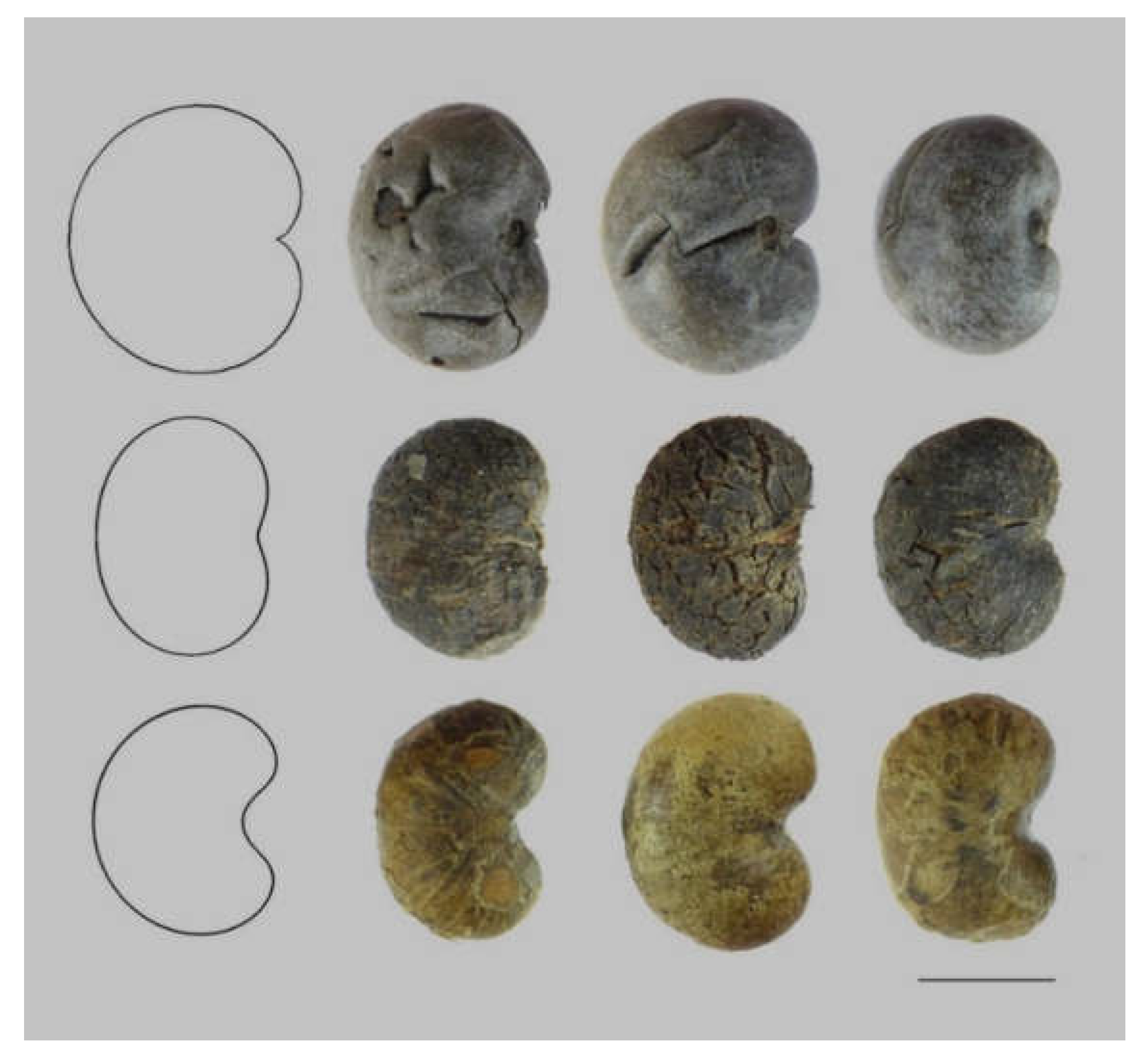

7. Morphological Aspects of the Fruits and Seeds of Trachycarpus fortunei

The fruits and seeds of T. fortunei (Trachycarpeae, Coryphoideae) adjust well to the cardioid or cardioid-related figures (Figure 11). The fruits with exocarp resemble a cardioid. Deprived of the pericarp, the seeds with endo- and mesocarps resemble a flattened cardioid. Finally, the seeds covered only by the endocarp resemble an open cardioid. The two cardioid-derived models were developed for the morphological analysis of diverse species of Silene L. (Caryophyllaceae). While the cardioid gave high values of J index with many species, a flattened cardioid was the model for Silene latifolia Poir., while the open cardioid was better for Silene gallica L. [46].

8. Geometric Models in the Arecaceae: Relation with Anatomical Properties and Taxonomy

The genera with apocarpic fruits tend to have their seeds more rounded or regularly-shaped. These include Nypa, and many genera in the Coryphoideae (Chamaerops, Chelyocarpus, Coccothrinax, Cryosophila, Guihaia, Hemithrinax, Itaya, Leucothrinax, Maxburretia, Rhapidophyllum, Rhapis, Schippia, Trachycarpus, Thrinax, Trithrinax, Zombia) [1,47]. Nevertheless, this is not a characteristic exclusive of the sub-family because rounded or regular seeds have been observed in other taxa, and both oval and elliptical seeds are frequent throughout all the family. Oval shaped, particularly elongated ovals, half lemniscates and lens-shaped seeds are frequent in the Arecoideae, but the type is also observed in the syncarpous clade of the subfamily Coryphoideae, that includes four tribes containing high diversity in seed size and shape: Borasseae, Corypheae, Caryoteae, and Chuniophoeniceae [48].

Quantification of seed shape is interesting at the species level to describe the characteristic morphology in those species that have regular shaped seeds, but it may also be interesting in species that have variable seeds to investigate the molecular basis of morphological types and the biological meaning of geometric forms, as well as to correlate them with other morphological features such as color, surface smoothness/roughness, and striation. For example, the seeds of 17 cultivars of Rubus sp. L. were classified recently based on the shape of the raphe: straight, concave, or convex. Cultivars within each group could be differentiated by seed shape, size, color, and seed-coat sculpturing [49].

Species of the Arecaceae have traditionally been recognized as important components of tropical forests, and six of the 10 most common tree species in the Amazon rain forest are palms [50]. Recent work based on massive information obtained by large data-sharing networks such as RAINFOR in South America and AfriTRON in Africa [51,52,53] points to an even more important role of palms in the Neotropics [54], suggesting that the knowledge of palm physiology, taxonomy and ecology will contribute to predict the evolution of the ecosystem under variable climatic conditions.

Computer programs for the identification of seeds by comparison with geometric figures may develop based on the comparison of in situ photographs with information stored in databases. The development of techniques and resources in seed morphology will also have applications in archaeology as both the remains of seeds and even populations of these plants are frequently found in archaeological sites [55].

The understanding of seed geometry may be at the basis of the knowledge of structural biology to which P.B. Tomlinson referred to in 1990 when he wrote: “Palms are not then merely emblematic of the tropics, they are emblematic of how the structural biology of plants must be understood before evolutionary scenarios can be reconstructed.” ([56] quoted in [1]).

9. Conclusions

The morphology of the seeds in the Arecaceae has been reviewed. This family contains a remarkable amount of generic and specific names due to seed characteristics, and in particular, morphological attributes.

New models have been proposed and a series of rules is given to accurately describe seed shape in the species of the Arecaceae. First, for those species that have seeds of regular shape, a geometric model can be identified. The seeds are round or circular when the model is the circle for any view of the seeds. Ellipsoidal and ovoid seeds or can also give images similar to circles from certain perspectives. The model for ellipsoidal seeds is an ellipse that can be defined by the Aspect Ratio. A convenient way to define an oval as a morphological 2D model is by the corresponding algebraic equation.

Additional geometric figures, other than the circle, ellipses, and ovals, can be used as models to give precise descriptions of seed shape in some species. Thus, the superellipse and the squared circle are new models useful for many seeds of the Calamoideae (Lepidocaryum, Mauritia, Mauritiella, Korthalsia, Salacca), as well as species in the genus Phoenix (Phoeniceae, Coryphoideae). The fruits of T. fortunei adjust well to a cardioid and the seeds to modified cardioids. Half lemniscate is a useful model for species of Astrocaryum, Attalea, Beccariophoenix, Brahea, Lattania, Pholidostachys, Veitchia, and others. Lenses are good models for the description and quantification of seed shape in Asterogyne martiana, and most probably will be of application in other species as Butia sp. and Carpentaria acuminata.

Morphological types are varied and, for many species, there is not a clear pattern conserved in the majority of seeds that may be associated with a geometric figure. There is not an obvious relationship between the higher taxonomic divisions (subfamilies, tribes, and sub-tribes) and the models, although a trend is observed in the subfamily Coryphoideae with a high frequency of round seeds in genera with apocarpic fruits and oval, lemniscate-type seeds in the syncarpous clade of this subfamily.

Seed morphometry provides interesting tools for the identification of species in regions with a great diversity of palms, such as the Amazon basin. The seeds are critical structures in taxonomy in many cases where vegetative organs are similar among different species. In addition, thanks to their very resistant endocarp, seeds are easy to find and last a long time under the tree producer allowing differentiation up to the level of species in many instances.

The development of software of image identification based on geometric models may be an interesting contribution to future biodiversity studies.
