Genetic Mapping for Leaf Shape and Leaf Size in Non-Heading Chinese Cabbage by a RIL Population

by
Tianzi Zhao
1,
Aimei Bai
1,
Xinya Wang
1,
Feixue Zhang
1,2,
Miaomiao Yang
1,
Yuhui Wang
1,
Tongkun Liu
1,
Xilin Hou
1 and
Ying Li
1,*
1
State Key Laboratory of Crop Genetics & Germplasm Enhancement and Utilization, Engineering Research Center of Germplasm Enhancement and Utilization of Horticulture Crops, Ministry of Education, College of Horticulture, Nanjing Agricultural University, Nanjing 210095, China
2
Institute of Horticulture, Huzhou Academy of Agricultural Sciences, Huzhou 313000, China
*
Author to whom correspondence should be addressed.
Horticulturae 2024, 10(5), 529; https://doi.org/10.3390/horticulturae10050529
Submission received: 30 March 2024 / Revised: 18 April 2024 / Accepted: 14 May 2024 / Published: 20 May 2024
(This article belongs to the Section Vegetable Production Systems)
Browse Figures
Review Reports Versions Notes

Abstract

:
Leaves are the predominant photosynthetic and edible organs in non-heading Chinese cabbage (Brassica campestris ssp. chinensis, NHCC), contributing significantly to yield, appearance, and desirability to consumers. However, the genetic basis of leaf shape and size in non-heading Chinese cabbage remains unclear. In this study, we developed a RIL population using ‘Maertou’, with slender leaves and narrow petioles, and ‘Suzhouqing’, with oval leaves and wide petioles, to construct a genetic linkage map and detect QTLs. To obtain stable and reliable QTLs, the 11 leaf-related traits, including the leaf length, leaf width, and fresh weight of the lamina and petiole and the thickness of petiole was observed on two locations—while the leaf shape, petiole shape, index of lamina/petiole length, and index of petiole fresh weight were calculated based on 7 leaf-related traits. QTL mapping illustrated that a total of 27 QTLs for leaf-related traits were preliminarily detected. The candidate genes were annotated and several genes involved in leaf development and leaf shape appeared in the overlapping regions of multiple loci, such as KRP2, GRF4, ARGOS, and SAUR9. This study lays the foundation for further exploration of the genetic mechanisms and development of effective molecular markers for leaf shape and size in NHCC.

1. Introduction

Non-heading Chinese cabbage (Brassica campestris ssp. chinensis, NHCC), a biennial herb, is an important species of the genus Brassica in Brassicaceae and an important leafy vegetable widely cultivated in China. Compared with Chinese cabbage, NHCC has flat leaves and does not form a leaf head, and can be divided into six varieties that display morphological and genetic diversity in terms of laminas and petioles [1]. Leaf shape, petiole shape, and leaf weight in NHCC are the most important leaf features to consumers. Meanwhile, these features also contribute to the architectural construction and biomass production through photosynthesis [2]. Therefore, revealing genetic mechanisms for leaf shape and size is crucial for breeding novel germplasms.
A genetic linkage map is a powerful tool for the identification of QTL. On the basis of various molecular markers, such as SSR [3], SRAP [4], EST-based SNP [5], and polymorphic markers on corresponding candidate genes [6], genetic linkage maps were constructed and used for detecting the amounts of QTL for leaf lobes, leaf color, leaf shape, leaf size, and flowering time. Apart from genotyping by traditional markers, the wide application of high-throughput sequencing allows the rapid selection of single nucleotide polymorphism (SNP) and insertion/deletion (InDel) markers. QTL for leaf color [7] and 11 leaf-related traits [8] were detected by a linkage map based on SNP makers obtained by genotyping-by sequencing (GBS). Bulked segregant analysis-sequencing (BSA-seq) and GradedPool-sequencing (GPS) were also used for QTL mapping and could be more efficient for the quality traits controlled by single or two genes. A candidate gene for rolled leaves and short petioles was detected using BSA-seq and RNA-seq in soybeans [9]. The two methods are efficient for quality traits but cannot detect the minor QTL. It is more valuable to construct a genetic linkage map for populations with multiple variations, which can be reusable for different traits in the same or corresponding populations and minor QTL. For example, a linkage map of a F2 population was constructed to identify QTL for bolting traits in Brassica rapa [10] and then a major QTL for leaf lobes was detected based on the same linkage map using a corresponding F2:3 population [11].
Compared with segregating populations, immortal populations such as doubled haploid (DH) and recombinant inbred line (RIL) mapping populations are appropriate for analyzing complex agronomic traits [3]. Because of the genetic uniformity and stability of each line, the permanent populations can be replicated in multiple environments, alleviating the environmental effects, enabling researchers to harvest more accurate phenotypic data and detecting QTL associated with growth conditions and treatments, making the result more reliable. For example, using a population comprising inbred lines, the physical data of plant height and branch number at low-phosphorus and sufficient phosphorus supply growth conditions were collected and significant SNPs and candidate genes for plant height at a low-phosphorus supply were detected [12].
Leaf development is affected by multiple factors and its molecular regulatory network shows complexity. Cell proliferation and cell expansion are the main driving factors for leaf development. The CYCLINS (CYCs) complexed with CYCLIN-DEPENDENT KINASES (CDKs), the E2F/DIMERISATION PROTEIN (DP) transcriptional regulatory proteins, KIP-RELATED PROTEIN/INTERACTOR OF CDKs (KRP/ICK), and SIAMESE/SIAMESE-RELATED (SIM/SMR) proteins are the main core cell cycle proteins which ensure correct transmission of the genetic information and cell cycle, controlling the leaf size. Six important gene regulatory modules affect leaf growth and leaf size through regulating cell proliferation: ubiquitin receptor DA1–ENHANCER OF DA1 (EOD1) [13], GROWTH REGULATING FACTOR (GRF)–GRF-INTERACTING FACTOR (GIF) [14], SWITCH/SUCROSE NON-FERMENTING (SWI/SNF) [15], gibberellin (GA)–DELLA [16], KLU [17], and PEAPOD (PPD) [18]. Plant hormones especially auxin and gibberellins, with genes involved in biosynthesis and signaling pathways, are necessary for plant development and play a substantial role in the regulation of leaf size. It has been demonstrated that the number of leaf veins seems to have a strong positive correlation with the leaf size and leaf shape [16,17,18]. In addition, epigenetic and micro RNA also involve in regulation of leaf size [19,20].
Many studies of genetic mapping on leaf-related traits have been conducted in Brassica rapa and an amount of QTL for leaf size, leaf shape, and leaf weight were detected [3,6,8,21,22]. Some pleiotropic QTL were colocalized with several traits such as leaf length, leaf width, leaf shape, and petiole shape, suggesting strong correlations among leaf-related traits. Candidate genes for leaf-related traits were identified, such as ASYMMETRIC LEAVES 1 (BrAS1), LONGIFOLIA 1 (BrLNG1), HASTY 1 (BrHST1), PIN-FORMED 1 (BrPIN1), and BrKRP2, and colocalized with total leaf length and leaf width, while BrAS1 and BrLNG1 were associated with leaf shape. BrGRF5 was detected as the candidate genes for length of lamina and petiole in Brassica rapa [6].
In this study, we constructed a genetic linkage map using an RIL population with 144 lines, which were developed by two varieties of non-heading Chinese cabbage. To obtain stable and reliable QTL, 11 leaf-related traits was collected in two locations. A total of 27 significant QTLs in 7 chromosomes were detected and further candidate genes regulating leaf morphology and development were annotated. Our findings facilitated the dissection of further exploration of the genetic mechanisms for leaf development and molecular breeding in NHCC.

2. Materials and Methods

2.1. Plant Materials

Two advanced inbred lines, ‘Maertou’ and ‘Suzhouqing’ were used as the female parent and the male parent to develop a F7:8 recombinant inbred lines (RILs) population consisting of 144 lines. ‘Maertou’ (Brassica campestris ssp. chinensis Makino var. multiceps Hort), a landrace in Nantong, Jiangsu province, has slender blades and short and narrow petioles. ‘Suzhouqing’ (Brassica campestris ssp. chinensis Makino var. communis Tsen et Lee) was a landrace in Suzhou, Jiangsu province and showed oval leaves and wide, thick petioles.
Parental lines and RIL populations were planted in the Baima Research Station of Nanjing Agricultural University (31°35′ N and 119°09′ E) in Jiangsu province and at the Huzhou Experimental Station in Huzhou, Zhejiang Province (120°05′ E, 30°54′ N). Plants were sown in September 2021 and phenotype data were evaluated at about 98 days after germination. Experiments were designed in a randomized complete block design (RCBD).

2.2. Phenotypic Data Collection and Analysis

Three plants as biological replicates for each line were measured for their leaf-related traits. The fourth leaf of each plant was selected for measuring. For each leaf, the length of the lamina (LL) and petiole (PL), the width of lamina (LW) and petiole (PW), the fresh weight of the lamina (LFW) and petiole (PFW), and the thickness of the petiole (PT) were observed (Table 1). As Figure 1 showed, the length and fresh weight of the petioles were measured from the base of petiole to the bottom of the lamina; whereas the length and fresh weight of petiole were measured from the bottom of the lamina to the tip of the lamina. The width of the leaf was measured at the widest point. We described the leaf shape (LS) using the ratio of total leaf length to lamina width. The petiole shape (PS) was the ratio of petiole length to petiole width. The ratio of lamina length to petiole length (LPLI) was used to describe the length of lamina relative to petiole. The index of petiole fresh weight (PFWI) was evaluated by the ratio of petiole fresh weight to total leaf fresh weight.
Estimation of the best linear unbiased predictors (BLUPs) of each trait were performed with the R/lme4(1.1-34 version) package [23], with all factors (genotypes, locations, and the interactions of genotypes and locations) as random factors and their variances were extracted for a heritability calculation. Broad-sense heritability (H2) was estimated as follows: H2 =σ2g/(σ2g + σ2GL/L + σ2e/L × R), where σ2g, σ2GL, and σ2e were the variance components estimated from the ANOVA for the genotypic, genotype × location variances, error, respectively, with R as the number of replicates and L as the number of locations. Spearman’s rank correlation coefficient of BLUPs values of leaf-related traits was calculated using Chiplot (https://www.chiplot.online/) accessed on 15 March 2024.

2.3. Construction of Genetic Map and QTL Analysis by Resequencing

The genomic DNA of parental lines and the RIL population were extracted from their leaves using a genomic DNA extraction kit (TIANGEN, Beijing, China). The purity and concentration of the sample were determined by NanoPhotometer® (IMPLEN, Westlake Village, CA, USA) and a Qubit® 3.0 Flurometer (Life Technologies, Carlsbad, CA, USA). Fragmentase and other reagents were added to the DNA sample for DNA fragmentation. Then, the fragment size was repaired at the end and a tail was added and connected to the sequencing connector. Finally, the DNA library was obtained by PCR enrichment. After measuring the DNA concentration and the insert size of library, the library effective concentration was quantified accurately. The quantified libraries were sequenced using the Illumina Novaseq 6000 S4 platform (Illumina, San Diego, CA, USA) and 150 bp paired-end reads were generated. The construction of library and sequencing were performed at Annoroad Gene Tech (Beijing, China, https://www.annoroad.com/, accessed on 1 March 2022).
The clean reads of each line were aligned against the Brassica campestris genome (NHCC001; Version 1.0) [24] and downloaded from the non-heading Chinese cabbage and watercress database (http://tbir.njau.edu.cn/NhCCDbHubs/, accessed on 15 March 2024) [25] using the Burrows–Wheeler Aligner (BWA, v0.7.17-r1198-dirty) [26]. The SAMtools pipelines were used for further analysis [27]. SNP and InDel variations were selected using a Genome Analysis Toolkit (GATK) pipeline [28]. Low-quality SNPs/InDels were filtered with the criteria (a base quality value <40 and deep <8×). The SNP makers followed an aa × bb pattern were selected for the construction of a linkage map. The markers with missing rate exceeded 10% in RIL populations and the markers with distorted segregations were discarded.
The mstmap function of the R/ASMap (1.0-6 version) package [29] was used for estimating genetic distance. A linkage map was constructed using the Kosambi function in R/qtl (1.60 version) and R/qtl2 packages (0.32 version) [30,31]. QTL analysis was performed by the R/qtl based on the composite interval mapping (CIM) method and multiple QTL mapping (MQM). A total of 1000 permutations were adopted for calculating the LOD threshold at the 0.05 level. The additive effect and phenotypic variance of peak marker for each QTL were estimated by the function fitqtl. The intervals for QTL were supported by a 1.5 LOD drop interval.

2.4. Candidate Gene Analysis

All putative genes with their annotation information in the target interval were obtained from the Brassica campestris ‘NHCC001’ genome databases (http://tbir.njau.edu.cn/NhCCDbHubs/, accessed on 20 March 2024) [24]. The gene description was obtained from TAIR database (https://www.arabidopsis.org/, accessed on 20 March 2024) using BLASTp with a cutoff E value at ‘1 × 10−4’.

3. Results

3.1. Phenotypic Variations and Genetic Analysis of Leaf-Related Traits in NHCC

The two parental lines showed significant differences in leaf traits (Figure 1A and Figure 2 and Table S1): ‘Maertou’ showed more slender leaves and more narrow but longer petioles and ‘Suzhouqing’ exhibited oval leaves and wider, thicker petioles. The LL, PL, LFW, LS, and PS of ‘Suzhouqing’ were 65.96%, 65.34%, 60.48%, 55.95%, and 37.03% of in ‘Maertou’, respectively; the LW, PW, PFW, PT, and PFWI of ‘Maertou’ were 86.85%, 57.19%, 52.63%, 42.66%, and 63.43% of in ‘Suzhouqing’, respectively. The F1 hybrid exhibited oval leaves, wide and longer petioles, similar with ‘Suzhouqing’. F1 showed transgressive inheritance in PL and LPLI and exhibited intermediate traits between parents.
All leaf-related traits in the RIL population exhibited normal distribution (Figure 3 and Figure S1), with LW, PW, LPLI, and LFW showing transgressive segregation, suggesting that leaf-related traits were controlled by polygenes. The broad-sense heritability (H2) for eleven leaf-related traits was 0.19–0.56 (Table 2), and the heritability indicated the traits were controlled by genetics and environment. To obtain comprehensive loci, the phenotypic data and BLUP value of 11 leaf-related traits were used for further analysis.
Some traits related to leaf shape containing LL, LW, PL, and PT exhibited significantly positive correlations with leaf weight traits LFW and PFW, while LS and PS showed significantly negative correlations with LFW; LS was positively correlated with PL and PS but negatively correlated with LPLI; PS was positively correlated with LS but negatively correlated with LW and LPLI. PT was positively correlated with LL and LW but negatively correlated with LS and PS. The highest correlation coefficient was observed between LFW and PFW (0.84). In RIL populations, leaves with elongated shapes often exhibit slender and lighter petioles, while oval leaves mostly had wide, thick, and heavy petioles, suggesting that the leaf shape and leaf weight may be controlled by the same genetic mechanisms. However, there was no significant correlation between PW and other traits, suggesting the existence of a separate mechanism regulating PW (Figure 4).

3.2. Construction of Genetic Maps

The parental lines and the F7:8 RIL population were re-sequenced and a total of 14.4 Gb and 331 Gb of data were obtained, respectively. For each line in the RIL population, we obtained 3.56 Gb of clean data, corresponding to an average depth of 9.44× (Table S2). A total of 7,365,439 SNP markers were selected and 5,325,599 SNP markers remained after quality control. A total of 845,023 SNP markers with the aa × bb pattern between parental lines were selected and 793,144 SNP markers with missing rates of less than 10% remained. The SNP markers with segregation distortion (p < 0.0025) and heterozygous rate >0.78% (2−7) were filtered, and the remaining 1618 SNP candidates were adopted to estimate the linkage map (Table S3).
The genetic linkage map was constructed with 1618 SNPs. The total lengths of the genetic maps were 2294.1 cM (Table 3, Tables S3 and S4). The average number of markers per linkage group was 161.8 in the map, with average genetic distances per chromosome of 20.98 cM. These SNPs were evenly distributed across the 10 linkage groups.

3.3. QTL Mapping Analysis and Co-Localization of QTL

A total of 27 significant QTLs were detected from 11 leaf-related traits using the CIM method (Table 4 and Table S5 and Figure S2), 8 of which were detected jointly by the MQM method (Table 4 and Table S6 and Figure S3).
For leaf size, 14 QTLs were co-located with LL, LW, PL, and PW, explaining 8.86–27.16% of the phenotypic variation. QTLs for LL, LW, and PW exhibited positive additive effects and QTLs for PL showed negative additive effects. The qLW.6.1, qLW.9.2, and qPL.9.1 were jointly detected by CIM and MQM, explaining the highest phenotypic variation of LW and PL, respectively. For the shape of leaf and petiole, seven QTLs, accounting for 9.94–25.28% of the phenotypic variation, were detected for LS, LPLI, and PS, with negative additive effects except for qLPLI.6.1. The qLPLI.6.1 and qPS.8.1 were jointly detected by CIM and MQM, and qLPLI.6.1 explained the highest phenotypic variation of LPLI. For leaf weight, six QTLs controlling LFW, PFW, and PFWI were detected, with positive additive effects and 7.52–24.59% of the phenotypic variation. The qLFW9.1 and qPFW9.2 overlapped at 54,979,140–55,034,347 bp on the A09 chromosome, in accordance with the significant positive correlation between LFW and PFW. The qPFWI.9.1 and qPFWI.10.1 were jointly detected by CIM and MQM and stably appeared in two environments; qPFWI.9.1 was the highest phenotypic variation of PFWI.
Several QTLs for leaf size, leaf shape, and leaf weight were found co-localized with each other (Figure 5). The QTLs for PL was associated with PS, which co-related at 14,932,889–16,681,470 bp on the A08 chromosome, in accordance with the significant positive correlation between PL and PS. A total of 12 QTLs related to leaf shape and leaf weight were detected on chromosome A09. Among them, four QTLs associated with LL, LW, LFW, and PFW were detected and overlapped at 54,979,140–55,583,460 bp on the A09 chromosome, which was consistent with the significant correlation between these traits. Another pleiotropic QTL, co-related with LL and PFW, was located at 51,166,169–53,344,508 bp on the A09 chromosome, in accordance with the significant positive correlation between LL and PFW. The co-localization suggested the pleiotropy of the genomic region above affect multiple traits.

3.4. Candidate Genes Analysis

A total of 2737 genes were annotated in all significant QTL intervals. According to the gene description observed from TAIR (https://www.arabidopsis.org/, accessed on 20 March 2024), 30 genes involved in leaf development via cell proliferation and cell expansion, phytohormones, and other pathways were selected as putative genes (Table 5 and Table S7).
BraC09g050650, the homologue of KRP2 (KIP-RELATED PROTEIN 2), encodes CDK (cyclin-dependent kinase) inhibitor (CKI), the negative regulator of cell division. BraC09g051590, the homologue of GRF4 (GROWTH-REGULATING FACTOR 4), which is the growth-regulating factor that encodes the transcription activator. And these two genes were located on the common region of qLL.9.2 and qPFW.9.1. BraC09g057880, as the homologue of ARGOS which is involved in lateral organ size controlling, was found at the common region of qPL.9.1 and qPFWI.9.1. BraC08g021310, the homologue of SAUR9 which encodes SAUR-like auxin-responsive protein, was found at the common region of qPL.8.1 and qPS8.2. These genes located on the overlapped regions of co-localized QTLs were considered most likely the candidate genes. In addition, genes that were associated with leaf size and their development were therefore presumed to be putative candidate genes, including some genes affecting cell cycle machinery, such as SMR6, APC2, and CCS52A1; genes involved in cell expansion, for example APD6 and HB12; genes encoding members of SWI/SNF chromatin remodeling complex, including SWI3C and SHH; genes belonging to the DA1-EOD1 module including DAR1; genes involved in auxin and gibberellins pathways and genes regulating leaf development and size via other mechanisms identified in Arabidopsis, such as RPS13A [48].

4. Discussion

Leaves are the main photosynthetic and edible organ of non-heading Chinese cabbage. To explore the genetic and molecular basis controlling leaf size and leaf shape in Brassica, a genetic linkage map was constructed used a RIL population with 144 lines. QTL analysis revealed 27 significant QTLs on 7 chromosomes associated with 11 leaf-related traits.
Composite interval mapping (CIM) and multiple QTL mapping (MQM) are common methods for QTL mapping, fit for screening the additive effects. However, the QTL mapping power of MQM may be weaker than CIM in three QTL models [51,52]. In the present research, 27 and 8 significant QTLs were detected for leaf-related traits using the CIM and MQM methods, respectively, and the 8 QTLs detected by MQM were also detected by CIM. Apart from qLL.9.1 and qPS.8.1, the six QTLs detected by MQM and CIM explained the highest phenotypic variation of the corresponding traits. In addition, we found that the results of the CIM were less stable than the results of the MQM. Some loci detected by CIM were only accidental and would disappear after repeated detections, and we so increased the number of repetitions, referring to the results of the MQM and the effects of peak markers (Figure S4) in RIL to select stable and reliable QTLs. To summarize, the CIM has more QTL mapping power but higher false positives, while the results of the MQM were more reliable but fewer QTL were detected. Therefore, it is helpful to use different methods to obtain the magnitude and reliable QTL for the target traits.
Previous studies illustrated multiple QTLs for leaf size and shape in Brassica campestris, some of which overlapped with QTLs in our research. The qLS.4.1 overlapped with the QTL for TLL identified by Robert et al. using a RIL population [53]. The qPW.1.2 co-located with the QTL for LL, LW, and TLL, detected by Xiao et al. using a DH population [6]. The overlapped region of qLL.9.2 and qPFW.9.1 contains the homologue of KRP2, which was identified as a candidate gene for LW and LPLI [6]. These results suggested these QTLs are reliable and the genomic regions contain genes controlling leaf size.
The co-localization of QTLs and QTL clusters for different leaf traits has been reported in previous studies. Six QTLs for leaf area, petiole area, index of the leaf, LW, LFW, and PFW were co-located on chromosome 4 in Brassica rapa [8]. A total of 6 QTLs for LL, LW, and PL were mapped to a homologous region on chromosome 7 in Brassica. oleracea [21]. Several pleiotropic QTLs were identified, such as the copQTL15 on A03 chromosome for leaf size (LW and LS) and leaf shape, and the copQTL4 for LL, LW, and TLL, which co-located with the marker at 27.47 Mb on A01 chromosome in Brassica rapa [6]. The QTL for rosette leaf length and rosette leaf petiole length overlapped at the A05 chromosome in Brassica rapa [54]. In the present study, the following pleiotropic QTLs were found: four QTLs for leaf size and leaf weight were co-located on the A09 chromosome, two QTL for leaf size and leaf weight overlapped on the A09 chromosome, and two QTLs controlling petiole size and petiole shape overlapped on the A08 chromosome (Table 4), indicating the pleiotropy and close relation between leaf size, leaf shape, and leaf weight. The co-localized QTL regions could be a valuable resource for understanding the genetic basis of leaf size and leaf shape.
In previous studies, some QTLs were identified using RFLP, RAPD, and SSR markers with no specific physical location [21,55,56], so it was difficult to determine the relationship between these QTLs and the QTLs in this study. Compared with other loci with specific physical locations, the QTLs for LPLI, PS, and PFWI were first detected and co-located with corresponding traits. Furthermore, two pleiotropic regions on the A08 and A09 chromosomes, which contained multiple genes involved in auxin, cell proliferation, and expansion, were identified in this study, providing novel insights for gene cloning.
According to the gene annotation in 1.5-LOD support intervals, 30 genes involved in leaf size and development were identified as the possible candidate genes. It has been reported that these gene are involved in the regulation of leaf development in Arabidopsis. BraC09g050650, the homologue of KRP2 in Brassica rapa, negatively regulates cell division [35]. BraC09g051900, the homologue of ROT4, acts as a regulator of leaf cell proliferation [32]. BraC09g059470 and BraC06g016780 are the homologues of HB12 and SWI3C, respectively, which affect cell expansion [50] and cell number [15]. The homologue of BraC09g058530 encodes a cytoplasmic ribosomal protein S13 (RPS13A) and is involved in early leaf development [48]. BraC04g006480 is the homologue of AtCCS52A and the overexpression of AtCCS52A provided the change in leaf area [38]. The candidate genes will be further identified in the future and offer a genetic basis for regulating leaf-related traits in B. campestris.

5. Conclusions

In conclusion, a genetic linkage map was constructed based on the re-sequencing of the parental lines and RIL populations consisting of 144 lines. A total of 11 leaf-related traits were collected on two locations. A total of 27 significant QTLs on 7 chromosomes were associated with 11 leaf-related traits through the CIM and MQM methods and the candidate genes were annotated. The findings of this study will provide valuable information for further exploration of the genetic mechanisms of leaf shape, leaf size, and leaf development and lays a foundation for developing non-heading Chinese cabbage cultivars that are desirable to consumers.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae10050529/s1, Figure S1: The distribution of 11 leaf-related traits in and RIL populations in Baima and Huzhou. Figure S2: Overview of the significant QTL for the 11 leaf-related traits identified in the RIL population using CIM method. Figure S3: Overview of the significant QTL for the 11 leaf-related traits identified in the RIL population using MQM method. Figure S4: Genotypic effects at peak marker locations of QTL for 11 leaf-related traits. Table S1: The descriptive statistics of five traits associated with leaf-related traits evaluated in RIL population. Table S2: Information of samples in RIL population and parent lines after re-sequenced. Table S3: The information of genetic linkage map. Table S4: The summary of genetic linkage map. Table S5: Quantitative trait loci (QTL) for leaf-related traits detected in RIL population using CIM method. Table S6: Quantitative trait loci (QTL) for leaf-related traits detected in RIL population using MQM method. Table S7: Candidate genes that may be associated with leaf-related traits.

Author Contributions

Y.L. designed the study. T.Z., A.B. and X.W. conducted the experiments and analyzed the data. T.Z. wrote the manuscript. Y.L. and A.B. revised the manuscript. F.Z. and M.Y. helped collect the phenotypic data. Y.W., T.L., X.H. and Y.L. helped prepare the samples. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by National Natural Science Foundation of China (32172565), Jiangsu Seed Industry Revitalization Project [JBGS (2021)015], and National Vegetable Industry Technology System (CARS-23-A-16).

Data Availability Statement

The raw sequence data generated during the current study are available in the publicly accessible National Center for Biotechnology Information (NCBI, https://www.ncbi.nlm.nih.gov/, accessed on 1 March 2024) database with accession number PRJNA1082622.

Acknowledgments

We thank anyone who helped us in this study.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hou, X.; Li, Y.; Liu, T. Advances in genetic breeding and molecular biology of non-heading Chinese cabbage. J. Nanjing Agric. Univ. 2022, 45, 864–873. [Google Scholar]
  2. Yang, D.; Niklas, K.J.; Xiang, S.; Sun, S. Size-dependent leaf area ratio in plant twigs: Implication for leaf size optimization. Ann. Bot. 2010, 105, 71–77. [Google Scholar] [CrossRef]
  3. Choi, S.R.; Yu, X.; Dhandapani, V.; Li, X.; Wang, Z.; Lee, S.Y.; Oh, S.H.; Pang, W.; Ramchiary, N.; Hong, C.P.; et al. Integrated analysis of leaf morphological and color traits in different populations of Chinese cabbage (Brassica rapa ssp. pekinensis). Theor. Appl. Genet. 2017, 130, 1617–1634. [Google Scholar] [CrossRef] [PubMed]
  4. Li, Y.; Liu, Z.; Wang, Y.; Yang, N.; Xin, X.; Yang, S.; Feng, H. Identification of quantitative trait loci for yellow inner leaves in Chinese cabbage (Brassica rapa L. ssp. pekinensis) based on SSR and SRAP markers. Sci. Hortic. 2012, 133, 10–17. [Google Scholar] [CrossRef]
  5. Li, F.; Kitashiba, H.; Inaba, K.; Nishio, T. A Brassica rapa linkage map of EST-based SNP markers for identification of candidate genes controlling flowering time and leaf morphological traits. DNA Res. 2009, 16, 311–323. [Google Scholar] [CrossRef]
  6. Xiao, D.; Wang, H.; Basnet, R.K.; Zhao, J.; Lin, K.; Hou, X.; Bonnema, G. Genetic dissection of leaf development in Brassica rapa using a genetical genomics approach. Plant Physiol. 2014, 164, 1309–1325. [Google Scholar] [CrossRef] [PubMed]
  7. Cai, X.; Xu, C.; Wang, X.; Wang, S.; Zhang, Z.; Fei, Z.; Wang, Q. Construction of genetic linkage map using genotyping-by-sequencing and identification of QTLs associated with leaf color in spinach. Euphytica 2018, 214, 229. [Google Scholar] [CrossRef]
  8. Li, F.; Liu, Z.; Chen, H.; Wu, J.; Cai, X.; Wang, H.; Wang, X.; Liang, J. QTL mapping of leaf-related traits using a high-density bin map in Brassica rapa. Horticulturae 2023, 9, 433. [Google Scholar] [CrossRef]
  9. Wang, X.; Liu, C.; Tu, B.; Li, Y.; Chen, H.; Zhang, Q.; Liu, X. Characterization on a novel rolled leaves and short petioles soybean mutant based on seq-BSA and RNA-seq analysis. J. Plant Biol. 2022, 65, 261–277. [Google Scholar] [CrossRef]
  10. Wang, Y.G.; Zhang, L.; Ji, X.H.; Yan, J.F.; Liu, Y.T.; Lv, X.X.; Feng, H. Mapping of quantitative trait loci for the bolting trait in Brassica rapa under vernalizing conditions. Genet. Mol. Res. 2014, 13, 3927. [Google Scholar] [CrossRef]
  11. Wang, Y.; Liu, X.; Ji, X.; Zhang, L.; Liu, Y.; Lv, X.; Feng, H. Identification and validation of a major QTL controlling the presence/absence of leaf lobes in Brassica rapa L. Euphytica 2015, 205, 761–771. [Google Scholar] [CrossRef]
  12. Liu, H.; Wang, J.; Zhang, B.; Yang, X.; Hammond, J.P.; Ding, G.; Wang, S.; Cai, H.; Wang, C.; Xu, F.; et al. Genome-wide association study dissects the genetic control of plant height and branch number in response to low-phosphorus stress in Brassica napus. Ann. Bot. 2021, 128, 919–930. [Google Scholar] [CrossRef] [PubMed]
  13. Dong, H.; Dumenil, J.; Lu, F.; Na, L.; Vanhaeren, H.; Naumann, C.; Klecker, M.; Prior, R.; Smith, C.; McKenzie, N.; et al. Ubiquitylation activates a peptidase that promotes cleavage and destabilization of its activating E3 ligases and diverse growth regulatory proteins to limit cell proliferation in Arabidopsis. Gene Dev. 2017, 31, 197–208. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, J.; Tu, Z.; Wang, M.; Zhang, Y.; Hu, Q.; Li, H. Genome-wide identification of GROWTH-REGULATING FACTORs in Liriodendron chinense and functional characterization of LcGRF2 in leaf size regulation. Plant Physiol. 2024, 206, 108204. [Google Scholar] [CrossRef] [PubMed]
  15. Vercruyssen, L.; Verkest, A.; Gonzalez, N.; Heyndrickx, K.S.; Eeckhout, D.; Han, S.; Jégu, T.; Archacki, R.; Van Leene, J.; Andriankaja, M.; et al. ANGUSTIFOLIA3 binds to SWI/SNF chromatin remodeling complexes to regulate transcription during Arabidopsis leaf development. Plant Cell 2014, 26, 210–229. [Google Scholar] [CrossRef] [PubMed]
  16. Achard, P.; Gusti, A.; Cheminant, S.; Alioua, M.; Dhondt, S.; Coppens, F.; Beemster, G.T.S.; Genschik, P. Gibberellin signaling controls cell proliferation rate in Arabidopsis. Curr. Biol. 2009, 19, 1188–1193. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, Y.; Du, L.; Xu, R.; Cui, R.; Hao, J.; Sun, C.; Li, Y. Transcription factors SOD7/NGAL2 and DPA4/NGAL3 act redundantly to regulate seed size by directly repressing KLU expression in Arabidopsis thaliana. Plant Cell 2015, 27, 620–632. [Google Scholar] [CrossRef] [PubMed]
  18. Gonzalez, N.; Pauwels, L.; Baekelandt, A.; De Milde, L.; Van Leene, J.; Besbrugge, N.; Heyndrickx, K.S.; Pérez, A.C.; Durand, A.N.; De Clercq, R.; et al. A repressor protein complex regulates leaf growth in Arabidopsis. Plant Cell 2015, 27, 2273–2287. [Google Scholar] [CrossRef] [PubMed]
  19. Mao, Y.; Wu, F.; Yu, X.; Bai, J.; Zhong, W.; He, Y. microRNA319a-targeted Brassica rapa ssp. pekinensis TCP genes modulate head shape in Chinese cabbage by differential cell division arrest in leaf regions. Plant Physiol. 2014, 164, 710–720. [Google Scholar]
  20. Hu, Y.; Qin, F.; Huang, L.; Sun, Q.; Li, C.; Zhao, Y.; Zhou, D. Rice histone deacetylase genes display specific expression patterns and developmental functions. Biochem. Biophys. Res. Commun. 2009, 388, 266–271. [Google Scholar] [CrossRef]
  21. Lan, T.H.; Peterson, A.H. Comparative mapping of QTLs determining the plant size of Brassica oleracea. Theor. Appl. Genet. 2001, 103, 383–397. [Google Scholar] [CrossRef]
  22. Sun, X.; Luo, S.; Luo, L.; Wang, X.; Chen, X.; Lu, Y.; Shen, S.; Zhao, J.; Bonnema, G. Genetic analysis of Chinese cabbage reveals correlation between rosette leaf and leafy head variation. Front. Plant Sci. 2018, 9, 1455. [Google Scholar] [CrossRef] [PubMed]
  23. Bates, D.; Mächler, M.; Bolker, B.; Walker, S. Fitting linear mixed-effects models using lme4. J. Stat. Softw. 2015, 67, 1–48. [Google Scholar] [CrossRef]
  24. Li, Y.; Liu, G.; Ma, L.; Liu, T.; Zhang, C.; Xiao, D.; Zheng, H.; Chen, F.; Hou, X. A chromosome-level reference genome of non-heading Chinese cabbage [Brassica campestris (syn. Brassica rapa) ssp. chinensis]. Hortic. Res. 2020, 7, 212. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Z.; Li, Y.; Liu, T.; Zhang, C.; Xiao, D.; Hou, X. Non-heading Chinese cabbage database: An open-access platform for the genomics of Brassica campestris (syn. Brassica rapa) ssp. chinensis. Plants 2022, 11, 1005. [Google Scholar] [PubMed]
  26. Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [PubMed]
  27. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [PubMed]
  28. McKenna, A.; Hanna, M.; Banks, E.; Sivachenko, A.; Cibulskis, K.; Kernytsky, A.; Garimella, K.; Altshuler, D.; Gabriel, S.; Daly, M.; et al. The Genome Analysis Toolkit: A MapReduce framework for analyzing next-generation DNA sequencing data. Genome Res. 2010, 20, 1297–1303. [Google Scholar] [CrossRef]
  29. Taylor, J.; Butler, D. R Package ASMap: Efficient genetic linkage map construction and diagnosis. J. Stat. Softw. 2017, 79, 1–29. [Google Scholar] [CrossRef]
  30. Broman, K.W.; Wu, H.; Sen, Z.; Churchill, G.A. R/qtl: QTL mapping in experimental crosses. Bioinformatics 2003, 19, 889–890. [Google Scholar] [CrossRef]
  31. Broman, K.W.; Gatti, D.M.; Simecek, P.; Furlotte, N.A.; Prins, P.; Sen, S.; Yandell, B.S.; Churchill, G.A. R/qtl2: Software for mapping quantitative trait loci with high-dimensional data and multiparent populations. Genetics 2019, 211, 495–502. [Google Scholar] [CrossRef] [PubMed]
  32. Ikeuchi, M.; Yamaguchi, T.; Kazama, T.; Ito, T.; Horiguchi, G.; Tsukaya, H. ROTUNDIFOLIA4 regulates cell proliferation along the body axis in Arabidopsis shoot. Plant Cell Physiol. 2011, 52, 59–69. [Google Scholar] [CrossRef] [PubMed]
  33. Spartz, A.K.; Lee, S.H.; Wenger, J.P.; Gonzalez, N.; Itoh, H.; Inzé, D.; Peer, W.A.; Murphy, A.S.; Overvoorde, P.J.; Gray, W.M. The SAUR19 subfamily of SMALL AUXIN UP RNA genes promote cell expansion. Plant J. 2012, 70, 978–990. [Google Scholar] [CrossRef] [PubMed]
  34. Deng, G.; Huang, X.; Xie, L.; Tan, S.; Gbokie, T., Jr.; Bao, Y.; Xie, Z.; Yi, K. Identification and expression of SAUR genes in the CAM plant Agave. Genes 2019, 10, 555. [Google Scholar] [CrossRef] [PubMed]
  35. Cheng, Y.; Cao, L.; Wang, S.; Li, Y.; Shi, X.; Liu, H.; Li, L.; Zhang, Z.; Fowke, L.C.; Wang, H.; et al. Downregulation of multiple CDK inhibitor ICK/KRP genes upregulates the E2F pathway and increases cell proliferation, and organ and seed sizes in Arabidopsis. Plant J. 2013, 75, 642–655. [Google Scholar] [CrossRef] [PubMed]
  36. Lee, B.H.; Ko, J.; Lee, S.; Lee, Y.; Pak, J.; Kim, J.H. The Arabidopsis GRF-INTERACTING FACTOR gene family performs an overlapping function in determining organ size as well as multiple developmental properties. Plant Physiol. 2009, 151, 655–668. [Google Scholar] [CrossRef] [PubMed]
  37. Peng, Y.; Chen, L.; Lu, Y.; Wu, Y.; Dumenil, J.; Zhu, Z.; Bevan, M.W.; Li, Y. The ubiquitin receptors DA1, DAR1, and DAR2 redundantly regulate endoreduplication by modulating the stability of TCP14/15 in Arabidopsis. Plant Cell 2015, 27, 649–662. [Google Scholar] [CrossRef]
  38. Baloban, M.; Vanstraelen, M.; Tarayre, S.; Reuzeau, C.; Cultrone, A.; Mergaert, P.; Kondorosi, E. Complementary and dose-dependent action of AtCCS52A isoforms in endoreduplication and plant size control. New Phytol. 2013, 198, 1049–1059. [Google Scholar] [CrossRef]
  39. Sankaranarayanan, S.; Samuel, M.A. A proposed role for selective autophagy in regulating auxin-dependent lateral root development under phosphate starvation in Arabidopsis. Plant Signal. Behav. 2015, 10, e989749. [Google Scholar] [CrossRef]
  40. Iwata, E.; Ikeda, S.; Matsunaga, S.; Kurata, M.; Yoshioka, Y.; Criqui, M.; Genschik, P.; Ito, M. GIGAS CELL1, a novel negative regulator of the anaphase-promoting complex/cyclosome, is required for proper mitotic progression and cell fate determination in Arabidopsis. Plant Cell 2011, 23, 4382–4393. [Google Scholar] [CrossRef]
  41. Churchman, M.L.; Brown, M.L.; Kato, N.; Kirik, V.; Hülskamp, M.; Inzé, D.; De Veylder, L.; Walker, J.D.; Zheng, Z.; Oppenheimer, D.G.; et al. SIAMESE, a plant-specific cell cycle regulator, controls endoreplication onset in Arabidopsis thaliana. Plant Cell 2006, 18, 3145–3157. [Google Scholar] [CrossRef] [PubMed]
  42. Korbei, B.; Moulinier-Anzola, J.; De-Araujo, L.; Lucyshyn, D.; Retzer, K.; Khan, M.A.; Luschnig, C. Arabidopsis TOL proteins act as gatekeepers for vacuolar sorting of PIN2 plasma membrane protein. Curr. Biol. 2013, 23, 2500–2505. [Google Scholar] [CrossRef] [PubMed]
  43. Huang, J.; Liu, H.; Chen, M.; Li, X.; Wang, M.; Yang, Y.; Wang, C.; Huang, J.; Liu, G.; Liu, Y.; et al. ROP3 GTPase contributes to polar auxin transport and auxin responses and is important for embryogenesis and seedling growth in Arabidopsis. Plant Cell 2014, 26, 3501–3518. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, B.; Zhou, X.; Xu, F.; Gao, J. Ectopic expression of a Chinese cabbage BrARGOS gene in Arabidopsis increases organ size. Transgenic Res. 2010, 19, 461–472. [Google Scholar] [CrossRef] [PubMed]
  45. Hu, T.; Manuela, D.; Xu, M. SQUAMOSA PROMOTER BINDING PROTEIN-LIKE 9 and 13 repress BLADE-ON-PETIOLE 1 and 2 directly to promote adult leaf morphology in Arabidopsis. J. Exp. Bot. 2023, 74, 1926–1939. [Google Scholar] [CrossRef] [PubMed]
  46. Wong, J.H.; Spartz, A.K.; Park, M.Y.; Du, M.; Gray, W.M. Mutation of a conserved motif of PP2C.D phosphatases confers SAUR immunity and constitutive activity. Plant Physiol. 2019, 181, 353–366. [Google Scholar] [CrossRef] [PubMed]
  47. Paul, P.; Dhandapani, V.; Rameneni, J.J.; Li, X.; Sivanandhan, G.; Choi, S.R.; Pang, W.; Im, S.; Lim, Y.P. Genome-Wide Analysis and characterization of Aux/IAA family genes in Brassica rapa. PLoS ONE 2016, 11, e0151522. [Google Scholar] [CrossRef] [PubMed]
  48. Ito, T.; Kim, G.T.; Shinozaki, K. Disruption of an Arabidopsis cytoplasmic ribosomal protein S13-homologous gene by transposon-mediated mutagenesis causes aberrant growth and development. Plant J. 2000, 22, 257–264. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, J.; Khan, R.; Zhou, L.; Wu, X.; Xu, N.; Ma, X.; Zhang, Y. Genome-Wide Identification Analysis of the auxin response factors family in Nicotiana tabacum and the function of NtARF10 in leaf size regulation. J. Plant Biol. 2021, 64, 281–297. [Google Scholar] [CrossRef]
  50. Hur, Y.S.; Um, J.H.; Kim, S.; Kim, K.; Park, H.J.; Lim, J.S.; Kim, W.Y.; Jun, S.E.; Yoon, E.K.; Lim, J.; et al. Arabidopsis thaliana homeobox 12 (ATHB12), a homeodomain-leucine zipper protein, regulates leaf growth by promoting cell expansion and endoreduplication. New Phytol. 2015, 205, 316–328. [Google Scholar] [CrossRef]
  51. Su, C.; Qiu, X.; Ji, Z. Study of strategies for selecting quantitative trait locus mapping procedures by computer simulation. Mol. Breed. 2013, 31, 947–956. [Google Scholar] [CrossRef]
  52. Weng, Y.; Colle, M.; Wang, Y.; Yang, L.; Rubinstein, M.; Sherman, A.; Ophir, R.; Grumet, R. QTL mapping in multiple populations and development stages reveals dynamic quantitative trait loci for fruit size in cucumbers of different market classes. Theor. Appl. Genet. 2015, 128, 1747–1763. [Google Scholar] [CrossRef] [PubMed]
  53. Baker, R.L.; Leong, W.F.; Brock, M.T.; Markelz, R.J.C.; Covington, M.F.; Devisetty, U.K.; Edwards, C.E.; Maloof, J.; Welch, S.; Weinig, C. Modeling development and quantitative trait mapping reveal independent genetic modules for leaf size and shape. New Phytol. 2015, 208, 257. [Google Scholar] [CrossRef] [PubMed]
  54. Sun, X.; Gao, Y.; Lu, Y.; Zhang, X.; Luo, S.; Li, X.; Liu, M.; Feng, D.; Gu, A.; Chen, X.; et al. Genetic analysis of the “head top shape” quality trait of Chinese cabbage and its association with rosette leaf variation. Hortic. Res. 2021, 8, 106. [Google Scholar] [CrossRef] [PubMed]
  55. Lou, P.; Zhao, J.; Kim, J.S.; Shen, S.; Del Carpio, D.P.; Song, X.; Jin, M.; Vreugdenhil, D.; Wang, X.; Koornneef, M.; et al. Quantitative trait loci for flowering time and morphological traits in multiple populations of Brassica rapa. J. Exp. Bot. 2007, 58, 4005–4016. [Google Scholar] [CrossRef]
  56. Cang, Y.S.; Jian, W.Y.; XiaoYing, Z. Mapping and analysis QTL controlling some morphological traits in Chinese cabbage (Brassica campestris L. ssp. pekinensis). Acta Genet. Sin. 2003, 30, 1153–1160. [Google Scholar]
Horticulturae 10 00529 g001
Figure 1. Morphological characteristics of leaves in the two parental lines (‘Maertou’ and ‘Suzhouqing’) and description of traits measured. (A): Leaf morphology of ‘Maertou’ (left), ‘Suzhouqing’ (middle) and F1 hybrid (right) at the vegetative stage; bar = 10 cm. (B): Description of traits measured in this study. All traits and their descriptions are listed in Table 1. See Table 1 for trait abbreviation. MET—parental lines ‘Maertou’; SZQ—parental lines ‘Suzhouqing’; F1—the F1 hybrid.
Figure 1. Morphological characteristics of leaves in the two parental lines (‘Maertou’ and ‘Suzhouqing’) and description of traits measured. (A): Leaf morphology of ‘Maertou’ (left), ‘Suzhouqing’ (middle) and F1 hybrid (right) at the vegetative stage; bar = 10 cm. (B): Description of traits measured in this study. All traits and their descriptions are listed in Table 1. See Table 1 for trait abbreviation. MET—parental lines ‘Maertou’; SZQ—parental lines ‘Suzhouqing’; F1—the F1 hybrid.
Horticulturae 10 00529 g001
Horticulturae 10 00529 g002

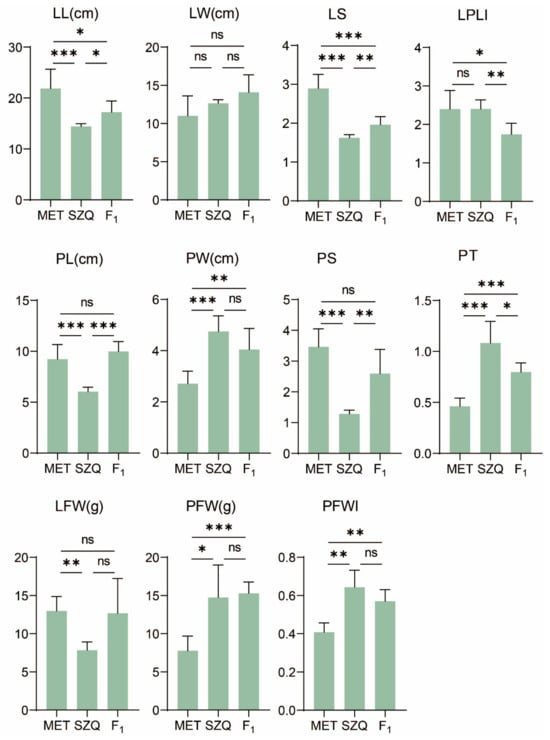

Figure 2. Comparison of 11 leaf-related traits between ‘Maertou’, ‘Suzhouqing’, and F1. See Table 1 for trait abbreviation. MET—parental lines ‘Maertou’; SZQ—parental lines ‘Suzhouqing’; F1—the F1 hybrid. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001, ns: not significant difference.
Figure 2. Comparison of 11 leaf-related traits between ‘Maertou’, ‘Suzhouqing’, and F1. See Table 1 for trait abbreviation. MET—parental lines ‘Maertou’; SZQ—parental lines ‘Suzhouqing’; F1—the F1 hybrid. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001, ns: not significant difference.
Horticulturae 10 00529 g002
Horticulturae 10 00529 g003

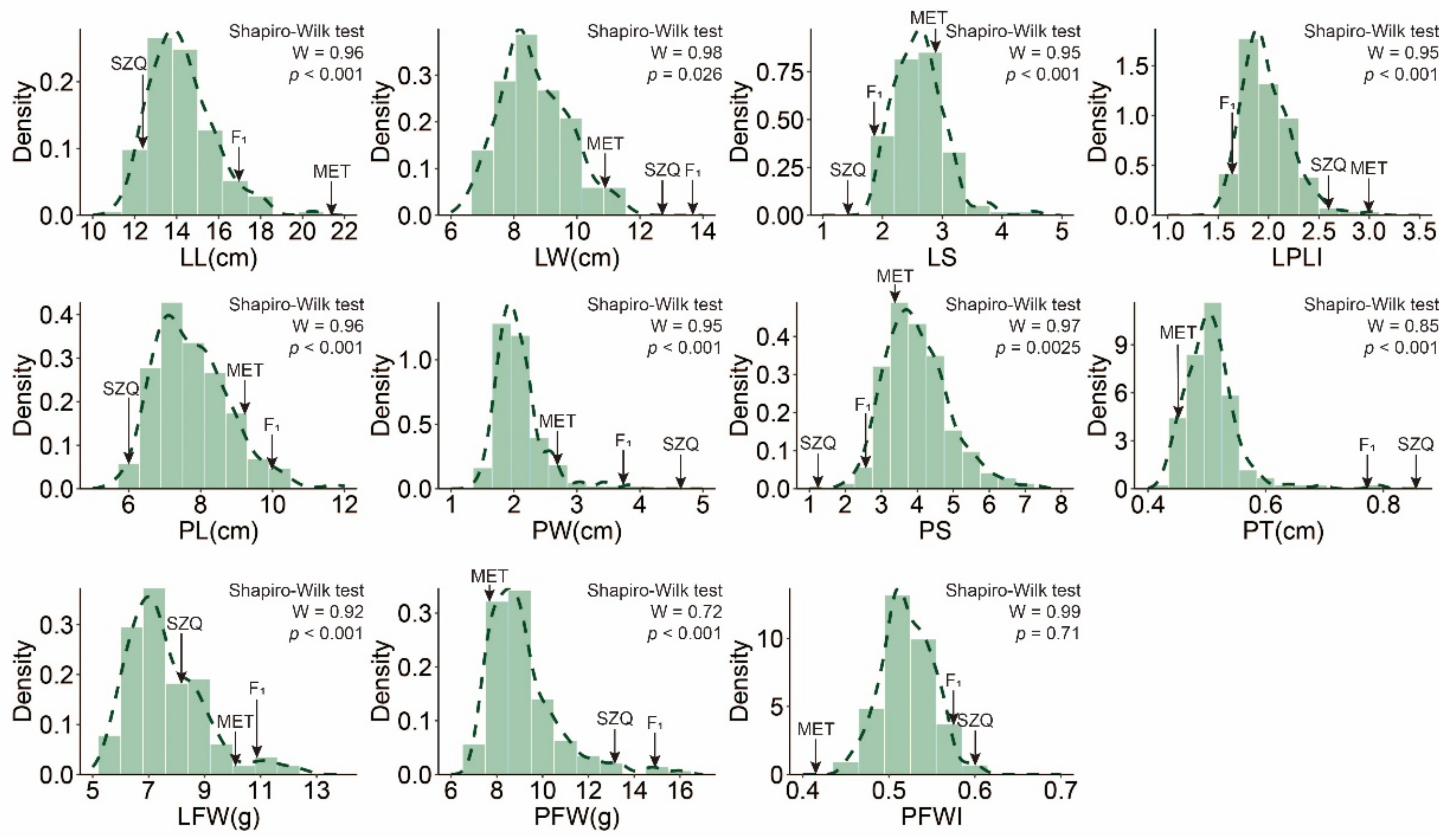

Figure 3. The distribution of 11 leaf-related traits in RIL populations. The results of the normality test (Shapiro–Wilk test) were displayed at the upper right corner of each histogram. Arrows indicated the 11 leaf-related traits of each parent and F1 hybrid. MET—parental lines ‘Maertou’; SZQ—parental lines ‘Suzhouqing’; F1—the F1 hybrid.
Figure 3. The distribution of 11 leaf-related traits in RIL populations. The results of the normality test (Shapiro–Wilk test) were displayed at the upper right corner of each histogram. Arrows indicated the 11 leaf-related traits of each parent and F1 hybrid. MET—parental lines ‘Maertou’; SZQ—parental lines ‘Suzhouqing’; F1—the F1 hybrid.
Horticulturae 10 00529 g003
Horticulturae 10 00529 g004

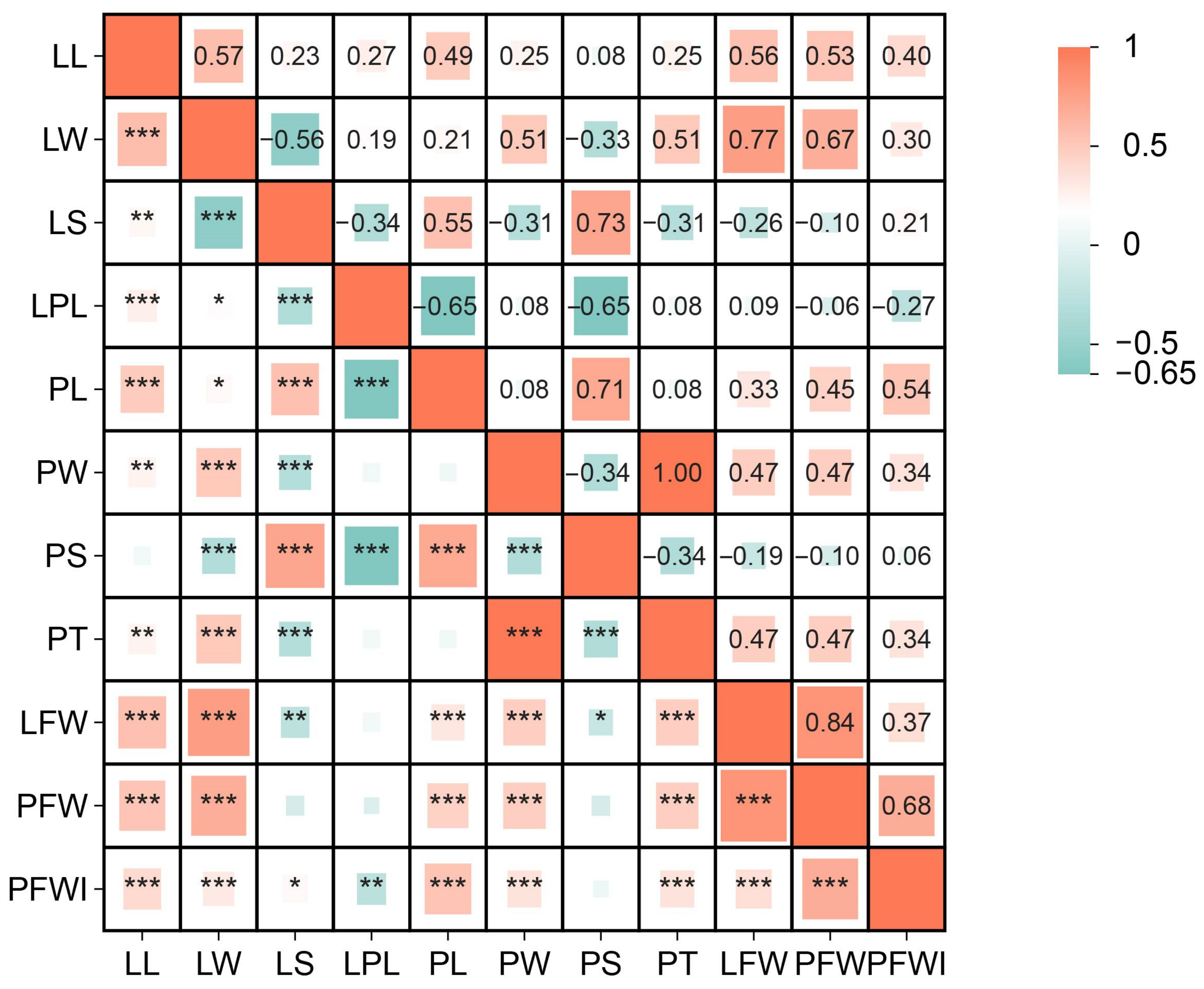

Figure 4. Correlation analysis of BLUPs for 11 leaf-related traits in the RIL population. (* p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001).
Figure 4. Correlation analysis of BLUPs for 11 leaf-related traits in the RIL population. (* p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001).
Horticulturae 10 00529 g004
Horticulturae 10 00529 g005

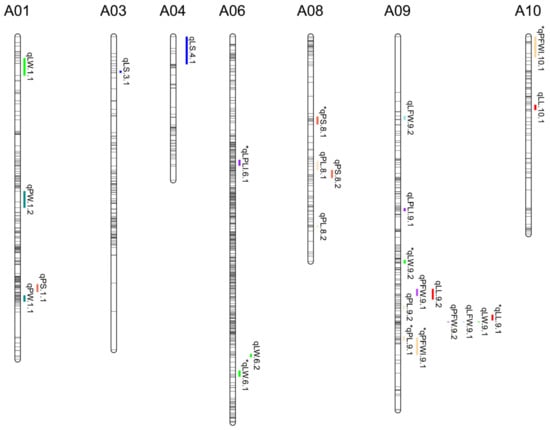

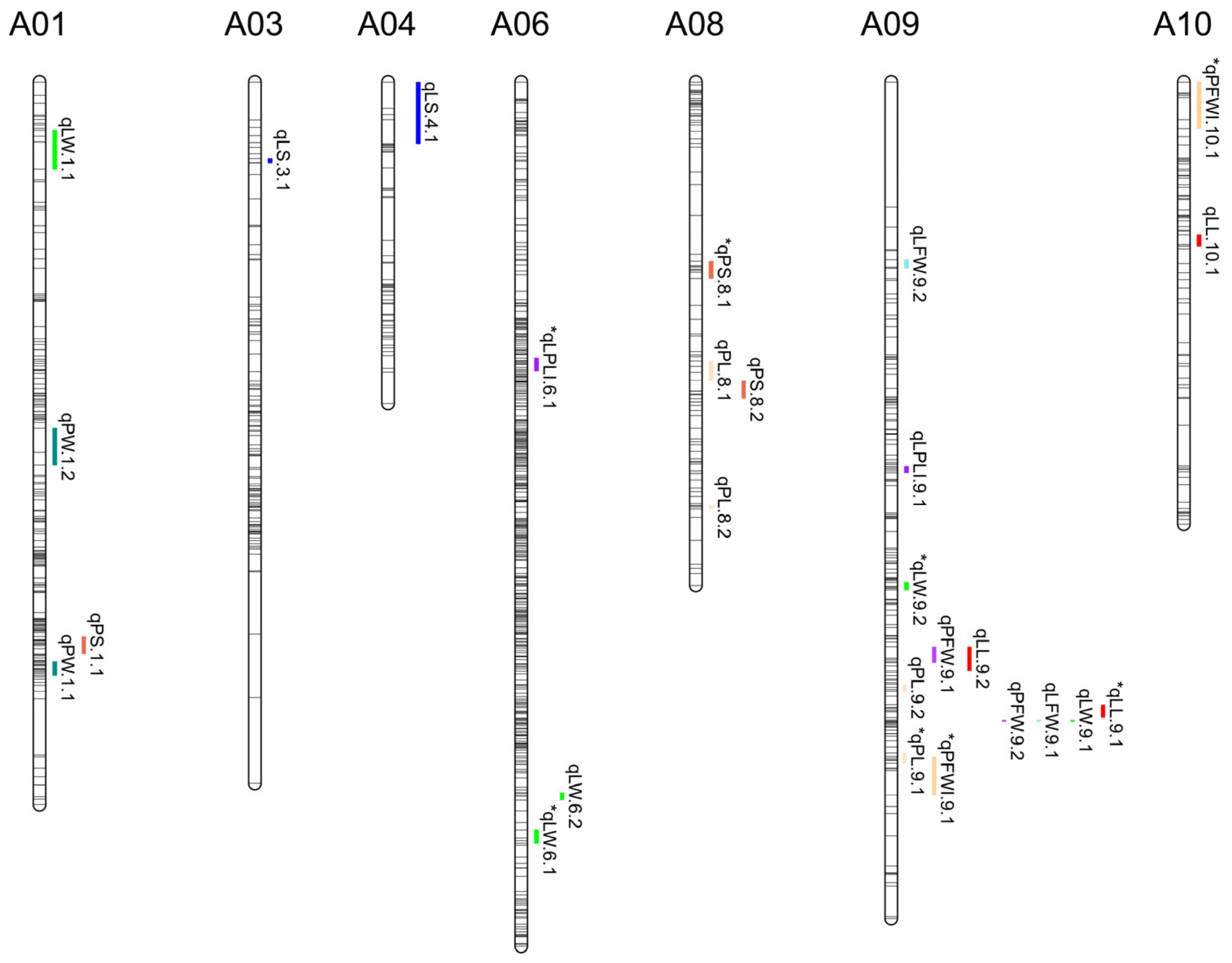

Figure 5. Distribution of the 11 leaf-related traits on the linkage map. The gray bars represent the 10 linkage groups on the linkage map and the colored bars represent QTL for the 11 leaf-related traits. Bar length indicates the 1.5-LOD supported interval of QTL. * represents the QTL detected by MQM and CIM method.
Figure 5. Distribution of the 11 leaf-related traits on the linkage map. The gray bars represent the 10 linkage groups on the linkage map and the colored bars represent QTL for the 11 leaf-related traits. Bar length indicates the 1.5-LOD supported interval of QTL. * represents the QTL detected by MQM and CIM method.
Horticulturae 10 00529 g005
Table 1. Description of leaf-related traits in Brassica campestris.
Table 1. Description of leaf-related traits in Brassica campestris.
Trait NameTrait DescriptionUnits
LLLamina lengthLength from the bottom of the lamina to the tip of the laminacm
LWLamina widthWidth of lamina at the widest pointcm
PLPetiole lengthLength from the base of the petiole to the bottom of the laminacm
PWPetiole widthWidth of petiole at the widest pointcm
LFWLamina fresh weightFresh weight from the bottom of the lamina to the tip of the laminag
PFWPetiole fresh weightFresh weight from the base of the petiole to the bottom of the laminag
PTPetiole thicknessThickness of petiolecm
LSLeaf shapeRatio of total leaf length to lamina width
LPLIIndex of lamina/petiole lengthRatio of lamina length to petiole length
PSPetiole shapeRatio of petiole length to petiole width
PFWIIndex of petiole fresh weight Ratio of petiole fresh weight to total leaf fresh weight
Table 2. Analysis of variance, variance component estimates, and heritability (H2) for 11 leaf-related traits in RIL populations.
Table 2. Analysis of variance, variance component estimates, and heritability (H2) for 11 leaf-related traits in RIL populations.
Source of VariationLLLWLSLPLIPLPWPSPTLFWPFWPFWI
Genotype (G)3.881.750.210.121.940.191.061.954.1212.900.0019
Location (L)1.710.830.000470.00220.700.060.000.709.0820.500.00
G × L4.281.590.0420.172.730.0830.562.726.2245.400.0023
Residual2.060.820.0930.141.680.150.661.686.1322.000.0030
Heritability (H2)0.430.460.560.280.330.410.460.330.250.190.25
Note: See Table 1 for trait abbreviations.
Table 3. The summary of genetic linkage map.
Table 3. The summary of genetic linkage map.
Linkage Group (Chr)Chr LengthDetected SNPMapped SNPMap Length (cM)Average Spacing (cM)Maximum Spacing (cM)
A0138,126,442722,047170292.41.7022.7
A0233,817,099753,934164227.21.4010.6
A0341,214,576779,968103283.72.8034.6
A0423,891,077530,78151130.02.6017.4
A0542,748,514794,914108227.92.1020
A0643,549,656897,224485349.70.707.4
A0729,241,068616,4086062.11.1014.5
A0823,546,603559,964144203.71.4015.7
A0964,520,9181,276,206238338.51.4050.5
A1023,121,789433,99395178.91.9016.4
Average 736,543.9161.8229.41.4021.0
Summary 7,365,43916182294.11.4050.5
Table 4. Quantitative trait loci (QTL) for leaf-related traits detected in RIL populations.
Table 4. Quantitative trait loci (QTL) for leaf-related traits detected in RIL populations.
TraitsEnvironmentQTLLinkage GroupPeak Position (cM)Genetic Interval (cM)Physical Interval (bp)LODAdditive Effectvar%Detected Method
LLBaimaqLL.9.1A09255251.92–257.2154,284,337–54,909,7874.601.0410.64%CIM, MQM
BaimaqLL.10.1A106461.8–66.3614,423,163–14,753,8085.260.8716.01%CIM
HuzhouqLL.9.2A09236228.5–238.2651,166,169–53,344,50812.650.9327.16%CIM
BLUPqLL.9.2A09234228.5–238.2651,166,169–53,344,5089.260.5121.03%CIM
LWBaimaqLW.9.1A09259258.2–258.89554,979,140–55,034,347258.550.618.86%CIM
HuzhouqLW.1.1A012619.48–35.20989,993–1,872,9684.870.589.80%CIM
HuzhouqLW.6.1A06306302.56–308.1539,464,218–40,133,2035.860.5911.59%CIM, MQM
HuzhouqLW.9.2A09204202.4016–205.528847,132,468–47,510,45910.150.6821.16%CIM, MQM
BLUPqLW.6.2A06289287.492–290.582137,994,746–37,994,7934.910.2811.21%CIM, MQM
BLUPqLW.9.2A09204202.4016–205.528847,132,468–47,510,45910.270.4421.01%CIM
LSBaimaqLS.3.1A033230.9917–32.6753128,309,949–28,571,1588.53−0.169.94%CIM
BaimaqLS.4.1A04130–13.228514,135,569–4,221,9646.75−0.2014.55%CIM
HuzhouqLS.4.1A041610.62462–24.935794,676,839–13,960,2007.94−0.2216.86%CIM
BLUPqLS.4.1A04150–15.333234,052,077–4,221,9646.88−0.1819.82%CIM
LPLIHuzhouqLPLI.6.1A06114111.6521–116.82519,114,145–10,250,8956.620.1916.28%CIM, MQM
BLUPqLPLI.9.1A09157155.5247–158.18226,023,021–6,435,3416.94−0.0511.17%CIM
PLHuzhouqPL.8.1A08118112.9256–120.796915,650,536–16,681,4705.78−0.6910.31%CIM
HuzhouqPL.9.1A09274271.487–275.687455,973,892–56,514,67910.0847876−2.1422.56%CIM, MQM
BLUPqPL.8.2A08172171.4044–172.79597,016,354–8,537,3786.14−0.3013.88%CIM, MQM
BLUPqPL.9.2A09245243.6222–246.498355,241,258–55,583,46010.630.4620.28%CIM
PWBaimaqPW.1.1A01237234.4222–240.168933,706,868–34,001,0758.880.1516.35%CIM
HuzhouqPW.1.2A01150140.0755–155.001528,431,036–30,881,8348.490.1620.26%CIM
PSHuzhouqPS.1.1A01227.5224.3572–231.47333,503,602–33,602,0285.73−0.5016.51%CIM, MQM
HuzhouqPS.8.1A0876.172.54486–79.4818917,955,760–17,648,9756.13−0.5415.91%CIM
BLUPqPS.1.1A01228224.3572–231.47333,503,602–33,602,0287.98−0.4121.24%CIM
BLUPqPS.8.2A08126120.7969–128.064714,932,889–16,681,4707.08−0.3313.44%CIM
LFWBaimaqLFW.9.1A09259258.1957–258.89555,034,347–54,979,1408.721.308.67%CIM
HuzhouqLFW.9.2A0974.971.86596–75.298021,527,172–1,736,9119.690.4424.59%CIM
BLUPqLFW.9.1A0925971.86596–258.8951,527,172–55,006,5297.210.409.34%CIM
PFWHuzhouqPFW.9.1A09233228.5003–234.945351,166,169–52,736,11210.150.9922.73%CIM
BLUPqPFW.9.2A09259258.1957–258.89554,979,140–55,034,34720.550.537.52%CIM
PFWIHuzhouqPFWI.9.1A09277.49272.9204–278.587656,320,818–56,815,5118.280.0317.27%CIM, MQM
HuzhouqPFWI.10.1A105.380–15.3295196,585–1,129,5905.790.0311.02%CIM, MQM
BLUPqPFWI.9.1A09280275.6874–288.566156,514,702–57,563,4616.780.0116.51%CIM, MQM
BLUPqPFWI.10.1A10176.337199–18.792343679,925–1,343,7525.520.0114.11%CIM, MQM
Note: See Table 1 for trait abbreviations.
Table 5. Candidate genes that may be associated with leaf-related traits.
Table 5. Candidate genes that may be associated with leaf-related traits.
QTLGene ID in Brassica campestrisHomologue in ArabidopsisGene NameReferences
qLL.9.2BraC09g051900AT2G36985ROT4Ikeuchi et al., 2011 [32]
qLL.9.2BraC09g051940AT3G53250SAUR57Spartz et al., 2012 [33]; Deng et al., 2019 [34]
qPFW.9.1&qLL.9.2BraC09g050650AT3G50630KRP2Cheng et al., 2013 [35]
qPFW.9.1&qLL.9.2BraC09g051590AT3G52910GRF4Lee et al., 2009 [36]
qLW.1.1BraC01g001950AT4G36860DAR1Peng et al., 2015 [37]
qLW.1.1BraC01g002470AT4G36110SAUR9Spartz et al., 2012 [33]; Deng et al., 2019 [34]
qLW.1.1BraC01g003510AT4G34750SAUR49Spartz et al., 2012 [33]; Deng et al., 2019 [34]
qLS.4.1BraC04g006480AT4G22910CCS52A1Baloban et al., 2013 [38]
qLS.4.1BraC04g007040AT3G52910GRF4Lee et al., 2009 [36]
qLS.4.1BraC04g007910AT1G65800RK2Sankaranarayanan et al., 2015 [39]
qLS.4.1BraC04g014700AT2G04660APC2Eloy et al., 2011 [40]
qLS.4.1BraC04g015220AT5G40460SMR6Michelle L et al., 2006 [41]
qLPLI.6.1BraC06g016490AT1G21380TOL3Barbara et al., 2013 [42]
qLPLI.6.1BraC06g016780AT1G21700SWI3CVercruyssen et al., 2014 [15]
qLPLI.6.1BraC06g017160AT1G21380TOL3Barbara et al., 2013 [42]
qLPLI.9.1BraC09g010470AT2G17800ROP3Huang et al., 2014 [43]
qLPLI.9.1BraC09g010520AT2G18010SAUR10Spartz et al., 2012 [33]; Deng et al., 2019 [34]
qPL.9.1&qPFWI.9.1BraC09g057880AT3G59900ARGOSWang et al., 2010 [44]
qPL.9.2BraC09g056020AT3G57130BOP1Hu et al., 2023 [45]
qPL.8.1&qPS.8.2BraC08g021310AT4G36110SAUR9Spartz et al., 2012 [33]
qPW.1.2BraC01g036690AT3G20898SMR13Michelle L et al., 2006 [41]
qPS.8.1BraC08g023640AT4G38520APD6Wong et al., 2019 [46]
qPT.1.1BraC01g041240AT3G15540IAA19Parameswari et al., 2016 [47]
qLFW9.2BraC09g002580AT3G27630SMR7Michelle L et al., 2006 [41]
qPFWI.9.1BraC09g058530AT4G00100RPS13AIto et al., 2000 [48]
qPFWI.9.1BraC09g059400AT3G61830ARF18Zhang et al., 2021 [49]
qPFWI.9.1BraC09g059410AT3G61840ARFZhang et al., 2021 [49]
qPFWI.9.1BraC09g059470AT3G61890HB12Hur et al., 2015 [50]
qPFWI.9.1BraC09g059720AT3G62100IAA30Parameswari et al., 2016 [47]
qPFWI.10.1BraC10g002600AT1G04100IAA10Parameswari et al., 2016 [47]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhao, T.; Bai, A.; Wang, X.; Zhang, F.; Yang, M.; Wang, Y.; Liu, T.; Hou, X.; Li, Y. Genetic Mapping for Leaf Shape and Leaf Size in Non-Heading Chinese Cabbage by a RIL Population. Horticulturae 2024, 10, 529. https://doi.org/10.3390/horticulturae10050529

AMA Style

Zhao T, Bai A, Wang X, Zhang F, Yang M, Wang Y, Liu T, Hou X, Li Y. Genetic Mapping for Leaf Shape and Leaf Size in Non-Heading Chinese Cabbage by a RIL Population. Horticulturae. 2024; 10(5):529. https://doi.org/10.3390/horticulturae10050529

Chicago/Turabian Style

Zhao, Tianzi, Aimei Bai, Xinya Wang, Feixue Zhang, Miaomiao Yang, Yuhui Wang, Tongkun Liu, Xilin Hou, and Ying Li. 2024. "Genetic Mapping for Leaf Shape and Leaf Size in Non-Heading Chinese Cabbage by a RIL Population" Horticulturae 10, no. 5: 529. https://doi.org/10.3390/horticulturae10050529

APA Style

Zhao, T., Bai, A., Wang, X., Zhang, F., Yang, M., Wang, Y., Liu, T., Hou, X., & Li, Y. (2024). Genetic Mapping for Leaf Shape and Leaf Size in Non-Heading Chinese Cabbage by a RIL Population. Horticulturae, 10(5), 529. https://doi.org/10.3390/horticulturae10050529

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
