Electrocatalytic Enhancement of CO Methanation at the Metal–Electrolyte Interface Studied Using In Situ X-ray Photoelectron Spectroscopy

Abstract

For the direct reduction of CO₂ and H₂O in solid oxide electrolysis cells (SOECs) with cermet electrodes toward methane, a fundamental understanding of the role of elemental carbon as a key intermediate within the reaction pathway is of eminent interest. The present synchrotron-based in situ near-ambient-pressure X-ray photoelectron spectroscopy (NAP-XPS) study shows that alloying of Ni/yttria-stabilized-zirconia (YSZ) cermet electrodes with Cu can be used to control the electrochemical accumulation of interfacial carbon and to optimize its reactivity toward CO₂. In the presence of syngas, sufficiently high cathodic potentials induce excess methane on the studied Ni/yttria-stabilized-zirconia (YSZ)-, NiCu/YSZ- and Pt/gadolinium-doped-ceria (GDC) cermet systems. The hydrogenation of carbon, resulting from CO activation at the triple-phase boundary of Pt/GDC, is most efficient.

1. Introduction

The co-electrolysis of CO₂ (g) and water to methane (reaction (1)) in high-temperature SOECs is a process that could help to mitigate issues related to climate change by utilizing the main greenhouse gas for electric energy storage in the form of a renewable energy carrier [1,2]:

$${\mathrm{CO}}_2+2{\mathrm{H}}_2\mathrm{O}\rightleftharpoons {\mathrm{CH}}_4+2{\mathrm{O}}_2$$

(1)

The most common reaction pathway does not realize reaction (1) directly, as it deals with the simultaneous electrochemical reduction of CO₂ to CO and H₂O to H₂. The resulting CO/H₂ syngas mixture can be utilized to form a variety of hydrocarbons. For this, an adjustable CO/H₂ ratio is required, e.g., 1:3 to form methane (reaction (2)).

$$\mathrm{CO}+3{\mathrm{H}}_2\rightleftharpoons {\mathrm{CH}}_4+2{\mathrm{O}}_2$$

(2)

Based on thermodynamics, temperatures up to ~673 K are beneficial for CO methanation [3]. In this study, we (i) provide a proof-of-principle that reactive carbon species are formed particularly on Ni(Cu)/8 mol% yttria-stabilized-zirconia (8-YSZ) cermets via electrolysis of CO, and (ii) show that additional methane is formed generally on metal–electrolyte interfaces such as Ni(Cu)/8-YSZ and Pt/10 mol% Gd-doped-ceria (GDC-10), even at high temperatures (~973 K), via electrocatalytic promotion of CO methanation. An additional non-faradaic influence (i.e., change in the metal’s work function and adsorbate chemistry) on the catalytic reaction, according to the concept of “electrochemical promotion of catalysis” (EPOC) or “non-faradaic electrochemical modification of catalytic activity” (NEMCA) [4,5,6], is deliberately surpassed by choosing special experimental conditions, i.e., high temperatures, resulting in a high oxygen ion conductivity, and high potentials, resulting in high current densities, leading to the dominance of faradaic effects [5,6,7].

In the co-electrolysis of CO₂ and H₂O, surface carbon chemistry plays a major role. Carbon can be deposited via different pathways, involving electrochemical (reaction (3)) or conventional thermal reduction of CO (reaction (4), Boudouard reaction (5)). Commonly, these pathways are held responsible for surface coking and blocking of the triple-phase-boundary (TPB) [8,9].

$$\mathrm{CO}+2{\mathrm{e}}^{-}\rightleftharpoons \mathrm{C}+{\mathrm{O}}^{2-}$$

(3)

$$\mathrm{CO}+{\mathrm{H}}_2\rightleftharpoons \mathrm{C}+{\mathrm{H}}_2\mathrm{O}$$

(4)

$$2\mathrm{CO}\rightleftharpoons \mathrm{C}+{\mathrm{CO}}_2$$

(5)

Vice versa, de-coking can proceed via the inverse reactions of (3)–(5) or, alternatively, via the reaction of carbon with co-generated hydrogen from electrochemical water splitting to form methane (reverse CH₄ pyrolysis reaction (6)):

$$\mathrm{C}+2{\mathrm{H}}_2\rightleftharpoons {\mathrm{CH}}_4$$

(6)

How reactive the material- and site-specific deposited carbon species are is crucial, for both the efficiency of de-coking and of direct hydrocarbon formation. In other words, equilibrium (6) imposes the need for a distinction between reactive intermediate and site-blocking side product carbon forms [10]. The carbon reactivity argument holds equally for the reversal of reaction (1), which needs to be realized for direct methane SOFCs [11,12].

For the electrochemical promotion of CH₄ synthesis according to reaction (2), both the kinetic reactivity and the chemical potential of carbon formed directly at the TPB via reaction (3) are essential. Bimetallic electrode materials, which allow for directional modulation of the bond strength and adsorption properties of carbon species [13], can be applied to electrochemically generated carbon, denoted as C_TPB in the following, and are the key toward a knowledge-based reactivity control. Ni_xCu_y is considered a promising alloy, fulfilling these carbon-chemistry-related requirements [14,15]. Moreover, it features decreased carbon solubility, which is essential for the suppression of unreactive graphene/graphitic deposits [16,17]. However, considering the thermo-catalytic methanation reaction of CO or CO₂, NiCu-alloyed catalysts perform worse than Ni [18,19,20]. Nonetheless, it is important to note that alongside the hydrogenation of intermediate C, the rate-limiting step is the dissociation of CO or CO₂ [21,22]. The latter can be promoted by means of electrochemistry (reaction (3)). As a result, it enables the utilization of electrocatalyst materials beyond the current scientific boundaries.

Taking the thermodynamic equilibrium constant K of reaction (6) into account, the carbon activity a(C) influences the equilibrium pressure p of CH₄:

$$K=\frac{{p(\mathrm{C}\mathrm{H}}_4)}{a\left(C\right)·{{p(\mathrm{H}}_2)}^2}$$

(7)

If additional carbon is induced electrochemically via reaction (3) in a H₂-containing atmosphere, the methane yield can be enhanced both by increasing the carbon activity via increasing the cathodic polarization, and by increasing the H₂ pressure [23]. Of course, the efficiency of the latter in terms of thermodynamic promotion of CH₄ yield is limited by the kinetics of reaction (6). In the following, a comparative approach, with respect to (i) the C_TPB growth and clean-off on Ni/8-YSZ vs. Ni₈₀Cu₂₀/8-YSZ working electrodes (WE) and (ii) the C_TPB-promoted formation of methane on Ni(Cu)/8-YSZ (WE) vs. Pt/GDC-10 counter electrodes (CE), is presented. Therefore, a “triple” in situ combination of electrochemical biasing, product detection via online mass spectrometry (MS), and near-ambient-pressure X-ray photoelectron spectroscopy (NAP-XPS) was employed, which allows us to study the surface carbon chemistry of the electrochemical active Ni(Cu)/8-YSZ interface as a function of bias, while utilizing online tracking for product formation and recording in situ XP spectra. This extended and novel combination of experimental in situ techniques represents a considerably more powerful approach to studying surface processes in solid oxide cells under close-to-real reaction conditions.

To ensure the comparability of the carbon-active WE (i.e., Ni/8-YSZ vs. Ni₈₀Cu₂₀/8-YSZ), the cell dimensions and the manufacturing of electrolyte and CE were kept exactly the same. The CE benefits are associated with the specific cermet material properties (i.e., Pt and GDC), being electrocatalytically highly active toward oxygen exchange reactions (GDC) and H₂ activation (Pt) [24].

However, with respect to the CO methanation reaction rate (i.e., C_TPB-promoted formation of methane), Pt is prone to be more than four orders of magnitude less active than the WE metal Ni under otherwise identical conditions [25]. Based on the pronounced difference in the CO methanation activity of Ni and Pt, the chosen setup allows us to allocate the electrochemically driven formation of additional methane (beyond the purely thermo-catalytic CH₄ formation rate induced by the Ni side) to the CE or WE side, respectively. As the formation of extra carbon via CO electrolysis is only possible under cathodic polarization conditions on either side via reaction (3), separated electrode compartments are not necessary to allocate the source of the extra CH₄ formed via reaction (6).

2. Experimental Methods

The investigation of the interfacial carbon chemistry at defined atmospheres over cermet WEs was carried out via in situ near-ambient-pressure X-ray photoelectron spectroscopy (NAP-XPS) at the ISISS end station at the BESSY II synchrotron facility. This setup allows us to measure XPS at elevated pressures (up to 7 mbar) and X-ray energies from 80 to 2000 eV. The surface-sensitive XP-spectra were recorded with photon energies which correspond to a photo electron energy of 150 eV and therefore equal information depth.

For the synthesis of the WE, a Ni(Cu)/8-YSZ cermet powder was prepared via a precipitation impregnation method, where Ni(Cu) was precipitated as hydroxide onto an aqueous suspension of YSZ powder. A subsequent oxidative (He:O₂ 1:1, 1123 K, 3 h) and reductive treatment (He:H₂ 5:1, 1073 K, 2 h) yields the final cermet powder. The cell stack was assembled by pressing the CE cermet powder (Pt/GDC-10), the electrolyte powder 8-YSZ, and the WE cermet powder (Ni(Cu)/8-YSZ) into a button cell (diameter 10 mm). After sintering in a He:H₂ (5:1) mixture at 1523 K for 3 h, the final cell was obtained. For a detailed description of the cell preparation, sample mounting, equipment, and XPS data analysis [26,27,28], we refer to the supporting information (Figure S1).

3. Results and Discussion

3.1. Carbon-Active Electrodes

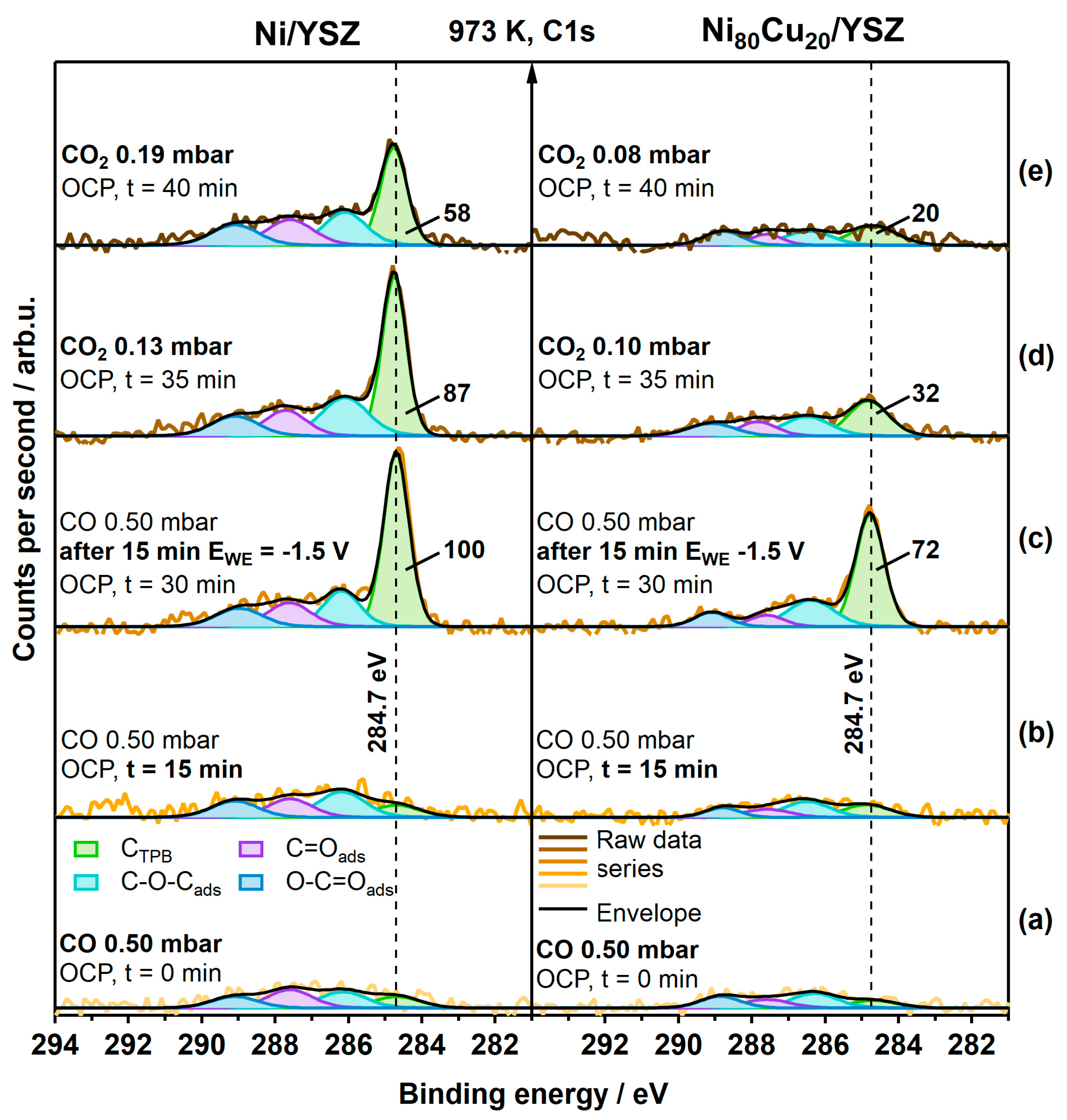

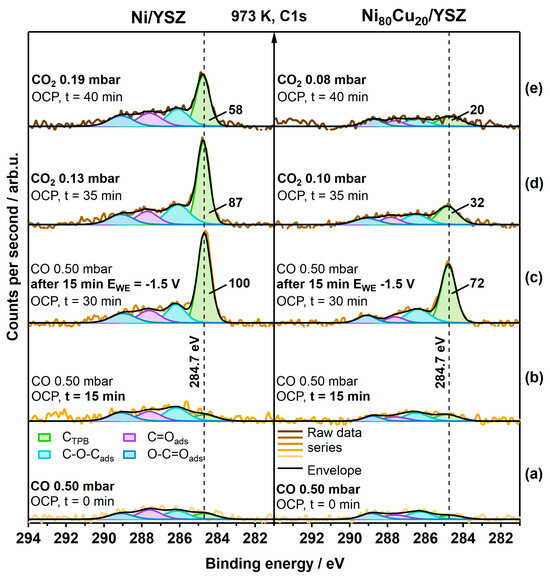

To highlight the difference in the carbon reactivity at the interface, visible in the kinetics of carbon growth and clean-off reactions, in situ XP spectra of the C 1s region of the Ni/8-YSZ and Ni₈₀Cu₂₀/8-YSZ electrodes were recorded at 973 K (Figure 1). In the order of the spectra from bottom to top, we initially applied 0.5 mbar CO at open circuit potential (OCP) to the electrode and detected a minor amount of mixed carbon-oxygenates and elemental carbon species in the C1s region (i.e., components are assigned to O-C=O_ads, C=O_ads, C-O-C_ads, and C-C_ads species). As the Boudouard reaction (5) is strongly shifted toward CO formation under the chosen experimental conditions, we observed hardly any growth of the C1s signals after 15 min of isothermal exposure. Upon applying a voltage of −1.5 V, graphitic-like C_TPB at a BE of 284.7 eV can be electrochemically grown via reaction (3). However, the terminology “C_TPB” species means that the spectroscopically observed graphitic-like species is fed by electrolysis of CO at the TPB. Inherently, this implies a transition from an atomic to a graphitic-like carbon state.

After 15 min of CO electrolysis, the C_TPB growth was terminated by returning to OCP and CO pump-off. To study the efficiency of the oxidative clean-off reaction of this carbon species (reversal of reaction (5)), the electrode was then exposed to 0.13 mbar pure CO₂ under OCP conditions. For Ni/8-YSZ (left panel in Figure 1), only a slow decrease in the C_TPB component of ~13% toward ~87% of the initial value was observed after 5 min exposure. By increasing the CO₂ partial pressure up to 0.19 mbar and an exposure for an additional 5 min, a further, but still rather slow, decrease in the C_TBP peak area to ~58% of the initial value was achieved. To compare such carbon clean-off rates with the NiCu system, the peak area of the largest graphitic-like C_TPB component was normalized to 100%.

In contrast, the amount of analogously grown C_TPB on the Ni₈₀Cu₂₀/8-YSZ electrode (right side in Figure 1), starting with an initial relative intensity of ~72%, is diminished by ~40% toward ~44% at a CO₂ pressure of 0.10 mbar after 5 min. After another 5 min (topmost spectra), the C_TPB peak started to vanish (i.e., 20% residual intensity), although the CO₂ partial pressure was kept at an even lower value of 0.08 mbar. By comparing the relative carbon clean-off rates of the graphitic-like C_TPB on Ni vs. NiCu, a pronounced difference in the initial decrease in the relative integral C_TPB peak areas within the first 5 min was found (i.e., −13% for Ni and −40% for Ni₈₀Cu₂₀). These results indicate that graphitic-like C_TPB is more reactive for the oxidative carbon clean-off reaction (5) on the Ni₈₀Cu₂₀/8-YSZ electrode. To achieve a better resolution of the carbon clean-off reaction as a function of time, slightly different CO₂ partial pressures were deliberately chosen, as a more pronounced activity of the NiCu electrode was anticipated.

To confirm that carbon is accumulated via the TPB onto the cermet surface, XP spectra series (Figure S2) of Cu 2p, Ni 2p, C 1s, and Zr 3d were recorded before and after electrochemically-induced carbon growth, showing a decrease in the cermet components. The Ni/Cu ratio in Figure S2 changed from 2.95 before carbon growth toward 5.40 thereafter. Whether this change is a consequence of an alteration of the Ni to Cu surface composition upon electrochemically-induced adsorbate chemistry [29], or if it is due to preferential carbon covering of Ni surface area/sites, or a geometric shielding effect of Cu vs. Ni areas on the porous electrode structure, remains open.

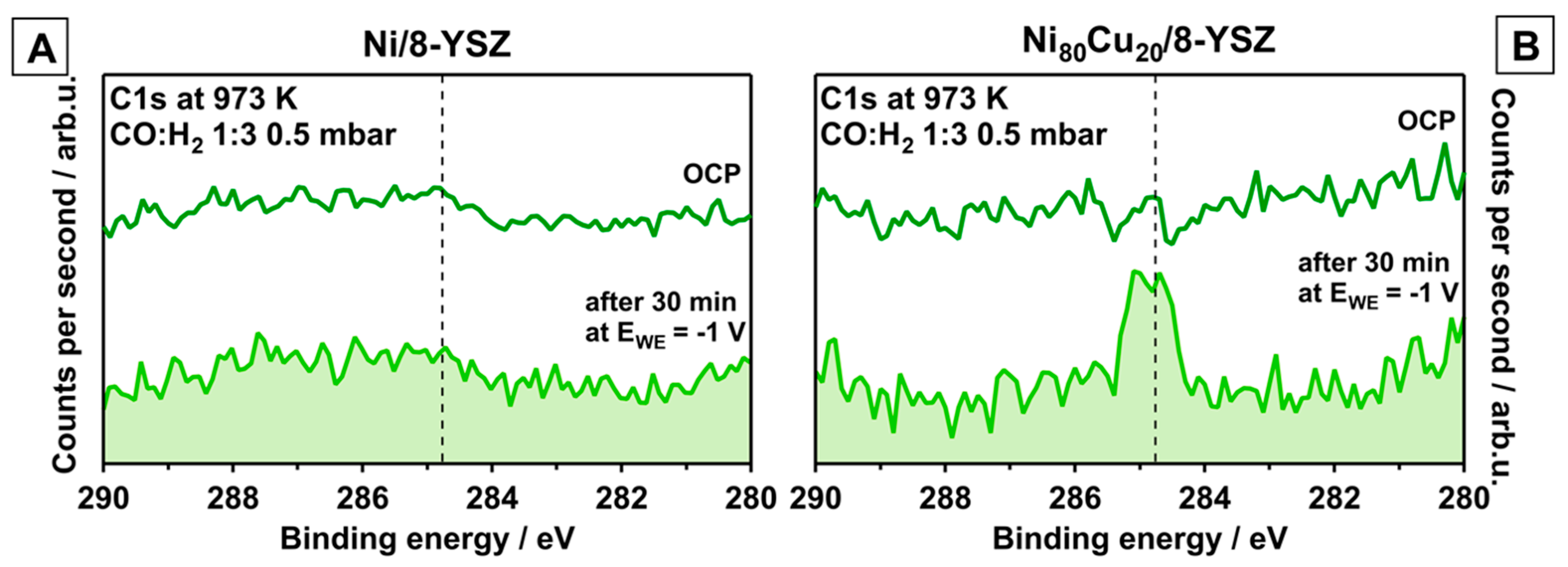

To elucidate the C_TPB reactivity toward H₂ on Ni/8-YSZ and Ni₈₀Cu₂₀/8-YSZ, the reaction mixture was changed to 0.125 mbar CO and 0.375 mbar H₂ (total pressure 0.5 mbar; CO:H₂ ratio = 1:3). The XP spectra of the C 1s region shown in Figure 2, recorded in situ at 973 K, show no carbon growth at open-circuit-potential (OCP). After applying a cathodic potential of −1.0 V for 30 min on either system, a graphitic-like C_TPB-related peak appears only on the Ni₈₀Cu₂₀/8-YSZ electrode (BE ≈ 284.7 eV). According to literature there are pronounced differences regarding the carbon bulk solubility on NiCu (low) vs. pure Ni (high) [16] and the carbon clean-off with H₂ (reaction (6)) on NiCu (low) vs. Ni (high) [20]. These material/catalytic properties confirm the result of a hampered segregation, especially of C_TPB on Ni, and a more pronounced accumulation of graphitic-like carbon (resulting from C_TPB) at the NiCu surface. This raises the question of whether this additional carbon species is kinetically available at all for enhanced methane formation through reaction (6). Equilibrium thermodynamics generally favor the reversal of (6) at increasing temperatures [3], but can be counteracted by the law of mass action (7), which predicts increasing methane pressures with increasing carbon activity a(C). In turn, a(C) can be varied via polarization through equilibrium (3). Figure S3 in the supporting information provides the respective calculated equilibrium partial pressures of CH₄ at 973 K as a function of a(C), based on data from [30].

Mechanistically, we suggest at least three different reaction pathways for C_TPB:

(a)

Clean-off reaction with H_ads toward CH₄, which is a function of the available active hydrogen species;

(b)

Dissolution of C atoms in the (bi)metal bulk;

(c)

Accumulation of graphitic-like carbon.

Pathways (a) and (b) are disfavored on NiCu according to [16,20] as compared to Ni, therefore explaining the observed accumulation of graphitic-like carbon on NiCu via pathway (c).

3.2. Electrochemically Promoted Methane Formation

In principle, the promotion of a(C) through reaction (3) via cathodic polarization can increase CH₄ formation thermodynamically through equilibrium (7). Whether the kinetics are in favor of a faster methanation or not depends on the reactivity of the specific TPB sites, the H₂-reducibility of the electrolytically generated carbonaceous species, and the influence of a potential EPOC effect at the metal.

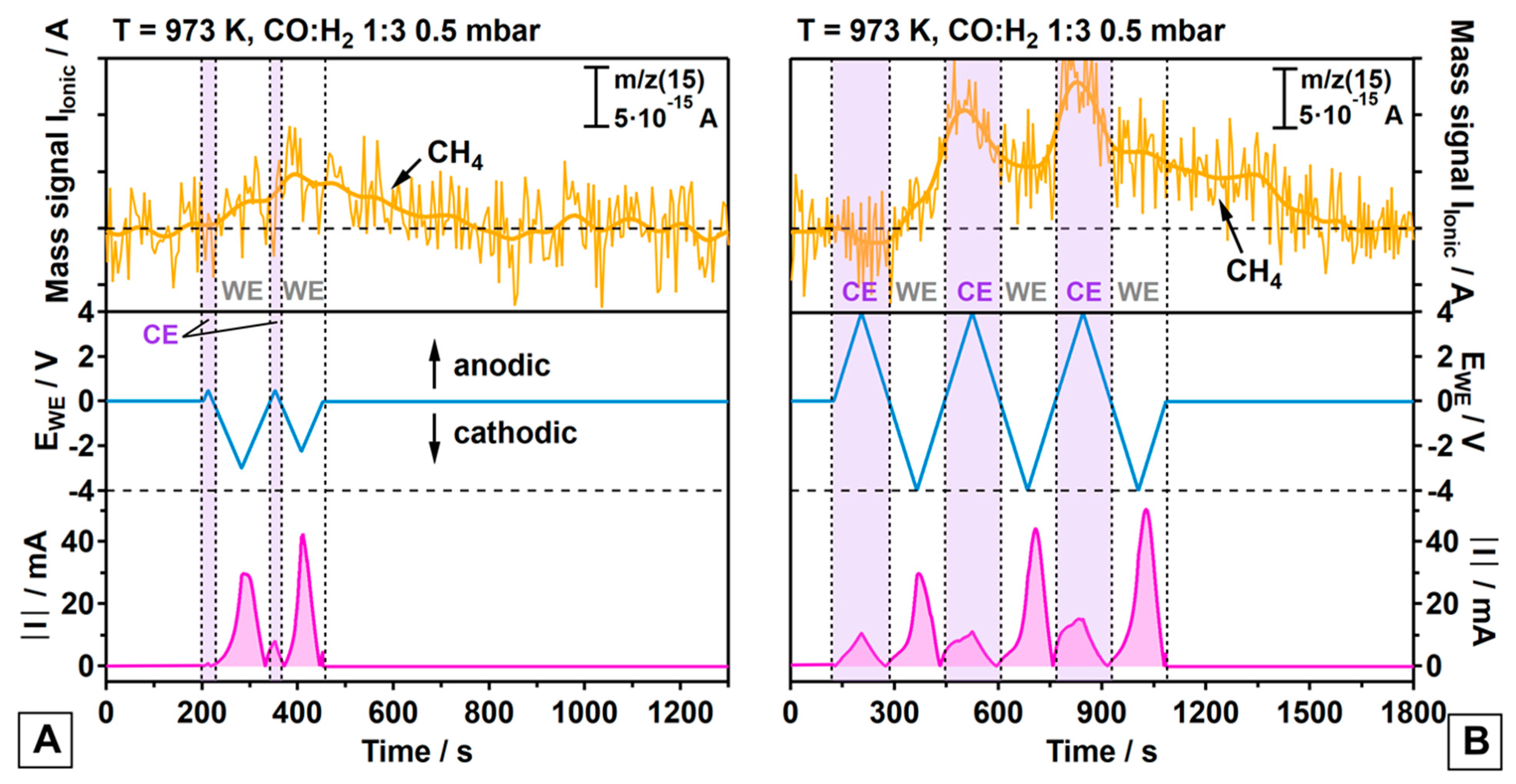

Cyclo-voltammetry (CV) combined with quadrupole mass spectrometry (QMS) allows us to monitor methane formation online under high-temperature conditions (973 K, Figure 3). The bottom region of Figure 3 represents the chosen sequence of linear sweeps of the potential (E_WE, scan rate = 50 mV/s, blue trace) and the resulting current (I, pink trace) as a function of time. As the SOEC is operated in a single reactant gas atmosphere (i.e., no separated anode and cathode compartments), the QMS detects gaseous species produced by both electrode sides, which makes a distinction between products formed at the WE vs. CE necessary (possible anode reactions: oxidation of CO, H₂, and/or already deposited, hydrogenation-inactive C to CO₂, H₂O, or CO). As mentioned above, the thermo-catalytic ground levels of the CO methanation rate are largely different on Ni(Cu) vs. Pt, and the contribution of the Pt side can be neglected. The potential was swept between −4 V and +4 V to generate high current densities and, thus, appropriate quantities of products for the QMS detection, both at the Ni₈₀Cu₂₀/8-YSZ WE and the Pt/GDC-10 CE (Figure 3B). In panel A, the CV sweeps were limited to a strong cathodic polarization of the WE only, in order to suppress superimposed QMS intensity via cathodic polarization of the CE. The time-dependent intensity changes of the CH₄-specific (m/z = 15) signal measured during the sweeps can be directly correlated to the alternating potentials applied to the WE/CE (violet shaded area for the CE) and the respective electrolysis current changes. For details regarding QMS data analysis and I vs. E curves, we refer to the SI (Figure S4).

The main results derived from the data of Figure 3 are as follows:

(a)

On both the WE and the CE, the methanation reaction is promoted via cathodic polarization triggering reaction (3);

(b)

Ongoing reaction (6) suggests the contribution of a faradaic enhancement in activity on both electrodes via an increase in the surface carbon activity (a(C), compare equation (7));

(c)

Methane formation is much more promoted on the Pt/GDC-10 CE than on the WE, irrespective of Ni or Ni₈₀Cu₂₀ being used as the metallic WE phase;

(d)

Methane promotion at the CE is associated with a much smaller charge transfer for the CO electrolysis reaction (3) as compared to the WE, suggesting a relatively higher efficiency in the hydrogenation of surface C;

(e)

The first cathodic polarization cycle of the CE yields no measurable CH₄ formation but is expected to activate the CE for CH₄ formation for the second cycle. It appears likely that the oxygen-ion buffering GDC requires sufficient oxygen-ion withdrawal in a first cycle to activate the TPB in terms of generating a proper oxygen vacancy concentration;

(f)

Once the CE is activated, the time-response of formation of additional CH₄ from C_TPB is much faster on the CE, as deduced from the synchronicity of cathodic CE polarization and the accelerated CH₄ increase;

(g)

CH₄ formation on the WE starts immediately at the beginning of the first cathodic polarization cycle, but then increases rather slowly and is associated with a smaller amount of CH₄ yielded from C_TPB, especially in view of the much larger integral charge transfer. The response of CH₄ formation to the alternating potential is very sluggish on the WE as compared to the CE.

The CO methanation results suggest that more C_TPB must have been formed electrochemically on Ni₈₀Cu₂₀/8-YSZ than on Pt/GDC-10 but remains kinetically less reactive toward methane formation. Considering the strongly different properties of the WE and CE materials, it appears reasonable that less C_TPB accumulates on Pt in the presence of H₂, as carbon is bonded less strongly and is therefore more reactive toward H(ads) on Pt relative to Ni. Moreover, H₂ activation is highly efficient on the carbon-free Pt surface. The fact that the onset of CH₄ formation is hardly delayed on the WE but needs a full cathodic activation cycle on the CE can be explained by the much higher oxygen exchange capacity of GDC in comparison to 8-YSZ. While any oxygen vacancy in 8-YSZ generated electrochemically at the WE side is immediately quenched by the splitting of CO toward lattice oxygen and C_TPB, GDC likely requires an enhanced reductive activation by withdrawing sufficient lattice oxygen before CO can become dissociated at the TPB.

4. Conclusions

In summary, the oxidative de-coking reaction of pre-deposited C_TPB in the presence of CO₂ (C_TPB + CO₂ → 2 CO) works more efficiently on Ni₈₀Cu₂₀, supporting its previously reported enhanced coking resilience in the presence of CO₂ relative to clean Ni [16].

The original goal of this study, namely the quantitative distinction of the electrochemical enhancement of CO-methanation on clean Ni vs. Ni₈₀Cu₂₀, is not sufficiently reliable in view of the signal-to-noise ratio of the available QMS data. Ni/8-YSZ and Ni₈₀Cu₂₀/8-YSZ show almost indistinguishable CH₄ formation properties, as shown in Figure S5 of the SI. These operando XPS measurements validate the accumulation of additional C_TPB only on Ni₈₀Cu₂₀/8-YSZ during the chronoamperometric experiments in a CO/H₂ atmosphere at −1.25 V, whereas on Ni/8-YSZ, no C_TPB is visible at −1.00 V. However, the methane QMS signal (m/z = 15) increases similarly on both electrodes until the polarization is turned off. Based on the carbon dissolution properties (Ni > NiCu) and H_ads kinetics (Ni > NiCu), and together with results shown in Figure 2 and Figure S5, it can be concluded that on pure Ni/8-YSZ, electrochemically-induced C atoms at the TBP (i) become hydrogenated to CH₄ and (ii) are more easily dissolved in the Ni bulk and, therefore, do not accumulate at the surface, which can explain why they are not spectroscopically detectable. Figures S6 and S7 provide evidence for the metallic state of Ni and Cu anticipated under strongly reductive CO/H₂ conditions. Together with the O1s region, no significant redox changes of Ni or Cu in the XP-spectra upon polarization (OCP vs. −1.25 V) were detected. Essentially, one would expect NiCu to be a poorer thermal/non-electrochemical CO and/or CO₂ methanation catalyst than pure Ni [18,19,20], but it remains unclear whether a specific superposition of faradaic and non-faradaic (EPOC) promotional effects can revert this trend. The preferential coking of NiCu under cathodic polarization in CO/H₂ represents a hint for a delayed reaction of C_TPB toward CH₄, suggesting that NiCu offers little, if any, advantages relative to pure Ni. Whether the electrochemically-induced adsorbate and carbon chemistry affects the local Cu/Ni segregation behavior, and therefore alter the associated gas–surface interactions [29], remains open too, and calls for non-porous model electrode systems.

Nevertheless, the remaining central message of this work refers to the appropriate choice of materials in creating a (bi)metal—mixed oxide electrolyte interface for optimized thermodynamic enhancement of CH₄ yield. The combination of reactive C_TPB and high H(ads) coverages on the metallic component with suppressed coking and superior properties of the metal–electrolyte interface for C-O bond activation is the key for electrochemical enhancement of the CH₄ yield in the co-electrolysis of CO₂ and water via intermediate CO and H₂. Obviously, these prerequisites are better matched with Pt/GDC than by Ni(Cu)/YSZ.
