Hybrid Carbon-Based Clathrates for Energy Storage

Abstract

Hybrid carbon–silicon, carbon–nitrogen, and carbon–boron clathrates are new classes of Type I carbon-based clathrates that have been identified by first-principles computational methods by substituting atoms on the carbon clathrate framework with Si, N, and/or B atoms. The hybrid framework is further stabilized by embedding appropriate guest atoms within the cavities of the cage structure. Series of hybrid carbon–silicon, carbon–boron, carbon–nitrogen, and carbon-silicon-nitrogen clathrates have been shown to exhibit small positive values for the energy of formation, indicating that they may be metastable compounds and amenable to fabrication. In this overview article, the energy of formation, elastic properties, and electronic properties of selected hybrid carbon-based clathrates are summarized. Theoretical calculations that explore the potential applications of hybrid carbon-based clathrates as energy storage materials, electronic materials, or hard materials are presented. The computational results identify compositions of hybrid carbon–silicon and carbon–nitrogen clathrates that may be considered as candidate materials for use as either electrode materials for Li-ion batteries or as hydrogen storage materials. Prior processing routes for fabricating selected hybrid carbon-based clathrates are highlighted and the difficulties encountered are discussed.

1. Introduction

Type I and Type II carbon clathrates (C₄₆ and C₁₃₆), which can be considered as analogs of carbon fullerene materials, are composed with face-sharing C₂₀, C₂₄, and C₂₈ cages linked through sp³-covalent bonds. Theoretical computations have shown that both Type I carbon clathrate (C₄₆) and Type II carbon clathrate (C₁₃₆) may exist as metastable phases under high pressures [1,2,3]. The cage structure of Type I carbon clathrate, C₄₆, is shown in Figure 1. Insertion of guest atoms such as Li, Na, or Ba into the cage structures has been predicted to be feasible under high pressures. However, the energies of formation for the Type I and Type II carbon clathrates are extremely high and neither Type I nor Type II carbon clathrates have been synthesized. On the other hand, Type I and Type II silicon clathrates (Si₄₆ and Si₁₃₆), which are composed with face-sharing Si₂₀, Si₂₄, and Si₂₈ cages, have been synthesized via a number of processing routes. Furthermore, various types of Type I and Type II silicon-based clathrates have also been synthesized with and without framework substitution. Substitution of the framework Si atoms with alloying elements such as Al, Cu, Ni, Ag, and among others Zn, have been reported [4]. The framework-substituted compounds are actually more stable and exhibit improved electronic, thermoelectric, and superconductive properties compared to the stoichiometric counterparts. These experimental observations suggest that it might be possible to develop a new class of hybrid carbon clathrates by substituting the carbon framework in C₄₆ or C₁₃₆ with Si, nitrogen, or boron atoms.

The aim of this article is to review the current research on hybrid carbon-based clathrates, including the theoretical basis of the compounds and their properties, the synthesis of selected compounds, and their potential applications as energy storage materials. The current status of carbon clathrates is summarized first. The applications of first-principles methods to designing and identifying potential hybrid carbon–silicon clathrates are then highlighted. The potential applications of these hybrid carbon clathrates as energy storage materials, electronic or electrode materials, as well as hard materials, are explored and assessed. Current Li-ion batteries utilize C- or Si-based anodes. The cage structures of hybrid carbon clathrates may enable Li storage and promote the development of high capacity anodes for Li-ion battery applications. Lastly, the current status of the synthesis of selected carbon–silicon and carbon–nitrogen clathrates are reported and their challenges are discussed, followed by a summary and conclusions.

2. Carbon Clathrates

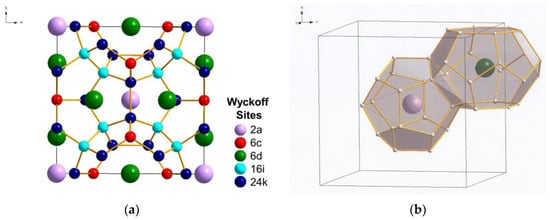

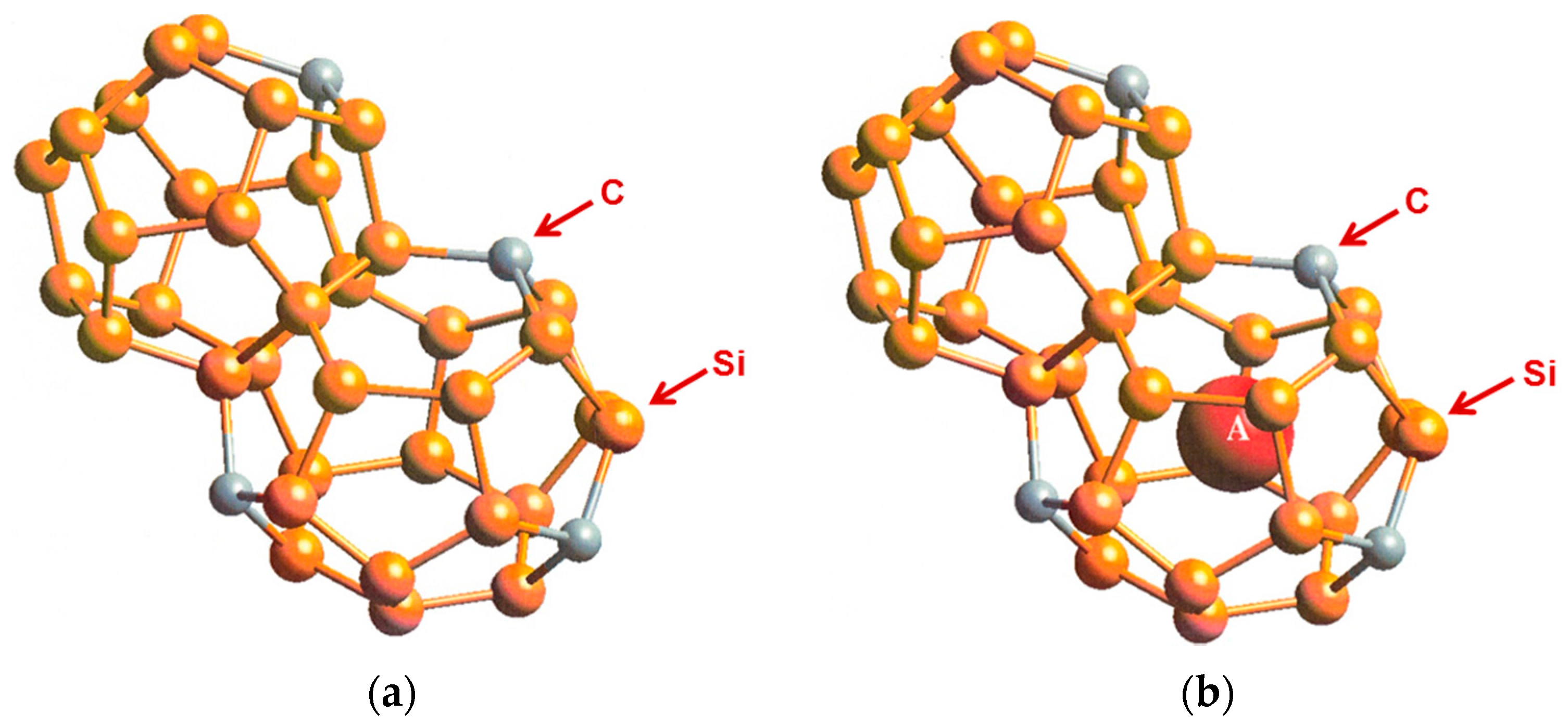

Type I carbon clathrate, C₄₆, is comprised of a framework of C atoms forming a 3D cage structure in sp³ bonding [5]. The unit cell of C₄₆ is depicted with the positions of the Wyckoff sites in Figure 1a, while the cage structure is shown in Figure 1b. Type I carbon clathrate, C_46, consists of 46 sp³ C with a regular arrangement of two 20-atom cages and six 24-atom cages that fuse together through five-atom pentagonal rings and occasionally six-atom rings (Figure 1b). The bond angle of the five-atom pentagonal rings is 108°, while it is 109.49° for the six-atom hexagonal rings [5]. The structure is simple cubic (sc) with a lattice parameter of 6.696–6.722 Å and 46 C atoms per unit cell [1,2]. The crystal structure of C₄₆ clathrate belongs to the space group $Pm\overline{3}n$ and space group number 223 [1,2]. Type I clathrates can be alloyed by framework substitution and guest atom insertion into the cage structure. For example, some of the framework atoms of a Type I clathrate can be substituted by atom M, while the empty space within the cage structure can serve as host sites for guest atoms A, as shown in Figure 1b. There are two small cages that can host two guest atoms at the Wyckoff 2a sites and there are six large cages that can host six atoms at the Wyckoff 6d sites without a significant effect on the unit cell volume. Type I alloyed carbon clathrates can be described by the formula: A_xM_yC_46-y [1,3,4], where A and M represent the guest and substitution atoms and x and y represent the number of guest and substitution atoms, respectively. A representative C framework and the Li guest atoms at Wyckoff 2a and 6d sites are shown in Figure 1b. The structure of Type II carbon clathrate (C₁₃₆) is comprised of four C₂₀ cages and two C₂₈ cages that are fused together through six-atom hexagonal rings. It has a face-centered cubic structure (fcc) and belongs to the space group Fd3m with 34 atoms per unit cell or 136 atoms per supercell. The lattice parameter of C₁₃₆ is about 9.647–9.689 Å, as tabulated in

Table 1. Calculated equilibrium volume (V₀ in ų/atom) and lattice parameters (a₀, c₀ in Å), cohesive energy (E_coh), and energy of formation (ΔE_f) for fcc-C₁₃₆, sc-C₄₆, hcp-C₄₀, diamond, and graphite at zero pressure, compared to available experimental data for diamond graphite and calculated data for C₄₆ and C₁₃₆. Modified from Wang et al. [2].

Structure	Method	V0 (Å3atom)	a0 (Å)	c0 (Å)	Ecoh, eV/Atom	ΔEf, eV/Atom
fcc-C136	VASP a [2]	6.601	9.647		−7.709 [2]	0.074
	DMOL b [6]	6.688	9.689	N.A.	−7.263 [6]	0.087
	CPMD c [5]					0.07
sc-C46	VASP [2]	6.543	6.702	N.A.	−7.677 [2]	0.106
	DMOL [6]	6.604	6.722	N.A	−7.235	0.115
	VASP [7]	6.526	6.696	N.A		0.09
	VASP [8]		6.6973			0.08
	CPMD [8]		6.7138			0.14
	CPMD [5]					0.09
	CRYSTAL95 [9] d	6.259	6.7029			0.20 [3]
hcp-C40	VASP [2]	6.609	6.695	6.809	−7.656	0.127
	DMOL [6]	6.697	6.725	6.839	−7.213	−0.013
Diamond	VASP [2]	5.705	3.574	N.A.	−7.783	0
	DMOL [6]	5.787	3.591		−7.350	0
	Expt. [10,11]	5.673	3.567		−7.20	0
Graphite	VASP [2]	8.878	2.470	6.721	−7.916	−0.133
	DMOL [6]	8.983	2.479	6.747	−7.516	−0.166
	Expt. [10,11]	8.803	2.662	6.708	−7.40	−0.20

^a Vienna Ab-initio Simulation Package (VASP) code [12]; ^b Density Functional Calculations on Molecules (DMOL) [6]; ^c Car-Parrinello Molecular Dynamic (CPMD) code [13,14]; ^d CRYSTAL95 code [9]. Expt. denotes experimental data.

[2]. The hexagonal carbon clathrate (hcp-C₄₀) is comprised of three C₂₀, two C₂₄, and two C₂₆ cages; it belongs to the space group P6/mmm with 40 atoms per unit cell. The lattice parameters of Type I, Type II, hexagonal carbon, graphite, and diamond are compared in Table 1 [2].

Hypothetical carbon clathrates were first investigated by Nesper et al. [5] who used density functional theory (DFT) to examine the cage-like structures that can be derived from zeolites or are related to the zeolite topology. Most of the compounds investigated by Nesper et al. exhibit higher formation energy compared to that of carbon with diamond structure, but carbon clathrate I and II exhibit only slightly higher formation energies than diamond. Benedek et al. [6] identified fcc-C₃₄, hcp-C₄₀, and sc-C₄₆ as the first three periodic lattices in a series of polyhedric sp³ carbon networks that are formed under the topological restrictions of four-fold coordination comprised of only five- or six-fold rings. A theoretical study of the phase stability of carbon clathrates at high pressures revealed that fcc-C₁₃₈ (Type II) and sc-C₄₆ (Type I) are, respectively, the third and fourth most stable carbon phase after diamond and graphite [2]. A pressure-induced phase transition from graphite to fcc-C₁₃₈ is predicted to occur at a pressure of around 17 GPa and about 21 GPa for C₄₆. Additional carbon compounds at higher energy states include those of hcp-C₄₀ and M-carbon [2]. Ker et al. [15] suggested that small atoms such as Li and Be may be intercalated into the cages of Type I carbon clathrates to enhance phase stability. First-principles computations by Bernasconi et al. [16] showed that hcp-C₄₀ is suitable to be n doped by Li insertion and p doped by substitutional B. Theoretical computations by Rey et al. [1] showed that Li atoms can indeed be intercalated into the small cages of C₄₆ to form Li₈C₄₆ but the energy of formation of the lithiated compound is increased compared to the unlithiated C₄₆ [1]. These investigators also showed that the minimum energy barriers for attaining C₄₆ and Li₈C₄₆ may be reached at a pressure close to 40 GPa, suggesting that these metastable phases may be synthesized under extreme conditions of high pressure and temperature [1]. Reported synthesis of 3D cage-like covalent crystals such as C₂₀ [17], C₃₆ [18], and traces of other compounds such as C₆₀ and C₇₀ [7,18] suggests that the high-temperature and high-pressure route might be a viable processing method. Unfortunately, no carbon clathrates have been synthesized so far. The bonding type (i.e., sp³ or sp²) of some of these carbon clusters has not been characterized or positively identified.

3. Hybrid Carbon–Silicon Clathrates

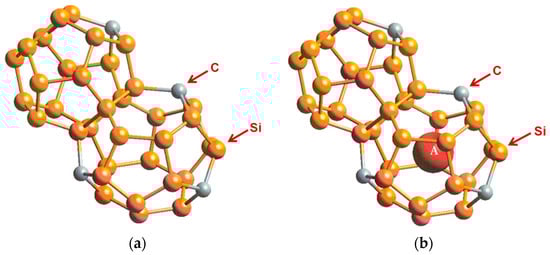

To overcome the difficulties associated with synthesizing carbon clathrates under extreme conditions, Chan et al. [8] considered the use of first-principles methods to identify appropriate small-sized atoms that could be amenable to the formation of new silicon-based clathrate compounds for energy storage and/or harvesting applications. This approach was motivated by the recognition that silicon clathrates are readily synthesized by conventional processing methods. As such, a clathrate with a hybrid carbon–silicon framework may be more amenable to conventional processing than that with a carbon framework. Thus, a series of Type I hybrid carbon–silicon compounds was designed by substituting some of the Si atoms on the Si₄₆ framework with C atoms in order to identify the potential hybrid carbon–silicon clathrate compounds that exhibit favorable energy of formation for synthesis by conventional methods. First-principles computations were performed by Chan et al. [8] based on the Car–Parrinello molecular dynamics (CPMD) code [13,14] to investigate the effects of carbon substitution on a Si₄₆ framework. These calculations indicate that carbon atoms can partially substitute Si atoms on the Si₄₆ framework to form a metastable hybrid silicon–carbon clathrate, which can be represented by the chemical formula C_ySi_46-y. Figure 2a shows a representation of the Type I C_ySi_46-y clathrates. Furthermore, guest atoms can be inserted into the cage structure to stabilize the hybrid silicon–carbon clathrate by reducing the energy of formation, forming a class of new hybrid silicon and carbon clathrates represented as A_xC_ySi_46-y. These hybrid structures do not exist in nature and, thus, represent a novel structure of matter. Figure 2b shows a structural representation of the Type I A_xC_ySi_46-y clathrate compounds. The computed values for changes in the energy of formation per atom for selected Ba₈C_ySi_46-y, C₄₆, C₄₀Si₆, and C₂₃Si₂₃ are compared with those for Si₄₆ and Ba₈Si₄₆ in Figure 3. The minima of the energy change curves of these Ba₈C_ySi_46-y clathrate compounds are positive, indicating that these compounds are metastable.

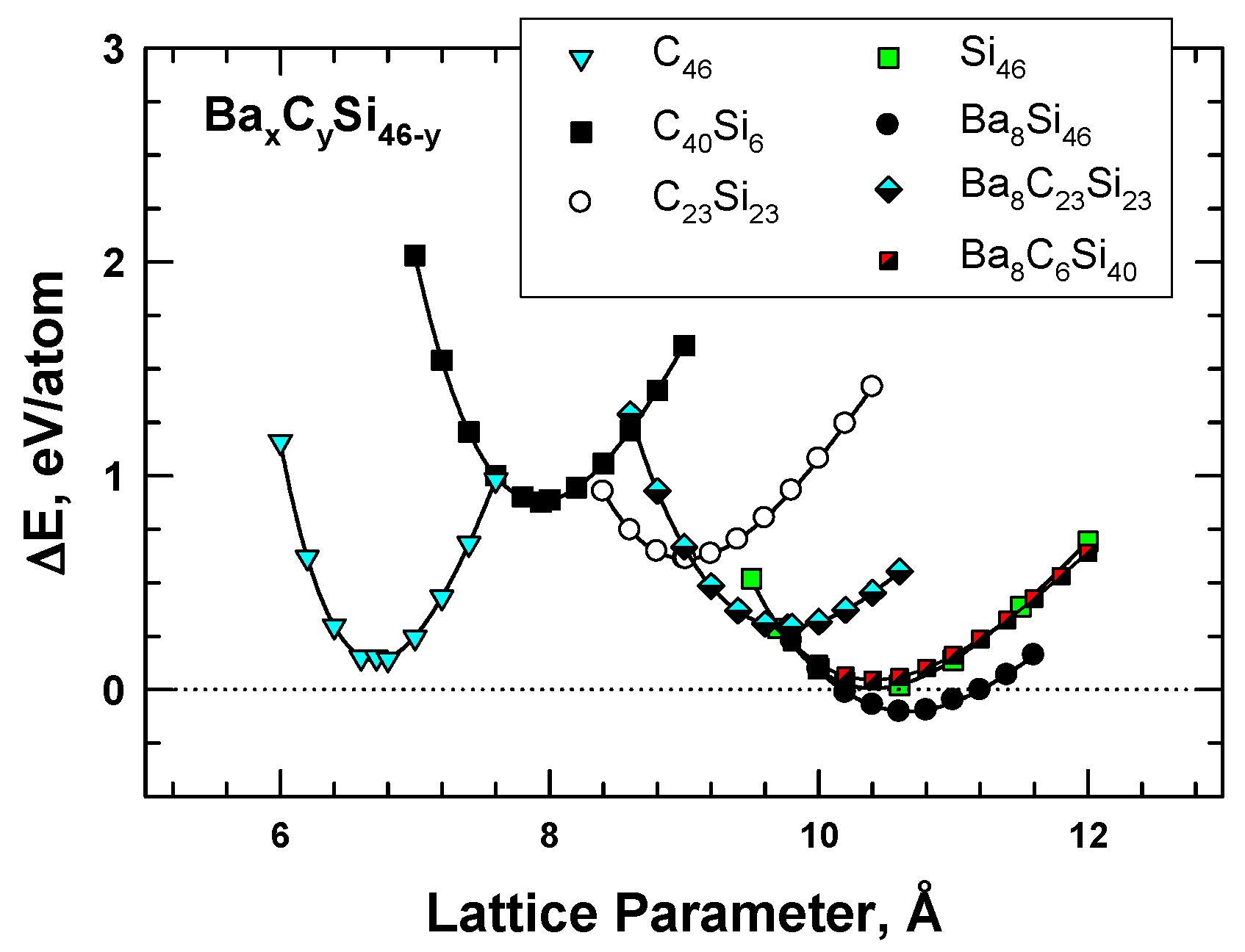

The role of the guest atoms on the energy of formation (ΔE_f) of hybrid carbon–silicon clathrates was examined by inserting Li, K, Na, and Ba into the cage structure as guest atoms. Figure 4 presents the energy calculations for these hybrid carbon–silicon clathrates. The results show that several hybrid carbon–silicon clathrates exhibit relatively low ΔE_f values. Specifically, the energy of formation values for certain A_xC₆Si₄₀ are about 0.3 eV or less. Furthermore, the lattice parameter of these Type I clathrates can be lowered by inserting appropriate guest atoms into the cage structure.

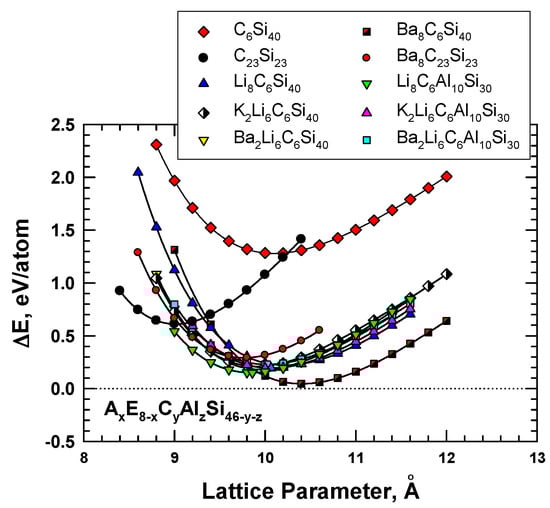

A_xE_8-xC_yAl_zSi_46-y-z are variant compounds of the A_xC_ySi_46-y clathrates that are formed by multiple alloying schemes, including (1) inserting guest atoms (A and E) into the cage structure, and (2) substituting C and Al atoms in the framework. The substitution of Al in the framework was motivated by the successful processing of these compounds by conventional vacuum arc-melting techniques [19]. According to the first-principles computations reported by Chan et al [8], Al substitution causes the framework to expand and leads to a larger lattice parameter, while C substitution produces the opposite effect, as shown in Figure 4. The insertion of guest atoms such as Ba, K, and Li tends to improve the stability of Al- and C-substituted frameworks by reducing the energy of formation. In addition, the equilibrium lattice constant and the framework size can be decreased by inserting alkaline atoms, as shown in Figure 4, for Li₈C₆Al₁₀Si₃₀ and Ba₂Li₆C₆Al₁₀Si₃₀.

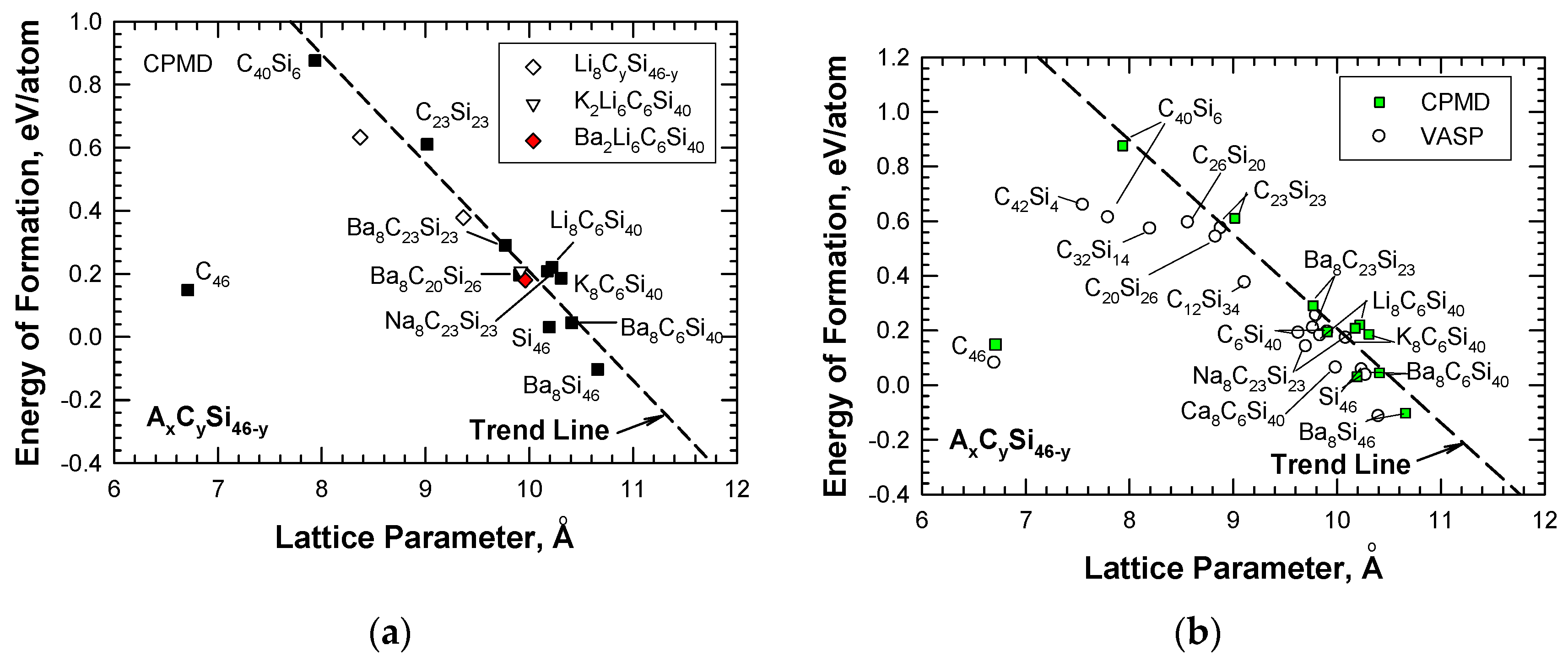

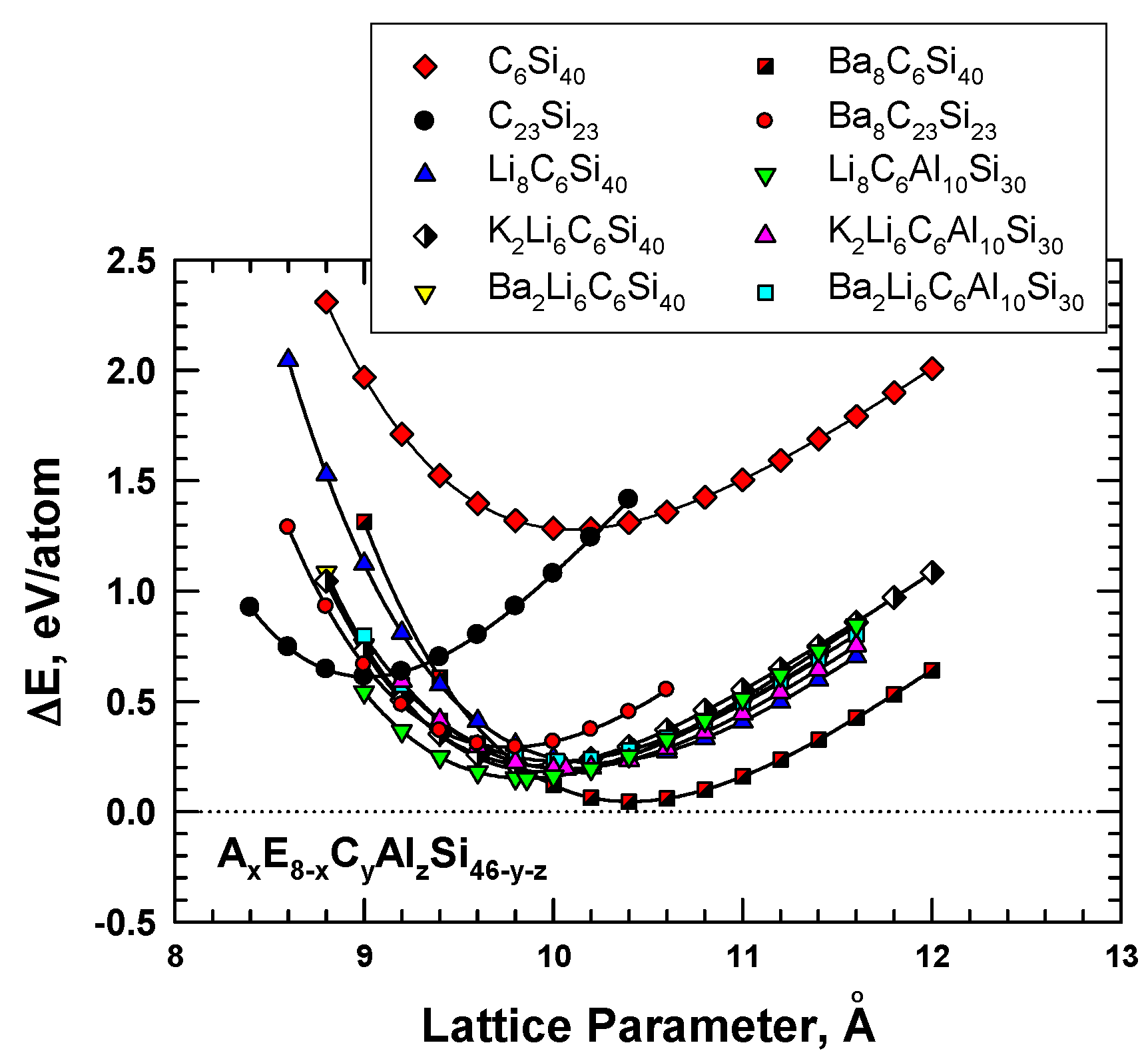

The CPMD results were used to establish a correlation between the energy of formation and the lattice parameter for hybrid carbon–silicon clathrates A_xC_ySi_46-y with guest atoms A, which include alkaline metals such as Li, Na, K, and Ba. The correlation (shown in Figure 5a) indicates that the alkaline guest atoms generally lower the energy formation but increase the lattice constant of the hydride clathrates. Figure 5a depicts that all of the carbon-substituted silicon clathrates exhibit positive values of energy of formation, indicating that these clathrate compounds are metastable. Figure 5a also shows that the trend line deviates from C₄₆. To validate the CPMD computations, the energies of formation for the same series of hydride clathrates were computed using the Vienna Ab initio Simulation Package (VASP) code [12]. These two sets of energy of formation computations for A_xC_ySi_46-y are compared in Figure 5b, which shows that, in general, there is good agreement between the CPMD and VASP computations, including the energy of formation for C₄₆. One source of the discrepancies between VASP and CPMD computations for C₄₀Si₆ has been identified to arise from the slight differences in the relaxed atom positions. As the number of carbon atoms in the framework increases, the VASP results for the carbon-rich clathrates tend to deviate from the trend and lean toward C₄₆. Nonetheless, a gap remains between C₄₆ and carbon-rich clathrates such as C₄₂Si₄ and C₄₀Si₆. The finding suggests that the energy and lattice parameters of C_46-xSi_x increase rapidly when x is in the range of 1 < x < 4. In addition, the computed value of the energy of formation is sensitive to the relaxed atom positions.

4. Hybrid Carbon–Nitrogen and Carbon–Boron Clathrates

4.1 Hybrid Carbon–Nitrogen Clathrates

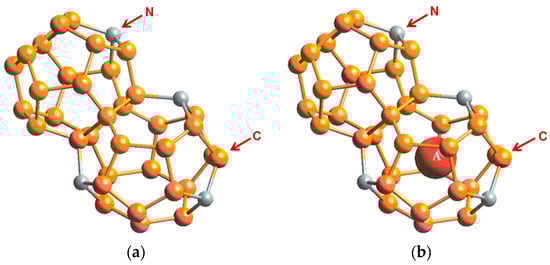

First-principles computational studies by Chan et al. [20] using the Car-Parrinello molecular dynamics (CPMD) code [13,14] indicate that hybrid carbon–nitrogen clathrates, N_yC_46-y, may be formed by substituting selected carbon atoms with nitrogen atoms in the C₄₆ framework. The structure of Type I N_yC_46-y clathrates is presented in Figure 6a. Insertion of a guest atom A (e.g., Li) into the cage structure leads to the formation of A_xN_yC_46-y. Figure 6b shows a structural depiction of Type I A_xN_yC_46-y clathrate with a Li guest atom.

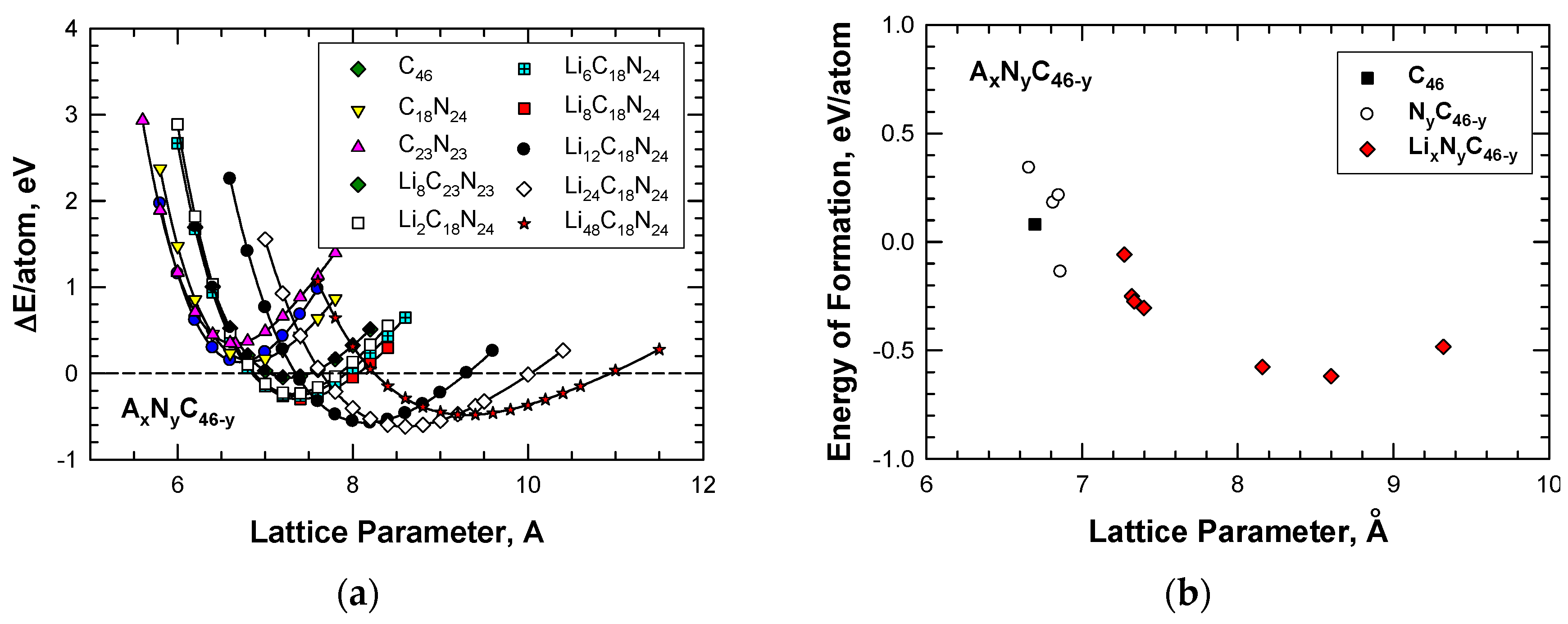

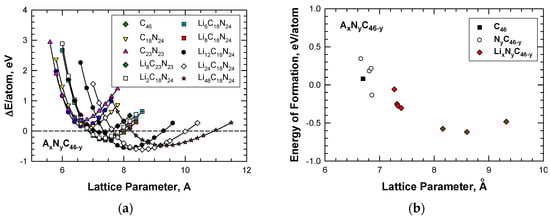

According to the first-principles computations by Chan et al [20], Li insertion improves the stability of the hybrid C–N framework. Figure 7a shows that insertion of Li atoms lowers the energy formation and at the same time expands the framework to a large lattice parameter when the number of Li atoms inserted into the cage structure is increased from 2 to as high as 48. For illustration,

Table 2. Summary of the computed lattice constant a_o and energy of formation ΔE_f for Type I carbon clathrate compounds. From Chan et al. [20].

Compound	ao, Å	ΔEf, eV/Atom
C46	6.6973	0.0815
C18N24	6.8622	−0.1377
C19N27	6.8148	0.1803
C20N26	6.8502	0.2144
C23N23	6.6596	0.3416
Li2C18N24	7.3192	−0.25
Li6C18N24	7.3336	−0.2742
Li8C18N23	7.3979	−0.3051
Li8C23N23	7.2716	−0.0578
Li12C18N24	8.1592	−0.5765
Li24C18N24	8.6003	−0.6192
Li48C18N28	9.3206	−0.4832

presents a summary of the energies of formation, together with the corresponding lattice constants, for Type I carbon-based clathrate compounds with and without Li insertion. In addition, the computed values of the energy of formation per atom for these carbon-based clathrate compounds, which include C₄₆, N_yC_46-y-z, and Li_xN_yC_46-y, are presented in Figure 7b. From the results presented in Figure 7b, it is apparent that at the proper nitrogen level, nitrogen substitution can reduce the energy of formation and improve the stability of the N_yC_46-y framework compared to carbon clathrate (C₄₆). Furthermore, Li insertion reduces the energy of formation of the Li_xN_yC_46-y clathrates to negative values, which indicates that these compounds are more stable than C₄₆.

4.2. Hybrid Carbon–Boron Clathrates

Using VASP [12], Zeng et al. [21] computed the energy of formation and band gaps for five different Li-filled, B-substituted carbon clathrates including Li₈C₃₈B₈ (Type I), Li₆C₂₈B₆ (Type II), Li₇C₃₃B₇ (Type IV), Li₂C₁₀B₂ (Type VII), and Li₆C₂₈B₆ (Type H) at the ground state. A range of strategies has been utilized to determine the energetics of replacing selected carbon atoms on the framework with boron substitution atoms and Li insertion in order to achieve a lower enthalpy and a more stable clathrate compound. These strategies have included crystal symmetry, charge distribution, strengthening bonding, relieving bond angle, and reducing lattice strain. Based on these strategies, a representative low-enthalpy Li-doped, B-substituted candidate for each type of the five clathrates has been identified. Several energetically competitive structures, however, exist for each clathrate type. These authors concluded that B substitution stabilizes the cage structure and substantially lowers the energy cost for inserting Li atoms into the clathrate cages to about −2eV/Li at 1 atm pressure [21]. In addition, all five carbon clathrates display a semiconducting electronic structure. Li doping of the B-substituted carbon clathrates reduced the band gaps of the carbon clathrate compounds to the range of 0.6 to 2.9 eV [21].

Zeng et al. [21] also investigated theoretically two possible competing routes for synthesizing Li_xC_yB_x: (1) formation of LiBC and (2) the introduction of C vacancies. The authors indicated that LiBC formation is thermodynamically feasible but the process may be kinetically limited due to structural differences between LiBC and Li_xC_yB_x. The C-vacancy route, on the other hand, may be a costly process for stabilizing Li insertion in comparison to B substitution of the carbon framework. Because of kinetic constraints, the authors suggested that some of the Li_xC_yB_x clathrates may exist in amorphous forms.

5. Potential Applications of Hybrid Carbon Clathrates

5.1. Hybrid Carbon–Silicon Clathrates as Hydrogen Storage Materials

In an investigation focused on identifying new Si-based clathrates that may be suitable for use as hydrogen storage materials in transportation applications, Chan et al. [22] applied the VASP code [12] to compute the binding energy of hydrogen molecules in selected Type I Si-based and hybrid carbon–silicon clathrates. Si-based intermetallic clathrates were designed in two ways: (1) with or without an alkali metal guest atom (Na, Li, or Ba) in the cage structure, and (2) substitution of the Si framework with the insertion of other atoms such as C, Al, and Cu, in order to tune the void space inside the cage structure for maximum H₂ capacity and optimum binding interactions.

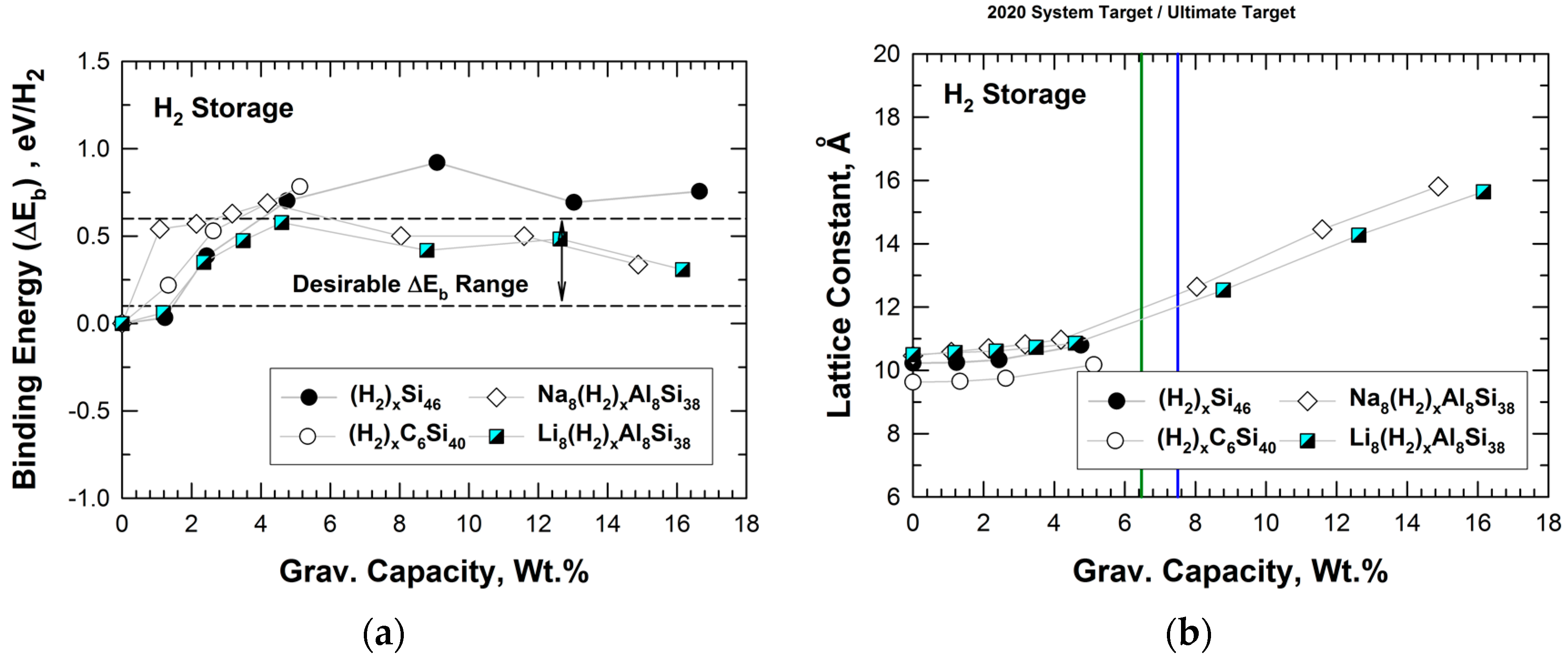

The DFT results of the binding energy (in eV/H₂) for hydrogenation of Si₄₆, C₆Si₄₀, Na₈Al₈Si₃₈, and Li₈Al₈Si₃₈ are presented in Figure 8a, which plots the binding energy versus gravimetric capacity in weight percentage. The gravimetric capacity was computed on the basis of the number of H₂ molecules stored within the cage structure. The dashed lines in Figure 8a indicate the desirable binding energy range for H₂ storage at ambient temperature. The results presented in Figure 8a show that the H₂ binding energy for Si₄₆ and C₆Si₄₀ increases with the number of H₂ molecules stored within the cage structure. In addition, Figure 8a shows that Na₈Al₈Si₃₈ and Li₈Al₈Si₃₈ exhibit hydrogen binding interactions that are within the desirable range for the entire range of gravimetric capacity considered, ranging from 8 to 128 H₂ molecules inserted. This finding suggests that Na₈Al₈Si₃₈ and Li₈Al₈Si₃₈ may possess a high capacity for physisorption of H₂ with suitable binding energy values for the potential application as H₂ storage materials at ambient temperature.

Figure 8b presents the lattice parameters of Si₄₆, C₆Si₄₀, Na₈Al₈Si₃₈, and Li₈Al₈Si₃₈ at several hydrogenation levels. From Figure 8b, it can be seen that the lattice parameters of hydrogenated Na₈Al₈Si₃₈ and Li₈Al₈Si₃₈ increase with increasing gravimetric capacity, while those of hydrogenated Si₄₆ and C₆Si₄₀ do not exhibit similar increases with gravimetric capacity. For comparison purposes, Figure 8b also presents the U.S. Department of Energy’s (DOE’s) system-level storage targets for onboard storage for vehicles for 2020 and for the fleet [23]. Both gravimetric and volumetric targets are presented in Figure 8b.

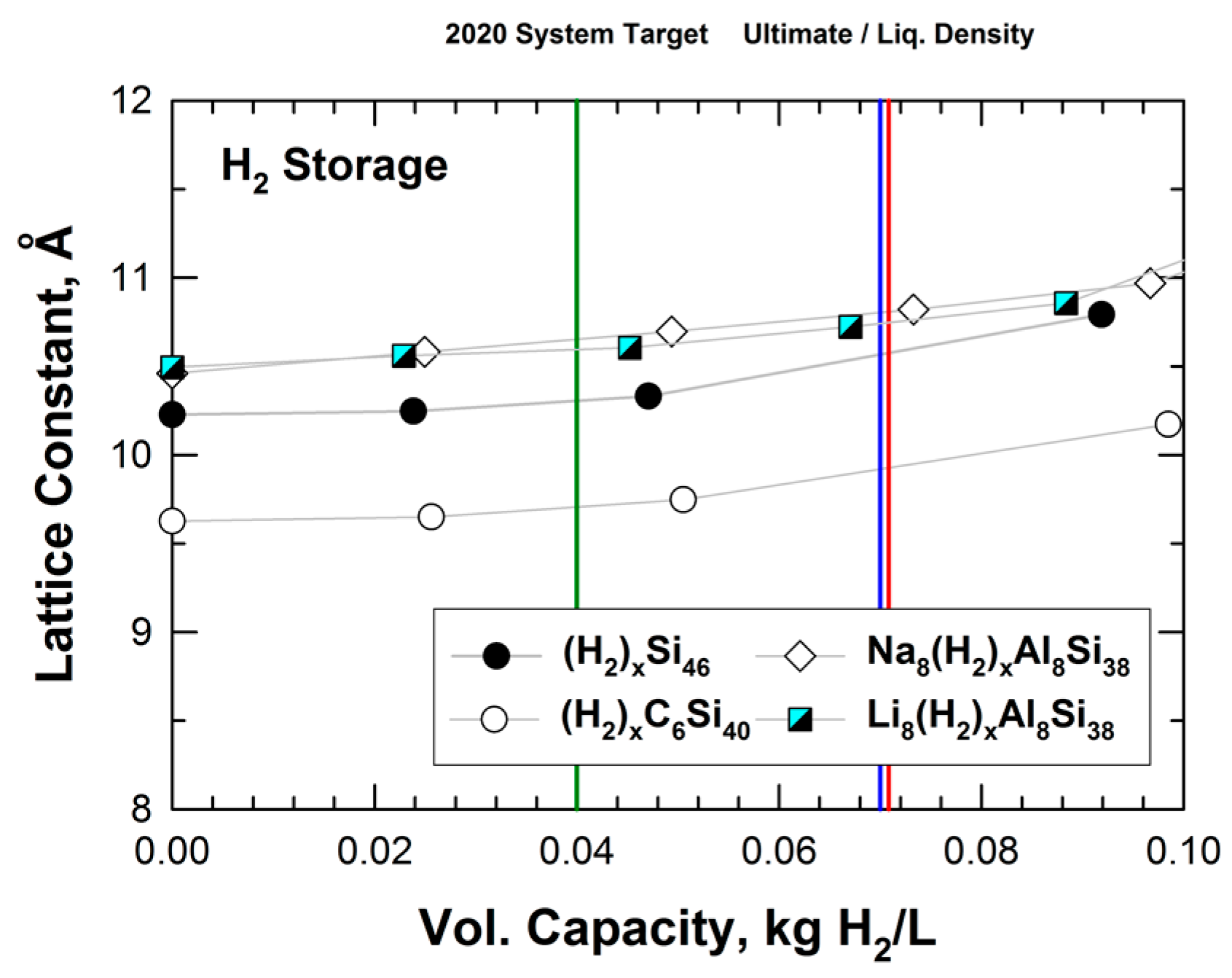

Figure 9 presents the results of the lattice parameters for hydrogenated Si₄₆, C₆Si₄₀, Na₈Al₈Si₃₀, and Li₈Al₈Si₃₈ as a function of volumetric capacity. From Figure 9, it appears that both the hybrid carbon and silicon clathrates (i.e., Si₄₆, C₆Si₄₀, Na₈Al₈Si₃₀, and Li₈Al₈Si₃₈) might be considered as promising storage materials since their volumetric capacities are in excess of the DOE targets for future vehicles beyond 2020. Moreover, alloyed clathrates that are stabilized by Ba, Na, or Li guest atoms tend to expand more than hydrogenated Si₄₆ and C₆Si₄₀ at the same level of volumetric capacity. This finding suggests that hybrid carbon clathrate with a large unit cell (i.e., a large lattice parameter) may be an important and desirable attribute for achieving a high volumetric capacity for hydrogen storage. A number of hybrid Type I carbon–silicon clathrates with large lattice constants have been identified (see Figure 5). Unfortunately, the hydrogen storage capabilities of these hybrid clathrates have not been evaluated or assessed. By virtue of the large lattice constants, Type II carbon-based clathrates might also have suitability for hydrogen storage; however, their hydrogen storage capacities have, so far, not been investigated.

5.2. Hybrid Carbon–Silicon Clathrates as Electronic or Electrode Materials

Chan and Peng [24] employed the first-principles DFT code VASP [12] to compute the energy of formation and the optimal lattice constants of several hybrid carbon–silicon clathrates. In addition, they also computed the electronic structures including the band structure, density of states (DOS), and the spd- and site-projected partial density of states (PDOS) of the selected materials. Geometry optimization and self-consistent total energy calculations were performed using the PBE functional [25] and projector-augmented wave (PAW) [26,27] potentials along with the plane wave basis sets. Besides the PBE functional [25], the Hyed–Scuseria–Ernzerhof (HSE) screened Coulomb hybrid density functional [28] was also utilized to predict the energy band gap for Si₄₆ in order to gain a perspective on potential underestimations in the PBE band gap results. Detailed descriptions of the computational methods and results can be found in Chan and Peng [24].

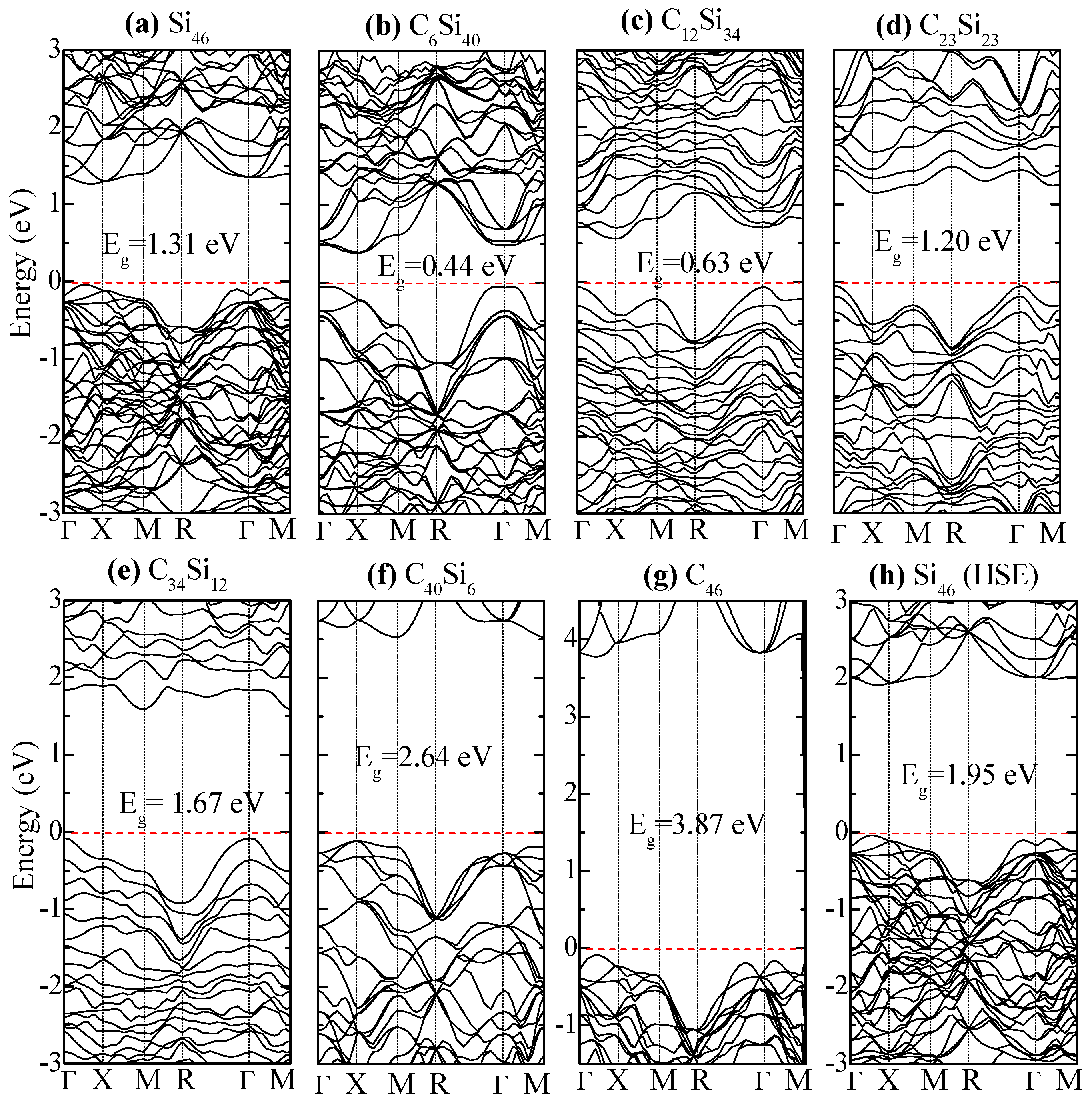

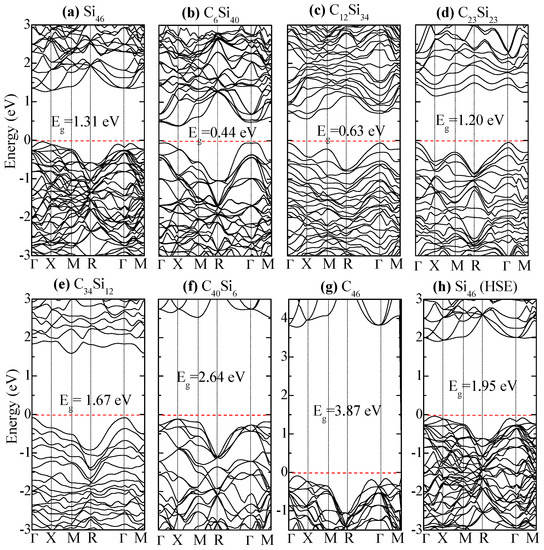

Figure 10 compares the electronic band structure of Si₄₆, C₆Si₄₀, C₁₂Si₃₄, and C₂₃Si₂₃. The Fermi level is set at zero eV (i.e. the top edge of valence band). For Si₄₆, a relatively large band gap is (E_g = 1.31 eV) observed between the Fermi level and the lower edge of the conduction band. The band gap is reduced to E_g = 0.44 eV in C₆Si₄₀ when six Si atoms on the framework are replaced by C atoms. Compared to Si₄₆, the band gap is reduced to E_g = 0.63 eV when the substituted C atoms are increased to 12 in C₁₂Si₃₄. Further substitution of Si by C in the framework causes the energy band gap to increase to 1.2 eV, 1.67 eV, and 2.64 eV in C₂₃Si₂₃, C₃₄Si₁₂, and C₄₀Si₆, respectively. For C₄₆, the band gap is 3.87 eV, which represents an increase of 2.56 eV compared to Si₄₆. Thus, the hybrid carbon–silicon framework exhibits the lowest band gap when the number of substituted carbon atoms on the framework ranges from 6 to 12.

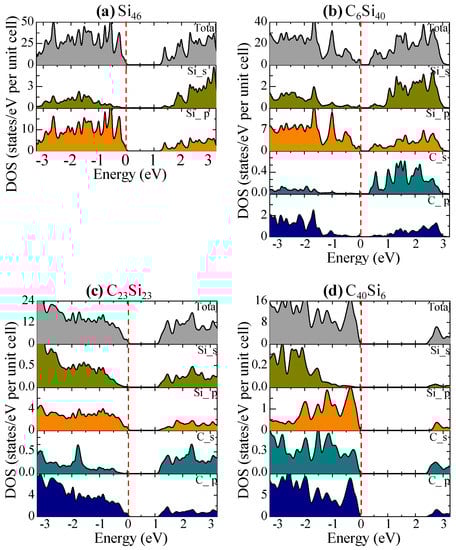

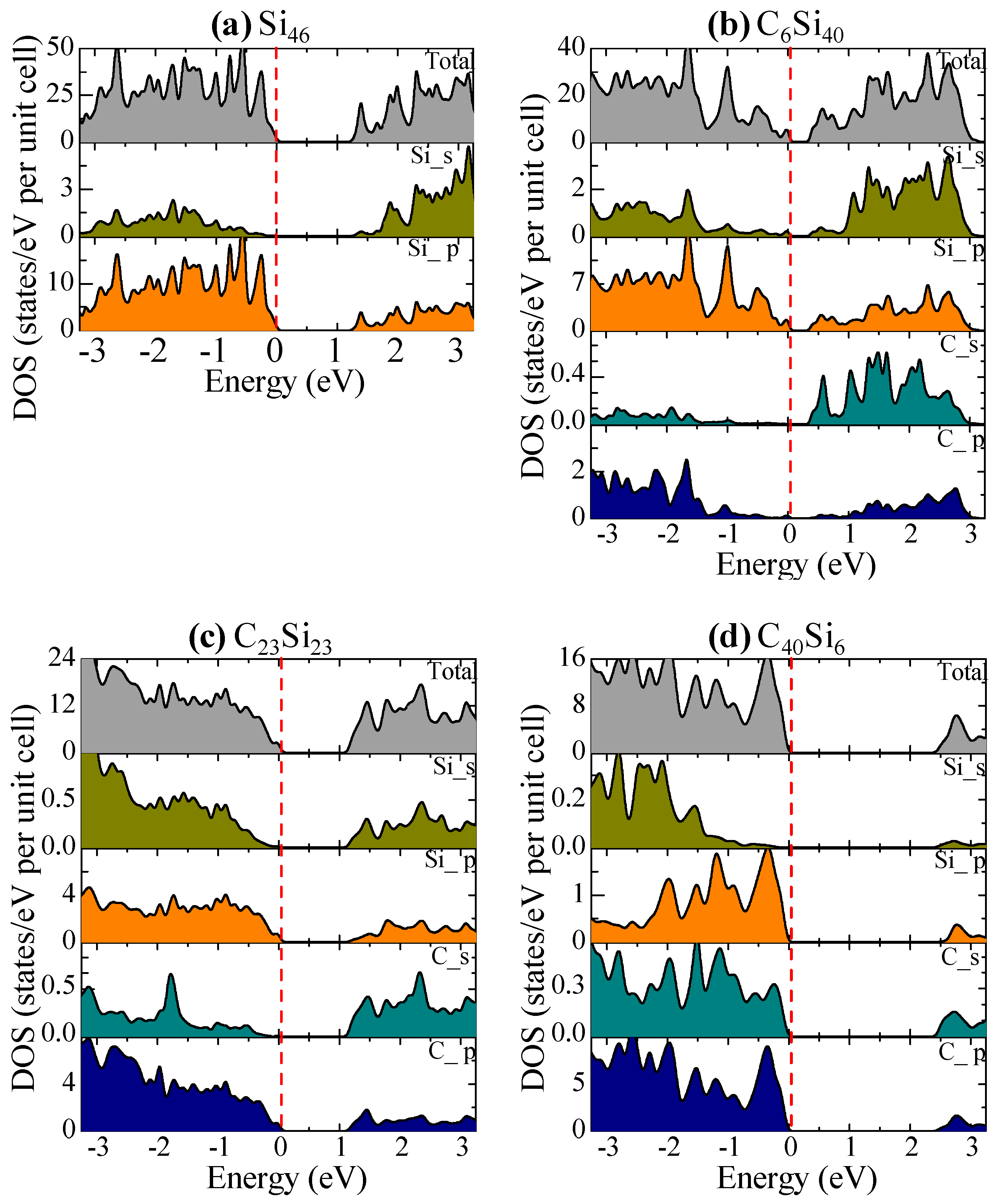

The total and partial DOS of Si₄₆, C₆Si₄₀, C₂₃Si₂₃, and C₄₀Si₆ are compared in Figure 11 with the Fermi level, which is shown as the red dashed line at zero eV. Figure 11a shows that the p-electrons of Si contribute to the edges of the valence and conduction bands to form the band gap in Si₄₆. In Figure 11b, a significant contribution by the s-electrons of substituted C atoms to the bottom of the conduction band lowers the band gap of C₆Si₄₀. As the number of substituted C atoms per formula unit increases to 23, the conduction bands of C₂₃Si₂₃ are dominated by both the C-p electrons and Si-p electrons; as a result, the band gap is widened again, as shown in Figure 11c. A further widening of the band gap in C₄₀Si₆ is presented in Figure 11d.

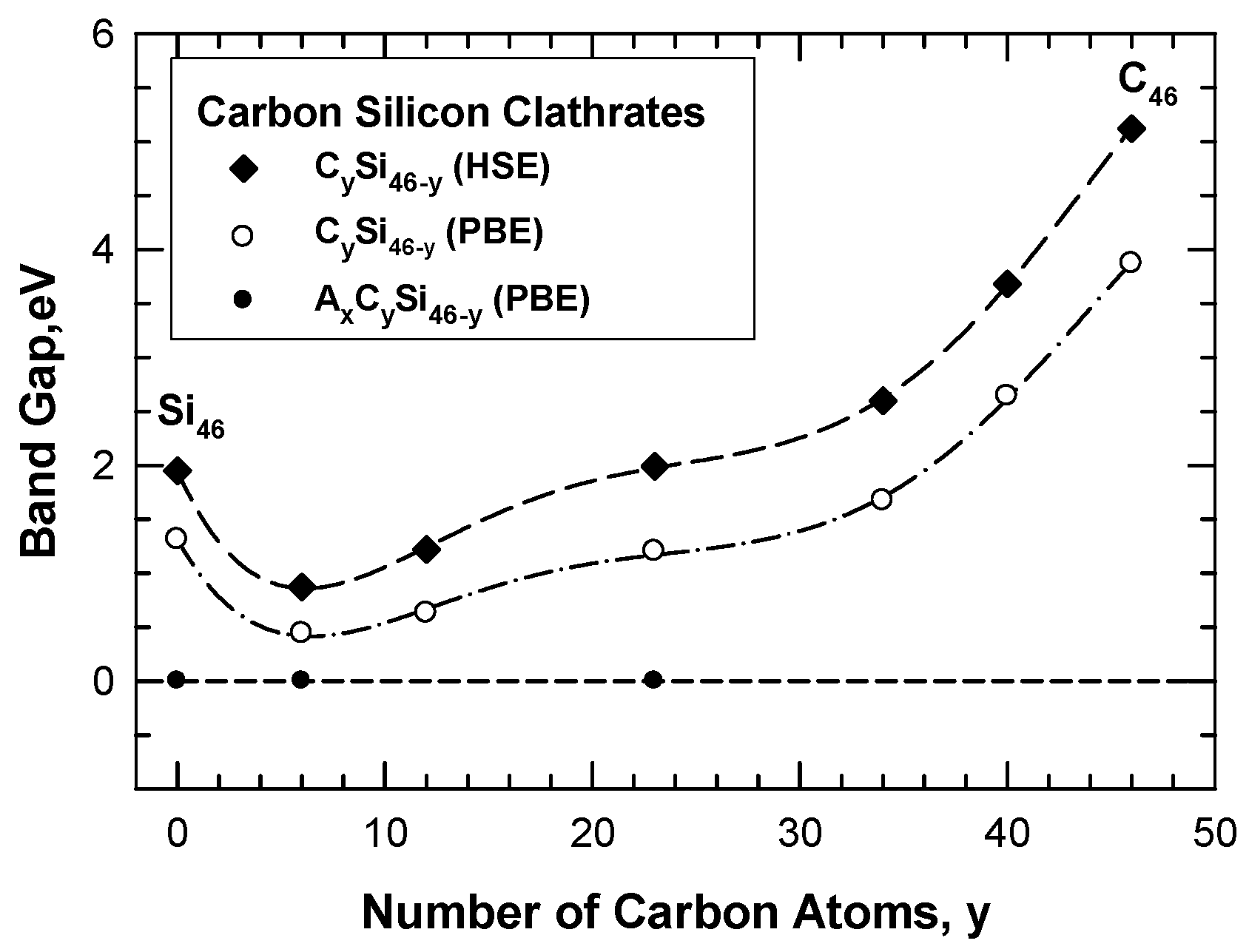

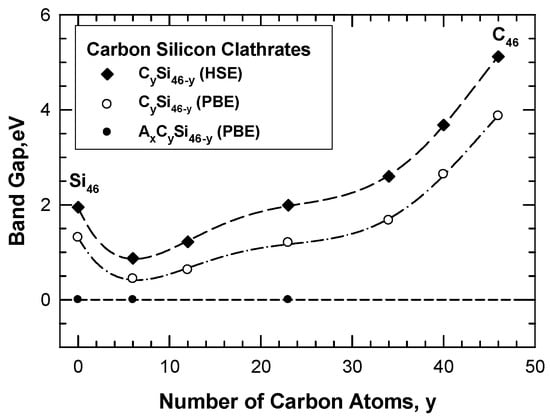

The band gap of the hybrid carbon–silicon clathrates is influenced by the number of substitution C atoms on the framework, as illustrated in Figure 12. Substitution of Si atoms on the Si₄₆ framework by C atoms progressively reduces the band gap due to the interaction of C valence electrons with the Si conduction band. The band gap is reduced with increasing numbers of C atoms on the hybrid Si-C framework when the number of carbon atoms is about 6 to 12. The band gap is widened again when the number of C is increased above 23. Conversely, a large band gap exists for C₄₆ and the band gap is reduced when the C atoms on the C₄₆ framework are substituted by Si atoms. Again, the band gap is reduced with increasing numbers of Si atoms on the hybrid Si-C framework until the number of Si atoms on the framework exceeds 40. A minimum band gap occurs when there are about 6 to 12 carbon atom occupants per formula unit on the framework and the minimum band gap appears to be about 0.44 eV. The general trend of the results indicates that the band gap of the carbon–silicon clathrate framework can be tuned by adjusting the number of carbon atoms on the framework. Furthermore, a metal conductor can be obtained by doping Li, Na, K, Mg, Ca, or Ba atoms inside the cage structure of the framework. The wide band gap and tunability make carbon clathrates potential materials for electronic applications.

The hybrid carbon–silicon clathrates may also be considered as potential electrode materials for Li-ion batteries. The electronic structure calculations indicate that the empty C_ySi_46-y clathrate exhibits a small band gap (0.44 to 0.63 eV) when y, the number of substituted carbon atoms, is in the range of 6 to 12. With this composition range, a small band gap may be induced to provide sufficient electronic conductivity for insertion of lithium ions into the cage structure to proceed when C_ySi_46-y clathrate is used as an anode. Once Li ions are inserted, the electronic conductivity of Li_xC_ySi_46-y is likely to increase with an increasing number of Li ions inserted; subsequently, the lithiated C_ySi_46-y clathrate may become a metal-like conductor when 8 or more Li ions are inserted [24]. Recent work by Li et al. [29] and Chan et al. [30,31] have shown that lithiation of Ba_xAl_ySi_46-y and empty Si₄₆ clathrates are feasible even in the presence of Ba atoms occupying some of the sites within the cage structure of Ba_xAl_ySi_46-y. Thus, it is possible that some of the C_ySi_46-y clathrates doped with the alkaline metals (Na, K) or alkaline earth metals (Ba, Ca, Mg) may be lithiated and serve as potential electrode materials for Li-ion batteries. There are more empty spaces within the cage structure of C_ySi_46-y compared to those in graphite or carbon-based nanomaterials [32]. On this basis, C_ySi_46-y anodes may accommodate more Li storage capacity than conventional graphite anodes or carbon-based nanomaterials [32]. In conventional Si anodes, Li storage is accompanied by the formation of various LiS_x silicides. The reaction of Li with C_ySi_46-y anodes to form various forms of LiC_x or LiSi_x compounds [32,33] may provide additional Li storage mechanisms but it would likely destroy the clathrate structure and limit the overall capacity or mechanical performance.

5.3. Hybrid Carbon–Nitrogen Clathrates as Hard Materials

To explore the potential of N_yC_46-y as hard materials, the bulk modulus of the various intermetallic clathrate compounds was computed by Chan et al. [20] using the first-principles approach according to the expression given by [34]:

$$\frac{\Delta E}{V}=\frac{9}{2}B{\delta }^2,$$

(1)

in which ΔE/V—the energy change normalized by the unit cell volume—is related to the bulk modulus (B) and the principal strains (δ) applied to the unit cell. To obtain the bulk modulus, ΔE/V values were computed and plotted as a function of the principal strain δ. The ΔE/V data were fitted to Equation (1) and the bulk modulus B was obtained from the regression coefficient. The computed bulk moduli for individual carbon-based clathrate compounds are presented in

Table 3. Computed values of the bulk modulus of selected Type I clathrates compared to theoretical and experimental values of the bulk modulus of diamond, carbon nitride, silicon nitride, and silicon carbide from the literature. Experimental values are indicated by an asterisk (*). From Chan et al. [20].

Compound	Structure	B, GPa
C46	Type I Clathrate (Simple cubic)	373.7
		371 [1]
		363.7 [2]
		409 [3]
C18N24	Type I Clathrate	257.35
C23N23	Type I Clathrate	311.6
Li8C23N23	Type I Clathrate	245.18
Si23C23	Type I Clathrate	124.03
Si6C40	Type I Clathrate	196.8
Si18N24	Type I Clathrate	96.08
Si23N23	Type I Clathrate	114.13
C6Si40	Type I Clathrate	62.9
C (Diamond)	Diamond cubic	438.8 [35]
		442 * [36]
α-C3N4	Hexagonal	378.7 [35]
β-C3N4	Cubic spinel	419.1 [36]
c-Si3N4	Cubic spinel	300 [37]
		300 * [38]
SiC	Cubic (Zinc blend)	225 * [39]

. For comparison, Table 3 also presents the experimental values of the bulk modulus for C (diamond), carbon nitrides (α-C₃N₄ and β-C₃N₄), cubic silicon nitride (c-Si₃N₄), and silicon carbide (SiC) obtained from the literature [1,2,3,35,36,37,38,39]. From Table 3, it can be seen that the bulk modulus of Type I hybrid C–N, N–Si, and C–Si clathrates can range from 63 GPa to as high as 400 GPa. For example, the bulk modulus of carbon clathrates such as C₁₈N₂₄, C₂₃N₂₃, and C₄₆ are in the range of 245 GPa to 374 GPa. Though not as high as those of diamond C or β-C₃N₄, the modulus values of the carbon-based clathrates are comparable to silicon nitride (c-Si₃N₄) and carbon nitride (SiC). By virtue of a relatively high bulk modulus, carbon clathrates may potentially be used in applications that require hard materials.

6. Synthesis of Hybrid Carbon Clathrates

6.1. Hybrid Carbon–Silicon Clathrates

The synthesis of six candidate carbon–silicon clathrate compounds was attempted by Chan et al. [8].

Table 4. Summary of targeted compounds and actual compounds produced by arc-melting. From Chan et al. [8]. Reprinted with permission from Springer.

Composition	Target Compound	Actual Compound Produced	Type I Clathrate	Yield, %
1	Na2Li6Al10C6Si30	None (all sublimed except Si)	No	0
2	Li8Al10C6Si30	Si, SiC, and AlLiSi	No	0
3	Ba8C6Si40	BaSi2, Si, and graphite	No	0
4	Ba8C20Si26	Ba, SiC, BaSi2, Si, and Ba8C20Si26	Yes (Ba8C20Si26)	39
5	Ba8C6Si40	Ba, SiC, BaSi2, Si, and Ba8C6Si40	Yes (Ba8C6Si40)	26
6	Ba8C23Si23	Ba, SiC, BaSi2, Si, and Ba8C23Si23	Yes (Ba8C23Si23)	16

summarizes the target compounds and the materials produced that were selected for synthesis by a vacuum arc-melting method. In particular, all six compositions were packaged and shipped to Sophisticated Alloys, Inc. (Butler, PA, USA) where vacuum arc-melting (VAM) of the candidate alloys was performed. A vacuum arc-melter is comprised of an electrode and a crucible containing the materials to be melted in a metal vessel that is brought to a vacuum of <0.1 Pa. The equipment used for the VAM process is available on the website of Sophisticated Alloys [40]. To fabricate the clathrate compounds, the arc-melting process was conducted in an argon atmosphere under a sub-atmospheric pressure. As indicated in Table 4, only some of the predicted Type I clathrates (which include Ba₈C₆Si₄₀, Ba₈C₂₀Si₂₆, and Ba₈C₂₃Si₂₃) have been confirmed by successful synthesis. However, the arc-melted products have been found to be impure and co-mingled with the starting materials [8]. Thus, further efforts are needed to improve both the yield and the purity of the arc-melted products. Despite the low yields (16% to 39%), the successful synthesis of Ba₈C₆Si₄₀, Ba₈C₂₀Si₂₆, and Ba₈C₂₃Si₂₃ represents a significant accomplishment since these compounds were synthesized for the first time. The success in synthesizing Ba₈C₆Si₄₀, Ba₈C₂₀Si₂₆, and Ba₈C₂₃Si₂₃ by arc-melting may be attributed to the use of SiC in the starting admixture [8].

6.2. Hybrid Carbon–Nitrogen Clathrates

Vacuum arc-melting was employed to synthesize Mg₈C₁₈N₂₄ and Ba₈C₁₈N₂₄. The starting material was an admixture of graphitic carbon nitride (g-C₃N_4+yH_y) and appropriate metal powders [20]. Arc-melting of Mg₈C₁₈N₂₄ was unsuccessful, while arc-melting synthesis of Ba₈C₁₈N₂₄ was partially successful. Powder X-ray diffraction (PXRD) measurements of the arc-melted Mg₈C₁₈N₂₄ powders has established that all of the peaks in the PXRD pattern can be attributed to those of the graphitic carbon nitride, MgO, and MgCN_2, as shown in

Table 5. Summary of targeted compounds and actual compounds produced by arc-melting From Chan et al. [20].

Composition	Target Compound	Actual Compound Produced	Type I Clathrate
1	Mg8N18C28	MgO, g-C2N4, and MgCN2	No
2	Ba8N18C24	Ba, g-C3N4, and Ba8C18N24	Yes (Ba8C18N24)

, and no peaks can be attributed to Type I carbon clathrates [20]. In contrast, small amounts of Ba₈C₁₈N₂₄ were successfully synthesized by arc-melting appropriate amounts of Ba mixed with graphitic carbon nitride (g-C₃N_4+xH_y) [20]. PXRD measurements indicated a mixture of Ba₈C₁₈N₂₄, Ba, and g-C₃N₄ in the arc-melted product. However, the yield and purity are low and further improvements are needed to increase the yield and purity.

7. Summary

This overview summarizes the current status of hybrid carbon–silicon, carbon–nitrogen, and carbon–boron clathrates, which are new classes of Type I carbon-based clathrates that have been identified by first-principles computational methods. These theoretical materials have been designed by substituting atoms on the carbon clathrate framework with Si, N, and/or B atoms. Stability of the hybrid framework may be stabilized by inserting alkaline metal guest atoms within the cavities of the cage structure. A series of hybrid carbon–silicon, carbon–nitrogen, carbon–boron, and carbon–silicon–nitrogen clathrates has been shown to exhibit small positive values for the energy of formation, indicating that they are metastable compounds and may be amenable to fabrication. Theoretical calculations that explore the potential applications of hybrid carbon-based clathrates such as energy storage materials, electronic or electrode materials, as well as hard materials, are presented. The computational results identify compositions of hybrid carbon–silicon, carbon–nitrogen, and carbon–boron clathrates that may be considered as candidate materials for use as electronic materials, hard materials, and electrode materials for Li-ion batteries or as hydrogen storage materials. Fabricating selected hybrid carbon–silicon and carbon–nitrogen clathrates by industrial arc-melting techniques have not always been successful. The major limitations of the current processing techniques are the purity and yield of the products when the candidate materials are successfully synthesized.

One of the current challenges of hybrid carbon clathrates is the development of robust processing methods for synthesizing carbon–silicon, carbon–nitrogen, and carbon–boron clathrates. So far, only an industrial arc-melting method has been attempted to fabricate small quantities of low-purity Ba-containing hybrid carbon–silicon and carbon–nitrogen clathrates. Future development should expand the processing routes beyond arc-melting. Solution processing methods based on Hofmann-type elimination-oxidation schemes such as those described by Chan et al. [30] and Guloy et al. [41] may be desirable since they can be scaled up to produce larger quantities of clathrate materials. However, it is uncertain whether hybrid carbon–silicon, carbon–nitrogen, or carbon–boron clathrates can be produced by solution synthesis methods. Once they are synthesized, the impure hybrid clathrates need to be purified. Development of robust purification routes is another challenge that needs to be overcome in order to advance the field of hybrid carbon-based clathrates.
