# Aerodynamic Effects of Knitted Wire Meshes—CFD Simulations of the Flow Field and Influence on the Flow Separation of a Backward-Facing Ramp

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

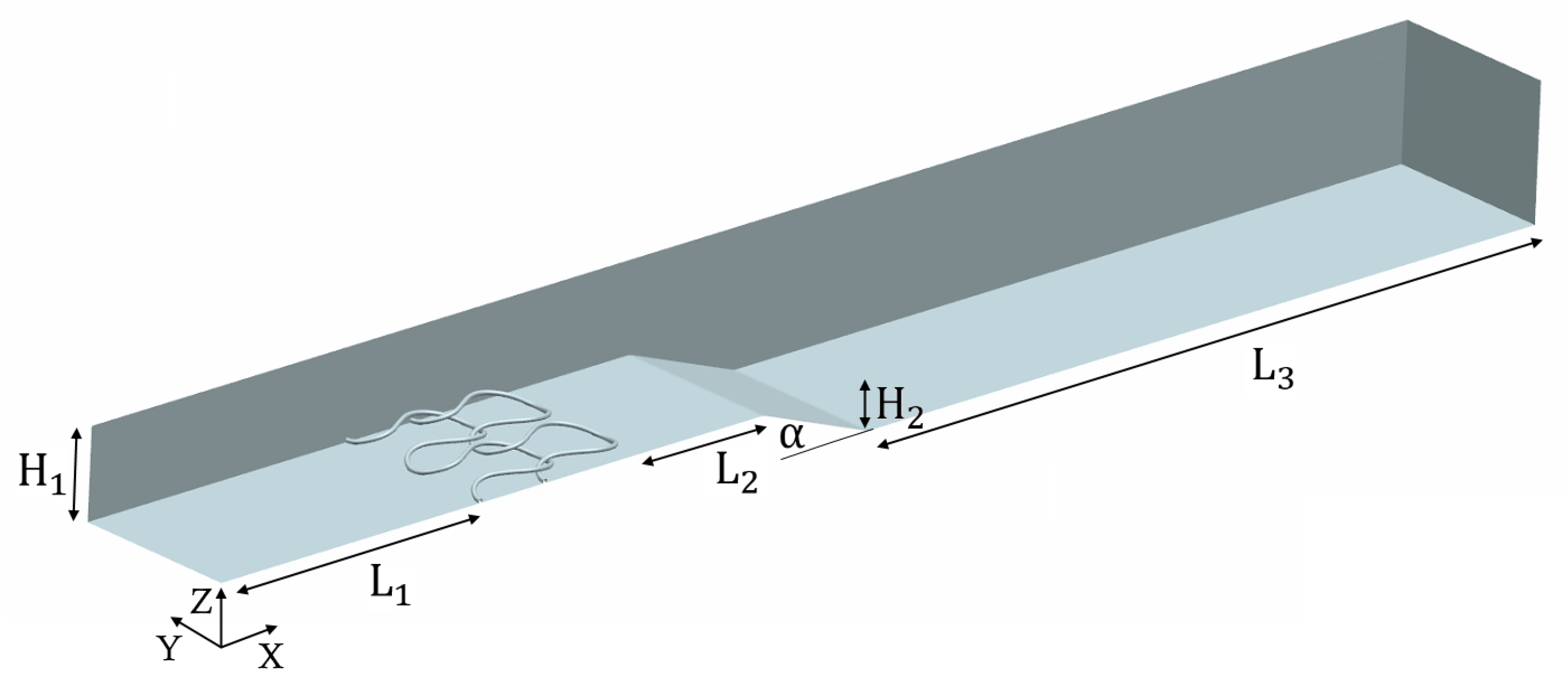

## 2. Setup

## 3. Numerical Method

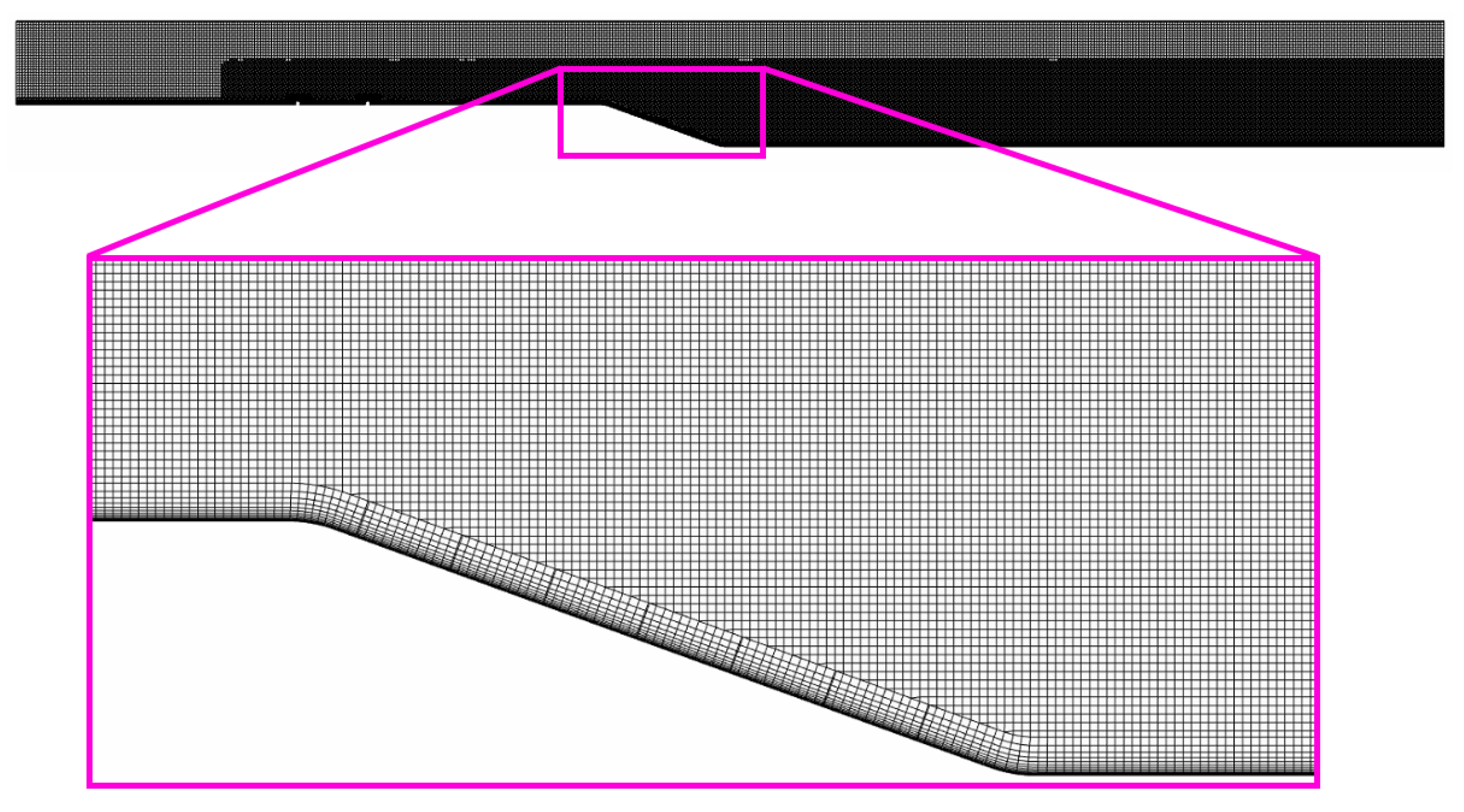

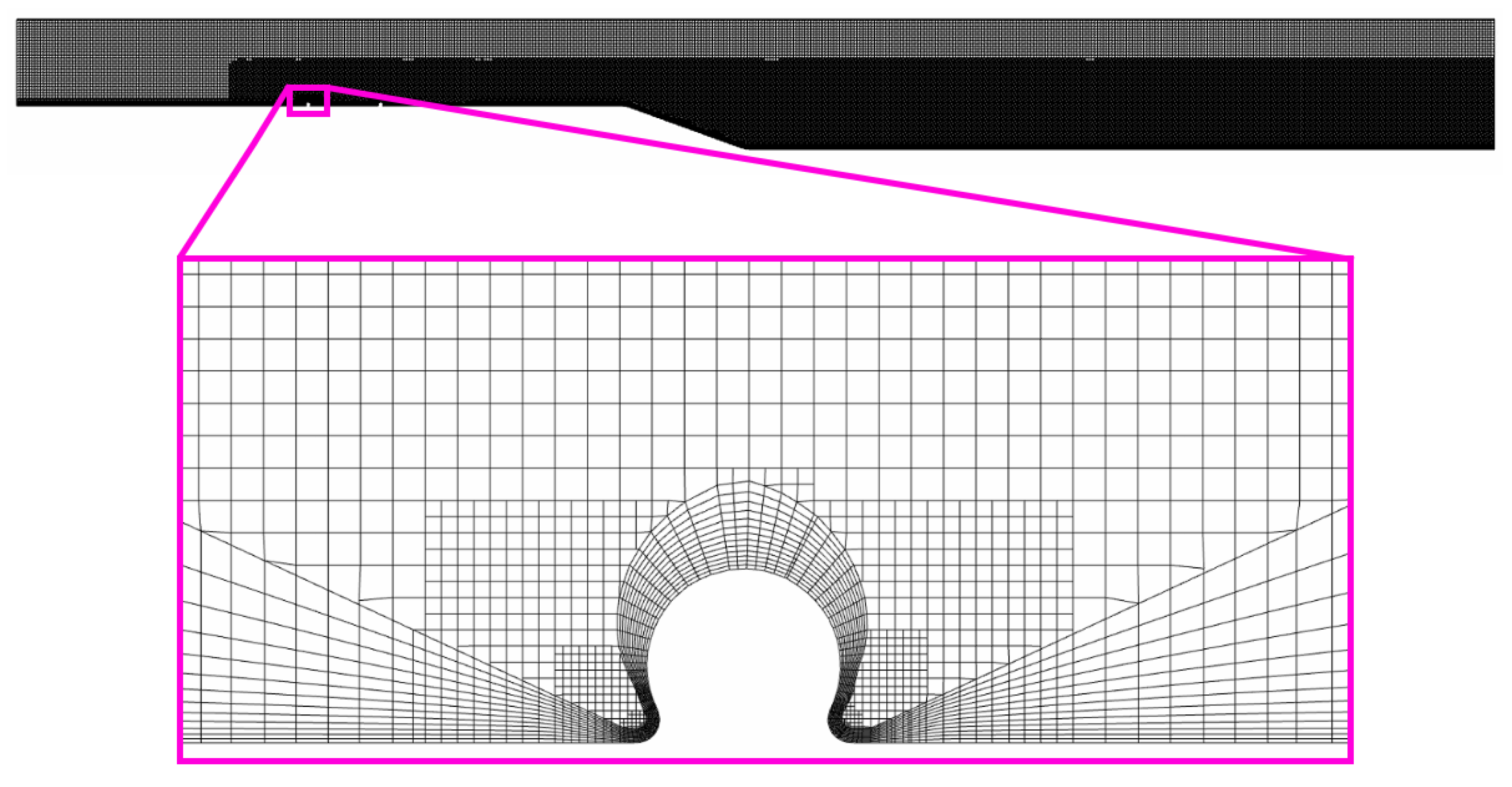

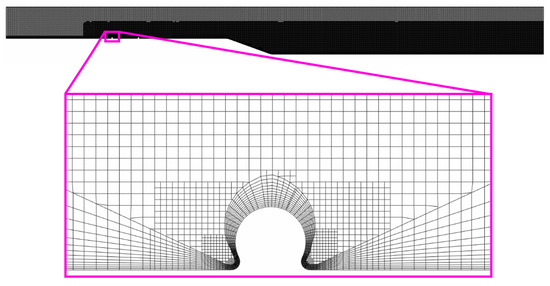

## 4. Numerical Setup

## 5. Verification and Validation

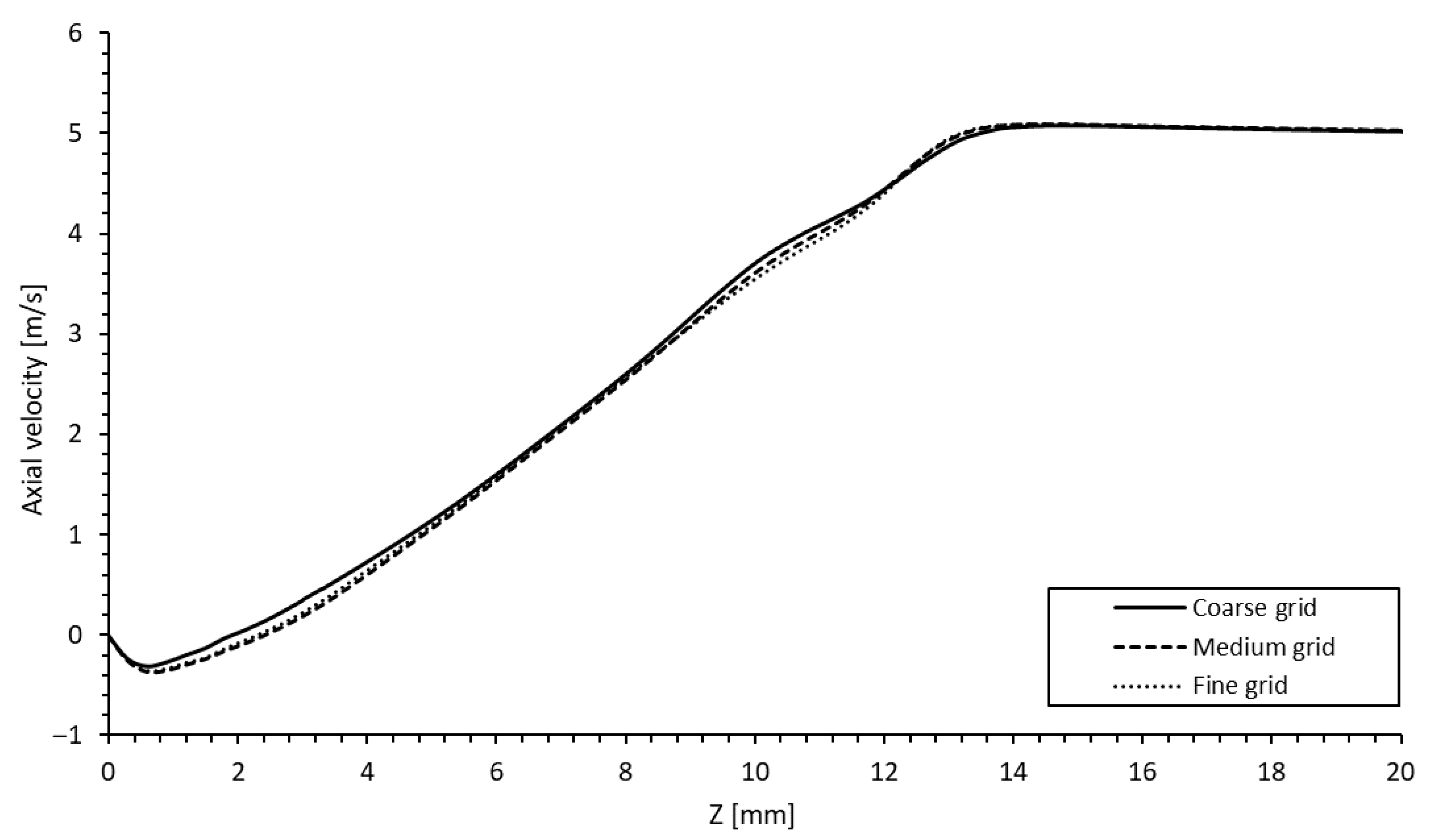

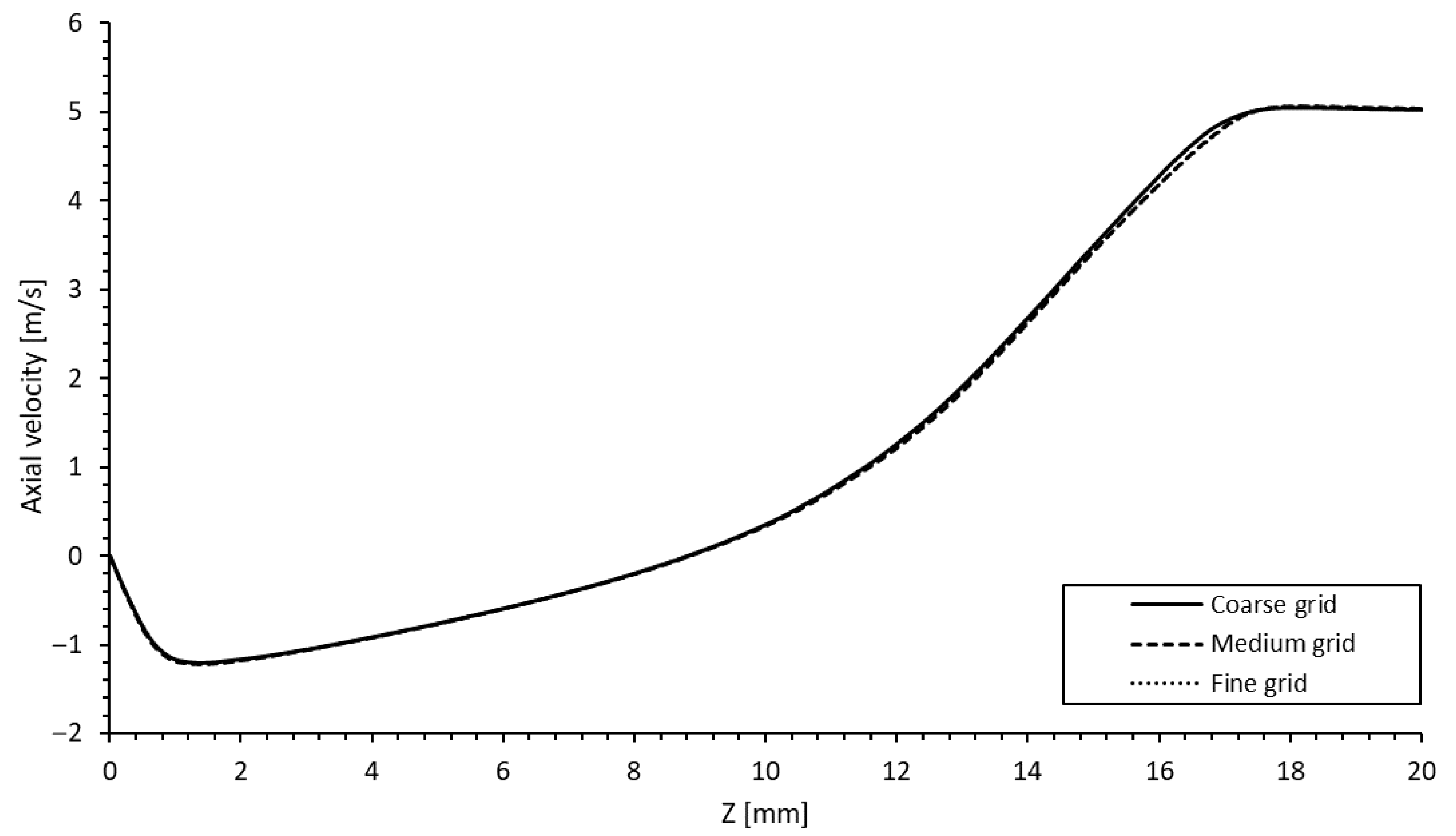

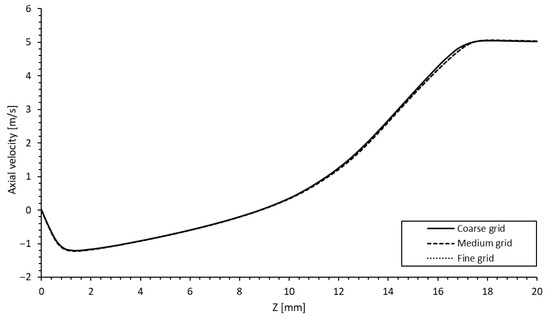

#### 5.1. Grid Sensitivity Analysis

- Monotonic convergence: 0 < R < 1;
- Oscillatory convergence: −1 < R < 0;
- Monotonic divergence: R > 1;
- Oscillatory divergence: R < −1.

#### 5.2. Turbulence Model Sensitivity Analysis

#### 5.3. Validation with DNS Data

## 6. Results

#### 6.1. Effect on Flow Separation

#### 6.2. Induced Vortices

#### 6.3. Effect of the Number of Rows

#### 6.4. Effect of the Type B Knitted Wire Mesh Geometry

## 7. Discussion

## 8. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Cattafesta, L.N.; Sheplak, M. Actuators for Active Flow Control. Annu. Rev. Fluid Mech.
**2011**, 43, 247–272. [Google Scholar] [CrossRef][Green Version] - Wang, L.; Luo, Z.; Xia, Z.; Liu, B.; Deng, X. Review of actuators for high speed active flow control. Sci. China Technol. Sci.
**2012**, 55, 2225–2240. [Google Scholar] [CrossRef] - Zhang, R.K.; van Wu, D.J.Z. Aerodynamic characteristics of wind turbine blades with a sinusoidal leading edge. Wind Energy
**2012**, 15, 407–424. [Google Scholar] [CrossRef] - Gao, L.; Zhang, H.; Liu, Y.; Han, S. Effects of vortex generators on a blunt trailing-edge airfoil for wind turbines. Renew. Energy
**2015**, 76, 303–311. [Google Scholar] [CrossRef] - Wang, H.; Zhang, B.; Qiu, Q.; Xu, X. Flow control on the NREL S809 wind turbine airfoil using vortex generators. Energy
**2017**, 118, 1210–1221. [Google Scholar] [CrossRef] - Sedighi, H.; Akbarzadeh, P.; Salavatipour, A. Aerodynamic performance enhancement of horizontal axis wind turbines by dimples on blades: Numerical investigation. Energy
**2020**, 195, 117056. [Google Scholar] [CrossRef] - Son, K.; Choi, J.I.; Jeon, W.P.; Choi, H. Mechanism of drag reduction by a surface trip wire on a sphere. J. Fluid Mech.
**2011**, 672, 411–427. [Google Scholar] [CrossRef] - Serdar Genç, M.; Koca, K.; Demir, H.; Hakan Açıkel, H. Traditional and New Types of Passive Flow Control Techniques to Pave the Way for High Maneuverability and Low Structural Weight for UAVs and MAVs. In Autonomous Vehicles; Dekoulis, G., Ed.; IntechOpen: London, UK, 2020. [Google Scholar] [CrossRef][Green Version]
- Yadegari, M.; Bak Khoshnevis, A. Numerical and Experimental Study of Characteristics of the Wake Produced Behind an Elliptic Cylinder with Trip Wires. Iran. J. Sci. Technol. Trans. Mech. Eng.
**2021**, 45, 265–285. [Google Scholar] [CrossRef] - Choudhry, A.; Arjomandi, M.; Kelso, R. Methods to control dynamic stall for wind turbine applications. Renew. Energy
**2016**, 86, 26–37. [Google Scholar] [CrossRef] - Bakic, V. Experimental investigation of a flow around a sphere. Therm. Sci.
**2004**, 8, 63–81. [Google Scholar] [CrossRef] - Zhou, C.Y.; Wang, L.; Huang, W. Numerical study of fluid force reduction on a circular cylinder using tripping rods. J. Mech. Sci. Technol.
**2007**, 21, 1425–1434. [Google Scholar] [CrossRef] - Pelacci, M.; Robins, A.G.; Szyniszewski, S. Drag Reduction of a Circular Cylinder through the Use of an Architectured Lattice Material. arXiv
**2021**, arXiv:2102.08938. [Google Scholar] - Abderrahaman-Elena, N.; García-Mayoral, R. Analysis of anisotropically permeable surfaces for turbulent drag reduction. Phys. Rev. Fluids
**2017**, 2, 114609. [Google Scholar] [CrossRef][Green Version] - Bruneau, C.H.; Mortazavi, I. Numerical modelling and passive flow control using porous media. Comput. Fluids
**2008**, 37, 488–498. [Google Scholar] [CrossRef] - Choi, J.; Jeon, W.P.; Choi, H. Mechanism of drag reduction by dimples on a sphere. Phys. Fluids
**2006**, 18, 041702. [Google Scholar] [CrossRef][Green Version] - Kovalenko, G.V.; Terekhov, V.I.; Khalatov, A.A. Flow regimes in a single dimple on the channel surface. J. Appl. Mech. Tech. Phys.
**2010**, 51, 839–848. [Google Scholar] [CrossRef] - Ligrani, P.M.; Harrison, J.L.; Mahmmod, G.I.; Hill, M.L. Flow structure due to dimple depressions on a channel surface. Phys. Fluids
**2001**, 13, 3442–3451. [Google Scholar] [CrossRef] - Dehkordi, S.; Ghane, M.; Abdellahi, S.B.; Soultanzadeh, M.B. Numerical modeling of the air permeability of knitted fabric using computational fluid dynamics (CFD) method. Fibers Polym.
**2017**, 18, 1804–1809. [Google Scholar] [CrossRef] - Ettehadi, Z.; Ajeli, S.; Soltani, P.; Zarrebini, M. Experimental and CFD Analysis of Air Permeability of Warp-knitted Structures. Fibers Polym.
**2020**, 21, 1362–1371. [Google Scholar] [CrossRef] - Golkarfard, V.; King, A.; Abishek, S.; Mead-Hunter, R.; Kasper, G.; Mullins, B.J. Optimisation of wet pressure drop in nonwoven fibrous, knitted, and open-cell foam filters. Sep. Purif. Technol.
**2019**, 213, 45–55. [Google Scholar] [CrossRef] - Abishek, S.; King, A.; Mead-Hunter, R.; Golkarfard, V.; Heikamp, W.; Mullins, B.J. Generation and validation of virtual nonwoven, foam and knitted filter (separator/coalescer) geometries for CFD simulations. Sep. Purif. Technol.
**2017**, 118, 493–507. [Google Scholar] [CrossRef] - Mazarciöz, S.; Mezarciöz, S.; Oğulata, R. Prediction of Air Permeability of Knitted Fabrics by Means of Computational Fluid Dynamics. Text. Appar.
**2014**, 24, 202–211. [Google Scholar] - Wang, F.; Gao, A.; Wu, S.; Zhu, S.; Dai, J.; Liao, Q. Experimental Investigation of Coherent Vortex Structures in a Backward-Facing Step Flow. Water
**2019**, 11, 2629. [Google Scholar] [CrossRef][Green Version] - Ratha, D.; Sarkar, A. Analysis of flow over backward facing step with transition. Front. Struct. Civ. Eng.
**2015**, 9, 71–81. [Google Scholar] [CrossRef] - Menter, F.R. Two-equation eddy-viscosity turbulence models for engineering applications. AIAA J.
**1994**, 32, 1598–1605. [Google Scholar] [CrossRef][Green Version] - Wilcox, D.C. Formulation of the k-w Turbulence Model Revisited. AIAA J.
**2008**, 46, 2823–2838. [Google Scholar] [CrossRef][Green Version] - Menter, F.R.; Langtry, R.B.; Likki, S.R.; Suzen, Y.B.; Huang, P.G.; Volker, S. A Correlation-Based Transition Model Using Local Variables: Part I—Model Formulation. In Proceedings of the ASME Turbo Expo 2004, Vienna, Austria, 14–17 June 2004; pp. 57–67. [Google Scholar] [CrossRef][Green Version]
- Rodi, W. Experience with two-layer models combining the k-epsilon model with a one-equation model near the wall. In Proceedings of the AIAA 29th Aerospace Sciences Meeting, Reston, VA, USA, 7–10 January 1991. [Google Scholar] [CrossRef]
- Lien, F.S.; Chen, W.L.; Leschziner, M. Low-Reynolds number eddy-viscosity modelling based on non-linear stress-strain/vorticity relations. In Proceedings of the 3rd Symposium on Engineering Turbulence Modelling and Measurements, Crete, Greece, 27–29 May 1996. [Google Scholar]
- Spalart, P.; Allmaras, S. A one-equation turbulence model for aerodynamic flows. In Proceedings of the 30th Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 6–9 January 1992; American Institute of Aeronautics and Astronautics: Reston, VA, USA, 1992; p. 01061992. [Google Scholar] [CrossRef]
- Reichardt, H. Vollständige Darstellung der turbulenten Geschwindigkeitsverteilung in glatten Leitungen. ZAMM–Z. Angew. Math. Mech.
**1951**, 31, 208–219. [Google Scholar] [CrossRef] - European Research Community on Flow, Turbulence and Combustion. Classic Collection Database: Case031 (Backward-Facing Step). Available online: http://cfd.mace.manchester.ac.uk/ercoftac/doku.php?id=cases:case031 (accessed on 9 September 2022).
- Yang, Z.; Voke, P.R. Large-Eddy Simulation Studies of Bypass Transition. In Engineering Turbulence Modelling and Experiments; Elsevier: Amsterdam, The Netherlands, 1993; pp. 603–611. [Google Scholar] [CrossRef]
- Baldacchino, D.; Ferreira, C.; de Tavernier, D.; Timmer, W.A.; van Bussel, G.J.W. Experimental parameter study for passive vortex generators on a 30% thick airfoil. Wind Energy
**2018**, 21, 745–765. [Google Scholar] [CrossRef][Green Version] - Eça, L.; Hoekstra, M. A procedure for the estimation of the numerical uncertainty of CFD calculations based on grid refinement studies. J. Comput. Phys.
**2014**, 262, 104–130. [Google Scholar] [CrossRef] - Oberkampf, W.L.; Trucano, T.G. Verification and validation in computational fluid dynamics. Prog. Aerosp. Sci.
**2002**, 38, 209–272. [Google Scholar] [CrossRef][Green Version] - Le, H.; Moin, P.; Kim, J. Direct numerical simulation of turbulent flow over a backward-facing step. J. Fluid Mech.
**1997**, 330, 349–374. [Google Scholar] [CrossRef][Green Version] - Kim, J.Y.; Ghajar, A.J.; Tang, C.; Foutch, G.L. Comparison of near-wall treatment methods for high Reynolds number backward-facing step flow. Int. J. Comput. Fluid Dyn.
**2005**, 19, 493–500. [Google Scholar] [CrossRef] - Araujo, P.P.; Rezende, A.L.T. Comparison of turbulence models in the flow over a backward-facing step. Int. J. Eng. Res. Sci.
**2017**, 3, 88–93. [Google Scholar] [CrossRef] - Anwar-ul Haque, F.A.; Yamada, S.; Chaudhry, S.R. Assessment of turbulence models for turbulent flow over backward facing step. In Proceedings of the World Congress on Engineering 2007 Vol II, London, UK, 2–4 July 2007; pp. 2–7. [Google Scholar]
- Lim, H.D.; Lyu, Z. Observations of a sweeping jet actuator for flow separation control of a backward-facing ramp. Phys. Rev. Fluids
**2021**, 6, 043902. [Google Scholar] [CrossRef] - Cuvier, C.; Foucaut, J.M.; Braud, C.; Stanislas, M. Characterisation of a high Reynolds number boundary layer subject to pressure gradient and separation. J. Turbul.
**2014**, 15, 473–515. [Google Scholar] [CrossRef] - Nadge, P.M.; Govardhan, R.N. High Reynolds number flow over a backward-facing step: Structure of the mean separation bubble. Exp. Fluids
**2014**, 55, 1657. [Google Scholar] [CrossRef] - Lin, J.C. Review of research on low-profile vortex generators to control boundary-layer separation. Prog. Aerosp. Sci.
**2002**, 38, 389–420. [Google Scholar] [CrossRef] - Ma, X.; Geisler, R.; Schröder, A. Experimental Investigation of Three-Dimensional Vortex Structures Downstream of Vortex Generators Over a Backward-Facing Step. Flow Turbul. Combust.
**2017**, 98, 389–415. [Google Scholar] [CrossRef] - Park, H.; JEON, W.P.; CHOI, H.; Yoo, J.Y. Mixing enhancement behind a backward-facing step using tabs. Phys. Fluids
**2007**, 19, 105103. [Google Scholar] [CrossRef] - Shinde, S.; Tandon, S.; Maki, K.; Johnsen, E. Flow separation over a backward-facing ramp with and without a vortex generator. In Proceedings of the 46th AIAA Fluid Dynamics Conference, Washington, DC, USA, 13–17 June 2016; pp. 1–14. [Google Scholar] [CrossRef][Green Version]
- Cheawchan, A.u.; Wen, Y.; Teo, Z.W.; Ng, B.F.; New, T.H. Flow behavior of skewed vortex generators on a backward-facing ramp. Proc. Inst. Mech. Eng. Part J. Aerosp. Eng.
**2021**, 235, 2299–2314. [Google Scholar] [CrossRef] - Zhu, C.; Chen, J.; Wu, J.; Wang, T. Dynamic stall control of the wind turbine airfoil via single-row and double-row passive vortex generators. Energy
**2019**, 189, 116272. [Google Scholar] [CrossRef] - Isomoto, K.; Honami, S. The Effect of Inlet Turbulence Intensity on the Reattachment Process Over a Backward-Facing Step. J. Fluids Eng.
**1989**, 111, 87–92. [Google Scholar] [CrossRef]

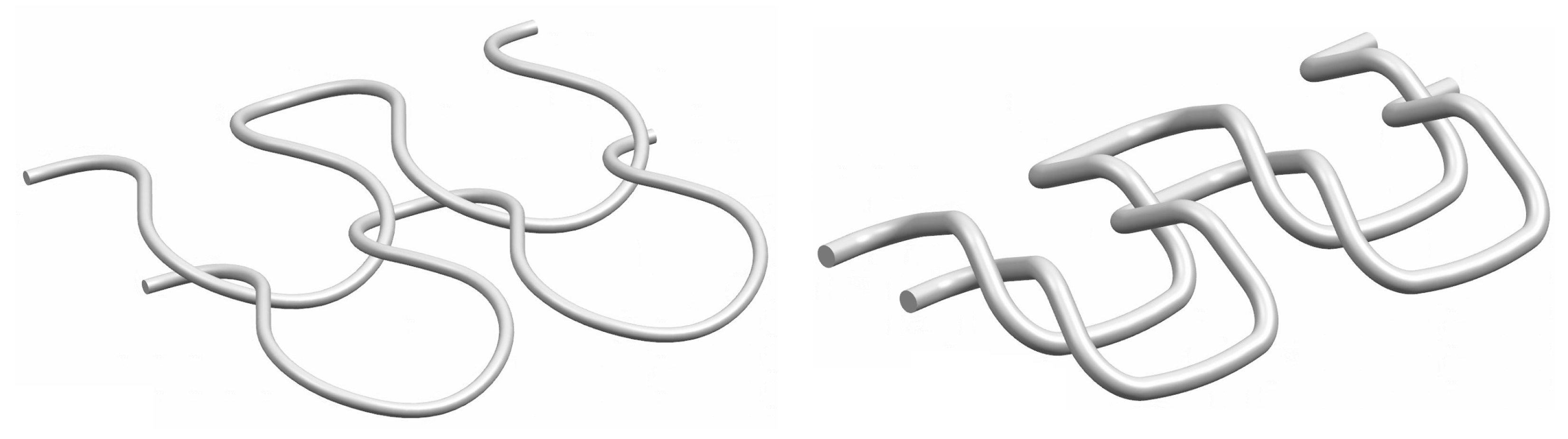

**Figure 1.**Wire meshes under investigation.

**Left**: type A,

**right**: type B. A total of four stitches distributed in two rows are shown for each type.

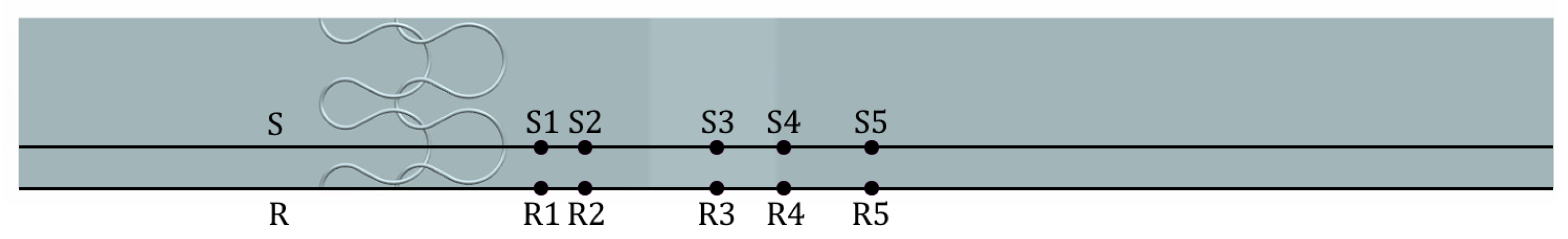

**Figure 3.**Line probes S1 to S5 and R1 to R5 on the planes S and R used to evaluate the results. The lines indicate the planes that are oriented normal to the channel bottom.

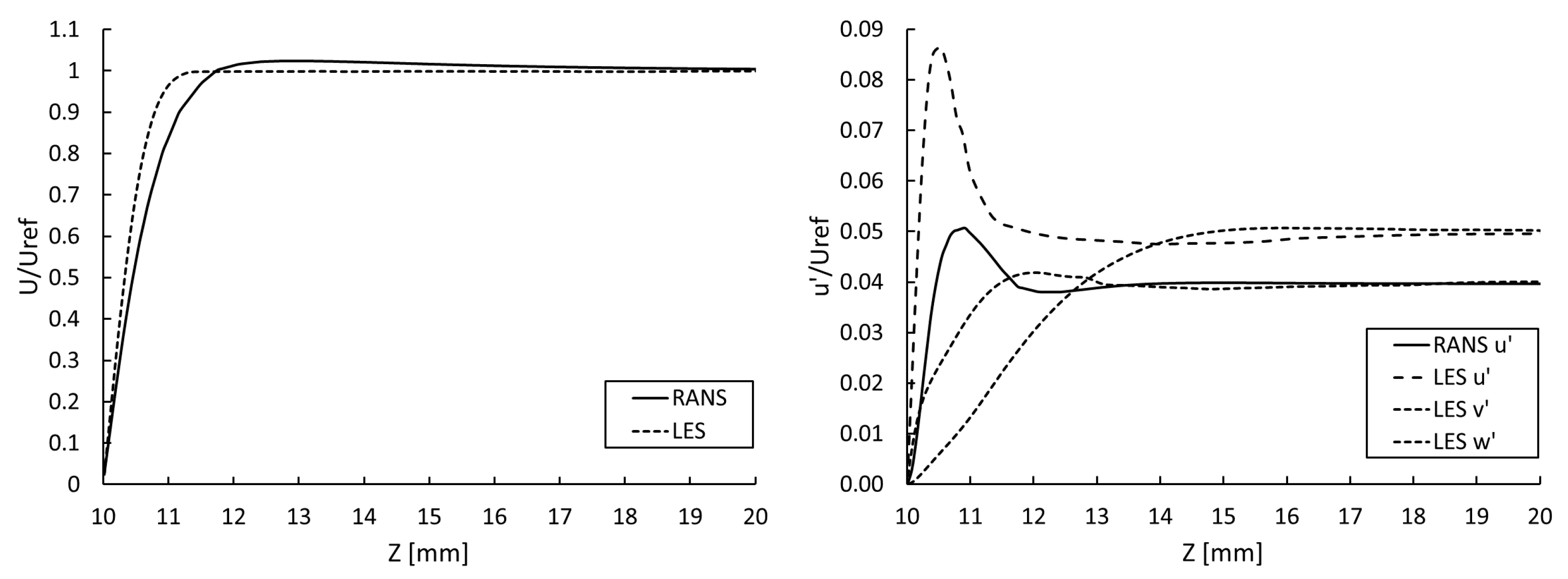

**Figure 6.**Boundary layer profile in comparison with LES data [34] for an upstream turbulence intensity of 5%.

**Left**: normalized axial velocity,

**right**: normalized root-mean-square velocity fluctuations.

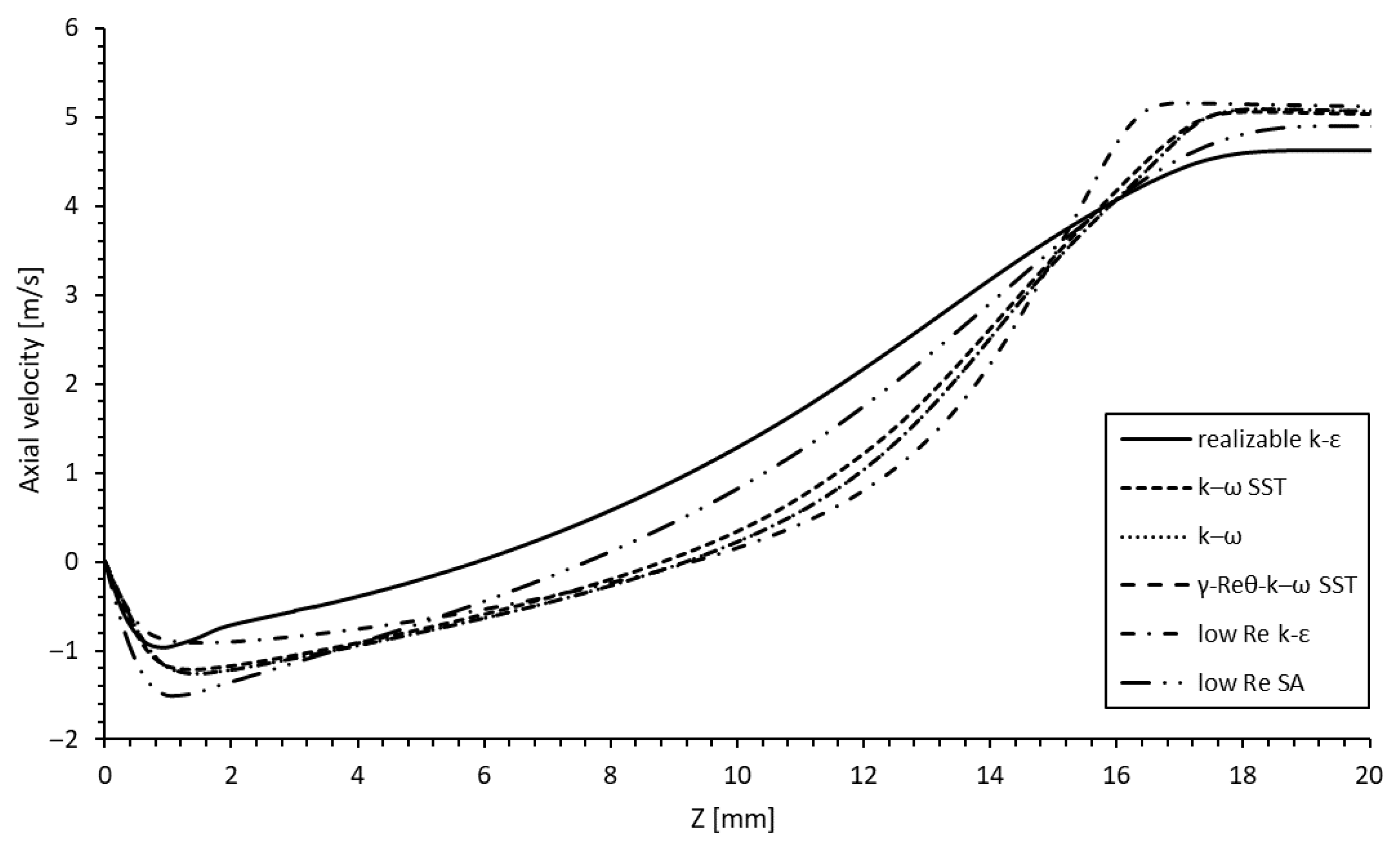

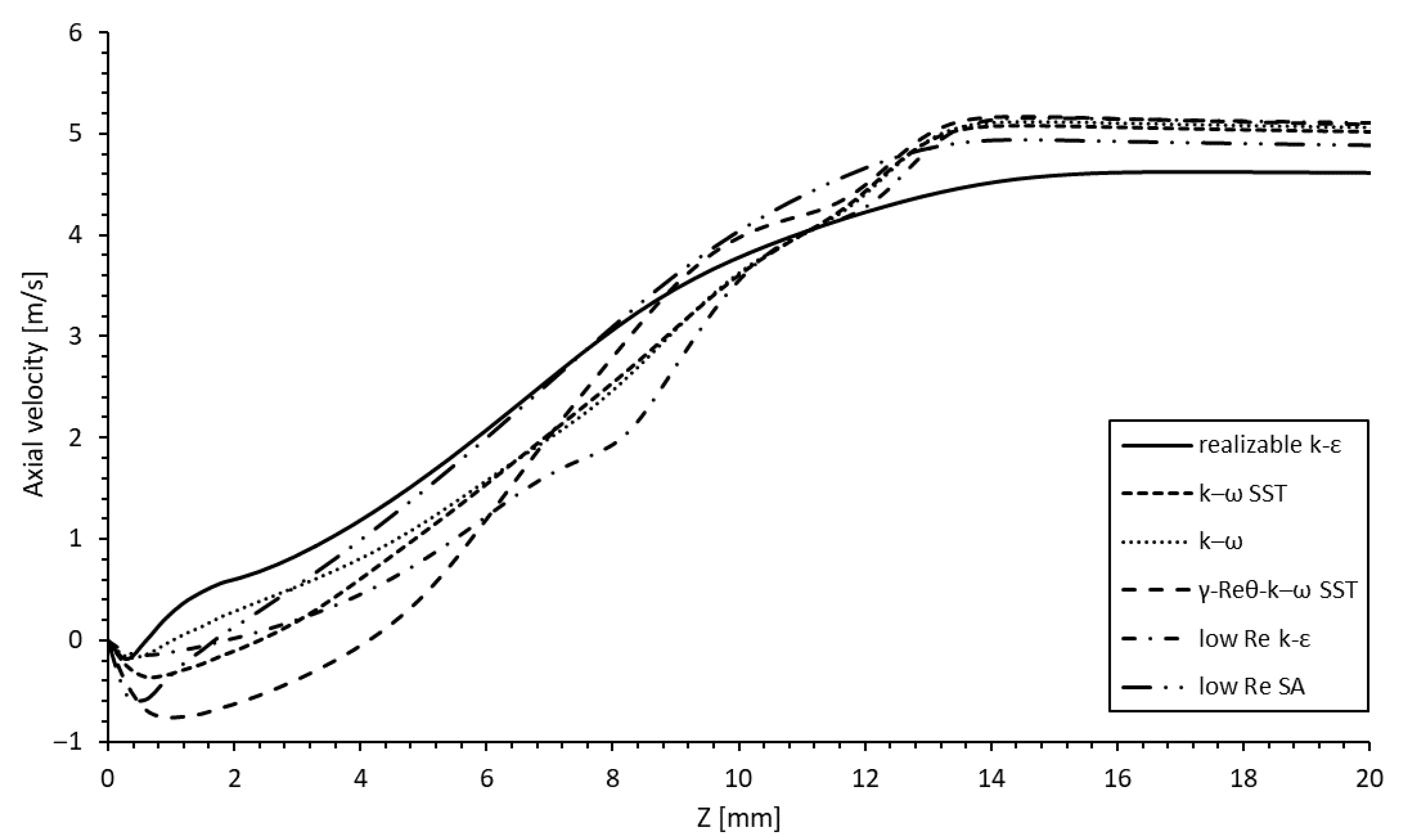

**Figure 9.**Simulated axial velocity magnitude at R4 for different turbulence models. The ordinate is clipped at Z = 20.

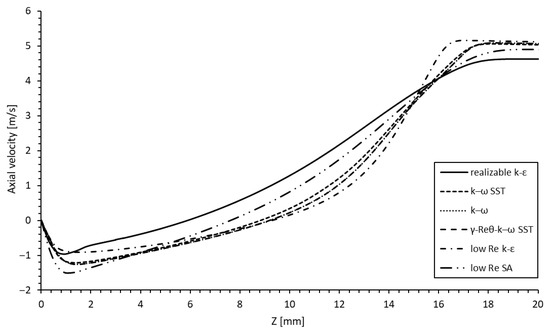

**Figure 10.**Simulated axial velocity magnitude at S4 for different turbulence models. The ordinate is clipped at Z = 20.

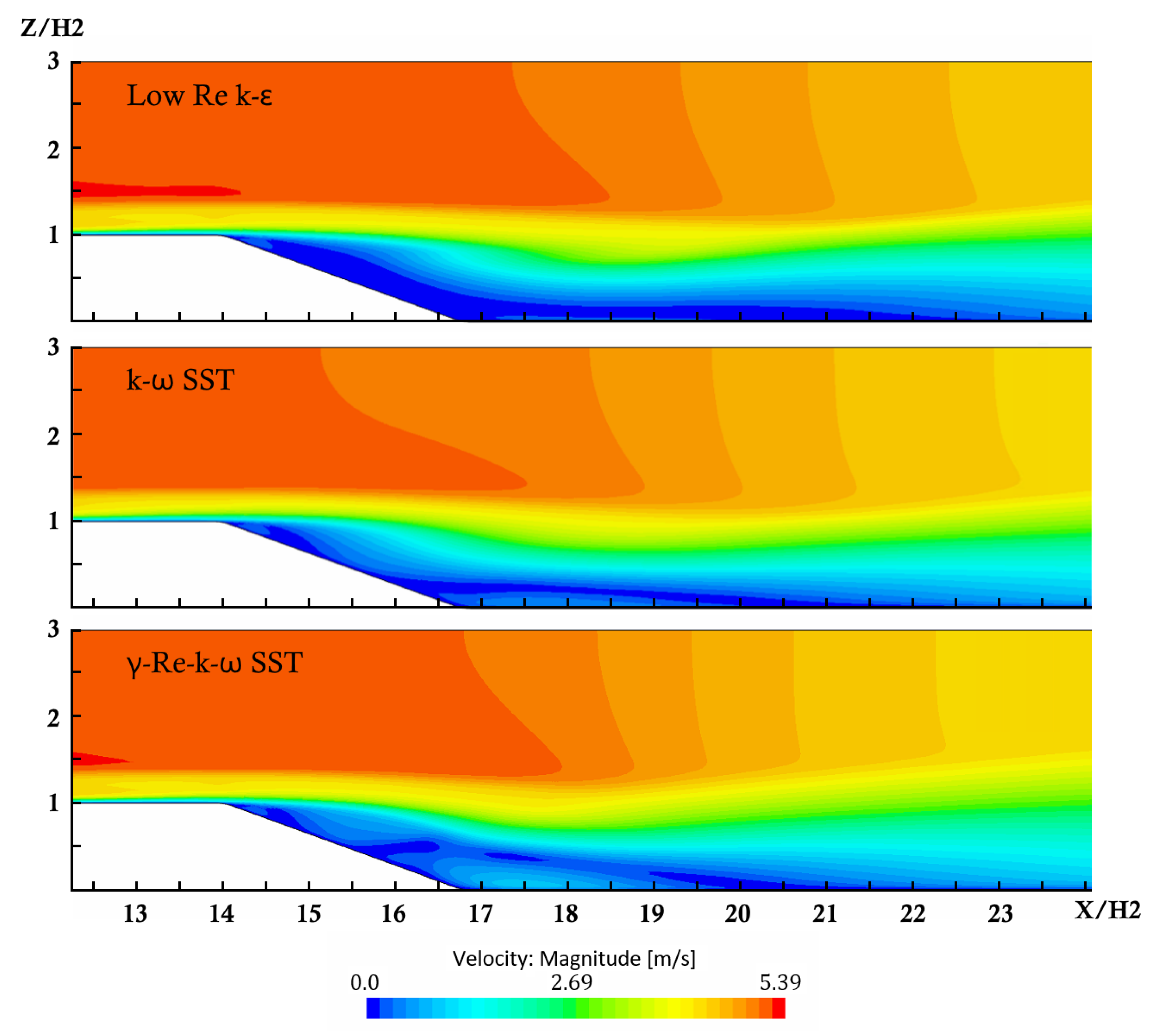

**Figure 11.**Simulated velocity magnitude profiles around the backward-facing ramp for the type A knitted wire mesh with two rows using different turbulence models.

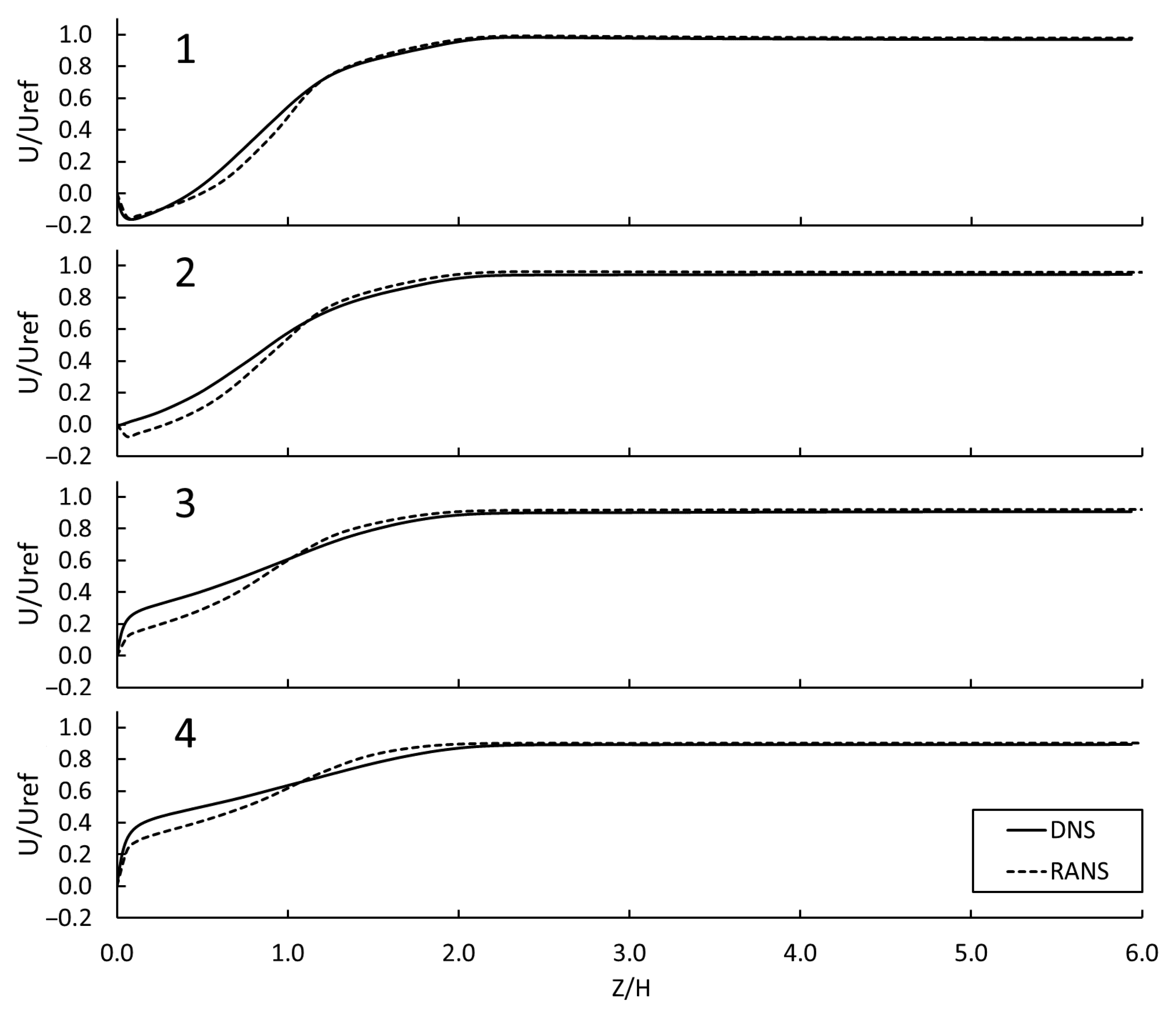

**Figure 12.**Vertical distributions of axial velocity for the k-$\omega $ SST model in comparison with DNS data by Le and Moin [38] at several positions downstream of the step normalized by step height H. (1): X/H = 4, (2): X/H = 6, (3): X/H = 10, (4): X/H = 15.

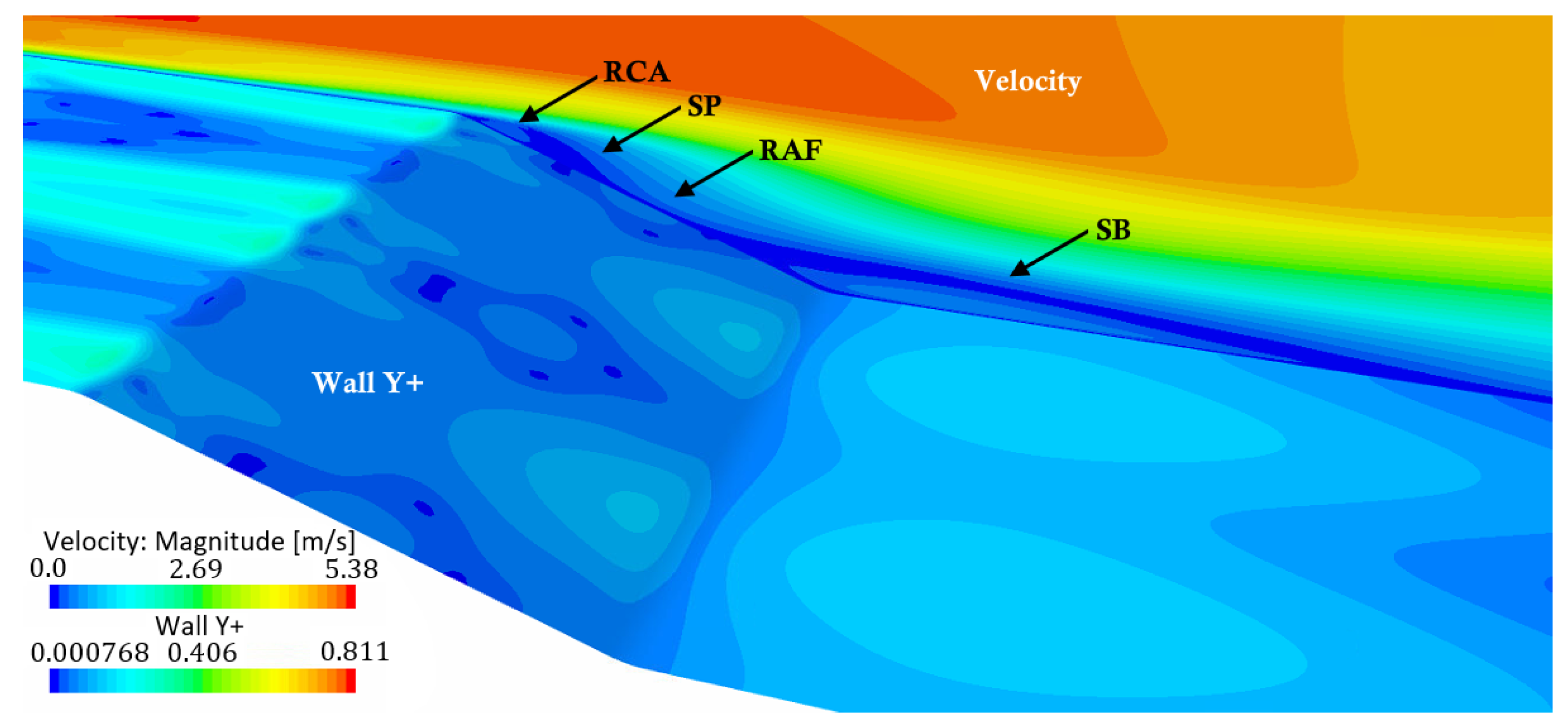

**Figure 13.**Simulated flow separation affected by the knitted wire mesh with two rows. The velocity is shown on the plane R in between two stitches. On the bottom channel walls, the y+ value is presented. SB denotes a separation bubble, SP a stagnation point, RCA a recirculation area and RAF a reattached flow.

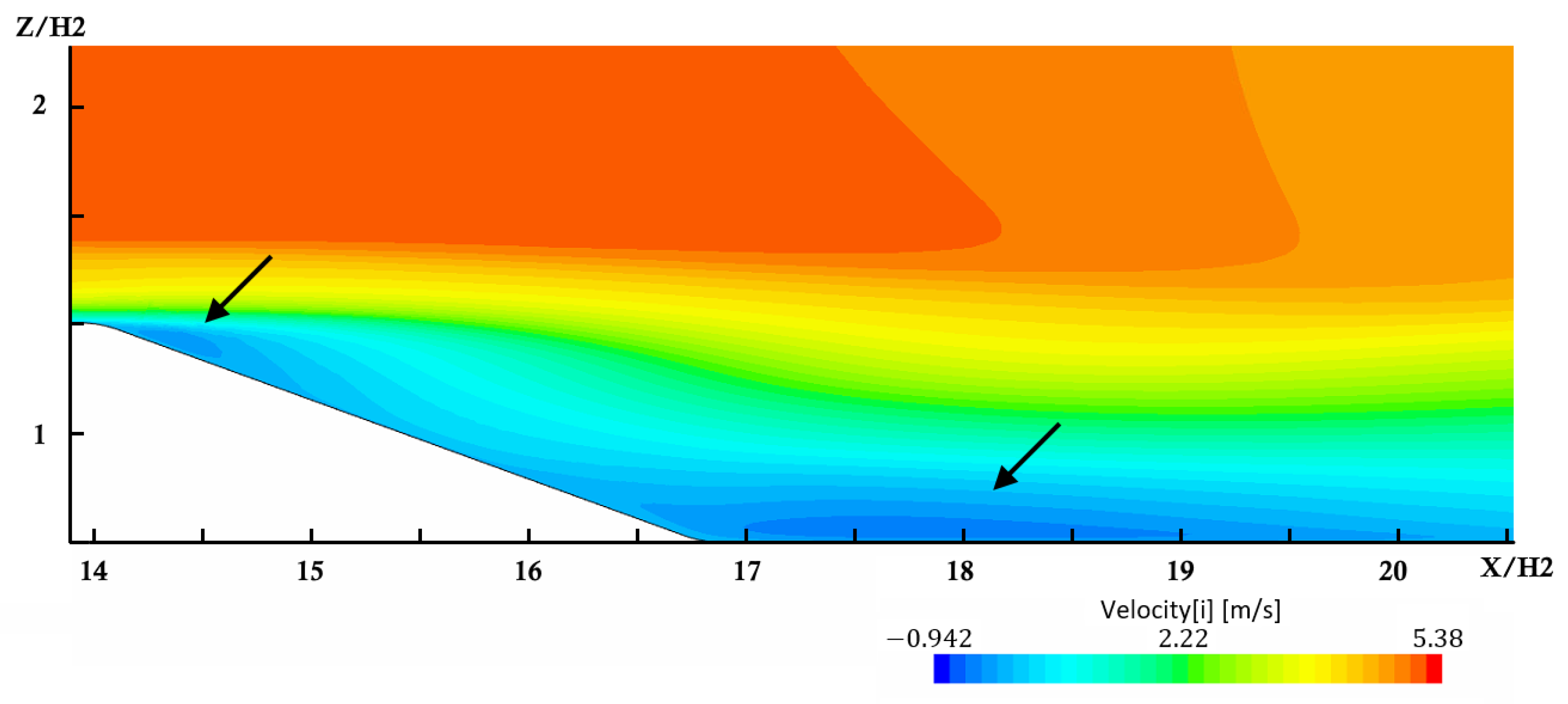

**Figure 14.**Simulated flow separation affected by the knitted wire mesh with two rows. The velocity in the horizontal direction is shown on the plane R in between two stitches. The arrows indicate recirculation areas.

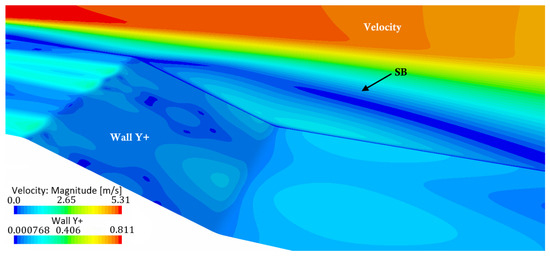

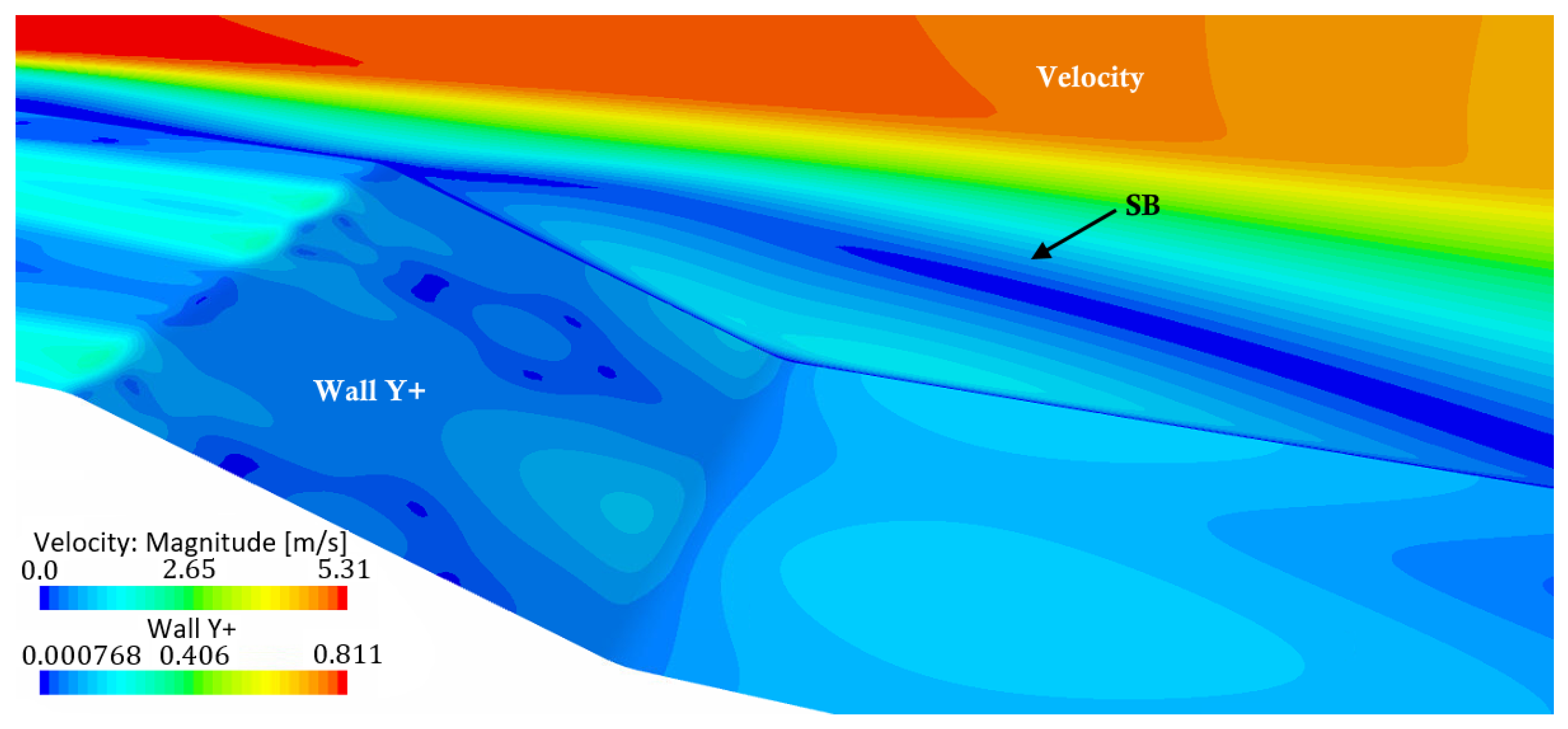

**Figure 15.**Simulated flow separation affected by the knitted wire mesh with two rows. The velocity is shown on the symmetry plane S of a stitch. On the bottom channel walls, the y${}^{+}$ value is presented. SB denotes a separation bubble.

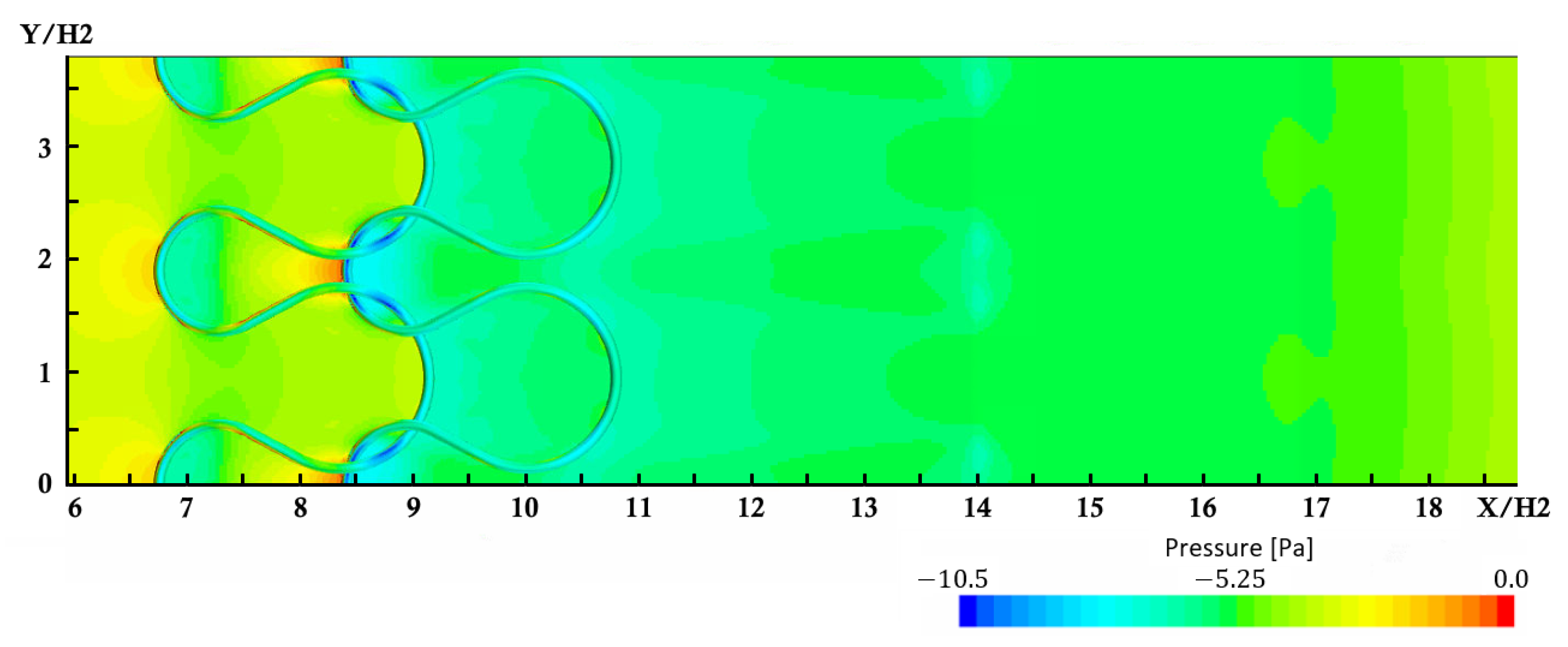

**Figure 16.**Simulated pressure distribution on the channel wall. The ramp edge is located at X/H${}_{2}$ = 14.

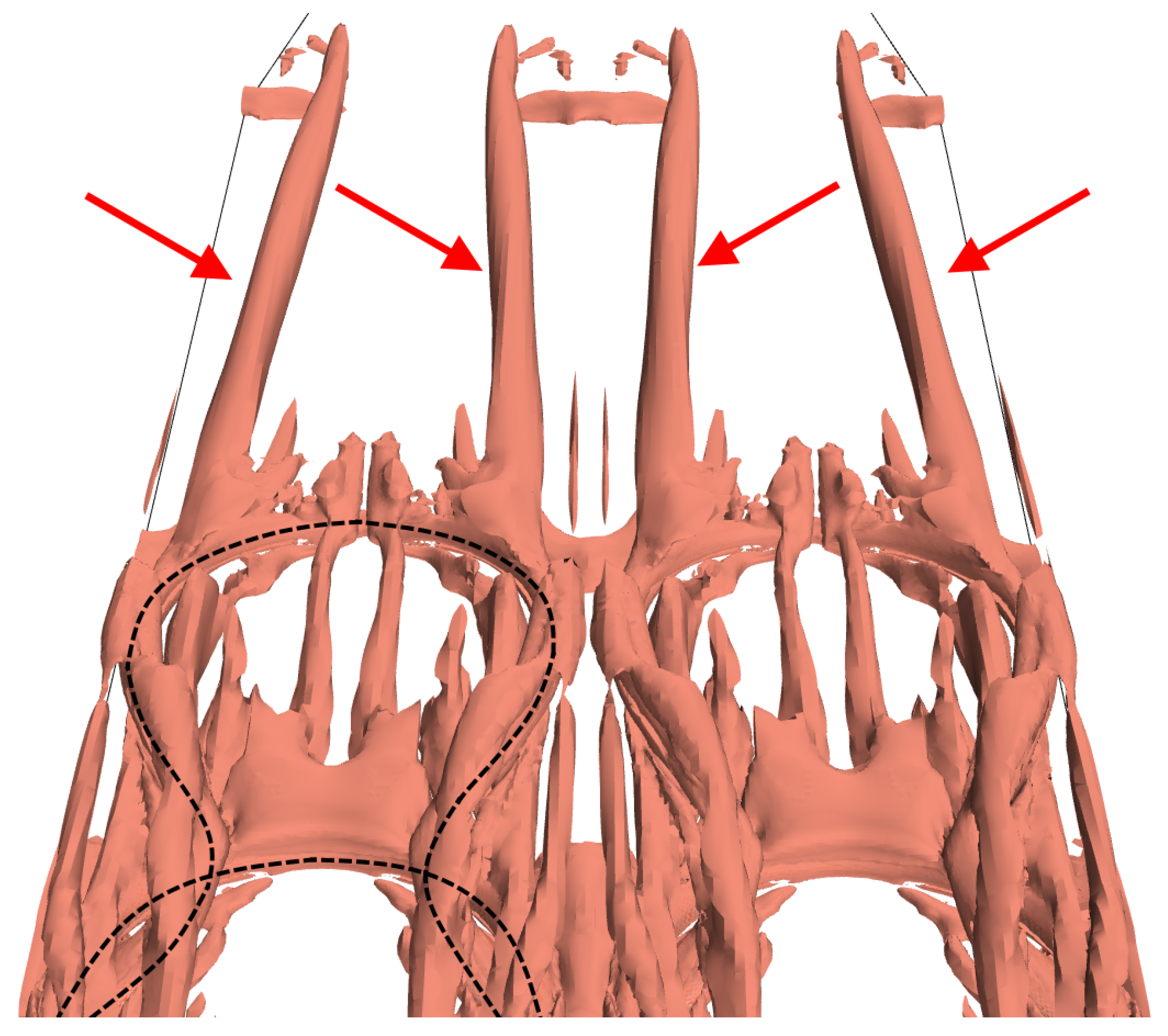

**Figure 17.**Isosurface of the Q-criterion around the knitted wire mesh. The red arrows mark the elongated streamwise vortex structures. The dashed lines indicate the knitted wires. The isovalue is set to 100,000 1/s${}^{2}$.

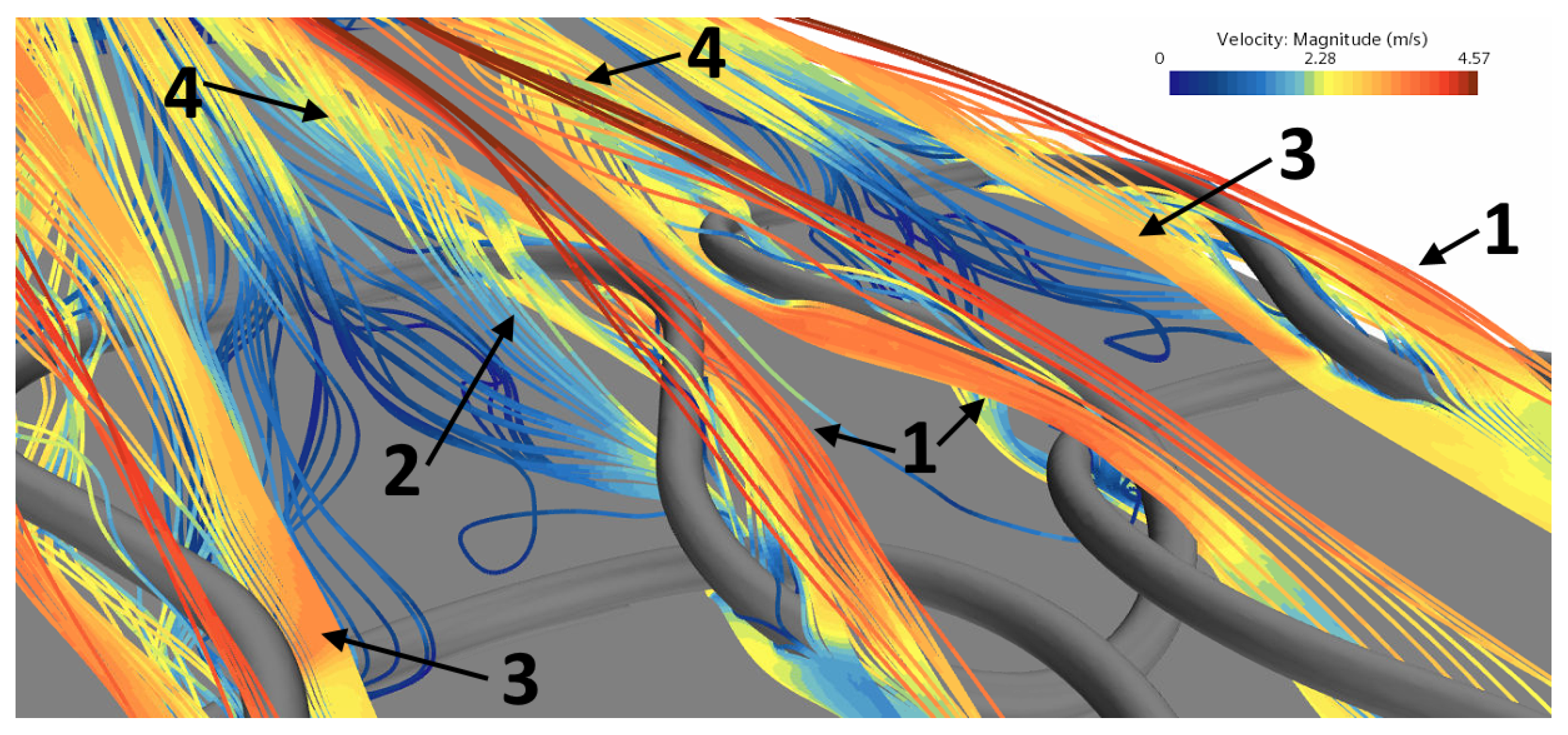

**Figure 18.**Streamlines around the knitted wire mesh with two rows. (1) Streamlines follow the curvature of the wire and extend from under the stitch towards the centerline. (2) Streamlines separate from 1, running inside of the stitch and over the wire towards the lateral outside of the stitch. (3) Streamlines running over the inside of the stitches. (4) Streamwise vortices emerging from 1, 2 and 3.

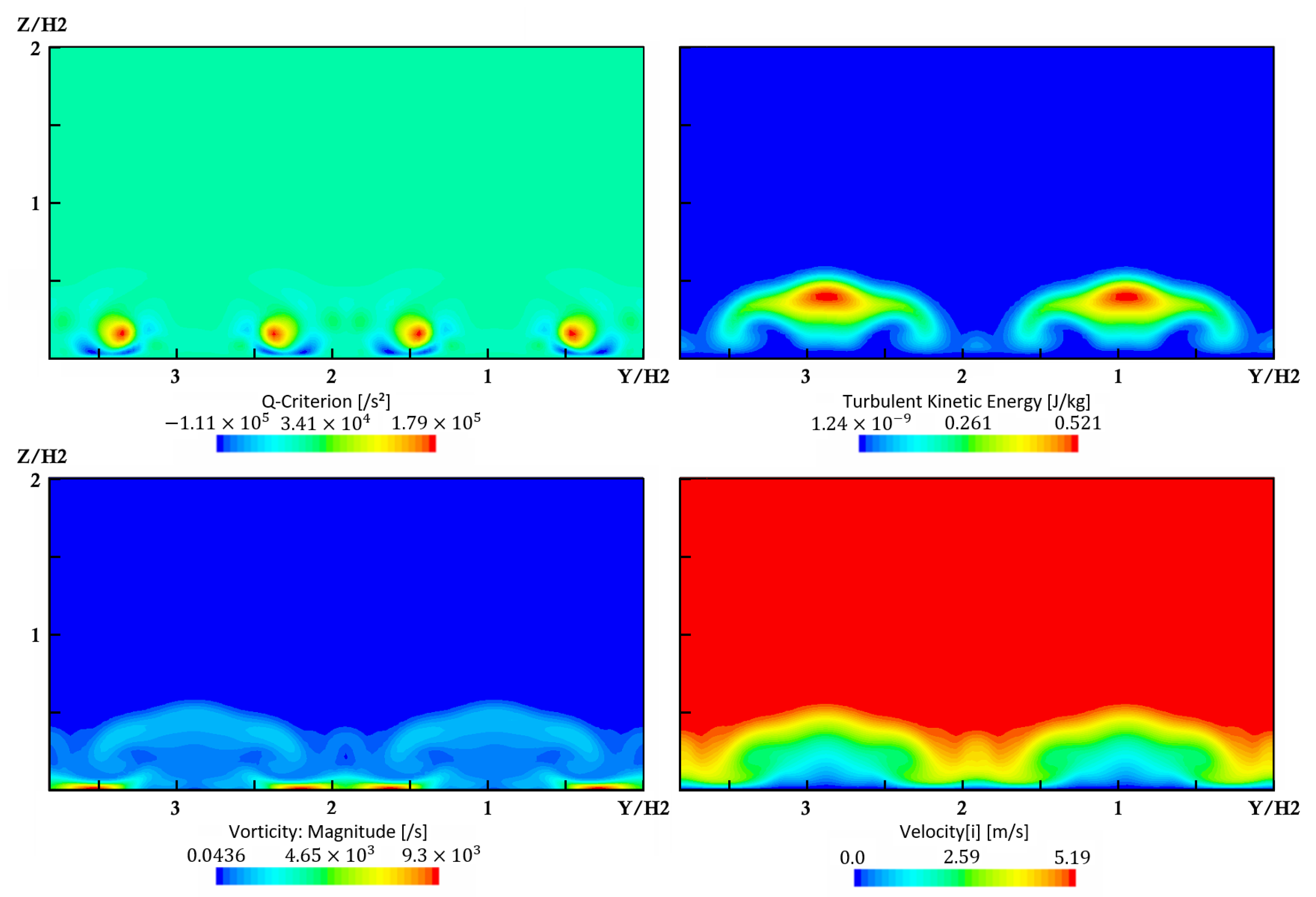

**Figure 19.**Comparison of simulated Q-criterion, turbulent kinetic energy, vorticity and axial velocity on a cross-section in the wake of the knitted wire mesh at X/H${}_{2}$ = 13.17.

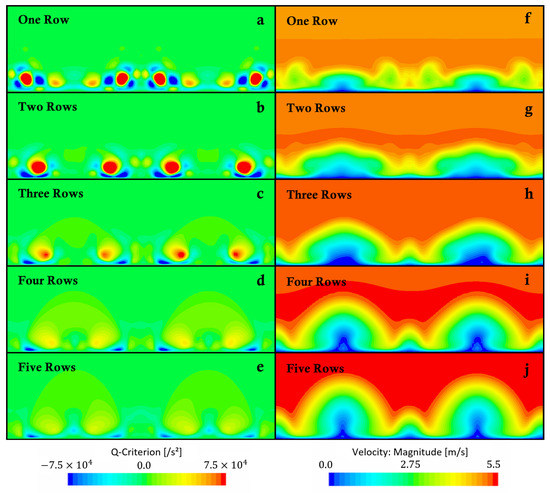

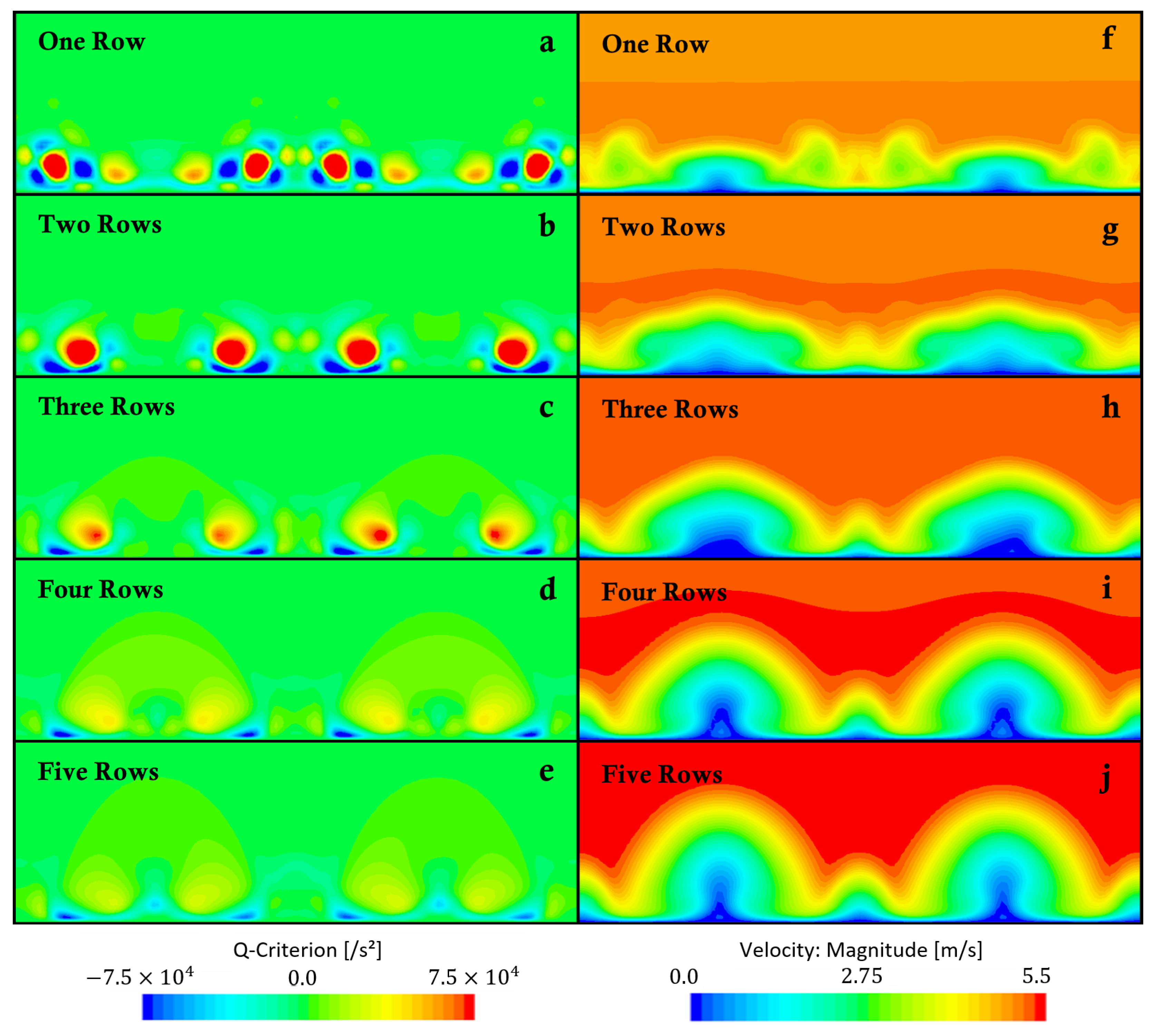

**Figure 20.**Q-criterion and velocity for between one and five knitted wire rows at X/H${}_{2}$ = 11.5, 13.17, 14.83, 16.5 and 18.17, respectively. The X values represent the same distance downstream in the wake of the different wire meshes.

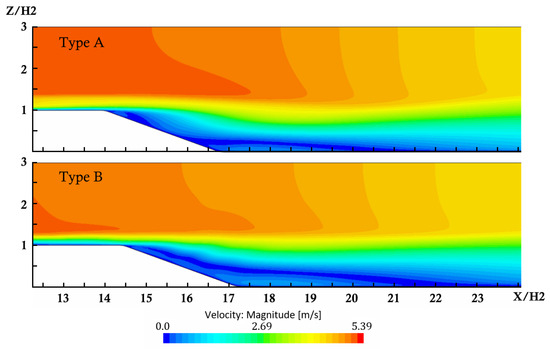

**Figure 21.**Simulated velocity field at the backward-facing ramp for type A and type B knitted wire meshes.

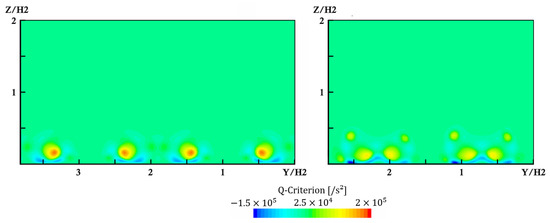

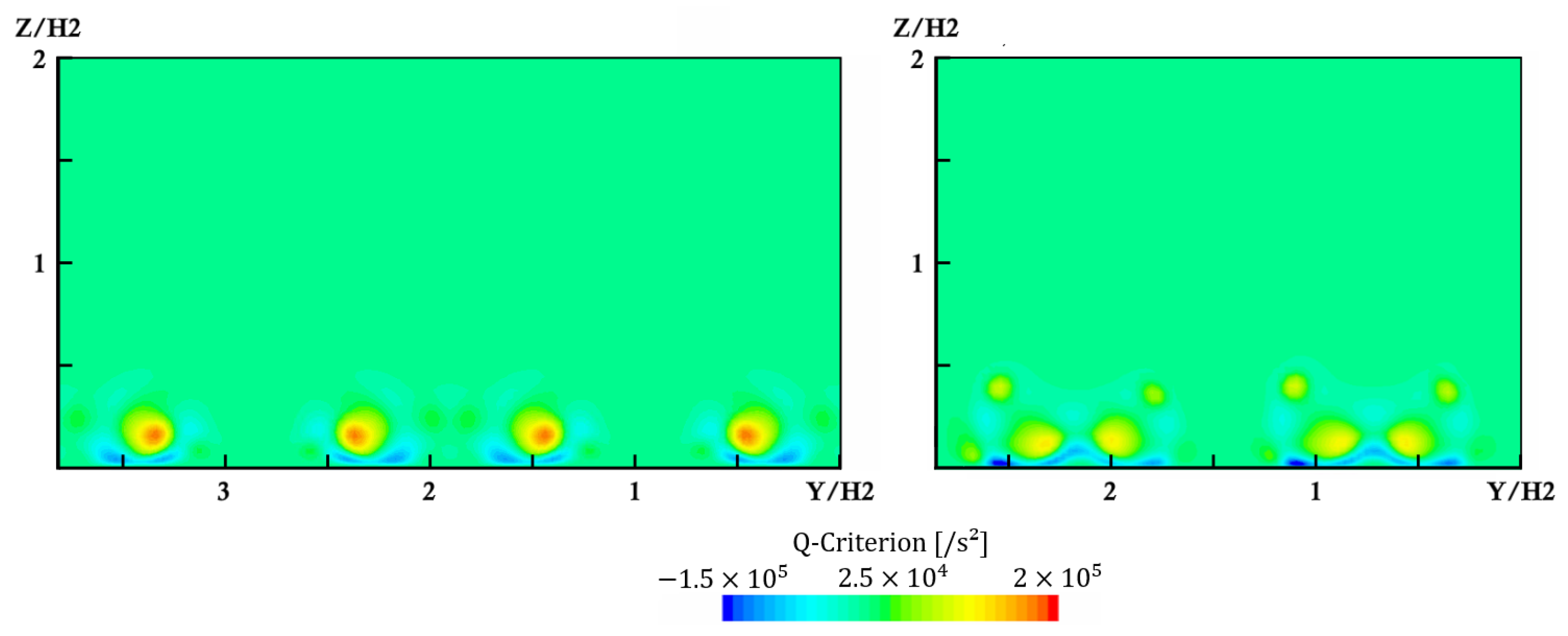

**Figure 22.**Simulated Q-criterion at the same downstream distance in the wake of the knitted wire meshes.
