Review

Polymeric Materials for Rare Earth Elements Recovery

by
Hongtao Zhang
1 and
Yongfeng Gao
2,*
1
School of Chemistry and Chemical Engineering, Qinghai Normal University, Xining 810008, China
2
Department of Chemistry, University of Alberta, Edmonton, AB T6G 2G2, Canada
*
Author to whom correspondence should be addressed.
Gels 2023, 9(10), 775; https://doi.org/10.3390/gels9100775
Submission received: 6 September 2023 / Revised: 16 September 2023 / Accepted: 22 September 2023 / Published: 24 September 2023
(This article belongs to the Special Issue Hydrogels in Action: Self-Assembly, Responsivity and Sensing)
Browse Figures
Versions Notes

Abstract

:
Rare earth elements (REEs) play indispensable roles in various advanced technologies, from electronics to renewable energy. However, the heavy global REEs supply and the environmental impact of traditional mining practices have spurred the search for sustainable REEs recovery methods. Polymeric materials have emerged as promising candidates due to their selective adsorption capabilities, versatility, scalability, and regenerability. This paper provides an extensive overview of polymeric materials for REEs recovery, including polymeric resins, polymer membranes, cross-linked polymer networks, and nanocomposite polymers. Each category is examined for its advantages, challenges, and notable developments. Furthermore, we highlight the potential of polymeric materials to contribute to eco-friendly and efficient REEs recovery, while acknowledging the need to address challenges such as selectivity, stability, and scalability. The research in this field actively seeks innovative solutions to reduce reliance on hazardous chemicals and minimize waste generation. As the demand for REEs continues to rise, the development of sustainable REEs recovery technologies remains a critical area of investigation, with the collaboration between researchers and industry experts driving progress in this evolving field.

1. Introduction

Rare earth elements (REEs) constitute a group of 17 chemically akin elements, located in the middle of the periodic table (atomic numbers 21, 39, and 57–71), playing pivotal roles in both established and cutting-edge industries like lighting [1], electronics [2], renewable energy [3,4], and aerospace [5]. They are integral components in diverse technologies such as fluorescent lamps, lasers, supermagnets, atomic batteries, and engine turbines. However, global REEs supply has been heavily reliant on China, which has provided over 85% of the world’s production since the late 20th century [4,6,7,8]. This dependency raises concerns, as REEs are often byproducts of other mining operations, making their extraction and recovery less efficient. Additionally, the accumulation of REEs in the environment are a potential harm to living organisms and pose environmental and health risks [9]. Consequently, there is a growing need for sustainable and eco-friendly REEs recovery methods. Numerous technologies, including solvent extraction [10,11,12], ion exchange [13,14], precipitation [15], crystallization [16], and adsorption [17,18,19], have been employed to recover REEs from various sources, such as ores, industrial waste streams, and environmental samples. These methods are designed to selectively extract and separate REEs, offering potential solutions to the challenges associated with their supply and environmental impact.
Solvent extraction, a widely adopted approach, entails mixing an organic solvent, typically kerosene or a similar hydrophobic substance [10], with an aqueous solution containing REEs. It is based on the principle that different elements or ions can be selectively extracted from a liquid phase into an organic solvent phase owing to differences in their chemical properties, such as solubility and affinity for certain extracting agents. Complexing agents or extractants are introduced into the solvent to preferentially bind to REEs. The selective extraction and separation of REEs from other elements can be achieved by manipulating factors like pH and various conditions [20,21]. Solvent extraction has the advantages of achieving high selectivity for specific REEs, scalable for both laboratory and industrial applications, and extracting agents can be tailored for different REEs. However, the drawback is the complex processes involved, and environmental and safety considerations [22].
Ion exchange is renowned for its remarkable selectivity and efficiency in REE recovery. This method employs ion exchange resins that are impregnated with specific ions tailored to capture REEs as the solution flows through them [23]. Both the pH of the aqueous solution and the flow rate can affect the ion exchange reactions. Ion exchange can be highly selective for specific REEs, depending on the choice of resin and operating conditions. However, the regeneration of ion exchange resins and the impurities are still challenges. Subsequent elution using an appropriate solution allows for the retrieval of these valuable elements. Depending on the resin and elution method used, ion exchange can have operating costs associated with chemicals and resin replacement.
Another technique involves the selective precipitation of REEs from a solution by adjusting pH levels and introducing specific precipitating agents [24]. This method is commonly employed to initially concentrate REEs from dilute solutions before subjecting them to further purification processes. It involves the chemical conversion of dissolved REE ions in a solution into solid, insoluble compounds or precipitates, which relies on the differences in solubility between REE compounds at varying conditions, such as pH and temperature. Precipitation can be tailored to selectively recover specific REEs based on the chemical properties, and this method is relatively straightforward and suitable for various REE-bearing materials. However, impurity co-precipitation, and regeneration are still challenges for this method.
Crystallization processes can also be utilized for REEs recovery [25]. In this approach, a suitable compound is crystallized, and this compound is subsequently decomposed to isolate the individual REEs. This method takes advantage of differences in solubility between REE compounds under varying conditions. It has the advantages of high purity, selectivity, and scalability. Thus, crystallization has been used in primary mining operation and recycling processes to recover REEs from various sources. However, this method sees less frequent use due to its intricate and complex nature.
To selectively adsorb REEs from a solution, a variety of adsorbents, including both polymeric materials [26] and inorganic compounds [27], can be employed. Functionalized polymers or ligands are often incorporated into these adsorbents to enhance selectivity. The recovery of rare earth elements encompasses a diverse range of techniques, each characterized by its own unique advantages and complexities. These methods continue to evolve as researchers endeavor to develop more efficient, selective, and environmentally friendly approaches to extract and utilize REEs.
Each of these methods has its advantages and disadvantages, depending on factors such as the composition of the source material, the desired purity of the recovered REEs, and environmental considerations. Often, a combination of methods is used in a multistep process to achieve high-purity REEs recovery. The choice of methods depends on the specific circumstances and goals of the REEs recovery process [28,29,30]. Over the past few decades, there has been a noteworthy surge in interest regarding the use of polymeric materials for the recovery of REEs. In this review, we will classify polymeric materials into several distinct categories, encompassing polymeric resins, polymer membranes, cross-linked polymer networks, and nanocomposite polymers. We will include illustrative examples within each category, highlighting their exceptional performance in recovering Rare Earth Elements (REEs). The provided case studies vividly showcase the remarkable adsorption capacities and the regenerable characteristics exhibited by these materials.

2. Polymeric Materials for REEs Recovery

Polymeric materials have recently gained considerable attention due to their potential applications in the retrieval of REEs [31,32,33,34,35]. These materials offer a suite of advantages, including their capacity for selective adsorption, adaptability for functionalization, scalability, regenerability, minimized environmental footprint, and waste reduction.
One notable advantage lies in their ability to be fine-tuned for high selectivity toward specific REEs. By embedding functional groups within the polymer matrix [36], these materials can be precisely engineered to preferentially adsorb particular REEs, streamlining the separation processes. Furthermore, polymeric materials can be easily customized through functionalization, permitting the incorporation of specific ligands or groups that enhance their affinity for rare earth elements [37]. This augmentation significantly improves the efficiency of both adsorption and recovery processes. Versatility is another hallmark, as polymeric materials can be crafted into diverse forms such as beads, fibers, membranes, and films [38,39,40]. This adaptability renders them suitable for various processing scales, spanning from laboratory experimentation to large-scale industrial implementation.
In terms of sustainability, many polymeric materials employed for REEs recovery exhibit regenerable properties, allowing for multiple cycles of use. This not only conserves valuable resources but also curtails waste generation. When juxtaposed with traditional solvent-based extraction methods, polymeric materials proffer a more environmentally conscientious approach to REEs recovery. They typically operate under gentler conditions and produce fewer deleterious byproducts. Moreover, these materials facilitate the concentration of REEs from dilute sources, thereby diminishing the volume of waste necessitating management.
Numerous categories of polymeric materials have undergone rigorous investigation to assess their viability for REEs recovery [33,35,41,42,43]. These materials hold substantial potential as a pivotal component in forthcoming REEs extraction procedures, contributing to sustainable practices and a decreased environmental footprint. In the following sections, we will introduce various types of polymeric materials that have been employed in studies related to the recovery of REEs.

2.1. Polymeric Resins

Polymeric resins possess remarkable adaptability, as they can be precisely customized through functionalization to exhibit a strong preference for specific REEs [44,45,46]. Their utility extends beyond selectivity to include advantages like ease of regeneration, scalability for various operational scales, and a reduced environmental impact when compared to the more traditional solvent-based extraction methods. Extensive research endeavors in this field have yielded substantial advancements and enriched insights into the application of polymeric resins for the efficient recovery of REEs [46,47,48].
Polymeric resins can be modified with various functional groups to selectively adsorb specific REEs from complex mixtures [49,50]. The choice of resin and functional groups is crucial in achieving high selectivity. A system based on the N,N-di(2-ethylhexyl)-diglycolamide (DEHDGA) grafted polymer resin, used for the efficient separation of RE(III), is proposed by Wang et al. [49] Upon grafting of DEHDGA ligand, the resulting polymer resin was evaluated for its RE(III) adsorption performance. Utilizing a multifaceted approach involving pH-dependent adsorption, kinetics, and equilibrium adsorption isotherm experiments, the study findings illuminate the paramount role of pH in shaping the adsorption characteristics of the resin for RE(III). Consequently, a comprehensive competitive adsorption model is proposed, which effectively accounts for the concurrent adsorption of RE(III) and protons. One of the pivotal outcomes of this investigation is the revelation of the resin’s heightened selectivity towards RE(III) when subjected to a pH environment of 3.0, particularly in the presence of Al(III) and Fe(III). This remarkable selectivity contrasted favorably with the performance of the conventional diglycolamides(DGA)-normal resin, as vividly depicted in Figure 1. Moreover, the outcomes of batch adsorption experiments unequivocally underscore the substantial enhancement in adsorption capacities for RE(III) achieved through the application of this resin. This enhancement stands in stark contrast to the performance of the DGA-normal resin, reaffirming the exceptional potential of the prepared resin in bolstering the capture of RE(III) species.
Polymeric resins offer a cost-effective and sustainable solution for REEs recovery due to their capability for multiple eco-friendly regeneration cycles. Su and collaborators [42] have introduced an innovative strategy for recovering REEs employing a redox-copolymer named poly(ferrocenylpropyl methacrylamide-co-methacrylic acid) (P(FPMAm-co-MAA)). This remarkable copolymer combines ion-exchange carboxyl groups for REEs adsorption with a redox-active ferrocene component for regeneration, all under precise electrochemical control. By molecularly tuning the copolymer composition, efficient adsorption uptake could be achieved alongside electrochemically regenerated adsorbent reuse without the use of additional chemicals, as shown in Figure 2. Redox-copolymers containing carboxylic acid and ferrocene moieties were synthesized and studied for their effectiveness in recovery of REEs (Y, Nd, Eu, Gd, Dy, and Ce) from aqueous solutions. The copolymer showed increasing REE adsorption capacities with increasing content of MAA (the REEs binding group), with a 50/50 ratio of ferrocenyl groups to carboxylic acid groups providing an optimal balance between uptake and electrochemical regeneration. Adsorption of Y(iii) on P1-CNT showed an equilibrium capacity of 69.4 mg Y(iii) per g polymer at an optimal pH of 6. Electrochemical desorption of the adsorbed REE from the electrodes was achieved using a positive potential vs. Ag/AgCl, to release the bound cation by electrostatic repulsion without the need for additional stripping reagents, achieving close to full regeneration under electrochemical conditions. The adsorption capacity of the electrodes remained relatively constant during four consecutive cycles, confirming the structural stability of the redox-active copolymer.
Polymeric resins bring numerous advantages to the table when it comes to recovering REEs. Researchers have diligently explored the intricacies of REEs adsorption kinetics and thermodynamics on polymeric resins, offering invaluable insights into the factors that shape adsorption efficiency [45]. Furthermore, extensive experimentation with continuous column setups has illuminated the practicality of deploying polymeric resins at an industrial scale, emphasizing their real-world potential. Concurrently, a concerted drive towards more environmentally conscientious REEs recovery processes using polymeric resins has emerged [51,52]. The focus here is on reducing the reliance on hazardous chemicals and curbing the generation of waste.
In essence, the utilization of polymeric resins for REEs recovery holds great promise. Ongoing research is geared towards refining these methods for heightened efficiency and sustainability. As the demand for REEs continues its upward trajectory, the development of innovative, eco-friendly REEs recovery technologies remains a critical domain of investigation. Collaboration between researchers and industry experts actively addresses the challenges and opportunities within this evolving field.

2.2. Polymer Membranes

Membranes showcase a distinctive ability to selectively transport specific ions while excluding others, rendering them a strategic choice for the separation of REEs from complex mixtures [7,13,53,54,55]. Tailoring membranes for precise selectivity enables the exact separation of REEs. In contrast to conventional methods, membrane processes provide superior REEs selectivity and decreased energy consumption, aligning with environmentally sustainable practices [56,57,58]. Furthermore, these processes hold the potential for achieving zero liquid discharge. Nevertheless, a critical aspect revolves around evaluating the economic viability of employing membrane techniques in REEs recovery, demanding meticulous consideration. Membrane separation processes offer a promising pathway for extracting REEs from waste effluents, offering numerous benefits. These encompass elevated recovery rates, exceptional selectivity, minimal space requirements, and reduced sludge generation. Various types of membranes, such as nanofiltration (NF) [59,60,61], ultrafiltration (UF) [62,63,64], and reverse osmosis membranes [65], find application in these processes. In evaluating composite polymeric membranes with various functionalities, we conducted a comparative analysis of commonly utilized polymeric membranes in the context of REE recovery, as summarized in Table 1.
To gain a deeper insight into the functionality of polymer membranes in REEs recovery, we will use the study conducted by Pan and colleagues as an illustrative example. A two-step composite modification and imprinting technique was devised and executed, employing rare-earth Nd(III) as the template ions [66]. Illustrated in Figure 3, this process began with a bioinspired self-assembly nanocomposite approach that introduced the polydopamine(PDA)-based membrane reaction platform. Subsequently, an innovation-driven development phase was implemented before the Nd(III)-imprinted polymerization, involving the immobilization of polymerizable double bonds on PDA@basswood. To enhance the selectivity and separation performance of our synthesis method, a two-step-temperature imprinting method was refined, utilizing MAA and AM as the dual functional monomers. Following a straightforward removal procedure of Nd(III) from the prepared membrane, specific recognition sites for Nd(III) ions were ultimately attained.

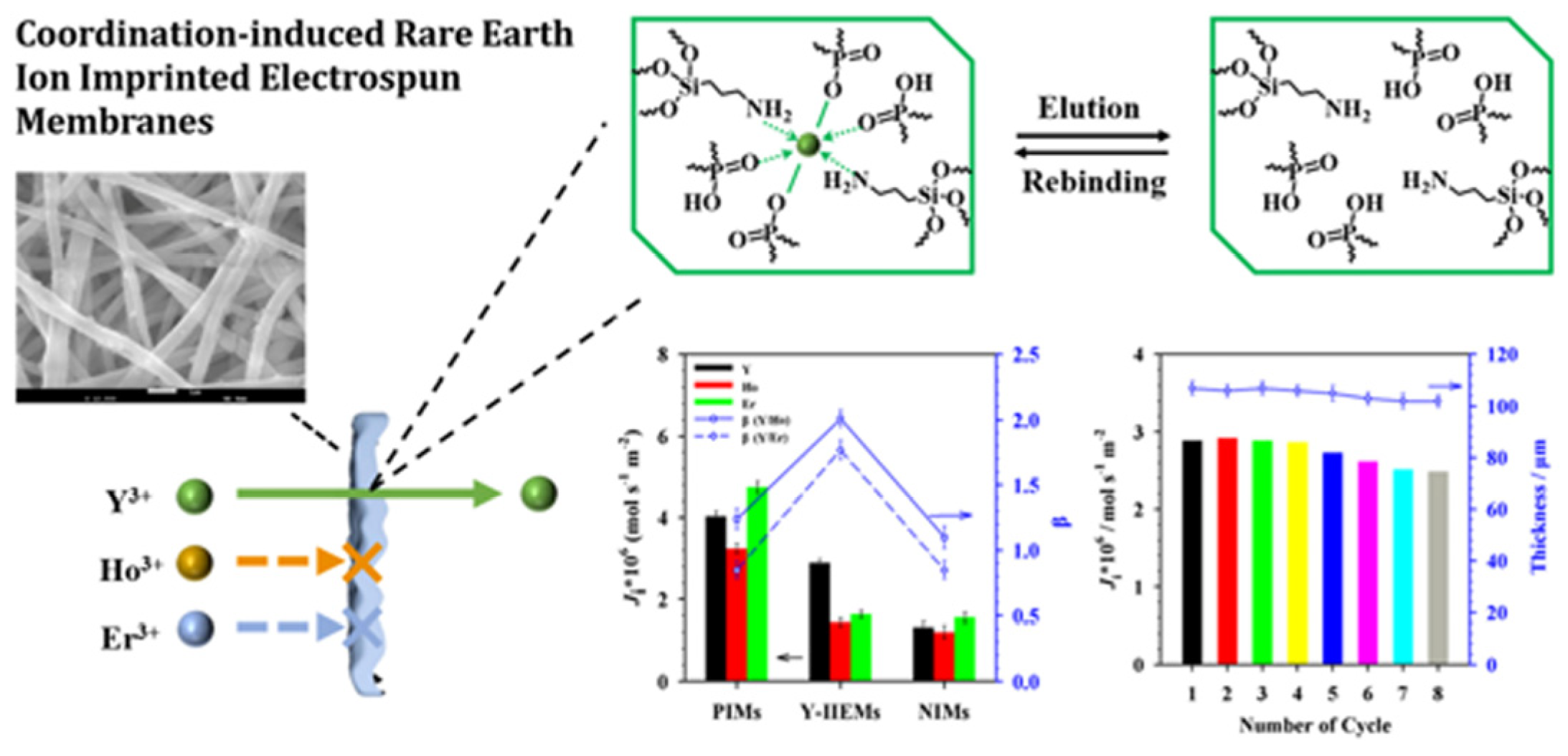

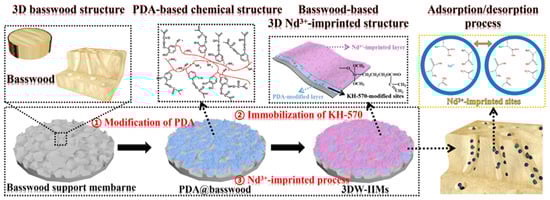

Yan and his team engineered ion-imprinted electrospun membranes (Y-IIEMs) meticulously designed for the selective separation of the closely-related heavy rare earth ion Y(III) from Ho(III) and Er(III) by applying high efficient ligand-inducing and aqueous phase ion-imprinting [67]. Cyanex272 served a dual purpose as both a carrier in the membrane matrix and a highly efficient ionic ligand within the imprinted layer. Through PDA bionic adhesion and sol-gel aqueous phase imprinting, Cyanex272’s thermal stability saw substantial improvement. The impressive water contact angle of Y-IIEMs, measuring only 23.2°, was likely the result of a synergistic combination of polar groups, including P=O and P-OH from the Cyanex272 ligand, imino groups from the pDA layer, and silicon hydroxyls from the sol-gel imprinting process.
Furthermore, the calculated static adsorption imprinting factor for Y(III) exceeded 7, affirming the successful formation of valid recognition sites. During dynamic permeation, the separation factors β(Y/Ho) and β(Y/Er) exhibited significant enhancements, increasing from 1.24 and 0.85 for non-imprinted membranes to 2.01 and 1.77 for imprinted ones. Impressively, after undergoing 8 cycles of dynamic permeation, Y-IIEMs only experienced a minor 13.8% reduction in flux, highlighting their remarkable stability and reusability, as shown in Figure 4.
Polymer inclusion membranes (PIMs) represent a vital category within membrane separation technologies [13,53,68,69]. These membranes are characterized by a 3D-polymer framework, utilizing materials like polyvinylidene difluoride (PVDF), polytetrafluorethylene (PTFE), or cellulose triacetate (CTA), to embed ion-complexing carriers. What sets PIMs apart is their capacity to maintain flexibility during operational conditions, achieved simply by introducing a plasticizer or carefully selecting the appropriate polymer material. This selection accounts for factors like molecular weight, morphology, as well as bulk and surface chemistry. PIMs offer numerous advantages over non-polymer alternatives, a field still relatively underexplored in the scientific literature. These advantages encompass their straightforward composition, exceptional versatility (tailored for various types of REEs solutes with a single membrane), ease of synthesis scalable for tunable porosity, effective carrier immobilization during manufacturing, robust mechanical properties, enduring operational stability, rapid and convenient installation in facilities, and, importantly, cost-efficiency.
Although there are many benefits for using polymer membranes in REEs recovery, they also come with challenges related to several issues that require careful consideration and ongoing research to overcome. For example, setting up membrane-based systems can have higher initial capital cost compared to some conventional methods. Fouling, caused by the accumulation of impurities on the membrane surface, can reduce membrane efficiency over time, necessitating cleaning and maintenance.

2.3. Cross-Linked Polymer Network

A cross-linked polymer network, often referred to simply as a cross-linked polymer, is a three-dimensional structure formed by chemically linking polymer chains together [70,71,72]. This type of polymer network is characterized by strong covalent bonds between individual polymer chains, creating a mesh-like structure. Cross-linked polymer networks are essential materials in many industries due to their exceptional strength, durability, and resistance to chemical and thermal influences. They play a crucial role in the development of high-performance materials for diverse applications.
Inorganic adsorbents, once widely used, fell out of favor due to their limitations, including poor selectivity and environmental instability. Consequently, there has been a shift towards the adoption of more specialized functional polymeric adsorbents [73]. Following extensive research, polymeric adsorbents featuring amidoxime, phosphate, amide, and carboxyl groups have emerged as promising candidates, exhibiting impressive adsorption capacities for uranium and REEs [74].
Among these, amidoxime-based adsorbents [75] have demonstrated exceptional uranium adsorption capabilities, owing to their strong attraction to uranyl ions. However, a notable challenge in their use stems from the complex preparation processes. These processes typically involve the utilization of highly toxic, explosive, and volatile acrylonitrile monomers. Moreover, the need for labor-intensive amidoximation and alkali treatments prior to adsorption can present obstacles to scalability and hinder sustainable development efforts.
Hydrogels, recognized as porous cross-linked polymer networks, have emerged as highly effective sorbents for REEs [76,77,78,79]. These hydrophilic copolymers, although typically not soluble in water, feature expansive and flexible chelating groups thoughtfully positioned within their three-dimensional structures [80,81,82]. Significantly, the incorporation of inorganic fillers has shown immense promise in augmenting the performance of hydrogel networks [83]. The amalgamation of organic and inorganic elements in hybrid gels has been a game-changer, mitigating the limitations often associated with traditional hydrogels. These enhancements facilitate the efficient recovery of REEs [84].
Gray and his research team meticulously crafted organic-inorganic hybrid gels composed of polyethylenimine(PEI)-polyacrylamide(pAAm)-SiO2. They conducted a comprehensive study, probing the adsorption characteristics of these gels concerning REEs metals under various solution conditions [77]. The researchers conducted an in-depth exploration into the influence of multiple reaction conditions, comprising cross-link degree, grafting degree, and SiO2 concentration, along with the examination of testing conditions like contact time and pH, on the efficiency of adsorption. They meticulously developed a comprehensive adsorptive mechanism to explain these phenomena. Furthermore, the reusability of the sorbent for recycling REEs was thoroughly investigated through five adsorption-desorption cycles, simulating the recovery process from a synthetic acid mine drainage solution, as shown in Figure 5. PEI-pAAm-SiO2 hydrogel was prepared via thermopolymerization by grafting AAm monomer onto PEI25000 as a template polymer in the presence of N,N-methylene-bis-acrylamide(MBAA) as a cross-linker at 70 °C.
In the investigation, the organic-inorganic hybrid gel showcased remarkable adsorption capabilities. This achievement stemmed from meticulous optimization of the three-dimensional network by controlling the degree of cross-linking, grafting, and SiO2 concentration. A noteworthy discovery was the favorable influence of nearly neutral pH conditions on the enhanced adsorption of REEs. This observation suggests that elevating the solution pH to higher levels could serve as a practical approach to enhance REEs uptake from real-world solutions.
Lowry and co-workers developed a phosphate polymer nanogel (PPN) to selectively recover REEs from low REEs content waste streams [32]. As illustrated in Figure 6, the removal efficiency for most lanthanide REEs stands near or above 80%, with Ce, Pr, and Nd displaying removal rates exceeding 95% at a PPN concentration of only 100 mg L–1. While the removal of Sc and Y (~35%) is somewhat lower than that of the lanthanides, it still surpasses the removal rates of most competing ions such as Mg, Co, Ni, Cu, Zn, Pb, Cd, and Ba. Notably, Al remains the most formidable competing cation, exhibiting removal rates akin to some of the lanthanides. Apart from the REEs, the PPN exhibits the capability to remove approximately 80% of uranium (U) and about 30% of thorium (Th) from the leachate. This phenomenon arises from phosphate’s high affinity for radionuclides, suggesting potential applications of PPN in the realm of radioactive waste management.
The PPN exhibited notable sorption capacities, registering values of 311 ± 28 mg g–1, 316 ± 38 mg g–1, and 249 ± 29 mg g–1 for Nd, Gd, and Ho, respectively (as depicted in Figure 7a–c). This equates to a REE uptake of 1.6–2.2 mmol g–1. Remarkably, this sorption capacity exceeded that of several other materials. Specifically, it was nearly twice that of a layered A2Sn3S7·1.25H2O ion exchange material [85], over three times greater that of the Cr-MIL-101 MOF and TiP@GO material [86], over five times higher than a functionalized chitosan-silica hybrid material [87,88], and over ten times greater than that of ligand-functionalized silica particles and ion exchange resin (Figure 7d) [89,90,91]. Based on its chemical composition, the PPN has the potential to capture approximately 3 mmol g–1 of trivalent REEs if all the phosphate groups are fully deprotonated. This implies that REEs utilize up to roughly 70% of the phosphate groups within the PPN material at its maximum capacity. Despite this incomplete phosphate utilization, the REE sorption capacity of PPN remains notably high when compared to other available sorbents. Detailed comparisons for Ln3+ are provided in Figure 7d, where the PPN exhibited the highest maximum uptake capacity and Kd among twelve other SPE materials reported in the literature. The findings suggest that PPN has the potential to capture a substantial amount of trivalent REEs, and it outperforms numerous other reported sorbents in terms of maximum uptake capacity and Kd values.
This situation potentially opens the door to utilizing alternative sources of REEs, thereby diminishing reliance on energy-intensive and environmentally harmful REEs mining practices. The impressive capacity of PPN offers a more efficient REEs recovery process by minimizing the required number of REEs sorption/elution cycles. This reduction leads to decreased operational expenses and a smaller water footprint. While PPN exhibits good selectivity against numerous competing cations, it still removes Al3+ and Fe3+. Future research endeavors should aim to enhance selectivity, particularly concerning these crucial competing ions, particularly at low pH levels.

2.4. Nanocomposite Polymers

These strategies involve the integration of nanoparticles that exhibit specific affinities for rare earth elements into polymer matrices, thereby bolstering the overall adsorption capacity [74,92,93]. Leveraging nanomaterials (NMs) as adsorbents presents a promising avenue due to their potential for high adsorption efficiency [94,95]. Laboratory testing conducted with specially formulated aqueous solutions (not actual wastewater) has yielded encouraging results, suggesting the viability and interest of this approach. In recent years, researchers have delved into the investigation of synthesized, functionalized, and characterized NMs for the efficient adsorption of rare earth ions (RE3+) from aqueous solutions. This exploration extends beyond resource retrieval considerations to encompass the broader context of environmental and human health impacts associated with REEs and wastewater. For example, Iftekhar and co-workers investigated the mechanism of synthesis of graphite(GA)-g-PAM from free radicals using the EPR spin trapping technique and a possible reaction pathway was proposed [96]. The synthesized nanocomposite was utilized for the removal of REEs, Eu, La, Nd, and Sc from aqueous solutions.
Yang and collaborators synthesized amino-grafted magnetic graphene oxide composites through a straightforward one-step cross-linking reaction involving graphene oxide and magnetic Fe3O4/C nanoparticles, as shown in Figure 8a [97]. The magnetic graphene oxide composites, as synthesized, exhibit remarkable long-term stability when subjected to both acidic and alkaline solutions. These composites display outstanding efficacy in the removal of Ho(III), a prototypical REE, from water. Impressively, their observed adsorption capacity, measured at 72.1 mg of Ho(III) per gram of material, surpasses the capabilities of most previously reported magnetic materials. Even after undergoing 18 adsorption-desorption cycles in acid and alkali solutions, these composites maintain their structural integrity and retain their physicochemical properties. Furthermore, this adsorbent exhibits exceptional adsorption performance, not only for Ho(III) but also for other heavy REEs, including Er(III), Eu(III), Lu(III), Tm(III), Y(III), and Yb(III).

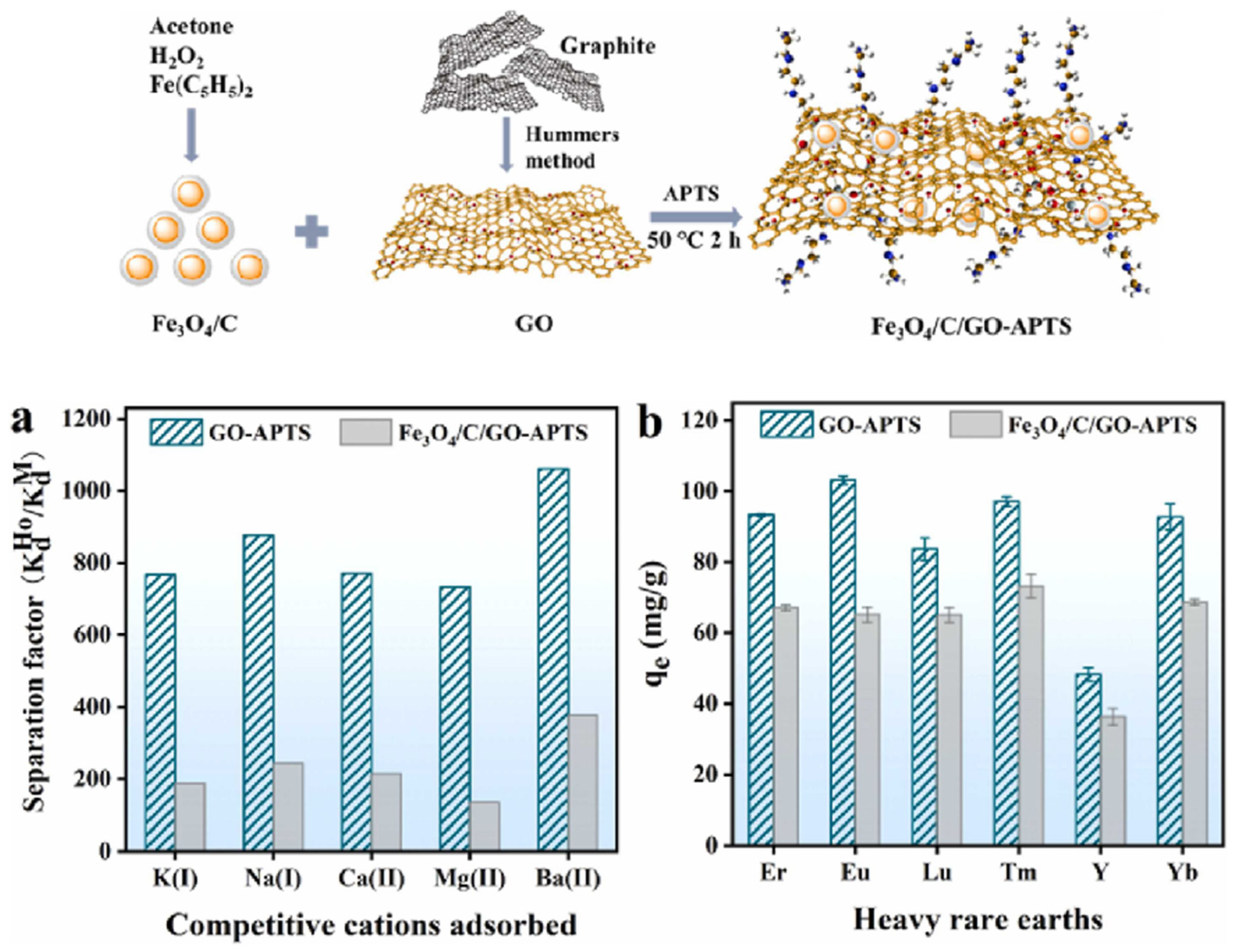

Figure 8b illustrates the impact of single coexistent ions on Ho(III) adsorption, revealing that the interference of K+, Na+, Ca2+, Mg2+, and Ba2+ on the removal of Ho(III) can be disregarded. In addition to Ho(III), they also evaluated the adsorption capabilities of graphene oxide-3-aminopropyltriethoxysilane(GO-APTS) and Fe3O4/C/GO-APTS for other heavy rare earth elements, namely Er(III), Eu(III), Lu(III), Tm(III), Y(III), and Yb(III). It highlights that Ho(III) adsorption remains unaffected by the presence of coexistent ions. The adsorption capacities of GO-APTS for these rare earth elements are provided, ranging from 48.3 mg/g to 103.2 mg/g. In comparison, Fe3O4/C/GO-APTS exhibits slightly lower adsorption capacities due to its lower APTS content within the composite, as presented in Figure 8c. However, both materials demonstrate significant potential for the extraction of a wide range of rare earth elements.
In another study, researchers investigated the utilization of ultra-small cerium oxide nanoparticles within a matrix of woven-non-woven polyvinyl alcohol (PVA) nanofibers to create a nanocomposite designed for adsorbing REE ions [98]. Bae and colleagues developed two innovative phosphate-functionalized porous organic polymers, namely BPOP-1 and BPOP-2, as illustrated in Figure 9a. Both of these BPOP materials exhibit exceptional chemical stability across a broad spectrum of pH conditions [99]. The research team assessed the potential of BPOP materials for selectively removing REEs (Eu3+, Gd3+, Tb3+, and Dy3+) from aqueous solutions. As illustrated in Figure 9b, BPOP-2 exhibited a remarkable capacity to selectively capture Dy3+ ions over other tetravalent, divalent, and monovalent cations. Impressively, nearly all of the adsorbed Dy3+ ions were successfully recovered during the initial 10 consecutive adsorption and desorption cycles, as depicted in Figure 9c. This highlights the enduring and robust performance of BPOP-2 over at least 10 cycles.
Polymeric materials have risen as highly promising contenders in the quest for REE recovery, effectively addressing the pressing demand for sustainable and environmentally-friendly techniques. These materials boast a range of advantages, including exceptional selectivity, adaptability in various forms, and the remarkable capacity for regeneration and repeated use. An array of polymeric resins, membranes, and composite materials has been ingeniously developed, showcasing remarkable adsorption capabilities and robust stability in the context of REEs recovery. Furthermore, innovative strategies like redox-copolymers and phosphate-functionalized polymers have emerged, offering exciting prospects for efficient REEs capture and release. Although certain challenges persist, such as enhancing selectivity and optimizing large-scale processes, it is undeniable that polymeric materials play a pivotal role in mitigating environmental hazards and fortifying the security of REEs supplies.
One thing we want to mention here but not discuss in detail for this review paper is the artificial intelligence (AI) used for recovery of REEs. AI offers significant advantages in REE recovery, such as it can analyze vast datasets related to REE resources, mining operations, and processing techniques [100,101,102,103]. By predicting optimal mining sites or suggesting efficient extraction methods to optimize the REE recovery process, AI-powered robots and sorting systems can enhance the recovery of REEs from electronic waste and other recyclables. There are also challenges to overcome. These include the need for high-quality data, the development of specialized AI algorithms, and addressing ethical concerns related to automation and job displacement. However, with ongoing advancements in AI and a growing understanding of its applications, it holds great promise for making REEs recovery more efficient, sustainable, and economically viable.

3. Summary

In 2021, China achieved a significant milestone by recovering 27,000 tons of rare earths from production-side waste. This remarkable accomplishment accounted for 16% of the total rare earth oxide production, which amounted to 170,000 tons during that year. Furthermore, both the United States and the European Union have demonstrated a strong commitment to advancing research and development in the field of rare earth recycling technology. Their efforts are accompanied by substantial industrial support. For instance, the European Union’s commitment is exemplified through its substantial investment in the related project. This extensive initiative comprises 19 sub-projects spanning across nine different countries and boasts a total funding amount of EUR 140 million.
In this paper, we explore the utilization of polymeric materials in the recovery of REEs, which are crucial in various industries. It addresses the challenges arising from the heavy reliance on China for REEs supply and the associated environmental hazards of REEs accumulation in ecosystems. We primarily focus on polymeric materials and their merits in REEs recovery. These materials can be finely tuned for high selectivity, enabling the precise adsorption of specific REEs. The functionalization of polymers enhances their affinity for REEs, thereby enhancing both adsorption and recovery efficiency. Additionally, polymeric materials exhibit versatility, with the ability to be molded into various forms, from beads to membranes, making them adaptable for different scales of operation. Sustainability is a key theme, with an emphasis on the regenerable properties of many polymeric materials used in REEs recovery. This regenerability not only conserves valuable resources but also reduces waste generation. Furthermore, compared to traditional solvent-based extraction methods, polymeric materials operate under milder conditions and generate fewer harmful byproducts.
This review categorizes polymeric materials into distinct groups, including polymeric resins, polymer membranes, cross-linked polymer networks, and nanocomposite polymers. It provides illustrative examples within each category, underscoring their effectiveness in REEs recovery. Case studies demonstrate the impressive adsorption capacities and regenerable nature of these materials. The future direction of polymer materials-based rare earth elements recovery will likely involve a combination of tailored material design, sustainability, economic feasibility, and interdisciplinary collaboration. These efforts aim to address the growing demand for REEs while mitigating environmental impacts and ensuring a stable supply chain for critical industries.
In conclusion, we acknowledge the existing challenges, such as the quest for high selectivity and stability, and the optimization of recovery processes for large-scale applications. Nevertheless, it underscores the promising role of polymeric materials in addressing the urgent need for sustainable and eco-friendly REEs recovery methods. Collaboration between researchers and industry experts continues to drive advancements in these methods, thereby mitigating the environmental and supply chain risks associated with REEs.

Author Contributions

Conceptualization, H.Z. and Y.G; writing—original draft preparation, H.Z.; writing—review and editing, Y.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Young and Middle-aged Fund Project of Qinghai Normal University, grant number [KJQN2022003]. National college students’ innovation and entrepreneurship training program of China, grant number [202210746007]. Natural Science Foundation of China, grant number [82003315].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Yongfeng Gao acknowledges the University of Alberta (the Department of Chemistry and the Faculty of Science). Hongtao Zhang acknowledges Qinghai Normal University and the National college students’ innovation and entrepreneurship training program of China for supporting.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

REEsRare earth elements
DEHDGAN,N-di(2-ethylhexyl)-diglycolamide
RE(III)Rhenium(III)
Al(III)Aluminum(III)
Fe(III)Iron(III)
DGADiglycolamides
P(FPMAm-co-MAA)Poly(ferrocenylpropyl methacrylamide-co-methacrylic acid)
YYttrium
NdNeodymium
EuEuropium
GdGadolinium
DyDysprosium
CeCerium
CNTCarbon nanotube
FcFerrocene
NFNanofiltration
UFUltrafiltration
PDAPolydopamine
PVDFPolyvinylidene difluoride
PTFEPolytetrafluorethylene
CTACellulose triacetate
PEIPolyethylenimine
pAAmPolyacrylamide
PIMPolymer inclusion membranes
MBAAN,N-methylene-bis-acrylamide
PPNPhosphate polymer nanogel
KdDistribution coefficients
NMsNanomaterials
GAGraphite
GO-APTSGraphene oxide-3-aminopropyltriethoxysilane
PVAPolyvinyl alcohol
BPOPPhosphate-functionalized porous organic polymers
AIArtificial intelligence

References

  1. Song, X.; Chang, M.-H.; Pecht, M. Rare-earth elements in lighting and optical applications and their recycling. JOM 2013, 65, 1276–1282. [Google Scholar] [CrossRef]
  2. Dev, S.; Sachan, A.; Dehghani, F.; Ghosh, T.; Briggs, B.R.; Aggarwal, S. Mechanisms of biological recovery of rare-earth elements from industrial and electronic wastes: A review. Chem. Eng. J. 2020, 397, 124596. [Google Scholar] [CrossRef]
  3. Golroudbary, S.R.; Makarava, I.; Kraslawski, A.; Repo, E. Global environmental cost of using rare earth elements in green energy technologies. Sci. Total Environ. 2022, 832, 155022. [Google Scholar] [CrossRef]
  4. Haque, N.; Hughes, A.; Lim, S.; Vernon, C. Rare earth elements: Overview of mining, mineralogy, uses, sustainability and environmental impact. Resources 2014, 3, 614–635. [Google Scholar] [CrossRef]
  5. Sharma, V.K.; Kumar, V.; Joshi, R.S. Investigation of rare earth particulate on tribological and mechanical properties of Al-6061 alloy composites for aerospace application. J. Mater. Res. Technol. 2019, 8, 3504–3516. [Google Scholar] [CrossRef]
  6. Balaram, V. Rare earth elements: A review of applications, occurrence, exploration, analysis, recycling, and environmental impact. Geosci. Front. 2019, 10, 1285–1303. [Google Scholar] [CrossRef]
  7. Chen, Z.; Li, Z.; Chen, J.; Kallem, P.; Banat, F.; Qiu, H. Recent advances in selective separation technologies of rare earth elements: A review. J. Environ. Chem. Eng. 2022, 10, 107104. [Google Scholar] [CrossRef]
  8. Talan, D.; Huang, Q. A review of environmental aspect of rare earth element extraction processes and solution purification techniques. Miner. Eng. 2022, 179, 107430. [Google Scholar] [CrossRef]
  9. Egler, S.G.; Niemeyer, J.C.; Correia, F.V.; Saggioro, E.M. Effects of rare earth elements (REE) on terrestrial organisms: Current status and future directions. Ecotoxicology 2022, 31, 689–699. [Google Scholar] [CrossRef] [PubMed]
  10. Pavón, S.; Haneklaus, N.; Meerbach, K.; Bertau, M. Iron (III) removal and rare earth element recovery from a synthetic wet phosphoric acid solution using solvent extraction. Miner. Eng. 2022, 182, 107569. [Google Scholar] [CrossRef]
  11. Zhang, W.; Noble, A.; Yang, X.; Honaker, R. A comprehensive review of rare earth elements recovery from coal-related materials. Minerals 2020, 10, 451. [Google Scholar] [CrossRef]
  12. Quijada-Maldonado, E.; Romero, J. Solvent extraction of rare-earth elements with ionic liquids: Toward a selective and sustainable extraction of these valuable elements. Curr. Opin. Green Sustain. Chem. 2021, 27, 100428. [Google Scholar] [CrossRef]
  13. Bashiri, A.; Nikzad, A.; Maleki, R.; Asadnia, M.; Razmjou, A. Rare earth elements recovery using selective membranes via extraction and rejection. Membranes 2022, 12, 80. [Google Scholar] [CrossRef] [PubMed]
  14. Hermassi, M.; Granados, M.; Valderrama, C.; Skoglund, N.; Ayora, C.; Cortina, J. Impact of functional group types in ion exchange resins on rare earth element recovery from treated acid mine waters. J. Clean. Prod. 2022, 379, 134742. [Google Scholar] [CrossRef]
  15. Zhang, W.; Honaker, R.Q. Rare earth elements recovery using staged precipitation from a leachate generated from coarse coal refuse. Int. J. Coal Geol. 2018, 195, 189–199. [Google Scholar] [CrossRef]
  16. Wu, S.; Wang, L.; Zhao, L.; Zhang, P.; El-Shall, H.; Moudgil, B.; Huang, X.; Zhang, L. Recovery of rare earth elements from phosphate rock by hydrometallurgical processes—A critical review. Chem. Eng. J. 2018, 335, 774–800. [Google Scholar] [CrossRef]
  17. Anastopoulos, I.; Bhatnagar, A.; Lima, E.C. Adsorption of rare earth metals: A review of recent literature. J. Mol. Liq. 2016, 221, 954–962. [Google Scholar] [CrossRef]
  18. Kegl, T.; Košak, A.; Lobnik, A.; Novak, Z.; Kralj, A.K.; Ban, I. Adsorption of rare earth metals from wastewater by nanomaterials: A review. J. Hazard. Mater. 2020, 386, 121632. [Google Scholar] [CrossRef]
  19. Xie, X.; Tan, X.; Yu, Y.; Li, Y.; Wang, P.; Liang, Y.; Yan, Y. Effectively auto-regulated adsorption and recovery of rare earth elements via an engineered E. coli. J. Hazard. Mater. 2022, 424, 127642. [Google Scholar] [CrossRef]
  20. Jha, M.K.; Choubey, P.K.; Dinkar, O.S.; Panda, R.; Jyothi, R.K.; Yoo, K.; Park, I. Recovery of rare earth metals (REMs) from nickel metal hydride batteries of electric vehicles. Minerals 2021, 12, 34. [Google Scholar] [CrossRef]
  21. Mwewa, B.; Tadie, M.; Ndlovu, S.; Simate, G.S.; Matinde, E. Recovery of rare earth elements from acid mine drainage: A review of the extraction methods. J. Environ. Chem. Eng. 2022, 10, 107704. [Google Scholar] [CrossRef]
  22. Shin, W.-R.; Ahn, G.; Lee, J.-P.; Oh, I.-H.; Ahn, J.-Y.; Kim, Y.-H.; Chae, S. Recent Advances in Engineering Aptamer-based Sensing and Recovery of Heavy Metals and Rare Earth Elements for Environmental Sustainability. Chem. Eng. J. 2023, 472, 144742. [Google Scholar] [CrossRef]
  23. Hérès, X.; Blet, V.; Di Natale, P.; Ouaattou, A.; Mazouz, H.; Dhiba, D.; Cuer, F. Selective extraction of rare earth elements from phosphoric acid by ion exchange resins. Metals 2018, 8, 682. [Google Scholar] [CrossRef]
  24. Sim, G.; Hong, S.; Moon, S.; Noh, S.; Cho, J.; Triwigati, P.T.; Park, A.-H.A.; Park, Y. Simultaneous CO2 utilization and rare earth elements recovery by novel aqueous carbon mineralization of blast furnace slag. J. Environ. Chem. Eng. 2022, 10, 107327. [Google Scholar] [CrossRef]
  25. Xie, G.; Guan, Q.; Zhou, F.; Yu, W.; Yin, Z.; Tang, H.; Zhang, Z.; Chi, R.A. A Critical Review of the Enhanced Recovery of Rare Earth Elements from Phosphogypsum. Molecules 2023, 28, 6284. [Google Scholar] [CrossRef]
  26. Mir, N.; Castano, C.E.; Rojas, J.V.; Norouzi, N.; Esmaeili, A.R.; Mohammadi, R. Self-separation of the adsorbent after recovery of rare-earth metals: Designing a novel non-wettable polymer. Sep. Purif. Technol. 2021, 259, 118152. [Google Scholar] [CrossRef]
  27. Zhang, W.; Yang, X.; Honaker, R.Q. Association characteristic study and preliminary recovery investigation of rare earth elements from Fire Clay seam coal middlings. Fuel 2018, 215, 551–560. [Google Scholar] [CrossRef]
  28. Brown, R.M.; Mirkouei, A.; Reed, D.; Thompson, V. Current nature-based biological practices for rare earth elements extraction and recovery: Bioleaching and biosorption. Renew. Sustain. Energy Rev. 2023, 173, 113099. [Google Scholar] [CrossRef]
  29. Nawab, A.; Honaker, R. Pilot Scale Testing of Lignite Adsorption Capability and the Benefits for the Recovery of Rare Earth Elements from Dilute Leach Solutions. Minerals 2023, 13, 921. [Google Scholar] [CrossRef]
  30. Liu, P.; Zhao, S.; Xie, N.; Yang, L.; Wang, Q.; Wen, Y.; Chen, H.; Tang, Y. Green Approach for Rare Earth Element (REE) Recovery from Coal Fly Ash. Environ. Sci. Technol. 2023, 57, 5414–5423. [Google Scholar] [CrossRef]
  31. Salfate, G.; Sánchez, J. Rare Earth Elements Uptake by Synthetic Polymeric and Cellulose-Based Materials: A Review. Polymers 2022, 14, 4786. [Google Scholar] [CrossRef]
  32. Zhang, Y.; Yan, J.; Xu, J.; Tian, C.; Matyjaszewski, K.; Tilton, R.D.; Lowry, G.V. Phosphate polymer nanogel for selective and efficient rare earth element recovery. Environ. Sci. Technol. 2021, 55, 12549–12560. [Google Scholar] [CrossRef] [PubMed]
  33. Nkinahamira, F.; Alsbaiee, A.; Zeng, Q.; Li, Y.; Zhang, Y.; Feng, M.; Yu, C.-P.; Sun, Q. Selective and fast recovery of rare earth elements from industrial wastewater by porous β-cyclodextrin and magnetic β-cyclodextrin polymers. Water Res. 2020, 181, 115857. [Google Scholar] [CrossRef] [PubMed]
  34. Laurino, J.P.; Mustacato, J.; Huba, Z.J. Rare earth element recovery from acidic extracts of Florida Phosphate mining materials using Chelating polymer 1-Octadecene, polymer with 2, 5-Furandione, Sodium salt. Minerals 2019, 9, 477. [Google Scholar] [CrossRef]
  35. Iftekhar, S.; Heidari, G.; Amanat, N.; Zare, E.N.; Asif, M.B.; Hassanpour, M.; Lehto, V.P.; Sillanpaa, M. Porous materials for the recovery of rare earth elements, platinum group metals, and other valuable metals: A review. Environ. Chem. Lett. 2022, 20, 3697–3746. [Google Scholar] [CrossRef]
  36. Yusoff, M.M.; Mostapa, N.R.N.; Sarkar, M.S.; Biswas, T.K.; Rahman, M.L.; Arshad, S.E.; Sarjadi, M.S.; Kulkarni, A.D. Synthesis of ion imprinted polymers for selective recognition and separation of rare earth metals. J. Rare Earths 2017, 35, 177–186. [Google Scholar] [CrossRef]
  37. Di, T.; Tan, D.; Yu, Q.; Lin, J.; Zhu, T.; Li, T.; Li, L. Ultra-high performance of hyper-crosslinked phosphate-based polymer for uranium and rare earth element adsorption in aqueous solution. Langmuir 2019, 35, 13860–13871. [Google Scholar] [CrossRef] [PubMed]
  38. Kato, K.; Uchida, E.; Kang, E.-T.; Uyama, Y.; Ikada, Y. Polymer surface with graft chains. Prog. Polym. Sci. 2003, 28, 209–259. [Google Scholar] [CrossRef]
  39. Bousquet, A.; Awada, H.; Hiorns, R.C.; Dagron-Lartigau, C.; Billon, L. Conjugated-polymer grafting on inorganic and organic substrates: A new trend in organic electronic materials. Prog. Polym. Sci. 2014, 39, 1847–1877. [Google Scholar] [CrossRef]
  40. Bhattacharya, A.; Misra, B. Grafting: A versatile means to modify polymers: Techniques, factors and applications. Prog. Polym. Sci. 2004, 29, 767–814. [Google Scholar] [CrossRef]
  41. Rodrigues, D.G.; Monge, S.; Pellet-Rostaing, S.; Dacheux, N.; Bouyer, D.; Faur, C. A new carbamoylmethylphosphonic acid-based polymer for the selective sorption of rare earth elements. Chem. Eng. J. 2019, 371, 857–867. [Google Scholar] [CrossRef]
  42. Vapnik, H.; Elbert, J.; Su, X. Redox-copolymers for the recovery of rare earth elements by electrochemically regenerated ion-exchange. J. Mater. Chem. A 2021, 9, 20068–20077. [Google Scholar] [CrossRef]
  43. Pereao, O.; Laatikainen, K.; Bode-Aluko, C.; Fatoba, O.; Omoniyi, E.; Kochnev, Y.; Nechaev, A.; Apel, P.; Petrik, L. Synthesis and characterisation of diglycolic acid functionalised polyethylene terephthalate nanofibers for rare earth elements recovery. J. Environ. Chem. Eng. 2021, 9, 105902. [Google Scholar] [CrossRef]
  44. Oye Auke, R.; Arrachart, G.; Tavernier, R.; David, G.; Pellet-Rostaing, S. Terephthalaldehyde–phenolic resins as a solid-phase extraction system for the recovery of rare-earth elements. Polymers 2022, 14, 311. [Google Scholar] [CrossRef] [PubMed]
  45. Callura, J.C.; Shi, Q.; Dzombak, D.A.; Karamalidis, A.K. Selective recovery of rare earth elements with ligand-functionalized polymers in fixed-bed adsorption columns. Sep. Purif. Technol. 2021, 265, 118472. [Google Scholar] [CrossRef]
  46. Rychkov, V.; Kirillov, E.; Kirillov, S.; Bunkov, G.; Botalov, M.; Semenishchev, V.; Smyshlyaev, D.; Malyshev, A.; Taukin, A.; Akcil, A. Rare earth element preconcentration from various primary and secondary sources by polymeric ion exchange resins. Sep. Purif. Rev. 2022, 51, 468–483. [Google Scholar] [CrossRef]
  47. Pinto, D.; Martins, A. Electrochemical elution of a cation-exchange polymeric resin for yttrium and rare earth recovery using a statistical approach. Hydrometallurgy 2001, 60, 99–104. [Google Scholar] [CrossRef]
  48. Li, X.-Z.; Sun, Y.-P. Evaluation of ionic imprinted polymers by electrochemical recognition of rare earth ions. Hydrometallurgy 2007, 87, 63–71. [Google Scholar] [CrossRef]
  49. Cui, H.; Feng, X.; Shi, J.; Liu, W.; Yan, N.; Rao, G.; Wang, W. A facile process for enhanced rare earth elements separation from dilute solutions using N, N-di (2-ethylhexyl)-diglycolamide grafted polymer resin. Sep. Purif. Technol. 2020, 234, 116096. [Google Scholar] [CrossRef]
  50. Archer, W.R.; Iftekhar, N.; Fiorito, A.; Winn, S.A.; Schulz, M.D. Synthesis of Phosphonated Polymer Resins for the Extraction of Rare-Earth Elements. ACS Appl. Polym. Mater. 2022, 4, 2506–2512. [Google Scholar] [CrossRef]
  51. Das, N.; Das, D. Recovery of rare earth metals through biosorption: An overview. J. Rare Earths 2013, 31, 933–943. [Google Scholar] [CrossRef]
  52. Allam, E.M.; Lashen, T.A.; Abou El-Enein, S.A.; Hassanin, M.A.; Sakr, A.K.; Hanfi, M.Y.; Sayyed, M.; Al-Otaibi, J.S.; Cheira, M.F. Cetylpyridinium bromide/polyvinyl chloride for substantially efficient capture of rare earth elements from chloride solution. Polymers 2022, 14, 954. [Google Scholar] [CrossRef] [PubMed]
  53. Hammache, Z.; Bensaadi, S.; Berbar, Y.; Audebrand, N.; Szymczyk, A.; Amara, M. Recovery of rare earth elements from electronic waste by diffusion dialysis. Sep. Purif. Technol. 2021, 254, 117641. [Google Scholar] [CrossRef]
  54. Chen, L.; Wu, Y.; Dong, H.; Meng, M.; Li, C.; Yan, Y.; Chen, J. An overview on membrane strategies for rare earths extraction and separation. Sep. Purif. Technol. 2018, 197, 70–85. [Google Scholar] [CrossRef]
  55. Pereao, O.; Bode-Aluko, C.; Fatoba, O.; Laatikainen, K.; Petrik, L. Rare earth elements removal techniques from water/wastewater: A review. Desalin. Water Treat 2018, 130, 71–86. [Google Scholar] [CrossRef]
  56. Valappil, R.S.K.; Ghasem, N.; Al-Marzouqi, M. Current and future trends in polymer membrane-based gas separation technology: A comprehensive review. J. Ind. Eng. Chem. 2021, 98, 103–129. [Google Scholar] [CrossRef]
  57. Jha, R.; Rao, M.D.; Meshram, A.; Verma, H.R.; Singh, K.K. Potential of polymer inclusion membrane process for selective recovery of metal values from waste printed circuit boards: A review. J. Clean. Prod. 2020, 265, 121621. [Google Scholar] [CrossRef]
  58. Marjani, A.; Taghvaie Nakhjiri, A.; Adimi, M.; Fathinejad Jirandehi, H.; Shirazian, S. Modification of polyethersulfone membrane using MWCNT-NH2 nanoparticles and its application in the separation of azeotropic solutions by means of pervaporation. PLoS ONE 2020, 15, e0236529. [Google Scholar] [CrossRef] [PubMed]
  59. López, J.; Reig, M.; Gibert, O.; Torres, E.; Ayora, C.; Cortina, J.-L. Application of nanofiltration for acidic waters containing rare earth elements: Influence of transition elements, acidity and membrane stability. Desalination 2018, 430, 33–44. [Google Scholar] [CrossRef]
  60. López, J.; Reig, M.; Vecino, X.; Gibert, O.; Cortina, J. Comparison of acid-resistant ceramic and polymeric nanofiltration membranes for acid mine waters treatment. Chem. Eng. J. 2020, 382, 122786. [Google Scholar] [CrossRef]
  61. Lai, W.; Li, Z.; Bai, J.; Xiao, L.; Zheng, P.; Bai, L.; Yang, Y.; Liao, C.; Shan, L.; Luo, S. Acid-Resistant Nanofiltration Facilitated Nonsaponified Extraction of Rare-Earth Elements. Ind. Eng. Chem. Res. 2023, 62, 11930–11938. [Google Scholar] [CrossRef]
  62. Chen, G.E.; Sun, D.; Xu, Z.L. Rare earth ion from aqueous solution removed by polymer enhanced ultrafiltration process. Adv. Mater. Res. 2011, 233, 959–964. [Google Scholar] [CrossRef]
  63. Kose-Mutlu, B.; Hsu-Kim, H.; Wiesner, M.R. Separation of rare earth elements from mixed-metal feedstocks by micelle enhanced ultrafiltration with sodium dodecyl sulfate. Environ. Technol. 2022, 43, 1013–1025. [Google Scholar] [CrossRef] [PubMed]
  64. Hammami, M.; Ennigrou, D.J.; Naifer, K.H.; Ferid, M. Retention of samarium ions from aqueous solutions by poly (acrylic acid)-enhanced ultrafiltration. Desalination Water Treat. 2015, 56, 2715–2722. [Google Scholar] [CrossRef]
  65. Pramanik, B.K.; Shu, L.; Jegatheesan, J.; Shah, K.; Haque, N.; Bhuiyan, M.A. Rejection of rare earth elements from a simulated acid mine drainage using forward osmosis: The role of membrane orientation, solution pH, and temperature variation. Process Saf. Environ. Prot. 2019, 126, 53–59. [Google Scholar] [CrossRef]
  66. Wu, Y.; Lin, R.; Ma, F.; Xing, W.; Pan, J. Three-dimensional macroporous wood-based selective separation membranes decorated with well-designed Nd (III)-imprinted domains: A high-efficiency recovery system for rare earth element. J. Colloid Interface Sci. 2021, 587, 703–714. [Google Scholar] [CrossRef] [PubMed]
  67. Pan, W.; Chen, L.; Wang, Y.; Yan, Y. Selective separation of low concentration rare earths via coordination-induced ion imprinted electrospun membranes. J. Membr. Sci. 2022, 658, 120759. [Google Scholar] [CrossRef]
  68. Wang, Y.; Chen, L.; Yan, Y.; Chen, J.; Dai, J.; Dai, X. Separation of adjacent heavy rare earth Lutetium (III) and Ytterbium (III) by task-specific ionic liquid Cyphos IL 104 embedded polymer inclusion membrane. J. Membr. Sci. 2020, 610, 118263. [Google Scholar] [CrossRef]
  69. Makowka, A.; Pospiech, B. Synthesis of polymer inclusion membranes based on cellulose triacetate for recovery of lanthanum (III) from aqueous solutions. Autex Res. J. 2019, 19, 288–292. [Google Scholar] [CrossRef]
  70. Nielsen, L.E. Cross-linking–effect on physical properties of polymers. J. Macromol. Sci. Part C 1969, 3, 69–103. [Google Scholar] [CrossRef]
  71. Flory, P.J.; Rehner, J., Jr. Statistical mechanics of cross-linked polymer networks II. Swelling. J. Chem. Phys. 1943, 11, 521–526. [Google Scholar] [CrossRef]
  72. Nouri, N.; Ziaei-Rad, S. A molecular dynamics investigation on mechanical properties of cross-linked polymer networks. Macromolecules 2011, 44, 5481–5489. [Google Scholar] [CrossRef]
  73. Li, X.; Zhou, Q.; Yang, H. Ultrafast and stable adsorption–desorption performance for recovery of valuable rare-earth ions using high-density polyacrylic acid brush-grafted polypropylene fibers optimized by RSM models. Ind. Eng. Chem. Res. 2020, 59, 7746–7754. [Google Scholar] [CrossRef]
  74. Ye, Q.; Jin, X.; Zhu, B.; Gao, H.; Wei, N. Lanmodulin-Functionalized Magnetic Nanoparticles as a Highly Selective Biosorbent for Recovery of Rare Earth Elements. Environ. Sci. Technol. 2023, 57, 4276–4285. [Google Scholar] [CrossRef] [PubMed]
  75. Tang, N.; Liang, J.; Niu, C.; Wang, H.; Luo, Y.; Xing, W.; Ye, S.; Liang, C.; Guo, H.; Guo, J. Amidoxime-based materials for uranium recovery and removal. J. Mater. Chem. A 2020, 8, 7588–7625. [Google Scholar] [CrossRef]
  76. He, C.; Salih, K.A.; Wei, Y.; Mira, H.; Abdel-Rahman, A.A.-H.; Elwakeel, K.Z.; Hamza, M.F.; Guibal, E. Efficient recovery of rare earth elements (Pr (III) and Tm (III)) from mining residues using a new phosphorylated hydrogel (Algal Biomass/PEI). Metals 2021, 11, 294. [Google Scholar] [CrossRef]
  77. Wang, Q.; Wilfong, W.C.; Kail, B.W.; Yu, Y.; Gray, M.L. Novel polyethylenimine–acrylamide/SiO2 hybrid hydrogel sorbent for rare-earth-element recycling from aqueous sources. ACS Sustain. Chem. Eng. 2017, 5, 10947–10958. [Google Scholar] [CrossRef]
  78. Ren, S.; Yang, X.; Tang, L.; Du, X.; Li, M.; Yin, X. A chitosan-based Y3+-imprinted hydrogel with reversible thermo-responsibility for the recovery of rare earth metal. Appl. Surf. Sci. 2023, 611, 155602. [Google Scholar] [CrossRef]
  79. Romal, J.R.A.; Ong, S.K. Marine polysaccharide-based hydrogels for critical materials selective removal and recovery: A review. Coord. Chem. Rev. 2023, 482, 215054. [Google Scholar] [CrossRef]
  80. Zhang, Y.S.; Khademhosseini, A. Advances in engineering hydrogels. Science 2017, 356, eaaf3627. [Google Scholar] [CrossRef] [PubMed]
  81. Peppas, N.A.; Hoffman, A.S. Hydrogels. In Biomaterials Science; Elsevier: Amsterdam, The Netherlands, 2020; pp. 153–166. [Google Scholar]
  82. Chirani, N.; Yahia, L.; Gritsch, L.; Motta, F.L.; Chirani, S.; Farè, S. History and applications of hydrogels. J. Biomed. Sci. 2015, 4, 1–23. [Google Scholar]
  83. Ninciuleanu, C.M.; Ianchiș, R.; Alexandrescu, E.; Mihăescu, C.I.; Burlacu, S.; Trică, B.; Nistor, C.L.; Preda, S.; Scomoroscenco, C.; Gîfu, C. Adjusting some properties of poly (methacrylic acid)(nano) composite hydrogels by means of silicon-containing inorganic fillers. Int. J. Mol. Sci. 2022, 23, 10320. [Google Scholar] [CrossRef] [PubMed]
  84. Khalil, M.; Dakroury, G.A.R.S.; Borai, E.H. Efficient sorption and group separation of rare earth elements using modified CuO nanocomposite. Surf. Interfaces 2022, 33, 102233. [Google Scholar] [CrossRef]
  85. Qi, X.-H.; Du, K.-Z.; Feng, M.-L.; Gao, Y.-J.; Huang, X.-Y.; Kanatzidis, M.G. Layered A 2Sn3S7· 1.25 H2O (A= Organic Cation) as efficient ion-exchanger for rare earth element recovery. J. Am. Chem. Soc. 2017, 139, 4314–4317. [Google Scholar] [CrossRef] [PubMed]
  86. Li, C.; Huang, Y.; Lin, Z. Fabrication of titanium phosphate@ graphene oxide nanocomposite and its super performance on Eu 3+ recycling. J. Mater. Chem. A 2014, 2, 14979–14985. [Google Scholar] [CrossRef]
  87. Lee, Y.-R.; Yu, K.; Ravi, S.; Ahn, W.-S. Selective adsorption of rare earth elements over functionalized Cr-MIL-101. ACS Appl. Mater. Interfaces 2018, 10, 23918–23927. [Google Scholar] [CrossRef]
  88. Roosen, J.; Spooren, J.; Binnemans, K. Adsorption performance of functionalized chitosan–silica hybrid materials toward rare earths. J. Mater. Chem. A 2014, 2, 19415–19426. [Google Scholar] [CrossRef]
  89. Hu, Y.; Drouin, E.; Larivière, D.; Kleitz, F.; Fontaine, F.-G. Highly efficient and selective recovery of rare earth elements using mesoporous silica functionalized by preorganized chelating ligands. ACS Appl. Mater. Interfaces 2017, 9, 38584–38593. [Google Scholar] [CrossRef]
  90. Noack, C.W.; Perkins, K.M.; Callura, J.C.; Washburn, N.R.; Dzombak, D.A.; Karamalidis, A.K. Effects of ligand chemistry and geometry on rare earth element partitioning from saline solutions to functionalized adsorbents. ACS Sustain. Chem. Eng. 2016, 4, 6115–6124. [Google Scholar] [CrossRef]
  91. Callura, J.C.; Perkins, K.M.; Baltrus, J.P.; Washburn, N.R.; Dzombak, D.A.; Karamalidis, A.K. Adsorption kinetics, thermodynamics, and isotherm studies for functionalized lanthanide-chelating resins. J. Colloid Interface Sci. 2019, 557, 465–477. [Google Scholar] [CrossRef]
  92. Rahman, M.M.; Awual, M.R.; Asiri, A.M. Preparation and evaluation of composite hybrid nanomaterials for rare-earth elements separation and recovery. Sep. Purif. Technol. 2020, 253, 117515. [Google Scholar] [CrossRef]
  93. Cardoso, C.E.; Almeida, J.C.; Lopes, C.B.; Trindade, T.; Vale, C.; Pereira, E. Recovery of rare earth elements by carbon-based nanomaterials—A review. Nanomaterials 2019, 9, 814. [Google Scholar] [CrossRef]
  94. Yan, Q.; Yang, Y.; Chen, W.; Weng, X.; Owens, G.; Chen, Z. Recovery and removal of rare earth elements from mine wastewater using synthesized bio-nanoparticles derived from Bacillus cereus. Chem. Eng. J. 2023, 459, 141585. [Google Scholar] [CrossRef]
  95. Yan, Q.; Zhang, Z.; Chen, Z. Microbial synthesized iron nanoparticles after recovering rare earth elements used for removing arsenic in mine groundwater. Sep. Purif. Technol. 2023, 327, 124938. [Google Scholar] [CrossRef]
  96. Iftekhar, S.; Srivastava, V.; Casas, A.; Sillanpää, M. Synthesis of novel GA-g-PAM/SiO2 nanocomposite for the recovery of rare earth elements (REE) ions from aqueous solution. J. Clean. Prod. 2018, 170, 251–259. [Google Scholar] [CrossRef]
  97. Bao, S.; Wang, Y.; Wei, Z.; Yang, W.; Yu, Y. Highly efficient recovery of heavy rare earth elements by using an amino-functionalized magnetic graphene oxide with acid and base resistance. J. Hazard. Mater. 2022, 424, 127370. [Google Scholar] [CrossRef] [PubMed]
  98. Comandella, D.; Bonani, W.; Ciscar, J.B.; Ponti, J.; Cologna, M.; Popa, K.; Gilliland, D. Recovery of rare earth elements by nanometric CeO2 embedded into electrospun PVA nanofibres. RSC Adv. 2021, 11, 19351–19362. [Google Scholar] [CrossRef] [PubMed]
  99. Ravi, S.; Kim, S.-Y.; Bae, Y.-S. Novel benzylphosphate-based covalent porous organic polymers for the effective capture of rare earth elements from aqueous solutions. J. Hazard. Mater. 2022, 424, 127356. [Google Scholar] [CrossRef]
  100. Filho, W.L.; Kotter, R.; Özuyar, P.G.; Abubakar, I.R.; Eustachio, J.H.P.P.; Matandirotya, N.R. Understanding Rare Earth Elements as Critical Raw Materials. Sustainability 2023, 15, 1919. [Google Scholar] [CrossRef]
  101. Chatterjee, S.; Mastalerz, M.; Drobniak, A.; Karacan, C.Ö. Machine learning and data augmentation approach for identification of rare earth element potential in Indiana Coals, USA. Int. J. Coal Geol. 2022, 259, 104054. [Google Scholar] [CrossRef]
  102. Iqbal, J.; Tyagi, A.; Jain, M. Artificial neural network based modeling of liquid membranes for separation of dysprosium. J. Rare Earths 2021, 41, 440–445. [Google Scholar] [CrossRef]
  103. de Vargas Brião, G.; Franco, D.S.P.; da Silva, F.V.; da Silva, M.G.C.; Vieira, M.G.A. Critical rare earth metal adsorption onto expanded vermiculite: Accurate modeling through response surface methodology and machine learning techniques. Sustain. Chem. Pharm. 2023, 31, 100938. [Google Scholar] [CrossRef]
Gels 09 00775 g001

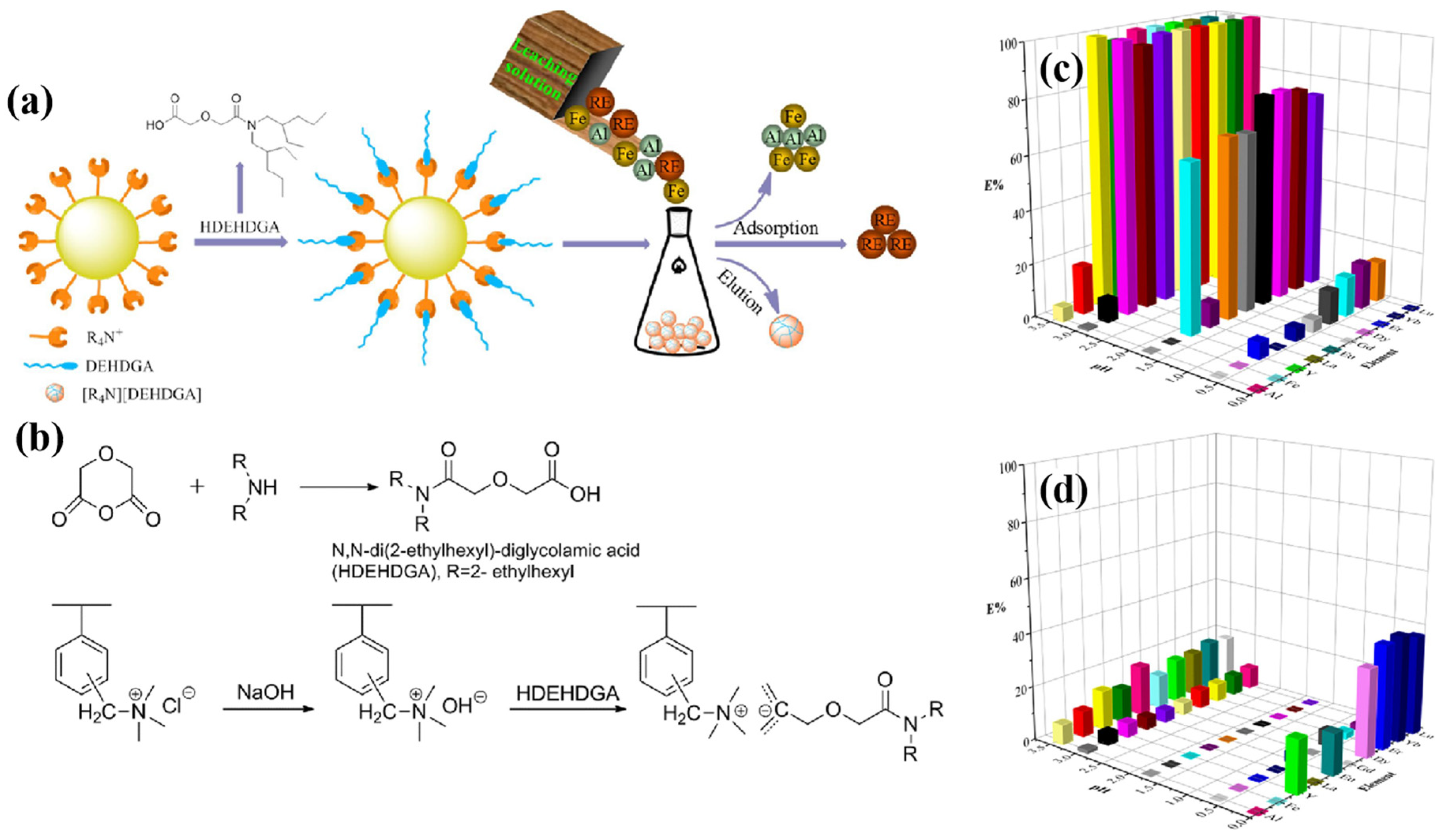

Figure 1. (a) Illustration of polymer resin used for REEs recovery. (b) A schematic of the preparation of N,N-di(2-ethylhexyl)-diglycolamide grafted polymer resin. Relationship among element, pH, and adsorption capacities for (c) [R4N][DEHDGA] resin and (d) the DGA−normal resin. Reprinted with the permission from Ref. [49].
Figure 1. (a) Illustration of polymer resin used for REEs recovery. (b) A schematic of the preparation of N,N-di(2-ethylhexyl)-diglycolamide grafted polymer resin. Relationship among element, pH, and adsorption capacities for (c) [R4N][DEHDGA] resin and (d) the DGA−normal resin. Reprinted with the permission from Ref. [49].
Gels 09 00775 g001
Gels 09 00775 g002

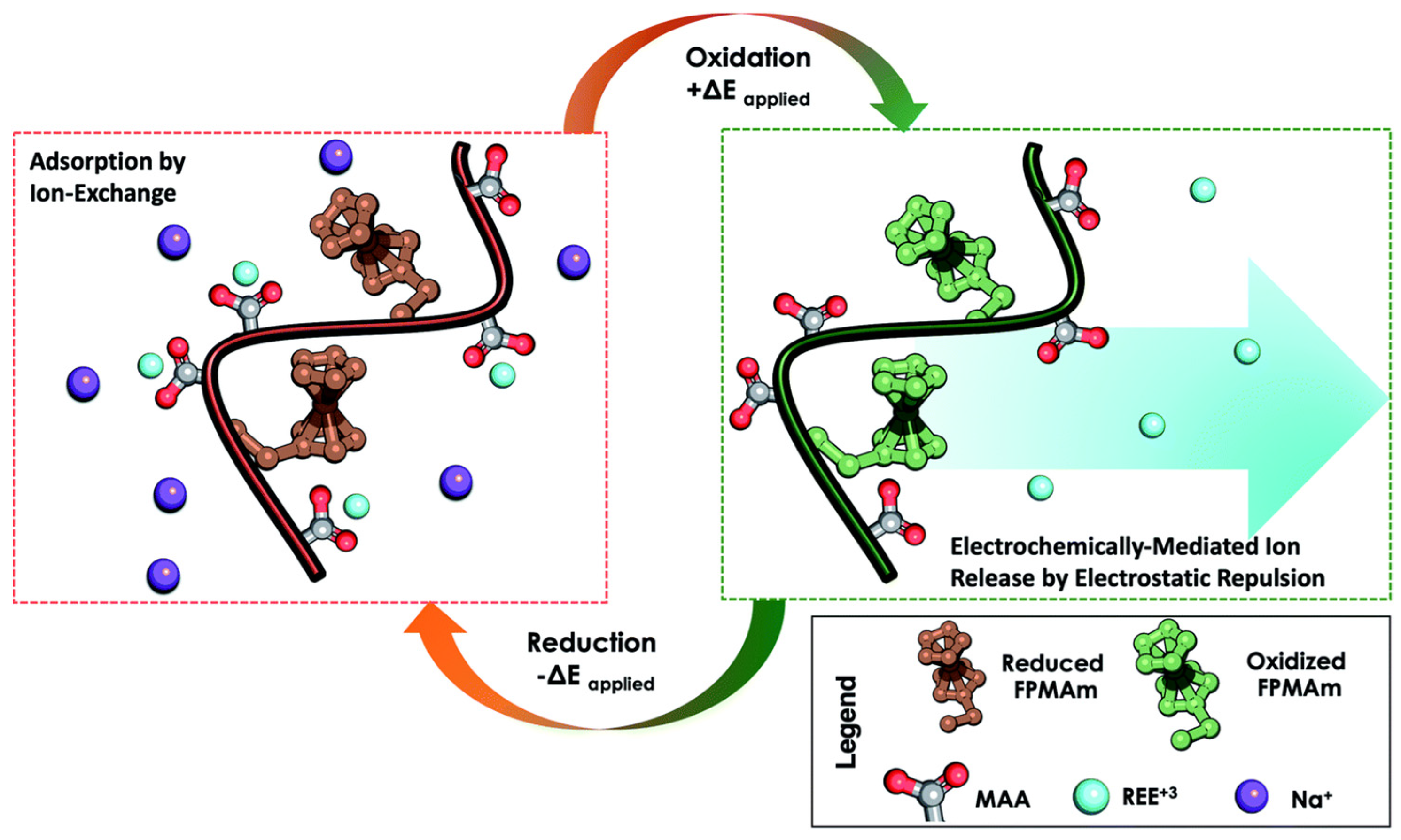

Figure 2. Overview of the reversible capture and release of REEs by P(FPMAm−co−MAA) through electrochemically regenerated ion exchange. During adsorption, REE ions are captured by chemical ion exchange. During desorption, ferrocene (Fc) is oxidized to ferrocenium (Fc+) electrochemically, allowing for desorption of the REE ions through electrostatic repulsion. Reduction of ferrocenium (Fc+) back to ferrocene (Fc) is required for electrode cycling. Reprinted with the permission from Ref. [42].
Figure 2. Overview of the reversible capture and release of REEs by P(FPMAm−co−MAA) through electrochemically regenerated ion exchange. During adsorption, REE ions are captured by chemical ion exchange. During desorption, ferrocene (Fc) is oxidized to ferrocenium (Fc+) electrochemically, allowing for desorption of the REE ions through electrostatic repulsion. Reduction of ferrocenium (Fc+) back to ferrocene (Fc) is required for electrode cycling. Reprinted with the permission from Ref. [42].
Gels 09 00775 g002
Gels 09 00775 g003

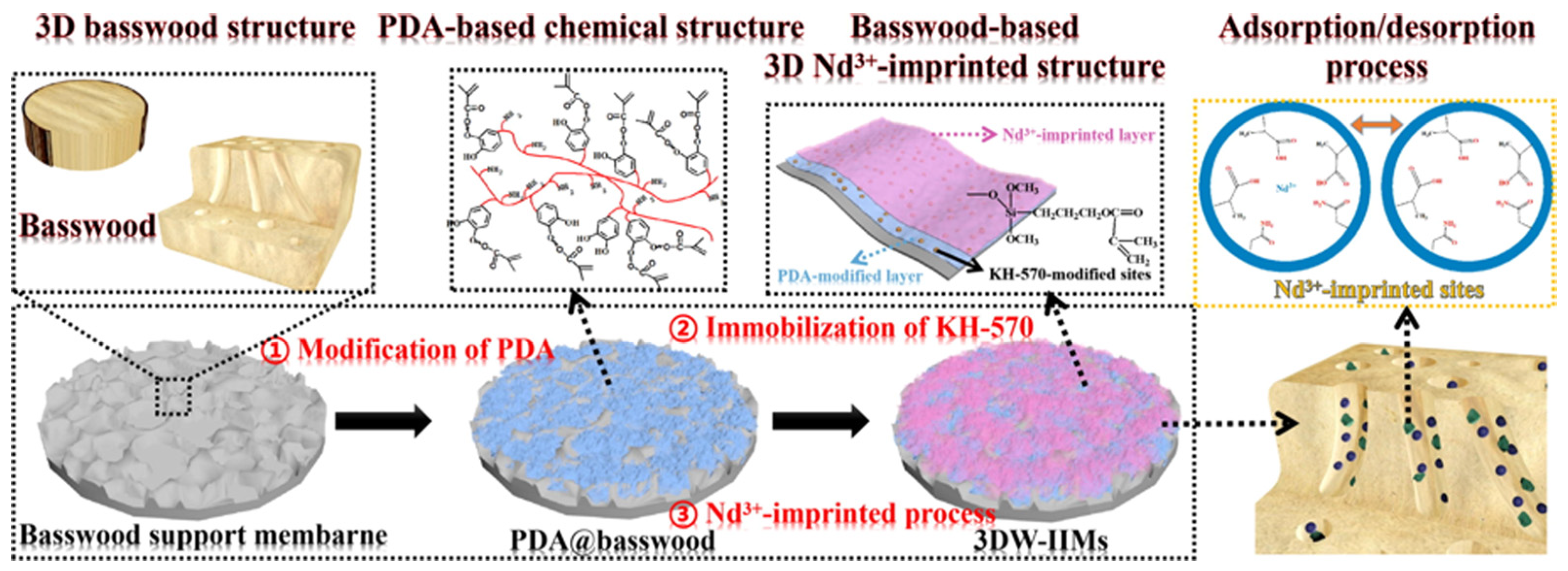

Figure 3. Schematic diagram for the synthesis procedures of 3DW-IIMs. Reprinted with the permission from Ref. [66].
Figure 3. Schematic diagram for the synthesis procedures of 3DW-IIMs. Reprinted with the permission from Ref. [66].
Gels 09 00775 g003
Gels 09 00775 g004
Figure 4. Schematic illustration of IIM preparation for specific recognition of REEs. Reprinted with the permission from Ref. [67].
Figure 4. Schematic illustration of IIM preparation for specific recognition of REEs. Reprinted with the permission from Ref. [67].
Gels 09 00775 g004
Gels 09 00775 g005

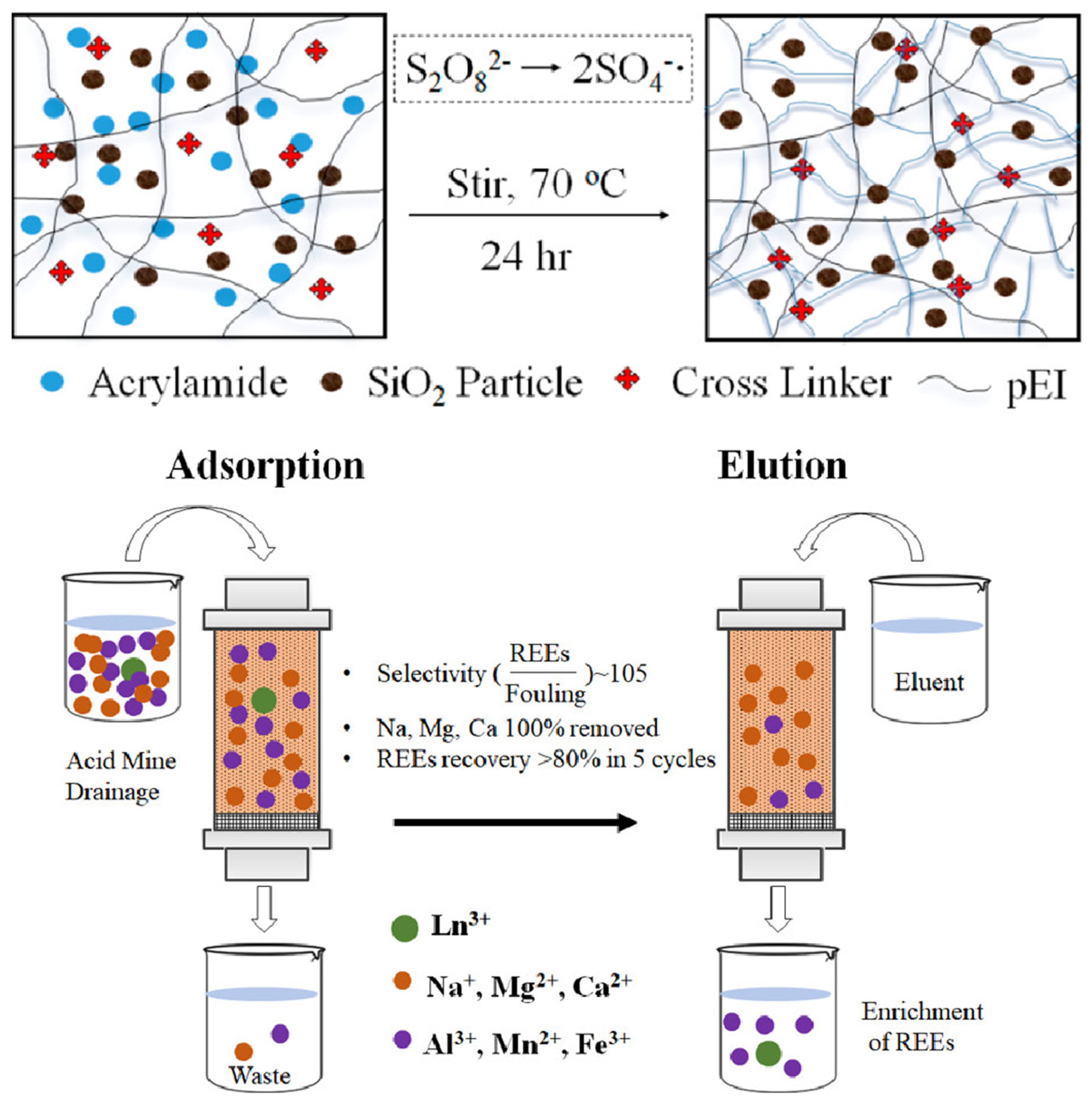

Figure 5. Preparation of Grafted Hybrid Hydrogel Network for adsorption of rare-earth metal. Reprinted with the permission from ref. [77].
Figure 5. Preparation of Grafted Hybrid Hydrogel Network for adsorption of rare-earth metal. Reprinted with the permission from ref. [77].
Gels 09 00775 g005
Gels 09 00775 g006

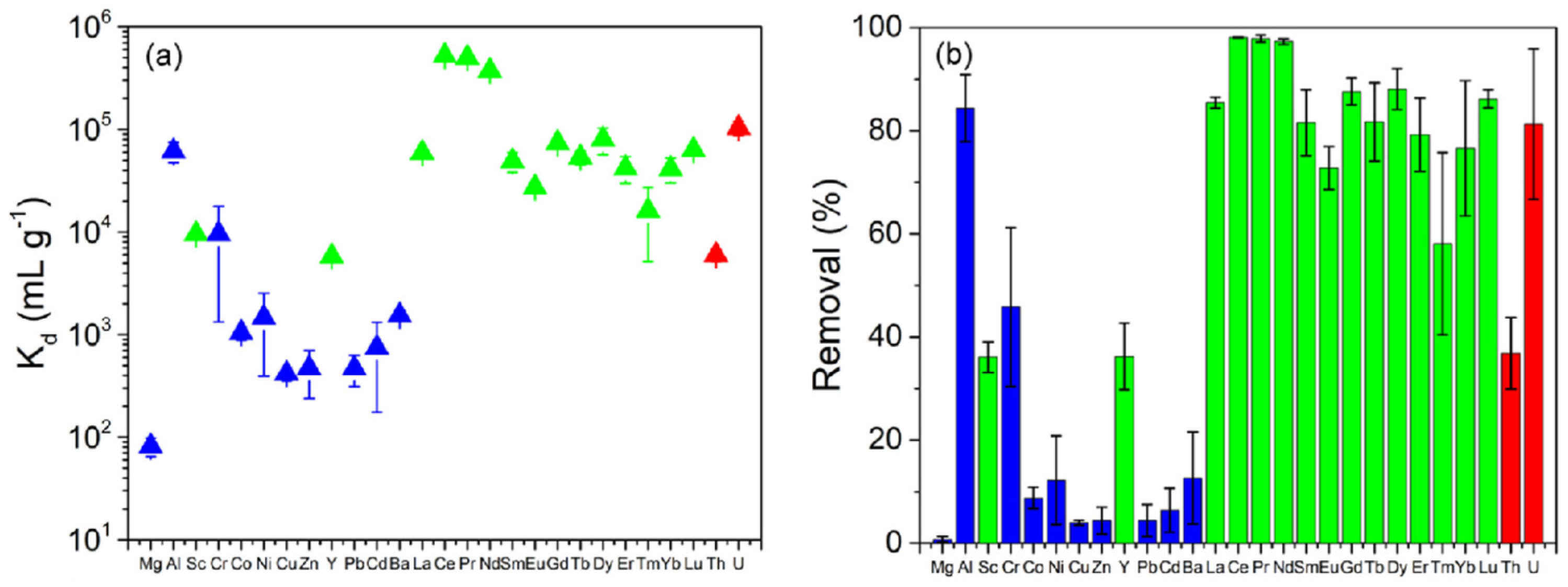

Figure 6. (a) Distribution coefficients (Kd) of PPN for major competing ions and REE species assessed in coal fly ash leachate at pH 5.0. (b) Percent removal of competing ions and REE species by 100 mg L−1 PPN from coal fly ash leachate at pH 5.0. Elements on the X−axis are labeled in order of increasing molecular weight. Major competing ions are marked blue, REEs in green, and radionuclides in red. Reprinted with the permission from Ref. [32].
Figure 6. (a) Distribution coefficients (Kd) of PPN for major competing ions and REE species assessed in coal fly ash leachate at pH 5.0. (b) Percent removal of competing ions and REE species by 100 mg L−1 PPN from coal fly ash leachate at pH 5.0. Elements on the X−axis are labeled in order of increasing molecular weight. Major competing ions are marked blue, REEs in green, and radionuclides in red. Reprinted with the permission from Ref. [32].
Gels 09 00775 g006
Gels 09 00775 g007

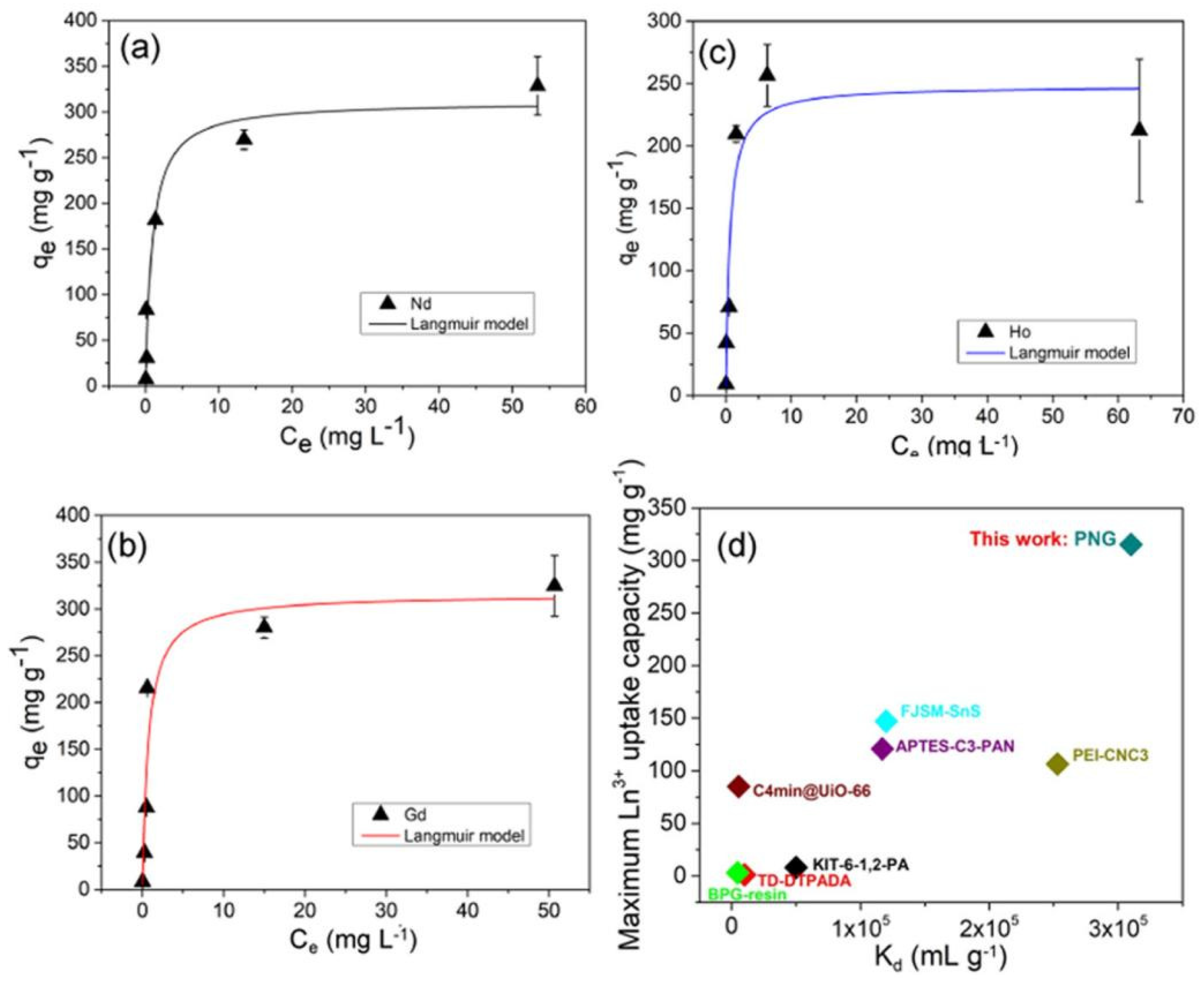

Figure 7. Sorption isotherm of (a) Nd, (b) Gd, and (c) Ho at pH 5.0 with Nd, Gd, or Ho concentration varying from 1 to 100 mg L−1 with 100 mg L−1 PPN concentration with no other species added to the solution. (d) Comparison of lanthanide (Ln3+) saturation uptake capacity (qm) and distribution coefficient (Kd) for PPN and other benchmark REE sorbent materials at pH ≤ 7.5. Reprinted with the permission from Ref. [32].
Figure 7. Sorption isotherm of (a) Nd, (b) Gd, and (c) Ho at pH 5.0 with Nd, Gd, or Ho concentration varying from 1 to 100 mg L−1 with 100 mg L−1 PPN concentration with no other species added to the solution. (d) Comparison of lanthanide (Ln3+) saturation uptake capacity (qm) and distribution coefficient (Kd) for PPN and other benchmark REE sorbent materials at pH ≤ 7.5. Reprinted with the permission from Ref. [32].
Gels 09 00775 g007
Gels 09 00775 g008
Figure 8. Illustration of grafted magnetic graphene oxide composites preparation. (a) The separation factor of coexistent cations in the mixture solution (Experimental conditions: the initial concentration of each cations was about 100 mg/L; adsorbent dosage, 1 g/L; pH, 6.0); (b) adsorption capacities of various heavy rare earth elements by GO-APTS and Fe3O4/C/GO-APTS. Reprinted with the permission from Ref. [97].
Figure 8. Illustration of grafted magnetic graphene oxide composites preparation. (a) The separation factor of coexistent cations in the mixture solution (Experimental conditions: the initial concentration of each cations was about 100 mg/L; adsorbent dosage, 1 g/L; pH, 6.0); (b) adsorption capacities of various heavy rare earth elements by GO-APTS and Fe3O4/C/GO-APTS. Reprinted with the permission from Ref. [97].
Gels 09 00775 g008
Gels 09 00775 g009

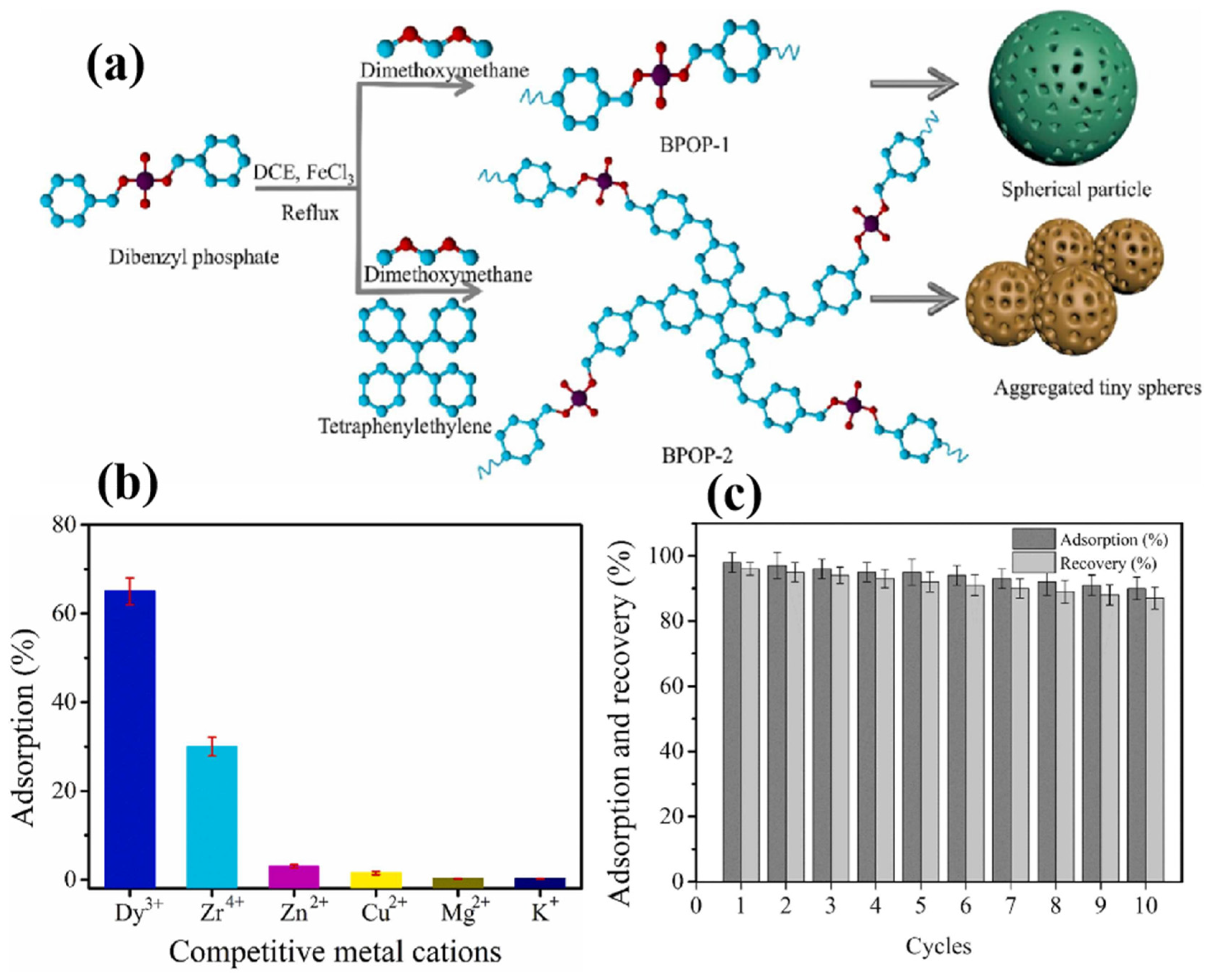

Figure 9. (a) Schematic syntheses of phosphate-based porous organic polymers BPOP-1 and BPOP-2. (b) Selectivity of Dy3+ adsorption to BPOP-2 in the presence of other competitive ions. (c) Adsorbent regeneration test to evaluate the adsorption and recovery of Dy3+in BPOP-2. Reprinted with the permission from Ref. [99].
Figure 9. (a) Schematic syntheses of phosphate-based porous organic polymers BPOP-1 and BPOP-2. (b) Selectivity of Dy3+ adsorption to BPOP-2 in the presence of other competitive ions. (c) Adsorbent regeneration test to evaluate the adsorption and recovery of Dy3+in BPOP-2. Reprinted with the permission from Ref. [99].
Gels 09 00775 g009
Table 1. Comparison of different polymeric membranes commonly employed in REE recovery.
Table 1. Comparison of different polymeric membranes commonly employed in REE recovery.
Polymeric MembranesCompositionAdvantagesApplilcation
Polymeric Resin MembranesCross-linked polymeric resins with functional groupsHigh REE selectivity, regenerate abilitySolution, hydrometallurgical processes
Polymer Inclusion Membranes (PIMs)3D-polymer networkHighly versatile, high stabilityContinuous membrane-based extraction and separation
Phosphate-Functionalized Polymeric Membranesmembranes incorporate phosphate groupsStrong affinity, Excellent selectivityComplex solutions, such as acid mine drainage
Amino-Functionalized Polymeric Membranesmembranes contain amino groupsHigh selectivityRecovery of specific REEs, wastewater treatment
Magnetic Polymer MembranesMagnetic nanoparticles embedded within polymer matricesEasy separationSelective extraction of specific magnetic REEs
Composite Polymeric MembranesCombinations of various polymers, fillers, and additivesCustomizationVersatile for use in various extraction and separation processes
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, H.; Gao, Y. Polymeric Materials for Rare Earth Elements Recovery. Gels 2023, 9, 775. https://doi.org/10.3390/gels9100775

AMA Style

Zhang H, Gao Y. Polymeric Materials for Rare Earth Elements Recovery. Gels. 2023; 9(10):775. https://doi.org/10.3390/gels9100775

Chicago/Turabian Style

Zhang, Hongtao, and Yongfeng Gao. 2023. "Polymeric Materials for Rare Earth Elements Recovery" Gels 9, no. 10: 775. https://doi.org/10.3390/gels9100775

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
